Review

The Self-Assembly of Lignin and Its Application in Nanoparticle Synthesis: A Short Review

by
Pawan Kumar Mishra
1,* and
Adam Ekielski
2
1
Department of Wood Processing Technology, Mendel University in Brno, 61300 Brno, Czech Republic
2
Department of Production Management and Engineering, Warsaw University Of Life Sciences, 02-787 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(2), 243; https://doi.org/10.3390/nano9020243
Submission received: 15 January 2019 / Revised: 3 February 2019 / Accepted: 4 February 2019 / Published: 11 February 2019
Browse Figures
Versions Notes

Abstract

:
Lignin serves as a significant contributor to the natural stock of non-fossilized carbon, second only to cellulose in the biosphere. In this review article, we focus on the self-assembly properties of lignin and their contribution to its effective utilization and valorization. Traditionally, investigations on self-assembly properties of lignin have aimed at understanding the lignification process of the cell wall and using it for efficient delignification for commercial purposes. In recent years (mainly the last three years), an increased number of attempts and reports of technical-lignin nanostructure synthesis with controlled particle size and morphology have been published. This has renewed the interests in the self-assembly properties of technical lignins and their possible applications. Based on the sources and processing methods of lignin, there are significant differences between its structure and properties, which is the primary obstacle in the generalized understanding of the lignin structure and the lignification process occurring within cell walls. The reported studies are also specific to source and processing methods. This work has been divided into two parts. In the first part, the aggregation propensity of lignin based on type, source and extraction method, temperature, and pH of solution is discussed. This is followed by a critical overview of non-covalent interactions and their contribution to the self-associative properties of lignin. The role of self-assembly towards the understanding of xylogenesis and nanoparticle synthesis is also discussed. A particular emphasis is placed on the interaction and forces involved that are used to explain the self-association of lignin.

1. Introduction

Self-assembly is the process of formation of an organized structure or pattern from pre-existing disordered subunits, the condition being the non-involvement of external factors, driven only by internal forces and interaction occurring within the system. Based on the nature of subunits involved, it can be termed as molecular, supramolecular, or nanoparticle self-assembly. The main driving forces can be the attainment of equilibrium or minimization of free energy or inter-unit interactions; the inter-unit interactions are mostly non-covalent in nature.
Lignin, “nature’s glue,” along with hemicelluloses and cellulose micro-fibrils creates the mechanical backbone of vascular plants. The wood-derived lignin can be either of softwood or hardwood origin. Out of these two types, softwood lignin is composed primarily of coniferyl alcohol, condensed and found to be difficult to degrade. Additionally, it shows a relatively higher molecular mass and strong tendency to self-associate in a solution. The number of C-C bonds, 5’ linkages, β-β and β-5 bonds, cross-linking, and branching is also higher in softwood lignin, when compared to hardwood lignin [1]. These differences at structural, chemical, and compositional levels affect the noncovalent bonding and hence the source-dependent properties of the lignin [2].
A basic structure to understand the atom numbering system in lignin is shown in Figure 1. In some cases, α, β, and γ are designated as 7, 8, and 9 positions, respectively. The random and chaotic linkage and branching in addition to supramolecular self-assembly provide lignin with its natural resistance against microbial and enzymatic degradation. On the other hand, this property of self-aggregation and the complex formation with other carbohydrate polymers (cellulose, hemicelluloses, and pectin), which leads to the formation of lignin carbohydrates complexes, create a major bottleneck in isolating pure lignin [3]. The lignin that is used in experiments or available as an industrial byproduct is different from native lignin, and their properties cannot be assumed as being entirely the same as the lignin in plant cell walls. These lignins are commonly termed as technical lignins. Their properties vary according to the source and processing method used for extraction.
The recent rise in reports of self-assembled lignin nanostructures with size tunability and morphology control adds a new dimension to the high-value applications of lignin [4,5,6,7]. The lignin nanostructure utilization in surfactants [8,9], UV protection [10,11], composites [12,13,14,15], and drug delivery [16,17,18,19] are among some of the latest reported studies (Figure 2). In this paper, we attempt to elucidate the progress in understanding 1) the process of lignin self-assembly in xylogenesis and in plant cell wall formation, 2) aggregation propensity and the effect of reaction conditions, 3) noncovalent interactions in molecular and supramolecular self-assembly, and 4) nanostructure formation.

2. Forces and Interactions

2.1. Aggregation Propensity and the Effect of Reaction Conditions

The tendency of lignin to self-assemble in a solution is very well documented. A few models and theories on this aspect have been proposed. The balance of electrostatic repulsion and van der Waals attraction (Derjaguin−Landau−Verwey−Overbeek theory) predicts the behavior of isolated lignin dissolved in a solvent. A number of parameters such as the nature and source of lignin, the pH of the solution [20,21,22,23,24], the temperature [25,26], and the nature of the solvent have also been studied. Investigations of the aggregation propensity or the self-assembly properties of lignin in a solution create essential data for understanding lignification, which in turn can be applied for delignification strategy development, nanoparticle synthesis, and biomimetic nanocomposite synthesis.

2.1.1. Source and Extraction Processes of Lignin

The structure of lignin and/or derived technical lignin is central to the development of its valorization strategies [27]. Nanoparticle synthesis is one of many approaches to achieve this goal. Ideally, a well-defined native structure or with a minimized degree of condensation along with a minimal inorganic component should be the best form of lignin for nanoparticle synthesis. Clarity and homogeneity of the lignin structure will be highly desired to tweak and tune the properties of obtained nanoparticle from any kind of lignin. In this way, the requirements of lignin in nanoparticle synthesis are similar to those for efficient bio-refining approaches, i.e. lignin with minimized condensation and impurities [28]. However, despite the multitude of benefits of “lignin centric” approaches of pulping, it is still far from being an industrial reality [29]. In this paper, we exclude the strategies to retain the original structure and other bio-refining development for lignin valorization and keep our focus on nanoparticle synthesis from condensed technical lignin.
There are two aspects to the understanding of the difference in lignin behavior in solution based on the source and extraction process. First, the difference arising in the lignin structure and composition based on its source (soft wood, hardwood, and crop-based sources) [1]. Second, the lignin extraction from its natural source using some solvent involves bond breakage and hence dissolution. The process itself destroys the natural structure of lignin and leads to some degree of chemical modification; depending on the nature of solvent and process used, lignin undergoes a series of bond breakages and auto-condensations. Therefore, the family of “non-native” lignins with a respective influence of processing conditions is called technical lignin. Lignin in nature is formed by the polymerization of p-coumaryl alcohol, coniferyl alcohol, and sinapyl alcohol, bearing p-hydroxyphenyl (H), guaiacyl (G), and syringyl (S) units, respectively (Figure 1). Lignin based on herbaceous crops shows a higher number of H units. Gymnosperm-based (softwood) lignin lacks S units, while angiosperm-based (hardwood) lignin is rich in G and S. The structure of primary monomer affects the macromolecular structure (branching and cross-linking with the polysaccharides) as well as the degradability and processability of the source biomass [30,31,32,33].
The radical polymerization leads to several types of linkage formation, but the β-O-4 linkage is typically the most abundant. It is also one of the most easily cleaved bonds by most of the commonly used pretreatment methods. Hence, the β-O-4 content of extracted lignin is mostly affected by pretreatment and the severity of the methods. Sheng et al. observed that sulfonation lowered the surface energy of lignin and thus enhanced surface properties such as the van der waal interaction, Lewis acid base interactions, and the interaction of lignin with different ions [34]. In another study, Dawy et al. [35] (1997) reported the difference in intermolecular hydrogen bonding in samples of rice straw lignin, cotton straw lignin, and lignosulphonate lignin from bagasse. They also suggested a higher content methoxyl group in lignosulphonate as compared to other lignins (soda lignin from rice straw and cotton straw) and observed that many phenolic groups increased in lignosulphonate lignin by acid treatment as compared to the hydrogen peroxide treatment [35].
In a study by Constant et al. [28] (2016), six technical lignins covering three main industrial pulping methods (Indulin AT Kraft, Protobind 1000 soda lignin and Alcell, poplar, spruce, and wheat straw organosolv lignins) were comprehensively characterized by lignin composition analysis. The lignin molar mass was observed in the order: Indulin Kraft > soda P1000 > Alcell > OS-W ∼OS-P ∼OS-S, for all the methods used. Structural identification along with quantification of aromatic units and inter-unit linkages indicated that all types of lignin were degraded and condensed during processing [28].
In another study by Ratnaweera et al. [36] (2015), it was demonstrated that the assembly of lignin molecules in solvents varied based on the source of lignin and that the amount of methoxy groups present, i.e. the ability to crosslink, directly affected its associative propensities. The aggregates formed from softwood and hardwood lignins consisted of cylindrical blocks of 4–10 monolignol units, and the number of monomers per block depended on lignin concentration. These building blocks arranged themselves into large aggregates with well-defined shapes such as dense isotropic structures, random, network-like coils (interconnected nets), and two-dimensional nanomaterials depending on the source of lignin. It is notable that the lignin concentrations used in this work were above the overlap (threshold) concentration, which caused overlapping of pervaded volumes of the outermost chains, thereby resulting in the decrease in aggregate size with concentration for the loosely packed aggregates formed by both types (softwood and hardwood) of wood-based lignin. The densely packed lignin behaved in an opposite manner, wherein the lignin molecules associate to form larger aggregates with an increase in the concentration [36].
The hydroxyl group content directly affects the ability to crosslink, hence the associative propensity of lignin. The number of hydroxyl groups varies with the source and extraction process, as seen in Table 1. The source and extraction process of lignin directly affects the number of cross-linking sites (methoxyl and hydroxyl groups), hence affecting its aggregation intensity and tendency by affecting non-covalent interactions (the van der Waal interaction, Lewis acid base interactions, the interaction of lignin with different ions, and hydrogen bonding) that are seemingly the driving forces of the nucleation and growth of nanoparticles in a lignin solution.

2.1.2. Nature and pH of Solvent

The solubility of polymer in a solvent involves chain disentanglement and solvent diffusion with a thermodynamically compatible solvent [38]. The solvent has mainly two roles in the context of this paper: first, bond cleavage and the dissolution of lignin from its natural source and, second, the nucleation and growth of the nanoparticle. Different solvents affect the nature and extent of bond breakage in different manners [39]. The availability of hydroxyl groups and lignin’s tendency to form hydrogen bonds makes it challenging to assemble its nanostructures in aqueous solutions [11,40]. However, utilizing the aqueous solution (can be acidic, alkaline, or neutral) as an anti-solvent (miscible with solution but does not dissolve the solute) is crucial for hydrophobic interactions that have been attributed as driving forces for lignin nanoparticle synthesis [41,42]. The dissolution of lignin in an aqueous solution of high pH can be attributed to the ionization of phenolic hydroxyl groups [43]. The effect of pH can be understood by its impact on this ionization, which in turn affects the electrostatic repulsion between similar charges—hence the associative behavior (hydrodynamic radius and self-assembly) of lignin.
The studies based on light scattering show self-association of Kraft lignin below pH 11.5, and pulse field gradient NMR data shows similar results below pH 9.0. Hysteresis explained the difference in the behavior of the protonation of the phenolic group, which depends on the condition that lignin is directly dissolved at a higher pH or that pH is increased gradually after dissolving the lignin at a lower pH. Additionally, on the basis of diffusion coefficients values, relatively little association was found to be occurring in a nonaqueous solvent in comparison to the aqueous solvent, which is attributed to the former’s low viscosity and increased translational mobility [44].
The additional role of pH is in the stabilization of nanoparticle suspension, which again can be attributed to the ionization of surface groups. In our experiment, we observed the role of alkaline pH-induced ionization and thereby the electrostatic repulsion responsible for the stability of the suspension [10]. In a study by Salenting and Schubert [45] (2017), the small angle X-ray scattering (SAXS) with model independent data analysis in combination with Dynamic Light Scattering (DLS) and Scanning Electron Microscopy (SEM), the colloidal transformations from ∼6 nm polymer assemblies of approximate ellipsoidal shape to well-defined submicron particles was observed with solvent change (THF—tetrahydrfuran) and pH. These authors reported it as a method to tune the synthesis of submicron particles using the variation in solvents and pH for high-value applications of lignin (drug delivery) [45]. In a similair study by Yang et al. [46] (2018), the solution struture of lignin in EG (ethylene glycol) and DMSO (dimethyl sulfoxide) were studied using small angle neutron scattering (SANS) and dynamic light scattering. They concluded that hydrogen bond formation is the main driving force lignin dissolution in EG, but it was not suggested to be necessary for dissolution in DMSO [46].
In a study by Sameni et al. [47] (2017), lignin–solvent interactions and lignin solubility in different organic solvents was studied using the solubility parameter (Hilderbrand theory) and the hydrogen bonding parameter (Hansen theory). According to the Hilderbrand theory, the closer the solubility parameter of solute and solvents, the better the solubility, and vice versa (compounds with good solubility in a solvent have a closer solubility paremeter). They observed that the solubility of lignin in different organic solvents cannot be acurately estimated using Hilderbrand solubility parameters. The maximum solubility of lignin was observed in pyridine and DMSO. The solubulity of lignin was also found to be dependent on molecular weight and the number of hydroxyl groups in lignin units [47].
A study of lignin chracteristics affecting its solubility aquaous solutions by Evstigneev [48] (2011) suggested that the solubility of lignin in aqueous alkali solutions is determined by the ratio of the number of phenolic hydroxyls (PHs) to the number of phenylpropane units (PPUs) in the lignin molecule. The minimal PH/PPU ratio for the dissolution of lignin was also reported to be 31:100 [48]. Based on the above-metioned reports and evidence, it can be comfortably hypothesized that the nature of a solvent affects the solvent–lignin interaction in the dissolution and agglomeration of lignin (hydrogen bonding in the case of EG and DMSO). Moreover, the role of pH in aqueous systems affecting the protonation and deprotonation (electrostatic interactions) of crosslinking sites and/or surface moities must be investigated and optimized for every method of lignin nanoparticle synthesis. Each case (type of techinical lignin) of precipitation (for naoparticle synthesis) needs to be studied and optimized in its specific and characteristic way.

2.1.3. Effect of Temperature

The temperature as a major parameter for the supporting self-assembly of lignin has been less investigated. Still, some reports can be used for indirect evidence. A low temperature favors the self-association of lignin, and this was reported and used to explain low temperature-induced aggregation and lignin particle formation [10]. In another study, the unique property of lignosulphate to lose a surface charge in 0.1 M NaCl at 40 °C was explained by the presence of water molecules in two hydration shells—tightly bound inner shells and loosely bound outer shells—required for the group to retain charge; the increase in temperature caused the destruction of the outer hydration shell and hence a loss of charge [25]. This study also supported the role of temperature as a contributing factor to the lignin’s associative behavior in aqueous alkaline solutions. The solution behavior at different conditions and understanding of self-associative properties of lignin prepared the background for technical lignin-based nanostructure synthesis. The effect of temperature on self-assembly can be understood by the combined effect of the ionization constant (overall charge) and non-covalent interactions (hydrophobic interactions).
In a study on fractionation of technical lignins by Helander et al. [49] (2013), the separation of lignins from weak black liquor using a membrane with a cut-off of 1000 Da was performed. These authors concluded that the extraction of low molecular weight lignin could not be achieved at a higher temperature (70 °C, at pH 9) due to the formation of fairly lagre lignin agglomerates. However, lowering the pH to 7 and 4 led to finer particle formation, and some fractionation could be achieved. In addition to that, Generalized conclusions regarding the effect of temperature as a standalone factor on the self-associative properties of amphiphillic polymers were difficult to draw, as it always works in combination with other factors such as the pH of the soultion and the ionization contant of polymers [49].

2.2. Noncovalent Interactions and Self-Assembly

In the process of agglomerate formation and the stabilization of lignin, noncovalent interactions play a significant role. These interactions also affect the thermal properties of lignin, as strong interactions will reduce the thermal molecular motion of the lignin molecule. Associative properties of lignin are affected by the source of lignin and the nature of the solvent used, which can be understood by the difference in native structure and the composition of lignin. The solvent plays a central role in delignification of source-biomass by affecting bond cleavage and hence decides the chemical structure and the nature of the extracted lignin [39]. Although evidence of the self-assembly of lignin is available in both types of aqueous and non-aquaous media, the nature of forces working in different solvents cannot necessarily be assumed to be same [50]. Various forces are responsible for lignin aggregation in different solvents. Such forces can include, as evidenced by previous reports, π–π interactions, H bonding, van der Waals forces, and chain entanglement (in order of bond energy, van der Waals forces (<1 and 4 kJ·mol−1), hydrogen bonding (between 4 and 30 kJ·mol−1), and π–π interaction (between 4 and 30 kJ·mol−1) [51]).

π–π Stacking/Interactions

These can be understood as forces of interaction between two aromatic rings, which are attractive in nature. This stacking is mainly favored in a face-centered configuration between electron-rich and electron-deficient aromatic groups, with exceptions to the large aromatic moieties [52]. In the case of lignin, the flat-disc shaped configuration of the lignin molecule in solution makes the case of self-assembly very specific; it allows simple π–π stacking and noncovalent bond formation. Based on the arrangement of aromatic groups, π–π stacking can be of two types: H type and J type (Figure 3). The H and J types of molecular assemblies are described by the tilt angle between the molecular axis connecting the chromophores and transition dipole moment of the chromophore. When this angle is less than 54.7 °C, the aromatic groups form J-aggregates with a bathochromic shift to the monomer absorption band. When this angle is more than 54.7 °C, the aromatic groups form an H–aggregate showing a hypsochromic shift to the M band [53]. In a study on sodium lignosulfonate, the formation of J-type aggregates and the π–π stacking of charge-free groups was confirmed [54].
In another study of the adsorption of lignin on the cationic surface, affinity coefficients were observed to be the same at all pH levels, supporting the dominance of π–cation interaction over the ionization hypothesis. In addition, π–π interactions also accounted for simultaneous self-assembly of solid or hollow particles of lignin [10,41,55]. As suggested by some reports, nanoparticles are formed by 10–15 nm subunits held together by non-covalent (π–π) interactions, and this assembly is reversible, thereby facilitating the potential role of lignin nanoparticles as a drug carrier for controlled drug delivery formulations [45].

2.2.2. Hydrogen Bonding

Hydrogen bonding can be defined as the force of electrostatic attraction between two polar groups. A hydrogen atom that is covalently bonded to a highly electronegative atom nitrogen (N), oxygen (O), or fluorine (F) and is present in the field of other neighboring electronegative atoms forms these polar groups. Although no major study about the role of hydrogen bonding in molecular or supramolecular self-assembly of lignin was found in our literature survey, it is commonly cited as a contributing force due to its directional nature [24,56]. Additionally, the ability of the carboxylic group to form intermolecular hydrogen bonds has been reported to affect the mechanical properties of Kraft lignin-based gels [20]. In lignin agglomerates, both intermolecular and intramolecular H bonding can be expected to occur. An FTIR-based (Fourier transform infrared-based) study of lignin model compounds showed that aliphatic hydroxyl groups form stronger hydrogen bonds than phenolic hydroxyl groups. The dimeric biphenyl-type structure showed stronger intermolecular hydrogen bonds in comparison to other monomeric model compounds [57].
In a theoretical study on p-coumaryl β-O-4 model structure (2-phenoxy-1,3-propanediol), it was observed that intramolecular hydrogen bonding formed between α- and β-hydroxyl groups with the ether oxygen affects the bond order of aromatic carbon–oxygen bonds and thereby the rotational characteristics, hence affecting the preferred orientation of the molecule [58]. In another study, strong intermolecular hydrogen bonding was identified as the reason behind improved properties of lignin/poly(ethylene oxide) blends and the miscibility of both components [57,59].
In a recent study by Yang et al. [46] (2018), the solution structure of Kraft lignin was studied in EG and DMSO. They confirmed that hydrogen bonds are not necessary for the dissolution of Kraft lignin in DMSO. However, hydrogen bonding was found to be necessary for lignin dissolution in EG [46]. Hydrogen bonding has also been suggested as a mechanism of interaction between EG and lignin. The evidence in favor of this is based on the decrease in the solubility of lignin due to the acetylation of the hydroxyl and phenolic groups of lignin [60]. Among all methods reported for lignin nanoparticle synthesis, non-aqueous solvents such as THF, EG, or DMSO were used for preparing its solution. Among these studies, H bonding was never suggested to be responsible for Kraft lignin’s solubility in DMSO. Therefore, the contribution of H bonding in particle nucleation and growth in the lignin solution in DMSO can be assumed to be dissimilar to that in the lignin solutions of THF and EG.

2.2.3. Chain Entanglement

The role of chain entanglement in the stabilization of supramolecular/three-dimensional network of the polymer can be understood as the physical cross-linking of non-covalently bonded polymer chains of smaller subunits [61]. Guerra et al. [50] provided the evidence in favor of the chain entanglement within the lignin macromolecule, wherein they observed a correlation in the total amount of β-aryl ether linkage and association/dissociation. They concluded that softwood lignins show a greater degree of association/dissociation as compared with hardwood and wheat straw lignin. They suggested that these association/dissociation phenomena are governed by chain entanglements operating within different macromolecules and intermolecular orbital interactions, dominated by those of the HOMO–LUMO type [50]. In the same study, an additional argument in support of intermolecular aggregation was provided by the adverse effect of iodine addition to acetobrominated lignin dissolved in THF. The same solvent, THF, has been used later in some studies for lignin nanoparticle synthesis using the solvent–anti-solvent route.

2.2.4. Van der Waals Forces

Van der Waals forces are the weakest of the non-covalent interactions, resultant of attractive and repulsive forces. They can be further classified as permanent or momentary, on the basis of nature of dipole moments (London forces and diploe–dipole interactions). Van der Waals forces are commonly attributed as the reason for the self-assembly of different molecules [62,63]. Lindstrom and Westman reported a role of van der Waals forces in affecting lignin colloidal behavior especially in the case of macro-syneresis of Kraft lignin gel [64]. Strong van der Waals forces between lignin molecules and cellulose microfibrils were used as an explanation for strong adhesion between the lignin–carbohydrate complex and cellulose microfibrils [65]. Dipole–dipole interactions have been suggested to play a role in acetylated lignin–DMSO interactions. The carbonyl groups of acetylated lignin interact with DMSO via dipole–dipole interaction, not the hydrogen bonding (the absence of hydroxyl groups due to acetylation), as was evident in a previous study [47]. Due to the electrostatic nature of these forces, they can be assumed to be most affected by protonated and deprotonated states of lignin along with pH changes of the solution. Van der Waals forces are commonly thought to be responsible for the self-association of lignin in conditions that cannot be explained by hydrogen bonding.

2.2.5. Hydrophobic Interactions

The hydrophobic interactions or forces represent the unusually strong attraction of hydrophobic groups in the presence of water, which cannot be explained using the “Lifshitz theory” of van der Waals forces. These forces can be qualitatively described as those responsible for the aggregation of hydrophobic moieties in the presence of water [66]. The hydrophobic interactions are commonly explained as forces of attraction within enzymes and proteins [67,68,69,70].
Different types of technical lignin show differences in hydrophobicity, as studied via hydrophobic interaction chromatography. The degree of hydrophobicity varies with the molecular weight of lignosulphonate and Kraft lignin fractions [71]. The presence of water remains the primary condition for these forces to be involved in self-assembly [41,42].

3. Nanoparticle Synthesis

Lignin self-assembly is key to understanding the chemical basis of xylogenesis in plant cell walls and nanostructure synthesis; hence, any discussion on the self-assembly of lignin without the inclusion of xylogenesis is incomplete. The challenge to understand a plant’s coordination methods of synthesis and the deposition of phenolic (hydrophobic) and carbohydrate (hydrophilic) biopolymers in the supramolecular organization of cell walls is still active [72,73]. From the developmental standpoint, lignification-initiating sites should be present in differentiating xylems before the start of the lignification process. These sites should be Ca-rich (needed for H2O2 formation with the help of enzymatically produced superoxide radicals), which is required for the polymerization of coniferyl alcohol [74].
The “outside in” pattern of lignin deposition in a maturing cell wall, where polysaccharides and proteins are already present, limits the structures that lignin can adopt. The self-assembly process of lignin deposition occurs in an aqueous environment and is directed by noncovalent interactions between monomers and dirigent proteins [75,76]. Another crucial aspect of xylogenesis and lignin assembly is substratum effects (lignin–carbohydrate and lignin–protein interactions) and their role in self-assembly.
Based on the fractal approach, some studies have already elucidated a supramolecular structure using the relationship between hydrodynamic and fractal properties of lignin [77,78]. The topological and supramolecular level fractal properties of lignin are due to non-linear self-assembly and are related to the dynamic mode of the strange attractors type of fractals [77,79]. As concluded in theoretical studies, if monolignols are assumed to diffuse to the site of lignification, then the fractal theory can be utilized in explaining the biosynthesis, polymerization, and molecular and supramolecular assembly of lignin [78]. Dynamic self-organization has been reported in the enzymatic dehydrogenation polymerization of monolignols in in vitro lignin biosynthesis, and the Belousov–Zhabotinskii system has been used to study them. Additionally, macromolecular parameters of softwood lignin correspond to the universal Witten–Sander class of fractals. On the other hand, the softwood lignin structure is related to a star-like structure whose scaling parameters are determined by the linear topology of branches [77].
The forces and mechanisms involved in lignin nanoparticle formation follow the same trend as the self-associative properties mentioned above, wherein the solvent, the nature and the source of lignin, and the temperature used in the study play a crucial role. The forces involved in the formation and stabilization of unmodified lignin-based nanostructures fulfill their part at two stages: nucleation and growth (condensation and coagulation). In the case of precipitation using an anti-solvent, the rate of nucleation of a nanoparticle depends on the degree of super-saturation during the mixing process of a solvent and an anti-solvent. This degree of super-saturation varies locally until the mixing process is complete (Matteucci et al. [80] 2006). The rate of primary nucleation depends on some parameters and are explained by a number of equations. Followed by nucleation, particle growth occurs by condensation (diffusion and incorporation of the molecule to the particle surface by non-covalent interactions) and coagulation [80]. The coagulation negatively affects the rate of condensation by decreasing the total number of particles and hence the surface area. The rate of nucleation has a direct contribution to the formation of fine particles, especially if the rate of particle growth can be controlled. In Table 2, key information from some of the latest reports of nanoparticle formation is listed. A similar mechanism can be understood by the solvent–anti-solvent method reported for lignin nanoparticle formation [55,81].
These results are analogous to our observations where we suggested the one drop-one particle hypothesis for the nanoparticle formation based on D–lignin (dioxane soluble fraction of Kraft lignin) [10]. In our unreported study, we managed to synthesize monodisperse nanoparticles of alkali lignin using aerosol-assisted self-assembly. This is in contrast to our published study, in which dioxane soluble fraction of alkali lignin was used and resultant particles showed a significant level of polydispersity [10]. The role of homogenization as an additional force to assist hydrophilic–lipophilic interactions in the nucleation of organosolv lignin residue-based nanoparticles was clearly demonstrated by Rao et al. [86].
In a report by Xiong et al., the control of morphology was made possible for enzymatic hydrolytic lignin by varying the temperature and the rate of solvent–anti-solvent interaction (15 °C and 4 mL/min of the anti-solvent rate for solid particles but 25 °C and 2 mL/min for the single hole particles) [41,42]. They also suggested the role of π–π interactions and hydrophobic interactions for particle formation. Their study involved de-ionized water as an anti-solvent, which is a prerequisite for hydrophobic interactions to come into play. In a recent review, lignin nanostructure synthesis, hydrogen-bonding, hydrophobic interactions, layer-by-layer self-assembly, and solvent-induced π–π interactions were suggested as possible mechanisms behind the molecular and supramolecular self-assembly of lignin [45].
For cases of hollow particle formation, a list of methods is given (Table 2). A nanoemulsion-based soft template mechanism has been reported by Xiong et al. [83]. They suggested the phase separation and formation of a membrane layer at the interface of THF and water, leading to the wrapping of water, which is later evaporated and results in the formation of hollow particles or capsules. In this study, the authors suggested a role of hydrophobic interactions in the formation and stabilization of hollow nano-spheres. In another study, ultrasonication was used to promote the hydrophobic interactions and shell formation. Ultrasound-assisted cavitation, radical generation, and emulsification were identified as underlying phenomena [83]. In our study, we suggested the peripheral precipitation based on the difference in the time of diffusion and the time of the freezing of the solvent as a responsible factor for hollow particle formation. Additionally, as the whole process occurred in a non-aqueous environment, the contribution of hydrophobic interaction was ruled out. The difference in the dynamics of lignin in a droplet concerning the time of freezing and the time of diffusion played a significant role [10].

4. Conclusion

The integration process of hydrophobic lignin in plant cell walls, while the nature of the reaction mixture changes from hydrophilic to hydrophobic, is still not fully understood, and some theories have been proposed to explain it. However, a clear role of non-covalent interactions and self-assembly can be accepted in the process of lignification. The contribution of fractal theory in assigning different fractal natures to softwood and hardwood lignin has also helped in understanding lignification and self-assembly at various scales. In the case of technical lignin and its self-assembly in ex-situ conditions, the derived knowledge is hard to generalize due to the complex chemical structure of lignin. A major bottleneck is created by source and extraction process dependent variation in the structure of lignin. This is in addition to the variations observed due to the nature of the solvent, pH, and the temperature of assembly conditions. Nevertheless, studies on the role of hydrogen bonding, hydrophobic interactions, and π–π interactions in aqueous conditions, and that of inter/intramolecular hydrogen bonding and solvent modified π–π interactions in organic solvents, can be found in the literature. A partial role of chain entanglement has also been suggested. As attempts to synthesize tailor-made nanostructures of lignin increase over time, understanding of the ex-situ self-assembly of technical lignin and possibly the process of lignification will improve with time. An understanding of self-assembly properties and contributing factors is of utmost importance for lignin valorization. Most of the high value applications of lignin and its resource utilization are based on the knowledge of lignificantion/xylogenesis and nanostructure syntheis. The effective, commercially viable, and environmentally benign processes of delignification cannot be developed without a clear understandng of xylogenesis, where self assembly properties in addition to lignin interaction with other carbohydrates and proteins play a central role. Similiarly, lignin nanostructure synthesis for possible applications in UV protection, biomedical applications and biomimetic nanocomposite synthesis utilizes the self-aggregation propensity of lignin as a pricncipal driving force. The effective utilization of lignin offers multiple benefits such as biomass valorization and waste utilization. First results seem very promising; however, due to a limted number of studies on biocompatibility, toxicity, drug/gene delivery, and other biomedical applications, the full potential of this underutilized biomaterial still needs to be explored. In the field of lignin-based biomimetic composites, some studies are available, but more research needs to be done before the final product hits the market.

Author Contributions

Conceptualization, P.K.M.; Methodology, P.K.M.; Software, P.K.M.; Resources, P.K.M.; Data Curation, A.E.; Writing-Original Draft Preparation, A.E.; Writing-Review & Editing, P.K.M.; Visualization, P.K.M. and A.E.; Supervision, P.K.M.; Project Administration, P.K.M.; Funding Acquisition, P.K.M.

Funding

This article was supported by the European Social Fund and the state budget of the Czech Republic, under the project entitled ‘‘The Establishment of an International Research Team for the Development of New Wood-Based Materials,’’ Reg. No. CZ.1.07/2.3.00/20.0269.

Conflicts of Interest

The authors confirm that there are no conflicts of interest.

References

  1. Achyuthan, K.E.; Achyuthan, A.M.; Adams, P.D.; Dirk, S.M.; Harper, J.C.; Simmons, B.A.; Singh, A.K. Supramolecular Self-Assembled Chaos: Polyphenolic Lignin’s Barrier to Cost-Effective Lignocellulosic Biofuels. Molecules 2010, 15, 8641–8688. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Poletto, M.; Zattera, A.J. Materials produced from plant biomass: part III: degradation kinetics and hydrogen bonding in lignin. Mater. Res. 2013, 16, 1065–1070. [Google Scholar] [CrossRef] [Green Version]
  3. Westbye, P.; Köhnke, T.; Glasser, W.; Gatenholm, P. The influence of lignin on the self-assembly behaviour of xylan rich fractions from birch (Betula pendula). Cellulose 2007, 14, 603–613. [Google Scholar] [CrossRef]
  4. Beisl, S.; Miltner, A.; Friedl, A. Lignin from Micro-to Nanosize: Production Methods. Int. J. Mol. Sci. 2017, 18, 1244. [Google Scholar] [CrossRef] [PubMed]
  5. Figueiredo, P.; Lintinen, K.; Hirvonen, J.T.; Kostiainen, M.A.; Santos, H.A. Properties and chemical modifications of lignin: Towards lignin-based nanomaterials for biomedical applications. Prog. Mater Sci. 2018, 93, 233–269. [Google Scholar] [CrossRef]
  6. Zhao, W.; Simmons, B.; Singh, S.; Ragauskas, A.; Cheng, G. From lignin association to nano-/micro-particle preparation: extracting higher value of lignin. Green Chem. 2016, 18, 5693–5700. [Google Scholar] [CrossRef] [Green Version]
  7. Yang, W.; Fortunati, E.; Gao, D.; Balestra, G.M.; Giovanale, G.; He, X.; Torre, L.; Kenny, J.M.; Puglia, D. Valorization of acid isolated high yield lignin nanoparticles as innovative antioxidant/antimicrobial organic materials. ACS Sustainable Chem. Eng. 2018, 6, 3502–3514. [Google Scholar] [CrossRef]
  8. Nypeloe, T.E.; Carrillo, C.A.; Rojas, O.J. Lignin supracolloids synthesized from (W/O) microemulsions: use in the interfacial stabilization of Pickering systems and organic carriers for silver metal. Soft Matter 2015, 11, 2046–2054. [Google Scholar] [CrossRef]
  9. Qian, Y.; Zhang, Q.; Qiu, X.; Zhu, S. CO2-responsive diethylaminoethyl-modified lignin nanoparticles and their application as surfactants for CO2/N-2-switchable Pickering emulsions. Green Chem. 2014, 16, 4963–4968. [Google Scholar] [CrossRef]
  10. Mishra, P.K.; Wimmer, R. Aerosol assisted self-assembly as a route to synthesize solid and hollow spherical lignin colloids and its utilization in layer by layer deposition. Ultrason. Sonochem. 2017, 35, 45–50. [Google Scholar] [CrossRef]
  11. Qian, Y.; Zhong, X.; Li, Y.; Qiu, X. Fabrication of uniform lignin colloidal spheres for developing natural broad-spectrum sunscreens with high sun protection factor. Ind. Crops Prod. 2017, 101, 54–60. [Google Scholar] [CrossRef]
  12. Yang, W.; Kenny, J.M.; Puglia, D. Structure and properties of biodegradable wheat gluten bionanocomposites containing lignin nanoparticles. Ind. Crops Prod. 2015, 74, 348–356. [Google Scholar] [CrossRef]
  13. Král, P.; Klímek, P.; Mishra, P.K.; Rademacher, P.; Wimmer, R. Preparation and Characterization of Cork Layered Composite Plywood Boards. BioResources 2014, 9, 1977–1985. [Google Scholar] [CrossRef]
  14. Gilca, I.A.; Ghitescu, R.E.; Puitel, A.C.; Popa, V.I. Preparation of lignin nanoparticles by chemical modification. Iran. Polym. J. 2014, 23, 355–363. [Google Scholar] [CrossRef]
  15. Klímek, P.; Wimmer, R.; Kumar Mishra, P.; Kúdela, J. Utilizing brewer’s-spent-grain in wood-based particleboard manufacturing. J. Cleaner Prod. 2017, 141, 812–817. [Google Scholar] [CrossRef]
  16. Cauley, A.N.; Wilson, J.N. Functionalized Lignin Biomaterials for Enhancing Optical Properties and Cellular Interactions of Dyes. Biomater. Sci. 2017, 5, 2114–2121. [Google Scholar] [CrossRef] [PubMed]
  17. Li, Y.; Qiu, X.; Qian, Y.; Xiong, W.; Yang, D. pH-responsive lignin-based complex micelles: preparation, characterization and application in oral drug delivery. Chem. Eng. J. 2017, 327, 1176–1183. [Google Scholar] [CrossRef]
  18. Liu, D.; Li, Y.; Qian, Y.; Xiao, Y.; Du, S.; Qiu, X. Synergistic Antioxidant Performance of Lignin and Quercetin Mixtures. ACS Sustainable Chem. Eng. 2017, 5, 8424–8428. [Google Scholar] [CrossRef]
  19. Siddiqui, L.; Mishra, H.; Mishra, P.K.; Iqbal, Z.; Talegaonkar, S. Novel 4-in-1 strategy to combat colon cancer, drug resistance and cancer relapse utilizing functionalized bioinspiring lignin nanoparticle. Med. Hypotheses 2018, 121, 10–14. [Google Scholar] [CrossRef]
  20. Lindström, T. The colloidal behaviour of kraft lignin. Colloid. Polym. Sci. 1980, 258, 168–173. [Google Scholar] [CrossRef]
  21. Lindströmn, T. The colloidal behaviour of kraft lignin. Colloid. Polym. Sci. 1979, 257, 277–285. [Google Scholar] [CrossRef]
  22. Norgren, M.; Edlund, H.; Wågberg, L. Aggregation of lignin derivatives under alkaline conditions. Kinetics and aggregate structure. Langmuir 2002, 18, 2859–2865. [Google Scholar] [CrossRef]
  23. Norgren, M.; Edlund, H.; Wågberg, L.; Lindström, B.; Annergren, G. Aggregation of kraft lignin derivatives under conditions relevant to the process, part I: phase behaviour. Colloids Surf. A Physicochem. Engin Aspects 2001, 194, 85–96. [Google Scholar] [CrossRef]
  24. Zhao, W.; Xiao, L.-P.; Song, G.; Sun, R.-C.; He, L.; Singh, S.; Simmons, B.A.; Cheng, G. From lignin subunits to aggregates: insights into lignin solubilization. Green Chem. 2017, 19, 3272–3281. [Google Scholar] [CrossRef]
  25. Mafé, S.; Manzanares, J.; Kontturi, A.-K.; Kontturi, K. Temperature effects on counterion binding to spherical polyelectrolytes: the charge-discharge transition of lignosulfonate. Bioelectrochem. Bioenerg. 1995, 38, 367–375. [Google Scholar] [CrossRef]
  26. Norgren, M.; Lindström, B. Physico-Chemical Characterization of a Fractionated Kraft Lignin. Holzforschung 2005, 54, 528. [Google Scholar] [CrossRef]
  27. Hita, I.; Heeres, H.J.; Deuss, P.J. Insight into structure–reactivity relationships for the iron-catalyzed hydrotreatment of technical lignins. Bioresour. Technol. 2018, 267, 93–101. [Google Scholar] [CrossRef]
  28. Constant, S.; Wienk, H.L.J.; Frissen, A.E.; de Peinder, P.; Boelens, R.; van Es, D.S.; Grisel, R.J.H.; Weckhuysen, B.M.; Huijgen, W.J.J.; Gosselink, R.J.A.; et al. New insights into the structure and composition of technical lignins: A comparative characterisation study. Green Chem. 2016, 18, 2651–2665. [Google Scholar]
  29. Renders, T.; Van den Bosch, S.; Koelewijn, S.-F.; Schutyser, W.; Sels, B. Lignin-first biomass fractionation: the advent of active stabilisation strategies. Energy Environ. Sci. 2017, 10, 1551–1557. [Google Scholar] [CrossRef]
  30. Dence, C.W. The determination of lignin. In Methods in lignin chemistry; Springer-Verlag: New York, NY, USA, 1992; pp. 33–61. [Google Scholar]
  31. Lupoi, J.S.; Singh, S.; Parthasarathi, R.; Simmons, B.A.; Henry, R.J. Recent innovations in analytical methods for the qualitative and quantitative assessment of lignin. Renewable Sustainable Energy Rev. 2015, 49, 871–906. [Google Scholar] [CrossRef] [Green Version]
  32. Ragauskas, A.J.; Williams, C.K.; Davison, B.H.; Britovsek, G.; Cairney, J.; Eckert, C.A.; Frederick, W.J.; Hallett, J.P.; Leak, D.J.; Liotta, C.L. The path forward for biofuels and biomaterials. Science 2006, 311, 484–489. [Google Scholar] [CrossRef] [PubMed]
  33. Lancefield, C.S.; Wienk, H.L.; Boelens, R.; Weckhuysen, B.M.; Bruijnincx, P.C. Identification of a diagnostic structural motif reveals a new reaction intermediate and condensation pathway in kraft lignin formation. Chem. Sci. 2018, 9, 6348–6360. [Google Scholar] [CrossRef] [PubMed]
  34. Shen, Q.; Zhang, T.; Zhu, M.-F. A comparison of the surface properties of lignin and sulfonated lignins by FTIR spectroscopy and wicking technique. Colloids Surf. A Physicochem. Eng. Aspects 2008, 320, 57–60. [Google Scholar] [CrossRef]
  35. Dawy, M.; Shabaka, A.A.; Nada, A.M.A. Molecular structure and dielectric properties of some treated lignins. Polym. Degrad. Stab. 1998, 62, 455–462. [Google Scholar] [CrossRef]
  36. Ratnaweera, D.R.; Saha, D.; Pingali, S.V.; Labbé, N.; Naskar, A.K.; Dadmun, M. The impact of lignin source on its self-assembly in solution. RSC Adv. 2015, 5, 67258–67266. [Google Scholar] [CrossRef]
  37. Fiţigău, I.; Peter, F.; Boeriu, C. Structural analysis of lignins from different sources. Int. J. Chem. Mol. Nucl. Mater. Metall. Eng. 2013, 7, 167–172. [Google Scholar]
  38. Miller-Chou, B.A.; Koenig, J.L. A review of polymer dissolution. Prog. Polym. Sci. 2003, 28, 1223–1270. [Google Scholar] [CrossRef] [Green Version]
  39. Wang, J.; Li, Y.; Qiu, X.; Liu, D.; Yang, D.; Liu, W.; Qian, Y. Dissolution of lignin in green urea aqueous solution. Appl. Surf. Sci. 2017, 425, 736–741. [Google Scholar] [CrossRef]
  40. Qian, Y.; Deng, Y.; Qiu, X.; Li, H.; Yang, D. Formation of uniform colloidal spheres from lignin, a renewable resource recovered from pulping spent liquor. Green Chem. 2014, 16, 2156–2163. [Google Scholar] [CrossRef]
  41. Xiong, F.; Han, Y.; Wang, S.; Li, G.; Qin, T.; Chen, Y.; Chu, F. Preparation and formation mechanism of size-controlled lignin nanospheres by self-assembly. Ind. Crops Prod. 2017, 100, 146–152. [Google Scholar] [CrossRef]
  42. Xiong, F.; Han, Y.; Wang, S.; Li, G.; Qin, T.; Chen, Y.; Chu, F. Preparation and Formation Mechanism of Renewable Lignin Hollow Nanospheres with a Single Hole by Self-Assembly. ACS Sustainable Chem. Eng. 2017, 5, 2273–2281. [Google Scholar] [CrossRef]
  43. Bikova, T.; Treimanis, A.; Rossinska, G.; Telysheva, G. On-line study of lignin behaviour in dilute alkaline solution by the SEC-UV method. Holzforschung 2004, 58, 489–494. [Google Scholar] [CrossRef]
  44. Garver, T.M.; Callaghan, P.T. Hydrodynamics of kraft lignins. Macromolecules 1991, 24, 420–430. [Google Scholar] [CrossRef]
  45. Salentinig, S.; Schubert, M. Softwood Lignin Self-Assembly for Nanomaterial Design. Biomacromolecules 2017, 18, 2649–2653. [Google Scholar] [CrossRef] [PubMed]
  46. Yang, M.; Zhao, W.; Singh, S.; Simmons, B.; Cheng, G. On the solution structure of kraft lignin in ethylene glycol and its implication for nanoparticle preparation. Nanoscale Adv. 2019, 1, 299–304. [Google Scholar] [CrossRef]
  47. Sameni, J.; Krigstin, S.; Sain, M. Solubility of Lignin and Acetylated Lignin in Organic Solvents. BioResources 2017, 12, 1548–1565. [Google Scholar] [CrossRef]
  48. Evstigneev, E. Factors affecting lignin solubility. Russ. J. Appl. Chem. 2011, 84, 1040–1045. [Google Scholar] [CrossRef]
  49. Borisova, O.V.; Billon, L.; Cernochova, Z.; Lapp, A.; Stepanek, P.; Borisov, O.V. Effect of Temperature on Self-Assembly of Amphiphilic Block-Gradient Copolymers of Styrene and Acrylic Acid. Macromol. Symp. 2015, 348, 25–32. [Google Scholar] [CrossRef]
  50. Guerra, A.; Gaspar, A.R.; Contreras, S.; Lucia, L.A.; Crestini, C.; Argyropoulos, D.S. On the propensity of lignin to associate: A size exclusion chromatography study with lignin derivatives isolated from different plant species. Phytochemistry 2007, 68, 2570–2583. [Google Scholar] [CrossRef]
  51. Dhotel, A.; Chen, Z.; Delbreilh, L.; Youssef, B.; Saiter, J.-M.; Tan, L. Molecular Motions in Functional Self-Assembled Nanostructures. Int. J. Mol. Sci. 2013, 14, 2303–2333. [Google Scholar] [CrossRef] [Green Version]
  52. Martinez, C.R.; Iverson, B.L. Rethinking the term “pi-stacking”. Chem. Sci. 2012, 3, 2191–2201. [Google Scholar] [CrossRef]
  53. McRae, E.M. Kasha in Physical Process in Radiation Biology. Academic Press: New York, NY, USA, 1964. [Google Scholar]
  54. Deng, Y.; Feng, X.; Yang, D.; Yi, C.; Qiu, X. Pi-Pi stacking of the aromatic groups in lignosulfonates. BioResources 2012, 7, 1145–1156. [Google Scholar]
  55. Lievonen, M.; Valle-Delgado, J.J.; Mattinen, M.-L.; Hult, E.-L.; Lintinen, K.; Kostiainen, M.A.; Paananen, A.; Szilvay, G.R.; Setälä, H.; Österberg, M. A simple process for lignin nanoparticle preparation. Green Chem. 2016, 18, 1416–1422. [Google Scholar] [CrossRef] [Green Version]
  56. Whitesides, G.M.; Boncheva, M. Beyond molecules: Self-assembly of mesoscopic and macroscopic components. Proc. Natl. Acad. Sci. U.S.A. 2002, 99, 4769–4774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Kubo, S.; Kadla, J.F. Hydrogen bonding in lignin: a Fourier transform infrared model compound study. Biomacromolecules 2005, 6, 2815–2821. [Google Scholar] [CrossRef] [PubMed]
  58. Simon, J.P.; Eriksson, K.-E.L. The significance of intra-molecular hydrogen bonding in the ß-O-4 linkage of lignin. J. Mol. Struct. 1996, 384, 1–7. [Google Scholar] [CrossRef]
  59. Kadla, J.F.; Kubo, S. Miscibility and Hydrogen Bonding in Blends of Poly(ethylene oxide) and Kraft Lignin. Macromolecules 2003, 36, 7803–7811. [Google Scholar] [CrossRef]
  60. Vainio, U.; Maximova, N.; Hortling, B.; Laine, J.; Stenius, P.; Simola, L.K.; Gravitis, J.; Serimaa, R. Morphology of Dry Lignins and Size and Shape of Dissolved Kraft Lignin Particles by X-ray Scattering. Langmuir 2004, 20, 9736–9744. [Google Scholar] [CrossRef]
  61. Suzuki, M.; Hanabusa, K. Polymer organogelators that make supramolecular organogels through physical cross-linking and self-assembly. Chem. Soc. Rev. 2010, 39, 455–463. [Google Scholar] [CrossRef]
  62. Choi, B.; Yu, J.; Paley, D.W.; Trinh, M.T.; Paley, M.V.; Karch, J.M.; Crowther, A.C.; Lee, C.-H.; Lalancette, R.A.; Zhu, X.; et al. van der Waals Solids from Self-Assembled Nanoscale Building Blocks. Nano Lett. 2016, 16, 1445–1449. [Google Scholar] [CrossRef]
  63. Gao, H.-Y.; Wagner, H.; Held, P.A.; Du, S.; Gao, H.-J.; Studer, A.; Fuchs, H. In-plane Van der Waals interactions of molecular self-assembly monolayer. Appl. Phys. Lett. 2015, 106, 081606. [Google Scholar] [CrossRef]
  64. Lindström, T.; Westman, L. The colloidal behaviour of kraft lignin. Colloid. Polym. Sci. 1982, 260, 594–598. [Google Scholar] [CrossRef]
  65. Youssefian, S.; Rahbar, N. Molecular Origin of Strength and Stiffness in Bamboo Fibrils. Sci. Rep. 2015, 5, 11116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Meyer, E.E.; Rosenberg, K.J.; Israelachvili, J. Recent progress in understanding hydrophobic interactions. Proc. Natl. Acad. Sci. 2006, 103, 15739–15746. [Google Scholar] [CrossRef] [Green Version]
  67. Leskinen, T.; Witos, J.; Valle Delgado, J.J.; Lintinen, K.S.; Kostiainen, M.A.; Wiedmer, S.K.; Österberg, M.; Mattinen, M.-L. Adsorption of proteins on colloidal lignin particles for advanced biomaterials. Biomacromolecules 2017, 18, 2767–2776. [Google Scholar] [CrossRef] [PubMed]
  68. Qin, C.; Clarke, K.; Li, K. Interactive forces between lignin and cellulase as determined by atomic force microscopy. Biotechnol. Biofuels 2014, 7, 65. [Google Scholar] [Green Version]
  69. Salas, C.; Rojas, O.J.; Lucia, L.A.; Hubbe, M.A.; Genzer, J. On the surface interactions of proteins with lignin. ACS Appl. Mater. Interfaces 2013, 5, 199–206. [Google Scholar] [CrossRef]
  70. Sammond, D.W.; Yarbrough, J.M.; Mansfield, E.; Bomble, Y.J.; Hobdey, S.E.; Decker, S.R.; Taylor, L.E.; Resch, M.G.; Bozell, J.J.; Himmel, M.E.; et al. Predicting Enzyme Adsorption to Lignin Films by Calculating Enzyme Surface Hydrophobicity. J. Biol. Chem. 2014, 289, 20960–20969. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Ekeberg, D.; Gretland, K.S.; Gustafsson, J.; Bråten, S.M.; Fredheim, G.E. Characterisation of lignosulphonates and kraft lignin by hydrophobic interaction chromatography. Anal. Chim. Acta 2006, 565, 121–128. [Google Scholar] [CrossRef]
  72. Mansfield, S.D. Solutions for dissolution—engineering cell walls for deconstruction. Curr. Opin. Biotechnol. 2009, 20, 286–294. [Google Scholar] [CrossRef] [PubMed]
  73. Mishra, P.K.; Giagli, K.; Tsalagkas, D.; Mishra, H.; Talegaonkar, S.; Gryc, V.; Wimmer, R. Changing Face of Wood Science in Modern Era: Contribution of Nanotechnology. Recent. Pat. Nanotechnol. 2018, 12, 13–21. [Google Scholar] [CrossRef] [PubMed]
  74. Donaldson, L.A. Lignification and lignin topochemistry—an ultrastructural view. Phytochemistry 2001, 57, 859–873. [Google Scholar] [CrossRef]
  75. Chen, Y.; Sarkanen, S. Macromolecular lignin replication: A mechanistic working hypothesis. Phytochem. Rev. 2003, 2, 235–255. [Google Scholar] [CrossRef]
  76. Gang, D.R.; Costa, M.A.; Fujita, M.; Dinkova-Kostova, A.T.; Wang, H.-B.; Burlat, V.; Martin, W.; Sarkanen, S.; Davin, L.B.; Lewis, N.G. Regiochemical control of monolignol radical coupling: A new paradigm for lignin and lignan biosynthesis. Chem. Biol. 1999, 6, 143–151. [Google Scholar] [CrossRef] [Green Version]
  77. Karmanov, A.P.; Monakov, Y.B. Lignin. Structural organisation and fractal properties. Russ. Chem. Rev. 2003, 72, 715–734. [Google Scholar] [CrossRef] [Green Version]
  78. Radotic, K.; Tasic, M.; Jeremic, M.; Budimlija, Z.; Simic-Krstic, J.; Polzovic, A.; Bozovic, Z. Fractal dimension of lignin structure at the molecular level. Iugoslav. Physiol. Pharmacol. Acta 1998, 34, 215–220. [Google Scholar]
  79. Karmanov, A.; Kuznetsov, S.; Monakov, Y.B. Modeling of lignin biosynthesis in vitro. The strange attractor. mezhdunarodnaya kniga 1995, 342, 193–196. [Google Scholar]
  80. Rowe, J.M.; Johnston, K.P. Precipitation Technologies for Nanoparticle Production. In Formulating Poorly Water Soluble Drugs; AAPS Advances in the Pharmaceutical Sciences Series; Springer: New York, NY, USA, 2012; pp. 501–568. [Google Scholar]
  81. Frangville, C.; Rutkevicius, M.; Richter, A.P.; Velev, O.D.; Stoyanov, S.D.; Paunov, V.N. Fabrication of Environmentally Biodegradable Lignin Nanoparticles. Chem. Phys. Chem. 2012, 13, 4235–4243. [Google Scholar] [CrossRef]
  82. Tortora, M.; Cavalieri, F.; Mosesso, P.; Ciaffardini, F.; Melone, F.; Crestini, C. Ultrasound Driven Assembly of Lignin into Microcapsules for Storage and Delivery of Hydrophobic Molecules. Biomacromolecules 2014, 15, 1634–1643. [Google Scholar] [CrossRef] [Green Version]
  83. Bartzoka, E.D.; Lange, H.; Thiel, K.; Crestini, C. Coordination Complexes and One-Step Assembly of Lignin for Versatile Nanocapsule Engineering. ACS Sustainable Chem. Eng. 2016, 4, 5194–5203. [Google Scholar] [CrossRef]
  84. Li, H.; Deng, Y.; Liang, J.; Dai, Y.; Li, B.; Ren, Y.; Qiu, X.; Li, C. Direct Preparation of Hollow Nanospheres with Kraft Lignin: A Facile Strategy for Effective Utilization of Biomass Waste. BioResources 2016, 11, 3073–3083. [Google Scholar] [CrossRef]
  85. Gilca, I.A.; Pupa, V.I.; Crestini, C. Obtaining lignin nanoparticles by sonication. Ultrason. Sonochem. 2015, 23, 369–375. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Rao, X.; Liu, Y.; Zhang, Q.; Chen, W.; Liu, Y.; Yu, H. Assembly of Organosolv Lignin Residues into Submicron Spheres: The Effects of Granulating in Ethanol/Water Mixtures and Homogenization. ACS Omega 2017, 2, 2858–2865. [Google Scholar] [CrossRef]
  87. Li, H.; Deng, Y.; Liu, B.; Ren, Y.; Liang, J.; Qian, Y.; Qiu, X.; Li, C.; Zheng, D. Preparation of Nanocapsules via the Self-Assembly of Kraft Lignin: A Totally Green Process with Renewable Resources. ACS Sustainable Chem. Eng. 2016, 4, 1946–1953. [Google Scholar] [CrossRef]
  88. Yiamsawas, D.; Baier, G.; Thines, E.; Landfester, K.; Wurm, F.R. Biodegradable lignin nanocontainers. RSC Adv. 2014, 4, 11661–11663. [Google Scholar] [CrossRef] [Green Version]
  89. Li, H.; Deng, Y.; Wu, H.; Ren, Y.; Qiu, X.; Zheng, D.; Li, C. Self-assembly of kraft lignin into nanospheres in dioxane-water mixtures. Holzforschung 2016, 70, 725–731. [Google Scholar] [CrossRef]
  90. Myint, A.A.; Lee, H.W.; Seo, B.; Son, W.-S.; Yoon, J.; Yoon, T.J.; Park, H.J.; Yu, J.; Yoon, J.; Lee, Y.-W. One pot synthesis of environmentally friendly lignin nanoparticles with compressed liquid carbon dioxide as an anti-solvent. Green Chem. 2016, 18, 2129–2146. [Google Scholar] [CrossRef]
Nanomaterials 09 00243 g001 550

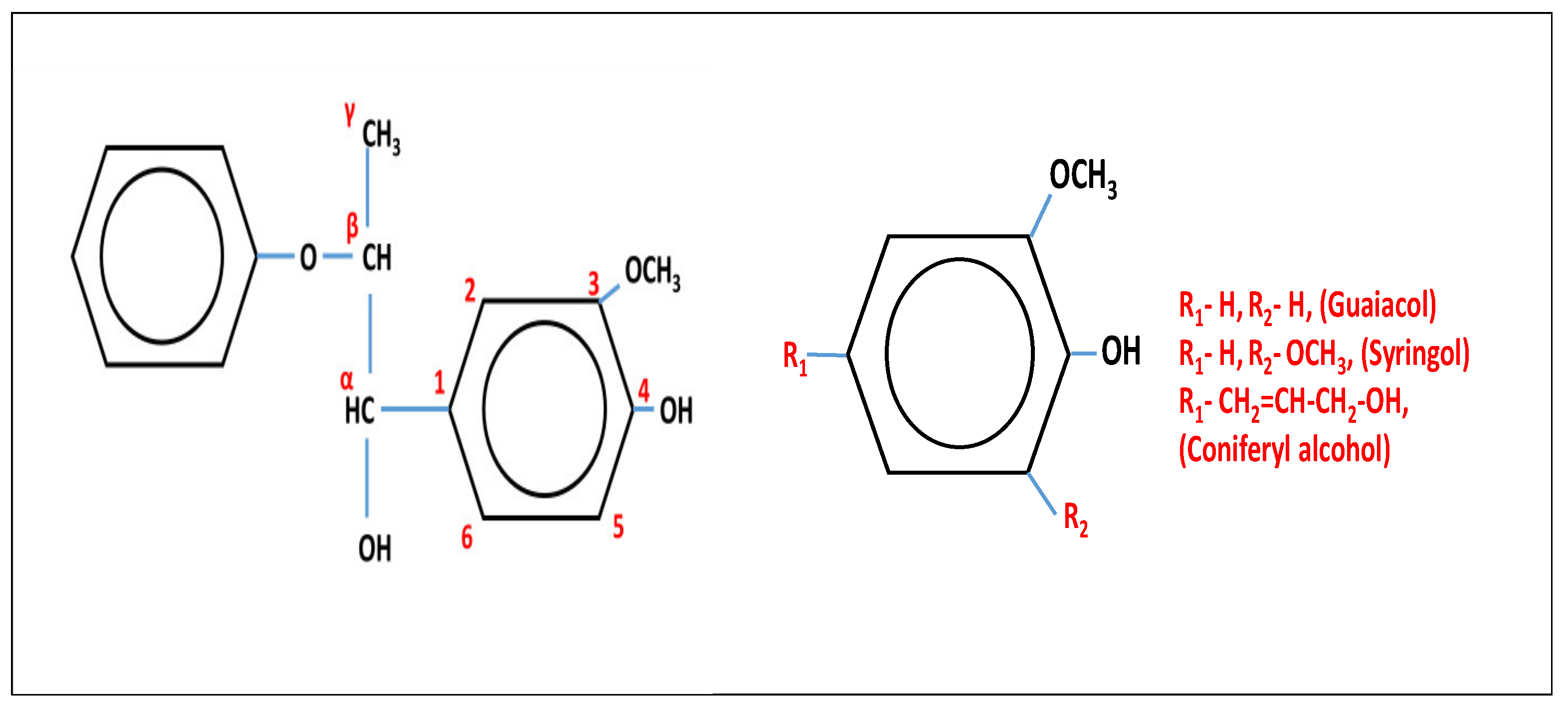

Figure 1. Basic structures and the standard numbering system used for molecules associated with lignin.
Figure 1. Basic structures and the standard numbering system used for molecules associated with lignin.
Nanomaterials 09 00243 g001
Nanomaterials 09 00243 g002 550

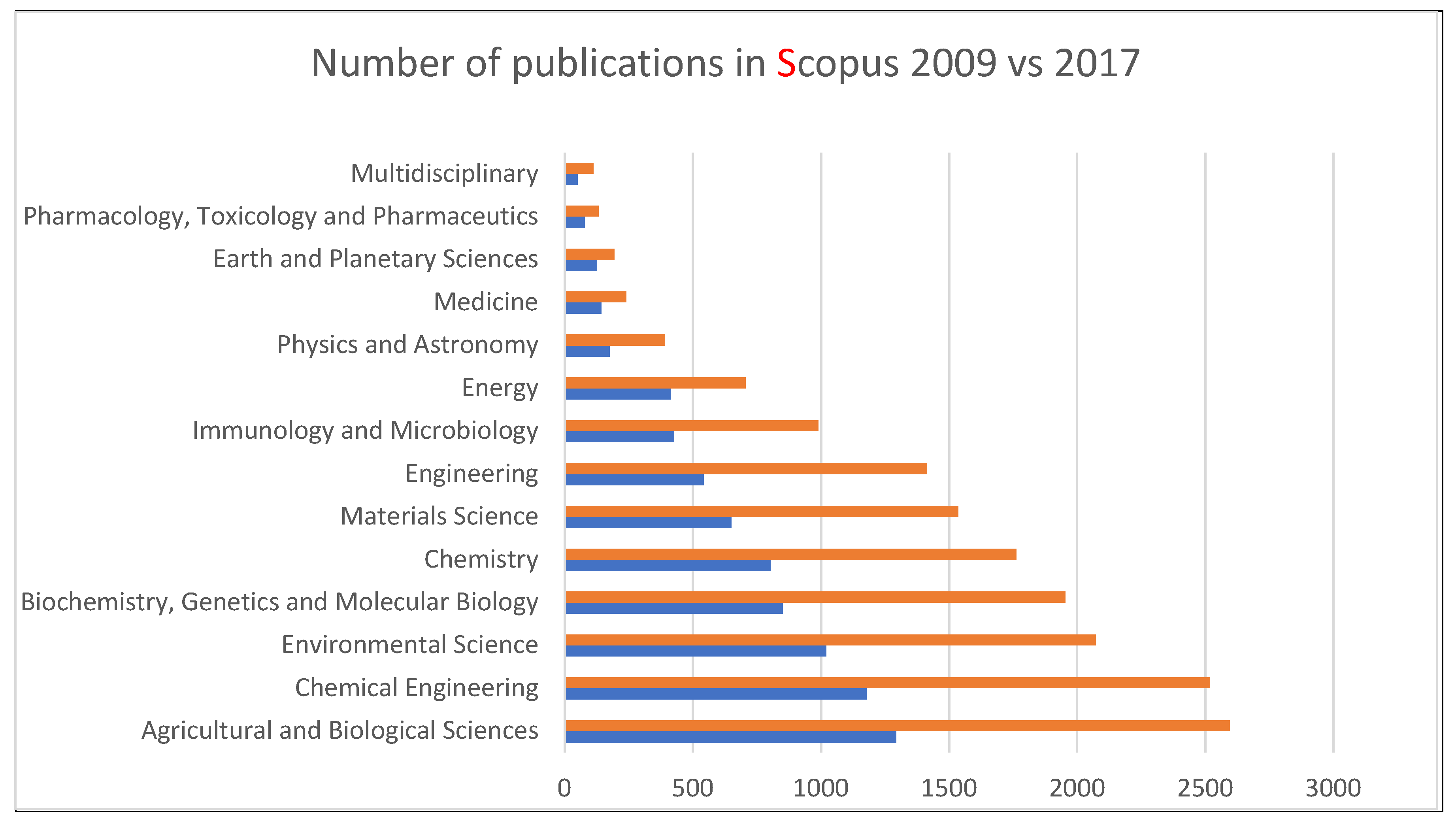

Figure 2. Distribution of the number of publications indexed in Scopus database, number returned using the keyword “lignin.”
Figure 2. Distribution of the number of publications indexed in Scopus database, number returned using the keyword “lignin.”
Nanomaterials 09 00243 g002
Nanomaterials 09 00243 g003 550

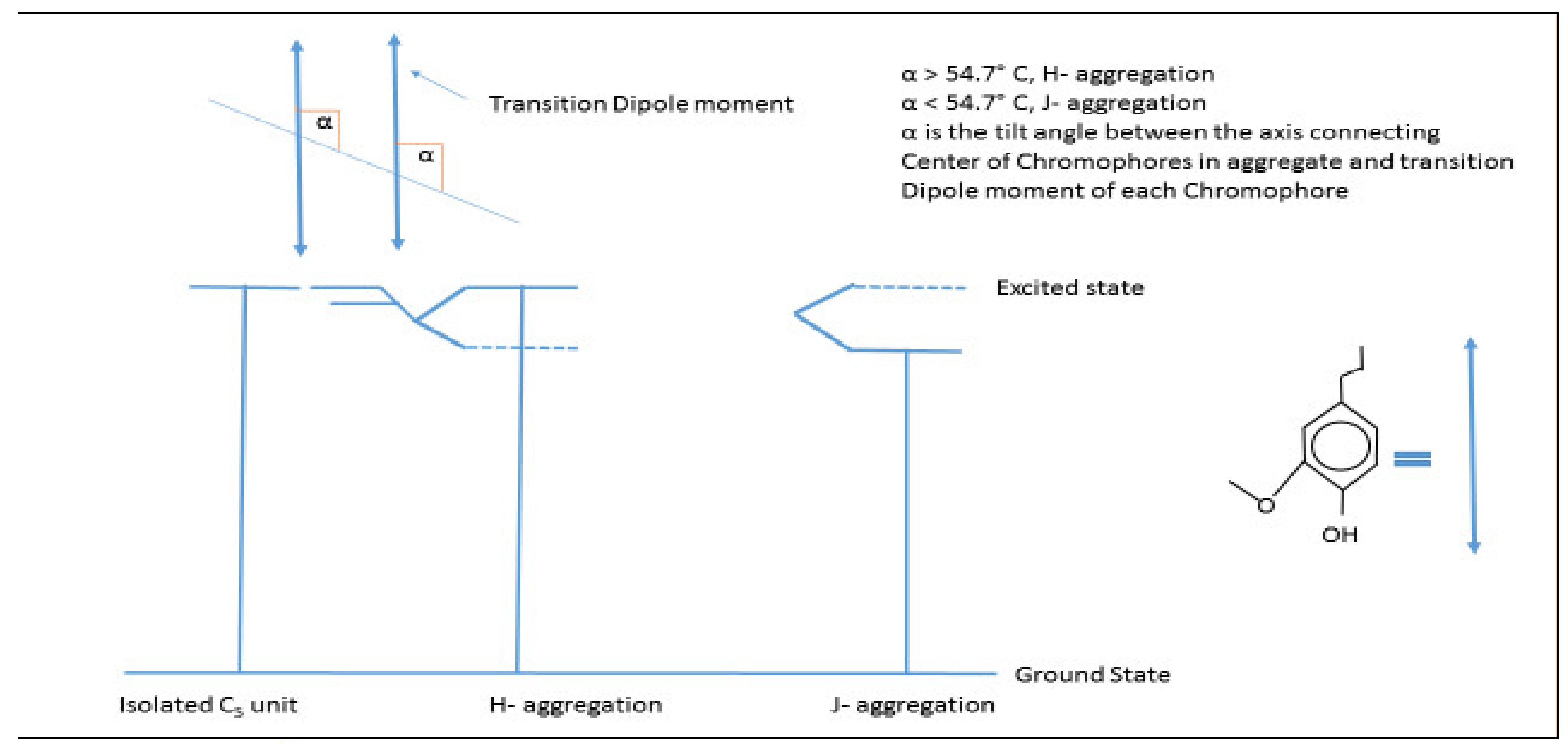

Figure 3. Representation of energy levels of H and J type aggregations [54].
Figure 3. Representation of energy levels of H and J type aggregations [54].
Nanomaterials 09 00243 g003
Table
Table 1. Total hydroxyl group content of lignin (mmol·g−1) based on different sources and methods of extraction.
Table 1. Total hydroxyl group content of lignin (mmol·g−1) based on different sources and methods of extraction.
TypeSourcePhenolicAliphaticCarboxylicTotal
Soda ligninWheat straw2.292.11.105.49 a
P1000 soda ligninSarkanda grass and wheat straw1.851.791.114.75 a
Alcell/organosolv #Mixed hardwoods (maple, birch and poplar)1.911.110.293.31 a
Kraft/indulin AT #Softwood2.312.410.545.26 a
Alkali pretreatedWheat straw1.581.070.923.57 a
Biolignin/organic acid extractedWheat straw1.03.9-4.9 b
Organosolv #Hardwood4.01.50.15.6 b
Kraft #Softwood3.41.70.05.1 b
a [37], b [36], # different suppliers.
Table
Table 2. Information from some of the latest reports on the synthesis of hollow nanoparticles/nanocapsules of lignin.
Table 2. Information from some of the latest reports on the synthesis of hollow nanoparticles/nanocapsules of lignin.
Type of Lignin Used and Structure FormedMethod UsedMechanism SuggestedReported by
Ultrasonic Assisted Synthesis
Dioxane soluble fragment of alkali lignin, hollow colloidUltrasonic spray-freezingPeripheral precipitation[10]
Kraft lignin, microcapsulesUltrasound driven self- associationUltrasound-mediated cross-linking[82]
Kraft lignin, nanocapsulesUltrasonication of microemulsionUltrasound-induced self-assembly and complexation[83]
Kraft lignin, hollow nanospheresUltrasonication assisted solubilization, anti-solvent additionSelf-assembly at two different phases[84]
Wheatgrass lignin and Sarkanda grass ligninUltrasonication of aqueous suspensionSide chain cleavage/depolymerization and oxidative coupling/polymerization[85]
Homogenization assisted synthesis
Organosolv lignin residue, submicron spheresHomogenization enhanced nucleationHydrophilic-lipophilic aggregation[86]
Change of pH and/or solvent
Enzymatic hydrolytic lignin, single hole nanospheresSolvent-anti-solvent precipitation methodLayer by layer self- assembly outside to inside[42]
Kraft lignin, nanocapsulesSolvent-anti-solvent precipitation methodSpontaneous distribution of hydrophilic-lipophilic sequences[87]
Softwood Kraft lignin, lignin NanoparticlesAnti-solvent addition using dialysis bagChemical precipitation[55]
lignin nanocontainerInterfacial polyadditionPolyaddition reaction at interface[88]
Enzymatic hydrolytic lignin, solid nanospheresSolvent–anti-solvent precipitation methodLayer by layer self-assembly inside to outside[41]
Kraft lignin, nanospheresSolvent-anti-solvent precipitation methodChemical precipitation[89]
Low sulfonated lignin (indulin AT)Solvent-anti-solvent and base-acid precipitationChemical precipitation[81]
Kraft ligninDMF (solvent)-compressed CO2 (anti-solvent)Expansion by anti-solvent[90]

Share and Cite

MDPI and ACS Style

Mishra, P.K.; Ekielski, A. The Self-Assembly of Lignin and Its Application in Nanoparticle Synthesis: A Short Review. Nanomaterials 2019, 9, 243. https://doi.org/10.3390/nano9020243

AMA Style

Mishra PK, Ekielski A. The Self-Assembly of Lignin and Its Application in Nanoparticle Synthesis: A Short Review. Nanomaterials. 2019; 9(2):243. https://doi.org/10.3390/nano9020243

Chicago/Turabian Style

Mishra, Pawan Kumar, and Adam Ekielski. 2019. "The Self-Assembly of Lignin and Its Application in Nanoparticle Synthesis: A Short Review" Nanomaterials 9, no. 2: 243. https://doi.org/10.3390/nano9020243

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
