Next Article in Journal
Solid-State Solar Energy Conversion from WO3 Nano and Microstructures with Charge Transportation and Light-Scattering Characteristics
Previous Article in Journal
Electrodeposition of Ti-Doped Hierarchically Mesoporous Silica Microspheres/Tungsten Oxide Nanocrystallines Hybrid Films and Their Electrochromic Performance
Open AccessArticle

Gram-Scale Synthesis of Bimetallic ZIFs and Their Thermal Conversion to Nanoporous Carbon Materials

Australian Institute for Innovative Materials (AIIM), University of Wollongong, Squires Way, North Wollongong, NSW 2500, Australia
Key Laboratory of Eco-Chemical Engineering, College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
Carbon Composite Department, Composites Research Division, Korea Institute of Materials Science (KIMS), 797, Changwon-daero, Seongsan-gu, Changwon-si 51508, Gyeongsangnam-do, Korea
School of Chemical Engineering and Australian Institute for Bioengineering and Nanotechnology (AIBN), The University of Queensland, Brisbane, QLD 4072, Australia
International Research Center for Materials Nanoarchitechtonics (WPI-MANA), National Institute for Materials Science (NIMS), 1-1 Namiki, Tsukuba, Ibaraki 305–0044, Japan
Department of Chemistry, Kookmin University, 77 Jeongneung ro, Seongbuk gu, Seoul 02707, Korea
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2019, 9(12), 1796;
Received: 11 November 2019 / Revised: 10 December 2019 / Accepted: 13 December 2019 / Published: 17 December 2019
(This article belongs to the Special Issue Nanospace Materials)
The hybrid metal-organic frameworks (MOFs) with different Zn2+/Co2+ ratios are synthesized at room temperature with deionized water as the solvent. This use of deionized water can increase the yield of hybrid MOFs (up to 65–70%). After the pyrolysis, the obtained nanoporous carbons (NPCs) show a decrease in the surface area, in which the highest surface area is 655 m2 g−1. The as-prepared NPCs are subjected to activation with KOH in order to increase their surface area and convert cobalt nanoparticles (Co NPs) to Co oxides. These activated carbons are applied to electrical double-layer capacitors (EDLCs) and pseudocapacitors due to the presence of CoO and Co3O4 nanoparticles in the carbon framework, leading to significantly enhanced specific capacitance as compared to that of pristine NPCs. This synthetic method can be utilized in future research to enhance pseudocapacitance further while maintaining the maximum surface area of the carbon materials. View Full-Text
Keywords: hybrid MOFs; nanoporous carbon; microporous; activated carbon; capacitor hybrid MOFs; nanoporous carbon; microporous; activated carbon; capacitor
Show Figures

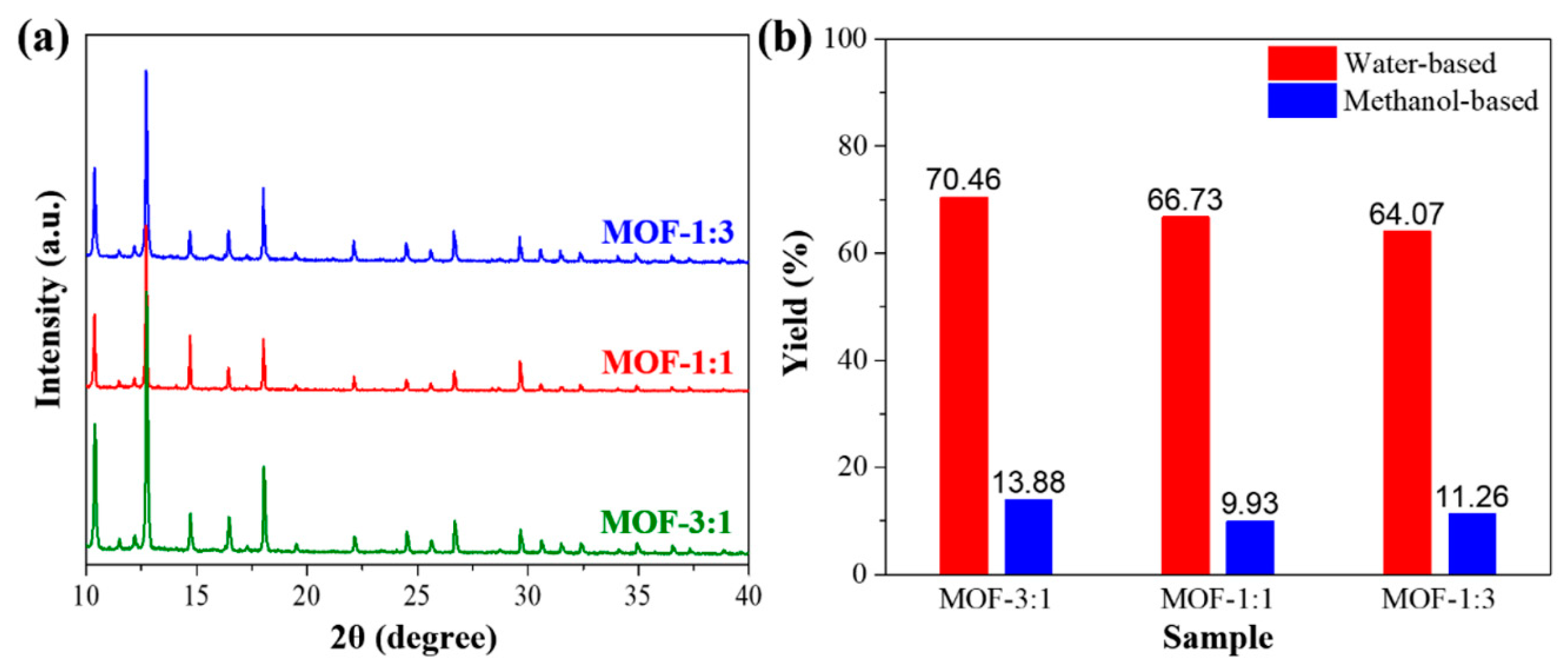

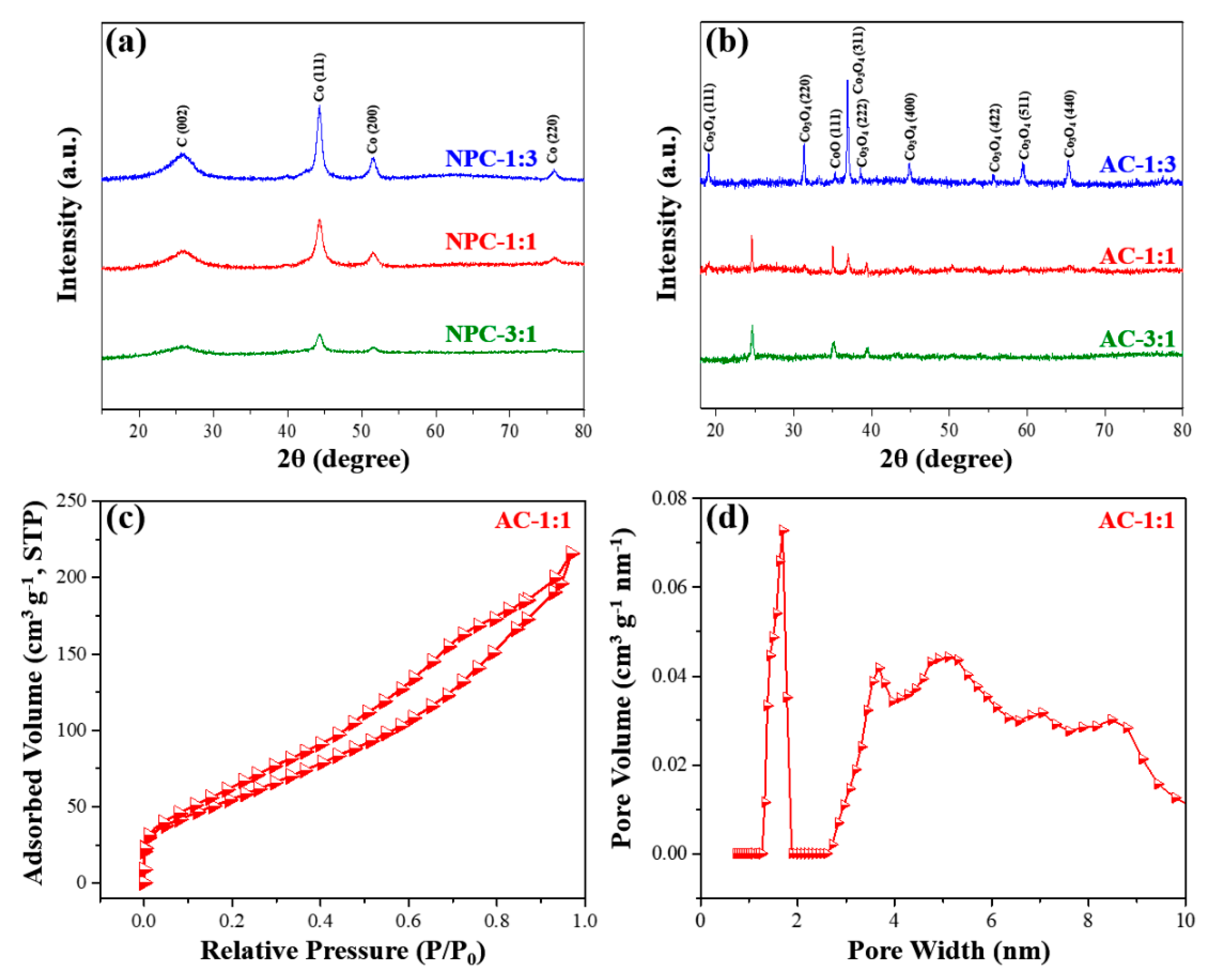

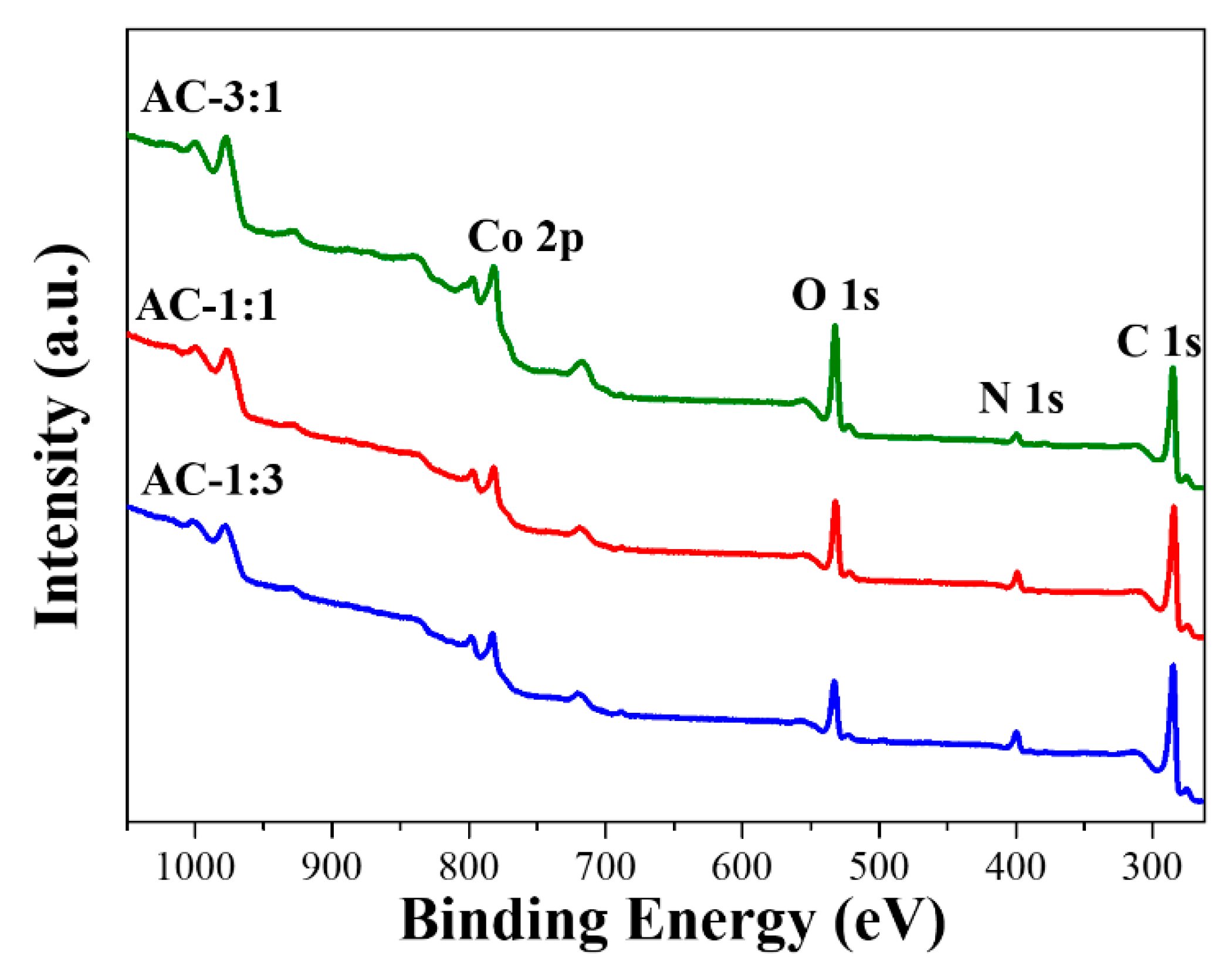

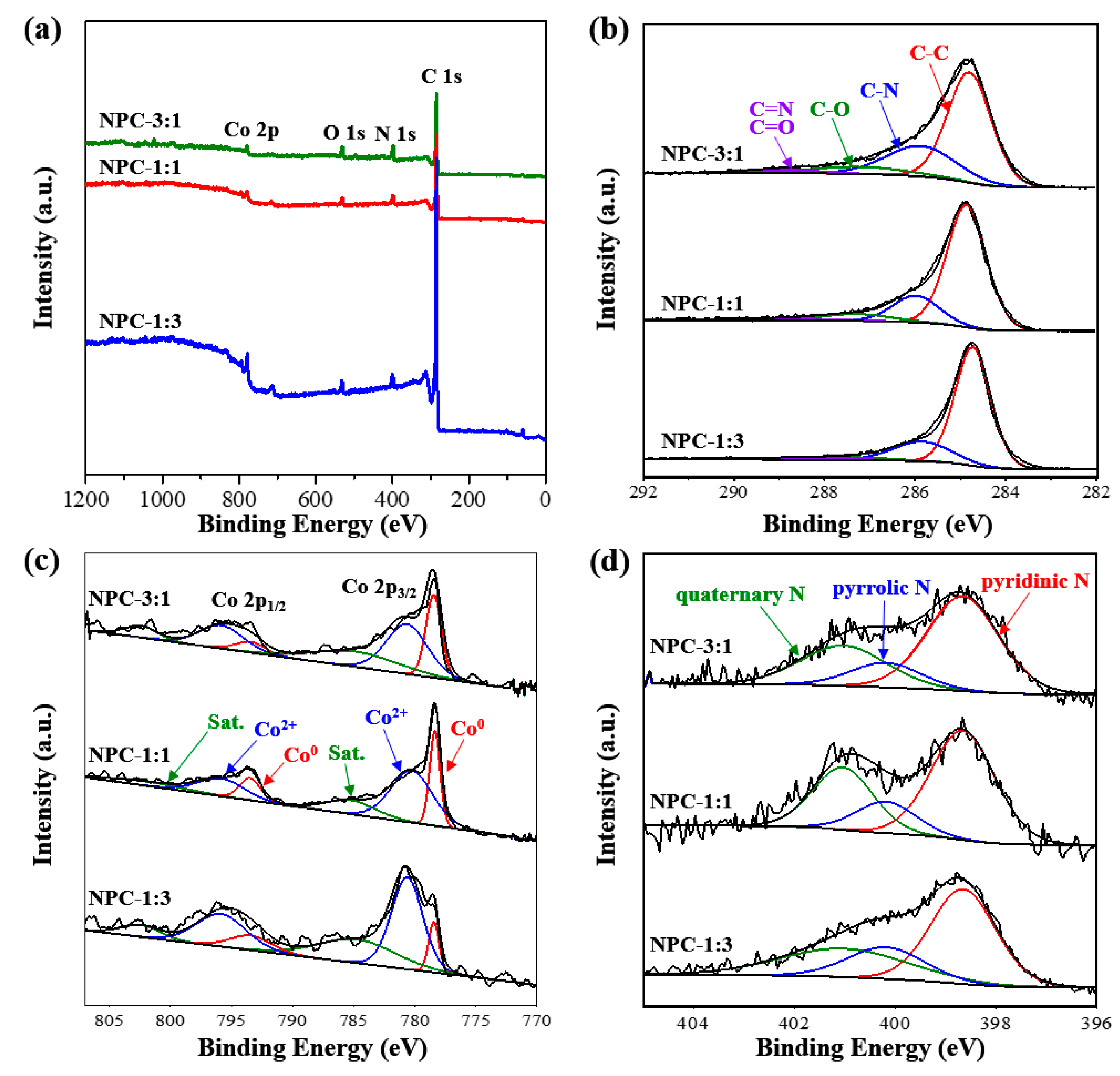

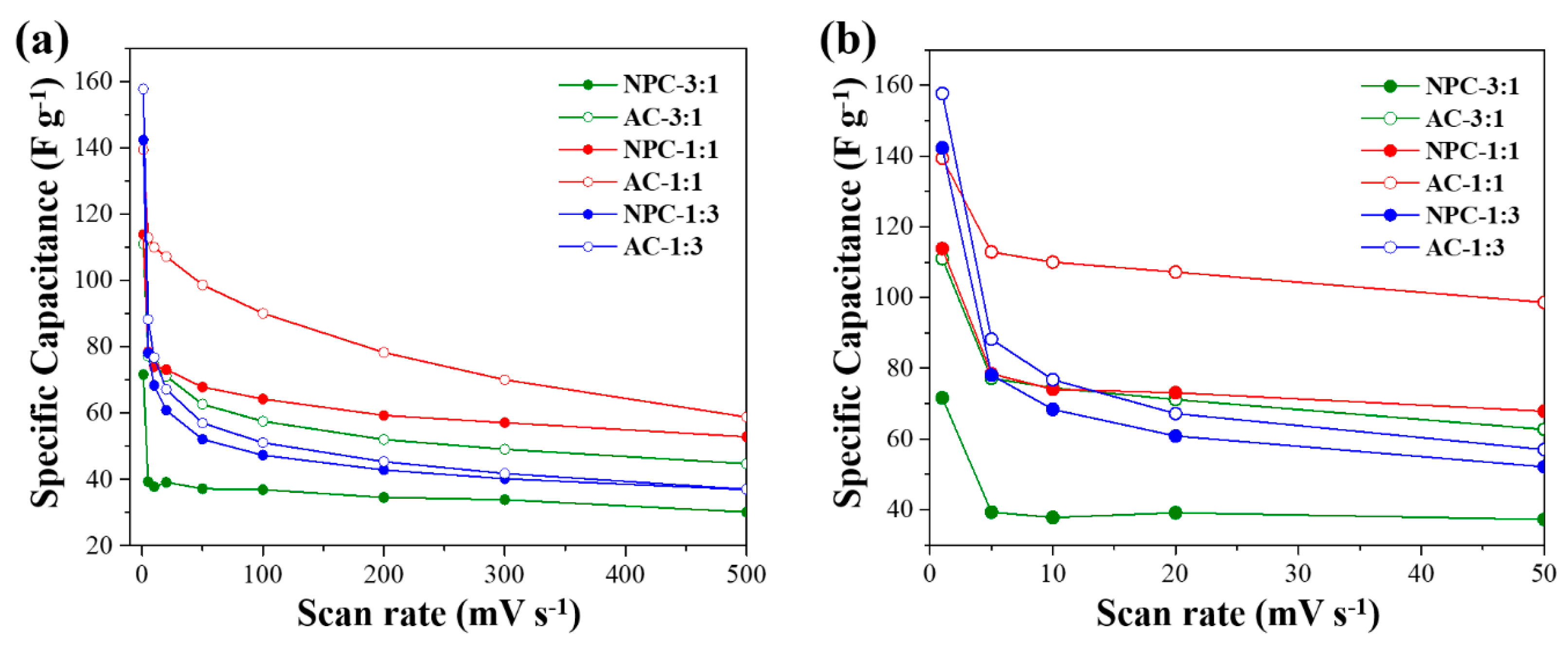

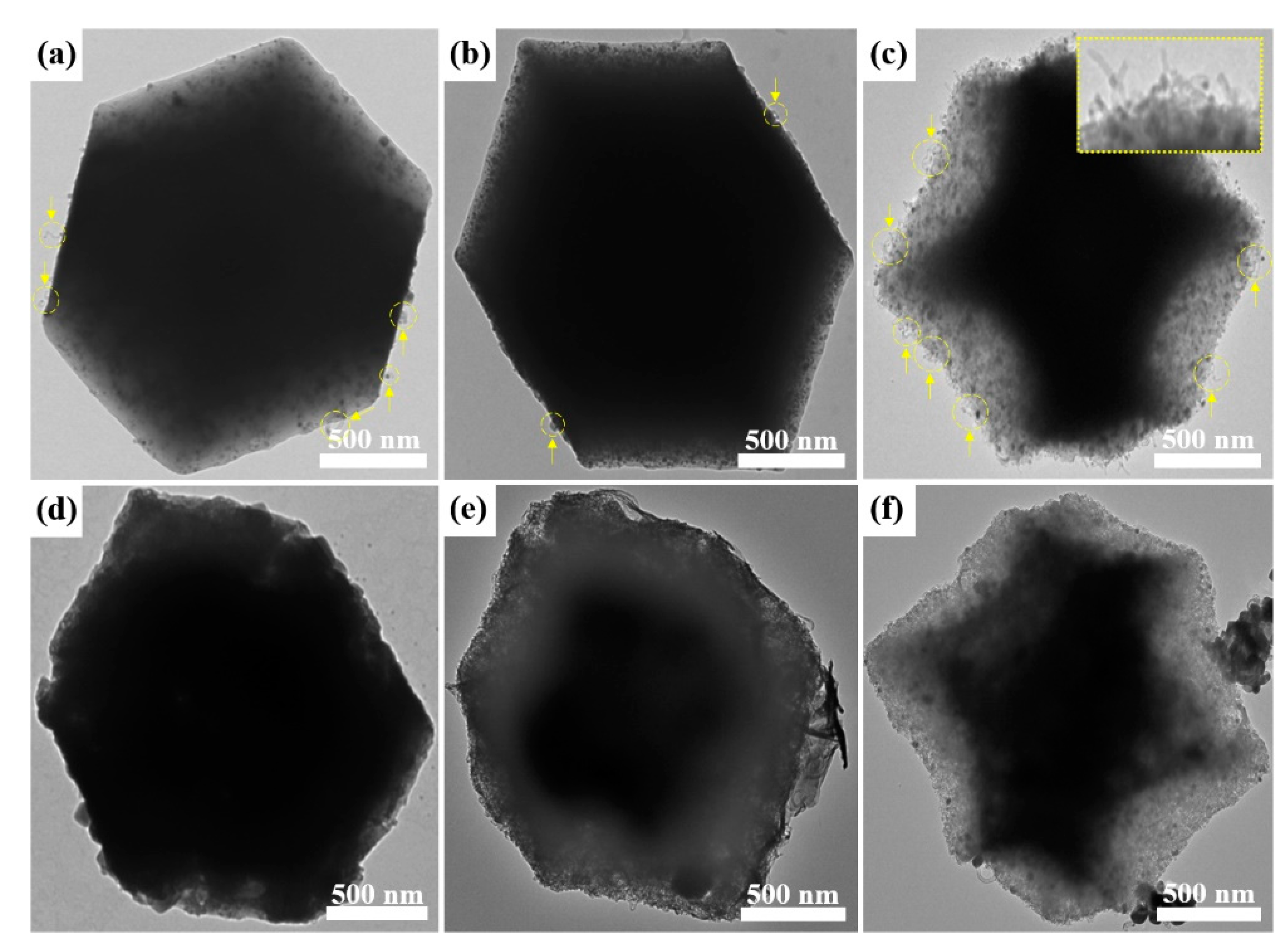

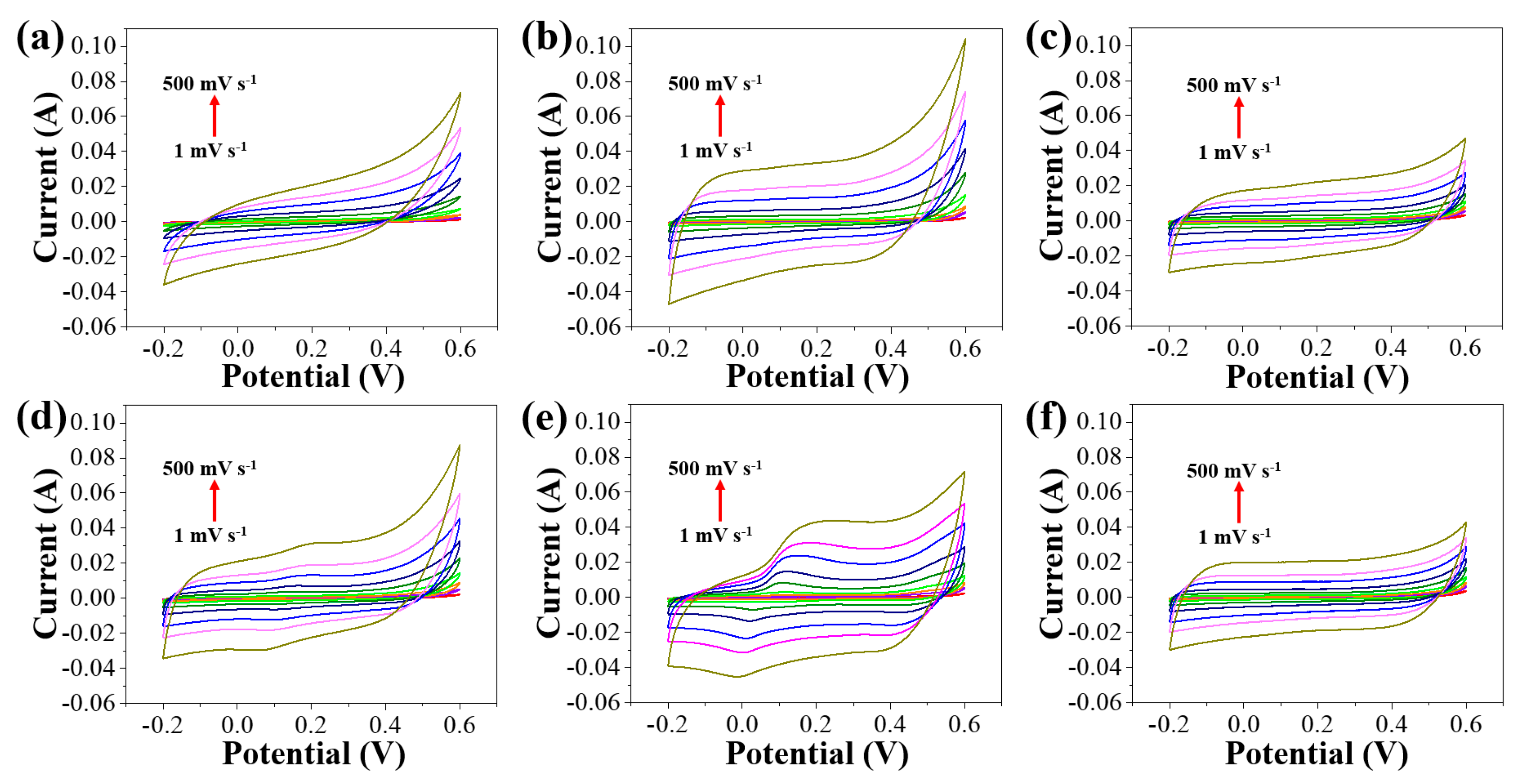

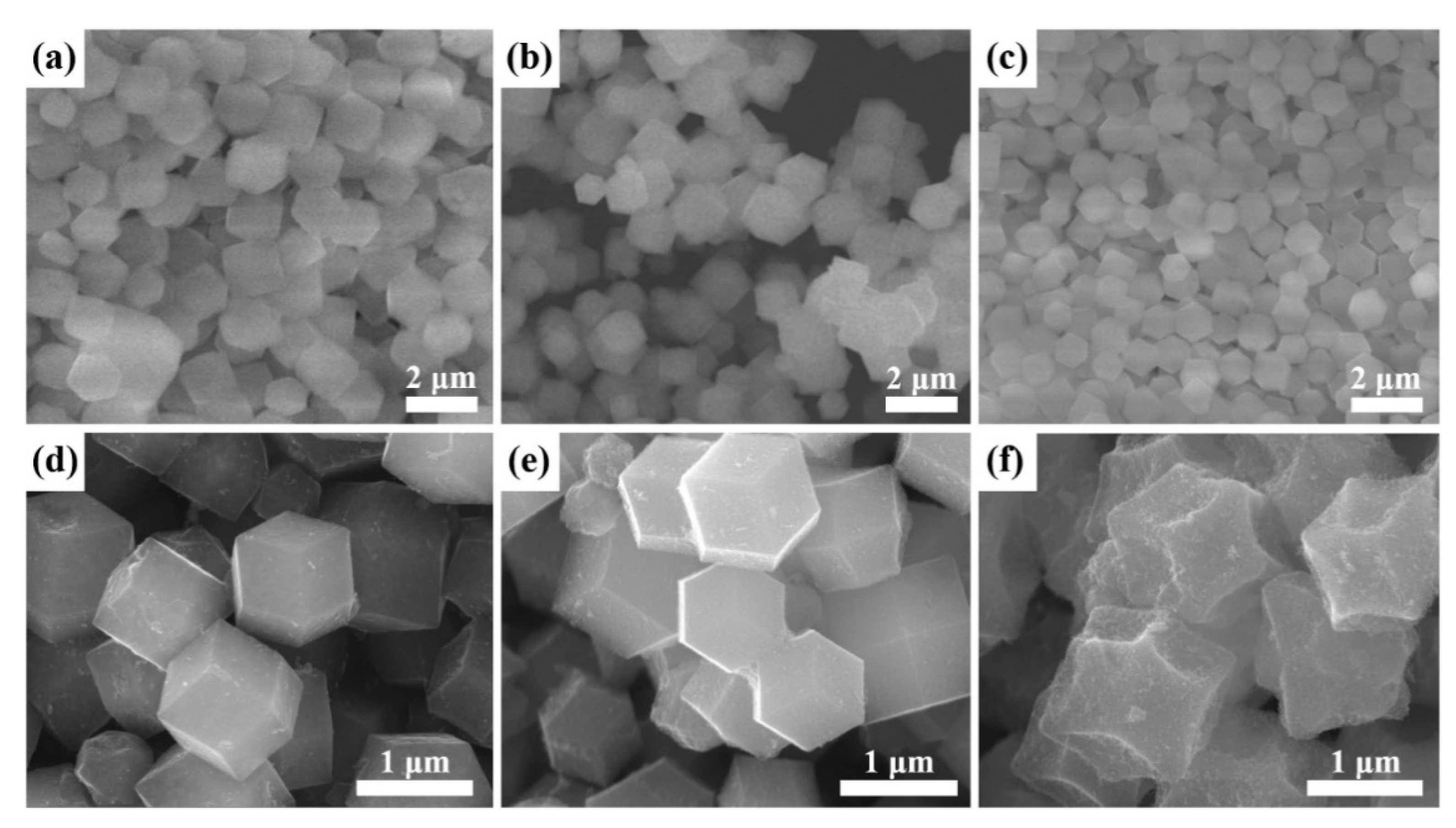

Figure 1

MDPI and ACS Style

Marpaung, F.; Park, T.; Kim, M.; Yi, J.W.; Lin, J.; Wang, J.; Ding, B.; Lim, H.; Konstantinov, K.; Yamauchi, Y.; Na, J.; Kim, J. Gram-Scale Synthesis of Bimetallic ZIFs and Their Thermal Conversion to Nanoporous Carbon Materials. Nanomaterials 2019, 9, 1796.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
