Article

NH3-Sensing Mechanism Using Surface Acoustic Wave Sensor with AlO(OH) Film

1
School of Physics, University of Electronic Science and Technology of China, Chengdu 610054, China
2
Institute of Fundamental and Frontier Sciences, University of Electronic Science and Technology of China, Chengdu 610054, China
3
School of Electronics and Information, Qingdao University, Qingdao 266071, China
4
School of Physical Science and Technology, Southwest Jiaotong University, Chengdu 610031, China
5
School of Materials Science and Engineering, The University of New South Wales, Sydney 2052, Australia
6
Faculty of Engineering and Environment, Northumbria University, Newcastle upon Tyne NE1 8ST, UK
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(12), 1732; https://doi.org/10.3390/nano9121732
Received: 24 October 2019 / Revised: 24 November 2019 / Accepted: 1 December 2019 / Published: 4 December 2019
(This article belongs to the Special Issue Gas Sensors and Semiconductor Nanotechnology)

Abstract

:
In this study, AlO(OH) (boehmite) film was deposited onto a surface acoustic wave (SAW) resonator using a combined sol-gel and spin-coating technology, and prepared and used as a sensitive layer for a high-performance ammonia sensor. The prepared AlO(OH) film has a mesoporous structure and a good affinity to NH3 (ammonia gas) molecules, and thus can selectively adsorb and react with NH3. When exposed to ammonia gases, the SAW sensor shows an initial positive response of the frequency shift, and then a slight decrease of the frequency responses. The sensing mechanism of the NH3 sensor is based on the competition between mass-loading and elastic-loading effects. The sensor operated at room temperature shows a positive response of 1540 Hz to 10 ppm NH3, with excellent sensitivity, selectivity and stability.

1. Introduction

Various poisonous gases [1,2], produced daily by factories in industry and appliances used in our daily life, are hazardous toward environment and people’s health. Among poisonous gases, ammonia is one of highly toxic gases which are produced in large quantities from industry and chemical fertilizers [3,4,5]. After long-term exposure to ammonia gas, people may develop skin pigmentation or finger ulcers. In addition, ammonia can easily enter the bloodstream through alveoli, and then combine with hemoglobin to destroy the oxygen transport function. Short-term inhalation of a large amount of ammonia can cause tears, sore throat, hoarseness, cough and chest tightness [6,7,8,9]. Therefore, it is important to monitor the concentration of NH3 (ammonia gas) in real time in our daily life.
Various kinds of ammonia sensors have been developed in past decades, such as electrochemical sensors, metal oxide semiconductor sensors and surface acoustic wave (SAW) sensors [10,11,12,13,14,15,16]. Among these sensors, SAW sensors have advantages of excellent sensitivity, low power consumption, low operation temperature, and wireless control capabilities [17]. Semiconducting oxides such as zinc oxide (ZnO), silicon oxide (SiO2), titanium oxide (TiO2), cobalt oxide (Co3O4) and iron oxide (Fe2O3) are usually employed as sensing layers of SAW NH3 sensors. For example, Raj et al. reported a quartz SAW sensor with a ZnO sensitive film for ammonia sensing [18]. Wang et al. developed a SAW ammonia sensor with ZnO/SiO2 composite film, and its response was much higher than SAW sensor with a pristine ZnO film [19]. Tang et al. fabricated high-performance SAW NH3 sensors using the composite films of TiO2/SiO2, Co3O4/SiO2 and Fe2O3/SiO2 as the sensing layers, and reported that the addition of SiO2 could enhance the sensitivity of a SAW sensor because of its porous structures [20,21,22]. All these reported materials have porous structures and active sites for the adsorption of NH3. The adsorbed NH3 molecules interact with the composite films and cause changes of their mass, elastic modulus, or conductivity [20], which lead to the responses of the SAW sensors.
AlO(OH) (boehmite) is a positive biaxial crystal which has the characteristics of high heat resistance, good compatibility and electrical insulation, thus it can be applied effectively to lithium batterycoating materials [23,24,25,26], plastic modifiers [27], flame retardants [28]. AlO(OH) film prepared using a sol-gel method usually has a mesoporous structure and a large specific area, which is beneficial for gas sensing. In addition, it was found that there are lots of hydroxyl groups on the surface of sol-gel AlO(OH) film [29]. Hydroxyl groups have a strong affinity with water and easily form hydrogen bonds with water molecules. As a result, abundant water molecules will be adsorbed on the porous surface of the sol-gel AlO(OH) film. The adsorbed water may act as the active sites for the adsorption of NH3 because of the superior solubility of ammonia in water. The ammonia can react with water to form ammonia monohydrate, which may further catalyze the condensation reaction between the hydroxyl groups of AlO(OH), which can cause an increase of elastic modulus and a decrease of mass of the films. Therefore, we believe that the sol-gel AlO(OH) should be an excellent sensitive film to ammonia.
However, to the best of our knowledge, few papers have been focused on ammonia sensing using the sol-gel AlO(OH) film [30,31]. Therefore, in this paper, for the first time, we will investigate the NH3 sensing properties and mechanisms of a quartz SAW sensor coated with AlO(OH) sensing layer. Our results show that the film has a mesoporous structure, and abundant hydroxyl groups in the film. The mesoporous structure, hydroxyl groups and water are all found to be beneficial for the application of NH3 gas sensor. The sensor shows good sensitivity, selectivity and repeatability at room temperature when exposed to ammonia gas, and the sensing mechanism is identified to be influenced by the competitions between mass-loading and elastic-loading effects.

2. Experimental Details

The SAW resonator was fabricated on an ST-Cut (42°75′) quartz substrate (12 mm × 3 mm × 0.5 mm) using a standard photolithography and lift-off process with the magnetron-sputtered Al film. Figure 1a shows a schematic diagram of the SAW resonator. The resonator consists of two sets of interdigital transducers (IDTs, 30 pairs each) and reflection gratings (100 pairs). The IDTs and reflecting gratings have a periodicity of 16 μm with each finger width of 4 μm, thus the designed center frequency of the SAW resonator is ~200 MHz. The propagation direction of a SAW resonator is designed to be perpendicular to the crystallographic x-axis (90°-rotated), and the corresponding acoustic velocity of the SAW resonator is 3158 m/s.
For preparation of nano-alumina sol, Al(OC3H7i)3 was hydrolyzed in deionized water in a beaker for 1 h under magnetic stirring at 80 °C, and the concentration of the aluminium isopropoxide was 0.3 mol/L. Nitric acid (HNO3) was then added to the mixture obtained (nAl(OC3H7i)3:nHNO3 = 10:1) [32,33,34]. The colloidal suspension obtained was refluxed for 2 h under vigorous stirring at 80 °C. After these processes, a stable Nano-Alumina sol was obtained.
For preparation of AlO(OH) film, the nano-alumina sol was spin coated onto SAW resonator with a speed of 5000 r/min for 30 s. The coated SAW resonator was annealed in an oven at 350 °C for 1 h to obtain a stable AlO(OH) film. Finally, the annealed resonators were connected to an amplifier and phase-shift circuits to build the SAW sensor, as shown in Figure 1b.
An X-ray diffractometer (XRD, D8 ADVANCE, Bruker AXS, Karlsruhe, Germany) was used to characterize the crystallinity of the AlO(OH) films. A field-emission scanning electron microscope (FE-SEM, FEI Inspect F, Thermo Fisher, Hillsboro, OR, USA) was used to characterize the surface morphology of AlO(OH) films. A Fourier transform infrared (FTIR) Spectrometer (Nicolet 6700, Thermo Fisher, Hillsboro, OR, USA) was used to obtain the infrared absorption spectra of the prepared films. An X-ray photoelectron spectroscopy (XPS, Quantum 2000 Scanning ESCA Microprobe instrument, Physical electronics, Chanhassen, MN, USA) was used to analyze the chemical states of AlO(OH) layers. The surface area was measured based on the Brunauer–Emmett–Teller (BET) method using the instrument of ASAP-2020(Micromeritics Instrument, Atlanta, GA, USA), and the pore size distribution was derived from the adsorption branches of the isotherms using the Barrett Joyner Halenda (BJH) model.
Figure 2 shows the set up of NH3 gas sensing system. The SAW sensor was put inside a transparent box with a volume of 20 L, and connected to a DC power (Agilent E3631A, Keysight Technologies, San Francisco, CA, USA) and a frequency counter (Agilent 53132A, Keysight Technologies, San Francisco, CA, USA). During the measurement, the temperature of the environment was maintained at 25 °C, controlled by an air conditioner. The relative humidity (RH) of the environment was adjusted using a humidifier. The testing gases (2 vol%, balanced with dry air) including C2H5OH, NO2, H2S, CO and NH3 were injected into the chamber using a precision syringe. For example, with 1 mL NH3 gas injected, the concentration of the test gas in the chamber is 1 ppm.
The response of the SAW sensor was defined as Δf = fs − f0, where fs is the stable working frequency of the SAW sensor when exposed to testing gas, and f0 is the stable working frequency of the SAW sensor in the ambient environment, respectively. After the responses were recorded, the test gas was released and pure air was re-filled in the box to allow the full recovery of the sensor.

3. Result and Discussion

3.1. Structural Characterization

Figure 3 shows the XRD spectrum of the AlO(OH) film. There are 12 diffraction peaks located at 14.48°, 28.18°, 38.34°, 45.79°, 49.21°, 51.59°, 55.22°, 60.58°, 64.03°, 64.98°, 66.97° and 72.47°, corresponding to the crystal planes of (020), (021), (031), (131), (200), (220), (151), (080), (231), (002), (022) and (122) for AlO(OH), respectively. Compared with the standard spectrum, these 12 main diffraction peaks are consistent with the γ-AlO(OH) (JCPDS Card 21-1307). Hence, this indicates that the prepared AlO(OH) film is consisted of AlO(OH) nanoparticles. According to the Debye–Scherrer formula, we can estimate the crystallite size of the AlO(OH) nanoparticle was ~16 nm.
Figure 4a,b show scanning electron microscopy (SEM) images of surface morphology of the AlO(OH) film which indicates that the AlO(OH) film has a rough surface. Figure 4c shows that the film is consisted of a large amount of AlO(OH) particles with an average diameter of ~20 nm. Pores with an average diameter of tens of nanometers can be found on the film surface. The cross-sectional image of AlO(OH) film is shown in the inset of Figure 4c, which indicates the thickness of AlO(OH) film is ~80 nm.
The specific surface areas and pore distribution of the AlO(OH) powders, which were scratched from the AlO(OH) film, were measured using the nitrogen adsorption method. The obtained N2 adsorption-desorption isotherm of the AlO(OH) is shown in Figure 5a, which can be categorized as type IV. It has a distinct hysteresis loop in the relative pressure range of 0.4–0.9, indicating the presence of mesopores. The measured BET surface area of AlO(OH) is 269.34 m2/g, and the total pore volume is 0.45 cm3/g. Figure 5b shows that the pore size range of the AlO(OH) material is from 2 to 9 nm and the calculated average pore diameter is 5.55 nm. These results indicate that the AlO(OH) film is mesoporous. These mesopores can provide efficient paths for gas molecules to diffuse into the film, and also provide many active surfaces for the adsorption of the gas molecules, both of which are beneficial to the gas-sensing application.
The typical infrared spectra of AlO(OH) film are shown in Figure 6. There are obvious broad bands located around 1634 cm−1 and 3446 cm−1. The band located around 1634 cm−1 is caused by the bending vibration of H-O-H, which is related to free water [35]. The band around 3446 cm−1 corresponds to the stretching vibration of O-H, which is related to structural water and free water [35]. The bands at 1071 cm−1, 739 cm−1, and 619 cm−1 are generally considered to be the characteristic absorption peaks of boehmite [35]. The band at 1071 cm−1 corresponds to the bending vibration of Al-OH, and the bands at 739 cm−1, 619 cm−1 and 484 cm−1 correspond to Al-O stretching and bending vibrations [36]. The band at 1380 cm−1 corresponds to telescopic vibration of carboxyl C-O [37]. From the FTIR results, it can be concluded that hydroxyl groups and abundant water co-exist in the AlO(OH) film.
In order to determine the chemical composition of the AlO(OH) film, XPS measurements were performed. Figure 7a shows the XPS survey spectra, in which the peaks at 74 eV, 118 eV, 285 eV, 531 eV and 975 eV represent the binding energies of Al(2p), Al(2s), C(1s), O(1s) and O(KLL), respectively. In order to analyze the valence state of O(1s), the O(1s) peaks are deconvoluted, and the result is shown in Figure 7b. The O(1s) spectrum shows three different peaks at 533 eV, 531.8 eV and 530.5 eV, which can be assigned as those in the adsorbed water, hydroxyl and oxide ions, respectively. Therefore, these XPS results also confirm that there are abundant hydroxyl groups and water existed in the AlO(OH) film.

3.2. Gas-Sensing Properties

Figure 8a shows the responses (frequency shift) of SAW sensor with the AlO(OH) layer toward NH3 with various concentrations of NH3 at a fixed RH value of 30%. The responses of the sensor are 850 Hz, 1080 Hz, 1540 Hz, 1910 Hz and 2140 Hz to a sequence of NH3 gas concentrations of 2 ppm, 4 ppm, 10 ppm, 20 ppm, 40 ppm, respectively. This demonstrates that the response of the sensor is increased with the increase of NH3 concentration. However, it becomes gradually saturated when the NH3 concentration is higher than 20 ppm. Based on Figure 8a, the response of the SAW sensor to ammonia can be divided into two stages. Response stage 1 shows a positive shift of the frequency response and response stage 2 shows a slight negative shift on the response, which will be discussed later.
Figure 8b presents the responses of the SAW sensor with the AlO(OH) layer toward NH3 with various concentrations at an RH value of 55%. The responses of the sensor are 1040 Hz, 1640 Hz, 1870 Hz, 2290 Hz and 2620 Hz to a sequence of NH3 gas concentrations of 2 ppm, 4 ppm, 10 ppm, 20 ppm, 40 ppm, respectively. Compared with the responses obtained at RH values of 30% and 55%, the higher value of humidity will enhance the frequency response of the sensor, and the reasons will be discussed later. This result indicates that humidity has a significant influence on a SAW sensor with AlO(OH) film.
Figure 9 shows the selectivity results of the SAW sensor with AlO(OH) film at the room temperature. It is clear that the sensor has no significant responses towards C2H5OH, NO2, H2S, and CO. However, it shows the response of 1525 Hz when exposed to 10 ppm NH3. This is because that there are lots of hydroxyl groups on the surface of sol-gel AlO(OH) film, and among all these gases, only the ammonia gas can further catalyze the condensation reaction between the hydroxyl groups of AlO(OH) causing an increase of elastic modulus. This test indicates that SAW ammonia sensor with AlO(OH) film has an excellent selectivity towards to NH3, compared with the five other gases which we have studied.
In order to verify the short-term stability of the SAW sensor with AlO(OH) film, the sensor was exposed to NH3 of 10 ppm for response and recovery for 4 cycles. As shown in Figure 10a, the response fluctuation was less than 3%, which indicates that the sensor has an excellent short-term stability. The long-term stability of the sensor was further investigated by conducting the sensing test every 10 days within a 60-day period. As shown in Figure 10b, the sensor shows similar responses to 2 ppm, 4 ppm and 40 ppm NH3, respectively. Thus, we can confirm that the sensor has a good long-term stability at low concentrations and high concentrations of ammonia.
The presented SAW ammonia sensors are listed in Table 1. Ma et al. exhibited a SAW sensor based on ZnO nanorod array for ammonia detection which had a negative response of 300 Hz to 50 ppm NH3 [38]. Wang et al. showed a SAW ammonia sensor with ZnO/SiO2 composite film, and its response was 1132 Hz to 10 ppm NH3 [19]. The SAW ammonia sensor with AlO(OH) film had a positive response of 1540 Hz to 10 ppm NH3. Therefore, it is meaningful to study the mechanism of the SAW ammonia sensor with AlO(OH) film.

3.3. Sensing Mechanisms

It has been established in literature that three effects can contribute to the SAW sensor’s responses, i.e., the changes of mass (mass loading effect), elastic modulus (elastic loading effect) and electrical conductivity (electric loading effect) [39,40,41]. Taking into account that the AlO(OH) has the characteristic of electrical insulation, the electric conductivity has little effect on the response of the SAW sensor with the AlO(OH) film [18,19]. Therefore, the response is mainly caused by elastic loading and mass-loading effects. The relationship between response and the change of elastic modulus is given by the following formula [19]:
Δ f = p Δ E
where p is a positive constant, and ΔE is the elastic modulus change of sensing film when the SAW sensor exposed to ammonia.
The influence of change of mass on the response of the sensor follows Equation (2) [20]:
Δ f = ( k 1 + k 2 ) × f 0 2 × Δ ρ s
where k1 = −8.7 × 10−8 m2 skg−1 and k2 = −3.9 × 10−8 m2 skg−1 are the substrate material constants of ST cut quartz; f0 = 200 Mhz is the stable working frequency of the SAW sensor in the ambient environment, Δρs is the area density change of sensing film when the AlO(OH) film is exposed to NH3. According to Equations (1) and (2), an increase of the elastic moduli and mass of the sensitive film would lead to a positive and negative response of the frequency, respectively.
FTIR and XPS results have revealed that there are a large amount of hydrophilic hydroxyl groups and water on the surface of AlO(OH) films. When exposed to NH3 gas, the film will experience two different changes in its properties as shown in Figure 11. (1): the AlO(OH)-sensitive film has effectively absorbed the NH3 molecules because of the strong affinity of NH3 with H2O. The adsorbed NH3 will lead to an increase of the mass of the film by filling the mesopores in the film; (2): the adsorbed NH3 can enhance the condensation reaction between the hydroxyl groups in the AlO(OH) film, which will lead to an increase of the elastic modulus. According to Equations (1) and (2), film changes of (1) and (2) will result in either negative or positive changes of the sensor responses, respectively.
As shown in Figure 8a, when the sensor is exposed to NH3 gas, it initially shows a positive response (response stage 1) and then a slight decrease on the response (response stage 2). With this result, it can be concluded that both the film changes (1) and (2) contribute to the responses of the frequency. The change (2) appears to the dominant one. Therefore, the ammonia-sensing mechanism of the SAW sensor with AlO(OH) film is based on the competition of mass and elastic-loading effects.
Figure 12 shows the responses of SAW sensor with AlO(OH) film with the humidity level in the chamber cycled between 40% to 70% for 6 cycles. The maximum response change of the sensor is ~–60 KHz when the RH is changed from 40% to 70%. The negative response indicates that more water is adsorbed on the film at a higher humidity level, which causes an increase of mass loading on the sensor. At higher humidity, the AlO(OH) will adsorbed more water molecules, and more NH3 molecules can be captured by the sensitive film due to the superior affinity of NH3 for H2O, and thus the sensor may show a stronger response toward NH3. This can be verified from the results shown in Figure 8.

4. Conclusions

A SAW ammonia sensor with AlO(OH) film was systematically investigated and studied. The SEM and N2 adsorption results revealed the AlO(OH) film has a mesoporous structure, and the FTIR and XPS results indicated that there are a large amount of hydrophilic hydroxyl groups and water on the surface of AlO(OH) films. The mesoporous structure, hydroxyl groups, and water are all found to be beneficial for the enhanced sensitivity of the NH3 gas sensor. The sensor exhibits excellent stability, sensitivity and selectivity, and its ammonia-sensing mechanism is based on the competition of mass and elastic-loading effects.

Author Contributions

Conceptualization, revision and supervision, Y.T. and X.Z.; Investigation, validation, formal analysis and writing, X.X. (Xiaofeng Xu); Formal analysis and revision, D.A. and Y.F.; the revision of English language and logic, J.Y., S.L. and Y.F.; Contribution to figures, X.X. (Xia Xiang) and W.X.

Funding

This research was funded by the NSAF Joint Foundation of China (U1630126, U1230124), and UK Engineering and Physical Sciences Research Council (EPSRC EP/P002803/1).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stokstad, E. Ammonia pollution from farming may exact hefty health costs. Science 2014, 343, 238–338. [Google Scholar] [CrossRef] [PubMed]
  2. Li, D.J.; Tang, Y.L.; Ao, D.Y.; Xiang, X.; Wang, S.Y.; Zu, X.T. Ultra-highly sensitive and selective H2S gas sensor based on CuO with sub-ppb detection limit. Int. J. Hydrogen Energy 2019, 44, 3985–3992. [Google Scholar] [CrossRef]
  3. Timmer, B.; Olthuis, W.; van den Berg, A. Ammonia sensors and their applications—A review. Sens. Actuators B 2005, 107, 666–677. [Google Scholar] [CrossRef]
  4. Griffiths, R.F.; Megson, L.C. The effect of uncertainties in human toxic response on hazard range estimation for ammonia and chlorine. Atmos. Environ. 1984, 18, 1195–1206. [Google Scholar] [CrossRef]
  5. Wang, S.Y.; Yang, H.; Yi, Z.; Wang, X.X. Enhanced photocatalytic performance by hybridization of Bi2WO6 nanoparticles with honeycomb-like porous carbon skeleton. J. Environ. Manag. 2019, 248, 109341. [Google Scholar] [CrossRef] [PubMed]
  6. Gaskin, S.; Pisaniello, D.; Edwards, J.W.; Bromwich, D.; Reed, S.; Logan, M.; Baxter, C. Application of skin contamination studies of ammonia gas for management of hazardous material incidents. J. Hazard. Mater 2013, 252, 338–346. [Google Scholar] [CrossRef]
  7. Close, L.G.; Catlin, F.I.; Cohn, A.M. Acute and chronic effects of ammonia burns of the respiratory tract. Arch. Otolaryngol. 1980, 106, 151–158. [Google Scholar] [CrossRef]
  8. Yan, Y.X.; Yang, H.; Yi, Z.; Xian, T. NaBH4-reduction induced evolution of Bi nanoparticles from BiOCl nanoplates and construction of promising Bi/BiOCl hybrid photocatalysts. Catalysts 2019, 9, 795. [Google Scholar] [CrossRef][Green Version]
  9. Zhao, X.X.; Yang, H.; Cui, Z.M.; Yi, Z.; Yu, H. Synergistically enhanced photocatalytic performance of Bi4Ti3O12 nanosheets by Au and Ag nanoparticles. J. Mater. Sci. Mater. Electron. 2019, 30, 13785–13796. [Google Scholar] [CrossRef]
  10. Ji, X.B.; Banks, C.E.; Silvester, D.S.; Aldous, L.; Hardacre, C.; Compton, R.G. Electrochemical ammonia gas sensing in nonaqueous systems: A comparison of propylene carbonate with room temperature ionic liquids. Electroanalysis 2007, 19, 2194–2201. [Google Scholar] [CrossRef]
  11. Zhang, F.H.; Wang, Y.C.; Ge, H.L.; Huang, X.Y.; Wang, B.; Pang, Z.Y.; Han, S.H.; Xie, W.F. High performance In2(MoO4)3/In2O3 nanocomposites gas sensor with long-term stability. J. Alloy Compd. 2019, 805, 180–188. [Google Scholar] [CrossRef]
  12. Wang, Y.C.; Sun, Z.S.; Wang, S.Z.; Wang, S.Y.; Cai, S.X.; Huang, X.Y.; Li, K.; Chi, Z.T.; Pan, S.D.; Xie*, W.F. Superior acetic acid gas sensor based on In2O3 nanofibers. J. Mater. Sci. 2019, 54, 14055–14063. [Google Scholar] [CrossRef]
  13. Llobet, E.; Molas, G.; Molinas, P.; Calderer, J.; Vilanova, X.; Brezmes, J.; Sueiras, J.E.; Correig, X. Fabrication of highly selective tungsten oxide ammonia sensors. J. Electrochem. Soc. 2000, 147, 776–779. [Google Scholar] [CrossRef]
  14. Gao, H.J.; Zheng, C.X.; Yang, H.; Niu, X.W.; Wang, S.F. Construction of a CQDs/Ag3PO4/BiPO4 heterostructure photocatalyst with enhanced photocatalytic degradation of rhodamine B under simulated solar irradiation. Micromachines 2019, 10, 557. [Google Scholar] [CrossRef][Green Version]
  15. Li, D.J.; Zu, X.T.; Ao, D.Y.; Tang, Q.B.; Fu, Y.Q.; Guo, Y.J.; Bilawal, K.; Faheem, M.B.; Li, L.; Li, S.; et al. High humidity enhanced surface acoustic wave (SAW) H2S sensors based on sol–gel CuO films. Sens. Actuat. B Chem. 2019, 294, 55–61. [Google Scholar] [CrossRef]
  16. Yan, Y.X.; Yang, H.; Yi, Z.; Xian, T.; Wang, X.X. Direct Z-scheme CaTiO3/BiOBr composite photocatalysts with enhanced photodegradation of dyes. Environ. Sci. Pollut. Res. 2019, 26, 29020–29031. [Google Scholar] [CrossRef]
  17. Fu, Y.Q.; Luo, J.K.; Nguyen, N.T.; Walton, A.J.; Flewitt, A.J.; Zu, X.T.; Li, Y.; McHale, G.; Matthews, A.; Iborra, E.; et al. Advances in piezoelectric thin films for acoustic biosensors, acoustofluidics and lab-on-chip applications. Prog. Mater. Sci. 2017, 89, 31–91. [Google Scholar] [CrossRef][Green Version]
  18. Raj, V.B.; Singh, H.; Nimal, A.T.; Sharma, M.U.; Tomar, M.; Gupta, V. Distinct detection of liquor ammonia by ZnO SAW sensor: Study of complete sensing mechanism. Sensor. Actuat. B Chem 2017, 238, 83–90. [Google Scholar] [CrossRef]
  19. Wang, S.Y.; Ma, J.Y.; Li, Z.J.; Su, H.Q.; Alkurd, N.R.; Zhou, W.L.; Wang, L.; Du, B.; Tang, Y.L.; Ao, D.Y.; et al. Surface acoustic wave ammonia sensor based on ZnO/SiO2, composite film. J. Hazard. Mater. 2015, 285, 368–374. [Google Scholar] [CrossRef]
  20. Tang, Y.L.; Ao, D.Y.; Li, W.; Zu, X.T.; Li, S.; Fu, Y.Q. NH3 sensing property and mechanisms of quartz surface acoustic wave sensors deposited with SiO2, TiO2, and SiO2-TiO2 composite films. Sens. Actuat. B 2018, 254, 1165–1173. [Google Scholar] [CrossRef][Green Version]
  21. Tang, Y.L.; Li, Z.J.; Ma, J.Y.; Su, H.Q.; Guo, Y.J.; Wang, L.; Du, B.; Chen, J.J.; Zhou, W.; Yu, Q.K.; et al. Highly sensitive room-temperature surface acoustic wave (SAW) ammonia sensors based on Co3O4/SiO2 composite films. J. Hazard. Mater. 2014, 280, 127–133. [Google Scholar] [CrossRef]
  22. Tang, Y.; Li, Z.; Zu, X.; Ma, J.; Wang, L.; Yang, J.; Du, B.; Yu, Q. Room-temperature NH3 gas sensors based on Ag-doped γ-Fe2O3/SiO2 composite films with sub-ppm detection ability. J. Hazard. Mater. 2015, 298, 154–161. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, R.; Lin, X.; Huang, X.; Xie, J.; Jiang, C.; Lei, C. Boehmite-coated microporous membrane for enhanced electrochemical performance and dimensional stability of lithium-ion batteries. J. Solid State Electrochem. 2018, 22, 739–747. [Google Scholar] [CrossRef]
  24. Yang, C.; Tong, H.; Luo, C.; Yuan, S.; Chen, G.; Yang, Y. Boehmite particle coating modified microporous polyethylene membrane: A promising separator for lithium ion batteries. J. Power Sources 2017, 348, 80–86. [Google Scholar] [CrossRef]
  25. Cai, C.; Han, S.B.; Liu, W.; Sun, K.; Qiao, L.; Li, S.; Zu, X.T. Tuning catalytic performance by controlling reconstruction process in operando condition. Appl. Catal. B Environ. 2020, 260, 118103. [Google Scholar] [CrossRef]
  26. Han, S.; Zhu, Y.; Cai, C.; Zhu, J.; Han, W.; Chen, L.; Zu, X.; Yang, H.; Gu, M. Failure mechanism of [email protected]9S8 yolk-shell anode in Li-ion batteries unveiled by in-situ transmission electron microscopy. Appl. Phys. Lett. 2019, 114, 113901. [Google Scholar] [CrossRef]
  27. Bravet, D.; Guiselin, O.; Swei, G. Effect of surface treatment on the properties of polypropylene/nanoboehmite composites. J. Appl. Polymer Sci. 2010, 116, 373–381. [Google Scholar] [CrossRef]
  28. Töpfer, O.; Clauss, M.; Futterer, T.; Schmitt, E. Flame retardants for engineering thermoplastics used in electric and electronic equipment like connectors. In Proceedings of the Electronics Goes Green 2012+ (EGG), Berlin, Germany, 12–14 September 2012; Available online: https://ieeexplore.ieee.org/abstract/document/6360471 (accessed on 4 December 2019).
  29. Kloprogge, J.T.; Duong, L.V.; Wood, B.J.; Frost, R.L. XPS study of the major minerals in bauxite: Gibbsite, bayerite and (pseudo-)boehmite. J. Colloid Interface Sci. 2006, 296, 572–576. [Google Scholar] [CrossRef][Green Version]
  30. Mohan, P.; Shinta, R.; Fujiwara, J.; Takahashi, H.; Mott, D.; Matsumura, Y. Boehmite nanorod/gold nanoparticle nanocomposite film for an easy-to-use optical humidity sensor. Sens. Actuat. B 2012, 168, 429–435. [Google Scholar] [CrossRef]
  31. Roy, S.; Pal, K.; Bardhan, S.; Maity, S.; Chanda, D.K.; Ghosh, S.; Karmakar, P.; Das, S. Gd (III) Doped Boehmite Nanoparticle: An Emergent Material for Fluorescent Sensing of Cr (VI) in Wastewater and Live Cells. Inorg. Chem. 2019, 58, 8369–8378. [Google Scholar] [CrossRef]
  32. Shi, T.; Guo, X.Z.; Yang, H. Preparation and Characterization γ of Transparent Boehmite (γ-AlOOH) Sol. Rare Metal Mater. Eng. 2008, 37, 73–75. [Google Scholar]
  33. Wang, S.F.; Sun, G.Z.; Fang, L.M.; Lei, L.; Xiang, X.; Zu, X.T. A comparative study of ZnAl2O4 nanoparticles synthesized from different aluminum salts for use as fluorescence materials. Sci. Rep. 2015, 5, 12849. [Google Scholar] [CrossRef] [PubMed]
  34. Zhao, F.; Xiao, H.; Bai, X.; Zu, X. Effects of Ag doping on the electronic and optical properties of CdSe quantum dots. Phys. Chem. Chem. Phys. 2019, 21, 16108–16119. [Google Scholar] [CrossRef] [PubMed]
  35. Li, J.S.; Wang, X.Y.; Hao, Y.X.; Sun, X.Y.; Wang, L.J. A new method for preparation of boehmite sol. Ion Exchang. Adsorpt. 2008, 24, 329–334. [Google Scholar]
  36. Peng, W.S.; Liu, G.K. Collection of Infrared Spectra for Minerals; Science Press: Beijing, China, 1982; p. 134. [Google Scholar]
  37. Dong, S.X.; Dou, X.M.; Mohan, D.; Pittman, C.U., Jr.; Luo, J. Synthesis of grapheme oxide/schwertmannite nanocomposites and their application in Sb(V) adsorption from water. Chem. Eng. J. 2015, 270, 205–214. [Google Scholar] [CrossRef]
  38. Ma, J.; Mao, S.; Wang, L.; Tang, Y.; Li, Z.; Du, B.; Yang, J.; Jiang, H.; Ao, D.; Zu, X. Surface Acoustic Wave (SAW) Ammonia Gas Sensor Based on the ZnO Nanorod Array. Sens. Lett. 2016, 14, 673–677. [Google Scholar] [CrossRef]
  39. Raj, V.B.; Nimal, A.T.; Parmar, Y.; Sharma, M.U.; Sreenivas, K.; Gupta, V. Cross-sensitivity and selectivity studies on ZnO surface acoustic wave ammonia sensor. Sens. Actuat. B Chem. 2010, 147, 517–524. [Google Scholar] [CrossRef]
  40. Penza, M.; Milella, E.; Anisimkin, V.I. Gas sensing properties of Langmuir–Blodgett polypyrole film investigated by surface acoustic waves. IEEE Trans. Ultrason. Ferroelec. Freq. Control 1998, 45, 1125–1132. [Google Scholar] [CrossRef]
  41. Tang, Y.; Xu, X.; Han, S.; Cai, C.; Du, H.; Zhu, H.; Zu, X.; Fu, Y. ZnO-Al2O3 nanocomposite as a sensitive layer for high performance surface acoustic wave H2S gas sensor with enhanced elastic loading effect. Sens. Actuators B Chem. 2019, 127395. [Google Scholar] [CrossRef]

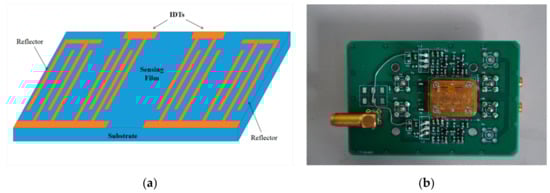

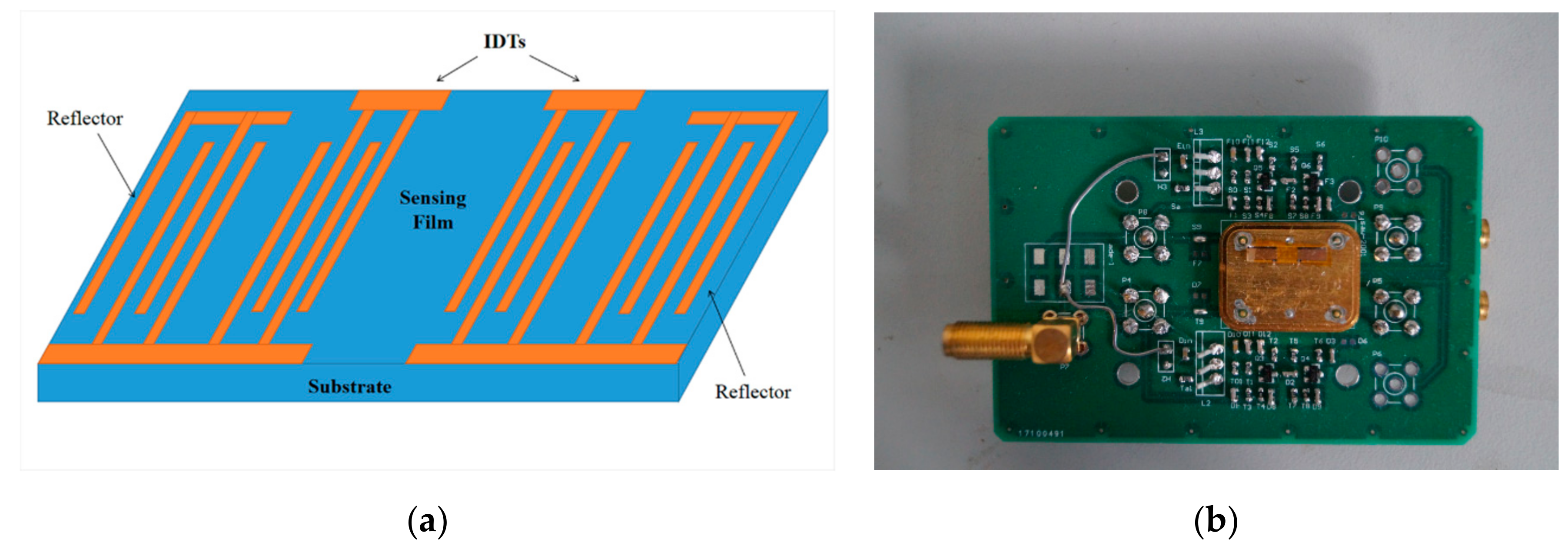

Figure 1. (a) The schematic diagram of a surface acoustic wave (SAW) resonator and (b) a photo of a SAW sensor.
Figure 1. (a) The schematic diagram of a surface acoustic wave (SAW) resonator and (b) a photo of a SAW sensor.
Nanomaterials 09 01732 g001

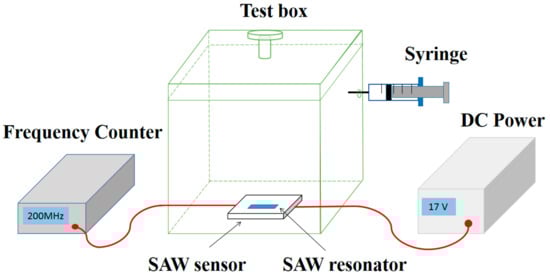

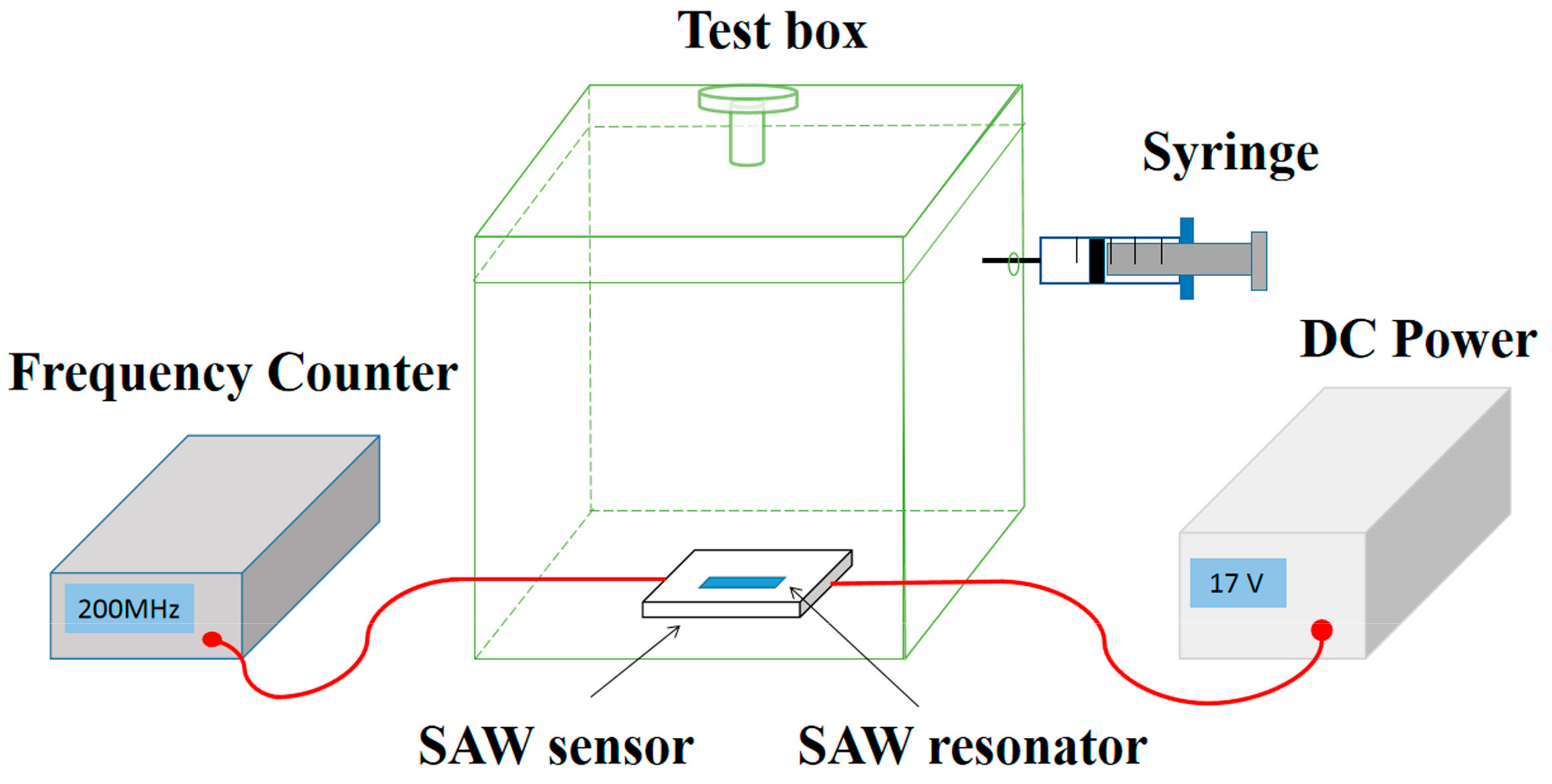

Figure 2. The experimental system of the gas-sensing test.
Figure 2. The experimental system of the gas-sensing test.
Nanomaterials 09 01732 g002

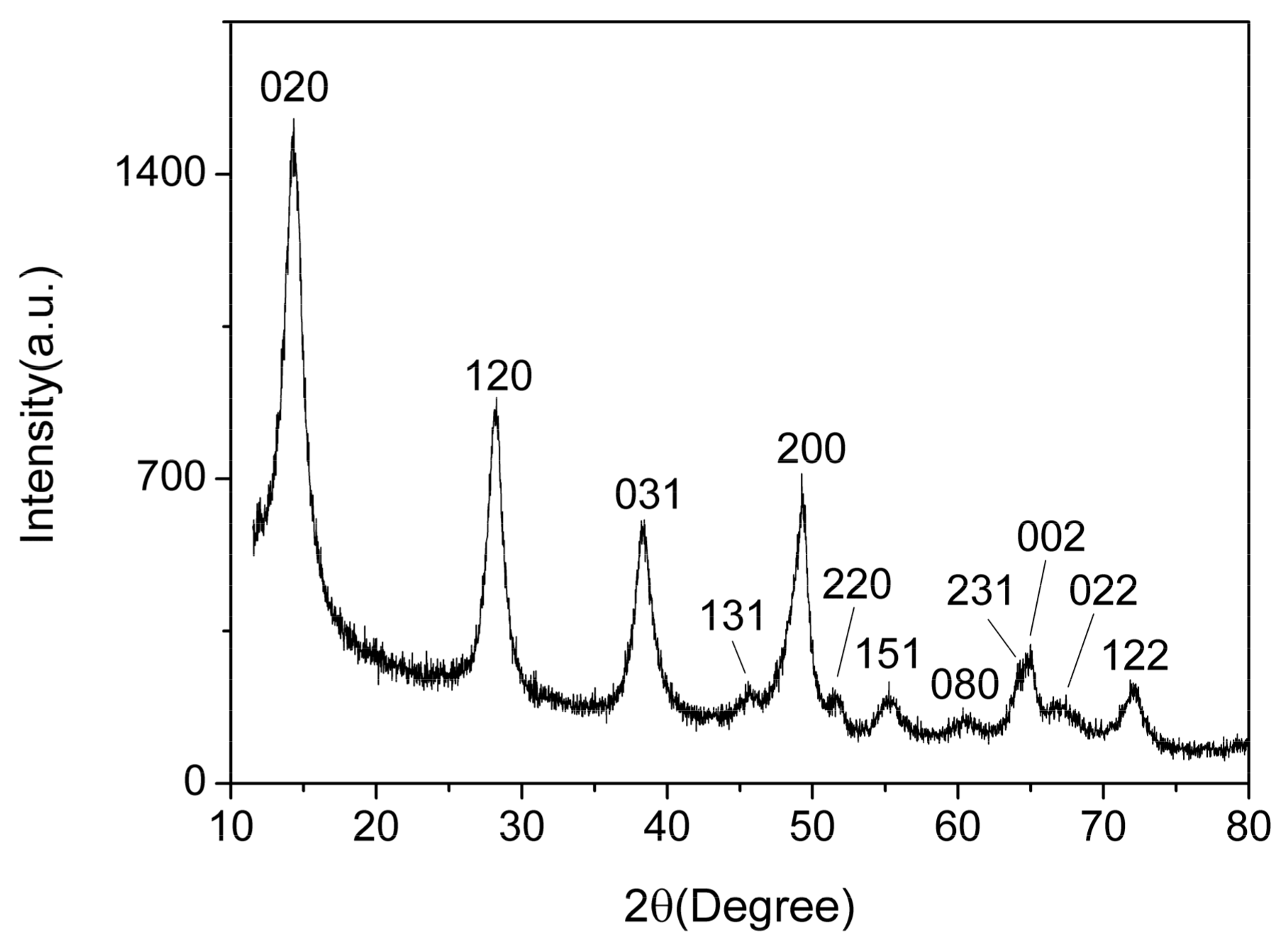

Figure 3. X-ray diffraction (XRD) of AlO(OH) film.
Figure 3. X-ray diffraction (XRD) of AlO(OH) film.
Nanomaterials 09 01732 g003
Figure 4. Scanning electron micrographs (SEM) of AlO(OH) film using (a) 30,000×; (b) 100,000×; (c) 200,000×. Inset image is the cross-sectional view of the film.
Figure 4. Scanning electron micrographs (SEM) of AlO(OH) film using (a) 30,000×; (b) 100,000×; (c) 200,000×. Inset image is the cross-sectional view of the film.
Nanomaterials 09 01732 g004

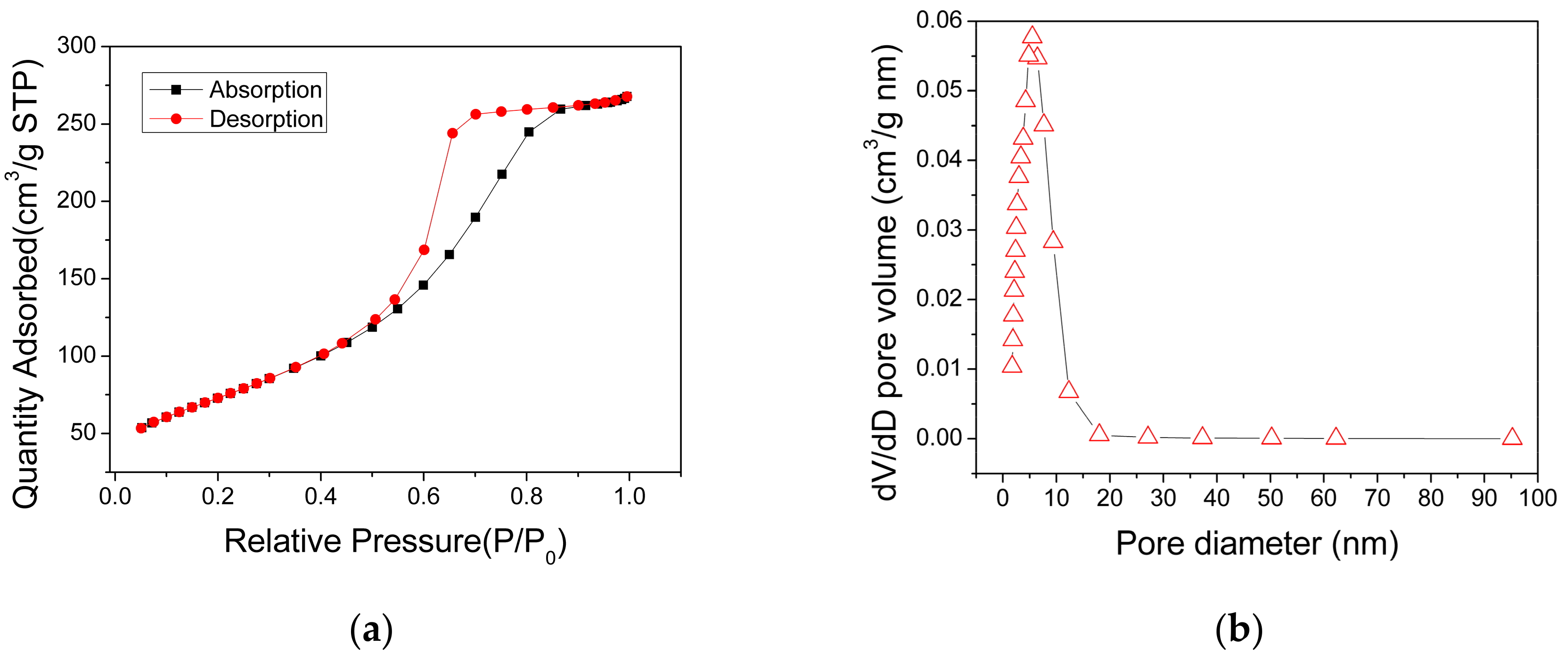

Figure 5. (a) N2 adsorption and desorption isotherms and (b) pore distribution of the AlO(OH) materials.
Figure 5. (a) N2 adsorption and desorption isotherms and (b) pore distribution of the AlO(OH) materials.
Nanomaterials 09 01732 g005

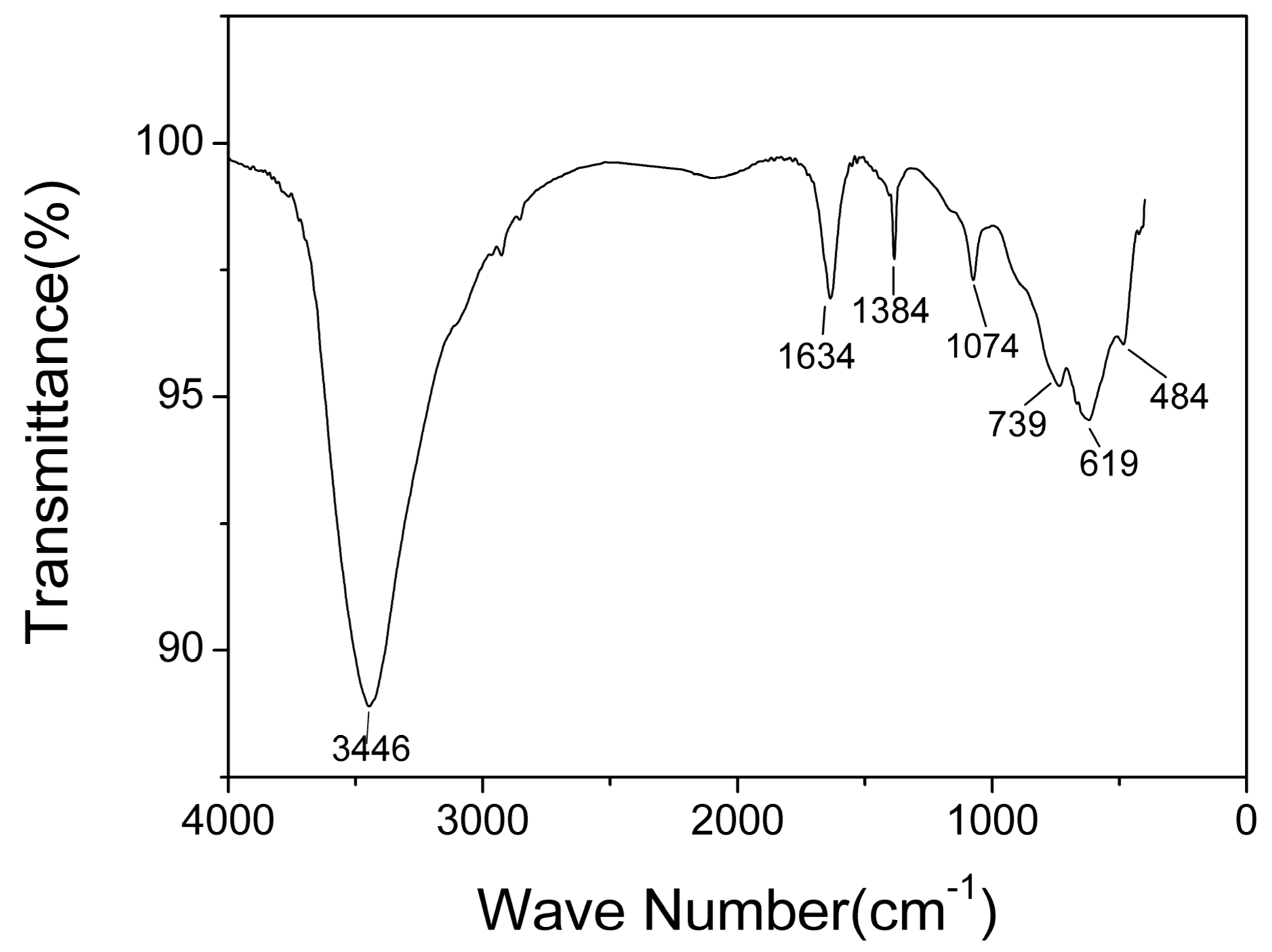

Figure 6. Fourier transform infrared (FTIR) spectra of AlO(OH) films.
Figure 6. Fourier transform infrared (FTIR) spectra of AlO(OH) films.
Nanomaterials 09 01732 g006

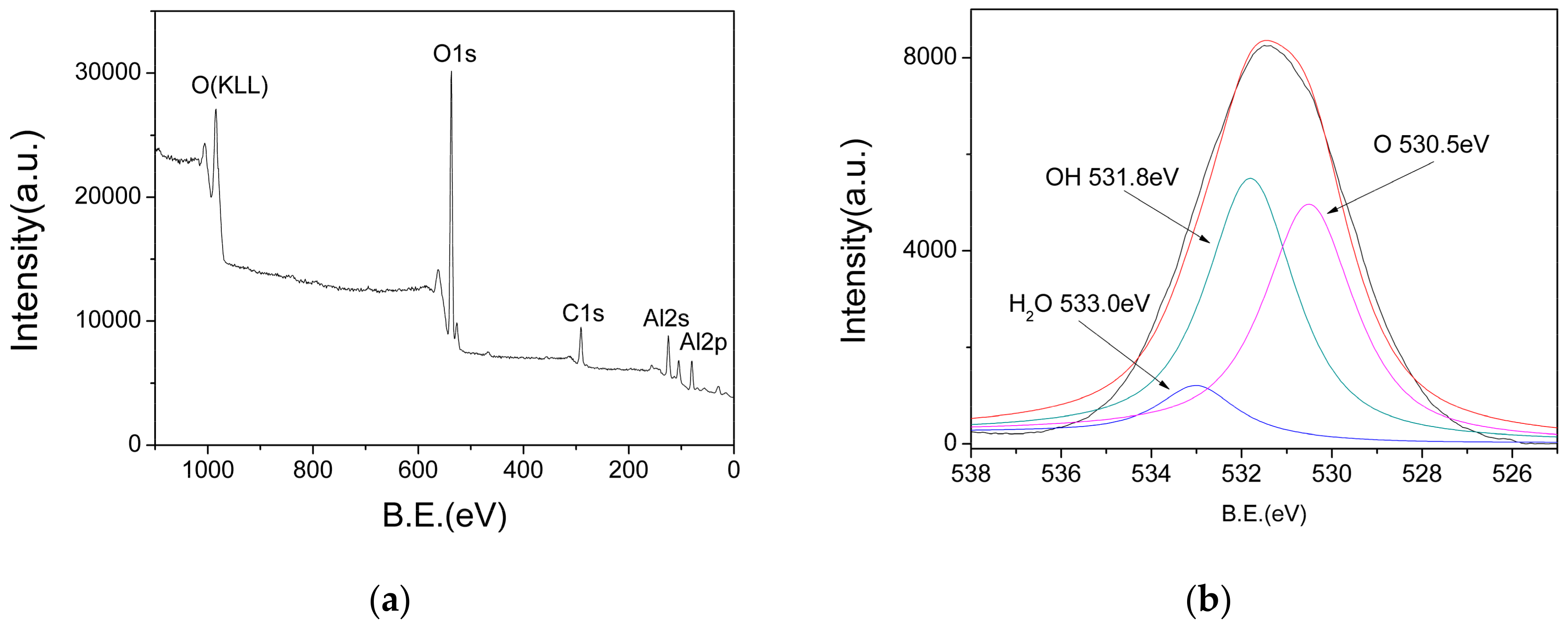

Figure 7. (a) X-ray photoelectron spectroscopy (XPS) survey spectra of AlO(OH); (b) Deconvoluted O1s peaks.
Figure 7. (a) X-ray photoelectron spectroscopy (XPS) survey spectra of AlO(OH); (b) Deconvoluted O1s peaks.
Nanomaterials 09 01732 g007

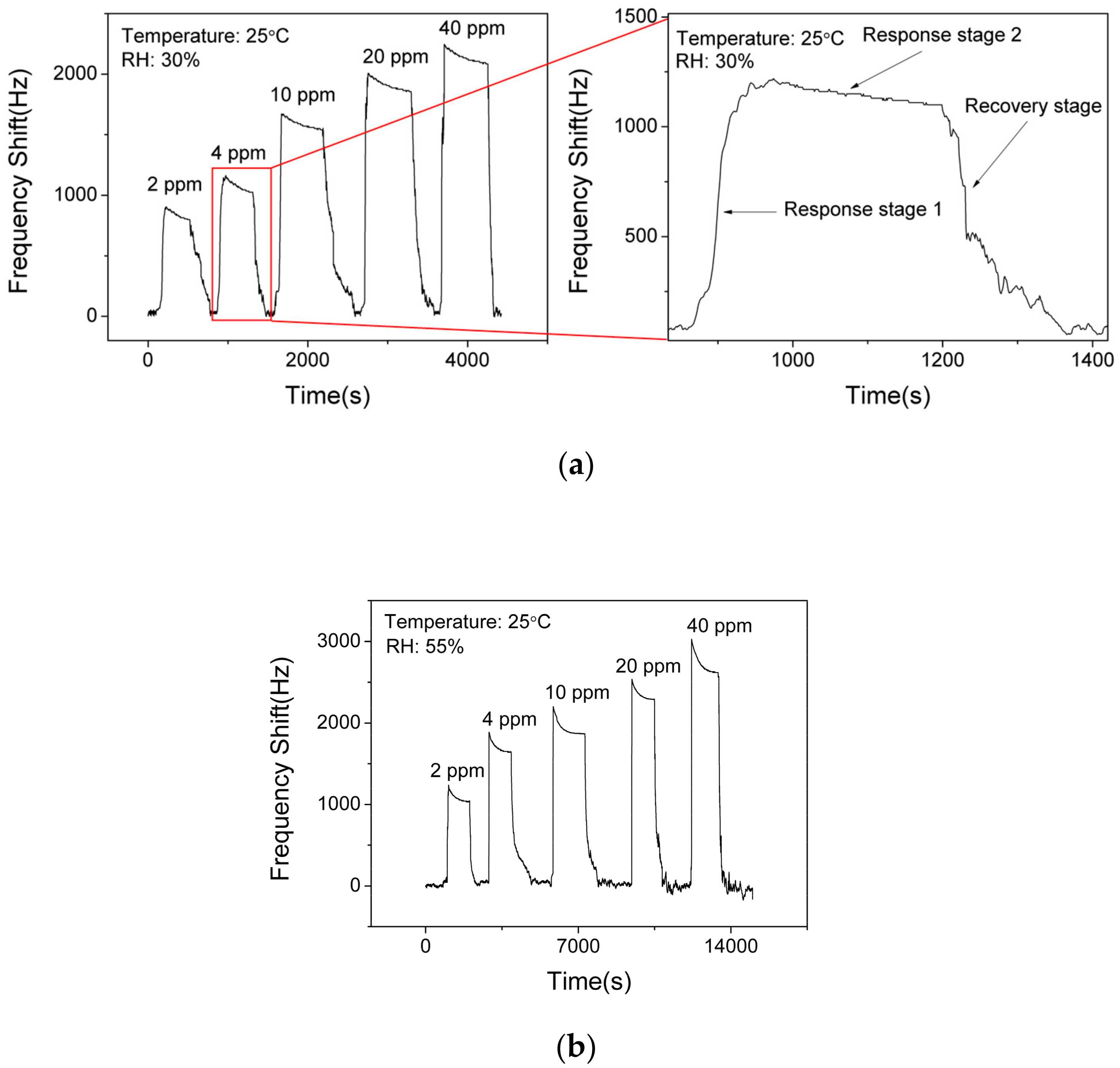

Figure 8. Dynamic responses and recovery of SAW sensor with AlO(OH) to various NH3 concentrations at the relative humidity (RH) of (a) 30% and (b) 55%.
Figure 8. Dynamic responses and recovery of SAW sensor with AlO(OH) to various NH3 concentrations at the relative humidity (RH) of (a) 30% and (b) 55%.
Nanomaterials 09 01732 g008

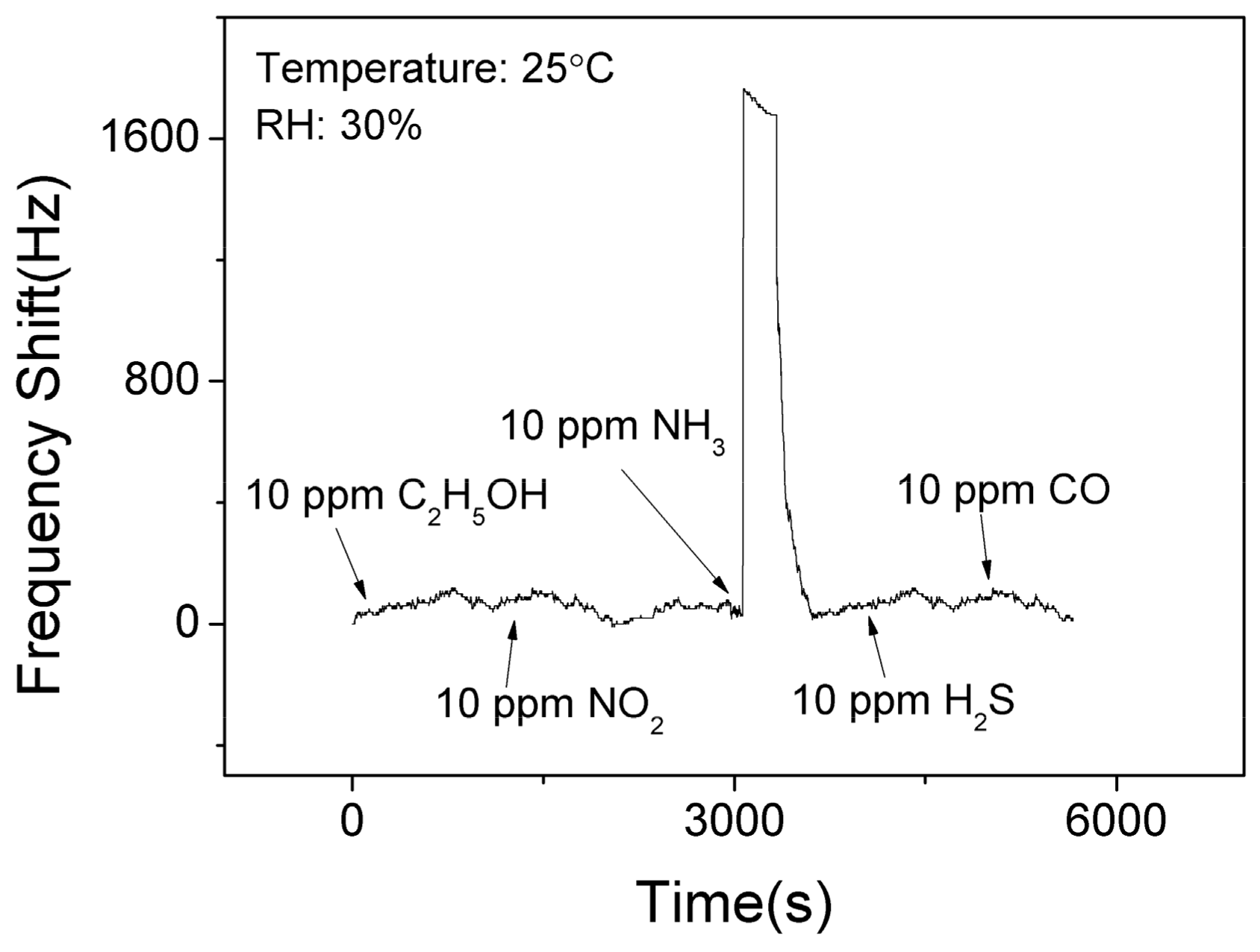

Figure 9. The dynamic response and recovery of the SAW sensor with AlO(OH) film to various gases.
Figure 9. The dynamic response and recovery of the SAW sensor with AlO(OH) film to various gases.
Nanomaterials 09 01732 g009

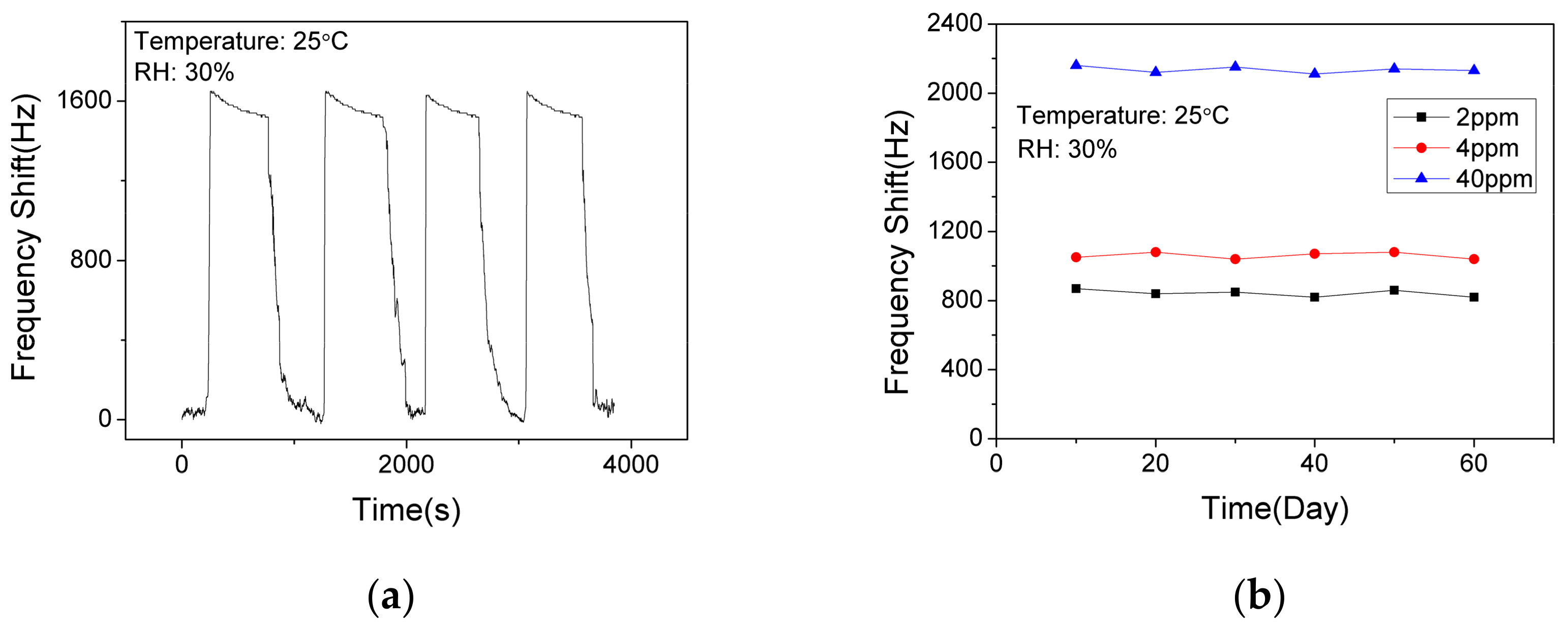

Figure 10. The dynamic response and recovery of the SAW sensor with AlO(OH) film (a) to 10 ppm NH3 for 4 cycles; (b) to NH3 of various concentrations in 60 days.
Figure 10. The dynamic response and recovery of the SAW sensor with AlO(OH) film (a) to 10 ppm NH3 for 4 cycles; (b) to NH3 of various concentrations in 60 days.
Nanomaterials 09 01732 g010

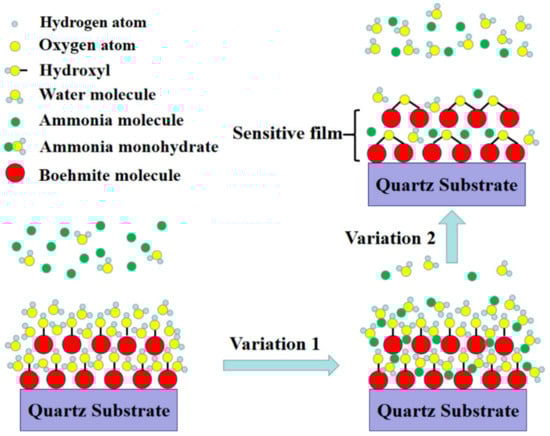

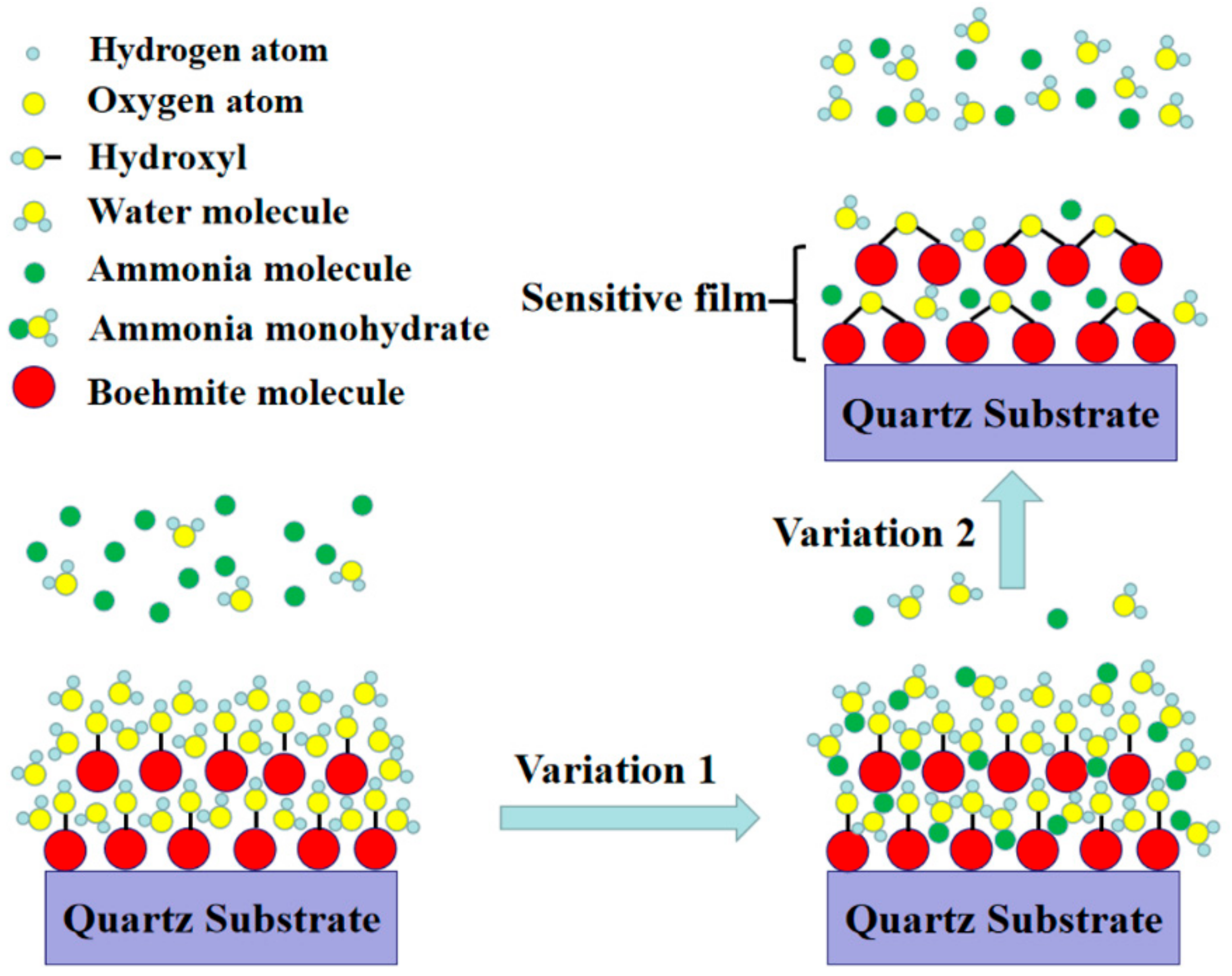

Figure 11. Sensing principle of AlO(OH) film with hydroxyl groups.
Figure 11. Sensing principle of AlO(OH) film with hydroxyl groups.
Nanomaterials 09 01732 g011

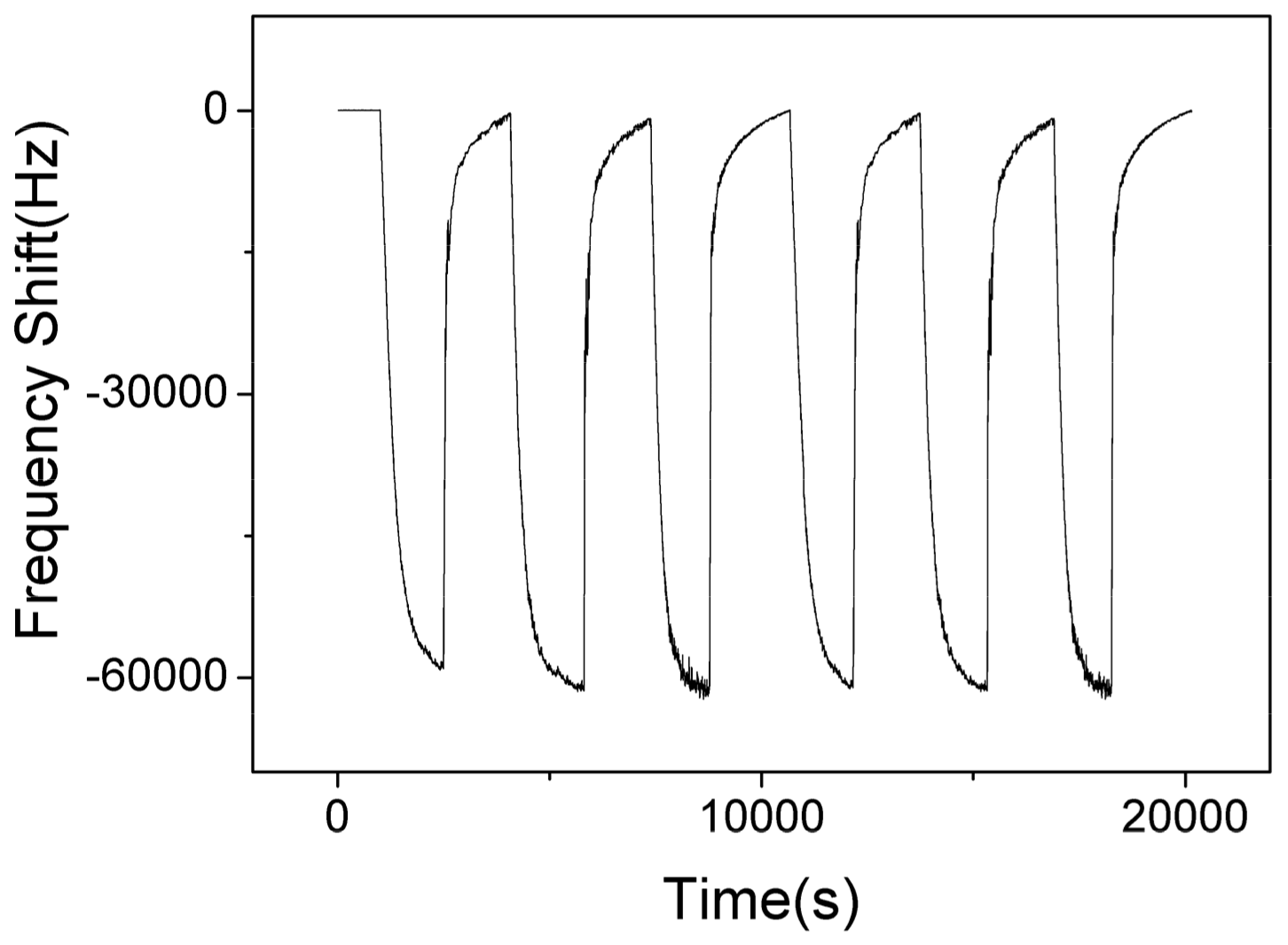

Figure 12. The dynamic response and recovery of SAW sensor with AlO(OH) film towards relative humidity change from 40% to 70% for 6 cycles.
Figure 12. The dynamic response and recovery of SAW sensor with AlO(OH) film towards relative humidity change from 40% to 70% for 6 cycles.
Nanomaterials 09 01732 g012
Table 1. The responses of ammonia SAW sensor with various films.
Table 1. The responses of ammonia SAW sensor with various films.
FilmZnOZnO/SiO2AlO(OH)
Response300 Hz (50 ppm NH3)1132 Hz (10 ppm NH3)1540 Hz (10 ppm NH3)
