Article

Ni-Based Catalyst Derived from NiAl Layered Double Hydroxide for Vapor Phase Catalytic Exchange between Hydrogen and Water

1
School of Resource Environmental and Safety Engineering, University of South China, Hengyang 421001, China
2
Institute of Materials, China Academy of Engineering Physics, Jiangyou 621908, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2019, 9(12), 1688; https://doi.org/10.3390/nano9121688
Received: 17 October 2019 / Revised: 20 November 2019 / Accepted: 22 November 2019 / Published: 25 November 2019

Abstract

:
A high-efficient and low-cost catalyst on hydrogen isotope separation between hydrogen and water is an essential factor in industrial application for heavy water production and water detritiation. In past studies, Pt-based catalysts were developed but not practical for commercial use due to their high cost for vapor phase catalytic exchange (VPCE), while for impregnated nickel catalysts with a lower cost the problems of agglomeration and low Ni utilization existed. Therefore, to solve these problems, in-situ grown Ni-based catalysts (NiAl-LDO) derived from a layered double hydroxide (LDH) precursor were fabricated and first applied in VPCE in this work. Compared with traditional impregnated Ni-based catalysts, NiAl-LDO catalysts own a unique layered structure, homogeneous dispersed metallic phase, higher specific surface area as well as stronger metal-support interactions to prevent active metal from agglomerating. These advantages are beneficial for exposing more active sites to improve dynamic contacts between H2 and HDO in a catalyst surface and can bring excellent catalytic activity under a reaction temperature of lower than 400 °C. Additionally, we found that the dissociative chemisorption of HDO and H2 occurs not only in Ni (111) but also in NiO species where chemisorbed H(ads), D(ads), OH(ads) and OD(ads) are formed. The results highlight that both of the Ni2+ species and Ni0 species possess catalytic activities for VPCE process.

Graphical Abstract

1. Introduction

Tritium plays a pivotal role in nuclear power plants, nuclear fuel reprocessing, as well as future fusion reactors [1,2]. However, tritiated water damages the human body and environment seriously due to its radioactivity and toxicity. Thus, stringent environment standards for the development of inland nuclear power were established, like in China. Besides, the treatment of tritiated water possesses a great significance in nuclear energy and environment [3,4]. Hydrogen isotope exchange is an important process for tritium extraction from heavy water and detritiation of tritium-containing sewage [5,6,7]. Particularly, the vapor phase catalytic exchange (VPCE) reaction, which processes the tritium, is transferred from vaporous water into gaseous hydrogen (HTOvapor + H2gas ⇌ HTgas + H2Ogas) and has attracted attention due to its nontoxicity, non-corrosiveness, simple craft as well as a high separation factor throughout the hydrogen isotope exchange reaction. Hence is owes a huge potential for industrial application [8,9,10,11,12,13]. In VPCE, the availability of active sites (transport of gaseous hydrogen and vaporous water to a catalyst surface as well as the dissociative chemisorption) is key for the hydrogen isotope exchange reaction. To achieve a highly efficient catalytic exchange reaction, some strategies have been developed such as enhancing the dispersion and utilization of active metals (Ni, Cr, Pd, Pt, Rh, Ru etc.), using high specific surface area supports as well as the cooperation of multiple metals [10,12,14]. Meanwhile, a mass of hydrophobic catalysts have been fabricated including Pt/C, Pt–Ir/C, Pt–Fe/C, Pt–Ni/C [10,11,13,15]. The impregnated Pt/Al2O3 and Ni/Al2O3 [16,17,18] are two kinds of widely researched catalysts for VPCE. Pt/Al2O3 catalysts have excellent activity, but their extravagant cost is not profitable for commercial application. Traditional impregnated Ni/Al2O3 catalysts are not able to be used efficiently due to the inevitable aggregation of active metal after calcination and reduction. Accordingly, it is highly desirable to develop low-cost catalysts, like Ni-based catalysts, to realize high catalytic performance for VPCE. The substitutes of Pt-based catalysts are due to their similar property for dissociative chemisorption of reactants on the Ni-based catalysts’ surface. Unfortunately, most Ni-based catalysts were prepared by impregnating metal precursors on supports, followed by calcining and reducing, resulting in the unexpected uncontrollable aggregation of metal species and inefficient availability of active metal. For instance, Zhang et al. prepared Al2O3 supported by Ni catalysts using the impregnation method, but extra Ni loading caused serious Ni aggregation, blocking active sites and leading to poor CO2 methanation performance [19]. To improve metal dispersion and catalytic performances, some researchers prepared in-situ catalysts for hydrodechlorination [20] and methane decomposition [21]. Therefore, it is very significant to explore an in-situ grown Ni catalyst with an outstanding dispersion to prevent active metal from aggregating in supports for VPCE process.
Layered double hydroxide (LDH), also known as hydrotalcite-like materials or anionic clays, are a significant class of layered-structure materials with a chemical composition expressed by the general formula [ M 1 x 2 + M x 3 + (OH)2]x+[ A x / n n ·yH2O]x− where M2+ and M3+ are di- and trivalent metal cations, respectively, and An− denotes an organic or inorganic anion with a n-valent anion. The unique supramolecular structure with a uniform dispersion for M2+ and M3+ ions within the layers is from precise control of both the inorganic layers and the interlayer gallery anions of LDH without the formation of “lakes” cations [22]. The adjustability of the hydrotalcite structure gives it uniquely adjustable properties, which are further applicable in numerous areas. Various literature reported the wide applications of LDH as catalyst precursors, catalyst supports, adsorbents and ion exchangers in different research directions, e.g., gas removing, selective hydrogenation, electro-catalysis oxidation etc. [23,24,25]. Especially, when using LDH as catalyst precursors, the LDH-derived catalyst could maintain a layer structure and keep a highly dispersed metallic phase [26]. Importantly, some active metal (Ni, Cr, Pd, Pt etc.) for hydrogen isotope exchange processes could be easily introduced into the LDH by using a hydrothermal method and co-precipitation, ion-exchange, precipitation-reduction method [23]. These advantages of LDH inspire us to fabricate an efficient VPCE catalyst from LDH.
In this work, we report the effective in-situ growth of NiAl layered double oxides (LDO) derived from the LDH precursor which are firstly applied for the VPCE process. The layered structure, high specific surface area, porous structure, homogeneous metallic phase as well as stronger metal-support interactions of in-situ Ni catalysts contribute to the much higher VPCE activity in comparison with the impregnated NiO/γ-Al2O3 catalysts at a reaction temperature of below 400 °C. Importantly, the catalytic exchange mechanism of transition-metal Ni for VPCE is also discussed, both Ni0 species and NiO species can conduce hydrogen isotope exchange processes between hydrogen and water.

2. Experimental

2.1. Material

Nickel nitrate hexahydrate (Ni(NO3)2·6H2O, 98%), aluminum nitrate nonahydrate (Al(NO3)3·9H2O, 98%) and urea ((NH2)2CO, 98%) were obtained from Aladdin Chemical Reagent Co. Ltd. (Shanghai, China). Activated alumina was purchased from Macklin Chemical Reagent Co. Ltd. (Shanghai, China). All chemicals were analytical grade and used without further purification. The used ultrapure water throughout the experimental processes was obtained from a Milli-Q ultrapure system (10.5 MΩ cm).

2.2. Synthesis of Petal-Like NiAl-LDH

The NiAl-LDH was synthesized by the conventional urea hydrolysis method [25,27,28]. In a typical procedure, as illustrated in Scheme 1A, Ni(NO3)2·6H2O (0.012 mol) and Al(NO3)3·9H2O (0.006 mol) as well as urea (0.084 mol) with a Ni/Al/urea molar ratio of 2/1/14 were dissolved in 320 mL ultrapure water to form a mixed solution with vigorous stirring. Subsequently, the homogeneous and transparent solution was transferred into 500 mL Teflon-lined stainless-steel autoclave, sealed and heated with oven at 150 °C for 12 h. After cooling the autoclave to 25 °C, the precipitate was collected and thoroughly washed by ultrapure water several times, followed by drying at 70 °C overnight in an oven to get NiAl-LDH.

2.3. Preparation of Spherical Ni(NO3)2/γ-Al2O3

Ni(NO3)2/γ-Al2O3 was prepared by a traditional impregnation method [20]. Typically, as illustrated in Scheme 1B, 10 g γ-Al2O3 was placed in a beaker loaded with 12.5 mL 3 mol L−1 Ni(NO3)2 water solution and then impregnated for 12 h at room temperature, followed by drying at 70 °C for 12 h. The products were named Ni(NO3)2/γ-Al2O3 and collected in the bottle to wait for further treating.

2.4. Preparations of NiAl-LDO and NiO/γ-Al2O3

The precursors NiAl-LDH and Ni(NO3)2/γ-Al2O3 were calcinated at 500 °C for 4 h with a heating rate of 5 °C min−1 in air. After slowly cooling to 25 °C, the products were named as NiAl-LDO and NiO/γ-Al2O3, respectively.

2.5. Characterization

Powder X-ray diffraction (XRD) patterns were recorded using a DX-2700 X-ray powder diffractometer (Haoyuan Inc., Liaoning, China) with a Cu Ka radiation source (λ = 1.54059 Å) in 2 range between 5° and 80°, step size 0.05°, and operated at a voltage of 40 kV and a current of 30 mA. Inductively coupled plasma optical emission spectrometer (ICP-OES) (Agilent, 725ES) (Palo Alto, CA, USA) was applied to identify the elemental content of Ni and Al. The morphologies of samples were performed using a scanning electron microscope (SEM, FEI Quanta 650) (Hillsboro, OR, USA). The specimen positioned on a mesh grid was examined using transmission electron microscopy coupled to the energy-dispersive X-ray spectroscopy (TEM, FEI Talos F200S) (Hillsboro, OR, USA) at a voltage of 200 kV. Selected area electron diffraction (SAED) was performed in TEM (FEI Talos F200S) and TEM with energy dispersive X-ray spectroscopy mapping (TEM EDS maps) (FEI Talos F200S) was also required to recognize the distributions of Ni, Al, C and O for NiAl-LDH and NiAl-LDO. Low-temperature N2 adsorption-desorption experiments were conducted using a Micromeritics ASAP 2469 instrument (Norcross, GA, USA). Specific surface area and average pore diameters were calculated by the Brunauer-Emmett-Teller (BET) method or the Barrett-Joyner-Halenda (BJH) method applied to desorption isotherms. The surface valence states of the prepared samples before and after reaction were analyzed by X-ray photoelectron spectroscopy (XPS) (ESCALAB, 250Xi) (Waltham, MA, USA).
H2 temperature-programmed reduction (H2-TPR) of the samples were conducted on a chemical adsorption apparatus (AMI-300) (Bayport, TX, USA) equipped with a thermal conductivity detector (TCD) signal detector. Prior to the H2-TPR experiment, about 0.1000 g of NiAl-LDH powder (Ni 36.75 wt.%, ICP) was loaded in a quartz reactor and were further pre-treated with continuous Ar flow at 70 °C for 30 min, followed by cooling down to 30 °C. Then, the H2-TPR of the NiAl-LDH was performed with a ramp rate of 5 °C min−1 in a stream of 15 cc min−1 10% H2 in Ar from 30 °C to 1000 °C. To analyze the amount of hydrogen uptake for NiAl-LDH, the corresponding pulse tests also were carried out during the H2-TPR process. The outlet gas was connected with a drying bed filling with molecular sieve to absorb the moisture generated during the reduction process. H2-TPR experiments of NiAl-LDO and NiO/γ-Al2O3 were carried out with a similar process under the same amount of Ni content. For NiAl-LDO, about 0.1000 g of NiAl-LDH was loaded in a quartz reactor and then the precondition was changed to 500 °C for 4 h with continuous Ar flow to obtain NiAl-LDO. Furthermore, to ensure same amount of Ni content with NiAl-LDH, 0.2317 g of NiO/γ-Al2O3 (Ni 15.87 wt.%, ICP) was used for carrying out H2-TPR experiments and test conditions were the same as with NiAl-LDH. The H2 consumption signal of each sample in the whole H2-TPR process was monitored by a TCD detector, while H2 uptake was calculated using the following simplified equations.
Calibration Value:
C V = V s 1 W H 2 / S pa
Volume:
V = C V × S Sa
Total volume adsorbed:
Q tc = P V / ( R ( T + 273.15 ) )
Sample H2 consumption:
Q sc = Q tc / m
where Vs1 is the loop volume of the sample cell (μL), WH2 is percentage of analytical gas (H2, 10%), Spa is the mean calibration pulse area, CV is the calibration value, V is the volume (μL), Ssa is the analytical area signals of TCD, Qtc is the total volume adsorbed (μmol), P is the analytical pressure (atm), R is the standard coefficient (0.08206), T is the loop temperature (°C), m is the weight of sample (g), and Qsc is H2 the consumption of sample (μmol g−1).

2.6. Catalytic Activity Evaluation

Catalytic performance tests of the catalysts were performed in a stainless-steel reaction column of internal diameter 8 mm. The superheated mixture of H2 and HDO (such as 100 °C, 150 °C, 200 °C, 250 °C, 300 °C, 400 °C or 500 °C) flowed to the reaction column with the same temperature. About 0.3150 g of NiAl-LDO (actual Ni 47.11 wt.%, ICP; theoretical one 58.57 wt.%) and about 0.9349 g of NiO/γ-Al2O3 (actual Ni 15.87 wt.%, ICP; theoretical one 17.19 wt.%) were used to ensure the same mass of Ni (14.84 wt.%) for the VPCE process, then samples were placed into a reaction column and heated up to reaction temperature in the flow of Ar. The total height of the catalyst layer was ~30–34 mm. The experimental apparatus was as outlined in Figure 1.
The H2 and vaporous HDO (molar feed ratio of deuterated water/hydrogen = 1, molar fraction of deuterium is 5.62%, molar fraction of hydrogen is 99.999%) were fed into the reaction column co-currently from the commingler to the reaction column. The HD concentrations in hydrogen gas at the reaction column outlet were analyzed with an Agilent 7890 gas chromatograph. The dedeuterium factor (DF) was applied for evaluating catalytic activity, defined as the following equation [29]:
D F = x t / x b
where xt is the molar concentration ratio of initial deuterium in water, while xb is the one in outlet water.

3. Results and Discussion

3.1. Material Characterization

A series of NiAl-LDH were prepared by adjusting synthesis conditions including hydrothermal temperature, crystallization time and Ni/Al/urea molar ratio, which were displayed in the Supplementary Materials (Figures S1–S3). The structural characteristics of the NiAl-LDH were evaluated from the XRD data, presented in Table S1. In the powder XRD patterns of NiAl-LDH (treated by only adjusting hydrothermal temperature from 110 °C to 150 °C), a markable increase of (003) integral intensity were observed with increasing hydrothermal temperature, which indicated the rising content of the LDH crystalline phase in the NiAl-LDH. What’s more, the full width at half the maxima (FWHM) value of (003) reflections decreased in dependence on hydrothermal temperature, illustrating an increased crystallite size, in a good agreement with the calculated crystallite size (using Scherrer’s formula listed in Table S1). The increasing crystallization time also resulted in the increases of (003) integral intensity and LDH crystallite size. However, the influence hydrothermal time on (003) integral intensity became unsharp from 12 h to 36 h, revealing that the effect of hydrothermal time on samples’ crystallinity was limited. In addition, the little effect of the Ni/Al/urea molar ratio was discovered with undramatic variation of XRD data (include integral intensity, half-height (W1/2), crystallite size) due to the similar alkaline environment provided by decomposing urea under a high hydrothermal temperature. Kovanda, F. et al. [30] and Chen, H. [31] reported similar changes in crystallinity with different hydrothermal treatments on properties of NiAl-LDH and microstructure control of oriented LDH films. The NiAl-LDH with the higher crystallinity in comparison with other samples were characterized by XRD analysis as shown in Figure 2A. The well-defined main diffraction peaks at 2θ = 11.7°, 23.5°, 35.1°, 39.7°, 47.3°, 61.2° and 62.5° correspond to the (003), (006), (012), (015), (018), (110), (113) crystal planes of NiAl-CO3-LDH (JCPDS No.15-0087), confirming the successfully preparation of NiAl-LDH [32]. After the calcining process, the disappearance of LDH characteristic diffraction peaks and the occurring of diffraction peaks at 37.1°, 43.4° and 63.2° typical for NiO (JCPDS NO. 01-1239) indicate the complete conversion of NiAl-LDH to NiAl-LDO [33]. At the same time, the absence of main peaks for Al2O3 in XRD pattern of NiAl-LDO (Figure 2A) is a demonstration for affirming the amorphous form of Al2O3 in NiAl-LDH and NiAl-LDO. In addition, as shown in Figure 2B, the XRD pattern of NiO/γ-Al2O3 demonstrate peaks of NiO and Al2O3, indicating the coexistence of NiO and Al2O3 phases (JCPDS 10-0425 [34]).
The morphology and micro-structure information of synthesized samples were investigated by SEM and TEM. As exhibited in Figure 3A, the prepared NiAl-LDH have an interconnected hierarchical structure and interlamellar petal-like nanosheets with a mean thickness of 18.7 nm. Its unique petal-like nanosheet was also reported in former literature [35,36]. Moreover, as shown in Figure 3B, specially superimposed sheets of NiAl-LDH could be observed, in good agreement with the above SEM results. Further EDS mapping of NiAl-LDH confirms the spatial distribution of chemical components (Figure 3B), demonstrating a homogeneous distribution of Ni, Al, C, O in NiAl-LDH. Inspiringly, even after calcination at 500 °C, the layered structure could maintain in NiAl-LDO (Figure 3C). Additionally, the TEM (Figure 3D) confirms the porous structure, which would promote ion diffusion and catalytic activity. What is more, the EDS mapping of NiAl-LDO shows the homogeneous distribution of Ni, Al, C, O, suggesting that the Ni species did not aggregate in the calcination process. The SAED patterns (Figure S4A,B) exhibit well-defined diffraction spots, which are attributed to the (110) planes of the LDH and the (220) planes of the NiO. The findings are consistent with the XRD data (Figure 2A). These results indicate the monocrystalline nature of the NiAl-LDH and NiAl-LDO. However, Figure 3E shows that, in NiO/γ-Al2O3, a large amount of NiO aggregation on the surface of γ-Al2O3 during the processes of drying and calcination, which could block most of active sites and hinder the ion diffusion and charge transport. Further TEM of NiO/γ-Al2O3 illustrates the existence of aggregated NiO in γ-Al2O3 (Figure 3F), in good agreement with the above SEM results. Furthermore, the EDS mapping of NiO/γ-Al2O3 shows the heterogeneous distribution of Ni, Al in γ-Al2O3 (Figure 3F). The above results sufficiently prove the LDH-derived catalyst could maintain the layered structure and highly dispersed active species, which benefits the catalytic activity. Other LDH-derived catalysts have also been reported in other literature [36,37]. For instance, Li et al. [36] reported that the sulfureted NiAl-LDO could maintain a layered structure even after Na2S2O3 treatment and 400 °C calcination, exhibiting outstanding electrochemical activity.
To further affirm the porous structure in NiAl-LDO, low temperature nitrogen adsorption-desorption experiments were conducted. Comparing NiO/γ-Al2O3 with NiAl-LDH, as shown in Figure 4A,B, the much wider micropores of NiAl-LDO confirm the porous structure, which corresponds well to the TEM result (Figure 3D). The average pore size decrease (from 12.65 nm of NiA-LDH to 8.12 nm of NiAl-LDO, Figure 4D) further proves the formation of pores with a lower size. Moreover, the specific surface area of the calcinated sample increases more than two times when compared with LDH precursors (64.34 m2 g−1 of NiAl-LDH and 185.63 m2 g−1 of NiAl-LDO, Figure 4D). Besides, the specific surface area of NiO/γ-Al2O3 (173.43 m2 g−1) obtained by impregnating and calcining methods is approached with that of pure γ-Al2O3 (179 m2 g−1 [20]), but the dramatic declination of average pore size is discovered within it (18.1 nm [20] to 4.99 nm). The blocking of micro-pore caused by impregnating nickel in γ-Al2O3 surface could suppress the catalytic exchange on NiO/γ-Al2O3.

3.2. Catalytic Performance on Hydrogen Isotope Exchange

The VPCE catalytic performance evaluation apparatus was shown in Figure 1. As shown in Figure 5, the catalytic activity of the prepared NiAl-LDO is much higher than that of NiO/γ-Al2O3 under the same test condition from 200 °C to 400 °C, while NiO/γ-Al2O3 exhibits similar catalytic performance with NiAl-LDO at 500 °C. In industrial application, the VPCE process is preferred under a lower temperature with much fewer operating conditions and tritium permeation. Excitedly, catalytic activities of NiAl-LDO are more than nine times over that of impregnated NiO/γ-Al2O3 at 300 °C. Meanwhile, with the increment of temperature, the dedeuterium factor enhanced is obviously due to increased deuterium transfer from vapor to hydrogen. Besides, special structure characteristics (homogenous dispersion and flaky morphology, Figure 3C,D) of NiAl-LDO are available for the dynamic contact between gaseous water deuterium and hydrogen gas, leading to the higher catalytic activity of NiAl-LDO than NiO/γ-Al2O3 under a temperature lower than 400 °C.
XPS was used to evaluate the surface chemical states of catalysts before and after reaction. As shown in Figure 6A, the XPS spectrum of Al 2p at 73.71 eV is assigned to Al3+ and further proves the existence of Al2O3 crystallite in untested NiAl-LDO, which is in good agreement with the XRD results (Figure 2A). Meanwhile, the two spin-orbit doublets clearly locate at the binding energy of 855.8 eV and 873.4 eV, respectively, which correspond to Ni2+ 2p3/2 and Ni2+ 2p1/2. The accompanying shake-up satellites are located at 861.8 eV and 879.8 eV on the side of the Ni2+ 2p3/2 and 2p1/2 edge, respectively, illustrating the presence of Ni2+ in un-tested NiAl-LDO, in good accordance with the literature [36,38]. Comparing tested NiAl-LDO with an untested one, the slight shift of Al binding energy also is detected from 73.71 eV to 74.58 eV, which reveals stronger metal-support interactions between Al and Ni in tested NiAl-LDO. Besides, the tested NiAl-LDO exhibits Ni0 peaks, which are displayed as two weaker peaks at 852.4 eV and 870.1 eV, respectively [21,39]. Moreover, two spin-orbit doublets (located at 854.7 eV and 872.8 eV, respectively) and their shakeup satellites (shown at 859.6 eV and 878.9 eV, respectively) shift to a lower binding energy, demonstrating that the interaction of the Ni-O bond becomes weaker. Simultaneously, the relative intensity of the Ni2+ species decrease (from 100% of untested NiAl-LDO to 97.86% of the tested one, Table S2), illustrating that the content of NiO decreases after the VPCE process. Comparing tested NiO/γ-Al2O3 with tested NiAl-LDO, as shown in Figure 6C,D, the XPS spectrum of Al 2p in tested NiO/γ-Al2O3 shifts toward a lower binding energy (from 73.66 eV to 73.60 eV). What is more, the two spin-orbit doublets (located at the binding energy of 872.83 eV and 855.21 eV, respectively) shift toward a higher binding energy (873.30 eV and 856.10 eV, respectively) after the reaction. These results confirm weak metal-support interactions between Al and Ni in impregnated NiO/γ-Al2O3. Meanwhile, the XPS spectrums of Ni0 in both tested catalysts were observed in Figure 6B,D, in good agreement with the corresponding XRD patterns (Figures S5 and S6). Above results reveals stronger metal-support interaction and both catalysts could be partially reduced under a test environment containing H2 and HDO. These two characters may be a benefit for higher catalytic activity, which would be discussed in the following section.

3.3. Relationship between Ni0 Species and Catalytic Activity

To further evaluate the influence of Ni0 species on catalytic activity, the catalytic performance of reduced NiAl-LDO (treated with different reduction temperatures under H2 atmosphere) were tested (Figure 7). After the reduction process, the catalytic activities of NiAl-LDO are obviously improved with the increase of reduction temperature below 300 °C. When reaction temperature > 300 °C, both catalysts (treated by a pre-reduction process at 500 °C and 700 °C, respectively) exhibit similar catalytic activities. Differently, compared with the un-reduced samples (NiAl-LDO), catalytic performances are observed for the VPCE process and DF exhibits an obvious promotion under the reaction temperature range of ~100–200 °C. The above experimental results demonstrate that the Ni0 species generated by an in-situ reduction of NiAl-LDO are able to promote catalytic activity below 300 °C for the VPCE reaction.

3.4. Reduction Property for Catalysts

To further characterize the reduction property and nature of metal-support interaction, the H2-TPR was conducted. As shown in Figure 8A, the TPR profiles of NiAl-LDH have a wide and strong peak centered around 598 °C and a shoulder peak at a lower temperature of 403 °C. The main peak is assigned to the reduction of well distributed Ni2+ species in the metal oxide, while the shoulder peak is attributed to the reduction of Ni2+ in the form of the bulk crystallite NiO species [40]. Comparing NiAl-LDO with NiAl-LDH, as shown in Figure 8B, the single reduction peak of NiAl-LDO is discovered at around 603 °C, which corresponds to the reduction of Ni2+ to Ni0. The higher reduction temperatures (than pure NiO around 370 °C [41]) of NiAl-LDH and NiAl-LDO could suggest stronger metal-support interactions between nickel and aluminum, which helps avoid nickel’s agglomeration in special test condition with H2 and then promotes the catalytic activity. The results also demonstrate that H2 has a good accessibility to reduce nickel completely for NiAl-LDH and NiAl-LDO. Importantly, the absence of the reductive peak of NiAl-LDO at <300 °C suggests that a reduction process cannot occur at below 300 °C and NiAl-LDO still maintains NiO components. Comparing the TPR profiles of NiO/γ-Al2O3 and NiAl-LDO, lower reductive peak (centered at 308 °C) indicates weaker metal-support interactions between Ni and γ-Al2O3, leading to NiO aggregation on the surface of γ-Al2O3 supports and lower catalytic activity in the reaction process. The two reductive peaks (located at 308 °C and 565 °C) are attributed to the reduction of Ni2+ interacting with near groups through the free Ni-O bonds [42] or the reduction of highly dispersed NiO species [41]. Meanwhile, it can be obviously seen that NiAl-LDH and NiAl-LDO have similar actual H2 consumptions (7429 μmol g−1 and 7086 μmol g−1, respectively) under the same loaded Ni, showing the similar reduction property, which corresponds well to the similarly centered reduction temperature (598 °C and 603 °C, respectively, Figure 8A,B). However, NiO/γ-Al2O3 consumes smaller H2 due to a different synthetical method. The actual H2 consumption of NiAl-LDH is lower than the theoretical one (9981 μmol g−1) and NiO/γ-Al2O3 catalysts show a similar phenomenon. On the other hand, catalytic activities of NiAl-LDO catalysts were observed at 250 °C in a reaction process while there is no reaction observed for NiO/γ-Al2O3. One of the reasons is the better Ni dispersion helps to enhance the reaction, another is that Ni2+ could bring an availably active site and benefit to catalytic activities.
The high temperature in the VPCE process prevents liquid water from blocking active sites of catalysts and therefore the whole transfer of deuterium occurs in a single stage, as shown in Equation (6):
HDO ( vapor )   +   H 2 ( gas )     HD ( gas )   +   H 2 O ( gas ) ,
As is well known, the catalytic reaction (Equation (6)) occurs on catalytic active sites. The catalytic reaction consists of the following steps: (1) enrichment of vaporous water and hydrogen; (2) diffusion and adsorption; (3) hydrogen isotope catalytic exchange; (4) desorption and diffusion. Based on the published research in science magazines, the pivotal mechanism is the dissociative chemisorption of D2O (or HDO) on Ni (111) crystal surface to form chemisorbed OD(ads), D(ads) or OH(ads), which has been confirmed by a quantum-dynamical investigation on a density functional theory (DFT) based global potential energy surface (PES) [43]. Meanwhile, hydrogen molecules can also dissociate into H(ads) on Ni (111) planes [44,45,46]. Therefore, it can be concluded that hydrogen and vaporous water are chemically adsorbed mainly on the Ni (111) planes and dissociate into a hydrogen atom, deuterium atom and hydrogen-deuterium atom. However, Figure 5 and Figure 8B show that catalytic activity exists at 250 °C and no reductive peak occurs at <300 °C for NiAl-LDO, suggesting that Ni2+ also bring catalytic performance in VPCE. In other words, another reaction pathway may coexist with the above-mentioned pathway. In the second pathway or route II, the dissociative chemisorption of H2 and HDO also occurs on the NiO species. Namely, there are two reaction pathways (route I and route II) for the VPCE on NiAl-LDO catalysts. Based on the above discussion, one possible pathway for the H-D isotopic exchange between hydrogen and water on metallic Ni and NiO can be deduced as follows:
H 2   +   2 σ ( M )     H ( ads )   +   H ( ads ) ,
HDO   +   2 σ ( M )     D ( ads )   +   OH ( ads ) ,
H ( ads )   +   D ( ads )     HD ads   +   2 σ ( M ) ,
H ( ads )   +   OH ( ads )     H 2 O   +   2 σ ( M ) ,
where σ is the active site, while M represents Ni0 or NiO.

4. Conclusions

The vapor phase exchange reaction (VPCE) is a crucial important reaction for water detritiation and tritium extraction from heavy water. The high dispersed Ni-based catalyst derived from LDH is proposed and verified with better catalytic performance than traditional impregnated Ni/Al2O3 catalysts. Synthesis processes were systematically studied to optimize the preparation conditions and to improve the crystallinity of NiAl-LDH. As it was observed with the NiAl-LDH (synthesized at 150 °C for 12 h with Ni/Al/urea molar ratio of 2/1/14), a marked crystallinity was found by the adopted urea hydrolysis method. Moreover, after the calcinated process, in-situ grown Ni-catalysts derived from NiAl-LDH were applied firstly in the VPCE process between hydrogen and water. Experiments showed that NiAl-LDO catalysts exhibit an excellent reaction performance several times higher than that of impregnated NiO/γ-Al2O3 under a temperature of <400 °C, signifying a high potential large-scale application for VPCE. Then the better catalytic performance of NiAl-LDO was analyzed. Compared with impregnated NiO/γ-Al2O3, a unique petal-like nanosheet structure made the Ni-based catalyst (NiAl-LDO) quicker at ion diffusion and charge transport. Stronger metal-support interactions between Ni and Al2O3 supports prevented active metals’ aggregation. Furthermore, a homogenous dispersed metallic phase, higher specific surface area and wider pore with a smaller size provided more available active metals. These advantages led to a more excellent catalytic performance. Importantly, based on our discussions, we proposed the reaction pathways in the hydrogen isotope exchange between hydrogen and water. Both Ni0 species and NiO species showed catalytic activities in the VPCE process. This work highlights the application of an in-situ grown Ni-based catalyst derived from a NiAl-LDH precursor at a lower temperature in the VPCE process and the coexisting effects of NiO and Ni0 species on catalytic activities.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/12/1688/s1, Figure S1: X-ray diffraction patterns of NiAl-LDH under different Ni/Al/urea molar ratios; Figure S2: X-ray diffraction patterns of NiAl-LDH under different crystallization times; Figure S3: X-ray diffraction patterns of NiAl-LDH under different crystallization temperatures; Figure S4: SAED patterns of samples; Figure S5: X-ray diffraction patterns of the tested NiAl-LDO; Figure S6: X-ray diffraction patterns of the tested NiO/γ-Al2O3; Table S1: analysis of XRD patterns for NiAl-LDH prepared by adjusting hydrothermal time, hydrothermal temperature as well as Ni/Al/urea molar ratio; Table S2: properties of XPS spectra for catalysts before and after reaction.

Author Contributions

Conceptualization, P.L., J.S. and Y.L.; investigation and methodology, X.H., P.L.; study design, N.Z., J.L.; data collection and curation, Z.Z., C.L. and B.Y.; supervision, J.S. and Y.L.; writing—original draft, X.H.; writing—review & editing, X.H., P.L. and X.Z.

Funding

This research was funded by the National Key Research and Development Program of China, Grant No. 2017YFE0300302, the Key Project of Applied & Basic Research of Sichuan Province, Grant No. 18YYJC1594 and the Project of Institute of Materials, Grant No. TP03201705.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Perevezentsev, A.N.; Bell, A.C.; Williams, J.; Brennan, P.D. Detritiation studies for JET decommissioning. Fusion Eng. Des. 2008, 83, 1364–1367. [Google Scholar] [CrossRef]
  2. Zhou, J.B.; Liu, Y.; Wang, C. Dynamic equations of tritium concentration during wastewater (light water) containing tritium electrolysis. Int. J. Hydrogen Energy 2016, 41, 16014–16018. [Google Scholar] [CrossRef]
  3. Bornea, A.; Petrutiu, C.; Zamfirache, M. Complex software dedicated for design and simulation of LPCE process for heavy water detritiation. Fusion Sci. Technol. 2015, 67, 270–273. [Google Scholar] [CrossRef]
  4. Zhang, D.H.; Zhou, L.; Su, W.; Sun, Y. Equilibrium modeling for hydrogen isotope separation by cryogenic adsorption. Chin. J. Chem. Eng. 2006, 14, 526–531. [Google Scholar] [CrossRef]
  5. Elnour, F. Reactivation of promoted nickel-catalysts for deuterium-exchange between hydrogen and water vapor-phase. Isotopes Environ. Health Stud. 1980, 16, 370–372. [Google Scholar] [CrossRef]
  6. Abouelnour, F.H.; Belacy, A. Binary supported nickel catalysts for the deuterium exchange reaction between hydrogen and water vapour. Isotopes Environ. Health. Stud. 1980, 18, 131–132. [Google Scholar] [CrossRef]
  7. Sagert, N.H.; Shawwood, P.E.; Pouteau, R.M.L. Hydrogen–Water Deuterium Exchange Over Metal Oxide Promoted Nickel Catalysts. Can. J. Chem. 1975, 53, 3257–3262. [Google Scholar] [CrossRef]
  8. Kalyanam, K.M.; Sood, S.K. A Comparison of Process Characteristics for the Recovery of Tritium from Heavy Water and Light Water Systems. Fusion Sci. Technol. 2017, 14, 524–528. [Google Scholar] [CrossRef]
  9. Ovcharov, A.V. More Precise Values of Separation Factors in Water-Hydrogen Isotopic Exchange for Modeling of Combined Electrolysis and Catalytic Exchange Process. Fusion Sci. Technol. 2017, 71, 333–338. [Google Scholar] [CrossRef]
  10. Hu, S.; Hou, J.W.; Xiong, L.P.; Weng, K.P.; Ren, X.B.; Luo, Y.M. Preparation and characterization of hydrophobic Pt-Fe catalysts with enhanced catalytic activities for interface hydrogen isotope separation. J. Hazard. Mater. 2012, 209, 478–483. [Google Scholar] [CrossRef]
  11. Hu, S.; Xiong, L.P.; Ren, X.B.; Wang, C.B.; Luo, Y.M. Pt-Ir binary hydrophobic catalysts: Effects of Ir content and particle size on catalytic performance for liquid phase catalytic exchange. Int. J. Hydrogen Energy 2009, 34, 8723–8732. [Google Scholar] [CrossRef]
  12. Hui, C.L.; Li, X.G.; Hsing, I.M. Well-dispersed surfactant-stabilized Pt/C nanocatalysts for fuel cell application: Dispersion control and surfactant removal. Electrochim. Acta 2005, 51, 711–719. [Google Scholar] [CrossRef]
  13. Ye, L.S.; Luo, D.L.; Yang, W.; Guo, W.S.; Xu, Q.Y.; Jiang, C.L. Improved catalysts for hydrogen/deuterium exchange reactions. Int. J. Hydrogen Energy 2013, 38, 13596–13603. [Google Scholar] [CrossRef]
  14. He, J.C.; Wang, H.Y.; Xiao, C.J.; Li, J.M.; Chen, P.; Hou, J.W. Preparation and performance of Pt/PTFE/Foam SiC as a hydrophobic catalyst for LPCE. Fusion Eng. Des. 2016, 113, 269–274. [Google Scholar] [CrossRef]
  15. Ye, L.S.; Luo, D.L.; Yang, W.; Guo, W.S.; Xu, Q.Y.; Luo, L.Z. Preparation and characterization of hydrophobic carbon-supported Pt3M (M = Fe, Co, Ni and Cr) bimetals for H/D isotope separation between hydrogen and water. Int. J. Hydrogen Energy 2014, 39, 13793–13799. [Google Scholar] [CrossRef]
  16. Davidson, R.B.; Vonhatten, P.; Schaub, M.; Ulrich, D. Commissioning and 1st operating experience at Darlington tritium removal facility. Fusion Technol. 2017, 14, 472–479. [Google Scholar] [CrossRef]
  17. Pautrot, G.P. The tritium extraction facility at the institute-laue-langevin experience of operation with tritium. Fusion Sci. Technol. 2017, 14, 480–483. [Google Scholar] [CrossRef]
  18. Sood, S.K.; Sissingh, R.A.P.; Kveton, O.K. Removal and Immobilization of Tritium from Ontario Hydro’s Nuclear Generating Stations. Fusion Technol. 2017, 8, 2478–2485. [Google Scholar] [CrossRef]
  19. Zhang, Z.M.; Tian, Y.; Zhang, L.J.; Hu, S.; Xiang, J.; Wang, Y.; Xu, L.L.; Liu, Q.; Zhang, S.; Hu, X. Impacts of nickel loading on properties, catalytic behaviors of Ni/gamma-Al2O3 catalysts and the reaction intermediates formed in methanation of CO2. Int. J. Hydrogen Energy 2019, 44, 9291–9306. [Google Scholar] [CrossRef]
  20. Feng, J.T.; Lin, Y.J.; Evans, D.G.; Duan, X.; Li, D.Q. Enhanced metal dispersion and hydrodechlorination properties of a Ni/Al2O3 catalyst derived from layered double hydroxides. J. Catal. 2009, 266, 351–358. [Google Scholar] [CrossRef]
  21. Guo, Z.L.; Zheng, J.E.; Liu, Y.; Chu, W. Insight into the role of metal/oxide interaction and Ni availabilities on NiAl mixed metal oxide catalysts for methane decomposition. Appl. Catal. A-GEN. 2018, 555, 1–11. [Google Scholar] [CrossRef]
  22. David, G.E.; Robert, C.T.S. Structural Aspects of Layered Double Hydroxides. Structure and Bonding; Springer: Berlin/Heidelberg, Germany, 2005; pp. 1–87. [Google Scholar]
  23. Feng, J.T.; Ma, X.Y.; He, Y.F.; Evans, D.G.; Li, D.Q. Synthesis of hydrotalcite-supported shape-controlled Pd nanoparticles by a precipitation-reduction method. Appl. Catal. A-Gen. 2011, 413, 10–20. [Google Scholar] [CrossRef]
  24. Zhang, X.; Zhao, Y.F.; Zhao, Y.X.; Shi, R.; Waterhouse, G.I.N.; Zhang, T.R. A Simple Synthetic Strategy toward Defect-Rich Porous Monolayer NiFe-Layered Double Hydroxide Nanosheets for Efficient Electrocatalytic Water Oxidation. Adv. Energy Mater. 2019, 9, 6. [Google Scholar] [CrossRef]
  25. Zhao, L.; Li, X.Y.; Qu, Z.P.; Zhao, Q.D.; Liu, S.M.; Hu, X.J. The NiAl mixed oxides: The relation between basicity and SO2 removal capacity. Sep. Purif. Technol. 2011, 80, 345–350. [Google Scholar] [CrossRef]
  26. Cavani, F.; Trifiro, F.; Vaccari, A. Hydrotalcite-type clays: Preparation, properties and applications. Catal. Today 1991, 11, 173–301. [Google Scholar] [CrossRef]
  27. Li, J.; Chen, F.P.; Jin, G.P.; Feng, X.S.; Li, X.X. Removals of aqueous sulfur dioxide and hydrogen sulfide using CeO2-NiAl-LDHs coating activated carbon and its mix with carbon nano-tubes. Colloid Surf. A 2015, 476, 90–97. [Google Scholar] [CrossRef]
  28. Zhu, Y.T.; Wang, D.L.; Yang, X.Y.; Liu, S.; Liu, D.; Liu, J.; Xiao, H.D.; Hao, X.T.; Liu, J.Q. Investigation of the dye-sensitized solar cell designed by a series of mixed metal oxides based on ZnAl-layered double hydroxide. Appl. Phys. A 2017, 123, 10. [Google Scholar] [CrossRef]
  29. Li, P.L.; Guo, L.; Xiong, R.J.; Wen, M.; Yao, Y.; Zhang, Z.; Song, J.F.; Shi, Y.; Tang, T. Separation process study of liquid phase catalytic exchange reaction based on the Pt/C/PTFE catalysts. Chin. J. Chem. Eng. 2019, 27, 1837–1845. [Google Scholar] [CrossRef]
  30. Kovanda, F.; Rojka, T.; Bezdicka, P.; Jiratova, K.; Obalova, L.; Pacultova, K.; Bastl, Z.; Grygar, T. Effect of hydrothermal treatment on properties of Ni-Al layered double hydroxides and related mixed oxides. J. Solid State Chem. 2008, 182, 27–36. [Google Scholar] [CrossRef]
  31. Chen, H.Y.; Zhang, F.Z.; Fu, S.S.; Duan, X. In situ microstructure control of oriented layered double hydroxide monolayer films with curved hexagonal crystals as superhydrophobic materials. Adv. Mater. 2006, 18, 23. [Google Scholar] [CrossRef]
  32. Rudolf, C.; Dragoi, B.; Ungureanu, A.; Chirieac, A.; Royer, S.; Nastro, A.; Dumitriu, E. NiAl and CoAl materials derived from takovite-like LDHs and related structures as efficient chemoselective hydrogenation catalysts. Catal. Sci. Technol. 2014, 4, 179–189. [Google Scholar] [CrossRef]
  33. Li, L.; Hui, K.S.; Hui, K.N.; Xia, Q.X.; Fu, J.J.; Cho, Y.R. Facile synthesis of NiAl layered double hydroxide nanoplates for high-performance asymmetric supercapacitor. J. Alloy Compd. 2017, 721, 803–812. [Google Scholar] [CrossRef][Green Version]
  34. Parida, K.M.; Pradhan, A.C.; Das, J.; Sahu, N. Synthesis and characterization of nano-sized porous gamma-alumina by control precipitation method. Mater. Chem. Phys. 2008, 113, 244–248. [Google Scholar] [CrossRef]
  35. Wang, Z.C.; Fang, P.F.; Kumar, P.; Wang, W.W.; Liu, B.; Li, J. Controlled Growth of LDH Films with Enhanced Photocatalytic Activity in a Mixed Wastewater Treatment. Nanomaterials 2019, 9, 807. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Li, L.; Hui, K.S.; Hui, K.N.; Cho, Y.R. Ultrathin petal-like NiAl layered double oxide/sulfide composites as an advanced electrode for high-performance asymmetric supercapacitors. J. Mater. Chem. A 2017, 5, 19687–19696. [Google Scholar] [CrossRef][Green Version]
  37. Abdelsadek, Z.; Sehailia, M.; Halliche, D.; Gonzalez-Delacruz, V.M.; Holgado, J.P.; Bachari, K.; Caballero, A.; Cherifi, O. In-situ hydrogasification/regeneration of NiAl-hydrotalcite derived catalyst in the reaction of CO2 reforming of methane: A versatile approach to catalyst recycling. J. CO2 Util. 2016, 14, 98–105. [Google Scholar] [CrossRef]
  38. Pang, H.; Wei, C.Z.; Li, X.X.; Li, G.C.; Ma, Y.H.; Li, S.J.; Chen, J.; Zhang, J.S. Microwave-assisted synthesis of NiS2 nanostructures for supercapacitors and cocatalytic enhancing photocatalytic H2 production. Sci. Rep. 2014. [Google Scholar] [CrossRef][Green Version]
  39. Yang, L.J.; Zhao, X.C.; Yang, R.Z.; Zhao, P.X.; Li, Y.T.; Yang, P.; Wang, J.C.; Astruc, D. In-situ growth of carbon nanotubes on Ni/NiO nanofibers as efficient hydrogen evolution reaction catalysts in alkaline media. Appl. Surf. Sci. 2019, 491, 294–300. [Google Scholar] [CrossRef]
  40. Del Arco, M.; Malet, P.; Trujillano, R.; Rives, V. Synthesis and characterization of hydrotalcites containing Ni(II) and Fe(III) and their calcination products. Chem. Mater. 1999, 11, 624–633. [Google Scholar] [CrossRef]
  41. Cheng, D.D.; Wang, Z.L.; Xia, Y.Y.; Wang, Y.M.; Zhang, W.X.; Zhu, W.C. Catalytic amination of diethylene glycol with tertiarybutylamine over Ni-Al2O3 catalysts with different Ni/Al ratios. RSC Adv. 2016, 6, 102373–102380. [Google Scholar] [CrossRef]
  42. Heracleous, E.; Lee, A.F.; Wilson, K.; Lemonidou, A.A. Investigation of Ni-based alumina-supported catalysts for the oxidative dehydrogenation of ethane to ethylene: Structural characterization and reactivity studies. J. Catal. 2005, 231, 159–171. [Google Scholar] [CrossRef]
  43. Hundt, P.M.; Jiang, B.; van Reijzen, M.E.; Guo, H.; Beck, R.D. Vibrationally Promoted Dissociation of Water on Ni(111). Science 2014, 355, 504–507. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Hayward, D.O.; Taylor, A.O. On the translationally activated dissociative chemisorption of hydrogen and deuterium at a nickel (111) surface. Chem. Phys. Lett. 1988, 146, 221–226. [Google Scholar] [CrossRef]
  45. Liu, H.Y.; Li, K.; Zhang, R.G.; Ling, L.X.; Wang, B.J. Insight into the influence of addition of a second metal Fe and supports with different morphology on H2 dissociation over Ni/MgO catalysts. Appl. Surf. Sci. 2017, 426, 827–832. [Google Scholar] [CrossRef]
  46. Yang, H.; Whitten, J.L. Dissociative adsorption of H2 on Ni (111). J. Chem. Phys. 1993, 98, 5039–5049. [Google Scholar] [CrossRef]

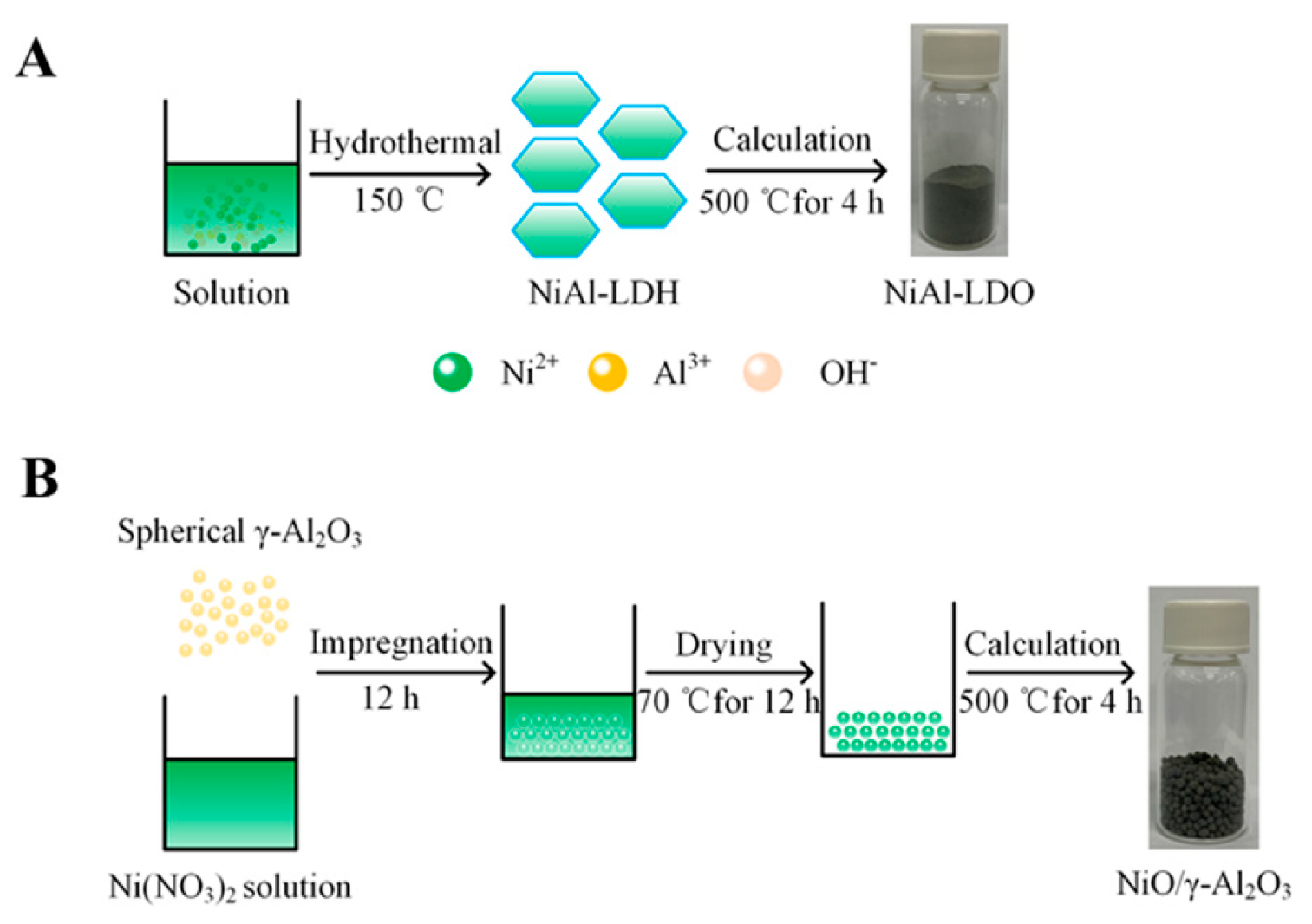

Scheme 1. Illustrations of the materials preparations of (A) NiAl-LDH and NiAl-LDO; (B) NiO/γ-Al2O3.
Scheme 1. Illustrations of the materials preparations of (A) NiAl-LDH and NiAl-LDO; (B) NiO/γ-Al2O3.
Nanomaterials 09 01688 sch001

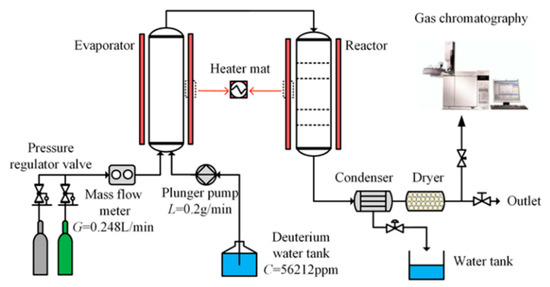

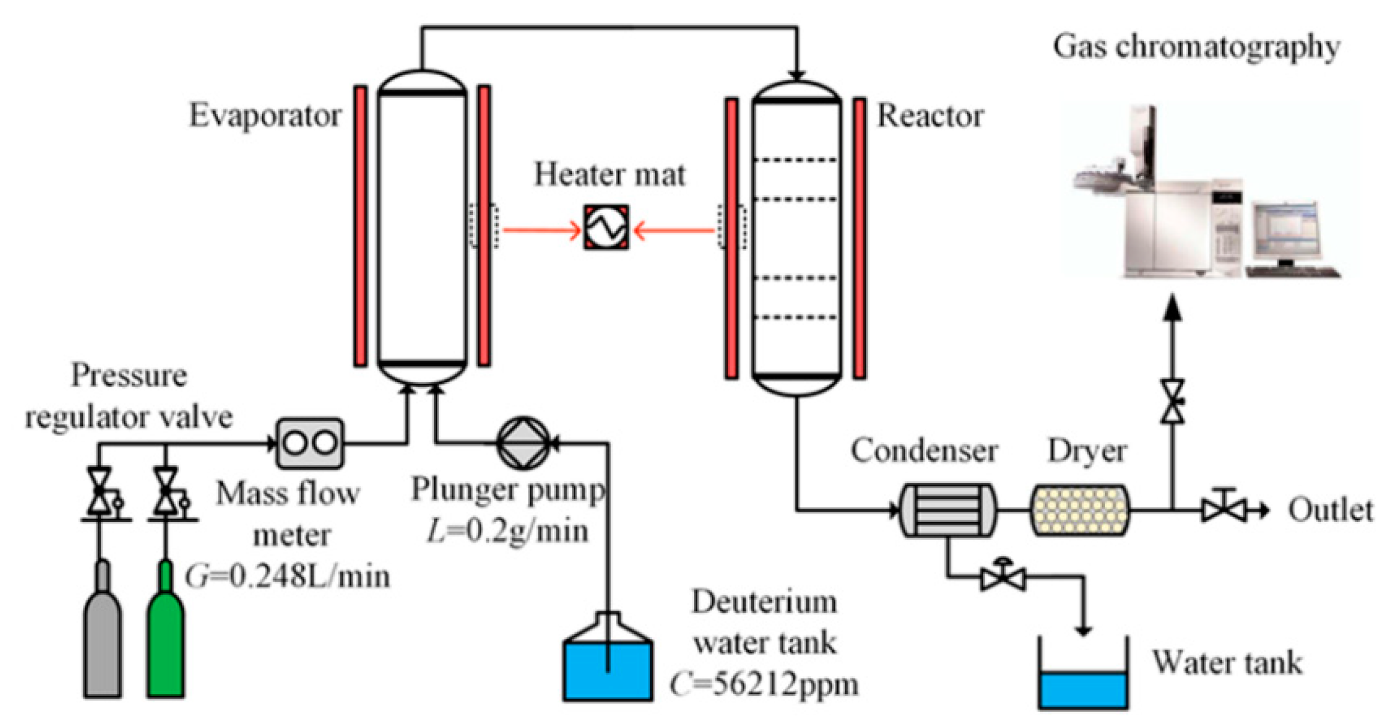

Figure 1. Experimental apparatus for the VPCE process.
Figure 1. Experimental apparatus for the VPCE process.
Nanomaterials 09 01688 g001

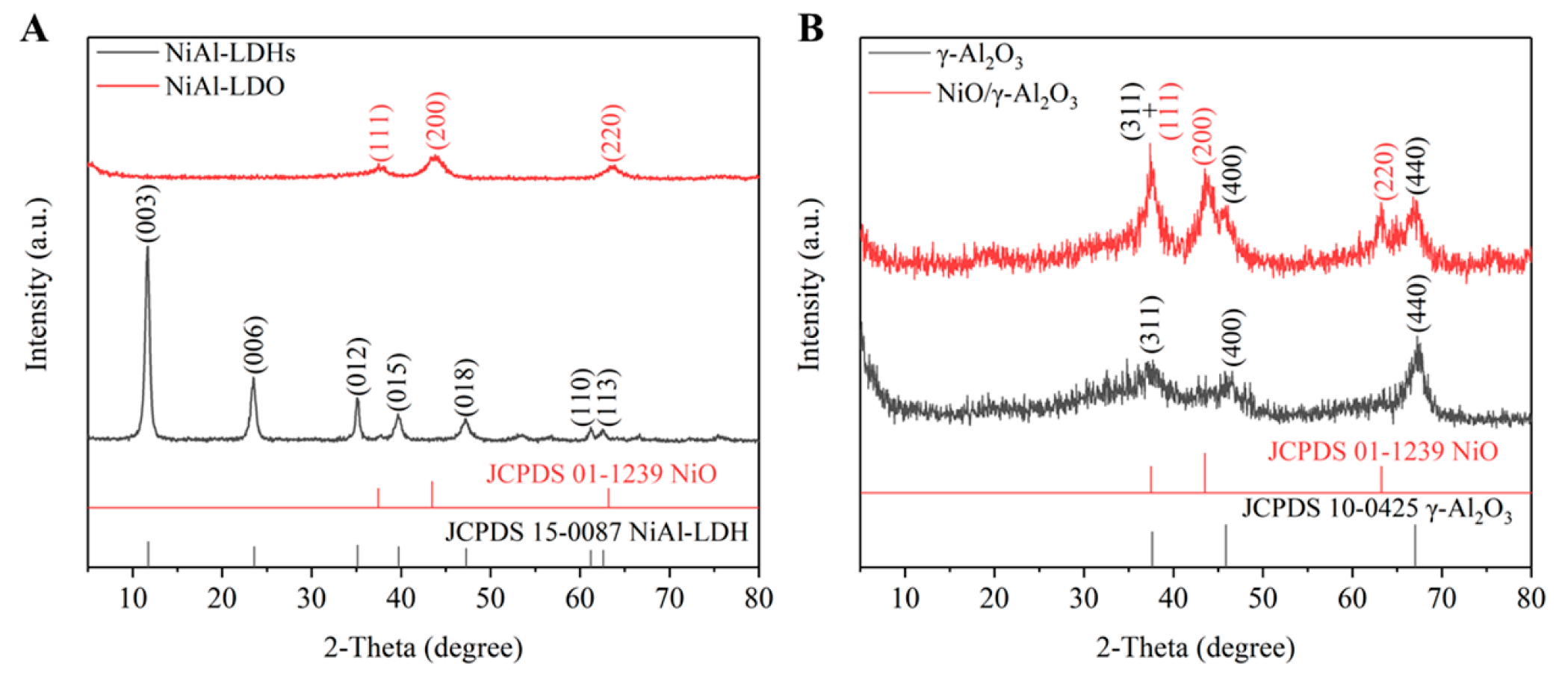

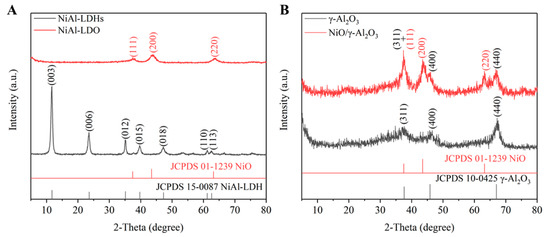

Figure 2. XRD patterns of (A) NiAl-LDH and NiAl-LDO; (B) γ-Al2O3 powders and calcinated NiO/γ-Al2O3 powders grinded from the spherical γ-Al2O3 and the spherical NiO/γ-Al2O3, respectively.
Figure 2. XRD patterns of (A) NiAl-LDH and NiAl-LDO; (B) γ-Al2O3 powders and calcinated NiO/γ-Al2O3 powders grinded from the spherical γ-Al2O3 and the spherical NiO/γ-Al2O3, respectively.
Nanomaterials 09 01688 g002

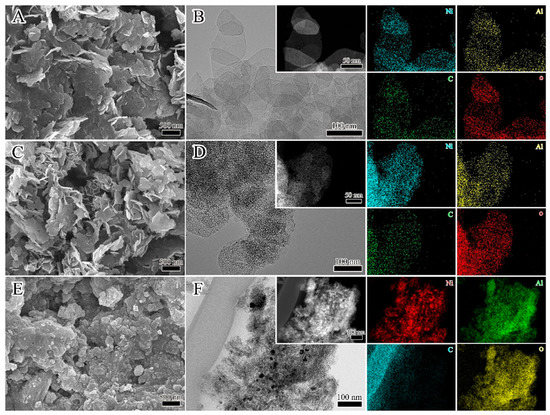

Figure 3. (A) SEM, (B) TEM and (inset in (B)) the corresponding EDS mapping pattern of NiAl-LDH; (C) SEM, (D) TEM and (inset in (D)) the corresponding EDS mapping pattern of NiAl-LDO; (E) SEM of NiO/γ-Al2O3, (F) TEM and (inset in (F)) the corresponding EDS mapping pattern of NiO/γ-Al2O3.
Figure 3. (A) SEM, (B) TEM and (inset in (B)) the corresponding EDS mapping pattern of NiAl-LDH; (C) SEM, (D) TEM and (inset in (D)) the corresponding EDS mapping pattern of NiAl-LDO; (E) SEM of NiO/γ-Al2O3, (F) TEM and (inset in (F)) the corresponding EDS mapping pattern of NiO/γ-Al2O3.
Nanomaterials 09 01688 g003
Figure 4. Curves of pore size distribution of (A) NiAl-LDH; (B) NiAl-LDO; (C) NiO/γ-Al2O3 and (D) the corresponding textural parameters.
Figure 4. Curves of pore size distribution of (A) NiAl-LDH; (B) NiAl-LDO; (C) NiO/γ-Al2O3 and (D) the corresponding textural parameters.
Nanomaterials 09 01688 g004

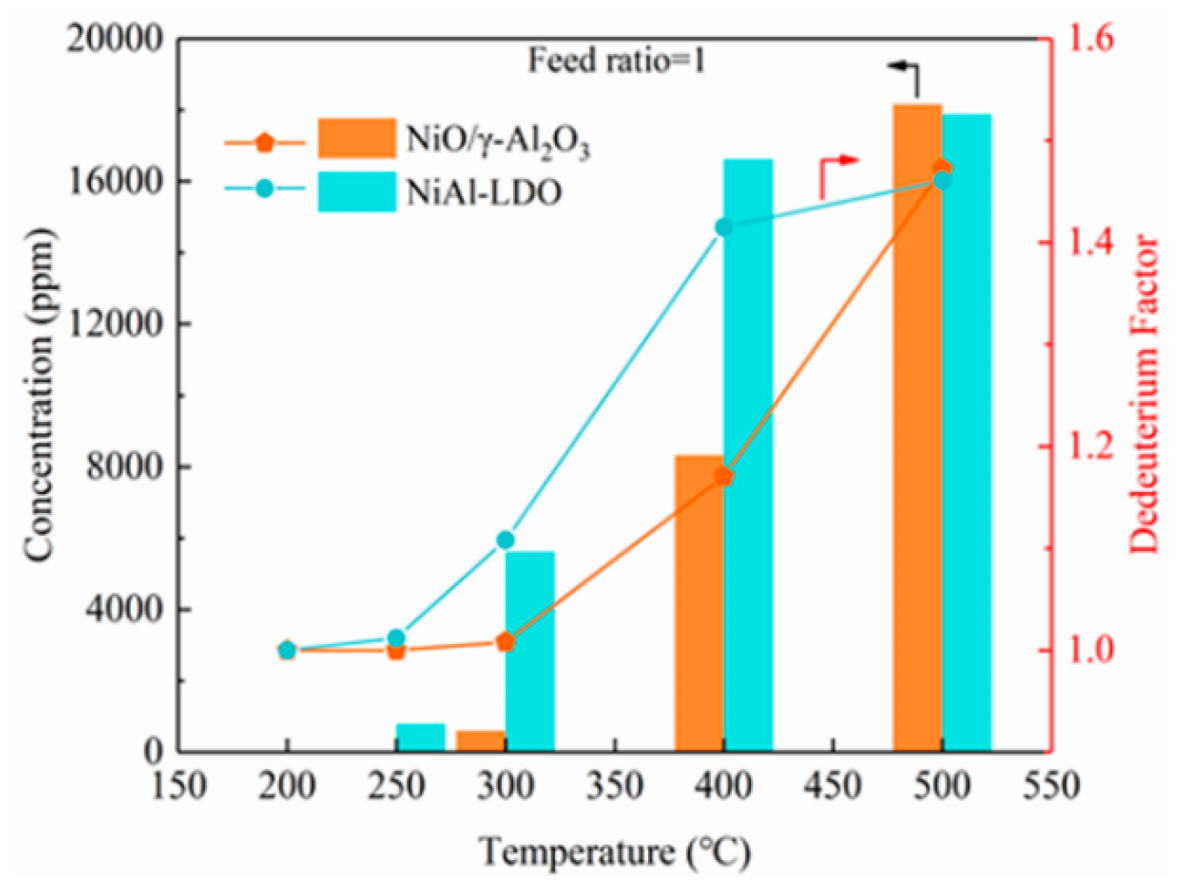

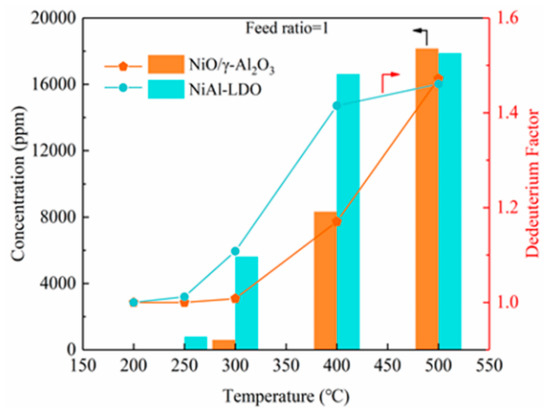

Figure 5. Catalytic performances of NiAl-LDO and NiO/γ-Al2O3, respectively. Molar feed ratio of hydrogen gas to feed water: λ = 1.
Figure 5. Catalytic performances of NiAl-LDO and NiO/γ-Al2O3, respectively. Molar feed ratio of hydrogen gas to feed water: λ = 1.
Nanomaterials 09 01688 g005

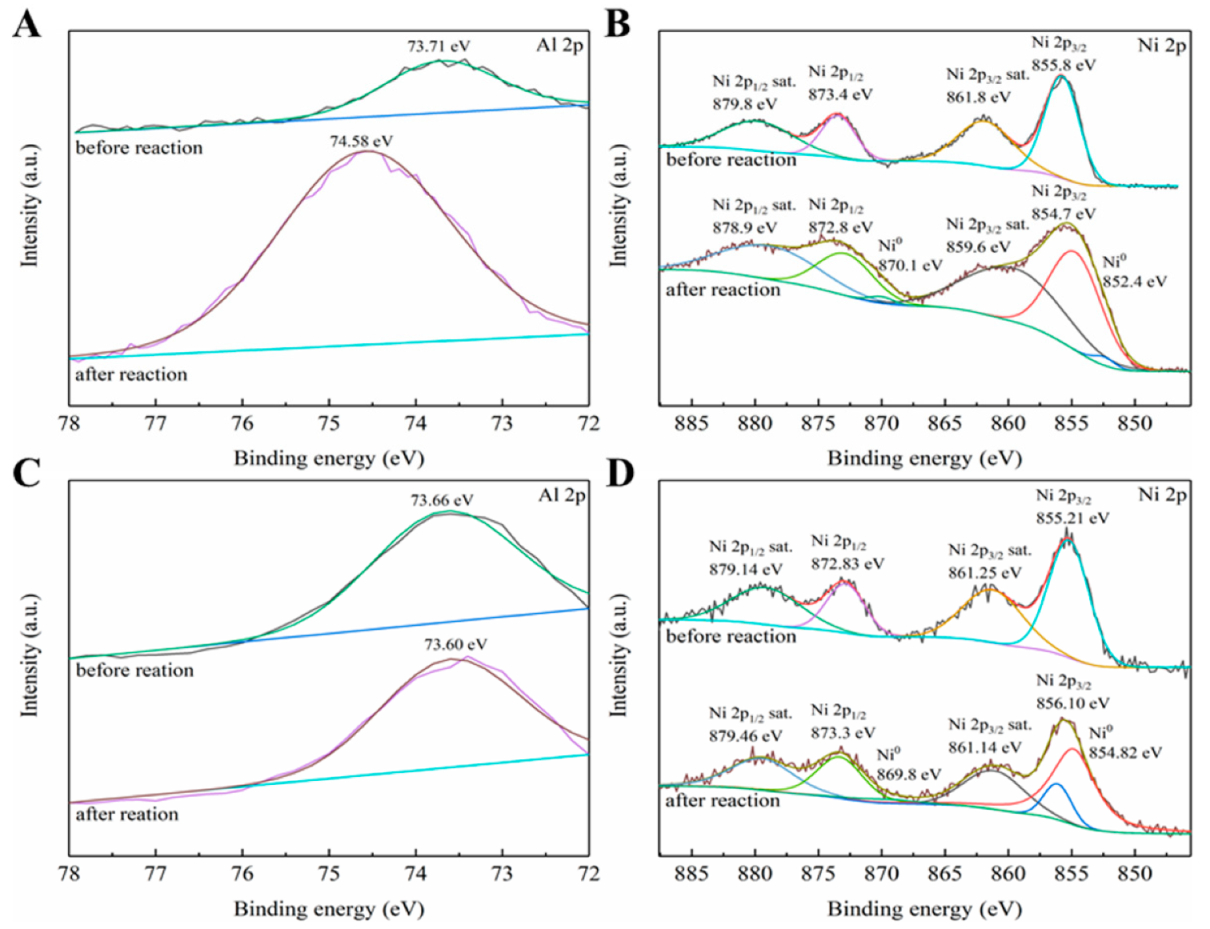

Figure 6. XPS of catalysts before and after reaction: (A,B) NiAl-LDO, (C,D) NiO/γ-Al2O3 powders obtained by grinding a NiO/γ-Al2O3 sphere.
Figure 6. XPS of catalysts before and after reaction: (A,B) NiAl-LDO, (C,D) NiO/γ-Al2O3 powders obtained by grinding a NiO/γ-Al2O3 sphere.
Nanomaterials 09 01688 g006

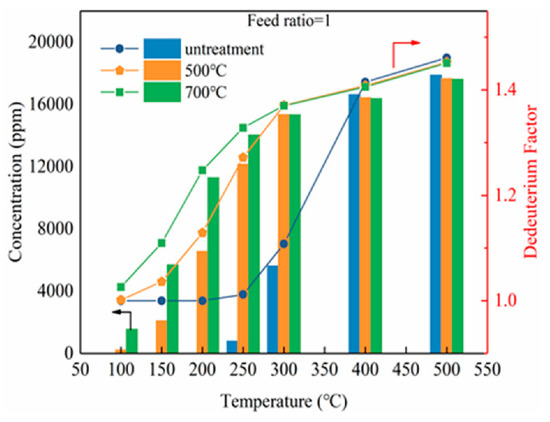

Figure 7. Catalytic performances of NiAl-LDO under different reduction temperatures. Molar feed ratio of hydrogen gas to feed water: λ = 1. Reduction condition: 500 °C or 700 °C for 2 h with H2 (20 mL min−1, concentration: 99.999%).
Figure 7. Catalytic performances of NiAl-LDO under different reduction temperatures. Molar feed ratio of hydrogen gas to feed water: λ = 1. Reduction condition: 500 °C or 700 °C for 2 h with H2 (20 mL min−1, concentration: 99.999%).
Nanomaterials 09 01688 g007

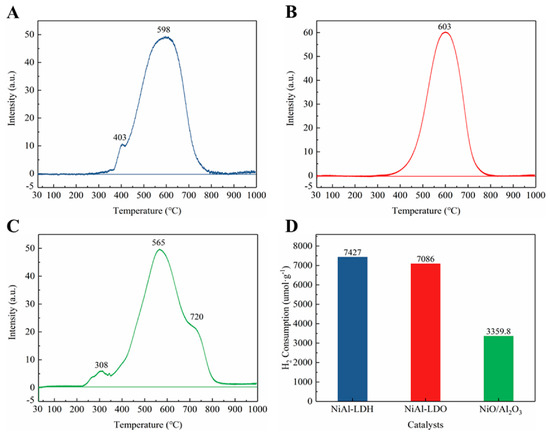

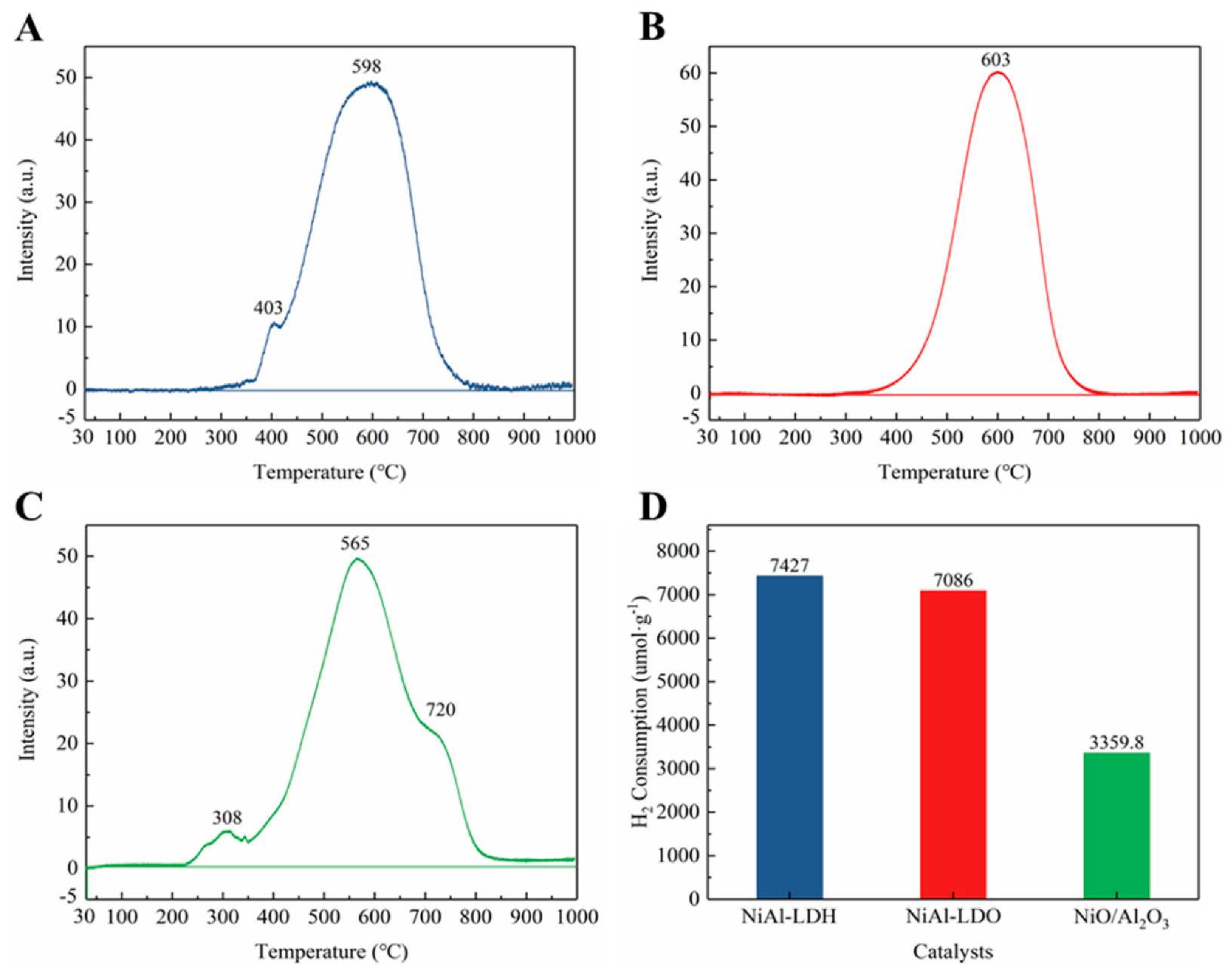

Figure 8. H2-TPR profiles of (A) NiAl-LDH, (B) NiAl-LDO, (C) NiO/γ-Al2O3 and (D) the corresponding H2 consumptions.
Figure 8. H2-TPR profiles of (A) NiAl-LDH, (B) NiAl-LDO, (C) NiO/γ-Al2O3 and (D) the corresponding H2 consumptions.
Nanomaterials 09 01688 g008

Share and Cite

MDPI and ACS Style

Hu, X.; Li, P.; Zhang, X.; Yu, B.; Lv, C.; Zeng, N.; Luo, J.; Zhang, Z.; Song, J.; Liu, Y. Ni-Based Catalyst Derived from NiAl Layered Double Hydroxide for Vapor Phase Catalytic Exchange between Hydrogen and Water. Nanomaterials 2019, 9, 1688. https://doi.org/10.3390/nano9121688

AMA Style

Hu X, Li P, Zhang X, Yu B, Lv C, Zeng N, Luo J, Zhang Z, Song J, Liu Y. Ni-Based Catalyst Derived from NiAl Layered Double Hydroxide for Vapor Phase Catalytic Exchange between Hydrogen and Water. Nanomaterials. 2019; 9(12):1688. https://doi.org/10.3390/nano9121688

Chicago/Turabian Style

Hu, Xiaoyu, Peilong Li, Xin Zhang, Bin Yu, Chao Lv, Ning Zeng, Junhong Luo, Zhi Zhang, Jiangfeng Song, and Yong Liu. 2019. "Ni-Based Catalyst Derived from NiAl Layered Double Hydroxide for Vapor Phase Catalytic Exchange between Hydrogen and Water" Nanomaterials 9, no. 12: 1688. https://doi.org/10.3390/nano9121688
