Communication

Methane-Mediated Vapor Transport Growth of Monolayer WSe2 Crystals

by
Hyeon-Sik Jang
1,†,
Jae-Young Lim
1,†,
Seog-Gyun Kang
1,
Sang-Hwa Hyun
2,
Sana Sandhu
1,
Seok-Kyun Son
3,
Jae-Hyun Lee
2,* and
Dongmok Whang
1,*
1
School of Advanced Materials Science and Engineering and SKKU Advanced Institute of Nanotechnology (SAINT), Sungkyunkwan University (SKKU), 2066, Seobu-Ro, Jangan-Gu, Suwon-Si, Gyeonggi-Do 16419, Korea
2
Department of Energy Systems Research and Department of Materials Science and Engineering, Ajou University, Suwon, Gyeonggi-Do 16499, Korea
3
Department of Physics, Mokpo National University, Muan-gun, Jeollanam-Do 58554, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2019, 9(11), 1642; https://doi.org/10.3390/nano9111642
Submission received: 28 October 2019 / Revised: 8 November 2019 / Accepted: 13 November 2019 / Published: 19 November 2019
(This article belongs to the Section Nanocomposite Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
The electrical and optical properties of semiconducting transition metal dichalcogenides (TMDs) can be tuned by controlling their composition and the number of layers they have. Among various TMDs, the monolayer WSe2 has a direct bandgap of 1.65 eV and exhibits p-type or bipolar behavior, depending on the type of contact metal. Despite these promising properties, a lack of efficient large-area production methods for high-quality, uniform WSe2 hinders its practical device applications. Various methods have been investigated for the synthesis of large-area monolayer WSe2, but the difficulty of precisely controlling solid-state TMD precursors (WO3, MoO3, Se, and S powders) is a major obstacle to the synthesis of uniform TMD layers. In this work, we outline our success in growing large-area, high-quality, monolayered WSe2 by utilizing methane (CH4) gas with precisely controlled pressure as a promoter. When compared to the catalytic growth of monolayered WSe2 without a gas-phase promoter, the catalytic growth of the monolayered WSe2 with a CH4 promoter reduced the nucleation density to 1/1000 and increased the grain size of monolayer WSe2 up to 100 μm. The significant improvement in the optical properties of the resulting WSe2 indicates that CH4 is a suitable candidate as a promoter for the synthesis of TMD materials, because it allows accurate gas control.

Graphical Abstract

1. Introduction

The discovery of graphene and its unique properties has triggered the development of various types of layered materials [1]. In particular, transition metal dichalcogenides (TMDs), atomically thin semiconductors of the type MX2 (M = Mo, W; X = S, Se), have attracted considerable attention as their physical and electrical properties are tunable. Depending on their composition and thickness, two-dimensional (2D) TMDs have a variety of electrical properties ranging from metal, to insulator, to semiconductor, which could lead to a new dimension of atomic thickness for future device applications [2,3]. TMD materials have useful device characteristics, such as a high on/off ratio, a wide range of photoluminescence, and a low subthreshold voltage, making them suitable for spintronics and optoelectronics [4]. Among the numerous TMD materials, WSe2 has been extensively studied because its electrical transport properties can be easily adjusted from p-type to bipolar behavior depending on the type of contact metal [5,6,7]. Bulk WSe2 crystallizes in the “2H’’ or trigonal prismatic structure (space group P63/mmc; a = 0.330 nm, c = 1.298 nm), in which each W atom is surrounded by six Se atoms, defining two triangular prisms. It was also reported that the energy band structure of WSe2 can be altered according to its layer number. WSe2 shows a direct bandgap of 1.65 eV in the monolayer, compared to an indirect bandgap of 1.2 eV in the multilayered bulk [8,9]. Similar to another 2D layered material, TMD is typically prepared using a mechanical exfoliation method. However, this top-down approach is not suitable for practical high-performance device applications, so bottom-up approaches for large-scale and mass-production have been extensively studied. The chemical vapor deposition (CVD) method is one of the bottom-up approaches that allows the synthesis of large-area TMDs. The CVD growth of TMDs has largely been studied using two different approaches. The first approach is to pre-deposit transition metal sources such as MoO3, WO3, etc., on the growth substrate and convert them to TMD by sulfidation (or selenization) [10,11,12,13,14,15,16,17,18]. The second is a noncatalytic growth method, in which a transition metal source and sulfur (or selenium) are heat-treated in a growth tube and flowed in a gaseous state to synthesize the TMD layer on a target substrate [19,20]. However, these CVD approaches have not been successful in uniform, high-quality TMD synthesis because it is difficult to control the thickness and nucleation density of TMDs [21]. Recently, to overcome such problems, many researchers have studied various types of promoters and methods applied for CVD-based TMD synthesis to control gas-phase transport of precursors and the reaction of TMD on the growth substrate [22,23,24,25,26]. Ling et al. reported the synthesis of highly- crystalline MoS2 at a relatively low growth temperature (650 °C) using various aromatic molecules as seeding promoters [13]. In particular, domain size of MoS2 increased up to 60 µm through vaporized aromatic-molecule catalysts such as perylene-3,4,9,10- tetracarboxylic acid tetrapotassium salt (PTAS) and F16CuPc. They also reported that uniform monolayer MoS2 can be synthesized on the entire area of the SiO2/Si substrate; however, the use of such an organic catalyst leaves a residue on the growth substrate that acts as a defect of the synthesized TMD. Another limitation of this method is that it is not applicable to the growth of WS2 and WSe2, which require high growth temperatures. In addition, inorganic materials were also reported in assisted WSe2 growth methods [15,27]. Liu et al. demonstrated a Cu-assisted self-limited growth (CASLG) method that allowed the synthesis of a high-quality, uniform WSe2 monolayer while maintaining a balance between high crystallinity and fast growth rates. They explained that Cu atoms, which occupy the hexagonal sites positioned at the center of the six-membered rings of the WSe2 surface, induce self-limited growth of WSe2 and prevent unwanted reactions [15]. However, this approach also had disadvantages, for example, the synthesized WSe2 had small grain sizes with multilayered regions and the vapor pressure of the solid catalyst could not be precisely controlled.
Herein, we report a catalytic growth of the large-area monolayer WSe2 by utilizing CH4 (methane) with precisely controlled pressure as t promoter. Through a systematic investigation, it is confirmed that grain size and the nucleation density of WSe2 can be controlled according to the ratio of carrier gases (Ar/CH4). The gas promoter leads to synthesis of about 100 µm size domains of WSe2 and significantly reduces nucleation density from 1.6 × 105 to 1.5 × 102 mm−2. Various analytical tools such as Raman, photoluminescence (PL), X-ray photoelectron spectroscopy (XPS), and atomic force microscopy (AFM) analysis are used to demonstrate the properties of synthesized monolayer WSe2.

2. Materials and Methods

2.1. Preparation

The WSe2 precursor powders (Alfa Aesar, Ward Hill, MA, U.S., 99.8%; metal basis, 10 microns) were placed on the cleaned alumina boat. Prior to the growth, the SiO2/Si wafer (thermal oxide wafer: 300 nm SiO2 layer on Si (100), MTI Inc., Richmond, CA, U.S.) substrate was washed by acetone, ethyl alcohol, and deionized (DI) water, for 5 min, to remove the organic residue and was then treated with oxygen plasma (100 sccm, 100 W). High-purity Ar gas (99.999%, JC gas Inc.) and methane gas diluted in Ar (1% CH4, 99% Ar, JC gas Inc., Suwon-si, Gyeonggi-do, Korea) were used as carrier gases.

2.2. Synthesis of WSe2

The homemade CVD system was designed to flow gas in both directions with a three-zone furnace and a double-quartz tube (outer: 34 mm diameter, inner: 15 mm diameter tube). The WSe2 powders were placed in an alumina boat located at the center furnace of the homemade CVD. The SiO2/Si substrate was cut to 1 cm × 5 cm size and then placed in the left furnace, about 10 cm from the alumina boat. The CVD system was pumped to the base pressure (2 × 10−3 torr) by a rotary pump for 10 min and then filled with Ar gas to 760 torr. In the process of increasing the temperature to the WSe2 growth temperature, the flow direction of the carrier gas (Ar 200 sccm) was reversed to prevent unwanted deposition. After the temperature reached 1050 °C, the flow direction of the carrier gas was reversed again to allow the evaporated precursor to reach the growth substrate. In the synthesis process, the experiment was carried out by flowing a different ratio of Ar and CH4 (1% diluted at Ar) for 60 min at atmospheric pressure. After the reaction, the furnace was quenched down to room temperature while maintaining the gas flow, and the samples were collected for characterization.

2.3. Characterzaion of Synthesized WSe2

The morphology and size of synthesized WSe2 samples were characterized using optical microscopy (OM, Olympus DX51, Tokyo, Japan) and a SEM (JEOL JSM-7401F, JEOL, LTD, Tokyo, Japan) operating at 5 kV and 10 µA. The nucleation density and grain size of WSe2 were analyzed using the Image J program tool. The thickness and surface potential of the WSe2 monolayer were confirmed by atomic force microscopy and Kelvin probe force microscopy (KPFM) using Park NX10 (Park system, Suwon-si, Gyeonggi-do, Korea) with a Si cantilever Pt-coated tip. X-ray photoelectron spectroscopy analysis was carried out by ESCA2000 spectrometry (Termo Fisher Scientific, Walthan, Massachusetts, U.S.) using monochromatic Al-Kα radiation (1468.6 eV). Raman and photoluminescence spectra were collected with micro-Raman spectroscopy (WITEC Raman system, Ulm, Germany) using a 532 nm laser.

3. Results and Discussion

As shown in Figure 1a, monolayer WSe2 was synthesized on the SiO2/Si substrate by a homemade three-zone furnace CVD using WSe2 powder as a precursor. Briefly, the CVD system can control the temperature at each zone and adjust the direction of the carrier gas as required. During the ramping process for increasing the temperature of the furnace, the carrier gas flowed from the right to left direction to prevent the evaporated precursor from reaching the growth substrate, and the flow direction of the carrier gas was reversed during the growth process to synthesize the WSe2 monolayer. A 1 × 5 cm2 SiO2/Si growth substrate was placed 10 cm away from the alumina boat containing the precursor. The growth behavior of WSe2 was investigated by observing the product at the same location as the growth substrate, because the morphology and density of the WSe2 crystals depended upon the distance between the precursor and the growth substrate [12,16]. Figure 1b illustrates the catalytic growth of WSe2 crystals via vapor-solid transport mechanism, when CH4 gas diluted in Ar (1% CH4, 99% Ar) was used as both a carrier gas and a promoter. Like other catalysts for the growth of 2D materials, such as the Cu substrate commonly used for graphene growth, CH4 induces the lateral epitaxy growth of WSe2, increasing its grain size while suppressing its vertical growth or deposition. During the synthesis of WSe2, methyl radicals and hydrogen are produced by thermal decomposition of CH4 at the precursor hot zone (1050 °C) [28]. Methyl radicals can react with oxygen atoms on the SiO2 surface to form O-CH3, reducing the nucleation site of WSe2. In addition, carbon-related radicals can react with the unstable W vapor to form metastable metallo-organic compounds, which may induce growth of low-defect WSe2 crystals. Hydrogen is also known to induce the growth of low-defect WSe2 crystals while suppressing vertical growth into bilayers and multilayers by etching defective WSe2 [29,30,31]. Figure 1c,d show that while randomly distributed triangular WSe2 crystals were grown, the size, density, and thickness uniformity of the grown crystal domains varied significantly with or without CH4 promoters. When WSe2 was grown without CH4 gas, grain size of the obtained domains was less than 1 µm and there were many multilayer regions (Figure 1c). However, when CH4 gas was used as a promoter, WSe2 existed mostly as a monolayer with a grain size of more than 10 µm (Figure 1d). These results clearly show that CH4 gas acts as a promoter for the growth of WSe2 crystals.
As various parameters affect the CVD growth of TMDs, substrate size, carrier gas velocity, weights of precursor powders, growth time, and characterization regions were set as constant [8,10,13,18,19,22,26]. Based on this, Figure 2a–d show SEM images of WSe2 according to the CH4 gas ratio. Figure 2a and Figure S1 show that the WSe2 grain size is less than 1 µm when only Ar gas is used as the carrier gas. Figure 2a and Figure S1 also show some parts of the multilayer WSe2 regions (dark-colored) with a nucleation density of 1.6 × 105 mm−2. By increasing the CH4 gas to 50 sccm, the average grain size of WSe2 was increased to ~6 µm with a triangular shape and a nucleation density of 5.5 × 103 mm−2 (Figure 2b and Figure S2). As the flow of CH4 gas was increased to 100 sccm, the synthesized monolayer WSe2 showed an average grain size of 9 µm with a nucleation density of 6.8 × 102 mm−2 (Figure 2c and Figure S3). Figure 2d and Figure S3 show that the domain size of a single crystal monolayer of WSe2 increased up to 80 μm when flowing 150 sccm of diluted CH4 gas. In this case, the average grain size was 52 μm with a wide distribution due to a lower nucleation density of 156 mm−2. From a statistical analysis of domain images in Figures S1–S4, grain size and nucleation density of WSe2 were obtained as a function of the CH4 gas ratio (Figure 2e and Figure S5). Generally, increasing the CH4 gas ratio yielded a lower nucleation density of monolayer WSe2 with a larger grain size. The catalytic effect of CH4 on the synthesis of large-grain monolayer WSe2 was similar to the catalytic growth of other 2D materials (graphene, h-BN, MoS2, WSe2, etc.) [11,15,32,33,34,35,36].
We also investigated the effects of the CH4 promoter on the morphological and optical properties of synthesized WSe2 via the nondestructive analysis tools of Raman spectroscopy and PL. Figure 3a,b show the typical Raman mapping (at center wavelength: ~252 cm−1) obtained with and without the CH4 promoter, respectively. When CH4 was used as a carrier gas, the grain size was about 80 µm with a uniform and strong intensity of E12g peak over the synthesized WSe2 crystals (Figure 3a). This result is consistent with the SEM results in Figure 2d. On the other hand, when only Ar was used as the carrier gas, the intensities of the measured E12g peaks were much lower and nonuniform (Figure 3b). Figure 3c shows the differences in the typical Raman spectra of WSe2 crystals grown with and without a CH4 promoter. In the case of CH4-assisted growth, Raman peaks corresponding to E12g and A1g modes of single-layered WSe2 were observed (Figure S6). When only Ar gas was used, a relatively low E12g peak and an additional small peak at 307 cm−1 (corresponding to B12g resonance mode of WSe2) were observed. In general, the B12g peak is only active on the bilayer or multilayer of WSe2 [5,37]. We also noted that carbon-related Raman signals such as D peak (~1350 cm−1), G peak (~1600 cm−1), or 2D peak (~2700 cm−1) were not observed. These results indicate that CH4 acted only as a promoter during WSe2 synthesis and did not leave other carbon-related residues. We noted that the WSe2 growth temperature (700~750 °C) was too low to form a carbon layer by the reaction of methane on the surface of the SiO2/Si substrate [38]. The optical properties of the synthesized WSe2 and the effect of the CH4 promoter were further investigated using micro-PL with a 532 nm laser.
Figure 3d shows the PL mapping of WSe2 synthesized using a CH4 promoter (CH4:Ar = 150:50). The synthesized WSe2 grain exhibited a uniform PL intensity at the 760 nm wavelength, which is equivalent to the PL value measured with exfoliated and synthesized single-crystal monolayer WSe2 [5,37,39]. On the other hand, when only Ar (200 sccm) was used as a carrier gas, the PL of synthesized WSe2 had a low intensity and showed a wide distribution due to the formation of bilayers and multilayers of WSe2, as shown in Figure 3e. The synthesis effects of CH4 gas were demonstrated from the representative PL spectrum of each PL mapping shown in Figure 3f. Based on these optical property data, it was confirmed that when using CH4 as a promoter in the WSe2 growth process, large WSe2 grains with uniform monolayers can be synthesized.
As shown in the topology images obtained through tapping mode AFM, the thickness of the synthesized WSe2 is uniform to ~0.7 nm, corresponding to the thickness of the monolayer (Figure 4a) [40,41]. A KPFM image of the monolayer WSe2 showed a reduction in surface potential of ~300 meV in WSe2 due to the electrostatic screening effect and charge distribution of WSe2 (Figure 4b) [42]. The work function of the Pt-coated tip was ~4.3 eV, which was obtained by measuring the surface potential of highly oriented pyrolytic graphite (HOPG) (Figure S7). Since the work function of the SiO2/Si substrate was 4.6 eV, the work function of the synthesized WSe2 was estimated to be ~4.3 eV. This value is equivalent to the work function value of the exfoliated monolayer WSe2 [43]. Figure 4c,d show the XPS results of the synthesized monolayer WSe2 with four W-4f peaks (W4+4f7/2: 32.8 eV, W4+4f5/2: 34.8 eV, W6+4f7/2: 36 eV, and W6+4f5/2: 38.2 eV) and two Se-3D peaks (Se 3d5/2: 55.1 eV and 3d3/2: 55.9 eV). The two W4+4f peaks correspond to the binding energy of W bonded to Se atoms, while the two Se-3d peaks point to the binding energy of Se bonded to W atoms. The two W6+4f peaks correspond to the binding energy of the W atoms bonded to the O atoms, resulting from the exposure of the synthesized WSe2 to air during the XPS analysis. Additionally, there was no W-4f peak at 32 eV and 34 eV, which represent the 1T phase; therefore, it can be confirmed at the WSe2 of the 2H phase. These results are consistent with previous reports on WSe2 [12,44].

4. Conclusions

In summary, we developed a CH4-assisted vapor transport growth method to obtain high-quality monolayer WSe2 crystals with large domain sizes. Unlike other promoter s or growth promoters previously reported (polymer, halide, and metal), CH4 only acts as a promoter for WSe2 growth without producing any residue. Moreover, the nucleation density of WSe2 was tuned (from 1.6 × 105 to 1.5 × 102 mm−2) by using the gas-phase CH4 promoter with precise flow control. The characterization of the synthesized monolayer WSe2 by Raman, PL, and KPFM confirmed that CH4 is a suitable candidate as a promoter for the growth of high-quality monolayer WSe2. Finally, our CH4-assisted growth approach may be applicable for the controlled growth of high-quality single crystals of other TMDs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/11/1642/s1: Figures S1–S4—The SEM results at each synthesis condition for statistical analysis, Figure S5—Distribution of grain sizes in WSe2 according to carrier gas ratios, Figure S6—Raman spectrum of synthesized monolayer WSe2, Figure S7—The work function of Pt-coated AFM tip and reference HOPG, and Figure S8—XPS wide-range spectra of synthesized WSe2.

Author Contributions

H.-S.J. and J.-Y.L. contributed equally to this work. H.-S.J. and S.-G.K. synthesized the samples. J.-Y.L. and S.-K.S. analyzed and performed the scanning electron microscopy, aAFM, KPFM, and XPS. H.-S.J. and S.-H.H. measured the optical properties (Raman and PL). J.-H.L. and D.W. guided the project and analyzed the results. H.-S.J., J.-Y.L., S.S., J.-H.L., and D.W. wrote the paper. All authors participated in reviewing the manuscript. All authors approved the final version of the manuscript.

Funding

This work was supported by the Korea Basic Science Institute (KBSI) National Research Facilities and Equipment Center (NFEC) grant funded by the Korean government (Ministry of Education) (No. 2019R1A6C1010031) and the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIP) (NRF-2019R1F1A1062330) and the Ajou University research fund.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Geim, A.K. Graphene: Status and prospects. Science 2009, 324, 1530–1534. [Google Scholar] [CrossRef] [PubMed]
  2. Ross, J.S.; Klement, P.; Jones, A.M.; Ghimire, N.J.; Yan, J.; Mandrus, D.G.; Taniguchi, T.; Watanabe, K.; Kitamura, K.; Yao, W.; et al. Electrically tunable excitonic light-emitting diodes based on monolayer WSe2 p-n junctions. Nat. Nanotechnol. 2014, 9, 268–272. [Google Scholar] [CrossRef] [PubMed]
  3. Baugher, B.W.; Churchill, H.O.; Yang, Y.; Jarillo-Herrero, P. Optoelectronic devices based on electrically tunable p-n diodes in a monolayer dichalcogenide. Nat. Nanotechnol. 2014, 9, 262–267. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, H. Ultrathin Two-Dimensional Nanomaterials. ACS Nano 2015, 9, 9451–9469. [Google Scholar] [CrossRef]
  5. Li, H.; Lu, G.; Wang, Y.; Yin, Z.; Cong, C.; He, Q.; Wang, L.; Ding, F.; Yu, T.; Zhang, H. Mechanical exfoliation and characterization of single- and few-layer nanosheets of WSe2, TaS2, and TaSe2. Small 2013, 9, 1974–1981. [Google Scholar] [CrossRef]
  6. Li, H.; Wu, J.; Yin, Z.; Zhang, H. Preparation and applications of mechanically exfoliated single-layer and multilayer MoS2 and WSe2 nanosheets. Acc. Chem. Res. 2014, 47, 1067–1075. [Google Scholar] [CrossRef]
  7. Zhao, W.; Ghorannevis, Z.; Chu, L.; Toh, M.; Kloc, C.; Tan, P.H.; Eda, G. Evolution of electronic structure in atomically thin sheets of WS2 and WSe2. ACS Nano 2013, 7, 791–797. [Google Scholar] [CrossRef]
  8. Terrones, H.; Lopez-Urias, F.; Terrones, M. Novel hetero-layered materials with tunable direct band gaps by sandwiching different metal disulfides and diselenides. Sci. Rep. 2013, 3, 1549. [Google Scholar] [CrossRef] [PubMed]
  9. Fang, H.; Chuang, S.; Chang, T.C.; Takei, K.; Takahashi, T.; Javey, A. High-performance single layered WSe2 p-FETs with chemically doped contacts. Nano Lett. 2012, 12, 3788–3792. [Google Scholar] [CrossRef]
  10. Zhou, H.; Wang, C.; Shaw, J.C.; Cheng, R.; Chen, Y.; Huang, X.; Liu, Y.; Weiss, N.O.; Lin, Z.; Huang, Y.; et al. Large area growth and electrical properties of p-type WSe2 atomic layers. Nano Lett. 2015, 15, 709–713. [Google Scholar] [CrossRef]
  11. Gao, Y.; Hong, Y.L.; Yin, L.C.; Wu, Z.; Yang, Z.; Chen, M.L.; Liu, Z.; Ma, T.; Sun, D.M.; Ni, Z.; et al. Ultrafast Growth of High-Quality Monolayer WSe2 on Au. Adv. Mater. 2017, 29, 1700990. [Google Scholar] [CrossRef]
  12. Huang, J.; Yang, L.; Liu, D.; Chen, J.; Fu, Q.; Xiong, Y.; Lin, F.; Xiang, B.J.N. Large-area synthesis of monolayer WSe2 on a SiO2/Si substrate and its device applications. Nanoscale 2015, 7, 4193–4198. [Google Scholar] [CrossRef]
  13. Ling, X.; Lee, Y.H.; Lin, Y.; Fang, W.; Yu, L.; Dresselhaus, M.S.; Kong, J. Role of the seeding promoter in MoS2 growth by chemical vapor deposition. Nano Lett. 2014, 14, 464–472. [Google Scholar] [CrossRef]
  14. Liu, B.; Fathi, M.; Chen, L.; Abbas, A.; Ma, Y.; Zhou, C. Chemical Vapor Deposition Growth of Monolayer WSe2 with Tunable Device Characteristics and Growth Mechanism Study. ACS Nano 2015, 9, 6119–6127. [Google Scholar] [CrossRef]
  15. Liu, J.; Zeng, M.; Wang, L.; Chen, Y.; Xing, Z.; Zhang, T.; Liu, Z.; Zuo, J.; Nan, F.; Mendes, R.G.; et al. Ultrafast Self-Limited Growth of Strictly Monolayer WSe2 Crystals. Small 2016, 12, 5741–5749. [Google Scholar] [CrossRef]
  16. Clark, G.; Wu, S.F.; Rivera, P.; Finney, J.; Nguyen, P.; Cobden, D.H.; Xu, X.D. Vapor-transport growth of high optical quality WSe2 monolayers. APL Mater. 2014, 2, 101101. [Google Scholar] [CrossRef]
  17. Elias, A.L.; Perea-Lopez, N.; Castro-Beltran, A.; Berkdemir, A.; Lv, R.; Feng, S.; Long, A.D.; Hayashi, T.; Kim, Y.A.; Endo, M.; et al. Controlled synthesis and transfer of large-area WS2 sheets: From single layer to few layers. ACS Nano 2013, 7, 5235–5242. [Google Scholar] [CrossRef]
  18. Li, M.-Y.; Shi, Y.; Cheng, C.-C.; Lu, L.-S.; Lin, Y.-C.; Tang, H.-L.; Tsai, M.-L.; Chu, C.-W.; Wei, K.-H.; He, J.-H. Epitaxial growth of a monolayer WSe2-MoS2 lateral pn junction with an atomically sharp interface. Science 2015, 349, 524–528. [Google Scholar] [CrossRef]
  19. Park, J.; Choudhary, N.; Smith, J.; Lee, G.; Kim, M.; Choi, W. Thickness modulated MoS2 grown by chemical vapor deposition for transparent and flexible electronic devices. Appl. Phys. Lett. 2015, 106, 012104. [Google Scholar] [CrossRef]
  20. Zhan, Y.; Liu, Z.; Najmaei, S.; Ajayan, P.M.; Lou, J. Large-area vapor-phase growth and characterization of MoS2 atomic layers on a SiO2 substrate. Small 2012, 8, 966–971. [Google Scholar] [CrossRef]
  21. Choi, W.; Choudhary, N.; Han, G.H.; Park, J.; Akinwande, D.; Lee, Y.H. Recent development of two-dimensional transition metal dichalcogenides and their applications. Mater Today 2017, 20, 116–130. [Google Scholar] [CrossRef]
  22. Lee, Y.H.; Zhang, X.Q.; Zhang, W.; Chang, M.T.; Lin, C.T.; Chang, K.D.; Yu, Y.C.; Wang, J.T.; Chang, C.S.; Li, L.J.; et al. Synthesis of large-area MoS2 atomic layers with chemical vapor deposition. Adv. Mater. 2012, 24, 2320–2325. [Google Scholar] [CrossRef]
  23. Liu, K.K.; Zhang, W.; Lee, Y.H.; Lin, Y.C.; Chang, M.T.; Su, C.Y.; Chang, C.S.; Li, H.; Shi, Y.; Zhang, H.; et al. Growth of large-area and highly crystalline MoS2 thin layers on insulating substrates. Nano Lett. 2012, 12, 1538–1544. [Google Scholar] [CrossRef]
  24. Shi, Y.; Zhou, W.; Lu, A.Y.; Fang, W.; Lee, Y.H.; Hsu, A.L.; Kim, S.M.; Kim, K.K.; Yang, H.Y.; Li, L.J.; et al. van der Waals epitaxy of MoS2 layers using graphene as growth templates. Nano Lett. 2012, 12, 2784–2791. [Google Scholar] [CrossRef]
  25. Lee, Y.H.; Yu, L.; Wang, H.; Fang, W.; Ling, X.; Shi, Y.; Lin, C.T.; Huang, J.K.; Chang, M.T.; Chang, C.S.; et al. Synthesis and transfer of single-layer transition metal disulfides on diverse surfaces. Nano Lett. 2013, 13, 1852–1857. [Google Scholar] [CrossRef]
  26. Wu, S.; Huang, C.; Aivazian, G.; Ross, J.S.; Cobden, D.H.; Xu, X. Vapor-solid growth of high optical quality MoS2 monolayers with near-unity valley polarization. ACS Nano 2013, 7, 2768–2772. [Google Scholar] [CrossRef]
  27. Li, S.S.; Wang, S.F.; Tang, D.M.; Zhao, W.J.; Xu, H.L.; Chu, L.Q.; Bando, Y.; Golberg, D.; Eda, G. Halide-assisted atmospheric pressure growth of large WSe2 and WS2 monolayer crystals. App.l Mater. Today 2015, 1, 60–66. [Google Scholar] [CrossRef]
  28. Cantelo, R.C. The Thermal Decomposition of Methane. J. Phys. Chem. A 1924, 28, 1036–1048. [Google Scholar] [CrossRef]
  29. Permenov, D.G.; Radzig, V.A. Mechanisms of Heterogeneous Processes in the System SiO2 + CH4: II. Methylation of >Si=O Groups. Kinet. Catal. 2004, 45, 265–272. [Google Scholar] [CrossRef]
  30. Zhang, F.; Su, D.; He, J.; Sang, Z.; Liu, Y.; Ma, Y.; Liu, R.; Yan, X. Methyl modified SiO2 aerogel with tailored dual modal pore structure for adsorption of organic solvents. Mater. Lett. 2019, 238, 202–205. [Google Scholar] [CrossRef]
  31. Li, X.; Li, X.; Zang, X.; Zhu, M.; He, Y.; Wang, K.; Xie, D.; Zhu, H. Role of hydrogen in the chemical vapor deposition growth of MoS2 atomic layers. Nanoscale 2015, 7, 8398–8404. [Google Scholar] [CrossRef] [PubMed]
  32. Lee, J.H.; Lee, E.K.; Joo, W.J.; Jang, Y.; Kim, B.S.; Lim, J.Y.; Choi, S.H.; Ahn, S.J.; Ahn, J.R.; Park, M.H.; et al. Wafer-scale growth of single-crystal monolayer graphene on reusable hydrogen-terminated germanium. Science 2014, 344, 286–289. [Google Scholar] [CrossRef] [PubMed]
  33. Geng, D.; Wu, B.; Guo, Y.; Huang, L.; Xue, Y.; Chen, J.; Yu, G.; Jiang, L.; Hu, W.; Liu, Y. Uniform hexagonal graphene flakes and films grown on liquid copper surface. Proc. Nat. Acad. Sci. USA 2012, 109, 7992–7996. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wang, L.; Xu, X.; Zhang, L.; Qiao, R.; Wu, M.; Wang, Z.; Zhang, S.; Liang, J.; Zhang, Z.; Zhang, Z.; et al. Epitaxial growth of a 100-square-centimetre single-crystal hexagonal boron nitride monolayer on copper. Nature 2019, 570, 91–95. [Google Scholar] [CrossRef]
  35. Chen, S.; Ji, H.; Chou, H.; Li, Q.; Li, H.; Suk, J.W.; Piner, R.; Liao, L.; Cai, W.; Ruoff, R.S. Millimeter-size single-crystal graphene by suppressing evaporative loss of Cu during low pressure chemical vapor deposition. Adv. Mater. 2013, 25, 2062–2065. [Google Scholar] [CrossRef]
  36. Lee, J.S.; Choi, S.H.; Yun, S.J.; Kim, Y.I.; Boandoh, S.; Park, J.-H.; Shin, B.G.; Ko, H.; Lee, S.H.; Kim, Y.-M.; et al. Wafer-scale single-crystal hexagonal boron nitride film via self-collimated grain formation. Science 2018, 362, 817–821. [Google Scholar] [CrossRef] [Green Version]
  37. Tonndorf, P.; Schmidt, R.; Bottger, P.; Zhang, X.; Borner, J.; Liebig, A.; Albrecht, M.; Kloc, C.; Gordan, O.; Zahn, D.R.; et al. Photoluminescence emission and Raman response of monolayer MoS2, MoSe2, and WSe2. Opt. Mater. Express 2013, 21, 4908–4916. [Google Scholar] [CrossRef]
  38. Pham, V.P.; Jang, H.S.; Whang, D.; Choi, J.Y. Direct growth of graphene on rigid and flexible substrates: Progress, applications, and challenges. Chem. Soc. Rev. 2017, 46, 6276–6300. [Google Scholar] [CrossRef]
  39. Zeng, H.; Liu, G.B.; Dai, J.; Yan, Y.; Zhu, B.; He, R.; Xie, L.; Xu, S.; Chen, X.; Yao, W.; et al. Optical signature of symmetry variations and spin-valley coupling in atomically thin tungsten dichalcogenides. Sci. Rep. 2013, 3, 1608. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, K.; Huang, B.; Tian, M.; Ceballos, F.; Lin, M.W.; Mahjouri-Samani, M.; Boulesbaa, A.; Puretzky, A.A.; Rouleau, C.M.; Yoon, M.; et al. Interlayer Coupling in Twisted WSe2/WS2 Bilayer Heterostructures Revealed by Optical Spectroscopy. ACS Nano 2016, 10, 6612–6622. [Google Scholar] [CrossRef]
  41. Almadori, Y.; Bendiab, N.; Grevin, B. Multimodal Kelvin Probe Force Microscopy Investigations of a Photovoltaic WSe2/MoS2 Type-II Interface. ACS Appl. Mater. Interfaces 2018, 10, 1363–1373. [Google Scholar] [CrossRef] [PubMed]
  42. Li, F.; Qi, J.; Xu, M.; Xiao, J.; Xu, Y.; Zhang, X.; Liu, S.; Zhang, Y. Layer Dependence and Light Tuning Surface Potential of 2D MoS2 on Various Substrates. Small 2017, 13, 1603103. [Google Scholar] [CrossRef] [PubMed]
  43. Britnell, L.; Ribeiro, R.M.; Eckmann, A.; Jalil, R.; Belle, B.D.; Mishchenko, A.; Kim, Y.J.; Gorbachev, R.V.; Georgiou, T.; Morozov, S.V.; et al. Strong light-matter interactions in heterostructures of atomically thin films. Science 2013, 340, 1311–1314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Tao, L.; Meng, F.; Zhao, S.; Song, Y.; Yu, J.; Wang, X.; Liu, Z.; Wang, Y.; Li, B.; Wang, Y.J.N. Experimental and theoretical evidence for the ferromagnetic edge in WSe2 nanosheets. Nanoscale 2017, 9, 4898–4906. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 09 01642 g001 550

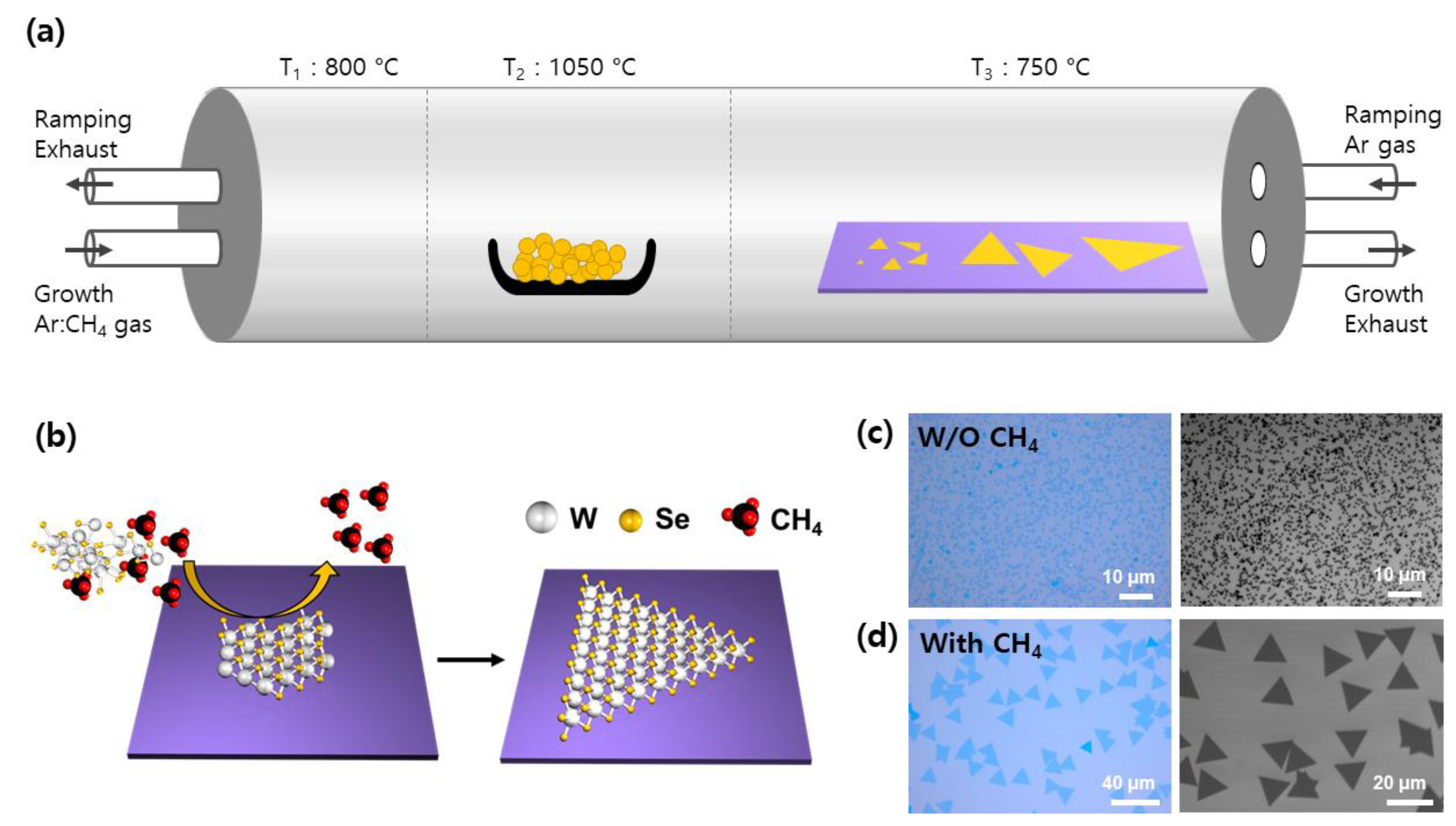

Figure 1. The schematic illustration of methane-mediated WSe2 synthesis. (a) Sketch of homemade tube-type chemical vapor deposition (CVD) setup. (b) Schematic image of WSe2 crystal growth by vapor-solid transport mechanism and its growth morphology difference between (c) without and (d) with methane (CH4) gas.
Figure 1. The schematic illustration of methane-mediated WSe2 synthesis. (a) Sketch of homemade tube-type chemical vapor deposition (CVD) setup. (b) Schematic image of WSe2 crystal growth by vapor-solid transport mechanism and its growth morphology difference between (c) without and (d) with methane (CH4) gas.
Nanomaterials 09 01642 g001
Nanomaterials 09 01642 g002 550
Figure 2. Size control of the WSe2 domain by tuning the methane carrier gas ratio. Typical SEM images of WSe2 grains synthesized on a SiO2/Si substrate with a flow of (a) CH4:Ar = 0:200, (b) CH4:Ar = 50:150, (c) CH4:Ar = 100:100, and (d) CH4:Ar = 150:50 sccm. (e) Edge length (black) and nucleation density (blue) of WSe2 domains as a function of the CH4 gas ratio. The error bars represent the edge length variations of WSe2 domains obtained at the same CH4 gas flow.
Figure 2. Size control of the WSe2 domain by tuning the methane carrier gas ratio. Typical SEM images of WSe2 grains synthesized on a SiO2/Si substrate with a flow of (a) CH4:Ar = 0:200, (b) CH4:Ar = 50:150, (c) CH4:Ar = 100:100, and (d) CH4:Ar = 150:50 sccm. (e) Edge length (black) and nucleation density (blue) of WSe2 domains as a function of the CH4 gas ratio. The error bars represent the edge length variations of WSe2 domains obtained at the same CH4 gas flow.
Nanomaterials 09 01642 g002
Nanomaterials 09 01642 g003 550

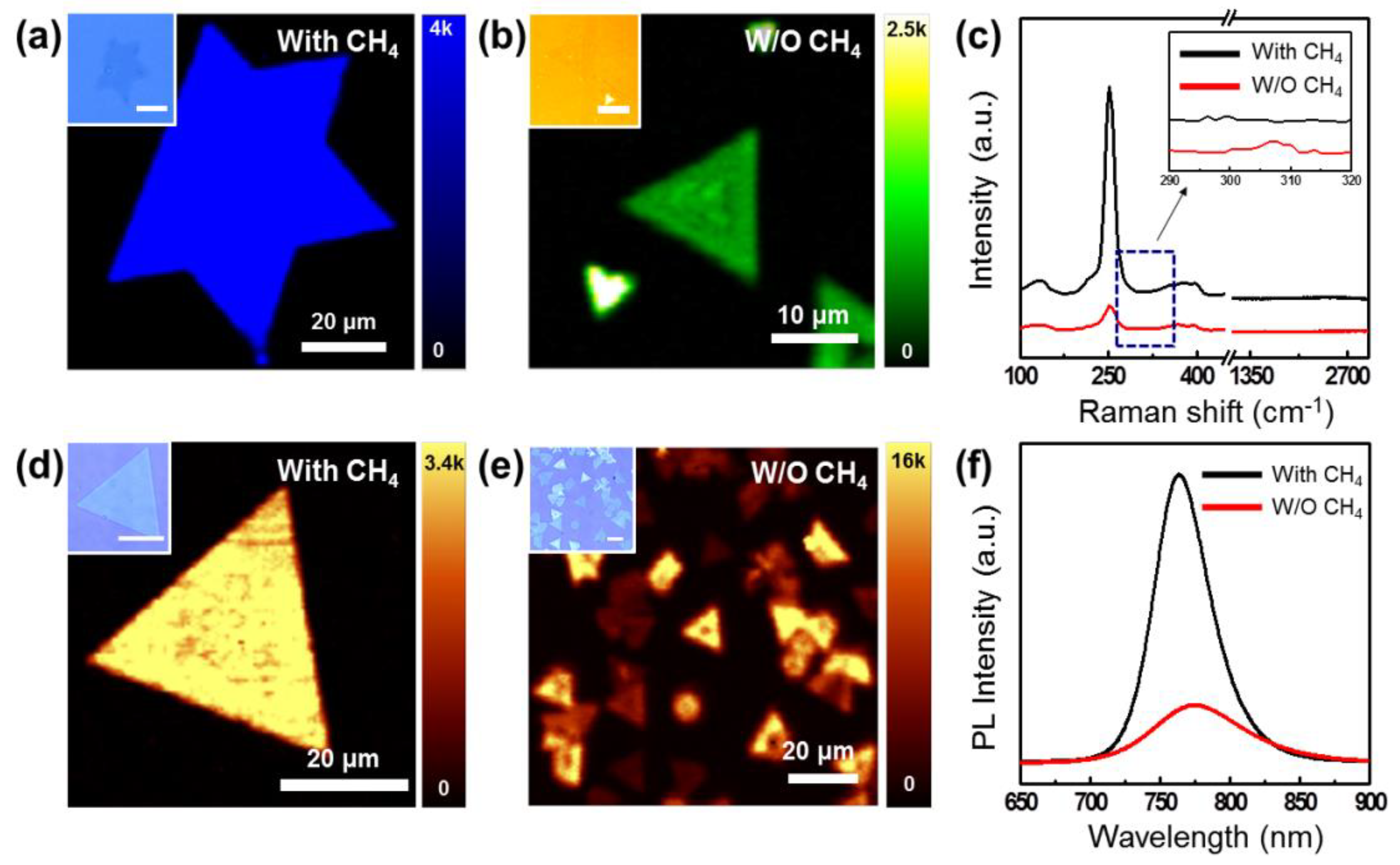

Figure 3. Raman and photoluminescence (PL) investigation of the synthesized WSe2 according to the catalytic effects of methane. Raman mapping results of (a) CH4:Ar = 150:50 sccm, (b) Ar gas only as carrier gas, and (c) representative Raman spectrum of each mapping result. PL mapping results of (d) CH4:Ar = 150:50 sccm, (e) Ar gas only as carrier gas, And (f) representative PL spectrum of each mapping result. Raman and PL results were obtained from a micro-Raman instrument with a wavelength of 532 nm laser. Inset is an OM image corresponding to each mapping region.
