Heteroepitaxial Growth of High-Quality and Crack-Free AlN Film on Sapphire Substrate with Nanometer-Scale-Thick AlN Nucleation Layer for AlGaN-Based Deep Ultraviolet Light-Emitting Diodes

by Jie Zhao 1,†, Hongpo Hu 1,2,†, Yu Lei 1, Hui Wan 3, Liyan Gong 1 and Shengjun Zhou 1,*
1
Center for Photonics and Semiconductors, School of Power and Mechanical Engineering, Wuhan University, Wuhan 430072, China
2
HC SemiTek Corporation, Suzhou 215600, China
3
The Institute of Technological Sciences, Wuhan University, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2019, 9(11), 1634; https://doi.org/10.3390/nano9111634
Received: 11 October 2019 / Revised: 9 November 2019 / Accepted: 14 November 2019 / Published: 17 November 2019

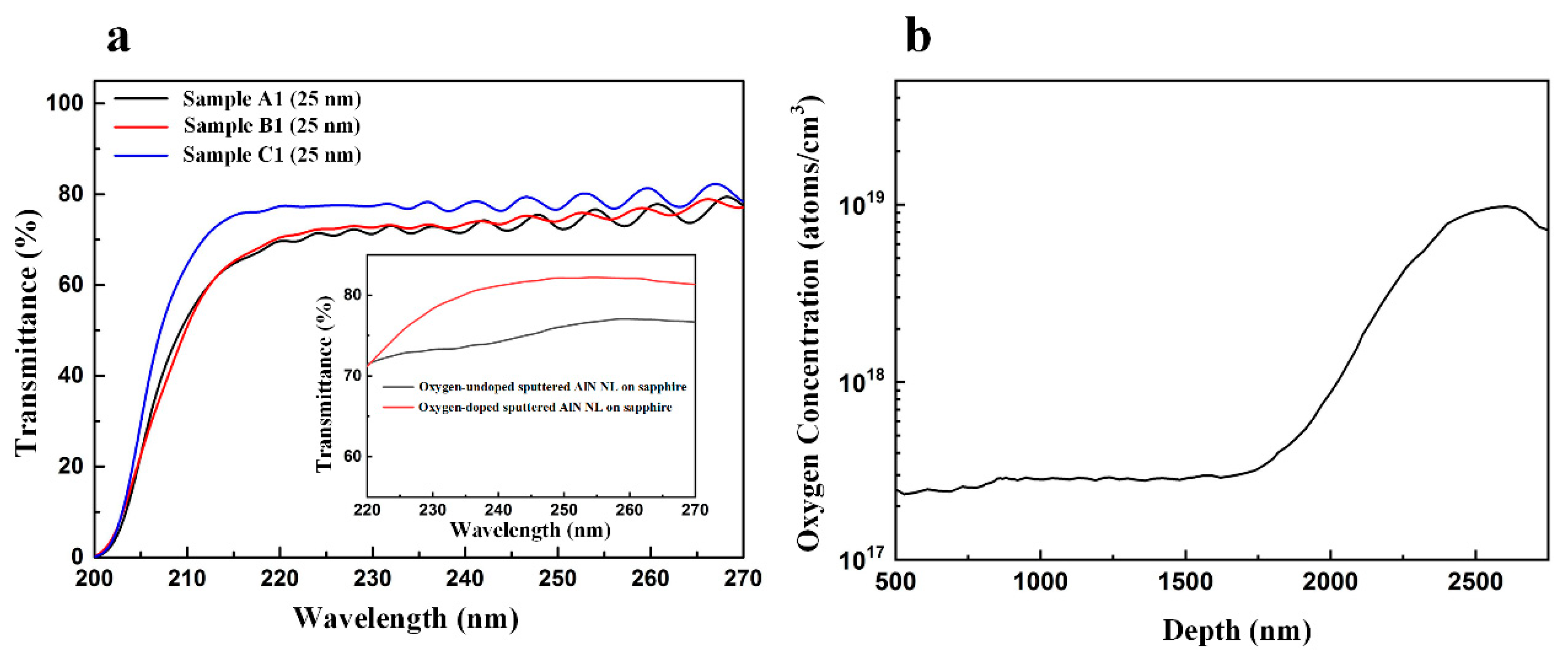

High-quality and crack-free aluminum nitride (AlN) film on sapphire substrate is the foundation for high-efficiency aluminum gallium nitride (AlGaN)-based deep ultraviolet light-emitting diodes (DUV LEDs). We reported the growth of high-quality and crack-free AlN film on sapphire substrate with a nanometer-scale-thick AlN nucleation layer (NL). Three kinds of nanometer-scale-thick AlN NLs, including in situ low-temperature AlN (LT-AlN) NL, oxygen-undoped ex situ sputtered AlN NL, and oxygen-doped ex situ sputtered AlN NL, were prepared for epitaxial growth of AlN films on sapphire substrates. The influence of nanoscale AlN NL thickness on the optical transmittance, strain state, surface morphology, and threading dislocation (TD) density of the grown AlN film on sapphire substrate were carefully investigated. The average optical transmittance of AlN film on sapphire substrate with oxygen-doped sputtered AlN NL was higher than that of AlN films on sapphire substrates with LT-AlN NL and oxygen-undoped sputtered AlN NL in the 200–270 nm wavelength region. However, the AlN film on sapphire substrate with oxygen-undoped sputtered AlN NL had the lowest TD density among AlN films on sapphire substrates. The AlN film on sapphire substrate with the optimum thickness of sputtered AlN NL showed weak tensile stress, a crack-free surface, and low TD density. Furthermore, a 270-nm AlGaN-based DUV LED was grown on the high-quality and crack-free AlN film. We believe that our results offer a promising and practical route for obtaining high-quality and crack-free AlN film for DUV LED. View Full-Text
Keywords: DUV LED; nucleation layer; tensile stress; surface morphology; crystal quality DUV LED; nucleation layer; tensile stress; surface morphology; crystal quality
