Nanomaterials 2018, 8(10), 849; https://doi.org/10.3390/nano8100849

Article
Boron Nitride as a Novel Support for Highly Stable Palladium Nanocatalysts by Atomic Layer Deposition
1
Institut Européen des Membranes, IEM, UMR-5635, Univ Montpellier, CNRS, ENSCM, 34095 Montpellier, France
2
Institut Universitaire de France, 1 rue Descartes, 75231 Paris, France
3
PSL Research University, Chimie ParisTech—CNRS, Institut de Recherche de Chimie Paris, 75005 Paris, France
4
Aix Marseille Univ, CNRS, CINAM, 13009 Marseille, France
*
Author to whom correspondence should be addressed.
Received: 24 September 2018 / Accepted: 16 October 2018 / Published: 18 October 2018

Abstract

:
The ability to prepare controllable nanocatalysts is of great interest for many chemical industries. Atomic layer deposition (ALD) is a vapor phase technique enabling the synthesis of conformal thin films and nanoparticles (NPs) on high surface area supports and has become an attractive new route to tailor supported metallic NPs. Virtually all the studies reported, focused on Pd NPs deposited on carbon and oxide surfaces. It is, however, important to focus on emerging catalyst supports such as boron nitride materials, which apart from possessing high thermal and chemical stability, also hold great promises for nanocatalysis applications. Herein, the synthesis of Pd NPs on boron nitride (BN) film substrates is demonstrated entirely by ALD for the first time. X-ray photoelectron spectroscopy indicated that stoichiometric BN formed as the main phase, with a small amount of BNxOy, and that the Pd particles synthesized were metallic. Using extensive transmission electron microscopy analysis, we study the evolution of the highly dispersed NPs as a function of the number of ALD cycles, and the thermal stability of the ALD-prepared Pd/BN catalysts up to 750 °C. The growth and coalescence mechanisms observed are discussed and compared with Pd NPs grown on other surfaces. The results show that the nanostructures of the BN/Pd NPs were relatively stable up to 500 °C. Consequent merging has been observed when annealing the samples at 750 °C, as the NPs’ average diameter increased from 8.3 ± 1.2 nm to 31 ± 4 nm. The results presented open up exciting new opportunities in the field of catalysis.
Keywords:
palladium; nanocatalysts; boron nitride; atomic layer deposition

1. Introduction

Heterogeneous catalysis is at the heart of almost every established chemical process and is also crucial for the development of novel technologies in the fields of sustainable production and conversion of energy. Hence, different approaches have been developed to improve catalyst properties, aiming towards the promotion of catalytic reactions. Palladium nanoparticles (NPs) are known as very efficient catalysts, and the preparation of controllable and highly dispersed supported palladium NPs is therefore of huge interest for heterogeneous catalysis [1,2]. As the high surface-to-volume ratio of the particles is crucial in catalysis, palladium NPs with a narrow size distribution at the nanoscale are able to provide a high density of active sites available for catalysis. Therefore, enhancing atom efficiency and limiting the cost of this precious-metal catalyst [3,4,5]. In addition, since the catalytic activity of the metallic NPs depends on their size [6,7,8,9], the ability to synthesize stable and precisely engineered NPs in order to optimize their catalytic activity is highly desired. For example, in the case of alcohol oxidation, the intrinsic turnover frequency per surface Pd atom depends significantly on the nature of the substrates [10,11] as well as on the diameter of Pd NPs and showed a maximum at a medium size of 4 nm [6].
An important factor affecting the metal catalysts is their relative lack of thermal stability, resulting in nanomaterials that have a lower specific surface area due to sintering. In industrial catalysis, the sintering of NPs and the degradation of the supports are often associated with the loss of the catalyst activity, which must be avoided if possible [12]. Therefore, the metallic “active” phase needs to be stable and prepared on a thermally strong support phase in order to be used in “real life” under high operating temperature conditions. It is known that catalytic activity highly depends on the size and geometry of the NPs but also on the particle interactions with its supports [13]. The structural changes and the loss of active surface area due to the particles’ coalescence during operation lead to undesirable deactivation for supported catalysts, and new catalytic materials with enhanced stability must, therefore, be developed.
Typically, the support materials used for these metallic NPs are high melting point oxides and carbon-based materials [2,14,15]. However, as the design of catalytic nanomaterials with enhanced thermal stability is desired, it is important to focus on emerging catalyst supports such as boron nitride-based materials, which besides possessing extremely high thermal, mechanical, and chemical resistance [16,17,18,19], have also been recently investigated as hydrogen storage platforms and in nanocatalysis [20,21]. When compared to other support materials such as oxides and carbon, the potential of boron nitride (BN) as an innovative support for selective reactions has been demonstrated, especially for processes requiring high temperatures [22,23,24,25,26], and it has been shown that Pd NPs supported on BN open prospects for many catalytic reactions, such as the hydrogenation of lactose, for example [23,27,28,29].
Atomic layer deposition (ALD) is a vapor-phase deposition technique enabling the synthesis of ultrathin films of inorganic materials, such as oxides [30,31], nitrides [32,33,34,35], and metals [36,37], with a subnanometer thickness control [38,39]. ALD is based on the sequential use of self-limiting chemical reactions taking place in a cycle-wise manner, and a typical ALD cycle consists of alternate pulses of a precursor and co-reactant gases in the reactor, separated by purge or pumping steps. Obviously, each precursor or co-reactant in an ALD cycle has a profound impact on the process chemistry [38,40]. The benefits of the ALD method, especially the atomic-level thickness control, the excellent uniformity and conformality, enabled this route to emerge as an important technology for the deposition of thin films for a wide range of applications, from microelectronics [41] to biosensing [42] and from photovoltaics [43] to membranes [44]. For more information on this ALD technology, the reader is referred to excellent reviews already written [38,39,45,46,47].
The preparation of BN films by ALD is challenging, but several successful processes have been reported recently that enabled the deposition of BN with high uniformity and conformality [32,34,48,49,50,51,52,53,54]. Due to the difference of surface energies between the metal and the substrate surface [55], ALD of noble metals typically starts with the formation of isolated particles at the substrate surface, which grow and coalesce together with the increase of the number of cycles [56,57,58]. This peculiar nucleation-stage behavior can be used to prepare highly dispersed metallic NPs on high surface area supports and makes ALD a promising new route for the synthesis of nanocatalysts [56,57,59,60,61,62,63]. ALD of palladium NPs has been the subject of many studies, and the NPs have been deposited on different oxides, such as Al2O3 [37,64], TiO2 [65,66], ZrO2 [57], SiO2 [67], SnO2 [68], NiO [69] as well as on high aspect ratio carbon supports [70,71]. Furthermore, the catalytic activities of Pd NPs prepared by ALD have been assessed for different chemical reactions, such as ethanol [66]. Methanol [64], isopropanol [71], glucose [72] and glycerol oxidation [73].
The combination of Palladium NPs as active catalysts and BN as an innovative support material represent a very promising nanomaterial for heterogeneous catalysis. However, virtually all the Pd NPs synthesized by ALD have been prepared and studied on oxide and carbon supports. To the best of our knowledge, there is no work reporting on the preparation of palladium NPs by ALD on BN surfaces, despite its great potential. For the optimal use of these NPs, their structural changes and loss of active surface area due to particle coalescence need to be limited as much as possible. Recent studies have been dedicated to obtain a better understanding of the growth of metallic NPs by ALD, and to describe the pathways that lead from adsorbed single atoms to supported palladium NPs [56,74,75]. Although the growth of Pd NPs by ALD on oxides and their potential as active nanocatalysts for various chemical reactions have been reported, there is little understanding about Pd NPs on BN supports, nor about the stability of the NPs at high temperatures.
Herein, we synthesize this new class of Pd NPs/BN nanomaterials entirely by ALD, and we present a detailed study of the Pd NPs growth on BN surfaces. First, ALD of Pd and BN processes have been developed, and the preparation of BN films and Pd NPs is achieved. Using transmission electron spectroscopy (TEM) data, the evolution of the palladium NPs diameter as a function of the number of ALD cycles is presented, and the pathways leading from adsorbed single atoms to supported metallic NPs are discussed. Our data is compared to the data obtained from the literature in order to shed light on and to understand the growth of Pd NPs on BN surfaces. Furthermore, we study the chemical composition by X-ray photoelectron spectroscopy (XPS) as well as the thermal stability of the NPs, up to 750 °C. The coalescence mechanisms observed are discussed and compared with Pd NPs grown by ALD on other surfaces.

2. Materials and Methods

2.1. Atomic Layer Deposition of Boron Nitride

All depositions have been carried out in a low-pressure hot-wall (home-built) ALD reactor. More details about this ALD reactor can be found in reference [34]. Boron tribromide (BBr3) precursor was purchased from Sigma Aldrich (Saint-Louis, MO, USA) and used as received. The co-reactant was ammonia gas (Air Liquide, Paris, France). The precursor and co-reactant lines were directly connected to the reactor through gate valves and heated at 110 °C to avoid condensation. The deposition chamber was set at a temperature of 750 °C. If not stated otherwise, the typical ALD cycle consisted of 0.1 s pulse of BBr3, 5 s exposure, and 15 s purge, followed by a 3 s pulse of NH3, 5 s exposure, and 15 s purge with Argon (Air Liquide, Paris, France). The silicon nitride TEM window grid substrates were 20 nm thick and purchased from Electron Microscopy Sciences (EMA, Hatfield, PA, USA). The p-type (100) silicon wafer substrates were purchased from MEMC Korea Company (Cheonan, South Korea). To remove the organic contaminants, the substrates were pre-cleaned in acetone, ethanol, and de-ionized water for 5 min in an ultrasonic bath before the depositions.

2.2. Atomic Layer Deposition of Palladium

All depositions have been done in a low-pressure hot-wall (home-built) ALD reactor, described elsewhere [73]. The precursor Pd(hfac)2 and co-reactant formalin were purchased from Sigma Aldrich (Saint-Louis, MO, USA). These precursor lines were heated at 70 °C and 100 °C for Pd(hfac)2 and formalin, respectively, to avoid condensation. The deposition chamber was set at a temperature of 220 °C. If not stated otherwise, the typical ALD cycle consisted of a 5 s pulse of Pd(hfac)2, 15 s exposure, and 20 s purge, followed by a 1 s pulse of formalin, 15 s exposure, and 60 s purge with Argon.

2.3. Thermal Treatments

The thermal treatments have been carried out directly within the ALD reactor used for BN ALD, for 3 h under Ar gas, using a fast ramp rate of 45 °C/min.

2.4. Transmission Electron Microscopy Imaging and Analysis of the Palladium NPs

A JEOL 3010 high-resolution transmission electron microscope at 300 kV (JEOL, Tokyo, Japan) has been used for the HR-TEM studies. The number of NPs, size distribution, and surface coverage were determined over areas of 400 × 400 nm2 using the ImageJ software (NIH, MD, USA). The average diameter and its standard deviation were determined by averaging ten analyses of areas of 400 × 400 nm2.

2.5. Chemical Analysis

XPS analysis was performed using a VG ESCALAB 250 spectrometer (ThermoFisher Scientific, Waltham, MA, USA) calibrated against the reference binding energies (BE) of clean Cu (932.6 eV), Ag (368.2 eV), and Au (84 eV) samples. Survey spectra and high-resolution spectra of the C 1s, B 1s, N 1s, O 1s, and Pd 3d core-level regions were collected at a take-off angle of 90° and a pass energy of 100 and 20 eV, respectively, using an Al Kα monochromated X-ray source (hν = 1486.6 eV). Data processing was performed using the CasaXPS analysis software using a Shirley-type background, component peaks defined by BE, Full Width at Half Maximum (FWHM) and Gaussian/Lorentzian envelopes. BEs of the component peaks were corrected with reference to the C 1s peak for –CH2—CH2– bonds set at 285.0 eV.

3. Results and Discussion

First, an ALD process for the preparation of BN thin films has been employed to coat the TEM window grid substrates. The process consisted of sequential exposures of boron tribromide precursor (BBr3) and NH3 gas, separated by purge steps of Argon at a temperature of 750 °C. The BN films have been prepared (and measured by spectroscopic ellipsometry) on silicon with native oxide substrates in parallel to ensure the success of the ALD process. This process leads to the saturated growth of high quality BN thin films with a steady-state ALD growth of ~0.8 Å/cycle and no visible nucleation delay, as measured by spectroscopic ellipsometry [34,58,76]. Our process is based on the recipe developed by Marlid et al. [32] which studied the growth at different temperatures and showed that this ALD process based on BBr3 and NH3 enables the deposition of good quality BN films from 400 to (at least) 750 °C, depicting the large temperature “ALD windows”. As the microstructure observed at 750 °C was better than that which was observed at lower temperature, our process was applied at this temperature. The saturation curve of the BN film growth as a function of the BBr3 exposure time, depicting the saturated growth of the film, is given in the Supplementary Materials, Figure S1. Owing to the linearity of the process, the thickness of the prepared layers can be easily tuned. The detailed parameters of this process are given in the Experimental section, and more information can also be found elsewhere [34,53,77]. Several analytical methods have been used to characterize the BN films, and the growth-per-cycle, C and O contents, mass density, and roughness values are given in Table S1 (Supplementary Materials). In this study, in order to investigate the nanoparticles’ growth on BN surfaces, we applied 200 cycles of this ALD process to coat Si3N4 TEM window substrates with a BN film of approximately 15 nm. Next, we used ALD of Palladium to deposit the Pd NPs on the BN surface. ALD of Palladium was based on Pd(hfac)2 and formalin precursors separated by Ar purged at 220 °C. The typical ALD cycle consisted of 5 s pulse of Pd(hfac)2, 15 s exposure, and 20 s purge, followed by a 1 s pulse of formalin, 15 s exposure, and 60 s purge with Argon. The detailed process parameters are indicated in the Experimental section. Note that we already reported the use of this process for the preparation of Pd NPs by ALD on high aspect ratio carbon fibers, as well as their enhanced catalytic activity for glycerol oxidation [73].
In this work, in order to gain understanding on the formation and the growth of Pd NPs on BN surfaces, the BN coated TEM windows were used as substrates and 100, 200, and 300 cycles of Pd ALD cycles have been applied. TEM measurements have been performed in order to obtain information on the nanomaterials prepared. The data shown in Figure 1a–c presents the TEM images of the BN/Pd NPs as a function of the number of Pd ALD cycles.
This figure illustrates that the particles’ nucleation involves successive steps. Most of the Pd NPs are formed during the first 100 cycles. TEM data analysis, shown in Figure 2, revealed a surface density of ~1013 NPs/cm2 and a surface coverage of 18% ± 9%. After 200 cycles, more NPs are formed all over the substrate and start to merge, reaching a surface coverage of 38% ± 6%. The surface density increased to 4 × 1013 NPs/cm2. After 300 cycles, most of the NPs are merged, which can be described as particle coalescence. The surface coverage after 300 cycles is around 62% ± 14%. The difference in gray color between the NPs in the TEM images is related to the diffraction contrast, indicating that the deposited NPs are crystalline. In order to confirm this crystallinity, diffraction studies have been performed on a BN/Pd NPs sample prepared using 300 cycles of the Pd ALD process, sample shown in Figure 1c. Various crystal planes have been observed, as revealed by the selected area electron diffraction study carried out, see Figure S2 (Supplementary Materials).
Figure 2a presents the NP size distribution, and Figure 2b shows the average diameter evolution for the Pd ALD process on BN surfaces after 100, 200, and 300 ALD cycles.
After 100 cycles, the NPs present an average diameter of 7.7 ± 1.3 nm. At 200 cycles, more Pd material is deposited and the average diameter value increased to 8.3 ± 1.2 nm. Finally, after 300 cycles, since the NPs are mostly merged, it is challenging to evaluate an average NP diameter, and we estimated it to be around 12.6 ± 2.2 nm. From this data, it can be deduced that the diameter of the Pd NPs increases with a growth rate of ~0.02 nm/cycle between 100 and 300 cycles, which corresponds to a radial growth rate of ~0.01 nm/cycle. This radial growth is two times lower than the rate observed for film growth using the same process (~0.02 nm/cycle) [78]. However, the chemical reactions during ALD nucleation are different from the reactions taking place during film growth. The slow growth rate of the NPs observed could be explained by surface ligand pollution inhibiting the growth of the particles. This ligand pollution is known to be responsible for the long nucleation periods typically observed for ALD using precursors based on β-diketonates [37,79,80]. In fact, studies carried out previously have shown that Pd(hfac)2 adsorption (on alumina surfaces) results in both Pd(hfac)* and Al(hfac)* surface species. The Al(hfac)* species appeared to act as site blockers for precursor adsorption. This surface poisoning by hfac ligands has been found to be partly responsible for the extended nucleation delay observed for Pd ALD on alumina [79,80]. However, similar poisoning is also expected for other surfaces such as nitrides, since the nucleation is also supposed to start at hydroxyl groups.
The surface composition of the BN/Pd nanomaterials deposited on Si wafers has been investigated by X-ray photoelectron spectroscopy. The XPS survey is presented in Figure 3a. After the ALD process, B, C, N, O, Si, and Pd are detected. It indicates that the B, N, and Pd have effectively been deposited on the Si surface. The C and O could correspond to surface contamination and oxidation. As expected, no other elements are observed. The quantification indicates a B/N ratio of 1.08 that is in line with the value of 1.13 when the BN is obtained from trichloroborazine [81]. Though it is not far from the unity it indicates that non-stoichiometric BN has been grown or that those elements are part of other compounds. Thus, the regions of interest have been investigated with a higher resolution in order to identify precisely the chemical nature of the film.
Figure 3b–d presents the N 1s (b), B 1s (c), and Pd 3d (d) peaks. The peak deconvolutions performed give valuable information on the chemical nature of the sample after the ALD of BN and Pd. The N 1s peak is deconvoluted using two contributions NI and NII. At low binding energy (BE = 398.2 eV), the NI peak is expected because it corresponds to nitrogen in BN [82]. NII located at higher BE (399.2 eV) can be attributed to the formation of BNxOy. It could indicate that a minor part of the BN reacts with oxygen to form a small amount of boron oxynitride. Similarly, the B 1s peak is fitted using two contributions: BI at 190.6 eV and BII at 191.4 eV. The BI contribution is ascribed to boron in BN [82] while BII could correspond to BNxOy. This has been reported before [81] and is confirmed by the deconvolution of the O 1s peak (not shown here) that is composed of four contributions: 530 eV for PdO/PdO2, 531.8 eV for the Pd 3p peak, 532.8 eV for adsorbed oxygen and H2O, and 535.15 eV for BNxOy. As the Pd ALD process is expected to start with the reaction between the Pd(hfac)2 precursor molecules and hydroxyl groups, the additional OH groups created during the surface oxidation could actually aid the palladium nucleation. The deconvolution of the Pd 3d peak. see Figure 3d, reveals that beyond the component at lower BE PdI (Pd 3d5/2: 335.1 eV) due to metallic Pd [82], two additional peaks (PdII and PdIII) are present at higher BEs (335.8 and 337.3 eV) [83]. These two peaks are attributed to palladium in the 2+ and 4+ oxidation states due to PdO and PdO2 and/or respective hydroxides.
The data obtained can also be compared to results reported in the literature for other substrates. Assaud et al. used ALD of palladium on TiO2 surface for electrocatalytic applications and reported NPs of 6–8 nm after 400 cycles using a similar process based on Pd(hfac)2 and formalin [66]. Goldstein and George studied palladium ALD nucleation on an alumina surface and obtained NPs with an average diameter of 9.6 ± 2.0 nm after 150 cycles using a similar process based on Pd(hfac)2, trimethyl alumina, and formalin [79]. Mackus et al. studied the nucleation of Pd ALD on Al2O3 surfaces and observed the long nucleation delay and slow growth rate of NPs as well. They found that the average diameter of the Pd NPs after 200 cycles was around 5 nm and increases with a rate of ~0.014 nm/cycle [56]. Only Barr et al. have not found a long nucleation delay on SnO2, most likely because the formalin reduces the stannic oxide to metallic tin which exhibits a better interaction with Pd than the oxide [68]. Although the ALD processes used for these results on alumina were slightly different from ours, the values are comparable to the average diameter after 200 cycles (8.4 ± 1.4 nm) and diameter growth of ~0.02 nm/cycle that we obtained in our work where ALD of Pd was carried out on a boron nitride surface.
The fact that the diameter of the NPs slowly increases with the number of cycles brings a certain control on the tuning of the NPs by choosing the appropriate number of ALD cycles. The control of NPs dimensions is very important for heterogeneous catalysis applications. Many different parameters such as pressure, substrate temperature, and co-reactant exposure are involved in their growth but the formation of metallic NPs by ALD is mainly based on the difference in the surface energies between the metal and the substrate surface, diffusion processes, and the ALD precursors’ chemistries [56,74,75,84].
As discussed in the introduction, highly dispersed NPs presenting a narrow size distribution are desired in order to obtain the largest density of active sites potentially available for catalysis. Using our Pd ALD process on a BN surface, the samples obtained using 200 cycles of Pd ALD appear to be optimized, presenting a high surface density of 4 × 1013 NPs/cm2. This surface density value is comparable to the typical values obtained for Pd or Pt NPs on oxide surfaces (1012–1013 NPs/cm2) [55,56,74,75]. The structural changes and the loss of active surface area due to the particle coalescence during industrial operation lead to undesirable deactivation for supported catalysts. Therefore, thermally stable catalytic materials are desired. Therefore, the stability of the synthesized BN/Pd NPs catalysts under high-temperature conditions has been studied. For this purpose, the BN/Pd NPs obtained using 200 cycles were submitted to different heat treatments. In order to carry out the thermal stability study, the samples prepared with 200 cycles were heated to 500 and 750 °C for 3 h (under constant Ar gas flow). Figure 4 presents TEM images of the Pd NPs/BN catalysts after heating treatments at 500 and 750 °C for 3 h.
For NPs on any surfaces, there are two limiting cases of the kinetics of dimensional changes: (i) Coalescence, in which NPs adhere poorly to the surface, permitting them to diffuse across it and to coalesce; (ii) Ostwald ripening, in which the NPs adhere strongly to the surface, making atomic transfer between NPs more favorable. The Ostwald ripening process is the main form of thermal annealing for metallic NPs that are well separated and supported on a surface, although coalescence can occur for a high density of clusters [55,85]. From Figure 4a,c, it can be seen that the NPs annealed at 500 °C present a very similar morphology to the as-deposited ones at 220 °C, see Figure 1b. A slight increase in the average diameter is however observed. TEM data analysis showed that this diameter increased from 8 nm to 11 nm. As expected, this merging of NPs resulted in a decrease in surface coverage, which was reduced from 38% ± 6% to 28% ± 3% after heat treatment at 500 °C when compared to the Pd NPs prepared at 220 °C. From the small shift in size distribution, a profile skewed more toward larger particles can be seen, suggesting that Oswald ripening took place as the main mechanism for the formation of larger NPs. However, these changes are expected to be relatively unharmful for potential catalysis applications, since the NPs diameter remains small and narrow, and the surface density remains high (value of 4 × 1013 NPs/cm2).
After annealing at 750 °C, the morphology of the NPs changes considerably. First, consequent merging between the NPs can be seen, and it can be observed as well that the NPs’ surface becomes slightly smoother, see Figure 4b,d. As revealed from the TEM data analysis presented in Figure 5, the average diameter increases to 31 ± 4 nm, whereas the surface coverage is reduced to 20% ± 7%. Furthermore, the density of NPs decreases by an order of magnitude to 1012 NPs/cm2. The enthalpy of activation of the coalescence between Pd NPs is directly dependent on the temperature [85], and 750 °C is in this case sufficient for this mechanism to take place at a “large” scale. Once the NPs adhere poorly to the surface and are able to diffuse across it, this coalescence mechanism is in fact favorable, as its driving force is the surface energy reduction (because the surface area of the new NP is less than that of the sum of the surface areas of the original smaller NPs). Due to the high mobility of Pd atoms on the high-temperature BN surface, surface-mediated Ostwald ripening sintering, in which material is transferred from one NP to another by diffusion across the substrate surface, is also very likely to take place, as a competitive process. The fact that the surface of the NPs seems spherical and smooth also indicates an easy diffusion of Pd atoms at the surface of the NPs, forming, thermodynamically speaking, a more stable NP shape.
From these results, it can be concluded that up to 500 °C, the morphology of the Pd NPs supported on BN remain relatively stable, opening opportunities for their use as catalysts at this temperature. However, consequent merging between the NPs has been observed for the annealed sample at 750 °C, due to the diffusion of atoms and NPs at this high temperature. These data allow for insights into the underlying mechanism of supported palladium NPs on BN supports to be gained, paving the way toward the rational design of this novel type of supported catalysts with controlled activity and stability.

4. Conclusions

In this work, we reported the synthesis of BN/Pd nanomaterials entirely by ALD. The thickness of the BN support and the size of the Pd NPs are easily controllable by varying the number of ALD cycles applied. After 200 cycles, the NPs were highly dispersed (1013 NPs/cm2) and presented an average diameter of 8.3 ± 1.2 nm. X-ray photoelectron spectroscopy analysis indicated that the Pd NPs were metallic and prepared on stoichiometric BN. The thermal stability study carried out revealed that the ALD-prepared Pd NPs supported on BN surface were relatively stable up to 500 °C and covered approximately 28% of the surface, but their morphology drastically changed when heated at higher temperatures. At 750 °C, the NPs were involved in a merging process, and their average diameter consequently increased up to 31 nm, whereas the surface coverage and dispersion were reduced to 20% and 1012 NPs/cm2, respectively. This study brings more understanding on the growth and thermal stability of this new type of BN/Pd NPs, which is valuable for their potential use as nanocatalysts at high temperature and opens up novel opportunities in the field of heterogeneous catalysis.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/8/10/849/s1. Table S1: Properties of BN films prepared by ALD using BBr3 as precursor and NH3 as co-reactant at 750 °C. Figure S1: Saturation curve of the BN film growth as a function of the BBr3 exposure time, depicting the saturated growth of the film. Figure S2: Selected area electron diffraction of a BN/Pd NPs sample prepared using 300 cycles of the Pd ALD process, corresponding to Figure 1c. The substrates used were Si3N4 TEM windows covered with 15 nm of BN. The table corresponds to the indexing of the diffraction rings.

Author Contributions

Conceptualization and methodology, M.W.; ALD experiments, C.L. and M.W.; data analysis, S.Z., M.D. and L.S.; writing and editing, M.W. and L.S.; project administration, P.M. and M.B.; funding acquisition, P.M. and M.B.

Funding

This research was funded by the French national research agency (ANR, program MeNiNA—ANR-17-CE09-0049). The support of the COST Action MP1402 “HERALD”, a European cooperation program, is acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gallon, B.J.; Kojima, R.W.; Kaner, R.B.; Diaconescu, P.L. Palladium nanoparticles supported on Polyaniline nanofibers as a semi-heterogeneous catalyst in Water. Angew. Chem. Int. Ed. 2007, 46, 7251–7254. [Google Scholar] [CrossRef] [PubMed]
  2. Thomas, J.M.; Thomas, W.J. Principles and Practice of Heterogeneous Catalysis; John Wiley & Sons: Hoboken, NJ, USA, 2014. [Google Scholar]
  3. Kim, B.H.; Hackett, M.J.; Park, J.; Hyeon, T. Synthesis, characterization, and application of ultrasmall nanoparticles. Chem. Mater. 2013, 26, 59–71. [Google Scholar] [CrossRef]
  4. Campelo, J.M.; Luna, D.; Luque, R.; Marinas, J.M.; Romero, A.A. Sustainable preparation of supported metal nanoparticles and their applications in catalysis. Chem. Sus. Chem. 2009, 2, 18–45. [Google Scholar] [CrossRef] [PubMed]
  5. White, R.J.; Luque, R.; Budarin, V.L.; Clark, J.H.; Macquarrie, D.J. Supported metal nanoparticles on porous materials. Methods and applications. Chem. Soc. Rev. 2009, 38, 481–494. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, J.; Zhang, Q.; Wang, Y.; Wan, H. Size-dependent catalytic activity of supported palladium nanoparticles for aerobic oxidation of alcohols. Adv. Synth. Catal. 2008, 350, 453–464. [Google Scholar] [CrossRef]
  7. Xu, Z.; Xiao, F.-S.; Purnell, S.K.; Alexeev, O.; Kawi, S.; Deutsch, S.E.; Gates, B.C. Size-dependent catalytic activity of supported metal clusters. Nature 1994, 372, 346–348. [Google Scholar] [CrossRef]
  8. Shao, M.; Peles, A.; Shoemaker, K. Electrocatalysis on platinum nanoparticles: Particle size effect on oxygen reduction reaction activity. Nano Lett. 2011, 11, 3714–3719. [Google Scholar] [CrossRef] [PubMed]
  9. Rioux, R.M.; Song, H.; Grass, M.; Habas, S.; Niesz, K.; Hoefelmeyer, J.D.; Yang, P.; Somorjai, G.A. Monodisperse platinum nanoparticles of well-defined shape: Synthesis, characterization, catalytic properties and future prospects. Top. Catal. 2006, 39, 167–174. [Google Scholar] [CrossRef]
  10. Tauster, S.J.; Fung, S.C.; Garten, R.L. Strong metal-support interactions. Group 8 noble metals supported on titanium dioxide. J. Am. Chem. Soc. 1978, 100, 170–175. [Google Scholar] [CrossRef]
  11. Monyoncho, E.A.; Ntais, S.; Brazeau, N.; Wu, J.; Sun, C.; Baranova, E.A. Role of the metal-oxide support in the catalytic activity of Pd nanoparticles for ethanol electrooxidation in alkaline media. Chem Electro.Chem. 2016, 3, 218–227. [Google Scholar] [CrossRef]
  12. Argyle, M.D.; Bartholomew, C.H. Heterogeneous catalyst deactivation and regeneration: A review. Catalysts 2015, 5, 145–269. [Google Scholar] [CrossRef]
  13. Sun, X.A.; Saha, M.S. Nanotubes, nanofibers and nanowires as supports for catalysts. In PEM Fuel Cell Electrocatalysts and Catalyst Layers; Zhang, J., Ed.; Springer: London, UK, 2008; pp. 655–714. [Google Scholar]
  14. Prasad, R.; Kennedy, L.A.; Ruckenstein, E. Catalytic combustion. Catal. Rev. Sci. Eng. 1984, 26, 1–58. [Google Scholar] [CrossRef]
  15. Bauer, J.E.; Occelli, M.L.; Williams, P.M.; McCaslin, P.C. Heterogeneous catalyst structure and function: Review and implications for the analysis of dissolved organic carbon and nitrogen in natural waters. Mar. Chem. 1993, 41, 75–89. [Google Scholar] [CrossRef]
  16. Bechelany, M.; Brioude, A.; Stadelmann, P.; Bernard, S.; Cornu, D.; Miele, P. Preparation of BN microtubes/nanotubes with a unique chemical process. J. Phys. Chem. C 2008, 112, 18325–18330. [Google Scholar] [CrossRef]
  17. Lipp, A.; Schwetz, K.A.; Hunold, K. Hexagonal boron nitride: Fabrication, properties and applications. J. Eur. Ceram. Soc. 1989, 5, 3–9. [Google Scholar] [CrossRef]
  18. Chen, Y.; Zou, J.; Campbell, S.J.; Le Caer, G. Boron nitride nanotubes: Pronounced resistance to oxidation. Appl. Phys. Lett. 2004, 84, 2430–2432. [Google Scholar] [CrossRef]
  19. Bernard, S.; Salles, V.; Li, J.; Brioude, A.; Bechelany, M.; Demirci, U.B.; Miele, P. High-yield synthesis of hollow boron nitride nano-polyhedrons. J. Mater. Chem. 2011, 21, 8694–8699. [Google Scholar] [CrossRef]
  20. Weng, Q.; Wang, X.; Zhi, C.; Bando, Y.; Golberg, D. Boron nitride porous microbelts for hydrogen storage. ACS Nano 2013, 7, 1558–1565. [Google Scholar] [CrossRef] [PubMed]
  21. Li, J.; Lin, J.; Xu, X.; Zhang, X.; Xue, Y.; Mi, J.; Mo, Z.; Fan, Y.; Hu, L.; Yang, X. Porous boron nitride with a high surface area: Hydrogen storage and water treatment. Nanotechnology 2013, 24, 155603. [Google Scholar] [CrossRef] [PubMed]
  22. Postole, G.; Caldararu, M.; Ionescu, N.I.; Bonnetot, B.; Auroux, A.; Guimon, C. Boron nitride: A high potential support for combustion catalysts. Thermochim. Acta 2005, 434, 150–157. [Google Scholar] [CrossRef]
  23. Meyer, N.; Bekaert, K.; Pirson, D.; Devillers, M.; Hermans, S. Boron nitride as an alternative support of Pd catalysts for the selective oxidation of lactose. Catal. Commun. 2012, 29, 170–174. [Google Scholar] [CrossRef]
  24. Wu, J.C.S.; Chen, C.-Y.; Lin, S.D. Boron nitride supported Pt catalyst for selective hydrogenation. Catal. Lett. 2005, 102, 223–227. [Google Scholar] [CrossRef]
  25. Gao, L.; Fu, Q.; Wei, M.; Zhu, Y.; Liu, Q.; Crumlin, E.; Liu, Z.; Bao, X. Enhanced nickel-catalyzed methanation confined under hexagonal boron nitride shells. ACS Catal. 2016, 6, 6814–6822. [Google Scholar] [CrossRef]
  26. Schimmenti, R.; Cortese, R.; Duca, D.; Mavrikakis, M. Boron Nitride-supported Sub-nanometer Pd6 Clusters for Formic Acid Decomposition: A DFT Study. ChemCatChem. 2017, 9, 1610–1620. [Google Scholar] [CrossRef][Green Version]
  27. Meyer, N.; Devillers, M.; Hermans, S. Boron nitride supported Pd catalysts for the hydrogenation of lactose. Catal. Today 2015, 241, 200–207. [Google Scholar] [CrossRef]
  28. Yabe, Y.; Sawama, Y.; Yamada, T.; Nagata, S.; Monguchi, Y.; Sajiki, H. Easily-controlled chemoselective hydrogenation by using palladium on boron nitride. ChemCatChem. 2013, 5, 2360–2366. [Google Scholar] [CrossRef]
  29. Zuo, L.-X.; Jiang, L.-P. Electrocatalysis of the oxygen reduction reaction and the formic acid oxidation reaction on BN/Pd composites prepared sonochemically. J. Electrochem. Soc. 2017, 164, H805–H811. [Google Scholar] [CrossRef]
  30. Ritala, M.; Kukli, K.; Rahtu, A.; Räisänen, P.I.; Leskelä, M.; Sajavaara, T.; Keinonen, J. Atomic layer deposition of oxide thin films with metal alkoxides as oxygen sources. Science 2000, 288, 319–321. [Google Scholar] [CrossRef] [PubMed]
  31. Hämäläinen, J.; Ritala, M.; Leskelä, M. Atomic layer deposition of noble metals and their oxides. Chem. Mater. 2013, 26, 786–801. [Google Scholar] [CrossRef]
  32. Mårlid, B.; Ottosson, M.; Pettersson, U.; Larsson, K.; Carlsson, J.O. Atomic layer deposition of BN thin films. Thin Solid Films 2002, 402, 167–171. [Google Scholar] [CrossRef]
  33. Kim, H. Atomic layer deposition of metal and nitride thin films: Current research efforts and applications for semiconductor device processing. J. Vac. Sci. Technol. B Microelectron. Nano. Struct. Process. Meas. Phenom. 2003, 21, 2231–2261. [Google Scholar] [CrossRef]
  34. Weber, M.; Koonkaew, B.; Balme, S.; Utke, I.; Picaud, F.; Iatsunskyi, I.; Coy, E.; Miele, P.; Bechelany, M. Boron nitride nanoporous nembranes with high surface charge by atomic layer deposition. ACS Appl. Mater. Interfaces 2017, 9, 16669–16678. [Google Scholar] [CrossRef] [PubMed]
  35. Assaud, L.; Pitzschel, K.; Hanbücken, M.; Santinacci, L. Highly-conformal TiN thin films grown by thermal and plasma-enhanced atomic layer deposition. ECS J. Solid State Sci. Technol. 2014, 3, 253–258. [Google Scholar] [CrossRef]
  36. Aaltonen, T.; Ritala, M.; Tung, Y.-L.; Chi, Y.; Arstila, K.; Meinander, K.; Leskelä, M. Atomic layer deposition of noble metals: Exploration of the low limit of the deposition temperature. J. Mater. Res. 2004, 19, 3353–3358. [Google Scholar] [CrossRef]
  37. Weber, M.J.; Mackus, A.J.M.; Verheijen, M.A.; Longo, V.; Bol, A.A.; Kessels, W.M.M. Atomic layer deposition of high-purity palladium films from Pd(hfac)2 and H2 and O2 plasmas. J. Phys. Chem. C 2014, 118, 8702. [Google Scholar] [CrossRef]
  38. Leskelä, M.; Ritala, M. Atomic layer deposition (ALD): From precursors to thin film structures. Thin Solid Films 2002, 409, 138–146. [Google Scholar] [CrossRef]
  39. George, S.M. Atomic layer deposition: An overview. Chem. Rev. 2010, 110, 111–131. [Google Scholar] [CrossRef] [PubMed]
  40. Putkonen, M. Precursors for ALD Processes. In Atomic Layer Deposition of Nanostructured Materials; John Wiley & Sons: Hoboken, NJ, USA, 2012; pp. 41–59. [Google Scholar]
  41. Zaera, F. The surface chemistry of thin film atomic layer deposition (ALD) processes for electronic device manufacturing. J. Mater. Chem. 2008, 18, 3521–3526. [Google Scholar] [CrossRef]
  42. Graniel, O.M.; Weber, S.; Balme, P.; Miele, M.B. Atomic layer deposition for biosensing applications. Biosens. Bioelectron. 2018, 122, 147–159. [Google Scholar] [CrossRef] [PubMed]
  43. Van Delft, J.A.; Garcia-Alonso, D.; Kessels, W.M.M. Atomic layer deposition for photovoltaics: Applications and prospects for solar cell manufacturing. Semicond. Sci. Technol. 2012, 27, 74002. [Google Scholar] [CrossRef]
  44. Weber, M.A.; Julbe, A.; Ayral, P.; Miele, M.B. Atomic layer deposition for membranes: Basics, challenges and opportunities. Chem. Mater. 2018. [Google Scholar] [CrossRef]
  45. Marichy, C.; Bechelany, M.; Pinna, N. Atomic layer deposition of nanostructured materials for energy and environmental applications. Adv. Mater. 2012, 24, 1017–1032. [Google Scholar] [CrossRef] [PubMed]
  46. Detavernier, C.; Dendooven, J.; Pulinthanathu Sree, S.; Ludwig, K.F.; Martens, J.A. Tailoring nanoporous materials by atomic layer deposition. Chem. Soc. Rev. 2011, 40, 5242–5253. [Google Scholar] [CrossRef] [PubMed]
  47. Van Bui, H.; Grillo, F.; van Ommen, J.R. Atomic and molecular layer deposition: Off the beaten track. Chem. Commun. 2017, 53, 45–71. [Google Scholar] [CrossRef] [PubMed]
  48. Ferguson, J.D.; Weimer, A.W.; George, S.M. Atomic layer deposition of boron nitride using sequential exposures of BCl3 and NH3. Thin Solid Films 2002, 413, 16–25. [Google Scholar] [CrossRef]
  49. Olander, J.; Ottosson, L.M.; Heszler, P.; Carlsson, J.-O.; Larsson, K.M.E. Laser-assisted atomic layer deposition of boron nitride thin films. Chem. Vap. Depos. 2005, 11, 330–337. [Google Scholar] [CrossRef]
  50. Park, H.; Kim, T.K.; Cho, S.W.; Jang, H.S.; Lee, S.I.; Choi, S.-Y. Large-scale synthesis of uniform hexagonal boron nitride films by plasma-enhanced atomic layer deposition. Sci. Rep. 2017, 7, 40091. [Google Scholar] [CrossRef] [PubMed][Green Version]
  51. Hemmi, A.; Bernard, C.; Cun, H.; Roth, S.; Klöckner, M.; Weinl, M.; Gsell, S.; Schreck, M.; Osterwalder, J.; Greber, T. High quality single atomic layer deposition of hexagonal boron nitride on single crystalline Rh(111) four-inch wafers. Rev. Sci. Instrum. 2014, 85, 35101. [Google Scholar] [CrossRef] [PubMed][Green Version]
  52. Sprenger, J.K.; Sun, H.; Cavanagh, A.S.; Roshko, A.; Blanchard, P.T.; George, S.M. Electron-enhanced atomic layer deposition of boron nitride thin films at room temperature and 100 °C. J. Phys. Chem. C 2018, 122, 9455–9464. [Google Scholar] [CrossRef]
  53. Weber, M.; Iatsunskyi, I.; Coy, E.; Miele, P.; Cornu, D.; Bechelany, M. Novel and facile route for the synthesis of tunable boron nitride nanotubes combining atomic layer deposition and annealing processes for water purification. Adv. Mater. Interfaces 2018, 5, 18–56. [Google Scholar] [CrossRef]
  54. Hao, W.; Marichy, C.; Journet, C.; Brioude, A. A novel two-step ammonia-free atomic layer deposition approach for boron nitride. Chem. Nano. Mat. 2017, 3, 656–663. [Google Scholar] [CrossRef]
  55. Campbell, C.T. Ultrathin metal films and particles on oxide surfaces: Structural, electronic and chemisorptive properties. Surf. Sci. Rep. 1997, 27, 1–111. [Google Scholar] [CrossRef]
  56. Mackus, A.J.M.; Weber, M.J.; Thissen, N.F.W.; Garcia-Alonso, D.; Vervuurt, R.H.J.; Assali, S.; Bol, A.A.; Verheijen, M.A.; Kessels, W.M.M. Atomic layer deposition of Pd and Pt nanoparticles for catalysis: On the mechanisms of nanoparticle formation. Nanotechnology 2016, 27, 34001. [Google Scholar] [CrossRef] [PubMed]
  57. Elam, J.W.; Zinovev, A.V.V.; Pellin, M.J.; Comstock, D.J.; Hersam, M.C. Nucleation and growth of noble metals on oxide surfaces using atomic layer deposition. ECS Trans. 2007, 3, 271–278. [Google Scholar] [CrossRef]
  58. Leick, N.; Weber, J.W.; Mackus, A.J.M.; Weber, M.J.; Van de Sanden, M.C.M.; Kessels, W.M.M. In situ spectroscopic ellipsometry during atomic layer deposition of Pt, Ru and Pd. J. Phys. D Appl. Phys. 2016, 49, 115504. [Google Scholar] [CrossRef]
  59. O’Neill, B.J.; Jackson, D.H.K.; Lee, J.; Canlas, C.; Stair, P.C.; Marshall, C.L.; Elam, J.W.; Kuech, T.F.; Dumesic, J.A.; Huber, G.W. Catalyst design with atomic layer deposition. ACS Catal. 2015, 5, 1804–1825. [Google Scholar] [CrossRef]
  60. Lu, J.; Elam, J.W.; Stair, P.C. Synthesis and stabilization of supported metal catalysts by atomic layer deposition. Acc. Chem. Res. 2013, 46, 1806–1815. [Google Scholar] [CrossRef] [PubMed]
  61. Christensen, S.T.; Feng, H.; Libera, J.L.; Guo, N.; Miller, J.T.; Stair, P.C.; Elam, J.W. Supported Ru− Pt bimetallic nanoparticle catalysts prepared by atomic layer deposition. Nano Lett. 2010, 10, 3047–3051. [Google Scholar] [CrossRef] [PubMed]
  62. Weber, M.J.; Verheijen, M.A.; Bol, A.A.; Kessels, W.M.M. Sub-nanometer dimensions control of core/shell nanoparticles prepared by atomic layer deposition. Nanotechnology 2015, 26, 94002. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Weber, M.J.; Mackus, A.J.M.; Verheijen, M.A.; van der Marel, C.; Kessels, W.M.M. Supported Core/Shell Bimetallic Nanoparticles Synthesis by Atomic Layer Deposition. Chem. Mater. 2012, 24, 2973–2977. [Google Scholar] [CrossRef]
  64. Feng, H.; Elam, J.W.; Libera, J.A.; Setthapun, W.; Stair, P.C. Palladium catalysts synthesized by atomic layer deposition for methanol decomposition. Chem. Mater. 2010, 22, 3133–3142. [Google Scholar] [CrossRef]
  65. Lu, J.; Stair, P.C. Low-temperature ABC-type atomic layer deposition: Synthesis of highly uniform ultrafine supported metal nanoparticles. Angew. Chem. Int. Ed. 2010, 49, 2547–2551. [Google Scholar] [CrossRef] [PubMed]
  66. Assaud, L.; Brazeau, N.; Barr, M.K.S.; Hanbucken, M.; Ntais, S.; Baranova, E.A.; Santinacci, L. Atomic layer deposition of Pd nanoparticles on TiO2 nanotubes for ethanol electrooxidation: Synthesis and electrochemical properties. ACS Appl. Mater. Interfaces 2015, 7, 24533–24542. [Google Scholar] [CrossRef] [PubMed]
  67. Ten Eyck, G.A.; Pimanpang, S.; Bakhru, H.; Lu, T.; Wang, G. Atomic layer deposition of Pd on an oxidized metal substrate. Chem. Vap. Depos. 2006, 12, 290–294. [Google Scholar] [CrossRef]
  68. Barr, M.K.S.; Assaud, L.; Brazeau, N.; Hanbucken, M.; Ntais, S.; Santinacci, L.; Baranova, E.A. Enhancement of Pd catalytic activity toward ethanol electrooxidation by atomic layer deposition of SnO2 onto TiO2 Nanotubes. J. Phys. Chem. C 2017, 121, 17727–17736. [Google Scholar] [CrossRef]
  69. Assaud, L.; Monyoncho, E.; Pitzschel, K.; Allagui, A.; Petit, M.; Hanbücken, M.; Baranova, E.A.; Santinacci, L. 3D-nanoarchitectured Pd/Ni catalysts prepared by atomic layer deposition for the electrooxidation of formic acid. Beilstein J. Nanotechnol. 2014, 5, 162. [Google Scholar] [CrossRef] [PubMed]
  70. Gong, T.; Qin, L.; Zhang, W.; Wan, H.; Lu, J.; Feng, H. Activated carbon supported palladium nanoparticle catalysts synthesized by atomic layer deposition: Genesis and evolution of nanoparticles and tuning the particle size. J. Phys. Chem. C 2015, 119, 11544–11556. [Google Scholar] [CrossRef]
  71. Rikkinen, E.; Santasalo-Aarnio, A.; Airaksinen, S.; Borghei, M.; Viitanen, V.; Sainio, J.; Kauppinen, E.I.; Kallio, T.; Krause, A.O.I. Atomic layer deposition preparation of Pd nanoparticles on a porous carbon support for alcohol oxidation. J. Phys. Chem. C 2011, 115, 23067–23073. [Google Scholar] [CrossRef]
  72. Liang, X.; Lyon, L.B.; Jiang, Y.-B.; Weimer, A.W. Scalable synthesis of palladium nanoparticle catalysts by atomic layer deposition. J. Nanoparticles Res. 2012, 14, 943. [Google Scholar] [CrossRef]
  73. Weber, M.; Collot, P.; El Gaddari, H.; Tingry, S.; Bechelany, M.; Holade, Y. Enhanced catalytic glycerol oxidation activity enabled by activated-carbon-supported palladium catalysts prepared through atomic layer deposition. Chem. Electro. Chem. 2018, 5, 743–747. [Google Scholar] [CrossRef]
  74. Grillo, F.; Moulijn, J.A.; Kreutzer, M.T.; van Ommen, J.R. Nanoparticle sintering in atomic layer deposition of supported catalysts: Kinetic modeling of the size distribution. Catal. Today 2018, 316, 51–61. [Google Scholar] [CrossRef]
  75. Grillo, F.; Van Bui, H.; Moulijn, J.A.; Kreutzer, M.T.; van Ommen, J.R. Understanding and controlling the aggregative growth of platinum nanoparticles in atomic layer deposition: An avenue to size selection. J. Phys. Chem. Lett. 2017, 8, 975–983. [Google Scholar] [CrossRef] [PubMed]
  76. Langereis, E.; Heil, S.B.S.; Knoops, H.C.M.; Keuning, W.; Van de Sanden, M.C.M.; Kessels, W.M.M. In situ spectroscopic ellipsometry as a versatile tool for studying atomic layer deposition. J. Phys. D Appl. Phys. 2009, 42, 73001. [Google Scholar] [CrossRef]
  77. Weber, M.; Coy, E.; Iatsunskyi, I.; Yate, L.; Miele, P.; Bechelany, M. Mechanical properties of boron nitride thin films prepared by atomic layer deposition. CrystEngComm 2017, 19, 6089–6094. [Google Scholar] [CrossRef]
  78. Elam, J.W.; Zinovev, A.; Han, C.Y.; Wang, H.H.; Welp, U.; Hryn, J.N.; Pellin, M.J. Atomic layer deposition of palladium films on Al2O3 surfaces. Thin Solid Films 2006, 515, 1664–1673. [Google Scholar] [CrossRef]
  79. Goldstein, D.N.; George, S.M. Enhancing the nucleation of palladium atomic layer deposition on Al2O3 using trimethylaluminum to prevent surface poisoning by reaction products. Appl. Phys. Lett. 2009, 95, 143106. [Google Scholar] [CrossRef]
  80. Goldstein, D.N.; George, S.M. Surface poisoning in the nucleation and growth of palladium atomic layer deposition with Pd (hfac) 2 and formalin. Thin Solid Films 2011, 519, 5339–5347. [Google Scholar] [CrossRef]
  81. Postole, G.; Bonnetot, B.; Gervasini, A.; Guimon, C.; Auroux, A.; Ionescu, N.I.; Caldararu, M. Characterisation of BN-supported palladium oxide catalyst used for hydrocarbon oxidation. Appl. Catal. A Gen. 2007, 316, 250–258. [Google Scholar] [CrossRef]
  82. Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-ray photoelectron spectroscopy: A reference book of standard spectra for identification and interpretation of XPS data; Perkin-Elmer Corporation: Waltham, MA, USA, 1995. [Google Scholar]
  83. Shafeev, G.A.; Themlin, J.; Bellard, L.; Marine, W.; Cros, A. Enhanced adherence of area-selective electroless metal plating on insulators. J. Vac. Sci. Technol. 1996, 14, 319–326. [Google Scholar] [CrossRef]
  84. Grillo, F.; Van Bui, H.; La Zara, D.; Aarnink, A.A.I.; Kovalgin, A.Y.; Kooyman, P.; Kreutzer, M.T.; van Ommen, J.R. From Single Atoms to Nanoparticles: Autocatalysis and Metal Aggregation in Atomic Layer Deposition of Pt on TiO2 Nanopowder. Small 2018, 14, 1800765. [Google Scholar] [CrossRef] [PubMed]
  85. Jose-Yacaman, M.; Gutierrez-Wing, C.; Miki, M.; Yang, D.-Q.; Piyakis, K.N.; Sacher, E. Surface diffusion and coalescence of mobile metal nanoparticles. J. Phys. Chem. B 2005, 109, 9703–9711. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Transmission electron microscopy (TEM) images of boron nitride (BN) surfaces after (a) 100, (b) 200, and (c) 300 cycles of the Pd atomic layer deposition (ALD) process. The substrates used were Si3N4 TEM windows covered with 15 nm of BN.
Figure 1. Transmission electron microscopy (TEM) images of boron nitride (BN) surfaces after (a) 100, (b) 200, and (c) 300 cycles of the Pd atomic layer deposition (ALD) process. The substrates used were Si3N4 TEM windows covered with 15 nm of BN.
Nanomaterials 08 00849 g001

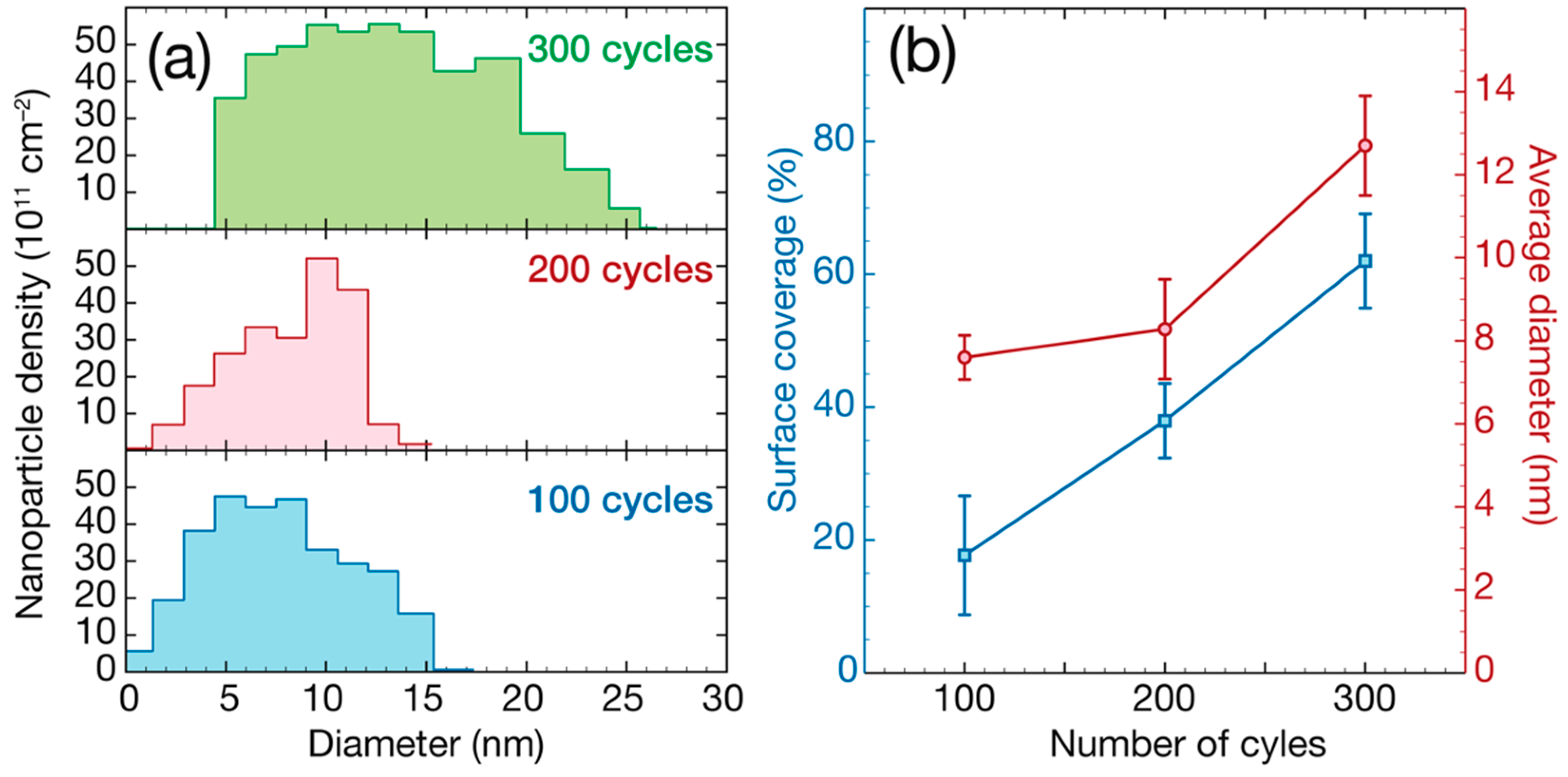

Figure 2. (a) Nanoparticle (NP) size distribution and (b) average diameter and surface density evolution of the Pd NPs on BN surfaces after 100, 200 and 300 ALD cycles (estimated). The data analysis is based on the TEM images presented in Figure 1.
Figure 2. (a) Nanoparticle (NP) size distribution and (b) average diameter and surface density evolution of the Pd NPs on BN surfaces after 100, 200 and 300 ALD cycles (estimated). The data analysis is based on the TEM images presented in Figure 1.
Nanomaterials 08 00849 g002

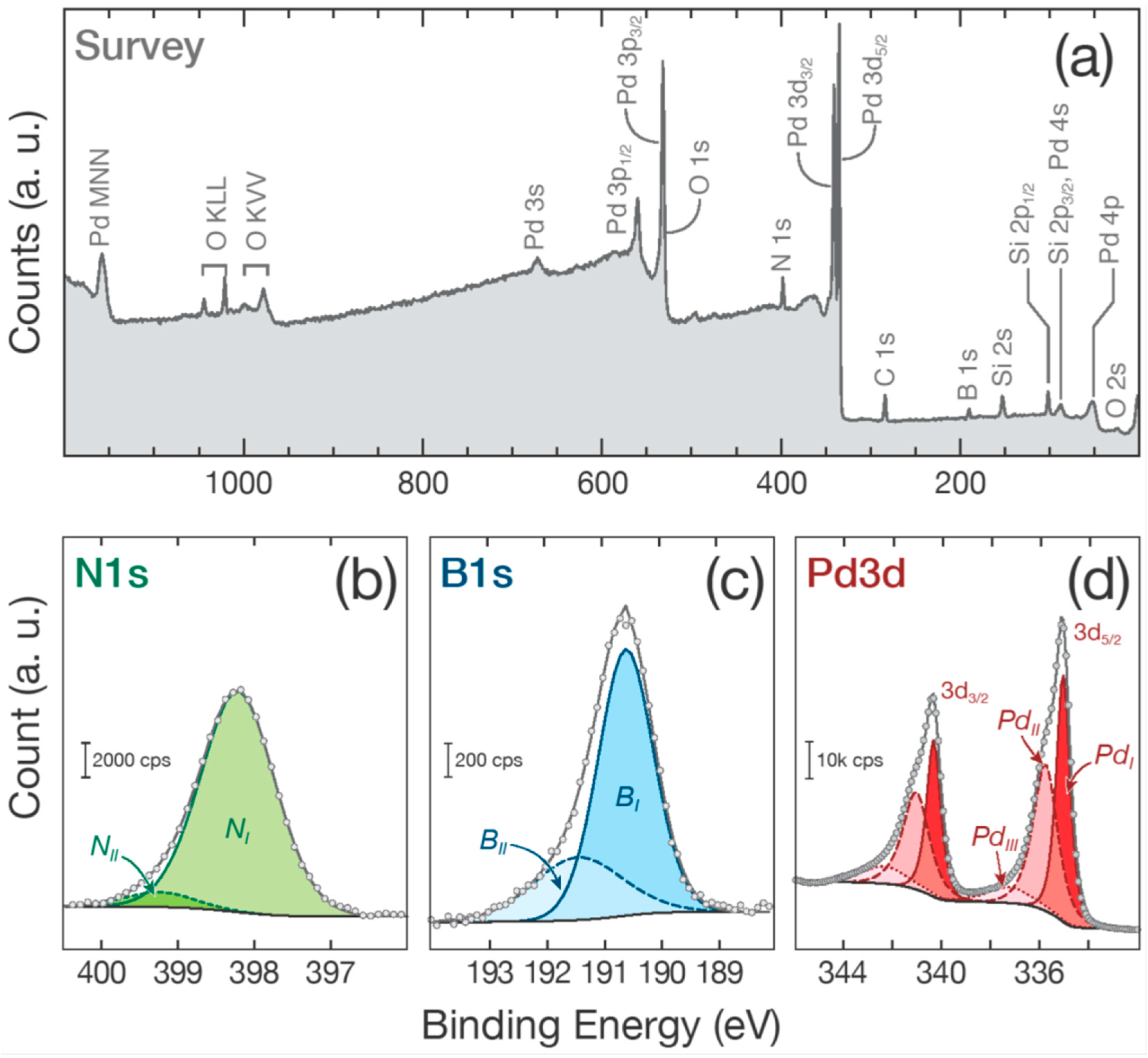

Figure 3. (a) XPS survey of the BN/Pd NPs sample. (bd) present the N 1s, B 1s, and Pd 3d deconvoluted peaks, respectively.
Figure 3. (a) XPS survey of the BN/Pd NPs sample. (bd) present the N 1s, B 1s, and Pd 3d deconvoluted peaks, respectively.
Nanomaterials 08 00849 g003
Figure 4. TEM images of Pd NPs on BN surfaces prepared by applying 200 cycles of the Pd ALD process, after heating treatments at (a,c) 500 °C and (b,d) 750 °C for 3 h. The substrates used were Si3N4 TEM window grids covered with 15 nm of BN.
Figure 4. TEM images of Pd NPs on BN surfaces prepared by applying 200 cycles of the Pd ALD process, after heating treatments at (a,c) 500 °C and (b,d) 750 °C for 3 h. The substrates used were Si3N4 TEM window grids covered with 15 nm of BN.
Nanomaterials 08 00849 g004

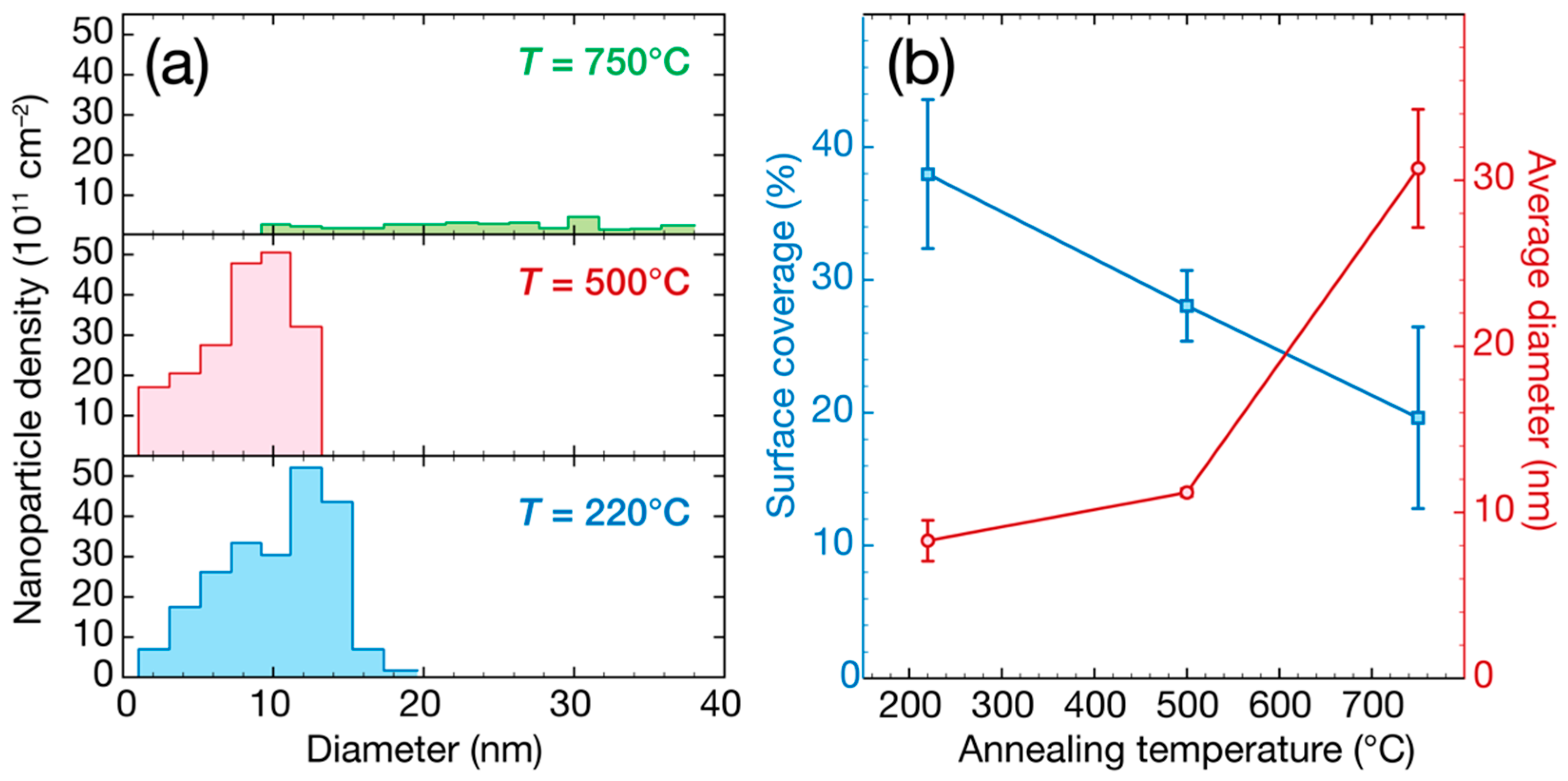

Figure 5. (a) Nanoparticle size distribution and (b) average diameter and surface coverage evolution of the Pd NPs on BN surfaces, as prepared at 220 °C and after thermal treatments at 500 and 750 °C for 3 h. The data analysis is based on the TEM images presented in Figure 4.
Figure 5. (a) Nanoparticle size distribution and (b) average diameter and surface coverage evolution of the Pd NPs on BN surfaces, as prepared at 220 °C and after thermal treatments at 500 and 750 °C for 3 h. The data analysis is based on the TEM images presented in Figure 4.
Nanomaterials 08 00849 g005
