Nanomaterials 2018, 8(10), 843; https://doi.org/10.3390/nano8100843

Article
Direct Exfoliation of Natural SiO2-Containing Molybdenite in Isopropanol: A Cost Efficient Solution for Large-Scale Production of MoS2 Nanosheetes
1
School of Chemistry and Chemical Engineering, Inner Mongolia University, Hohhot 010021, Inner Mongolia, China
2
School of Earth and Space Sciences, Peking University, Beijing 100871, China
3
School of Ecology and Environment, Inner Mongolia University, Hohhot 010021, Inner Mongolia, China
*
Authors to whom correspondence should be addressed.
Received: 20 September 2018 / Accepted: 12 October 2018 / Published: 17 October 2018

Abstract

:
The cost-effective exfoliation of layered materials such as transition metal dichalcogenides into mono- or few- layers is of significant interest for various applications. This paper reports the preparation of few-layered MoS2 from natural SiO2-containing molybdenite by exfoliation in isopropanol (IPA) under mild ultrasonic conditions. One- to six-layer MoS2 nanosheets with dimensions in the range of 50-200 nm are obtained. By contrast, MoS2 quantum dots along with nanosheets are produced using N-methyl-pyrrolidone (NMP) and an aqueous solution of poly (ethylene glycol)-block-poly (propylene glycol)-block-poly (ethylene glycol) (P123) as exfoliation solutions. Compared with molybdenite, commercial bulk MoS2 cannot be exfoliated to nanosheets under the same experimental conditions. In the exfoliation process of the mineral, SiO2 associated in molybdenite plays the role of similar superfine ball milling, which significantly enhances the exfoliation efficiency. This work demonstrates that isopropanol can be used to exfoliate natural molybdenite under mild conditions to produce nanosheets, which facilitates the preparation of highly concentrated MoS2 dispersions or MoS2 in powder form due to the volatility of the solvent. Such exfoliated MoS2 nanosheets exhibit excellent photoconductivity under visible light. Hence, the direct mild exfoliation method of unrefined natural molybdenite provides a solution for low-cost and convenient production of few-layered MoS2 which is appealing for industrial applications.
Keywords:
natural molybdenite; MoS2 nanosheet; SiO2; liquid exfoliation; photoelectric properties

1. Introduction

Since graphene’s initial discovery [1], two-dimensional (2D) transition metal dichalcogenide semiconductors (TMD) have attracted great research interest for their unique electronic and optical characteristics, which are distinctively different from those of their bulk materials [2,3,4,5,6]. MoS2 is the most popular member of the series, which compensates for the disadvantage caused by the absence of a band gap of graphene, and shows considerable anisotropy due to its large intrinsic band gap, resulting in novel electronic, optical, mechanical, and structural characteristics [7,8,9,10,11]. In many applications, such as batteries, composites, sensors, and catalytic activities, MoS2 needs to be produced on a large-scale, and preferably at a lower cost.
Different methods to prepare monolayer and few-layered MoS2 have been developed, including mechanical exfoliation [12], liquid-phase exfoliation [13,14,15], chemical exfoliation [16,17], and chemical vapor deposition [18,19]. Generally, studies have found that liquid-phase exfoliation has great potential for scalable production of 2D materials. Coleman et al., have indicated that layered materials can be exfoliated into ultrathin-layered 2D nanomaterials in organic solvents by sonication [14]. But for large-scale applications, it has been difficult to achieve high enough concentrations. In many cases, the exfoliating media used with high boiling points are difficult to remove. A method of mixed-solvent containing volatile solvents has been used to exfoliate TMD [20,21,22]. For example, the mixture of water and ethanol was demonstrated to be an effective solvent for the exfoliation of MoS2 nanosheets [23]. Nguyen et al. have reported a two-solvent grinding-assisted liquid phase exfoliation of layered MoS2, avoiding the solvent residue [24]. Ultrasonic treatment is widely used in liquid exfoliation. Ultrasonic force generates acoustic cavitation. The shear forces coming from acoustic cavitation can break the Van der Waals interactions of bulk materials, leading to the exfoliation of 2D materials [14,24], and affecting the structural characteristics of nanoparticles [25]. In many cases, ultrasound probes are utilized to exfoliate 2D materials. Their use can generate violent mechanical driving forces by concentrating energy in a small amount of dispersion liquid. In contrast, an ultrasonic water bath is milder and more cost-effective alternative, which is appealing for samples batch processing. However, it is rarely used in current liquid exfoliation methods.
The intercalation of various intercalates is another useful liquid phase exfoliation method to weaken neighboring layers arising from the interlayer expansion. Peng et al. recently demonstrated a lithium-intercalated single-crystals exfoliation method for 2D TMD nanomaterials in water by only simple manual shaking [26]. However, this chemical exfoliation method partly leads to structural deformation, and is very sensitive to the environmental conditions. To overcome the aforementioned drawback, an alternative approach used grinding/sonication-assisted Li+ intercalation in simulated sun irradiation conditions, avoiding the use of hazardous liquids such as butyllithium; however, the use of N-methyl-pyrrolidone (NMP) leads to persistent residues on the exfoliated flakes [27]. Great effort has been made to develop new exfoliation technology. Recently, a microcentrifugation surface acoustic wave device was developed to exfoliate MoS2, which applied an electric field and mechanical shear force for fast and efficient exfoliation. Similarly, the surfactant residues and expensive equipment defeat the purpose [28]. Consequently, it remains challenging to develop liquid exfoliation techniques in more convenient and cost-effective ways to obtain highly-concentrated 2D MoS2 dispersions that allow separation as precipitates for further application.
In many cases, the preparation of 2D MoS2 in the lab is based on the liquid exfoliation of MoS2 powder and single crystals. Savjani et al., [29] and Dong et al., [30] have produced MoS2 nanosheets by directly exfoliating molybdenite minerals in NMP, and showed that unrefined molybdenite could be an exfoliation source of 2D materials. However, in many cases, the molybdenite powders are purified before exfoliation, and the effects of the impurity constituents on the exfoliation have not been considered. Because natural molybdenite contains quartz, it would thus be of interest to learn whether the quartz in natural molybdenite may play the role of ball mill during the exfoliation of molybdenite, before being separated from the suspension of the MoS2 nanosheets after exfoliation. Furthermore, we wonder if a solvent whose surface tension does not harshly match with the layered bulk materials can effectively exfoliate natural molybdenite under mild conditions. Relevant studies should be performed to solve these questions.
Here, we prepared 2D MoS2 nanomaterials by liquid exfoliation of SiO2-containing molybdenite ores in the volatile solvent, isopropanol (IPA), as well as in NMP, a surfactant aqueous solution under mild water bath ultrasound conditions. The nanomaterials obtained from molybdenite have been compared with the products obtained from commercial MoS2 powder in the same experimental conditions in terms of exfoliation efficiency, composition, structural features, and photoelectric properties.

2. Materials and Methods

2.1. Materials

Natural molybdenite (NM) was collected and enriched in Dasuji diggings, Zhuozi County, Inner Mongolia. Compositional analysis by X-ray fluorescence (XRF) spectrometry shows that natural molybdenite mainly consisted of Mo, S, SiO2, Al2O3 (Table S1). The exact content of Mo is 49.71wt%, S is 27.65wt%, and SiO2 is 14.15wt%, which was determined using an inductively-coupled plasma-mass (ICP-MS) spectrometer. The NM was ball-milled (XGB planetary mill, 100 stainless steel balls of 6 mm diameter, rotation speed 500 rpm) for 1 h and sifted to obtain mineral powder with particle sizes of <45 μm. The scanning electron microscope (SEM) images are shown in Figure S1a,b. The X-ray diffraction (XRD) patterns prove that the NM was mainly formed from 2H MoS2 and quartz-phase SiO2 (Figure S2). Energy dispersive spectrometry (EDS) shows that the SiO2 and MoS2 are mixed uniformly on the micro-scale (Figure S3). Commercially-available MoS2 (CM, 99%, average 2 μm) was bought from Sigma-Aldrich (Figure S1c,d). NMP, P123, and IPA were purchased from J&K Chemicals (Beijing, China).
Preparation of control samples of NM: SiO2 associated in NM was removed by HF method; 2 g of NM was added to 20 mL mixed acid solution (16 mL 40%HF and 4 mL H2SO4) in 50 mL Teflon crucible, and maintained under magnetic stirring for 3 h at 80 °C; after reaction, the product was filtrated, washed with Milli-Q water several times to neutral, then dried at 60 °C in oven.

2.2. Exfoliation Process

0.5 g of NM or CM was added to 50 mL of exfoliation solution (IPA, NMP or P123 aqueous solutions) in a 100 mL glass vial. The mixture was batch sonicated for 16 h in an ultrasonic water bath with a frequency of 40 kHz (volume 15 L, power 400 W), taking care to have the water level higher than the level of the suspension. The ultrasonic temperature was controlled below 50 °C. The resulting dispersion was centrifuged for 15 min at 10,000 rpm to remove the very thick nanosheets and excess impurity. The supernatants were collected by pipette. The products derived from NM or CM were labeled as NM-X or CM-X respectively, where X is the exfoliation solvent.

2.3. Characterization

Compositional analysis of NM was achieved using a Rigaku ZSX Primus II XRF spectrometer and a Thermo X Series II ICP-MS spectrometer. The UV-vis (Ultraviolet-visible) spectra were performed by a Hitachi UV-3900 spectrometer using 1.0 cm quartz cuvette. Accurate dilutions of the dispersions were produced to obtain suitable UV-vis spectra. The XRD pattern measurements were carried out using a PANalytical X’Pert Pro diffractometer with Cu Kα radiation at 0.15406 nm (equipped with monochromator). Raman spectra were collected by a MicroRaman spectrometer (Renishaw in Via Reflex, Gloucestershire, UK), equipped with a 532 nm DPSS laser and a 2400  lines/mm grating. For the specimen preparation, the suspension was drop-casted onto a silicon substrate (wafer) and heated to 50 °C to form an opaque film. SEM imaging was performed using Hitachi S4800. Energy dispersive X-ray analyses were performed using Bruker QUANTAX 200 energy dispersive spectrometer. The transmission electron microscopy (TEM) images were measured using a FEI Tecnai G2F20S-TWIN. Samples for TEM imaging were prepared by drop-casting the 2D MoS2 dispersion onto 200 mesh lacey carbon-coated copper grid and dried before analysis. Nanosheets thickness measurements were carried out on a Bruker  atomic force microscopy (AFM) (Dimension Icon, Bruker, Billerica, MA, USA) operating in ScanAsyst mode. A silicon nitride probe (type SCANASYST-AIR, Bruker, Billerica, MA, USA) with a curvature radius of 2 nm was used for AFM measurements. Its specifications include a force constant of approximately 0.4 N/m, and a resonant frequency of 70 kHz. Samples for AFM were prepared by diluting the samples in ethanol to a concentration in the range of 100 μg/mL, drop-casting the diluted suspension onto a clean silicon wafer piece, and heating to evaporate the solvent.

2.4. Photoelectrochemical Measurement

The working electrodes were prepared on glassy carbon (GC) electrodes, which were dip-coated with nano MoS2 dispersions (loading 18 μg/cm2). The electrochemical measurements were tested in 0.5 M Na2SO4 with a conventional three-electrode system. Pt plate and saturated Ag/AgCl were used as counter electrode and reference electrode, respectively. The photocurrents were measured on a CHI760E Chenhua electrochemical workstation. The visible light irradiation source was obtained by a 300 W Xe lamp (Beijing Trustech, Beijing, China, PLS-SXE300c) with a 420 nm cut-off filter.

3. Results and Discussion

Nano MoS2 dispersions were prepared from NM or CM using a simple bath sonication technique in IPA, NMP, or aqueous solutions of surfactant P123. After bath sonication for 16 h, suspension of different colours were obtained and labeled as NM-NMP, NM-P123, NM-IPA, CM-NMP, CM-P123, and CM-IPA respectively (Figure 1 inset). Products from NM are dark green, CM-NMP is golden yellow, CM-P123 is yellow-green, and CM-IPA is colourless and transparent. Except for CM-IPA, the Tyndall effect was observed, which indicates that the suspension was a colloidal dispersion. UV-vis spectra of the exfoliated MoS2 are shown in Figure 1. In the samples derived from NM, the characteristic absorption bands of MoS2 nanosheets at 390nm (A), 450nm (B), 610nm (C), and 670 nm (D) are clearly observed [31,32,33]. The excitonic peaks at 610 nm and 670 nm arise from the K point of the Brillouin zone. The peaks at ~390 nm and ~450 nm can be attributed to the direct transition from the deep valence band to the conduction band [34,35]. But in the samples derived from CM, absorption bands in the visible light region are very weak. These results from UV-vis absorption only confirm that NM can be exfoliated to produce MoS2 nanosheets in three solvents, but CM cannot be exfoliated to obtain nanosheets under mild ultrasonic conditions.
Further characterization was studied using the TEM images of exfoliated MoS2 for NM-NMP, CM-NMP, and NM-IPA. TEM images of NM-NMP are shown in Figure 2a,b,c. The transparency of the nanosheets confirms that the MoS2 sheets are very thin. Clear lattice fringes with a separation of 0.2725 nm are observed for (100) planes of 2H-MoS2 in Figure 2a. The selected area electron diffraction (SAED) pattern of MoS2 nanosheets shown in the left inset of Figure 2a reveals the highly crystalline nature of the sheets with a hexagonal diffraction pattern. The diffraction spots shown by the SAED correspond to the (100), (110), (200) crystal faces of the 2H-MoS2. Figure 2b shows several erected nanosheets. The nanosheets have only a few molecular layers, with interlayer spacing of 0.623 nm corresponding to the (002) crystal plane; the atomic arrangements are shown in Figure 2b inset. In addition, MoS2 quantum dots around the nanosheets are clearly observed in Figure 2c. Figure 2d shows the image of CM-NMP, in which quantum dots of ~5nm are observed. The left inset of Figure 2d shows SAED pattern of quantum dots which correspond to the (100), (105) crystal faces of hexagonal system, and the inset at the top right corner shows the hexagonal arrangement of 2H-MoS2. The above results indicate that MoS2 quantum dots, along with nanosheets, were obtained by exfoliating NM; meanwhile, only quantum dots were produced from CM powder in NMP. TEM images of NM-IPA are shown in Figure 2e,f. MoS2 nanosheets with lateral size ~100 nm are observed (Figure 2e), and the layer structure of the edge warpage can be clearly shown in Figure 2f (arrow indication). Lattice fringes with a separation of 0.2745 nm are responsible for (100) planes of 2H-MoS2, and the inset at the top left corner shows the hexagonal arrangement of 2H-MoS2. MoS2 nanosheets are the only products observed in NM-IPA. The majority of the exfoliated MoS2 nanosheets are close to 1–6 layers thickness. More images for the other products obtained, such as NM-P123 and CM-P123, can be found in Figure S4. Quantum dots spreading nanosheets of MoS2 were observed in NM-P123 (Figure S4a,b), and amounts of quantum dots and a few nanosheets were observed in CM-P123 (Figure S4c,d). To further ascertain the morphology and thickness of exfoliated MoS2, AFM was carried out. Figure 3 shows scan AFM images in ScanAsyst mode of MoS2 nanosheets in NM-NMP and NM-IPA samples. Figure 3a,b reveals that the thickness of nanosheets was less than 6 nm both in NM-NMP and NM- IPA. Given that the thickness of a MoS2 monolay is ~1 nm [14,23,36], this suggests that the obtained MoS2 nanosheets contain ~1 to 6 layers, which agrees with the TEM results.
To further confirm the phase, XRD and Raman spectroscopy were performed (Figure 4). Due to the presence of polymeric surfactant P123, we could not use AFM, XRD, or Raman to analyze product NM-P123 unless the samples were treated by washing or calcining, which could change the samples (Figure S5 and S6). The appearance of (002) reflection in the XRD patterns of NM-NMP and NM-IPA indicates the presence of MoS2 nanosheets derived from NM with good crystallinity (Figure 4a). Meanwhile, XRD pattern of CM-NMP exhibiting no apparent reflection also indicates that CM-NMP mainly consists of quantum dots. Raman spectra are shown in Figure 4b. The characteristic shifts near 380.5 cm-1 and 406.5 cm-1 for bulk NM, NM-NMP, and NM-IPA respectively correspond to E12g and A1g vibrations modes of Mo-S bands in 2H MoS2 [37]. After exfoliation, the E12g and A1g peak shift, and the shift difference between E12g and A1g, is generally only changed with the layer number of molecules. So, the reduction of the shift difference between the two peaks can be considered to be an indicator of the layer number of MoS2 nanosheets [38]. Compared to 26.0 cm-1 shift difference of the two characteristic peaks for bulk NM, the shift difference reduces to 24.7 cm-1 for NM-NMP and 24.1 cm-1 for NM-IPA respectively. On the basis of information provided by Li et al., [37], this result indicates that the thickness of MoS2 nanosheets exfoliated from NM was mostly less than 6 layers, which is consistent with the measurements of TEM and AFM.
MoS2 concentration in suspension was measured by atomic absorption spectroscopy. The concentrations of dispersed nano MoS2 exfoliated from NM are 596, 485, and 252 mg/L for P123, NMP, and IPA solution respectively. Compared to the concentrations of products exfoliated from CM, which are listed in Table 1, the concentration of MoS2 derived from NM is relatively high. Furthermore, nanosheets are more easily obtained from NM. The surprise result raises a question: why can NM with lower purity and larger particle sizes compared with CM be exfoliated to produce more nanosheets? In many exfoliation methods, MoS2 nanosheets were obtained using an ultrasound probe as a violent mechanical driving force because it concentrates more energy [14,36,39]. In our case, due to the dispersive energy of the ultrasonic water bath, MoS2 quantum dots separated from the crystal defects were the only product from CM [40]. However, MoS2 nanosheets were obtained under the same mild ultrasound conditions from NM. NM contains small amounts of impurities compared with CM, mainly SiO2 (Table S1). Thus, it seems reasonable to hypothesize that the quartz phase SiO2 in the NM may cause collisions with MoS2 during bath sonication, leading to cleavage of bulk layers into ultrathin sheets, which can play the role of superfine ball milling. Furthermore, compared with the added ball milling medium (e.g., ZrO2) [39], associated quartz in the NM bonds with MoS2 more closely and uniformly, and the particle size of that is much smaller, thereby causing more effective stripping. After exfoliation, most of the SiO2 was removed from dispersion by centrifugation, as observed in the EDS. Quantitative analysis shows that Si content in exfoliated nanosheets is 0.32wt%, which is much lower than that in natural molybdenite (5.27wt%). EDS analysis shows Mo : S to be 1 : 2 in all case, and reveals that the nano MoS2 prepared from NM does not contain more non-negligible impurity contaminations than that obtained from CM.
To test the aforementioned hypotheses, we prepared control samples of NM which were purified to remove SiO2 by the HF method, and compared them with the initial NM as the source powders of exfoliation in IPA. After HF treatment, the SiO2 content in molybdenite reduces from 11% to 0.65%, and the absorbance intensity of exfoliation products at ca. 670 nm plummets, as shown in Figure S7, indicating that the yield of the nanosheets from NM with SiO2 removed is considerably lower than that from initial NM. Therefore, this result supports our argument about the associated SiO2 dependent exfoliation mechanism of the mineral, as shown in Scheme 1.
In addition, the exfoliation efficiency varies greatly with the solvents, resulting in a different morphology and yield of exfoliated nano-MoS2. During the wet grinding process, the choice of grinding solvent has a significant influence on the final product [24]. According to the principle of matching surface energy of solvents [41], NMP and 10 wt% P123 with a surface tension close to 40 mN/m are good solvents for exfoliating bulk MoS2; therefore, MoS2 quantum dots are easy to obtain by water bath sonication in NMP or P123. As shown in the height profile of AFM (Figure 3), NMP produces thinner nanosheets than IPA. Studies have suggested that a close match of the surface energy between the solvent and the layered material leads to the exfoliation of flakes with increased aspect ratios [42]. Thinner flakes are more liable to breakdown and produce quantum dots by ultrasonic vibration resulting from the ultrasonic water bath. Because IPA surface tension is 20.80 mN/m, far away from 40 mN/m, nano MoS2 is not successfully prepared in IPA from CM by mild water bath sonication; however, it can be prepared from NM. Due to the surface tension of IPA not being matched, the quantum dots cannot be exfoliated off from the crystal defects, but MoS2 nanosheets have been achieved in IPA via a mineral-associated quartz milling process. Though the concentrations of dispersed MoS2 nanosheets in IPA are relatively low, the highly concentrated MoS2 nanosheets dispersion or its powder form can be obtained due to the volatility of IPA, and the solvent can be recovered for recycling exfoliation to improve yields. Therefore, aggregation of MoS2 nanosheets caused by extracting exfoliated MoS2 from NMP via heating evaporation at high temperature can be avoided. Thereafter, the obtained powder from IPA is convenient for characterization and preparation of samples in applications avoiding the effect of a solvent, which could be widely applied.
Two-dimensional MoS2 has shown prior promise for various energy-related applications because of its intrinsic band-gap structure. To confirm the photoelectric properties of our exfoliated MoS2, simple light-to-electric conversion experiments were conducted. The time-dependent photocurrent of exfoliated nano MoS2 was measured at 0.6 V bias voltage under alternating darkness and visible light conditions. As shown in Figure 5, all the samples exhibited repeatable and stable responses to illumination. In contrast, the photocurrents of NM-IPA and NM-NMP are higher than those of bulk NM and CM, and the highest ΔI is generated by NM-IPA, which is around 9-fold higher than that of bare GC. The remarkable increase in photocurrent density results from the sensitivity of exfoliated MoS2 nanosheets to visible light and the efficient separation of photo-generated electron-hole pair. Unexpectedly, a lower photocurrent response of CM-NMP was observed, which is close to that of bare GC. A higher photocurrent response of MoS2 nanosheets (NM-IPA) in comparison to their bulk structure gives rise to the change in band structure from indirect to direct bandgap [43,44]. The remarkable decrease in the photocurrent density of CM-NMP (MoS2 quantum dots) was observed because of its insensitivity to visible light and the quantum confinement effect.

4. Conclusions

Few-layered MoS2 was prepared from natural SiO2-containing molybdenite by exfoliation in IPA under mild ultrasonic conditions. The exfoliation products from NM and CM in different exfoliation solvents including IPA, NMP, and aqueous solutions of P123 were compared. The results show that the yield of nano MoS2 exfoliated from the molybdenite is higher than that from CM powder. The choice of exfoliation solvent plays a crucial role. IPA can successfully exfoliate molybdenite to produce nanosheets, but cannot exfoliate commercial MoS2 powder. NMP and aqueous solutions of P123 can exfoliate NM to MoS2 nanosheets and quantum dots, and exfoliate CM to quantum dots. It was found that the MoS2 nanosheets produced from NM in IPA exhibit greater photocurrent density under visible light. The quartz phase associated in molybdenite is a major contributor to the effective exfoliation, and plays the role of superfine ball milling.
This work highlights that unrefined natural SiO2-containing NM can be used as an exfoliation source of 2D MoS2; the ability to use volatile IPA to exfoliate it will enable recirculated exfoliation to produce MoS2 nanosheets with higher yields, for cost–effective and large-scale industrial applications. However, in the exfoliation process of minerals, the solvent has an influence on the morphology of the product, which is poorly understood at present. Further research may lead to proper evaluations of the effects of different solvents on exfoliation, which help us to fully elucidate the underlying exfoliation mechanisms.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/8/10/843/s1, Figure S1: SEM images of natural molybdenite (a), sifted natural molybdenite after ball-milled (b) and commercial MoS2 (c, d); Figure S2: XRD patterns of natural molybdenite and commercial MoS2; Figure S3: Elemental analysis of natural molybdenite using EDS shows the SiO2 and MoS2 are mixed uniformly in the micro-scale; Figure S4: TEM images of products exfoliated in P123 aqueous solution from natural molybdenite (a, b), commercial MoS2 (c, d); Figure S5: (a) XRD patterns of products exfoliated in P123 from natural molybdenite and commercial MoS2, (b) TEM images of NM-P123 powder-sample obtained by washing with deioned water several times to remove P123 after centrifuging at 1500rpm for 45min; Figure S6: (a) Raman spectrum of NM-P123 powder-sample obtained by calcining at 450°C for 2h, (b) TGA curves of NM, CM, NM-IPA-Powder and P123; Figure S7: UV-Vis absorption spectra stack plot of MoS2 dispersions obtained from the initial NM and NM removed SiO2, Table S1: Content of natural molybdenite by component analysis using XRF.

Author Contributions

Conceptualization, W.Z. and J.S.; methodology, T.J., W.Z; formal analysis, T.J., Y.S. and H.D.; resources, J.S. and W.Z.; writing—original draft preparation, W.Z., T.J. and Y.S.; writing—review and editing, H.C. and J.S.; funding acquisition, A.L., J.S. and W.Z.; supervision, A.L.; project administration, A.L.

Funding

This research was funded by the National Basic Research Program of China (2014CB846001), National Natural Science Foundation of China (21167008) and Inner Mongolia Natural Science Foundation (2015MS0203).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  2. Tan, C.; Zhang, H. Two-dimensional transition metal dichalcogenide nanosheet-based composites. Chem. Soc. Rev. 2015, 44, 2713–2731. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, H. Ultrathin two-dimensional nanomaterials. ACS Nano 2015, 9, 9451–9469. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, X.; Lai, Z.C.; Tan, C.L.; Zhang, H. Solution-processed two-dimensional MoS2 nanosheets: preparation, hybridization, and application. Angew. Chem. Int. Ed. 2016, 55, 8816–8838. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, M.; Zhu, Y.; Wang, X.; Feng, Q.; Qiao, S.; Wen, W.; Chen, Y.; Cui, M.; Zhang, J.; Cai, C.; et al. Controlled synthesis of ZrS2 monolayer and few layers on hexagonal boron nitride. J. Am. Chem. Soc. 2015, 137, 7051–7054. [Google Scholar] [CrossRef] [PubMed]
  6. Xia, D.; Gong, F.; Pei, X.D.; Wang, W.B.; Li, H.; Zeng, W.; Wu, M.Q.; Papavassiliou, D.V. Molybdenum and tungsten disulfides-based nanocomposite films for energy storage and conversion: A review. Chem. Eng. J. 2018, 348, 908–928. [Google Scholar] [CrossRef]
  7. Nguyen, T.P.; Sohn, W.; Oh, J.H.; Jang, H.W.; Kim, S.Y. Size-dependent properties of two-dimensional MoS2 and WS2. J. Phys. Chem. C 2016, 120, 10078–10085. [Google Scholar] [CrossRef]
  8. Rao, C.N.R.; Gopalakrishnan, K.; Maitra, U. Comparative study of potential applications of graphene, MoS2, and other two-dimensional materials in energy devices, sensors, and related areas. ACS Appl. Mater. Interfaces 2015, 7, 7809–7832. [Google Scholar] [CrossRef] [PubMed]
  9. Huang, Y.X.; Guo, J.H.; Kang, Y.J.; Ai, Y.; Li, C.M. Two dimensional atomically thin MoS2 nanosheets and their sensing applications. Nanoscale 2015, 7, 19358–19376. [Google Scholar] [CrossRef] [PubMed]
  10. Xia, S.S.; Wang, Y.R.; Liu, Y.; Wu, C.H.; Wu, M.H.; Zhang, H.J. Ultrathin MoS2 nanosheets tightly anchoring onto nitrogen-doped graphene for enhanced lithium storage properties. Chem. Eng. J. 2018, 332, 431–439. [Google Scholar] [CrossRef]
  11. Jayabal, S.; Saranya, G.; Wu, J.; Liu, Y.Q.; Geng, D.S.; Meng, X.B. Understanding the high-electrocatalytic performance of two-dimensional MoS2 nanosheets and their composite materials. J. Mater. Chem. A 2017, 5, 24540–24563. [Google Scholar] [CrossRef]
  12. Yin, Z.; Li, H.; Li, H.; Jiang, L.; Shi, Y.; Sun, Y.; Lu, G.; Zhang, Q.; Chen, X.; Zhang, H. Single-layer MoS2 phototransistors. ACS Nano 2011, 6, 74–80. [Google Scholar] [CrossRef] [PubMed]
  13. Cunningham, G.; Lotya, M.; Cucinotta, C.S.; Sanvito, S.; Bergin, S.D.; Menzel, R.; Shaffer, M.S.P.; Coleman, J.N. Solvent exfoliation of transition metal dichalcogenides: dispersibility of exfoliated nanosheets varies only weakly between compounds. ACS Nano 2012, 6, 3468–3480. [Google Scholar] [CrossRef] [PubMed]
  14. Coleman, J.N.; Lotya, M.; O’Neill, A.; Bergin, S.D.; King, P.J.; Khan, U.; Young, K.; Gaucher, A.; De, S.; Smith, R.J.; et al. Two-dimensional nanosheets produced by liquid exfoliation of layered Materials. Science 2011, 331, 568–571. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, Y.; He, X.; Hanlon, D.; Harvey, A.; Coleman, J.N.; Li, Y. Liquid phase exfoliated MoS2 nanosheets percolated with carbon nanotubes for high volumetric/areal capacity sodium-ion batteries. ACS Nano 2016, 10, 8821–8828. [Google Scholar] [CrossRef] [PubMed]
  16. Zeng, Z.; Sun, T.; Zhu, J.; Huang, X.; Yin, Z.; Lu, G.; Fan, Z.; Yan, Q.; Hng, H.H.; Zhang, H. An effective method for the fabrication of few-layer-thick inorganic nanosheets. Angew. Chem. Int. Ed. 2012, 51, 9052–9056. [Google Scholar] [CrossRef] [PubMed]
  17. Paredes, J.I.; Munuera, J.M.; Villar-Rodil, S.; Guardia, L.; Ayán-Varela, M.; Pagán, A.; Aznar-Cervantes, S.D.; Cenis, J.L.; Martínez-Alonso, A.; Tascon, J.M. Impact of covalent functionalization on the aqueous processability, Catalytic Activity, and Biocompatibility of Chemically Exfoliated MoS2 Nanosheets. ACS Appl. Mater. Interfaces 2016, 8, 27974–27986. [Google Scholar] [CrossRef] [PubMed]
  18. Lee, Y.H.; Zhang, X.Q.; Zhang, W.; Chang, M.T.; Lin, C.T.; Chang, K.D.; Yu, Y.C.; Wang, J.T.W.; Chang, C.S.; Li, L.J.; et al. Synthesis of large-area MoS2 atomic layers with chemical vapor deposition. Adv. Mater. 2012, 24, 2320–2325. [Google Scholar] [CrossRef] [PubMed]
  19. Najmaei, S.; Liu, Z.; Zhou, W.; Zou, X.; Shi, G.; Lei, S.; Yakobson, B.I.; Idrobo, J.C.; Ajayan, P.M.; Lou, J. Vapour phase growth and grain boundary structure of molybdenum disulphide atomic layers. Nat. Mater. 2013, 12, 754–759. [Google Scholar] [CrossRef] [PubMed][Green Version]
  20. Halim, U.; Zheng, C.R.; Chen, Y.; Lin, Z.; Jiang, S.; Cheng, R.; Huang, Y.; Duan, X. A rational design of cosolvent exfoliation of layered materials by directly probing liquid-solid interaction. Nat. Commun. 2013, 4, 3213–3219. [Google Scholar] [CrossRef] [PubMed]
  21. Carey, B.J.; Daeneke, T.; Nguyen, E.P.; Wang, Y.; Ou, J.Z.; Zhuiykov, S.; Kalantar-zadeh, K. Two solvent grinding sonication method for the synthesis of two-dimensional tungsten disulphide flakes. Chem. Commun. 2015, 51, 3770–3773. [Google Scholar] [CrossRef] [PubMed]
  22. Shen, J.F.; Wu, J.J.; Wang, M.; Dong, P.; Xu, J.X.; Li, X.G.; Zhang, X.; Yuan, J.H.; Wang, X.F.; Ye, M.X.; et al. Surface tension components based selection of cosolvents for efficient liquid phase exfoliation of 2D materials. Small 2016, 12, 2741–2749. [Google Scholar] [CrossRef] [PubMed]
  23. Zhou, K.G.; Mao, N.N.; Wang, H.X.; Peng, Y.; Zhang, H.L. A mixed-solvent strategy for efficient exfoliation of inorganic graphene analogues. Angew. Chem. Int. Ed. 2011, 50, 10839–10842. [Google Scholar] [CrossRef] [PubMed]
  24. Nguyen, E.P.; Carey, B.J.; Daeneke, T.; Ou, J.Z.; Latham, K.; Zhuiykov, S.; Kalantar-zadeh, K. Investigation of two-solvent grinding-assisted liquid phase exfoliation of layered MoS2. Chem. Mater. 2015, 27, 53–59. [Google Scholar] [CrossRef]
  25. Arrigo, R.; Teresi, R.; Gambarotti, C.; Parisi, F.; Lazzara, G.; Dintcheva, N.T. Sonication-induced modification of carbon nanotubes: effect on the rheological and thermo-oxidative behaviour of polymer-based nanocomposites. Materials 2018, 11, 383. [Google Scholar] [CrossRef] [PubMed]
  26. Peng, J.; Wu, J.J.; Li, X.T.; Zhou, Y.; Yu, Z.; Guo, Y.Q.; Wu, J.C.; Lin, Y.; Li, Z.J.; Wu, X.J.; et al. Very large-sized transition metal dichalcogenides monolayers from fast exfoliation by manual shaking. J. Am. Chem. Soc. 2017, 139, 9019–9025. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, Y.; Carey, B.J.; Zhang, W.; Chrimes, A.F.; Chen, L.; Kalantar-zadeh, K.; Ou, J.Z.; Daenekem, T. Intercalated 2D MoS2 utilizing a simulated sun assisted process: reducing the HER overpotential. J. Phys. Chem. C 2016, 120, 2447–2455. [Google Scholar] [CrossRef]
  28. Mohiuddin, M.; Wang, Y.; Zavabeti, A.; Syed, N.; Datta, R.S.; Ahmed, H.; Daeneke, T.; Russo, S.P.; Rezk, A.R.; Yeo, L.Y.; et al. Liquid phase acoustic wave exfoliation of layered MoS2: critical impact of electric field in efficiency. Chem. Mater. 2018, 30, 5593–5601. [Google Scholar] [CrossRef]
  29. Savjani, N.; Lewis, E.A.; Pattrick, R.A.D.; Haigh, S.J.; O'Brien, P. MoS2 nanosheet production by the direct exfoliation of molybdenite minerals from several type-localities. RSC Advances 2014, 4, 35609–35613. [Google Scholar] [CrossRef]
  30. Dong, H.N.; Chen, D.L.; Wang, K.; Zhang, R. High-yield preparation and electrochemical properties of few-Layer MoS2 nanosheets by exfoliating natural molybdenite powders directly via a coupled ultrasonication-milling process, Nanoscale Res. Lett. 2016, 11, 409. [Google Scholar] [CrossRef] [PubMed]
  31. Wang, T.; Liu, L.; Zhu, Z.; Papakonstantinou, P.; Hu, J.; Liu, H.; Li, M. Enhanced electrocatalytic activity for hydrogen evolution reaction from self-assembled monodispersed molybdenum sulfide nanoparticles on an Au electrode. Energy Environ. Sci. 2013, 6, 625–633. [Google Scholar] [CrossRef]
  32. Chikan, V.; Kelley, D.F. Size-dependent spectroscopy of MoS2 nanoclusters. J. Phys. Chem. B 2002, 106, 3794–3804. [Google Scholar] [CrossRef]
  33. Wilcoxon, J.P.; Newcomer, P.P.; Samara, G.A. Synthesis and optical properties of MoS2 and isomorphous nanoclusters in the quantum confinement regime. J. Appl. Phys. 1997, 81, 7934–7944. [Google Scholar] [CrossRef]
  34. Wilson, J.A.; Yoffe, A.D. The transition metal dichalcogenides discussion and interpretation of the observed optical, electrical and structural properties. Adv. Phys. 1969, 18, 193–335. [Google Scholar] [CrossRef]
  35. Wilcoxon, J.P.; Samara, G.A. Strong quantum-size effects in a layered semiconductor: MoS2 nanoclusters. Phys. Rev. B 1995, 51, 7299–7302. [Google Scholar] [CrossRef]
  36. Smith, R.J.; King, P.J.; Lotya, M.; Wirtz, C.; Khan, U.; De, S.; O’Neill, A.; Duesberg, G.S.; Grunlan, J.C.; Moriarty, G.; et al. Large-scale exfoliation of inorganic layered compounds in aqueous surfactant solutions. Adv. Mater. 2011, 23, 3944–3948. [Google Scholar] [CrossRef] [PubMed]
  37. Li, H.; Zhang, Q.; Yap, C.C.R.; Tay, B.K.; Edwin, T.H.T.; Olivier, A.; Baillargeat, D. From bulk to monolayer MoS2: evolution of Raman scattering. Adv. Funct. Mater. 2012, 22, 1385–1390. [Google Scholar] [CrossRef]
  38. Li, S.L.; Miyazaki, H.; Song, H.; Kuramochi, H.; Nakaharai, S.; Tsukagoshi, K. Quantitative Raman spectrum and reliable thickness identification for atomic layers on insulating substrates. ACS Nano 2012, 6, 7381–7388. [Google Scholar] [CrossRef] [PubMed]
  39. Yao, Y.G.; Lin, Z.Y.; Li, Z.; Song, X.J.; Moona, K.S.; Wong, C.P. Large-scale production of two-dimensional nanosheets. J. Mater. Chem. 2012, 22, 13494–13499. [Google Scholar] [CrossRef]
  40. Gopalakrishnan, D.; Damien, D.; Shaijumon, M.M. MoS2 quantum dot-interspersed exfoliated MoS2 Nanosheets. ACS Nano 2014, 8, 5297–5303. [Google Scholar] [CrossRef] [PubMed]
  41. Shen, J.; He, Y.; Wu, J.; Gao, C.; Keyshar, K.; Zhang, X.; Yang, Y.; Ye, M.; Vajtai, R.; Lou, J.; et al. Liquid phase exfoliation of two-dimensional materials by directly probing and matching surface tension components. Nano Lett. 2015, 15, 5449–5454. [Google Scholar] [CrossRef] [PubMed]
  42. Nicolosi, V.; Chhowalla, M.; Kanatzidis, M.G.; Strano, M.S.; Coleman, J.N. Liquid exfoliation of layered materials. Science 2013, 340, 1421–1439. [Google Scholar] [CrossRef]
  43. Splendiani, A.; Sun, L.; Zhang, Y.B.; Li, T.S.; Kim, J.; Chim, C.Y.; Galli, G.; Wang, F. Emerging photoluminescence in Monolayer MoS2. Nano Lett. 2010, 10, 1271–1275. [Google Scholar] [CrossRef] [PubMed]
  44. Chen, Z.; Forman, A.J.; Jaramillo, T.F. Bridging the gap between bulk and nanostructured photoelectrodes: the impact of surface states on the electrocatalytic and photoelectrochemical properties of MoS2. J. Phys. Chem.C 2013, 117, 9713–9722. [Google Scholar] [CrossRef]

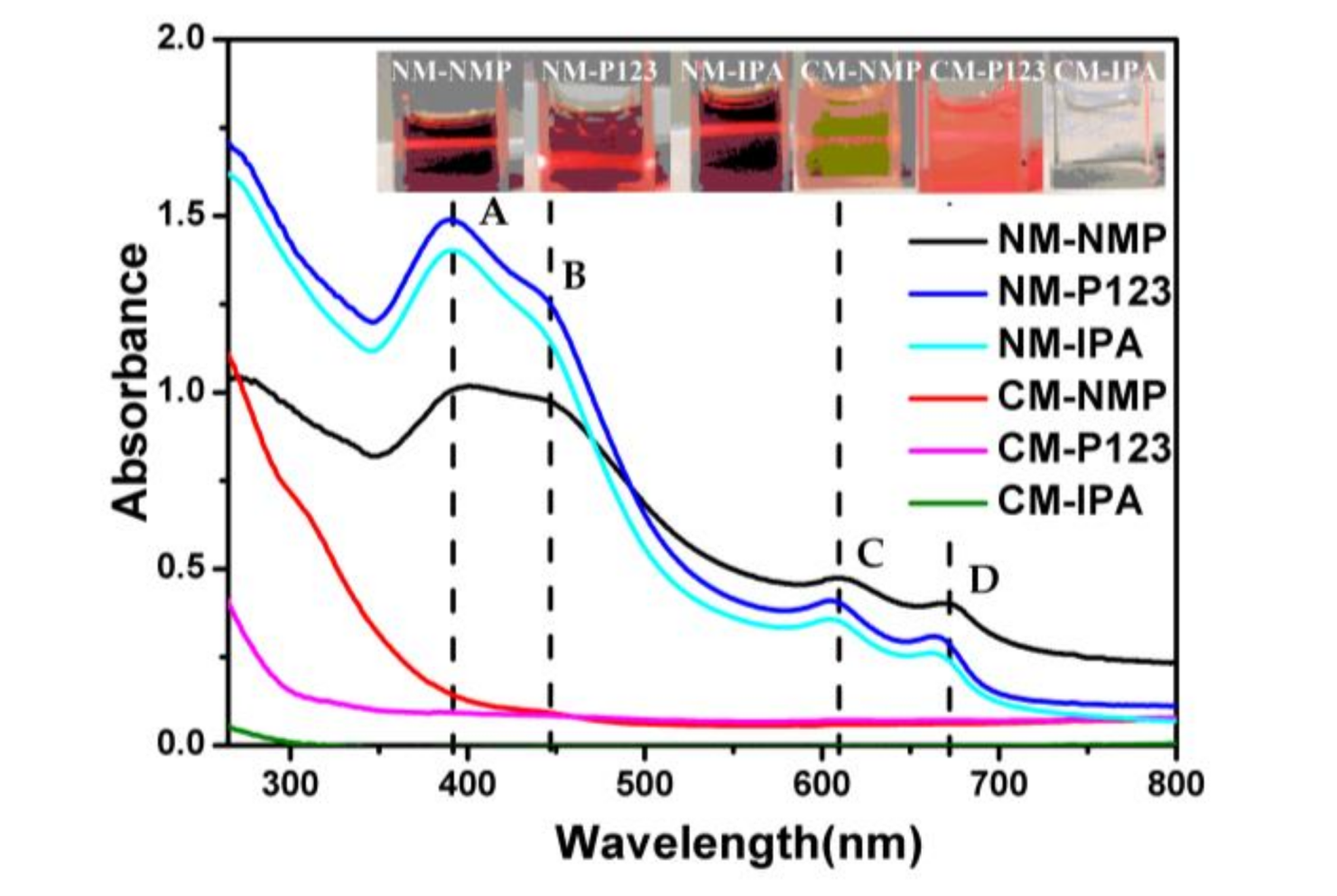

Figure 1. Ultraviolet-visible absorption spectra of products exfoliated in various solvents from natural molybdenite (NM) and commercial MoS2 (CM). The Photographs of different products with a red laser crossed through is shown in the inset.
Figure 1. Ultraviolet-visible absorption spectra of products exfoliated in various solvents from natural molybdenite (NM) and commercial MoS2 (CM). The Photographs of different products with a red laser crossed through is shown in the inset.
Nanomaterials 08 00843 g001

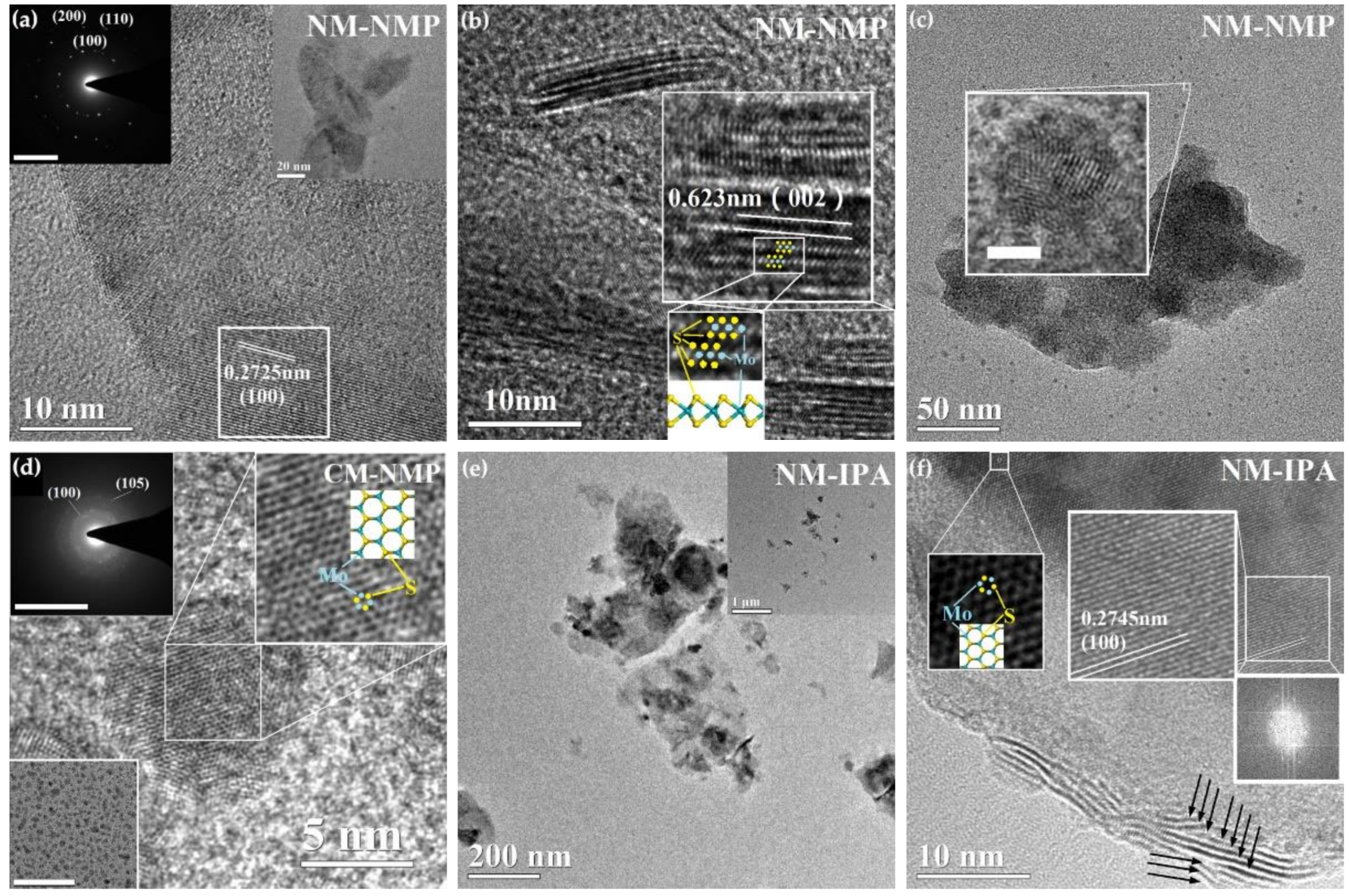

Figure 2. The high-resolution transmission electron microscopy (HRTEM) images of products exfoliated in N-methyl-pyrrolidone (NMP) from NM (a, b, c), CM (d), and products exfoliated in isopropanol (IPA) from NM (e, f). Insets in (a): a selected area electron diffraction (SAED) pattern, scale bar = 5 nm-1, a low resolution image, scale bar = 20 nm; insets in (b, f): magnification of the selected area and schematic diagram of atomic arrangement; inset in (c): a quantum dot image, scale bar =2 nm; insets in (d): a SAED pattern, scale bar = 10 nm-1, a low resolution image, scale bar = 50 nm, magnification of the selected area and schematic diagram of atomic arrangement; inset in (e): a low resolution image, scale bar = 1 µm.
Figure 2. The high-resolution transmission electron microscopy (HRTEM) images of products exfoliated in N-methyl-pyrrolidone (NMP) from NM (a, b, c), CM (d), and products exfoliated in isopropanol (IPA) from NM (e, f). Insets in (a): a selected area electron diffraction (SAED) pattern, scale bar = 5 nm-1, a low resolution image, scale bar = 20 nm; insets in (b, f): magnification of the selected area and schematic diagram of atomic arrangement; inset in (c): a quantum dot image, scale bar =2 nm; insets in (d): a SAED pattern, scale bar = 10 nm-1, a low resolution image, scale bar = 50 nm, magnification of the selected area and schematic diagram of atomic arrangement; inset in (e): a low resolution image, scale bar = 1 µm.
Nanomaterials 08 00843 g002

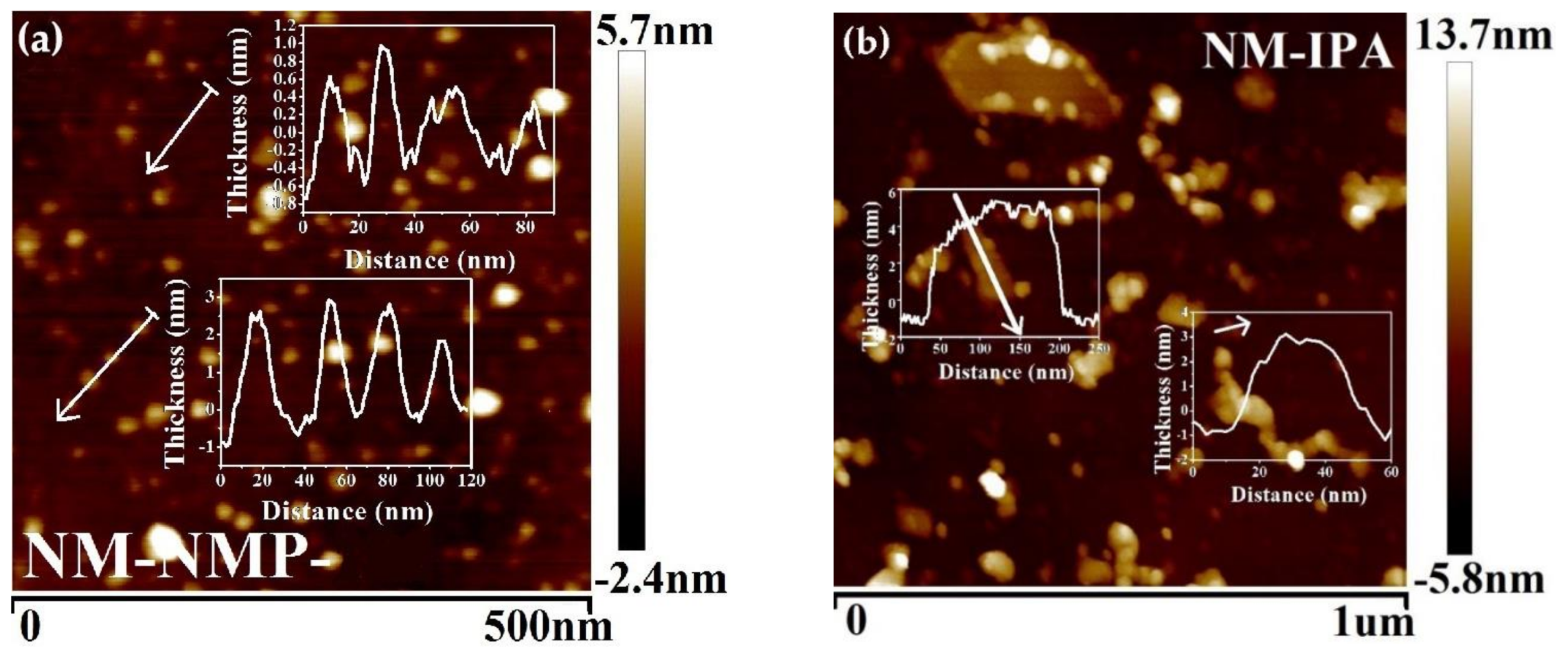

Figure 3. Atomic force microscopy (AFM) images of products exfoliated from NM in NMP (a) and in IPA (b). The insets show the height profiles along with the arrows. AFM images and height profile confirming the thickness of <6 nm.
Figure 3. Atomic force microscopy (AFM) images of products exfoliated from NM in NMP (a) and in IPA (b). The insets show the height profiles along with the arrows. AFM images and height profile confirming the thickness of <6 nm.
Nanomaterials 08 00843 g003

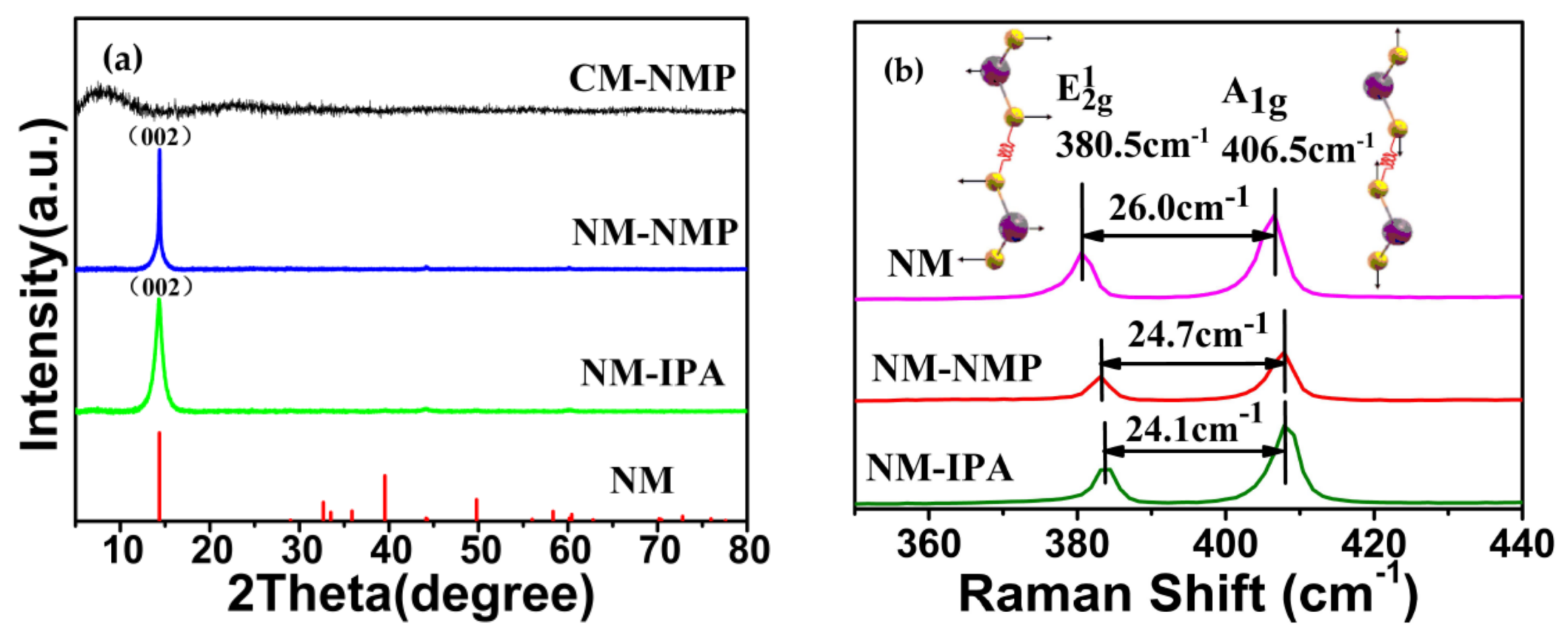

Figure 4. (a) X-ray diffraction (XRD) patterns of NM-NMP, NM-IPA, CM-NMP and bulk NM. (b) Raman spectra of bulk NM, NM-NMP and NM-IPA.
Figure 4. (a) X-ray diffraction (XRD) patterns of NM-NMP, NM-IPA, CM-NMP and bulk NM. (b) Raman spectra of bulk NM, NM-NMP and NM-IPA.
Nanomaterials 08 00843 g004

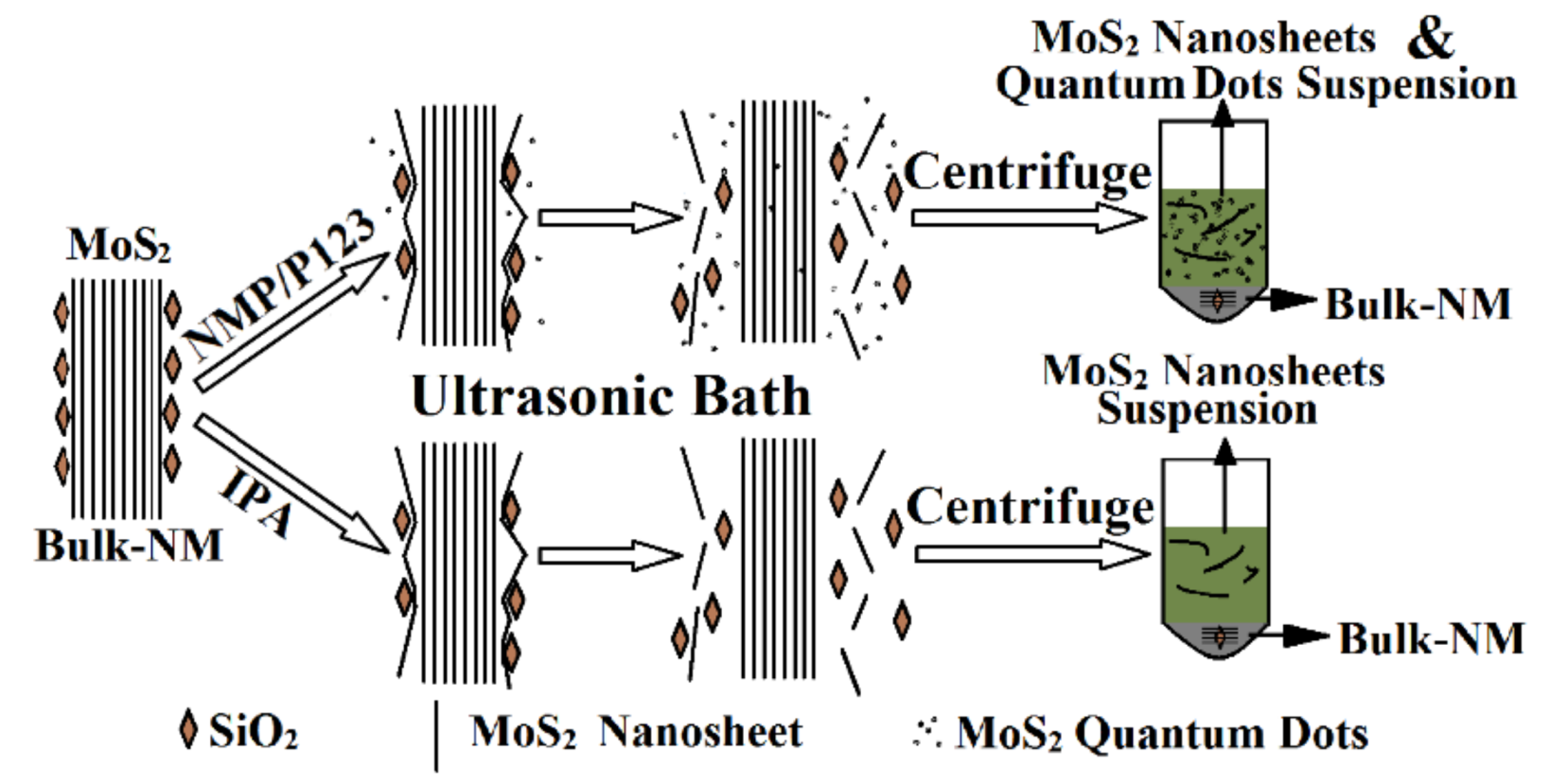

Scheme 1. Exfoliation mechanism of natural SiO2-associated molybdenite in IPA, NMP, and P123 aqueous solution, under mild ultrasonic condition.
Scheme 1. Exfoliation mechanism of natural SiO2-associated molybdenite in IPA, NMP, and P123 aqueous solution, under mild ultrasonic condition.
Nanomaterials 08 00843 sch001

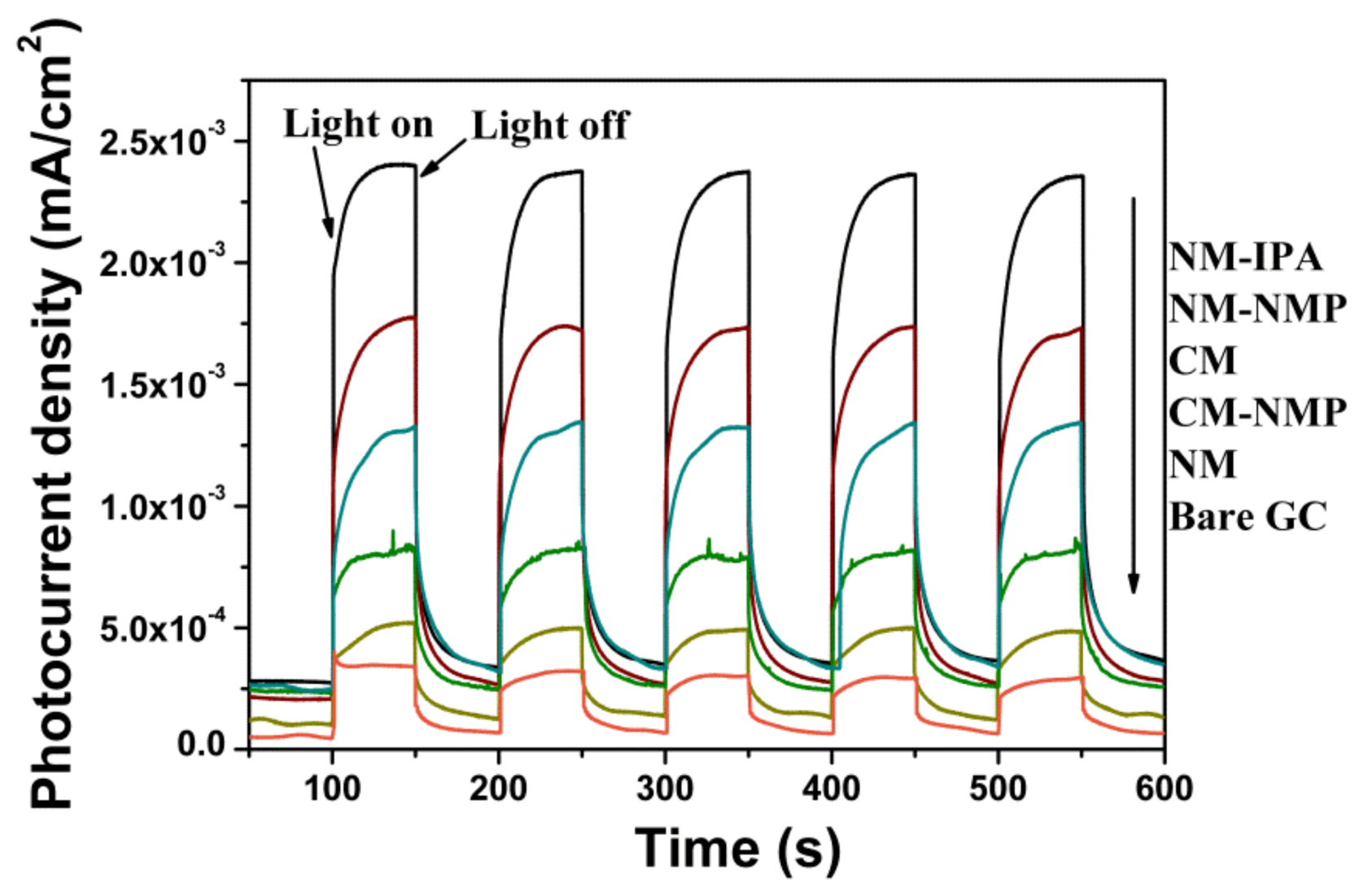

Figure 5. The transient on/off photocurrent responses vs. time plotted for NM-IPA, NM-NMP, CM-NMP, NM, CM, and bare GC in 0.01 M Na2SO4 solution under visible-light.
Figure 5. The transient on/off photocurrent responses vs. time plotted for NM-IPA, NM-NMP, CM-NMP, NM, CM, and bare GC in 0.01 M Na2SO4 solution under visible-light.
Nanomaterials 08 00843 g005
Table 1. The concentrations and morphologies of MoS2 exfoliated.
Table 1. The concentrations and morphologies of MoS2 exfoliated.
NM-NMPNM-P123NM-IPACM-NMPCM-P123CM-IPA
Concentration of MoS2 (mg/L)4855962522394851
Morphology of MoS2Nanosheets & quantum dotsNanosheets & quantum dotsNanosheetsquantum dotsNanosheets & quantum dots1
1 No detection.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
