Preparation of Ce- and La-Doped Li4Ti5O12 Nanosheets and Their Electrochemical Performance in Li Half Cell and Li4Ti5O12/LiFePO4 Full Cell Batteries

by 1, 1,3,* and 2,*
State Key Laboratory of Metastable Materials Science and Technology, College of Materials Science and Engineering, Yanshan University, Qinhuangdao 066004, China
Key Laboratory of Photochemical Conversion and Optoelectronic Materials and HKU-CAS Joint Laboratory on New Materials, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China
Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Nankai University, Tianjin 300071, China
Authors to whom correspondence should be addressed.
Nanomaterials 2017, 7(6), 150;
Received: 17 May 2017 / Revised: 8 June 2017 / Accepted: 16 June 2017 / Published: 20 June 2017
(This article belongs to the Special Issue New Developments in Nanomaterials for Energy Storage and Conversions)


This work reports on the synthesis of rare earth-doped Li4Ti5O12 nanosheets with high electrochemical performance as anode material both in Li half and Li4Ti5O12/LiFePO4 full cell batteries. Through the combination of decreasing the particle size and doping by rare earth atoms (Ce and La), Ce and La doped Li4Ti5O12 nanosheets show the excellent electrochemical performance in terms of high specific capacity, good cycling stability and excellent rate performance in half cells. Notably, the Ce-doped Li4Ti5O12 shows good electrochemical performance as anode in a full cell which LiFePO4 was used as cathode. The superior electrochemical performance can be attributed to doping as well as the nanosized particle, which facilitates transportation of the lithium ion and electron transportation. This research shows that the rare earth doped Li4Ti5O12 nanosheets can be suitable as a high rate performance anode material in lithium-ion batteries.

1. Introduction

With the development of electric vehicles (EV), it is urgent to develop reliable batteries with high electrochemical performance and high safety, considering that commercial LiCoO2-graphite batteries have potential dangers due to the use of a graphite anode [1]. Thus, it is very important to develop reliable anode materials with high safety as well as high electrochemical performance.
Spinel Li4Ti5O12 (LTO) as a zero strain material has been regarded as an alternative anode material in Li-ion batteries (LIB)s with ideal safety performance. It features a flat high operation plateau potential (about 1.55 V versus lithium) [2,3], helping to prevent the formation of Li metal at low potential [4,5].
The key issue for Li4Ti5O12 is its poor intrinsic electronic conductivity (~10−13–10−14 S·cm−1) and low Li+ diffusion kinetics, which can restrict rate performance when LTO is applied in EV [2]. So far, a lot of strategies have been proposed to enhance the electronic conductivity and/or Li+ diffusion kinetics of LTO, including reducing the particle size [2,6,7,8,9,10,11,12,13,14], heteroatom doping, and coating with highly conductive additive [15,16,17,18]. The introduction of carbon materials can improve electron transfer on the surface of LTO, while lowering volumetric energy density [19,20,21,22,23]. Furthermore, the intrinsic electronic and ionic conductivities of LTO are not enhanced through conductive additive coating. Heteroatom doping of electrode materials has been provided a valid way for enhancing its intrinsic electronic and ionic conductivity according to previous reports [24,25,26,27]. For example, rare earth doping of Ce is able to improve cycling performance as well as rate performance due to the special electronic structure (a half full 4f electron shell) for of the rare earth metal [28,29,30]. It is reported that spherical La-doped LTO prepared by solid state synthesis displays good cycling performance compared to un-doped LTO; however, the rate performance can be further improved.
High performance LTO must be developed to fulfill the ever-increasing requirement for batteries used in electric vehicles. Unsatisfactory rate performance is related to the large particle size of LTO (often larger than 1 mm) formed by solid-state synthesis and its poor intrinsic ionic conductivity [30,31,32,33,34,35].
In this report, we designed a route to prepare LTO by a combination of rare-earth doping and decreasing the particle size by synthesis of nanosheets. On one hand, the doping can enhance the intrinsic conductivity of LTO. On the other hand, doped LTO with nanosized particles help to decrease the diffusion path for electrons and Li ions. The Ce-doped LTO nanosheets were prepared by solvothermal synthesis followed by heat-treatment; La-doped LTO was also prepared for comparison. Electrochemical tests showed that the Ce- and La-doped LTO exhibited superior electrochemical performance as an anode in Li half cells and LTO/LiFePO4 (LFP) full cells.

2. Results and Discussion

Figure 1 presents the X-ray diffraction (XRD) patterns of pure LTO, La-doped LTO and Ce-doped LTO. For all three samples, the sharp and strong peaks were readily indexed into cubic spinel Li4Ti5O12 (JCPDS No. 72-426). The weight ratio of LTO in both samples was calculated to be ~95% according to Maud software [36]. The small peaks at 28 and 33° were related to minor CeO2. It can be observed that the (111) peak shifted to the left, which indicated the doping of La and Ce to LTO.
It can be seen that the diffraction angle (111) decreased after Ce and La doping (inset of Figure 1), which indicated that the lattice parameters and lattice volume increased after doping. As is known, the radius of Ti4+ was smaller than those of La3+ and Ce4+; thus the introduction of La and Ce ions led to lattice volume expansion, suggesting the doping of La and Ce ions. The formula of Ce-LTO can be written as Li4Ti5−xCexO12. The cell parameter a for Ce- and La-doped LTO was almost the same (about 8.40 Å), while that of undoped LTO was only about 8.33 Å.
Figure 2A,B shows images of undoped LTO and Ce-doped LTO. As shown in Figure 2A, undoped LTO was composed of plenty of nanoparticles with various shapes. As shown in Figure 2B, the Ce-doped LTO showed a similar morphology while the particle size was within ~40 to 200 nm, a little smaller compared to that of the pure LTO (~50 to 250 nm). The morphology for La-doped LTO was similar to that of Ce-doped one.
Transmission electron microscopy (TEM) was also used to further characterize the morphology of the Ce-doped LTO. Figure 3A discloses that the Ce doped LTO particles were composed of nanosheets with various shapes like rod and square, and the structure was very thin. The selected-area electron diffraction (SAED) pattern inset of Figure 3A displays the typical diffraction spots, indicating the single crystalline nature of cubic spinel phase in good agreement with the XRD results. The spaces of the perpendicular lattices for the Ce doped LTO derived from the high resolution (HR)TEM image were ~0.42 and 0.48 nm respectively, corresponding to the d-spacing of (002) and (111) planes of Li4Ti5O12.
Figure 4 shows the X-ray photoelectron spectroscopy (XPS) spectrum of the Ce-doped LTO nanosheet. According to the survey spectrum (Figure 4A), the peaks assigned to Li, Ti, and O were observed in the as-prepared Ce-doped LTO.
Figure 4B shows the high-resolution XPS spectrum of Ti 2p. Two remarkable peaks were located at about 458.5 and 464.6 eV, corresponding to Ti 2p3/2 and Ti 2p1/2 of Ti4+, respectively. The O 1s spectrum of Ce-doped LTO is shown in Figure 4C. Figure 4C represents the high resolution spectrum of Ce. The peaks located at 916.3, 900.2, 897.6, 887.6 and 881.8 eV were attributed to the Ce4+ oxidation state, while those at 903.6, 887.6 eV corresponded to the Ce3+ oxidation state. The result indicates that both Ce3+ and Ce4+ species exist in Ce-doped LTO [37]. The dopants content of Ce element in doped LTO was less than 1% (atomic ratio) on the basis of the XPS result. The peak at 529.6 eV corresponded to the Ti–O bond in LTO, while the peak at 531.5 eV was assigned to OH.
Figure 5 presents the charge/discharge profiles of undoped LTO, Ce-doped LTO and La-doped LTO from 0.2 to 20 Ag−1. As shown in the Figure 5A–C, the typical flat discharge plateaued at ~1.55 V and was clearly observed at lower rates for these samples.
The pure LTO provided a specific capacity of ~159.7 mAh·g−1 at the current density of 0.2 Ag−1 for the initial discharge, while the doped LTO delivered a slightly higher value at the same rate. Even at higher rates, the electrodes had flat discharge plateaus. As shown in Figure 5D, both the La-doped LTO and Ce-doped electrodes delivered much higher capacity than undoped LTO, especially at higher rates, indicating a much improved rate performance after doping. For example, Ce-doped LTO and La-doped electrodes delivered a specific capacity as high as 123 and 113 mAh·g−1 at a current density of 20 Ag−1, respectively. As shown in Table 1, although the specific capacities at lower rates showed no obvious advantages over the other LTO electrodes reported previously, the discharge capacity at high rates showed obvious advantages (~147, 137 and 123 mAh·g−1 at 5, 10 and at 20 Ag−1 for Ce-doped LTO, respectively) over most previous reports on LTO based electrodes.
The cycling performance of Ce-doped and La-doped LTO electrodes at a high current density of 5 Ag−1 were studied for as many as 1000 cycles, as shown in Figure 5E,F. The capacitance maintained 86% of its initial specific capacity at 5 Ag−1 with a Coulombic efficiency of nearly 100% for both Ce- and La-doped LTO, showing excellent cycle stability for the rare earth doped LTO electrode.
Figure 6 displays the cyclic voltammogram of the undoped LTO, Ce-doped and La-doped LTO electrodes between 1 and 3 V (vs. Li+/Li) at a varied scan rate. The cathodic peaks for all samples were related to the Li-ions interaction into Li4Ti5O12, whereas the anodic peaks corresponded to the Li-ions de-intercalation from rock salt phase Li7Ti5O12 accompanied by Ti4+/Ti3+ redox reactions which were related to the following reaction:
Li 4 Ti 5 O 12 + 3 Li + + 3 e c h a r g e / d i s c h a r g e Li 7 Ti 5 O 12
Notably, there was little change in lattice volume during the transition between the spinel to the rock-salt phase. Furthermore, both Ce- and La-doped LTO electrodes showed sharper and well-resolved peaks compared with the undoped electrodes at both low or high scan rates, indicating faster kinetics for the doped electrodes.
As shown in Figure 6D, the currents (Ip) of the cathodic peaks were observed to exhibit a linear relationship to the square root of the scanning rate (ν1/2), indicating a diffusion-controlled mechanism [43]. Obviously, the slope of cathodic peaks for the Ce-doped LTO was higher than that of the undoped one, indicating a higher diffusion coefficient for the doped samples. The Randles-Sevchik equation was used to evaluate the diffusion coefficient for the diffusion controlled reactions:
D = (Ip/2.686 × 105 n3/2 A C ν1/2)2
where D represents the diffusion coefficient, Ip is peak current, n is the charge transfer number, A is the surface area of the electrode, C is the bulk concentration of the ions in the electrode, and ν represents the scan rate. According to Equation (1), the apparent diffusion coefficient of Li ions for Ce- and La-doped LTO electrodes was calculated to be approximately 1.55 × 10−10 and 5.94 × 10−11 cm2·s−1 at 5 mV·s−1 respectively, which was considerably higher than undoped LTO (2.11 × 10−11 cm2·s−1) at the same scan rate. These results demonstrated that the rare earth doping can effectively improve the electrochemical reaction kinetics of Li+ insertion/de-intercalation.
The superior electrochemical performance for rare earth-doped LTO nanosheets can be ascribed to the following factors. One hand, the rare-earth doping is able to enhance the intrinsic conductivity of LTO due to the changing band gap [30]. Although the solid electrolyte interface (SEI) protective film does not form during the charge/discharge process due to the high operation potential of ~1.55 V, the interfacial reactions between LTO and electrolytes consume Li and O from LTO during long-term cycles, leading to the decay of the LTO electrode [44,45].
On the other hand, the nanoscale particle size for rare earth-doped LTO helps to decrease the transport distance for both Li+ and electrons, and facilitate close contact between the electrode and electrolyte, which can lower concentration polarization and improve the rate performance. For the spinel-based LTO, the diffusion rate of a Li atom across the [110] direction (or equivalent direction, such as [101], [011] and [ 1 ¯ 10] is much faster than other direction such as [010], due to the large tunnel structure in this direction, shown in Figure 7. [46] As seen from Figure 3, LTO nanosheets in as-prepared composites grow along [110], facilitating the fast diffusion of the Li ion.
Electrochemical impedance spectroscopy (EIS) was also used to further measure the electrochemical performance for these three samples. As shown in Figure 8, the typical semicircles in the middle-high frequency were observed, which presents a charge transfer resistance. The semicircle of the doped LTO electrode was much smaller than that of undoped LTO, indicating a smaller charge transfer resistance after doping.
The charge transfer resistance according to the fitting circuit (inset of Figure 8) was about 108 ohms, which was much smaller than those of undoped LTO electrodes (230 and 530 ohms, respectively.) This experiment also showed that the ionic conductivity of LTO could be enhanced by rare earth heteroatom doping.
The LTO/LiFePO4 full cell is considered to be the safest Li ion battery, due to the high plateau of LTO and the high thermal stability of LiFePO4 and LTO.
Figure 9A shows the voltage profiles of a LiFePO4/Ce-doped LTO full cell at varied current densities. A long and flat discharge plateau potential was clearly observed at about 1.4–1.8 V at different current densities, similar to a previous report by Zaghib et al. [47]. The decreased discharge plateau at high current densities can be attributed to the kinetics limited by ion diffusion within the electrolyte and the electrode/electrolyte interface.
The LiFePO4/Ce-doped LTO full cell also showed excellent rate performance, as shown in Figure 9B. The full cell was capable of delivering a specific capacity of 119 mAh·g−1 at 0.2 Ag−1, which was much higher than the recently reported value based on LTO/LFP full cells [47,48]. It can deliver a specific capacity of 88 mAh·g−1 even at 1 Ag−1. A white LED can be powered using as fabricated full cell, as shown in inset of Figure 9B.

3. Materials and Methods

3.1. Materials

All reagents were analytical-grade and used without further purification except otherwise stated.

Synthesis of Ce- and La-Doped LTO Nanosheets

Ce-doped LTO nanocomposites were prepared using a similar method to previous reports [6,30,39]. The procedure was as follows: Three milliliters of tetrabutyltitanate (Tianjin Kermel analytical reagent Co., Tianjin, China), 0.015 g of CeCl3·7H2O (Alfa-Aesar Chemicals Co., Shanghai, China), and 0.41 g of LiOH·H2O (Sinopharm Chemical Reagent Co., Shanghai, China) were mixed in 20 mL of ethanol at room temperature. Then, 25 mL of deionized water were added under stirring, and incubated for 4 h. Then, the mixture was then put into a Teflon-lined stainless autoclave and heated at 180 °C for 48 h. The white precipitate was filtered, washed with ethanol for several times and dried at 80 °C for ~12 h. Finally, the white powder was heated at 700 °C for 6 h in a tube furnace with air, to obtain the Ce-doped LTO. La-doped samples were prepared similar to the above procedure except LaCl3 (Alfa-Aesar Chemicals Co., Shanghai, China) was added in place of CeCl3. For comparison, undoped LTO was prepared similar to the above procedure, with no LaCl3 or CeCl3 added.

3.2. Characterization

X-ray diffraction (XRD) measurements of the powder samples were recorded on a D-max 2500 X-ray powder diffractometer using a graphite monochromator with Cu Kα radiation (λ = 1.5406 Å), with a scattering angles from 10° to 80° at a scanning rate of 4° min−1. Scanning electron microscopy (SEM) was performed on a Hitachi S-4800. TEM, HRTEM, and SAED were conducted on the FEI Tecnai F20 G2 S-TWIN. XPS was recorded the on ESCALAB 250XI, and the binding energy was calibrated with C1s = 284.8 eV.

3.3. Electrochemical Measurements

The electrodes were constructed by mixing the active materials (80 wt. %), Super P conductive (15 wt. %) (Sigma-Aldrich Chemicals Co., Shanghai, China) and polyvinylidene fluoride (PVDF) (Alfa-Aesar Chemicals Co., Shanghai, China) binder (5 wt. %) uniform uniformly in N-methyl pyrrolidinone (NMP) (Alfa-Aesar Chemicals Co., Shanghai, China) solvent and spreading the mixture onto Cu foil. The electrode was dried under a vacuum at 120 °C for 12 h. The mass loading for the active materials in the as-fabricated electrode was about 1mg·cm−2. The half cell was assembled inside an argon-filled glove box (Braun, H2O < 0.5 ppm and O2 < 0.5 ppm). Lithium metal foil was used as the counter and the reference electrode. A commercial (1 M) LiPF6 electrolyte was used in the cell, and commercial polypropylene (Celgard 2400) was used as the separator. The galvanostatic charge/discharge tests of the assembled cells were carried out on a Arbin battery testing unit at varied current densities between the voltage limits of 1.0 and 3.0 V (vs. Li+/Li). The theoretic capacity of LTO is 175 mAh·g−1; thus 1C was defined as 175 mA·g−1 for LTO. CV measurements were recorded between the potential range of 1.0 and 3.0 V (vs. Li+/Li) on a P4000 electrochemical workstation (Princeton Applied Research, Oak Ridge, TN, USA) at varied scanning rates. EIS was also measured by a P4000 electrochemical workstation within a frequency range of 0.1–105 Hz at the amplitude of 5 mV versus the open circuit potential.
A CR2032 coin cell was used to assemble the full cell, and the full cell was anode-limited. The commercial LiFePO4 electrode pasted onto Al foil was used as a cathode, while Ce-doped LTO pasted on Cu foil was used as an anode. The mass loading of LiFeO4 was considerably higher than that of Ce-doped LTO, and the capacity was calculated based on the mass of Ce-doped LTO. The separator and electrolyte were the same as those in the half cell. The LTO/LiFePO4 full cells were charged/discharged by a constant current method within a potential range of 1 and 3 V.

4. Conclusions

In conclusion, Ce- and La-doped LTO nanosheets were successfully prepared via a facile method. Through a combination of rare earth doping and decreasing the particle size of LTO, the as-prepared doped LTO nanosheets showed superior electrochemical performance, especially in high rate performance and cycling stability, both in Li half cells and LTO/Li4FePO4 full cells. Considering the excellent electrochemical performance, as-prepared rare earth doped sample showed a promising future in lithium ion batteries with a requirement of high safety and high rate performance. Furthermore, this method may extend to other electrode materials to modify their electrochemical performance.


This work was financially supported by NSFC (Grant No.51202212), Natural Science Foundation of Hebei province (Grant No. E2014203033) and open foundation of Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education). We also thank the financial support by the National Key Basic Research Program of China (973 Program 2013CB834804) and the Strategic Priority Research Program of the Chinese Academy of Sciences, Grant No. XDB17030300.

Author Contributions

Yueming Li conceived and designed the experiments; Meng Qin performed the experiments; Yueming Li and Meng Qin analyzed the data; Xiao-Jun Lv contributed reagents/materials/analysis tools; Yueming Li wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Aurbach, D.; Markovsky, B.; Weissman, I.; Levi, E.; Ein-Eli, Y. On the correlation between surface chemistry and performance of graphite negative electrodes for li ion batteries. Electrochim. Acta 1999, 45, 67–86. [Google Scholar] [CrossRef]
  2. Zhao, B.; Ran, R.; Liu, M.; Shao, Z. A comprehensive review of Li4Ti5O12-based electrodes for lithium-ion batteries: The latest advancements and future perspectives. Mater. Sci. Eng. R 2015, 98, 1–71. [Google Scholar] [CrossRef]
  3. Li, H.; Shen, L.; Yin, K.; Ji, J.; Wang, J.; Wang, X.; Zhang, X. Facile synthesis of n-doped carbon-coated Li4Ti5O12 microspheres using polydopamine as a carbon source for high rate lithium ion batteries. J. Mater. Chem. A 2013, 1, 7270–7276. [Google Scholar] [CrossRef]
  4. Kang, S.H.; Abraham, D.P.; Xiao, A.; Lucht, B.L. Investigating the solid electrolyte interphase using binder-free graphite electrodes. J. Power Sources 2008, 175, 526–532. [Google Scholar] [CrossRef]
  5. Lee, S.-E.; Kim, E.; Cho, J. Improvement of electrochemical properties of natural graphite anode materials with an ovoid morphology by AlPO4 coating. Electrochem. Solid-State Lett. 2007, 10, A1–A4. [Google Scholar] [CrossRef]
  6. Xu, G.B.; Li, W.; Yang, L.W.; Wei, X.L.; Ding, J.W.; Zhong, J.X.; Chu, P.K. Highly-crystalline ultrathin Li4Ti5O12 nanosheets decorated with silver nanocrystals as a high-performance anode material for lithium ion batteries. J. Power Sources 2015, 276, 247–254. [Google Scholar] [CrossRef]
  7. Chen, J.Z.; Yang, L.; Fang, S.H.; Tang, Y.F. Synthesis of sawtooth-like Li4Ti5O12 nanosheets as anode materials for li-ion batteries. Electrochim. Acta 2010, 55, 6596–6600. [Google Scholar] [CrossRef]
  8. Wang, B.F.; Wang, J.S.; Cao, J.; Ge, H.H.; Tang, Y.F. Nitrogen-doped Li4Ti5O12 nanosheets with enhanced lithium storage properties. J. Power Sources 2014, 266, 150–154. [Google Scholar] [CrossRef]
  9. Hao, X.G.; Bartlett, B.M. Li4Ti5O12 nanocrystals synthesized by carbon templating from solution precursors yield high performance thin film li-ion battery electrodes. Adv. Energy Mater. 2013, 3, 753–761. [Google Scholar] [CrossRef]
  10. Chen, S.; Xin, Y.; Zhou, Y.; Ma, Y.; Zhou, H.; Qi, L. Self-supported Li4Ti5O12 nanosheet arrays for lithium ion batteries with excellent rate capability and ultralong cycle life. Energy Environ. Sci. 2014, 7, 1924–1930. [Google Scholar] [CrossRef]
  11. Lin, C.F.; Fan, X.Y.; Xin, Y.L.; Cheng, F.Q.; Lai, M.O.; Zhou, H.H.; Lu, L. Monodispersed mesoporous Li4Ti5O12 submicrospheres as anode materials for lithium-ion batteries: Morphology and electrochemical performances. Nanoscale 2014, 6, 6651–6660. [Google Scholar] [CrossRef] [PubMed]
  12. Sha, Y.; Zhao, B.; Ran, R.; Cai, R.; Shao, Z. Synthesis of well-crystallized Li4Ti5O12 nanoplates for lithium-ion batteries with outstanding rate capability and cycling stability. J. Mater. Chem. A 2013, 1, 13233–13243. [Google Scholar] [CrossRef]
  13. Shen, L.F.; Uchaker, E.; Zhang, X.G.; Cao, G.Z. Hydrogenated Li4Ti5O12 nanowire arrays for high rate lithium ion batteries. Adv. Mater. 2012, 24, 6502–6506. [Google Scholar] [CrossRef] [PubMed]
  14. Song, K.; Seo, D.H.; Jo, M.R.; Kim, Y.I.; Kang, K.; Kang, Y.M. Tailored oxygen framework of Li4Ti5O12 nanorods for high-power li ion battery. J. Phys. Chem. Lett. 2014, 5, 1368–1373. [Google Scholar] [CrossRef] [PubMed]
  15. Ge, H.; Hao, T.T.; Osgood, H.; Zhang, B.; Chen, L.; Cui, L.X.; Song, X.M.; Ogoke, O.; Wu, G. Advanced mesoporous spinel Li4Ti5O12/RGO composites with increased surface lithium storage capability for high-power lithium-ion batteries. ACS Appl. Mater. Interfaces 2016, 8, 9162–9169. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, G.Y.; Zhang, R.X.; Bao, K.Y.; Xie, H.Q.; Zheng, S.L.; Guo, J.L.; Liu, G.Q. Synthesis of nano-Li4Ti5O12 anode material for lithium ion batteries by a biphasic interfacial reaction route. Ceram. Int. 2016, 42, 11468–11472. [Google Scholar] [CrossRef]
  17. Zhang, Q.Y.; Liu, Y.; Lu, H.S.; Tang, D.P.; Ouyang, C.Y.; Zhang, L.Z. Ce3+-doped Li4Ti5O12 with CeO2 surface modification by a sol-gel method for high-performance lithium-ion batteries. Electrochim. Acta 2016, 189, 147–157. [Google Scholar] [CrossRef]
  18. Yan, Y.; Ben, L.B.; Zhan, Y.J.; Liu, Y.Y.; Jin, Y.; Wang, S.J.; Huang, X.J. A designed core-shell structural composite of lithium terephthalate coating on Li4Ti5O12 as anode for lithium ion batteries. Prog. Nat. Sci. Mater. Int. 2016, 26, 368–374. [Google Scholar] [CrossRef]
  19. Jung, H.-G.; Kim, J.; Scrosati, B.; Sun, Y.-K. Micron-sized, carbon-coated Li4Ti5O12 as high power anode material for advanced lithium batteries. J. Power Sources 2011, 196, 7763–7766. [Google Scholar] [CrossRef]
  20. Zhao, L.; Hu, Y.-S.; Li, H.; Wang, Z.; Chen, L. Porous Li4Ti5O12 coated with n-doped carbon from ionic liquids for li-ion batteries. Adv. Mater. 2011, 23, 1385–1388. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, Y.; Liao, Y.H.; Li, W.S.; Tang, X.W.; Li, X.F. Carbon coating of Li4Ti5O12-TiO2 anode by using cetyl trimethyl ammonium bromide as dispersant and phenolic resin as carbon precursor. Ionics 2015, 21, 1539–1544. [Google Scholar] [CrossRef]
  22. Mu, D.B.; Chen, Y.J.; Wu, B.R.; Huang, R.; Jiang, Y.; Li, L.Y.; Wu, F. Nano-sized Li4Ti5O12/C anode material with ultrafast charge/discharge capability for lithium ion batteries. J. Alloys Compd. 2016, 671, 157–163. [Google Scholar] [CrossRef]
  23. Li, X.; Xu, J.; Huang, P.X.; Yang, W.; Wang, Z.Q.; Wang, M.S.; Huang, Y.; Zhou, Y.; Qu, M.Z.; Yu, Z.L.; et al. In-situ carbon coating to enhance the rate capability of the Li4Ti5O12 anode material and suppress the electrolyte reduction decomposition on the electrode. Electrochim. Acta 2016, 190, 69–75. [Google Scholar] [CrossRef]
  24. Zhang, Q.; Zhang, C.; Li, B.; Jiang, D.; Kang, S.; Li, X.; Wang, Y. Preparation and characterization of W-doped Li4Ti5O12 anode material for enhancing the high rate performance. Electrochim. Acta 2013, 107, 139–146. [Google Scholar] [CrossRef]
  25. Li, Y.; Liu, X. Activated carbon/ZnO composites prepared using hydrochars as intermediate and their electrochemical performance in supercapacitor. Mater. Chem. Phys. 2014, 148, 380–386. [Google Scholar] [CrossRef]
  26. Li, Y.; Shen, J.; Li, J.; Liu, S.; Yu, D.; Xu, R.; Fu, W.-F.; Lv, X.-J. Constructing a novel strategy for carbon-doped TiO2 multiple-phase nanocomposites toward superior electrochemical performance for lithium ion batteries and the hydrogen evolution reaction. J. Mater. Chem. A 2017, 5, 7055–7063. [Google Scholar] [CrossRef]
  27. Yi, T.-F.; Jiang, L.-J.; Shu, J.; Yue, C.-B.; Zhu, R.-S.; Qiao, H.-B. Recent development and application of Li4Ti5O12 as anode material of lithium ion battery. J. Phys. Chem. Solids 2010, 71, 1236–1242. [Google Scholar] [CrossRef]
  28. Bai, Y.-J.; Gong, C.; Qi, Y.-X.; Lun, N.; Feng, J. Excellent long-term cycling stability of La-doped Li4Ti5O12 anode material at high current rates. J. Mater. Chem. 2012, 22, 19054–19060. [Google Scholar] [CrossRef]
  29. Zhang, Q.; Verde, M.G.; Seo, J.K.; Li, X.; Meng, Y.S. Structural and electrochemical properties of Gd-doped Li4Ti5O12 as anode material with improved rate capability for lithium-ion batteries. J. Power Sources 2015, 280, 355–362. [Google Scholar] [CrossRef]
  30. Zhou, T.P.; Feng, X.Y.; Guo, X.; Wu, W.W.; Cheng, S.; Xiang, H.F. Solid-state synthesis and electrochemical performance of Ce-doped Li4Ti5O12 anode materials for lithium-ion batteries. Electrochim. Acta 2015, 174, 369–375. [Google Scholar] [CrossRef]
  31. Wang, Y.-Q.; Gu, L.; Guo, Y.-G.; Li, H.; He, X.-Q.; Tsukimoto, S.; Ikuhara, Y.; Wan, L.-J. Rutile-TiO2 nanocoating for a high-rate Li4Ti5O12 anode of a lithium-ion battery. J. Am. Chem. Soc. 2012, 134, 7874–7879. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, L.; Li, S.H.; Huang, D.K.; Shen, Y.; Wang, M.K. Porous Li4Ti5O12-TiO2 nanosheet arrays for high-performance lithium-ion batteries. J. Mater. Chem. A 2015, 3, 10107–10113. [Google Scholar] [CrossRef]
  33. Feng, J.; Wang, Y. Ce-doped Li4Ti5O12/C nanoparticles embedded in multiwalled carbon nanotube network as a high-rate and long cycle-life anode for lithium-ion batteries application. Ceram. Int. 2016, 42, 19172–19178. [Google Scholar] [CrossRef]
  34. Gao, J.; Ying, J.; Jiang, C.; Wan, C. Preparation and characterization of spherical La-doped Li4Ti5O12 anode material for lithium ion batteries. Ionics 2009, 15, 597–601. [Google Scholar] [CrossRef]
  35. Wang, D.; Zhang, C.; Zhang, Y.; Wang, J.; He, D. Synthesis and electrochemical properties of La-doped Li4Ti5O12 as anode material for li-ion battery. Ceram. Int. 2013, 39, 5145–5149. [Google Scholar] [CrossRef]
  36. Lutterotti, L.; Scardi, P. Simultaneous structure and size-strain refinement by the rietveld method. J. Appl. Crystallogr. 1990, 23, 246–252. [Google Scholar] [CrossRef]
  37. Larachi, F.C.; Pierre, J.; Adnot, A.; Bernis, A. Ce 3d xps study of composite cexmn1-xo2-y wet oxidation catalysts. Appl. Surf. Sci. 2002, 195, 236–250. [Google Scholar] [CrossRef]
  38. Liu, J.; Song, K.; van Aken, P.A.; Maier, J.; Yu, Y. Self-supported Li4Ti5O12-C nanotube arrays as high-rate and long-life anode materials for flexible li-ion batteries. Nano Lett. 2014, 14, 2597–2603. [Google Scholar] [CrossRef] [PubMed]
  39. Li, B.; Han, C.; He, Y.-B.; Yang, C.; Du, H.; Yang, Q.-H.; Kang, F. Facile synthesis of Li4Ti5O12/C composite with super rate performance. Energy Environ. Sci. 2012, 5, 9595–9602. [Google Scholar] [CrossRef]
  40. Song, H.; Yun, S.-W.; Chun, H.-H.; Kim, M.-G.; Chung, K.Y.; Kim, H.S.; Cho, B.-W.; Kim, Y.-T. Anomalous decrease in structural disorder due to charge redistribution in Cr-doped Li4Ti5O12 negative-electrode materials for high-rate li-ion batteries. Energy Environ. Sci. 2012, 5, 9903–9913. [Google Scholar] [CrossRef]
  41. Shen, L.; Zhang, X.; Uchaker, E.; Yuan, C.; Cao, G. Li4Ti5O12 nanoparticles embedded in a mesoporous carbon matrix as a superior anode material for high rate lithium ion batteries. Adv. Energy Mater. 2012, 2, 691–698. [Google Scholar] [CrossRef]
  42. Li, Y.; Wang, Z.; Zhao, D.; Zhang, L. Gd doped single-crystalline Li4Ti5O12/TiO2 nanosheets composites as superior anode material in lithium ion batteries. Electrochim. Acta 2015, 182, 368–375. [Google Scholar] [CrossRef]
  43. Yang, Y.; Qiao, B.; Yang, X.; Fang, L.; Pan, C.; Song, W.; Hou, H.; Ji, X. Lithium titanate tailored by cathodically induced graphene for an ultrafast lithium ion battery. Adv. Funct. Mater. 2014, 24, 4349–4356. [Google Scholar] [CrossRef]
  44. He, Y.-B.; Li, B.; Liu, M.; Zhang, C.; Lv, W.; Yang, C.; Li, J.; Du, H.; Zhang, B.; Yang, Q.-H.; et al. Gassing in Li4Ti5O12-based batteries and its remedy. Sci. Rep. 2012, 2, 913. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, Y.; Zhou, A.; Dai, X.; Feng, L.; Li, J.; Li, J. Solid-state synthesis of submicron-sized Li4Ti5O12/Li2TiO3 composites with rich grain boundaries for lithium ion batteries. J. Power Sources 2014, 266, 114–120. [Google Scholar] [CrossRef]
  46. Tanaka, S.; Kitta, M.; Tamura, T.; Maeda, Y.; Akita, T.; Kohyama, M. Atomic and electronic structures of Li4Ti5O12/Li7Ti5O12 (001) interfaces by first-principles calculations. J. Mater. Sci. 2014, 49, 4032–4037. [Google Scholar] [CrossRef]
  47. Zaghib, K.; Dontigny, M.; Guerfi, A.; Trottier, J.; Hamel-Paquet, J.; Gariepy, V.; Galoutov, K.; Hovington, P.; Mauger, A.; Groult, H.; et al. An improved high-power battery with increased thermal operating range: C-LiFePO4//C-LiFePO4. J. Power Sources 2012, 216, 192–200. [Google Scholar] [CrossRef]
  48. Wang, P.; Zhang, G.; Cheng, J.; You, Y.; Li, Y.-K.; Ding, C.; Gu, J.-J.; Zheng, X.-S.; Zhang, C.-F.; Cao, F.-F. Facile synthesis of carbon-coated spinel Li4Ti5O12/rutile-TiO2 composites as an improved anode material in full lithium-ion batteries with LiFePO4@N-doped carbon cathode. ACS Appl. Mater. Interfaces 2017, 9, 6138–6143. [Google Scholar] [CrossRef] [PubMed]

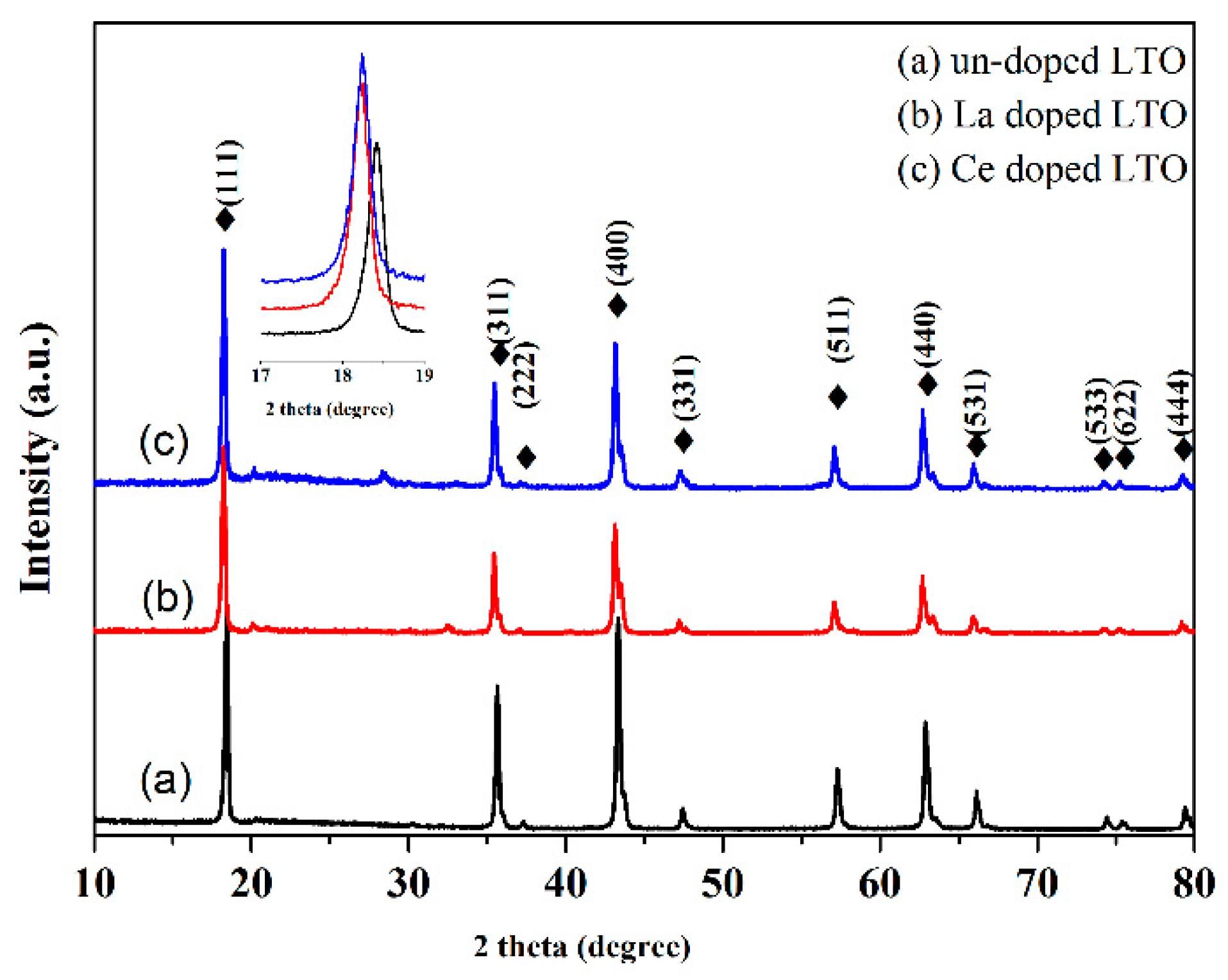

Figure 1. X-ray diffraction (XRD) patterns of pure Li4Ti5O12 (LTO), undoped LTO (a), La-doped LTO (b) and Ce-doped LTO (c).
Figure 1. X-ray diffraction (XRD) patterns of pure Li4Ti5O12 (LTO), undoped LTO (a), La-doped LTO (b) and Ce-doped LTO (c).
Nanomaterials 07 00150 g001
Figure 2. Scanning electron microscopy (SEM) images of undoped LTO (A) and Ce-doped LTO (B).
Figure 2. Scanning electron microscopy (SEM) images of undoped LTO (A) and Ce-doped LTO (B).
Nanomaterials 07 00150 g002
Figure 3. TEM image (A) and high resolution (HR)TEM image (B) of Ce-doped LTO [inset of A, the corresponding selected area electronic diffraction (SAED) pattern].
Figure 3. TEM image (A) and high resolution (HR)TEM image (B) of Ce-doped LTO [inset of A, the corresponding selected area electronic diffraction (SAED) pattern].
Nanomaterials 07 00150 g003
Figure 4. X-ray photoelectron spectroscopy (XPS) survey of Ce-doped LTO (A), Ti 2p (B), Ce 3d (C) and O 1s (D).
Figure 4. X-ray photoelectron spectroscopy (XPS) survey of Ce-doped LTO (A), Ti 2p (B), Ce 3d (C) and O 1s (D).
Nanomaterials 07 00150 g004
Figure 5. The galvanostatic discharge-charge profiles of pure LTO (A), La-doped LTO (B) and Ce-doped LTO (C) at varied current density; (D) Rate performance for these samples (E); Cycle performance plots of La-doped LTO (E) and Ce-doped LTO (F) at 5 Ag−1.
Figure 5. The galvanostatic discharge-charge profiles of pure LTO (A), La-doped LTO (B) and Ce-doped LTO (C) at varied current density; (D) Rate performance for these samples (E); Cycle performance plots of La-doped LTO (E) and Ce-doped LTO (F) at 5 Ag−1.
Nanomaterials 07 00150 g005

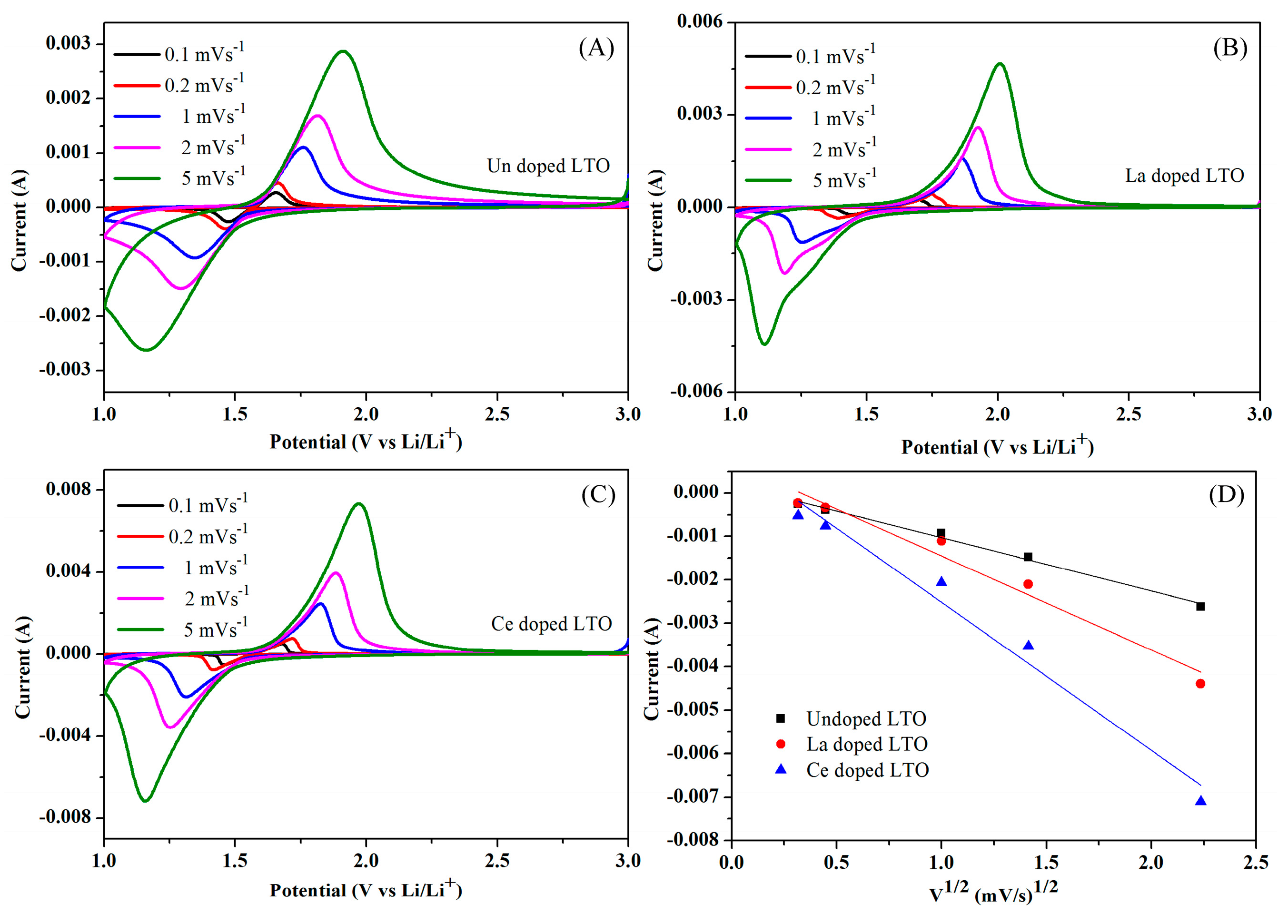

Figure 6. Cyclic voltammetry (CV) curves of undoped LTO (A); La-doped LTO (B); Ce-doped LTO (C); at varied scanning rates from 0.1 to 5.0 mV/s; The cathodic peak currents against square roots of scan rate (D).
Figure 6. Cyclic voltammetry (CV) curves of undoped LTO (A); La-doped LTO (B); Ce-doped LTO (C); at varied scanning rates from 0.1 to 5.0 mV/s; The cathodic peak currents against square roots of scan rate (D).
Nanomaterials 07 00150 g006

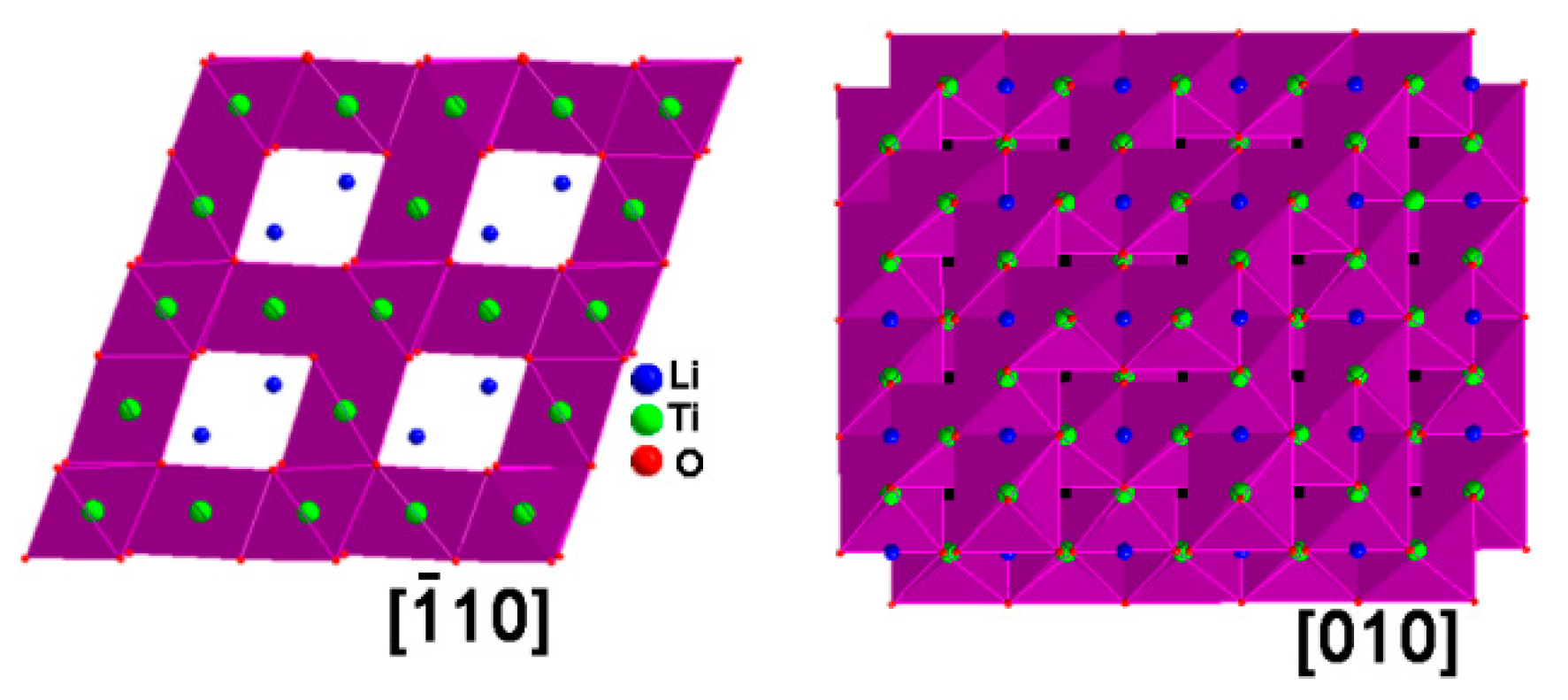

Figure 7. LTO crystal structure view from [ 1 ¯ 10] and [010].
Figure 7. LTO crystal structure view from [ 1 ¯ 10] and [010].
Nanomaterials 07 00150 g007

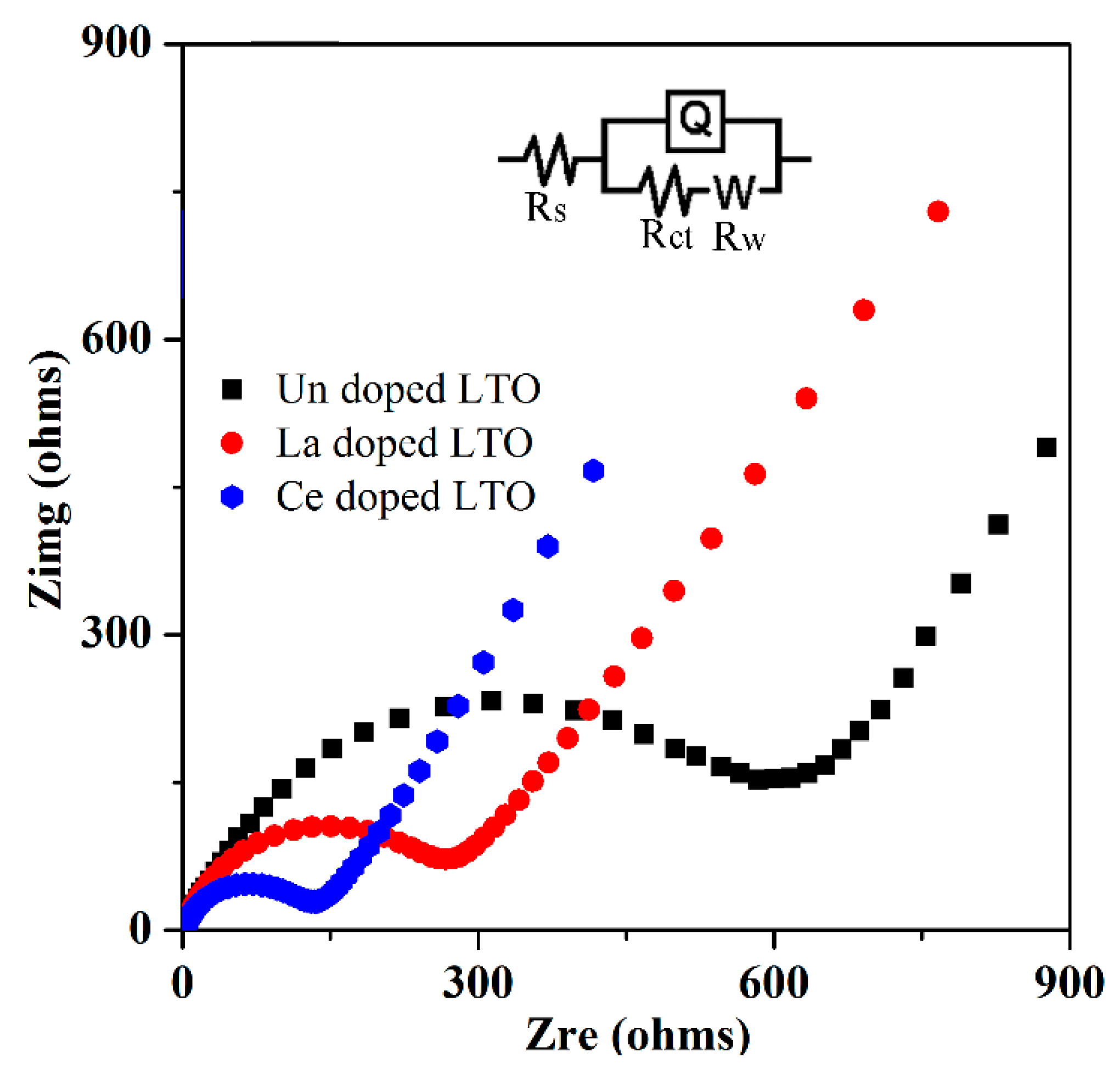

Figure 8. Electrochemical impedance spectra of Ce/La-doped LTO, undoped LTO and pure Li4Ti5O12 electrodes (inset shows the equivalent circuit).
Figure 8. Electrochemical impedance spectra of Ce/La-doped LTO, undoped LTO and pure Li4Ti5O12 electrodes (inset shows the equivalent circuit).
Nanomaterials 07 00150 g008

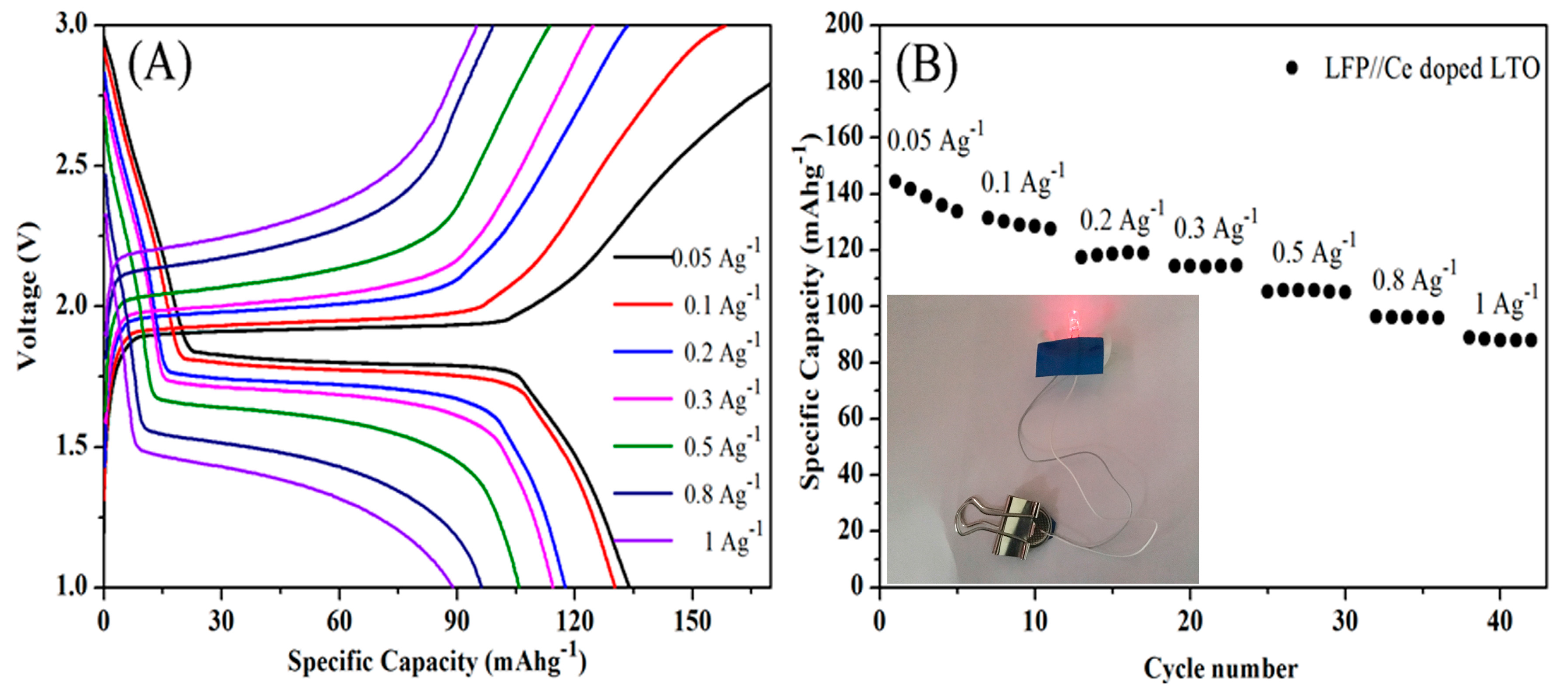

Figure 9. (A) Galvanostatic charge-discharge voltage profiles of a LiFePO4/Ce-doped LTO full cell at varied current densities within a voltage of 1–3 V; (B) The rate performance for LiFePO4/Ce doped LTO full cell (inset: digital picture of a light-emitting diode (LED) powered by an as-fabricated full cell).
Figure 9. (A) Galvanostatic charge-discharge voltage profiles of a LiFePO4/Ce-doped LTO full cell at varied current densities within a voltage of 1–3 V; (B) The rate performance for LiFePO4/Ce doped LTO full cell (inset: digital picture of a light-emitting diode (LED) powered by an as-fabricated full cell).
Nanomaterials 07 00150 g009
Table 1. Comparison of the electrochemical performance for the LTO electrode based on the Li-half cell.
Table 1. Comparison of the electrochemical performance for the LTO electrode based on the Li-half cell.
Electrode MaterialsSpecific Capacity (mAh·g−1)Current Density (A·g−1)References
Li4Ti5O12@C nanotube8117.5[38]
N-Carbon-coated LTO1291.75[20]
Rutile-coated LTO11010.5[31]
LTO nanowire arrays1185.25[13]
Carbon-coated LTO1103.5[39]
Cr-doped LTO1201.75[40]
Mesoporous [email protected]6214[41]
Gd-doped LTO/TiO211120[42]
Ce3+-doped LTO105.21.75[17]
Ce-doped LTO/C145.31.75[33]
La-doped LTO113.88.75[28]
Ce-doped LTO155
This work
La-doped LTO130
This work
