Next Article in Journal
Nano-Sized Secondary Organic Aerosol of Diesel Engine Exhaust Origin Impairs Olfactory-Based Spatial Learning Performance in Preweaning Mice
Next Article in Special Issue
Graphene/Sulfur/Carbon Nanocomposite for High Performance Lithium-Sulfur Batteries
Previous Article in Journal / Special Issue
A Sustainable Approach to Fabricating Ag Nanoparticles/PVA Hybrid Nanofiber and Its Catalytic Activity
Open AccessArticle

Mechanical Dispersion of Nanoparticles and Its Effect on the Specific Heat Capacity of Impure Binary Nitrate Salt Mixtures

1
School of Chemical and Process Engineering, University of Leeds, Leeds LS2 9JT, UK
2
School of Chemical Engineering, University of Birmingham, Birmingham B15 2TT, UK
*
Author to whom correspondence should be addressed.
Academic Editor: Jiye Fang
Nanomaterials 2015, 5(3), 1136-1146; https://doi.org/10.3390/nano5031136
Received: 25 May 2015 / Revised: 18 June 2015 / Accepted: 19 June 2015 / Published: 29 June 2015
(This article belongs to the Special Issue Nanomaterials for Energy and Sustainability Applications)

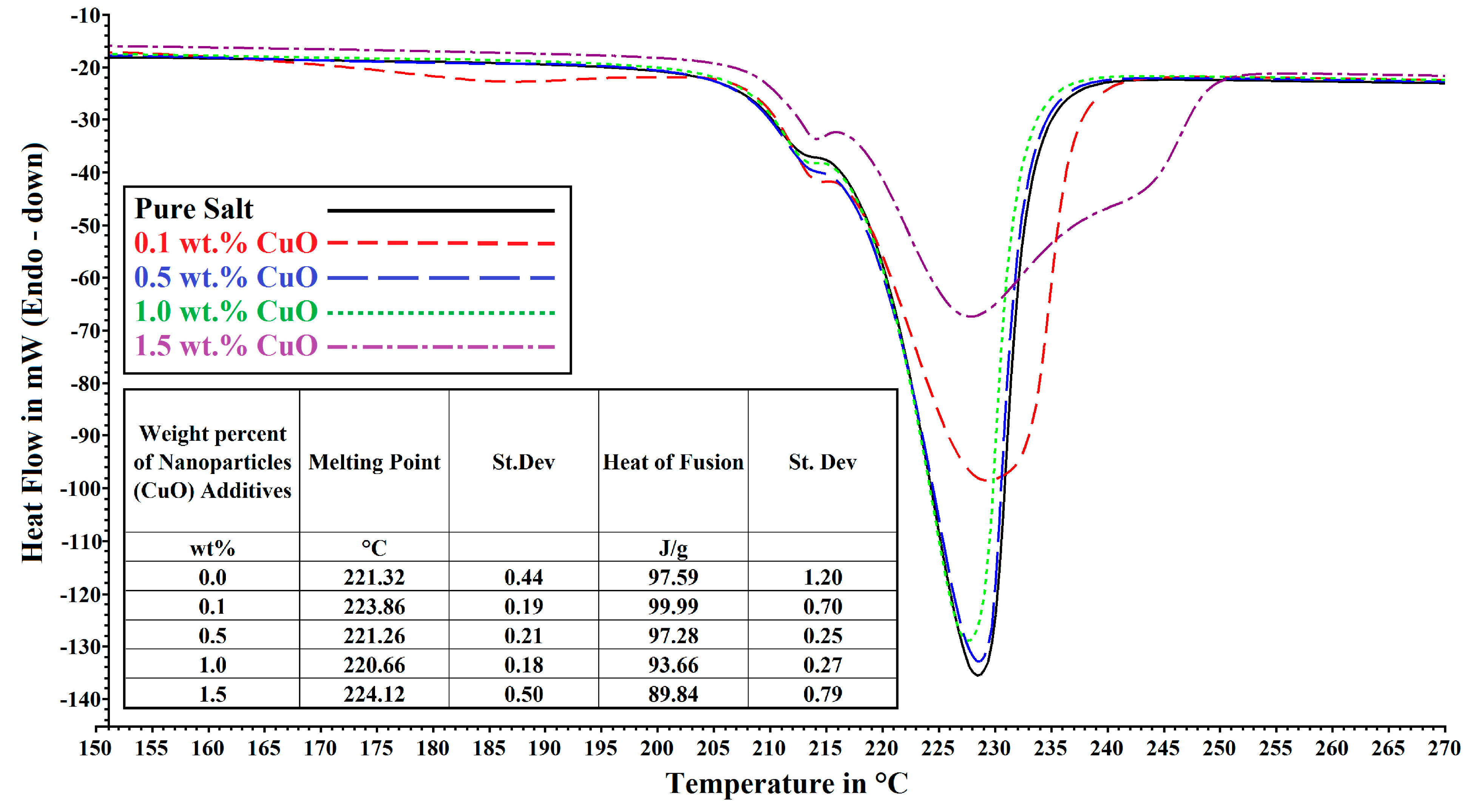

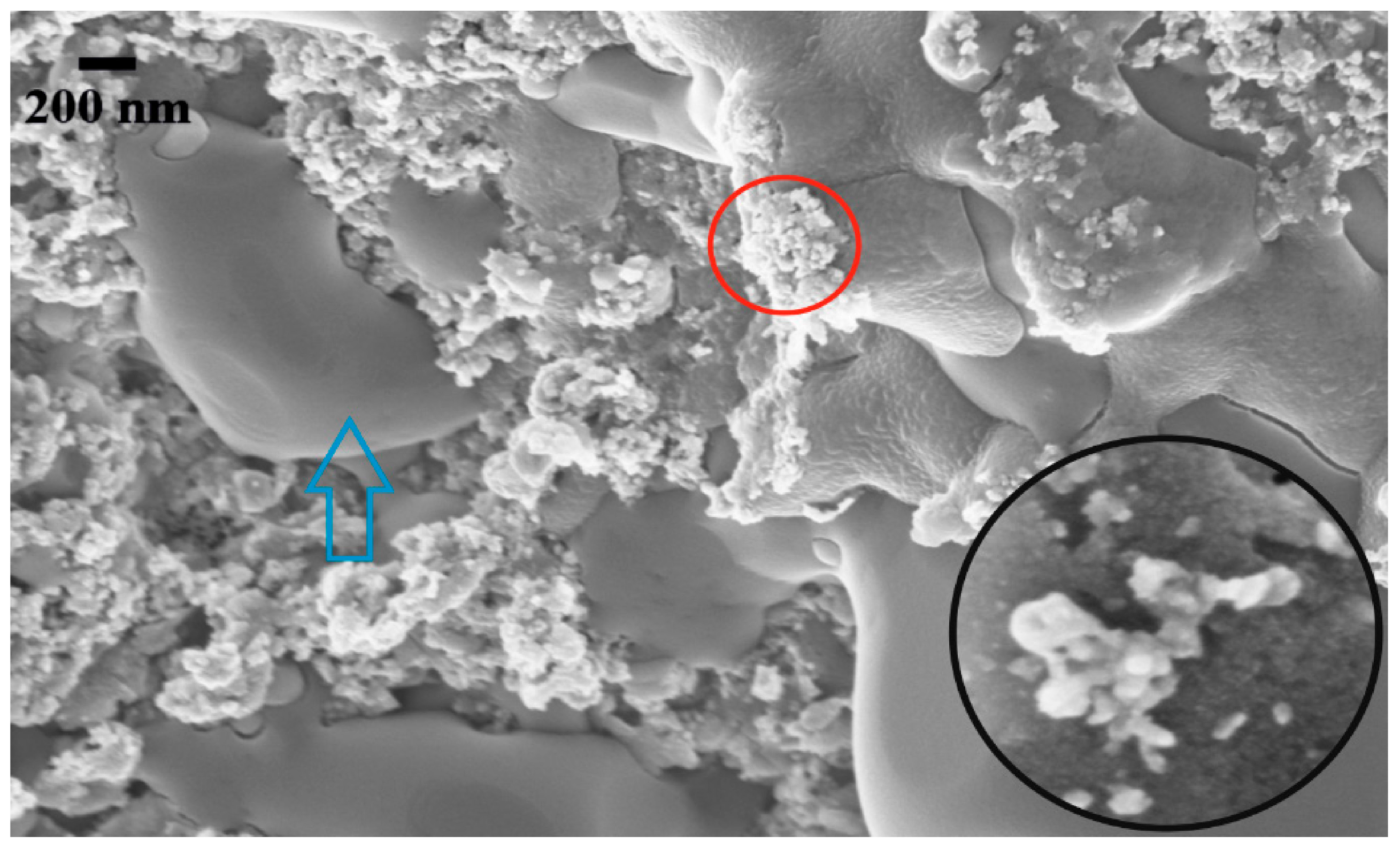

In this study, the effect of nanoparticle concentration was tested for both CuO and TiO2 in eutectic mixture of sodium and potassium nitrate. Results showed an enhancement in specific heat capacity (Cp) for both types of nanoparticles (+10.48% at 440 °C for 0.1 wt % CuO and +4.95% at 440 °C for 0.5 wt % TiO2) but the behavior toward a rise in concentration was different with CuO displaying its highest enhancement at the lowest concentration whilst TiO2 showed no concentration dependence for three of the four different concentrations tested. The production of cluster of nanoparticles was visible in CuO but not in TiO2. This formation of nanostructure in molten salt might promote the enhancement in Cp. However, the size and shape of these structures will most likely impact the energy density of the molten salt. View Full-Text
Keywords: nanoparticles; molten salt; energy storage nanoparticles; molten salt; energy storage
Show Figures

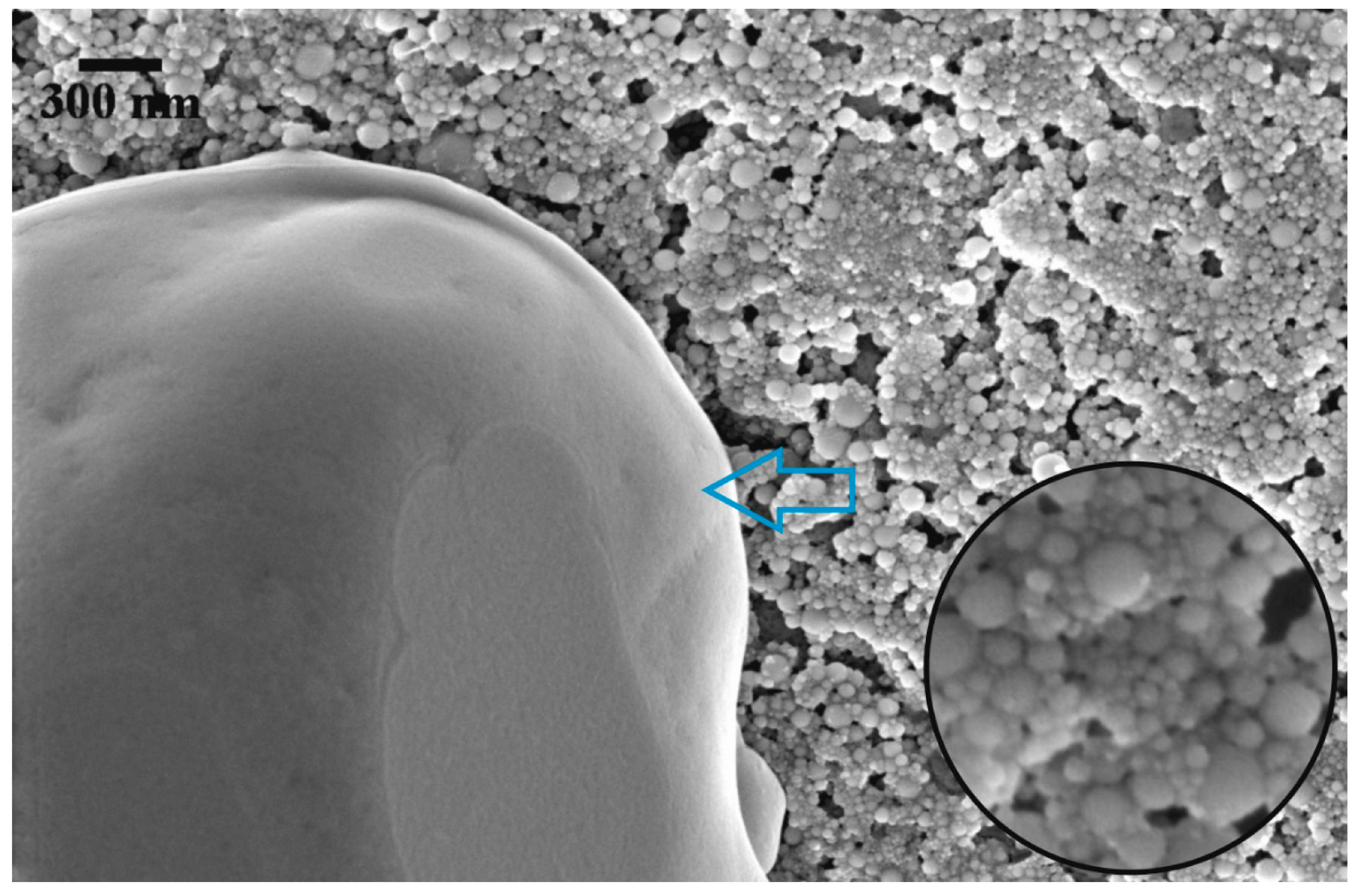

Figure 1

MDPI and ACS Style

Lasfargues, M.; Geng, Q.; Cao, H.; Ding, Y. Mechanical Dispersion of Nanoparticles and Its Effect on the Specific Heat Capacity of Impure Binary Nitrate Salt Mixtures. Nanomaterials 2015, 5, 1136-1146.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Search more from Scilit

Search
Back to TopTop
