Spatially Confined Co-N₄ Sites on N-Doped Carbon Nanotube for Efficient Salt-Free Neutral H₂O₂ Electrosynthesis

Abstract

Two-electron oxygen reduction reaction (2e⁻-ORR) represents a sustainable and energy-efficient approach for decentralized hydrogen peroxide (H₂O₂) production compared with the conventional anthraquinone process. Among various electrocatalysts, metal–nitrogen–carbon (M–N–C) materials have attracted extensive attention owing to their tunable electronic structures and favorable *OOH adsorption behavior. However, the uncontrolled pyrolysis process generally leads to structurally heterogeneous and ill-defined coordination environments, making it difficult to precisely regulate active sites and understand catalytic mechanisms. Herein, we report a single-atom catalyst (CoN@OCNT) featuring spatially confined pyridinic-N-coordinated Co single sites, synthesized by anchoring a well-defined hexapod terpyridine Co-precursor onto oxidized carbon nanotubes (OCNTs) to suppress metal aggregation during pyrolysis. Benefiting from the optimized coordination environment and enhanced mass/electron transfer, the CoN@OCNT catalyst exhibits nearly 100% H₂O₂ selectivity over a wide potential window from −1.0 to 0.66 V versus RHE in neutral electrolyte. In situ FT-IR and Raman spectroscopy reveal a rapid *OOH-mediated reaction pathway during the 2e⁻-ORR process. Furthermore, membrane electrode assembly (MEA) testing demonstrates an H₂O₂ production rate of 21.8 mol h⁻¹ g_cat⁻¹ with stable operation over 80 h at 60 mA cm⁻². Remarkably, at an industrially relevant current density of 300 mA cm⁻², the catalyst achieves a record H₂O₂ production rate of 70.3 mol h⁻¹ g_cat⁻¹ and a salt-free H₂O₂ concentration of 9.4 mM, highlighting its great potential for practical large-scale H₂O₂ electrosynthesis in neutral media.

1. Introduction

Hydrogen peroxide (H₂O₂) is a green and versatile oxidant widely utilized in papermaking, wastewater treatment, sterilization, organic synthesis, and the electronics industry [1,2,3,4]. Currently, over 90% of industrial H₂O₂ is produced via the anthraquinone process; however, this mature technology suffers from complicated multistep procedures, high energy consumption, and considerable environmental burden [5,6]. Moreover, the distillation and concentration processes required to obtain highly concentrated H₂O₂ introduce substantial safety risks during storage and transportation [7,8,9]. Direct synthesis of H₂O₂ from H₂ and O₂ has also attracted attention as a potential route for decentralized production, yet its practical implementation remains hindered by costly purification processes and explosion hazards associated with H₂/O₂ mixtures [10,11]. For the future of sustainable development, it is extremely important to develop an energy-saving and environmentally friendly on-site H₂O₂ synthesis strategy. Therefore, the development of sustainable, energy-efficient, and safe strategies for on-site H₂O₂ production is highly desirable. In this regard, the electrochemical two-electron oxygen reduction reaction (2e⁻-ORR) has emerged as one of the most promising alternatives because it enables the green and distributed synthesis of H₂O₂ from abundant O₂ and water under ambient conditions [12]. The realization of efficient 2e⁻-ORR electrosynthesis critically depends on the development of highly active, selective, and low-cost electrocatalysts. To date, substantial advances have been achieved for 2e⁻-ORR in alkaline electrolytes [13,14,15,16]. Nevertheless, H₂O₂ readily undergoes disproportionation and decomposition under alkaline conditions, whereas neutral electrolytes provide enhanced H₂O₂ stability and offer a direct pathway toward the production of salt-free or low-salt H₂O₂ solutions using solid-electrolyte devices [17,18]. Despite these advantages, the sluggish proton-transfer kinetics arising from the low concentrations of H⁺ and OH⁻ in neutral media severely limit catalytic performance, and the development of state-of-the-art neutral 2e⁻-ORR electrocatalysts remains a significant challenge [3].

Metal–nitrogen–carbon (M–N–C) catalysts have emerged as promising platinum-group-metal-free electrocatalysts for 2e⁻-ORR owing to their tunable electronic structures and adjustable active sites through regulation of the metal center and coordination environment, which enables optimized *OOH intermediate binding [8,19,20]. Nevertheless, conventionally synthesized M–N–C catalysts often suffer from structurally heterogeneous coordination environments arising from uncontrollable pyrolysis processes, leading to randomly distributed and poorly defined metal active sites that complicate mechanistic understanding. In addition, maintaining atomically dispersed metal centers generally requires lowering the density of active sites [21,22], which inevitably increases mass-transfer resistance and compromises 2e⁻-ORR performance, thereby limiting practical applications [8]. More importantly, practical electrosynthesis of H₂O₂ still faces substantial challenges in simultaneously achieving high current density, high Faradaic efficiency, and the high H₂O₂ production concentration required for industrial implementation.

Here, we report the construction of a CoN@OCNT single-atom catalyst with a spatial configuration Co-NC coordination structure through pyrolysis of a CoL₆ of hexapod-type terpyridine with a clear coordination structure as a precursor and anchor it on an OCNT carrier, which solves the problems existing in traditional research. The selectivity of H₂O₂ was improved by adjusting the pyrolysis temperature to control the formation of the active center. The CoN@OCNT catalyst has a high onset potential of 0.66 V vs. RHE for the electrosynthesis of H₂O₂ in 0.1 M LiClO₄ electrolyte, and the selectivity of −1.0–0.66 V vs. RHE is nearly 100%. At the same time, in situ FT-IR and in situ Raman demonstrated that it has a fast OOH mediated kinetic pathway in neutral media. Furthermore, the rate of 21.8 mol h⁻¹ g_cat⁻¹ and the stability of 80 h were obtained at 60 mA cm⁻² through the membrane electrode assembly cells (MEA). At 300 mA cm⁻² industrial current, the instantaneous H₂O₂ production rate was as high as 70.3 mol h⁻¹ g_cat⁻¹, and its salt-free H₂O₂ concentration was up to 9.4 mM, showing an industrial production rate.

2. Materials and Methods

2.1. Chemicals and Materials

Commercial multi-walled CNT (short, >50 nm) were purchased from XFNANO (Nanjing, China). Co(NO₃)₂•6H₂O (99%), LiClO₄ (99%), Na₂SO₄ (99%), KMnO₄ (99.5%), and N,N-dimethylformamide (DMF) were bought from Aladdin Co., Ltd. (Shanghai, China). H₂O₂ (30 wt%), CH₃OH (99%), Isopropanol (99%) and CH₃CH₂OH (99.5%) were purchased from Sinopharm Group Chemical Reagent Co., Lt, (Shanghai, China). Proton exchange membrane (Nafion 117) and Nafion solution (5 wt%) were purchased from Du Pont Co., Ltd. (Shanghai, China) Teflon-treated carbon fiber paper (GDS 2230) served as the support of GDE was provided by Sci Materials Hub (http://www.scimaterials.cn/). All aqueous solutions were prepared using deionized water (≥18.25 MΩ).

2.2. Catalyst Preparation

The OCNT was prepared by oxidation of concentrations nitric acid on the surface of the original multi-walled CNT. In a typical synthesis, 2 g multi-walled CNT was uniform dispersion in 100 mL HNO3 (68 wt%) under continuous magnetic stirring. The reaction mixture was then heated to 110 °C for 24 h, followed by water washing and vacuum drying to give the resultant OCNT. The CoN@OCNT catalysts were prepared using the impregnation method that CoL₆ adsorption on the OCNT surface at room temperature. First, 100 mg of OCNT or CNT was added to the 30 mL of DMF solution, labeled solution 1. Meanwhile, a calculated amount of CoL₆ molecules (0, 5, 10, 20 wt%, compared to OCNT or CNT loadings) was dissolved in the 20 mL of DMF, which is referred to as solution 2. Both solutions 1 and 2 were ultrasonically treated for at least 30 min to disperse OCNT and CoL₆ in the DMF solution. Then, solution 2 was slowly added to solution 1 under stirring conditions, and the obtained mixed solution was violently stirred at room temperature for 24 h. The powder was obtained by vacuum drying after stirring and filtration. The final catalyst CoN@OCNT was obtained by raising the temperature from 10 °C to 700 °C in the Ar atmosphere and the the temperature was maintained for 2 h. The carbon matrix or precursor, comprising CNT, L₆ and Co(NO)₃•6H₂O, was used to obtain Co@OCNT and N@OCNT, respectively. The product for changing the pyrolysis temperature was named CoN@OCNT-XX; at 600 °C, this converts to CoN@OCNT-600. CoL₆ and OCNT were mixed and pyrolyzed to obtain CoN@OCNT-GX.

2.3. Material Characterizations

The morphology of the material was observed by SEM (JEOL JMS-7500F) and TEM (JEOL JEM-F200). The chemical constituents of the catalysts were identified by XPS (Thermo Fisher Scientific K-Alpha) and FT-IR (Thermo Fisher Scientific Nicolet iS50). The phase structure of catalysts was measured by Raman (LabRam Odyssey with laser excitation at 532 nm) and XRD (Bruker D8 Advance). The Co loadings of CoN@OCNT were detected by XPS. XAFS spectroscopy was carried out using the RapidXAFS 2M (Anhui Absorption Spectroscopy Analysis Instrument Co., Ltd.) by transmission or fluorescence mode at 20 kV and 20 mA, and the Si (533) spherically bent crystal analyzer with a radius of curvature of 500 mm was used for Co.

2.4. Electrochemical ORR Measurement

The 2e^– ORR performance of CoN@OCNT was studied using an RRDE device. First, 5 mg of catalyst powder was dispersed in the solution that consists of 980 μL DI water, 980 μL isopropanol and 40 μL of 5 wt% Nafion via 30 min ultrasonication for the catalyst ink. The three-electrode system was constructed by coupling the Ag/AgCl reference electrode and Pt counter electrode with RRDE. The Pt ring collector current efficiency N is 0.39. Based on disk current and ring current, the H₂O₂ selectivity (FE%) and electron transfer number (n) are calculated by Equations (1) and (2):

$${\mathrm{H}}_2{\mathrm{O}}_2\% = 200 \times {\displaystyle \frac{{\mathrm{I}}_{\mathrm{d}}/\mathrm{N}}{{{\mathrm{I}}_{\mathrm{d}} + \mathrm{I}}_{\mathrm{r}}/\mathrm{N}}}$$

(1)

$$\mathrm{n}=4 \times {\displaystyle \frac{{\mathrm{I}}_{\mathrm{d}}}{{{\mathrm{I}}_{\mathrm{d}}+\mathrm{I}}_{\mathrm{r}}/\mathrm{N}}}$$

(2)

The kinetic current density (j_k) was calculated according to the Koutecky–Levich Equation (3) [23,24]:

$${\displaystyle \frac{1}{\mathrm{j}}}={\displaystyle \frac{1}{{\mathrm{j}}_{\mathrm{K}}}}+{\displaystyle \frac{1}{{\mathrm{j}}_{\mathrm{L}}}}={\displaystyle \frac{1}{{\mathrm{j}}_{\mathrm{K}}}}+\left({\displaystyle \frac{1}{0.620 \mathrm{n} \mathrm{F}{ {\mathrm{C}}_0 \mathrm{D}}^{2/3} {\mathrm{V}}^{-1/6}}}\right){\mathsf{\omega }}^{-{\displaystyle \frac{1}{2}}}$$

(3)

where j is the measured disk current density and j_K and j_L are the kinetic current density and the diffusion-limited current densities. n is the electron transfer number calculated by RRDE and F is the Faraday constant (96,485 C mol⁻¹). C₀ is the volume concentration of oxygen, D is the diffusion coefficient of oxygen, and V is the kinematic viscosity of the electrolyte. C₀, D and V are 1.2 × 10⁻⁶ mol·cm⁻³, 1.9 × 10⁻⁵ cm²·s⁻¹ and 0.01 cm²·s⁻¹, respectively. ω is the angular rotation rate of RRDE (rad/s).

The rate of PRR and 2e^– ORR is described by the current density Equation (4):

$${\mathrm{j}}_{\mathrm{PRR}}={\displaystyle \frac{{\mathrm{i}}_{\mathrm{PPR}}}{{\mathrm{A}}_{\mathrm{disk}}}} \mathrm{and} {\mathrm{j}}_{\mathrm{peroxide}}={\displaystyle \frac{{\mathrm{i}}_{\mathrm{ring}}}{\mathrm{N}\times {\mathrm{A}}_{\mathrm{disk}}}}$$

(4)

The i_PRR is the measured H₂O₂ reduction current, A_disk is the disk area, and Iring is the oxidation current at the Pt ring of H₂O₂.

2.5. Electrode Preparation and H₂O₂ Electrosynthesis

The electrode was prepared by loading CoN@OCNT material on GDE. First, 20 mg of CoN@OCNT was dispersed in a solution composed of 19.8 mL of ethanol and 0.2 mL of 5 wt % Nafion, and the catalyst ink was formed by ultrasonication for 30 min. A uniform catalyst reaction layer was prepared by spraying 200 μL of CoN@OCNT ink on GDE. An electrochemical two-electrode system for the production of H₂O₂ was constructed by using 500 μg cm⁻² Pt/C-loaded GDE as a counter electrode and proton exchange membrane for the separation of the cathode and anode. The H₂O₂ synthesis was carried out using MEA at the constant currents. A large reactor with a carbon paper working area of 4 cm² was used, in which the cathode side was mixed with 1–40 mL min⁻¹ DI water and 200 mL min⁻¹ pure O₂ to prepare salt-free H₂O₂. At the same time, 1 M Na₂SO₄ was used as the anode solution flow rate to control the cycle at 20 mL min⁻¹. The constant current is provided by the CHI 760e electrochemical workstation. The generated H₂O₂ concentration was measured by KMnO₄ chemical titration based on Equations (5) and (6):

$$2\mathrm{K}\mathrm{M}\mathrm{n}{\mathrm{O}}_4 + 5{\mathrm{H}}_2{\mathrm{O}}_2 + 3{\mathrm{H}}_2\mathrm{S}{\mathrm{O}}_4 \to 5{\mathrm{O}}_2\uparrow + 2\mathrm{M}\mathrm{n}\mathrm{S}{\mathrm{O}}_4 +{ \mathrm{K}}_2\mathrm{S}{\mathrm{O}}_4 + 8{\mathrm{H}}_2\mathrm{O}$$

(5)

$$\mathrm{FE}={\displaystyle \frac{{\mathrm{H}}_2{\mathrm{O}}_2\left(\mathrm{mol} {\mathrm{L}}^{-1}\right) \times 2 \times 96485 \times \mathrm{V} \left(\mathrm{mL}\right)}{{\mathrm{j}}_{\mathrm{total}} \left(\mathrm{mA}\right) \times \mathrm{t} \left(\mathrm{s}\right)}} \times 100\%$$

(6)

In a typical operation, the H₂O₂ solution from the reactor was added to 10 μL of KMnO₄ solution to reduce Mn⁷⁺ to Mn²⁺. The titration was completed by judging the color of the solution from red to colorless [18,25].

2.6. In Situ FT-IR Characterizations

In situ FT-IR measurements were made on a Thermo Fisher Scientific Nicolet iS50 with a mercury cadmium telluride (MCT) detector. The working electrode was prepared by coating CoN@OCNT catalyst on a Si prism with a chemically deposited Au layer. The specific method is to drop 20 μL of RRDE test catalyst ink on a silicon prism and dry it naturally to make a working electrode. As shown in Figure S15a, in situ FT-IR measurements are performed in a customized H-Cell reactor with Pt wire and Ag/AgCl electrode as the counter electrode and reference electrodes. In situ FT-IR of electrocatalytic synthesis of H₂O₂ at different potential was recorded by continuously bubbling O₂ in 0.1 M LiClO₄.

2.7. In Situ Raman Characterizations

In situ Raman measurements in this work were conducted using the three-electrode PEEK Raman cell with a 1.5 cm diameter circular quartz window on the CHI 760e potentiostat test in conjunction with a Raman spectrometer (LabRam Odyssey with laser excitation at 532 nm). During the in situ Raman measurements, the distance between the window and the working electrode surface was less than 0.1 mm, and the weakening effect of the solution layer on the device was weakened. The CoN@OCNT ink was dropped on a 1.5 × 1.5 cm² carbon paper (GDS 2230) to prepare a working electrode, and the catalyst reached a high loading of 2 mg cm⁻² to increase the Raman signal intensity. Pt wire and Ag/AgCl electrode were used as counter electrode and reference electrode, respectively, and the test was carried out in O₂-saturated 0.1 M LiClO₄. All potentials in situ measurements were referred to vs. RHE.

3. Results and Discussions

3.1. Synthesis and Structural Characterization of Catalysts

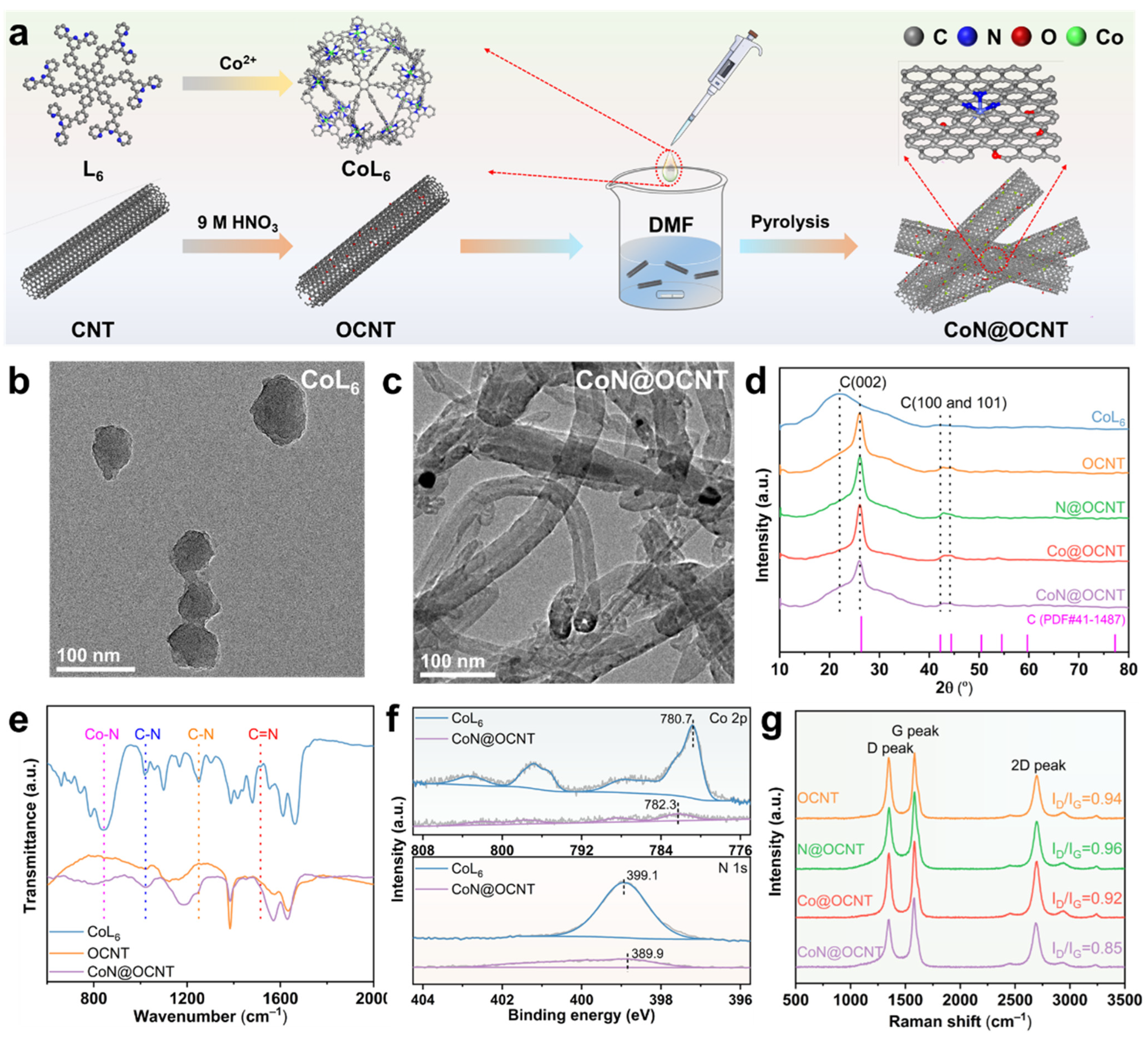

As illustrated in Figure 1a, CoN@OCNT was synthesized by combining CoL₆ with the OCNT support via a sufficient mixing process and anchoring it on OCNT by high-temperature pyrolysis to synthesize a Co-NC catalyst with spatial configuration. The OCNT substrate was prepared by oxidatively treating the original multi-walled carbon nanotubes (CNT) to create a large number of defects. As shown in Figure S1, no obvious change of material morphology was observed before and after the oxidation of CNT. Raman spectra show that OCNT has a significantly enhanced I_D/I_G (0.94) compared to CNT (0.67) due to more carbon defects after activation (Figure S2). In addition, previous studies have indicated that the specific surface area of OCNT will also increase compared to CNT [26], which is beneficial to provide more opportunities to anchor CoL₆ molecules. The structure and morphology of the catalysts were characterized, as shown in Figure S3; CoL₆ has a circular nanomaterial structure, while CoN@OCNT mainly has a fibrous structure morphology of OCNT. In the transmission electron microscopy (TEM) images (Figure 1b,c), it is shown that CoL₆ has a diameter of about 50 nm, and CoN@OCNT only has exposed carbon crystal faces and no obvious metal particle binding HR-TEM is observed (Figure S4). In addition, the element distribution of CoN@OCNT was analyzed by HAADF-STEM and EDS mapping. The results show that C, N, O and Co are evenly distributed around OCNT without obvious Co metal clusters (Figure S5). The N@OCNT, Co@OCNT and Co@CNT prepared by this strategy have similar morphology (Figure S6). These results indicate that OCNT not only improves the dispersion of active sites and inhibits the agglomeration of transition metals, but also, as a carbon substrate, has the advantage of versatility.

X-ray diffraction (XRD) patterns showed that CoN@OCNT-GX catalysts prepared by directly mixed pyrolysis showed two separated carbon crystal plane peaks at 21.0° and 26.3°, suggesting that CoL₆ and OCNT could not be combined by this method (Figure S7a). The XRD patterns for CoN@OCNT (Figure 1a) show that the characteristic peak at 21.0° was higher than that of OCNT and Co@OCNT, indicating that the post-adsorption pyrolysis strategy successfully anchored CoL₆ on OCNT and the molecular structure was retained. The FT-IR results of CoN@OCNT show that they are located at 850, 1019, 1252 and 1516 cm⁻¹, which belong to the stretching characteristic vibration peaks of Co-N, C-N and C=N (Figure 1e), respectively, being in good agreement with the literature [26,27], and the molecular structure of CoL₆ anchored on OCNT is further confirmed. Furthermore, X-ray photoelectron spectroscopy (XPS) identifies the chemical elements and composition of CoN@OCNT catalysts. As shown in Figure 1f, the high-resolution Co 2p spectra of CoN@OCNT are mainly associated with Co-N_X (782.3 and 797.6 eV) and satellite peaks [28,29]. Table S1 shows that the content of Co is 0.12 wt % with no metal cobalt, which indicates that the Co configuration in CoN@OCNT is more likely to be a single atom characteristic [30,31]. XPS O 1s spectra further suggest that the O element is doped in the carbon nanotube (Figure S7b). In addition, the physical and chemical properties were further studied by Raman spectroscopy. The characteristic D, G and 2D peaks can be observed (Figure 1g) for carbon materials. The I_D/I_G intensity ratios of OCNT, N@OCNT, Co@OCNT and CoN@OCNT were 0.94, 0.96, 0.92 and 0.85, respectively. The results show that the addition of pure L₆ will cause greater defects. Compared with the low binding of Co ions, on the contrary, CoL₆ is enriched at the defect position, repairs a large number of defects, and constructs an active center with a single atom. Interestingly, the temperature can adjust this repair process. The I_D/I_G of CoN@OCNT-600 is 0.92 (Figure S8a), which repairs fewer defects and is not enough to construct a large number of coordination structures. As shown in Figure S8b, XRD data can also be observed at 600, and the peak intensity of CoL₆ at 21.0° is not obvious. In addition, the temperature was further increased to 900 °C, while I_D/I_G increased to 0.99, indicating that a large number of coordination structures were further decomposed. Moreover, the Co 2p XPS peak of CoN@OCNT samples in Figure S8c at 782.2 eV at three temperatures is dominated by Co-N_X [28,32]. In addition, the N1s XPS spectra (Figure S8d and Table S3) confirmed that the CoN@OCNT samples contained pyridine-N (398.9 eV), Co-N_X (400.0 eV), pyrrole-N (400.8 eV) and graphite-N (401.8 eV) [19,32]. However, the proportion of N was the highest at 700 °C and the pyridine-N content reached 52.9%, indicating that the pyrolysis temperature ensured the stability of the catalyst structure while repairing the defects. Based on these findings, we envision a temperature regulation strategy to control the formation of the CoN@OCNT active center and promote its stable binding to the reaction intermediate to regulate the reactivity of 2e^– ORR.

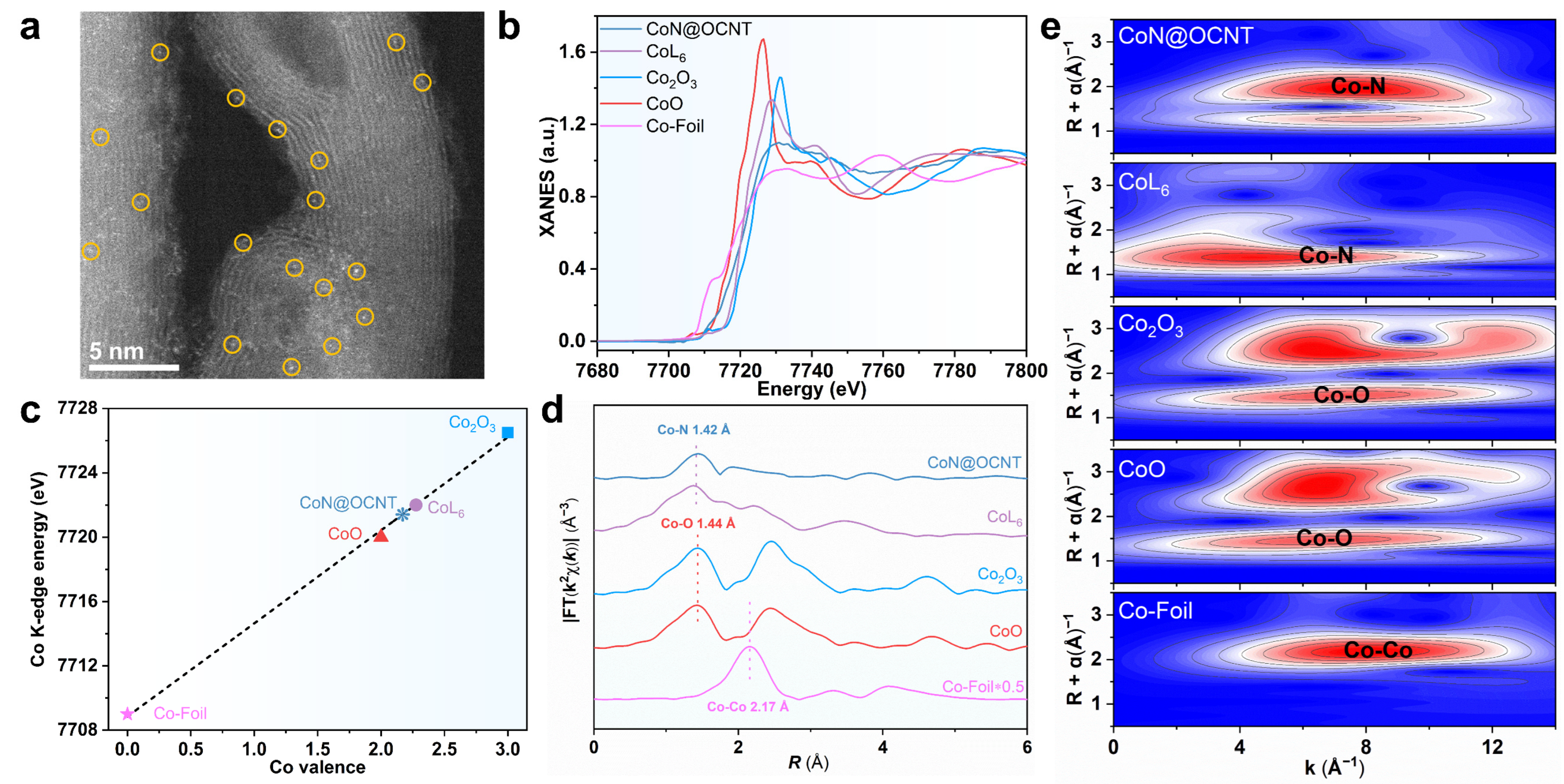

The HAADF-STEM measurement is conducted to investigate the Co atom in the CoN@OCNT. As displayed in Figure 2a, the isolated Co bright spots can be observed as uniformly dispersed on the OCNT, which confirms the formation of Co single atom sites. In order to determine the structural configuration of the metal sites in CoN@OCNT, the electronic structures of Co metal centers on CoN@OCNT, CoL₆, Co₂O₃, CoO and Co-Foil were detected by the Co K-edge X-ray absorption near-edge spectroscopy (XANES). As shown in Figure 2b, the near-edge absorption intensity of Co K-edge of CoN@OCNT is between that of Co₂O₃ and Co foil, suggesting a positively charged Co atom [26,33]. Further, the linear fitting of the Co valence with the Co K edge energy position demonstrates that the Co valence states of CoL₆ and CoN@OCNT are +2.26 and +2.18, respectively (Figure 2c). The valence state of Co in CoN@OCNT is slightly lower than that of CoL₆, showing lower valence binding energy and lower absorption edge energy. We attribute it to the formation of Co-C bond by anchoring CoL₆ in OCNT. The Fourier transform extended X-ray absorption fine structure (FT-EXAFS) of Co foil indicates that Co exists as an isolated unit point (Figure 2d), and the Co-Co scattering path (~2.17 Å) [23,34] does not exist in CoN@OCNT. The EXAFS fitting of CoN@OCNT shows that there are two main peaks at ~1.29 and ~1.89 Å, which belong to the first scattering path of Co-C and Co-N, respectively [35]. As shown in the WT-EXAFS contour plots (Figure 2e), the samples CoN@OCNT with the Co-C and Co-N coordination structure exhibit an intensity maximum strength at ~6.8 and ~7.3 Å⁻¹, which is different than the peak of ~8.4 Å⁻¹ of Co-Co bond in Co-Foil. In summary, we have experimentally confirmed that CoN@OCNT has a single-atom catalyst with Co-C and Co-N coordination structures.

3.2. ORR Performance and Experimental Investigation

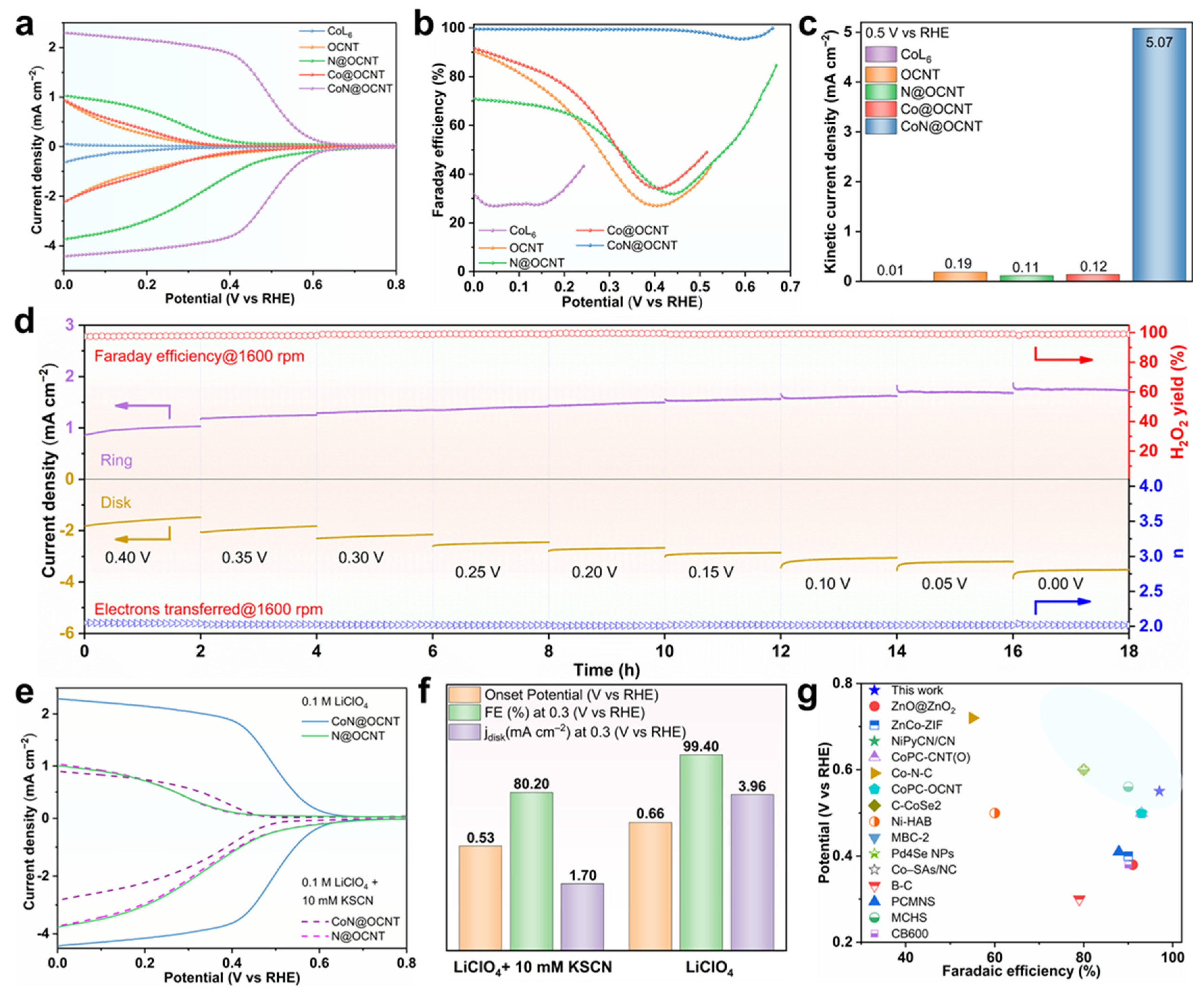

The 2e^– ORR activity and selectivity of catalysts were assessed by using a standard three-electrode system rotating ring-disk electrode (RRDE) in 0.1 M LiClO₄ (pH = 7.0) electrolyte. The catalyst was precisely spin-coated in the disk platinum–carbon region to catalyze ORR to generate H₂O₂, and a 1.2 V oxidation potential was applied to the Pt ring electrode to detect the formation of H₂O₂. This part of the test does not determine that the potential is relative to the reversible hydrogen electrode. Samples of CoL₆, OCNT, N@OCNT, Co@OCNT and CoN@OCNT werer compared. The cyclic voltammetry (CV) curve of CoN@OCNT shows that the disk current has an obvious oxygen reduction peak and the ring current has an obvious oxidation peak in O₂-saturated 0.1 M LiClO₄ solution, while the redox peaks of CoL₆ and OCNT are not obvious (Figure S9). The ORR and H₂O₂ oxidation current density in Figure 3a exhibit that CoN@OCNT catalysts show better activity with a higher onset potential of 0.66 V (defined at −0.1 mA cm⁻² of disk current density) [26] compared to CoL₆ (0.24 V) and OCNT (0.52 V). At the same time, CoN@OCNT has a high ORR current density of 3.61 mA cm⁻² at 0.4 V. Furthermore, with N@OCNT and Co@OCNT, the excellent oxygen reduction performance of the catalyst combined with CoL₆ and OCNT was highlighted. Significantly, CoN@OCNT exhibits the highest H₂O₂ selectivity of nearly 100% in the potential range of 0–0.50 V (Figure 3b). In contrast, CoL₆, OCNT, N@OCNT and Co@OCNT showed lower 2e^– ORR catalytic selectivity, as indicated by their average selectivity values of 30%, 60%, 63% and 70%, respectively. The number of electrons transferred (n) of CoN@OCNT is calculated to be 2.01–2.00 at 0–0.50 V, which further indicates that it is more inclined to occur 2e^– ORR (Figure S10). Combined with the calculated kinetic current, CoN@OCNT has a kinetic current density of 5.07 mA cm⁻² at 0.5 V, which is significantly higher than other catalysts, further proving that it has high ORR activity (Figure 3c). As shown in Figure S11, CoN@OCNT exhibited a mass current density of 51.4 A g⁻¹ at 0.5 V, which is approximately 514 times, 36.7 times, 26.6 times and 44.6 times higher than those of CoL₆, OCNT, N@OCNT and Co@OCNT, respectively. The Tafel slope of 133 mV dec⁻¹ for CoN@OCNT is smaller than other catalysts, indicating faster reaction kinetics of H₂O₂ synthesis in the neutral medium for CoN@OCNT [23].

Furthermore, we systematically studied the effect of pyrolysis temperature on the selectivity of H₂O₂ electrosynthesis. The catalyst prepared by simply adsorbing CoL₆ on OCNT has almost no improvement in 2e⁻ ORR activity compared to OCNT in a neutral medium. As the temperature increases to 600 °C, a small amount of Co-C bonds should be formed to repair the defects, which corresponds to Figure S8a, increasing the onset potential by 100 mV. Further enhancing the temperature to 700 °C, it can be proved by Figure 1g Raman data that high temperature promotes the formation of a large number of Co-C bonds at the defect position [30,36,37] and then constructs Co-NC active sites with spatial configuration. The overpotential of CoN@OCNT-800 increased in a neutral medium and the activity of 2e^– ORR decreased (Figure S13), indicating that the coordination structure was decomposed and the defects increased (Figure S8a). Interestingly, the activity of CoN@OCNT-900 and OCNT is almost the same, showing that the coordination structure is completely decomposed. As shown in Figure S14, the TOF values of the catalyst at different pyrolysis temperatures were measured at 0.5 V, where Co@OCNT is as high as 78.7 s⁻¹. In summary, combined with material characterization and activity test data, it is shown that the pyrolysis temperature can regulate the synthesis of active sites of Co-NC spatial configuration and exhibit excellent 2e^– ORR activity. The activity and selectivity of CoN@OCNT-GX were further tested to prove the necessity of the adsorption process. As shown in Figure S15, compared with OCNT, the ORR performance of OCNT did not improve but decreased, indicating that the purpose of preparing Co-NC active center by simple physical mixing cannot be achieved by CoL6 to repair the defects of OCNT. This conclusion can be proved by the increase of Ramam data defects (Figure S7) and the appearance of separated CoL₆ high-resolution Co 2p XPS (Figure S16).

To systematically study the H₂O₂ selectivity for CoN@OCNT, we proceeded with the RRDE testing at the amphoteric i–t curve (i–t) conditions from 0.4 to 0.0 V. As shown in Figure 3d, CoN@OCNT shows that the selectivity of H₂O₂ is more than 95% in the potential range of 0.40~0.3 V and nearly to 99% in the range of 0.3~0.0 V. It shows that CoN@OCNT follows a highly selective and stable 2e^– ORR pathway in a wide potential range, indicating its potential for scalable electrolysis. Next, we conducted further experimental studies on N@OCNT and CoN@OCNT catalysts to explore the active origin of the 2e^– ORR pathway. It was found that the onset potential and selectivity of CoN@OCNT were significantly reduced by 0.13 V and 19.2%, respectively, after the introduction of KSCN poisoning in a neutral medium, and the increase of n to 2.4 improved the selectivity of the 4e⁻ pathway (Figure 3e,f). In addition, the SCN⁻ poisoning experiment showed little change in the activity of the N@OCNT catalyst without Co addition, further confirming the important contribution of the Co center to the 2e^– ORR [38,39]. In order to evaluate the 2e^– ORR performance of the catalysts more comprehensively and objectively, we compared the catalysts for the preparation of H₂O₂ in neutral media in recent years. The CoN@OCNT can have a potential of 0.55 V and a selectivity of 97.0% when the disk current density of 1 mA cm⁻², which is a previously reported high value for the calibration in a neutral electrolyte (Figure 3g and Table S4). It was further shown that CoN@OCNT has great potential to achieve the required low overpotential neutral H₂O₂ electrosynthesis at high current density.

3.3. In Situ Characterization of 2e^– ORR

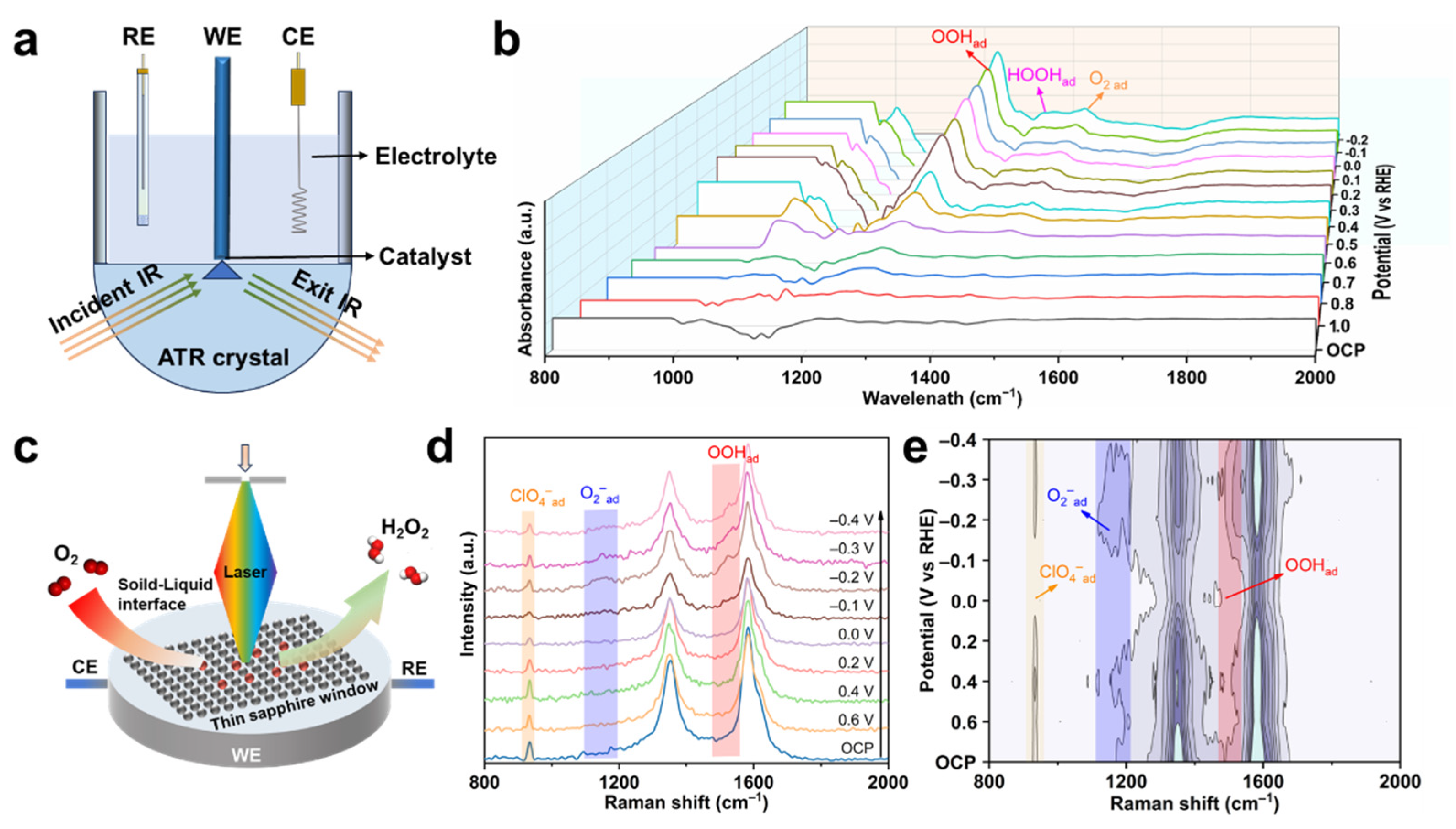

The in situ Fourier transform infrared spectroscopy (in situ FTIR) and in situ Raman spectroscopy (in situ Raman) monitored the interaction between oxygen intermediates and CoN@OCNT during the electrolytic H₂O₂ synthesis (Figure 4a,c and Figure S17). For the in situ FTIR spectra, a weak absorption band appeared at 1238 cm⁻¹ in addition to 0.7 V potential, and the absorption band gradually increased rapidly as the potential decreased, which corresponds to the ORR activity test data (Figure 3a and Figure 4b). At the same time, two lower absorbance peaks appear at 1396 and 1437 cm⁻¹. According to previous reports, these three peaks can be attributed to the adsorption of *OOH (OOH_ad), *HOOH (HOOH_ad) and *O₂ (O_{2 ad}) [19,26,40,41]. Compared with previous research values, the wave number may be slightly shifted due to different adsorption positions [26]. In addition, in the in situ Raman spectrum, two bands corresponding to the D peak and G peak can be seen at different applied potentials (Figure 4d). In Figure 4d,c, there are three peaks at 936, 1151 and 1526 cm⁻¹, which are attributed to the vibration of the active sites of ClO₄⁻ _ad, O₂⁻ _ad and OOH_ad adsorption catalyst, respectively, and the intensity increases with the increase of voltage. Overall, in situ FTIR and in situ Raman detected CoN@OCNT of the potential-dependent adsorbed OOH band in a neutral solution, supporting its rapid *OOH-mediated 2e^– ORR pathway.

3.4. Practical-Scale Neutral Production of H₂O₂ Electrosynthesis

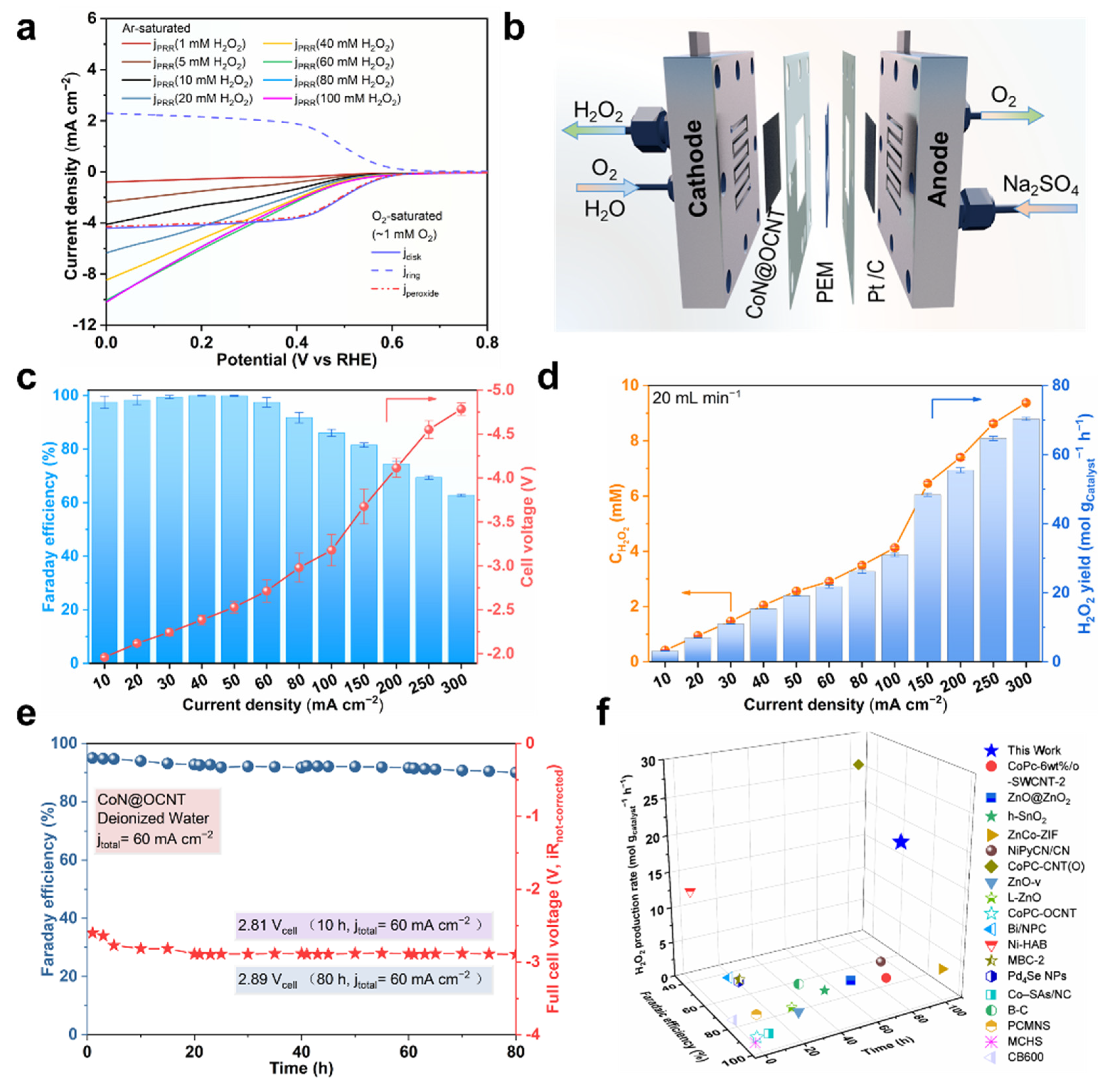

The RRDE test only detects instantaneously generated H₂O₂ and ignores the H₂O₂ concentration in the solution. The thermodynamically generated H₂O₂ can be further electroreduced to H₂O (H₂O₂ + 2H⁺ + 2e^– → 2H₂O E^o = 1.76 V) [31,42]. As the prepared H₂O₂ can accumulate to a practically useful concentration, it is important to evaluate the H₂O₂ reaction (PRR) [43]. In this paper, we studied the PRR by connecting the same catalyst-supported CoN@OCNT-coated RRDE to the three-electrode battery in 0.1 M LiClO₄ solution containing Ar saturated 1–100 mM H₂O₂. Figure 5a shows that the PRR and 2e^– ORR of CoN@OCNT exhibit similar onset potential. The PRR rate is enhanced with the increase of H₂O₂ concentration and overpotential and reaches the maximum at 60 mM H₂O₂. The comparison of j_ORR and j_PRR at different concentrations of H₂O₂ provides a theoretical basis for the accumulation of H₂O₂, in which the net growth rate of H₂O₂ remains positive in the range of 0.33–0.60 V (Figure S18). Furthermore, CoN@OCNT shows an upward trend in current density over a wide potential range from −1.0 V to 0.66, and the selectivity of H₂O₂ is 95–100% and the value of n is in the range of 2.0–2.2 (Figure S19), which confirms that CoN@OCNT has great application potential in the industrial-related yield of neutral H₂O₂ production under the condition of O₂ supply and high current density.

Inspired by the excellent 2e^– ORR performance of CoN@OCNT, to evaluate the production capacity of H₂O₂, the catalyst was sprayed on the gas diffusion electrode to increase the oxygen supply. We assembled custom flow membrane electrode assembly cells (MEAs) using a two-electrode system, as illustrated in Figure 5b. The MEAs cathode can effectively synthesize H₂O₂ molecules from O₂ and DI water, and the H⁺ generated by the oxygen evolution reaction of the anode Pt/C penetrates the Nafion member into the cathode, ensuring that H⁺ compensates for the charge and also reduces the flow of Na+ [18]. As shown in Figure S20, the cell pressure and H₂O₂ selectivity increase with increasing flow rate at a current density of 50 mA cm⁻², and reach nearly 100% at 20 mL min⁻¹, indicating that increasing the flow rate of DI water is helpful to take out the electrosynthesized H₂O₂. Further studies under the same conditions of 100 μg cm⁻² showed that the selectivity and activity of H₂O₂ increased with the increase in flow rate, but the activity was lower than that of 50 μg cm⁻² (Figure S21). Figure S22 combines RRDE to study the effect of different CoN@OCNT loadings. It can be proved that although the increase of loading will increase the activity of H₂O₂, it will lead to the decrease of H₂O₂ selectivity and mass activity, and the calculated n is more deviated from 2e^– ORR. The ORR of CoN@OCNT started at a cell voltage of 1.5 V in MEA and reached an industrial current density of 300 mA cm⁻² at 4.0 V (Figure S23). At the same time, the effect of current density on selectivity and cell voltage was studied (Figure 5c). The selectivity was close to 100% at 10–50 mA cm⁻² and 95% selectivity and 21.8 mol h⁻¹ g_cat⁻¹ activity were obtained at 60 mA cm⁻². Moreover, the single pass had 62.8% selectivity and 70.3 mol h⁻¹ g_cat⁻¹ activity at 300 mA cm⁻² industrial current, and the instantaneous concentration of salt-free H₂O₂ was 9.4 mm (Figure 5d). The stability of CoN@OCNT was examined under a constant current density of 60 mA cm⁻² and exhibited < 5% change in H₂O₂ FE or yield over 80 h of operation; the cell voltage of reaction for 10 h and 80 h increased by only 0.08 v (Figure 5e and Figure S24). The excellent performance of CoN@OCNT was compared with the catalyst in a scalable electrolytic cell in a neutral medium at 60 mA cm⁻² activity, which has high activity, high selectivity and high stability (Figure 5f and Table S5).

4. Conclusions

We developed a CoN@OCNT single-atom catalyst featuring spatially confined Co–NC coordination sites by pyrolyzing a well-defined CoL₆ precursor anchored onto oxidized carbon nanotubes (OCNTs). This strategy enables precise regulation of the active-site configuration through controlled pyrolysis temperature, effectively overcoming the structural heterogeneity commonly encountered in conventional M–N–C catalysts. Benefiting from the optimized coordination environment, the CoN@OCNT catalyst exhibits a high onset potential of 0.66 V versus RHE and nearly 100% H₂O₂ selectivity over a broad potential range from −1.0 to 0.66 V versus RHE in neutral electrolyte. Moreover, the catalyst achieves an H₂O₂ production rate of 21.8 mol h⁻¹ g_cat⁻¹ with excellent operational stability over 80 h in a scalable membrane electrode assembly (MEA) electrolyzer at 60 mA cm⁻². Impressively, under an industrially relevant current density of 300 mA cm⁻², the instantaneous H₂O₂ production rate reaches 70.3 mol h⁻¹ g_cat⁻¹, accompanied by a salt-free H₂O₂ concentration of up to 9.4 mM and 62.8% FE for H₂O₂ production. These results demonstrate the strong potential of this catalyst system for practical, sustainable, and large-scale neutral H₂O₂ electrosynthesis.
