Tuning the Oxidative Activity of Single Atom Catalysts by Carbon Doping in Hexagonal Boron Nitride Supports

Abstract

Single-atom catalysts (SACs) have gained significant attention due to their exceptional metal atom utilization efficiency and high catalytic activity. Using DFT calculations, single-atom metals (M = Ag, Au) on defective and carbon-doped h-BN supports (M@BN and M@nC-BN) are systematically investigated to elucidate the effects of C-doping concentration and configuration on their structural stability, and to explore their potential application in O₂ activation. The results indicate the singlet O₂ adsorbed configuration is more effective in activating the O–O bond than the triplet one. Ag@4C-BN and Au@6C-BN exhibit good stability comparable to their undoped counterparts. Compared to M@BN, the M@nC-BN surfaces, particularly M@4C-BN, exhibit significantly enhanced adsorption of singlet O₂, accompanied by the most notable O–O bond elongation, indicating its superior capability for O₂ activation. DOS and frontier orbital analysis reveals that C-doping upshifts the HOMO energy level of M@4C-BN, endowing the catalyst with a stronger electron-donating ability to O₂ 2π* and leading to efficient activation. This study provides a theoretical basis for the rational design and optimization of BN-based single-atom catalysts.

1. Introduction

Single-atom catalysts (SACs), characterized by atomically dispersed metal active sites on support surfaces, achieve high metal atom utilization efficiency [1,2,3]. This makes them an ideal platform for developing cost-effective catalysts, particularly those based on precious metals like gold, silver, platinum, and palladium et al. Consequently, SACs have emerged as a prominent class of high-efficiency catalysts in recent years [4,5]. The catalytic performance of SACs combines the advantages of both homogeneous and heterogeneous catalysts. Their uniform active sites often confer high selectivity for specific reactions, rivaling the performance of homogeneous catalysts, while simultaneously offering the ease of separation and recovery inherent to heterogeneous catalysts. These attributes make SACs promising for broad applications in electrocatalytic reduction, oxidation, hydrogen production, and related fields [6,7,8,9,10,11,12,13,14,15,16,17]. However, isolated metal atoms, due to their high surface energy, tend to agglomerate into nanoparticles during synthesis and catalytic reactions. Studies indicate that constructing strong electronic or covalent interactions between metal atoms and the support via appropriate synthesis strategies is key to stabilizing single atoms and preventing their migration and agglomeration [18,19,20].

Hexagonal boron nitride (h-BN), composed of alternating B and N atoms arranged in a two-dimensional layered honeycomb structure, exhibits key properties such as a large specific surface area, oxidation resistance, thermal stability, and chemical inertness [21,22,23]. These characteristics make h-BN an ideal support material for anchoring active sites like polyoxometalates (POMs), metal oxides, metal nanoparticles (NPs), and single metal atoms, enabling the construction of highly active composite catalytic materials for various reactions [24,25,26,27]. Notably, vacancy defects in h-BN layers can be created via electron beam irradiation [28,29]. These defective structures can effectively anchor single transition metal atoms. Furthermore, theoretical and experimental studies confirm that boron vacancies (V_B) form more readily than nitrogen vacancies (V_N) in h-BN [30,31]. Theoretical calculations suggest that h-BN sheets containing V_B are highly promising supports for single transition metal atoms [32,33,34,35,36]. h-BN is a typical electrical insulator with a wide bandgap (~6 eV) [37]. Incorporating carbon atoms into the h-BN lattice significantly alters its electronic structure, reducing the bandgap to a tunable range of 0–5.5 eV. Therefore, C doping serves as an effective strategy for modulating the electronic structure of h-BN [37,38,39]. Previous studies have shown that C-doped h-BN as a support exhibits excellent catalytic performance in adsorptive desulfurization, CO₂ capture, and the nitrogen reduction reaction [40,41,42].

In catalytic oxidation field, O₂ is considered an ideal oxidant due to its safety and low cost [43]. However, the high chemical stability of O₂ makes its adsorption and activation a critical initial step in many such reactions [34,44,45]. Moderate O₂ adsorption strength on the catalyst surface and efficient activation to generate reactive oxygen species (e.g., O₂⁻, O₂²⁻) are essential for driving various oxidation processes [44,46]. This study will design single-atom catalysts (SACs) with metal atoms M (M = Ag, Au) anchored on hexagonal boron nitride (h-BN) and carbon-doped BNC monolayers, aiming to investigate the effects of carbon doping concentration and configuration on the stability of these SACs and their catalytic reactivity toward oxygen activation. The findings are expected to provide theoretical guidance for the design of SACs with good stability and superior catalytic activity.

2. Computational Methods and Models

2.1. Computational Methods

The calculations in this study were performed using a hybrid density functional method containing dispersion correction (B3LYP-D3). For the Au and Ag metal atoms, the Stuttgart/Dresden effective core potential (SDD) basis set were employed. This basis set adopts an effective core potential to replace the inner-shell electrons of heavy metals, while retaining valence electrons for detailed calculation; more importantly, it incorporates relativistic effects [47]. For non-metal atoms (B, N, C, H, and O), the all-electron polarized triple-zeta basis set 6-311G(d, p) was used. During the geometry optimization process, all atomic configurations were fully relaxed with the adoption of stringent convergence criteria. Specifically, the convergence cutoff for energy computations was configured to 1.0 × 10⁻⁸ atomic units (a.u.), while for the geometry relaxation process, the maximum force tolerance and maximum displacement limit were set to 0.00045 a.u. and 0.0018 a.u., respectively. Previous research has confirmed this computational method is suitable for simulating metal interactions with h-BN systems [48]. To further verify the rationality of the optimized structures, frequency calculations were performed. Structures without imaginary frequencies were confirmed as local minima, while those with exactly one imaginary frequency were identified as transition states. All theoretical computations were carried out using the Gaussian 16 program package [49].

2.2. Computational Models

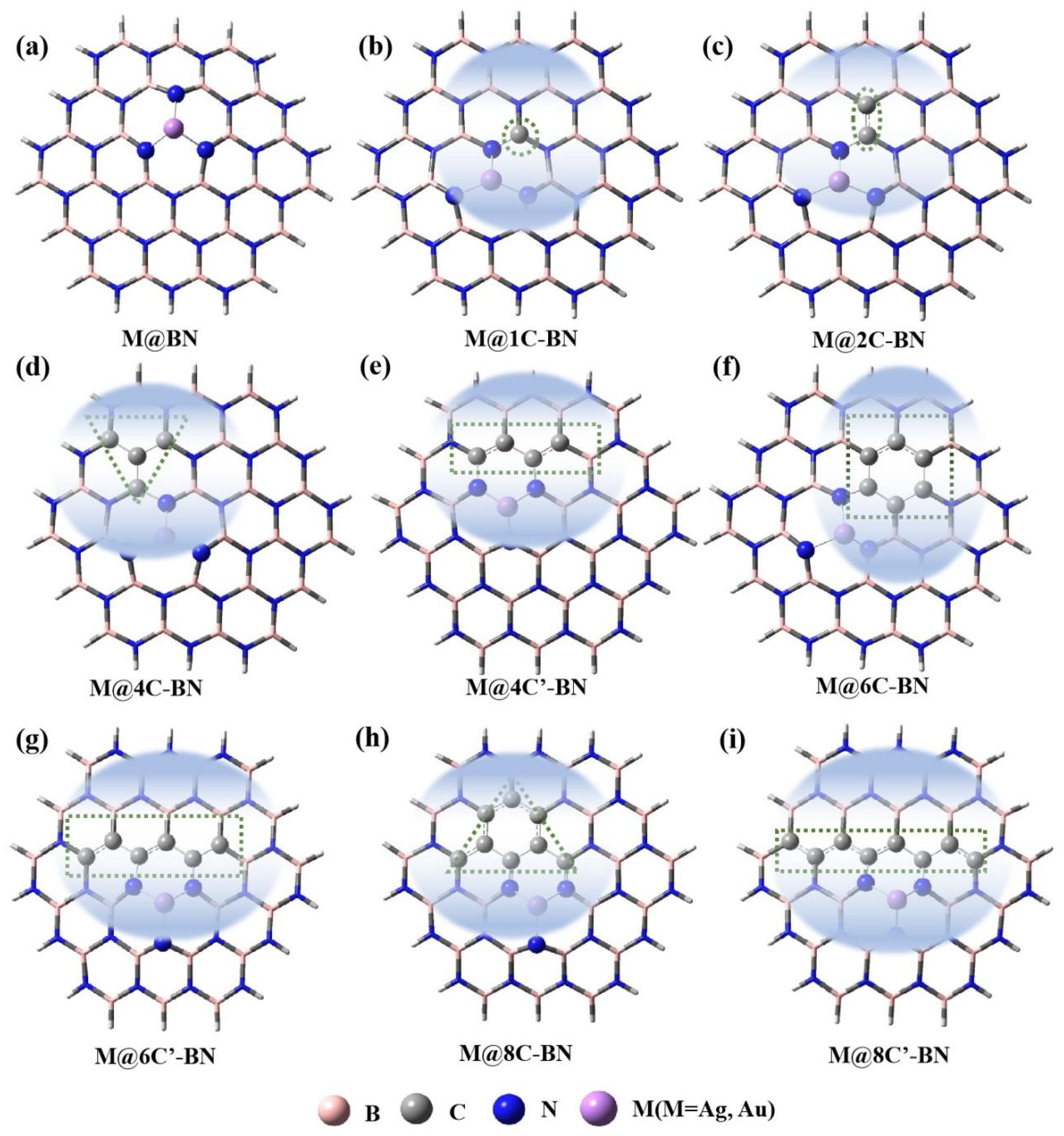

B₂₇N₂₇H₁₈ cluster model was selected to represent the h-BN support; the truncated edges were passivated with hydrogen atoms. The metal atom (M) was introduced at the V_B site to form the M@BN (M = Ag, Au) single-atom system. To verify the adequacy of the model size, an extended B₄₈N₄₈H₂₄ cluster was constructed (Figure S1). The metal anchoring configurations at V_B sites, as well as the O₂ adsorption configurations and corresponding energies derived from the large cluster, are nearly identical to those obtained with the original B₂₇N₂₇H₁₈ model (Table S1). These results confirm that the B₂₇N₂₇H₁₈ cluster is sufficiently sized to reliably support the investigation of O₂ adsorption processes. Carbon was incorporated into the h-BN lattice to replace the lattice B or N atoms, forming C–B and C–N bonds. The metal atom remains anchored at the V_B site, forming the M@nC-BN systems. Experiments have confirmed that carbon atoms tend to form atomic domains rather than being atomically dispersed when doped into BN materials [37,39,50,51]. To this end, we selected a series of representative carbon-doped configurations to systematically investigate the effects of doping concentration and structure. The C-doping content was varied between 1 and 8 atoms, corresponding to C contents of 1.5–12.3% for Ag systems and 1.4–11% for Au systems. This range covers the critical region reported in the recent literature, where the bandgap of BCN materials is known to be strongly dependent on C concentration, with an optimal value near 6% leading to the smallest bandgap and highest activity [37]. The possible configurations for 3C and 5C doping are chain-like. As this arrangement type has been thoroughly investigated in even-numbered systems (4C, 6C, 8C), these two cases were therefore not included in the present study.

These configurations, with an increasing number of carbon atoms, are named M@1C-BN, M@2C-BN, M@4C-BN, M@4C′-BN, M@6C-BN, M@6C′-BN, M@8C-BN, and M@8C′-BN, respectively. Here, nC-BN and nC′-BN represent structures with identical carbon atom counts (n) but differing configurations, as illustrated in Figure 1. Specifically, in the C-doped systems, the superscript prime (′) denotes a chain-like configuration of carbon atoms, whereas its absence represents other structures: for n = 4, 4C-BN is triangular and 4C′-BN is chain-like; for n = 6, 6C-BN is ring-like and 6C′-BN is chain-like; for n = 8, 8C-BN is triangular and 8C′-BN is chain-like.

The binding energy (E_b) of M at V_B site of BN or BNC support, representing the stability of the metal atom on the surface, is defined by Equation (1)

$$E_{\mathrm{b}}=E_{\mathrm{M}@\mathrm{support}}-(E_{\mathrm{M}}+E_{\mathrm{support}})$$

(1)

where $E_{\mathrm{M}}$, $E_{\mathrm{support}}$, and $E_{\mathrm{M}@\mathrm{support}}$ represent the total energies of the isolated metal atom in the gas phase, the BN or BNC support with a V_B site, and the M atom anchored at V_B site of BN or BNC systems, respectively. A more negative E_b value indicates a more stable SAC. Similarly, the adsorption energy (E_ads) of O₂ on M@support is given by Equation (2):

$$E_{\mathrm{a}\mathrm{d}\mathrm{s}}=E_{{\mathrm{O}}_2/\mathrm{M}@\mathrm{support}}-(E_{{\mathrm{O}}_2}+E_{\mathrm{M}@\mathrm{support}})$$

(2)

where $E_{{\mathrm{O}}_2}$, $E_{\mathrm{M}@\mathrm{support}}$, and $E_{{\mathrm{O}}_2/\mathrm{M}@\mathrm{support}}$ denotes the total energies of the ground state O₂ molecule, the single atom catalyst M@support, and the combined system, respectively. Thus, a negative E_ads value indicates an exothermic adsorption process. Zero-point energy corrections were applied to all calculated E_b and E_ads values.

It has been reported that Au single atoms can exist on the CuO film at 400 K, while Ag single atoms can be anchored on the C₃N₄ support surface at 353 K [52,53]. In this study, we also investigated the stability and adsorption properties of Ag and Au single atoms at 400 K by means of frequency calculations. The Gibbs binding energy (G_b) is defined by Equation (3)

$$G_{\mathrm{b}}=G_{\mathrm{M}@\mathrm{support}}-(G_{\mathrm{M}}+G_{\mathrm{support}})$$

(3)

with G_M, G_support, and G_M@support representing their corresponding total Gibbs free energies. Similarly, the Gibbs adsorption energy (G_ads) is given by Equation (4),

$$G_{\mathrm{a}\mathrm{d}\mathrm{s}}=G_{{\mathrm{O}}_2/\mathrm{M}@\mathrm{support}}-(G_{{\mathrm{O}}_2}+G_{\mathrm{M}@\mathrm{support}})$$

(4)

where $G_{{\mathrm{O}}_2}$, $G_{\mathrm{M}@\mathrm{support}}$, and $G_{{\mathrm{O}}_2/\mathrm{M}@\mathrm{support}}$ denote their corresponding total Gibbs free energies.

3. Results

3.1. The Structures and Stability of M@BN and M@nC-BN

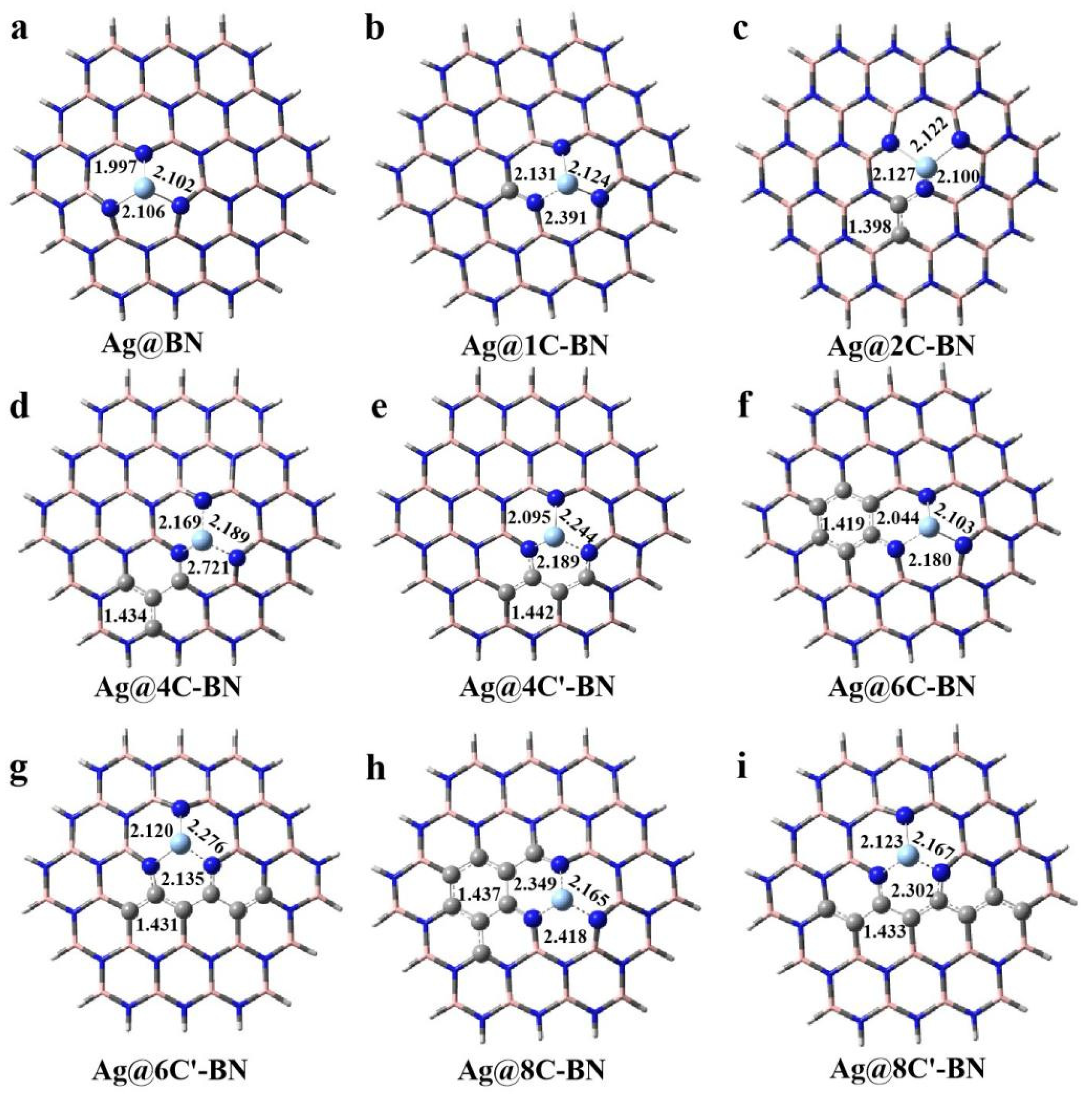

We first optimized the structures of single Ag and Au anchored on the V_B site of h-BN and C-doping BN supports, and the most stable geometries are shown in Figure 2 and Figure S2, respectively. Using the single Ag atom adsorption as an example, in the case of Ag@BN, the Ag atom at the V_B site resides out of the BN plane due to its large atomic radius, causing an upward displacement of the adjacent nitrogen atoms. The distances between Ag and the three neighboring N atoms are 1.997, 2.102, and 2.106 Å, respectively, in agreement with values (2.10 Å) reported in the literature [35]. Carbon doping into the h-BN support markedly alters the adsorption configuration of the Ag single atom, primarily marked by the elongation of one of the three initially similar Ag–N bonds. For instance, with one C dopant (n = 1, Figure 2b), one Ag–N bond length increases to 2.391 Å. At n = 8 (in the 8C′-BN structure, Figure 2i), this bond elongates to 2.302 Å. This bond elongation will weaken the binding strength and thus the stability of Ag at the V_B site. Similarly, the Au atom at the V_B site of the h-BN surface (Figure S2) forms three Au–N bonds (1.970, 2.058, and 2.058 Å), closely matching the literature value of 2.06 Å [54]. Likewise, C doping in the BN support leads to a marked elongation of one Au–N bond. With increasing doping concentration from n = 1 to n = 8, its maximum length rises from 2.080 Å to 2.854 Å, as presented in Figure S2. This substantial elongation weakens the Au-support interaction thereby potentially compromising the stability of the Au single atom at the V_B site.

The binding energy (E_b) serves as a direct indicator for evaluating the stability of metal atoms on the support surface, with more negative values corresponding to greater stability of the system. As shown in

Table 1. Binding energies (E_b, kcal/mol) and Gibbs binding energies (G_b, kcal/mol) at 400 K for M@BN and M@nC-BN (M = Ag, Au).

Model	M@BN (a)	M@1C-BN (b)	M@2C-BN (c)	M@4C-BN (d)	M@4C′-BN (e)	M@6C-BN (f)	M@6C′-BN (g)	M@8C-BN (h)	M@8C′-BN (i)
Eb,Ag	−61.3	−52.3	−41.6	−52.6	−40.1	−50.0	−40.3	−50.0	−39.0
Eb,Au	−62.9	−47.6	−44.0	−45.3	−36.5	−49.8	−34.3	−40.9	−32.3
Gb,Ag	−46.5	−39.5	−26.3	−40.1	−28.3	−34.8	−24.7	−36.2	−26.7
Gb,Au	−48.1	−31.7	−28.8	−32.5	−23.7	−34.0	−18.6	−27.1	−19.4

, for the M@BN systems, the E_b of Ag@BN and Au@BN are −61.3 and −62.9 kcal/mol, respectively, which are in good agreement with previous theoretical calculations [55]. The E_b of Ag is comparable to its cohesive energy (−68.0 kcal/mol). However, the E_b of Au is less negative than its cohesive energy (−87.8 kcal/mol) [56]. Hence, Ag is more stable than Au when anchored at the V_B site of the h-BN surface.

In agreement with the optimized structural results, a slight decrease in the stability of single atoms, is observed upon doping carbon into the BN surface. For instance, when the number of carbon atom equals to 1 (n = 1), the E_b value of Ag@1C-BN and Au@1C-BN decrease to −52.3 kcal/mol and −47.6 kcal/mol, respectively; when n = 2, the E_b values of Ag@2C-BN and Au@2C-BN decrease to −41.6 kcal/mol and −44.0 kcal/mol, respectively. With an increasing number of doped carbon atoms, the configuration of carbon doping in the BN surface significantly influences the stability of single atoms. When the carbon dopant count reaches 4, 6, and 8, the two configurations exhibit distinct stability: the triangular configuration consistently demonstrates higher stability than the corresponding chain-like structure, and Ag@nC-BN systems show greater stability than their Au@nC-BN counterparts. Moreover, in the Ag single-atom system, Ag@4C-BN exhibits the highest stability with a binding energy of −52.6 kcal/mol, thus representing the most stable C-doped Ag single-atom configuration. For the C-doped Au single-atom system, Au@6C-BN shows the best stability with a binding energy of −49.8 kcal/mol. The electronic structure, which originates from orbital hybridization between the C 2p and metal d orbitals near the HOMO level, is the primary driving force for stabilizing the M@BN-6C single-atom systems, as evidenced by the density of states (DOS) plots (Figure S3). For Au, relativistic effects cause contraction of the s orbital and expansion of the d/f orbitals, which further enhances the orbital overlap with the C 2p orbital, as shown in the HOMO diagram in Figure S4. This intensified d-p orbital interaction directly contributes to the greater stability exhibited by the Au@6C-BN system.

At 400 K, the stability of Ag and Au single atoms decreased, as evidenced by the G_b values in Table 1, while the stability order remained unchanged. Metal atoms anchored on the undoped BN support exhibited the highest stability, outperforming all C-doped counterparts. Among the C-doped systems, Ag and Au single atoms displayed optimal stability on the 4C-BN and 6C-BN supports, respectively.

In summary, Ag forms more stable SACs than Au at the V_B site of BN support. Carbon doping elongates the M–N bonds, thereby reducing metal stability. Both the amount and arrangement of doped C atoms affect stability. Chain-like configurations show a strong influence with more C atoms, while triangular (4C-BN) and ring (6C-BN) ones have little effect. Ag@4C-BN and Au@6C-BN are the most stable among all configurations.

3.2. Adsorption of Triplet O₂ on M@BN and M@nC-BN

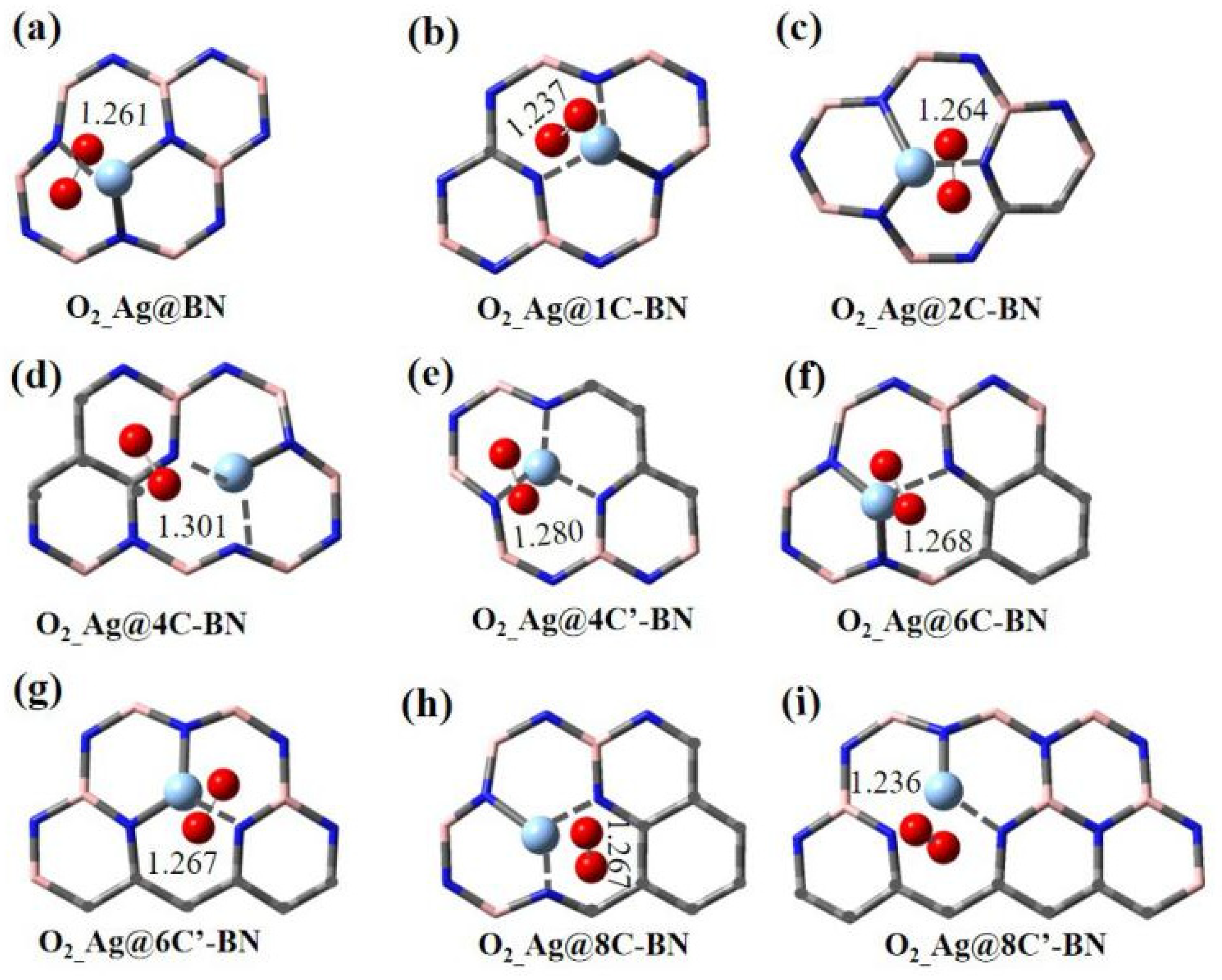

Given the triplet ground state of O₂, the adsorption behavior of triplet O₂ on the surfaces of Ag and Au single atoms was first investigated, with the corresponding configurations shown in Figure 3 and Figure S5, respectively. For O₂ adsorbed on Ag SACs, the O–O bond length ranges from 1.236 to 1.280 Å across most systems, except for 4C-BN (1.301 Å). On Au SACs, the longest O–O bond lengths occur on Au@4C′-BN and Au@8C′-BN. However, due to the poor stability of Au single atoms in these systems, they are not considered ideal for catalysis when stability is taken into account.

The E_ads of triplet O₂ are listed in Table S2. All adsorption energies are negative values, indicating that the adsorption process is spontaneous. Among these systems, M@2C-BN system exhibits the strongest adsorption toward O₂, with E_ads of −27.2 kcal/mol and −31.3 kcal/mol for Ag@2C-BN and Au@2C-BN, respectively. Even at 400 K, when G_ads decreases on all M@nC-BN systems, M@2C-BN still maintains the strongest adsorption capacity.

The activation of O₂ typically requires a spin-state transition from triplet to singlet, a process often governed by non-adiabatic charge transfer and surface electronic coupling on metal-based catalysts [57,58]. This transition overcomes the spin-forbidden constraint for O₂ activation. For instance, Behler et al. observed a triplet-to-singlet transition during O₂ adsorption on Al(001) via charge transfer-induced spin population reduction [59]; Kurokawa et al. reported a triplet-quintet-singlet transition in hemoglobin-O₂ binding that accelerates reactions [57]; Belanzoni et al. confirmed that O–O bond cleavage requires a low-spin state transition of Fe(II)/EDTA-O₂ complexes [58]. Given this, we further investigated the adsorption behavior of singlet O₂.

3.3. Adsorption of Singlet O₂ on M@BN and M@nC-BN

3.3.1. Singlet O₂ Adsorption on Ag@BN and Ag@nC-BN

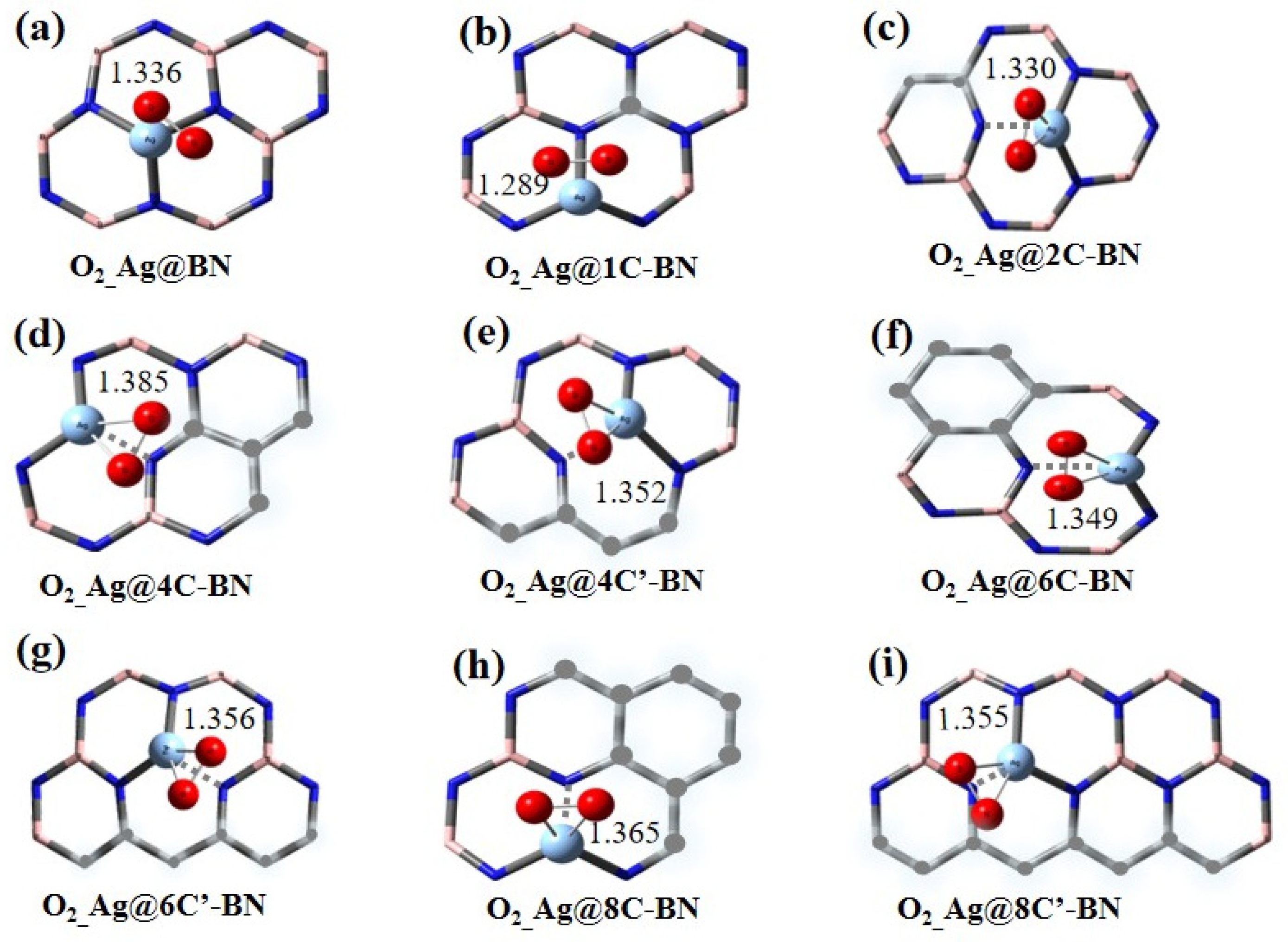

Figure 4 shows the optimized adsorption configurations of singlet O₂ on Ag single-atom catalysts. For O₂ adsorption on Ag@BN, the O–O bond length elongates from 1.19 Å in the gas phase to 1.336 Å. Upon adsorption on Ag@nC-BN surfaces, the O–O bond lengths show significant increases compared to the free molecule. Notably, the O–O bond elongates more significantly in the singlet than in the triplet adsorption configuration, indicating that the adsorbed singlet oxygen is more readily activated. Moreover, the elongation is most pronounced after O₂ adsorption on Ag@4C-BN (Figure 4d), where the bond length reaches 1.385 Å, indicating the strongest interaction between O₂ and Ag@4C-BN.

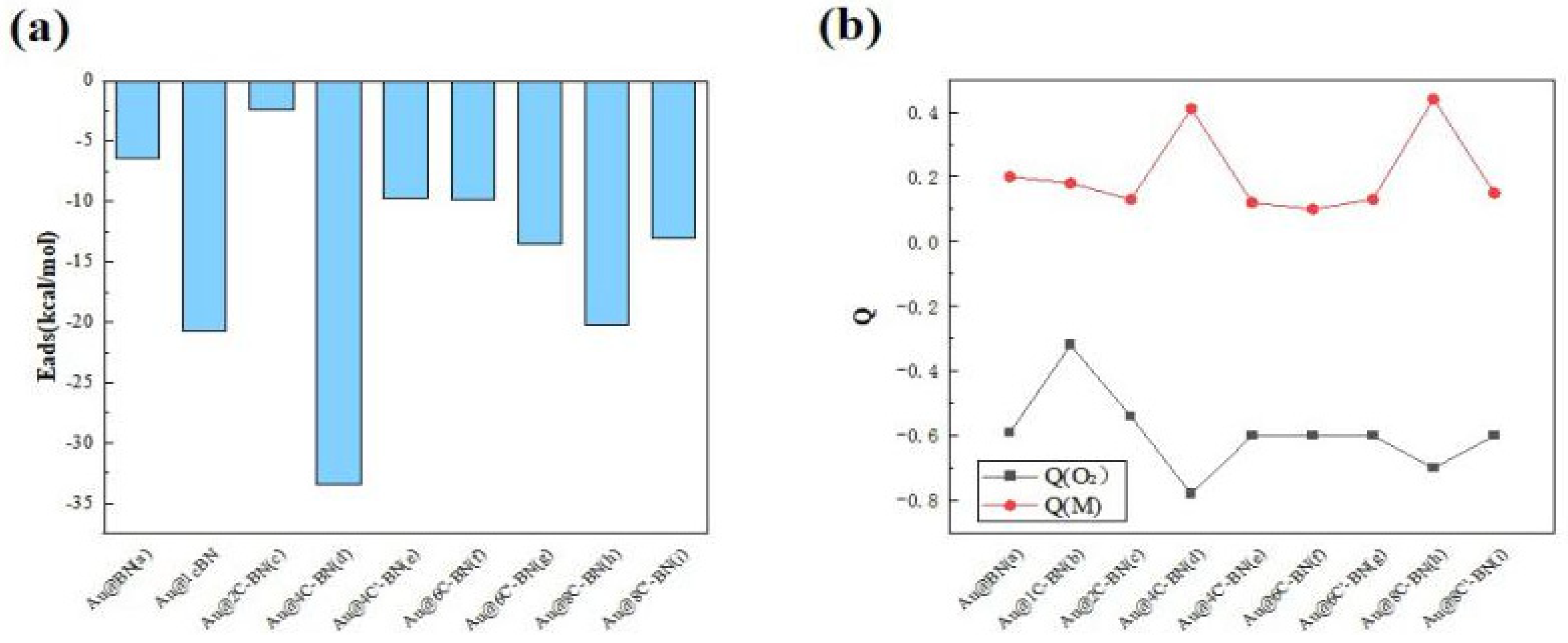

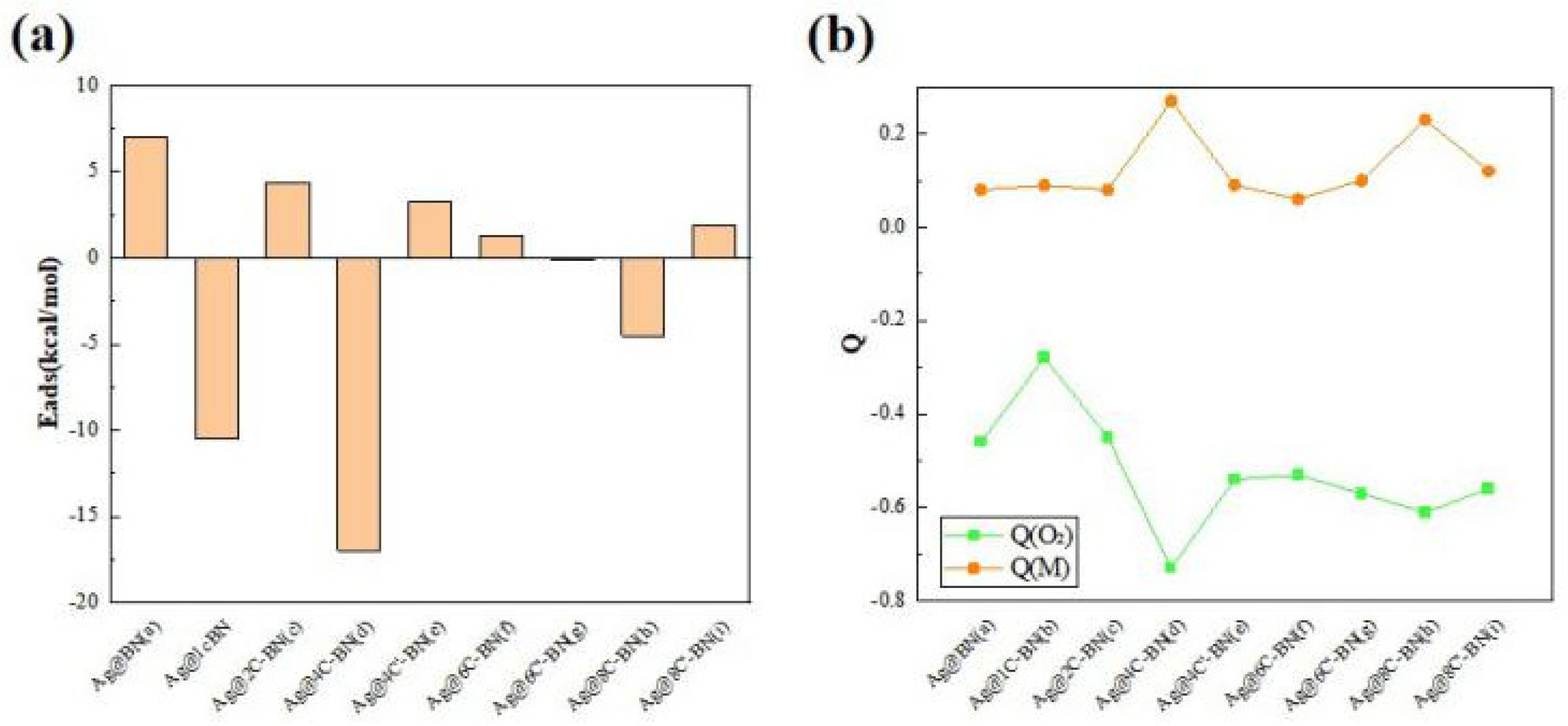

The adsorption energy (E_ads) directly reflects the strength of the interaction between O₂ and the catalysts. Specifically, a more negative E_ads value signifies a stronger adsorption interaction. The E_ads and charge analysis for O₂ on Ag SACs are presented in Figure 5 and Table S3. The positive E_ads of O₂ on the Ag@BN surface is 7.0 kcal/mol, indicating a weak interaction. When carbon is doped into the BN support, the adsorption strength of singlet O₂ on the catalyst surfaces increases. For instance, on the Ag@1C-BN surface, the adsorption energy becomes negative (−10.5 kcal/mol). The strongest adsorption occurs on the Ag@4C-BN surface, with an E_ads of −17.0 kcal/mol. Therefore, doping the support with carbon atoms effectively modulates the catalyst’s activity. Notably, At 400 K, G_ads of O₂ becomes more positive across all systems, while the strongest O₂ adsorption is still maintained on the Ag@4C-BN surface.

Furthermore, the geometric arrangement of the C-doping is also a crucial factor affecting O₂ adsorption performance, especially for systems with four and eight carbon atoms. For n = 4, the O₂ adsorption energy differs significantly between the Ag@4C-BN (−17.0 kcal/mol) and Ag@4C′-BN (3.3 kcal/mol) configurations. This trend persists with 8C-doped systems, where the energies are −4.5 kcal/mol for Ag@8C-BN and 1.9 kcal/mol for Ag@8C′-BN, respectively.

Natural population analysis further corroborates the interaction strength between oxygen and the catalysts. After O₂ adsorption, the molecule acquires a negative charge and the Ag atom becomes more positive, indicating electron transfer from the metal to the adsorbate. This transfer populates the O₂ antibonding 2π* orbital, which consequently weakens the O–O bond, as evidenced by a significant increase in bond length and the resultant activation of O₂. Taking O₂ adsorption on Ag@4C-BN as an example, the charge on O₂ is −0.73 |e|, indicating substantial activation of O₂.

A comparison between the Ag@BN and Ag@4C-BN systems reveals a clear trade-off between the stability and catalytic activity. On the Ag@BN surface, where the Ag atom is most stable (E_b = −61.3 kcal/mol), the O₂ adsorption is weakest (E_ads = 7.0 kcal/mol). Conversely, when the metal-support interaction is slightly weakened, as on the Ag@4C-BN surface (E_b = −52.6 kcal/mol), O₂ adsorption becomes significantly stronger (E_ads= −17.0 kcal/mol), indicating strong chemisorption. In the following section, we will elaborate on the activity difference between M@BN and M@4C-BN by analyzing their electronic structures.

3.3.2. Singlet O₂ Adsorption on Au@BN and Au@nC-BN

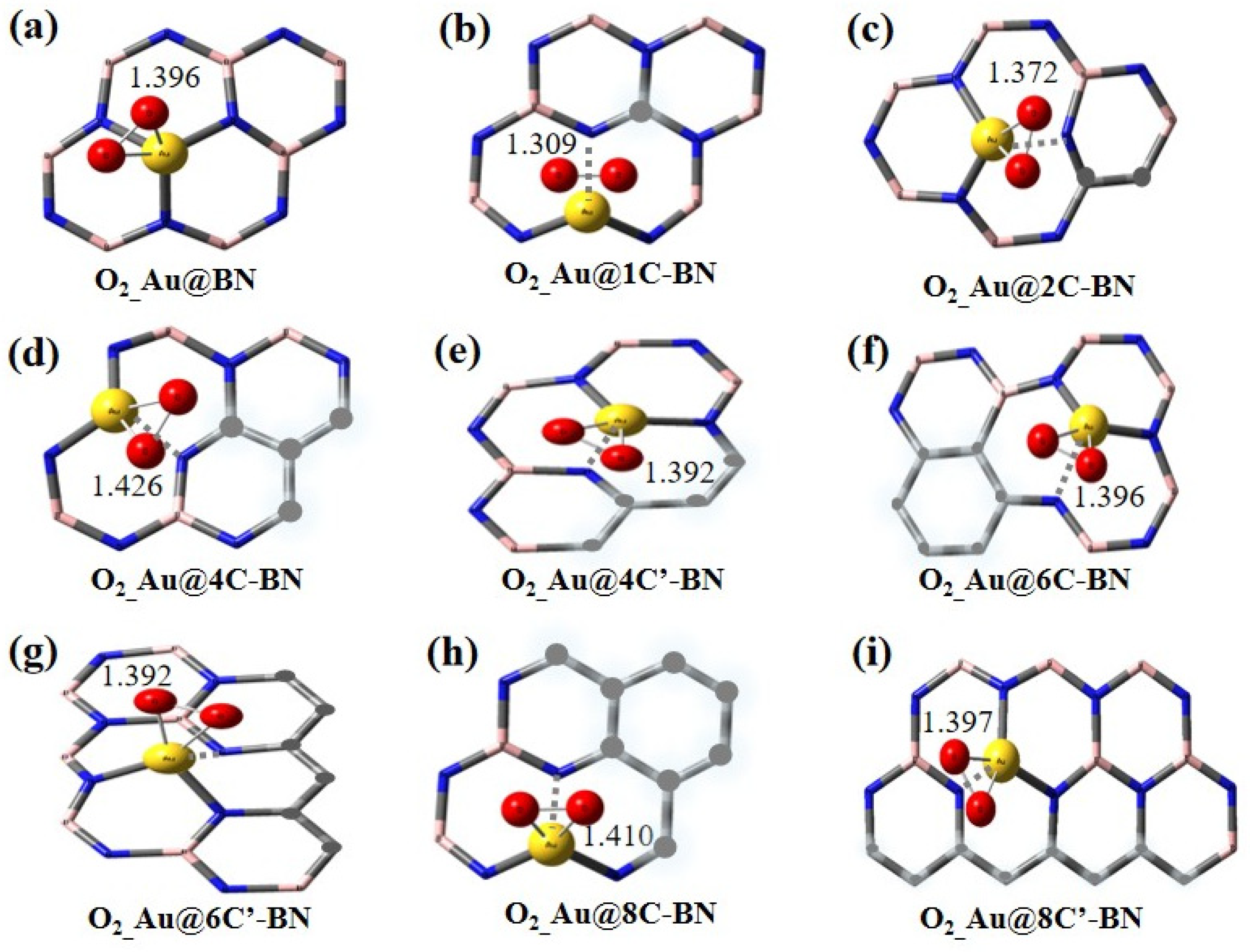

Figure 6 Shows the optimized adsorption configurations of singlet O₂ on Au single-atom catalysts. After O₂ adsorption, the O–O bond length elongates from 1.19 Å to 1.396 Å on Au@BN surface. Adsorption on Au@nC-BN surfaces also leads to significant O–O bond elongation compared to the free molecule. Notably, the elongation is most pronounced after O₂ adsorption on Au@4C-BN (Figure 6d), where the bond length reaches 1.426 Å, approaching the O₂²⁻ bond length (1.49 Å). In line with the Ag-based systems, the O–O bond of adsorbed singlet O₂ on the most of Au-based systems elongates more than that of triplet adsorbed O₂, indicating stronger activation of singlet adsorbed O₂.

As presented in Figure 7 and Table S4, the O₂ adsorption energy on the Au@BN surface is only −6.4 kcal/mol, characteristic of weak physisorption. Apart from Au@2C-BN, O₂ adsorption energies become more negative on all C-doped support surfaces. Notably, the strongest O₂ adsorption is observed on Au@4C-BN, with an E_ads of −33.4 kcal/mol. Charge analysis indicates that the process is activated by electron transfer to the O₂ molecule, consistent with the behavior seen on Ag single atoms. The transferred electrons occupy the antibonding orbital of O₂, leading to its activation. As a case in point, the O₂ molecule on Au@4C-BN carries the highest charge of −0.78|e|.

The carbon doping geometry also influences O₂ adsorption, with the triangular configuration (Au@4C-BN) demonstrating significantly stronger adsorption (−33.4 kcal/mol) than the chain-like form (Au@4C′-BN, −9.8 kcal/mol) for n = 4. A trend that holds for n = 8, −20.3 vs. −13.0 kcal/mol), confirming the superior promotion of O₂ activation by the triangular structure.

In summary, carbon doping universally enhance singlet O₂ adsorption on Ag and Au catalysts, with triangular configurations being most effective. Within the M@4C-BN systems (M = Ag, Au), O₂ demonstrates greater O–O bond elongation and a higher degree of activation than the triplet state, highlighting the importance of spin state in tuning catalytic performance. These findings confirm M@4C-BN as a potent platform for facilitating O₂ activation.

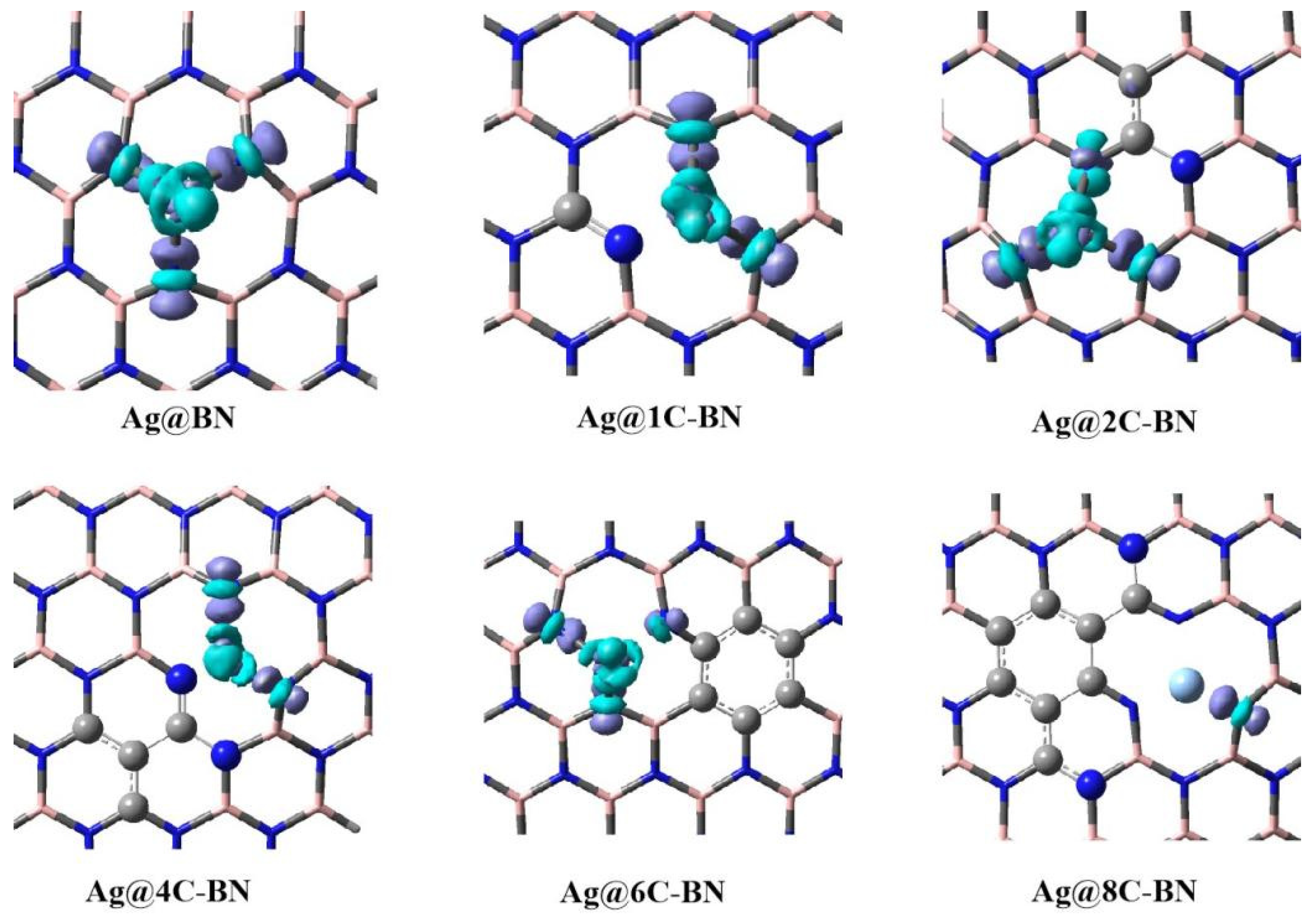

3.3.3. Electron Density Difference (EDD) Analysis

The concentration and configuration of carbon doping are closely related to the stability and activity of SACs. Introducing carbon atoms into the support slightly reduces the stability of the single atoms but enhances the catalyst’s reactivity towards O₂ activation. This is likely intimately connected to the changes in the electronic structure of the support induced by carbon doping. Figure 8 and Figure S6 presents the electron density difference (EDD) plots for the Ag and Au single-atom systems, respectively. Regions in purple indicate an increase in electron density, while cyan/green regions indicate a decrease. In the Ag@BN system, electron density depletion occurs primarily around the metal atom, and density accumulation is observed between Ag and the three surrounding N atoms, indicating the formation of three stable Ag–N covalent bonds, which explains the good stability of the Ag@BN system. As carbon atoms are doped into the BN surface, the regions of electron density accumulation between Ag and N decrease significantly, leading to reduced stability of the corresponding catalysts. When the coordination ability between the metal atom and N weakens, the metal atom possesses more free electrons available for coordination with adsorbates, which may account for the observed increase in reactivity [33].

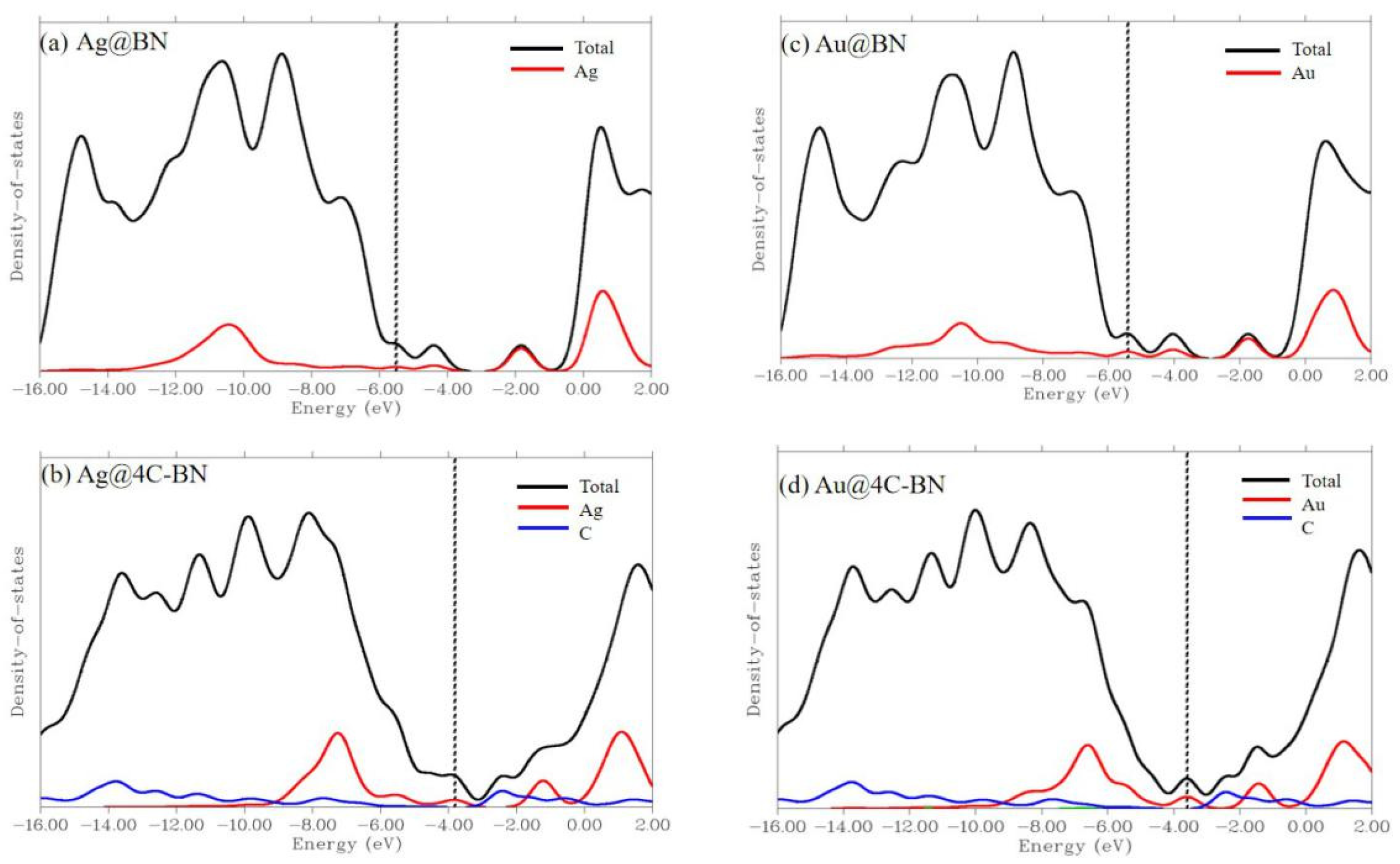

To further clarify the enhanced O₂ reactivity of M@4C-BN, we plotted the density of states (DOS) and frontier orbital diagrams of M@BN and M@4C-BN (Figure 9 and Figure S7, respectively). DOS analysis reveals that carbon doping rearranges the electron distribution of M@BN. Specifically, the C 2p orbitals hybridization effectively elevate the HOMO energy level of M@4C-BN to −3.8 eV (Ag) and −3.6 eV (Au), substantially higher than that of M@BN (−5.5 eV). A higher HOMO level is generally associated with a stronger electron-donating tendency [60,61], facilitating electron transfer to the antibonding orbital of adsorbed O₂ and thus enhancing reactivity.

Therefore, the concentration and geometric configuration of carbon doping are central factors influencing the stability and activity of metal single-atom catalysts. This conclusion provides a theoretical basis for optimizing h-BN-based single-atom catalysts in catalytic oxidation applications.

3.4. The Dissociation of Singlet O₂ on M@BN and M@nC-BN

In view of the fact that adsorbed singlet O₂ on the M@4C-BN surface shows the most significant O–O bond activation with a bond length comparable to that of O₂²⁻, we further investigated the dissociation process of O₂ on this surface, the corresponding configurations and energies during the dissociation process are presented in Figure S8. The adsorbed singlet O₂ as the reaction entrance, in which the O–O bond lengths (1.385 Å on Ag SAC, 1.426 Å on Au SAC). Through a transition state, the O–O bond elongates to 2.769 Å (Ag) and 2.547 Å (Au) before fully dissociating, reaching final lengths of 3.160 Å (Ag) and 3.057 Å (Au). Energetically, complete dissociation faces high barriers, 86.8 kcal/mol on Ag SAC and 66.6 kcal/mol on Au SAC, relative to the adsorbed O₂ state. The overall process is also endothermic by 79.7 kcal/mol (Ag) and 55.5 kcal/mol (Au), confirming its thermodynamic and kinetic difficulty. Notably, our previous work has verified that the adsorbed singlet O₂ itself can act as reactive oxygen species to participate in dibenzothiophene oxidation reactions [34,48]. Moreover, for CO catalytic oxidation, the direct oxidation pathway involving activated molecular oxygen appears to be the predominant mechanism [44]. Therefore, the reactive oxygen species formed via adsorption probably play a crucial role in facilitating efficient oxidation reactions.

4. Conclusions

Using density functional theory (DFT), this work investigates the adsorption and activation of O₂ on single-atom catalysts (M@BN, M@BNC, M=Ag, Au), to elucidate the critical influence of carbon doping in the support on the catalytic stability and oxidative activity. The main conclusions are as follows:

(1)

Carbon doping reduces Ag and Au single-atom catalysts stability by weakening the metal-substrate bond. This destabilization is severe for chain-like dopant arrangements but minimal for triangular (4C-BN) and ring (6C-BN) configurations, leading to the Ag@4C-BN and Au@6C-BN as the most stable systems.

(2)

From the perspective of geometric configurations, adsorbed singlet O₂ achieves more efficient O–O bond activation than its triplet counterpart. Notabaly, the geometry of carbon dopants critically governs singlet O₂ adsorption on M@BNC systems. A triangular doping arrangement, dramatically enhances adsorption and O–O bond activation compared to undoped M@BN. This is most evident for Ag@4C-BN and Au@4C-BN, which exhibit maximal adsorption energies of −17.0 and −33.4 kcal/mol, respectively.

(3)

The density of states (DOS) and frontier orbital analysis reveal that when carbon is doped in a triangular configuration, its 2p orbitals significantly contribute to the HOMO energy level of M@4C-BN, causing a notable upward shift. This shift facilitates the transfer of electrons to the antibonding orbitals of the adsorbed O₂, thereby effectively promoting O₂ activation.
