The Influence of Initial Microstructure on the Microstructure and Mechanical Properties of Ductile Iron After Nanostructurisation Heat Treatment

by
Emilia Skołek
1,*,
Paweł Skoczylas
2,
Kamil Wasiluk
1,
Wiesław A. Świątnicki
1,
Andrzej N. Wieczorek
3 and
Dawid Myszka
2
1
Faculty of Materials Science and Engineering, Warsaw University of Technology, Wołoska 141, 02-507 Warsaw, Poland
2
Faculty of Mechanical and Industrial Engineering, Warsaw University of Technology, Narbutta 85, 02-524 Warsaw, Poland
3
Faculty of Mining, Safety Engineering and Industrial Automation, Silesian University of Technology, Akademicka 2 Street, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(22), 1710; https://doi.org/10.3390/nano15221710
Submission received: 16 October 2025 / Revised: 6 November 2025 / Accepted: 7 November 2025 / Published: 12 November 2025
(This article belongs to the Special Issue Advances in Nanostructured Alloys: From Design to Applications)
Browse Figures
Versions Notes

Abstract

In this study, the microstructure and mechanical properties of ductile cast iron subjected to a novel austempering treatment were investigated. The methodology was based on prolonged isothermal annealing within the low-temperature range of the bainitic transformation. The experiments were carried out on samples with two different initial microstructures: pearlitic–ferritic and ausferritic. Two long-term austempering treatment variants were designed and tested: single (AT-1) and double (AT-2). In both cases, the heat treatment led to the production of a nanoausferritic microstructure, characterized by exceptionally thin plates of bainitic ferrite separated by thin layers of retained austenite. Compared to conventional austempering, the new method produced a much finer microstructure and a reduced amount of retained austenite. Moreover, the AT-2 variant further enhanced the homogeneity of the microstructure, promoting a higher fraction of thin ferrite plates. Mechanical tests revealed that the new heat treatment significantly improved the performance parameters of the material: hardness increased from 27 HRC to 32–35 HRC, tensile strength rose from 1027 MPa to 1220–1296 MPa, and yield strength from 683 MPa to 1033–1054 MPa. It was proved that, regardless of the initial microstructure of ADI, new processes exhibited comparable, enhanced mechanical properties, confirming their efficiency and universality.

1. Introduction

Austempered ductile iron (ADI) is a structural material widely used for machine parts and equipment in the agricultural, railway, automotive, and mining industries. Global cast iron production continues to grow steadily, at 20,000 tons per year on average. The microstructure of ADI consists of spheroidal graphite nodules embedded in a ferritic–austenitic matrix, known as ausferrite. This structure is obtained through a heat treatment sequence involving austenitisation followed by austempering. The ausferritic matrix provides ADI with relatively high mechanical properties, including tensile strengths of 850–1600 MPa, elongations exceeding 10%, as well as high impact strength and wear resistance [1,2,3,4,5,6,7,8]. The mechanical properties of ADI can be tailored through heat treatment, which affects the type, amount, and size of phases in the microstructure, including stable retained austenite that contributes to ductility [9,10,11,12,13,14,15,16]. Numerous advanced heat treatment methods have been developed for steels to refine microstructure and enhance the strength–ductility balance [17,18,19,20]. Some of these treatments have been adapted for ADI [21,22,23,24,25,26,27,28,29,30,31,32], such as multistep austempering [24,25,26,27,28], thermomechanical processing [22,29,30,31,32,33], and quenching and partitioning (Q&P) treatments [34,35,36]. Their common outcome is a highly refined, multiphase microstructure containing hard phases (martensite and/or bainitic ferrite) along with a significant proportion of stable retained austenite. Grain refinement increases strength [5,14,21,22,23] while control over the amount and stability of austenite improves ductility [9,14,32,33].
One important route to modify ADI microstructure while reducing processing time is staged austempering, including step-up (low–high) and step-down (high–low) methods [24,25,26,27,28]. In step-up austempering, the first stage is conducted at a lower temperature within the bainitic transformation range to generate a high density of ferrite nuclei. The second stage at a higher temperature promotes the growth of ausferrite, carbon diffusion, and austenite stabilization, producing a finer microstructure with higher stable austenite content, leading to increased strength (up to several hundred MPa) and fracture toughness compared with single-step processing at the same temperature [24,25,28]. In step-down processing, the initial high-temperature stage produces fewer ferrite nuclei, but their growth is more pronounced. The subsequent step at a lower temperature rises the degree of bainite transformation, leading to a reduction in the austenite content and an increase in its stability in the final microstructure. This method provides similar properties to single-step austempering carried out at a lower temperature, but with a shorter processing time [26,27].
Thermomechanical treatment, applied either during austenitisation [22,29] or austempering [30,31,32], increases defect density, which leads to the refinement of the microstructure and shortening the transformation time [29,30,31,32,33]. Plastic deformation during austempering (ausforming) additionally suppresses the martensitic transformation of unstable austenite during cooling, although deformation within the bainitic range can itself trigger martensite formation. These effects—microstructural refinement, increased dislocation density, and potential martensite presence—can substantially improve strength (even up to several hundred MPa), but ductility depends strongly on the chemical composition, deformation level, and martensite fraction [29,30,31,32].
Q&P processes are also attracting attention. In the quenching stage (Q), the material is cooled to a temperature TQ between the martensite start (Ms) and finish (Mf) temperatures, producing partial martensitic transformation. In the partitioning stage (P), performed at a temperature TP ≥ TQ (up to ~450 °C), carbon diffuses from supersaturated martensite into austenite, stabilizing it without altering phase proportions. Appropriate Q&P parameters yield microstructures combining tempered martensite and carbon-enriched retained austenite, or mixtures of martensite, austenite, and ausferrite, providing high tensile strength and ductility. Inadequate partitioning (low temperatures or short durations) reduces stable austenite content, promoting unwanted martensitic transformation on cooling, which increases strength but lowers ductility [34,35]. Modified approaches replace quenching with short low-temperature austempering, followed by partitioning, producing nanometric to submicron ausferrite with high retained austenite content. Partitioning then continues bainitic transformation, refines ferrite plates, and reduces blocky austenite, enhancing the elongation from 3.6% to 5.2%, i.e., by about 50%, with only a slight reduction in strength [36]. Another development path, pursued in this study, is the application of nanobainitisation-based processes involving austempering at low temperatures near the Ms. Industrial practice distinguishes low austempering (250–300 °C for 1.5–4 h) and high austempering (350–400 °C for 0.5–2 h). Conventional ADI exhibits a feathery ferrite morphology with high austenite content and relatively coarse features. New approaches employ greater undercooling and optimized holding times to produce more refined microstructures. Nanobainitisation is performed slightly above Ms (Ms ~20 °C) for the full duration of bainitic transformation, which is longer than standard industrial practice. Lowering the temperature refines ferrite plates and austenite blocks, but also reduces austenite content [5,14,21]. This strengthens ADI but reduces ductility and toughness. Austenite formed at low temperatures may be mechanically less stable and may transform to martensite during deformation (TRIP effect), further increasing tensile strength [37]. However, insufficient carbon supersaturation can cause premature martensitic transformation, either during heat treatment or in service, severely reducing ductility. Ensuring proper carbon diffusion and austenite stabilization at lower temperatures requires extended austempering times, which may slightly influence ferrite and austenite morphology [14]. A critical holding time exists beyond which tensile strength is unaffected, although ductility and toughness may still vary. Low-temperature ausferrite also exhibits wear resistance comparable to martensitic hardened alloy steels [38], expanding its industrial applications.
Recent research has thus focused on modifying heat treatment to produce submicron or nanocrystalline ausferritic microstructures—fine bainitic ferrite plates separated by thin layers of stable retained austenite [10,14,16,23]—to improve strength and ductility. However, the influence of factors beyond austenitising and austempering conditions remains insufficiently studied. In the literature, there are no reports on the effect of preliminary isothermal quenching on ADI microstructure and properties. This work addresses that gap by examining pearlitic–ferritic and ausferritic initial states and their influence on the homogeneity, refinement, and mechanical properties (tensile strength, yield strength, impact toughness, and ductility) of nanocrystalline ausferritic ductile iron. The methodology also involved extended austempering times, sufficient to complete bainitic transformation without carbide precipitation, to achieve superior combinations of strength, toughness, and ductility in ADI—most studies had limited austempering times of up to 3–4 h (rarely exceeding 6 h) [39,40,41,42,43,44].

2. Materials and Methods

Samples of commercial ductile iron were supplied by Polish Foundries JSC (Starachowice, Poland). The alloy was cast in Y-shaped ingots with a 25 mm base in accordance with the manufacturer’s specifications for heat-treated ductile iron castings. The chemical composition, determined using a Belec IN-SPECT spectrometer (Belec Spektrometrie Opto-Elektronik GmbH, Georgsmarienhütte, Germany), is presented in (Table 1). Various heat treatment variants were applied (Figure 1). In the first variant (AT-1), samples with an initial ferritic–pearlitic microstructure were austenitised at 890 °C for 0.5 h and then subjected to long-term austempering at 320 °C for 24 h. The austempering temperature lies within the lower bainitic transformation range and was selected based on dilatometric analysis to promote microstructural refinement; therefore, this process can be described as a nanostructuring treatment. At this temperature, the carbon diffusion rate is sufficient to enrich retained austenite, thereby increasing its stability.
The second variant (AT-2) consisted of two stages. First, a pre-heat treatment was carried out: samples were austenitised at 950 °C for 3 h, followed by isothermal holding at 350 °C for 4 h 10 min, producing a typical ausferritic microstructure. These samples were then re-austenitised at 890 °C for 0.5 h and subjected to long-term austempering at 320 °C for 25 h 43 min (nanostructurisation treatment). The purpose of this double treatment was to further refine the grain structure and improve mechanical properties. Prolonged and high-temperature austenitisation can increase the carbon concentration in the ADI matrix [45,46,47], resulting in higher retained austenite content and improved ductility. Higher carbon content can also extend the incubation time and reduce bainitic transformation kinetics [48], thereby broadening the process window [49]. Cyclic quenching is also known to refine grains and enhance mechanical properties [50,51,52,53].
All austenitisation treatments were conducted in a Czylok FCF-V70C/R gas-tight furnace (Czylok Ltd., Jastrzębie Zdrój, Poland). Cooling and isothermal holding were performed in a Czylok furnace equipped with a SiC fluidized bed agitated by air, with additional steam used during cooling.
The heat treatment parameters were established using phase transformation data obtained from dilatometric tests carried out on a Bahr DIL 805 L dilatometer (Bähr-Thermoanalyse GmbH, Hüllhorst, Germany). Cylindrical specimens (10 mm length, 3 mm diameter) were heated in vacuum to 890 °C at 2 °C·s−1, held at temperature, and cooled at 50 °C·s−1 to the isothermal holding temperature (250–750 °C). Isothermal holding was conducted for 24–48 h, followed by helium gas cooling at 50 °C·s−1 to room temperature. Transformation start and finish times were determined from the dilatometric curves, and a time–temperature–transformation (TTT) diagram was constructed (Figure 2). The final isothermal dwell time corresponded to the completion of the ausferritic transformation.
For comparison, a conventional heat treatment, consisting of austenitisation at 950 °C for 3 h and isothermal holding at 350 °C for 4 h 10 min, was also performed.
Microstructural observations were carried out using a Hitachi S3500N scanning electron microscope (SEM) (Hitachi Ltd., Tokyo, Japan) and a JEOL JEM 1200 EX transmission electron microscope (TEM) (JEOL Ltd., Tokyo, Japan) in both bright-field (BF) and dark-field (DF) modes, combined with electron diffraction analysis. For SEM, specimens (10 × 10 × 3 mm) were ground with SiC paper up to 1200 grit, polished with 3 μm diamond suspension, and etched in 4% nital. SEM observations were performed in secondary electron mode. For TEM, disks 2.7 mm in diameter were sectioned, thinned to ~200 μm, ground to 100 μm, and ion-polished to perforation. Quantitative microstructural analysis (grain size, phase fraction) was performed using stereological methods. Ferrite plate and austenite layer thicknesses were calculated according to the stereological relation [54]:
d = 2 Π L
where d is the true plate thickness and L is the apparent width measured perpendicular to the intersection line of the interphase boundaries on the thin foil surface.
The amount and size of retained austenite blocks were estimated from SEM images using MicroMeter 1.0 software [55], following the procedure in Ref. [56]. The retained aus.tenite volume fraction was determined by X-ray diffraction (XRD) using a Rigaku SmartLab 3 kW diffractometer equipped with a 1D Dtex250 linear detector and a Cu X-ray tube, operating at 40 kV and 30 mA (Rigaku Corporation, Tokyo, Japan). Data were collected in the 2θ range of 20–100° with a step size of 0.02°. Prior to XRD, samples were repeatedly polished and etched in 4% nital to remove the deformed surface layer.
Mechanical properties were evaluated via Brinell hardness (HB), Rockwell hardness (HRC), impact toughness (KVC), and tensile testing. Hardness was measured on three samples (10 × 10 × 3 mm) for each treatment, with five indentations per sample. Tensile tests were performed in accordance with ISO 6892-1:2019 [57] on cylindrical specimens (6 mm diameter, gauge length L0 = 30 mm) using an MTS810 testing machine (MTS Systems Corporation, Eden Prairie, Minnesota, USA) equipped with a 100 kN load cell (subrange 0–50 kN) at a strain rate of 2.5 × 10−4 s−1. Three specimens per treatment were tested. Impact tests followed DIN EN 10045-1:1991-04 [58] using a Charpy Zwick/Roell RKP450 machine (ZwickRoell Group, Ulm, Germany) with 150 J capacity on 10 × 10 × 55 mm V-notched samples, with three specimens per treatment.
Fracture surfaces after tensile and impact tests were examined using the Hitachi S3500N SEM (Hitachi Ltd., Tokyo, Japan). The properties of ADI subjected to austempering with and without pre-heat treatment were compared with those of conventionally treated ductile iron (austenitisation at 950 °C for 3 h, isothermal holding at 350 °C for 4 h 10 min).

3. Results and Discussion

3.1. Dilatometric Analysis

Figure 3 presents the dilatograms for single-step (AT-1, Figure 3a) and double-step (AT-2, Figure 3b) austempered ductile iron samples. The observed increase in sample length at a constant temperature can be attributed primarily to the bainitic phase transformation of supercooled austenite. This occurs because the alloy contains a high concentration of silicon, which suppresses cementite precipitation, as well as significant amounts of molybdenum, copper, and nickel, which collectively widen the so-called process window [59,60].
It is likely that the prolonged high-temperature austenitization used in these treatments increased the carbon content in the matrix. This, in turn, may have contributed to an extended incubation time, a reduced transformation rate [48], and an overall widening of the process window [49]. The dilatometric measurements showed that complete bainitic transformation was achieved after approximately 24 h for pearlitic–ferritic ductile iron and 25 h 43 min for ausferritic ductile iron. Extending the austempering time beyond these durations, even up to 36 h, did not cause further transformation of austenite into bainitic ferrite, indicating that the residual austenite remained thermally stable during prolonged exposure at the austempering temperature.
For conventional austempering of ductile iron, even at temperatures close to 300 °C, the processing time is typically limited to several hours. Analysis of dilatometric curves for some alloys has shown that such shorter durations can interrupt the austenite transformation at 50–60% completion. This leads to an incomplete ausferritic transformation and a microstructure with a substantial proportion of untransformed—and in some cases unstable—austenite. Due to the incomplete reaction phenomenon [61], even after nominally 100% transformation, a considerable amount of untransformed austenite may remain. While stable residual austenite enhances ductility, unstable austenite can transform into martensite during cooling or under applied stress, significantly reducing plasticity [12]. According to Putatunda and co-workers [12,62,63], a high fraction of stable residual austenite in ductile iron can be achieved even after very short austempering durations. However, other researchers have argued that during short austempering, the processing temperature has a stronger influence on the retained austenite content than the treatment time [64]. On the other hand, proper control of carbon concentration in austenite permits to obtain appropriate stability of austenite, which allows for the TRIP effect to occur, which increases the ductility of ADI. Alloying additions such as manganese and molybdenum promote segregation, which can locally reduce the carbon concentration and facilitate the shear transformation of austenite. Conversely, Mo, Ni, and Cu extend the duration of the first stage of bainitic transformation [60,65]. In the present study, austempering durations corresponding to the time required to reach the maximum transformation rate were deliberately chosen. This approach aimed to maximize the volume fraction of bainite and stable retained austenite, thereby suppressing martensitic transformation during cooling or straining, and improving hardness and mechanical properties.

3.2. Microstructural Characterization

SEM observations revealed a typical feathered ausferritic microstructure after conventional austempering, consisting of large blocks of retained austenite (up to 143 µm2—Table 2) and coarse, parallel ferrite plates (Table 3, Figure 4). In both AT-1 and AT-2 samples, austempered at lower temperatures, the microstructure was significantly finer than after conventional treatment. This refinement is attributed to greater supercooling of austenite, which increases the nucleation rate of ferrite and decreases the critical nucleus size and thus promotes grain refinement [21].
During prolonged isothermal annealing, auto-catalytic nucleation of bainitic ferrite can also occur, further fragmenting the microstructure. In both AT-1 and AT-2 samples, the microstructure consisted of packets of thin, parallel ferrite plates separated by thin layers of retained austenite with no significant difference between the core and edge (Figure 5 and Figure 6). These packets and layers were oriented at various angles, with bainitic plates initiating at prior-austenite grain boundaries and growing into the austenite grains. Retained austenite was also present in blocky form, with a regular shape and feathered edges.

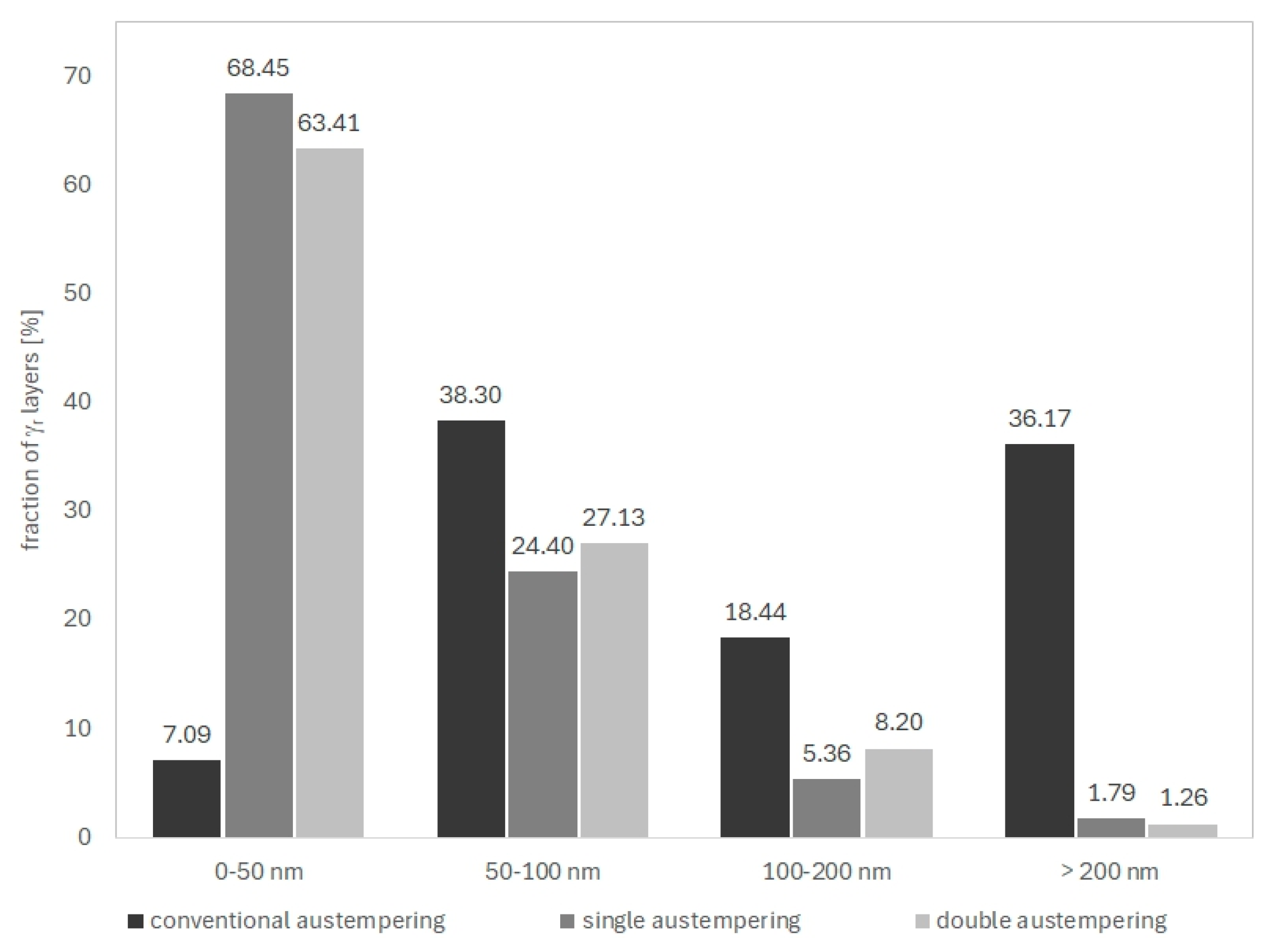

The total retained austenite content in both novel treatments (AT-1: ~21.7%; AT-2: ~22.4%, Table 4) was roughly half that of the conventional treatment (~41.7%). In AT-2 samples, ferrite plates were longer, while the number and average size of blocky retained austenite were slightly lower than in AT-1. The AT-2 microstructure was more homogeneous and less fragmented. It resembled the fine structure produced during low-temperature isothermal quenching [60,66].
TEM confirmed the feathered, coarse ausferritic structure after conventional austempering (Figure 7). The average ferrite plate thickness was 351 nm, and the average austenite layer thickness was 225 nm (Table 3); however, very large ferrite grains (>300 nm) and thick austenite layers (>200 nm) dominant. In contrast, both AT-1 and AT-2 microstructures consisted of nanoausferrite—bainitic ferrite plates with nanometric thickness, separated by very thin retained-austenite layers (Figure 8 and Figure 9). AT-2 samples had a greater fraction (~5%) of ferrite plates thinner than 100 nm (Figure 10) and fewer very thin (<50 nm) retained-austenite layers (Figure 11) compared to AT-1. Blocky austenite content in AT-2 was also about 5% lower. The greater homogeneity of the AT-2 microstructure is attributed to the pre-heat treatment, involving high-temperature, long-term austenitization before austempering—an innovative approach compared to cyclic martensitic quenching. Previous studies on steels and cast irons have shown that cyclic martensitic quenching refines austenite grains during subsequent austenitization, with the greatest effect after the first cycle [50,52,53]. To avoid the thermal stresses associated with martensite, this study replaces continuous quenching with austempering preceded by long-term, high-temperature austenitization—an entirely novel approach. High austenitization temperature yields large, homogeneous prior-austenite grains with increased carbon concentration. This results in reduced density of ferrite nucleation sites, long ferrite plates, as well as coarser austenite layers and blocks [14,67]. Moreover, the increased carbon content strengthens the austenite which in turn limits the thickening of ferrite plates during austempering. This can leave a significant fraction of untransformed austenite in the microstructure, increasing with higher austenitization temperature and time. The pre-heat treatment used in this work refined the initial microstructure and retained some residual austenite, facilitating easier nucleation during the second cycle and increasing carbon content and homogeneity. Consequently, AT-2 produced a more uniform microstructure with slightly thinner plates and slightly higher retained-austenite content than AT-1.
Cementite precipitates were observed in all heat-treated samples, forming as very thin layers at ferrite–austenite interfaces. Extending austempering time to 36 h did not affect their formation or growth [10,16] suggesting that cementite precipitation occurs well before bainitic transformation completion, regardless of Si, Cu, Mo, or Ni additions. Therefore, cementite presence is not necessarily linked to austenite decomposition.

3.3. Mechanical Properties and Fracture Surface Analysis

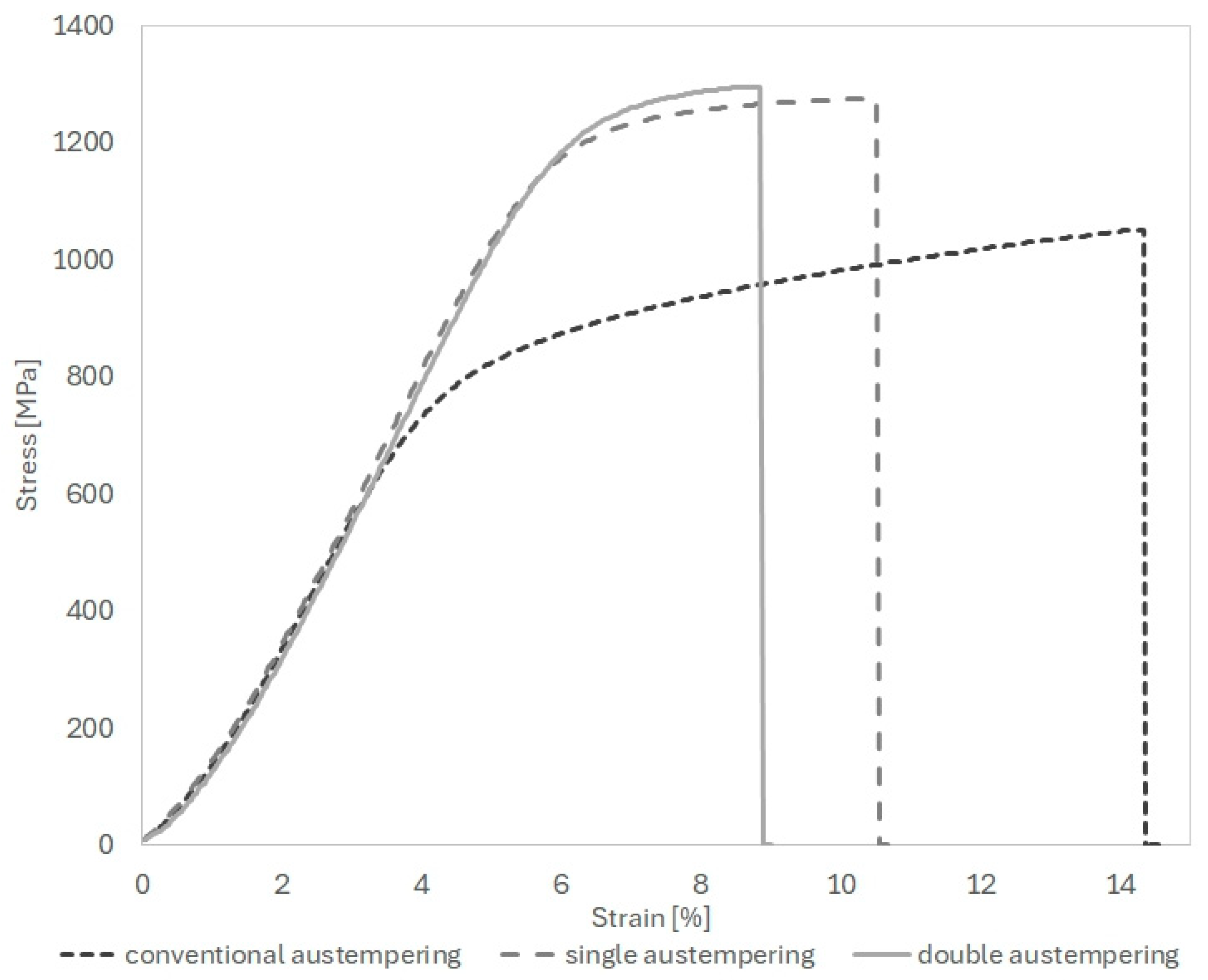

Hardness increased from 26.8 HRC in the conventional treatment to 37.2 HRC (AT-1, +38%) and 35.0 HRC (AT-2, +36%). Tensile strength rose from 1027 MPa to 1220 MPa (AT-1, +18%) and 1296 MPa (AT-2, +25%), while yield strength increased from 683 MPa to 1033 MPa (AT-1, +51%) and 1054 MPa (AT-2, +54%) (Table 5). However, ductility decreased: elongation dropped from 11% to 4.3% (AT-1, −61%) and 4.9% (AT-2, −55%), and impact strength fell from 13.3 J/cm2 to 9.0 J/cm2 (AT-1, −32%) and 8.3 J/cm2 (AT-2, −37%). The observed improvement in strength and the accompanying reduction in ductility after the AT-1 and AT-2 treatments can be attributed to microstructural changes caused by strong undercooling during austempering. The use of a low isothermal transformation temperature promotes intensive nucleation of bainitic ferrite while limiting its growth, leading to the formation of a nanoausferritic structure consisting of ferrite plates with an average thickness of approximately 120 nm and thin retained austenite films about 50 nm thick.
This refinement enhances the mechanical properties through grain boundary strengthening and the Hall–Petch effect, where grain boundaries act as barriers to the dislocation motion, causing dislocation pile-ups and consequently increased stress required for plastic deformation. Furthermore, the displacive nature of the bainitic transformation contributes to an increase in dislocation density within the matrix, additionally strengthening the material.
At the same time, the prolonged austempering time and low transformation temperature reduces the amount of retained austenite, particularly in the form of a large, blocky region, compared with the conventional treatment. Large austenite blocks are typically less carbon saturated and therefore more susceptible to deformation-induced transformation (TRIP effect). The suppression of this mechanism in smaller blocks and thin austenite films, together with the lower overall volume fraction of the ductile austenitic phase, leads to a decrease in elongation and impact toughness.
Moreover, high local stresses at ferrite–austenite interfaces and possible carbide precipitation along grain boundaries may act as crack initiation sites, promoting the formation of quasi-cleavage fracture surfaces. Consequently, while the nanostructured ausferritic matrix provides substantial strengthening, it simultaneously limits the material’s capacity for plastic deformation.
The pre-heat treatment prior to long-term austempering (double austempering, AT-2) did not significantly affect the mechanical parameters of the material (Table 5, Figure 12). The strength and ductility parameters of ductile iron after single (AT-1) and double (AT-2) austempering were similar, with slightly higher values for AT-2 and significantly higher than those obtained after conventional austempering. For the ADI AT-2 sample, the microstructural refinement is slightly greater, which is reflected in the slightly higher tensile strength and yield strength. In both samples, austenite content is very similar, indicating that the differences in mechanical behavior are mainly governed by the morphology. However, during tensile deformation, austenite may undergo strain-induced transformation (TRIP effect), locally increasing the strength of the matrix. Consequently, AT-2 combines improved microstructure and more effective strain hardening, leading to higher ultimate tensile strength despite its marginally lower hardness.
At the same time, a reduction in elongation and impact toughness was observed compared to conventional heat treatment. The tensile and yield strength values obtained after long-term austempering are considerably higher than those reported by other authors for materials with a similar chemical composition, subjected to one-step austempering at comparable temperatures [5,14]. However, extending the austempering time does not guarantee the same high tensile and yield strength achieved by other researchers through step-up processes (UTS around 1485 MPa, YS approximately 1245 MPa, with elongation of about 4.6%) [21,25,68].
To better understand the ductility and impact energy results, the fracture surfaces of the samples were examined after tensile tests (Figure 13) and after impact tests (Figure 14). All fracture surfaces of the tensile-tested samples exhibited a combination of ductile and quasi-cleavage characteristics, regardless of the heat treatment applied. The samples showed uniform deformation within the gauge length, without visible necking in the fracture region. SEM observations at low magnification revealed that the fracture surface of conventionally treated material was smoother compared to those of the samples after both single (AT-1) and double (AT-2) austempering. Differences became more evident at higher magnification: in all cases, dimples and quasi-cleavage facets were observed; however, fractures after conventional austempering exhibited a more pronounced ductile character, which was associated with a higher amount of retained austenite. Lowering the austempering temperature and extending the processing time resulted in microstructure refinement and a reduction in the amount of retained austenite, which enhanced strength, but also increased the number of quasi-cleavage facets, with the highest proportion observed after double (AT-2) austempering.
Similarly, SEM observations of fracture surfaces after impact tests revealed that all fractures displayed mixed ductile and quasi-cleavage features. The morphology of the fracture surfaces was very similar to that observed after the tensile tests. Some secondary cracks were noted on the fractures of the samples after both single (AT-1) and double (AT-2) austempering.

4. Conclusions

This work investigated the effects of new heat treatments involving long-term austempering at reduced temperatures on the microstructure and properties of ADI. The influence of the initial microstructure prior to austenitization, as well as the austenitization parameters on phase transformations during austempering and the final microstructure and mechanical properties of ADI, was analyzed. The obtained results were compared with those obtained for ADI after conventional austempering. The relationships between the heat treatment parameters, the initial microstructure, and the resulting microstructure and mechanical properties of austempered ductile iron provide a basis for optimizing ADI heat treatment strategies. This issue has not been sufficiently studied and described in the literature to date. The main conclusions are as follows:
  • Long-term austempering carried out at temperatures within the lower range of bainitic transformation resulted in pronounced microstructural refinement compared with conventional austempering. The applied process can be classified as a nanostructurisation heat treatment for ADI.
  • Double-step austempering (AT-2) resulted in a finer and more homogeneous microstructure, characterized by extremely thin ferrite plates (<100 nm) and a reduced fraction of blocky austenite compared with the single-step treatment (AT-1).
  • Both long-term austempering treatments reduced the retained austenite content from approximately 42% to about 22%, increasing hardness from 27 HRC to 32–35 HRC, tensile strength from 1027 MPa to 1220–1296 MPa, and yield strength from 683 MPa to 1033–1054 MPa, while reducing total elongation from 11% to 4.3–4.9% and V-notched impact toughness from 13 J/cm2 to 8–9 J/cm2.
  • Overall, both AT-1 and AT-2 treatments demonstrated clear advantages over conventional austempering by producing a finer and mechanically stronger nanoausferritic matrix.
  • Long-term austempering is suitable for ADI components requiring high strength and low material costs, provided that they are not subjected to significant dynamic loading. This work demonstrates the effectiveness of controlling the initial microstructure and applying long-term, low-temperature austempering to enhance the mechanical properties of ADI, representing a novel pathway for optimizing its heat treatment.

Author Contributions

Conceptualization, E.S., K.W., D.M., W.A.Ś., A.N.W.; methodology, E.S., K.W.; validation, E.S., K.W., D.M., W.A.Ś., A.N.W.; formal analysis, E.S.; investigation, E.S., K.W., P.S.; resources, E.S.; data curation, E.S., W.A.Ś., D.M., A.N.W.; writing—original draft preparation, E.S.; writing—review and editing E.S., K.W., D.M., W.A.Ś., A.N.W.; visualization, E.S., K.W.; supervision, D.M., W.A.Ś., A.N.W.; project administration, D.M., W.A.Ś., A.N.W. All authors have read and agreed to the published version of the manuscript.

Funding

The results presented in this paper have been obtained within the project of the National Centre for Research and Development, “Development of innovative methods manufacture of gears having nanocrystalline structure based on foundry technology” (PBS3 no. 246715, 2015–2018).

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Acknowledgments

All equipment used for testing was owned by Warsaw University of Technology. All equipment used for testing was validated according to normative requirements by the relevant notified bodies or equipment manufacturers.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
ADIAustempered ductile iron
Q&PQuenching and partitioning
MsMartensitic start temperature
MfMartensitic finish temperature
TQQuenching temperature
TPPartitioning temperature
AT-1Single austempering
AT-2Double austempering
TTTTime-temperature-transformation
Ac1Temperature at which austenitic transformiation starts (during heating)
Ac3Temperature at which austenitic transformiation ends (during heating)
SEMScanning electron microscope
TEMTransmission electron microscope
BFBright-field observation
DFDark-field observation
SESecondary electron
XRDX-ray diffraction
dThickness of a plate
LWidth of a plate
HBBrinell hardness
HRCRockwell hardness
KVCimpact toughness
∆L/L0Change in dilatometric sample length
R0.2 Yield strength
Rm Tensile strength
A5Total elongation

References

  1. Concli, F. Austempered Ductile Iron (ADI) for Gears: Contact and Bending Fatigue Behavior. Procedia Struct. Integr. 2018, 8, 14–23. [Google Scholar] [CrossRef]
  2. Krzyńska, A.; Kaczorowski, M. The Studies of Mechanical Properties and Structure of ADI as Function of Austempering Parameters. Arch. Foundry Eng. 2010, 10, 41–44. [Google Scholar]
  3. Krzyńska, A.; Kochański, A. Properties and Structure of High-Silicone Austempered Ductile Iron. Arch. Foundry Eng. 2014, 14, 91–94. [Google Scholar] [CrossRef]
  4. Sckudlarek, W.; Krmasha, M.N.; Al-Rubaie, K.S.; Preti, O.; Milan, J.C.G.; Da Costa, C.E. Effect of Austempering Temperature on Microstructure and Mechanical Properties of Ductile Cast Iron Modified by Niobium. J. Mater. Res. Technol. 2021, 12, 2414–2425. [Google Scholar] [CrossRef]
  5. Sellamuthu, P.; Samuel, D.G.H.; Dinakaran, D.; Premkumar, V.P.; Li, Z.; Seetharaman, S. Austempered Ductile Iron (ADI): Influence of Austempering Temperature on Microstructure, Mechanical Andwear Properties and Energy Consumption. Metals 2018, 8, 53. [Google Scholar] [CrossRef]
  6. Zhao, P.; Zhang, B.; Cheng, C.; Misra, R.D.K.; Gao, G.; Bai, B.; Weng, Y. The Significance of Ultrafine Film-like Retained Austenite in Governing Very High Cycle Fatigue Behavior in an Ultrahigh-Strength MN-SI-Cr-C Steel. Mater. Sci. Eng. A 2015, 645, 116–121. [Google Scholar] [CrossRef]
  7. Kaczorowski, M.; Krzyńska, A. Mechanical Properties and Structure of Austempered Ductile Iron -ADI. Arch. Foundry Eng. 2007, 7, 161–166. [Google Scholar]
  8. Zhang, Y.; Guo, E.; Wang, L.; Zhao, S.; Liu, X.; Yi, P.; Li, Y.; Feng, Y.; Song, M. Insights into Effect of First-Step Austempering Temperature on the Microstructure and Properties of Austempered Ductile Iron. Mater. Res. Express 2021, 8, 086512. [Google Scholar] [CrossRef]
  9. ARanzabal, J.; Gutierrez, I.; Rodriguez-Ibabe, J.M.; Urcola, J.J. Influence of the Amount and Morphology of Retained Austenite on the Mechanical Properties of an Austempered Ductile Iron. Metall. Mater. Trans. A 1997, 28, 1143–1156. [Google Scholar] [CrossRef]
  10. Myszka, D.; Skołek, E.; Wieczorek, A. Manufacture of Toothed Elements in Nanoausferritic Ductile Iron. Arch. Metall. Mater. 2014, 59, 1217–1221. [Google Scholar] [CrossRef]
  11. Myszka, D.; Wieczorek, A. An Assessment of the Applicability of Austempered Ductile Iron Containing Mo and Ni for Mining Machines Parts. Arch. Metall. Mater. 2013, 58, 953–956. [Google Scholar] [CrossRef]
  12. Krawiec, H.; Lelito, J.; Mróz, M.; Radoń, M. Influence of Heat Treatment Parameters of Austempered Ductile Iron on the Microstructure, Corrosion and Tribological Properties. Materials 2023, 16, 4107. [Google Scholar] [CrossRef]
  13. Krawiec, H.; Vignal, V.; Lelito, J.; Krystianiak, A.; Tyrała, E. Influence of the Heat Treatment on the Microstructure and Corrosion Resistance of Austempered Ductile Iron (ADI). Arch. Metall. Mater. 2020, 65, 151–156. [Google Scholar] [CrossRef]
  14. Wang, X.; Du, Y.; Liu, C.; Hu, Z.; Li, P.; Gao, Z.; Guo, H.; Jiang, B. Relationship among Process Parameters, Microstructure, and Mechanical Properties of Austempered Ductile Iron (ADI). Mater. Sci. Eng. A 2022, 857, 144063. [Google Scholar] [CrossRef]
  15. Du, Y.; Gao, X.; Wang, X.; Wang, X.; Ge, Y.; Jiang, B. Tribological Behavior of Austempered Ductile Iron (ADI) Obtained at Different Austempering Temperatures. Wear 2020, 456–457, 203396. [Google Scholar] [CrossRef]
  16. Myszka, D.; Wasiluk, K.; Skołek, E.; Świątnicki, W. Nanoausferritic Matrix of Ductile Iron. Mater. Sci. Technol. 2015, 31, 829–834. [Google Scholar] [CrossRef]
  17. Zhang, Y.; Li, S.; Zhang, Z.; Li, Y.; Lv, B.; Zheng, C.; Zhang, P.; Zhang, F. A Review of Heat Treatment Processes for Bainitic Steel. J. Mater. Res. Technol. 2025, 37, 279–307. [Google Scholar] [CrossRef]
  18. Chu, C.; Qin, Y.; Li, X.; Yang, Z.; Zhang, F.; Guo, C.; Long, X.; You, L. Effect of Two-Step Austempering Process on Transformation Kinetics of Nanostructured Bainitic Steel. Materials 2019, 12, 166. [Google Scholar] [CrossRef]
  19. Sun, D.; Feng, X.; Zhang, P.; Sun, X.; Yang, Z.; Long, X.; Zhang, F. Effects of Two-Step Austempering Processes on the Wear Resistance and Fatigue Lifetime of High-Carbon Nanostructured Bainitic Steel. J. Mater. Res. Technol. 2024, 30, 4739–4749. [Google Scholar] [CrossRef]
  20. Skowronek, A.; Cordova-Tapia, E.; Tobajas-Balsera, P.; Garcia-Mateo, C.; Jiménez, J.A.; Petrov, R.; Grajcar, A. Bainite Plate Thickness Reduction and Microstructure Tailoring by Double Austempering of Al-Rich 3Mn Steel. Mater. Sci. Eng. A 2022, 853, 143743. [Google Scholar] [CrossRef]
  21. Hegde, A.; Sharma, S.; Hande, R.; Gurumurthy, B.M. Microstructure and Mechanical Properties of Manganese-Alloyed Austempered Ductile Iron Produced by Novel Modified Austempering Process. Cogent Eng. 2022, 9, 2046301. [Google Scholar] [CrossRef]
  22. Panneerselvam, S.; Putatunda, S.K. Processing of Nanostructured Austempered Ductile Cast Iron (ADI) by a Novel Method. Int. J. Metall. Met. Phys. 2018, 3, 11. [Google Scholar] [CrossRef]
  23. Du, Y.; Wang, X.; Zhang, D.; Wang, X.; Ju, C.; Jiang, B. A Superior Strength and Sliding-Wear Resistance Combination of Ductile Iron with Nanobainitic Matrix. J. Mater. Res. Technol. 2021, 11, 1175–1183. [Google Scholar] [CrossRef]
  24. Putatunda, S.K. Development of Austempered Ductile Cast Iron (ADI) with Simultaneous High Yield Strength and Fracture Toughness by a Novel Two-Step Austempering Process. Mater. Sci. Eng. A 2001, 315, 70–80. [Google Scholar] [CrossRef]
  25. Yang, J.; Putatunda, S.K. Effect of Microstructure on Abrasion Wear Behavior of Austempered Ductile Cast Iron (ADI) Processed by a Novel Two-Step Austempering Process. Mater. Sci. Eng. A 2005, 406, 217–228. [Google Scholar] [CrossRef]
  26. Putatunda, S.K. Comparison of the Mechanical Properties of Austempered Ductile Cast Iron (ADI) Processed by Conventional and Step-down Austempering Process. Mater. Manuf. Process. 2010, 25, 749–757. [Google Scholar] [CrossRef]
  27. Hsu, C.H.; Chuang, T.L. Influence of Stepped Austempering Process on the Fracture Toughness of Austempered Ductile Iron. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2001, 32, 2509–2514. [Google Scholar] [CrossRef]
  28. Yang, J.; Putatunda, S.K. Improvement in Strength and Toughness of Austempered Ductile Cast Iron by a Novel Two-Step Austempering Process. Mater. Des. 2004, 25, 219–230. [Google Scholar] [CrossRef]
  29. Soliman, M.; Palkowski, H.; Nofal, A. Multiphase Ausformed Austempered Ductile Iron. Arch. Metall. Mater. 2017, 62, 1493–1498. [Google Scholar] [CrossRef]
  30. Nofal, A.A.; El-din, H.N.; Ibrahim, M.M. Thermomechanical Treatment of Austempered Ductile Iron. Int. J. Cast Met. Res. 2007, 20, 47–52. [Google Scholar] [CrossRef]
  31. Ibrahim, K.M. Properties of Ausformed Austempered Ductile Iron (AADI) Containing Ni. Int. J. Cast Met. Res. 2005, 18, 309–314. [Google Scholar] [CrossRef]
  32. Nasr El-Din, H.; Nofal, A.A.; Ibrahim, K.M.; Ramadan, A.A. Ausforming of Austempered Ductile Iron Alloyed with Nickel. Int. J. Cast Met. Res. 2006, 19, 137–150. [Google Scholar] [CrossRef]
  33. Soliman, M.; Nofal, A.; Palkowski, H. Effect of Thermo-Mechanical Processing on Structure and Properties of Dual-Phase Matrix ADI with Different Si-Contents. Int. J. Met. 2020, 14, 853–860. [Google Scholar] [CrossRef]
  34. Melado, A.C.; Nishikawa, A.S.; Goldenstein, H.; Giles, M.A.; Reed, P.A.S. Effect of Microstructure on Fatigue Behaviour of Advanced High Strength Ductile Cast Iron Produced by Quenching and Partitioning Process. Int. J. Fatigue 2017, 104, 397–407. [Google Scholar] [CrossRef]
  35. Da Silva, A.J.S.T.; Goldenstein, H.; Guesser, W.L.; De Campos, M.F. Quenching and Partitioning Heat Treatment in Ductile Cast Irons. Mater. Res. 2014, 17, 1115–1123. [Google Scholar] [CrossRef]
  36. Wang, X.; Du, Y.; Liu, B.; Jiang, B. Enhanced Plasticity of Austempered Ductile Iron (ADI) by Partitioning Treatment. Mater. Sci. Eng. A 2021, 804, 140513. [Google Scholar] [CrossRef]
  37. Panneerselvam, S.; Martis, C.J.; Putatunda, S.K.; Boileau, J.M. An Investigation on the Stability of Austenite in Austempered Ductile Cast Iron (ADI). Mater. Sci. Eng. A 2015, 626, 237–246. [Google Scholar] [CrossRef]
  38. Myszka, D.; Wieczorek, A.N.; Skołek, E.; Borowski, T.; Kotwica, K.; Kalita, M.; Kruk, R.; Nuckowski, P.M. Abrasive Wear Resistance of Ultrafine Ausferritic Ductile Iron Intended for the Manufacture of Gears for Mining Machinery. Materials 2023, 16, 4311. [Google Scholar] [CrossRef]
  39. Hsu, C.H.; Chen, M.L. Corrosion Behavior of Nickel Alloyed and Austempered Ductile Irons in 3.5% Sodium Chloride. Corros. Sci. 2010, 52, 2945–2949. [Google Scholar] [CrossRef]
  40. Joshi, D.; Putatunda, S.; Panneerselvam, S.; Boileau, J. Investigation of the Effect of Novel Two-Step Austenitization Process on the Microstructure and Mechanical Properties of ADI. Key Eng. Mater. 2025, 1011, 11–17. [Google Scholar] [CrossRef]
  41. Wadageri, C.S.; Kurahatti, R.V. Effect of Two-Step Austempering on Fatigue Behavior of Austempered Ductile Iron (ADI). SN Appl. Sci. 2019, 1, 300. [Google Scholar] [CrossRef]
  42. Parhad, P.; Likhite, A.; Bhatt, J.; Peshwe, D. Optimization of Isothermal Transformation Period for Austempered Ductile Iron. Metall. Foundry Eng. 2017, 43, 313. [Google Scholar] [CrossRef]
  43. Erić, O.; Jovanović, M.; Šidanin, L.; Rajnović, D.; Zec, S. The Austempering Study of Alloyed Ductile Iron. Mater. Des. 2006, 27, 617–622. [Google Scholar] [CrossRef]
  44. Felipe Dias, J.; Ribeiro, G.O.; Carmo, D.J.; Vilela, J.J. The Effect of Reducing the Austempering Time on the Fatigue Properties of Austempered Ductile Iron. Mater. Sci. Eng. A 2012, 556, 408–413. [Google Scholar] [CrossRef]
  45. Kovacs, B.V. Austempered Ductile Iron. Fact and Fiction. Mod. Cast. 1990, 80, 38–41. [Google Scholar]
  46. Karaca, B.; Şimşir, M.; Akkan, H. Effect of Heat Treatment on the Tensile Properties of Cam Shaft Made of Ductile Cast Iron. J. Achiev. Mater. Manuf. Eng. 2016, 76, 15–20. [Google Scholar] [CrossRef]
  47. Sharma, S.; Hegde, A. An Analysis of the Amount of Retained Austenite in Manganese Alloyed Austempered Ductile Iron. Mater. Res. 2021, 24, e20210301. [Google Scholar] [CrossRef]
  48. Górny, M.; Angella, G.; Tyrała, E.; Kawalec, M.; Paź, S.; Kmita, A. Role of Austenitization Temperature on Structure Homogeneity and Transformation Kinetics in Austempered Ductile Iron. Met. Mater. Int. 2019, 25, 956–965. [Google Scholar] [CrossRef]
  49. Tuan, H.A.; Hai, N.H.; Dung, N.H.; Nam, T.T.; Nam, N.D. Austenitization and Formation of Ausferrite Structure in Austempered Ductile Iron with Dual Matrix. Mater. Res. Express 2022, 9, 046520. [Google Scholar] [CrossRef]
  50. Bai, J.J.; Yu, F.; Wang, C.Y.; Wang, H.; Xu, Y.; Chen, X.P.; Cao, W. quan Effect of Cyclic Quenching Treatment on Microstructural Evolution and Properties of Ductile Cast Iron. J. Iron Steel Res. Int. 2023, 30, 126–136. [Google Scholar] [CrossRef]
  51. Liu, X.; Yu, W.; Che, H.; Zhang, J.; Zhu, J.; Jiang, Q.; Zhang, C.; Wang, M. The Effect of Cyclic Heat Treatment on the Microstructure and Mechanical Properties of 18CrNiMo7-6 Gear Steel. Materials 2024, 17, 5855. [Google Scholar] [CrossRef]
  52. Zhou, X.; Jia, C.; Mi, P.; Zhang, H.; Yan, W.; Wang, W.; Sun, M.; van der Zwaag, S.; Rong, L. Cyclic Quenching Treatment Doubles the Charpy V-Notch Impact Energy of a 2.3 GPa Maraging Steel. J. Mater. Sci. Technol. 2025, 209, 311–328. [Google Scholar] [CrossRef]
  53. Wang, Z.; Gu, X.; Pan, H. Cyclic Quenching Treatment to Improve Strength–Ductility Combinations in 18CrNiMo7-6 Steel. J. Mater. Eng. Perform. 2023, 33, 10446–10454. [Google Scholar] [CrossRef]
  54. Chang, L.C.; Bhadeshia, H.K.D.H. Austenite Films in Bainitic Microstructures. Mater. Sci. Technol. 2014, 11, 874–882. [Google Scholar] [CrossRef]
  55. Wejrzanowski, T.; Spychalski, W.L.; Rózniatowski, K.; Kurzydłowski, K.J. Image Based Analysis of Complex Microstructures of Engineering Materials. Int. J. Appl. Math. Comput. Sci. 2008, 18, 33–39. [Google Scholar] [CrossRef]
  56. Skołek, E.; Giętka, T.; Świątnicki, W.A.; Myszka, D. The Comparative Study of the Microstructure and Phase Composition of Nanoausferritic Ductile Iron Alloy Using SEM, TEM, Magnetometer, and X-Ray Diffraction Methods. Acta Phys. Pol. A 2017, 131, 1319–1324. [Google Scholar] [CrossRef]
  57. ISO 6892-1:2019; Matallic Materials—Tensile Testing—Part 1: Method of Test at Room Temperature. ISO: Geneva, Switzerland, 2019.
  58. DIN EN 10045-1:1991-04; Charpy Impact Test on Metallic Materials; Part 1: Test Method. NSAI: Dublin, Ireland, 1991.
  59. Landesberger, M.; Koos, R.; Hofmann, M.; Li, X.; Boll, T.; Petry, W.; Volk, W. Phase Transition Kinetics in Austempered Ductile Iron (ADI) with Regard to MO Content. Materials 2020, 13, 5266. [Google Scholar] [CrossRef]
  60. Rajnovic, D.; Eric, O.; Sidjanin, L. The Standard Processing Window of Alloyed ADI Mate. Kov. Mater. 2012, 50, 199–208. [Google Scholar] [CrossRef]
  61. Caballero, F.G.; Garcia-Mateo, C.; Santofimia, M.J.; Miller, M.K.; García de Andrés, C. New Experimental Evidence on the Incomplete Transformation Phenomenon in Steel. Acta Mater. 2009, 57, 8–17. [Google Scholar] [CrossRef]
  62. Putatunda, S.K.; Gadicherla, P.K. Effect of Austempering Time on Mechanical Properties of a Low Manganese Austempered Ductile Iron. J. Mater. Eng. Perform. 2000, 9, 193–203. [Google Scholar] [CrossRef]
  63. Grahovac, N.; Rade, Đ. Determination of Processing Window for ADI; Association of Metallurgical Engineers of Serbia: Belgrade, Serbia, 2010. [Google Scholar]
  64. De Godoi Pereira, L.N.; de Castro Medeiros, R.G.; de Freitas, P.G.M.; da Silva, C.F.; da Silva, L.M.; Leal, R.H. Microstructural Evaluation of an Austempered Cast Iron Alloy. Mater. Res. 2022, 25, e20210256. [Google Scholar] [CrossRef]
  65. Benam, A.S. Effect of Alloying Elements on Austempered Ductile Iron (ADI) Properties and Its Process: Review. China Foundry 2015, 12, 54–70. [Google Scholar]
  66. Kejzlar, P.; Andrsova, Z.; Petrzilkova, M.; Skrbek, B.; Duchac, A.; Myszka, D. Highly Accurate Structural Analysis of Austempered Ductile Iron Using EBSD Technique. Mater. Sci. Forum 2023, 1081, 125–130. [Google Scholar] [CrossRef]
  67. Li, Y.; Jiang, Z.; Wang, P.; Li, D. Effect of Austenitizing Temperature on Isothermal Quenching Microstructure and Mechanical Properties of 52100 Bearing Steel. Mater. Sci. Eng. A 2024, 892, 146051. [Google Scholar] [CrossRef]
  68. Yang, J.; Putatunda, S.K. Influence of a Novel Two-Step Austempering Process on the Strain-Hardening Behavior of Austempered Ductile Cast Iron (ADI). Mater. Sci. Eng. A 2004, 382, 265–279. [Google Scholar] [CrossRef]
Nanomaterials 15 01710 g001

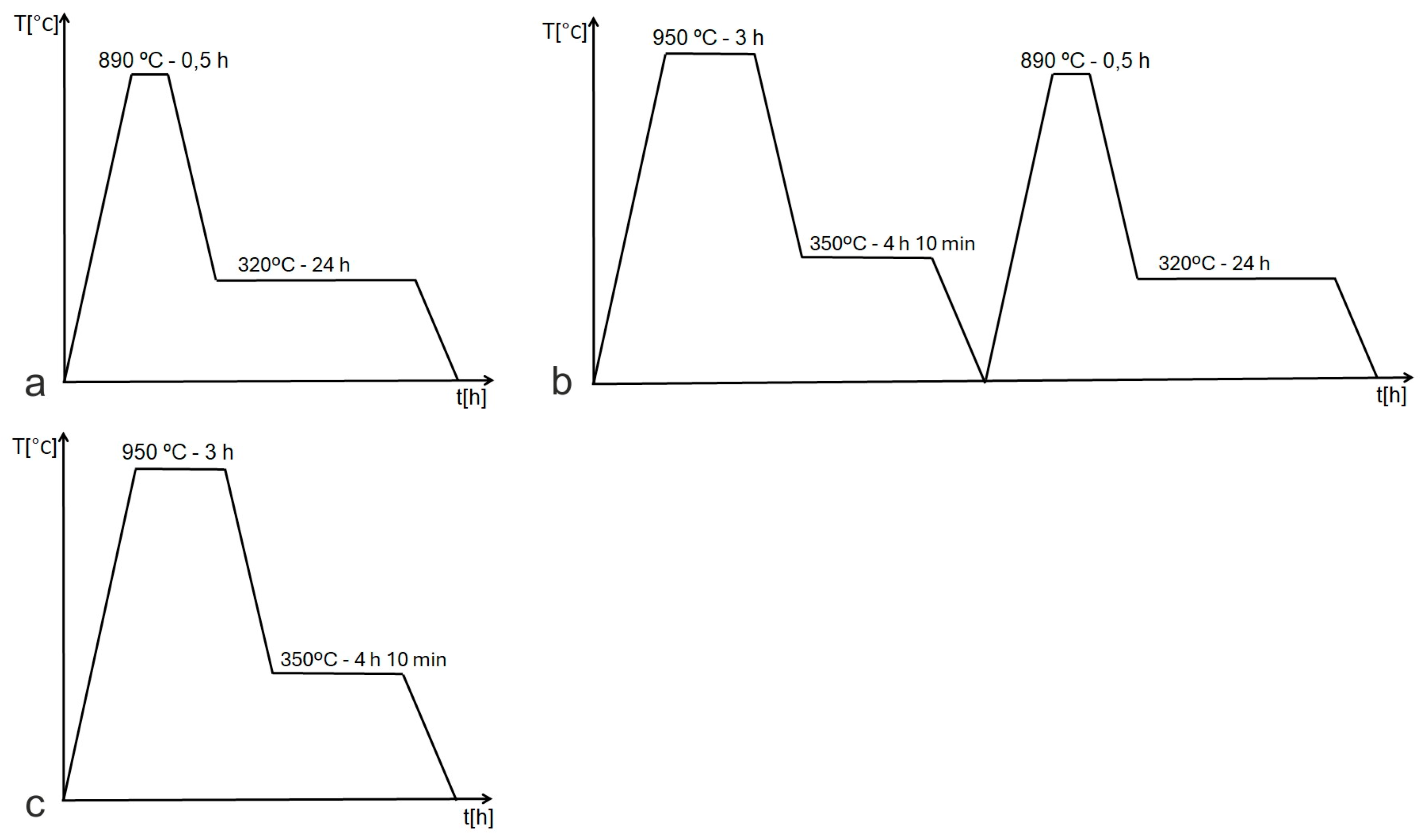

Figure 1. Heat treatment cycles for ADI: (a)—AT-1, (b)—AT-2, (c)—conventional.
Figure 1. Heat treatment cycles for ADI: (a)—AT-1, (b)—AT-2, (c)—conventional.
Nanomaterials 15 01710 g001
Nanomaterials 15 01710 g002

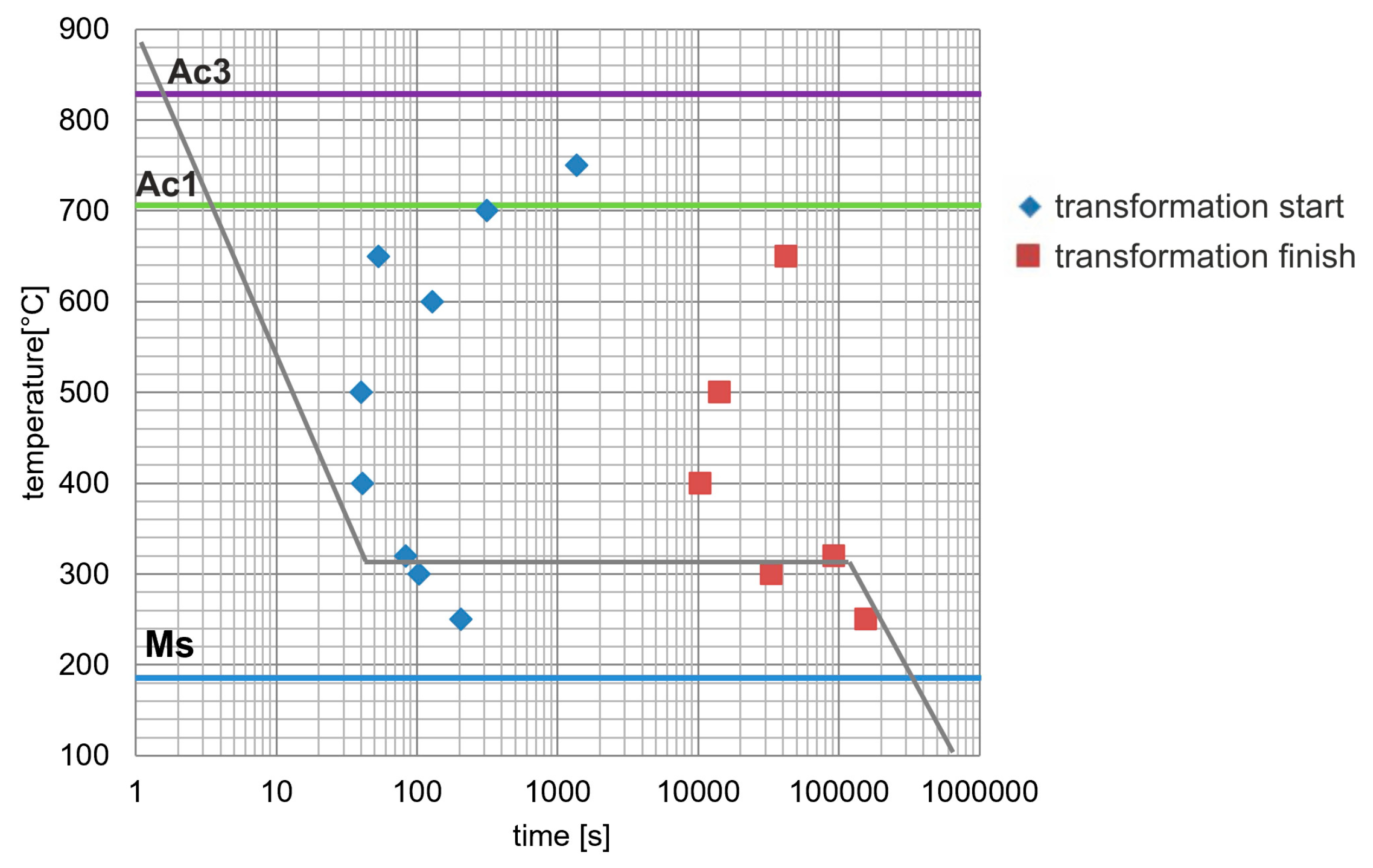

Figure 2. TTT diagram of examined ductile iron.
Figure 2. TTT diagram of examined ductile iron.
Nanomaterials 15 01710 g002
Nanomaterials 15 01710 g003

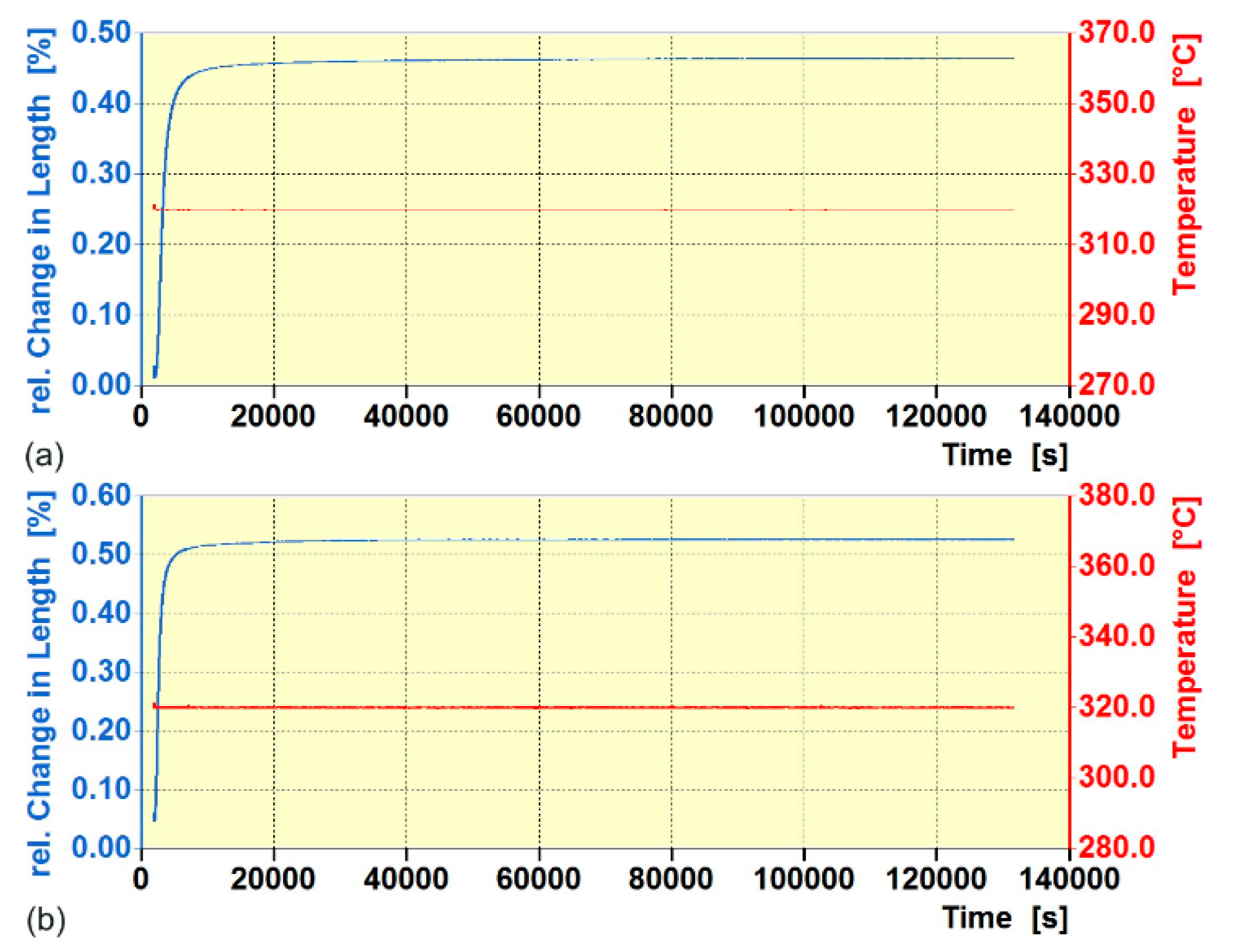

Figure 3. Dilatometric curves showing ΔL/L0 as a function of time for (a) AT-1 and (b) AT-2 samples during final austempering at 320 °C.
Figure 3. Dilatometric curves showing ΔL/L0 as a function of time for (a) AT-1 and (b) AT-2 samples during final austempering at 320 °C.
Nanomaterials 15 01710 g003
Nanomaterials 15 01710 g004
Figure 4. The microstructure of the ADI after conventional austempering: lower (a) and higher (b) magnifictaion.
Figure 4. The microstructure of the ADI after conventional austempering: lower (a) and higher (b) magnifictaion.
Nanomaterials 15 01710 g004
Nanomaterials 15 01710 g005
Figure 5. The microstructure of the ADI after single austempering (AT-1): the edge (a,b) and the core (c,d) of the sample.
Figure 5. The microstructure of the ADI after single austempering (AT-1): the edge (a,b) and the core (c,d) of the sample.
Nanomaterials 15 01710 g005
Nanomaterials 15 01710 g006
Figure 6. The microstructure of the ADI after double austempering (AT-2): the edge (a,b) and the core (c,d) of the sample.
Figure 6. The microstructure of the ADI after double austempering (AT-2): the edge (a,b) and the core (c,d) of the sample.
Nanomaterials 15 01710 g006
Nanomaterials 15 01710 g007
Figure 7. The microstructure of the pearlitic–ferritic ductile iron after conventional austempering: (a,c)—bright-field images, (b,d)—DF images from area (a,c) obtained with the use of austenite reflection.
Figure 7. The microstructure of the pearlitic–ferritic ductile iron after conventional austempering: (a,c)—bright-field images, (b,d)—DF images from area (a,c) obtained with the use of austenite reflection.
Nanomaterials 15 01710 g007
Nanomaterials 15 01710 g008
Figure 8. The microstructure of the pearlitic–ferritic ductile iron after single austempering (AT-1)—bright-field image (a,b).
Figure 8. The microstructure of the pearlitic–ferritic ductile iron after single austempering (AT-1)—bright-field image (a,b).
Nanomaterials 15 01710 g008
Nanomaterials 15 01710 g009
Figure 9. The microstructure of the ausferritic ductile iron after double austempering (AT-2)—DF image obtained with the use of austenite reflection.
Figure 9. The microstructure of the ausferritic ductile iron after double austempering (AT-2)—DF image obtained with the use of austenite reflection.
Nanomaterials 15 01710 g009
Nanomaterials 15 01710 g010

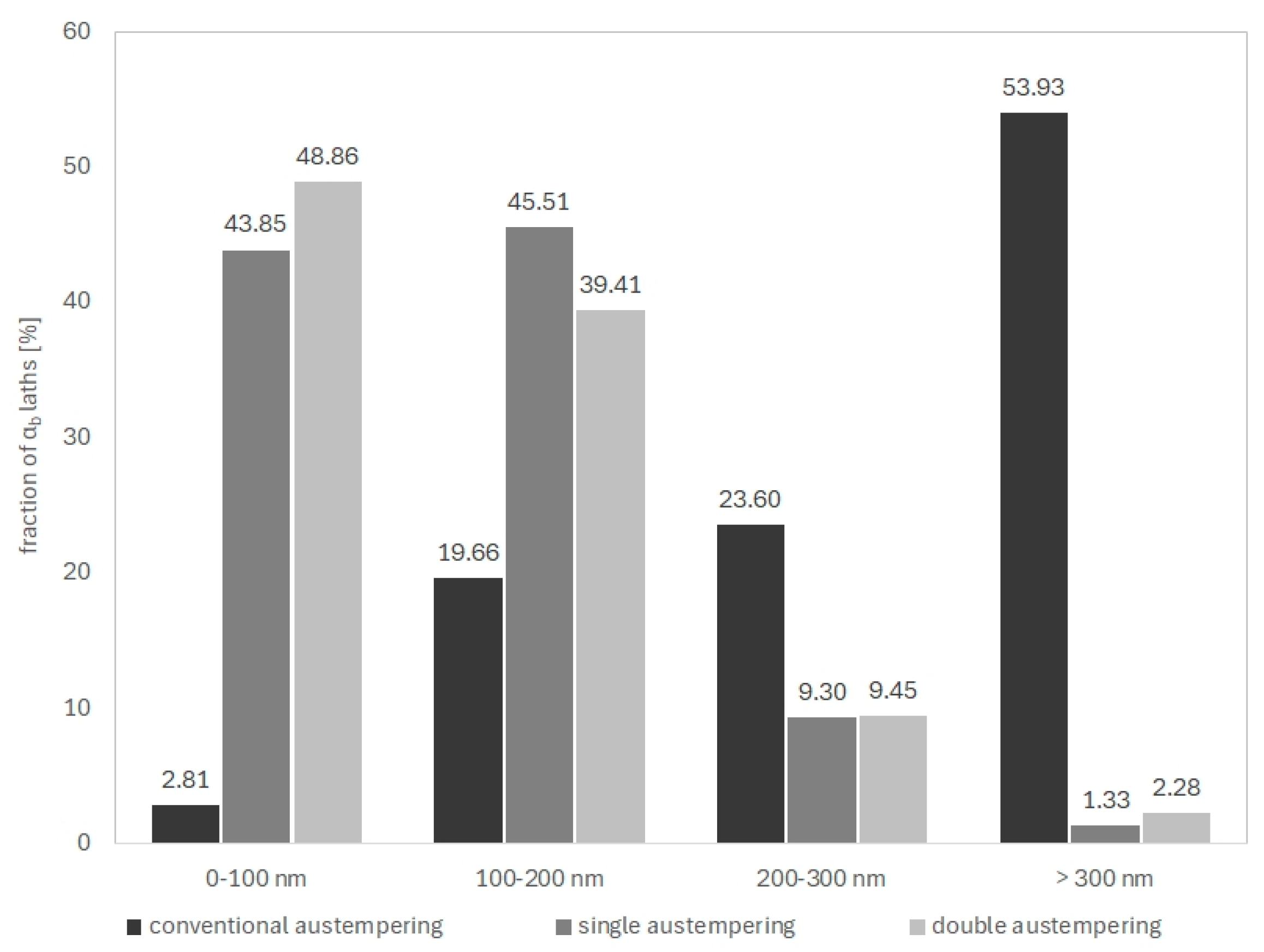

Figure 10. Distribution of size of ferrite plates in the microstructure of the ADI after conventional single (AT-1) and double (AT-2) austempering.
Figure 10. Distribution of size of ferrite plates in the microstructure of the ADI after conventional single (AT-1) and double (AT-2) austempering.
Nanomaterials 15 01710 g010
Nanomaterials 15 01710 g011
Figure 11. Distribution of size of residual austenite layers in the microstructure of the ADI after conventional single (AT-1) and double (AT-2) austempering.
Figure 11. Distribution of size of residual austenite layers in the microstructure of the ADI after conventional single (AT-1) and double (AT-2) austempering.
Nanomaterials 15 01710 g011
Nanomaterials 15 01710 g012
Figure 12. Representative stress–strain curve of the ductile iron after various heat treatments.
Figure 12. Representative stress–strain curve of the ductile iron after various heat treatments.
Nanomaterials 15 01710 g012
Nanomaterials 15 01710 g013
Figure 13. Fracture surfaces of heat-treated ADI after static tensile testing: (a,b)—conventional austempering; (c,d)—single austempering (AT-1); (e,f)—double austempering (AT-2).
Figure 13. Fracture surfaces of heat-treated ADI after static tensile testing: (a,b)—conventional austempering; (c,d)—single austempering (AT-1); (e,f)—double austempering (AT-2).
Nanomaterials 15 01710 g013
Nanomaterials 15 01710 g014aNanomaterials 15 01710 g014b
Figure 14. Fracture surfaces of heat-treated ADI after impact testing: (a,b)—conventional austempering; (c,d)—single austempering (AT-1); (e,f)—double austempering (AT-2).
Figure 14. Fracture surfaces of heat-treated ADI after impact testing: (a,b)—conventional austempering; (c,d)—single austempering (AT-1); (e,f)—double austempering (AT-2).
Nanomaterials 15 01710 g014aNanomaterials 15 01710 g014b
Table 1. Chemical composition of investigated ductile iron.
Table 1. Chemical composition of investigated ductile iron.
ElementCSiMnMgNiMoCuCrPSFe
wt. %3.52.540.160.0471.40.240.50.030.040.013balance
Table 2. Area of blocks of residual austenite in the microstructure of ductile iron after various austempering—micrometer estimation.
Table 2. Area of blocks of residual austenite in the microstructure of ductile iron after various austempering—micrometer estimation.
ADI After
Conventional
Austempering		ADI After Single
Austempering (AT-1)		ADI After Double
Austempering (AT-2)
averagecoreedgecoreedge
Minimum [µm2]10.020.440.40.74
Maximum [µm2]1432243.471324.54
Average [µm2]14 ± 53.9 ± 0.93.81 ± 0.963.1 ± 0.94.16 ± 0.98
Table 3. Results of the stereological measurements of the thickness of austenite layers and bainitic ferrite plates in the ADI after various heat treatments.
Table 3. Results of the stereological measurements of the thickness of austenite layers and bainitic ferrite plates in the ADI after various heat treatments.
Thickness of Structural
Element		ADI After Conventional
Austempering		ADI After Single
Austempering (AT-1)		ADI After Double
Austempering (AT-2)
FerriteAusteniteFerriteAusteniteFerriteAustenite
Minimum [nm]7030249158
Maximum [nm]9771192686420434268
Average [nm]351 ± 28225 ± 13124 ± 847 ± 5117 ± 852 ± 4
Table 4. The amount of residual austenite in the matrix of ductile iron after various austempering—micrometer estimation, XRD measurements.
Table 4. The amount of residual austenite in the matrix of ductile iron after various austempering—micrometer estimation, XRD measurements.
ADI After Conventional
Austempering		ADI After Single
Austempering (AT-1)		ADI After Double
Austempering (AT-2)
The amount of blocky residual austenite [%] (micrometer)28.9 ± 5.517.4 ± 3.312.8 ± 2.3
Total amount of residual
austenite (XRD) [%]		41.721.722.4
Table 5. The mechanical properties of the ductile iron after various heat treatments.
Table 5. The mechanical properties of the ductile iron after various heat treatments.
ADI After Conventional
Austempering		ADI After Single
Austempering (AT-1)		ADI After Double
Austempering (AT-2)
HRC27 ± 437 ± 435 ± 5
HB266 ± 12349 ± 38331 ± 45
R0.2 [MPa]683 ± 71033 ± 281054 ± 22
Rm [MPa]1027 ± 281220 ± 301296 ± 2
A5 [%]11 ± 0.34.3 ± 2.94.9 ± 0.2
KVC [J/cm2]13.3 ± 1.29 ± 08.3 ± 1.2
HRC—Rockwell hardness, HB—Brinell hardness, R0.2 [MPa]—yield strength, Rm [MPa]—tensile strength, A5 [%]—total elongation, KVC—V-notch impact toughness.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Skołek, E.; Skoczylas, P.; Wasiluk, K.; Świątnicki, W.A.; Wieczorek, A.N.; Myszka, D. The Influence of Initial Microstructure on the Microstructure and Mechanical Properties of Ductile Iron After Nanostructurisation Heat Treatment. Nanomaterials 2025, 15, 1710. https://doi.org/10.3390/nano15221710

AMA Style

Skołek E, Skoczylas P, Wasiluk K, Świątnicki WA, Wieczorek AN, Myszka D. The Influence of Initial Microstructure on the Microstructure and Mechanical Properties of Ductile Iron After Nanostructurisation Heat Treatment. Nanomaterials. 2025; 15(22):1710. https://doi.org/10.3390/nano15221710

Chicago/Turabian Style

Skołek, Emilia, Paweł Skoczylas, Kamil Wasiluk, Wiesław A. Świątnicki, Andrzej N. Wieczorek, and Dawid Myszka. 2025. "The Influence of Initial Microstructure on the Microstructure and Mechanical Properties of Ductile Iron After Nanostructurisation Heat Treatment" Nanomaterials 15, no. 22: 1710. https://doi.org/10.3390/nano15221710

APA Style

Skołek, E., Skoczylas, P., Wasiluk, K., Świątnicki, W. A., Wieczorek, A. N., & Myszka, D. (2025). The Influence of Initial Microstructure on the Microstructure and Mechanical Properties of Ductile Iron After Nanostructurisation Heat Treatment. Nanomaterials, 15(22), 1710. https://doi.org/10.3390/nano15221710

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
