The Facile Construction of Defect-Engineered and Surface-Modified UiO-66 MOFs for Promising Oxidative Desulfurization Performance

by
Chao Wang
1,*,
Junchao Ding
1,
Haoyu Wu
1,
Jiaxuan Zhang
1,
Jing Xu
1,
Ying Zhang
1,
Mindan Ma
1,
Ming Zhang
2 and
Hongping Li
2,*
1
School of the Environment and Safety Engineering, School of Emergency Management, Jiangsu University, Zhenjiang 212013, China
2
Institute for Energy Research, Jiangsu University, Zhenjiang 212013, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2025, 15(12), 931; https://doi.org/10.3390/nano15120931 (registering DOI)
Submission received: 5 April 2025 / Revised: 11 June 2025 / Accepted: 13 June 2025 / Published: 15 June 2025
(This article belongs to the Section Inorganic Materials and Metal-Organic Frameworks)
Browse Figures
Versions Notes

Abstract

:
The effective and deep removal of unreactive sulfides to achieve ultra-low-sulfur or sulfur-free oils has recently attracted extensive attention. In this work, a series of UiO-66 based catalysts have been prepared facilely for the effective removal of unreactive sulfides. Here, the incorporation of nitro functional groups into UiO-66, along with the construction of defects, results in remarkable sulfur removal for dibenzothiophene (DBT), achieving oil with sulfur content of less than 1 ppm. The successful construction of the designed catalysts was verified through a series of characterization studies. The exposed unsaturated metal sites help provide significantly more active reaction sites. In addition, the incorporated nitro group, with its electron-withdrawing property, would help increase the Lewis acidity of the catalytic metal sites. Thus, the catalytic oxidative capability of the designed UiO-66-based catalysts would be significantly increased. The enhanced catalytic oxidative performance helps ensure acceptable sulfur removal for oils with much higher sulfur concentrations. Additionally, the catalyst developed in this work can also be used to remove the derivatives of DBT with even lower reactivity. The relatively mild reaction conditions, combined with the exceptional sulfur removal, demonstrate the practicality of this reaction system.

1. Introduction

More recently, air pollution caused by exhaust emissions from billions of vehicles worldwide has become one of the most serious environmental issues [1,2,3]. Effective and deep desulfurization of refined oil products would help to notably reduce or eliminate this air pollution [4]. Although the hydrodesulfurization (HDS) technique applied in modern industrial processes could remove some sulfides (such as thiols, thioethers, etc.) effectively, other unreactive sulfides, like dibenzothiophene (DBT) and its derivatives, are still hard to remove, requiring harsh reaction conditions [5]. Thus, many other non-HDS strategies have been developed, including adsorptive desulfurization, bio-desulfurization, extractive desulfurization, and oxidative desulfurization (ODS) [6,7,8]. Around the numerous newly developed non-HDS strategies [9], the ODS procedure would be an efficient approach to eliminate unreactive aromatic sulfides in combination with traditional HDS procedures [10]. Through this process, an appropriate oxidant, such as hydrogen peroxide (H2O2) and aqueous or molecular oxygen (O2), was catalyzed to reactive oxygen species [11]. Subsequently, DBT and its derivatives are oxidized to their corresponding sulfones by the generated reactive oxygen species, which can then be naturally separated from the oil phase, resulting in oils with ultra-low sulfur concentrations [12]. Thus, exploring appropriate catalysts for ODS strategy is a critical issue that needs to be addressed.
Among the various candidates for the ODS procedure, metal–organic frameworks (MOFs)-based catalysts emerge as promising candidates for the catalytic oxidation of unreactive sulfides [13]. Here, the synthesized MOF materials are often used as ambient carriers due to their outstanding specific surface areas. Here, the active centers, including noble-metal nanoparticles [14], polyoxometalates [15], and inorganic nitrogen-based graphene-like materials [16], are loaded onto the surface of the MOF carriers or encapsulated in the hollow cavities of the MOF carriers. However, the leaching of active centers often occurs after several runs. In addition, the synthesis procedure of these catalysts often involves more than two steps. Thus, the construction of pure MOF catalysts with facile synthesis procedures merits in-depth investigation [17,18]. Their distinct metal sites and high specific surface areas provide the potential to function as reliable catalysts. In addition, the tunable defect sites and graftable surface functional groups can both contribute to elevating their catalytic capabilities [19,20].
UiO-66, as a Zr-based carboxylate MOF with a wide pH tolerance range, reliable thermal and mechanical stability, and superior ligand compatibility, is often selected for adsorption, chemical sensing, and catalytic reaction [21,22,23]. The highly stable structure of UiO-66 suggests that its fundamental framework would be retained after being modified through various strategies. Although the Zr-O clusters in the UiO-66 framework are fully coordinated theoretically, defects could still be constructed through a series of strategies [24]. The thermal activation of the synthesized MOFs with low boiling point solvents, such as methanol, is a commonly used strategy for producing defects [25]. Thereafter, catalytical metal sites would be exposed effectively, ensuring desirable catalytic oxidation activity. However, the thermal activation procedure is often carried out under high temperature or vacuum conditions, making the synthesis process more complex. In addition, it may lead to the release of potentially volatile organic pollutants. The incorporation of organic ligands with fewer coordination sites, along with commonly used organic ligands, is another strategy for producing MOFs with defects [26]. Here, no additional procedures are needed. However, the amount of different organic ligands added needs to be controlled precisely, or else the basic framework of the MOFs might collapse. Meanwhile, the substituents in organic ligands with different properties can influence the redox potential of metal sites, thereby further affecting their catalytic oxidation ability. Specifically, the substituent with electron-withdrawing features would help to increase the Lewis acidity of the catalytical metal sites, enhancing its catalytic activity consequently [27].
UiO-66-based catalysts, owing to their porous structure and high surface area, have drawn significant attention for applications in ODS. However, pristine UiO-66 exhibits limited oxidative catalytic activity. Therefore, various strategies have been developed to achieve improved ODS performance. One effective approach is the incorporation of additional catalytic metal sites into the UiO-66 framework. This can be accomplished through two main methods. The first and most commonly used method involves co-introducing metal salts with ZrCl4 during synthesis to directly obtain metal-doped UiO-66. Using this strategy, Ce [28], W [29], Hf [30], and Ti-doped [31] UiO-66 catalysts have been successfully synthesized, all showing promising ODS performance. The second method involves a post-synthetic modification: pristine UiO-66 is first synthesized and then immersed in a metal salt solution to introduce the desired metal species. Using this method, V [32] and Ti-doped [33,34,35] UiO-66 catalysts with acceptable ODS activity have been reported. Another commonly used strategy is to introduce catalytic polyoxometalates (POMs) and encapsulate them within the porous structure of UiO-66 [36,37,38,39,40], which also demonstrates effective sulfide removal. Moreover, loading ionic liquids [41] or metal oxides [42] onto the surface of UiO-66 can also enhance the catalytic performance of the active sites, benefiting from the well-developed porous structure and high specific surface area of the UiO-66 support. However, the above studies primarily focus on the introduction of catalytic sites, while the liberation of the catalytic potential of the inherent Lewis acidic Zr sites has received little attention.
Herein, UiO-66 with unsaturated metal sites (marked as D-UiO-66) was prepared by adding a specific amount of benzoic acid (BZA) together with terephthalic acid. Meanwhile, UiO-66 with -NO2 group (marked as UiO-66-NO2) was fabricated by utilizing 2-nitro terephthalic acid in place of terephthalic acid. At last, UiO-66 with both unsaturated metal sites and -NO2 group (marked as D-UiO-66-NO2) was constructed by employing both BZA and 2-nitro terephthalic acid as the organic ligand. Then, the successful construction of D-UiO-66, UiO-66-NO2, and D-UiO-66-NO2 was verified through a series of characterization strategies. The desulfurization capability of the synthesized UiO-66-based catalysts was measured through the effective oxidation of DBT and its derivatives to their corresponding sulfones, realizing the deep removal of unreactive sulfides from the oil phase. Under the optimized reaction conditions, sulfur removal of 99.8% (<1 ppm) could be obtained after the reaction for 100 min under relatively mild reaction conditions. Also, desirable sulfur removal could be achieved for oils with different substrates and sulfur concentrations. The exceptional sulfur removal capability of the UiO-66-based catalyst, featuring unsaturated metal sites and surface-incorporated -NO2 groups, indicates the construction of similar MOF-based catalysts with comparable strategies for promising catalytic performance.

2. Materials and Methods

The details about the characterization methods and the detection of sulfur concentration are listed in the Supporting Information.

2.1. Reagents

n-Dodecane (97%), 2-nitro terephthalic acid (98%), and benzoic acid (99%) were purchased from Shanghai Macklin Biochemical Technology Co., Ltd. (Shanghai, China) n-Hexadecane (98%), N, N-dimethylformamide (DMF, AR), dibenzothiophene (98%), 4-methyl-dibenzothiophene (98%), and 4,6-dimethyl-dibenzothiophene (97%) were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China) Zirconium chloride (99.9%) was obtained from Alfa Aesar. Terephthalic acid (99%) was obtained from Beijing Vokai Biotechnology Co., Ltd. (Beijing, China) Acetonitrile (AR), 30% H2O2 (99.5%), and anhydrous ethanol (AR) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China).

2.2. Synthesis of UiO-66

Here, UiO-66 was synthesized through a typical solvothermal synthesis procedure. A dual molar amount of ZrCl4 (3 mmol, 700 mg) and terephthalic acid (3 mmol, 498 mg) was added to the polytetrafluoroethylene-lined autoclave. Then, 60 mL of DMF was added, and the mixture was continuously stirred for 30 min. After that, the autoclave was placed in an oven and reacted for 2 h under 130 °C. After the autoclave cooled naturally, the product was separated through centrifugation and washed three times with hot ethanol. At last, the obtained product was dried in a vacuum drying oven for 12 h to yield a white powder, which is named UiO-66.

2.3. Synthesis of UiO-66-Based Catalysts

The synthesis of UiO-66 with unsaturated metal sites is similar to that of pristine UiO-66, except for the initial incorporation of an additional 60 mmol of BZA alongside terephthalic acid. The final obtained product was named D-UiO-66. For the synthesis procedure of UiO-66 with -NO2 groups, 3 mmol (633 mg) of 2-nitro terephthalic acid was added instead of terephthalic acid. The final obtained powder was named UiO-66-NO2. Finally, for the synthesis of UiO-66 with both unsaturated metal sites and -NO2 groups, 3 mmol (633 mg) of 2-nitro terephthalic acid was used in place of terephthalic acid, along with an additional 60 mmol of BZA. The resulting product was designated as D-UiO-66-NO2.

2.4. Desulfurization Procedure

The desulfurization experiment was conducted in a homemade jacketed three-necked flask. Here, the reaction temperature was controlled by a super constant temperature water bath. The model oil was prepared by dissolving a specific amount of DBT or its derivatives in dodecane. The initial sulfur concentration for oils containing DBT, 4-MDBT, or 4,6-DMDBT was set at 200 ppm. Additionally, oils with sulfur concentrations of 500 ppm and 1000 ppm were prepared using DBT as the substrate. In a typical reaction procedure, 75 mg of the prepared catalyst, 5 mL of acetonitrile (MeCN), and 5 mL of model oil were sequentially added into the flask. The reaction temperature was set to 60 °C, and the system was stirred with a magnetic stirrer for 20 min initially. Then, a certain amount of H2O2 was injected into the reaction system to initiate the oxidative desulfurization procedure. The oil phase was taken every 20 min to determine its sulfur concentration.
The desulfurization of the oil was calculated by Formula (1).
s u l f u r   r e m o v a l = C 0 − C t C 0 × 100 %
Here, C0 and Ct indicate the sulfur concentration at 0 min and t min, respectively.

3. Results and Discussion

3.1. The Characterization of the Synthesized UiO-66-Based Catalysts

All the samples prepared were initially characterized by thermogravimetric analysis (TGA, Figure 1a). The final weight of each tested sample was normalized to 100%, assuming ZrO2 as the sole solid residue for all UiO-66-based samples at temperatures above 700 °C [43]. For the TGA curve of pristine UiO-66, the initial weight loss below 150 °C can be attributed to the evaporation of trapped volatile solvents [43]. The second stage, occurring between 150 °C and 350 °C, is primarily due to the dehydroxylation of the Zr6 cluster nodes and the removal of residual monocarboxylate ligands [44]. The final weight loss above 350 °C corresponds to the decomposition of the MOF [45]. For each mole of dehydroxylated ideal UiO-66 (Zr6O6(BDC)6), six moles of ZrO2 are ultimately formed. Therefore, the theoretical mass of Zr6O6(BDC)6 is 220.2% relative to the final ZrO2 residue. However, the actual value is slightly lower than the theoretical one, indicating a small extent of missing linkers during the synthesis process. For D-UiO-66 and D-UiO-66-NO2, the significant reduction in the second plateau values suggests an increased degree of linker missing induced by BZA addition during synthesis, resulting in abundant missing-linker defects. In addition, for UiO-66 constructed using nitro group substituted linkers, a decreased decomposition temperature was observed [46,47]. The relative mass of UiO-66-NO2 at 350 °C exceeds 220.2%, which can be attributed to the presence of the nitro group in the linker.
The structures of the synthesized UiO-66-based samples were further characterized by N2 adsorption–desorption measurements (Figure 1b, Table S1). All samples exhibit typical type I isotherms, consistent with the microporous nature of the UiO-66 framework. However, the calculated Brunauer–Emmett–Teller (BET) specific surface areas of D-UiO-66 and D-UiO-66-NO2 are significantly higher than that of pristine UiO-66, which can be attributed to the presence of missing-linker defects [48,49]. However, the specific surface areas of the samples containing nitro groups are significantly lower than those without, which could be attributed to the introduction of a bulky and heavy functional group [46].
Then, the four kinds of catalysts produced were characterized by X-ray diffraction measurement (Figure 2a). All the synthesized catalysts show two distinct groups of peaks, with a strong diffraction peak at 7.4° attributed to the (111) facet, and a relatively weaker peak at 8.5° corresponding to the (200) facet [50]. Moreover, other characteristic peaks of UiO-66 could also be identified, including peaks appearing around 17.1°, 22.3°, 25.7°, 30.8°, 33.2°, and 43.4° [50]. However, after introducing the -NO2 group, no significant differences could be observed, implying that the incorporated functional group will not bring about any imperfections in its crystal [51]. Notably, the fabricated catalysts with defect sites show relatively superior crystallinity. This may be attributed to the in situ formation of metal cluster building blocks through the interaction between zirconium cations and BZA, which facilitates more controlled nucleation and consequently enhances crystallinity [52,53,54]. Moreover, it is worth noting that the increased crystallinity for catalysts with defect sites could also be observed from the scanning electron microscope (SEM) measurements (Figure 2b–e).
To better understand the chemical structure of the fabricated catalysts, Raman spectra of all the samples were collected (Figure 3a). Here, all the catalysts show clearly characteristic peaks around 1615 cm−1, which would be assigned to the specific peak from the benzene ring of organic ligand [55,56]. The peaks observed around 1450 and 1430 cm−1 might be associated with the carboxyl groups in the organic ligand (O-C=O bond in carboxylate and C-C aromatic to carboxylate stretch) [56,57]. For D-UiO-66 and D-UiO-66-NO2, distinctive peaks for BZA could be observed at about 1029 and 1005 cm−1 [58]. And for UiO-66-NO2 and D-UiO-66-NO2, symmetrical stretch vibration of the -NO2 group surrounding 1356 cm−1 could also be identified [46]. The above inspections help to confirm the successful introduction of the organic ligand that we expect.
To gain a deeper awareness of the catalysts, Fourier transform infrared (FT-IR) spectra of the samples were collected simultaneously (Figure 3b). Here, for all the samples, the characteristic peaks of Zr-O could be found around 1156, 1100, and 1018 cm−1, illustrating effective coordination between the metal center and organic ligand [59,60]. Moreover, Zr-(OC) asymmetric stretching and μ3-O stretching could be discovered at 550 and 665 cm−1, respectively, indicating the construction of UiO-66 based frameworks simultaneously [60,61,62]. In addition, the peaks presented around 1660, 824, and 746 cm−1 for all the samples could be assigned to C=O stretching, C-H vibration, and C=C stretching from the organic ligand, respectively [60,63]. Notably, additional characteristic peaks could be detected around 1539, 1249, and 870 cm−1 for UiO-66-NO2 and D-UiO-66-NO2. The former peak and the latter two peaks would be associated with the asymmetric stretching of the -NO2 group and the stretching of C-N, respectively [64,65]. The above results indicate the successful maintenance of the UiO-66 framework in all the prepared samples. Moreover, the efficient incorporation of defects and functional groups was verified simultaneously, benefiting the enhancement of the oxidative catalytic capabilities.

3.2. Sulfur Removal with Different Reaction Systems

First of all, sulfur removal with different reaction systems was investigated and is shown in Figure 4. Here, DBT, as a typical stubborn sulfide in oils, was selected as the substrate. For each reaction adding H2O2, the oxidant was introduced following a 20 min extraction procedure with MeCN [66]. Here, for the reaction system without using any catalyst, no obvious sulfur removal could be viewed after extraction for 20 min, indicating that H2O2 would not be activated to reactive oxygen species with MeCN. In the absence of H2O2, no apparent increase in sulfur removal was observed after 20 min of extraction, illustrating that oxidative desulfurization could not occur in the absence of an oxidant. Thus, the catalyst and the added oxidant both display indispensable roles during the oxidative desulfurization procedure. Afterwards, sulfur removal of 99.8% could be noticed after another reaction for 80 min with adding both D-UiO-66-NO2 and H2O2. To verify the essential role of D-UiO-66-NO2 in a further step, hot filtration of the catalyst was conducted. Here, no evident increase in sulfur removal was observed after the hot filtration procedure. Thus, we might conclude that the added MeCN, H2O2, and D-UiO-66-NO₂ serve as the extractant, oxidant, and catalyst, respectively.

3.3. Sulfur Removal with Different UiO-66 Catalysts

The UiO-66 catalysts gained with different features were utilized for the desulfurization of DBT, as a typical unreactive sulfide in oils (Figure 5). The sulfur removal observed during the initial 20 min can be mainly attributed to the extractive desulfurization capability of acetonitrile [66]. After adding H2O2, the sulfur removal for DBT increases continuously. For D-UiO-66-NO2, deep desulfurization (99.8%) could be obtained after reaction for another 80 min, obtaining oil with a sulfur concentration of less than 1 ppm. For UiO-66, sulfur removal of only 76.1% was received after another 100 min reaction, which indicates the indispensable role played by the constructed defect sites and incorporated -NO2 functional group. Compared to UiO-66 (76.1%), the increased sulfur removal for D-UiO-66 (78.4%) and UiO-66-NO2 (89.8%) indicates that the exposed uncoordinated metal sites and the introduction of the electron-withdrawing group both contribute to enhancing the oxidative catalytic capability. Compared with previously reported studies, the catalysts prepared in this work exhibit more moderate reaction conditions while achieving higher sulfur removal (Table 1).
For the unmodified UiO-66, a small number of inherent defects still exist, as confirmed by TGA measurements. In this case, the metal sites with Lewis acidity can catalyze H2O2 to generate reactive oxygen species, which subsequently oxidize DBT into its corresponding sulfone. However, due to the limited number of defects and the unenhanced Lewis acidity of the metal sites, deep desulfurization cannot be achieved. However, for UiO-66 with defects and functional groups, increased defect density and enhanced Lewis acidity can be observed. Due to the electron-withdrawing nature of the nitro group, the electron density at the Zr sites in UiO-66 is reduced through conjugation with the benzene ring [67]. As a result, the Zr sites exhibit an enhanced ability to accept electrons, thereby increasing their Lewis acidity and improving their acid-catalytic performance. The formation of Zr–OH and Zr–OH2 structures further facilitates the interaction between the hydrophilic oxidant [67,68], H2O2, and the Zr sites, promoting its catalytic conversion into peroxyl radicals. These reactive species then oxidize DBT into its corresponding sulfone, which can be readily separated from the oil phase due to its increased polarity, thus achieving deep desulfurization (Schemes S1 and S2).
Table 1. Catalytic ODS sulfur compounds over UiO-66-based catalysts by using H2O2.
Table 1. Catalytic ODS sulfur compounds over UiO-66-based catalysts by using H2O2.
CatalystTemp.TimeO/S RatioDBT4,6-DMDBTRef.
D-UiO-66-NO260 °C100 min7/199.8%93.7%This work
UiO-6660 °C150 min12/1100%72.9%[69]
UiO-66-NO260 °C120 min12/197%—[70]
UiO-66-free60 °C120 min6/199.6%—[71]
UiO-66-MW50 °C180 min13/195%—[72]

3.4. The Optimization of Oxidative Desulfurization Parameters

Afterward, D-UiO-66-NO2 was selected as a superior catalyst for extended investigations. The reaction temperature, oxidant dosage, and catalyst amount would influence the choice of reaction equipment and the overall cost of the desulfurization process. Thus, the optimization of reaction temperature, oxidant dosage, and catalyst amount was conducted through a series of experiments.

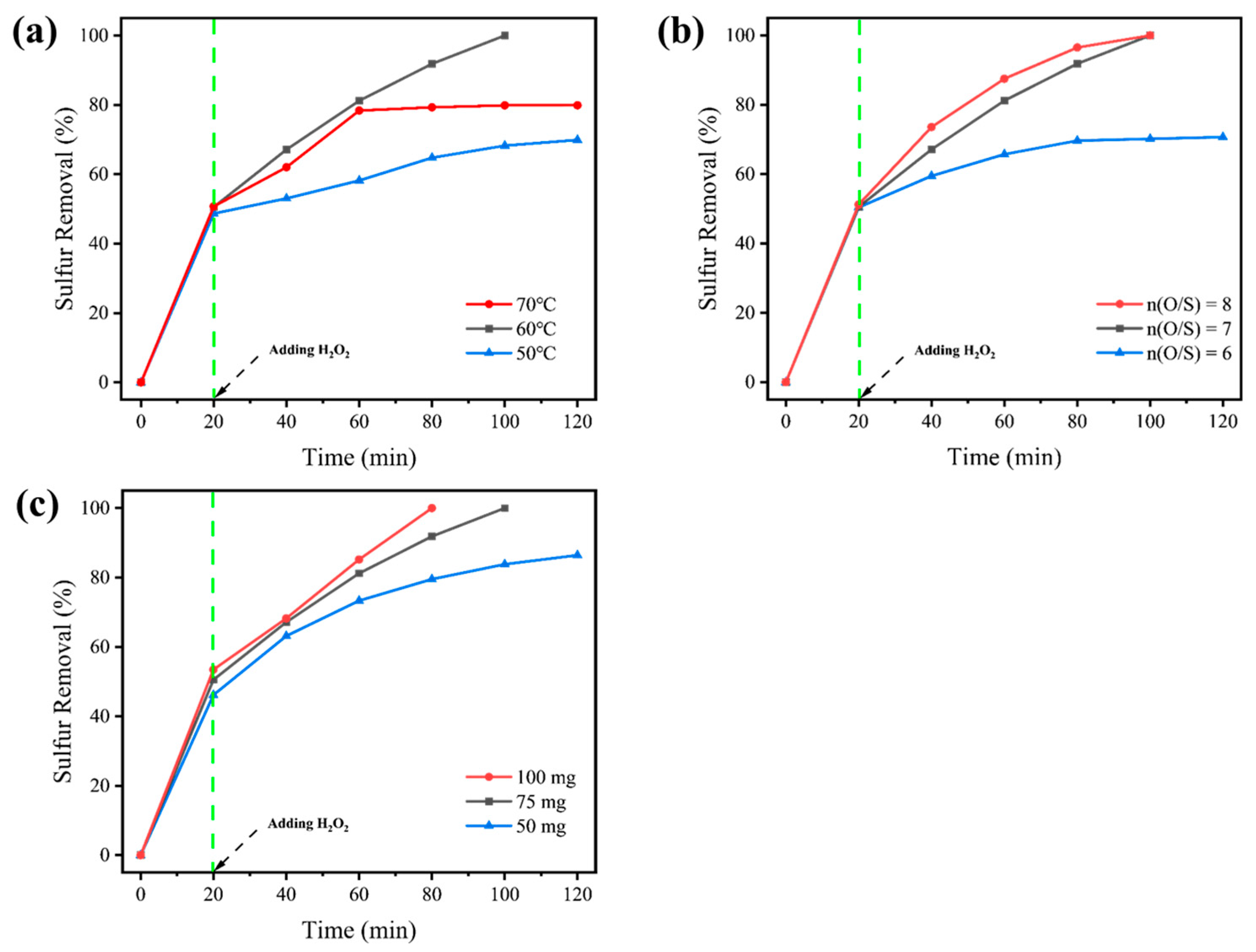

To begin with, sulfur removal at different reaction temperatures was investigated (Figure 6a). The sulfur removal at 20 min was mainly attributed to the extraction ability of MeCN, which was slightly affected by temperature. However, after adding H2O2, a noticeable difference in sulfur removal at different temperatures could be observed. For sulfur removal conducted at 50 °C, sulfur removal of only 69.9% was received after reaction for 100 min, indicating that a higher reaction temperature is needed. Generally, higher reaction activity will be acquired under higher reaction temperatures. However, for the reaction conducted under 70 °C, no obvious increase in sulfur removal was witnessed after the reaction for more than 80 min. This might be caused by the rapid decomposition of H2O2 under the higher reaction temperature. Therefore, a reaction temperature of 60 °C would be the optimal setting for this oxidative desulfurization system. Here, deep desulfurization (99.8%, <1 ppm) could be achieved after reaction for 100 min.
As an oxidant used in the oxidative desulfurization process, a higher dosage of H2O2 can facilitate deep desulfurization within a shorter reaction time. Whereas, achieving deep desulfurization with the lowest H2O2 consumption is the target we aim for. Here, in this work (Figure 6b), sulfur removal of only 70.7% would be attained after reaction for 100 min with the oxidant/sulfide (O/S) molar ratio of 6. By increasing the O/S molar ratio to 7, deep desulfurization (99.8%) could be achieved after a reaction for 100 min. Although deep desulfurization would also be achieved with an O/S molar ratio of 8, it would not be selected due to economic and safety concerns.
Subsequently, the effect of the catalyst amount added to the reaction system was also investigated (Figure 6c). The sulfur removal at 20 min shows slight differences, which might be attributed to the adsorptive desulfurization capability of the added catalyst, aside from the primary extraction capabilities of the extractant. For the desulfurization using 50 mg catalyst, sulfur removal of only 86.4% could be gained after being reacted for 100 min. For the sulfur removal using 75 mg and 100 mg of catalyst, deep desulfurization could both be achieved. From the consideration of costs, the usage of the catalyst was optimized to 75 mg for further investigations.

3.5. Sulfur Removal for Oils with Different Substrates or Sulfur Concentrations

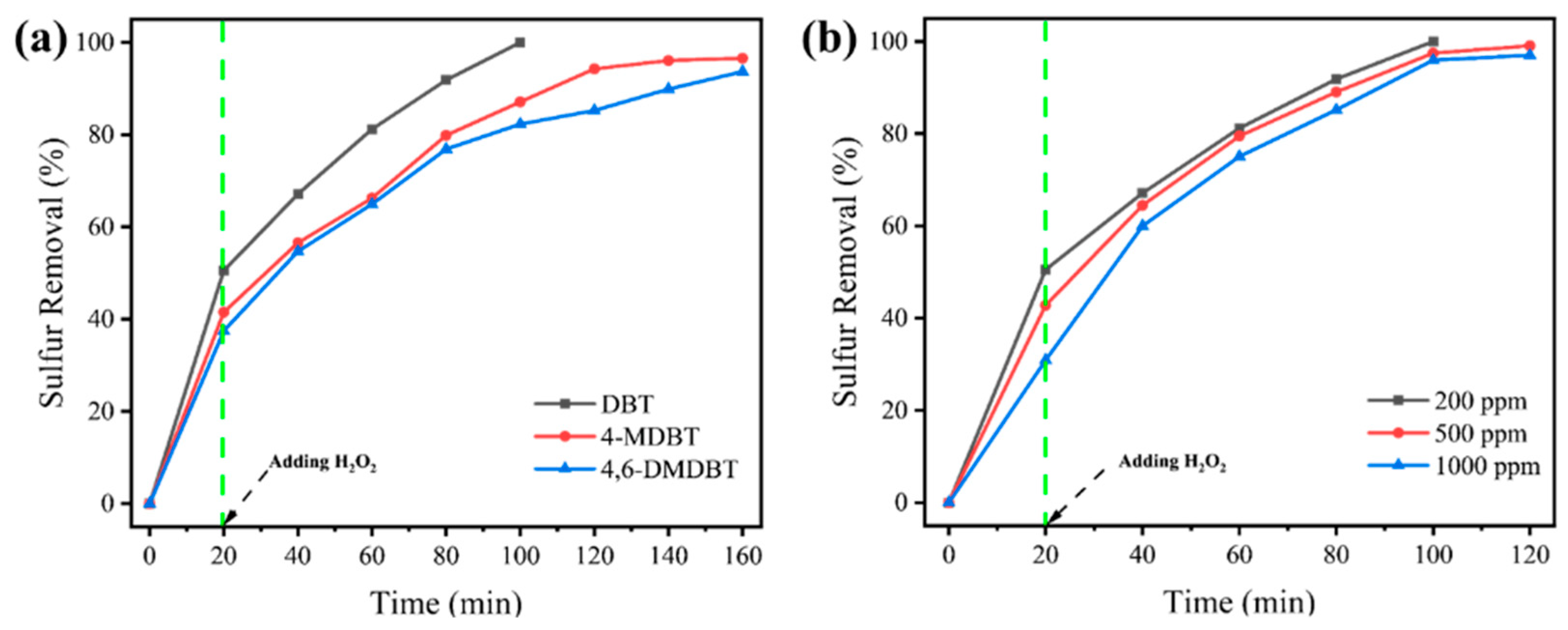

For the actual unrefined oils, the types and concentrations of sulfide in each oil are different. Thus, another two investigations were conducted subsequently to verify the practicality of this desulfurization procedure. Firstly, sulfur removal for DBT, 4-methyl-dibenzothiophene (4-MDBT), and 4,6-dimethyl-dibenzothiophene (4,6-DMDBT), as the most representative three unreactive sulfides, were explored (Figure 7a). The sulfur removal decreases following the order of DBT > 4-MDBT > 4,6-DMDBT. For 4-MDBT and 4,6-DMDBT, sulfur removal is unsatisfactory after a reaction of 100 min. By further extending the reaction time, sulfur removal for the above two sulfides could reach up to 96.6% and 93.7%, respectively, which would also be a satisfactory level of sulfur removal. Also, the decrease in sulfur removal could be attributed to the increased steric hindrance effect from the additional methyl group and the increased electron cloud density of the S atom [73,74,75].
Subsequently, sulfur removal of oils with higher sulfur concentrations (500 ppm and 1000 ppm) was examined (Figure 7b). The sulfur removal detected around 20 min could be mainly ascribed to the extraction ability of the MeCN extractant. The obvious decrease in sulfur removal at 20 min for oils with higher sulfur concentrations could be attributed to the saturation of DBT in the MeCN extractant. After the introduction of the H2O2 oxidant, the difference in sulfur removal for different samples decreases significantly, indicating the effective oxidation of DBT to its corresponding sulfone. After a reaction time of 100 min, the sulfur removal decreases slightly with the increase in sulfur concentration, which is superior to our previous work [76]. With an extended reaction time of 20 min, sulfur removal of 99.0% and 97.1% was achieved for oils with sulfur concentrations of 500 ppm and 1000 ppm, respectively. The slight decrease in sulfur removal could be attributed to the increased generation of H2O during the reaction process, as more H2O2 oxidant is needed to maintain the same O/S molar ratio.
The exceptional sulfur removal for oils containing various refractory sulfides or higher sulfur concentrations illustrates the practicality of this oxidative desulfurization system.

3.6. The Recycling Performance of the Reaction System

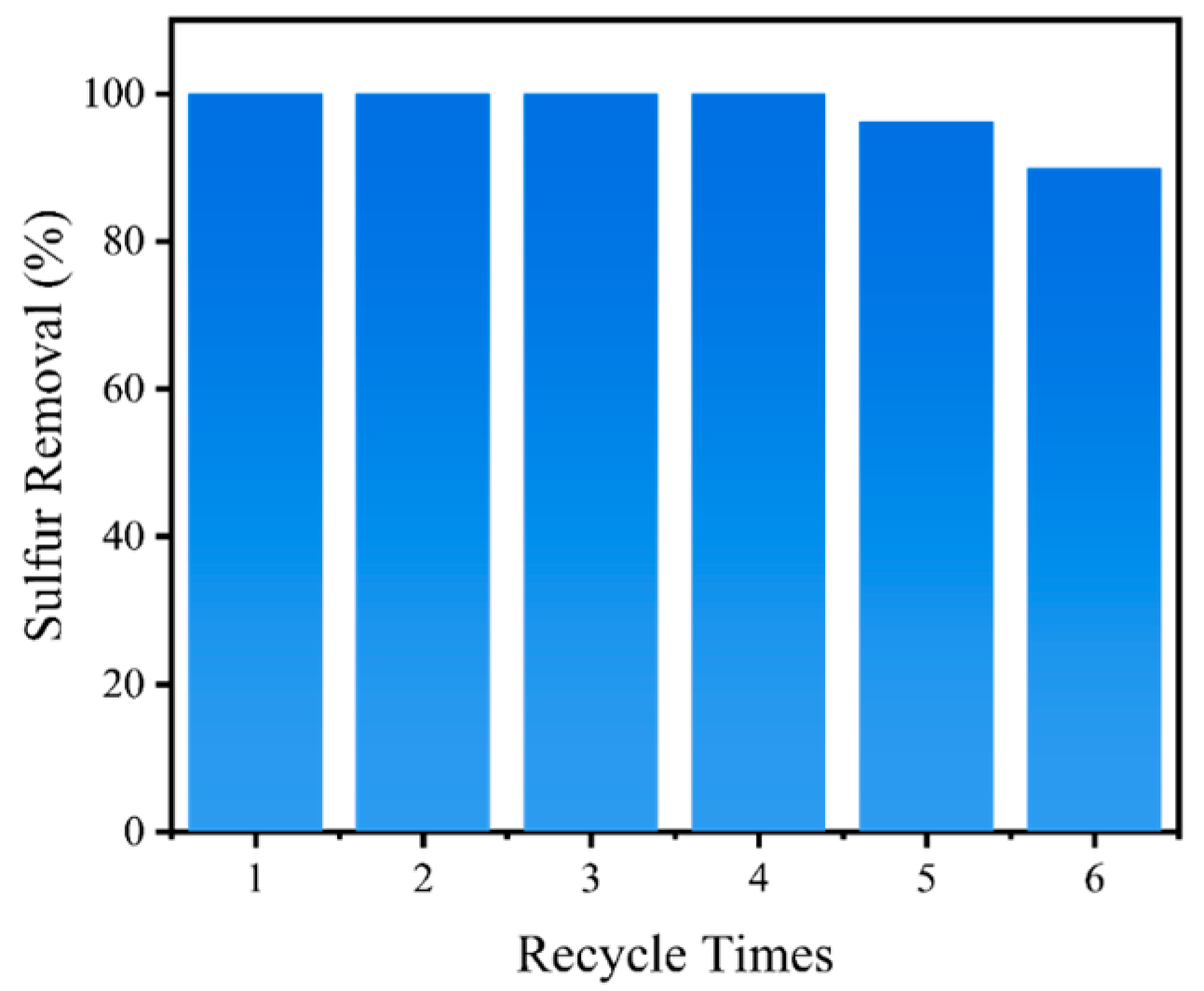

The recycling performance of the synthesized catalyst is another indicator for assessing its potential for practical application (Figure 8). After each oxidative reaction, the oxidized oil phase was separated. The catalyst was then washed with ethanol, followed by drying in an oven before being used in the next run. Fresh oil and oxidant were then added for the next cycle. Deep desulfurization can still be achieved in the first four cycles. However, sulfur removal decreases to 96.2% in the fifth cycle and drops sharply to 90.0% in the sixth cycle. This may be attributed to the saturation of oxidized sulfones in the extractant phase, which hinders effective contact between the sulfides and the oxidant, eventually reducing sulfur removal. Taken together, this reaction system exhibits a certain degree of cycling stability.

4. Conclusions

In summary, UiO-66 based catalysts with defects and nitro functional groups could be synthesized via a facile approach. The structure of the constructed catalyst was characterized using XRD, SEM, FT-IR, and Raman techniques. The measurements indicate that UiO-66 with unsaturated metal sites and -NO2 group could be synthesized successfully, and the basic structure of the UiO-66 framework could be retained. The efficient construction of a catalyst with unsaturated metal sites and electron-withdrawing function groups contributes to the enhancement of catalytic oxidation performance. Here, deep desulfurization (99.8%, <1 ppm) could be achieved under relatively mild reaction conditions (60 °C and atmospheric pressure) compared to traditional industrial HDS processes. Additionally, this reaction system also shows desirable sulfur removal for oils with much higher sulfur concentrations and oils with other unreactive sulfides. Given its convenient synthesis approach and outstanding desulfurization performance, the elite catalyst in this work is considered to be a promising candidate for the novel desulfurization process.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/nano15120931/s1, Experimental section. Table S1: BET surface areas (m2/g) of the prepared UiO-66-based catalysts; Scheme S1: Illustration of the influence of nitro substituents and unsaturated Zr sites on the desulfurization mechanism; Scheme S2: The reaction of DBT oxidation using pristine UiO-66 and modified D-UiO-66 as catalysts and H2O2 as an oxidant.

Author Contributions

Conceptualization, C.W. and H.W.; methodology, H.W. and J.Z.; software, J.D.; validation, C.W., M.Z. and H.L.; formal analysis, C.W., Y.Z. and J.Z.; investigation, M.M., H.W. and J.Z.; resources, C.W.; data curation, J.X., H.W. and J.Z.; writing—original draft preparation, J.Z.; writing—review and editing, C.W.; visualization, J.Z.; supervision, C.W. and H.L.; project administration, M.Z. and H.L.; funding acquisition, C.W. All authors have read and agreed to the published version of the manuscript.

Funding

Thanks for the financial support from the National Natural Science Foundation of China (No. 22108105) and the Project of Research on Educational Reform and Talent Development in the School of Emergency Management of Jiangsu University (No. JG-03-18).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ren, T.; Wang, Y.; Wang, L.; Liang, L.; Kong, X.; Wang, H. Controllable Synthesis of Titanium Silicon Molecular Zeolite Nanosheet with Short b-Axis Thickness and Application in Oxidative Desulfurization. Nanomaterials 2024, 14, 953. [Google Scholar] [CrossRef] [PubMed]
  2. Fayyazbakhsh, A.; Bell, M.L.; Zhu, X.; Mei, X.; Koutný, M.; Hajinajaf, N.; Zhang, Y. Engine emissions with air pollutants and greenhouse gases and their control technologies. J. Clean. Prod. 2022, 376, 134260. [Google Scholar] [CrossRef]
  3. Kopelias, P.; Demiridi, E.; Vogiatzis, K.; Skabardonis, A.; Zafiropoulou, V. Connected & autonomous vehicles—Environmental impacts—A review. Sci. Total Environ. 2020, 712, 135237. [Google Scholar] [PubMed]
  4. Xia, D.; Li, H.; Huang, P.; Zhou, W.; Kulak, A.; Luo, N.; Li, Q. Flash Joule-heating synthesis of MoO2 nanocatalysts in graphene aerogel for deep catalytic oxidative desulfurization. AIChE J. 2024, 70, e18357. [Google Scholar] [CrossRef]
  5. Xu, L.; Yin, J.; He, J.; Li, H.; Zhu, L.; Ning, H.; Jie, K.; Zhu, W.; Li, H.; Dai, S. Completely Inorganic Deep Eutectic Solvents for Efficient and Recyclable Liquid-Liquid Interface Catalysis. Adv. Mater. 2024, 36, 2313853. [Google Scholar] [CrossRef]
  6. Ma, L.; Zhong, Y.; Qu, L.; Feng, X.; Zhang, Y.; Hou, H.; Yang, G. Conformational flexibility of a novel Cu(I)-based adsorbent enhancing the selectivity of adsorptive desulfurization. Sep. Purif. Technol. 2025, 358, 130324. [Google Scholar] [CrossRef]
  7. Omar, R.A.; Bhaduri, B.; Verma, N. Graphitic carbon nitride-immobilized bacterial endospores: Combined adsorptive-and bio-desulfurization of liquid fuels. Mater. Lett. 2024, 361, 136117. [Google Scholar] [CrossRef]
  8. Syntyhaki, E.; Karonis, D. Synthesis of Surrogate Blends Corresponding to Petroleum Middle Distillates, Oxidative and Extractive Desulfurization Using Imidazole Ionic Liquids. Fuels 2022, 3, 44–74. [Google Scholar] [CrossRef]
  9. Zhang, C.; Xue, X.; Liu, J.; Lin, J.; Zhang, X.; Kasemchainan, J.; Gao, H.; Wang, G.; Shu, X. Coordination environment dependent stability of Cu-based MOFs towards selective adsorption desulfurization. Chem. Eng. J. 2023, 464, 142670. [Google Scholar] [CrossRef]
  10. Xing, X.-X.; Guo, H.-L.; He, T.-M.; An, X.; Li, H.-P.; Zhu, W.-S.; Li, H.-M.; Pang, J.-Y.; Dang, D.-B.; Bai, Y. Tungstovanadate-based ionic liquid catalyst [C2(MIM)2]2VW12O40 used in deep desulfurization for ultraclean fuel with simultaneous recovery of the sulfone product. ACS Sustain. Chem. Eng. 2022, 10, 11533–11543. [Google Scholar] [CrossRef]
  11. Wang, Y.; Ren, L.; Li, Z.; Xin, F. Preparation of hollow niobium oxide nanospheres with enhanced catalytic activity for oxidative desulfurization. Nanomaterials 2022, 12, 1106. [Google Scholar] [CrossRef] [PubMed]
  12. Yin, J.; Fu, W.; Zhang, J.; Zhang, X.; Qiu, W.; Jiang, W.; Zhu, L.; Li, H.; Li, H. Bifunctional pyridinium-based Brønsted acidic porous ionic liquid for deep oxidative desulfurization. Chem. Eng. J. 2024, 492, 152349. [Google Scholar] [CrossRef]
  13. Wang, C.; Jiang, W.; Chen, H.; Zhu, L.; Luo, J.; Yang, W.; Chen, G.; Chen, Z.; Zhu, W.; Li, H. Pt nanoparticles encapsulated on V2O5 nanosheets carriers as efficient catalysts for promoted aerobic oxidative desulfurization performance. Chin. J. Catal. 2021, 42, 557–562. [Google Scholar] [CrossRef]
  14. Li, J.; Xu, Z.; Wang, T.; Xie, X.; Li, D.; Wang, J.; Huang, H.; Ao, Z. A versatile route to fabricate Metal/UiO-66 (Metal = Pt, Pd, Ru) with high activity and stability for the catalytic oxidation of various volatile organic compounds. Chem. Eng. J. 2022, 448, 136900. [Google Scholar] [CrossRef]
  15. Fernandes, S.; Flores, D.; Silva, D.; Santos-Vieira, I.; Mirante, F.; Granadeiro, C.M.; Balula, S.S. Lindqvist@nanoporous MOF-based catalyst for effective desulfurization of fuels. Nanomaterials 2022, 12, 2887. [Google Scholar] [CrossRef]
  16. Xing, H.; Shi, J.; Li, Y.; Wu, J. Visible light driven generation of dual active oxygen species on Zr-MOF/g-C3N4 photocatalyst for highly selective photocatalytic oxidation of sulfides to sulfoxides. Inorg. Chem. Commun. 2024, 162, 112129. [Google Scholar] [CrossRef]
  17. Bavykina, A.; Kolobov, N.; Khan, I.S.; Bau, J.A.; Ramirez, A.; Gascon, J. Metal-organic frameworks in heterogeneous catalysis: Recent progress, new trends, and future perspectives. Chem. Rev. 2020, 120, 8468–8535. [Google Scholar] [CrossRef]
  18. Piscopo, C.; Granadeiro, C.; Balula, S.S.; Bošković, D. Metal-organic framework-based catalysts for oxidative desulfurization. ChemCatChem 2020, 12, 4721–4731. [Google Scholar] [CrossRef]
  19. Hou, G.; Liu, Y.; Gai, Y.; Han, G.; Ji, Y.; Hou, G.; Wang, A.; Liu, Y.; Van Der Voort, P.; Feng, X. Catalytic open metal sites in Ti-MOFs obtained through plasma treatment for oxidative desulfurization. Chem. Eng. J. 2024, 492, 152139. [Google Scholar] [CrossRef]
  20. Saleh, H.A.M.; Khan, S.; Kumar, M.; Ansari, A.; Shahid, M.; Sama, F.; Qasem, K.M.A.; Khan, M.Y.; Mehtab, M.; Ahmad, M.; et al. Fabrication of Unique Mixed-Valent CoICoII and CuICuII Metal-Organic Frameworks (MOFs) for Desulfurization of Fuels: A Combined Experimental and Theoretical Approach toward Green Fuel. Inorg. Chem. 2023, 63, 329–345. [Google Scholar] [CrossRef]
  21. Heng, J.Z.X.; Tan, T.T.Y.; Li, X.; Loh, W.W.; Chen, Y.; Xing, Z.; Lim, Z.; Ong, J.L.Y.; Lin, K.S.; Nishiyama, Y.; et al. Pyrolytic Depolymerization of Polyolefins Catalysed by Zirconium-based UiO-66 Metal-Organic Frameworks. Angew. Chem. Int. Edit. 2024, 63, e202408718. [Google Scholar] [CrossRef] [PubMed]
  22. Dhakshinamoorthy, A.; Santiago-Portillo, A.; Asiri, A.M.; Garcia, H. Engineering UiO-66 metal organic framework for heterogeneous catalysis. ChemCatChem 2019, 11, 899–923. [Google Scholar] [CrossRef]
  23. Cavka, J.H.; Jakobsen, S.; Olsbye, U.; Guillou, N.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability. J. Am. Chem. Soc. 2008, 130, 13850–13851. [Google Scholar] [CrossRef] [PubMed]
  24. Qin, H.; Sun, J.; Yang, X.; Li, H.; Li, X.; Wang, R.; He, S.; Zhou, C. Defective UiO-66 metal–organic gels for optimizing gaseous toluene capture. J. Colloid Interface Sci. 2024, 655, 23–31. [Google Scholar] [CrossRef]
  25. Kim, M.; Njaramba, L.K.; Yoon, Y.; Jang, M.; Park, C.M. Thermally-activated gelatin–chitosan–MOF hybrid aerogels for efficient removal of ibuprofen and naproxen. Carbohydr. Polym. 2024, 324, 121436. [Google Scholar] [CrossRef]
  26. Li, S.; Han, W.; An, Q.F.; Yong, K.T.; Yin, M.J. Defect engineering of MOF-based membrane for gas separation. Adv. Funct. Mater. 2023, 33, 2303447. [Google Scholar] [CrossRef]
  27. Li, S.; Wang, W.; Lei, S.; Cui, J.z. Boosting Catalytic Efficiency of Metal-Organic Frameworks with Electron-Withdrawing Effect for Lewis-Acid Catalysis. ChemistrySelect 2021, 6, 7732–7735. [Google Scholar] [CrossRef]
  28. Yuan, Y.; Liu, X.; Li, X.; Kong, Y.; Fu, J.; Shaban, A.K.; Sun, Y.; Li, D. Solvent-Free Synthesis of Ce-Doped UiO-66 (Zr) and Its Catalytic Performance in the Oxidative Desulfurization of Dibenzothiophene. ChemistrySelect 2025, 10, e202500721. [Google Scholar] [CrossRef]
  29. Shen, J.; Lv, G.; Deng, J.; Su, S.; Wang, F.; Xu, S.; Oussama, L.; Liu, Z. Room-temperature efficient oxidative desulfurization over tungsten doped defective UiO-66 catalyst. Sep. Purif. Technol. 2025, 364, 132299. [Google Scholar] [CrossRef]
  30. Shi, G.; Liang, Y.; Nie, L.; Huang, R.; Yang, Z.; Liu, X.; Zhou, J.; Zhang, Q.; Ye, G. One-Pot Preparation of Nitro-Functionalized Bimetallic UiO-66 (Zr-Hf) with Hierarchical Porosity for Oxidative Desulfurization Performance. Inorg. Chem. 2024, 63, 16554–16564. [Google Scholar] [CrossRef]
  31. Beshtar, M.; Larimi, A.; Asgharinezhad, A.A.; Khorasheh, F. Ultra-deep photocatalytic oxidative desulfurization of model fuel using Ti-UiO-66 (Zr) metal–organic framework. Catal. Lett. 2024, 154, 2633–2647. [Google Scholar] [CrossRef]
  32. Dadashi, H.; Halladj, R.; Karimi, A.; Sharifi, K. Enhancing oxidative desulfurization catalytic performance of metal–organic frameworks UiO-66 (Zr) by post-synthetic with the creation of active sites. Inorg. Chem. Commun. 2024, 170, 113340. [Google Scholar] [CrossRef]
  33. Viana, A.M.; Julião, D.; Mirante, F.; Faria, R.G.; de Castro, B.; Balula, S.S.; Cunha-Silva, L. Straightforward activation of metal-organic framework UiO-66 for oxidative desulfurization processes. Catal. Today 2021, 362, 28–34. [Google Scholar] [CrossRef]
  34. Piscopo, C.; Voellinger, L.; Schwarzer, M.; Polyzoidis, A.; Bošković, D.; Loebbecke, S. Continuous flow desulfurization of a model fuel catalysed by titanium functionalized UiO-66. ChemistrySelect 2019, 4, 2806–2809. [Google Scholar] [CrossRef]
  35. Ye, G.; Qi, H.; Li, X.; Leng, K.; Sun, Y.; Xu, W. Enhancement of oxidative desulfurization performance over UiO-66 (Zr) by titanium ion exchange. ChemPhysChem 2017, 18, 1903–1908. [Google Scholar] [CrossRef]
  36. Gao, S.; Yu, Y.; Li, Y.-h.; Zhang, J.-r.; Zou, J.-c.; Yao, S.-y.; Chen, X.-l. Efficient oxidative desulfurization of dibenzothiophene using molybdenum-based catalysts loaded the functionalized UiO-66. J. Solid State Chem. 2024, 332, 124587. [Google Scholar] [CrossRef]
  37. He, F.; Zhang, H.; Li, X.; Yang, J.; Ma, W.; Zhang, H. Size-matched polyoxometalate encapsulated in UiO-66 (Zr): An extraordinary catalyst with double active sites for the highly efficient ultra-deep oxidative desulfurization of fuel oil. New J. Chem. 2021, 45, 19432–19438. [Google Scholar] [CrossRef]
  38. Wang, C.; Li, A.-R.; Ma, Y.-L. Phosphomolybdic acid niched in the metal-organic framework UiO-66 with defects: An efficient and stable catalyst for oxidative desulfurization. Fuel Process. Technol. 2021, 212, 106629. [Google Scholar] [CrossRef]
  39. Qi, Z.; Huang, Z.; Wang, H.; Li, L.; Ye, C.; Qiu, T. In situ bridging encapsulation of a carboxyl-functionalized phosphotungstic acid ionic liquid in UiO-66: A remarkable catalyst for oxidative desulfurization. Chem. Eng. Sci. 2020, 225, 115818. [Google Scholar] [CrossRef]
  40. Ye, G.; Hu, L.; Gu, Y.; Lancelot, C.; Rives, A.; Lamonier, C.; Nuns, N.; Marinova, M.; Xu, W.; Sun, Y. Synthesis of polyoxometalate encapsulated in UiO-66 (Zr) with hierarchical porosity and double active sites for oxidation desulfurization of fuel oil at room temperature. J. Mater. Chem. A 2020, 8, 19396–19404. [Google Scholar] [CrossRef]
  41. Qi, Z.; Qiu, T.; Wang, H.; Ye, C. Synthesis of ionic-liquid-functionalized UiO-66 framework by post-synthetic ligand exchange for the ultra-deep desulfurization. Fuel 2020, 268, 117336. [Google Scholar] [CrossRef]
  42. Subhan, S.; Yaseen, M.; Ahmad, B.; Tong, Z.; Subhan, F.; Ahmad, W.; Sahibzada, M. Fabrication of MnO2 NPs incorporated UiO-66 for the green and efficient oxidative desulfurization and denitrogenation of fuel oils. J. Environ. Chem. Eng. 2021, 9, 105179. [Google Scholar] [CrossRef]
  43. Vo, T.K.; Yoo, K.S.; Kim, J. Enhanced CO2 adsorption performance on amino-defective UiO-66 with 4-amino benzoic acid as the defective linker. Sep. Purif. Technol. 2021, 274, 119079. [Google Scholar]
  44. Shearer, G.C.; Chavan, S.; Bordiga, S.; Svelle, S.; Olsbye, U.; Lillerud, K.P. Defect engineering: Tuning the porosity and composition of the metal–organic framework UiO-66 via modulated synthesis. Chem. Mater. 2016, 28, 3749–3761. [Google Scholar] [CrossRef]
  45. Fu, G.; Wu, P.; Yang, J.; Zhang, S.; Wang, L.; Xu, M.; Huai, X. Enhanced Water Adsorption Performance of UiO-66 Modulated with p-Nitrobenzoic or p-Hydroxybenzoic Acid: Introduced Defects and Functional Groups. Inorg. Chem. 2022, 61, 17943–17950. [Google Scholar] [CrossRef]
  46. Kandiah, M.; Nilsen, M.H.; Usseglio, S.; Jakobsen, S.; Olsbye, U.; Tilset, M.; Larabi, C.; Quadrelli, E.A.; Bonino, F.; Lillerud, K.P. Synthesis and stability of tagged UiO-66 Zr-MOFs. Chem. Mater. 2010, 22, 6632–6640. [Google Scholar] [CrossRef]
  47. Wei, R.; Gaggioli, C.A.; Li, G.; Islamoglu, T.; Zhang, Z.; Yu, P.; Farha, O.K.; Cramer, C.J.; Gagliardi, L.; Yang, D. Tuning the properties of Zr6O8 nodes in the metal organic framework UiO-66 by selection of node-bound ligands and linkers. Chem. Mater. 2019, 31, 1655–1663. [Google Scholar] [CrossRef]
  48. Shearer, G.C.; Chavan, S.; Ethiraj, J.; Vitillo, J.G.; Svelle, S.; Olsbye, U.; Lamberti, C.; Bordiga, S.; Lillerud, K.P. Tuned to perfection: Ironing out the defects in metal–organic framework UiO-66. Chem. Mater. 2014, 26, 4068–4071. [Google Scholar] [CrossRef]
  49. Feng, Y.; Chen, Q.; Jiang, M.; Yao, J. Tailoring the properties of UiO-66 through defect engineering: A review. Ind. Eng. Chem. Res. 2019, 58, 17646–17659. [Google Scholar] [CrossRef]
  50. Li, C.; Li, C.; Sun, L.; Xing, P.; Zhang, R. Three-layer coated composite materials PMoV2@UiO-66-X@mSiO2: Efficient oxidative desulfurization catalysts. J. Ind. Eng. Chem. 2024, 132, 561–571. [Google Scholar] [CrossRef]
  51. Jia, M.; Feng, Y.; Liu, S.; Qiu, J.; Yao, J. Graphene oxide gas separation membranes intercalated by UiO-66-NH2 with enhanced hydrogen separation performance. J. Membr. Sci. 2017, 539, 172–177. [Google Scholar] [CrossRef]
  52. Schaate, A.; Roy, P.; Godt, A.; Lippke, J.; Waltz, F.; Wiebcke, M.; Behrens, P. Modulated synthesis of Zr-based metal–organic frameworks: From nano to single crystals. Chem.–A Eur. J. 2011, 17, 6643–6651. [Google Scholar] [CrossRef] [PubMed]
  53. Xu, H.; Sommer, S.; Broge, N.L.N.; Gao, J.; Iversen, B.B. The chemistry of nucleation: In situ pair distribution function analysis of secondary building units during UiO-66 MOF formation. Chem.–A Eur. J. 2019, 25, 2051–2058. [Google Scholar] [CrossRef] [PubMed]
  54. Forgan, R.S. Modulated self-assembly of metal–organic frameworks. Chem. Sci. 2020, 11, 4546–4562. [Google Scholar] [CrossRef]
  55. Wong, D.; Kim, S.; Abuzalat, O. In situ encapsulation of ZrQ in UiO-66 (Zr-BDC) for pore size control to enhance detection of a nerve agent simulant dimethyl methyl phosphonate. Appl. Organomet. Chem. 2022, 36, e6769. [Google Scholar] [CrossRef]
  56. Guo, Z.; Li, N.; Zuo, S.; Qiang, C.; Zhan, W.; Li, Z.; Ma, J. Construction of a novel metal-organic framework adenine-UiO-66 piezocatalyst for efficient diclofenac removal. Sep. Purif. Technol. 2022, 289, 120743. [Google Scholar] [CrossRef]
  57. Yost, B.T.; Gibbons, B.; Wilson, A.; Morris, A.J.; McNeil, L. Vibrational spectroscopy investigation of defects in Zr-and Hf-UiO-66. RSC Adv. 2022, 12, 22440–22447. [Google Scholar] [CrossRef]
  58. Atzori, C.; Shearer, G.C.; Maschio, L.; Civalleri, B.; Bonino, F.; Lamberti, C.; Svelle, S.; Lillerud, K.P.; Bordiga, S. Effect of benzoic acid as a modulator in the structure of UiO-66: An experimental and computational study. J. Phys. Chem. C 2017, 121, 9312–9324. [Google Scholar] [CrossRef]
  59. Chen, C.; Chen, D.; Xie, S.; Quan, H.; Luo, X.; Guo, L. Adsorption behaviors of organic micropollutants on zirconium metal–organic framework UiO-66: Analysis of surface interactions. ACS Appl. Mater. Interfaces 2017, 9, 41043–41054. [Google Scholar] [CrossRef]
  60. Ma, T.; Liu, D.; Liu, Z.; Xu, J.; Dong, Y.; Chen, G.; Yun, Z. 12-Tungstophosphoric acid-encapsulated metal-organic framework UiO-66: A promising catalyst for the esterification of acetic acid with n-butanol. J. Taiwan Inst. Chem. Eng. 2022, 133, 104277. [Google Scholar] [CrossRef]
  61. Valenzano, L.; Civalleri, B.; Chavan, S.; Bordiga, S.; Nilsen, M.H.; Jakobsen, S.; Lillerud, K.P.; Lamberti, C. Disclosing the complex structure of UiO-66 metal organic framework: A synergic combination of experiment and theory. Chem. Mater. 2011, 23, 1700–1718. [Google Scholar] [CrossRef]
  62. Han, Y.; Liu, M.; Li, K.; Zuo, Y.; Wei, Y.; Xu, S.; Zhang, G.; Song, C.; Zhang, Z.; Guo, X. Facile synthesis of morphology and size-controlled zirconium metal–organic framework UiO-66: The role of hydrofluoric acid in crystallization. CrystEngComm 2015, 17, 6434–6440. [Google Scholar] [CrossRef]
  63. Yang, P.; Liu, Q.; Liu, J.; Zhang, H.; Li, Z.; Li, R.; Liu, L.; Wang, J. Interfacial growth of a metal–organic framework (UiO-66) on functionalized graphene oxide (GO) as a suitable seawater adsorbent for extraction of uranium (VI). J. Mater. Chem. A 2017, 5, 17933–17942. [Google Scholar] [CrossRef]
  64. An, P.; Zhu, F.; Liu, S.; Zhou, X.; Wang, C.; Liu, Y.; Meng, H.; Zhang, X. Immobilization of Cytochrome C by Benzoic Acid (BA)-Functional UiO-66-NO2 and the Enzyme Activity Assay. Appl. Biochem. Biotechnol. 2022, 194, 5167–5184. [Google Scholar] [CrossRef]
  65. Hong, M.; Jo, W.; Jo, S.A.; Jin, H.; Kim, M.; Lee, C.Y.; Park, Y.D. Enhanced Gas Sensing Characteristics of a Polythiophene Gas Sensor Blended with UiO-66 via Ligand Functionalization. Adv. Electron. Mater. 2024, 10, 2300901. [Google Scholar] [CrossRef]
  66. Guo, J.; Li, B.; Zhao, D.; Chu, L.; Yang, H.; Huang, Z.; Liu, Z.; Yang, M.; Wang, G. Preparation of porous hollow spherical MoOX/C catalyst for efficient extraction and oxidative desulfurization. Chem. Eng. J. 2023, 474, 145853. [Google Scholar] [CrossRef]
  67. Ye, G.; Qi, H.; Zhou, W.; Xu, W.; Sun, Y. Green and scalable synthesis of nitro-and amino-functionalized UiO-66 (Zr) and the effect of functional groups on the oxidative desulfurization performance. Inorg. Chem. Front. 2019, 6, 1267–1274. [Google Scholar] [CrossRef]
  68. Xiao, W.; Dong, Q.; Wang, Y.; Li, Y.; Deng, S.; Zhang, N. Time modulation of defects in UiO-66 and application in oxidative desulfurization. CrystEngComm 2018, 20, 5658–5662. [Google Scholar] [CrossRef]
  69. Zhang, X.; Huang, P.; Liu, A.; Zhu, M. A metal–organic framework for oxidative desulfurization: UIO-66 (Zr) as a catalyst. Fuel 2017, 209, 417–423. [Google Scholar] [CrossRef]
  70. Liao, X.; Wang, X.; Wang, F.; Yao, Y.; Lu, S. Ligand modified metal organic framework UiO-66: A highly efficient and stable catalyst for oxidative desulfurization. J. Inorg. Organomet. Polym. Mater. 2021, 31, 756–762. [Google Scholar] [CrossRef]
  71. Ye, G.; Zhang, D.; Li, X.; Leng, K.; Zhang, W.; Ma, J.; Sun, Y.; Xu, W.; Ma, S. Boosting catalytic performance of metal–organic framework by increasing the defects via a facile and green approach. ACS Appl. Mater. Interfaces 2017, 9, 34937–34943. [Google Scholar] [CrossRef] [PubMed]
  72. Viana, A.M.; Ribeiro, S.O.; de Castro, B.; Balula, S.S.; Cunha-Silva, L. Influence of UiO-66 (Zr) preparation strategies in its catalytic efficiency for desulfurization process. Materials 2019, 12, 3009. [Google Scholar] [CrossRef] [PubMed]
  73. Li, H.; Zhu, W.; Zhu, S.; Xia, J.; Chang, Y.; Jiang, W.; Zhang, M.; Zhou, Y.; Li, H. The selectivity for sulfur removal from oils: An insight from conceptual density functional theory. AIChE J. 2016, 62, 2087–2100. [Google Scholar] [CrossRef]
  74. Zhou, S.; He, J.; Wu, P.; He, L.; Tao, D.; Lu, L.; Yu, Z.; Zhu, L.; Chao, Y.; Zhu, W. Metal-organic framework encapsulated high-loaded phosphomolybdic acid: A highly stable catalyst for oxidative desulfurization of 4, 6-dimethyldibenzothiophene. Fuel 2022, 309, 122143. [Google Scholar] [CrossRef]
  75. Liu, R.; Wang, C.; Yang, J.; Liu, C.; Mguni, L.; Liu, X.; Yao, Y.; Li, F. Exceptional functionalized ionic liquid@metal-organic framework: A high-efficiency desulfurization platform for organic sulfide oxidation by reactive oxygen species. Fuel 2024, 369, 131760. [Google Scholar] [CrossRef]
  76. Zhang, J.; Wu, H.; Yesire, Y.; Zhang, Y.; Ding, J.; Fan, Y.; Zhang, M.; Wang, C.; Li, H. Amphiphilic Catalysts Comprising Phosphomolybdic Acid Fastened on MIL-101(Cr): Enabling Efficient Oxidative Desulfurization under Solvent-Free and Moderate Reaction Conditions. Energy Fuels 2024, 38, 8553–8563. [Google Scholar] [CrossRef]
Nanomaterials 15 00931 g001

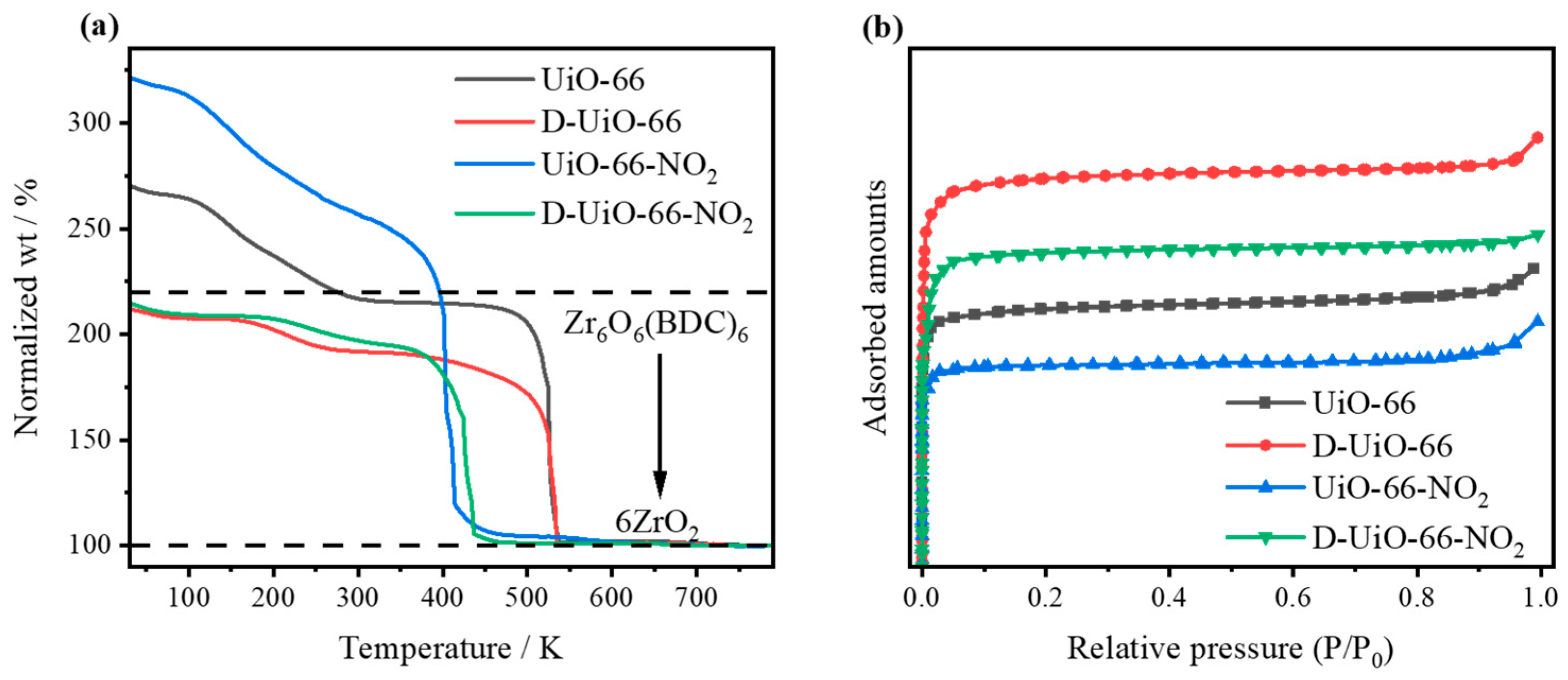

Figure 1. (a) TGA curves (relative to ZrO2) and (b) N2 adsorption–desorption isotherms.
Figure 1. (a) TGA curves (relative to ZrO2) and (b) N2 adsorption–desorption isotherms.
Nanomaterials 15 00931 g001
Nanomaterials 15 00931 g002

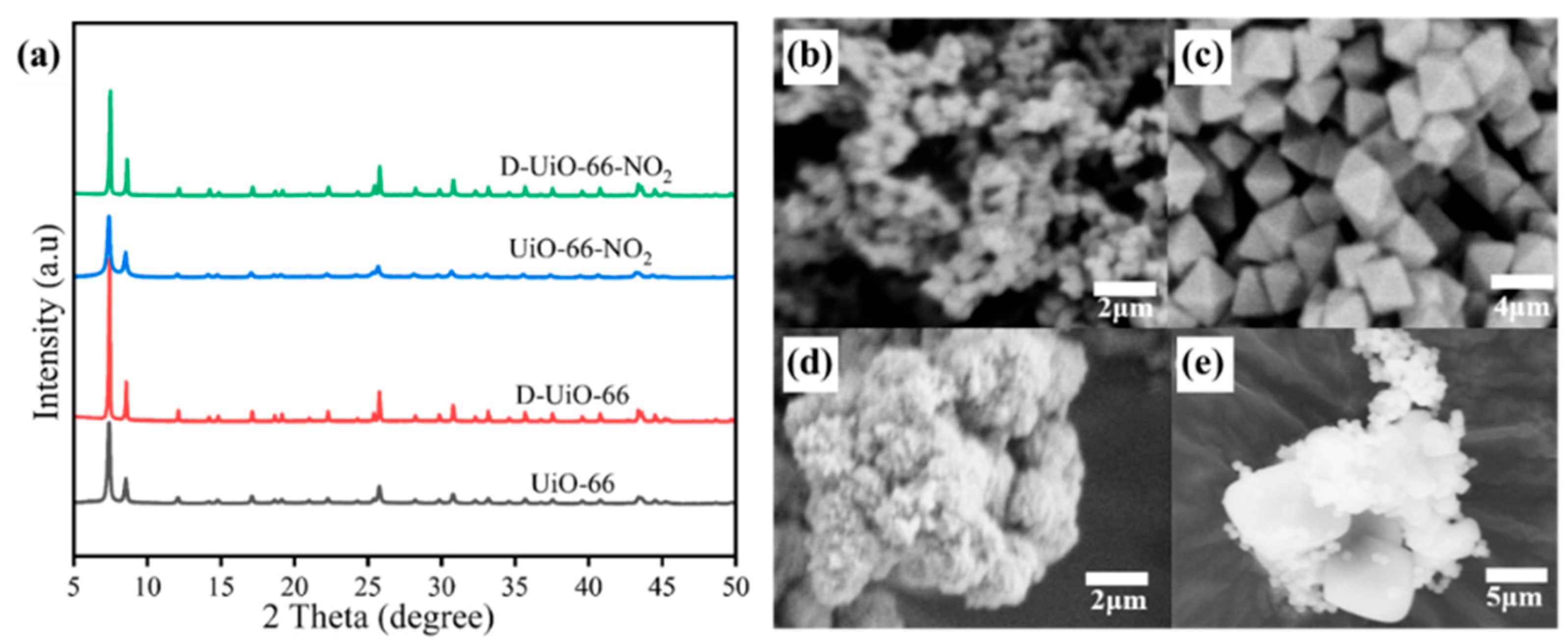

Figure 2. (a) XRD patterns of different UiO-66 based catalysts; SEM images of (b) UiO-66, (c) D-UiO-66, (d) UiO-66-NO2, and (e) D-UiO-66-NO2.
Figure 2. (a) XRD patterns of different UiO-66 based catalysts; SEM images of (b) UiO-66, (c) D-UiO-66, (d) UiO-66-NO2, and (e) D-UiO-66-NO2.
Nanomaterials 15 00931 g002
Nanomaterials 15 00931 g003

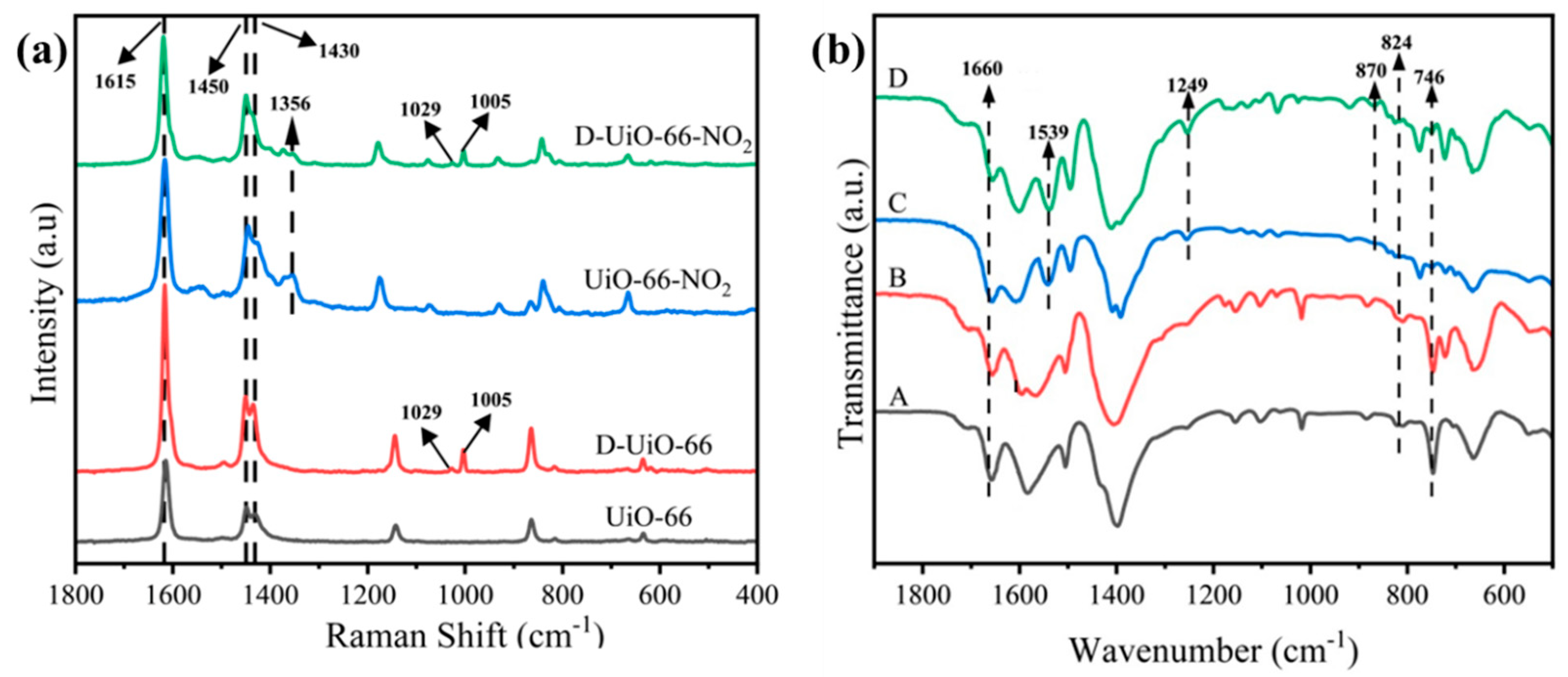

Figure 3. (a) Raman and (b) FT-IR analyses of UiO-66 based catalysts. A: UiO-66, B: D-UiO-66, C: UiO-66-NO2, and D: D-UiO-66-NO2.
Figure 3. (a) Raman and (b) FT-IR analyses of UiO-66 based catalysts. A: UiO-66, B: D-UiO-66, C: UiO-66-NO2, and D: D-UiO-66-NO2.
Nanomaterials 15 00931 g003
Nanomaterials 15 00931 g004

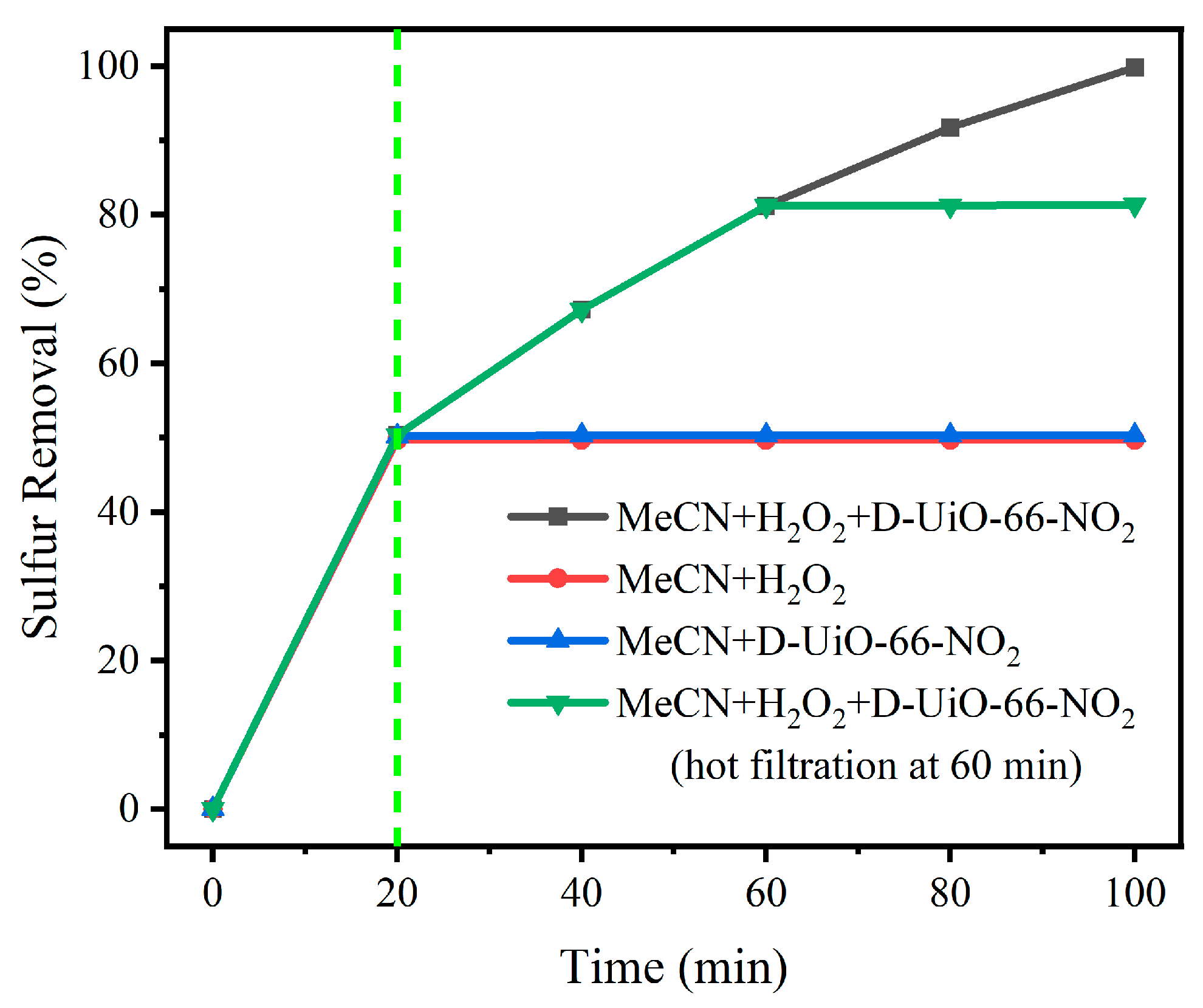

Figure 4. Sulfur removal with different reaction systems.
Figure 4. Sulfur removal with different reaction systems.
Nanomaterials 15 00931 g004
Nanomaterials 15 00931 g005

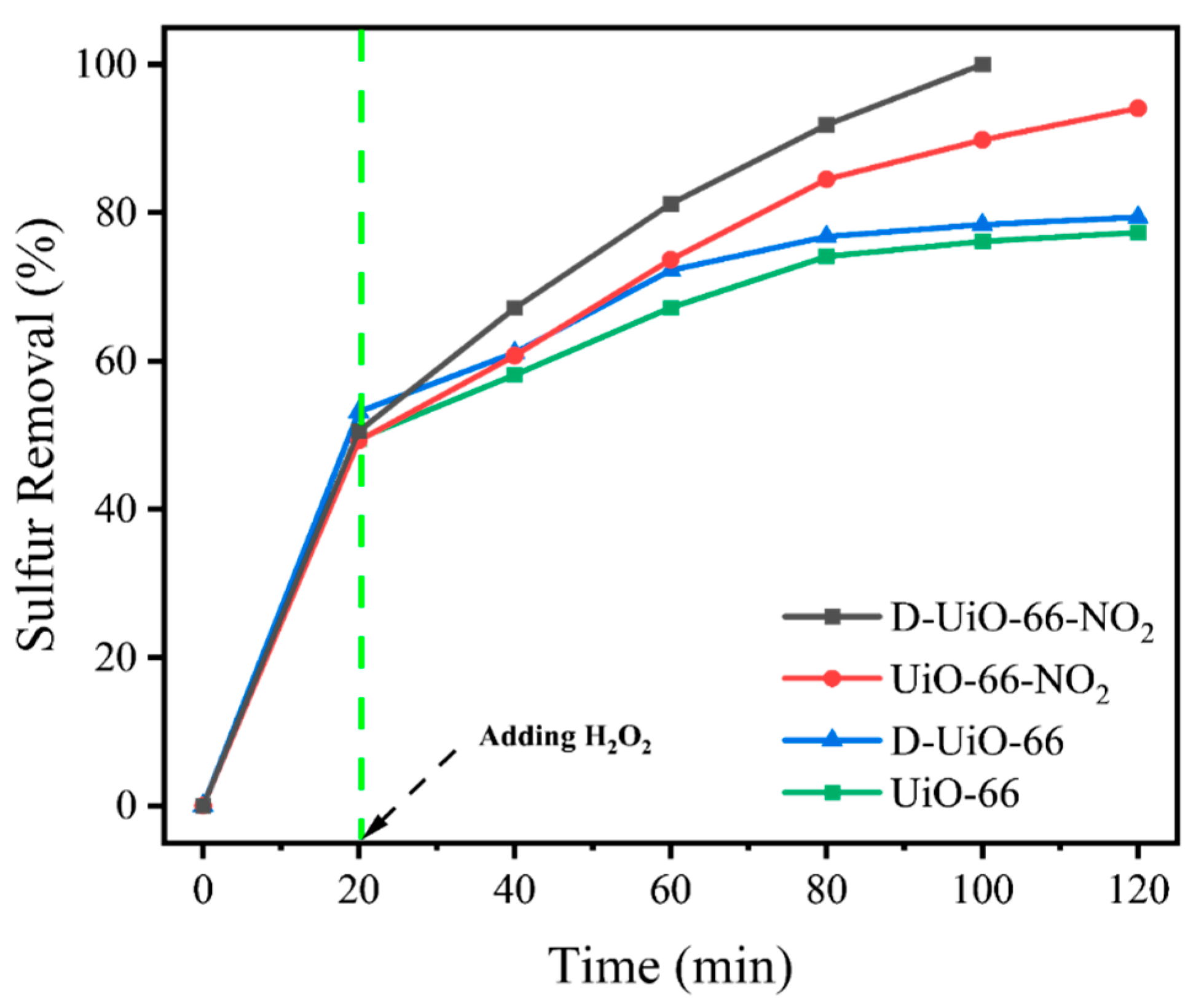

Figure 5. Sulfur removal for different UiO-66 based catalysts.
Figure 5. Sulfur removal for different UiO-66 based catalysts.
Nanomaterials 15 00931 g005
Nanomaterials 15 00931 g006
Figure 6. Sulfur removal under different (a) reaction temperatures, (b) O/S molar ratios, and (c) catalyst dosages.
Figure 6. Sulfur removal under different (a) reaction temperatures, (b) O/S molar ratios, and (c) catalyst dosages.
Nanomaterials 15 00931 g006
Nanomaterials 15 00931 g007
Figure 7. Sulfur removal for oils with (a) different substrates and (b) different sulfur concentrations.
Figure 7. Sulfur removal for oils with (a) different substrates and (b) different sulfur concentrations.
Nanomaterials 15 00931 g007
Nanomaterials 15 00931 g008
Figure 8. Recycling performance of the designed oxidative desulfurization system.
Figure 8. Recycling performance of the designed oxidative desulfurization system.
Nanomaterials 15 00931 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, C.; Ding, J.; Wu, H.; Zhang, J.; Xu, J.; Zhang, Y.; Ma, M.; Zhang, M.; Li, H. The Facile Construction of Defect-Engineered and Surface-Modified UiO-66 MOFs for Promising Oxidative Desulfurization Performance. Nanomaterials 2025, 15, 931. https://doi.org/10.3390/nano15120931

AMA Style

Wang C, Ding J, Wu H, Zhang J, Xu J, Zhang Y, Ma M, Zhang M, Li H. The Facile Construction of Defect-Engineered and Surface-Modified UiO-66 MOFs for Promising Oxidative Desulfurization Performance. Nanomaterials. 2025; 15(12):931. https://doi.org/10.3390/nano15120931

Chicago/Turabian Style

Wang, Chao, Junchao Ding, Haoyu Wu, Jiaxuan Zhang, Jing Xu, Ying Zhang, Mindan Ma, Ming Zhang, and Hongping Li. 2025. "The Facile Construction of Defect-Engineered and Surface-Modified UiO-66 MOFs for Promising Oxidative Desulfurization Performance" Nanomaterials 15, no. 12: 931. https://doi.org/10.3390/nano15120931

APA Style

Wang, C., Ding, J., Wu, H., Zhang, J., Xu, J., Zhang, Y., Ma, M., Zhang, M., & Li, H. (2025). The Facile Construction of Defect-Engineered and Surface-Modified UiO-66 MOFs for Promising Oxidative Desulfurization Performance. Nanomaterials, 15(12), 931. https://doi.org/10.3390/nano15120931

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
