Static and Dynamic Magnetic Properties of Fe3O4 Nanotubes

by
Francisco Olea de la Hoz
1,
Eduardo Saavedra
1,
Alejandro Pereira
2 and
Juan Escrig
1,3,*
1
Department of Physics, University of Santiago de Chile (USACH), Santiago 9170124, Chile
2
Department of Sciences, Faculty of Liberal Arts, Adolfo Ibañez University (UAI), Santiago 7941169, Chile
3
Center for the Development of Nanoscience and Nanotechnology (CEDENNA), Santiago 9170124, Chile
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(7), 1265; https://doi.org/10.3390/nano13071265
Submission received: 20 February 2023 / Revised: 22 March 2023 / Accepted: 23 March 2023 / Published: 3 April 2023
(This article belongs to the Special Issue Growth, Characterization and Applications of Nanotubes: Volume II)
Browse Figures
Versions Notes

Abstract

:
In this paper, our objective was to investigate the static and dynamic magnetic properties of Fe3O4 nanotubes that are 1000 nm long, by varying the external radius and the thickness of the tube wall. We performed a detailed numerical analysis by simulating hysteresis curves with an external magnetic field applied parallel to the axis of the tubes (along the z-axis). Our findings indicate that nanotubes with an external radius of 30 nm exhibit non-monotonic behavior in their coercivity due to a change in the magnetization reversal mechanism, which was not observed in nanotubes with external radii of 80 nm. Additionally, we explored the dynamic susceptibility of these nanotubes and found that the position and number of resonance peaks can be controlled by manipulating the nanotube geometry. Overall, our study provides valuable insights into the behavior of Fe3O4 nanotubes, which can aid in the design and improvement in pseudo-one-dimensional technological devices.

1. Introduction

When materials are reduced to the nanoscale, new properties emerge that differ from those exhibited by the same larger materials, as the characteristic dimensions of many physical phenomena are in the order of nanometers. These novel properties have enabled magnetic nanostructures to be utilized in various applications, including magnetic sensors, information storage systems, and spintronic-based devices, as well as medical applications such as hyperthermia or drug delivery. Going a step further, Niknam et al. [1] have recently proposed the use of nanomagnets for the quantum control of spin qubits, essential components of universal quantum computers. Proper control of the shape and size of these magnetic nanostructures can facilitate the design of innovative devices [2].
One of the most extensively studied magnetic nanostructures is magnetic nanotubes (MNTs) due to their high aspect ratio, similar to that of nanowires, but with two functionalizable surfaces [3]. Moreover, Yan et al. [4] have demonstrated that domain walls in a tubular geometry are more durable than those in flat strips, which can even suppress the Walker breakdown in these nanostructures. Bao et al. [5] proposed using ferromagnetic nanotubes as alternative skyrmion guides, which are a promising candidate for information carriers, while Yang et al. [6] investigated the stability of skyrmion formation in magnetic nanotubes. Additionally, Rojas-Nunez et al. [7] has shown that magnetic nanotubes provide a lightweight alternative for designing mechanical nanodevices with minimal loss of mechanical performance.
The field of magnetic nanotube synthesis has yielded a wide variety of materials that have been successfully utilized in the creation of these structures. Among the most commonly synthesized magnetic nanotubes are those made from materials such as iron (Fe) [8,9], Fe(OH)3 [10], maghemite (γ-Fe2O3) [10,11,12], magnetite (Fe3O4) [10,12,13,14,15,16,17,18], ZnFe2O4 [19], CuFe2O4 [20], nickel (Ni) [8,21,22,23], NiFe2O4 [24], Ni64Fe36 [8], Ni80Fe20 (permalloy) [25], Co [8,23,26], Co3O4 [27], Co90Pt10 [8], Co75Cr13Pt12 [8], and many others. In addition to these common materials, nanotubes with more complex geometries have also been synthesized, taking into consideration factors such as diameter modulations [28], multisegmented structures [29], and core–shell [30,31,32,33] systems. The synthesis of these advanced structures is a testament to the ingenuity and skill of researchers in this field, and it suggests that the possibilities for the creation of new and innovative magnetic nanotubes are practically limitless.
On the other hand, the static and dynamic magnetic properties of magnetic nanotubes, such as the magnetic equilibrium states [34,35,36,37,38], magnetization reversal mechanisms [16,17,21,23,37,38,39,40,41,42,43] and magnetostatic interaction [44,45,46,47], have also been investigated theoretically. González et al. [48] went further and calculated the spin wave spectra associated with the vortex domain wall confined within a nanotube, which encouraged the synthesis of Fe3O4 nanotubes with this type of domain wall [49]. Salazar-Cardona et al. [50] proposed a device based on coplanar waveguides that would selectively measure the exchange or dipole-induced spin wave nonreciprocities. Recently, some of us analyzed the dynamic susceptibility of curved permalloy nanotubes [51] and permalloy wire-tube nanostructures [52]. However, to the best of our knowledge, there are no studies that systematically investigate the static and dynamic properties of Fe3O4 nanotubes, despite the high aspect ratio being conducive to electron conduction and further increasing the conduction loss capability [53].
In this study, we investigate the static and dynamic magnetic response of long Fe3O4 nanotubes using micromagnetic simulations. Our objective is to examine how the magnetic properties vary with changes in the external radius and thickness of the tube wall. We focus particularly on the different magnetization reversal mechanisms and potential resonance modes that may appear.

2. Micromagnetic Simulations

The static and dynamic magnetic properties of a Fe3O4 nanotube (Figure 1) were studied using micromagnetic simulations performed using the mumax3 software [54], which solves the Landau–Lifshitz–Gilbert equation (LLG) [55]. The micromagnetic simulations were performed on a computer specifically configured to work with an RTX 3090 video card, which is ideal for running Mumax3 software in CUDA language. This RTX 3090 card has 10,752 CUDA cores, making it one of the best options for GPU-based micromagnetic studies.
For spherical nanoparticles, there is a critical diameter that allows discriminating between a superparamagnetic phase and a single-domain phase, which is approximately 30 nm for Fe3O4 nanoparticles [56]. However, in the case of pseudo-one-dimensional nanostructures such as nanotubes, we almost always face a single-domain phase due to the large aspect ratio of this nanostructure. In this article, we consider a length of 1000 nm because Xiang et al. [57] have shown that the coercivity of a 20 nm diameter Fe nanowire does not vary for lengths greater than 200 nm. In fact, to ensure that this behavior is also valid for Fe3O4, we simulated 30 nm diameter nanowires with three different hole sizes, β = 0.1, 0.5, and 0.9, with lengths ranging between 1000 and 5000 nm (see Figure A1 of Appendix A). We considered two possible external radii, Rext = 30 and 80 nm, and a variable internal radius, rint, which allowed us to define the ratio β = rint/Rext such that β = 0 represents a solid cylinder and β → 1 corresponds to a very narrow tube (Figure 1). According to Escrig et al. [16], 80 nm diameter nanotubes are wide enough to reverse their magnetization through the nucleation and propagation of vortex domain walls, whereas thin 30 nm nanotubes can reverse their magnetization through transverse domain walls for small holes and vortex domain walls for large holes. Therefore, we have chosen well-differentiated diameters to see how this change in the reversal modes affects the static and dynamic magnetic properties of the nanotubes.
The magnetic parameters used for magnetite (Fe3O4) were the saturation magnetization Ms = 4.8 × 105 A/m, the stiffness constant A = 2.64 × 10−11 J/m, and the cubic magnetocrystalline anisotropy Kc = −1.25 × 104 J/m3 [58]. In the simulations, we used a cell size of 2 × 2 × 5 nm3, which is small enough to accurately capture the geometry of the nanostructures. To simulate the magnetic configurations of minimum energy and the hysteresis loops (static magnetic properties), we used a large value of α = 0.5, which is commonly used to reduce simulation time without significantly affecting the results of quasi-static simulations. The external magnetic field was applied parallel to the z-axis (θ = 0°) with a magnitude of H = 1000 mT to saturate the samples, and field steps of 2 mT were used to investigate the hysteresis curves.
On the other hand, to simulate the dynamic response of magnetization (FMR spectra), we used α = 0.015 [59]. In addition, we applied a sinc wave excitation field [51]
h s i n c = h 0 s i n 2 π f c τ 2 π f c τ
along the y-direction to perturb the magnetization of the system. The sinc function is a mathematical function used to describe the spectral response of a low-pass filter or the pulse response of a sampling system. In this equation, h 0 = 5 mT is the amplitude of the sinc function at its peak, the cut-off frequency is f c = 45 GHz, and τ = t − t0 was the simulation time (t), with an offset t0. The data in the time domain were recorded for 20 ns with a step time of 10 ps, allowing for a better spectral resolution of 0.05 GHz. For FMR analysis, we derived the imaginary part of the dynamical susceptibility via a fast-Fourier transform (FFT) procedure. Specifically, the frequency-dependent magnetic susceptibility of a material, χ(ω), is defined as the ratio of the Fourier component, my(ω), of the y-component of the spatially averaged magnetization m(t) and the Fourier component, h(ω), of the applied exciting field [60],
χ(ω) = my(ω)/h(ω).
We further obtained the spatial FMR mode profiles from the post-processing of the position-dependent magnetization data. The magnetic susceptibility is a fundamental property of magnetic materials that determines how they respond to magnetic fields. It is used to characterize the magnetic properties of materials in a variety of applications, including magnetic storage, magnetic resonance imaging, and magnetic sensors. The equation is often used in the analysis of magnetic materials and in the design of magnetic devices.

3. Results and Discussion

In this section, we present and analyze the results of our micromagnetic simulations for the static and dynamic properties of Fe3O4 nanotubes. For the static behavior, we focus on the coercivity, remanence, and magnetization reversal modes. For the dynamic behavior, we analyze the dynamic susceptibility and the resonant frequencies of the peaks for the different geometric parameters considered.

3.1. Static Magnetic Properties

In the first stage, we obtained the hysteresis curves of Fe3O4 nanotubes with a length of 1000 nm for two different external radii, Rext = 30 nm (Figure 2a) and Rext = 80 nm (Figure 2b), considering different tube walls by varying the β = rint/Rext value. The hysteresis curves shown in Figure 2a,b differ due to the use of different diameters (see Figure 3 of Ref. [57]). Figure 2a shows that nanotubes with an external radius of 30 nm present square hysteresis curves, with significant coercivities (Hc) and normalized remanences (Mr/Ms) very close to 1.0. The appearance of a small hole (β = 0.2) produces a slight increase in coercivity when compared to the coercivity produced by a nanowire (β = 0.0). However, for larger holes (β ≥ 0.4), the coercivity begins to decrease drastically. To explain this non-monotonic behavior, in Appendix A we plotted the magnetization reversal process of these nanotubes as a function of time (see Figure A2). From Figure A2a, we can see that a nanowire (β = 0.0) reverses its magnetization via nucleation and propagation of two transverse domain walls in the caps that propagate towards the center of the nanowire. Figure A2b shows that in the case of a nanotube with a small hole (β = 0.2), the system keeps reversing its magnetization via transverse domain walls. However, due to the new inner surface, the magnetic moments are not perfectly aligned, resulting in a slight increase in coercivity. Figure A2c shows that a nanotube with a larger hole (β = 0.4) nucleates transverse domain walls at the caps, which, as they propagate towards the center of the nanotube, become vortex walls, speeding up the magnetization reversal process and allowing a decrease in the coercivity of the system. It is also interesting to note that a step appears in the hysteresis curve for larger holes, whose size increases as the size of the hole increases. A similar behavior where nanotubes reverse their magnetization through different reversal mechanisms as a function of the tube wall width was previously observed [16,17].
In contrast, Figure 2b shows that Fe3O4 nanotubes with an external radius of 80 nm exhibit more rounded hysteresis curves, with lower coercivities (Hc) and normalized remanences (Mr/Ms) compared to those observed for nanotubes with an external radius of 30 nm. Additionally, it is observed that these larger nanotubes also display a step in their hysteresis curve, for practically all values of β. To explain these behaviors, we have graphed the magnetization reversal process of these nanotubes as a function of time in Appendix A. From Figure A3a–c, we observe that both nanowire (β = 0.0) and nanotubes (β = 0.1 and 0.2) reverse their magnetization by nucleating and propagating two vortex domain walls at the caps that propagate towards the center of the nanostructure. This implies that for this outer radius, there is a unique magnetization reversal mechanism, which is why the coercivity decreases monotonically as we increase the value of β. Furthermore, Figure A3b,c indicate that the steps that appear in the hysteresis curves are due to the collision between the two vortices with different chiralities in the center of the nanotube, which requires a larger field for complete annihilation.
Figure 3 displays the coercivity and normalized remanence for 1000 nm long Fe3O4 nanotubes with an external radius of 30 nm and 80 nm, as a function of β, when the external magnetic field is applied along the z-axis. From Figure 3a, it is evident that the coercivity of nanotubes with an external radius of 30 nm is consistently higher that the coercivity of nanotubes with an external radius of 80 nm, irrespectively of the value of β. Additionally, we observe that the coercivity of nanotubes with an external radius of 30 nm follows a non-monotonic behavior, reaching a maximum value close to 180 mT for β = 0.3, and beyond which it starts decreasing until reaching approximately 80 mT for β = 0.9. This non-monotonic behavior is due to the fact that nanotubes with β < 0.4 reverse their magnetization through transverse domain walls, while nanotubes with β ≥ 0.4 reverse their magnetization through vortex domain walls. From Figure 3b, we see that these nanotubes with an external radius of 30 nm exhibit a normalized remanence equal to 1.0 for all β values, which explains the square behavior of the hysteresis curves shown in Figure 2a.
Figure 3a indicates that the coercivity of 80 nm outer radius nanotubes decreases as a function of β, from approximately 50 mT for β = 0.0 to almost 20 mT for β = 0.8. This can be explained by the fact that these nanotubes reverse their magnetization through the nucleation and propagation of vortex domain walls. On the other hand, Figure 3b shows that the normalized remanence exhibits a non-monotonic behavior as a function of β, with values close to 0.9 for β = 0.0 and 0.9, and a value that reduces to a valley close to 0.75 for β = 0.6. This explains the more rounded behavior exhibited by the hysteresis curves shown in Figure 2b.

3.2. Dynamic Magnetic Properties

To investigate the magnetization dynamics of 1000 nm long Fe3O4 nanotubes, we carried out ferromagnetic resonance (FMR) studies on the remanent state of each geometry (see Figure A4 in Appendix A). Subsequently, we investigated the dynamic susceptibility of nanotubes with an external radius of 30 and 80 nm by applying a sinc wave excitation in the y-direction. Figure 4a shows the resonant modes for the nanowire (β = 0.0) with an external radius of 30 nm. We can observe two well-defined modes, one of low frequency mode edge (mode E), associated with the caps of the nanowire, and another of high frequency mode bulk (mode B), of greater height, as it excites a larger number of magnetic moments associated with the central area of the nanowire. The latter presents a small bump that we have defined as the mode ring (mode R), which is associated with a disturbance close to the edges of the wire. On the other hand, Figure 4b shows the resonant modes for the nanowire (β = 0.0) with an external radius of 80 nm. In this case, we can see that the number of modes increases, where seven modes are clearly identified, and among which we can again highlight the low frequency mode, mode E, and the high frequency mode, mode B. In this last mode, the bump we called mode R does not appear, but we can observe a similar behavior in mode 6. The increase in the number of modes that occurs when we go from a thin nanotube to a thick one is expected. Lupo et al. [61] investigated the radial and azimuthal resonance modes of spin waves in Ni80Fe20 (permalloy) nanodisks in the absence of an external magnetic field, finding that the number of absorption modes increased as the disk diameter increased. A similar conclusion was reached by Dobrovolskiy et al. [62], who investigated Co-Fe nanodisks. In fact, we have shown in Figure A5 of Appendix A that the number of resonance modes increases as the diameter of the nanotubes increases. It is evident from the FFT power distributions that each mode can be characterized by the number of nodes (N) present along the longitudinal axis of the nanotube [63].
In Figure 5, we can observe how these modes change with respect to β. In Figure 5a, it is shown that mode R, which corresponds to a bump of mode B, almost disappears for β ≥ 0.4. This implies that nanotubes with an external radius of 30 nm with large holes only exhibit two resonance modes, namely mode E and mode B. As the value of β increases, both modes move closer towards intermediate frequencies. In Figure 5b, it is noticeable that the seven modes that appear for β = 0.0 change remarkably, with only modes E, 2, 3, and 4 surviving for β = 0.8. In fact, the mode that stands out the most for β = 0.0, mode B, only survives for small β values.
Figure 6 shows the evolution of resonance modes for Fe3O4 nanotubes of length 1000 nm and external radii of 30 and 80 nm, as a function of the parameter β. It can be observed from this figure that mode E increases monotonically from approximately 2.0 GHz for β = 0.0 to 4.5 GHz for β = 0.9 when the external radius is 30 nm. However, when the nanotube has an external radius of 80 nm, the same resonance mode follows a non-monotonic behavior, reaching a maximum value of approximately 4.0 GHz for β = 0.6. Mode B monotonically decreases from approximately 7.0 GHz for β = 0.0 to 5.0 GHz for β = 0.9 when the external radius is 30 nm, while this mode experiences a sustained increase when the external radius is 80 nm, disappearing for β ≥ 0.6. Figure 6a also shows that mode R remains stable around 6.5 GHz for β ≤ 0.3, while modes 2, 3, and 4 observed in Figure 6b follow a similar non-monotonic behavior as mode E, and modes 5 and 6, grow monotonically with β but do not exist for the entire investigated range, similar to what occurs with mode B.

4. Conclusions

In summary, this study used micromagnetic simulations to investigate the static and dynamic magnetic properties of Fe3O4 nanotubes with varying external radii and tube wall thicknesses. Our findings revealed that the coercivity and remanence of the nanotubes are non-zero when a magnetic field is applied parallel to the tube axis. The coercivity of the 30 nm nanotubes exhibited a non-monotonic behavior, while the coercivity of the 80 nm nanotubes decreased monotonically with increasing β. We also found that the geometry of the nanotubes can be used to control the number of resonance modes and their frequencies, making them a potential candidate for use in microwave devices.
Overall, this study contributes to the understanding of the magnetic properties of Fe3O4 nanotubes and demonstrates the potential for their use in practical applications.

Author Contributions

Conceptualization, J.E.; data curation, F.O.d.l.H., A.P. and E.S.; formal analysis, F.O.d.l.H., A.P. and E.S.; funding acquisition, J.E.; investigation, F.O.d.l.H., A.P. and E.S.; methodology, J.E. and E.S.; project administration, J.E.; resources, J.E. and A.P.; software, E.S.; supervision, J.E.; validation, F.O.d.l.H., A.P. and E.S.; visualization, J.E. and E.S.; writing—original draft preparation, E.S. and J.E.; writing—review and editing, J.E. and E.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fondecyt (grant number 1200302), Dicyt-Usach (grant number 042331SD and APC payment) and Financiamiento Basal para Centros Científicos y Tecnológicos (grant number AFB220001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available upon request.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Appendix A

Nanomaterials 13 01265 g0a1 550

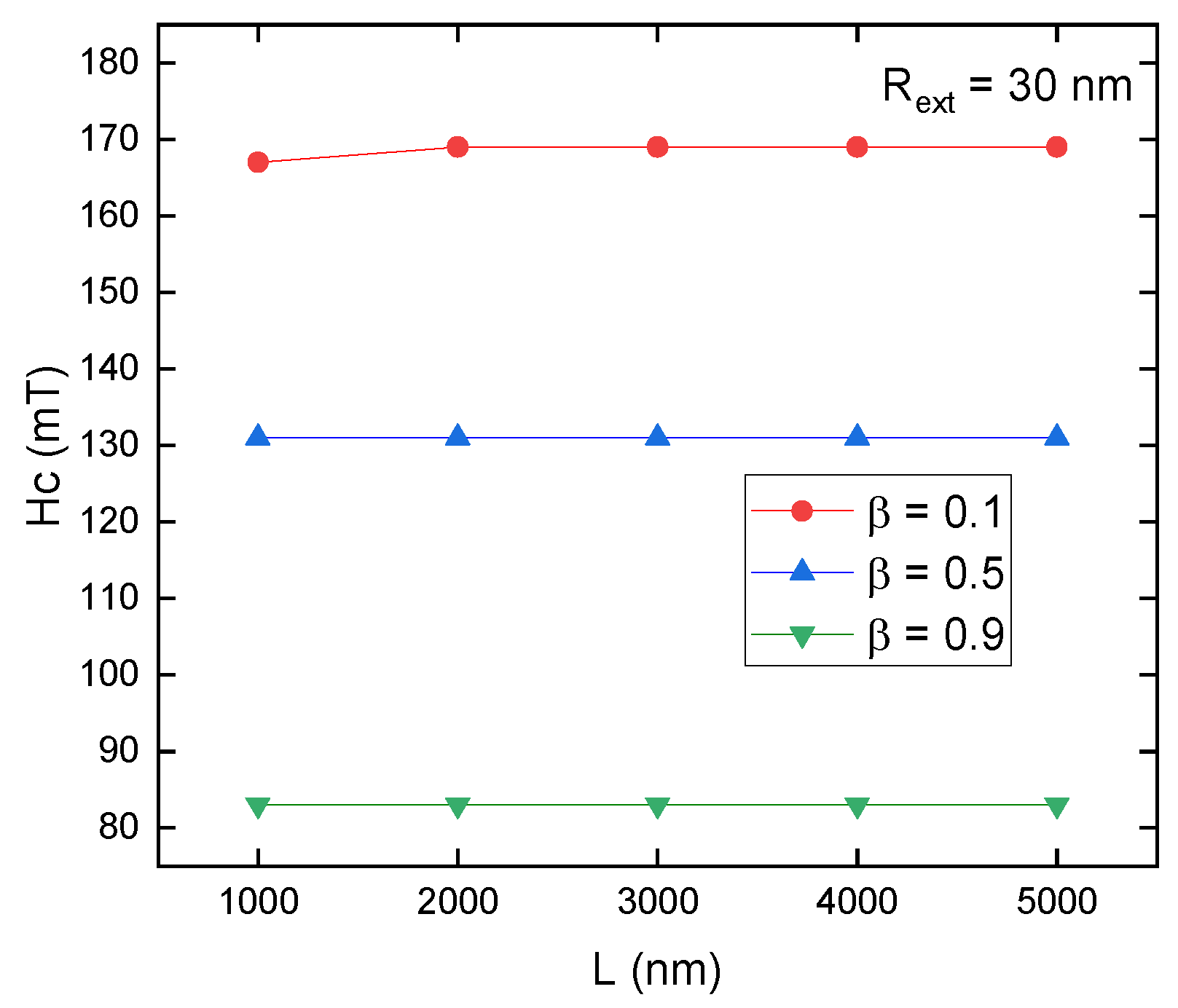

Figure A1. Coercivity for long Fe3O4 nanotubes with an external radius of 30 nm and three different hole sizes, β = 0.1, 0.5, and 0.9, with lengths ranging between 1000 and 5000 nm, when the external magnetic field is applied along the z-axis.
Figure A1. Coercivity for long Fe3O4 nanotubes with an external radius of 30 nm and three different hole sizes, β = 0.1, 0.5, and 0.9, with lengths ranging between 1000 and 5000 nm, when the external magnetic field is applied along the z-axis.
Nanomaterials 13 01265 g0a1
Nanomaterials 13 01265 g0a2 550

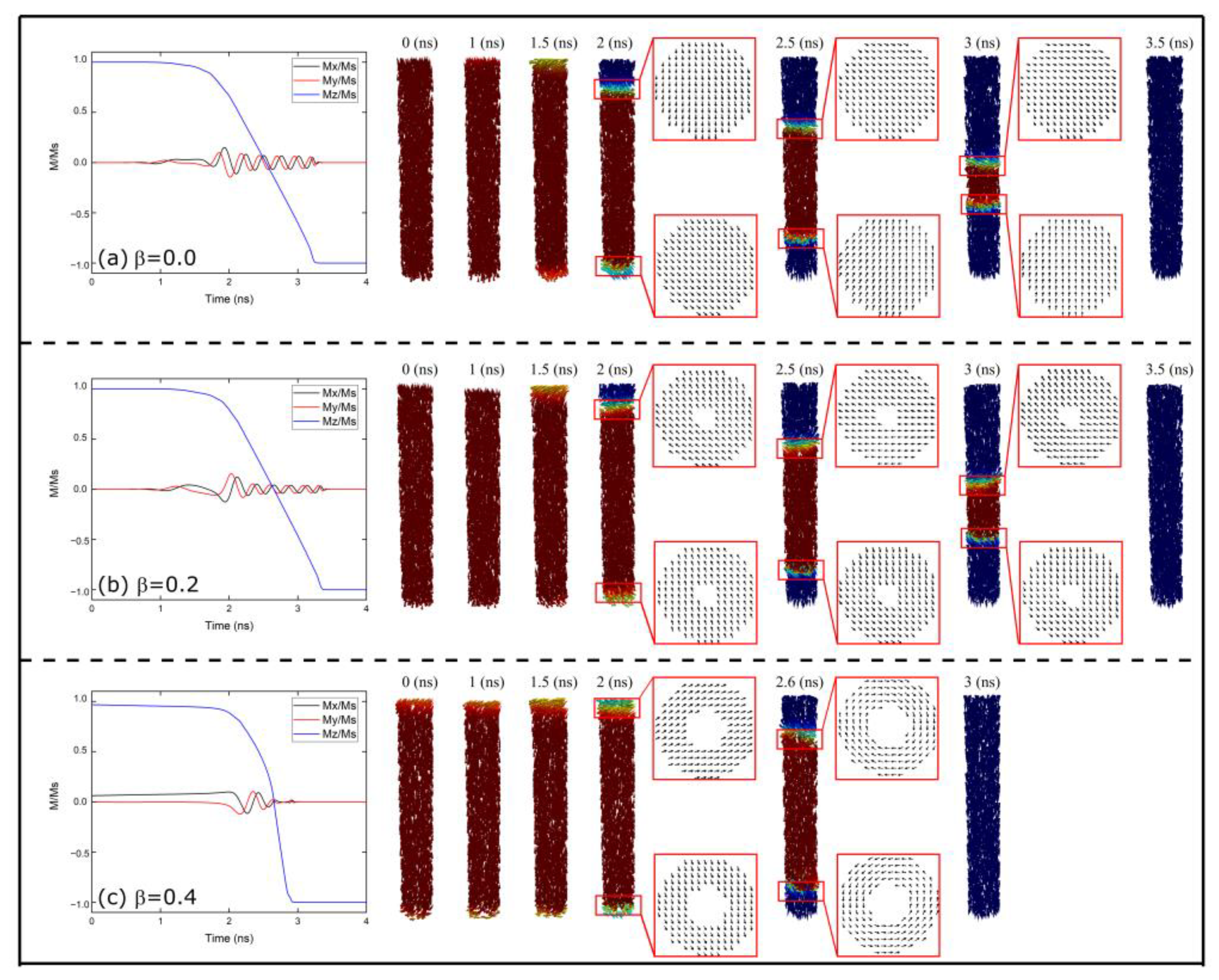

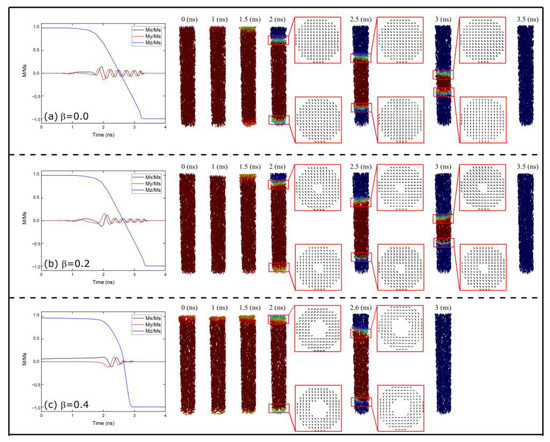

Figure A2. Magnetization reversal of a 1000 nm long Fe3O4 nanotube with an external radius of 30 nm, for β = 0.0 (a), 0.2 (b), and 0.4 (c). The graphs on the left depict the components of magnetization as a function of time, while the snapshots of magnetization at specific times are presented on the right of each graph.
Figure A2. Magnetization reversal of a 1000 nm long Fe3O4 nanotube with an external radius of 30 nm, for β = 0.0 (a), 0.2 (b), and 0.4 (c). The graphs on the left depict the components of magnetization as a function of time, while the snapshots of magnetization at specific times are presented on the right of each graph.
Nanomaterials 13 01265 g0a2
Nanomaterials 13 01265 g0a3 550

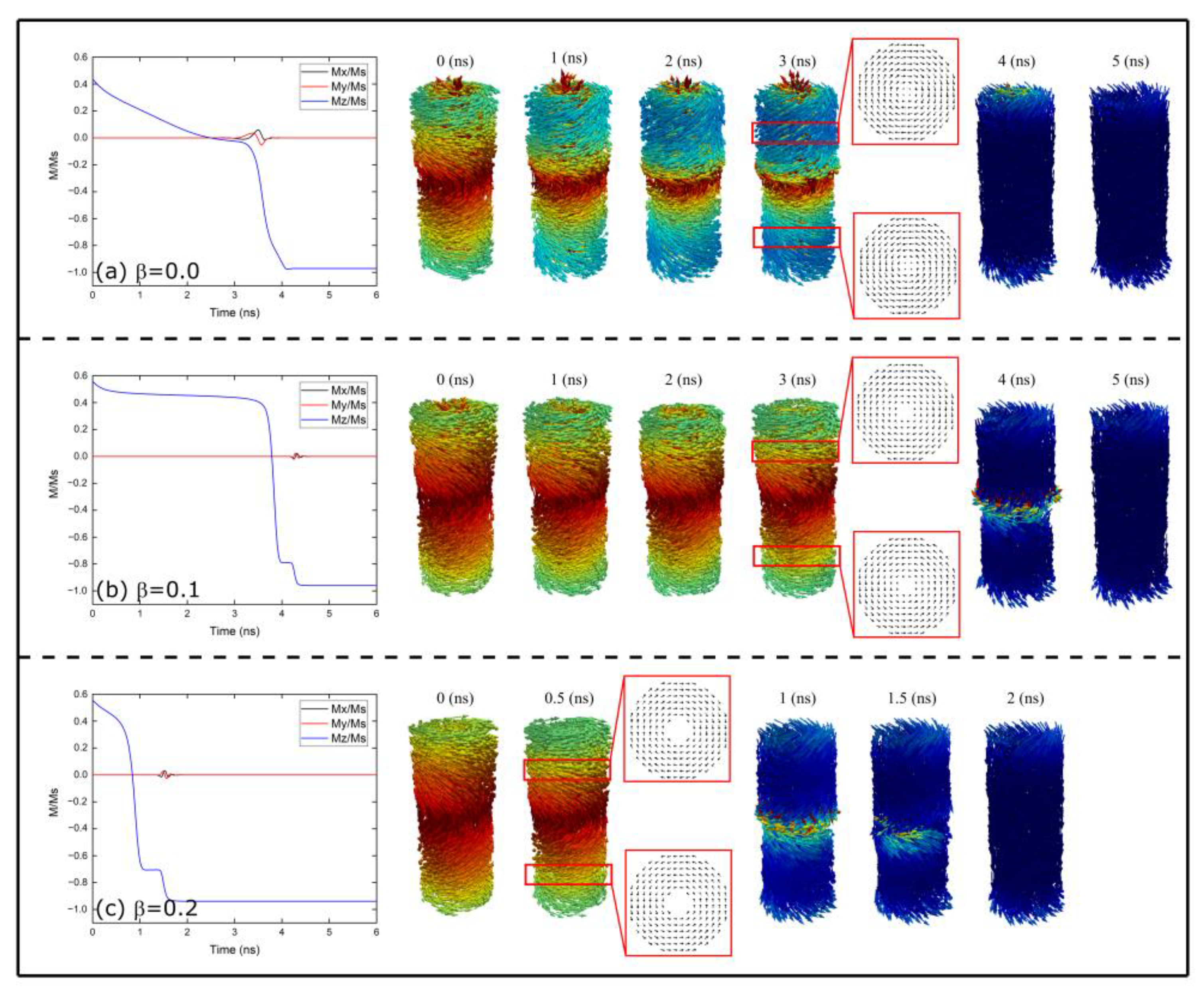

Figure A3. Magnetization reversal of a 1000 nm long Fe3O4 nanotube with an external radius of 80 nm, for β = 0.0 (a), 0.1 (b), and 0.2 (c). The graphs on the left depict the components of magnetization as a function of time, while the snapshots of magnetization at specific times are presented on the right of each graph.
Figure A3. Magnetization reversal of a 1000 nm long Fe3O4 nanotube with an external radius of 80 nm, for β = 0.0 (a), 0.1 (b), and 0.2 (c). The graphs on the left depict the components of magnetization as a function of time, while the snapshots of magnetization at specific times are presented on the right of each graph.
Nanomaterials 13 01265 g0a3
Nanomaterials 13 01265 g0a4 550

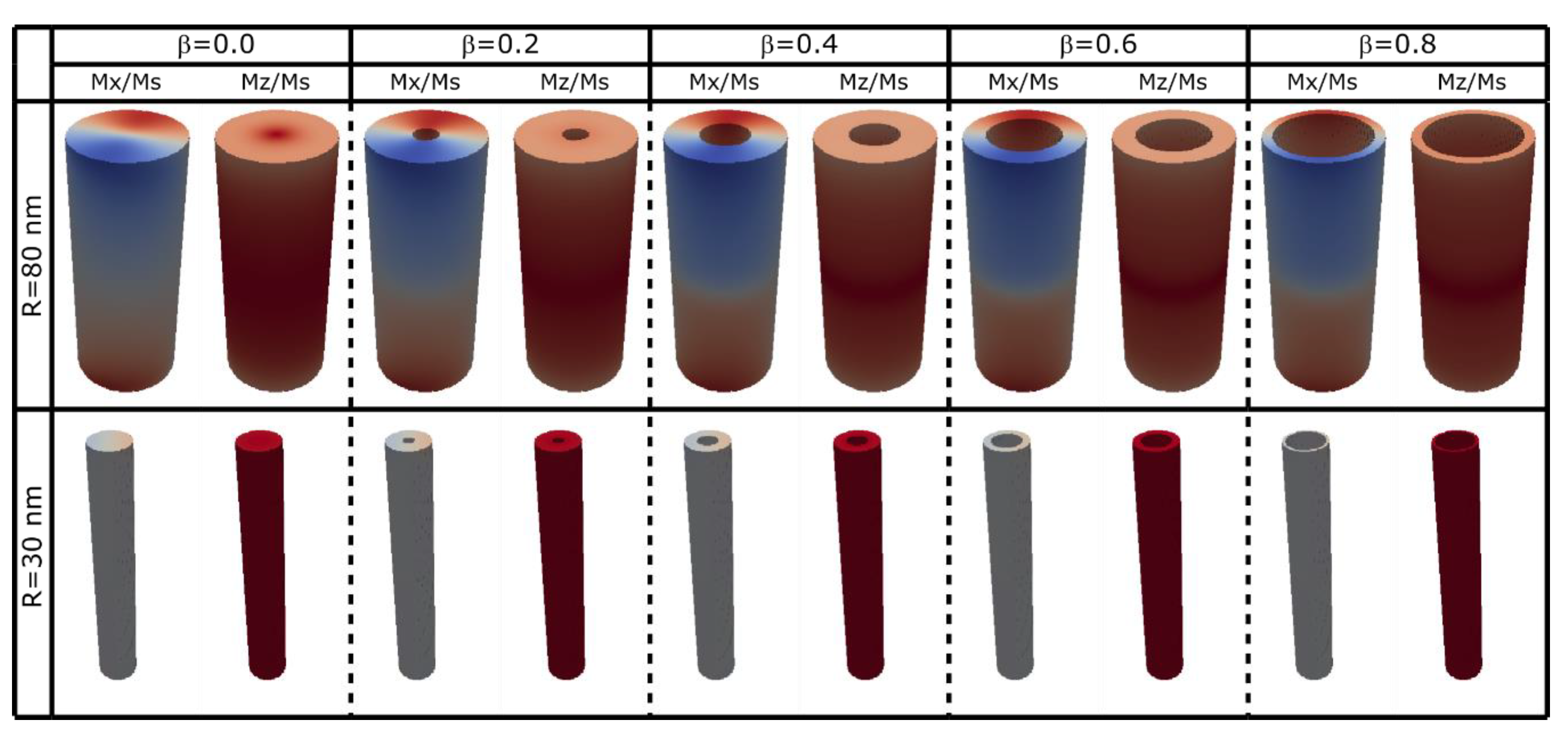

Figure A4. Components of the magnetization (Mx/Ms and Mz/Ms) for each of the geometries that were excited to investigate the FMR spectrum of the 1000 nm long Fe3O4 nanotubes.
Figure A4. Components of the magnetization (Mx/Ms and Mz/Ms) for each of the geometries that were excited to investigate the FMR spectrum of the 1000 nm long Fe3O4 nanotubes.
Nanomaterials 13 01265 g0a4
Nanomaterials 13 01265 g0a5 550

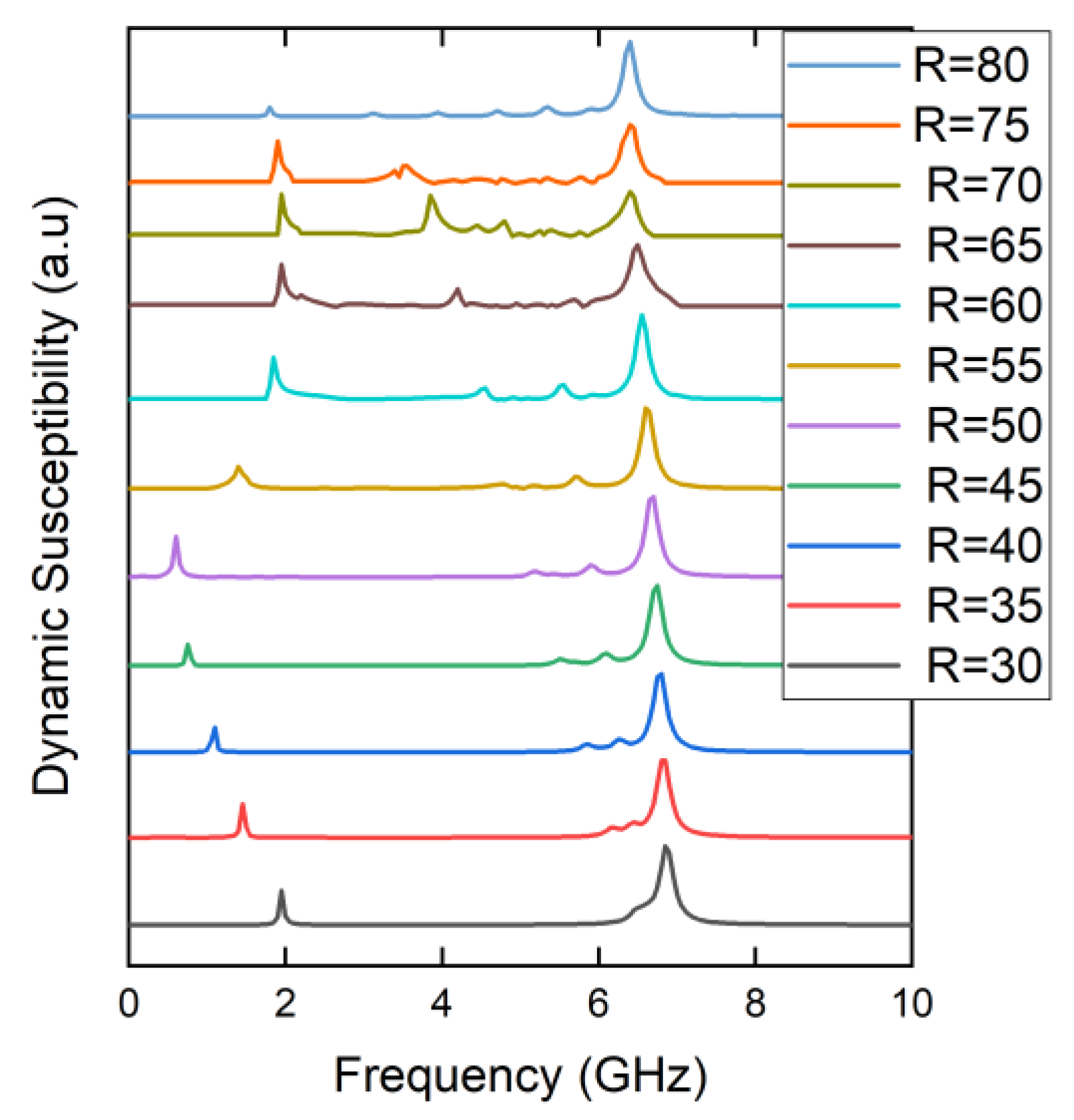

Figure A5. Dynamic susceptibility spectra for 1000 nm long Fe3O4 nanotubes with different radii ranging between 30 and 80 nm, for different β values, while the system is excited with a sinc wave field in the y-direction.
Figure A5. Dynamic susceptibility spectra for 1000 nm long Fe3O4 nanotubes with different radii ranging between 30 and 80 nm, for different β values, while the system is excited with a sinc wave field in the y-direction.
Nanomaterials 13 01265 g0a5

References

  1. Nikman, M.; Chowdhury, M.F.F.; Rajib, M.M.; Misba, W.A.; Schwartz, R.N.; Wang, K.L.; Atulasimha, J.; Bouchard, L.S. Quantum control of spin qubits using nanomagnets. Commun. Phys. 2022, 5, 284. [Google Scholar]
  2. Nguyen, M.D.; Tran, H.V.; Xu, S.; Lee, T.R. Fe3O4 nanoparticles: Structures, synthesis, magnetic properties, Surface functionalization, and emerging applications. Appl. Sci. 2021, 11, 11301. [Google Scholar] [CrossRef] [PubMed]
  3. Ye, Y.; Geng, B. Magnetic nanotubes: Synthesis, properties, and applications. Crit. Rev. Solid State Mater. Sci. 2012, 37, 75. [Google Scholar] [CrossRef]
  4. Yan, M.; Andreas, C.; Kakay, A.; García-Sánchez, F.; Hertel, R. Fast domain wall dynamics in magnetic nanotubes: Suppression of Walker breakdown and Cherenkov-like spin wave emission. Appl. Phys. Lett. 2011, 99, 122505. [Google Scholar] [CrossRef] [Green Version]
  5. Bao, B.; Yang, M.; Yan, M. Asymmetric motion of magnetic skyrmions in ferromagnetic nanotubes induced by a magnetic field. Symmetry 2022, 14, 1195. [Google Scholar] [CrossRef]
  6. Yang, J.; Kim, J.; Abert, C.; Suess, D.; Kim, S.K. Stability of skyrmion formation and its abnormal dynamic modes in magnetic nanotubes. Phys. Rev. B 2020, 102, 094439. [Google Scholar] [CrossRef]
  7. Rojas-Nunez, J.; Valencia, F.; Gonzalez, R.I.; Bringa, E.M.; Allende, S.; Palma, J.L.; Pereira, A.; Escrig, J.; Baltazar, S.E. Mechanical performance of lightweight polycrystalline Ni nanotubes. Comput. Mater. Sci. 2019, 168, 81. [Google Scholar] [CrossRef]
  8. Han, X.F.; Shamaila, S.; Sharif, R.; Chen, J.Y.; Liu, H.R.; Liu, D.P. Structural and magnetic properties of various ferromagnetic nanotubes. Adv. Mater. 2009, 21, 4619. [Google Scholar] [CrossRef]
  9. Xu, Y.; Xue, D.S.; Fu, J.L.; Gao, D.Q.; Gao, B. Synthesis, characterization and magnetic properties of Fe nanotubes. J. Phys. D Appl. Phys. 2008, 41, 215010. [Google Scholar] [CrossRef]
  10. Wang, Q.; Geng, B.; Wang, S.; Ye, Y.; Tao, B. Modified kirkendall effect for fabrication of magnetic nanotubes. Chem. Commun. 2010, 46, 1899. [Google Scholar] [CrossRef]
  11. Wang, J.; Ma, Y.; Watanabe, K. Magnetic-field-induced synthesis of magnetic γ-Fe2O3 nanotubes. Chem. Mater. 2008, 20, 20. [Google Scholar] [CrossRef]
  12. Lv, B.; Xu, Y.; Wu, D.; Sun, Y. Preparation an properties of magnetic iron oxide nanotubes. Particuology 2008, 6, 334. [Google Scholar] [CrossRef]
  13. Sui, Y.C.; Skomski, R.; Sorge, K.D.; Sellmyer, D.J. Magnetic nanotubes produced by hydrogen reduction. J. Appl. Phys. 2004, 95, 7151. [Google Scholar] [CrossRef] [Green Version]
  14. Son, S.J.; Reichel, J.; He, B.; Schuchman, M.; Lee, S.B. Magnetic nanotubes for magnetic-field-assisted bioseparation, biointeraction, and drug delivery. J. Am. Chem. Soc. 2005, 127, 7316. [Google Scholar] [CrossRef]
  15. Wang, T.; Wang, Y.; Li, F.; Xu, C.; Zhou, D. Morphology and magnetic behaviour of an Fe3O4 nanotube array. J. Phys. Condens. Matter 2006, 18, 10545. [Google Scholar] [CrossRef]
  16. Escrig, J.; Bachmann, J.; Jing, J.; Daub, M.; Altbir, D.; Nielsch, K. Crossover between two different magnetization reversal modes in arrays of iron oxide nanotubes. Phys. Rev. B 2008, 77, 214421. [Google Scholar] [CrossRef] [Green Version]
  17. Bachmann, J.; Escrig, J.; Pitzschel, K.; Montero Moreno, J.M.; Jing, J.; Gorlitz, D.; Nielsch, K. Size effects in ordered arrays of magnetic nanotubes. J. Appl. Phys. 2009, 105, 07B521. [Google Scholar] [CrossRef]
  18. Wang, X.; Pan, F.; Xiang, Z.; Jia, W.; Lu, W. Magnetic Fe3O4@PVP nanotubes with high heating efficiency for MRI-guided magnetic hyperthermia applications. Mater. Lett. 2020, 262, 127187. [Google Scholar] [CrossRef]
  19. Xu, Y.; Liang, Y.; Jiang, L.; Wu, H.; Zhao, H.; Xue, D. Preparation and magnetic properties of ZnFe2O4 nanotubes. J. Nanomater. 2011, 2011, 525967. [Google Scholar] [CrossRef] [Green Version]
  20. Gao, H.; Gao, D.; Zhang, J.; Yang, G.; Zhang, J.; Shi, Z.; Xue, D. Synthesis and magnetic properties of CuFe2O4 nanotube arrays. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2012, 27, 550. [Google Scholar] [CrossRef]
  21. Escrig, J.; Daub, M.; Landeros, P.; Nielsch, K.; Altbir, D. Angular dependence of coercivity in magnetic nanotubes. Nanotechnology 2007, 18, 445706. [Google Scholar] [CrossRef]
  22. Tao, F.F.; Xu, Z. Effective synthesis of magnetic metal nickel nanotubes. Acta Phys. Chim. Sin. 2009, 25, 977. [Google Scholar]
  23. Proenca, M.P.; Sousa, C.T.; Ventura, J.; Araujo, J.P.; Escrig, J.; Vázquez, M. Crossover between magnetic reversal modes in ordered Ni and Co nanotube arrays. Spin 2012, 2, 1250014. [Google Scholar] [CrossRef]
  24. Li, F.; Song, L.; Zhou, D.; Wang, T.; Wang, Y.; Wang, H. Fabrication and magnetic properties of NiFe2O4 nanocrystalline nanotubes. J. Mater. Sci. 2007, 42, 7214. [Google Scholar] [CrossRef]
  25. Giordano, M.C.; Hamdi, M.; Mucchietto, A.; Grundler, D. Confined spin waves in magnetochiral nanotubes with axial and circumferential magnetization. Phys. Rev. Mater. 2023, 7, 024405. [Google Scholar] [CrossRef]
  26. Sharif, R.; Shamaila, S.; Ma, M.; Yao, L.D.; Yu, R.C.; Han, X.F.; Khaleeq-ur-Rahman, M. Magnetic switching of ferromagnetic nanotubes. Appl. Phys. Lett. 2008, 92, 032505. [Google Scholar] [CrossRef]
  27. Shen, X.P.; Miao, H.J.; Zhao, H.; Xu, Z. Synthesis, characterization and magnetic properties of Co3O4 nanotubes. Appl. Phys. A 2008, 91, 47. [Google Scholar] [CrossRef]
  28. Pitzschel, K.; Montero Moreno, J.M.; Escrig, J.; Albrecht, O.; Nielsch, K.; Bachmann, J. Controlled introduction of diameter modulations in arrayed magnetic iron oxide nanotubes. ACS Nano 2009, 3, 3463. [Google Scholar] [CrossRef] [PubMed]
  29. Leighton, B.; Suarez, O.J.; Landeros, P.; Escrig, J. Magnetic pase diagrams of barcode-type nanostructures. Nanotechnology 2009, 20, 385703. [Google Scholar] [CrossRef]
  30. Zhu, C.L.; Zhang, M.L.; Qiao, Y.J.; Zhang, F.; Chen, Y.J. Fe3O4/TiO2 core/shell nanotubes: Synthesis and magnetic and electromagnetic wave absorption characterics. J. Phys. Chem. C 2010, 114, 16229. [Google Scholar] [CrossRef]
  31. Pitzschel, K.; Bachmann, J.; Montero Moreno, J.M.; Escrig, J.; Gorlitz, D.; Nielsch, K. Reversal modes and magnetostatic interactions in Fe3O4/ZrO2/Fe3O4 multilayer nanotubes. Nanotechnology 2012, 23, 495718. [Google Scholar] [CrossRef]
  32. Shumskaya, A.; Korolkov, I.; Rogachev, A.; Ignatovich, Z.; Kozlovskiy, A.; Zdorovets, M.; Anisovich, M.; Bashouti, M.; Shalabny, A.; Busool, R.; et al. Synthesis of Ni@Au core-shell magnetic nanotubes for bioapplication and SERS detection. Colloids Surf. A Physicochem. Eng. Asp. 2021, 626, 127077. [Google Scholar] [CrossRef]
  33. Pereira, A.; Escrig, J.; Palma, J.L.; López de Dicastillo, C.; Patiño, C.; Galotto, M.J. Magnetic nanotubes obtained from atomic layer deposition coated electrospun nanofibers. J. Vac. Sci. Technol. B 2018, 36, 061803. [Google Scholar] [CrossRef]
  34. Chen, A.P.; Usov, N.A.; Blanco, J.M.; González, J. Equilibrium magnetization states in magnetic nanotubes and their evolution in external magnetic field. J. Magn. Magn. Mater. 2007, 316, e317–e319. [Google Scholar] [CrossRef]
  35. Lee, J.; Suess, D.; Schrefl, T.; Oh, K.H.; Fidler, J. Magnetic characteristics of ferromagnetic nanotube. J. Magn. Magn. Mater. 2007, 310, 2445. [Google Scholar] [CrossRef]
  36. Escrig, J.; Landeros, P.; Altbir, D.; Vogel, E.E.; Vargas, P. Phase diagrams of magnetic nanotubes. J. Magn. Magn. Mater. 2007, 308, 233. [Google Scholar] [CrossRef]
  37. Chen, A.P.; Guslienko, K.Y.; Gonzalez, J. Magnetization configurations and reversal of thin magnetic nanotubes with uniaxial anisotropy. J. Appl. Phys. 2010, 108, 083920. [Google Scholar] [CrossRef] [Green Version]
  38. Chen, A.P.; Gonzalez, J.M.; Guslienko, K.Y. Magnetization configurations and reversal of magnetic nanotubes with opposite chiralities of the end domains. J. Appl. Phys. 2011, 109, 073923. [Google Scholar] [CrossRef]
  39. Landeros, P.; Allende, S.; Escrig, J.; Salcedo, E.; Altbir, D.; Vogel, E.E. Reversal modes in magnetic nanotubes. Appl. Phys. Lett. 2007, 90, 102501. [Google Scholar] [CrossRef] [Green Version]
  40. Landeros, P.; Núñez, A. Domain wall motion on magnetic nanotubes. J. Appl. Phys. 2010, 108, 033917. [Google Scholar] [CrossRef]
  41. Albrecht, O.; Zierold, R.; Allende, S.; Escrig, J.; Patzig, C.; Rauschenbach, B.; Nielsch, K.; Gorlitz, D. Experimental evidence for an angular dependent transition of magnetization reversal modes in magnetic nanotubes. J. Appl. Phys. 2011, 109, 093910. [Google Scholar] [CrossRef]
  42. Arciniegas Jaimes, D.M.; Raviolo, S.; Carballo, J.M.; Bajales, N.; Escrig, J. Wave reversion mode stability as a function of diameter and wall thickness for permaloy and nickel nanotubes. J. Magn. Magn. Mater. 2021, 523, 167578. [Google Scholar] [CrossRef]
  43. Raviolo, S.; Arciniegas Jaimes, D.M.; Bajales, N.; Escrig, J. Wave reversal mode: A new magnetization reversal mechanism in magnetic nanotubes. J. Magn. Magn. Mater. 2020, 497, 165944. [Google Scholar] [CrossRef]
  44. Escrig, J.; Allende, S.; Altbir, D.; Bahiana, M. Magnetostatic interactions between magnetic nanotubes. Appl. Phys. Lett. 2008, 93, 023101. [Google Scholar] [CrossRef] [Green Version]
  45. Suarez, O.J.; Vargas, P.; Vogel, E.E. Energy and force between two magnetic nanotubes. J. Magn. Magn. Mater. 2009, 321, 3658. [Google Scholar] [CrossRef]
  46. Landeros, P.; Guzmán, P.R.; Soto-Garrido, R.; Escrig, J. Magnetostatic fields in tubular nanostructures. J. Phys. D Appl. Phys. 2009, 42, 225002. [Google Scholar] [CrossRef]
  47. Morales-Concha, C.; Ossandón, M.; Pereira, A.; Altbir, D.; Escrig, J. General approach to the magnetostatic forcé and interaction between cylindrically shaped nanoparticles. J. Appl. Phys. 2012, 111, 07D131. [Google Scholar] [CrossRef]
  48. González, A.L.; Landeros, P.; Núñez, A.S. Spin wave spectrum of magnetic nanotubes. J. Magn. Magn. Mater. 2010, 322, 530. [Google Scholar] [CrossRef]
  49. Zhang, R.; Wang, L.; Xu, C.; Liang, C.; Liu, X.; Zhang, X.; Che, R. Vortex tuning magnetization configurations in porous Fe3O4 nanotube with wide microwave absorption frequency. Nano Res. 2022, 15, 6743. [Google Scholar] [CrossRef]
  50. Salazar-Cardona, M.M.; Korber, L.; Schultheiss, H.; Lenz, K.; Thomas, A.; Nielsch, K.; Kakay, A.; Otálora, J.A. Nonreciprocity of spin waves in magnetic nanotubes with helical equilibrium magnetization. Appl. Phys. Lett. 2021, 118, 262411. [Google Scholar] [CrossRef]
  51. Saavedra, E.; Castillo-Sepúlveda, S.; Corona, R.M.; Altbir, D.; Escrig, J.; Carvahlo-Santos, V.L. Influence of curvature on the dynamical susceptibility of bent nanotubes. Results Phys. 2022, 35, 105290. [Google Scholar] [CrossRef]
  52. Saavedra, E.; Vidal-Silva, N.; Escrig, J. Dynamic susceptibility of permaloy wire-tube nanostructures. Results Phys. 2021, 31, 104874. [Google Scholar] [CrossRef]
  53. Su, X.; Liu, Y.; Liao, Z.; Bi, Y.; Chen, Y.; Ma, Y.; Chung, K.L.; Wan, F.; Ma, M. A review of 1D magnetic nanomaterials in microwave absorption. J. Mater. Sci. 2023, 58, 636. [Google Scholar] [CrossRef]
  54. Vansteenkiste, A.; Leliaert, J.; Dvornik, M.; Helsen, M.; García-Sánchez, F.; Van Waeyenberge, B. The design and verification of MuMax3. AIP Adv. 2014, 4, 107133. [Google Scholar] [CrossRef] [Green Version]
  55. Gilbert, T.L. A phenomenological theory of damping in ferromagnetic materials. IEEE Trans. Magn. 2004, 40, 3443. [Google Scholar] [CrossRef]
  56. Kolhatkar, A.G.; Jamison, A.C.; Litvinov, D.; Willson, R.C.; Lee, T.R. Tuning the magnetic properties of nanoparticles. Int. J. Mol. Sci. 2013, 14, 15977. [Google Scholar] [CrossRef] [Green Version]
  57. Xiang, H.; Jiang, D.M.; Yao, J.C.; Zheng, Y.P.; Lu, W.; Li, G.Q.; Saito, H.; Ishio, S.; Tan, X.W.; Lin, Y.Q. Micromagnetic simulations of magnetization reversal of iron nanowire. J. Phys. Conf. Ser. 2011, 266, 012022. [Google Scholar] [CrossRef] [Green Version]
  58. Ruiz-Gomez, S.; Pérez, L.; Mascaraque, A.; Quesada, A.; Prieto, P.; Palacio, I.; Martín-García, L.; Foerster, M.; Aballe, L.; de la Figuera, J. Geometrically defined spin structures in ultrathin Fe3O4 with bulk like magnetic properties. Nanoscale 2018, 10, 5566. [Google Scholar] [CrossRef] [Green Version]
  59. Dao, N.; Donahue, M.J.; Dumitru, I.; Spinu, L.; Whittenburg, S.L.; Lodder, J.C. Dynamic susceptibility of nanopillars. Nanotechnology 2004, 15, S634. [Google Scholar] [CrossRef] [Green Version]
  60. Chen, W.B.; Han, M.G.; Zhou, H.; Yu, O.; Deng, L.G. Micromagnetic simulation on the dynamic susceptibility spectra of cobalt nanowires arrays: The effect of magnetostatic interaction. Chin. Phys. B 2010, 19, 087502. [Google Scholar]
  61. Lupo, P.; Kumar, D.; Adeyeye, A.O. Size dependence of spin-wave modes in Ni80Fe20 nanodiks. AIP Adv. 2015, 5, 077179. [Google Scholar] [CrossRef]
  62. Dobrovolskiy, O.V.; Bunyaev, S.A.; Vovk, N.R.; Navas, D.; Gruszecki, P.; Krawczyk, M.; Sachser, R.; Huth, M.; Chumak, A.V.; Guslienko, K.Y.; et al. Spin-wave spectroscopy of individual ferromagnetic nanodisks. Nanoscale 2020, 12, 21207. [Google Scholar] [CrossRef] [PubMed]
  63. Yang, J.; Kim, J.; Kim, B.; Cho, Y.J.; Lee, J.H.; Kim, S.K. Vortex-chirality-dependent standing spin-wave modes in soft magnetic nanotubes. J. Appl. Phys. 2018, 123, 033901. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 13 01265 g001 550

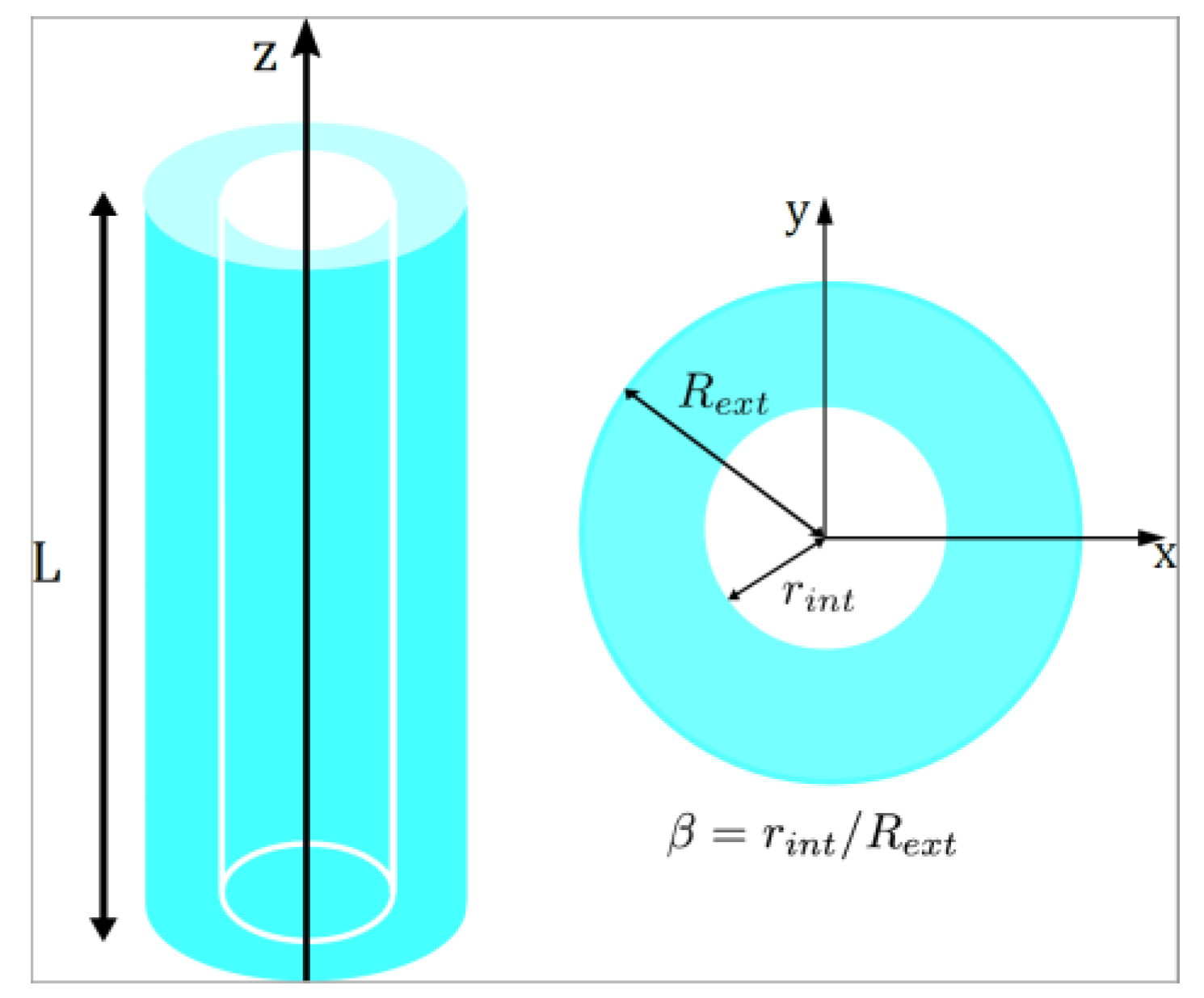

Figure 1. Schematic representation of an isolated magnetic nanotube. Representative geometric parameters are indicated.
Figure 1. Schematic representation of an isolated magnetic nanotube. Representative geometric parameters are indicated.
Nanomaterials 13 01265 g001
Nanomaterials 13 01265 g002 550

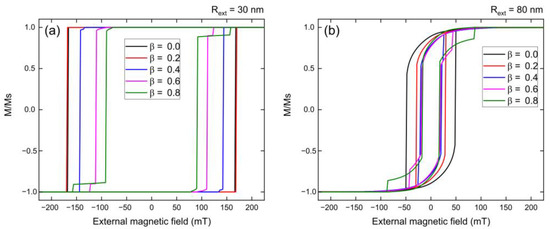

Figure 2. Hysteresis curves for 1000 nm long Fe3O4 nanotubes with external radius: (a) Rext = 30 nm and (b) Rext = 80 nm, for different β values, when the external magnetic field is applied along the z-axis.
Figure 2. Hysteresis curves for 1000 nm long Fe3O4 nanotubes with external radius: (a) Rext = 30 nm and (b) Rext = 80 nm, for different β values, when the external magnetic field is applied along the z-axis.
Nanomaterials 13 01265 g002
Nanomaterials 13 01265 g003 550

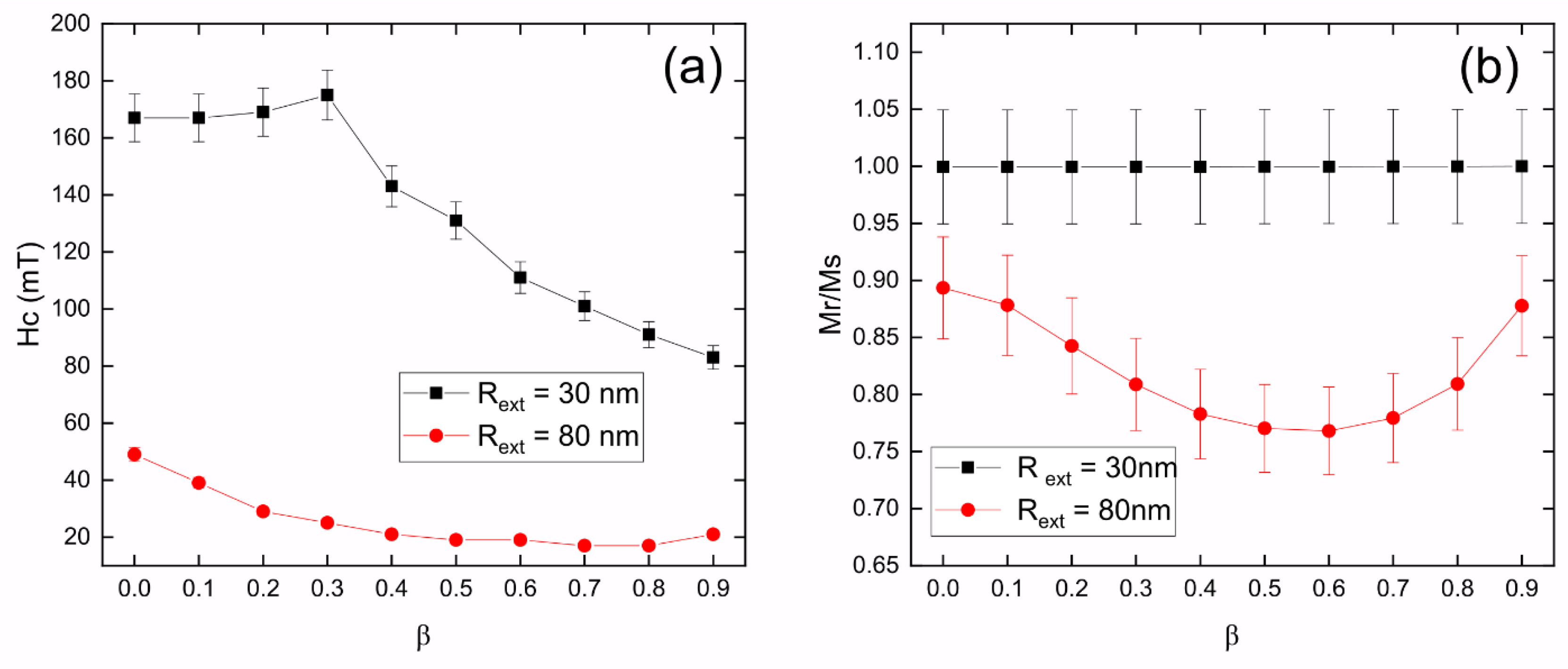

Figure 3. (a) Coercivity and (b) normalized remanence for 1000 nm long Fe3O4 nanotubes with external radius 30 nm (black squares) and 80 nm (red circles), as a function of β, when the external magnetic field is applied along the z-axis. We considered an error of 5%.
Figure 3. (a) Coercivity and (b) normalized remanence for 1000 nm long Fe3O4 nanotubes with external radius 30 nm (black squares) and 80 nm (red circles), as a function of β, when the external magnetic field is applied along the z-axis. We considered an error of 5%.
Nanomaterials 13 01265 g003
Nanomaterials 13 01265 g004 550

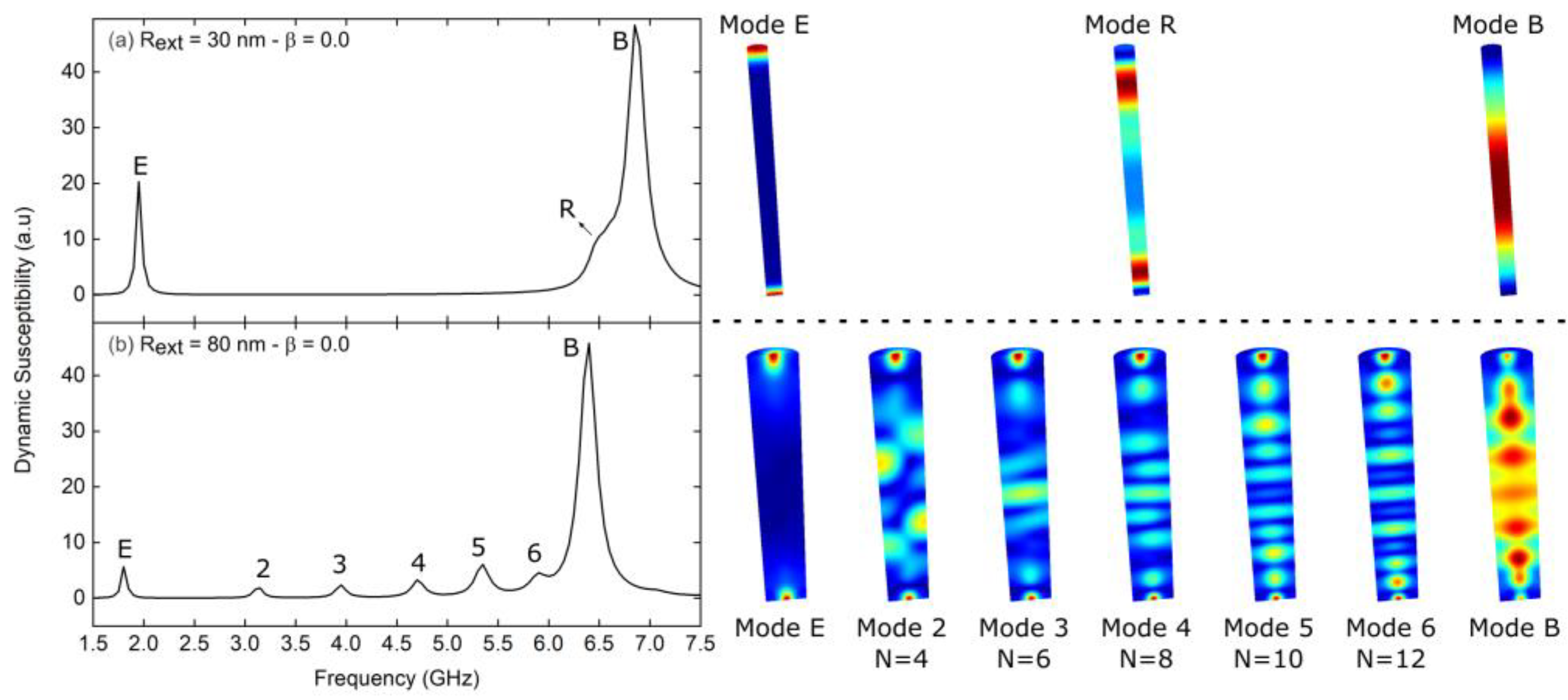

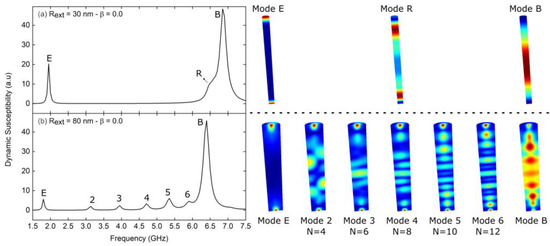

Figure 4. Dynamic susceptibility spectra for 1000 nm long Fe3O4 nanotubes with external radius (a) Rext = 30 nm and (b) Rext = 80 nm, for β = 0.0, while the system is excited with a sinc wave field in the y-direction. On the right are the spatial profiles of the resonant modes shown to the left. The color scale corresponds to the amplitude of the magnetic moment fluctuations, with red depicting the largest amplitude and blue denoting zero amplitude.
Figure 4. Dynamic susceptibility spectra for 1000 nm long Fe3O4 nanotubes with external radius (a) Rext = 30 nm and (b) Rext = 80 nm, for β = 0.0, while the system is excited with a sinc wave field in the y-direction. On the right are the spatial profiles of the resonant modes shown to the left. The color scale corresponds to the amplitude of the magnetic moment fluctuations, with red depicting the largest amplitude and blue denoting zero amplitude.
Nanomaterials 13 01265 g004
Nanomaterials 13 01265 g005 550

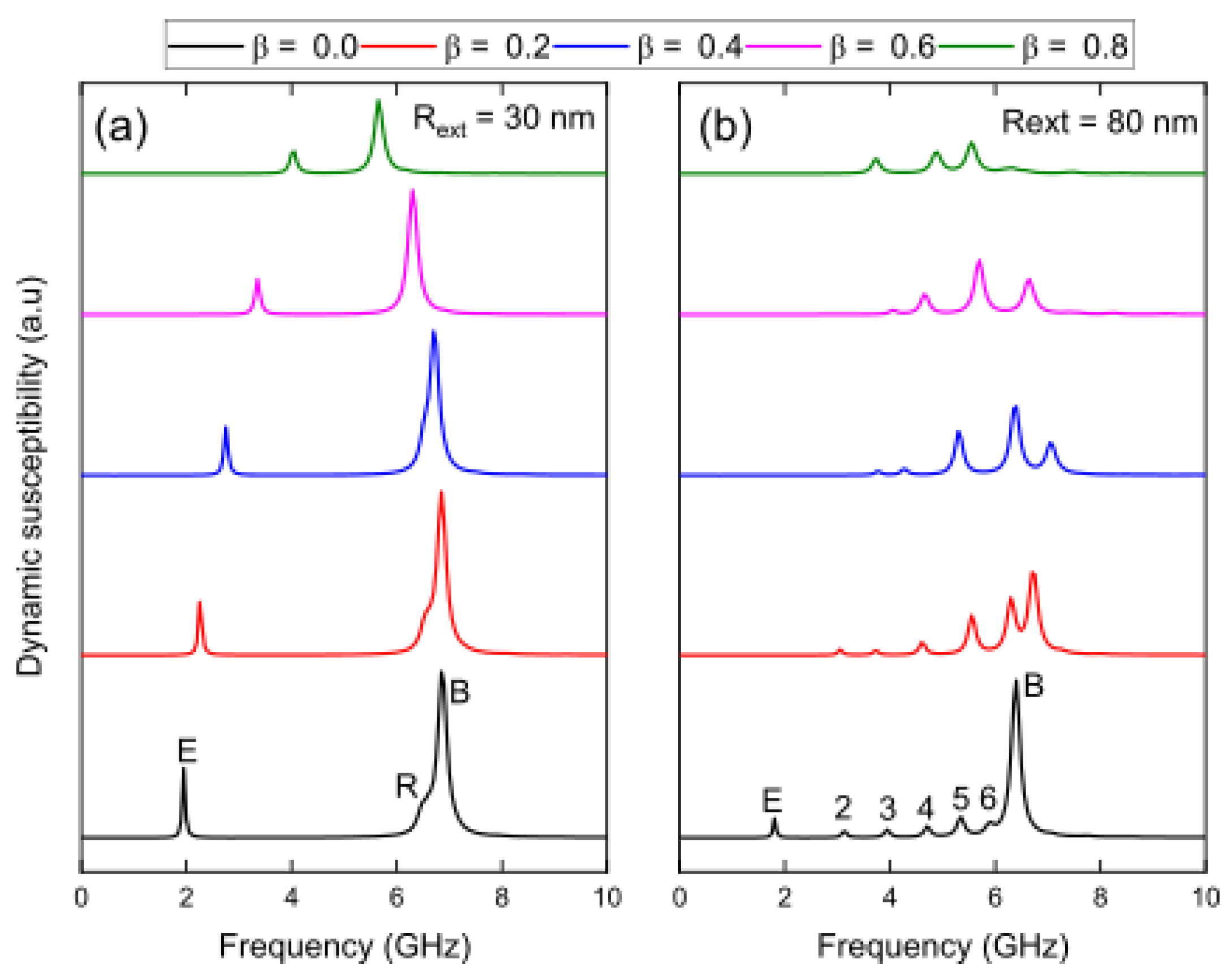

Figure 5. Evolution of dynamic susceptibility spectra for 1000 nm long Fe3O4 nanotubes with external radius (a) Rext = 30 nm and (b) Rext = 80 nm, as a function of β values. The system is excited with a sinc wave field in the y-direction.
Figure 5. Evolution of dynamic susceptibility spectra for 1000 nm long Fe3O4 nanotubes with external radius (a) Rext = 30 nm and (b) Rext = 80 nm, as a function of β values. The system is excited with a sinc wave field in the y-direction.
Nanomaterials 13 01265 g005
Nanomaterials 13 01265 g006 550

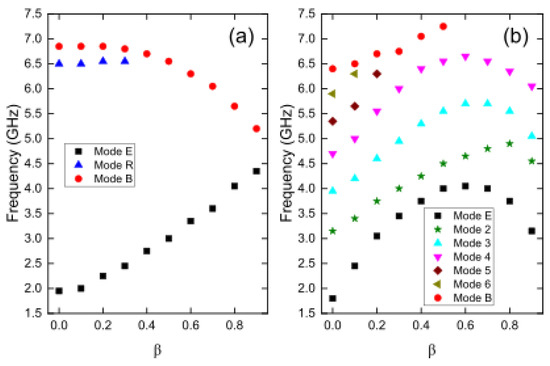

Figure 6. Evolution of resonance modes for 1000 nm long Fe3O4 nanotubes with external radius (a) Rext = 30 nm and (b) Rext = 80 nm, as a function of the parameter β.
Figure 6. Evolution of resonance modes for 1000 nm long Fe3O4 nanotubes with external radius (a) Rext = 30 nm and (b) Rext = 80 nm, as a function of the parameter β.
Nanomaterials 13 01265 g006
