Creation and Magnetic Study of Ferrites with Magnetoplumbite Structure Multisubstituted by Al3+, Cr3+, Ga3+, and In3+ Cations

by
Vladimir E. Zhivulin
1,
Daria P. Sherstyuk
1,
Olga V. Zaitseva
1,
Natalia A. Cherkasova
1,
Denis A. Vinnik
1,
Sergey V. Taskaev
2,
Evgeny A. Trofimov
1,
Sergei V. Trukhanov
3,*,
Siarhei I. Latushka
3,
Daria I. Tishkevich
1,3,
Tatiana I. Zubar
1,3 and
Alex V. Trukhanov
1,3,4
1
Laboratory of Single Crystal Growth, South Ural State University, 76, Lenin Av., 454080 Chelyabinsk, Russia
2
Faculty of Physics, Chelyabinsk State University, 129, Bratiev Kashirinykh St., 454001 Chelyabinsk, Russia
3
Laboratory of Magnetic Films Physics, SSPA “Scientific and Practical Materials Research Centre of NAS of Belarus”, 19, P. Brovki Str., 220072 Minsk, Belarus
4
Department of Electronic Materials Technology, National University of Science and Technology MISiS, 119049 Moscow, Russia
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(8), 1306; https://doi.org/10.3390/nano12081306
Submission received: 21 March 2022 / Revised: 7 April 2022 / Accepted: 9 April 2022 / Published: 11 April 2022
(This article belongs to the Special Issue Actual Problems of Solid State Physics: Nanomaterials and Nanotechnologies)
Browse Figures
Versions Notes

Abstract

:
Multisubstituted barium ferrites with a magnetoplumbite structure were obtained by the method of solid-phase reactions with ferritization and pre-firing. Three-charged, mainly diamagnetic cations Al3+, Cr3+, Ga3+, and In3+ were chosen as substituents for the Fe3+ iron cations, the proportion of which in solid solutions did not exceed 50%. The values of the configurational mixing entropy were calculated for all the compositions. A slight deviation of the chemical composition of the obtained solid solutions from the nominal value was established by the energy-dispersive X-ray spectroscopy method. The phase purity and values of the unit cell parameters were refined from X-ray scattering data using full-profile analysis in the Rietveld method. A non-monotonic behavior of the unit cell parameters as a function of the B-sub-lattice average ionic radius of the magnetoplumbite structure was found. A minimum unit cell volume of ~667.15 Å3 was found for the composition BaFe6.11Al1.56Cr2.17Ga2.16O19 with a B-sub-lattice average ionic radius of ~7.449 Å. The average crystallite size varied within 5.5–6.5 μm. The temperature and field dependencies of the magnetization have been measured. The values of the saturation magnetization, residual magnetization, hysteresis loop squareness, and coercivity at 50 K and 300 K were extracted from the experimental data. Using the Law of Approach to Saturation, the magnetic crystallographic anisotropy coefficient and anisotropy field were calculated. Multisubstitution leads to a significant decrease in such magnetic parameters as the magnetic ordering temperature and spontaneous magnetization at both temperatures. The maximum magnetic ordering temperature of ~297.7 K was found for the composition BaFe5.84Ga6.19O19 with a B-sub-lattice average ionic radius of ~7.586 Å in a field of 500 Oe. A maximum saturation magnetization of ~24.7 emu/g was found for the composition BaFe5.84Ga6.19O19 with a B-sub-lattice average ionic radius of ~7.586 Å at 50 K. A maximum hysteresis loop squareness of ~0.72 was found for the composition BaFe6.11Al1.56Cr2.17Ga2.16O19 with an average ionic radius of ~7.449 Å at 50 K. A maximum magnetic crystallographic anisotropy coefficient of ~2.09 × 105 Erg/g was found for the composition BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 with a B-sub-lattice average ionic radius of ~7.706 Å at 50 K. The frustrated magnetic state including the nano-sized clusters with an average diameter in the range of 50–200 nm was established from the results of measuring the ZFC and FC temperature magnetizations. The interpretation of the obtained experimental data is carried out taking into account the increased stability of high-entropy phases and regular changes in the intensity of the Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+) indirect superexchange interactions as a result of magnetic dilution of the iron sub-lattice in the magnetoplumbite structure.

1. Introduction

M-type hexaferrites with a magnetoplumbite structure were the subject of intense research almost a century ago [1] and, due to their properties—chemical inertness, mechanical strength, high values of the Curie temperature, coercive force, and anisotropy field—are widely used in various fields of technology [2,3,4]. In particular, these materials are used in magnetic circuits [5], in a number of high-frequency electronics components [6,7,8], in multiple-state memory elements [9], new functional sensors [10,11,12], etc.
The growing demands of consumers for the quantitative characteristics of the properties of compounds with the magnetoplumbite structure led to the idea of obtaining crystalline structures in which some of the iron cations would be substituted by other cations [13]. It has been repeatedly shown that such a substitution leads to a change in the structural characteristics and especially properties of the resulting solid solutions, in particular, to a change in the degree of uniaxial magnetic anisotropy, the magnitude of the coercive force, and the Curie temperature [14,15,16]. This opens up possibilities for controlling the properties of M-type hexaferrites by varying the degree of substitution and substituting cations. An impressive number of works have been devoted to the study of the effect of substitution of Fe3+ iron cations in the initial matrix of the M-type hexagonal ferrites on other three-charged cations. Of great interest are works on substitution with gallium [17,18,19], aluminum [20,21,22], chromium [23,24,25], and indium [26,27,28].
However, this approach has some disadvantages, primarily due to the fact that the solubility of individual doping cations in the magnetoplumbite crystal structure, as well as their ability to substitute iron cations, are limited. Our team has recently developed a modern method [29] that allows expanding the range of solid solutions of M-type hexaferrites with multicomponent substitution. The high configurational mixing entropy of iron cation sub-lattice should increase the stability of the crystal structure with a high degree of substitution. High values of the configuration entropy should contribute to an increase in the entropy of the phase as a whole, which will lead to a decrease in its Gibbs energy, and thus make the process of formation and existence of this phase more thermodynamically probable than the formation of other phases from the same elements [30].
In general, an approach related to the creation and study of high-entropy phases has emerged in the last two decades [31], primarily in relation to metal alloys, but in recent years this approach has been actively and effectively used to create new oxide phases [32]. The high-entropy oxide solid solutions with the structure of spinel [33], perovskite [34], garnet [35], etc. have already been obtained.
In a number of our works [36,37,38,39], for the first time in the world, high-entropy oxides with the magnetoplumbite structure were obtained and the electrical and magnetic properties of a number of representatives of this new group of solid solutions were studied. It was found that there is a correlation between the entropy state of the obtained solid solutions and the features of their crystal structure. It was shown that the magnetic properties depended critically on the entropy state and the intensity of indirect superexchange interactions. Magnetic phase separation was detected, which manifested itself in the coexistence of frustrated magnetic clusters in a matrix with a ferrimagnetic ordering. A strong relationship has also been demonstrated between the entropy state, magnetic, and electrical properties.
Interest in such compositions is due to the fact that there are areas of application for which it is desirable to obtain ceramics with the magnetoplumbite structure and an up to 50% degree of substitution of iron cations by diamagnetic ones. Obtaining such structures with one substituting element is not feasible for all the possible dopants. However, an increase in their number accompanied by a formal increase in the configuration mixing entropy of the sub-lattice formed by iron cations should contribute to the stabilization of the obtained structures [40]. At the same time, the question of how an increase in the amount of dopants while maintaining the degree of iron substitution affects the magnetic characteristics of the formed phase remains open. The study of the effects associated with an increase in the mixing entropy in such structures is of interest both from the theory point of view and from the point of view of applied developments in the field of creating new magnetic compositions.
The purpose of this work is to study the structure and magnetic characteristics of a series of barium hexaferrite samples with the constant 50% iron content and with a gradual increase in the number of substituting cations such as Al3+, Cr3+, Ga3+, and In3+.

2. Materials and Methods

2.1. Sample Preparation Methods

The studied samples were obtained by solid-phase synthesis. The oxides of iron Fe2O3, gallium Ga2O3, aluminum Al2O3, chromium Cr2O3, indium In2O3, and barium carbonate BaCO3 were used as initial components for the synthesis of samples. All the components used had a qualification not lower than the purity for analysis—analytical grade. The initial components were weighed in a given stoichiometric ratio and ground with an agate mortar. Table 1 shows the chemical formula of the composition and the mass content of the original oxides. In the last column of the same table, the results of the calculation of the configuration mixing entropy in the iron sub-lattice are computed using the formula:
S m i x = − ∑ x l n x ,
where x is the fraction of cations of different elements in the sub-lattice.
The mixtures of oxides and carbonate obtained as a result of grinding were pressed into pellets with a diameter of 8 mm and a height of 5 mm using a hydraulic laboratory press in a steel mold. The pressing force was 5 tons. The resulting pellets were placed on a platinum substrate and sintered at a temperature of 1400 °C for 5 h [41]. The chemical reactions that occur during ferritization can be represented as:
BaCO3 + 3Al2O3 + 3Fe2O3 → BaFe6Al6O19 + CO2↑
BaCO3 + 3Cr2O3 + 3Fe2O3 → BaFe6Cr6O19 + CO2↑
BaCO3 + 3Ga2O3 + 3Fe2O3 → BaFe6Ga6O19 + CO2↑
BaCO3 + 3/2 Cr2O3 + 3/2 Al2O3 + 3Fe2O3 → BaFe6Al3Cr3O19 + CO2↑
BaCO3 + Cr2O3 + Al2O3 + Ga2O3 + 3Fe2O3 → BaFe6Al2Cr2Ga2O19 + CO2↑
BaCO3 + 3/4 Cr2O3 + 3/4 Al2O3 + 3/4 In2O3 + 3/4 Ga2O3 + 3Fe2O3 →
→ BaFe6Al1.5Cr1.5Ga1.5In1.5O19 + CO2↑.
Conventionally, the chemical reaction can be divided into two stages. At the first stage, barium carbonate BaCO3 decomposes to barium oxide BaO with the release of carbon dioxide CO2. At the second stage, a reaction occurs between the initial oxides and the formation of complex barium hexaferrite.

2.2. Structure and Elemental Composition Study Methods

The samples obtained as a result of the chemical reaction were studied by X-ray phase analysis, electron microscopy, and elemental microanalysis. The X-ray diffraction (XRD) patterns in the angular range of 5°–90° were recorded with a scanning rate of 1°/min using a Rigaku model Ultima IV powder diffractometer using Cu-Kα radiation filtered by a Ni filter. The phase content was checked and the unit cell parameters at room temperature were calculated. The calculation of the unit cell parameters was carried out by the method of full-profile Rietveld analysis [42] in the Match 3.12 software package. The chemical composition was explored by the EDX (Oxford INCA X-max 80). The SEM measurements were realized for the microstructure images. The SEM photos were treated and the average particle size was computed for each sample [43].

2.3. Magnetic Study Methods

The magnetization measurements have been realized using a SQUID magnetometer [44]. The field investigations of a magnetization were implemented from 3 T down to −3 T and back at two temperatures of 50 K and 300 K. For revelation of the spontaneous magnetization, the Law of Approach to Saturation (LAS) [45] was employed. The residual magnetization, loop squareness, and coercivity were extracted. The computation of the magnetic crystalline anisotropy coefficient and anisotropy field was performed. The temperature investigations of a magnetization were implemented from 50 K up to 300 K in fields of 0.01 T and 0.05 T. The minimum point of the magnetization derivative was adopted as the magnetic ordering temperature [46].

3. Results and Discussion

3.1. Study of the Crystal Structure

The phase composition and unit cell parameters of all the obtained samples were determined by X-ray diffraction. The data obtained are shown in Figure 1. Samples with a given composition of BaFe6Al6O19 and BaFe6Cr6O19, according to X-ray diffraction and elemental microanalysis, consist of more than one phase. Along the phase of ~96wt% with the magnetoplumbite structure, there are phases with other structures. Therefore, it is inappropriate to study the magnetic characteristics of these samples.
Figure 1 shows XRD patterns of single-phase samples. The red bars indicate the literature data [3] for the BaFe12O19 barium hexaferrite. It can be seen from Figure 1 that all the reflections that appear in the X-ray diffraction patterns of the samples under study correspond to the ones given in the literature for the BaFe12O19 barium hexaferrite. It is also seen that the position of the reflections in the X-ray patterns of the samples under study is mainly shifted to the larger angle side, which indicates a decrease in inter-planar distances. This fact indicates changes in the parameters of the crystal lattice as a result of the substitution of iron cations by other cations that have different ionic radii. The unit cell parameters were calculated from the data of powder XRD patterns. Table 2 presents the calculation of the unit cell parameters of the obtained samples.
Table 2 shows that the unit cell parameters of the obtained samples differ from the parameters for the barium hexaferrite. The a parameter for all the samples has a lower value than for the unsubstituted hexaferrite. The c parameter for all the samples except for the BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d) composition has a smaller value.
The ratios of the parameters presented in Table 2 are in good agreement with the ratios of the radii of trivalent cations in the same coordination [47]:
r(Al3+,IV) = 0.535 Å < r(Cr3+,IV) = 0.615 Å < r(Ga3+,IV) = 0.620 Å < r(Fe3+,IV,HS) = 0.645 Å <
< r(In3+,V) = 0.800 Å.
Knowing the r(B3+) ionic radii of all the B3+ three-charged cations involved in the formation of the solid solutions and their concentration, it is possible to calculate the 〈rB〉 average ionic radius of the generalized B-sub-lattice of the magnetoplumbite structure formed by the iron cations. Such an average ionic radius of the B-sub-lattice is an integral quantitative characteristic of the intensity of the Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+) indirect superexchange interactions. The smaller this radius, the closer the centers of exchange interaction and the higher the intensity of the exchange, and hence the stronger the ferrimagnetic properties.
Figure 2 shows the dependence of the V unit cell volume of the obtained solid solutions on the 〈rB〉 average ionic radius of the generalized B-sub-lattice. It is clearly seen that this dependence is not monotonic and has a minimum for the BaFe6.26Al2.27Cr3.47O19 (c) composition. The V unit cell volume for almost all the compositions is less than one for the initial BaFe12O19 barium hexaferrite. Only for the BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d) composition is the V unit cell volume slightly higher than that for the starting compound. This is explained by the influence of the largest ionic radius of the indium cation.
The non-monotonic dependence of the V unit cell volume with an increase in the average ionic radius of the generalized B-sub-lattice is explained by a change in the mechanism of filling substituent cations of different non-equivalent crystallographic positions. As is known, the structure of the barium hexaferrite contains singly degenerate octahedral position 2a and pentahedral position 2b, doubly degenerate tetrahedral position 4f4 and octahedral position 4f6, as well as six-fold degenerate position 12k [48]. Many data indicate that diamagnetic three-charged cations substitute iron cations predominantly in octahedral positions 2a and 12k [49,50,51]. However, depending on the substitution concentration, the tetrahedral and pentahedral sites can also be filled with such cations [52]. This filling mechanism leads to a significant decrease in the ionic radius, and a minimum can be observed in the presented dependence. Undoubtedly, a detailed study of the mechanism of the filling of iron positions by various cations has yet to be performed, however, such information on the dependence of the V unit cell volume on the 〈rB〉 average ionic radius of the generalized B-sub-lattice will be very useful below for interpreting the magnetic properties of the obtained solid solutions.

3.2. Study of the Surface Morphology and Elemental Composition

The elemental composition of the obtained samples was determined using an X-ray fluorescence analysis. Table 3 presents the results of elemental composition measurements and the gross formula calculated on their basis. From Table 3, it can be seen that the elemental composition of the obtained samples is in good agreement with the initially specified composition. According to our assumptions, the discrepancy between the initially specified composition and that calculated from EDX spectroscopy data is due to the error of the method.
The surface morphology of the resulting ceramics was studied by scanning electron microscopy. Figure 3 shows images of ceramic fracture of the obtained samples. It can be seen from the figure that the samples have an inhomogeneous structure characteristic of ceramics. In the presented images, the particles are clearly visible, having a natural cut. The particles have the shape of a flattened hexagon, characteristic of the hexagonal ferrites.
These photographs show the particle size distribution in the range from 3 to 7 µm. Particles with sizes below and above these values were not observed at all. The relative amount of microparticles with a maximum size of 5 µm was ~45%. The average micro-particle size was in the range of 5.5–6.5 μm. The porosity of ceramics did not exceed ~3%.

3.3. Magnetic Measurements

The field dependencies of the magnetization of the obtained samples are shown in Figure 4 and Figure 5. It can be seen that these dependencies are closed loops due to a magnetic hysteresis. It should be noted that all the curves do not reach saturation in high fields up to 30 kOe.
At low temperatures, the BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d) composition has the maximum magnetization in the maximum field. The minimum magnetization at this temperature was recorded for the BaFe6.26Al2.27Cr3.47O19 (b) composition. The maximum coercivity also exists for the BaFe6.26Al2.27Cr3.47O19 (b) composition. At high temperature, the maximum magnetization in the maximum field was found for the BaFe6.11Al1.56Cr2.17Ga2.16O19 (c) composition. The minimum magnetization at high temperature was found for the BaFe6.26Al2.27Cr3.47O19 (b) composition. The maximum coercivity is also fixed for the BaFe6.26Al2.27Cr3.47O19 (b) composition. After analyzing these two figures, it is possible to extract all the necessary magnetic parameters and generalize them depending on the B-sub-lattice average ionic radius of the magnetoplumbite structure which is presented below.
The Law of Approach to Saturation [53] assumes that a linear extrapolation of the M(H−2) magnetization plotted against the inverse square of the magnetic field strength to the point of intersection with the y-axis will give the value of the Ms saturation magnetization. In this case, the field dependence of the magnetization should be chosen in the mode of decreasing the field from its maximum values. The definition region of the magnetic field is chosen depending on the curvature of the M(H) magnetization field dependence. The data analysis of the field dependencies of the magnetization at two temperatures using this rule are presented in Figure 6. It is clearly seen that the saturation magnetization at 50 K decreases from ~24.80 emu/g for the BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d) composition down to ~1.64 emu/g for the BaFe6.26Al2.27Cr3.47O19 (b) composition. At 300 K, the nature of the change in the Ms saturation magnetization is somewhat different. It decreases from ~6.93 emu/g for the BaFe6.11Al1.56Cr2.17Ga2.16O19 (c) composition down to ~0.20 emu/g for the BaFe6.26Al2.27Cr3.47O19 (b) composition.
When analyzing the data in Figure 6, three features can immediately be distinguished. The first feature is that although all four compositions contain 50% Fe3+ iron cations in the initial positions, the Ms saturation magnetization is different for all of them. This is mainly explained by the different 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond lengths of the cations participating in the indirect superexchange interaction. The 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond length of the indirect superexchange interaction, in the zeroth approximation, is proportional to the unit cell volume, the data for which are presented in Figure 2.
The second feature is the very low value of the Ms saturation magnetization for all the studied compositions compared to the BaFe12O19 initial compound. According to Gorter’s model [54], the maximum magnetic moment per formula unit in the ground state for this compound is 20 μB/f.u., since there is a specific ordering of spins in non-equivalent crystallographic positions. Since the spins in positions 2a, 2b, and 12k are opposite to the spins in positions 4f4 and 4f6, then the total saturation moment, taking into account the degeneracy multiplicity of each position, is 20 μB/f.u., which corresponds to ~100 emu/g for the initial unsubstituted BaFe12O19 barium hexaferrite. The low values of the Ms saturation magnetization of the studied compositions are explained mainly by the diamagnetic dilution of the iron sub-lattice, although the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond length of the indirect superexchange interaction is shorter than that of the initial BaFe12O19 barium hexaferrite. The action of the effect of diamagnetic dilution is stronger than the effect of the convergence of exchange centers.
The third feature is that the lowest value of the Ms saturation magnetization has the composition BaFe6.26Al2.27Cr3.47O19 (b) with the lowest value of the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond length, as can be seen from Figure 2. This is due to the number and type of substituting diamagnetic cations. A large number equal to three substituting cations with an ionic radius less than the ionic radius of the Fe3+ iron cation leads not only to the convergence of exchange centers, which should lead to an increase in the exchange interaction, but also to a significant distortion of the unit cell, and hence to a significant decrease in the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+)〉 average bond angle from 180 degrees, which leads to a weakening of the exchange interaction. The effect of decreasing the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+)〉 average bond angle dominates the effect of decreasing the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond length. Additionally, of course, a decrease in the values of the Ms saturation magnetization with increasing temperature seems to be natural, which is explained by the increasing disordering effect of thermal energy.

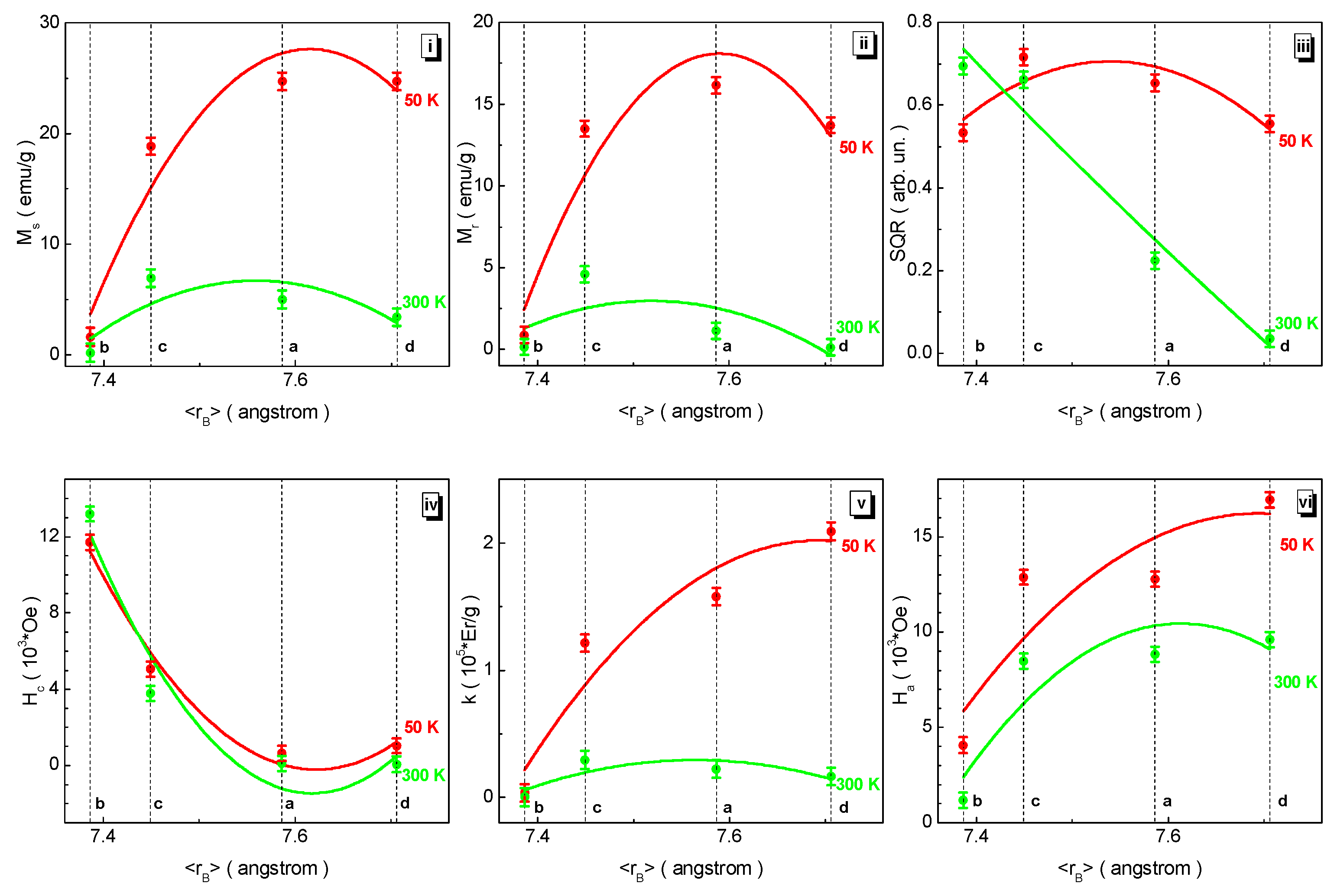

Almost all the dependencies in Figure 7 are non-monotonic with an extremum point or a trend towards it, except for the dependence of the SQR loop squareness at 300 K. The Ms saturation magnetization curves for both temperatures are curved upwards. The maximum points of ~24.71 emu/g at 50 K and ~5.01 emu/g at 300 K in the Ms saturation magnetization are observed for the BaFe5.84Ga6.16O19 (a) composition. The relative change in the Ms saturation magnetization is ~94% for both temperatures. The Mr residual magnetization curves for both temperatures are also curved upwards. The maximum points of the dependencies of the Mr residual magnetization of ~16.16 emu/g at 50 K and ~1.12 emu/g at 300 K are also observed for the BaFe5.84Ga6.16O19 (a) composition. The relative change in the Mr residual magnetization under these conditions is ~94% at 50 K and −17% at 300 K, respectively. The dependencies of the SQR(〈rB〉) loop squareness have a heterogeneous character at different temperatures. At 50 K, this dependence is non-monotonic and has a maximum point of 0.65 arb.un. for the BaFe5.84Ga6.16O19 (a) composition. At 300 K, this dependence is monotonically decreasing and almost linear. The relative change in the SQR loop squareness is ~4% at 50 K and −189% at 300 K. The Hc coercivity curves for both temperatures are curved downwards. The minimum points of ~0.64 kOe at 50 K and ~0.10 kOe at 300 K in the Ms saturation magnetization are observed for the BaFe5.84Ga6.16O19 (a) composition. The Hc coercivity at 50 K relatively changes by −104%, while at 300 K it changes by −2390%.
In the case of uniaxial anisotropy, the k magnetic crystallographic anisotropy coefficient is proportional to the Ms saturation magnetization and the square root of the tangent of the slope of the linear extrapolation of the magnetization plotted as a function of the reciprocal square of the field k = 1.94* × Ms × [tan(φ)]0.5 [55]. This physical quantity was computed for both temperatures and plotted in Figure 7. These curves for both temperatures are curved upwards. At 50 K, the k magnetic crystallographic anisotropy coefficient exhibits a maximum point of ~2.09 × 105 Erg/g for the BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d) composition and relatively changes by ~98%. At 300 K, it has a maximum point of ~0.22 × 105 Erg/g for the BaFe5.84Ga6.16O19 (a) composition and changes by ~99%.
The Ha anisotropy field is directly proportional to the k magnetic crystallographic anisotropy coefficient and inversely proportional to the Ms saturation magnetization Ha = 2*k/Ms [56]. This physical quantity was also computed for both temperatures and plotted in Figure 7. These curves for both temperatures are curved upwards. The maximum points of ~16.92 kOe and ~9.61 kOe are fixed at 50 K and 300 K, respectively, for the BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d) composition. The Ha anisotropy field has the relative change of ~76% and ~88% at 50 K and 300 K, respectively.

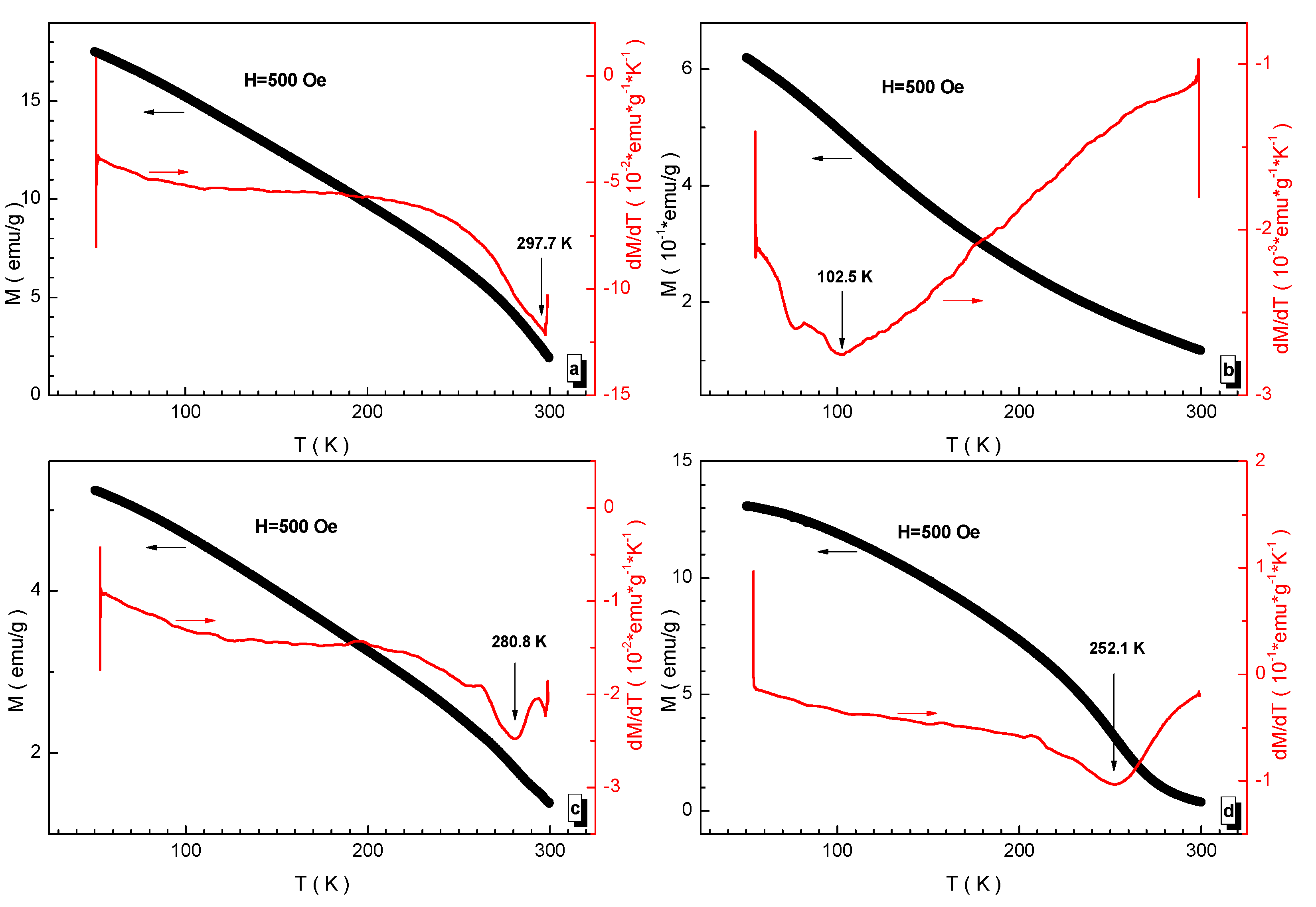

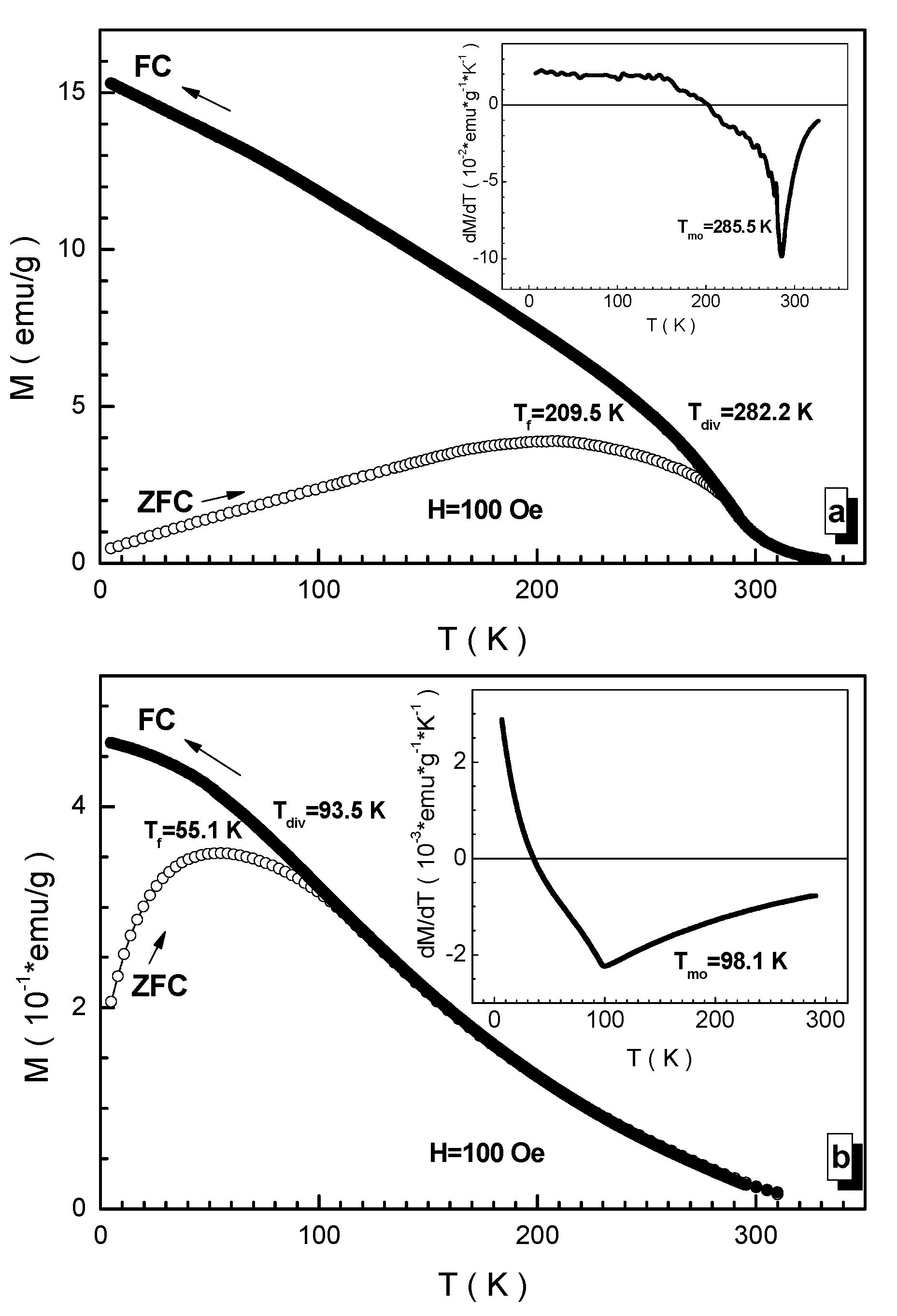

The temperature behavior of the magnetization is measured in a field of 500 Oe and it is shown in Figure 8. All the compositions experience an almost complete transition to the paramagnetic state up to 300 K. It should be noted that the transition temperature range is rather wide, which is typical for systems that are not completely homogeneous or frustrated. The transition temperature was determined from the point of minimum of the first derivative of magnetization with respect to temperature. It should also be noted that even the highest Tmo magnetic ordering temperature of ~297.7 K recorded for the BaFe5.84Ga6.16O19 (a) composition is significantly lower, by more than two times, than the Curie temperature of ~730 K [13] for the initial BaFe12O19 barium hexaferrite.
Experimentation into the understanding of the nature of magnetic interactions of multisubstituted barium hexaferrites was carried out in the process of measuring the magnetization in a weak magnetic field in the so-called ZFC and FC modes. Measurements in such regimes make it possible to establish the spin dynamics and the magnetic state of the compositions under study. From Figure 9, a set of critical temperatures can be determined. Figure 9 clearly shows that the ZFC and FC curves differ significantly below the Tdiv divergence temperature. The FC curve tends to saturation, while the ZFC curve experiences a drop after reaching a maximum. The temperature of the maximum of the ZFC curve is the Tf freezing temperature of the spins. It is ~209.5 K for the BaFe5.84Ga6.16O19 (a) composition and ~55.1 K for the BaFe6.26Al2.27Cr3.47O19 (b) composition. This temperature determines, according to the Bean–Livingston model [57], the average diameter of a magnetically ordered cluster in a magnetically disordered matrix. According to this, model representations of a region with a frustrated orientation of spins are located in a medium with a long-range magnetic order of moments. According to the Bean–Livengston relation, the average size of such clusters varies up to ~200 nm [58]. At the same time, the Tdiv divergence temperature of the ZFC and FC curves determines the diameter of the largest magnetically ordered cluster and for these samples they are ~282.2 K and ~93.5 K (see Figure 9). The diameter of the maximum cluster reaches ~300 nm. The Tmo magnetic ordering temperatures in a field of 100 Oe have slightly lower values.

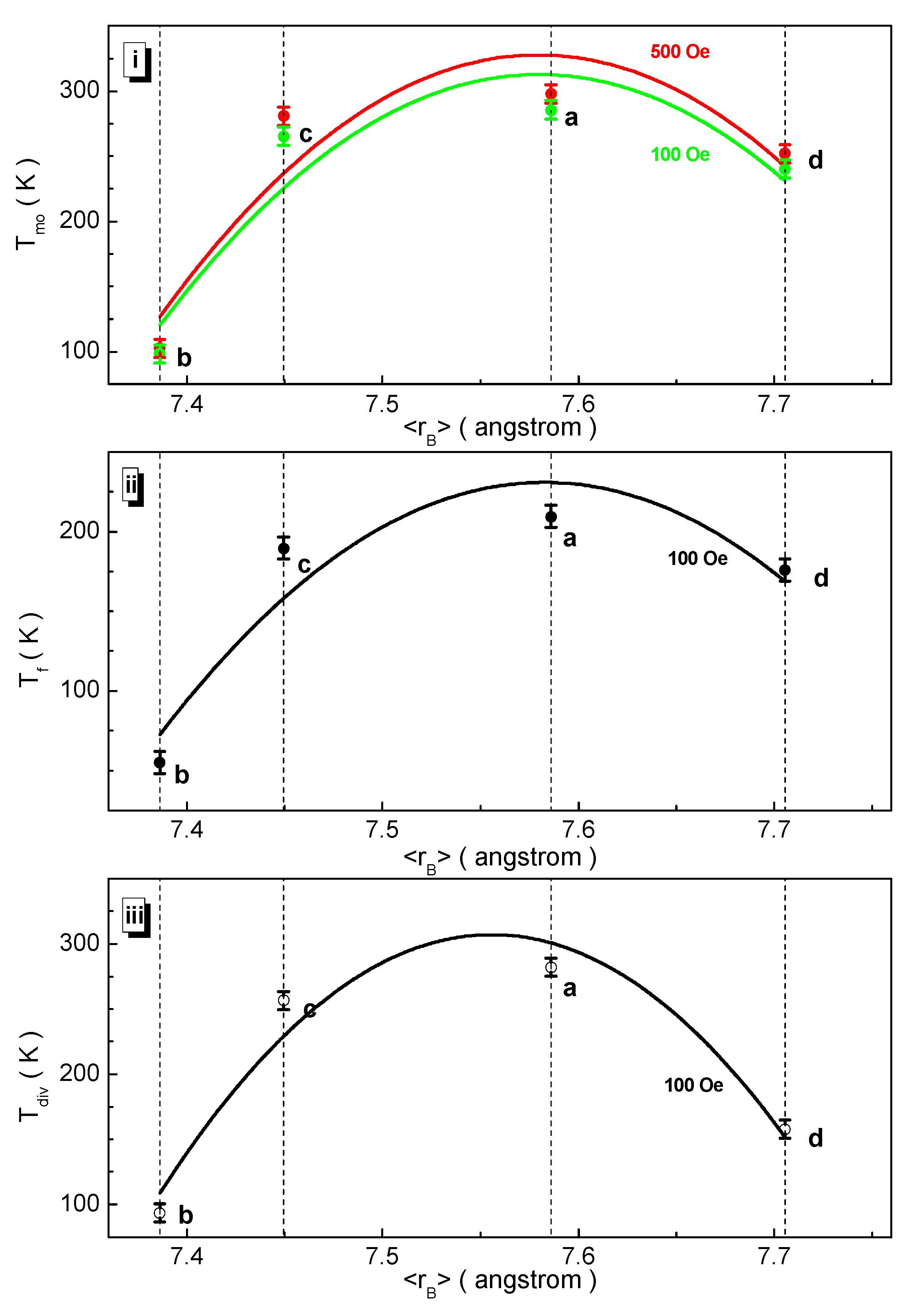

The dependencies of the critical temperatures on the B-sub-lattice average ionic radius presented in Figure 10 are non-monotonic and curved upwards. The maximum points of Tmo(100 Oe) = 285.5 K, Tmo(500 Oe) = 297.7 K, Tf = 209.5 K, and Tdiv = 282.2 K are observed for the BaFe5.84Ga6.16O19 (a) composition. The Tmo magnetic ordering temperature relatively changes by 59% in 100 Oe and 500 Oe. The Tf freezing temperature relatively changes by 69%. The Tdiv divergence temperature experiences a relative change of 41%.
Thus, the multisubstitution of the Fe3+ iron cations mainly by the Al3+, Cr3+, Ga3+, and In3+ diamagnetic cations leads to a weakening of the Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+) indirect superexchange interactions and the formation of a frustrated magnetic state, which is an inhomogeneous arrangement of magnetically disordered nano-sized clusters in a magnetically ordered matrix. Although the radius of the substituting cations is less than the radius of the iron cation, which leads to a decrease in the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond length, this does not lead to an increase in the intensity of indirect superexchange interactions. This is due to the inhomogeneous distribution of substituting cations, the diamagnetic nature of these cations, as well as a strong distortion of the unit cell.

4. Conclusions

A series of the barium hexaferrite solid solutions with a magnetoplumbite structure was obtained by solid-phase synthesis, in which some of the iron atoms (about 50%) are substituted by three-charged Al3+, Cr3+, Ga3+, and In3+ cations of different elements, while the number of substituting cations increases from one to four, and their concentrations in the total number are close. The results of the work on the synthesis give grounds to believe that the use of a complex of dopants compared to substitution with one cation makes it possible to achieve deeper degrees of iron substitution. From the point of view of the thermodynamics of phase equilibria, the greater stability of phases with multicomponent substitution can be explained by an increase in the configurational mixing entropy of the sub-lattice formed by the Fe3+ iron cations, which leads to a decrease in the Gibbs energy of the phase as a whole. From the crystallography point of view, the presence of a large number of substituents with ionic radii both larger (In3+) than that of the Fe3+ iron cation and smaller (Al3+, Cr3+, and Ga3+) ones leads to the fact that the unit cell parameters of the multicomponent structure, on average, approach the parameters of the initial BaFe12O19 barium hexaferrite. The values of the configurational mixing entropy were calculated for all the compositions. A slight deviation of the chemical composition of the obtained solid solutions from the nominal value was established by the energy-dispersive X-ray spectroscopy method. The phase purity and values of the unit cell parameters were refined from X-ray scattering data using full-profile analysis in the Rietveld method. A non-monotonic behavior of the unit cell parameters as a function of the B-sub-lattice average ionic radius of the magnetoplumbite structure was found. A minimum unit cell volume of ~667.15 Å3 was found for the composition BaFe6.11Al1.56Cr2.17Ga2.16O19 with a B-sub-lattice average ionic radius of ~7.449 Å. The average crystallite size varied within 5.5–6.5 μm. The temperature and field dependencies of the magnetization have been measured. The values of the saturation magnetization, residual magnetization, hysteresis loop squareness, and coercivity at 50 K and 300 K were extracted from the experimental data. Using the Law of Approach to Saturation, the magnetic crystallographic anisotropy coefficient and anisotropy field were calculated. Multisubstitution leads to a significant decrease in such magnetic parameters as the Curie temperature and spontaneous magnetization at both temperatures. A maximum Curie temperature of ~297.7 K was found for the composition BaFe5.84Ga6.19O19 with a B-sub-lattice average ionic radius of ~7.586 Å in a field of 500 Oe. A maximum saturation magnetization of ~24.7 emu/g was found for the composition BaFe5.84Ga6.19O19 with a B-sub-lattice average ionic radius of ~7.586 Å at 50 K. A maximum hysteresis loop squareness of ~0.72 was found for the composition BaFe6.11Al1.56Cr2.17Ga2.16O19 with an average ionic radius of ~7.449 Å at 50 K. A maximum magnetic crystallographic anisotropy coefficient of ~2.09 × 105 Erg/g was found for the composition BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 with a B-sub-lattice average ionic radius of ~7.706 Å at 50 K. The frustrated magnetic state including the nano-sized clusters with an average diameter in the range of 50–200 nm was established from the results of measuring the ZFC and FC temperature magnetizations. The multisubstitution of the Fe3+ iron cations mainly by the diamagnetic cations leads to a weakening of the Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+) indirect superexchange interactions and the formation of a frustrated magnetic state, which is an inhomogeneous arrangement of magnetically disordered nano-sized clusters in a magnetically ordered matrix. This type of substitution leads to a decrease in the 〈Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−〉 average bond length, however, this does not lead to an increase in the intensity of indirect superexchange interactions. This is due to the inhomogeneous distribution of substituting cations, the diamagnetic nature of these cations, as well as a strong distortion of the unit cell. The interpretation of the obtained experimental data is carried out taking into account the increased stability of high-entropy phases and regular changes in the intensity of the Fe3+(Al3+, Cr3+, Ga3+, In3+)–O2−–Fe3+(Al3+, Cr3+, Ga3+, In3+) indirect superexchange interactions as a result of magnetic dilution of the iron sub-lattice in the magnetoplumbite structure.

Author Contributions

Conceptualization—V.E.Z., D.A.V., E.A.T., S.V.T. (Sergei V. Trukhanov) and A.V.T.; methodology—V.E.Z., D.P.S., O.V.Z., N.A.C., D.I.T. and T.I.Z.; validation—V.E.Z., D.P.S., O.V.Z., N.A.C., S.I.L., D.I.T. and T.I.Z.; formal analysis—O.V.Z., D.A.V., S.V.T. (Sergey V. Taskaev), E.A.T., S.V.T. (Sergei V. Trukhanov), S.I.L. and A.V.T.; investigation—D.P.S., O.V.Z., N.A.C., S.V.T. (Sergei V. Trukhanov) and A.V.T.; resources—O.V.Z., N.A.C., D.A.V., S.V.T. (Sergey V. Taskaev), E.A.T., S.I.L., D.I.T. and T.I.Z.; data curation—O.V.Z., D.A.V., S.V.T. (Sergey V. Taskaev), E.A.T., S.V.T. (Sergei V. Trukhanov) and A.V.T.; writing—original draft preparation—V.E.Z., S.V.T. (Sergei V. Trukhanov) and A.V.T.; review and editing—S.I.L., S.V.T. (Sergei V. Trukhanov) and A.V.T.; visualization—V.E.Z., D.P.S., N.A.C., D.I.T. and T.I.Z.; supervision—D.A.V., E.A.T., S.V.T. (Sergei V. Trukhanov) and A.V.T.; project administration—D.A.V., S.V.T. (Sergey V. Taskaev), E.A.T., S.V.T. (Sergei V. Trukhanov) and A.V.T.; funding acquisition—D.A.V., E.A.T., S.V.T. (Sergei V. Trukhanov) and A.V.T. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the Russian Science Foundation (project No. 18-73-10049).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Guillissen, J.; Van Rysselberghe, P.J. Studies on zinc and barium ferrites. J. Electrochem. Soc. 1931, 59, 95–106. [Google Scholar] [CrossRef]
  2. Watson, M.L.; Beard, R.A.; Kientz, S.M.; Feebeck, T.W. Investigation of thermal demagnetization effects in data recorded on advanced barium ferrite recording media. IEEE Trans. Magn. 2008, 44, 3568–3571. [Google Scholar] [CrossRef]
  3. Huang, K.; Yu, J.; Zhang, L.; Xu, J.; Yang, Z.; Liu, C.; Wang, W.; Kan, X. Structural and magnetic properties of Gd–Zn substituted M-type Ba–Sr hexaferrites by sol-gel auto-combustion method. J. Alloys Compd. 2019, 803, 971–980. [Google Scholar] [CrossRef]
  4. Zhang, W.; Li, J.; Yi, S.; Zu, P.; Wu, J.; Lin, J.; Li, M.; Su, W. Influence of La-Nb co-substituted Sr ferrite on microstructure, spectrum and magnetic properties of hexaferrites. J. Alloys Compd. 2021, 871, 159563. [Google Scholar] [CrossRef]
  5. Liu, J.; Peng, X.; Li, J.; Yang, Y.; Xu, J.; Hong, B.; Gong, J.; Han, Y.; Ge, H.; Wang, X. Highly improved middle to higher frequency magnetic performance of Fe-based soft magnetic composites with insulating Co2Z hexaferrites. J. Magn. Magn. Mater. 2021, 538, 168297. [Google Scholar] [CrossRef]
  6. Almessiere, M.A.; Slimani, Y.; Algarou, N.A.; Gondal, M.A.; Wudil, Y.S.; Younas, M.; Auwal, I.A.; Baykal, A.; Manikandan, A.; Zubar, T.I.; et al. Electronic, magnetic, and microwave properties of hard/soft nanocomposites based on hexaferrite SrNi0.02Zr0.02Fe11.96O19 with variable spinel phase MFe2O4 (M = Mn, Co, Cu, and Zn). Ceram. Int. 2021, 47, 35209–35223. [Google Scholar] [CrossRef]
  7. Darwish, M.A.; Turchenko, V.A.; Morchenko, A.T.; Kostishyn, V.G.; Timofeev, A.V.; Sayyed, M.I.; Sun, Z.; Podgornaya, S.V.; Trukhanova, E.L.; Kaniukov, E.Y.; et al. Heterovalent substituted BaFe12-xSnxO19 (0.1 ≤ x ≤ 1.2) M-type hexaferrite: Chemical composition, phase separation, magnetic properties and electrodynamics features. J. Alloys Compd. 2022, 896, 163117. [Google Scholar] [CrossRef]
  8. Ismail, I.; Muhammad Zulkimi, M.M.; Azis, R.S.; Mustaffa, M.S.; Hamidon, M.N.; Ertugrul, M.; Yesilbag, Y.O.; Tuzluca, F.N.; Hasan, I.H.; Ozturk, G.; et al. Effect of Mn and Zn doping on natural resonance frequency of strontium U-type hexaferrite and its performance as electromagnetic wave absorbers. J. Alloys Compd. 2022, 898, 163246. [Google Scholar] [CrossRef]
  9. Wang, C.; Ma, X.; Xu, C.; Chen, H.; Chen, Y.; Chen, F.; Kang, B.; Lu, W.; Zhang, J.; Cao, S. Magnetic field-induced polarization reversal in Y-type hexaferrites Ba0.7Sr1.3CoZnFe11AlO22 single crystals. Ceram. Int. 2021, 47, 19356–19361. [Google Scholar] [CrossRef]
  10. Bhaduri, A.; Singh, S.; Thapa, K.B.; Yadav, B.C. Visible light-induced, highly responsive, below lower explosive limit (LEL) LPG sensor based on hydrothermally synthesized barium hexaferrite nanorods. Sens. Actuators B Chem. 2021, 348, 130714. [Google Scholar] [CrossRef]
  11. Rajaji, U.; Chinnapaiyan, S.; Chen, T.-W.; Chen, S.-M.; Mani, G.; Mani, V.; Ali, M.A.; Al-Hemaid, F.M.A.; El-Shikh, M.S. Rational construction of novel strontium hexaferrite decorated graphitic carbon nitrides for highly sensitive detection of neurotoxic organophosphate pesticide in fruits. Electrochim. Acta 2021, 371, 137756. [Google Scholar] [CrossRef]
  12. Granja-Banguera, C.P.; Silgado-Cortázar, D.G.; Morales-Morales, J.A. Transition metal substituted barium hexaferrite-modified electrode: Application as electrochemical sensor of acetaminophen. Molecules 2022, 27, 1550. [Google Scholar] [CrossRef] [PubMed]
  13. Trukhanov, S.V.; Trukhanov, A.V.; Turchenko, V.A.; Kostishyn, V.G.; Panina, L.V.; Kazakevich, I.S.; Balagurov, A.M. Structure and magnetic properties of BaFe11.9In0.1O19 hexaferrite in a wide temperature range. J. Alloys Compd. 2016, 689, 383–393. [Google Scholar] [CrossRef]
  14. Zhang, W.; Bai, Y.; Han, X.; Wang, L.; Lu, X.; Qiao, L. Magnetic properties of Co–Ti substituted barium hexaferrite. J. Alloys Compd. 2013, 546, 234–238. [Google Scholar] [CrossRef]
  15. Han, G.; Sui, R.; Yu, Y.; Wang, L.; Li, M.; Li, J.; Liu, H.; Yang, W. Structure and magnetic properties of the porous Al-substituted barium hexaferrites. J. Magn. Magn. Mater. 2021, 528, 167824. [Google Scholar] [CrossRef]
  16. Lohmaah, A.; Chokprasombat, K.; Pinitsoontorn, S.; Sirisathitkul, C. Magnetic properties and morphology copper-substituted barium hexaferrites from sol-gel auto-combustion synthesis. Materials 2021, 14, 5873. [Google Scholar] [CrossRef] [PubMed]
  17. Trukhanov, S.V.; Trukhanov, A.V.; Kostishin, V.G.; Panina, L.V.; Kazakevich, I.S.; Turchenko, V.A.; Oleinik, V.V.; Yakovenko, E.S.; Matsui, L.Y. Magnetic and absorbing properties of M-type substituted hexaferrites BaFe12−xGaxO19 (0.1 < x < 1.2). J. Exp. Theor. Phys. 2016, 123, 461–469. [Google Scholar] [CrossRef]
  18. Trukhanov, S.V.; Trukhanov, A.V.; Kostishyn, V.G.; Zabeivorota, N.I.; Panina, L.V.; Trukhanov, A.V.; Turchenko, V.A.; Trukhanova, E.L.; Oleynik, V.V.; Yakovenko, O.S.; et al. High-frequency absorption properties of gallium weakly doped barium hexaferrites. Philos. Mag. 2019, 99, 585–605. [Google Scholar] [CrossRef]
  19. Gorbachev, E.A.; Trusov, L.A.; Wu, M.; Vasiliev, A.V.; Svetogorov, R.D.; Alyabyeva, L.N.; Lebedev, V.A.; Sleptsova, A.E.; Karpov, M.A.; Mozharov, Y.M.; et al. Submicron particles of Ga-substituted strontium hexaferrite obtained by a citrate auto-combustion method. J. Mater. Chem. C 2021, 9, 13832–13840. [Google Scholar] [CrossRef]
  20. Trukhanov, A.V.; Turchenko, V.O.; Bobrikov, I.A.; Trukhanov, S.V.; Kazakevich, I.S.; Balagurov, A.M. Crystal structure and magnetic properties of the BaFe12−xAlxO19 (x = 0.1–1.2) solid solutions. J. Magn. Magn. Mater. 2015, 393, 253–259. [Google Scholar] [CrossRef]
  21. Ahmed, A.G.; Prokhorov, A.S.; Anzin, V.B.; Vinnik, D.A.; Bush, A.; Gorshunov, B.P.; Alyabyeva, L.N. Origin of terahertz excitations in single-crystalline lead substituted M-type barium hexaferrite doped with Al. J. Phys. Conf. Ser. 2021, 1984, 012015. [Google Scholar] [CrossRef]
  22. Wu, C.; Liu, Q.; Yin, Q.; Chen, J.; Zhang, H.; Liu, Y. Room-temperature multiferroic properties of Al-doped hexaferrites sintered at high oxygen atmospheric concentrations. Ceram. Int. 2021, 47, 21398–21403. [Google Scholar] [CrossRef]
  23. Kumar, S.; Supriya, S.; Kar, M. Correlation between temperature dependent dielectric and DC resistivity of Cr substituted barium hexaferrite. Mater. Res. Express 2017, 4, 126302. [Google Scholar] [CrossRef]
  24. Sözeri, H.; Genç, F.; Almessiere, M.A.; Ünver, İ.S.; Korkmaz, A.D.; Baykal, A. Cr3+-substituted Ba nanohexaferrites as high-quality microwave absorber in X band. J. Alloys Compd. 2019, 779, 420–426. [Google Scholar] [CrossRef]
  25. Yang, Y.; Feng, S.; Kan, X.; Lv, Q.; Trukhanov, A.V.; Trukhanov, S.V. Synthesis, Magnetic and electrical characteristics of Ba-Sr hexaferrites substituted with samarium, chromium and aluminum. ChemistrySelect 2021, 6, 470–479. [Google Scholar] [CrossRef]
  26. Turchenko, V.; Kostishin, V.G.; Trukhanov, S.; Damay, F.; Balasoiu, M.; Bozzo, B.; Fina, I.; Burkhovetsky, V.V.; Polosan, S.; Zdorovets, M.V.; et al. Structural features, magnetic and ferroelectric properties of SrFe10.8In1.2O19 compound. Mater. Res. Bull. 2021, 138, 111236. [Google Scholar] [CrossRef]
  27. Turchenko, V.A.; Trukhanov, S.V.; Kostishin, V.G.; Damay, F.; Porcher, F.; Klygach, D.S.; Vakhitov, M.G.; Lyakhov, D.; Michels, D.; Bozzo, B.; et al. Features of structure, magnetic state and electrodynamic performance of SrFe12−xInxO19. Sci. Rep. 2021, 11, 18342. [Google Scholar] [CrossRef]
  28. Turchenko, V.A.; Trukhanov, S.V.; Kostishin, V.G.; Damay, F.; Porcher, F.; Klygach, D.S.; Vakhitov, M.G.; Matzui, L.Y.; Yakovenko, O.S.; Bozzo, B.; et al. Impact of In3+ cations on structure and electromagnetic state of M-type hexaferrites. J. Energy Chem. 2022, 69, 667–676. [Google Scholar] [CrossRef]
  29. Vinnik, D.A.; Zhivulin, V.E.; Trofimov, E.A.; Starikov, A.Y.; Zherebtsov, D.A.; Zaitseva, O.V.; Gudkova, S.A.; Taskaev, S.V.; Klygach, D.S.; Vakhitov, M.G.; et al. Extremely polysubstituted magnetic material based on magnetoplumbite with a hexagonal structure: Synthesis, structure, properties, prospects. Nanomaterials 2019, 9, 559. [Google Scholar] [CrossRef] [Green Version]
  30. McCormack, S.J.; Navrotsky, A. Thermodynamics of high entropy oxides. Acta Mater. 2021, 202, 1–21. [Google Scholar] [CrossRef]
  31. Yeh, J.W.; Chen, S.K.; Lin, S.J.; Gan, J.Y.; Chin, T.S.; Shun, T.T.; Tsau, C.H.; Chang, S.Y. Nanostructured high-entropy alloys with multiple principal elements: Novel alloy design concepts and outcomes. Adv. Eng. Mater. 2004, 6, 299–303. [Google Scholar] [CrossRef]
  32. Musicó, B.L.; Gilbert, D.; Ward, T.Z.; Page, K.; George, E.; Yan, J.; Mandrus, D.; Keppens, V. The emergent field of high entropy oxides: Design, prospects, challenges, and opportunities for tailoring material properties featured. APL Mater. 2020, 8, 040912. [Google Scholar] [CrossRef] [Green Version]
  33. Wang, B.; Yao, J.; Wang, J.; Chang, A. Spinel-type high-entropy (Co0.2Mn0.2Fe0.2Zn0.2Ti0.2)3O4 oxides constructed from disordered cations and oxygen vacancies. J. Alloys Compd. 2022, 897, 163188. [Google Scholar] [CrossRef]
  34. Vinnik, D.A.; Zhivulin, V.E.; Trofimov, E.A.; Gudkova, S.A.; Punda, A.Y.; Valiulina, A.N.; Gavrilyak, M.; Zaitseva, O.V.; Taskaev, S.V.; Khandaker, M.U.; et al. A-site cation size effect on structure and magnetic properties of Sm(Eu,Gd)Cr0.2Mn0.2Fe0.2Co0.2Ni0.2O3 high-entropy solid solutions. Nanomaterials 2022, 12, 36. [Google Scholar] [CrossRef]
  35. Dąbrowa, J.; Cieślak, J.; Zajusz, M.; Moździerz, M.; Berent, K.; Mikuła, A.; Stępień, A.; Świerczek, K. Structure and transport properties of the novel (Dy,Er,Gd,Ho,Y)3Fe5O12 and (Dy,Gd,Ho,Sm,Y)3Fe5O12 high entropy garnets. J. Eur. Ceram. Soc. 2021, 41, 3844–3849. [Google Scholar] [CrossRef]
  36. Vinnik, D.A.; Trofimov, E.A.; Zhivulin, V.E.; Zaitseva, O.V.; Gudkova, S.A.; Starikov, A.Y.; Zherebtsov, D.A.; Kirsanova, A.A.; Häßner, M.; Niewa, R. High-entropy oxide phases with magnetoplumbite structure. Ceram. Int. 2019, 45, 12942–12948. [Google Scholar] [CrossRef]
  37. Vinnik, D.A.; Trofimov, E.A.; Zhivulin, V.E.; Zaitseva, O.V.; Zherebtsov, D.A.; Starikov, A.Y.; Sherstyuk, D.P.; Gudkova, S.A.; Taskaev, S.V. The new extremely substituted high entropy (Ba,Sr,Ca,La)Fe6−x(Al,Ti,Cr,Ga,In,Cu,W)xO19 microcrystals with magnetoplumbite structure. Ceram. Int. 2020, 46, 9656–9660. [Google Scholar] [CrossRef]
  38. Vinnik, D.A.; Trukhanov, A.V.; Podgornov, F.V.; Trofimov, E.A.; Zhivulin, V.E.; Starikov, A.Y.; Zaitseva, O.V.; Gudkova, S.A.; Kirsanova, A.A.; Taskaev, S.V.; et al. Correlation between entropy state, crystal structure, magnetic and electrical properties in M-type Ba-hexaferrites. J. Eur. Ceram. Soc. 2020, 40, 4022–4028. [Google Scholar] [CrossRef]
  39. Trukhanov, A.V.; Vinnik, D.A.; Trofimov, E.A.; Zhivulin, V.E.; Zaitseva, O.V.; Taskaev, S.V.; Zhou, D.; Astapovich, K.A.; Trukhanov, S.V.; Yang, Y. Correlation of the Fe content and entropy state in multiple substituted hexagonal ferrites with magnetoplumbite structure. Ceram. Int. 2021, 47, 17684–17692. [Google Scholar] [CrossRef]
  40. Akrami, S.; Edalati, P.; Fuji, M.; Edalati, K. High-entropy ceramics: Review of principles, production and applications. Mater. Sci. Eng. R 2021, 146, 100644. [Google Scholar] [CrossRef]
  41. Trukhanov, S.V.; Trukhanov, A.V.; Salem, M.M.; Trukhanova, E.L.; Panina, L.V.; Kostishyn, V.G.; Darwish, M.A.; Trukhanov, A.V.; Zubar, T.I.; Tishkevich, D.I.; et al. Preparation and investigation of structure, magnetic and dielectric properties of (BaFe11.9Al0.1O19)1-x-(BaTiO3)x bicomponent ceramics. Ceram. Int. 2018, 44, 21295–21302. [Google Scholar] [CrossRef]
  42. Rietveld, H.M. A profile refinement method for nuclear and magnetic structures. J. Appl. Cryst. 1969, 2, 65–71. [Google Scholar] [CrossRef]
  43. Almessiere, M.A.; Slimani, Y.; Algarou, N.A.; Vakhitov, M.G.; Klygach, D.S.; Baykal, A.; Zubar, T.I.; Trukhanov, S.V.; Trukhanov, A.V.; Attia, H.; et al. Tuning the structure, magnetic and high frequency properties of Sc-doped Sr0.5Ba0.5ScxFe12-xO19/NiFe2O4 hard/soft nanocomposites. Adv. Electr. Mater. 2022, 8, 2101124. [Google Scholar] [CrossRef]
  44. Trukhanov, S.V. Peculiarities of the magnetic state in the system La0.70Sr0.30MnO3−γ (0 ≤ γ ≤ 0.25). J. Exp. Theor. Phys. 2005, 100, 95–105. [Google Scholar] [CrossRef]
  45. Grossinger, R. Correlation between the inhomogeneity and the magnetic anisotropy in polycrystalline ferromagnetic materials. J. Magn. Magn. Mater. 1982, 28, 137–142. [Google Scholar] [CrossRef]
  46. Trukhanov, S.V.; Troyanchuk, I.O.; Trukhanov, A.V.; Szymczak, H.; Szymczak, R.; Baran, M. Magnetic and electrotransport properties of the anion-deficient manganites with perovskite structure. J. Low Temp. Phys. 2005, 139, 2005. [Google Scholar] [CrossRef]
  47. Shannon, R.D.; Prewitt, C.T. Effective ionic radii in oxides and fluorides. Acta Cryst. B 1969, 25, 925–946. [Google Scholar] [CrossRef]
  48. Trukhanov, S.V.; Trukhanov, A.V.; Turchenko, V.A.; Kostishin, V.G.; Panina, L.V.; Kazakevich, I.S.; Balagurov, A.M. Crystal structure and magnetic properties of the BaFe12-xInxO19 (x = 0.1–1.2) solid solutions. J. Magn. Magn. Mater. 2016, 417, 130–136. [Google Scholar] [CrossRef]
  49. Trukhanov, S.V.; Trukhanov, A.V.; Kostishyn, V.G.; Panina, L.V.; Turchenko, V.A.; Kazakevich, I.S.; Trukhanov, A.V.; Trukhanova, E.L.; Natarov, V.O.; Balagurov, A.M. Thermal evolution of exchange interactions in lightly doped barium hexaferrites. J. Magn. Magn. Mater. 2017, 426, 554–562. [Google Scholar] [CrossRef]
  50. Trukhanov, A.V.; Trukhanov, S.V.; Kostishyn, V.G.; Panina, L.V.; Korovushkin, V.V.; Turchenko, V.A.; Vinnik, D.A.; Yakovenko, E.S.; Zagorodnii, V.V.; Launetz, V.L.; et al. Correlation of the atomic structure, magnetic properties and microwave characteristics in substituted hexagonal ferrites. J. Magn. Magn. Mater. 2018, 462, 127–135. [Google Scholar] [CrossRef]
  51. Trukhanov, S.V.; Trukhanov, A.V.; Panina, L.V.; Kostishyn, V.G.; Turchenko, V.A.; Trukhanova, E.L.; Trukhanov, A.V.; Zubar, T.I.; Ivanov, V.M.; Tishkevich, D.I.; et al. Temperature evolution of the structure parameters and exchange interactions in BaFe12-xInxO19. J. Magn. Magn. Mater. 2018, 466, 393–405. [Google Scholar] [CrossRef]
  52. Trukhanov, A.V.; Turchenko, V.A.; Kostishin, V.G.; Damay, F.; Porcher, F.; Lupu, N.; Bozzo, B.; Fina, I.; Polosan, S.; Silibin, M.V.; et al. The origin of the dual ferroic properties in quasi-centrosymmetrical SrFe12-xInxO19 hexaferrites. J. Alloys Compd. 2021, 886, 161249. [Google Scholar] [CrossRef]
  53. Topkaya, R. Effect of composition and temperature on the magnetic properties of BaBixLaxFe(12−2x)O19 (0.0 ≤ x ≤ 0.2) hexaferrites. Appl. Phys. A 2017, 123, 488. [Google Scholar] [CrossRef]
  54. Gorter, E.W. Saturation magnetization of some ferrimagnetic oxides with hexagonal crystal structures. Proc. IEE Part B 1957, 104, 255–260. [Google Scholar] [CrossRef]
  55. Herbst, J.F.; Pinkerton, F.E. Law of approach to saturation for polycrystalline ferromagnets: Remanent initial state. Phys. Rev. B 1998, 57, 10733–10739. [Google Scholar] [CrossRef]
  56. Almessiere, M.A.; Slimani, Y.; Güngüneş, H.; Korkmaz, A.D.; Zubar, T.; Trukhanov, S.; Trukhanov, A.; Manikandan, A.; Alahmari, F.; Baykal, A. Influence of Dy3+ ions on microstructure, magnetic, electrical and microwave properties of [Ni0.4Cu0.2Zn0.4](Fe2−xDyx)O4 (0.00 < x < 0.04) spinel ferrites. ACS Omega 2021, 6, 10266–10280. [Google Scholar] [CrossRef]
  57. Bean, C.P.; Livingstone, J.D. Superparamagnetism. J. Appl. Phys. 1959, 30, S120–S129. [Google Scholar] [CrossRef]
  58. Cornia, A.; Barra, A.-L.; Bulicanu, V.; Clérac, R.; Cortijo, M.; Hillard, E.A.; Galavotti, R.; Lunghi, A.; Nicolini, A.; Rouzières, M.; et al. The origin of magnetic anisotropy and single-molecule magnet behavior in chromium(II)-based extended metal atom chains. Inorg. Chem. 2020, 59, 1763–1777. [Google Scholar] [CrossRef]
Nanomaterials 12 01306 g001 550

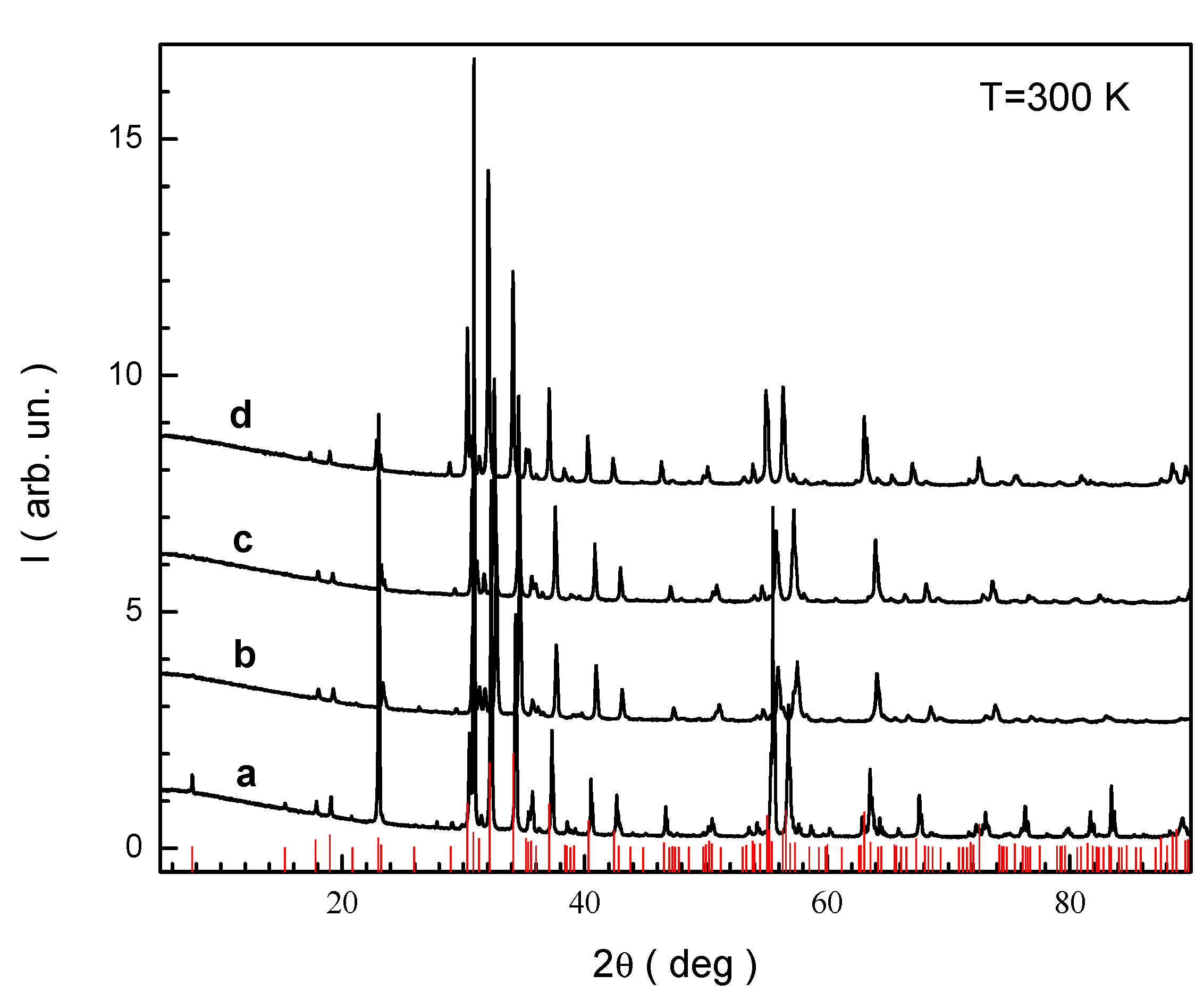

Figure 1. X-ray diffraction patterns at 300 K for the (a) BaFe5.84Ga6.19O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19. Red bars are the Braggs reflections for the initial BaFe12O19 compound (PDF#43-0002).
Figure 1. X-ray diffraction patterns at 300 K for the (a) BaFe5.84Ga6.19O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19. Red bars are the Braggs reflections for the initial BaFe12O19 compound (PDF#43-0002).
Nanomaterials 12 01306 g001
Nanomaterials 12 01306 g002 550

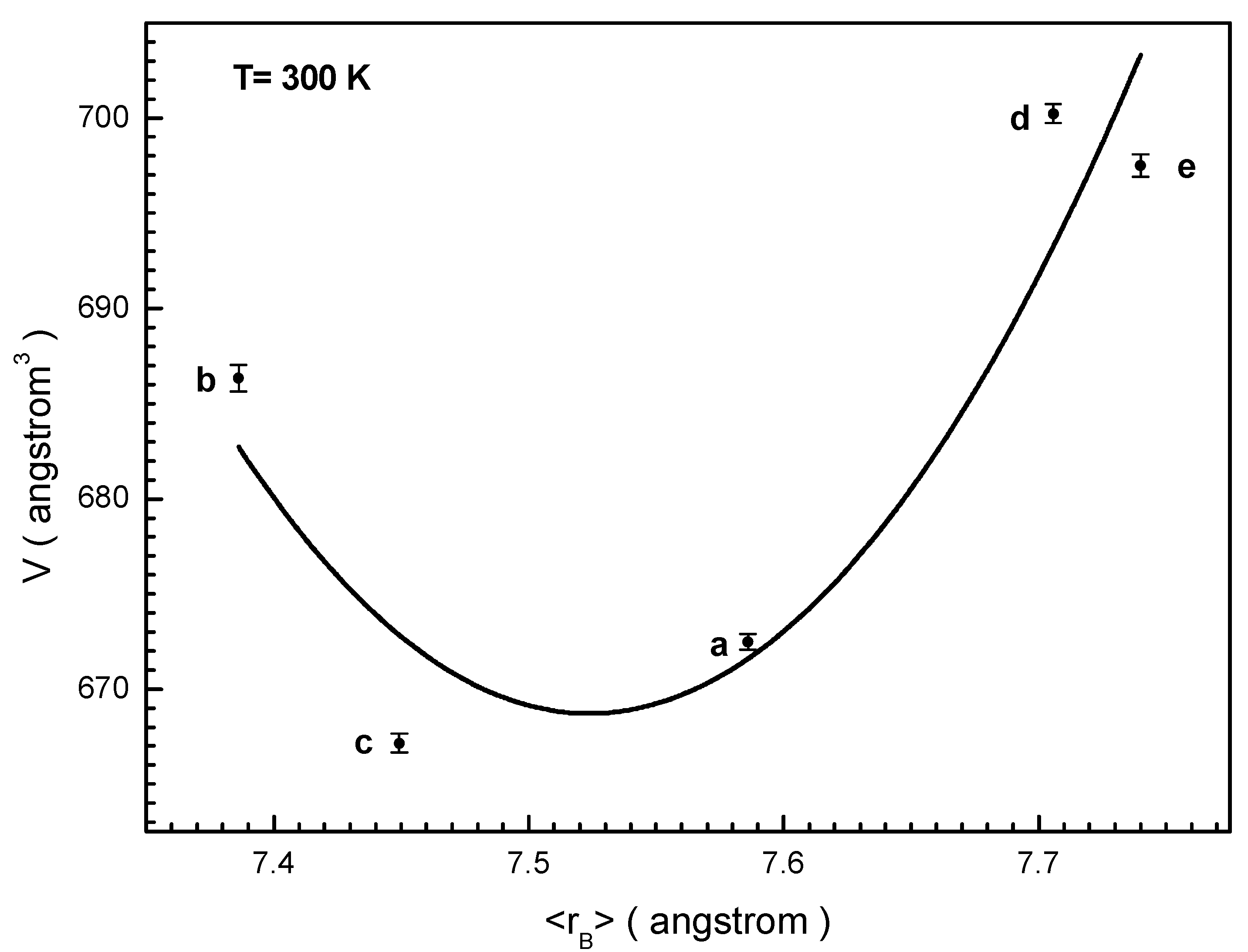

Figure 2. Dependence unit cell volume vs. 〈rB〉 average radius of B sub-lattice at 300 K for the (a) BaFe5.84Ga6.19O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Gr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19, (e) initial BaFe12O19 compound. The line is the second order polynomial interpolation of experimental data.
Figure 2. Dependence unit cell volume vs. 〈rB〉 average radius of B sub-lattice at 300 K for the (a) BaFe5.84Ga6.19O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Gr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19, (e) initial BaFe12O19 compound. The line is the second order polynomial interpolation of experimental data.
Nanomaterials 12 01306 g002
Nanomaterials 12 01306 g003a 550Nanomaterials 12 01306 g003b 550
Figure 3. Scanning electron images of ceramic fracture for composition samples (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 3. Scanning electron images of ceramic fracture for composition samples (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g003aNanomaterials 12 01306 g003b
Nanomaterials 12 01306 g004 550
Figure 4. Field dependencies of magnetization at 50 K for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 4. Field dependencies of magnetization at 50 K for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g004
Nanomaterials 12 01306 g005 550

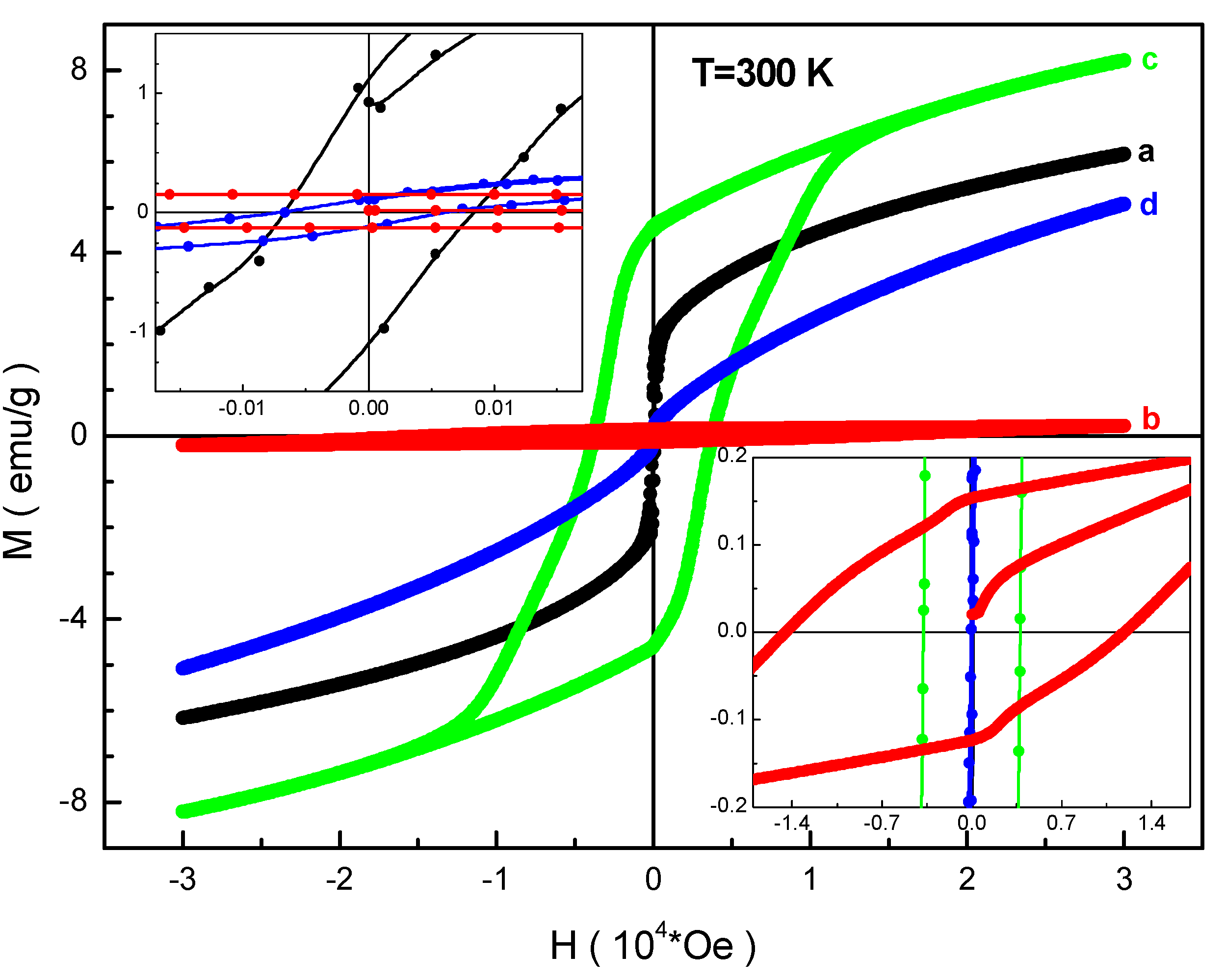

Figure 5. Field dependencies of magnetization at 300 K for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 5. Field dependencies of magnetization at 300 K for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g005
Nanomaterials 12 01306 g006 550

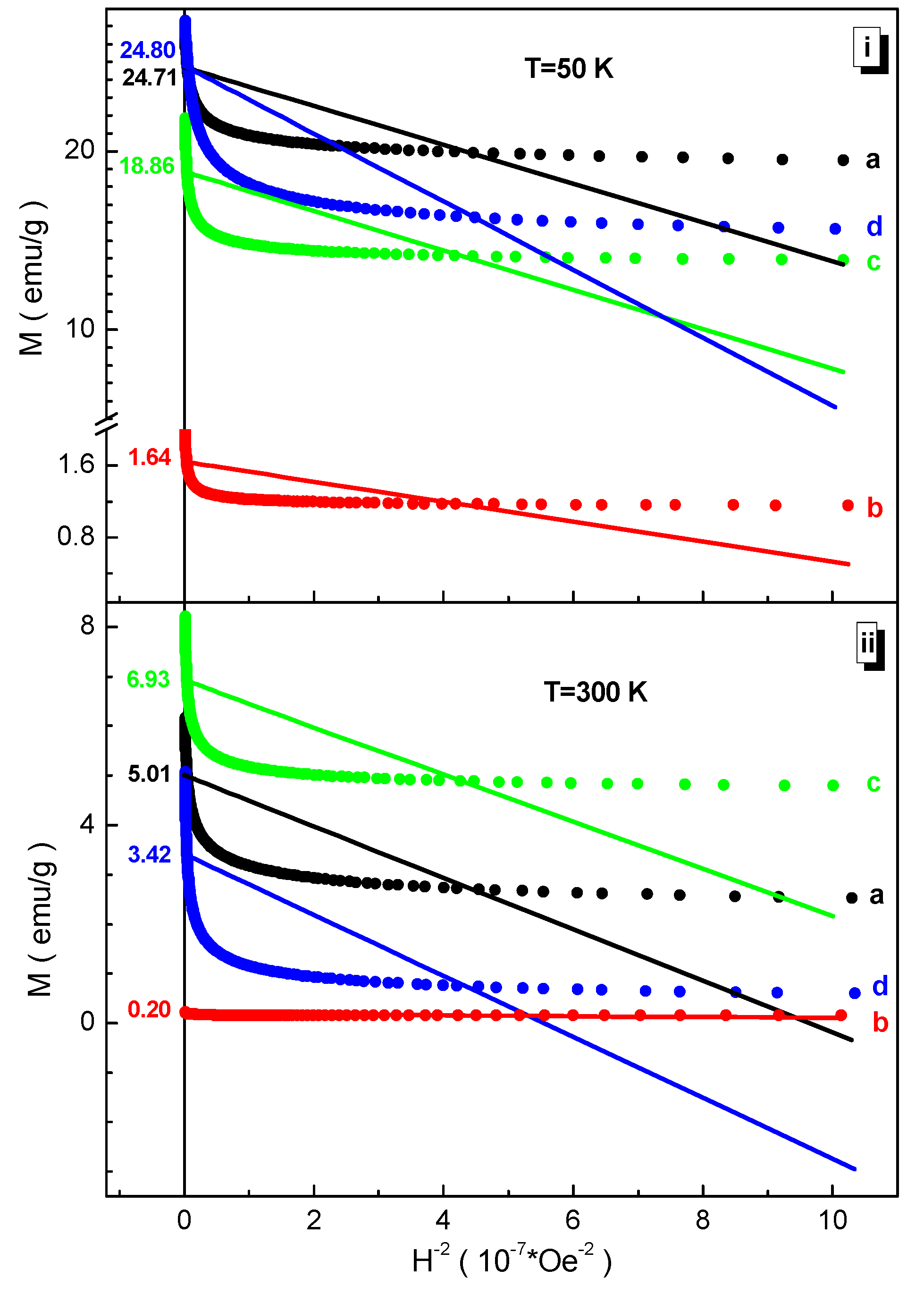

Figure 6. Dependencies of magnetization vs. inverse field square and their linear extrapolations at 50 K (i) and 300 K (ii) for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 6. Dependencies of magnetization vs. inverse field square and their linear extrapolations at 50 K (i) and 300 K (ii) for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g006
Nanomaterials 12 01306 g007 550
Figure 7. Dependencies of main magnetic parameters such as the Ms saturation magnetization (i), Mr residual magnetization (ii), SQR hysteresis loop squareness (iii), Hc coercivity (iv), k magnetic crystallographic anisotropy coefficient (v), and Ha anisotropy field (vi) at 50 K (red symbols) and 300 K (green symbols) vs. 〈rB〉 B sub-lattice average radius for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 7. Dependencies of main magnetic parameters such as the Ms saturation magnetization (i), Mr residual magnetization (ii), SQR hysteresis loop squareness (iii), Hc coercivity (iv), k magnetic crystallographic anisotropy coefficient (v), and Ha anisotropy field (vi) at 50 K (red symbols) and 300 K (green symbols) vs. 〈rB〉 B sub-lattice average radius for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g007
Nanomaterials 12 01306 g008 550
Figure 8. Temperature dependencies of magnetization (black symbols and left axis) in field of 500 Oe and its derivative (red symbols and right axis) for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 8. Temperature dependencies of magnetization (black symbols and left axis) in field of 500 Oe and its derivative (red symbols and right axis) for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g008
Nanomaterials 12 01306 g009 550
Figure 9. Temperature dependencies of magnetization in ZFC (open symbols) and FC (full symbols) regimes in field of 100 Oe for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19. Insets demonstrate the temperature derivatives of ZFC curves. The critical temperatures are defined.
Figure 9. Temperature dependencies of magnetization in ZFC (open symbols) and FC (full symbols) regimes in field of 100 Oe for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19. Insets demonstrate the temperature derivatives of ZFC curves. The critical temperatures are defined.
Nanomaterials 12 01306 g009
Nanomaterials 12 01306 g010 550
Figure 10. Dependencies of some critical magnetic temperatures such as the Tmo magnetic ordering temperature (i) defined in 100 Oe (green symbols) and 500 Oe (red symbols), Tf freezing temperature (ii), and Tdiv divergence temperature (iii) vs. 〈rB〉 B sub-lattice average radius for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Figure 10. Dependencies of some critical magnetic temperatures such as the Tmo magnetic ordering temperature (i) defined in 100 Oe (green symbols) and 500 Oe (red symbols), Tf freezing temperature (ii), and Tdiv divergence temperature (iii) vs. 〈rB〉 B sub-lattice average radius for the compositions (a) BaFe5.84Ga6.16O19, (b) BaFe6.26Al2.27Cr3.47O19, (c) BaFe6.11Al1.56Cr2.17Ga2.16O19, (d) BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19.
Nanomaterials 12 01306 g010
Table
Table 1. Compositions (wt.%) of the initial mixture.
Table 1. Compositions (wt.%) of the initial mixture.
NoChemical FormulaMass Percentage of the Original Component, % S m i x
1.BaFe6Al6O19BaCO3Fe2O3Al2O30.693147
20.0948.7731.14
2.BaFe6Cr6O19BaCO3Fe2O3Cr2O30.693147
17.4342.3140.27
3.BaFe6Ga6O19BaCO3Fe2O3Ga2O30.693147
15.9338.6745.39
4.BaFe6Al3Cr3O19BaCO3Fe2O3Al2O3Cr2O31.039721
18.6645.3114.4621.56
5.BaFe6Al2Gr2Ga2O19BaCO3Fe2O3Al2O3Cr2O3Ga2O31.242453
17.6642.869.1213.601.04
6.BaFe6Al1.5Cr1.5Ga1.5In1.5O19BaCO3Fe2O3Al2O3Cr2O3In2O3Ga2O31.386294
16.4039.806.359.4716.3011.68
Table
Table 2. Unit cell parameters of the obtained solid solutions.
Table 2. Unit cell parameters of the obtained solid solutions.
NoChemical Formula and LabelUnit Cell Parameters
a, Åc, ÅV, Å3
1.BaFe5.84Ga6.19O19 (a)5.8515(2)23.1460(19)686.33(7)
2.BaFe6.26Al2.27Cr3.47O19 (b)5.8077(14)22.8396(7)667.15(2)
3.BaFe6.11Al1.56Cr2.17Ga2.16O19 (c)5.8148(13)22.9660(5)672.47(19)
4.BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d)5.8884(2)23.3191(12)700.23(5)
5.BaFe12O19 [3]5.8930(3)23.1940(2)697.50(13)
Table
Table 3. Elemental composition of the obtained samples.
Table 3. Elemental composition of the obtained samples.
Elemental Composition of the Obtained Samples, Atom %Gross Formula and Label
BaFe6Ga6O19BaFe5.84Ga6.16O19 (a)
BaFeGa
3.320.121.3
BaFe6Al3Cr3O19BaFe6.26Al2.27Cr3.47O19 (b)
BaFeAlCr
4.021.47.811.9
BaFe6Al2Cr2Ga2O19BaFe6.11Al1.56Cr2.17Ga2.16O19 (c)
BaFeAlCrGa
3.721.05.47.57.4
BaFe6Al1.5Cr1.5Ga1.5In1.5O19BaFe6.19Al1.25Cr1.57Ga1.74In1.26O19 (d)
BaFeAlCrGaIn
3.521.44.35.46.04.4
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhivulin, V.E.; Sherstyuk, D.P.; Zaitseva, O.V.; Cherkasova, N.A.; Vinnik, D.A.; Taskaev, S.V.; Trofimov, E.A.; Trukhanov, S.V.; Latushka, S.I.; Tishkevich, D.I.; et al. Creation and Magnetic Study of Ferrites with Magnetoplumbite Structure Multisubstituted by Al3+, Cr3+, Ga3+, and In3+ Cations. Nanomaterials 2022, 12, 1306. https://doi.org/10.3390/nano12081306

AMA Style

Zhivulin VE, Sherstyuk DP, Zaitseva OV, Cherkasova NA, Vinnik DA, Taskaev SV, Trofimov EA, Trukhanov SV, Latushka SI, Tishkevich DI, et al. Creation and Magnetic Study of Ferrites with Magnetoplumbite Structure Multisubstituted by Al3+, Cr3+, Ga3+, and In3+ Cations. Nanomaterials. 2022; 12(8):1306. https://doi.org/10.3390/nano12081306

Chicago/Turabian Style

Zhivulin, Vladimir E., Daria P. Sherstyuk, Olga V. Zaitseva, Natalia A. Cherkasova, Denis A. Vinnik, Sergey V. Taskaev, Evgeny A. Trofimov, Sergei V. Trukhanov, Siarhei I. Latushka, Daria I. Tishkevich, and et al. 2022. "Creation and Magnetic Study of Ferrites with Magnetoplumbite Structure Multisubstituted by Al3+, Cr3+, Ga3+, and In3+ Cations" Nanomaterials 12, no. 8: 1306. https://doi.org/10.3390/nano12081306

APA Style

Zhivulin, V. E., Sherstyuk, D. P., Zaitseva, O. V., Cherkasova, N. A., Vinnik, D. A., Taskaev, S. V., Trofimov, E. A., Trukhanov, S. V., Latushka, S. I., Tishkevich, D. I., Zubar, T. I., & Trukhanov, A. V. (2022). Creation and Magnetic Study of Ferrites with Magnetoplumbite Structure Multisubstituted by Al3+, Cr3+, Ga3+, and In3+ Cations. Nanomaterials, 12(8), 1306. https://doi.org/10.3390/nano12081306

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
