Electrocatalytic Reduction of CO2 in Water by a Palladium-Containing Metallopolymer

by
Marcos F. S. Teixeira
1,*,
André Olean-Oliveira
1,
Fernanda C. Anastácio
1,
Diego N. David-Parra
1 and
Celso X. Cardoso
2
1
Department of Chemistry and Biochemistry, School of Science and Technology, Sao Paulo State University (UNESP), Presidente Prudente CEP 19060-900, SP, Brazil
2
Department of Physics, School of Science and Technology, Sao Paulo State University (UNESP), Presidente Prudente CEP 19060-900, SP, Brazil
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(7), 1193; https://doi.org/10.3390/nano12071193
Submission received: 8 March 2022 / Revised: 28 March 2022 / Accepted: 30 March 2022 / Published: 2 April 2022
(This article belongs to the Section Energy and Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
The palladium–salen complex was immobilized by electropolymerization onto a Pt disc electrode and applied as an electrocatalyst for the reduction of CO2 in an aqueous solution. Linear sweep voltammetry measurements and rotating disk experiments were carried out to study the electrochemical reduction of carbon dioxide. The onset overpotential for carbon dioxide reduction was approximately −0.22 V vs. NHE on the poly-Pd(salen) modified electrode. In addition, by combining the electrochemical study with a kinetic study, the rate-determining step of the electrochemical CO2 reduction reaction (CO2RR) was found to be the radial reduction of carbon dioxide to the CO adsorbed on the metal.

Graphical Abstract

1. Introduction

The use of fossil fuels as the main source of energy in the last century has drastically increased levels of CO2, one of the main gases responsible for the greenhouse effect [1,2]. The electrochemical reduction of CO2 in an aqueous solution is a promising solution to the problem, and this method can be used in a direct fuel cell or to convert CO2 into low molecular weight compounds such as CH4, CO, HCOOH, and CH3OH [3,4,5,6].
Several materials have been extensively explored to develop a suitable electrocatalyst for CO2 reduction [6]. These materials include organic molecules, ionic liquids, metal complexes, metal salts, nanoparticles, and polymers [7]. The great challenge for catalysis using these metals is to increase the faradaic efficiency, diminish the overpotential of catalysis, and ensure that the material is not poisoned by the formed byproducts [7,8,9,10]. Huang and collaborators [1] used a Pd icosahedra/C electrode and reached a faradaic catalytic efficiency of 91.1% for the selective conversion of CO2 to CO at a potential of −0.80 V vs. RHE. In another work, Kortlever et al. [3] used carbon-supported bimetallic nanoparticles to create a Pt–Pd electrode and reached a faradaic efficiency of 88% for the conversion of CO2 to formic acid with a low overpotential (−0.40 V vs. RHE). These works demonstrate the catalytic potential of Pd-based materials in the search for better catalytic efficiencies and reduced catalytic overpotentials.
In the recent past, metallopolymers attracted much attention because of their excellent combination of redox-mediated switching capabilities, conductivity, and electrocatalytic properties [11,12,13,14,15]. According to Elmas et al. [16], metallopolymers exhibit a well-defined coordination environment, which can be applied in the development of smart materials with the redox properties of a transition metal cation. In electrocatalytic applications, metallopolymers function as hybrid materials capable of incorporating better catalytic properties than transition metals in conducting systems [17,18,19,20,21]. In our research group, we have studied the electrocatalytic properties of metallopolymers containing salen moieties complexed with different metals in the application of fuel cells [21,22], chemiresistor sensors [23], and electrochemical sensors [24,25,26]. The materials consist of an extended three-dimensional network formed by axial coordination of the d orbitals of the central metal with the π orbital of the phenolate moiety of the adjacent complex. Of these contributions, we have investigated in detail the effects of the different redox-active and charge transport properties of the metallopolymers [23,27,28,29].
In this study, we reported the catalytic activity for the electrochemical reduction of carbon dioxide in an aqueous medium at room temperature using a platinum-modified electrode with poly-Pd(salen). The metallopolymer shows a distinctive overpotential reduction of carbon dioxide in a slightly acidic solution. In addition, kinetic studies of RDE and turnover frequency are discussed.

2. Experimental

2.1. Synthesis of Pd(II) 2,2-{1,2-Ethanediylbis[nitrilo(E)methylylidene]}diphenolate

The ligand 2,2-{1,2-ethanediylbis[nitrilo(E)methylylidene]}diphenolate (salen) was purchased from Sigma Aldrich (St. Louis, MI, USA) and used without further purification. The metallic complex [Pd(salen)] was prepared by the addition of stoichiometric and equimolar amounts of the Schiff base ligand and palladium acetate (Sigma Aldrich, St. Loius, MI, USA) in absolute ethanol. The solution was kept under reflux for 3 h at 50 °C with constant stirring to yield a yellow precipitate. The precipitate was filtered in a Gooch crucible, washed with absolute ethanol, and stored in a desiccator.

2.2. Electrosynthesis of Metallopolymer on Platinum Electrode

The metallopolymer was formed by electropolymerization using 1.0 mmol L−1 [Pd(salen)] complex in acetonitrile (Sigma Aldrich, St. Loius, MI, USA, 99.9%) with tetrabutylammonium hexafluorophosphate (TBAHFP) and tetrabutylammonium perchlorate (TBAPC) (Sigma Aldrich, St. Loius, MI, USA) electrolyte at a concentration of 0.10 mol L−1 while applying a potential range of 0.0 to +1.2 V vs. SCE at 100 mV s−1 in a N2 atmosphere. Electropolymerization was performed in a conventional electrochemical cell with three electrodes: a saturated calomel electrode (SCE) as the reference electrode, a platinum wire electrode as the auxiliary electrode, and a platinum electrode (A = 0.071 cm2) as the conductor substrate for coating with metallopolymer.

2.3. Morphological Characterization

The morphological features of poly-Pd(salen) were analyzed by atomic force microscopy (AFM) and scanning electron microscopy (SEM). Atomic force microscopy images of the metallopolymer were captured with a Nanosurf (Boston, MA, USA) EasyScan 2 AFM. The scan head was imaged at an angle of 45 degrees relative to the axis of stretching. The collected images were analyzed with Nanosurf AFM software (version 3.0.2.4) to determine roughness and thickness. SEM was performed using an EVO 50EP (Carl Zeiss SMT AG, Oberkochen, Germany) scanning electron microscope (SEM). All observations were carried out with a secondary electron (SE) detector in high-vacuum mode at an accelerating voltage of 15 kV. All morphological analyses were performed on a platinum-coated metallopolymer.

2.4. Electrochemical CO2 Reduction Reaction on Electrode Modified with Metallopolymer

Electrochemical measurements were carried out on a potentiostat/galvanostat μ-Autolab type III (Metrohm Autolab, Utrecht, The Netherlands). Carbon dioxide reduction on the modified electrode was carried out in a standard three-electrode cell, with an SCE reference electrode and a platinum wire electrode as the counter electrode. The modified electrode was tested in 0.5 mol L−1 KCl (pH 4–7) aqueous solution. Initially, the solution was continually purged with N2 to remove the dissolved oxygen from the solution. Then, the solution was purged continuously with carbon dioxide, while the solution was analyzed electrochemically at a rate scan of 25 mV s−1. The solution saturated with carbon dioxide had a pH of 4.7. Rotating disk electrode voltammetry (RDEV) was conducted with a μ-Autolab type III (Metrohm Autolab, Utrecht, The Netherlands) connected to a microcomputer and controlled by GPES software. RDE measurements were performed with a motor speed controller (Autolab RDE, Metrohm Autolab, Utrecht, The Netherlands). The platinum electrode modified with metallopolymer (diameter 3.0 mm) was rotated between 400 and 4000 rpm using a CO2 saturated 0.5 mol L−1 KCl solution.

3. Results and Discussion

Figure 1 shows the cyclic voltammograms for the electropolymerization of the metallopolymer film on the conductor platinum substrate. The application of a positive potential limit of +1.0 V (vs. SCE) is required for the formation of radical cations, which initiate the polymerization process [22,30]. The first potential cycle (red line) resulted in only one redox process during the anodic scan at a potential close to 1.0 V; this process is associated with the cation radicals. With the increase in scan number, a redox system began to be evident in the region of 0.40 to 0.80 V (vs. SCE), indicating an increase in electroactive material on the surface of the platinum electrode. The redox system is attributed to the PdII/PdIII redox activity of the generated polymeric film.
The typical electron-forming mechanism of films based on metal–salen type complexes has been extensively studied and consolidated in the literature. The electron-deficient cation radical formed during the anode scan interacts with the electron-rich π-conjugated system of an adjacent monomer, forming bridges between the molecules [21,25,26,31]. This mechanism is possible due to the effective interactions between the d-center orbitals of the metal center and the π orbitals of the aromatic ring of a second metal-complex molecule. This interaction allows the formation of a backbone coupled with an electron-hopping-based transport mechanism [29].
The electrode coating with the catalytic material was confirmed by AFM characterization. Figure 2A,B show three-dimensional surface topography images of the uncoated and coated electrode surfaces, respectively.
The images were taken over a 100 μm2 scanned area. Due to the formation of the film by the center metal/aromatic ring interaction, metal–salen metallopolymers typically present stacked column morphologies with irregular topographies. The root mean square (RMS) roughness of the platinum surface was 28.0 nm, which increased to 57.6 nm following the formation of the metallopolymer. There is also an apparent distinction between the surface morphology of electrodes, where the image of the coated surface (Figure 2B) exhibits a visible nanogranular structure. Atomic resolution images with four lines and cross-section profiles of the uncoated and coated surfaces are shown in Figure 2C,D, respectively. Height profiles along the lines revealed notable differences in the surface features of metallopolymers. In general, metallopolymer columns were observed to exhibit 1.39 or 2.4 μm periodicity with random distribution across the film, and the granular height range was 0.09–0.38 μm. The uncoated platinum in the image (Figure 2C) does not exhibit the same periodic surface characteristics, and the height profiles are much smaller. This observation might be interpreted as the influence of the counteranion size of the supporting electrolyte during the electropolymerization of the palladium complex. The distribution of the particles over the electrode surface is controlled by the radius ion of the hexafluorophosphate anion [32]. During oxidative polymerization, the molecular columns acquire a positive charge and are normally arranged on the electrode surface at distances that are determined by the diameter of the anions and solvent molecules. These results of the metallopolymer morphology by AFM are in close agreement with the analysis obtained by SEM data, which is reported in a later section. Figure 3 presents an SEM image of the poly-Pd(salen)-modified electrode, and the image illustrates that the metallopolymer was formed by randomly stacked columns. Quantitative EDS microanalysis revealed that the elemental surface composition of the electrode was composed of Pd (2.5%), C (50.6%), O (22.0%), and O (24.1%). The low percentage of platinum obtained in the microanalysis indicates the complete coating of the electrode surface by the metallopolymer. This observation ensures that the CO2 electroreduction studies have no significant influence on the platinum catalytic activity.

Electrochemical Reduction of Carbon Dioxide Catalyzed by a Pd(salen) Metallopolymer

To verify the electrocatalytic activity of the metallopolymer for carbon dioxide electrochemical reduction in an aqueous medium, cathodic linear sweep voltammetry experiments were performed in a CO2 saturated solution with platinum and metallopolymer-modified platinum electrodes (Figure 4). The onset overpotentials for dioxide carbon reduction were approximately −0.74 V and −0.46 V vs. SCE on the platinum electrode and poly-Pd(salen)-modified electrode, respectively. Based on the experimental results, we can see that the cathodic current increases for the modified electrode, requiring 0.15 V less overpotential than the platinum electrode to carbon dioxide electroreduction when considering the isocurrent for both electrodes. This decrease in overpotential is crucial for the effective electrochemical reduction of CO2 by the catalyst. Moreover, the catalytic current of the modified electrode was 3.3 times greater than that of the unmodified platinum electrode at an isopotential of −0.95 V vs. SCE.
To confirm the electrocatalytic response of the electrode modified to dissolved carbon dioxide, the metallopolymer platform was tested in the absence of carbon dioxide (dashed curve of Figure 4). In the absence of carbon dioxide in the electrolytic solution, the metallopolymer-modified electrode showed two reduction peaks (−0.56 V and −0.80 V) related to the transformation of Pd(II) to Pd(I) and Pd(I) to Pd(0), respectively. Under a carbon dioxide atmosphere (orange curve), the current increased significantly after a potential of −0.70 V was applied, clearly indicating that the total reduction of the metal center drives the overall reduction of dissolved carbon dioxide.
The anionic counterion used in the electropolymerization process of metal–salen complexes affects the electronic properties and physico-chemical characteristics of the originally formed metallopolymer [25,29,32]. The counteranion used in the electropolymerization process has a direct influence on stability during the formation of the radical cation and may, consequently, alter the network of the generated polymer and its electrochemical performance. For redox-conducting polymers based on the metal–salen complex, the counteranion size directly affects the stability and favors a more orderly and regular polymer structure. For this study, two modified electrodes were prepared using hexafluorophosphate (Ø = 0.87 nm) and perchlorate (Ø = 0.48 nm) as counteranions in the electrolyte supporting the electropolymerization reaction. The electrochemical performance of these devices in the catalytic reduction of dissolved carbon dioxide was determined by cathodic linear sweep voltammetry in a KCl solution. In Figure 5A, the device prepared with hexafluorophosphate has a higher current magnitude for carbon dioxide electrocatalysis than the polymer obtained with perchlorate. In a comparative analysis of the polarization curves (Figure 5B), three slopes are observed in both studied electrodes, clearly indicating the steps involved in the electroreduction of dissolved carbon dioxide. Tafel analysis reveals that the Tafel value of the metallopolymer prepared with hexafluorophosphate was much lower in the first stage (region 1), which represents the reductive adsorption of carbon dioxide by the central metal. The counteranion imposes size and shape selection restrictions through molecular channels readily adjusted in the polymer, exhibiting a molecular sieving effect. In comparison, the hexafluorophosphate anion introduced molecular spaces of the appropriate size into the polymer to stabilize carbon dioxide, improving the efficiency of the coupling reaction. This first stage is crucial for the efficiency of the catalysis but is not the rate-determining step. Subsequently, regions 2 and 3 are ascribed to carbon dioxide radial (CO2•−) reduction to adsorbed CO and -CHO, respectively [33,34,35]. Scheme 1 presents a proposal for the steps involved in the electrochemical CO2RR.
The Tafel slopes for these polarization regions were similar for both electrodes, and region 2 was the rate-determining step for carbon dioxide reduction. Palladium complex catalysts show trends for the formation of CO and HCOOH [36,37]. The next electrocatalytic studies were carried out with a metallopolymer-modified electrode obtained by tetrabutylammonium hexafluorophosphate. The effect of pH on the polarization curve of the CO2RR was carried out in an electrolyte saturated with carbon dioxide. The potentials as a function of pH were monitored at two current densities (2.0 and 5.0 mA cm−2) corresponding to regions 2 and 3 of the electroreduction process. The plot of the applied potential versus pH (see Figure S1) showed slopes of 46 mV pH−1 (r = 0.9914) and 45 mV pH−1 (r = 0.9978) for regions 2 and 3, respectively. This study is consistent with the theoretical value for an electrochemical CO2 reduction process involving one electron and one proton in each step.
Rotating disk electrode measurements were performed to gain insight into the CO2RR performance of the poly-Pd(salen)-modified electrode. Figure 6A shows the linear sweep voltammogram for various rotation rates of 400 to 4000 rpm at a scan rate of 10 mV s−1. The cathodic current increased in magnitude with increasing rotation rate. Figure 6B represents the relationship between the cathodic current and the square root of rotation (Levich plots) at three fixed potentials corresponding to the regions presented in the Tafel study. In the Levich analysis at −0.75 V, the current as a function of the square root of the rotation was linear (the black circle in Figure 6B), indicating diffusion-controlled carbon dioxide reduction.
At potentials of −0.85 V and −1.05 V, the current as a function of the square of the rotation rate showed nonlinearity. For these potentials, there is a dependence on the value of the catalytic current at low rotations, but for rotations above 1000 rpm (104.7 rad s−1), the catalytic current is not significantly influenced. This behavior demonstrates that the catalytic current is limited by a slow chemical step, as noted earlier in the Tafel study. For further analysis, the data obtained were applied to the Koutecky–Levich equation [38], and the linearity at −0.85 V and −1.05 V (see Figure 6C) confirms the pseudo-first-order kinetic behavior with respect to the concentration of adsorbed carbon dioxide. However, the kinetic parameters (such as the heterogeneous electron transfer rate constant) were not determined due to the difficulty in determining the diffusion-limited current densities at each stage.
Based on previous studies, a rough catalytic turnover frequency (TOF) estimate was determined using the following equation [39]:
TOF = j n F Γ
where j is the current density (A cm−2) at an applied potential (1.20 V vs. SCE), n is the total number of electrons involved in the reaction (CO2RR = 3e−), F is the Faraday constant (96 485 A s mol−1), and Γ is the surface-active site concentration (6.0 × 10−10 mol cm−2) calculated by integrating the current in the CV [40]. The modified electrode exhibited a TOF of 31.7 s−1 at a current density of 5.49 mA cm−2 and an overpotential of 200 mV for the CO2RR with water as a proton source. This value is only a direct estimate, as the CO2RR is much more complicated than this simple single reaction model, and a more detailed analysis is necessary for a more accurate TOF determination [41]. Comparatively, the device proved to be competitive with some catalyst materials found in the literature [42,43,44] within the parameters (solution, pH, etc.) used in this study.

4. Conclusions

In summary, the platinum electrode coated with poly-Pd(salen) exhibited electrocatalytic properties for the electroreduction reaction of CO2 in an aqueous solution. An important factor is the type of anionic counterion used in the electropolymerization process of the metal–salen complex. The hexafluorophosphate anion introduced molecular spaces of the appropriate size into the polymer to stabilize carbon dioxide, improving the efficiency of the coupling reaction. By Tafel analysis, this study highlighted that the CO2RR process on the metallopolymer occurred in three steps:
(1)
Reductive adsorption of carbon dioxide by the central metal.
(2)
Radial reduction of carbon dioxide to adsorbed CO.
(3)
Reduction of adsorbed CO to adsorbed -CHO.
The next studies will investigate the photoelectrocatalytic reduction of carbon dioxide.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12071193/s1, Figure S1: Potential versus pH curves in 0.50 mol L−1 KCl solution saturated with CO2 at a scan rate of 25 mV s−1.

Author Contributions

A.O.-O.: visualization, discussion, writing—original draft; F.C.A.: investigation; D.N.D.-P.: supervision; C.X.C.: visualization, discussion, funding acquisition; M.F.S.T.: conceptualization, methodology, validation, writing—review and editing, supervision, project administration, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by FAPESP grant number 2016/09017-1, CEPID-FAPESP grant number 2013/07296-2, and CNPq grant number 303282/2020-7.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

A.O.-O. and F.C.A. thank CAPES for fellowships SJT and NSA.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Huang, H.W.; Jia, H.H.; Liu, Z.; Gao, P.F.; Zhao, J.T.; Luo, Z.L.; Yang, J.L.; Zeng, J. Understanding of strain effects in the electrochemical reduction of CO2: Using Pd nanostructures as an ideal platform. Angew. Chem. Int. Edit. 2017, 56, 3594–3598. [Google Scholar] [CrossRef]
  2. Chu, S.; Majumdar, A. Opportunities and challenges for a sustainable energy future. Nature 2012, 488, 294–303. [Google Scholar] [CrossRef] [PubMed]
  3. Kortlever, R.; Peters, I.; Koper, S.; Koper, M.T.M. Electrochemical CO2 Reduction to Formic Acid at Low Overpotential and with High Faradaic Efficiency on Carbon-Supported Bimetallic Pd–Pt Nanoparticles. Acs Catal. 2015, 5, 3916–3923. [Google Scholar] [CrossRef]
  4. Franco, F.; Cometto, C.; Sordello, F.; Minero, C.; Nencini, L.; Fiedler, J.; Gobetto, R.; Nervi, C. Electrochemical Reduction of CO2 by M(CO)4(diimine) Complexes (M=Mo, W): Catalytic Activity Improved by 2,2′-Dipyridylamine. ChemelectroChem 2015, 2, 1372–1379. [Google Scholar] [CrossRef]
  5. Chen, L.J.; Guo, Z.G.; Wei, X.G.; Gallenkamp, C.; Bonin, J.; Anxolabehere-Mallart, E.; Lau, K.C.; Lau, T.C.; Robert, M. Molecular Catalysis of the Electrochemical and Photochemical Reduction of CO2 with Earth-Abundant Metal Complexes. Selective Production of CO vs HCOOH by Switching of the Metal Center. J. Am. Chem. Soc. 2015, 137, 10918–10921. [Google Scholar] [PubMed]
  6. Lim, R.J.; Xie, M.S.; Sk, M.A.; Lee, J.M.; Fisher, A.; Wang, X.; Lim, K.H. A review on the electrochemical reduction of CO2 in fuel cells, metal electrodes and molecular catalysts. Catal. Today 2014, 233, 169–180. [Google Scholar] [CrossRef]
  7. Qiao, J.L.; Liu, Y.Y.; Hong, F.; Zhang, J.J. A review of catalysts for the electroreduction of carbon dioxide to produce low-carbon fuels. Chem. Soc. Rev. 2014, 43, 631–675. [Google Scholar] [CrossRef] [PubMed]
  8. Lu, X.; Leung, D.Y.C.; Wang, H.Z.; Leung, M.K.H.; Xuan, J. Electrochemical Reduction of Carbon Dioxide to Formic Acid. ChemelectroChem. 2014, 1, 836–849. [Google Scholar] [CrossRef]
  9. Shi, C.; Chan, K.; Yoo, J.S.; Norskov, J.K. Barriers of electrochemical CO2 reduction on transition metals. Org. Process. Res. Dev. 2016, 20, 1424–1430. [Google Scholar] [CrossRef]
  10. Liu, C.; Cundari, T.R.; Wilson, A.K. CO2 Reduction on Transition Metal (Fe, Co, Ni, and Cu) Surfaces: In Comparison with Homogeneous Catalysis. Phys. J. Chem. C 2012, 116, 5681–5688. [Google Scholar] [CrossRef]
  11. Martin, C.S.; Teixeira, M.F.S. A novel Mn-containing conducting metallopolymer obtained by electropolymerization in aqueous solution of a tetranuclear oxo-bridged manganese complex. Dalton Trans. 2011, 40, 7133–7136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Martin, C.S.; Teixeira, M.F.S. Enzymeless Hydrogen Peroxide Sensor Based on Mn-containing Conducting Metallopolymer. Procedia Eng. 2012, 47, 1161–1164. [Google Scholar] [CrossRef] [Green Version]
  13. Nguyen, M.T.; Jones, R.A.; Holliday, B.J. Recent advances in the functional applications of conducting metallopolymers. Coordin. Chem. Rev. 2018, 377, 237–258. [Google Scholar] [CrossRef]
  14. Whittell, G.R.; Hager, M.D.; Schubert, U.S.; Manners, I. Functional soft materials from metallopolymers and metallosupramolecular polymers. Nat. Mater. 2011, 10, 176–188. [Google Scholar] [CrossRef] [PubMed]
  15. Nguyen, M.T.; Jones, R.A.; Holliday, B.J. Effect of conjugation length and metal-backbone interactions on charge transport properties of conducting metallopolymers. Polym. Chem. 2017, 8, 4359–4367. [Google Scholar] [CrossRef]
  16. Elmas, S.; Macdonald, T.J.; Skinner, W.; Andersson, M.; Nann, T. Copper Metallopolymer Catalyst for the Electrocatalytic Hydrogen Evolution Reaction (HER). Polymers 2019, 11, 110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. HamarThibault, S.; Moutet, J.C.; Tingry, S. Polypyrrole films containing rhodium(I) and iridium(I) complexes: Improvement in their synthesis and electrocatalytic activity in aqueous media. J. Organomet. Chem. 1997, 532, 31–37. [Google Scholar] [CrossRef]
  18. Elmas, S.; Beelders, W.; Bradley, S.J.; Kroon, R.; Laufersky, G.; Andersson, M.; Nann, T. Platinum terpyridine metallopolymer electrode as cost-effective replacement for bulk platinum catalysts in oxygen reduction reaction and hydrogen evolution reaction. ACS Sustain. Chem. Eng. 2017, 5, 10206–10214. [Google Scholar] [CrossRef]
  19. Kazemi, S.H.; Mohamadi, R. Electrochemical fabrication of a novel conducting metallopolymer nanoparticles and its electrocatalytic application. Electrochim. Acta 2013, 109, 823–827. [Google Scholar] [CrossRef]
  20. Kap, Z.; Ulker, E.; Nune, S.V.K.; Karadas, F. Electrocatalytic hydrogen evolution with cobalt-poly(4-vinylpyridine) metallopolymers. J. Appl. Electrochem. 2018, 48, 201–209. [Google Scholar] [CrossRef] [Green Version]
  21. Olean-Oliveira, A.; Pereira, C.F.; David-Parra, D.N.; Teixeira, M.F.S. Electrocatalytic Study of the Thin Metallopolymer Film of [2,2′-{1,2-Ethanediylbis[Nitrilo(1E)-1-Ethyl-1-Ylidene]}Diphenolate]-Nickel(II) for Ethanol Electrooxidation. ChemElectroChem 2018, 5, 3557–3565. [Google Scholar] [CrossRef]
  22. Oliveira, Y.A.; Olean-Oliveira, A.; Teixeira, M.F.S. Short communication: Molecular architecture based on palladium-salen complex/graphene for low potential water oxidation. J. Electroanal. Chem. 2021, 880, 114928. [Google Scholar] [CrossRef]
  23. Pereira, C.F.; Olean-Oliveira, A.; David-Parra, D.N.; Teixeira, M.F.S. A chemiresistor sensor based on a cobalt(salen) metallopolymer for dissolved molecular oxygen. Talanta 2018, 190, 119–125. [Google Scholar] [CrossRef] [PubMed]
  24. Teixeira, M.F.S.; Dadamos, T.R.L. An electrochemical sensor for dipyrone determination based on nickel-salen film modified electrode. Procedia Chem. 2009, 1, 297–300. [Google Scholar] [CrossRef] [Green Version]
  25. Dadamos, T.R.L.; Teixeira, M.F.S. Electrochemical sensor for sulfite determination based on a nanostructured copper-salen film modified electrode. Electrochim. Acta 2009, 54, 4552–4558. [Google Scholar] [CrossRef]
  26. Martin, C.S.; Dadamos, T.R.L.; Teixeira, M.F.S. evelopment of an electrochemical sensor for determination of dissolved oxygen by nickel-salen polymeric film modified electrode. Sens. Actuat. B-Chem. 2012, 175, 111–117. [Google Scholar] [CrossRef]
  27. Martin, C.S.; Machini, W.B.S.; Teixeira, M.F.S. Electropolymerization using binuclear nickel(ii) Schiff base complexes bearing N4O4 donors as supramolecular building blocks. RSC Adv. 2015, 5, 39908–39915. [Google Scholar] [CrossRef]
  28. Martin, C.S.; Olean-Oliveira, A.; Teixeira, M.F.S. A new polymeric thin film by using electropolymerization: Thin film of poly(phenazine-salen) obtained from 2,2′-[1,2-ethanediylbis(nitrilomethylidyne)] -bis[4-amino-phenol]. J. Electroanal. Chem. 2020, 873, 114404. [Google Scholar] [CrossRef]
  29. Peverari, C.R.; David-Parra, D.N.; Barsan, M.M.; Teixeira, M.F.S. Mechanistic study of the formation of multiblock pi-conjugated metallopolymer. Polyhedron 2016, 117, 415–421. [Google Scholar] [CrossRef] [Green Version]
  30. Tchepournaya, I.; Vasilieva, S.; Logvinov, S.; Timonov, A.; Amadelli, R.; Bartak, D. Electrochemical Synthesis and Characterization of Redox Polymer Nanostructures. Langmuir 2003, 19, 9005–9012. [Google Scholar] [CrossRef]
  31. Smirnova, E.A.; Besedina, M.A.; Karushev, M.P.; Vasil’ev, V.V.; Timonov, A.M. Photogalvanic and photovoltaic effects in systems based on metal complexes of Schiff bases. Russ. J. Phys. Chem. A+ 2016, 90, 1088–1094. [Google Scholar] [CrossRef]
  32. Rodyagina, T.Y.; Gaman’kov, P.V.; Dmitrieva, E.A.; Chepurnaya, I.A.; Vasil’eva, S.V.; Timonov, A.M. Structuring Redox Polymers Poly[M(Schiff)] (M = Ni, Pd; Schiff = Schiff Bases) on a Molecular Level: Methods and Results of an Investigation. Russ. J. Electrochem+ 2005, 41, 1101–1110. [Google Scholar] [CrossRef]
  33. Qiao, J.; Liu, Y.; Zhang, J. Electrochemical Reduction of Carbon Dioxide: Fundamentals and Technologies; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
  34. Konig, M.; Vaes, J.; Klemm, E.; Pant, D. Solvents and Supporting Electrolytes in the Electrocatalytic Reduction of CO2. Iscience 2019, 19, 135–160. [Google Scholar] [CrossRef]
  35. Zhang, X.L.; Guo, S.X.; Gandionco, K.A.; Bond, A.M.; Zhang, J. Electrocatalytic carbon dioxide reduction: From fundamental principles to catalyst design. Mater. Today Adv. 2020, 7, 100074. [Google Scholar] [CrossRef]
  36. Jiang, B.; Zhang, X.G.; Jiang, K.; Wu, D.Y.; Cai, W.B. Boosting Formate Production in Electrocatalytic CO2 Reduction over Wide Potential Window on Pd Surfaces. J. Am. Chem. Soc. 2018, 140, 2880–2889. [Google Scholar] [CrossRef]
  37. Dubois, M.R.; Dubois, D.L. Development of Molecular Electrocatalysts for CO2 Reduction and H2 Production/Oxidation. Acc. Chem. Res. 2009, 42, 1974–1982. [Google Scholar] [CrossRef]
  38. Martin, C.S.; Teixeira, M.F.S. Electrochemical Properties of Oxo–Manganese Complex Biomimicking Enzyme Active Sites and Its Electrocatalytic Application for Dopamine Determination. Electrocatalysis 2013, 4, 92–100. [Google Scholar] [CrossRef]
  39. Ardagh, M.A.; Abdelrahman, O.A.; Dauenhauer, P.J. Principles of Dynamic Heterogeneous Catalysis: Surface Resonance and Turnover Frequency Response. ACS Catal. 2019, 9, 6929–6937. [Google Scholar] [CrossRef]
  40. Teixeira, M.F.S.; Cincotto, F.H.; Raymundo-Pereira, P.A. Electrochemical investigation of the dimeric oxo-bridged ruthenium complex in aqueous solution and its incorporation within a cation-exchange polymeric film on the electrode surface for electrocatalytic activity of hydrogen peroxide oxidation. Electrochim. Acta 2011, 56, 6804–6811. [Google Scholar] [CrossRef]
  41. Costentin, C.; Drouet, S.; Robert, M.; Saveant, J.M. Turnover Numbers, Turnover Frequencies, and Overpotential in Molecular Catalysis of Electrochemical Reactions. Cyclic Voltammetry and Preparative-Scale Electrolysis. J. Am. Chem. Soc. 2012, 134, 11235–11242. [Google Scholar] [CrossRef]
  42. Perez-Sequera, A.C.; Diaz-Perez, M.A.; Serrano-Ruiz, J.C. Recent advances in the electroreduction of CO2 over heteroatom-doped carbon materials. Catalysts 2020, 10, 1179. [Google Scholar] [CrossRef]
  43. Nitopi, S.; Bertheussen, E.; Scott, S.B.; Liu, X.Y.; Engstfeld, A.K.; Horch, S.; Seger, B.; Stephens, I.E.L.; Chan, K.; Hahn, C.; et al. Progress and Perspectives of Electrochemical CO2 Reduction on Copper in Aqueous Electrolyte. Chem. Rev. 2019, 119, 7610–7672. [Google Scholar] [CrossRef] [Green Version]
  44. Liu, A.M.; Gao, M.F.; Ren, X.F.; Meng, F.N.; Yang, Y.N.; Gao, L.G.; Yang, Q.Y.; Ma, T.L. Current progress in electrocatalytic carbon dioxide reduction to fuels on heterogeneous catalysts. J. Mater. Chem. A 2020, 8, 3541–3562. [Google Scholar] [CrossRef]
Nanomaterials 12 01193 g001 550

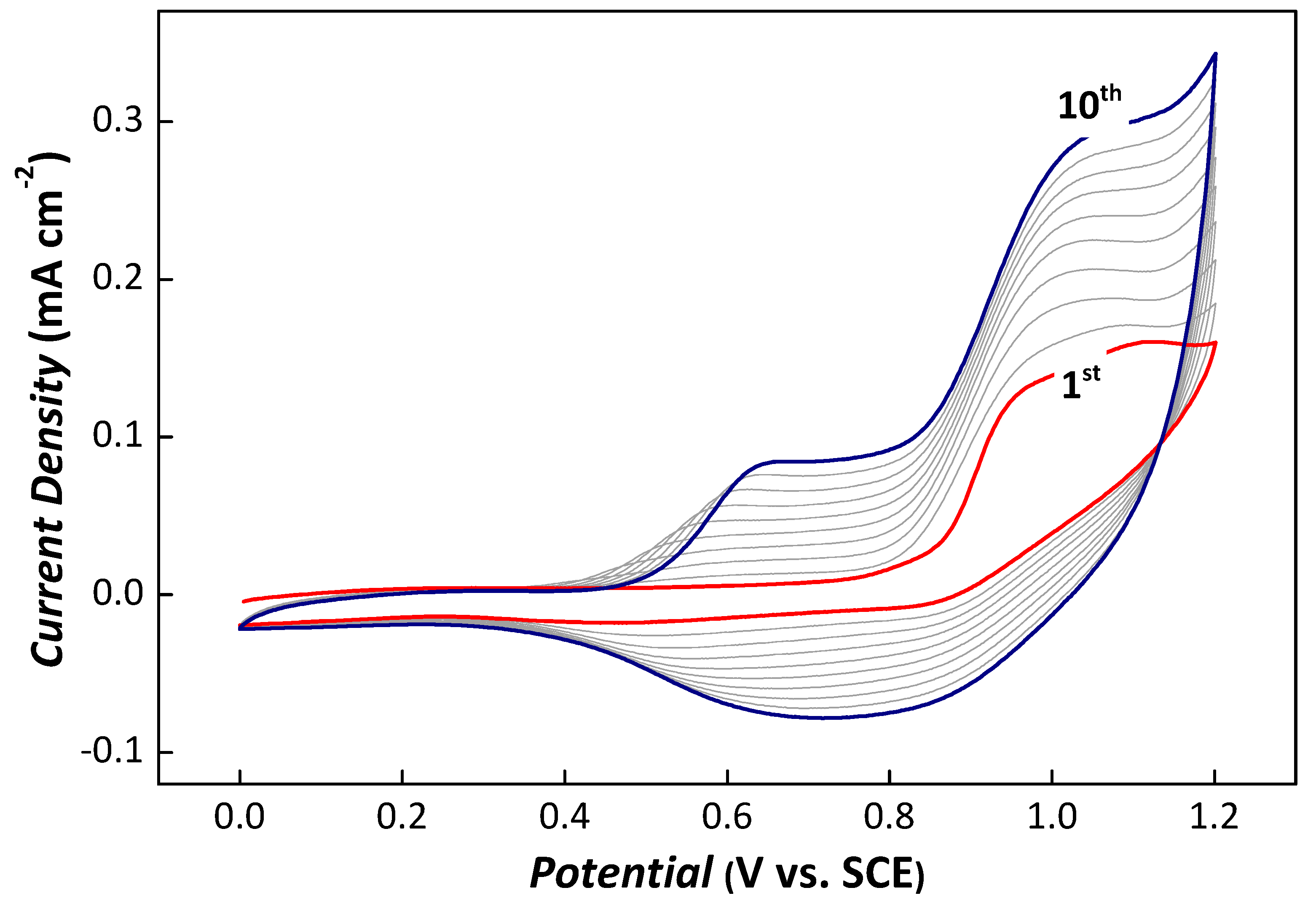

Figure 1. Cyclic voltammograms for the electropolymerization of the [Pd(salen)] complex (1.0 mmol L−1) on the platinum electrode in acetonitrile containing 0.10 mol L−1 tetrabutylammonium hexafluorophosphate at a scan rate of 100 mV s−1.
Figure 1. Cyclic voltammograms for the electropolymerization of the [Pd(salen)] complex (1.0 mmol L−1) on the platinum electrode in acetonitrile containing 0.10 mol L−1 tetrabutylammonium hexafluorophosphate at a scan rate of 100 mV s−1.
Nanomaterials 12 01193 g001
Nanomaterials 12 01193 g002 550

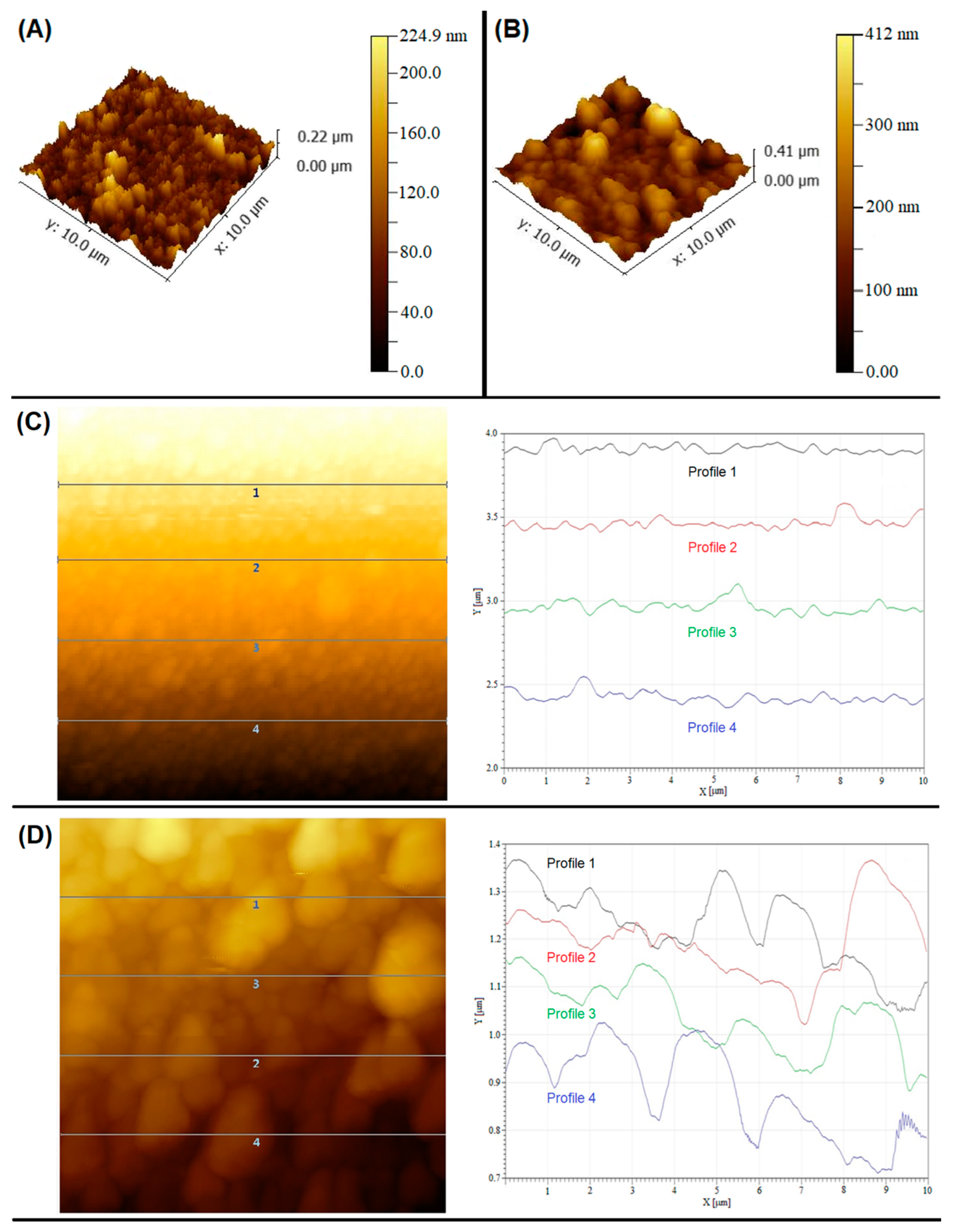

Figure 2. Dimensional AFM images for the (A) unmodified platinum electrode surface and (B) platinum electrode coated with poly-Pd(salen) grown in acetonitrile containing 0.10 mol L−1 tetrabutylammonium hexafluorophosphate electrolyte. AFM morphology images of the unmodified (C) and modified platinum electrode surfaces (D) with the respective cross-section profiles of the surface.
Figure 2. Dimensional AFM images for the (A) unmodified platinum electrode surface and (B) platinum electrode coated with poly-Pd(salen) grown in acetonitrile containing 0.10 mol L−1 tetrabutylammonium hexafluorophosphate electrolyte. AFM morphology images of the unmodified (C) and modified platinum electrode surfaces (D) with the respective cross-section profiles of the surface.
Nanomaterials 12 01193 g002
Nanomaterials 12 01193 g003 550
Figure 3. Artificially colored SEM image of the metallopolymer on the platinum electrode. The scale bar is 200 nm.
Figure 3. Artificially colored SEM image of the metallopolymer on the platinum electrode. The scale bar is 200 nm.
Nanomaterials 12 01193 g003
Nanomaterials 12 01193 g004 550

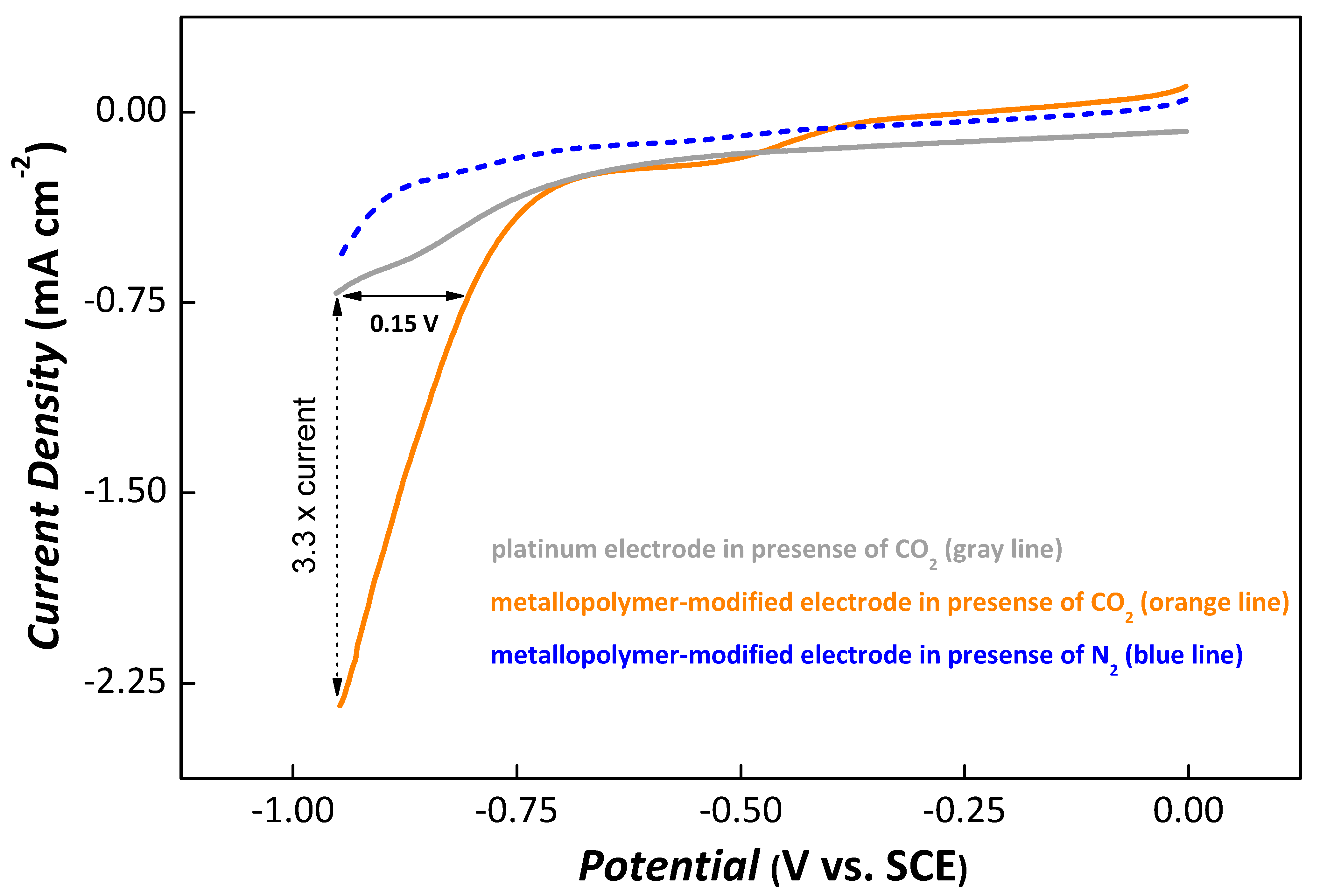

Figure 4. Cathodic linear sweep voltammetry of the poly-Pd(salen) (orange line) and platinum electrode (gray line) in 0.50 mol L−1 KCl solution saturated with CO2 at a scan rate of 25 mV s−1. The blue dashed line represents the electrochemical response of the modified electrode in the absence of CO2.
Figure 4. Cathodic linear sweep voltammetry of the poly-Pd(salen) (orange line) and platinum electrode (gray line) in 0.50 mol L−1 KCl solution saturated with CO2 at a scan rate of 25 mV s−1. The blue dashed line represents the electrochemical response of the modified electrode in the absence of CO2.
Nanomaterials 12 01193 g004
Nanomaterials 12 01193 g005 550

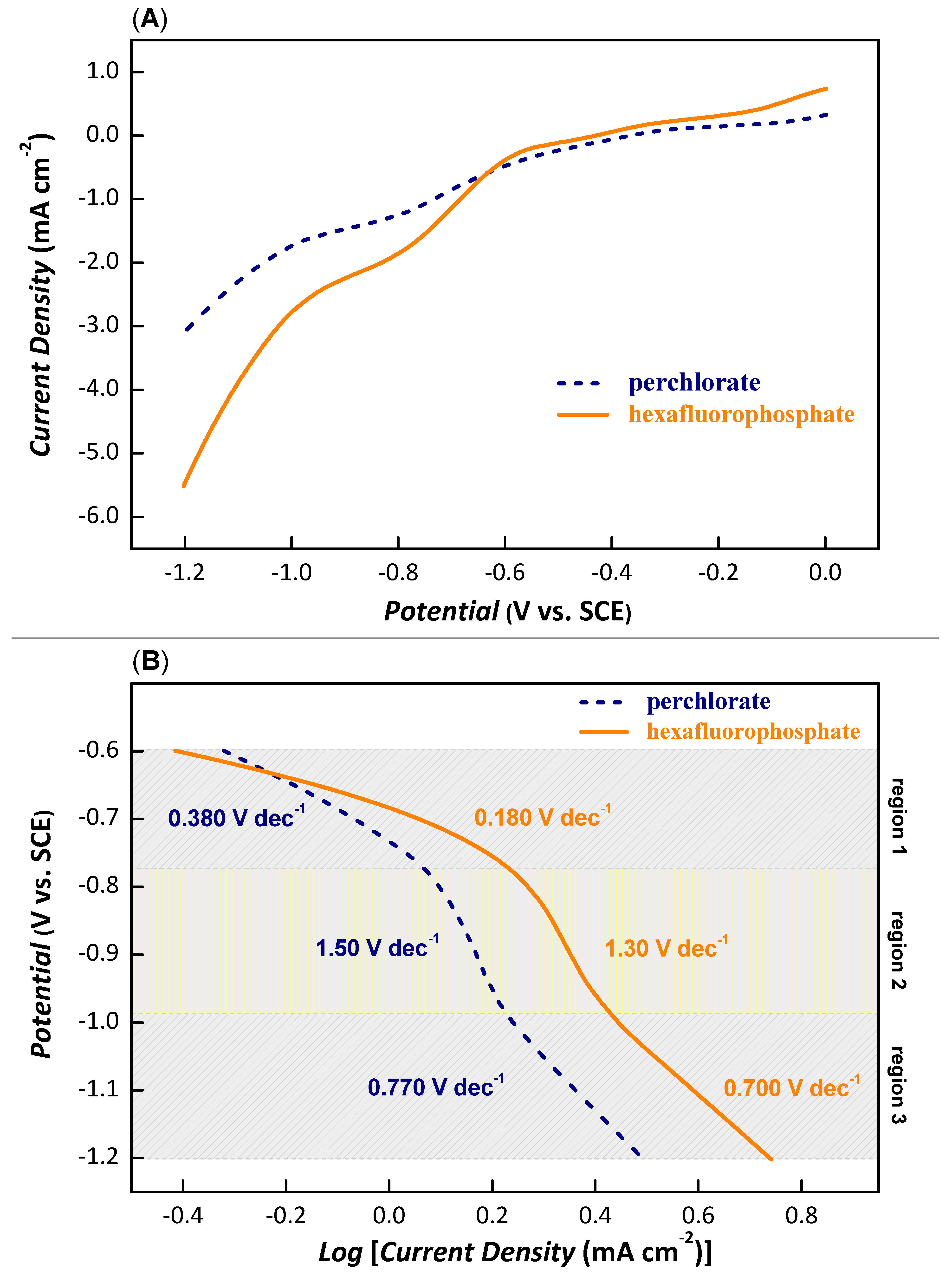

Figure 5. (A) Electrocatalytic response in the presence of CO2-saturated 0.50 mol L−1 KCl solution at 25 mV s−1 of poly-Pd(salen) films electropolymerized with perchlorate (blue dashed line) and hexafluorophosphate (orange line) anions. (B) Polarization curves for the electroreduction of carbon dioxide.
Figure 5. (A) Electrocatalytic response in the presence of CO2-saturated 0.50 mol L−1 KCl solution at 25 mV s−1 of poly-Pd(salen) films electropolymerized with perchlorate (blue dashed line) and hexafluorophosphate (orange line) anions. (B) Polarization curves for the electroreduction of carbon dioxide.
Nanomaterials 12 01193 g005
Nanomaterials 12 01193 sch001 550

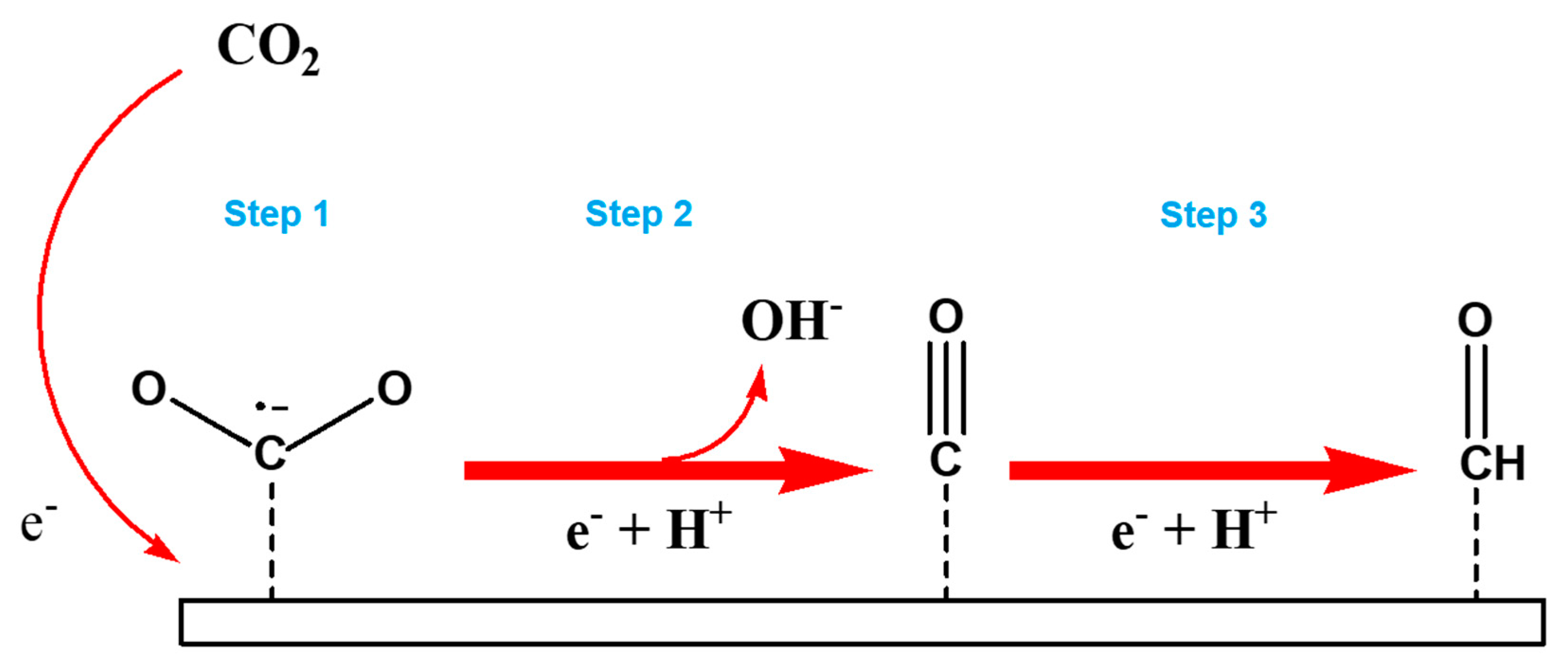

Scheme 1. Schematic proposal of the electrochemical CO2 reduction reaction on a poly-Pd(salen) electrode. Step 1 = reduction adsorption of CO2 (region 1); Step 2 = CO2•− reduction to adsorbed CO; Step 3 = adsorbed CO reduction to adsorbed -CHO.
Scheme 1. Schematic proposal of the electrochemical CO2 reduction reaction on a poly-Pd(salen) electrode. Step 1 = reduction adsorption of CO2 (region 1); Step 2 = CO2•− reduction to adsorbed CO; Step 3 = adsorbed CO reduction to adsorbed -CHO.
Nanomaterials 12 01193 sch001
Nanomaterials 12 01193 g006 550

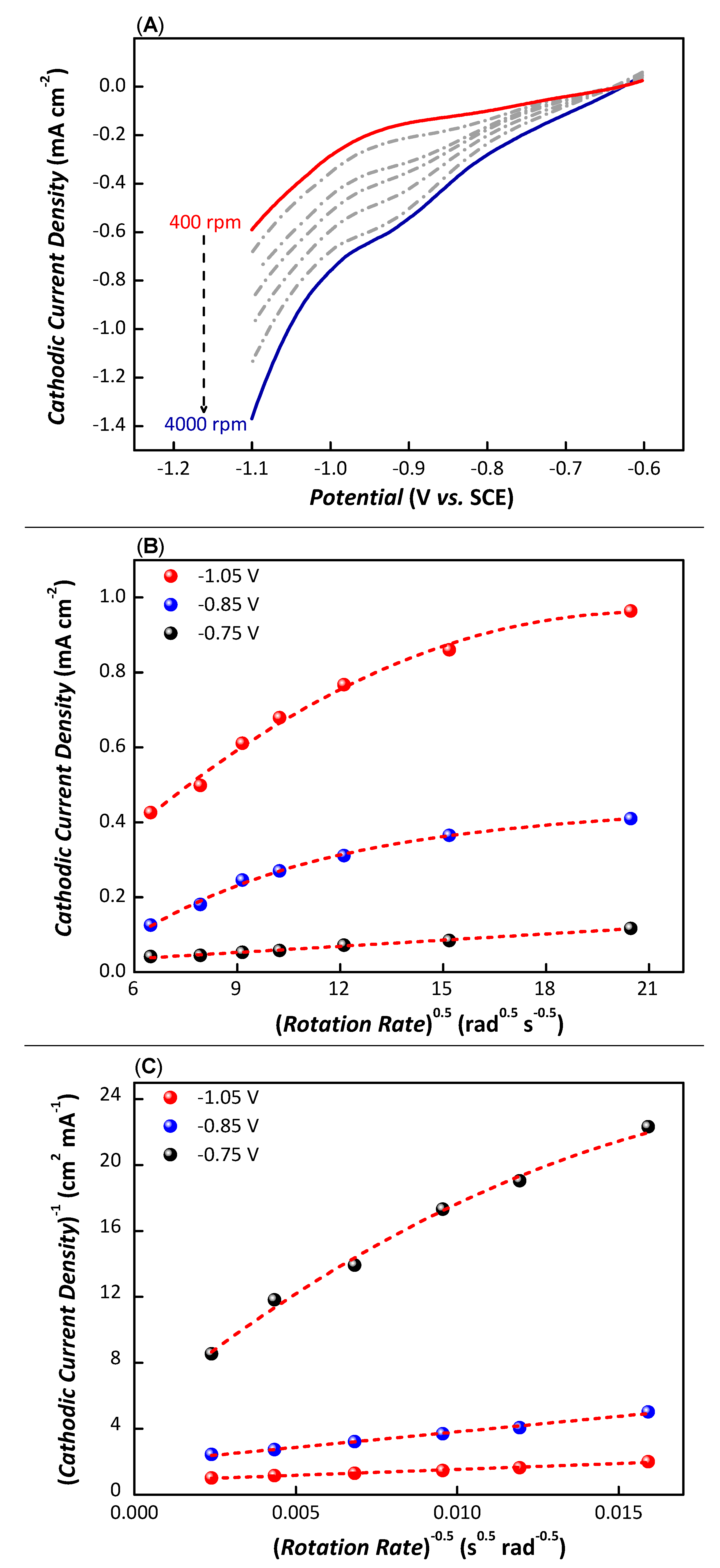

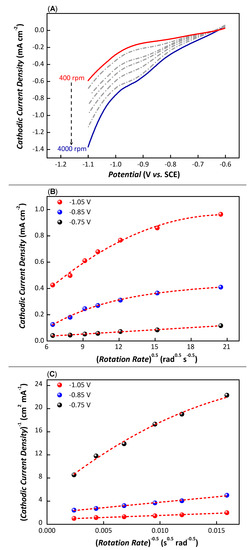

Figure 6. (A) RDE responses for the electroreduction of CO2 in 0.50 mol L−1 KCl on the metallopolymer-modified electrode. The rotation rate was varied from 400 to 4000 rpm and the scan rate was 10 mV s−1. (B) Levich plot at potentials −0.75, −0.85, and −1.05 V vs. SCE. (C) Koutecky–Levich plot at potentials of −0.75, −0.85, and −1.05 V vs. SCE.
Figure 6. (A) RDE responses for the electroreduction of CO2 in 0.50 mol L−1 KCl on the metallopolymer-modified electrode. The rotation rate was varied from 400 to 4000 rpm and the scan rate was 10 mV s−1. (B) Levich plot at potentials −0.75, −0.85, and −1.05 V vs. SCE. (C) Koutecky–Levich plot at potentials of −0.75, −0.85, and −1.05 V vs. SCE.
Nanomaterials 12 01193 g006
