Effect of the Carbon Support and Conditions on the Carbothermal Synthesis of Cu-Molybdenum Carbide and Its Application on CO2 Hydrogenation to Methanol

Ana Belén Dongil
Elodie Blanco
Juan José Villora-Picó
Antonio Sepúlveda-Escribano
5 and
Inmaculada Rodríguez-Ramos
Instituto de Catálisis y Petroleoquímica, CSIC, C/Marie Curie 2, Cantoblanco, 28049 Madrid, Spain
Departamento de Ingeniería y Gestión de la Construcción, Pontificia Universidad Católica de Chile, Santiago 2530388, Chile
Departamento de Ingeniería Química y Bioprocesos, Pontificia Universidad Católica de Chile, Santiago 2530388, Chile
Millenium Nuclei on Catalytic Processes towards Sustainable Chemistry (CSC), Santiago 2530388, Chile
Laboratorio de Materiales Avanzados, Departamento de Química Inorgánica—Instituto Universitario de Materiales de Alicante, Universidad de Alicante, Apartado 99, 03080 Alicante, Spain
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(7), 1048;
Submission received: 28 February 2022 / Revised: 17 March 2022 / Accepted: 19 March 2022 / Published: 23 March 2022


The synthesis of methanol by carbon dioxide hydrogenation has been studied using copper-molybdenum carbides supported on high surface area graphite, reduced graphene oxide and carbon nanotubes. The synthesis conditions and the effect of the support were studied. The catalysts were prepared in situ using H2 or He at 600 °C or 700 °C. Both molybdenum carbide and oxycarbide were obtained. A support with less reactive carbon resulted in lower proportion of carbide obtained. The best results were achieved over a 5 wt.% Cu and 10 wt.% Mo on high surface area graphite that reached 96.3% selectivity to methanol.

1. Introduction

Methanol is a key compound of chemical industry with a current production of 98 MTm/year which is expected to increase up to 500 MTm/year by 2050. It has applications in the production of polymers or fuels among others, and its use in fuel cells is promising since it is a stable molecule easy to transport and with high energy density [1,2]. However, methanol is currently produced mainly from fossil sources, representing around 10% of CO2 emissions from industry. Green methanol production can be achieved through the use of biomass as source or CO2 captured from renewable sources, i.e., bioenergy, and renewable hydrogen.
Moreover, there are large emission sources within the steel, power, or concrete industry which can benefit from CO2 capture and thermocatalytic conversion, especially as CO2 emissions taxes increase, this making the carbon capture and use more interesting [3].
Hence, the interest on efficient catalytic processes for CO2 to methanol conversion is evident. The first tested catalysts were those already used in the hydrogenation of syngas of the type Cu/ZnO/Al2O3, for which typical industrial conditions are 230–280 °C and 50–120 bar. Copper as active phase commonly leads to deactivation due to its high tendency to sintering and low hydrothermal stability. More recently, molybdenum carbide has been successfully employed as an inexpensive and active alternative with ability to activate both CO2 and H2. Moreover, combined with a second metal such as copper, it can reach high selectivity to methanol, which has been compared to noble metals such as palladium [4,5].
The synthesis of molybdenum carbide over several supports has been previously reported using hydrogen/hydrocarbon at 600–800 °C resulting in different extent of carburization [6,7,8]. Unsupported molybdenum carbides are generally covered by carbon, and the obtained surface areas of around 30 m2/g [9] are not optimal for catalysis. Alternatively, some organic precursors have been employed; however, the active phase generally remains covered with carbon from the precursor [10,11,12].
As a cleaner alternative, carbothermally generated carbide on carbon supports such as activated carbon, graphite, or carbon nanofibers has been reported by us and other groups [13,14,15,16]. The synthesis is influenced by the experimental conditions and the nature of the support.
Hence, we have studied the synthesis of copper-molybdenum carbide catalysts over different carbon supports (a commercial carbon support of high surface area, reduced graphene oxide, and carbon nanotubes), aiming at using milder synthesis conditions. The effect of different synthesis atmosphere (H2 or He) and temperature (600 or 700 °C) on the physico-chemical and catalytic performance has been evaluated.

2. Materials and Methods

2.1. Catalysts Synthesis

Supported metal carbides catalysts were prepared by wetness impregnation of the precursors followed by a carburization treatment. The supports employed were a commercial high surface area graphite (HSAG400 from Timcal Graphite, Timcal, SA, Switzerland), a lab-prepared reduced graphene oxide, and commercial carbon nanotubes Baytubes C150 HP (Bayer Materials Science, Pittsburgh, PA, USA) that will be labelled as H (SBET = 399 m2/g), rGO (SBET = 505 m2/g) and CNT (SBET = 264 m2/g), respectively. The synthesis of the rGO support has been thoroughly described before [17]. In brief, graphenic materials were prepared by the treatment of graphite oxide (GO) at high temperature. The starting graphite used to prepare GO was natural graphite powders of grain size 10 mesh (supplied by Alfa Aesar, Thermo Fisher Scientific, Lancashire, UK, purity 99.8%). The conditions used for the reduction and exfoliation of the graphite oxide can be summarised as follows. (A) a N2 flow (87 mL min−1) was used. The heat treatment was 10 °C min−1 up to 250 °C. Then, this temperature was kept for 30 min and then increased from 250 to 700 °C at 10 °C min−1, where it was maintained for 30 min. Metal carbides were prepared by wet co-impregnation on the carbon supports with the corresponding metal precursors. Aqueous solutions of the Mo precursor, (NH4)6Mo7O24 (99% from Aldrich, MO, USA) and Cu precursor Cu(NO3)2.3H2O (99% from Aldrich), were employed with the calculated weight to obtain the target metal loading, and after 6 h maturation, samples were dried overnight at 100 °C. The carburization was carried out for 2 h under pure H2 or He, at 500, 550, 600, or 700 °C, (5 °C min−1). The Mo and Cu loadings were 10 wt.% and 5 wt.% in all cases. In this way, eight samples were prepared and labelled according to the support (H, rGO, and CNT) and carburization conditions (when H2 and/or 600 °C were used the reactions were omitted): CuMoxC/H500; CuMoxC/H550; CuMoxC/H; CuMoxC/H700; CuMoxC/H-He; CuMoxC/H700-He, CuMoxC/rGO, and CuMoxC/CNT.

2.2. Characterization

N2 adsorption isotherms were obtained at −196 °C using a 3Flex instrument from Micromeritics to assess the textural properties of the samples. About 100 mg of sample previously degassed at 120 °C for 4 h under vacuum. The surface area was calculated from the adsorption branch in the range 0.02 ≤ p/p0 ≤ 0.25, using the Brunauer–Emmett–Teller (BET) model.
In situ X-ray diffraction (XRD) patterns were obtained in a reaction chamber (Anton Par XRK900, Graz, Austria) by flowing H2 or N2. The 2θ range was between 4° and 90°, with a step of 0.04 °/s, using a Polycristal X’Pert Pro PANalytical diffractometer with Ni-filtered Cu Kα radiation (λ = 1.54 Å) operating at 45 kV and 40 mA.
Photoelectron spectra (XPS) were recorded using an Escalab 200 R spectrometer equipped with a hemispherical analyser and using non-monochromatic Mg K X-ray radiation (hν = 1253.6 eV). The samples were carburized as described in Section 2.1 and poured into an octane solution to avoid oxidation before transferring to the outgassing chamber. Prior to the experiments, samples were outgassed in situ for 24 h to achieve a dynamic vacuum below 10–10 mbar. The binding energy (BE) was measured by reference to the C 1s peak at 284.6 eV, with an equipment error of less than 0.01 eV in the energy determinations. The surface atomic ratios were estimated from the integrated intensities of Mo 3d, Cu 2p, C 1s, and O 1s lines after background subtraction and correction by the atomic sensitivity factors. The spectra were fitted to a combination of Gaussian–Lorentzian lines of variable proportions.
The thermogravimetric analyses (TGA) were performed with an TA Instruments SDT Q600 TA system from 30 °C to 700 °C, at 5 °C min−1, in H2 or He flow (100 cm3 min−1, STP). The evolved gases from the TGA were monitored by mass spectrometry using a ThermoStar GSD 301 T3 instrument (filament 150 °C, SEM and emission detector at 950 mV). The masses analysed were 2, 14, 15, 16, 17, 18, 28, and 44.
Raman spectra were obtained with a spectrometer Jobin Yvon LabRAM HR equipped with a microscope. In order not to heat the graphene monolayer, a power of 2 mW and a source of excitation at 514 nm from an argon laser were used. The resolution of the equipment is 1 cm−1, and the laser beam was focused onto the sample with a 100× objective. The laser intensity at the sample was kept below the threshold for any laser-induced changes in the Raman spectra and electrical transport characteristics.
Temperature-programmed desorption of carbon dioxide (TPD-CO2) was carried out with a combination of a thermal conductivity detector (TCD) and a mass spectrometer (Cirrus 2, MKS Spectra product, Cheshire, UK) using a 3Flex device (micromeritics). Typically, around 50–75 mg of the sample was first carburized in situ under H2 flow (50 mL min−1) at 600 °C (5 °C min−1) for 2 h. The reactor was then cooled at 100 °C and purged for 1 h under He (50 mL min−1) prior adsorption of CO2 (50 mL min−1) for 30 min. The sample was finally cooled to 45 °C and purged for 2 h under He (50 mL min−1). Finally, desorption was carried out by heating under the same He flow at 5 °C min−1 from 45 to 600 °C while monitoring the following m/z fragments: 2, 15, 18, 28, and 44 related to H2, CH4, H2O, CO, and CO2 respectively.

2.3. Reaction

The evaluation of the gas phase catalytic performance was carried out in a stainless steel fixed-bed flow reactor of 3/8″ internal diameter. The catalysts (0.5 g) were placed in the reactor and in situ carburized in pure H2 or He, by increasing the temperature up to 100 °C, keeping this temperature for 1 h and then raising it up to 500, 550, 600, or 700 °C, with a heating rate of 5 °C min−1. The treatment at this temperature was carried out for 2 h. Finally, catalysts were cooled under H2 to the reaction temperature, 150 °C. The reactor was pressurised at 20 bar using a reactant mixture composed of (CO2:H2:He = 10:30:60 vol), and the total flow during reaction was 30 mL min−1. The reactants and products were analysed by gas chromatography (Varian CP 3400, Varian, CA, USA) with FID and TCD detectors, fitted with SupelQ Plot and 60/80 Carboxen-1000 columns, respectively. The reaction conditions allowed to maintain conversions in all the experiments to assume differential reactor. The experimental error was calculated by repeating some of the experiments and resulted in the range of ±1%. The carbon balance was over 95% in all cases, and blank tests resulted in conversion below 0.5%. The conversion and products selectivity were obtained according to the following equations:
X CO 2 = i n i × moli i n i × moli + molCO 2 - un × 100
S i = n i × moli i n i   ×   moli × 100
  • ni: number of carbon atoms of product i.
  • moli: number of moles of product i.
  • mol CO2-un: mol of unreacted CO2.

3. Results

3.1. Effect of the Support and Synthesis Conditions on the Molybdenum Crystal Phases

The molybdenum crystal phases obtained have been identified by in situ XRD under H2 or N2, and the patterns are shown in Figure 1A. It can be observed that the support and the reaction conditions clearly influence the XRD pattern.
While diffractions ascribed to molybdenum phases are barely insinuated at around 37.1° for CuMoxC/H-500 and CuMoxC/H-550, the catalyst CuMoxC/H showed diffractions with maxima at 2θ of 36.9° that seem to include another contribution at 37.1° and at 53.1°. According to our previous results combining XANES, XPS, and XRD characterization, the first peak may contain contributions of either MoOxCy and/or MoO2. The possibility of molybdenum hydride species might also be considered, since they have been also identified and would appear at similar angles compared to MoOxCy [4,6,18,19,20].
Further heating of this sample at 700 °C led to a pattern where diffractions at 2θ of 36.9°, 37.7°, and 39.5° are observed. In this case, it appears that the sample contains contributions due to MoOxCy, the first peak, and to those of the (002) and (101) planes of β-Mo2C hcp phase, the last two peaks. Moreover, diffractions at 2θ of 40.6° and 58.7° assigned to Mo0, which correspond to the (110) and (200) planes of the cubic structure of Mo0 (JCPDS 42–1120), respectively, are also observed.
When changing the synthesis conditions for CuMoxC/H to an inert atmosphere, the patterns are similar for both samples treated at 600 °C and 700 °C. They displayed peaks at 2θ of 36.7° and 37.1°, which again can be ascribed to MoOxCy, but the first diffraction can also include the contribution of the (111) plane of Cu2O [21]. Furthermore, the sample treated at 700 °C under inert atmosphere displayed an additional wide peak at 2θ of 39.4°, which can be attributed to MoO3. However, the detection of carbide and oxycarbide by XPS (see Table 1) could indicate that this peak also includes the diffraction of the β-Mo2C phase.
As long as the effect of the support is concerned, the sample prepared over reduced graphene oxide, CuMoxC/rGO, and treated under H2 at 600 °C, displayed a small hump with two insinuated peaks at 2θ of 37.7° and 39.6° which seem to indicate the presence of β-Mo2C and MoOxCy phases. When the support for the metallic precursors was CNT, the resulting XRD showed a small contribution at around 2θ of 37.1° which may correspond to highly dispersed Mo phases, MoOxCy and β-Mo2C.
Moreover, all the samples treated under hydrogen display diffractions at around 43.1° and 50.0°, which are assigned to the (111) and (200) planes of metallic copper (JCPDS 04-0836). Sample CuMoxC/H treated under inert atmosphere also showed diffractions at 2θ of 41.1° and 41.5° which correspond to Cu2O [21]. In addition, the absence of diffractions corresponding to copper carbide that would appear around 2θ of 36.0° indicates that under the employed conditions its formation is not favoured, as it was also verified by the XPS analyses [22,23].
The oxidation states of Mo and Cu species and metal/C ratios were assessed by XPS of the carburized samples, and the Mo 3d3/5 region of each catalyst is shown in Figure 2. The Mo 3d region displayed several contributions which can be assigned to the following oxidation states: Mo0 (227.9 eV), Mo+2 (228.2–228.6 eV), Mo (228.9–229.8 eV), Mo+5 (231.0–231.2 eV), and Mo+6 (232.1–232.6 eV). The attribution of each binding energy is included in Table 1. Mo+2 corresponds to Mo with Mo-C bonds, while Mo+5 and Mo+6 are species of Mo2O5 and MoO3, respectively, due to incomplete carburization [24]. In addition, the Mo is an intermediate oxidation state between +4 and +2 that can be ascribed to MoOxCy.
From the XPS analyses some additional information can be gathered. Firstly, all the catalysts treated under H2 at 600 °C presented both MoxC and MoOxCy phases, but in different proportion, and the catalyst with the highest total surface atomic concentration of MoxC and MoOxCy, ca. 90%, is the one prepared over HSAG. This catalyst also presented the highest surface atomic concentration of MoxC. In contrast, when carbon nanotubes or reduced graphene oxide were used as supports, the contribution of MoO3 was more significant, suggesting a lower capacity to carburize the metal oxide.
On the other hand, among the catalysts prepared over HSAG at different temperatures under a H2 atmosphere, the one treated at 600 °C displayed the highest MoxC + MoOxCy contribution, while that synthetized at 700 °C showed the lowest value since Mo(0) is now present.
As long as the Mo/C ratio is concerned, all the catalysts showed similar ratio, except those treated at 700 °C under H2 for which the ratio was higher, which could be due to an improvement of the molybdenum dispersion due to particles rupture during H2 diffusion [8].
The carburization process, under H2 or N2, was studied using a TG equipment coupled with a mass spectrometer to follow the evolved masses, m/z, and the results are shown in Figure 3.
The profiles of the experiments performed under H2 atmosphere for CuMoxC/H and CuMoxC/rGO are similar. For these samples, signals m/z 18 and 17 appear with maxima at 200 °C and 360 °C, for which the contribution of m/z 17 indicates that it is primarily due to H2O since the relative proportion of m/z 18 and 17 on the profiles matches with the ratios expected for water (m/z 17 is 20% of m/z 18). Moreover, the most intense peak is observed at the lowest temperature. The absence of a relevant contribution due to the evolution of NH3 and the fact that nitrogen was not detected by XPS suggest that evolved NH3 might have reduced NO2 resulting from the decomposition of the copper precursor, producing inert nitrogen.
The evolution of masses assigned to water at 200 °C is probably due to the reduction of copper oxides, while those at 370 °C would correspond to transformations of molybdenum oxides. m/z 15 was selected to assess CH4 evolution since the main fragment (m/z 16) could also include a minimal contribution from water or ammonia if any. This mass appeared as a broad and low intense hump in the range 300–500 °C, with maxima at 400 and 450 °C. At higher temperatures of around 600 °C for CuMoxC/H and 550 °C for CuMoxC/rGO, an intense m/z 15 contribution is observed. However, for the sample CuMoxC/CNT, the temperature at which the m/z 15 appears is higher, and this suggests that generating carbide carbothermally is more difficult over this support, in agreement with XPS.
When the same experiment was performed under inert atmosphere for the sample prepared over HSAG, the profile changed. For this sample, m/z 18 and 17 appeared with maximum at 260 °C, and m/z 16 was not detected.
Overall, the characterisation showed differences depending on the support and carburization conditions. The catalysts displayed MoOxCy/β-Mo2C and MoOx phases, indicating that incomplete carburization took place under the studied conditions. Increasing the carburization temperature up to 700 °C did not result in a larger extent of carburization and, in contrast, Mo0 was obtained as the main phase.
Meanwhile, the favoured formation of carbide on HSAG compared to rGO might be due to the different structure of these supports. This feature was assessed by Raman spectroscopy included in Figure S1, which showed that the number of defects on the support such as edges, and estimated as the ID/IG ratio, is higher on HSAG compared to rGO, 0.80 vs. 0.53. However, the same does not apply to CNT since for this support the high ID/IG ratio, 1.81, is due to their rolling structure, while for H and rGO, the D-band mainly emerges from the presence of dangling bonds which can be more easily the source of carbon for carburization.
Finally, the samples prepared under inert atmosphere also presented the MoOxCy phase but in a lower proportion than samples treated under H2. It was also observed that the contribution of molybdenum oxide was higher on the sample treated at 600 °C under inert atmosphere, and metallic copper was detected.
Regarding prior literature results, the carbothermal method using H2 or an inert atmosphere has been widely used for carbon supports. For example, for carbon nanofibers, the oxycarbide was already observed at 550 °C after synthesis under H2, which was then transformed into the β–Mo2C phase at 650 °C [25]. However, in other works using carbon nanotubes, the β–Mo2C phase was formed at 700 °C [26] or at 800 °C over activated carbon [16].
There are few reports in literature where formation of Mo(0) is described upon carburizing molybdenum on carbon supports using an H2 atmosphere [15,27]. We have recently reported the presence of a hydride phase on Cu-MoxC catalysts and its plausible relation with the development of metallic Mo [6].
The formation of the different species may be simplified according to reactions (1) and (2) [19]
MoO3 + H2 → MoO2 + H2O
MoO2 + C* + H2 → MoOxCY + H2O → β–Mo2C + CO
Hence, the lack of enough available reactive carbon, C*, on the support and the presence of molybdenum hydride species can explain the reduction to Mo0, which is favoured under the H2 atmosphere.

3.2. Reaction Results

The conversion of CO2 was evaluated at 150 °C and 20 bar, and results are shown in Figure 4. The conversion achieved with the catalysts varied in the range 1.5–4.8%. The main product obtained with all the catalysts was methanol, and the selectivity to this product was in the range 80.1–96.3%, while methane and carbon monoxide were observed to some extent to depend on the catalyst.
If we compare the results obtained with CuMoxC/H carburized at different temperatures, 500–700 °C under hydrogen, changes in line with their different Mo species are noticed. The average conversion values indicate that the conversion obtained with CuMoxC/H is slightly higher than that obtained with the catalysts CuMoxC/H-500 and CuMoxC/H-550, in agreement with the higher proportion of MoxC and MoOxCy on CuMoxC/H.
The catalysts prepared over reduced graphene oxide and carbon nanotubes yielded lower conversion and selectivity than the catalysts prepared over HSAG under the same conditions. As expected, considering the lower extent of carburization, the catalysts prepared under inert atmosphere were less active and selective to methanol than the analogous samples prepared under hydrogen. However, the effect of the carburization temperature was different for the samples synthetized under inert or hydrogen atmosphere. Whereas for the catalysts prepared under hydrogen the catalytic performance was worse in terms of conversion and selectivity upon increasing the treatment temperature up to 700 °C, for the catalysts prepared under inert atmosphere the opposite trend was observed. The explanation can be found in the different phases obtained in the samples during the thermal treatment. As the characterization studies showed, the proportion of less active species on CO2 hydrogenation, i.e., Mo0 and MoOx, was different, which can explain straight forward the diverse catalytic behaviour.
Rodríguez et al. have studied the surface reactions occurring on Mo2C during CO2 hydrogenation, and they have found that the most abundant species were oxycarbides, which suggested a significant contribution on the catalytic performance [28]. It is probably that, under reaction, both phases, i.e., carbide and oxycarbide, coexist and are involved in a redox cycle where CO2 reacts with Mo2C through C-O interaction, producing oxycarbide and CO, which could eventually be reduced by hydrogen to obtain again Mo2C.
On the other hand, the conversion achieved with CuMoxC/H-700 is ca. 25% lower, which can be explained by the presence of Mo0 phase, which is not suitable for the activation of the C-O bond [29].
As regards to the effect of the support, the catalysts CuMoxC/rGO and CuMoxC/CNT are less active and less selective than CuMoxC/H. While the selectivity of both CuMoxC/rGO and CuMoxC/CNT is around 91% to methanol; the conversion reached 4.2 and 3.5%, respectively.
This can be explained by the higher proportion of molybdenum carbide phase on HSAG, as estimated by XPS.
To further study the ability to activate CO2, CO2-TPD analyses were performed. The TPD profiles of the supports in Figure S2 confirmed that they do not adsorb CO2. Moreover, the evolution profile of m/z 28 for all the samples matches well the intensity of the secondary mass of CO2 (ca. 10%), and this suggests that for the studied systems, CO2 is only cleavage under H2 atmosphere during reaction conditions [30]. The evolution of m/z 44 ascribed to CO2 is shown in Figure 5. The contribution at temperatures around 100 °C can be assigned to physisorbed CO2. These adsorption sites can be due to MoxC particles covered by carbon, C-MoxC, and this would agree with the observed lower intensity of this peak upon increasing the carburization temperature. These sites would display a poor behaviour towards CO2 dissociation.
On the bimetallic catalysts prepared over HSAG, two desorption peaks at 193–210 °C and 285–303 °C are observed. For the sample carburized at 500 °C, the peak at the highest temperature comes along a wide shoulder which may be related to adsorption over oxidized species whose contribution, as observed by XPS, is higher.
The CO2-TPD profiles of the monometallic catalysts, Cu/H and MoxC/H, for which the desorption of CO2 is observed at 340 °C and at temperatures above 400 °C, respectively, seem to indicate that the CO2 desorption peaks of the bimetallic samples are linked to Cu-Mo sites. Moreover, the lower temperature at which these peaks appear in the bimetallic samples compared to monometallic catalysts can be related to the higher selectivity to methanol of bimetallic catalysts.
Cu+-MoxC sites have been previously ascribed to increased selectivity to methanol [31], and on the CO2-TPD, they should correspond to higher desorption peaks compared to Cu-Mo2C. However, the catalysts also contain MoOxCy and possibly hydrides; hence, it is not possible to assign unambiguously the desorption peak. Nevertheless, the absence of the latter peak on rGO and CNT and the higher temperature at which the first desorption peak appears suggest the presence of different adsorption sites on the catalysts depending on the supports.
Finally, selected catalysts were characterised by XRD after reaction and shown in Figure 1B. The XRD pattern of the spent CuMoxC/H and CuMoxC/rGO catalysts are different to those of the fresh catalysts, and they now display sharper XRD peaks at 2θ of 34.3°, 37.7°, and 39.4° attributed to the β-Mo2C phase, although contribution of the MoO3 at 2θ of 34.3° cannot be disregarded. The spent catalysts synthetized under inert atmosphere show intense and sharp peaks at 2θ of 35.4°, 36.3°, 36.8°, 42.2 °, 53.0°, and 53.5° for CuMoxC/H-He, which correspond to the diffraction peaks of the MoO2. The pattern of the spent CuMoxC/H-700He catalyst also displayed the typical diffraction pattern of the oxide, but still some contributions ascribed to the β-Mo2C phase can be observed.
In contrast, the XPS analyses of the spent CuMoxC/H shown in Table 1 only showed one contribution of MoO3, and the calculated Mo/C ratios are lower than for the fresh samples. This, along with the reaction results that showed a stable conversion and selectivity, seems to indicate that the β-Mo2C is preserved and that larger particles are formed. Nonetheless the unavoidable passivation layer can be responsible for the XPS results that displayed MoO3. The methanol yield obtained in the present work with CuMoxC/H, shown in Table 2, is comparable to the values reported for Cu supported on other carbon supports such as carbon nanofiber/ZrO2, at 180 °C and 30 bar and also for co-doped nanospheres at 220 °C and 20 bar, for which 0.2 μmol g−1 s−1 and 0.24 μmol g−1 s−1, respectively, were observed [32]. Furthermore, the results obtained are higher than those reported for other systems of the type Cu/ZnO or Cu/ZrO2, which offered 0.08–0.09 μmol g−1 s−1 yield to methanol at 250 °C and 20 bar [33].. It is worth mentioning that in the present case, the reaction temperature was lower, e.g., 150 °C, and therefore, the activity could be even higher at higher temperature.

4. Conclusions

The synthesis of copper-molybdenum carbide over a high surface area graphite has been studied using different temperatures and atmospheres. In addition, the synthesis at 600 °C and H2 has been also performed over reduced graphene oxide and carbon nanotubes as supports, for the sake of comparison. The results indicated that the supports employed can act as sources of carbon for the formation of carbides. According to the results, the best synthetic temperature under H2 for the graphite support was 600 °C, which allowed to obtain a higher proportion of molybdenum carbide and oxycarbide, while the treatment under He is not suitable for carburization using the tested supports.
Moreover, the results showed that a carbon support such as the commercial high surface area graphite, HSAG400, is better to obtain molybdenum carbide probably because of its higher ratio of reactive carbon compared to lab-prepared graphene oxide, as observed in Raman. On the other hand, the smaller these particles are, the easier it is to carburize them, which is reasonable considering that the support is the source of carbon. Moreover, the CO2-TPD results seemed to confirm the Cu-Mo interaction.
It is worth highlighting that the catalyst prepared at 500 °C provided similar conversion as that prepared at 600 °C, since one of the drawbacks of carbides is the high activation temperature which increases the operational costs of the catalysts.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: Raman spectra of the supports. Figure S2: CO2-TPD SUPPORTS.

Author Contributions

Conceptualization: A.B.D.; methodology: A.B.D., E.B. and J.J.V.-P.; formal analysis: A.B.D. and E.B.; data curation: A.B.D. and E.B.; writing—original draft preparation: A.B.D. and E.B.; funding acquisition: A.B.D., A.S.-E. and I.R.-R. All authors have read and agreed to the published version of the manuscript.


A.B. Dongil acknowledges financial support from Fundación General CSIC (Programa ComFuturo, Spain) and EU H2020-MSCA, GA. Nº 101008058. Financial support from the Spanish Agencia Estatal de Investigación (AEI) and EU (FEDER) (projects PID2020-119160RB-C21, PID2019-103453GB-C21, CTQ2017-89443-C3-1-R, and CTQ2017-89443-C3-3-R) is also acknowledged. The APC was funded by EU H2020-MSCA, GA. Nº 101008058.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chi, H.; Andolina, C.M.; Li, J.; Curnan, M.T.; Saidi, W.A.; Zhou, G.; Veser, G. Dependence of H2 and CO2 selectivity on Cu oxidation state during partial oxidation of methanol on Cu/ZnO. Appl. Catal. A 2018, 556, 64–72. [Google Scholar] [CrossRef]
  2. González-Garay, A.; Frei, M.S.; Al-Qahtani, A.; Mondelli, C.; Guillén-Gosálbez, G.; Pérez-Ramírez, J. Plant-to-planet analysis of CO2-based methanol processes. Energy Environ. Sci. 2019, 12, 3425–3436. [Google Scholar] [CrossRef] [Green Version]
  3. Olah, G.A. Beyond Oil and Gas: The Methanol Economy. Angew. Chem. Int. Ed. 2005, 44, 2636–2639. [Google Scholar] [CrossRef] [PubMed]
  4. Carrales-Alvarado, D.H.; Dongil, A.B.; Fernández-Morales, J.M.; Fernández-García, M.; Guerrero-Ruiz, A.; Rodríguez-Ramos, I. Selective hydrogen production from formic acid decomposition over Mo carbides supported on carbon materials. Catal. Sci. Technol. 2020, 10, 6790–6799. [Google Scholar] [CrossRef]
  5. Chen, Y.; Choi, S.; Thompson, L.T. Low temperature CO2 hydrogenation to alcohols and hydrocarbons over Mo2C supported metal catalysts. J. Catal. 2016, 343, 147–156. [Google Scholar] [CrossRef] [Green Version]
  6. Dongil, A.B.; Conesa, J.M.; Pastor-Pérez, L.; Sepúlveda-Escribano, A.; Guerrero-Ruiz, A.; Rodríguez-Ramos, I. Carbothermally generated copper–molybdenum carbide supported on graphite for the CO2 hydrogenation to methanol. Catal. Sci. Technol. 2021, 11, 4051–4059. [Google Scholar] [CrossRef]
  7. Guil-López, R.; Nieto, E.; Botas, J.A.; Fierro, J.L.G. On the genesis of molybdenum carbide phases during reduction-carburization reactions. J. Solid State Chem. 2012, 190, 285–295. [Google Scholar] [CrossRef]
  8. Blanco, E.; Dongil, A.B.; García-Fierro, J.L.; Escalona, N. Insights in supported rhenium carbide catalysts for hydroconversion of lignin-derived compounds. Appl. Catal. A 2020, 599, 117600. [Google Scholar] [CrossRef]
  9. Cao, J.; Wang, J.; Ma, Y.; Li, X.; Xiaokaiti, P.; Hao, X.; Guan, G. Hydrogen production from formic acid over morphology-controllable molybdenum carbide catalysts. J. Alloys Compd. 2018, 735, 1463–1471. [Google Scholar] [CrossRef]
  10. Huang, T.; Huang, W.; Huang, J.; Ji, P. Methane reforming reaction with carbon dioxide over SBA-15 supported Ni–Mo bimetallic catalysts. Fuel Process. Technol. 2011, 92, 1868–1875. [Google Scholar] [CrossRef]
  11. Yao, Z.; Jiang, J.; Zhao, Y.; Luan, F.; Zhu, J.; Shi, Y.; Wang, H. Insights into the deactivation mechanism of metal carbide catalysts for dry reforming of methane via comparison of nickel-modified molybdenum and tungsten carbides. RSC Adv. 2016, 6, 19944–19951. [Google Scholar] [CrossRef]
  12. Yao, Z.; Luan, F.; Sun, Y.; Jiang, B.; Song, J.; Wang, H. Molybdenum phosphide as a novel and stable catalyst for dry reforming of methane. Catal. Sci. Technol. 2016, 6, 7996–8004. [Google Scholar] [CrossRef]
  13. Liang, P.; Gao, H.; Yao, Z.; Jia, R.; Shi, Y.; Sun, Y.; Wang, H. Simple synthesis of ultrasmall β-Mo2C and α-MoC1−x nanoparticles and new insights into their catalytic mechanisms for dry reforming of methane. Catal. Sci. Technol. 2017, 7, 3312–3324. [Google Scholar] [CrossRef]
  14. Souza Macedo, L.; Oliveira, R.R.; van Haasterecht, T.; Teixeira da Silva, V.; Bitter, H. Influence of synthesis method on molybdenum carbide crystal structure and catalytic performance in stearic acid hydrodeoxygenation. Appl. Catal. B 2019, 241, 81–88. [Google Scholar] [CrossRef]
  15. Xu, W.; Ramirez, P.J.; Stacchiola, D.; Rodriguez, J.A. Synthesis of α-MoC1-x and β-MoCy Catalysts for CO2 Hydrogenation by Thermal Carburization of Mo-oxide in Hydrocarbon and Hydrogen Mixtures. Catal. Lett. 2014, 144, 1418–1424. [Google Scholar] [CrossRef]
  16. Blanco, E.; Aguirre-Abarca, D.A.; Díaz de León, J.N.; Escalona, N. Relevant aspects of the conversion of guaiacol as a model compound for bio-oil over supported molybdenum oxycarbide catalysts. New J. Chem. 2020, 44, 12027–12035. [Google Scholar] [CrossRef]
  17. Ramirez-Barria, C.S.; Fernandes, D.M.; Freire, C.; Villaro-Abalos, E.; Guerrero-Ruiz, A.; Rodríguez-Ramos, I. Upgrading the Properties of Reduced Graphene Oxide and Nitrogen-Doped Reduced Graphene Oxide Produced by Thermal Reduction toward Efficient ORR Electrocatalysts. Nanomaterials 2019, 9, 1761. [Google Scholar] [CrossRef] [Green Version]
  18. Mordenti, D.; Brodzki, D.; Djéga-Mariadassou, G. New Synthesis of Mo2C 14 nm in Average Size Supported on a High Specific Surface Area Carbon Material. J. Solid State Chem. 1998, 141, 114–120. [Google Scholar] [CrossRef]
  19. Hanif, A.; Xiao, T.; York, A.P.E.; Sloan, J.; Green, M.L.H. Study on the Structure and Formation Mechanism of Molybdenum Carbides. Chem. Mater. 2002, 14, 1009–1015. [Google Scholar] [CrossRef]
  20. Oyama, S.T.; Delporte, P.; Pham-Huu, C.; Ledoux, M.J. Tentative Structure of Molybdenum Oxycarbide. Chem. Lett. 1997, 26, 949–950. [Google Scholar] [CrossRef]
  21. Shen, H.; Liu, G.; Zhao, Y.; Li, D.; Jiang, J.; Ding, J.; Shi, W. Artificial all-solid-state system by RGO bridged Cu2O and Bi2WO6 for Z-scheme H2 production and tetracycline degradation. Fuel 2020, 259, 116311. [Google Scholar] [CrossRef]
  22. Ding, J.; Yan, X.; Tay, B.K.; Xue, Q. One-step synthesis of pure Cu nanowire/carbon nanotube coaxial nanocables with different structures by arc discharge. J. Phys. Chem. Solids 2011, 72, 1519–1523. [Google Scholar] [CrossRef]
  23. Nowakowska-Langier, K.; Chodun, R.; Minikayev, R.; Okrasa, S.; Strzelecki, G.W.; Wicher, B.; Zdunek, K. Copper nitride layers synthesized by pulsed magnetron sputtering. Thin Solid Film. 2018, 645, 32–37. [Google Scholar] [CrossRef]
  24. Zhang, Q.; Pastor-Pérez, L.; Jin, W.; Gu, S.; Reina, T.R. Understanding the promoter effect of Cu and Cs over highly effective β-Mo2C catalysts for the reverse water-gas shift reaction. Appl. Catal. B 2019, 244, 889–898. [Google Scholar] [CrossRef]
  25. Ochoa, E.; Torres, D.; Moreira, R.; Pinilla, J.L.; Suelves, I. Carbon nanofiber supported Mo2C catalysts for hydrodeoxygenation of guaiacol: The importance of the carburization process. Appl. Catal. B 2018, 239, 463–474. [Google Scholar] [CrossRef]
  26. Frank, B.; Friedel, K.; Girgsdies, F.; Huang, X.; Schlögl, R.; Trunschke, A. CNT-Supported MoxC Catalysts: Effect of Loading and Carburization Parameters. ChemCatChem 2013, 5, 2296–2305. [Google Scholar] [CrossRef]
  27. Geng, W.; Han, H.; Liu, F.; Liu, X.; Xiao, L.; Wu, W. N,P,S-codoped C@nano-Mo2C as an efficient catalyst for high selective synthesis of methanol from CO2 hydrogenation. J. CO2 Util 2017, 21, 64–71. [Google Scholar] [CrossRef]
  28. Porosoff, M.D.; Yang, X.; Boscoboinik, J.A.; Chen, J.G. Molybdenum Carbide as Alternative Catalysts to Precious Metals for Highly Selective Reduction of CO2 to CO. Angew. Chem. Int. Ed. 2014, 53, 6705–6709. [Google Scholar] [CrossRef]
  29. Tominaga, H.; Nagai, M. Density functional study of carbon dioxide hydrogenation on molybdenum carbide and metal. Appl. Catal. A 2005, 282, 5–13. [Google Scholar] [CrossRef]
  30. Posada-Pérez, S.; Ramírez, P.J.; Gutiérrez, R.A.; Stacchiola, D.J.; Viñes, F.; Liu, P.; Rodriguez, J.A. The conversion of CO2 to methanol on orthorhombic β-Mo2C and Cu/β-Mo2C catalysts: Mechanism for admetal induced change in the selectivity and activity. Catal. Sci. Technol. 2016, 6, 6766–6777. [Google Scholar] [CrossRef]
  31. Kim, J.; Sarma, B.B.; Andrés, E.; Pfänder, N.; Concepción, P.; Prieto, G. Surface Lewis Acidity of Periphery Oxide Species as a General Kinetic Descriptor for CO2 Hydrogenation to Methanol on Supported Copper Nanoparticles. ACS Catal. 2019, 9, 10409–10417. [Google Scholar] [CrossRef] [Green Version]
  32. Din, I.U.; Shaharun, M.S.; Naeem, A.; Tasleem, S.; Ahmad, P. Revalorization of CO2 for methanol production via ZnO promoted carbon nanofibers based Cu-ZrO2 catalytic hydrogenation. J. Eng. Chem. 2019, 39, 68–76. [Google Scholar] [CrossRef] [Green Version]
  33. Ren, H.; Xu, C.-H.; Zhao, H.-Y.; Wang, Y.-X.; Liu, J.; Liu, J.-Y. Methanol synthesis from CO2 hydrogenation over Cu/γ-Al2O3 catalysts modified by ZnO, ZrO2 and MgO. J. Ind. Eng. Chem. 2015, 28, 261–267. [Google Scholar] [CrossRef]

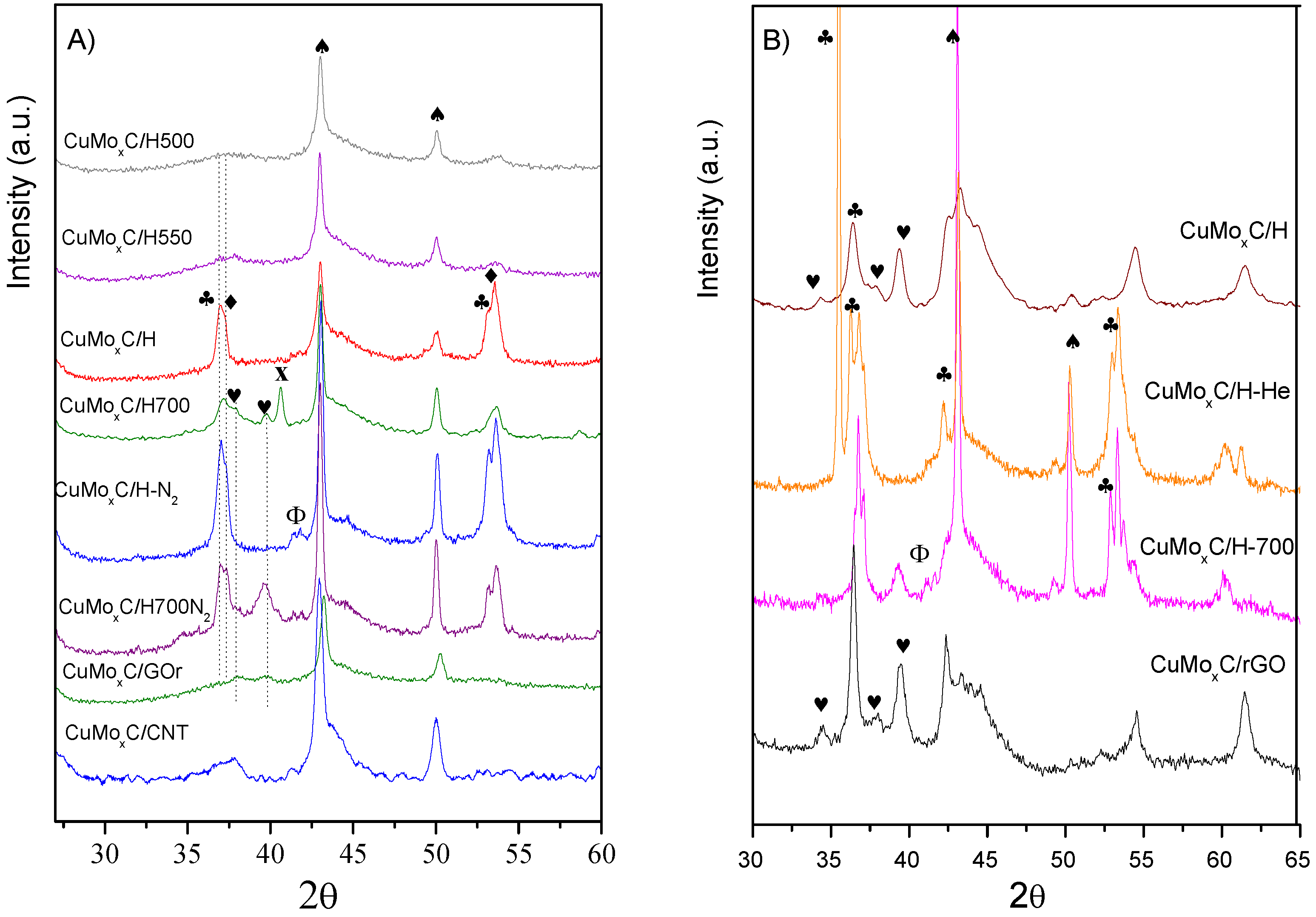

Figure 1. (A) In situ XRD patterns under H2 or inert atmosphere (N2) of the catalysts up to 600 °C or 700 °C. (B) XRD patterns of spent catalysts. Symbols: ♥ MoxC ♣ MoOxCy, ♦ MoO2, x Mo, ♠ Cu, Φ CuO.
Figure 1. (A) In situ XRD patterns under H2 or inert atmosphere (N2) of the catalysts up to 600 °C or 700 °C. (B) XRD patterns of spent catalysts. Symbols: ♥ MoxC ♣ MoOxCy, ♦ MoO2, x Mo, ♠ Cu, Φ CuO.
Nanomaterials 12 01048 g001

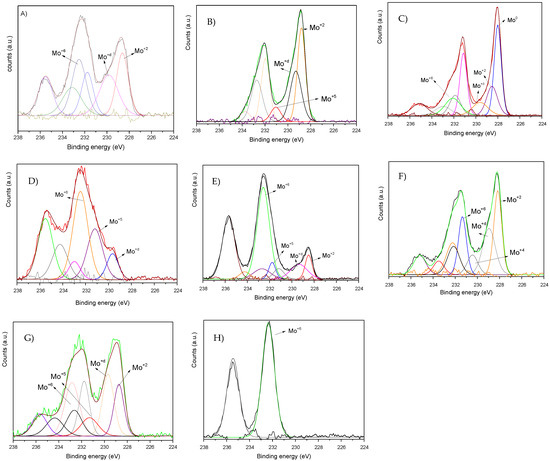

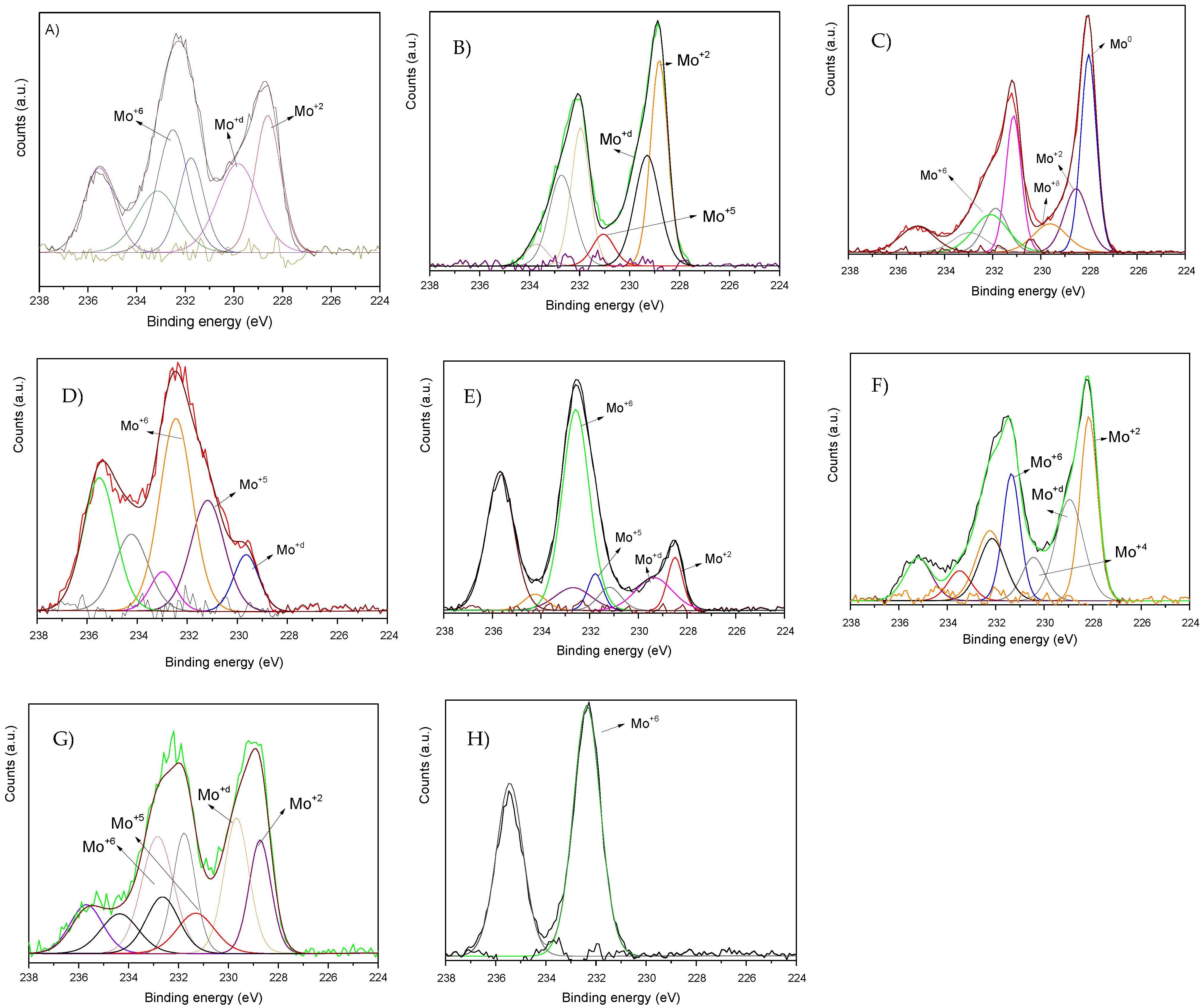

Figure 2. XPS Mo 3d Region of (A) CuMoxC/H550; (B) CuMoxC/H; (C) CuMoxC/H at 700 °C under H2; (D) CuMoxC/rGO; (E) CuMoxC/CNT; (F) CuMoxC/H under He at 600 °C; (G) CuMoxC/H under He at 700 °C; (H) Spent CuMoxC/H.
Figure 2. XPS Mo 3d Region of (A) CuMoxC/H550; (B) CuMoxC/H; (C) CuMoxC/H at 700 °C under H2; (D) CuMoxC/rGO; (E) CuMoxC/CNT; (F) CuMoxC/H under He at 600 °C; (G) CuMoxC/H under He at 700 °C; (H) Spent CuMoxC/H.
Nanomaterials 12 01048 g002

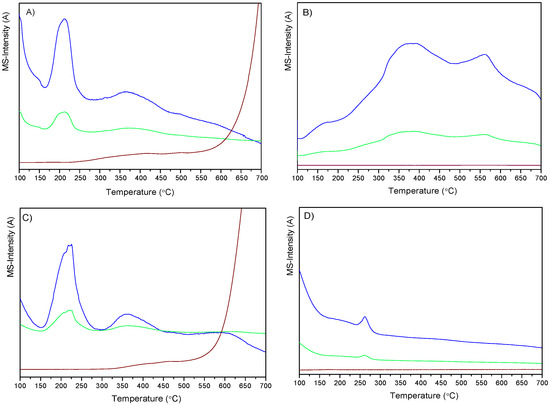

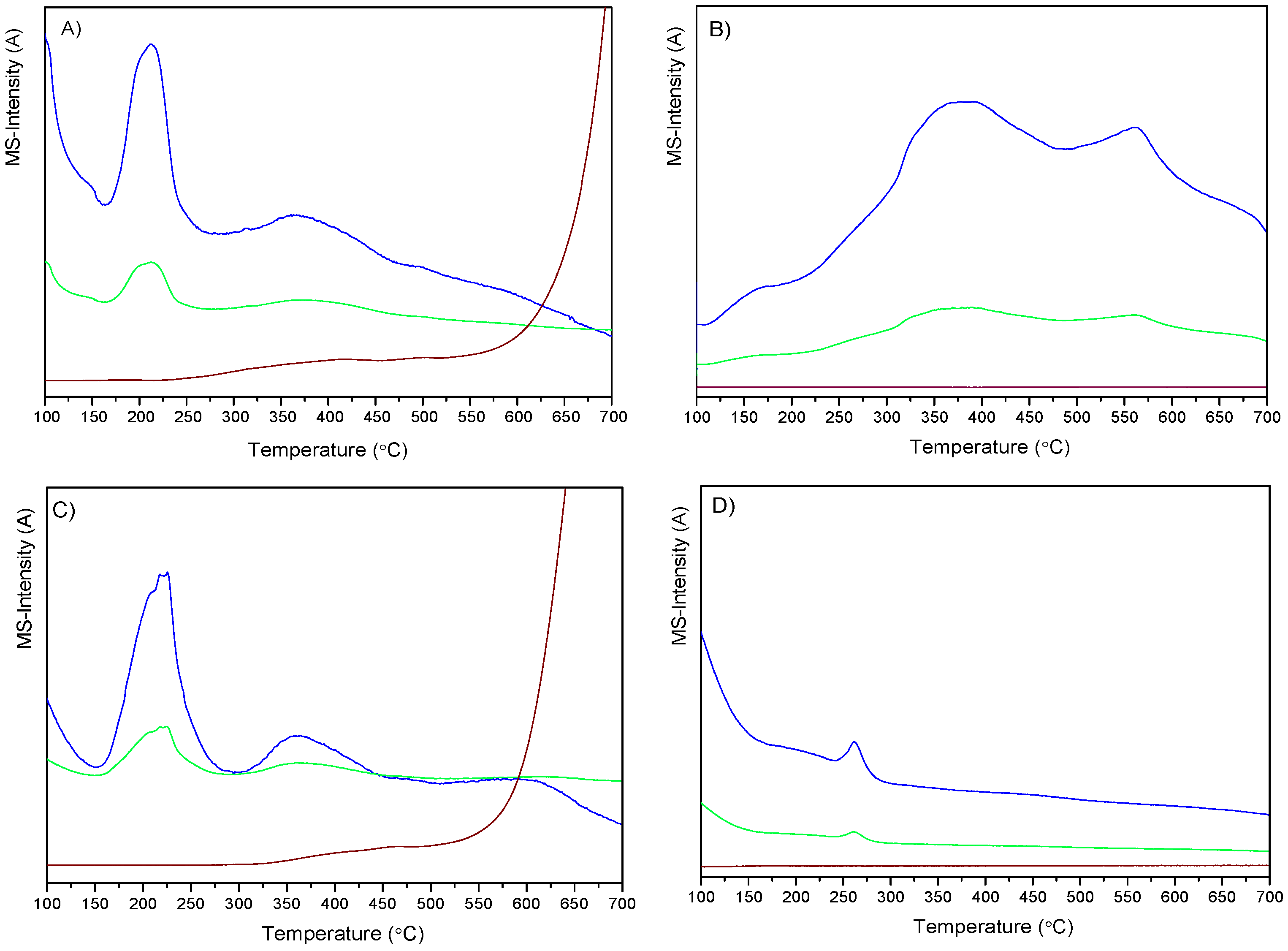

Figure 3. Mass profiles of H2-TPR of (A) CuMoxC/H, (B) CuMoxC/CNT, and (C) CuMoxC/rGO under H2 and (D) CuMoxC/H under He. m/z 18 (blue); m/z 17 (green) m/z 15 (wine).
Figure 3. Mass profiles of H2-TPR of (A) CuMoxC/H, (B) CuMoxC/CNT, and (C) CuMoxC/rGO under H2 and (D) CuMoxC/H under He. m/z 18 (blue); m/z 17 (green) m/z 15 (wine).
Nanomaterials 12 01048 g003

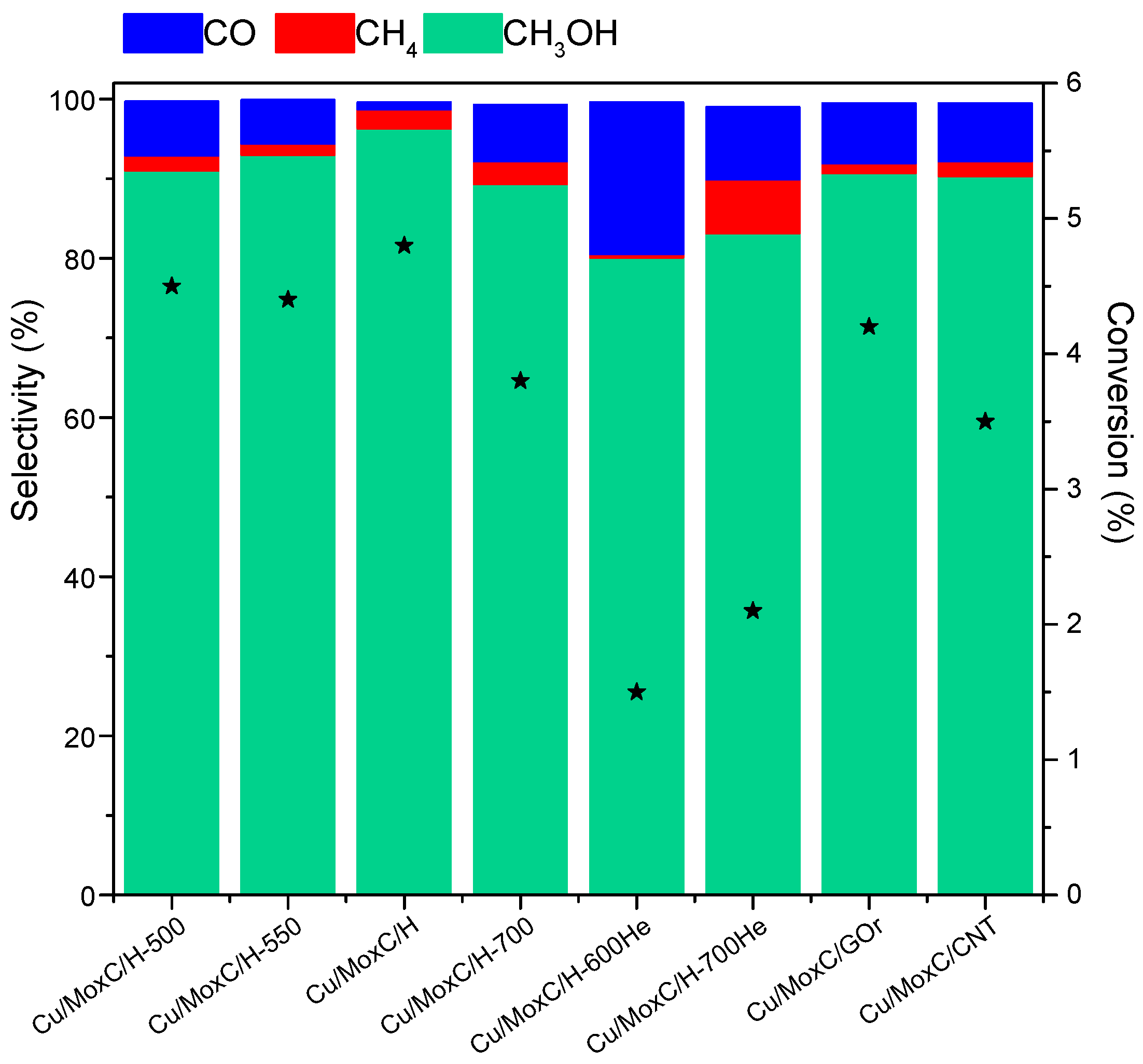

Figure 4. Conversion of CO2 (scatter in the right axes) and selectivity (in bars left axes) to CH3OH, CH4, and CO at 150 °C and 20 bar.
Figure 4. Conversion of CO2 (scatter in the right axes) and selectivity (in bars left axes) to CH3OH, CH4, and CO at 150 °C and 20 bar.
Nanomaterials 12 01048 g004

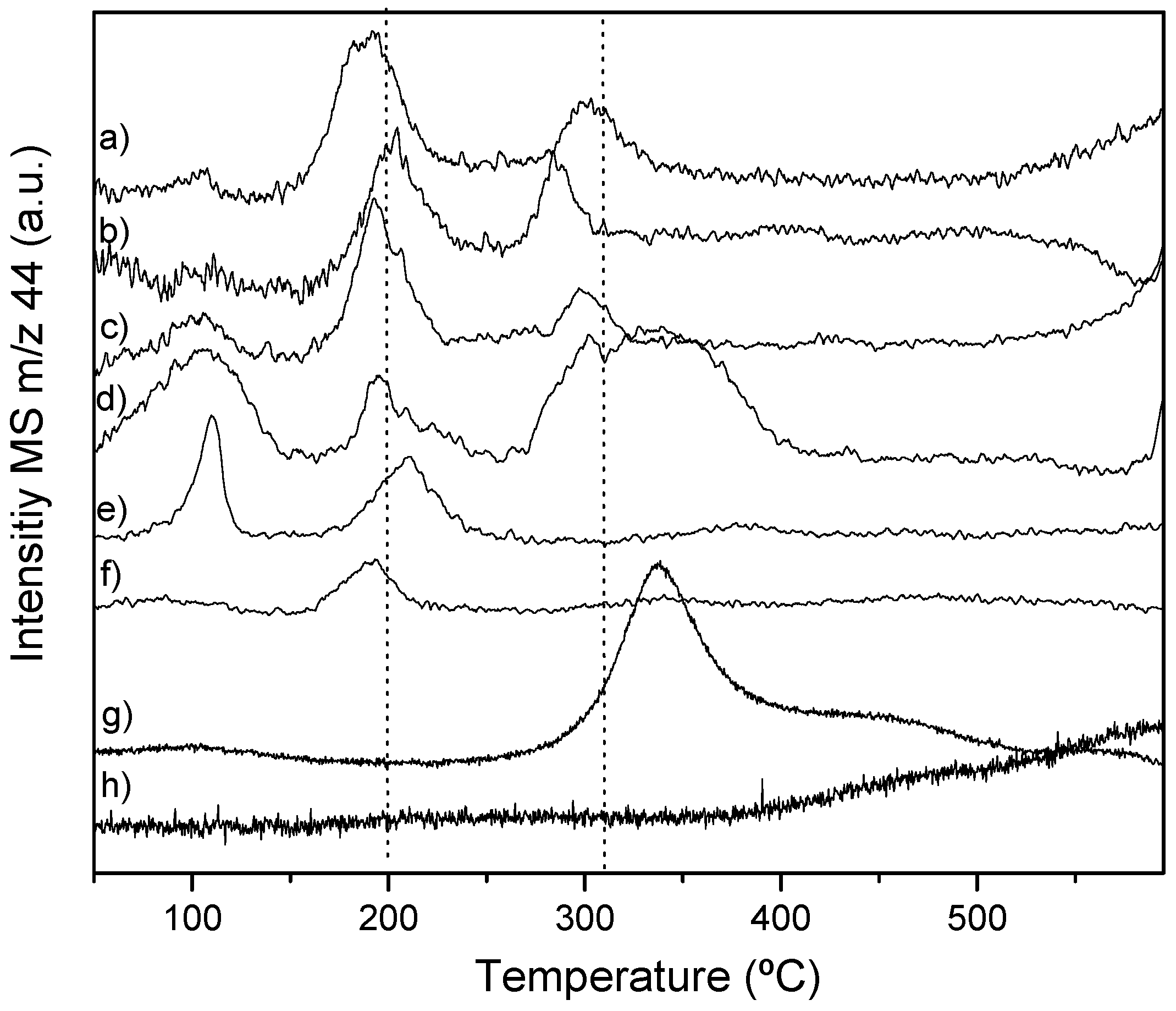

Figure 5. CO2-TPD profiles. (a) CuMoxC/H-700, (b) CuMoxC/H, (c) CuMoxC/H-550, (d) CuMoxC/H-500, (e) CuMoxC/rGO, (f) CuMoxC/CNT, (g) Cu/H and (h) MoxC/H.
Figure 5. CO2-TPD profiles. (a) CuMoxC/H-700, (b) CuMoxC/H, (c) CuMoxC/H-550, (d) CuMoxC/H-500, (e) CuMoxC/rGO, (f) CuMoxC/CNT, (g) Cu/H and (h) MoxC/H.
Nanomaterials 12 01048 g005
Table 1. XPS Binding energies (eV), concentration of species in brackets and atomic ratios.
Table 1. XPS Binding energies (eV), concentration of species in brackets and atomic ratios.
CuMoxC/H550232.4 (20)--229.6 (34)228.6 (44)-0.0140.325
CuMoxC/H-231.1 (10)-229.4 (39)228.6 (51)-0.0130.231
CuMoxC/H-700232.1 (19)-229.6 (13)228.5 (22)227.9 (44)0.0360.327
CuMoxC/H-He232.4 (55)231.2 (33)-229.6 (12)--0.0130.484
CuMoxC/H-700He232.6 (68)231.2 (6)-229.4 (16)228.5 (10)0.0100.216
CuMoxC/rGO232.1 (19)-230.4 (11)228.9 (32)228.2 (37)-0.0120.228
CuMoxC/CNT232.3 (17)231.0 (15)-229.3 (39)228.4 (28)-0.0120.224
CuMoxC/H-PR232.4 (100)-----0.0080.545
Table 2. Methanol yield obtained with the tested catalysts.
Table 2. Methanol yield obtained with the tested catalysts.
CatalystCH3OH Yield (μmol/s⋅g)
