A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

by
Min Wang
1,
Xiaoxiao Huang
2,
Zhiqian Yu
1,
Pei Zhang
3,
Chunyang Zhai
2,*,
Hucheng Song
1,*,
Jun Xu
1 and
Kunji Chen
1
1
National Laboratory of Solid State Microstructures, School of Electronics Science and Engineering, College of Engineering and Applied Sciences, Nanjing University, Nanjing 210093, China
2
School of Materials Science and Chemical Engineering, Ningbo University, Ningbo 315211, China
3
College of Electrical and Information Engineering, Zhengzhou University of Light Industry, Zhengzhou 450002, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(22), 4069; https://doi.org/10.3390/nano12224069
Submission received: 28 October 2022 / Revised: 14 November 2022 / Accepted: 16 November 2022 / Published: 18 November 2022
(This article belongs to the Special Issue Amorphous and Nanocrystalline Semiconductors: Selected Papers from ICANS 29)
Browse Figures
Review Reports Versions Notes

Abstract

:
Aqueous rechargeable zinc (Zn)–air batteries have recently attracted extensive research interest due to their low cost, environmental benignity, safety, and high energy density. However, the sluggish kinetics of oxygen (O2) evolution reaction (OER) and the oxygen reduction reaction (ORR) of cathode catalysts in the batteries result in the high over-potential that impedes the practical application of Zn–air batteries. Here, we report a stable rechargeable aqueous Zn–air battery by use of a heterogeneous two-dimensional molybdenum sulfide (2D MoS2) cathode catalyst that consists of a heterogeneous interface and defects-embedded active edge sites. Compared to commercial Pt/C-RuO2, the low cost MoS2 cathode catalyst shows decent oxygen evolution and acceptable oxygen reduction catalytic activity. The assembled aqueous Zn–air battery using hybrid MoS2 catalysts demonstrates a specific capacity of 330 mAh g−1 and a durability of 500 cycles (~180 h) at 0.5 mA cm−2. In particular, the hybrid MoS2 catalysts outperform commercial Pt/C in the practically meaningful high-current region (>5 mA cm−2). This work paves the way for research on improving the performance of aqueous Zn–air batteries by constructing their own heterogeneous surfaces or interfaces instead of constructing bifunctional catalysts by compounding other materials.

Graphical Abstract

1. Introduction

Zinc–air (Zn–air) batteries using oxygen (O2) as the active medium have recently attracted extensive research interest as a promising energy storage device for the next-generation energy storage technology due to their high theoretical energy density of 1086 Wh kg−1, safety and environmental friendliness, cost-effectiveness, and readily available raw materials [1,2,3,4,5,6]. The reported Zn–air battery usually consists of a Zn metal anode (Zn-anode), an alkaline aqueous electrolyte, and a porous carbonaceous cathode, where the O2 can be absorbed and react with the electron and H2O to convert OH−1 via an oxygen reduction reaction (ORR, see Equation (1)) on discharge, showing a theoretical specific energy of ~1086 Wh kg−1, being at least four times higher than that of Li-ion batteries of ~265 Wh kg−1 [7,8,9].
ORR on discharge: O2 (g) + 2H2O (l) + 4e−1 → 4OH− (aq)
OER on charge: 4OH (aq) → O2 (g) + 2H2O (l) + 4e−
On charge, the OH−1 can be converted into O2 gas and H2O to store electric energy via the oxygen evolution reaction (OER, see Equation (2)) [8]. However, the OER and ORR of the cathodes are slow in kinetics due to the proton-coupled multistep electron transfer process for the reversible charge/discharge reactions [7,8,9,10,11,12,13]. In addition, the alkaline aqueous electrolyte can capture carbon dioxide in the air and generate insoluble and insulating carbonate [14], such as the typical Li2CO3 byproduct that has a ~5.09 eV band gap defined by the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) levels [15], which result in extremely sluggish kinetics for OER and ORR processes [14]. Various advanced strategies have been used to improve the kinetics of the OER/ORR on charge/discharge [16]. Among them, precious metal and metal oxide catalysts, including platinum (Pt), ruthenium (Ru), iridium (Ir), ruthenium dioxide (RuO2), iridium dioxide (IrO2), etc., usually show good catalytic activity for ORR or OER. As the most representative cooperation, Pt is used as an ORR electrocatalyst in alkaline media, and the ruthenium dioxide (RuO2)/iridium dioxide (IrO2) is used as the OER catalyst [17,18,19,20,21]. However, these precious metals and metal oxides are difficult to use in large-scale industrial applications due to their poor chemical stability, relative scarcity, and high cost [21]. Therefore, the exploitation of cheap and efficient electrocatalysts to boost the OER and ORR processes is highly necessary for developing high-performance aqueous Zn–air batteries.
As one of the most classical 2D transition-metal chalcogenides (TMDs), molybdenum disulfide (MoS2) has abundant active edge sites and good crystallinity [22,23], and it recently has been considered to be an effective hydrogen evolution reaction (HER) catalyst [24]. In addition, research suggests that crystal-amorphous interface and grain boundaries of MoS2 can catalyze electrochemical reactions [22]. Nonetheless, Amiinu et al. recently reported multifunctional Mo–N/C@MoS2 electrocatalysts for HER, OER, ORR, and Zn–air batteries that show a high power density of ≈196.4 mW cm−2 and a voltaic efficiency of ≈63% at 5 mA cm−2, as well as excellent cycling stability, even after 48 h at 25 mA cm−2 [10]. Bai et al. reported heterostructure Co9S8@MoS2 core–shell structures that exhibited robust OER performance and a 20 h cycle lifespan for Zn−air batteries with low high discharge voltages/low discharge voltages (~1.28 V/2.03 V) [25]. Plulia et al. reported layered MoS2/graphene nanosheet catalysts that showed enhanced oxygen reduction activity, nearly double that of graphene nanosheets or ∼25-fold that of MoS2 nanosheets, and high open circuit voltages (1.4 V) and high specific energy of up to 130 W h kg−1 for assembled Zn−air batteries [26]. Although great efforts have thus been focused on improving the electrocatalytic performance of MoS2, the OER activity of MoS2 is largely limited, which makes it difficult to use for OER and Zn–air batteries [27]. Compared with the reported bifunctional catalysts consisting of two typical catalytic function materials, the development of a single and efficient non-precious metal catalyst with a good oxygen evolution reaction and oxygen reduction reaction, by a simple preparation process, is of great significance for the development and application of aqueous zinc–air batteries.
Here, we report an aqueous Zn–air battery that shows advantages in cycle performance and economic cost. The Zn–air battery consists of a Zn-anode, an alkaline aqueous solution electrolyte, and the air cathode (see Figure S1 in Supplementary Materials). The air cathode materials, consisting of electron-conducting carbon nanotube (CNT) and MoS2 catalysts, are prepared on the carbon paper gas diffusion layer (GDL) that can provide an efficient gas transport for the assembled battery (see Figure 1a). A stable cycling Zn–air battery can be obtained through several mechanisms: (a) An air cathode consisting of heterogeneous MoS2 catalysts and CNT on the GDL can provide good conductivity for charge transport, and an adequate three-phase interface for ORR and OER for the assembled aqueous Zn–air battery on charge/discharge (see Figure 1b) [21]. (b) A heterogeneous interface consisting of a super-hydrophobic carbon paper GDL and a hydrophilic MoS2 catalyst enables efficient gas utilization, where the oxygen (O2) can be directly absorbed and reacted at the interface without being dissolved in aqueous solution on the charge/discharge process (see Figure 1c,d) [28]. (c) The MoS2 with heterogeneous and abundant active edge sites can enable an efficient electrochemical reaction, especially for the hydrogen evolution reaction (HER) and the oxygen evolution reaction [29]. Notably, the heterogeneous catalyst is only composed of MoS2 that can form heterogeneous interfaces and defects-embedded active edge sites only by using a relatively low synthesis temperature (see Section 2). The oxygen evolution activity of the heterogeneous MoS2 catalyst, by constructing its own heterogeneous surface or interface instead of constructing bifunctional catalysts by compounding another OER catalytically active material, exceeds commercial Pt/C-RuO2 catalytic activity for the assembled aqueous Zn–air battery.

2. Materials and Methods

2.1. Chemicals

(NH4)2MoS4, dimethylformamide (DMF), ethanol, carbon nanotubes, RuO2, and KOH were purchased from Sigma Aldrich. Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub. A commercial Pt/C catalyst with 20 wt% Pt was purchased from Shanghai Macklin Biochemical Technology Co., Ltd (Shanghai, China). All the reagents were of analytical grade and used as received without further purification. Deionized water was used throughout the experimental processes.

2.2. Material Preparation

MoS2 was prepared by hydrothermal synthesis. Briefly, 0.2 g (NH4)2MoS4 was dissolved in 15 mL DMF by ultrasonication for 15 min to form a homogeneous solution. Then, the solution was transferred into a 25 mL Teflon-lined stainless steel autoclave maintained at 180 °C for 10 h and cooled to room temperature naturally. The final product was collected by centrifugation, washed with water and ethanol three times each, and subsequently dried in a vacuum oven at 60 °C overnight, resulting in black powder.

2.3. Material Characterization

The crystal structures of samples were identified on a BRUKER D8 ADVANCE X-ray diffractometer with Cu-Kα radiation (λ = 1.54178 Å) over the 2θ range from 5 to 90°. The morphology and microstructure were characterized by a scanning electron microscope (SEM, Hitachi SU8010) and a transmission electron microscope (TEM, TecnaiG2F20).

2.4. Electrode Preparation and Battery Assembly

Firstly, 0.5 mL Nafion D520 solution, 1 mg MOS2, 1 mg carbon nanotubes, and 10 mL ethanol were measured into a beaker and ultrasonicated for 30 min. After the mixture was evenly mixed, 1 mL of the mixture was taken and sprayed evenly onto 2 × 2 cm carbon paper with a spray gun. While spraying, the surface of the carbon paper was dried with a baking lamp. After drying at 60 °C, the loading capacity of MoS2 catalyst was estimated to be 1 mg cm−2, which is the air electrode. When making the contrast electrode, it was only necessary to change the MoS2 catalyst with the same amount of Pt/C-RuO2 powder (m(Pt/C):m(RuO2) = 1:1), and the other steps were exactly the same as above. A polished zinc foil (thickness: 0.25 mm) was used as the anode, and the electrolyte was 6.0 M KOH for the primary Zn–air battery and 6.0 M KOH with 0.20 M Zn (CH3COO)2 for the rechargeable Zn–air battery. Measurements were carried out at 25 ℃ with an electrochemical workstation (CHI 660E, CH Instrument, Austin, TX, USA).

2.5. Electrochemical Test

The discharge/charge cycling performance of the ASS Zn–air battery was obtained by using an electrochemical test system (Hokuto Denko Corporation, HJ1001SD8, Meguro-ku, Tokyo). Alternating-current impedance spectroscopy of the lithium–air batteries was investigated using an electrochemical workstation (CHI 660E, CH Instrument, Austin, TX, USA).

3. Results

Typically, heterogeneous MoS2 catalysts are prepared by a simple hydrothermal process (see Figure S1 in Supplementary Materials). The structural and morphological properties of the prepared MoS2 catalysts were characterized by a transmission electron microscope (TEM), X-ray diffraction (XRD), and an aberration-corrected high-angle annular dark-field scanning TEM (HAADF-STEM). As shown in Figure 2, the prepared MoS2 catalysts were typical layered structures (see Figure 2a) [30] consisting of Mo and S elements, where the S and Mo elements were evenly distributed on the prepared MoS2 catalyst (see Figure 2a–d). XRD patterns further suggested the fact that the prepared catalysts were MoS2, where XRD diffraction peaks located at 14.1°, 33.2°, 39.4° and 58.2° corresponded to the (002), (100), (103), and (110) planes of the 2H-MoS2 nanosheet (Powder Diffraction File no. 37-1492, Joint Committee on Powder Diffraction Standards), respectively (see Figure 2e) [31]. Other diffraction peaks located at 11.4°, 22.5°, and 29.6° could be attributed to the 2m-1T phase transition of MoS2 driven by in situ intercalation of ammonium or alkyl amine cations [32]. High-resolution HAADF-STEM images further indicated that the prepared MoS2 were heterogeneous, where amorphous phases were distributed on the crystalline MoS2 phases (see Figure 2f) [33]. Further, the STEM of the MoS2 catalyst showed a heterogeneous surface consisting of active edge sites and abundant defects/disordered phases (see Figure 2g) that could enhance the electrochemical reaction, where the interplanar lattice spacings of 0.678 nm (see Figure 2g,h) were consistent with the crystal reflection of MoS2 [34]. This result was also consistent with the XRD result of the prepared MoS2 catalyst. The high-resolution HAADF-STEM and TEM also indicated the formation of heterogeneous crystalline-amorphous MoS2 (see Figure 2i,j). The above results suggest that the formation of heterogeneous MoS2 consists of crystalline-amorphous interfaces and defects-embedded active edge sites [35].
Befitting the electrochemical performance of the prepared MoS2, the aqueous Zn–air battery using the MoS2 catalyst showed a lower discharge potential (~1.17 V) and a higher charge potential (~2.39 V) than the Zn–air battery using commercial Pt/C-RuO2 catalysts (~1.35 V and 1.89 V, see Figure 3a) at the first cycle. Notably, the Zn–air battery using the MoS2 catalyst showed a lower discharge potential (~1.3 V) and a slightly lower charge potential (~1.88 V) than the Zn–air battery using commercial Pt/C-RuO2 catalysts (~1.26 V and 1.94 V, see Figure 3a) after 500 cycles. This indicates that the heterogeneous MoS2 catalysts can enable a more stable and better electrochemical performance than the expensive Pt/C-RuO2 catalysts for the assembled aqueous Zn–air battery [36]. In addition, the Zn–air batteries using the MoS2 catalysts could stably discharge a specific capacity of ~330 mAh g−1, ~660 mAh g −1, ~3300 mAh g−1, and ~6600 mAh g−1 at 0.5 mA cm−2, 1 mA cm−2, 5 mA cm−2, and 10 mA cm−2, respectively (see Figure 3b). This suggests that the Zn–air battery using MoS2 can be stably operated at high current density. Note that by using heterogeneous MoS2 catalysts, the assembled aqueous Zn–air battery demonstrated good cycle performance with lower potential than that of the Zn–air battery using commercial Pt/C-RuO2 catalysts (see Figure 3c and Figure S2 in Supplementary Materials). The long-term electrochemical test of the Zn–air battery using the MoS2 catalyst showed an increasingly enhanced electrochemistry performance where the discharge potential decreased from ~2.38 V at the first cycle to ~1.98 V at the 500th cycle with a limited specific capacity of ~330 mAh g−1 (see Figure 3d). The enhanced electrochemical performance could also be observed by the reduction of charge potential during cycling (see Figure 3e). This indicates the fact that the MoS2 catalysts with heterogeneous interfaces and defects-embedded active edge sites can demonstrate better OER performance for assembled Zn–air batteries than expensive Pt/C-RuO2 catalysts during long-term limited capacity cycling [37]. Such good cycle performance can be attributed to the heterogeneous interface and defects-embedded active edge sites of the prepared MoS2 catalyst, where the edge sites of the MoS2 nanosheets can enable stronger adsorption toward oxygen (O2), and other intermediates [38,39], defects [40], and amorphous phases can make the MoS2 catalyst maintain high electrochemical activity [41], thus resulting in excellent cycle performance for the assembled aqueous Zn–air batteries.
Further, the heterogeneous MoS2 were employed as cathode catalysts of a typical aqueous Zn-O2 battery and a Zn-CO2 battery. As showed in Figure 4a, all the batteries using the MoS2 catalysts could operate at 0.5 mA cm−2 with a limited capacity of ~330 mAh g−1. Notably, the aqueous Zn-air battery showed the highest discharge potential (~1.17 V) and the lowest charge potential (~2.39 V) at the first cycle compared to the Zn-O2 battery (with a 1.3 V discharge potential and 2.2 V charge potential, see Figure 4a) and the Zn-CO2 battery (with a 1.18 V discharge potential and 2.16 V charge potential, see Figure 4a). Additionally, the Zn-air battery using the heterogeneous MoS2 catalysts demonstrated a long cycle lifespan (500 cycles, see Figure 4b), being at least four times more than the Zn-O2 battery (~100 cycles, see Figure S2) and Zn-CO2 battery (~100 cycles, see Figure S2). Clearly, the Zn-air battery using the heterogeneous MoS2 catalyst showed the best cycle performance and the lowest potential gap of ~0.8 V compared to the Zn-O2 battery and the Zn-CO2 battery of more than 1.0 V (see Figure 4c and Figure S3 in Supplementary Materials). In addition, the aqueous Zn-air battery showed a lower charge potential (~1.35 V) and a higher discharge potential (~1.89 V) than the Zn-air battery using commercial Pt/C-RuO2 catalysts (~1.35 V and 1.89 V, see Figure 3a) at the first cycle. Notably, the Zn-air battery using the MoS2 catalyst showed a lower discharge potential (~1.3 V) and a slightly lower charge potential (~1.88 V) than the Zn-air battery using commercial Pt/C-RuO2 catalysts (~1.26 V and 1.94 V, see Figure 3a) after 500 cycles. Furthermore, the assembled Zn-air battery showed a long cycle lifespan of over 500 cycles, being at least five times higher than that of the assembled Zn-O2 battery and the Zn-CO2 battery (~100 cycles, see Figure 4d). Notably, the Zn-air battery showed enhanced electrochemical cycle performance during long-term cycling that could be attributed to the activation of the cathode materials [42]. This indicates that the heterogeneous MoS2 can be successfully used as cathode catalysts for both the Zn-O2 battery and the Zn-CO2 battery.

4. Conclusions

In summary, by simple hydrothermal synthesis, we prepared hydrophilic and heterogeneous MoS2 catalysts consisting of crystalline-amorphous interfaces and defects-embedded active edge sites that enables a good three phase interface on carbon paper GDL, and efficient O2 and CO2 utilization by their hydrophilic characteristics (with a 24 degree water contact angle) and the superhydrophobic characteristics of carbon paper GDL (with a 130 degree water contact angle). Such MoS2 catalysts showed decent oxygen evolution and acceptable oxygen reduction catalytic activity compared to commercial Pt/C and RuO2, which enabled a cycling durability of 500 cycles (~180 h) for an assembled aqueous Zn-air battery at 0.5 mA cm−2 with a limited capacity of 330 mAh g−1, and lower charge potentials (~1.88 V after 500 cycles) than the Zn-air battery using expensive Pt/C and RuO2 after cycles. Notably, the Zn-air battery using the prepared MoS2 catalysts could operate stably even at a large current density of 10 mA cm−2. The Zn–Air battery using single MoS2 catalyst also shows comparable performance among the Zn–Air batteries using MoS2-based catalysts (see Table S1). In addition, the heterogeneous MoS2, as an effective cathode catalyst, could catalyze the reversible circulation of the Zn-O2 battery and the Zn-CO2 battery, demonstrating that the heterogeneous MoS2 catalyst can potentially replace Pt/C and RuO2 catalysts in aqueous rechargeable Zn-air batteries, Zn-O2 batteries, and Zn-CO2 batteries.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12224069/s1, Figure S1. Auqeous Zn–Air battery system. (A) The photo of aquesous Zn–Air battery system that consists of aquesous electrolyte, pump and Zn–Air battery. (B) Photo of aqueous Zn–Air battery that consists of air cathode, aqueous and Zn-anode; Figure S2. Electrochemical cycle performance of aqueous Zn–Air batteries using the heterogeneous MoS2 cathode catalyst and commercial Pt/C-RuO2 cathode catalyst where the Zn–Air battery using the prepared MoS2 cathode catalysts shows an excellent cycle stability than the Zn–Air battery using expensive Pt/C-RuO2 cathode catalyst at a large current density of 5 mA cm−2. It indicates that the heterogeneous MoS2 catalyst has better oxygen evolution and oxygen reduction catalytic activity, especailally at operating current desnsity, than commercial Pt/C-RuO2 catalyst; Figure S3. Electrochemical cycle performance of aqueous Zn-O2 battery and Zn-CO2 battery. (a) Voltage-time curves of the assembled aqueous Zn-O2 battery using the heterogeneous MoS2 catalyst that shows a stable cycle and less than 1.0 V potential gap (with a ~1.3V discharge potential and less than 2.3 V charge potential). (b) Voltage-time curves of the assembled aqueous Zn-O2 battery using the heterogeneous MoS2 catalyst that shows a stable cycle and ~1.35 V potential gap (with a ~1.25 V discharge potential and ~2.6 V charge potential); Table S1. Comparison of electrochemical properties of Zn–Air batteries using MoS2-based catalysts. References [10,25,43] are cited in Supplementary Materials.

Author Contributions

M.W.: Device preparation, performance testing, data curation, formal analysis, writing—original draft; M.W., X.H., Z.Y. and P.Z.: Investigation; H.S.: Writing and revising guidance; H.S. and C.Z.: Project administration, resources, supervision; J.X. and K.C.: Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially supported financially by NSFC (nos. 61921005, 62104099, 62105048, 61735008, 11774155 and 62004078), the National Key R&D Program of China (2018YFB2200101), and the Natural Science Foundation of Jiangsu province (BK20190313 and BK20201073), Key Scientific Research Project in Colleges and Universities of Henan Province of China (Grant No. 21A416001) and Open project of Nanjing University Solid State Microstructure Laboratory (Grant No. M34057, M35033, M35062, M35059).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yi, Z.; Chen, G.; Hou, F.; Wang, L.; Liang, J. Zinc-Ion Batteries: Strategies for the Stabilization of Zn Metal Anodes for Zn-Ion Batteries. Adv. Energy Mater. 2021, 11, 2170001. [Google Scholar] [CrossRef]
  2. Cao, R.; Lee, J.-S.; Liu, M.; Cho, J. Recent progress in non-precious catalysts for metal-air batteries. Adv. Energy Mater. 2012, 2, 816–829. [Google Scholar] [CrossRef]
  3. Li, Y.; Dai, H. Recent advances in zinc-air batteries. Chem. Soc. Rev. 2014, 43, 5257–5275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Yan, L.; Zhang, Y.; Ni, Z.; Zhang, Y.; Xu, J.; Kong, T.Y.; Huang, J.H.; Li, W.; Ma, J.; Wang, Y.G. Chemically self-charging aqueous zinc-organic battery. J. Am. Chem. Soc. 2021, 143, 15369–15377. [Google Scholar] [CrossRef]
  5. Liu, W.; Feng, J.; Wei, T.; Liu, Q.; Zhang, S.; Luo, Y.; Luo, J.; Liu, X. Active-site and interface engineering of cathode materials for aqueous Zn—gas batteries. Nano Res. 2022, 1–22. [Google Scholar] [CrossRef]
  6. Liu, J.N.; Zhao, C.X.; Ren, D.; Wang, J.; Zhang, R.; Wang, S.H.; Zhao, C.; Li, B.Q.; Zhang, Q. Preconstructing asymmetric interface in air cathodes for high-performance rechargeable Zn—air batteries. Adv. Mater. 2022, 34, 2109407. [Google Scholar] [CrossRef]
  7. Lee, J.S.; Tai Kim, S.; Cao, R.; Choi, N.S.; Liu, M.; Lee, K.T.; Cho, J. Metal–air batteries with high energy density: Li–air versus Zn–air. Adv. Energy Mater. 2011, 1, 34–50. [Google Scholar] [CrossRef]
  8. Venezia, E.; Salimi, P.; Chauque, S.; Proietti Zaccaria, R. Sustainable Synthesis of Sulfur-Single Walled Carbon Nanohorns Composite for Long Cycle Life Lithium-Sulfur Battery. Nanomaterials 2022, 12, 3933. [Google Scholar] [CrossRef]
  9. Glaydson, S.D.R.; Chandrasekar, M.S.; Angélica, D.C.; Sylvia, H.L.; Mikael, T.; Ulla, L.; Flaviano, G.A. Facile Synthesis of Sustainable Activated Biochars with Different Pore Structures as Efficient Additive-Carbon-Free Anodes for Lithium- and Sodium-Ion Batteries. ACS Omega 2022. [Google Scholar] [CrossRef]
  10. Amiinu, I.S.; Pu, Z.; Liu, X.; Owusu, K.A.; Monestel, H.G.R.; Boakye, F.O.; Zhang, H.; Mu, S. Multifunctional Mo–N/C@MoS2 Electrocatalysts for HER, OER, ORR, and Zn–Air Batteries. Adv. Funct. Mater. 2017, 27, 1702300. [Google Scholar] [CrossRef]
  11. Liu, Q.; Jin, J.; Zhang, J. NiCo2S4@graphene as a Bifunctional Electrocatalyst for Oxygen Reduction and Evolution Reactions. ACS Appl. Mater. Interfaces 2013, 5, 5002–5008. [Google Scholar] [CrossRef] [PubMed]
  12. Xia, B.Y.; Yan, Y.; Li, N.; Wu, H.B.; Lou, X.W.; Wang, X. A metal–organic framework-derived bifunctional oxygen electrocatalyst. Nat. Energy 2016, 1, 15006. [Google Scholar] [CrossRef]
  13. Li, L.; Tsang, Y.C.A.; Xiao, D.; Zhu, G.; Zhi, C.; Chen, Q. Phase-transition tailored nanoporous zinc metal electrodes for rechargeable alkaline zinc-nickel oxide hydroxide and zinc-air batteries. Nat. Commun. 2022, 13, 2870. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, T.; Kunimoto, M.; Takanori, M.; Masahiro, Y.; Niikura, J.; Takahashi, I.; Morita, M.; Abe, T.; Homma, M. Carbonate formation on carbon electrode in rechargeable zinc-air battery revealed by in-situ Raman measurements. J. Power Sources 2022, 533, 231237. [Google Scholar] [CrossRef]
  15. Gauthier, M.; Carney, T.J.; Grimaud, A.; Giordano, L.; Pour, N.; Chang, H.H.; Fenning, D.P.; Lux, S.F.; Paschos, O.; Bauer, C.; et al. Electrode-electrolyte interface in Li-ion batteries: Current understanding and new insights. J. Phys. Chem. Lett. 2015, 6, 4653–4672. [Google Scholar] [CrossRef]
  16. Xu, Y.; Sumboja, A.; Zong, Y.; Darr, J. Bifunctionally active nanosized spinel cobalt nickel sulfides for sustainable secondary zinc–air batteries: Examining the effects of compositional tuning on OER and ORR activity. Catal. Sci. Technol. 2020, 10, 2173–2182. [Google Scholar] [CrossRef]
  17. Wu, M.; Zhang, G.; Qiao, J.; Chen, N.; Chen, W.; Sun, S. Ultra-Long Life Rechargeable Zinc–Air Battery Based on High-Performance Trimetallic Nitride and NCNT Hybrid Bifunctional Electrocatalysts. Nano Energy 2019, 61, 86–95. [Google Scholar] [CrossRef]
  18. Turney, D.; Gallaway, J.; Yadav, G.; Ramirez, R.; Nyce, M.; Banerjee, S.; Chen-Wiegart, Y.; Wang, J.; Ambrose, M.; Kolhekar, S.; et al. Rechargeable Zinc Alkaline Anodes for Long-Cycle Energy Storage. Chem. Mater. 2017, 29, 4819–4832. [Google Scholar] [CrossRef]
  19. Li, X.; Lin, Z.; Cheng, L.; Chen, X. Layered MoSi2N4 as Electrode Material of Zn–Air Battery. Phys. Status Solidi RRL 2022, 16, 2200007. [Google Scholar] [CrossRef]
  20. Sivanantham, A.; Ganesan, P.; Shanmugam, S. Hierarchical NiCo2S4 Nanowire Arrays Supported on Ni Foam: An Efficient and Durable Bifunctional Electrocatalyst for Oxygen and Hydrogen Evolution Reactions. Adv. Funct. Mater. 2016, 26, 4661–4672. [Google Scholar] [CrossRef]
  21. Wagh, N.; Lee, C.; Kim, D.; Kim, S.; Shinde, S.; Lee, J. Heuristic Iron–Cobalt-Mediated Robust pH-Universal Oxygen Bifunctional Lusters for Reversible Aqueous and Flexible Solid-State Zn–Air Cells. ACS Nano 2021, 15, 14683–14696. [Google Scholar] [CrossRef] [PubMed]
  22. Puglia, M.K.; Malhotra, M.; Kumar, C.V. Engineering functional inorganic nanobiomaterials: Controlling interactions between 2D-nanosheets and enzymes. Dalton Trans. 2020, 49, 3917–3933. [Google Scholar] [CrossRef] [PubMed]
  23. Tang, Y.J.; Wang, Y.; Wang, X.L.; Li, S.L.; Huang, W.; Dong, L.Z.; Liu, C.H.; Li, Y.F.; Lan, Y.Q. Molybdenum Disulfide/Nitrogen-Doped Reduced Graphene Oxide Nanocomposite with Enlarged Interlayer Spacing for Electrocatalytic Hydrogen Evolution. Adv. Energy Mater. 2016, 6, 1600116. [Google Scholar] [CrossRef]
  24. Prins, R.; Debeer, V.H.J.G.; Somorjai, A. Structure and Function of the Catalyst and the Promoter in Co—Mo Hydrodesulfurization Catalysts. Catal. Rev. Sci. Eng. 1989, 31, 1. [Google Scholar] [CrossRef]
  25. Bai, J.; Meng, T.; Guo, D.L.; Wang, S.G.; Mao, B.G.; Cao, M.H. Co9S8@MoS2 Core–Shell Heterostructures as Trifunctional Electrocatalysts for Overall Water Splitting and Zn–Air Batteries. ACS Appl. Mater. Interfaces 2018, 10, 1678–1689. [Google Scholar] [CrossRef]
  26. Puglia, M.K.; Malhotra, M.; Chivukula, A.; Kumar, C.V. “Simple-Stir” Heterolayered MoS2/Graphene Nanosheets for Zn–Air Batteries. ACS Appl. Nano Mater. 2021, 4, 10389–10398. [Google Scholar] [CrossRef]
  27. Drew, A.A.; Yi, S.; Douglas, G. Zn-Based Oxides Anchored to Nitrogen-Doped Carbon Nanotubes as Efficient Bifunctional Catalysts for Zn–Air Batteries. ChemElectroChem 2020, 7, 2283. [Google Scholar]
  28. Hu, H.; Xu, J.C.; Zheng, Y.H.; Yao Yao, Z.; Rong, J.; Zhang, T.; Yang, D.Y.; Qiu, F.X. NiS2-Coated Carbon Fiber Paper Decorated with MoS2 Nanosheets for Hydrogen Evolution. ACS Appl. Nano Mater. 2022, 5, 10933–10940. [Google Scholar] [CrossRef]
  29. Hou, X.B.; Zhou, H.M.; Zhao, M.; Cai, Y.B.; Wei, Q.F. MoS2 Nanoplates Embedded in Co–N-Doped Carbon Nanocages as Efficient Catalyst for HER and OER. ACS Sustain. Chem. Eng. 2020, 8, 5724–5733. [Google Scholar] [CrossRef]
  30. Li, J.C.; Zhang, C.; Ma, H.J.; Wang, T.H.; Guo, Z.Q.; Yang, Y.; Wang, Y.Y.; Ma, H.X. Modulating interfacial charge distribution of single atoms confined in molybdenum phosphosulfide heterostructures for high efficiency hydrogen evolution. Chem. Eng. J. 2021, 414, 128834. [Google Scholar] [CrossRef]
  31. Wen, F.S.; Li, Y.J.; Liu, W.L.; Liu, G.D.; Zhang, T.; Xu, Y.; Zhang, X.Y. Comprehensive experiment on simple morphology regulation and photocatalytic degradation of Rhodamine B by molybdenum disulfide. Exp. Technol. Manag. 2022, 39, 157–161. (In Chinese) [Google Scholar]
  32. Tan, J.W.; Zhang, W.B.; Shu, Y.J.; Lu, H.Y.; Tang, Y.; Gao, Q.S. Interlayer engineering of molybdenum disulfide toward efficient electrocatalytic hydrogenation. Sci. Bull. 2021, 66, 1003–1012. [Google Scholar] [CrossRef]
  33. Chen, B.; Lu, H.; Zhou, J.; Ye, C.; Shi, C.; Zhao, N.; Qiao, S.-Z. Porous MoS2/Carbon Spheres Anchored on 3D Interconnected Multiwall Carbon Nanotube Networks for Ultrafast Na Storage. Adv. Energy Mater. 2018, 8, 1702909. [Google Scholar] [CrossRef]
  34. Bau, J.A.; Emwas, A.H.; Nikolaienko, P.; Aljarb, A.A.; Tung, V.; Rueping, M. Mo3+ hydride as the commonorigin of H2 evolution and selective NADH regeneration in molybdenum sulfide electrocatalysts. Nat. Catal. 2022, 5, 397–404. [Google Scholar] [CrossRef]
  35. Li, L.; Qin, Z.; Ries, L.; Hong, S.; Michel, T.; Yang, J.; Salameh, C.; Bechelany, M.; Miele, P.; Kaplan, D.; et al. Role of Sulfur Vacancies and Undercoordinated Mo Regions in MoS2 Nanosheets toward the Evolution of Hydrogen. ACS Nano 2019, 13, 6824–6834. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, B.; He, X.; Yin, F.; Wang, H.; Liu, D.-J.; Shi, R.; Chen, J.; Yin, H. MO-Co@N-Doped Carbon (M = Zn or Co): Vital Roles of Inactive Zn and Highly Efficient Activity toward Oxygen Reduction/Evolution Reactions for Rechargeable Zn–Air Battery. Adv. Funct. Mater. 2017, 27, 1700795. [Google Scholar] [CrossRef]
  37. Liu, Y.; Wu, X. Recent Advances of Transition Metal Chalcogenides as Cathode Materials for Aqueous Zinc-Ion Batteries. Nanomaterials 2022, 12, 3298. [Google Scholar] [CrossRef]
  38. Mohammad, A.; Bijandra, K.; Liu, C.; Patrick, P.; Poya, Y.; Amirhossein, B.; Peter, Z.; Robert, F.K.; Larry, A.C.; Amin, S.K. Cathode Based on Molybdenum Disulfide Nanoflakes for Lithium–Oxygen Batteries. ACS Nano 2016, 10, 2167–2175. [Google Scholar]
  39. Zoya, S.; Liu, J.P.; Zhao, L.; Francesco, C.; Jang-Kyo, K. Metallic MoS2 nanosheets: Multifunctional electrocatalyst for the ORR, OER and Li–O2 batteries. Nanoscale 2018, 10, 22549–22559. [Google Scholar]
  40. Liu, Y.; Zang, Y.P.; Liu, X.M.; Cai, J.Y.; Lu, Z.; Niu, S.W.; Pei, Z.B.; Zhai, T.; Wang, G.M. Three-Dimensional Carbon-Supported MoS2 with Sulfur Defects as Oxygen Electrodes for Li-O2 Batteries. Nano Energy 2019, 65, 103996. [Google Scholar] [CrossRef]
  41. Wu, L.F.; Alessandro, L.; Nelson, Y.D.; Akhil, S.; Marco, M.R.M.M.; Ageeth, A.B.; Nora, H.; Emiel, J.M.; Jan, P.H. The Origin of High Activity of Amorphous MoS2 in the Hydrogen Evolution Reaction. ChemSusChem 2019, 12, 4383. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Gong, J.; Zhu, B.; Zhang, Z.; Xiang, Y.; Tang, C.; Ding, Q.; Wu, X. The Synthesis of Manganese Hydroxide Nanowire Arrays for a High-Performance Zinc-Ion Battery. Nanomaterials 2022, 12, 2514. [Google Scholar] [CrossRef] [PubMed]
  43. Liu, X.; Yin, Z.H.; Cui, M.; Gao, L.G.; Liu, A.M.; Su, W.N.; Chen, S.R.; Ma, T.L.; Li, Y.Q. Double shelled hollow CoS2@MoS2@NiS2 polyhedron as advanced trifunctional electrocatalyst for zinc-air battery and self-powered overall water splitting. J. Colloid Interface Sci. 2022, 610, 653–662. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 12 04069 g001 550

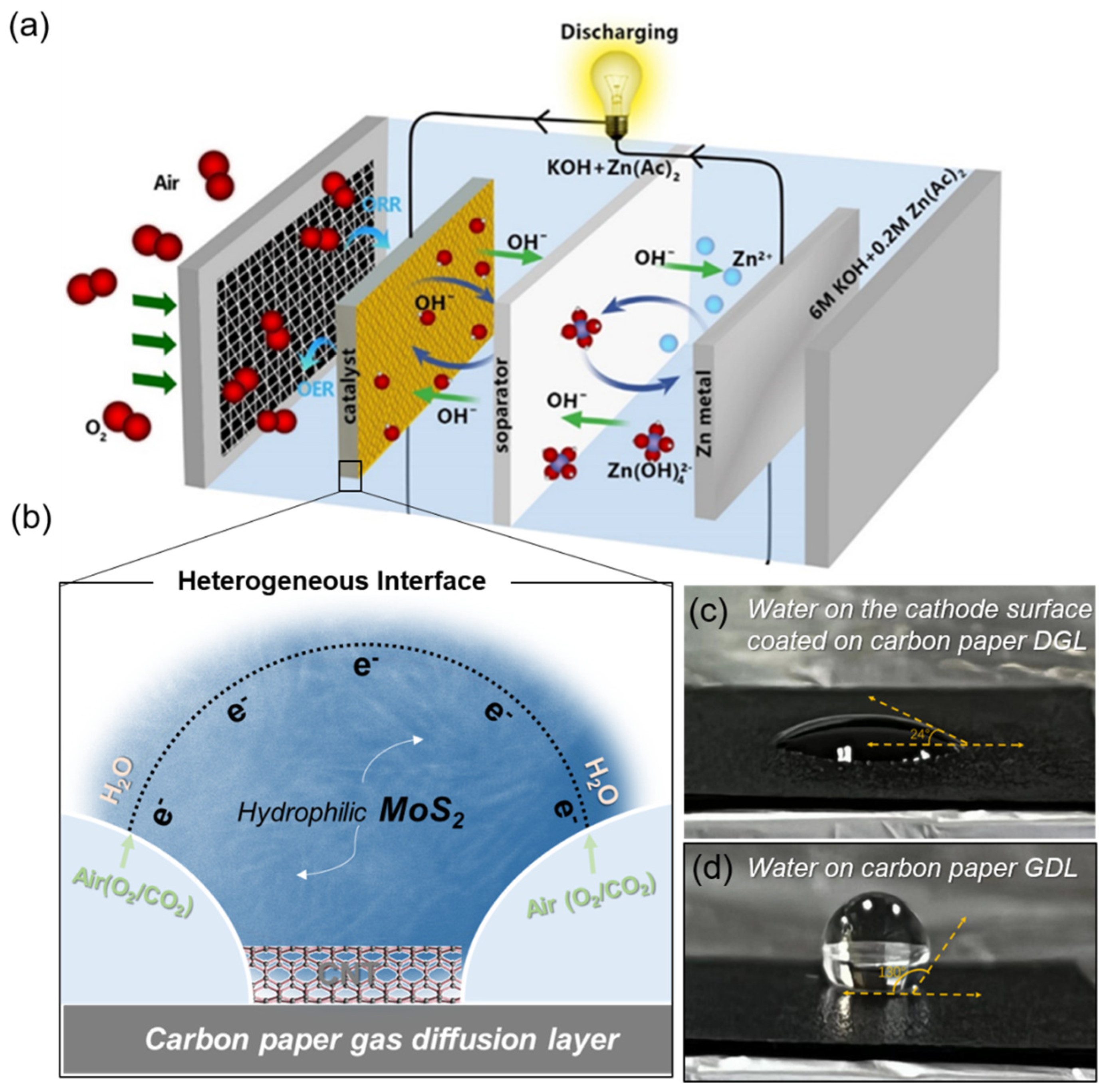

Figure 1. Configuration of the aqueous Zn-air battery with a heterogeneous design. (a) Configuration of the aqueous Zn-air battery and the enlarged diagram of the heterogeneous interface consisting of hydrophilic MoS2 catalysts, electron-conductive CNT, and a super-hydrophobic carbon paper gas diffusion layer. (b) Diagram of charging and discharging of an assembled water-zinc-air battery with a three-phase interface ORR and OER. (c) Optical photo of a drop of water on the cathode surface coated on carbon paper GDL that shows a contact angle of ~24 degrees. (d) Optical photo of a drop of water on carbon paper GDL that shows a contact angle of ~130 degrees.
Figure 1. Configuration of the aqueous Zn-air battery with a heterogeneous design. (a) Configuration of the aqueous Zn-air battery and the enlarged diagram of the heterogeneous interface consisting of hydrophilic MoS2 catalysts, electron-conductive CNT, and a super-hydrophobic carbon paper gas diffusion layer. (b) Diagram of charging and discharging of an assembled water-zinc-air battery with a three-phase interface ORR and OER. (c) Optical photo of a drop of water on the cathode surface coated on carbon paper GDL that shows a contact angle of ~24 degrees. (d) Optical photo of a drop of water on carbon paper GDL that shows a contact angle of ~130 degrees.
Nanomaterials 12 04069 g001
Nanomaterials 12 04069 g002 550

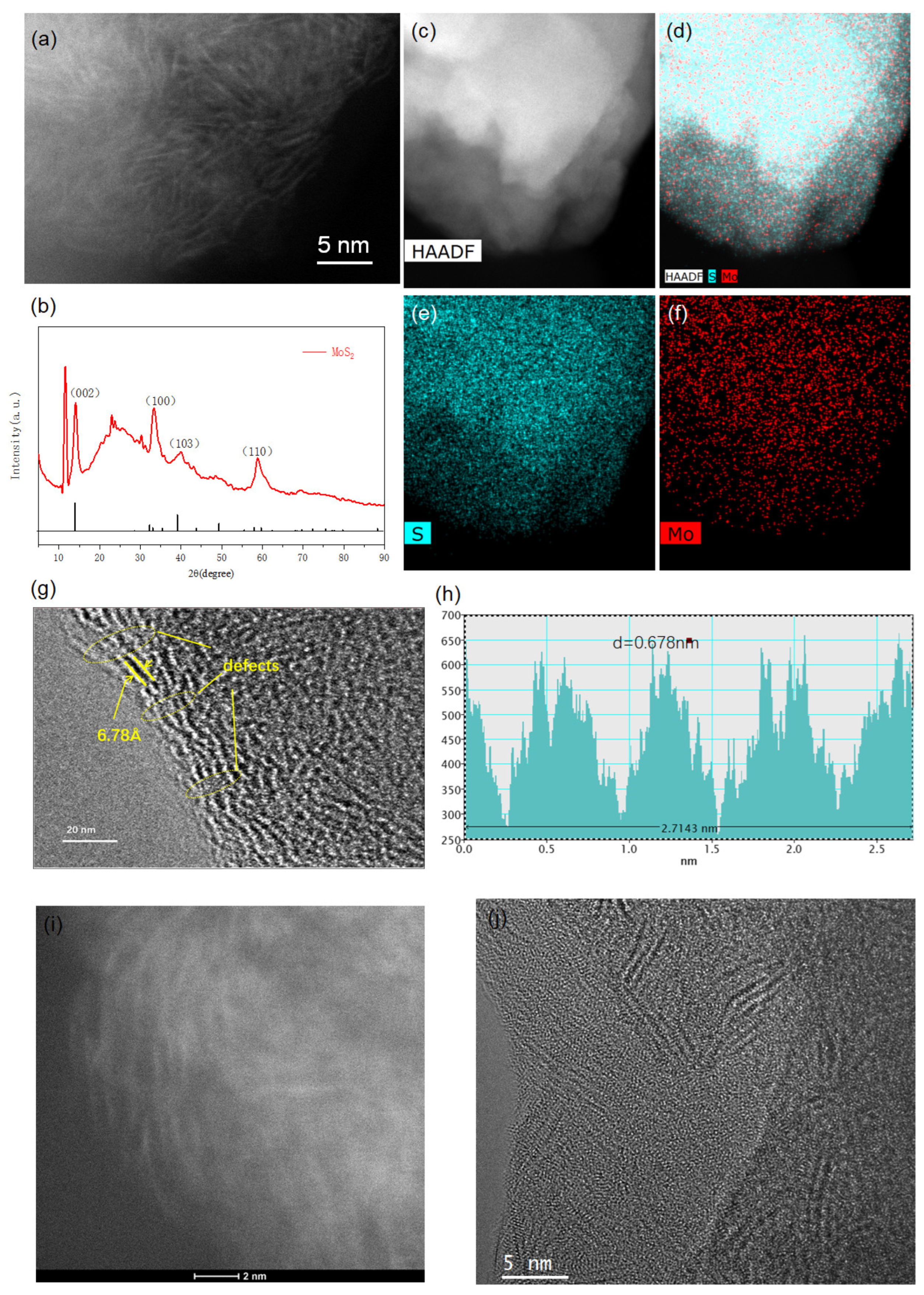

Figure 2. Characterization of the MoS2 catalyst for the Zn–air battery. (a) STEM of the prepared MoS2 catalyst. (b–d) EDS mappings of elementals (Mo and S) of the MoS2 catalyst. (e) XRD pattern of the prepared MoS2 catalyst. (f) STEM image and (g) TEM image of the MoS2 catalyst. (h) Interplanar spacings of the MoS2 catalyst, where the spacing of the nanosheets is found to be ∼6.78 Å. (i) High-resolution STEM and (j) TEM image of the prepared MoS2 catalysts.
Figure 2. Characterization of the MoS2 catalyst for the Zn–air battery. (a) STEM of the prepared MoS2 catalyst. (b–d) EDS mappings of elementals (Mo and S) of the MoS2 catalyst. (e) XRD pattern of the prepared MoS2 catalyst. (f) STEM image and (g) TEM image of the MoS2 catalyst. (h) Interplanar spacings of the MoS2 catalyst, where the spacing of the nanosheets is found to be ∼6.78 Å. (i) High-resolution STEM and (j) TEM image of the prepared MoS2 catalysts.
Nanomaterials 12 04069 g002
Nanomaterials 12 04069 g003 550

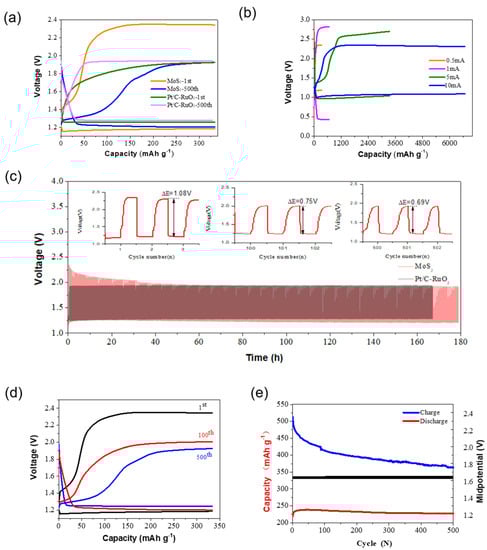

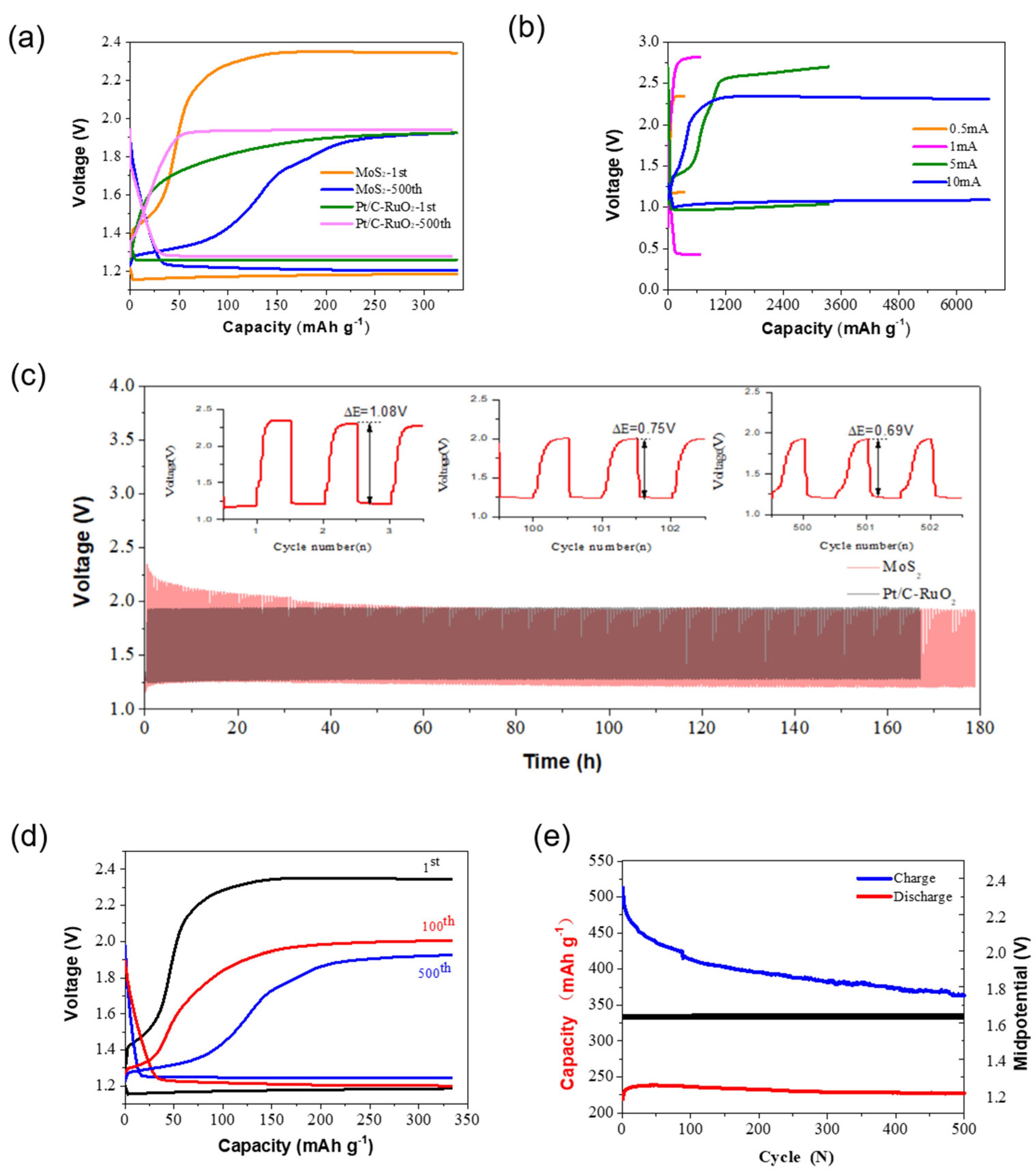

Figure 3. Electrochemical performance of the Zn-air batteries. (a) The discharge and charge curves of Zn-air batteries using the prepared MoS2 catalysts and commercial Pt/C-RuO2 catalysts at the 1st and 500th cycles, with a limited capacity of 330 mAh g−1, respectively. (b) The discharge and charge curves of the assembled Zn-air batteries using the MoS2 catalysts at various current densities of 0.5 A cm−2, 1 A cm−2, 5 A cm−2, and 10 A cm−2, respectively. (c) Electrochemical cycle performance of the Zn-air batteries using the prepared MoS2 catalysts and commercial Pt/C-RuO2 catalysts operating at 0.5 A cm−2, respectively. (d) The discharge and charge curves of Zn-air batteries using the prepared MoS2 catalysts at the 1st, 100th and 500th, respectively, and (e) corresponding to the voltage and capacity change of the Zn-air battery during the cycle.
Figure 3. Electrochemical performance of the Zn-air batteries. (a) The discharge and charge curves of Zn-air batteries using the prepared MoS2 catalysts and commercial Pt/C-RuO2 catalysts at the 1st and 500th cycles, with a limited capacity of 330 mAh g−1, respectively. (b) The discharge and charge curves of the assembled Zn-air batteries using the MoS2 catalysts at various current densities of 0.5 A cm−2, 1 A cm−2, 5 A cm−2, and 10 A cm−2, respectively. (c) Electrochemical cycle performance of the Zn-air batteries using the prepared MoS2 catalysts and commercial Pt/C-RuO2 catalysts operating at 0.5 A cm−2, respectively. (d) The discharge and charge curves of Zn-air batteries using the prepared MoS2 catalysts at the 1st, 100th and 500th, respectively, and (e) corresponding to the voltage and capacity change of the Zn-air battery during the cycle.
Nanomaterials 12 04069 g003
Nanomaterials 12 04069 g004 550

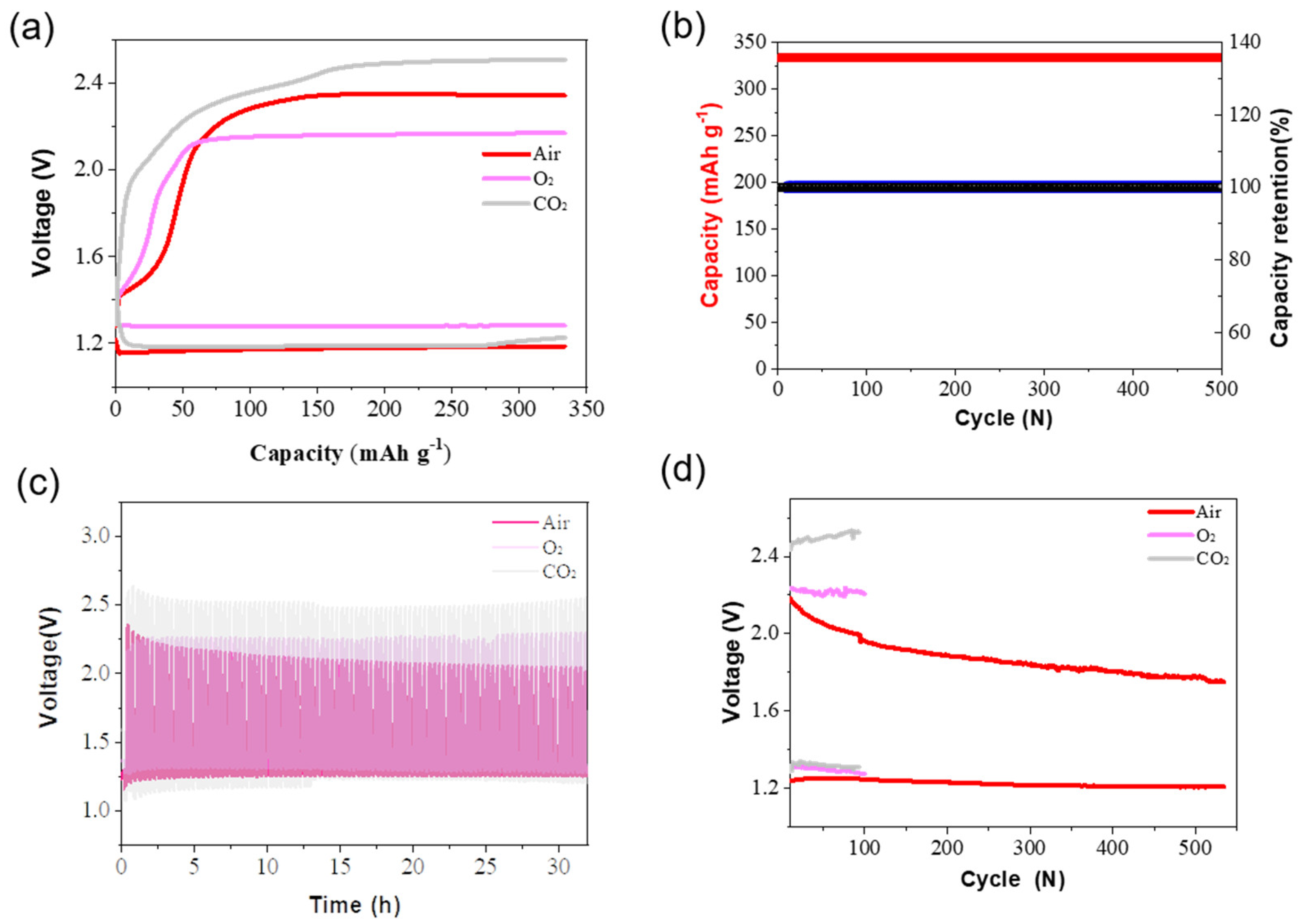

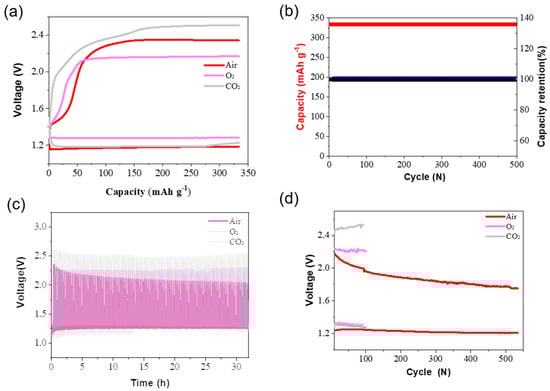

Figure 4. Electrochemical performance of the Zn-air battery, Zn-O2 battery, and Zn-CO2 battery using a heterogeneous MoS2 catalyst. (a) The discharge and charge curves of the Zn-air battery, Zn-O2 battery, and Zn-CO2 battery using a heterogeneous MoS2 catalyst at the 1st cycle with a limited capacity of 330 mAh g−1 and a current density of 0.5 mA cm−2. (b) The specific capacity and corresponding capacity retention of the aqueous Zn-air battery, Zn-O2 battery, and Zn-CO2 battery during cycling with a current density of 0.5 mA cm−2. (c) Voltage–time curves of the Zn–air battery, Zn-O2 battery, and Zn-CO2 battery, respectively, for cycling over 30 h with a limited capacity of ~330 mAh g−1 at 0.5 A cm−2. (d) The discharge and charge voltage change of the Zn-air battery, Zn-O2 battery, and Zn-CO2 battery for long-term cycling with a limited capacity of ~330 mAh g−1.
Figure 4. Electrochemical performance of the Zn-air battery, Zn-O2 battery, and Zn-CO2 battery using a heterogeneous MoS2 catalyst. (a) The discharge and charge curves of the Zn-air battery, Zn-O2 battery, and Zn-CO2 battery using a heterogeneous MoS2 catalyst at the 1st cycle with a limited capacity of 330 mAh g−1 and a current density of 0.5 mA cm−2. (b) The specific capacity and corresponding capacity retention of the aqueous Zn-air battery, Zn-O2 battery, and Zn-CO2 battery during cycling with a current density of 0.5 mA cm−2. (c) Voltage–time curves of the Zn–air battery, Zn-O2 battery, and Zn-CO2 battery, respectively, for cycling over 30 h with a limited capacity of ~330 mAh g−1 at 0.5 A cm−2. (d) The discharge and charge voltage change of the Zn-air battery, Zn-O2 battery, and Zn-CO2 battery for long-term cycling with a limited capacity of ~330 mAh g−1.
Nanomaterials 12 04069 g004
