Article

Enhanced Electrochemical Performances of Mn3O4/Heteroatom-Doped Reduced Graphene Oxide Aerogels as an Anode for Sodium-Ion Batteries

by
Nor Fazila Mahamad Yusoff
1,
Nurul Hayati Idris
1,*,
Muhamad Faiz Md Din
2,
Siti Rohana Majid
3 and
Noor Aniza Harun
4
1
Energy Storage Research Group, Faculty of Ocean Engineering Technology and Informatics, Universiti Malaysia Terengganu, Kuala Nerus 21300, Terengganu, Malaysia
2
Department of Electrical and Electronic Engineering, Faculty of Engineering, National Defence University of Malaysia, Kem Sungai Besi, Kuala Lumpur 57000, Malaysia
3
Center for Ionics University of Malaya, Department of Physics, Faculty of Science, University of Malaya, Kuala Lumpur 50603, Malaysia
4
Advance Nano Materials (ANOMA) Research Group, Faculty of Science and Marine Environment, Universiti Malaysia Terengganu, Kuala Nerus 21300, Terengganu, Malaysia
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(20), 3569; https://doi.org/10.3390/nano12203569
Submission received: 30 August 2022 / Revised: 8 October 2022 / Accepted: 9 October 2022 / Published: 12 October 2022
(This article belongs to the Special Issue Nanostructured Materials for Energy Applications)
Browse Figures
Versions Notes

Abstract

:
Owing to their high theoretical capacity, transition-metal oxides have received a considerable amount of attention as potential anode materials in sodium-ion (Na-ion) batteries. Among them, Mn3O4 has gained interest due to the low cost of raw materials and the environmental compatibility. However, during the insertion/de-insertion process, Mn3O4 suffers from particle aggregation, poor conductivity, and low-rate capability, which, in turn, limits its practical application. To overcome these obstacles, we have successfully prepared Mn3O4 nanoparticles distributed on the nitrogen (N)-doped and nitrogen, sulphur (N,S)-doped reduced graphene oxide (rGO) aerogels, respectively. The highly crystalline Mn3O4 nanoparticles, with an average size of 15–20 nm, are homogeneously dispersed on both sides of the N-rGO and N,S-rGO aerogels. The results indicate that the N-rGO and N,S-rGO aerogels could provide an efficient ion transport channel for electrolyte ion stability in the Mn3O4 electrode. The Mn3O4/N- and Mn3O4/N,S-doped rGO aerogels exhibit outstanding electrochemical performances, with a reversible specific capacity of 374 and 281 mAh g−1, respectively, after 100 cycles, with Coulombic efficiency of almost 99%. The interconnected structure of heteroatom-doped rGO with Mn3O4 nanoparticles is believed to facilitate fast ion diffusion and electron transfer by lowering the energy barrier, which favours the complete utilisation of the active material and improvement of the structure’s stability.

1. Introduction

Because of the rising demand for lithium-ion (Li-ion) batteries, the scarcity of lithium sources, and the expected steep rise in lithium prices, there is an urgent need for innovative and low-cost battery systems [1]. The most researched new battery technologies use the same insertion and extraction chemistry as Li-ion batteries, such as potassium-ion (K-ion) and sodium-ion (Na-ion) batteries, despite the fact that the electrode materials needed to be reconfigured [2]. In large-scale energy storage, Na-ion batteries have gained considerable interest owing to the availability and natural resources of sodium [3,4,5,6,7,8]; moreover, they appear to be a better alternative to Li-ion batteries. Unfortunately, because of the large radius (1.02 Å), high atomic mass (23 g mol−1), and low redox potentials (2.71 V vs. SHE) for Na-ion, most examined electrodes, especially the anode, are not ideal hosts for Na-ion insertion [9,10,11,12]. In addition, because Na has a higher chemical activity than Li, the production, transportation, and application of Na-ion batteries may be more difficult [13,14]. Furthermore, severe volume changes caused by repeated cycling of the anode materials contribute to the failure of the battery by causing cracks and loss of electrical contact. To improve battery performances, nanoscale materials are frequently used owing to their ease of stress release and high resistance to structural defect formation [15,16].
To date, various materials have been explored, and transition-metal oxides, such as MnOx [17,18], FeOx [19,20], and Co3O4 [21], have drawn increasing attention owing to their high theoretical capacities. Notably, previous studies have demonstrated that Mn and Mn-based compounds can alloy with Na and perform well as Na-ion battery anodes [15,22,23]. Mn3O4 is one of the promising anode materials and has a high theoretical capacity (937 mAh g−1) because of its conversion reaction mechanism, natural availability, low cost, and environmental friendliness [24]. So far, the Na-ion storage behaviour in Mn3O4 nanostructures has been investigated [25] and possesses similar problems to other transition-metal oxides. The volume changes during the repeated insertion/de-insertion process of Na-ions lead to the substantial aggregation of particles and may affect the mechanical stability of the electrode materials [26,27]. Jiang et al. [28] were the first to report the Na-ion storage performances of Mn3O4 thin film synthesised via electrostatic-spray deposition, which exhibits poor cycling performances. The capacity deterioration during cycling is explained by the formation of a porous reticular structure in the grids. To ensure the large capacity of Mn3O4 electrode accompanied by high reversibility [29], the internal structure of Mn3O4 needs to be modified to compensate for the volume changes by adopting various strategies, such as synthesise multifunctional nanostructures [25] and nanocomposites [30], and by hybridising with carbon-based materials, such as mesoporous carbon [31], graphene [32], reduced graphene oxide (rGO) [33], and carbon nanofibres [34]. Because of the unique layered structure, high specific area, superior conductivity, and excellent electrical properties, graphene-based matrices or their derivatives (e.g., rGO) have been used to improve the charge transfer and reduce the agglomeration of transition-metal oxide electrodes [35]. Such a combination could be an effective way to improve the electrochemical performances of the batteries by shortening the Na-ion diffusion pathway, improving electroactivity, and relieving volume variation [29,36]. Wang et al. [25] reported that encapsulating Mn3O4 nanotubes in porous graphene sheets can improve the structural integrity and electrical conductivity of the electrodes, with a satisfactory discharge capacity and cyclability of up to 55 cycles.
Nonetheless, aggregation or restacking between rGO layers will drastically reduce the active sites and influence the Na-ion transfer rate, which results in low reversible capacity [37]. Doping rGO with heteroatoms, such as nitrogen (N) [38,39] and sulphur (S) [40], could enhance the electronic conductivity and ameliorate the physicochemical functions of the rGO. It has been demonstrated that N-doping can significantly increase the electronic conductivity and Na-ion storage capacity of the electrode because of the introduction of N-doped defects and functionalised groups [41,42,43,44]. On the other hand, S-doping could increase the interlayer distance to promote the insertion/de-insertion of Na-ions owing to their larger covalent radius (102 pm) than carbon (77 pm) [43,45]. In addition, codoping with multiple heteroatoms can enhance the performance of rGO through synergistic interactions between heteroatoms [46]. However, the content of S in the doping materials could also be hindered by the incorporation of the graphene network because of the oversized atomic radius of S (180 pm) [47].
In this work, the Mn3O4/nitrogen (N)- and Mn3O4/nitrogen, sulphur (N,S)-rGO aerogels were prepared via the hydrothermal method using NH3 and L-cysteine as a source of nitrogen and nitrogen, sulphur elements, respectively. Upon treatment of graphene oxide (GO) with NH3 and L-cysteine, GO was not only reduced to graphene but also simultaneously doped with N and N,S-atoms. The Mn3O4/N- and Mn3O4/N,S-rGO aerogels have a promising reversible discharge capacity of 370 and 281 mAh g−1, respectively, up to 100 cycles at a current density of 0.1 A g−1. These nanocomposites also possess excellent cycling stability and better rate capability. In fact, when compared with other methods, the current method has the advantages of simplicity, friendliness, reliability, and cost-effectiveness. The promising capacity and cyclability demonstrated by the Mn3O4/heteroatom-doped rGO aerogel in our work add to the body of knowledge available to other researchers attempting to forecast the prospects of these composites for the development of Na-ion batteries.

2. Materials and Methods

2.1. Synthesis of the Mn3O4/N- and Mn3O4/N,S-rGO Aerogels

GO was obtained using a typical Hummers method [48]. Mn3O4 was synthesised according to the previous work [49]. For the synthesis of the Mn3O4/N-rGO aerogel, 90 mg GO and 63 mg Mn3O4 were ultrasonically dispersed in 18 mL deionised (DI) water for 1 h, and then 4 mL ammonia (NH3, Sigma-Aldrich, St. Louis, MO, USA) was slowly added into the mixture. The mixture was transferred into a Teflon-lined (125 mL) stainless-steel autoclave and heated at 180 °C for 12 h. Finally, the black hydrogel suspensions were freeze-dried to collect the Mn3O4/N-rGO aerogel. The same procedure was performed to prepare the N,S-rGO aerogel; however, NH3 was replaced with L-cysteine (Sigma-Aldrich, St. Louis, MO, USA) as a nitrogen/sulphur source and denoted as Mn3O4/N,S-rGO aerogel.

2.2. Physical Characterisation

The structural phases of the obtained samples were determined via X-ray diffraction (XRD; Rigaku Miniflex II, Tokyo, Japan). The amount of Mn3O4 in the heteroatom-doped rGO aerogel was confirmed using a thermogravimetric analyser (TGA, Perkin Elmer, Waltham, MA, USA) within the temperature range of 30 °C–800 °C at a heating rate of 10 °C min−1 in air. The morphology of these samples was observed via scanning electron microscopy (SEM; JOEL, Akishima, Tokyo, Japan) (JSM-6360L) and transmission electron microscopy (TEM; TECNAI G2 20 S-TWIN FEI, FEI Company, Lincoln, NE, USA). Fourier transform infrared spectroscopy (FTIR) was recorded on IR Tracer-100, Shimadzu, Kyoto, Japan. Raman spectra were collected via Raman spectroscopy (Renishaw, Gloucestershire, UK (532 nm radiation)) extended with 0.1% power laser measurement. Surface composition analysis was further conducted via X-ray photoelectron spectroscopy (XPS, Axis Ultra DLD XPS, Kratos, Manchester, UK).

2.3. Electrochemical Measurements

The active materials, carbon black (Sigma-Aldrich, >99.5%, St. Louis, MO, United States) and polyvinylidene fluoride (PVDF, Sigma-Aldrich, St. Louis, MO, United States) (weight ratio, 75:20:5), were dissolved in N-methyl-2-pyrrolidone (NMP). The slurry was then coated onto a copper (Cu) foil and dried at 100 °C overnight. CR2032 coin-type cells were fabricated in an argon-filled glovebox (Unilab, MBRAUN, Garching, Germany, H2O, O2 < 0.1 ppm) using sodium metal (Sigma-Aldrich, 99.9% trace metal base, St. Louis, MO, United States), glass fibre (GF/D Whatman) separator, and electrolyte (1 M NaClO4 (98%, Sigma-Aldrich) in propylene carbonate (99.7%, Sigma-Aldrich, St. Louis, MO, United States) with the addition of 5 wt.% fluoroethylene carbonate (99%, Sigma-Aldrich, St. Louis, MO, United States). The electrochemical performances of the nanocomposites were studied using a Neware battery analyser. Cyclic voltammetry (CV) was conducted using an electrochemical workstation (CHI 700E).

3. Results and Discussion

Scheme 1 presents the synthesis of the Mn3O4/heteroatom-doped rGO aerogel using GO through hydrothermal, followed by freeze-drying. Upon heating, GO was converted to rGO, and simultaneously, through the π–π interactions, hydrogen bonding, coordination, and electrostatic interactions, the GO layers could self-assemble into three-dimensional (3D) networks. Concurrently, the presence of NH3 and L-cysteine introduced the doping of N-atom and N,S-atoms on the rGO layer, respectively. Strong cross-links, which are the building blocks of the 3D rGO network, were produced as a result of this process and acted as an effective conductive network for ion and electron transportation [30].
The thermal stability (in air) of all samples was determined via TGA. The TGA curve (Figure 1) shows two weight loss stages for all samples, except for pristine Mn3O4, and the evaporation of physically and chemically adsorbed water was adequately attributed to the weight loss at temperatures above 100 °C. Between 150 °C and 600 °C, the N-rGO and N,S-rGO aerogels demonstrated the decomposition and disintegration of nitrogen and sulphur-containing functional groups, followed by decarboxylation and elimination of hydroxyl functionalities, respectively [50]. For a temperature less than 500 °C in air, rGO is often entirely burnt to CO2 [51]. For the Mn3O4 nanoparticles, no weight loss was observed in the temperature range of 100 °C to 500 °C. As the temperature approached 540 °C, the weight began to increase, which could be attributed to the transformation of Mn3O4 to Mn2O3 [30,33]. Therefore, the amounts of Mn3O4 in the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels were estimated to be 63 and 60 wt.%, respectively.
The phase purity and structure of the synthesised N-rGO aerogel, N,S-rGO aerogel, pure Mn3O4, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel were analysed via XRD. The disordered configuration of loosely packed graphene sheets of the N-rGO and N,S-rGO aerogels was disclosed by the enormous broad peak at approximately 24°–25°, corresponding to the graphite (002) plane (Figure 2) [52,53]. Because of the relatively low diffraction intensity of the N-rGO and N,S-rGO aerogels compared with Mn3O4 prominent peaks, the diffraction peaks of these aerogels were less evident in the XRD patterns of the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels [54]. Both Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels corresponded to the planes of tetragonal crystallinity in Mn3O4 (JCPDS card no 240734), hence indicating the presence of pure Mn3O4 without any noticeable impurities. The crystallite size of Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels were 12.7 and 17.4 nm, respectively, calculated using Scherrer’s Equation. These results supported the formation and dispersion of Mn3O4 nanoparticles on the network surface of the N-rGO and N,S-rGO aerogels.
Figure 3 presents the SEM images for all samples. The N-rGO (Figure 3a) and N,S-rGO (Figure 3b) aerogel samples exhibited a typical well-defined and interconnected 3D network structure of rGO aerogel with a pore structure smaller than 1 µm. Such structures could provide an open channel for the access of electrolytes and minimise volume changes during the charge and discharge processes [55]. It is clearly demonstrated that Mn3O4 agglomerated in a size of 0.5–1.1 µm, which is an aggregate of individual Mn3O4 nanoparticles, anchored uniformly on the porous N-rGO (Figure 3c) and N,S-rGO (Figure 3d) aerogel layers. This suggests an effective assembly between the Mn3O4 nanoparticles and rGO aerogel sheets during the hydrothermal treatment. Moreover, pristine Mn3O4 nanoparticles with a particle size of 0.5–1.0 µm are beneficial in that they provide more active sites for the electrochemical reaction [56,57]. Therefore, the synergistic effect between the small-sized Mn3O4 and heteroatom-doped rGO aerogel could have a tremendous effect on the electrochemical properties, especially the cyclability and rate capability of the batteries.
Further characterisation of the morphology and structure of the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels was carried out using high-resolution transmission electron microscopy (HRTEM). A typical crumpled structure of rGO and interconnected and cross-linked random rGO layers construct a 3D framework with open-pore structures (Figure 4a,b). The heteroatom-doped rGO aerogels exhibited a thin lamellar structure with distinct edges, overlaps, and curve profiles. Furthermore, the N-rGO and N,S-rGO aerogels had more wrinkled surfaces because of structural defects caused by heteroatom doping. Figure 4g shows the TEM image of Mn3O4. From Figure 4c,d, it can be seen that the Mn3O4 nanoparticles are uniformly dispersed over the surface of the rGO layers, with 15–20 nm average diameters of Mn3O4 nanoparticles (measured from the distribution histogram (inset)). The HRTEM images (Figure 4e,f) show that each Mn3O4 nanoparticle has a distinct lattice fringe, confirming the crystalline nature of Mn3O4 in the heteroatom-doped rGO aerogel. The HRTEM images indicate that the distinct interlayer d-spacing is 0.25 nm, which corresponds to the (211) plane of the tetragonal phase of the Mn3O4 nanoparticles. These results suggested that the Mn3O4 nanoparticles have a strong connection and network with the heteroatom-doped rGO aerogels, which is in accordance with the SEM images.
The disordered degree of the heteroatom-doped rGO aerogels was characterised via Raman spectroscopy and is presented in Figure 5. Typical broad peaks corresponding to the D and G bands at 1359 and 1600 cm−1, respectively, were observed in the heteroatom-doped rGO aerogels. The G band reflected the radial C-C stretching of ordered sp2 -linked carbon atoms, whereas the D band indicated the defects or irregularities on the graphene edges [58,59]. Furthermore, the intensity ratio of the D and G bands (ID/IG) for the N-rGO aerogel was 0.95, whereas it was 0.98 for the N,S-rGO aerogel. After the nitrogen and sulphur doping, defects were introduced to the rGO aerogel layers [60,61], where the ID/IG ratios of the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels increased to 0.98 and 1.00, respectively. Two peaks at 658 and 369 cm−1 were observed in the Mn3O4/N-rGO and Mn3O4/N,S rGO aerogels, respectively [62,63]. These strong peaks corresponded to the Mn-O breathing vibration of Mn2+ ions and thus demonstrated that Mn3O4 is successfully attached to the rGO layer [64,65]. Additionally, the peaks at 2450 cm−1 were associated with the second-order two-phonon mode 2D band. It is worth noting that the Raman spectrum associated with Mn3O4 in the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels was shifted to a low wavenumber in comparison with the pristine Mn3O4, indicating the electronic coupling between Mn3O4 and heteroatom rGO aerogel.

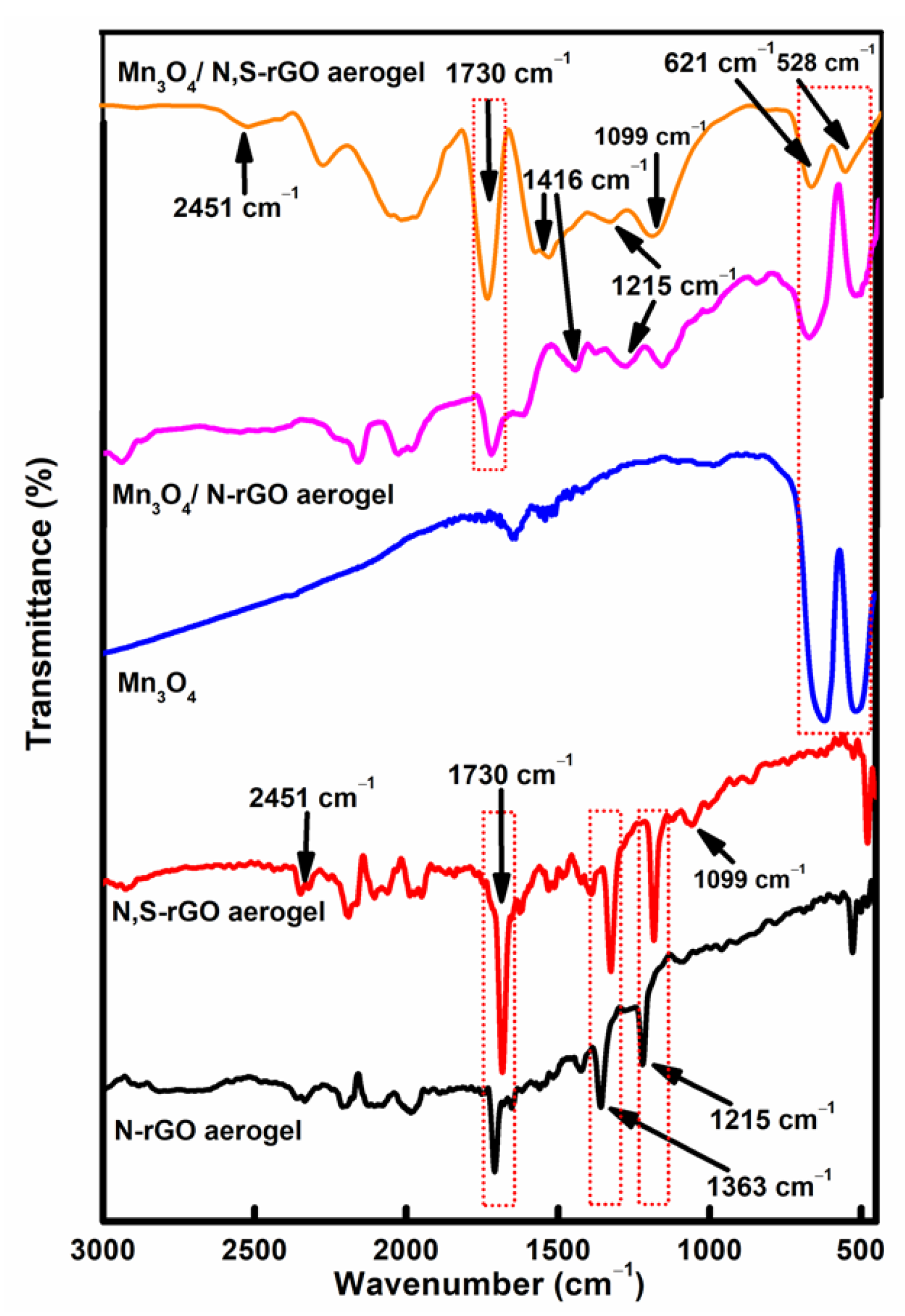

Figure 6 presents the FTIR spectra of the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels to further support the presence of heteroatom in the rGO aerogel, as well as the Mn3O4 nanoparticles in the nanocomposites. The peak positioned at 1730, 1363, and 1215 cm−1 corresponded to the stretching vibration C=O of carboxylic groups, O-H deformation, and C-O stretching vibration from epoxy groups, respectively, indicating that GO was successfully converted into rGO [66,67]. The peak located at 1099 and 2451 cm−1 associated with the absorption band of C=S and S-H stretching vibration, respectively, was observed in the N,S-rGO and Mn3O4/N,S-rGO aerogels and, thus, confirmed the presence of S atom on the surface of N,S-rGO aerogel samples [68]. In addition, the C-N stretching vibration band located at 1416 cm−1 could be assigned to the characteristic band of nitrogen doping. For the Mn3O4 nanoparticles, the strong peaks at 528 and 621 cm−1 were attributed to the Mn-O stretching of the tetrahedral and octahedral sites in Mn3O4 [30]. As a result, Mn-O, C-N, C=S, and N-H linkages confirmed that Mn3O4 nanoparticles were successfully integrated into the heteroatom rGO layers.

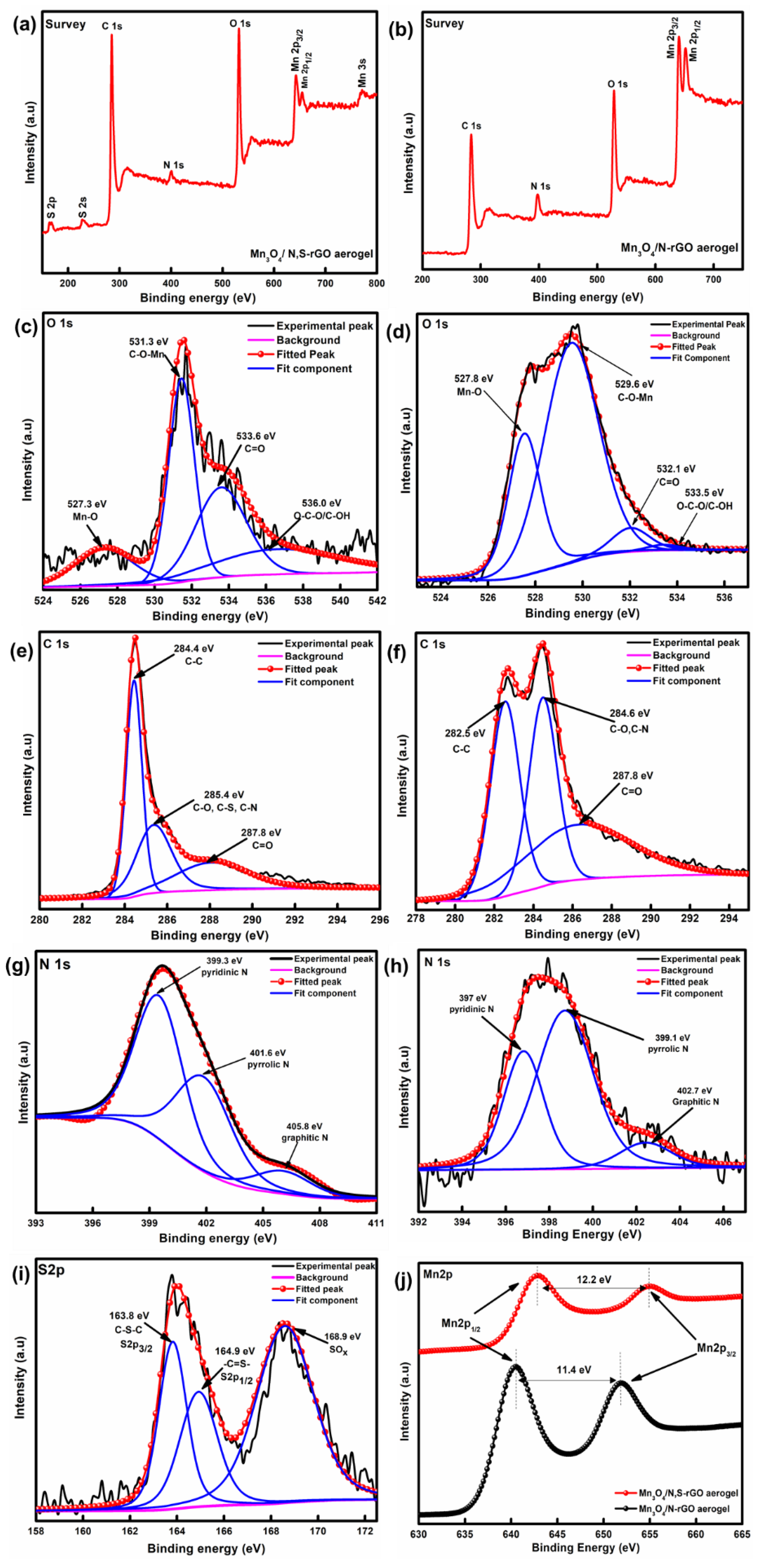

The XPS technique was used to obtain further insight into the chemical states of elements on the surface of the samples. Figure 7 presents the XPS spectra of the Mn3O4/N,S-rGO and Mn3O4/N-rGO aerogels, respectively. From the survey scan XPS spectra, the presence of nitrogen (Figure 7a) and nitrogen–sulphur (Figure 7b) is noticeable, which agrees well with the FTIR results. For the Mn3O4/N-rGO aerogel, the atomic percentage of the N was 11.54%, whereas, for the Mn3O4/N,S-rGO aerogel, the atomic percentages of the N and S were 4.12% and 2.76%, respectively. Both nanocomposites exhibited an Mn 2p3/2 at 642 eV, Mn 2p1/2 at 653 eV, Mn 3s at 771 eV, an O 1s peak at 531.6 eV, a C 1s peak at 284.5 eV, and N 1s peak at 399.3 eV. For O 1s (Figure 7c,d), the XPS spectra could be deconvoluted into four peaks located at 527, 531, 533, and 534 eV, which correspond to Mn-O, C-O-Mn, C=O, and surface adsorbed oxygen, respectively. The C 1s (Figure 7e,f) could be fitted into three different peaks, which corresponded to the signal of C-C (283.5 eV) and C=O (287 eV) for both nanocomposites, C-O, C-S, and C-N (285.4 eV) for the Mn3O4/N,S-rGO aerogel, and C-O and C-N (284.6 eV) for the Mn3O4/N-rGO aerogel. Thus, it further confirmed the presence of N and S-atoms in the nanocomposites [24]. Figure 7g,h present the N 1s region, where the binding energies located at 397, 399, and 403 eV were assigned to pyridinic N, pyrrolic N, and graphitic N, respectively. The presence of pyridinic N, graphitic N, and pyrrolic N at the defect or edge sites was favourable to improving the Na-ion transport and sodium storage capacity [69]. As can be seen from Figure 7i, the S 2p spectra positioned at 163.8, 164.9, and 168.9 eV are assigned to S 2p3/2, S p1/2, and SOx, respectively, indicating the existence of Mn-S [70,71]. The curve fitting of the high-resolution Mn 2p spectrum for the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels is presented in Figure 7j. The peak located at 640–652 eV and 651–655 eV could be assigned to Mn 2p3/2 and Mn 2p1/2, respectively, indicating the existence of the Mn species, implying the possible presence of Mn3O4 in the nanocomposites [72]. The splitting widths of Mn 2p3/2 and Mn 2p1/2 were 12.2 and 11.4 eV for the Mn3O4/N,S-rGO and Mn3O4/N-rGO aerogels, respectively, and were in accordance with other earlier reports [73], which further demonstrated that the Mn3O4 nanoparticles have formed in the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels.

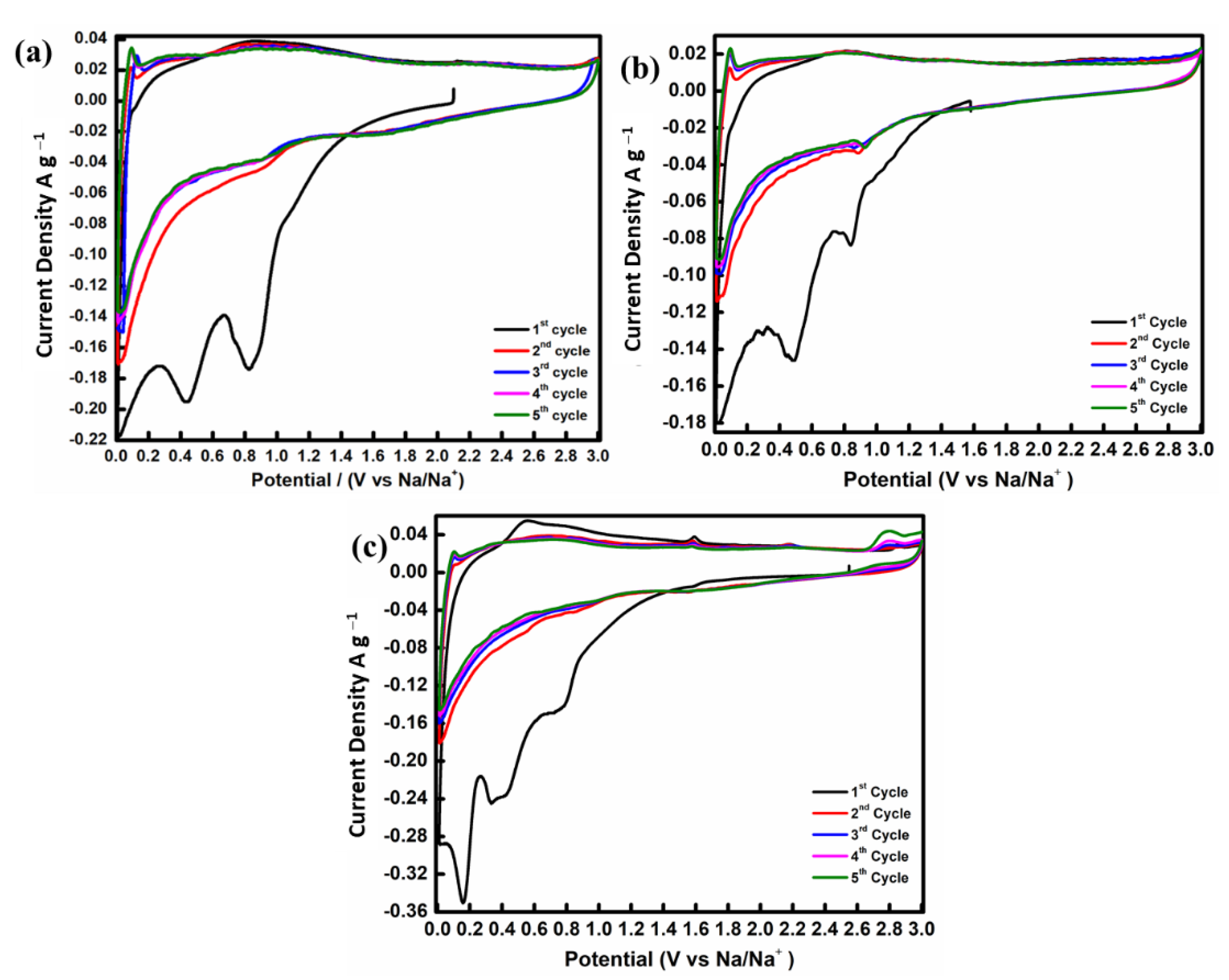

To evaluate the sodium storage performances of the samples, the CV and galvanostatic charge/discharge testing have been conducted in a half-cell within the potential range of 0.01–3.00 V. As can be seen from Figure 8a, all samples exhibit a strong cathodic peak at 0.85 V in the first cycle and could be ascribed to the reductions of Mn3O4 to MnO as well as the formation of Na2O, which is attributed to the decomposition of the electrolyte according to Equation (1)
Mn3O4 + 2Na+ + 2e− → 3MnO + Na2O
The peaks at 0.45 to 0.01 V could be attributed to the reduction of MnO to metallic Mn (Equation (2)) and solid electrolyte interphase (SEI) layer formation on the electrode surface of the electroactive material.
MnO + 2Na+ + 2e− → Mn + Na2O
During subsequent cycles, the CV curves nearly overlapped, indicating that the Mn3O4/heteroatom rGO aerogel was reversible during the insertion/de-insertion process of Na+ ions [74]. The tiny peaks at 0.1 V and the broad peak at 0.8 V in the anodic process corresponded to Na+ extraction into the graphitic carbon layers, which was the inverse process of Na+ intercalation. When compared with Li-ion batteries, the CV peaks in Na-ion batteries were broader and weaker. This may be due to the larger radius of Na+ than Li+ and the slower Na+ intercalation between graphitic carbon layers [75,76]. Contrary to the Mn3O4/N-rGO aerogel (Figure 8b), the Mn3O4/N,S-rGO aerogel (Figure 8c) exhibited a pair of small redox peaks at 1.6 and 1.8 V, which could be attributed to the sulphur embedded in the porous N,S-rGO aerogel during the Na-ion insertion/de-insertion process [77]. The CV curves exhibited good reversibility, leading to good cycling stability for longer cycles, and the overall sodium storage mechanism between Mn3O4 and Na+ is expressed in Equation (3).
Mn3O4 + 8Na+ + 8e− ↔ 3Mn + 4Na2O

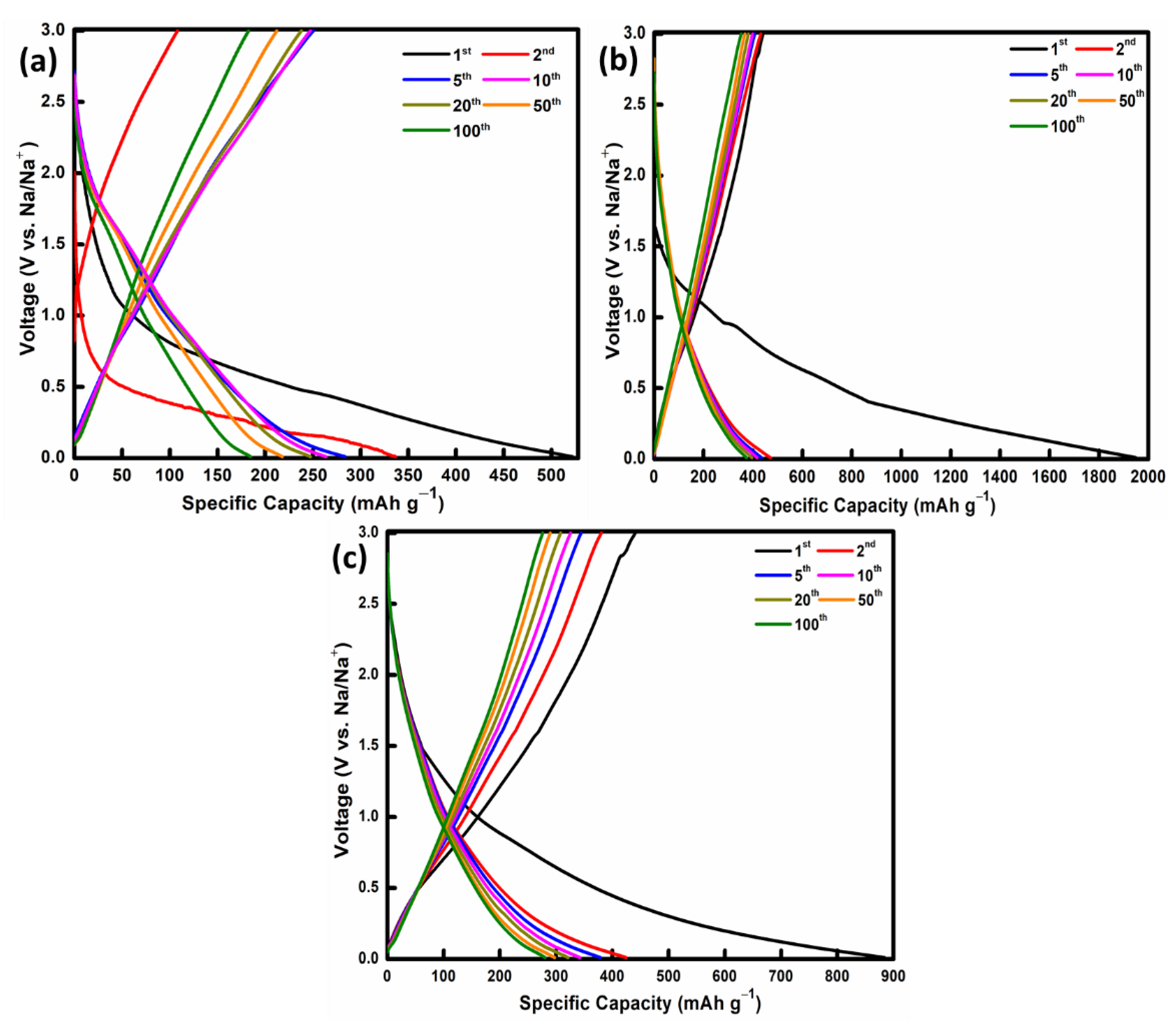

Figure 9 presents the typical discharge/charge profiles of Mn3O4 and the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels electrodes for selected cycles at a current density of 0.1 A g−1. The subsequent CV curves are different from the first sodiation, and the discharge plateau for the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogels is much longer than the pristine one, indicating that more Na-ions can be inserted into these nanocomposites [78]. Furthermore, no distinct plateau is observed, which is consistent with the CV results.

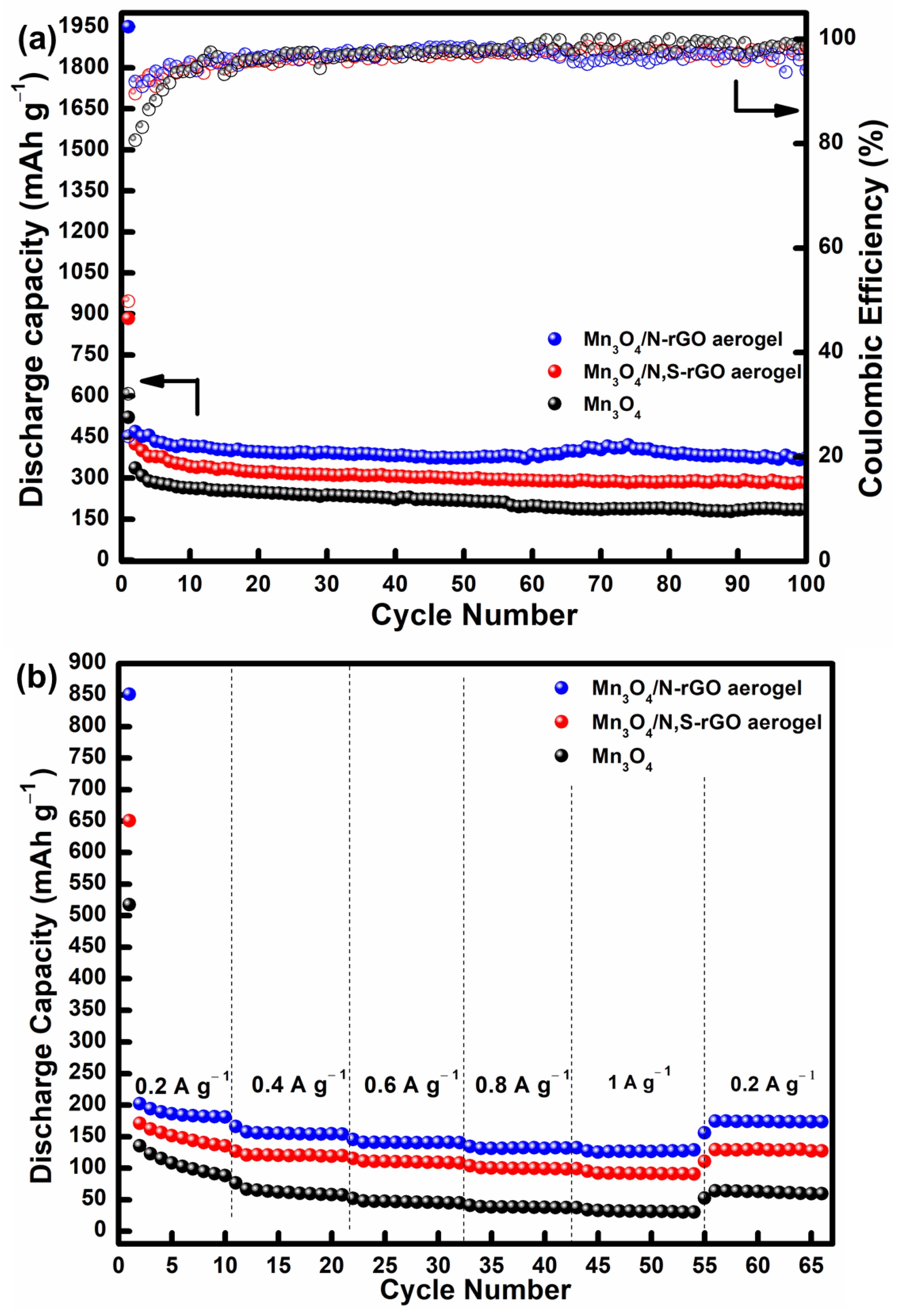

The cycling stability of all electrodes is presented in Figure 10a. The initial discharge capacities of Mn3O4, Mn3O4/N-rGO aerogel and Mn3O4/N,S-rGO aerogel were measured to be 522, 1950, and 884 mAh g−1, respectively. In the second cycle, the discharge capacities were 336, 470, and 425 mAh g−1 for Mn3O4, Mn3O4/N-rGO aerogel and Mn3O4/N,S-rGO aerogel, respectively. The irreversible capacity loss was mainly due to the irreversible formation of the SEI layer. Interestingly, the Mn3O4/N-rGO aerogel maintained its discharge capacity at 374 mAh g−1 after 100 cycles with an 80% retention rate. Contrarily, the Mn3O4/N,S-rGO aerogel and Mn3O4 exhibited much lower discharge capacities of 281 mAh g−1 (68% retention rate) and 185 mAh g−1 (55% retention rate) after 100 cycles. For the few initial cycles, the porous structure of rGO aerogel promoted the formation of excessive SEI layers, resulting in a lower initial Coulombic efficiency [79]. Overall, the average Coulombic efficiency of all electrodes was almost 99%. Nevertheless, the Mn3O4/N,S-rGO aerogel electrodes demonstrated much lower discharge capacity, presumably because of the large atomic radius of S, as well as the large crystallite size than that of Mn3O4/N-rGO aerogel electrodes.
In addition to their high discharge capacity and good cycling stability, the Mn3O4/N-rGO and Mn3O4/N,S-rGO aerogel electrodes exhibited remarkable rate performance, as presented in Figure 10b. The Mn3O4/N-rGO aerogel electrode exhibited discharge capacities of 203, 166, 145, 135, 128, and 156 mAh g−1 at various current densities of 0.2, 0.4, 0.6, 0.8, 1.0, and returning to 0.2 A g−1. The minimal drop in capacities with increased current densities indicated a higher degree of reversible Na-ion insertion/de-insertion owing to their expanded interlayer spacing [80]. The improved cycle and rate performance of Mn3O4/heteroatom-doped rGO aerogels may be due, in part, to the 3D porous structure, which may minimise the electron and ion transport path.
The specific capacity and cyclability of the Mn3O4/N-rGO aerogel and Mn3O4/N,S-rGO aerogel were improved, which benefitted from the synergistic effect of the heteroatom doping and porous structure of the rGO, as well as the small particle sizes of Mn3O4. The rGO sheets as well as the porous structure in the conductive network of the Mn3O4/heteroatom rGO aerogels provided an efficient electron and ion transport path, thereby decreasing the internal resistance to enhance the reaction kinetics and resulting in a high specific capacity and rate capability [81,82,83]. Poor electrical conductivity and large volume expansion in transition-metal oxide electrodes during the Na-ion insertion/de-insertion processes are among the constraints in the development of these materials for Na-ion battery applications. Here, the rGO sheets are more likely to provide sufficient elastic buffer space for the transition-metal oxide to accommodate the volume expansion/contraction and prevent the electrode from cracking or crumbling during the charge/discharge processes. In addition, the presence of the rGO aerogel could effectively enhance the electrical conductivity of the nanocomposites [84]. Meanwhile, Mn3O4 nanoparticles anchored on rGO can prevent the restacking of the rGO layers, preserve their high active surface area and maintain the channels for Na-ion diffusion, which is advantageous for increasing the Na storage within the nanocomposites [85]. Doping the rGO aerogels with nitrogen and codoping nitrogen/sulphur improves the physicochemical properties of the rGO component [43]. The incorporation of these heteroatoms into the rGO aerogels could facilitate the charge transfer between adjacent carbon atoms [86,87,88], thus improving the electrical conductivity and electrochemical activity of the rGO itself. The defects created by N-doping and functionalised groups may increase the electrical conductivity, and the larger covalent radius of S compared with Na may increase the interlayer spacing to facilitate Na-ion insertion/de-insertion within the electrode. All the aforementioned characteristics contributed to the improvements in the specific capacity and cycling ability of the Mn3O4/heteroatom-doped rGO aerogels. This strategy can be used as one of the approaches for mitigating the large volume change and poor electrical conductivity, which is associated with bare transition-metal oxide anodes.

4. Conclusions

In summary, the Mn3O4/heteroatom-doped rGO aerogels have been successfully synthesised via a hydrothermal route, followed by a freeze-drying process using NH3 and L-cysteine as nitrogen and nitrogen–sulphur sources, respectively. The aerogel structure built well-interconnected heteroatom-doped rGO layers, and the Mn3O4 nanoparticles distributed on the rGO layers prevented the graphene layers from restacking again. The 3D structure provides a large active surface area and eases electron diffusion and Na-ion transportation. Both the N- and N,S-doped rGO aerogels with Mn3O4 exhibited high specific capacity, excellent cycling stability, and rate capability than the pristine Mn3O4. The heteroatom-doped rGO aerogel acts as a robust structure to accommodate the volume expansion of Mn3O4 nanoparticles and enables reversible Na-ion insertion/de-insertion. Our work demonstrates that N- and N,S-doped rGO aerogels can efficiently improve the Na storage capacity of Mn3O4 and offer a useful strategy for synthesising high-yield anode materials. Considering the simple step of the preparation process and the excellent cycling stability of the samples, the Mn3O4/heteroatom-doped rGO aerogel can be considered a potential candidate and provide an opportunity to explore these materials for the next generation of Na-ion batteries.

Author Contributions

Conceptualization, N.F.M.Y. and N.H.I.; methodology, N.F.M.Y., M.F.M.D., S.R.M. and N.A.H.; formal analysis, N.F.M.Y.; writing—original draft, N.F.M.Y.; visualization, N.F.M.Y., N.H.I. and M.F.M.D.; validation, N.H.I., M.F.M.D., S.R.M. and N.A.H.; investigation, N.H.I.; writing—review and editing, N.H.I., M.F.M.D., S.R.M. and N.A.H.; supervision, N.H.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fundamental Research Grant Scheme (FRGS; FRGS/1/2018/STG07/UMT/02/3; VOT 59520).

Data Availability Statement

Not applicable.

Acknowledgments

Ministry of Higher Education Malaysia is acknowledged for financial support through the Fundamental Research Grant Scheme (FRGS; FRGS/1/2018/STG07/UMT/02/3).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dunn, B.; Kamath, H.; Tarascon, J.-M. Electrical energy storage for the grid: A battery of choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wang, H.; Chen, S.; Fu, C.; Ding, Y.; Liu, G.; Cao, Y.; Chen, Z. Recent advances in conversion-type electrode materials for post lithium-ion batteries. ACS Mater. Lett. 2021, 3, 956–977. [Google Scholar] [CrossRef]
  3. De La Llave, E.; Borgel, V.; Park, K.-J.; Hwang, J.-Y.; Sun, Y.-K.; Hartmann, P.; Chesneau, F.-F.; Aurbach, D. Comparison between Na-ion and Li-ion cells: Understanding the critical role of the cathodes stability and the anodes pretreatment on the cells behavior. ACS Appl. Mater. Interfaces 2016, 8, 1867–1875. [Google Scholar] [CrossRef] [PubMed]
  4. Vaalma, C.; Buchholz, D.; Weil, M.; Passerini, S. A cost and resource analysis of sodium-ion batteries. Nat. Rev. Mater. 2018, 3, 1–11. [Google Scholar] [CrossRef]
  5. Yabuuchi, N.; Kubota, K.; Dahbi, M.; Komaba, S. Research development on sodium-ion batteries. Chem. Rev. 2014, 114, 11636–11682. [Google Scholar] [CrossRef]
  6. Delmas, C. Sodium and sodium-ion batteries: 50 years of research. Adv. Energy Mater. 2018, 8, 1703137–1703146. [Google Scholar] [CrossRef]
  7. Palomares, V.; Casas-Cabanas, M.; Castillo-Martínez, E.; Han, M.H.; Rojo, T. Update on Na-based battery materials. A growing research path. Energy Environ. Sci. 2013, 6, 2312–2337. [Google Scholar] [CrossRef]
  8. Rojo, T.; Hu, Y.-S.; Forsyth, M.; Li, X. Sodium-Ion Batteries. Adv. Energy Mater. 2018, 8, 1800880–1800882. [Google Scholar] [CrossRef] [Green Version]
  9. Hu, Z.; Wang, L.; Zhang, K.; Wang, J.; Cheng, F.; Tao, Z.; Chen, J. MoS2 nanoflowers with expanded interlayers as high-performance anodes for sodium-ion batteries. Angew. Chem. Int. Ed. 2014, 53, 12794–12798. [Google Scholar] [CrossRef]
  10. Slater, M.D.; Kim, D.; Lee, E.; Johnson, C.S. Correction: Sodium-ion batteries. Adv. Funct. Mater. 2013, 23, 3255. [Google Scholar] [CrossRef]
  11. Kim, H.; Kim, H.; Ding, Z.; Lee, M.H.; Lim, K.; Yoon, G.; Kang, K. Recent progress in electrode materials for sodium-ion batteries. Adv. Energy Mater. 2016, 6, 1600943–1600981. [Google Scholar] [CrossRef] [Green Version]
  12. Larcher, D.; Tarascon, J.-M. Towards greener and more sustainable batteries for electrical energy storage. Nat. Chem. 2015, 7, 19–29. [Google Scholar] [CrossRef] [PubMed]
  13. Li, Y.; Lu, Y.; Zhao, C.; Hu, Y.-S.; Titirici, M.-M.; Li, H.; Huang, X.; Chen, L. Recent advances of electrode materials for low-cost sodium-ion batteries towards practical application for grid energy storage. Energy Storage Mater. 2017, 7, 130–151. [Google Scholar] [CrossRef]
  14. Jamesh, M.I.; Prakash, A.S. Advancement of technology towards developing Na-ion batteries. J. Power Sources 2018, 378, 268–300. [Google Scholar] [CrossRef]
  15. Gu, M.; Kushima, A.; Shao, Y.; Zhang, J.-G.; Liu, J.; Browning, N.D.; Li, J.; Wang, C. Probing the failure mechanism of SnO2 nanowires for sodium-ion batteries. Nano Lett. 2013, 13, 5203–5211. [Google Scholar] [CrossRef]
  16. Gao, H.; Ji, B.; Jäger, I.L.; Arzt, E.; Fratzl, P. Materials become insensitive to flaws at nanoscale: Lessons from nature. Proc. Natl. Acad. Sci. USA 2003, 100, 5597–5600. [Google Scholar] [CrossRef] [Green Version]
  17. Yusoff, N.F.M.; Idris, N.H.; Din, M.F.M.; Majid, S.R.; Harun, N.A.; Rahman, M. Investigation on the electrochemical performances of Mn2O3 as a potential anode for Na-ion batteries. Sci. Rep. 2020, 10, 9207–9217. [Google Scholar] [CrossRef]
  18. Li, H.; Liu, A.; Zhao, S.; Guo, Z.; Wang, N.; Ma, T. In situ growth of a feather-like MnO2 nanostructure on carbon paper for high-performance rechargeable sodium-ion batteries. ChemElectroChem 2018, 5, 3266–3272. [Google Scholar] [CrossRef]
  19. Li, T.; Qin, A.; Yang, L.; Chen, J.; Wang, Q.; Zhang, D.; Yang, H. In situ grown Fe2O3 single crystallites on reduced graphene oxide nanosheets as high performance conversion anode for sodium-ion batteries. ACS Appl. Mater. Interfaces 2017, 9, 19900–19907. [Google Scholar] [CrossRef]
  20. Fu, Y.; Wei, Q.; Wang, X.; Zhang, G.; Shu, H.; Yang, X.; Tavares, A.C.; Sun, S. A facile synthesis of Fe3O4 nanoparticles/graphene for high-performance lithium/sodium-ion batteries. RSC Adv. 2016, 6, 16624–16633. [Google Scholar] [CrossRef]
  21. Xu, M.; Xia, Q.; Yue, J.; Zhu, X.; Guo, Q.; Zhu, J.; Xia, H. Rambutan-like hybrid hollow spheres of carbon confined Co3O4 nanoparticles as advanced anode materials for sodium-ion batteries. Adv. Funct. Mater. 2019, 29, 1807377–1807387. [Google Scholar] [CrossRef]
  22. Liu, Y.; Yang, Y.; Wang, X.; Dong, Y.; Tang, Y.; Yu, Z.; Zhao, Z.; Qiu, J. Flexible paper-like free-standing electrodes by anchoring ultrafine SnS2 nanocrystals on graphene nanoribbons for high-performance sodium ion batteries. ACS Appl. Mater. Interfaces 2017, 9, 15484–15491. [Google Scholar] [CrossRef] [PubMed]
  23. Ji, L.; Gu, M.; Shao, Y.; Li, X.; Engelhard, M.H.; Arey, B.W.; Wang, W.; Nie, Z.; Xiao, J.; Wang, C. Controlling SEI formation on SnSb-porous carbon nanofibers for improved Na ion storage. Adv. Mater. 2014, 26, 2901–2908. [Google Scholar] [CrossRef] [PubMed]
  24. Qin, Y.; Jiang, Z.; Guo, L.; Huang, J.; Jiang, Z.-J. Controlled thermal oxidation derived Mn3O4 encapsulated in nitrogen doped carbon as an anode for lithium/sodium ion batteries with enhanced performance. Chem. Eng. J. 2021, 406, 126894–126906. [Google Scholar] [CrossRef]
  25. Wang, B.; Li, F.; Wang, X.; Wang, G.; Wang, H.; Bai, J. Mn3O4 nanotubes encapsulated by porous graphene sheets with enhanced electrochemical properties for lithium/sodium-ion batteries. Chem. Eng. J. 2019, 364, 57–69. [Google Scholar] [CrossRef]
  26. Deng, Y.; Wan, L.; Xie, Y.; Qin, X.; Chen, G. Recent advances in Mn-based oxides as anode materials for lithium ion batteries. RSC Adv. 2014, 4, 23914–23935. [Google Scholar] [CrossRef]
  27. Duan, J.; Zheng, Y.; Chen, S.; Tang, Y.; Jaroniec, M.; Qiao, S. Correction: Mesoporous hybrid material composed of Mn3O4 nanoparticles on nitrogen-doped graphene for highly efficient oxygen reduction reaction. Chem. Commun. 2016, 52, 6021. [Google Scholar] [CrossRef] [Green Version]
  28. Jiang, Y.; Hu, M.; Zhang, D.; Yuan, T.; Sun, W.; Xu, B.; Yan, M. Transition metal oxides for high performance sodium ion battery anodes. Nano Energy 2014, 5, 60–66. [Google Scholar] [CrossRef] [Green Version]
  29. Hao, Q.; Liu, B.; Ye, J.; Xu, C. Well encapsulated Mn3O4 octahedra in graphene nanosheets with much enhanced Li-storage performances. J. Colloid Interface Sci. 2017, 504, 603–610. [Google Scholar] [CrossRef]
  30. Wu, Y.; Liu, S.; Wang, H.; Wang, X.; Zhang, X.; Jin, G. A novel solvothermal synthesis of Mn3O4/graphene composites for supercapacitors. Electrochim. Acta 2013, 90, 210–218. [Google Scholar] [CrossRef]
  31. Zhang, T.; Zhu, C.; Shi, Y.; Li, Y.; Zhu, S.; Zhang, D. Synthesis of Fe2O3 in situ on the surface of mesoporous carbon from alginate as a high-performance anode for lithium-ion batteries. Mater. Lett. 2017, 205, 10–14. [Google Scholar] [CrossRef]
  32. Li, Y.; Zhao, Y.; Ma, C.; Shi, J.; Zhao, Y. Highly monodispersed graphene/SnO2 hybrid nanosheets as bifunctional anode materials of Li-ion and Na-ion batteries. J. Alloys Compd. 2020, 821, 153506–153516. [Google Scholar] [CrossRef]
  33. Wang, H.; Cui, L.F.; Yang, Y.; Sanchez Casalongue, H.; Robinson, J.T.; Liang, Y.; Cui, Y.; Dai, H. Mn3O4-graphene hybrid as a high-capacity anode material for lithium ion batteries. J. Am. Chem. Soc. 2010, 132, 13978–13980. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Long, J.; Yang, Z.; Yang, F.; Cuan, J.; Wu, J. Electrospun core-shell Mn3O4/carbon fibers as high-performance cathode materials for aqueous zinc-ion batteries. Electrochim. Acta 2020, 344, 136155–136165. [Google Scholar] [CrossRef]
  35. Mao, J.; Zhou, T.; Zheng, Y.; Gao, H.; kun Liu, H.; Guo, Z. Two-dimensional nanostructures for sodium-ion battery anodes. J. Mater. Chem. A 2018, 6, 3284–3303. [Google Scholar] [CrossRef] [Green Version]
  36. Li, Y.; Ye, D.; Liu, W.; Shi, B.; Guo, R.; Pei, H.; Xie, J. A three-dimensional core-shell nanostructured composite of polypyrrole wrapped MnO2/reduced graphene oxide/carbon nanotube for high performance lithium ion batteries. J. Colloid Interface Sci. 2017, 493, 241–248. [Google Scholar] [CrossRef]
  37. Zhao, D.; Wang, L.; Yu, P.; Zhao, L.; Tian, C.; Zhou, W.; Zhang, L.; Fu, H. From graphite to porous graphene-like nanosheets for high rate lithium-ion batteries. Nano Res. 2015, 8, 2998–3010. [Google Scholar] [CrossRef]
  38. Zhou, C.; Zhang, K.; Hong, M.; Yang, Y.; Hu, N.; Su, Y.; Zhang, L.; Zhang, Y. Laser-induced MnO/Mn3O4/N-doped-graphene hybrid as binder-free anodes for lithium ion batteries. Chem. Eng. J. 2020, 385, 123720–123729. [Google Scholar] [CrossRef]
  39. Guo, C.; Xie, Y.; Pan, K.; Li, L. MOF-derived hollow SiOx nanoparticles wrapped in 3D porous nitrogen-doped graphene aerogel and their superior performance as the anode for lithium-ion batteries. Nanoscale 2020, 12, 13017–13027. [Google Scholar] [CrossRef]
  40. Vrettos, K.; Angelopoulou, P.; Papavasiliou, J.; Avgouropoulos, G.; Georgakilas, V. Sulfur-doped graphene aerogels reinforced with carbon fibers as electrode materials. J. Mater. Sci. 2020, 55, 9676–9685. [Google Scholar] [CrossRef]
  41. Yao, Z.; Xia, X.; Xie, D.; Wang, Y.; Zhou, C.-A.; Liu, S.; Deng, S.; Wang, X.; Tu, J. Enhancing ultrafast lithium ion storage of Li4Ti5O12 by tailored TiC/C core/shell skeleton plus nitrogen doping. Adv. Funct. Mater. 2018, 28, 1802756–1802764. [Google Scholar] [CrossRef]
  42. Xiong, Q.Q.; Lou, J.J.; Teng, X.J.; Lu, X.X.; Liu, S.Y.; Chi, H.Z.; Ji, Z.G. Controllable synthesis of N-C@LiFePO4 nanospheres as advanced cathode of lithium ion batteries. J. Alloys Compd. 2018, 743, 377–382. [Google Scholar] [CrossRef]
  43. Jing, M.; Chen, Z.; Li, Z.; Li, F.; Chen, M.; Zhou, M.; He, B.; Chen, L.; Hou, Z.; Chen, X. Facile synthesis of ZnS/N,S co-doped carbon composite from zinc metal complex for high-performance sodium-ion batteries. ACS Appl. Mater. Interfaces 2018, 10, 704–712. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, Z.; Qie, L.; Yuan, L.; Zhang, W.; Hu, X.; Huang, Y. Functionalized N-doped interconnected carbon nanofibers as an anode material for sodium-ion storage with excellent performance. Carbon 2013, 55, 328–334. [Google Scholar] [CrossRef]
  45. Wang, X.; Li, G.; Hassan, F.M.; Li, J.; Fan, X.; Batmaz, R.; Xiao, X.; Chen, Z. Sulfur covalently bonded graphene with large capacity and high rate for high-performance sodium-ion batteries anodes. Nano Energy 2015, 15, 746–754. [Google Scholar] [CrossRef]
  46. Liu, Y.; Qiao, Y.; Wei, G.; Li, S.; Lu, Z.; Wang, X.; Lou, X. Sodium storage mechanism of N, S co-doped nanoporous carbon: Experimental design and theoretical evaluation. Energy Storage Mater. 2018, 11, 274–281. [Google Scholar] [CrossRef]
  47. Kumar, R.; Sahoo, S.; Joanni, E.; Singh, R.K.; Maegawa, K.; Tan, W.K.; Kawamura, G.; Kar, K.K.; Matsuda, A. Heteroatom doped graphene engineering for energy storage and conversion. Mater. Today 2020, 39, 47–65. [Google Scholar] [CrossRef]
  48. Hummers, W.S., Jr.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  49. Mahamad Yusoff, N.F.; Idris, N.H.; Md Din, M.F.; Majid, S.R.; Harun, N.A.; Rahman, M.M. Electrochemical sodiation/desodiation into Mn3O4 nanoparticles. ACS Omega 2020, 5, 29158–29167. [Google Scholar] [CrossRef]
  50. Chen, J.; Yao, B.; Li, C.; Shi, G. An improved Hummers method for eco-friendly synthesis of graphene oxide. Carbon 2013, 64, 225–229. [Google Scholar] [CrossRef]
  51. Zhang, L.; Shi, G. Preparation of highly conductive graphene hydrogels for fabricating supercapacitors with high rate capability. J. Phys. Chem. C 2011, 115, 17206–17212. [Google Scholar] [CrossRef]
  52. Wang, P.; Zhang, Y.; Yin, Y.; Fan, L.; Zhang, N.; Sun, K. In situ synthesis of CuCo2S4@ N/S-doped graphene composites with pseudocapacitive properties for high-performance lithium-ion batteries. ACS Appl. Mater. Interfaces 2018, 10, 11708–11714. [Google Scholar] [CrossRef] [PubMed]
  53. Elsiddig, Z.A.; Wang, D.; Xu, H.; Zhang, W.; Zhang, T.; Zhang, P.; Tian, W.; Sun, Z.; Chen, J. Three-dimensional nitrogen-doped graphene wrapped LaMnO3 nanocomposites as high-performance supercapacitor electrodes. J. Alloys Compd. 2018, 740, 148–155. [Google Scholar] [CrossRef]
  54. Ma, X.; Zhang, P.; Zhao, Y.; Liu, Y.; Li, J.; Zhou, J.Y.; Pan, X.; Xie, E. Role of N doping on the electrochemical performances of ZnCo2O4 quantum dots/reduced graphene oxide composite nanosheets. Chem. Eng. J. 2017, 327, 1000–1010. [Google Scholar] [CrossRef]
  55. Kang, J.-H.; Chen, J.-S. Using ethylenediamine to prepare three dimensional nitrogen-doped graphene aerogel/sulfur composite for lithium-sulfur batteries. Diam. Relat. Mater. 2018, 88, 222–229. [Google Scholar] [CrossRef]
  56. Shi, P.; Su, R.; Wan, F.; Zhu, M.; Li, D.; Xu, S. Co3O4 nanocrystals on graphene oxide as a synergistic catalyst for degradation of Orange II in water by advanced oxidation technology based on sulfate radicals. Appl. Catal. B 2012, 123, 265–272. [Google Scholar] [CrossRef]
  57. Liang, Y.; Li, Y.; Wang, H.; Zhou, J.; Wang, J.; Regier, T.; Dai, H. Co3O4 nanocrystals on graphene as a synergistic catalyst for oxygen reduction reaction. Nat. Mater. 2011, 10, 780–786. [Google Scholar] [CrossRef] [Green Version]
  58. Cheng, Y.; Li, B.; Wei, Z.; Wang, Y.; Wei, D.; Jia, D.; Feng, Y.; Zhou, Y. Mn3O4 tetragonal bipyramid laden nitrogen doped and hierarchically porous carbon composite as positive electrode for high-performance asymmetric supercapacitor. J. Power Sources 2020, 451, 227775–227785. [Google Scholar] [CrossRef]
  59. Kim, H.; Kim, S.-W.; Hong, J.; Park, Y.-U.; Kang, K. Electrochemical and ex-situ analysis on manganese oxide/graphene hybrid anode for lithium rechargeable batteries. J. Mater. Res. 2011, 26, 2665–2671. [Google Scholar] [CrossRef]
  60. Zhang, J.; Li, C.; Peng, Z.; Liu, Y.; Zhang, J.; Liu, Z.; Li, D. 3D free-standing nitrogen-doped reduced graphene oxide aerogel as anode material for sodium ion batteries with enhanced sodium storage. Sci. Rep. 2017, 7, 4886–4893. [Google Scholar] [CrossRef]
  61. Xia, Y.; Xiao, Z.; Dou, X.; Huang, H.; Lu, X.; Yan, R.; Gan, Y.; Zhu, W.; Tu, J.; Zhang, W.; et al. Green and facile fabrication of hollow porous MnO/C microspheres from microalgaes for lithium-ion batteries. ACS Nano 2013, 7, 7083–7092. [Google Scholar] [CrossRef] [PubMed]
  62. Bernard, M.C.; Hugot-Le Goff, A.; Thi, B.V.; de Torresi, S.C. Electrochromic reactions in manganese oxides: I. Raman analysis. J. Electrochem. Soc. 1993, 140, 3065–3070. [Google Scholar] [CrossRef]
  63. Julien, C.; Massot, M.; Poinsignon, C. Lattice vibrations of manganese oxides: Part I. Periodic structures. Spectrochim. Acta Part A 2004, 60, 689–700. [Google Scholar] [CrossRef]
  64. Wang, Y.; Zhu, L.; Yang, X.; Shao, E.; Deng, X.; Liu, N.; Wu, M. Facile synthesis of three-dimensional Mn3O4 hierarchical microstructures and their application in the degradation of methylene blue. J. Mater. Chem. A 2015, 3, 2934–2941. [Google Scholar] [CrossRef]
  65. Wang, J.-G.; Jin, D.; Zhou, R.; Li, X.; Liu, X.-R.; Shen, C.; Xie, K.; Li, B.; Kang, F.; Wei, B. Highly flexible graphene/Mn3O4 nanocomposite membrane as advanced anodes for Li-ion batteries. ACS Nano 2016, 10, 6227–6234. [Google Scholar] [CrossRef] [PubMed]
  66. Ouyang, Z.; Lei, Y.; Chen, Y.; Zhang, Z.; Jiang, Z.; Hu, J.; Lin, Y. Preparation and specific capacitance properties of sulfur, nitrogen co-doped graphene quantum dots. Nanoscale Res. Lett. 2019, 14, 1–9. [Google Scholar] [CrossRef] [PubMed]
  67. Meng, J.; Cao, Y.; Suo, Y.; Liu, Y.; Zhang, J.; Zheng, X. Facile fabrication of 3D SiO2@graphene aerogel composites as anode material for lithium ion batteries. Electrochim. Acta 2015, 176, 1001–1009. [Google Scholar] [CrossRef]
  68. Rochman, R.A.; Wahyuningsih, S.; Ramelan, A.H.; Hanif, Q.A. Preparation of nitrogen and sulphur Co-doped reduced graphene oxide (rGO-NS) using N and S heteroatom of thiourea. IOP Conf. Ser. Mater. Sci. Eng. 2019, 509, 012119–012127. [Google Scholar] [CrossRef]
  69. Meng, S.; Zhao, D.-L.; Wu, L.-L.; Ding, Z.-W.; Cheng, X.-W.; Hu, T. Fe2O3/nitrogen-doped graphene nanosheet nanocomposites as anode materials for sodium-ion batteries with enhanced electrochemical performance. J. Alloys Compd. 2018, 737, 130–135. [Google Scholar] [CrossRef]
  70. Rani, K.K.; Karuppiah, C.; Wang, S.-F.; Alaswad, S.O.; Sireesha, P.; Devasenathipathy, R.; Jose, R.; Yang, C.-C. Direct pyrolysis and ultrasound assisted preparation of N, S co-doped graphene/Fe3C nanocomposite as an efficient electrocatalyst for oxygen reduction and oxygen evolution reactions. Ultrason. Sonochem. 2020, 66, 105111–105120. [Google Scholar] [CrossRef]
  71. Jiang, T.; Yin, N.; Bai, Z.; Dai, P.; Yu, X.; Wu, M.; Li, G. Wet chemical synthesis of S doped Co3O4 nanosheets/reduced graphene oxide and their application in dye sensitized solar cells. Appl. Surf. Sci. 2018, 450, 219–227. [Google Scholar] [CrossRef]
  72. Tan, B.J.; Klabunde, K.J.; Sherwood, P.M. XPS studies of solvated metal atom dispersed (SMAD) catalysts. Evidence for layered cobalt-manganese particles on alumina and silica. J. Am. Chem. Soc. 1991, 113, 855–861. [Google Scholar] [CrossRef]
  73. Yang, S.; Liu, L.; Wang, G.; Li, G.; Deng, D.; Qu, L. One-pot synthesis of Mn3O4 nanoparticles decorated with nitrogen-doped reduced graphene oxide for sensitive nonenzymatic glucose sensing. J. Electroanal. Chem. 2015, 755, 15–21. [Google Scholar] [CrossRef]
  74. He, Y.; Xu, P.; Zhang, B.; Du, Y.; Song, B.; Han, X.; Peng, H. Ultrasmall MnO nanoparticles supported on nitrogen-doped carbon nanotubes as efficient anode materials for sodium ion batteries. ACS Appl. Mater. Interfaces 2017, 9, 38401–38408. [Google Scholar] [CrossRef] [PubMed]
  75. Valvo, M.; Philippe, B.; Lindgren, F.; Tai, C.-W.; Edström, K. Insight into the processes controlling the electrochemical reactions of nanostructured iron oxide electrodes in Li-and Na-half cells. Electrochim. Acta 2016, 194, 74–83. [Google Scholar] [CrossRef] [Green Version]
  76. Wang, X.; Liu, X.; Wang, G.; Xia, Y.; Wang, H. One-dimensional hybrid nanocomposite of high-density monodispersed Fe3O4 nanoparticles and carbon nanotubes for high-capacity storage of lithium and sodium. J. Mater. Chem. A 2016, 4, 18532–18542. [Google Scholar] [CrossRef]
  77. Zhang, Y.; Zhao, Y.; Bakenov, Z.; Tuiyebayeva, M.; Konarov, A.; Chen, P. Synthesis of hierarchical porous sulfur/polypyrrole/multiwalled carbon nanotube composite cathode for lithium batteries. Electrochim. Acta 2014, 143, 49–55. [Google Scholar] [CrossRef]
  78. Lin, Z.; Xiong, X.; Zheng, J.; Wang, G.; Yang, C. Three-dimensional N-doped graphene as anode material with superior cycle stability for sodium ion batteries. Mater. Lett. 2017, 202, 123–126. [Google Scholar] [CrossRef]
  79. Ye, J.; Zhao, H.; Song, W.; Wang, N.; Kang, M.; Li, Z. Enhanced electronic conductivity and sodium-ion adsorption in N/S co-doped ordered mesoporous carbon for high-performance sodium-ion battery anode. J. Power Sources 2019, 412, 606–614. [Google Scholar] [CrossRef]
  80. Sahu, T.S.; Mitra, S. Exfoliated MoS2 sheets and reduced graphene oxide-an excellent and fast anode for sodium-ion battery. Sci. Rep. 2015, 5, 1–13. [Google Scholar] [CrossRef]
  81. Li, D.; Yan, D.; Ma, J.; Qin, W.; Zhang, X.; Lu, T.; Pan, L. One-step microwave-assisted synthesis of Sb2O3/reduced graphene oxide composites as advanced anode materials for sodium-ion batteries. Ceram. Int. 2016, 42, 15634–15642. [Google Scholar] [CrossRef]
  82. Zhang, X.; Chen, T.; Yan, D.; Qin, W.; Hu, B.; Sun, Z.; Pan, L. MgFe2O4/reduced graphene oxide composites as high-performance anode materials for sodium ion batteries. Electrochim. Acta 2015, 180, 616–621. [Google Scholar] [CrossRef]
  83. Zhang, Z.-J.; Wang, Y.-X.; Chou, S.-L.; Li, H.-J.; Liu, H.-K.; Wang, J.-Z. Rapid synthesis of α-Fe2O3/rGO nanocomposites by microwave autoclave as superior anodes for sodium-ion batteries. J. Power Sources 2015, 280, 107–113. [Google Scholar] [CrossRef]
  84. Sun, J.; Lee, H.-W.; Pasta, M.; Yuan, H.; Zheng, G.; Sun, Y.; Li, Y.; Cui, Y. A phosphorene–graphene hybrid material as a high-capacity anode for sodium-ion batteries. Nat. Nanotechnol. 2015, 10, 980–985. [Google Scholar] [CrossRef] [PubMed]
  85. Liu, X.; Chen, T.; Chu, H.; Niu, L.; Sun, Z.; Pan, L.; Sun, C.Q. Fe2O3-reduced graphene oxide composites synthesized via microwave-assisted method for sodium ion batteries. Electrochim. Acta 2015, 166, 12–16. [Google Scholar] [CrossRef]
  86. Wu, Z.-S.; Ren, W.; Xu, L.; Li, F.; Cheng, H.-M. Doped graphene sheets as anode materials with superhigh rate and large capacity for lithium ion batteries. ACS Nano 2011, 5, 5463–5471. [Google Scholar] [CrossRef] [PubMed]
  87. Jeong, H.M.; Lee, J.W.; Shin, W.H.; Choi, Y.J.; Shin, H.J.; Kang, J.K.; Choi, J.W. Nitrogen-doped graphene for high-performance ultracapacitors and the importance of nitrogen-doped sites at basal planes. Nano Lett. 2011, 11, 2472–2477. [Google Scholar]
  88. Wu, Z.-S.; Winter, A.; Chen, L.; Sun, Y.; Turchanin, A.; Feng, X.; Müllen, K. Three-dimensional nitrogen and boron co-doped graphene for high-performance all-solid-state supercapacitors. Adv. Mater. 2012, 24, 5130–5135. [Google Scholar]
Nanomaterials 12 03569 sch001 550

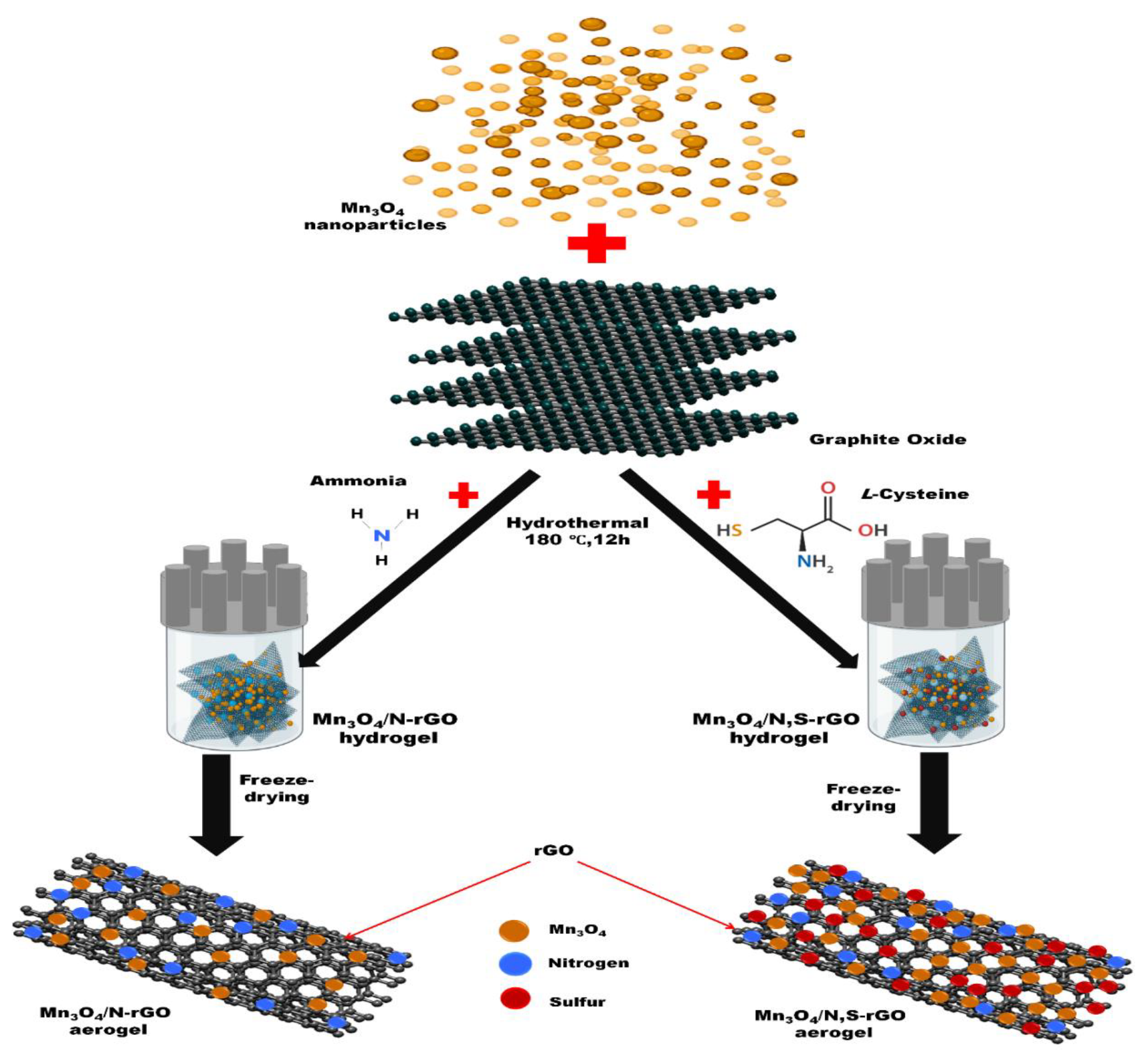

Scheme 1. Schematic representation of the synthesis procedure of the Mn3O4/heteroatom-doped rGO aerogel.
Scheme 1. Schematic representation of the synthesis procedure of the Mn3O4/heteroatom-doped rGO aerogel.
Nanomaterials 12 03569 sch001
Nanomaterials 12 03569 g001 550

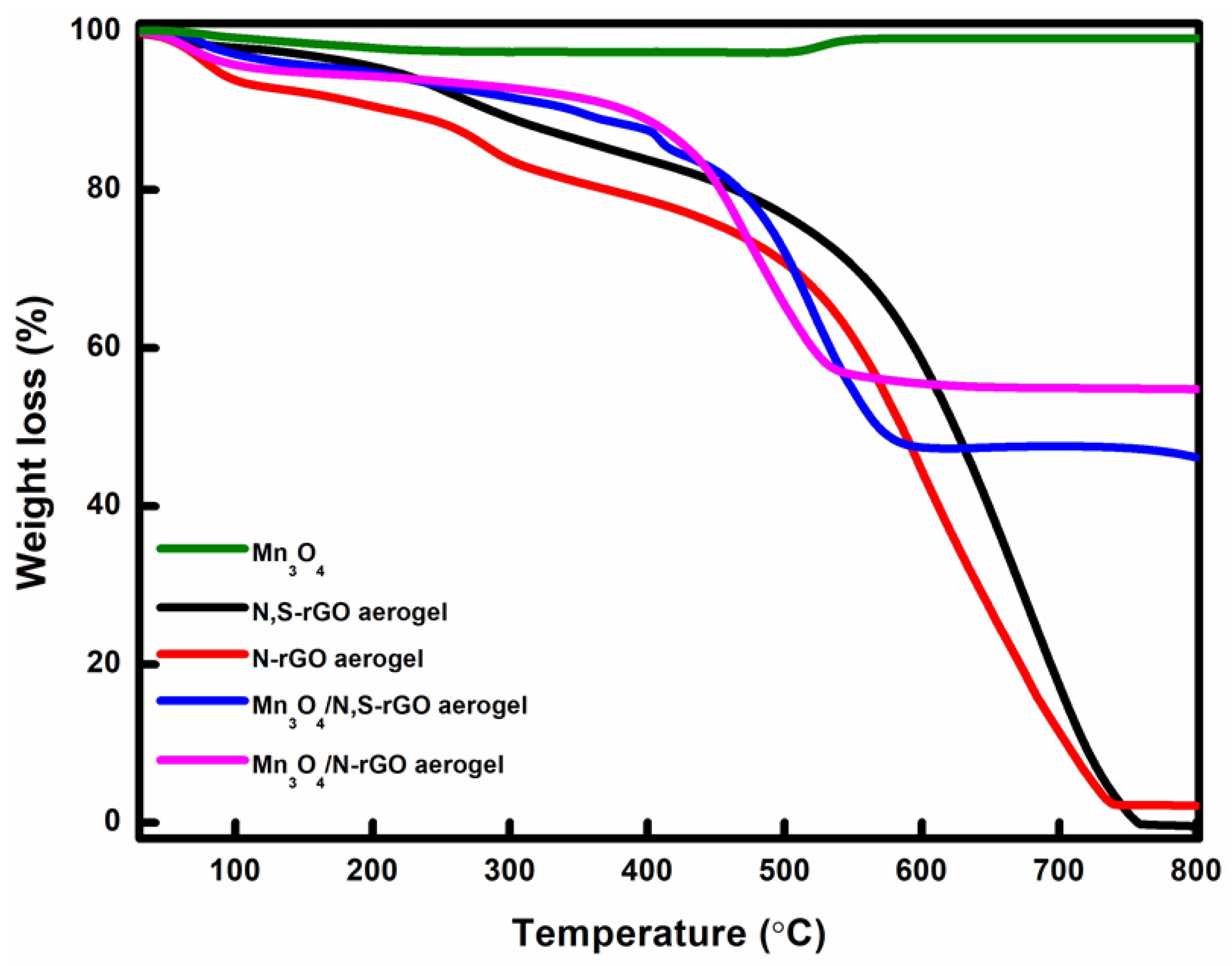

Figure 1. TGA curves of Mn3O4, N-rGO aerogel, N,S-rGO aerogel, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel at a heating rate of 10 °C min−1 in air.
Figure 1. TGA curves of Mn3O4, N-rGO aerogel, N,S-rGO aerogel, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel at a heating rate of 10 °C min−1 in air.
Nanomaterials 12 03569 g001
Nanomaterials 12 03569 g002 550

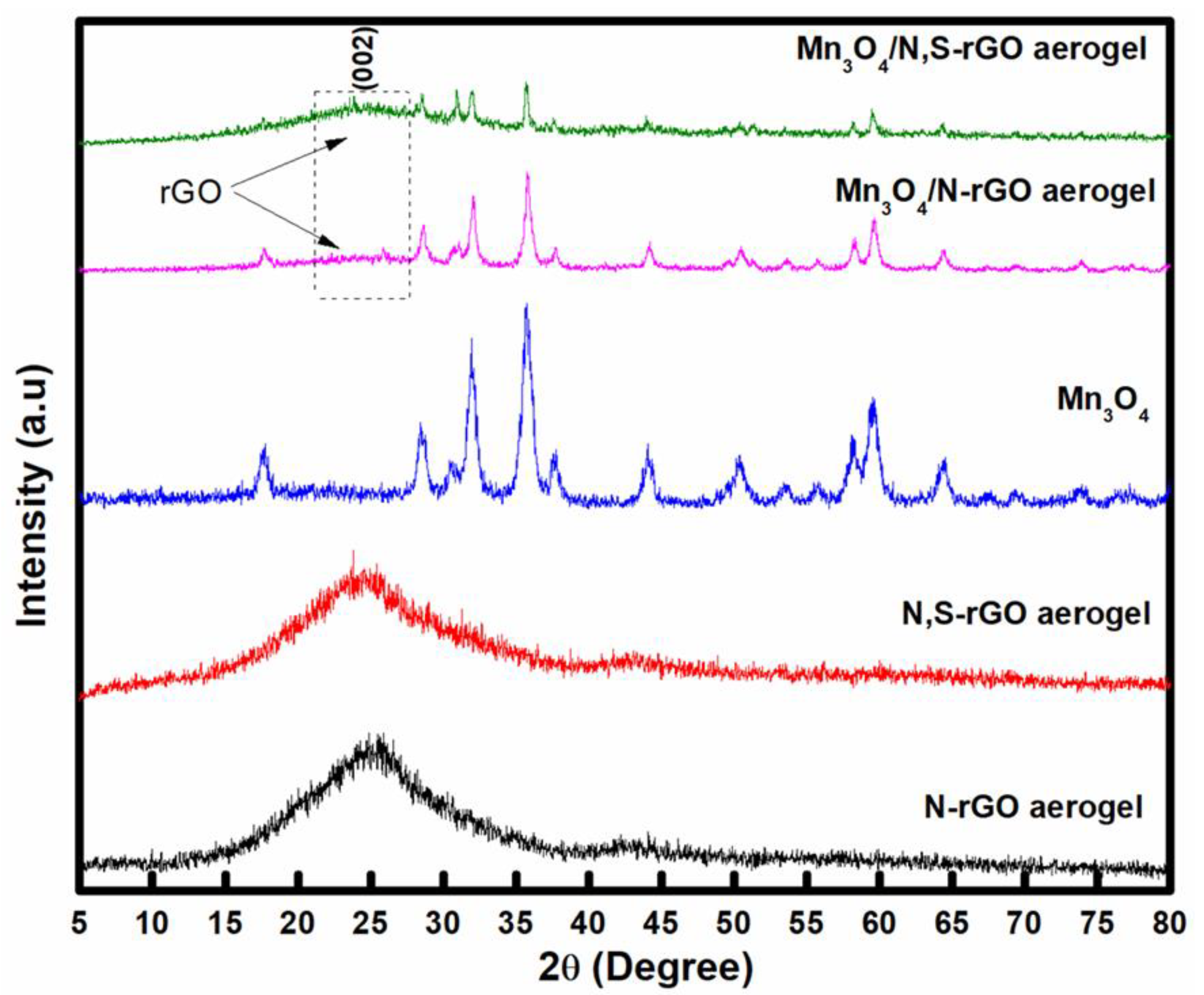

Figure 2. XRD patterns of Mn3O4, N-rGO aerogel, N,S-rGO aerogel, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Figure 2. XRD patterns of Mn3O4, N-rGO aerogel, N,S-rGO aerogel, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Nanomaterials 12 03569 g002
Nanomaterials 12 03569 g003 550
Figure 3. SEM images of (a) N-rGO aerogel, (b) N,S-rGO aerogel, (c) Mn3O4/N-rGO aerogel, (d) Mn3O4/N,S-rGO aerogel, and (e) pristine Mn3O4.
Figure 3. SEM images of (a) N-rGO aerogel, (b) N,S-rGO aerogel, (c) Mn3O4/N-rGO aerogel, (d) Mn3O4/N,S-rGO aerogel, and (e) pristine Mn3O4.
Nanomaterials 12 03569 g003
Nanomaterials 12 03569 g004 550
Figure 4. TEM images of (a) N-rGO aerogel, (b) N,S-rGO aerogel, (c) Mn3O4/N-rGO aerogel (inset: particle-size distribution), (d) Mn3O4/N,S-rGO aerogel (inset: particle-size distribution), and (g) Mn3O4 nanoparticles and HRTEM images of (e) Mn3O4/N-rGO aerogel and (f) Mn3O4/N,S-rGO aerogel.
Figure 4. TEM images of (a) N-rGO aerogel, (b) N,S-rGO aerogel, (c) Mn3O4/N-rGO aerogel (inset: particle-size distribution), (d) Mn3O4/N,S-rGO aerogel (inset: particle-size distribution), and (g) Mn3O4 nanoparticles and HRTEM images of (e) Mn3O4/N-rGO aerogel and (f) Mn3O4/N,S-rGO aerogel.
Nanomaterials 12 03569 g004
Nanomaterials 12 03569 g005 550
Figure 5. Raman spectra of N-rGO aerogel, N,S-rGO aerogel, Mn3O4 nanoparticles, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Figure 5. Raman spectra of N-rGO aerogel, N,S-rGO aerogel, Mn3O4 nanoparticles, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Nanomaterials 12 03569 g005
Nanomaterials 12 03569 g006 550
Figure 6. FTIR spectra of N-rGO aerogel, N,S-rGO aerogel, Mn3O4 nanoparticles, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Figure 6. FTIR spectra of N-rGO aerogel, N,S-rGO aerogel, Mn3O4 nanoparticles, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Nanomaterials 12 03569 g006
Nanomaterials 12 03569 g007 550
Figure 7. XPS spectra for the survey spectrum of (a) Mn3O4/N,S-rGO aerogel and (b) Mn3O4/N-rGO aerogel, O 1s spectra of (c) Mn3O4/N,S-rGO aerogel and (d) Mn3O4/N-rGO aerogel, C 1s spectra of (e) Mn3O4/N,S-rGO aerogel and (f) Mn3O4/N-rGO aerogel, N 1s spectra of (g) Mn3O4/N,S-rGO aerogel and (h) Mn3O4/N-rGO aerogel, (i) S 2p spectra of Mn3O4/N-rGO aerogel and Mn3O4/N,S-rGO aerogel and (j) deconvoluted spectra of Mn 2p of Mn3O4/N-rGO aerogel.
Figure 7. XPS spectra for the survey spectrum of (a) Mn3O4/N,S-rGO aerogel and (b) Mn3O4/N-rGO aerogel, O 1s spectra of (c) Mn3O4/N,S-rGO aerogel and (d) Mn3O4/N-rGO aerogel, C 1s spectra of (e) Mn3O4/N,S-rGO aerogel and (f) Mn3O4/N-rGO aerogel, N 1s spectra of (g) Mn3O4/N,S-rGO aerogel and (h) Mn3O4/N-rGO aerogel, (i) S 2p spectra of Mn3O4/N-rGO aerogel and Mn3O4/N,S-rGO aerogel and (j) deconvoluted spectra of Mn 2p of Mn3O4/N-rGO aerogel.
Nanomaterials 12 03569 g007
Nanomaterials 12 03569 g008 550
Figure 8. CV curves of (a) Mn3O4 nanoparticles, (b) Mn3O4/N-rGO aerogel, and (c) Mn3O4/N,S-rGO aerogel at a scanning rate of 0.1 mV s−1.
Figure 8. CV curves of (a) Mn3O4 nanoparticles, (b) Mn3O4/N-rGO aerogel, and (c) Mn3O4/N,S-rGO aerogel at a scanning rate of 0.1 mV s−1.
Nanomaterials 12 03569 g008
Nanomaterials 12 03569 g009 550
Figure 9. Charge/discharge profiles at selected cycles for (a) Mn3O4 nanoparticles, (b) Mn3O4/N-rGO aerogel, and (c) Mn3O4/N, S-rGO aerogel.
Figure 9. Charge/discharge profiles at selected cycles for (a) Mn3O4 nanoparticles, (b) Mn3O4/N-rGO aerogel, and (c) Mn3O4/N, S-rGO aerogel.
Nanomaterials 12 03569 g009
Nanomaterials 12 03569 g010 550
Figure 10. (a) Cycling performances and Coulombic efficiencies of up to 100 cycles at a current density of 0.1 A g−1 and (b) rate capability at different current densities for Mn3O4, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Figure 10. (a) Cycling performances and Coulombic efficiencies of up to 100 cycles at a current density of 0.1 A g−1 and (b) rate capability at different current densities for Mn3O4, Mn3O4/N-rGO aerogel, and Mn3O4/N,S-rGO aerogel.
Nanomaterials 12 03569 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mahamad Yusoff, N.F.; Idris, N.H.; Md Din, M.F.; Majid, S.R.; Harun, N.A. Enhanced Electrochemical Performances of Mn3O4/Heteroatom-Doped Reduced Graphene Oxide Aerogels as an Anode for Sodium-Ion Batteries. Nanomaterials 2022, 12, 3569. https://doi.org/10.3390/nano12203569

AMA Style

Mahamad Yusoff NF, Idris NH, Md Din MF, Majid SR, Harun NA. Enhanced Electrochemical Performances of Mn3O4/Heteroatom-Doped Reduced Graphene Oxide Aerogels as an Anode for Sodium-Ion Batteries. Nanomaterials. 2022; 12(20):3569. https://doi.org/10.3390/nano12203569

Chicago/Turabian Style

Mahamad Yusoff, Nor Fazila, Nurul Hayati Idris, Muhamad Faiz Md Din, Siti Rohana Majid, and Noor Aniza Harun. 2022. "Enhanced Electrochemical Performances of Mn3O4/Heteroatom-Doped Reduced Graphene Oxide Aerogels as an Anode for Sodium-Ion Batteries" Nanomaterials 12, no. 20: 3569. https://doi.org/10.3390/nano12203569

APA Style

Mahamad Yusoff, N. F., Idris, N. H., Md Din, M. F., Majid, S. R., & Harun, N. A. (2022). Enhanced Electrochemical Performances of Mn3O4/Heteroatom-Doped Reduced Graphene Oxide Aerogels as an Anode for Sodium-Ion Batteries. Nanomaterials, 12(20), 3569. https://doi.org/10.3390/nano12203569

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
