Review

Recent Developments in the Application of Inorganic Nanomaterials and Nanosystems for the Protection of Cultural Heritage Organic Artifacts

by
Toma Fistos
1,2,
Irina Fierascu
1,3,* and
Radu Claudiu Fierascu
1,2,*
1
Emerging Nanotechnologies Group, National Institute for Research & Development in Chemistry and Petrochemistry—ICECHIM, 060021 Bucharest, Romania
2
Department of Science and Engineering of Oxide Materials and Nanomaterials, University Politehnica of Bucharest, 011061 Bucharest, Romania
3
University of Agronomic Sciences and Veterinary Medicine of Bucharest, 011464 Bucharest, Romania
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(2), 207; https://doi.org/10.3390/nano12020207
Submission received: 28 December 2021 / Revised: 30 December 2021 / Accepted: 31 December 2021 / Published: 10 January 2022
(This article belongs to the Special Issue Next-Generation Nanomaterials: Preparation and Applications)
Browse Figures
Versions Notes

Abstract

:
Cultural heritage (CH) represents human identity and evidence of the existence and activities that people have left over time. In response to the action of aggressive degrading factors, different materials have been developed and used to protect cultural heritage artifacts. The discovery of optimal materials for this purpose also raises several problems, mainly related to their compatibility with the support material, the most important aspect being that they must preserve their aesthetic characteristics. In this context, the present review paper aims to provide a critical discussion about the possibilities of using different inorganic nanomaterials and recipes for the conservation of cultural heritage objects of organic nature (such as paper, wood, and other support materials). In addition, also are covered different aspect concerning protection mechanisms and application methods as well as future perspectives in this area.

Graphical Abstract

1. Introduction

Preservation of cultural heritage represents a forefront issue for researchers all over the world, as cultural heritage artifacts are continuously affected by a series of degradation factors, ranging from environmental aspects to natural or human-induced degradation [1].
In recent years, many scientific areas have been involved in the search for the best solutions to stop the degradation of cultural heritage and to preserve it without irreparably affecting its appearance. The search for an optimal conservation material also needs to consider its compatibility with the support material, as one of the most important properties required for such materials is that they must not alter the aesthetic characteristics of the treated object. Another problem that must be addressed in the development of these materials is the cost, which must be as low and accessible as possible, and the synthesis of these materials as simple as possible without many steps or obtaining many secondary compounds.
Over the last decades, perhaps one of the most important areas of research is represented by the field of nanomaterials and nanotechnology [2]. The term “nanomaterial” may refer to materials composed of single elements, such as metals or carbon, or materials composed of several elements, such as metal oxides or composites, with nano dimensions. The ability to manipulate and control materials at the atomic level and the subsequent understanding of fundamental processes at the nanoscale have led to new challenges. The reason for this is based on the unique and sometimes unexpected physical and chemical properties that are present in nano-level materials such as the increased surface-to-mass ratio, diffusivity, and electrical, optical, and thermal properties. However, the application of nanoparticles (NPs) in the field of heritage conservation requires a broader approach combining materials science, petrophysics, microbiology, and cultural heritage conservation with many other scientific disciplines.
The advantages of developing and using materials at the nanoscale include the physico-chemical compatibility of inorganic nanomaterials with the support material; the reactivity and penetration capacity of a reinforcing product into the support material and, consequently, its effectiveness are potentially increased when its particle size is reduced to nano-dimensions; an increase in area in relation to the volume and larger surface, improving the electronic and optical properties and the chemical reactivity between the consolidating material and the support material, as a higher proportion of atoms is found on the surface compared to those inside [3,4].
The continuous progress in nanotechnology has led over the last years to the evaluation and proposal of new alternatives for the protection of artifacts of organic nature such as archaeological wood, paper, textile, and leather. Although not as commonly encountered, such as for the conservation of inorganic artifacts, the use of inorganic nanomaterials for the conservation of cultural heritage artifacts of organic nature represents an emerging field of research [5].
In recent years, several review works have been published in the area of cultural heritage preservation using nanomaterials, focusing either on the topical application of selected nanomaterials in the conservation of cultural heritage objects [6], protection of certain types of support materials [7,8,9], or on the development of antimicrobial agents for cultural heritage application [10]. Although of certain scientific value, these works do not sufficiently cover the area of organic artifact protection and how nanotechnology can contribute to obtaining superior recipes.
In this context, the present review paper aimed to present a critical discussion regarding the possibilities for the use of different materials and recipes for the conservation of cultural heritage objects of organic nature (i.e., paper, wood, and textile). Different aspects about protection mechanisms and application methods are also covered.

2. Cultural Heritage Objects of an Organic Nature

Generally speaking, artifact materials can be classified based on standard typologies according to the used materials and manufacturing techniques. One of the main categories is the class of organic artifacts, where the typology includes a variety of objects made from organic materials such as wood, plant fibers, bone, antler, leather, ivory, and shell.
In a particular context, a classification is almost impossible to realize in a correct and complex manner. Baxter describes Read’s pioneering paper regarding artifact classification “as one of the best papers of its kind” [11], where a recursive subdivision can be made classifying the objects into obvious groups, and then sub-division of the groups/types can be made based on different variables or qualities of the artefacts studied.
Organic artifacts represent a very large portion of the objects currently found in museums all over the world, being considered extremely vulnerable to deterioration [12], as climate factors, pollution, or microbial attacks can lead to their degradation with specific impacts on each type of object.
The most encountered organic materials found in museum collections are represented by paper artifacts, textiles, leather, paintings on canvas, wood objects, or the so-called “ecofacts”, such as ivories or bones, containing both organic and inorganic matter [13].

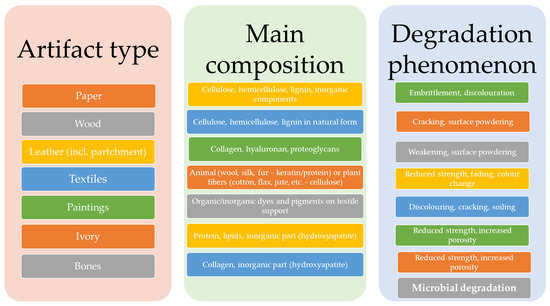

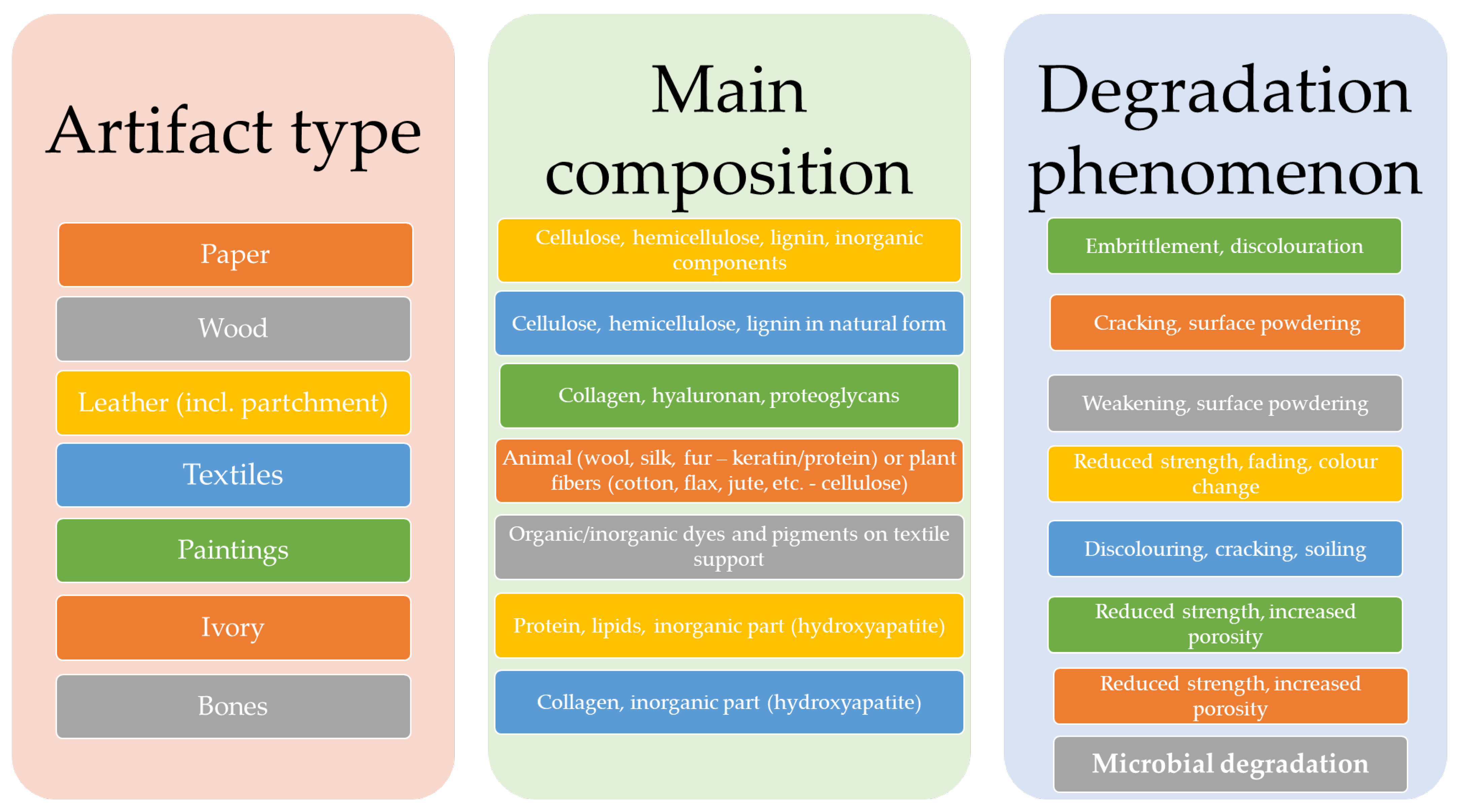

Figure 1 presents the most encountered organic artifacts, their main composition, and the most encountered degradation phenomena.
In order to understand the potential application of nanomaterials for the protection of organic cultural heritage artifacts, some considerations related to the main factors affecting their longevity are necessary.
All artifacts of organic nature are affected by microbial degradation. Several types of bacteria and fungi have been identified on organic artifacts [14], which can lead to physical and chemical damage as well as aesthetic alterations. Cellulose-based artifacts are commonly affected by fungal species (Ascomycetes, Aspergillus, Paecilomyces, Chrysosporium, Penicillium, Cladosporium, and Eurotium or, in special cases, molds associated with water damage such as Chaetomium, Monoascus, Epicoccum, Trichoderma, and Stachybotrys). These organisms can produce staining of the artifact (i.e., the “foxing” phenomenon), induce embrittlement, or lead to the apparition of strong odors or toxic compounds through an enzymatic action [15]. Leather artifacts (including parchment) are commonly affected by species of the genera Bacillus, Staphylococcus, Pseudomonas, Virgibacillus, and Micromonospora; alkaliphilic bacteria (i.e., Actinobacteria); proteolytic fungi (i.e., Chaetomium and Gymnoascus); mitosporic fungi (i.e., Acremonium, Aspergillus, Aureobasidium, Epicoccum, Trichoderma, and Verticillium) associated with collagen biodeterioration [15]. Wood artifacts are affected by cellulolytic microorganisms (similar to paper artifacts) including cellulase-producing fungi (Trichoderma, Fomitopsis, Aspergillus, Fusarium, and Neurospora), brown rot (Poria, Lenzites, Coniophora, and Tyromyces) and white rot (Phanerochaete, Sporotrichum, and Trametes), anaerobic cellulolytic fungi (Neocallimastix, Piromyces, and Orpinomyces), cellulolytic bacteria (Bacillus, Acinetobacter, Cellulomonas, and Clostridium), rumen bacteria (Fibrobacter, Ruminococcus, Pseudomonas, Proteus, and Staphylococcus), and thermophilic bacteria (Anoxybacillus and Geobacillus) [16]. A special case is represented by waterlogged wood artifacts. Wood artifacts in high-salinity marine environments are rapidly degraded by marine insects, while in low-salinity environments, decay occurs much slower. Moreover, artifacts found in marine sediments are mainly affected by erosion bacteria [17].
Biodegradation of collagen-based artifacts (leather and parchment) involves the chemical oxidative deterioration of amino-acid chains and hydrolytic cleavage of the peptide structure. The most encountered species belong to the genera Bacillus, Staphylococcus, Pseudomonas, Virgibacillus, and Micromonospora; alkaliphilic bacteria (i.e., Actinobacteria); proteolytic fungi (Chaetomium and Gymnoascus); mitosporic fungi (Acremonium, Aspergillus, Aureobasidium, Epicoccum, Trichoderma, and Verticillium). The action of these microbial species can lead to the hydrolyzation of collagen fibers and other proteins or produce material discoloration [16].
Textile artifacts are affected by both microorganisms with cellulolytic and proteolytic activities, depending on the nature of the material. Commonly encountered microorganism on textiles of vegetal origin are fungi from the species Alternaria, Aspergillus, Aureobasidium, Chaetomium, Cladosporium, Fusarium, Memnoniella, Mucor, Myrothecium, Paecilomyces, Penicillium, Rhizopus, Stachybotrys, Trichoderma, Trichothecium, and Verticillium and bacteria belonging to the species Arthrobacter, Bacillus, Cellulomonas, Cellvibrio, Clostridium, Cytophaga, Microbispora, Nocardia, Pseudomonas, Sporocytophaga, and Streptomyces. Their action is mainly related to the enzymatic degradation of cellulose. Keratin-based textiles are affected by keratinolytic-inducing microorganisms (fungi—Acremonium, Alternaria, Aspergillus, Cephalothecium, Chaetomium, Chrysosporium, Dematium, Fusarium, Microsporum, Oospora, Penicillium, Rhizopus, Scopulariopsis, Stachybotrys, Trichoderma, Trichophyton, and Ulocladium; bacteria—Alcaligenes, Bacillus, Proteus, Pseudomonas, and Streptomyces), while textile containing mainly protein fibers (such as silk) are affected by microorganisms inducing proteolytic decomposition (fungi—Aspergillus, Chaetomium, Cladosporium, Penicillium, and Rhizopus; bacteria—Aeromonas, Arthrobacter, Bacillus, Chryseomonas, Pseudomonas, Streptomyces, Serratia, and Variovorax) [18].
Ivory and archeological bones are much less exposed to biodeterioration due to the high inorganic content (represented mainly by the hydroxyapatite). The microorganisms encountered are those associated with the degradation of proteins or collagen (as presented for other types of artifacts) or those related to the human skin microbiome or pathogenic bacteria and fungi (Clostridiales and Phialosimplex) or by opportunistic fungi [16].
Besides biodegradation, other deterioration processes are characteristic for each type of materials:
-

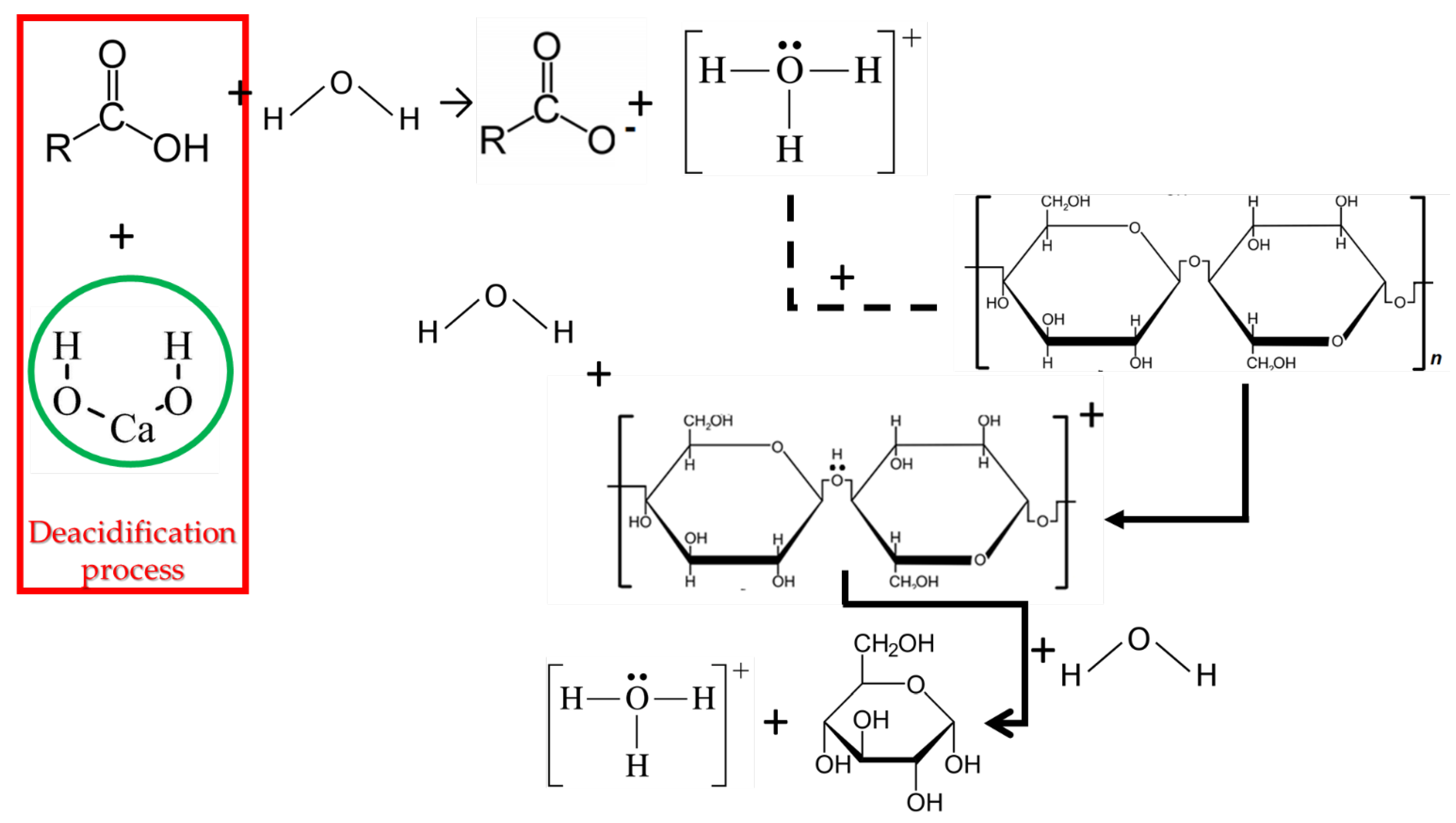

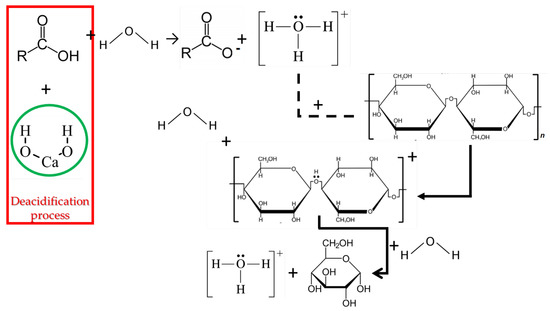

Cellulose-based artifacts are subjected to acidic degradation of cellulose chains (due to the action of environmental or internal acids), alkaline degradation, photodegradation, and oxidative degradation;
-
Collagen-based artifacts, under the action of light, elevated temperatures, humidity, and atmospheric pollutants undergo acidic hydrolysis or oxidative degradation of the functional side groups [19]. Under UV radiation, photodegradation of collagen into a powder form can also be encountered [20];
-
Ivory and archaeological bones undergo similar degradation phenomena: while the collagen part of the artifacts can degrade by chemical hydrolysis [21,22], the degradation also affects the inorganic part, which can undergo mineral recrystallization and degradation of mechanical and morphological properties (such as increased porosity).
Nanomaterials can be used to counteract the effects of both biodeterioration as well as chemical or photodegradation, or it can even be used for the consolidation of the inorganic part of mixed artifacts. This can be achieved through harnessing their well-known properties (antimicrobial, UV protection, etc.) and selection of nanoparticles compatible with the support material. Moreover, some nanoparticles can react with the support material, leading to the formation of other compounds that can contribute to the consolidation of the artifacts.

3. Inorganic Nanomaterials for the Protection of Paper Artifacts

Paper artifacts represent one of the most fragile and, at the same time, widely spread cellulose-based objects. Compared with other similar objects, such as, for example, historical wood, paper artifacts possess particularities that make them more exposed to degradation including the treatment applied for paper manufacturing and their physical properties as well as the presence of inks and pigments on their surface. All these factors can lead to an accelerated degradation of paper artifacts for which the development of treatment methods represent an important research topic [23].
Considering the degradation processes commonly encountered in paper artifacts, the main application of nanomaterials as consolidants and preventive treatments are presented in Table 1.
The most important aspect regarding paper conservation is related to its deacidification. As already mentioned, acidification of cellulose-based objects in general (and of paper artifacts in special) leads to cellulose depolymerization (Figure 2); for paper objects, this has dramatic consequences, both in mechanical properties (the papers becoming brittle) and in the aesthetic characteristics (by darkening) [23,31].
Deacidification can be achieved by providing alkaline reservoirs; two main issues should be addressed when applying this strategy:
-
Formulation of the deacidification solution, as the presence of some surfactants/stabilizers could lead to a reduction in nanoparticle reactivity, creating a too alkaline environment that could result in the alkaline depolymerization process [31];
-
Compatibility of the proposed recipes with other elements present on the paper artifacts (such as inks, dyes, or pigments) [23].
In general, the deacidification of paper using metallic oxides occurs via the chemical interaction between the nanoparticles and acidic substances in the presence of CO2 by the conversion of oxides to hydroxides and carbonates [49]; metallic hydroxide act by reaction with atmospheric CO2, resulting in carbonate deposition (although they have as a main drawback the tendency to have values significantly higher than neutral) [50], while the carbonates acts as an “alkaline reserve buffer”, being able to neutralize the acidic species adsorbed onto the paper, or in situ generated, until they are exhausted [50].
Multiple alkaline solutions are presented in the literature (detailed in Table 1), mostly based on Mg or Ca oxides and hydroxides, as single components or incorporated in different treatment systems. As several commercial products are available on the market [37], we consider that the exhaustive presentation of these compounds is not necessary. The main conclusion that can be drawn from these studies is related to the possibilities to enhance these solutions, mainly in the nanomaterial’s synthesis stage. As emerging from the literature, the most promising morphology is represented by the nanosheets’ morphology, which allows for not only the development of the alkaline reserve, but it also covers the paper fibers, acting as lamination sheet, as a first line of defense against acid attack from environmental sources [33]. Calcium and sodium carbonates are also common apparition in literature studies as sources of alkaline reserve [42,46].
As an example of a less commonly used nanomaterial, Nemoykina et al. [40] presented the application of magnesium oxyhydroxide not only for the deacidification of an old low-quality book but also for its preservation. The developed lamellar nanostructures covered the paper fibers, strengthening them by surface bonding (25% increase), the samples becoming more resistant to aging. Even more, the deacidification treatment led to pH stabilization, as no significant decrease was observed upon aging and to a 10% increase in whiteness.
Application of nanomaterials with known antimicrobial properties can provide protection against the biodeterioration induced by fungi or bacteria. This approach was presented by Jia et al. [35], who proposed the application of ZnO/nanocellulose composites as potent antimicrobial agents in the protection of paper artifacts. Their results showed that the nanocomposite not only provides a superior protection against biodeterioration, but it also possesses UV adsorption properties, inducing UV resistance as well as superior thermal resistance.
A particular case (not presented in Table 1) is represented by the study of Hassan et al. [51], who applied ZnO (spherical, 21 nm) in hydroxypropyl cellulose for the reinforcement of papyrus samples. Although not technically a study performed on paper samples, we chose to present the study in this chapter, as the characteristics of papyrus are closely related to those of paper. The treatment led to a final pH of 7.08 (after artificial aging), a desired pH value for the conservation purposes, and to a conservation of tensile strength and elongation after the aging process.

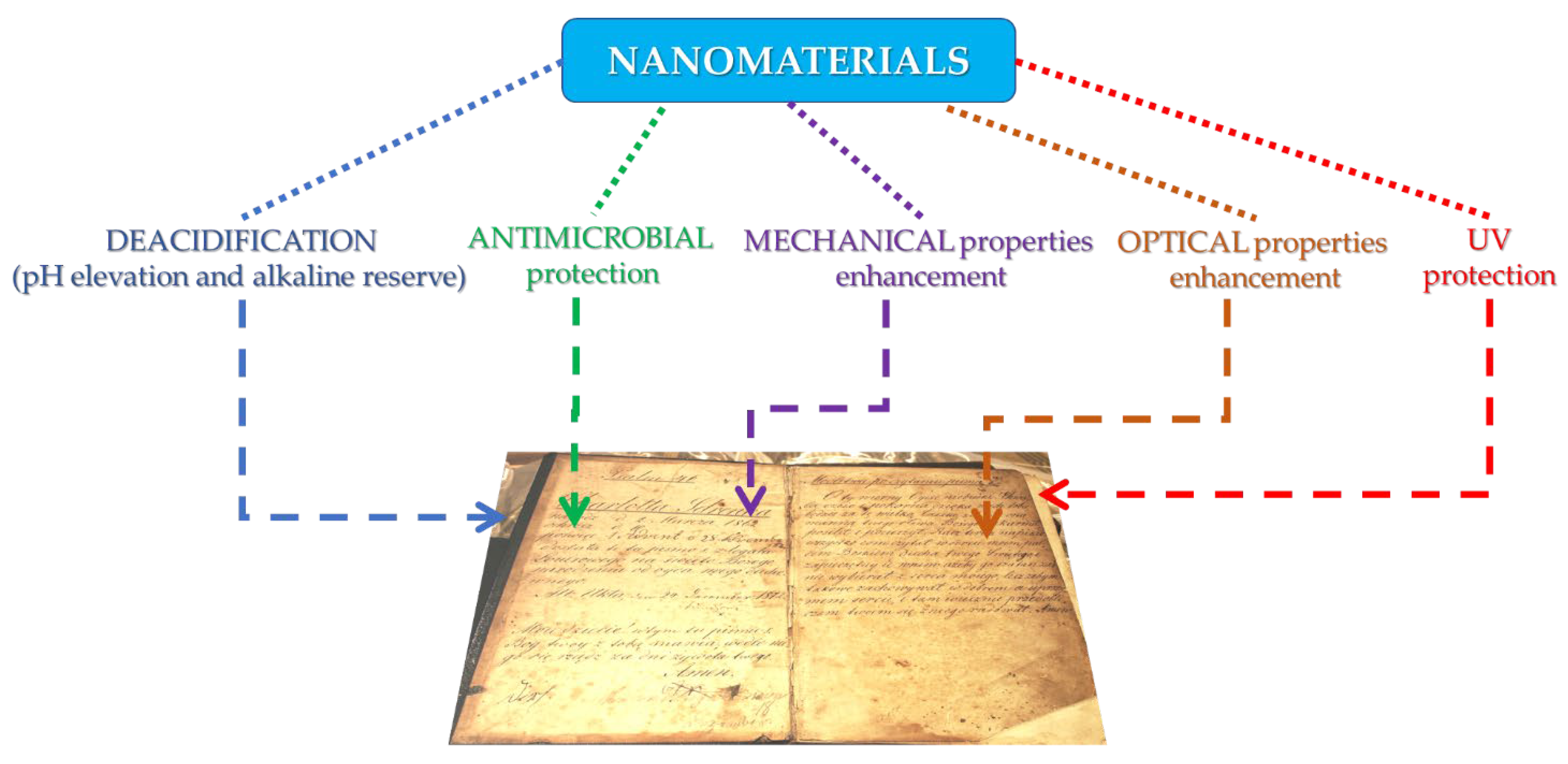

A schematic representation of the potential application of nanomaterials for the preservation of paper artifacts is presented in Figure 3.

4. Inorganic Nanomaterials for the Protection of Historical Wood

Wood represents a widely encountered material in the area of cultural heritage. Whether we are speaking of vernacular constructions, art objects, or ships, wood with historical value is encountered all over the world. Most of these objects are either part of outdoor constructions or waterlogged wood, as such being exposed to different environmental conditions which accelerates their decay. The treatment of degradation was traditionally performed by resection of the affected parts, followed by their replacement with other materials. This approach has currently been replaced with a more modern one, involving the preservation of the original material through consolidation as well as preventive treatment [52]. A common method for the treatment of historical wood involves the use of organic compounds (natural resins and bio-based or synthetic polymers), as recently presented by our group [53]. However, over the last years, new alternative treatments have been proposed. Among these consolidants and preventive treatments, several inorganic compounds can be identified in the literature (Table 2).
The use of nanoparticles in the area of historical wood preservation is focused on several main applications: consolidation of the wood samples (influencing the mechanical properties), deacidification (including neutralization of sulfur-containing acidic compounds), and antimicrobial protection.
For example, Cavallaro et al. [61] presented the deacidifying consolidation of waterlogged archaeological woods using aqueous dispersions of polyethylene glycol (PEG) 1500 and halloysite nanotubes containing calcium hydroxide. By incorporating the calcium hydroxide into the halloysite nanotubes, a prolonged release was achieved, extending its deacidification action, recording a pH of 7.6 even 12 months after the treatment. Moreover, addition of the modified nanotubes to the polymer led to a remarkable increase in the mechanical performances in terms of flexural strength and rigidity compared with the pure PEG.
Andriulo et al. [58] applied via direct dipping of calcium hydroxide nanoparticles obtained by the solvothermal method for the consolidation of waterlogged archaeological wood (softwood and hardwood), alum-treated archaeological wood (belonging to the Oseberg find), and sound oak. Their results revealed a pH increase from 2–3 to 5.5 for the waterlogged wood, an increase that was stable for over 1 month after treatment. Moreover, the treatment proved to be effective also in the case of very degraded waterlogged wood (for which the cellulose phase is almost completely destroyed, and a very high alum content is recorded).
Another example of the application of inorganic nanoparticles is represented by the study by Poggi et al. [54], which used calcium hydroxide nanoparticles obtained by solvothermal reaction for the deacidification of degraded waterlogged wood (oak wood specimens from original Vasa timber). By developing a specific vacuum treatment, the particles were used to treat the wood specimens, the pH and differential thermal fravimetric (DTG) measurements revealed that NP dispersions penetrated the wood, leading to its deacidification and the prevention of mechanical properties loss.
Nanoparticles with well-known antimicrobial properties can be easily incorporated into polymeric matrixes or directly deposited onto the wood artifacts, allowing for the slow release of the NPs and a prolonged antimicrobial action as demonstrated by Harandi et al. [55], Ion et al. [62], and Yves et al. [68]. The application of UV adsorbers (such as CeO2 or ZnO) can represent a good solution for avoiding UV-related color changes in wood, especially the yellowing phenomenon (caused by the photodegradation of lignin and amorphous polysaccharides [7]) as proposed by Janesch et al. [65] and Weththimuni et al. [71]. Guo et al. [60] also demonstrated the application of TiO2/Ce nanomaterials, in the form of xerogels for the protection of Norway spruce wood samples against brown rot fungi (Gloeophyllum trabeum, Rhodonia placenta, and Coniophora puteana). The results revealed good antifungal protection but also the lack of any negative influence of the treatment on the mechanical properties (Brinell hardness test). The authors assigned the protective effect of the treatment to three main factors: (i) shielding of the cell wall by formation of a protective layer on the inner lumen surface; (ii) blocking of the micro/nanopores of the wood; (iii) a radical scavenging function.

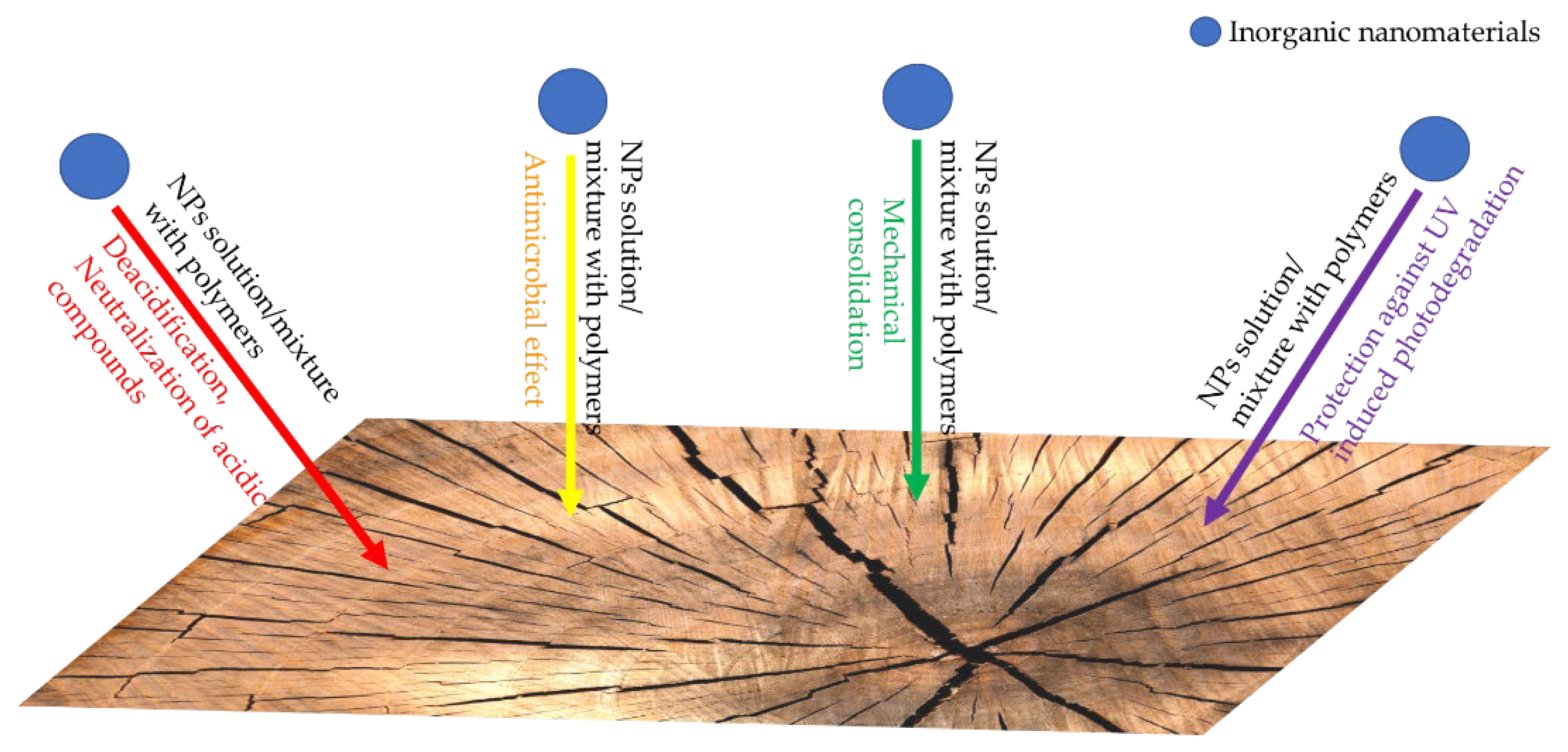

The most important applications of inorganic nanoparticles in the protection of historical wood are schematically presented in Figure 4.

5. Inorganic Nanomaterials for the Protection of Other Types of Cultural Heritage Artifacts of an Organic Nature

Although not as commonly encountered as in the case of paper and wood protection, nanomaterials also find application in the protection of other types of cultural heritage artifacts of organic nature. Representative examples for these applications are presented in Table 3 and Figure 5. In selecting the applications to be presented in Table 3, the origin of the artifacts was considered, not their present-day composition. As such, bones of archaeological interest or ivory pieces (known as ecofacts) were included in the literature review, although their present composition is mostly represented by the mineral phase.

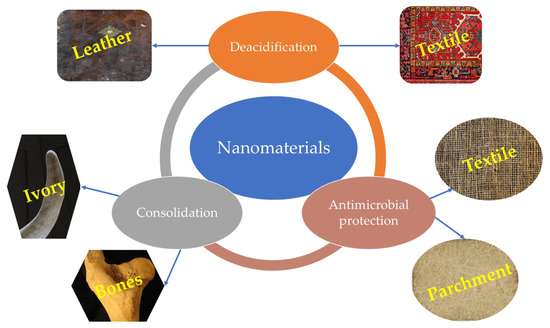

As can be observed from Table 3, inorganic nanomaterials also find application in the protection of diverse cultural heritage artifacts such as dinosaur fossils, ivory, archaeological bones, leather bindings, parchment, or textiles. The consolidation application is correlated with the use of calcium-based nanomaterials (either calcium hydroxide or hydroxyapatite), as bone-type artifacts (ivory, bones, horns, antlers, etc.) have as a major inorganic constituent calcium phosphate. As such, their consolidation can be attempted using similar materials. Starting from these considerations, the in situ formation or the deposition of hydroxyapatite nanoparticles on artifacts with a high hydroxyapatite content represents an appropriate strategy. The materials are not only compatible with the inorganic component of the artifacts but are also able to fill the voids that appeared as a result of organic fraction destruction, increasing the mechanical properties of the treated artifacts and, consequently, their resistance. More than that, the application of the treatment does not negatively influence the possibility of recovering endogenous DNA molecules from the archaeological material [78].
Similar to the paper and wood applications, the deacidification of leather or dyed textiles can be achieved using similar compounds. The literature reviewed presented some examples on this topic, suggesting the application of calcium hydroxide or carbonate for deacidification purposes [73,79]. Their action on such artifacts is similar with the previously presented application, and particular attention is necessary for the interaction of the deacidification agent–collagen in the case of leather artifacts.
The final application identified in the literature, antimicrobial protection, is surprisingly underrepresented. Silver is a well-known antimicrobial agent, and its application was to be expected. However, the lack of studies regarding other well-known antimicrobial nanomaterials (such as copper nanoparticles, copper oxide, and zinc oxide) is equally surprising. The evaluation of phytosynthesized silver nanoparticles for the antimicrobial protection of parchment is remarkable [81]; however, in our opinion, this approach is highly underexplored. Their use could eliminate some of the risks associated with the application of silver nanoparticles including the risk of inducing esthetic alterations.

6. Conclusions and Future Perspectives

As a conclusion to the presented studies, inorganic nanomaterials represent a viable approach for the restoration and conservation of several types of cultural heritage artifacts of organic nature including paper, wood, papyrus, parchment, bone-type materials, leather, and textiles.
The application of nanomaterials can be divided in three main categories:
-
Enhancement/protection of mechanical and esthetic characteristics;
-
Protection from acid or UV-induced degradation (pH regulation, UV adsorption);
-
Antimicrobial protection.
The selection of the materials for all these applications requires extensive studies before being possible to propose them at an industrial scale. Among the well-established applications, such as deacidification using calcium oxide or hydroxide, the potential improvements are related to the nanoparticles’ dimensions, which could influence the results of their application. Antimicrobial protection represents, in our opinion, the area with the most possibilities for improvement. For example, there could be studied other metallic or metal oxides nanoparticles phytosynthesized, a synthesis method which could enhance their properties and, at the same time, provide the appropriate manipulation of NP morphology [83]. Another prospective application is represented by nanomaterials with a double role. For example, calcium-substituted hydroxyapatite could be applied for the consolidation of artifacts, while an appropriate selection of the metal used for substitution (i.e., Zn, Co, or Ag) could also provide antimicrobial potential [84].
The main goal of cultural heritage protection should be the preservation of the artifacts in a state as close as possible to their original form as well as to offer the possibility to reverse the treatment, if necessary. Although promising, the application of nanomaterials for the protection of cultural heritage should be subjected to thorough tests in order to ensure that no detrimental effect is induced by the treatment, either mechanically or to the esthetic properties. Finally, another aspect that should be clarified in future studies is the possibility of establishing reversible treatments using nanomaterials, one of the major requests when discussing the protection of cultural heritage artifacts.
