Article

Design of Amine-Modified Zr–Mg Mixed Oxide Aerogel Nanoarchitectonics with Dual Lewis Acidic and Basic Sites for CO2/Propylene Oxide Cycloaddition Reactions

by
Yi-Feng Lin
1,2,*,
Yu-Rou Lai
1,2,
Hsiang-Ling Sung
1,2,
Tsair-Wang Chung
1,2 and
Kun-Yi Andrew Lin
3,*
1
Department of Chemical Engineering and Research Center for Circular Economy, Chung Yuan Christian University, Chungli District, Taoyuan 32023, Taiwan
2
R&D Center for Membrane Technology, Chung Yuan Christian University, Chungli District, Taoyuan 32023, Taiwan
3
Department of Environmental Engineering & Innovation and Development Center of Sustainable Agriculture, National Chung Hsing University, South District, Taichung 402, Taiwan
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(19), 3442; https://doi.org/10.3390/nano12193442
Submission received: 31 July 2022 / Revised: 18 September 2022 / Accepted: 20 September 2022 / Published: 1 October 2022
(This article belongs to the Special Issue Advances in Micro/Nanofluidic Power)
Browse Figures
Review Reports Versions Notes

Abstract

:
The utilization of CO2 attracts much research attention because of global warming. The CO2/epoxide cycloaddition reaction is one technique of CO2 utilization. However, homogeneous catalysts with both Lewis acidic and basic and toxic solvents, such as DMF, are needed in the CO2/epoxide cycloaddition reaction. As a result, this study focuses on the development of heterogeneous catalysts with both Lewis acidic and basic sites for the CO2 utilization of the CO2/epoxide cycloaddition reactions without the addition of a DMF toxic solvent. For the first time, the Zr–Mg mixed oxide aerogels with Lewis acidic and basic sites are synthesized for the CO2/propylene oxide (PO) cycloaddition reactions. To further increase the basic sites, 3-Aminopropyl trimethoxysilane (APTMS) with -NH2 functional group is successfully grafted on the Zr–Mg mixed oxide aerogels. The results indicate that the highest yield of propylene carbonate (PC) is 93.1% using the as-developed APTMS-modified Zr–Mg mixed oxide aerogels. The as-prepared APTMS-modified Zr–Mg mixed oxide aerogels are great potential in industrial plants for CO2 reduction in the future.

1. Introduction

Recently, the amount of CO2 in the atmosphere has significantly increased since the industrial revolution due to the combustion of huge amounts of fossil fuels. Carbon dioxide (CO2) as the major greenhouse gas has raised a great deal of attention due to its effect on global warming and climate change [1,2,3]. Without action toward stemming CO2 emissions, global warming could pose a massive threat to our life. In order to alleviate the potential threat, there are increasing demands to find new strategies to reduce carbon dioxide and prevent future global problems. In the past, carbon dioxide capture and storage were considered essential strategies for CO2 emission reduction targets [4,5,6,7,8]. However, the storage technology poses security concerns and also consumes additional energy during the transportation process. As a result, CO2 utilization has drawn much research interest in recent years. Carbon dioxide is not only reduced but also can serve as a nontoxic, low-cost, and renewable C1 raw material, replacing other toxic organic solvents and chemical materials for synthesizing fine chemicals and fuels, such as urea, salicylic acid, cyclic carbonates, and polypropylene carbonate [9,10,11]. Out of much CO2 utilization, the most promising reaction schemes of CO2 currently being studied is the coupling of CO2 and epoxides for five-member cyclic carbonates synthesis (Scheme 1) [12,13,14,15,16]. In addition, cyclic carbonates are widely applied as electrolytes in lithium-ion batteries, polar aprotic solvents used extensively as intermediates in the production of fine chemicals, such as plastics, and pharmaceutical materials [17,18,19]. Furthermore, cyclic carbonates are important precursors for polymerization. These five-member cyclic carbonates were conventionally manufactured via a corrosive, poisonous, and hazardous route involving glycol and phosgene [20]. So, we shifted to production based on the cycloaddition of CO2 to the epoxide, which is less toxic and easier to handle nowadays. Polycarbonates are highly valuable polymeric materials (engineering plastics) that possess outstanding properties, including impact resistance, electrical insulation, and optical properties [21].
However, it is not easy to activate such a thermodynamically stable material (CO2). Therefore, catalysts play a significant role in the transformation of carbon dioxide into cyclic carbonates. Thus far, various heterogeneous and homogeneous catalysts have been developed for CO2/epoxide cycloaddition reactions. Quaternary ammonium and phosphonium salts [22,23], ionic liquids [24,25,26,27], transition metal complexes [28,29], salen complex [30,31], and alkali metal salts [32,33] have been extensively studied as homogeneous catalysts. Normally, homogeneous catalysts show higher catalytic activity than heterogeneous catalysts in the presence of cocatalysts, but the separation and purification of the homogeneous catalysts from the products are greatly difficult, restricting their wide applications. Hence, the research in CO2 cycloaddition reactions has been mostly devoted to the development of highly efficient heterogeneous catalysts, such as metal oxide [34] and metal organic frameworks [35,36,37,38,39,40,41,42], which are easily separated by centrifugation or filtration and can be reused during the CO2 cycloaddition reactions.
Several types of heterogeneous catalysts, including metal oxides, have been applied for the CO2 cycloaddition reaction. The first example of polycarbonate synthesis via CO2 cycloaddition reaction was discovered by Yano et al. [43]. They showed that MgO could catalyze CO2 with propylene oxide (PO) to obtain cyclic carbonates. For this reaction, the MgO catalyst gave a poor product yield because of low activity. Bhanage et al. [44] employed several metal oxide catalysts, such as MgO, CaO, and ZrO2, for the synthesis of propylene carbonate (PC). The yield and selectivity of the as-synthesized carbonates using different catalysts are also compared. The effects of the Lewis acid/base sites of the catalysts on the cycloaddition reaction are also discussed in detail. Among the metal oxides, ZrO2 with acidic catalytic sites gives only 21% conversion and low selectivity of 50%. Shortly later, ternary metal oxides were proposed by Yamaguchi et al. [45]. They found that the Mg–Al mixed oxides obtained by the calcination of the hydrotalcites showed high performance for CO2 cycloaddition reactions to form the corresponding five-member cyclic carbonates. The results showed that the optimization condition (88% of product yield) for CO2 cycloaddition reaction had the Mg/Al ratio of five calcine at 400 °C in the presence of toxic DMF cosolvent. Based on the catalyst characterization results, the O and Al atoms involved in Mg–O–Al bonds act as basic and acidic sites, which can cooperatively activate epoxide molecules. In addition, doping with Mg will attract more CO2 molecules to react with the epoxide. As a result, the heterogeneous catalysts which possess acid–base bifunctional properties are very crucial for CO2 cycloaddition reactions.
Unfortunately, conventional heterogeneous catalysts such as nanoparticles are sometimes less active because of aggregation, resulting in a small specific surface area. Therefore, nanoporous materials have attracted much research attention owing to their high specific surface area. Aerogels containing approximately 99% volume of air with large surface areas were first discovered by Kistler in the 1930s [46]. Aerogels are a class of porous materials composed of three-dimensional network structures, having unique physicochemical properties, such as high porosity, large specific surface area, and known to possess lower density properties, which allow potential applications in the field of separation and catalysis [47,48,49]. Apart from the conventional aerogels, several types of aerogel have recently been developed based on different types of precursors, such as inorganic, organic, and carbon. The usual route for aerogel preparation is the sol–gel technique, generally accompanied by supercritical drying technology to afford highly porous structures [50,51,52]. This allows the liquid to be slowly dried off without causing the solid network in the gel to collapse from capillary action. Another method (the epoxide-assisted sol–gel route) for the synthesis of gels was first proposed by Gash et al. [53,54,55]. This method can adjust the pH value of the solution and also promote the hydrolysis and condensation reactions of the hydrate metal salt precursor in water or another solvent to form a gel. This method has been proven successful and environmentally friendly for the synthesis of metal oxide aerogels. Zirconia (ZrO2) has been widely used as an advanced material in various applications, including electronics, catalysis, and high-temperature structural engineering because of its superior acidic catalytic characteristics, redox properties, electrical properties, and high thermal and chemical stability [56,57].
In this work, for the first time, we use zirconium oxychloride octahydrate and magnesium nitrate hexahydrate as precursors, epoxide as the irreversible proton scavenger and gelation agent in combination with supercritical drying approaches to prepare Zr–Mg mixed oxide aerogels with high specific surface areas and porosities. The as-prepared Zr–Mg mixed oxide aerogels with acid–base functionalities have great potential as an excellent heterogeneous catalyst for CO2/epoxide cycloaddition reactions. Furthermore, we also discuss the effect of different reaction parameters, including temperature, CO2 pressure, and reaction time, on the catalytic performance of the CO2/epoxide cycloaddition reactions. We plot a schematic diagram (Scheme 2) and hope that the as-developed Zr–Mg mixed oxide aerogels can improve not only the performance of catalytic efficiency in the absence of any cocatalysts and solvents but also achieve the vision of CO2 reduction and the perspectives of green chemistry in industrial plants.

2. Experimental

2.1. Synthesis of Zr–Mg Mixed Oxide Aerogels

Zr–Mg mixed oxide precursor gels were synthesized by the epoxide-assisted sol–gel route. Zirconium (IV) oxychloride octahydrate (ZrOCl2·8H2O), magnesium nitrate hexahydrate (Mg(NO3)2·6H2O), ethanol (CH3CH2OH), propylene oxide (PO), and HNO3 (65 wt%) were used as reactants for the preparation of Zr–Mg mixed oxide aerogels, as shown in Scheme 3. According to different Zr/Mg molar ratios, ZrOCl2·8H2O, Mg(NO3)2·6H2O, and HNO3 were added into ethanol solution. The above solution was stirred until the particles were dissolved. After that, PO was added to the resulting solution. The total molar ratio of the precursor, HNO3, and PO was kept at a constant ratio of 1:1:16; the precursor contained ZrOCl2·8H2O and Mg(NO3)2·6H2O. The solution was shaken for a while and sat for 24 h to form a gel. For the aging process, the gel was washed with ethanol every 24 h for 2 days to ensure the solvents in the gel were replaced by ethanol. Then the gel was dried in an autoclave with supercritical carbon dioxide solvents. The pressure was set at 1200 psi, and the temperature was set at 75 °C. After 4 h drying, the Zr–Mg mixed oxide aerogel was successfully obtained. For the surface modification of Zr–Mg mixed oxide aerogels, the aged gels were immersed into 15 wt% 3-Aminopropyl trimethoxysilane (APTMS)/EtOH solution and refreshed the 15 wt% APTMS/EtOH solution every 24 h for 1, 2, 3, 4, 5 times.

2.2. Carbon Dioxide/Epoxide Cycloaddition Catalytic Reactions

The amount of 0.2 g of the as-prepared catalyst, 1.16 g of PO, and a stirring bar were added in a high-pressure reactor. After all screws were locked, the high-pressure reactor was pressured to 10 kgW/cm2 with CO2. Until the temperature of the high-pressure reactor was heated to the desired value (100, 120, 150, 180, and 200 °C in this case) using the heating tapes and controlled the magnetic stirrer at 200 rpm for the cycloaddition reaction. After the reaction, the high-pressure reactor was put into the ice bath to cool down. The solid–liquid mixture with the liquid products of propylene carbonate (PC) and the powder catalysts of the APTMS-modified Zr–Mg–O aerogels are observed in the reactor. Both can be separated by the centrifugation process with the rotating speed of 3000 rpm for 3 min. The liquid products are further detected by Nuclear Magnetic Resonance Spectroscopy (NMR) to measure the conversion, selectivity, and yield of the CO2/PO cycloaddition reaction.

2.3. Characterization

The structures and morphologies of aerogel samples with different Zr/Mg molar ratios were investigated using field emission scanning electron microscopy (FESEM, S-4800, Hitachi Inc., Chiyoda City, Japan). The elemental composition of the as-prepared samples was performed by an energy dispersive spectrometer (EDX, Horiba Model 7021H, Hitachi Inc., Chiyoda City, Japan), an accessory of FESEM. The pore size distribution and the specific surface area of the as-prepared aerogels were measured using nitrogen adsorption/desorption isotherms (BET, ASAP 2020, Micromeritics Inc., Norcross, GA, USA), following the Brunauer–Emmett–Teller (BET) theory. The thermal stability of the as-prepared samples was studied by thermogravimetric analysis (TG analysis, TA-Q50, DuPont Inc., Hayward, CA, USA). Furthermore, the functional groups of the samples with different times of APTMS modification were studied by Fourier transform infrared spectroscopy (FTIR, Tensor 27, Bruker Inc., Billerica, MA, USA). The conversion, selectivity, and yield of the CO2/PO cycloaddition reaction were measured by NMR (AVIII-400(B662), Bruker Inc., Billerica, MA, USA).

3. Results and Discussion

3.1. The Synthesis of Zr–Mg Mixed Oxide Aerogels

The surface morphologies of the as-prepared Zr–Mg mixed oxide aerogels using the addition epoxide method were first investigated by FESEM. Figure 1 shows the FESEM images of the as-prepared Zr–Mg mixed oxide aerogels with 10:0 (Figure 1a), 9:1 (Figure 1b), 8:2 (Figure 1c), 7:3 (Figure 1d), and 6:4 (Figure 1e) molar ratio of Zr to Mg, respectively. The FESEM pictures show that the large clusters were observed for the as-prepared Zr–Mg mixed oxide aerogels with a 6:4 molar ratio of Zr to Mg, which indicates the aggregation of the particles as the Mg molar proportion increased. The Zr, Mg, and O EDS elemental mapping images of the Zr–Mg mixed oxide aerogels with a 7:3 molar ratio of Zr to Mg are shown in Figure 2. The Zr, Mg, and O atoms were dispersive very well from the EDS elemental images, implying Zr, Mg, and O atoms are distributed uniformly in the as-prepared Zr–Mg mixed oxide aerogels.
The specific surface areas and pore size distribution of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios were measured using nitrogen adsorption/desorption isotherms, as shown in Figure 3 and Figure 4. Type IV N2 adsorption/desorption isotherms were observed for all Zr–Mg mixed oxide aerogel samples, indicating the existence of mesopores in the mixed oxide aerogels. This is in good agreement with the average pore size between 2–5 nm for all Zr–Mg mixed oxide aerogel samples, as shown in Table 1. The pore size distributions of the Zr–Mg mixed oxide aerogel samples are narrow and concentrated between 2–10 nm, as shown in Figure 4. The specific surface areas of Zr–Mg mixed oxide aerogel samples shown in Table 1 are 465 (Zr/Mg of 10/0), 283 (Zr/Mg of 9/1), 365 (Zr/Mg of 8/2), 371 (Zr/Mg of 7/3), and 261 (Zr/Mg of 6/4) m2/g, respectively. The specific surface areas of the Zr–Mg mixed oxide aerogels decrease from 465 m2/g to 261 m2/g when the Mg molar ratios of the aerogels increase. This is probably because the addition of Mg destroys the gel structures and causes the pores to collapse. Although the specific surface area of Zr–Mg mixed oxide aerogels is less than that of the pristine ZrO2 aerogels, the specific surface area of Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 still reaches the value of 371 m2/g, which is much higher than that of other composite metal oxides.
Since the carbon dioxide cycloaddition reaction requires a heating process to energize the environment, thermogravimetric analysis is used to analyze the thermal stability of the Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3, which is the catalyst with highest PC yield of CO2/PO cycloaddition reaction. Figure 5 is the picture of TG analysis of the Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3. It shows that the weight loss before 200 °C is inferred to be the surface water (-OH functional group) removal of the aerogels. This phenomenon may cause the aerogel structures to collapse and affect the activity of the catalysts during the cycloaddition reaction, resulting in poor reactivity of the catalyst.
The bonding configurations of Zr (3d) (Figure 6a), O (1s) (Figure 6b), and Mg (1s) (Figure 6c) atoms in the pristine ZrO2 aerogel and Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 were examined using X-ray photoelectron spectroscopy (XPS), as shown in Figure 6. Zr 3d curves (Figure 6a) are fitted to two peaks corresponding to 3d5/2 and 3d3/2 lines, respectively. Zr 3d5/2 and Zr 3d3/2 peaks are located at 182.1 eV and 184.5 eV for the pristine ZrO2 aerogel, as shown in Figure 6(i) of Figure 6a. The distance between two satellites of Zr 3d5/2 and Zr 3d3/2 for the pristine ZrO2 aerogel is 2.4 eV, which is in good agreement with the reference ZrO2 satellite peaks of Zr 3d5/2 and Zr 3d3/2. This means ZrO2 aerogels are successfully synthesized in this work. On the other hand, the position of Zr (3d) peaks in the Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 (Figure 6(ii) of Figure 6a) are chemically shifted toward larger binding energy values of 183.6 eV for Zr 3d5/2 peak and 185.9 eV for Zr 3d3/2 peak compared with the peaks in the pristine ZrO2 aerogels. This indicates that the chemical properties of Zr4+ species in the as-prepared Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3 are different from those in pure ZrO2 aerogels. As for the O 1s peak (Figure 6b), ZrO2 aerogel (Figure 6(i) of Figure 6b) shows the peak centered at a binding energy of 530.9 eV, which corresponds well with the reference ZrO2 satellite peak of O 1s. However, the position for O 1s in the as-prepared Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 is chemically shifted to a large binding energy value of 532.3 eV. The results of the Zr 3d and O 1s curves for the ZrO2 and Zr–Mg mixed oxide aerogels indicate that there is another atom to bond with Zr–O bonds to form the solid solution. Furthermore, the Mg 1s peak (Figure 6c) shifted to a higher binding energy value of 1305.6 eV compared with the reference Mg 1s peak of Mg and MgO. The result indicates that Mg is successfully doped into the ZrO2 aerogel for the Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3.
Figure 7 shows the PC yields of the CO2/PO cycloaddition reactions with different Zr/Mg molar ratios of Zr–Mg mixed oxide aerogels (10/0, 9/1, 8/2, 7/3, and 6/4) under reaction temperature of 150 °C, the pressure of 10 kgW/cm2, and reaction time of 15 h. More clearly, the yield of PC significantly enhanced with the increase in Mg amount for the as-prepared Zr–Mg mixed oxide aerogels. The detailed data of the PO conversion, selectivity, and PC yield are given in Table 2. Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 10/0 and the pristine ZrO2 aerogel have large PO conversion of 91% and low PC selectivity of 9.4% because of rich Lewis acidic and fewer Lewis basic sites of the pristine ZrO2 aerogels. When the amount of Mg is increased for the Zr–Mg mixed oxide aerogels, the PO conversions are slightly increased; however, the PC selectivity is greatly enhanced from 9.4 to approximately 65%. This is because the Lewis basic sites for the Zr–Mg mixed oxide aerogels are successfully increased with the addition of Mg into the aerogels. It can be found that the molar ratio with the Zr/Mg molar ratio of 7/3 gives the highest PC yield (63.6%), but PC yield decreases even if the basic species of Mg amount is increased to the Zr/Mg molar ratio of 6/4. This is because the specific surface area for the Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 6/4 (260.77 m2/g) is lower than that with Zr/Mg molar ratio of 7/3 (370.67 m2/g).

3.2. Mg–Zr Mixed Oxide Aerogels with Amino Functional Group Modification

As mentioned, the PC yield rises with the increase in the Mg incorporation into ZrO2 aerogels to enhance the Lewis basic sites. However, the obtained PC yield of 63.6% using Zr–Mg mixed oxide aerogel catalysts with the Zr/Mg molar ratio of 7/3 is still not large enough. In order to increase the Lewis basic sites of the as-prepared aerogel surfaces, APTMS with an amino functional group is grafted on the surface of Zr–Mg mixed oxide aerogels with the Zr/Mg molar ratio of 7/3 for the enhancement of Lewis basic sites of the aerogel surfaces. The relevant catalytic performance using APTMS-modified Zr–Mg mixed oxide aerogels with the Zr/Mg molar ratio of 7/3 will be investigated and discussed later.
The EDS elemental mapping of APTMS-modified Zr–Mg mixed oxide aerogels is measured as shown in Figure 8. Figure 8a–d is the EDS mapping image of Zr (Figure 8a), Mg (Figure 8b), O (Figure 8c), and N (Figure 8d) elements, respectively. We can clearly observe that N signals were well-distributed on the surface of APTMS-modified Zr–Mg mixed oxide aerogels, indicating APTMS agents are successfully grafted on the aerogel surface. To further prove the APTMS successful grafting, FT-IR spectra of the APTMS-modified Zr–Mg mixed oxide aerogels with zero to five times modifications were shown in Figure 9. The peak intensities of the -OH functional group (3250–3500 cm−1) decrease with increased APTMS modifications. In contrast, the peak intensities of the -NH2 functional group show the opposite trend, decreasing with the increased APTMS modifications. This indicates the -Si-(O-CH3)3 group of APTMS agents are bonded to the Mg-O-Zr-OH group of the Zr–Mg mixed oxide aerogels to form CH3OH and -Si-O-Zr-O-Mg bonds, leading to the decrease in the intensities of -OH functional groups. It also proves that the APTMS agents are successfully modified on the aerogel surfaces. Figure 10 is the TG analysis of the APTMS-modified Zr–Mg mixed oxide aerogels. It shows that the APTMS-modified Zr–Mg mixed oxide aerogel has better thermal stability than the pristine Zr–Mg mixed oxide aerogel without APTMS modifications between 0 and 250 °C. This proves that the APTMS modification effectively removes the attached surface water of the pristine aerogel surfaces, and APTMS modification is beneficial to the enhancement of the thermal stability of the aerogel catalysts.
Figure 11 and Table 3 show the catalytic results of the CO2/PO cycloaddition reactions using Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3 under different APTMS modification times. The PC selectivity rises from 65.2% to 95.2% with the increased APTMS modifications from zero to four times, resulting from the effective enhancement of the Lewis basic sites on the surface of APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3. Consequently, the PC yield with four APTMS modification times also reaches the largest value of 93.1% with CO2 conversion of 97.7% and PC selectivity of 95.2%. However, the PC selectivity decreases to 91%, leading to the decline of the PC yield (89.5%) when the APTMS modification increases to five times. This is because larger grafted APTMS agents on the aerogel surface have hindered the surface of Zr–Mg mixed oxide aerogels in their effort to catalyze CO2/PO cycloaddition reactions.
Figure 12 and Table 4 exhibit the results of PO conversion, PC selectivity, and PC yield using APTMS-modified Zr–Mg mixed oxide aerogels at the different reaction temperatures of 100, 120, 150, 180, and 200 °C, respectively. PC selectivity and yield slightly enhance with the increased reaction temperature from 100 to 150 °C and reach the largest PC yield of 93.1% at a reaction temperature of 150 °C. However, when the reaction temperature still goes up to 180 and 200 °C, the PC yield and selectivity both go down to 67.2% rather than increase the value. It means there is an optimal reaction temperature (150 °C) for this CO2/PO cycloaddition reaction. Kongpanna et al. [58] claimed the enthalpy (ΔH) of this CO2/PO cycloaddition reaction is −0.808 kJ/mol, the so-called exothermic reaction, which makes the reaction likely favors low temperature and high pressure to synthesize the main product (PC) instead of the side products (PPO).
The results of PO conversion, PC selectivity, and PC yield using APTMS-modified Zr–Mg mixed oxide aerogels at the different reaction times of 6, 9, 12, 15, and 24 h are shown in Figure 13 and Table 5. The PC yield at the reaction time of 6 h (83.9%) is lower than that of 15 h (93.1%), as shown in Figure 13 and Table 5. It means there is enough effective catalytic interaction between reactants (CO2 and PO) and APTMS-modified Zr–Mg mixed oxide aerogel catalyst. However, if the reaction time still increases to 24 h, PC yield decreases rapidly to 40.6% because of the tendency to form PPO by-products. As a result, the optimal reaction time is 15 h to obtain the largest PC yield using APTMS-modified Zr–Mg mixed oxide aerogel catalysts.
The catalytic performance of PC yield using APTMS-modified Zr–Mg mixed oxide aerogels were also compared with other studies, as shown in Table 6. For metal oxide catalysts, the addition of a cocatalyst or solvent is necessary to enhance their efficiencies of cycloaddition reactions. However, the catalytic efficiency using metal oxide catalysts is still quite low. As a result, some literature focus on the preparation of nonsolvent and cocatalyst-free MOF catalysts for cycloaddition reactions. In this study, we successfully designed the APTMS-modified Zr–Mg mixed oxide aerogel nanoarchitectonics for the CO2/PO cycloaddition reactions. Table 6 shows that PC yields using APTMS-modified Zr–Mg mixed oxide aerogels in this work reach 93.1%, which is comparable with some MOF catalysts. As a result, the as-prepared APTMS-modified Zr–Mg mixed oxide aerogels show great potential in industrial plants for CO2 reduction in the future.

4. Conclusions

For the first time, Zr–Mg mixed oxide aerogels were successfully synthesized by doping Mg into ZrO2 aerogels via the epoxide-assisted sol–gel route. The as-prepared Zr–Mg mixed oxide aerogels were also used for the CO2/PO cycloaddition reactions to investigate the PO conversion, PC selectivity, and PC yields. Compared with pristine ZrO2 aerogels, Zr–Mg mixed oxide aerogels can effectively enhance the Lewis basic sites of the aerogel surfaces, leading to an increase in the PC selectivity and PC yields. The highest PC selectivity and PC yields are 65.2% and 63.6% for the Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3. However, the PC selectivity of 65.2% is still not large enough, resulting from the lack of Lewis basic sites of the Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3. To increase the Lewis basic sites of the aerogel surfaces, APTMS with amino functional groups were grafted on the surface of the Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3. The largest PC yield of 93.1% was observed using Zr–Mg mixed oxide aerogels with a Zr/Mg molar ratio of 7/3 under four-time APTMS modification, resulting from the increase in the Lewis basic sites after APTMS modifications. The as-prepared APTMS-modified Zr–Mg mixed oxide aerogels have great potential in future CO2/PO cycloaddition reactions.

Author Contributions

Conceptualization, Y.-F.L., T.-W.C. and K.-Y.A.L.; methodology, Y.-R.L. and H.-L.S.; validation, Y.-R.L. and H.-L.S.; formal analysis, Y.-R.L. and H.-L.S.; data curation, Y.-R.L. and H.-L.S.; writing—original draft preparation, Y.-R.L. and H.-L.S.; writing—review and editing, Y.-F.L.; supervision, Y.-F.L.; project administration, Y.-F.L.; funding acquisition, Y.-F.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [National Science and Technology Council (NSTC, Taiwan)] grant number [107-2628-E-033-070-MY3 and 111-2221-E-033-005-MY3].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kondratenko, E.V.; Mul, G.; Baltrusaitis, J.; Larrazábal, G.O.; Pérez-Ramírez, J. Status and perspectives of CO2 conversion into fuels and chemicals by catalytic, photocatalytic and electrocatalytic processes. Energy Environ. Sci. 2013, 6, 3112–3135. [Google Scholar] [CrossRef] [Green Version]
  2. Calvo, L.M.; Domingo, R. Influence of process operating parameters on CO2 emissions in continuous industrial plants. J. Clean. Prod. 2015, 96, 253–262. [Google Scholar] [CrossRef]
  3. Rahman, F.A.; Aziz, M.M.A.; Saidur, R.; Bakar, W.A.W.A.; Hainin, M.R.; Putrajaya, R.; Hassan, N.A. Pollution to solution: Capture and sequestration of carbon dioxide (CO2) and its utilization as a renewable energy source for a sustainable future. Renew. Sustain. Energy Rev. 2017, 71, 112–126. [Google Scholar] [CrossRef]
  4. Patel, H.A.; Byun, J.; Yavuz, C.T. Carbon Dioxide Capture Adsorbents: Chemistry and Methods. Sustain. Chem. Green Chem. 2017, 10, 1303–1317. [Google Scholar] [CrossRef]
  5. Boot-Handford, M.E.; Abanades, J.C.; Anthony, E.J.; Blunt, M.J.; Brandani, S.; Mac Dowell, N.; Fernández, J.R.; Ferrari, M.C.; Gross, R.; Hallett, J.P.; et al. Carbon capture and storage update. Energy Environ. Sci. 2014, 7, 130–189. [Google Scholar] [CrossRef]
  6. Zhao, C.; Chen, X.; Anthony, E.J.; Jiang, X.; Duan, L.; Wu, Y.; Dong, W. Capturing CO2 in flue gas from fossil fuel-fired power plants using dry regenerable alkali metal-based sorbent. Prog. Energy Combust. Sci. 2013, 39, 515–534. [Google Scholar] [CrossRef]
  7. Zhang, X.; Zhang, X.; Dong, H.; Zhao, Z.; Zhang, S.; Huang, Y. Carbon capture with ionic liquids: Overview and progress. Energy Environ. Sci. 2012, 5, 6668–6681. [Google Scholar] [CrossRef]
  8. Arnette, A.N. Renewable energy and carbon capture and sequestration for a reduced carbon energy plan: An optimization model. Renew. Sustain. Energy Rev. 2017, 70, 254–265. [Google Scholar] [CrossRef]
  9. Maeda, C.; Miyazaki, Y.; Ema, T. Recent progress in catalytic conversions of carbon dioxide. Catal. Sci. Technol. 2014, 4, 1482–1497. [Google Scholar] [CrossRef] [Green Version]
  10. Aresta, M.; Dibenedetto, A.; Angelini, A. Catalysis for the Valorization of Exhaust Carbon: From CO2 to Chemicals, Materials, and Fuels. Technological Use of CO2. Chem. Rev. 2014, 114, 1709–1742. [Google Scholar] [CrossRef]
  11. Roshan, K.R.; Mathai, G.; Kim, J.; Tharun, J.; Park, G.A.; Park, D.W. A biopolymer mediated efficient synthesis of cyclic carbonates from epoxides and carbon dioxide. Green Chem. 2012, 14, 2933–2940. [Google Scholar] [CrossRef]
  12. Dai, W.L.; Luo, S.L.; Yin, S.F.; Au, C.T. The direct transformation of carbon dioxide to organic carbonates over heterogeneous catalysts. Appl. Catal. A-Gen. 2009, 366, 2–12. [Google Scholar] [CrossRef]
  13. Cokoja, M.; Wilhelm, M.E.; Anthofer, M.H.; Herrmann, W.A.; Kühn, F.E. Synthesis of Cyclic Carbonates from Epoxides and Carbon Dioxide by Using Organocatalysts. Sustain. Chem. Green Chem. 2015, 8, 2436–2454. [Google Scholar] [CrossRef]
  14. Martín, C.; Fiorani, G.; Kleij, A.W. Recent Advances in the Catalytic Preparation of Cyclic Organic Carbonates. ACS Catal. 2015, 5, 1353–1370. [Google Scholar] [CrossRef]
  15. Fiorani, G.; Guo, W.; Kleij, A.W. Sustainable conversion of carbon dioxide: The advent of organocatalysis. Green Chem. 2015, 17, 1375–1389. [Google Scholar] [CrossRef]
  16. Büttner, H.; Longwitz, L.; Steinbauer, J.; Wulf, C.; Werner, T. Recent Developments in the Synthesis of Cyclic Carbonates from Epoxides and CO2. Top. Curr. Chem. 2017, 375, 89–144. [Google Scholar]
  17. Spinner, N.S.; Vega, J.A.; Mustain, W.E. Recent progress in the electrochemical conversion and utilization of CO2. Catal. Sci. Technol. 2012, 2, 19–28. [Google Scholar] [CrossRef]
  18. Comerford, J.W.; Ingram, I.D.; North, M.; Wu, X. Sustainable metal-based catalysts for the synthesis of cyclic carbonates containing five-membered rings. Green Chem. 2015, 17, 1966–1987. [Google Scholar] [CrossRef]
  19. Tsuda, T.; Kondo, K.; Tomioka, T.; Takahashi, Y.; Matsumoto, H.; Kuwabata, S.; Hussey, C.L. Design, Synthesis, and Electrochemistry of Room-Temperature Ionic Liquids Functionalized with Propylene Carbonate. Angew. Chem. Int. Ed. 2011, 50, 1310–1313. [Google Scholar] [CrossRef]
  20. Sakakura, T.; Kohno, K. The synthesis of organic carbonates from carbon dioxide. Chem. Commun. 2009, 11, 1312–1330. [Google Scholar] [CrossRef]
  21. Lu, X.B.; Darensbourg, D.J. Cobalt catalysts for the coupling of CO2 and epoxides to provide polycarbonates and cyclic carbonates. Chem. Soc. Rev. 2012, 41, 1462–1484. [Google Scholar] [CrossRef] [PubMed]
  22. Aoyagi, N.; Furusho, Y.; Endo, T. Convenient Synthesis of Cyclic Carbonates from CO2 and Epoxides by Simple Secondary and Primary Ammonium Iodides as Metal-Free Catalysts under Mild Conditions and Its Application to Synthesis of Polymer Bearing Cyclic Carbonate Moiety. J. Polym. Sci. 2013, 51, 1230–1242. [Google Scholar] [CrossRef]
  23. Liu, S.; Suematsu, N.; Maruoka, K.; Shirakawa, S. Design of bifunctional quaternary phosphonium salt catalysts for CO2 fixation reaction with epoxides under mild conditions. Green Chem. 2016, 18, 4611–4615. [Google Scholar] [CrossRef] [Green Version]
  24. Zhang, Z.; Fan, F.; Xing, H.; Yang, Q.; Bao, Z.; Ren, Q. Efficient synthesis of cyclic carbonates from atmospheric CO2 using a positive charge delocalized ionic liquid catalyst. ACS Sustain. Chem. Eng. 2017, 5, 2841–2846. [Google Scholar] [CrossRef]
  25. He, Q.; O′Brien, J.W.; Kitselman, K.A.; Tompkins, L.E.; Curtis, G.C.; Kerton, F.M. Synthesis of cyclic carbonates from CO2 and epoxides using ionic liquids and related catalysts including choline chloride–metal halide mixtures. Catal. Sci. Technol. 2014, 4, 1513–1528. [Google Scholar] [CrossRef]
  26. Kim, D.; Moon, Y.; Ji, D.; Kim, H.; Cho, D. Metal-Containing Ionic Liquids as Synergistic Catalysts for the Cycloaddition CO2: A Density Functional Theory and Response Surface Methodology Corroborated Study. ACS Sustain. Chem. Eng. 2016, 4, 4591–4600. [Google Scholar] [CrossRef]
  27. Kumar, P.; Varyani, M.; Khatri, P.K.; Paul, S.; Jain, S.L. Post combustion capture and conversion of carbon dioxide using histidine derived ionic liquid at ambient conditions. J. Ind. Eng. Chem. 2017, 49, 152–157. [Google Scholar] [CrossRef]
  28. Castro-Osma, J.A.; Lamb, K.J.; North, M. Cr(salophen) Complex Catalyzed Cyclic Carbonate Synthesis at Ambient Temperature and Pressure. ACS Catal. 2016, 6, 5012–5025. [Google Scholar] [CrossRef]
  29. Librando, I.L.; Mahmoud, A.G.; Carabineiro, S.A.C.; Silva, M.F.C.G.; Geraldes, C.F.G.C.; Pombeiro, A.J.L. Synthesis of a novel series of Cu(I) complexes bearing alkylated% 1,3,5-Triaza-7-phosphaadamantane as homogenerous and carbon-supported catalysts for the synthesis of 1- and 2-substituted-1,2,3-triazoles. Nanomaterials 2021, 11, 2702. [Google Scholar] [CrossRef]
  30. Lang, X.D.; Yu, Y.C.; He, L.N. Zn-salen complexes with multiple hydrogen bonding donor and protic ammonium bromide: Bifunctional catalysts for CO2 fixation with epoxides at atmospheric pressure. J. Mol. Catal. A-Chem. 2016, 420, 208–215. [Google Scholar] [CrossRef]
  31. Cozzolino, M.; Rosen, T.; Goldberg, I.; Mazzeo, M.; Lamberti, M. Selective Synthesis of Cyclic Carbonate by Salalen-Aluminum Complexes and Mechanistic Studies. Sustain. Chem. Green Chem. 2017, 10, 1217–1223. [Google Scholar] [CrossRef] [PubMed]
  32. Kaneko, S.; Shirakawa, S. Potassium Iodide−Tetraethylene Glycol Complex as a Practical Catalyst for CO2 Fixation Reactions with Epoxides under Mild Conditions. ACS Sustain. Chem. Eng. 2017, 5, 2836–2840. [Google Scholar] [CrossRef]
  33. Song, J.; Zhang, B.; Zhang, P.; Ma, J. Highly efficient synthesis of cyclic carbonates from CO2 and epoxides catalyzed by KI/lecithin. Catal. Today 2012, 183, 130–135. [Google Scholar] [CrossRef]
  34. Tomishige, K.; Yasuda, H.; Yoshida, Y.; Nurunnabi, M.; Li, B.; Kunimori, K. Catalytic performance and properties of ceria based catalysts for cyclic carbonate synthesis from glycol and carbon dioxide. Green Chem. 2004, 6, 206–214. [Google Scholar] [CrossRef]
  35. Mousavi, B.; Chaemchuen, S.; Moosavi, B.; Luo, Z.; Gholampour, N.; Verpoort, F. Zeolitic imidazole framework-67 as an efficient heterogeneous catalyst for the conversion of CO2 to cyclic carbonates. R. Soc. Chem. 2016, 40, 5170–5176. [Google Scholar] [CrossRef]
  36. He, H.; Perman, J.A.; Zhu, G.; Ma, S. Metal-Organic Frameworks for CO2 Chemical Transformations. Small 2016, 12, 6309–6324. [Google Scholar] [CrossRef] [PubMed]
  37. Kuruppathparambil, R.R.; Jose, T.; Babu, R.; Hwang, G.Y.; Kathalikkattil, A.C.; Kim, D.W.; Park, D.W. A room temperature synthesizable and environmental friendly heterogeneous ZIF-67 catalyst for the solvent less and co-catalyst free synthesis of cyclic carbonates. Appl. Catal. B-Environ. 2016, 182, 562–569. [Google Scholar] [CrossRef]
  38. Maina, J.W.; Pozo-Gonzalo, C.; Kong, L.; Schütz, J.; Hill, M.; Dumée, L.F. Metal organic framework based catalysts for CO2 conversion. Mater. Horiz. 2017, 4, 345–361. [Google Scholar]
  39. Bhin, K.M.; Tharun, J.; Roshan, K.R.; Kim, D.W.; Chung, Y.; Park, D.W. Catalytic performance of zeolitic imidazolate framework ZIF-95 for the solventless synthesis of cyclic carbonates from CO2 and epoxides. J. CO2 Util. 2017, 17, 112–118. [Google Scholar] [CrossRef]
  40. Timofeeva, M.N.; Lukoyanov, I.A.; Panchenko, V.N.; Shefer, K.I.; Mel′gunov, M.S.; Bhadra, B.N.; Jhung, S.H. Tuning the catalytic properties for cycloaddition of CO2 to propylene oxide on zeolitic-imidazolate frameworks through variation of structure and chemical composition. Mol. Catal. 2022, 529, 112530. [Google Scholar] [CrossRef]
  41. Timofeeva, M.N.; Lukoyanov, I.A.; Panchenko, V.N.; Bhadra, B.N.; Gerasimov, E.Y.; Jhung, S.H. Effect of MAF-6 crystal size on its physicochemical and catalytic properties in the cycloaddition of CO2 to propylene oxide. Catalysts 2021, 11, 1061. [Google Scholar] [CrossRef]
  42. Rehman, A.; Saleem, F.; Javed, F.; Ikhlaq, A.; Ahmad, S.W.; Harvey, A. Recent advances in the synthesis of cyclic carbonates via CO2 cycloaddition to epoxides. J. Environ. Chem. Eng. 2021, 9, 105113. [Google Scholar] [CrossRef]
  43. Yano, T.; Matsui, H.; Koike, T.; Ishiguro, H.; Fujihara, H.; Yoshihara, M.; Maeshima, T. Magnesium oxide-catalysed reaction of carbon dioxide with an epoxide with retention of stereochemistry. Chem. Commun. 1997, 12, 1129–1130. [Google Scholar] [CrossRef]
  44. Bhanage, B.M.; Fujita, S.I.; Ikushima, Y.; Arai, M. Synthesis of dimethyl carbonate and glycols from carbon dioxide, epoxides, and methanol using heterogeneous basic metal oxide catalysts with high activity and selectivity. Appl. Catal. A Gen. 2001, 219, 259–266. [Google Scholar] [CrossRef]
  45. Yamaguchi, K.; Ebitani, K.; Yoshida, T.; Yoshida, H.; Kaneda, K. Mg−Al mixed oxides as highly active acid−base catalysts for cycloaddition of carbon dioxide to epoxides. J. Am. Chem. Soc. 1999, 121, 4526–4527. [Google Scholar] [CrossRef]
  46. Kistler, S.S. Coherent expanded aerogels. J. Phys. Chem. 1932, 36, 52–64. [Google Scholar] [CrossRef]
  47. Chen, Y.; Shao, G.; Kong, Y.; Shen, X.; Cui, S. Facile preparation of cross-linked polyimide aerogels with carboxylic functionalization for CO2 capture. Chem. Eng. J. 2017, 322, 1–9. [Google Scholar] [CrossRef]
  48. Maleki, H. Recent advances in aerogels for environmental remediation applications: A review. Chem. Eng. J. 2016, 300, 98–118. [Google Scholar] [CrossRef]
  49. Cuce, E.; Cuce, P.M.; Wood, C.J.; Riffat, S.B. Toward aerogel based thermal superinsulation in buildings: A comprehensive review. Renew. Sustain. Energy Rev. 2014, 34, 273–299. [Google Scholar] [CrossRef]
  50. Krumm, M.; Pueyo, C.L.; Polarz, S. Monolithic Zinc Oxide Aerogels from Organometallic Sol-Gel Precursors. Chem. Mater. 2010, 22, 5129–5136. [Google Scholar] [CrossRef]
  51. Sui, R.; Charpentier, P. Synthesis of Metal Oxide Nanostructures by Direct Sol−Gel Chemistry in Supercritical Fluids. Chem. Rev. 2012, 112, 3057–3082. [Google Scholar] [CrossRef] [PubMed]
  52. Feinle, A.; Hüsing, N. Mixed Metal Oxide Aerogels from Tailor-Made Precursors. J. Supercrit. Fluids 2015, 106, 2–8. [Google Scholar] [CrossRef]
  53. Gash, A.E.; Tillotson, T.M.; Satcher, J.H., Jr.; Poco, J.F.; Hrubesh, L.W.; Simpson, R.L. Use of Epoxides in the Sol-Gel Synthesis of Porous Iron(III) Oxide Monoliths from Fe(III) Salts. Chem. Mater. 2001, 13, 999–1007. [Google Scholar] [CrossRef]
  54. Cui, H.; Zayat, M.; Levy, D. A general epoxide-assisted sol-gel route for the synthesis of metal oxide-silica composites and silicates ultrafine particles. J. Alloy. Compd. 2009, 474, 292–296. [Google Scholar] [CrossRef]
  55. Xiao, Z.; Ma, Z.; Wang, X.; Williams, C.T.; Liang, C. Effects of Synthetic Parameters on the Structure and Catalytic Performance of Cu-Cr Catalysts Prepared by a Non-Alkoxide Sol-Gel Route. Ind. Eng. Chem. Res. 2011, 50, 2031–2039. [Google Scholar] [CrossRef]
  56. Zhong, L.; Chen, X.; Song, H.; Guo, K.; Hu, Z. Synthesis of monolithic zirconia aerogel via a nitric acid assisted epoxide addition method. RSC Adv. 2014, 4, 31666–31671. [Google Scholar] [CrossRef]
  57. Sádaba, I.; Ojeda, M.; Mariscal, R.; Richards, R.; López Granados, M. Preparation and Characterization of Mg-Zr Mixed Oxide Aerogels and Their Application as Aldol Condensation Catalysts. J. Chem. Phys. Phys. Chem. 2012, 13, 3282–3292. [Google Scholar] [CrossRef]
  58. Kongpanna, P.; Pavarajarn, V.; Gani, R.; Assabumrungrat, S. Techno-economic evaluation of different CO2-based processes for dimethyl carbonate production. Chem. Eng. Res. Des. 2015, 93, 496–510. [Google Scholar] [CrossRef]
  59. Song, J.; Zhang, Z.; Hu, S.; Wu, T.; Jiang, T.; Han, B. MOF-5/n-Bu4NBr: An Efficient Catalyst System for the Synthesis of Cyclic Carbonates from Epoxide and CO2 under Mild Conditions. Green Chem. 2009, 11, 1031–1036. [Google Scholar] [CrossRef]
  60. Zhu, M.; Srinivas, D.; Bhogeswararao, S.; Ratnasamy, P.; Carreon, M.A. Catalytic Activity of ZIF-8 in the Synthesis of Styrene Carbonate from CO2 and Styrene Oxide. Catal. Commun. 2013, 32, 36–40. [Google Scholar] [CrossRef]
  61. Lin, Y.F.; Huang, K.W.; Ko, B.T.; Lin, K.Y.A. Bifunctioanl ZIF-78 Heterogeneous Catalyst with dual Lewis Acidic and Basic Sites for Carbon Dioxide Fixation via Cyclic Carbonate Synthesis. J. CO2 Util. 2017, 22, 178–183. [Google Scholar] [CrossRef]
Nanomaterials 12 03442 sch001 550

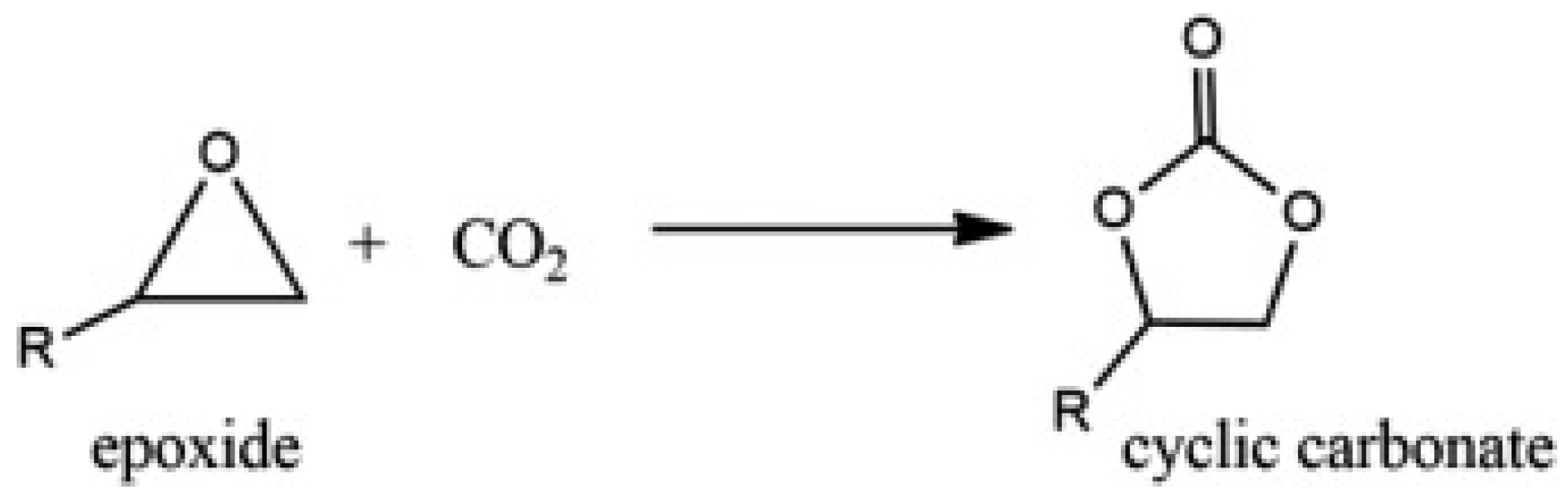

Scheme 1. The formation of cyclic carbonate using CO2/epoxide cycloaddition reaction.
Scheme 1. The formation of cyclic carbonate using CO2/epoxide cycloaddition reaction.
Nanomaterials 12 03442 sch001
Nanomaterials 12 03442 sch002 550

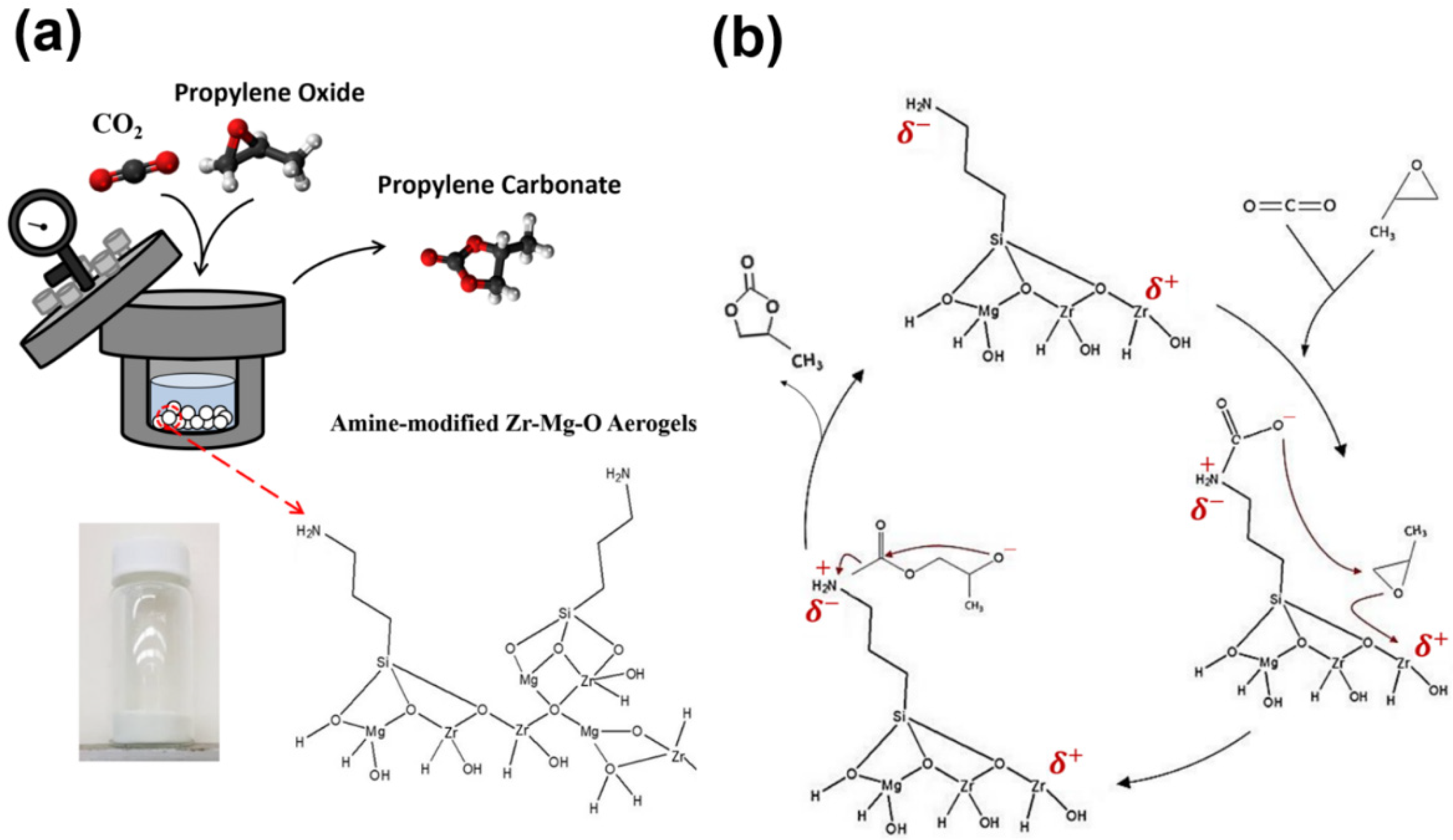

Scheme 2. The scheme for the catalysis of CO2/PO cycloaddition reactions using (a) APTMS-modified Zr–Mg mixed oxide aerogels and (b) their reaction mechanism.
Scheme 2. The scheme for the catalysis of CO2/PO cycloaddition reactions using (a) APTMS-modified Zr–Mg mixed oxide aerogels and (b) their reaction mechanism.
Nanomaterials 12 03442 sch002
Nanomaterials 12 03442 sch003 550

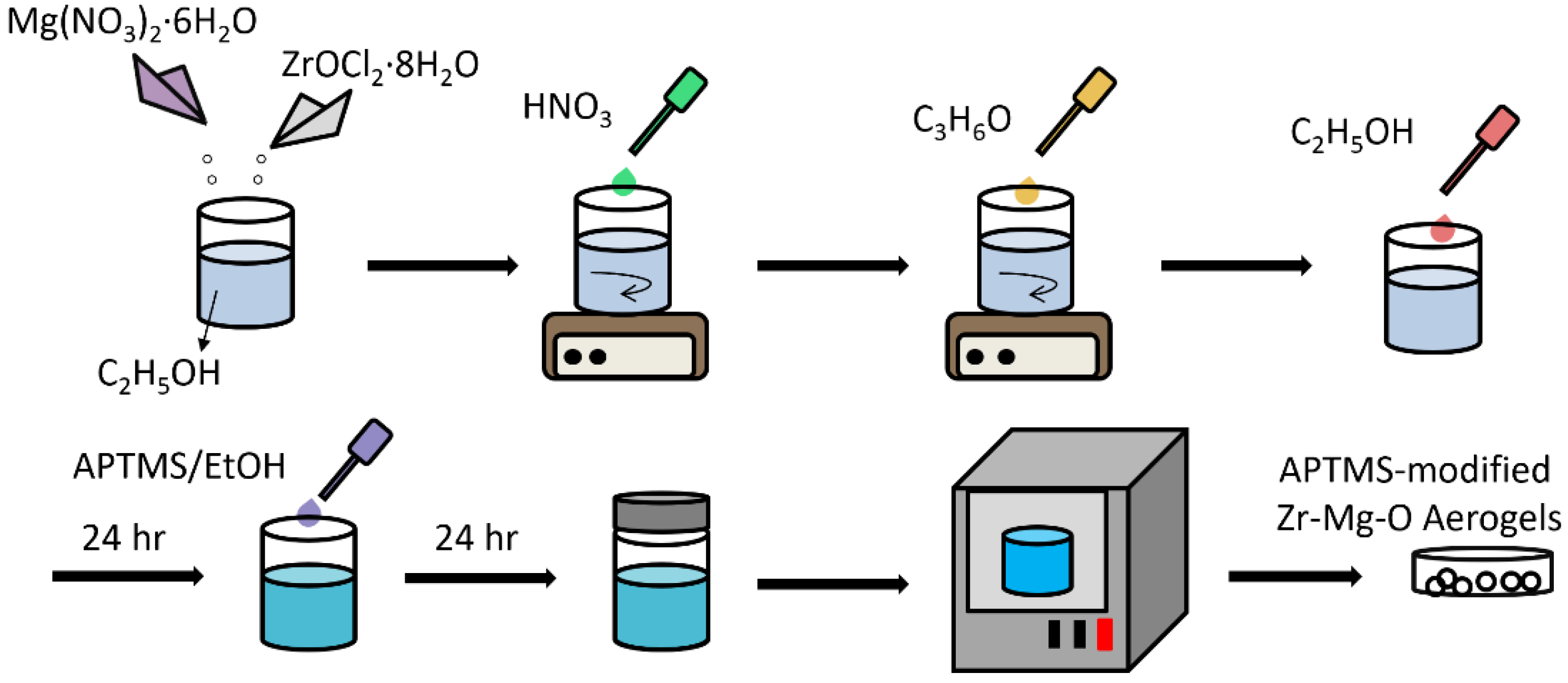

Scheme 3. The fabricated procedure of the APTMS-modified Zr–Mg–O Aerogels.
Scheme 3. The fabricated procedure of the APTMS-modified Zr–Mg–O Aerogels.
Nanomaterials 12 03442 sch003
Nanomaterials 12 03442 g001 550

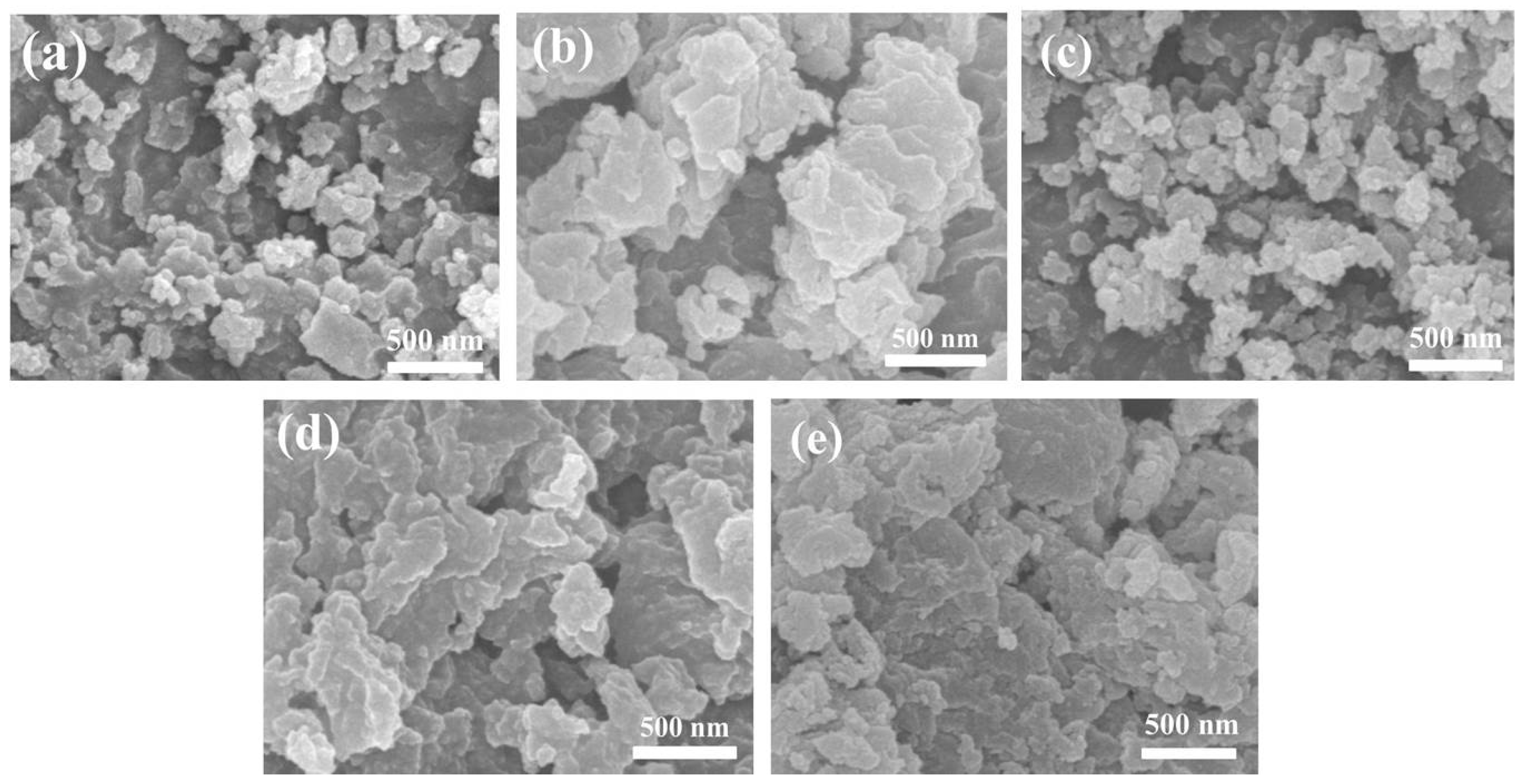

Figure 1. The FESEM images of Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of (a) 10/0, (b) 9/1, (c) 8/2, (d) 7/3, and (e) 6/4.
Figure 1. The FESEM images of Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of (a) 10/0, (b) 9/1, (c) 8/2, (d) 7/3, and (e) 6/4.
Nanomaterials 12 03442 g001
Nanomaterials 12 03442 g002 550

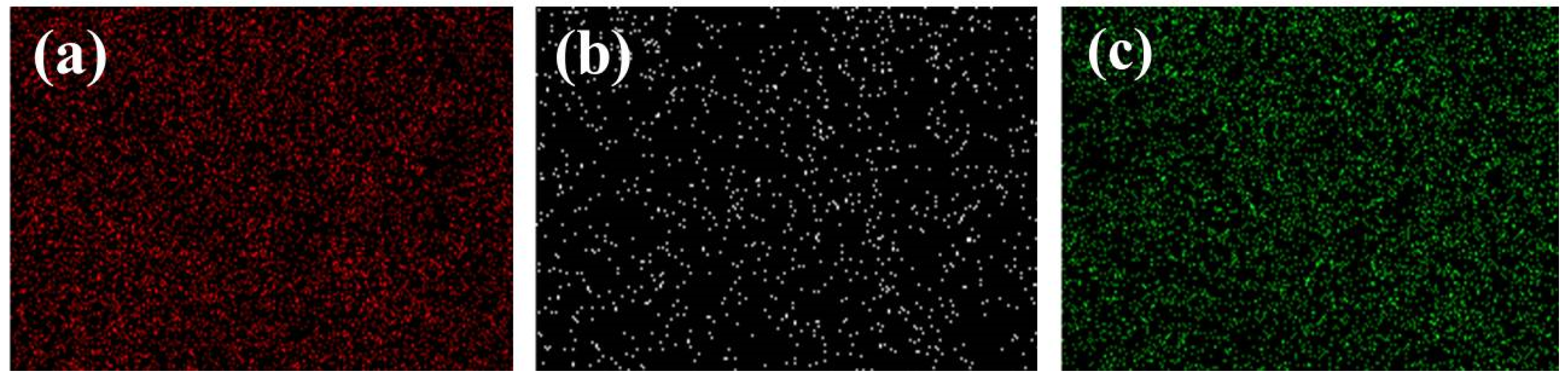

Figure 2. The EDS elemental mapping of (a) Zr, (b) Mg, and (c) O distribution of the Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Figure 2. The EDS elemental mapping of (a) Zr, (b) Mg, and (c) O distribution of the Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Nanomaterials 12 03442 g002
Nanomaterials 12 03442 g003 550

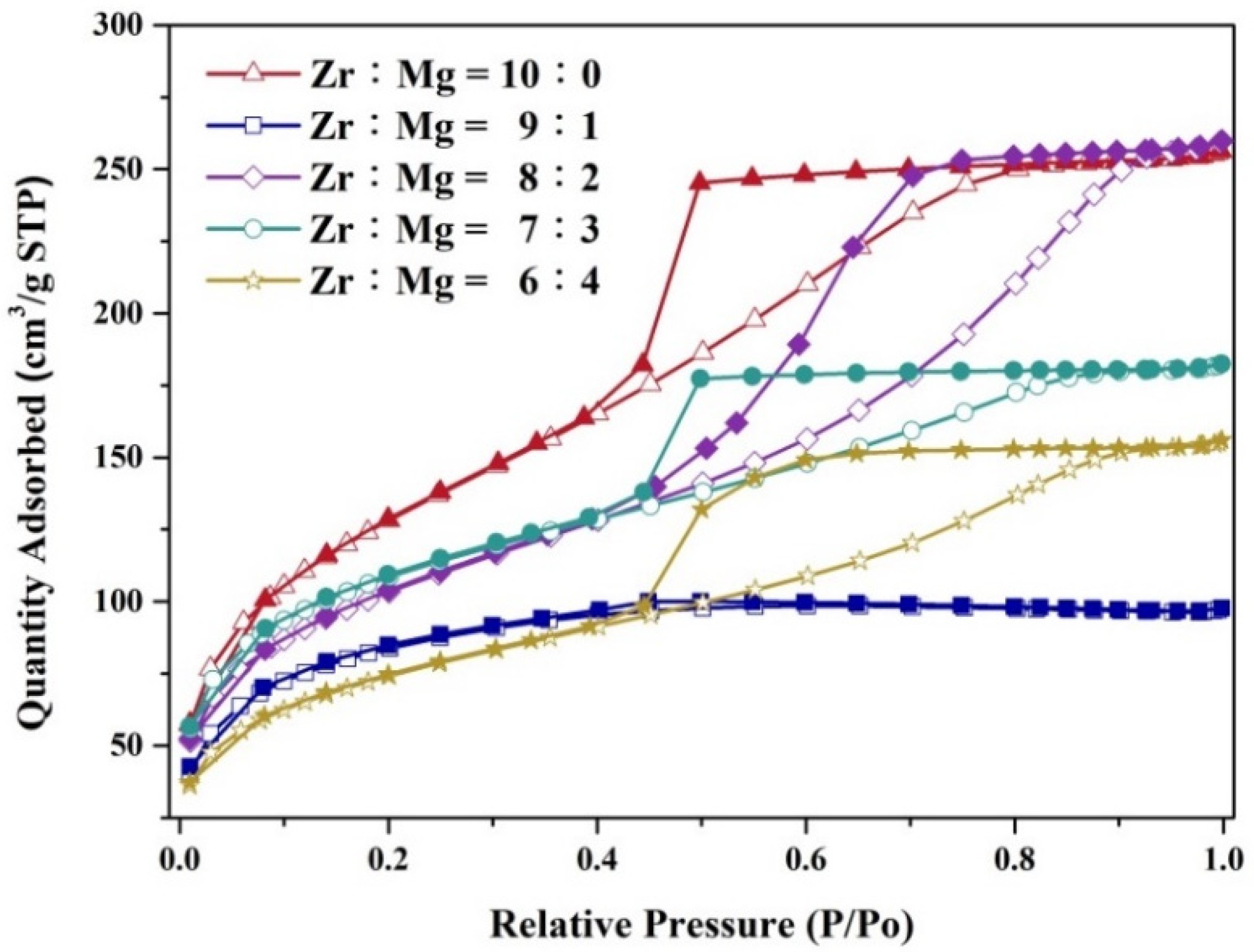

Figure 3. Nitrogen adsorption/desorption isotherms of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Figure 3. Nitrogen adsorption/desorption isotherms of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Nanomaterials 12 03442 g003
Nanomaterials 12 03442 g004 550

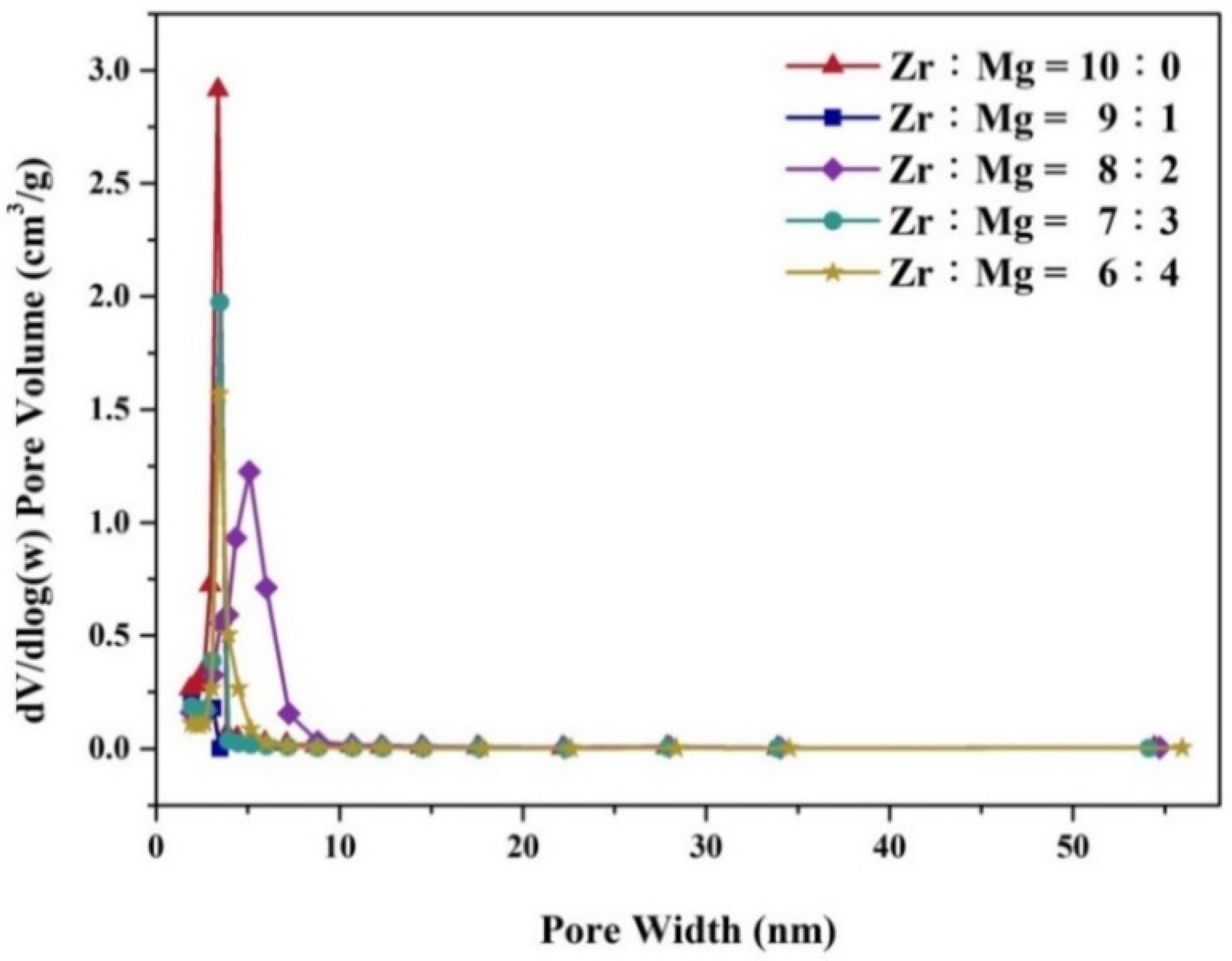

Figure 4. The pore size distribution of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Figure 4. The pore size distribution of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Nanomaterials 12 03442 g004
Nanomaterials 12 03442 g005 550

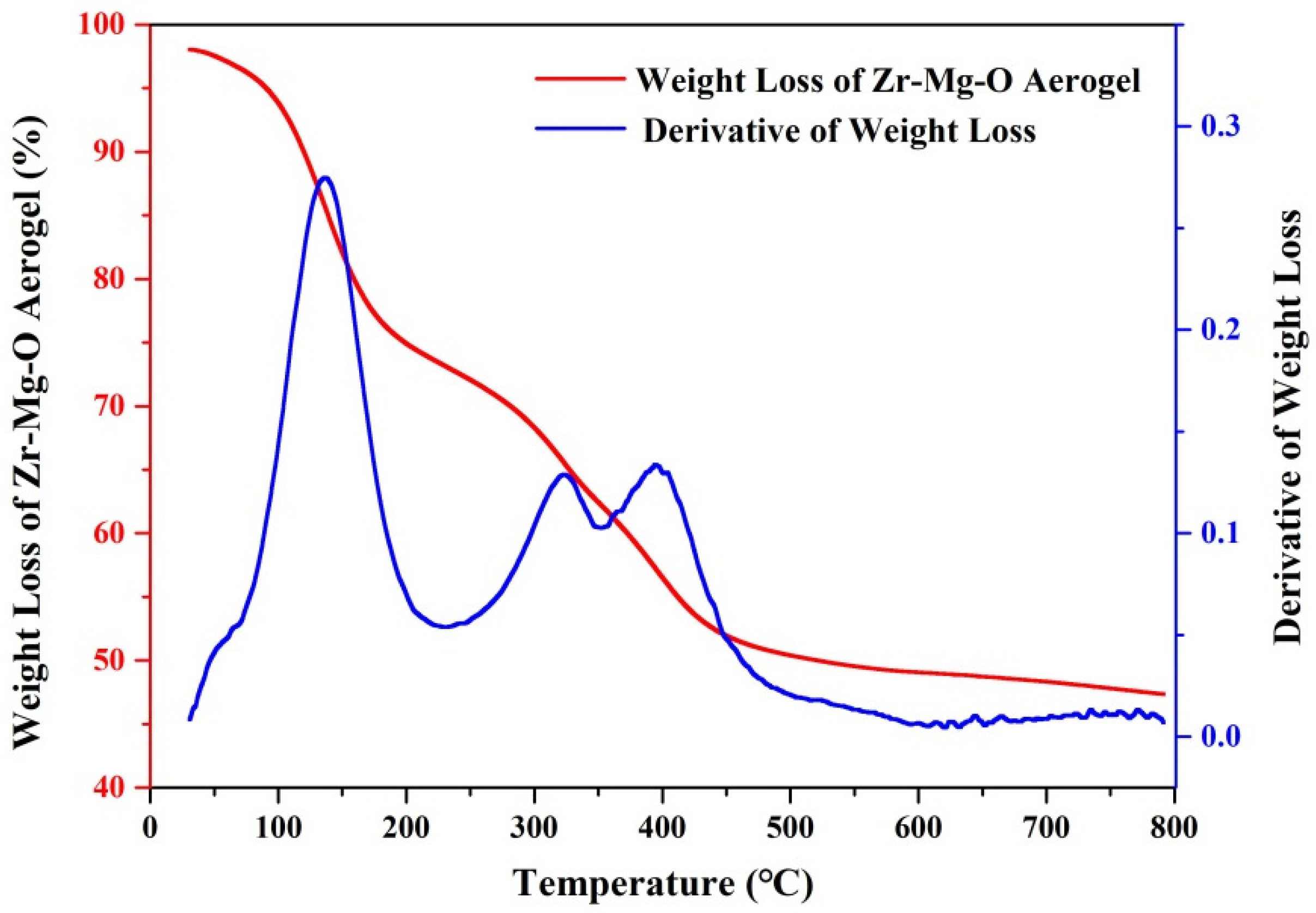

Figure 5. The TG analysis curve of the Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Figure 5. The TG analysis curve of the Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Nanomaterials 12 03442 g005
Nanomaterials 12 03442 g006 550

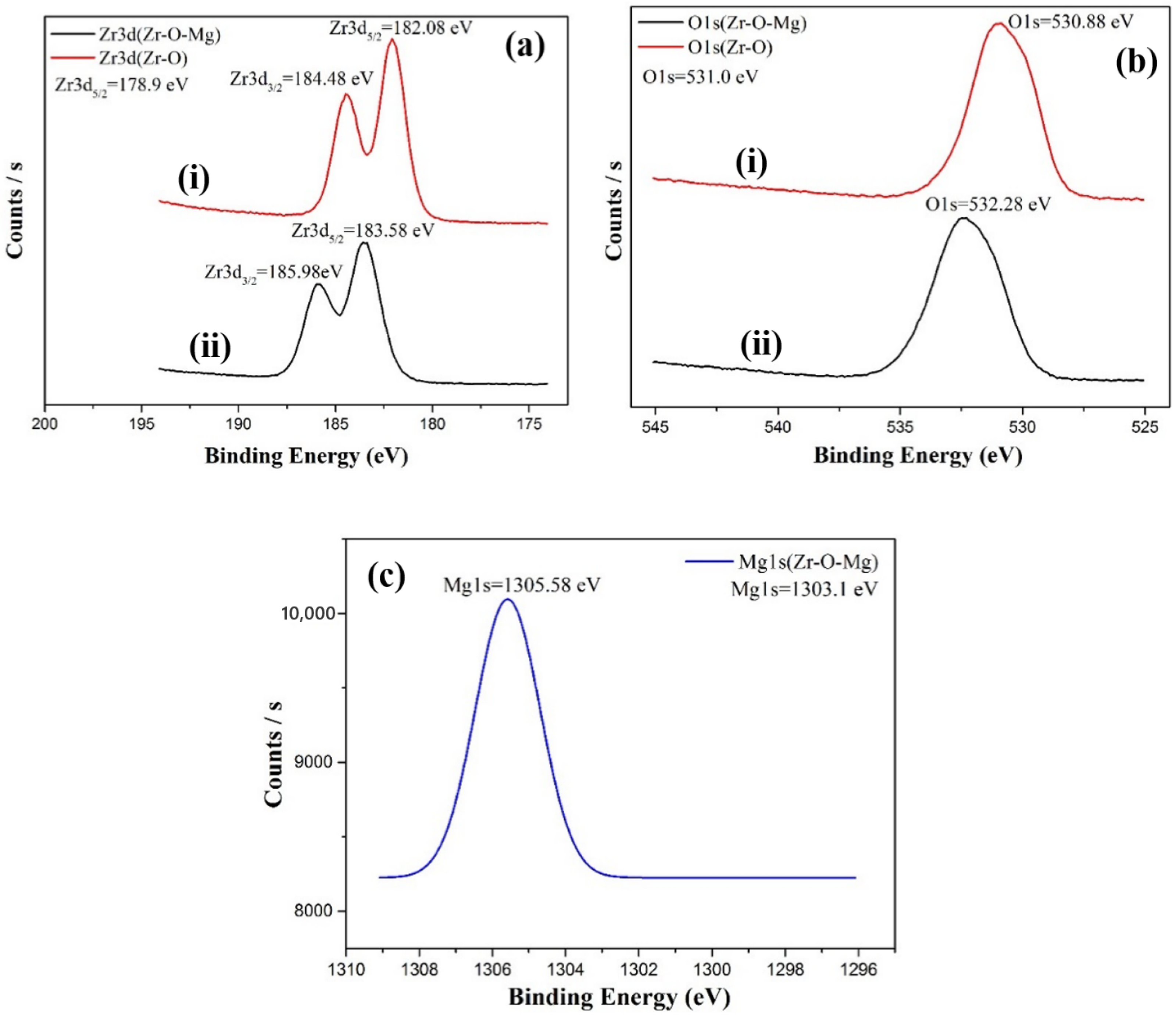

Figure 6. The (a) Zr 3d1/2, (b) O 1s, and (c) Mg 1s scanning curves of the XPS spectra for the (i) ZrO2 aerogels and (ii) Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Figure 6. The (a) Zr 3d1/2, (b) O 1s, and (c) Mg 1s scanning curves of the XPS spectra for the (i) ZrO2 aerogels and (ii) Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Nanomaterials 12 03442 g006
Nanomaterials 12 03442 g007 550

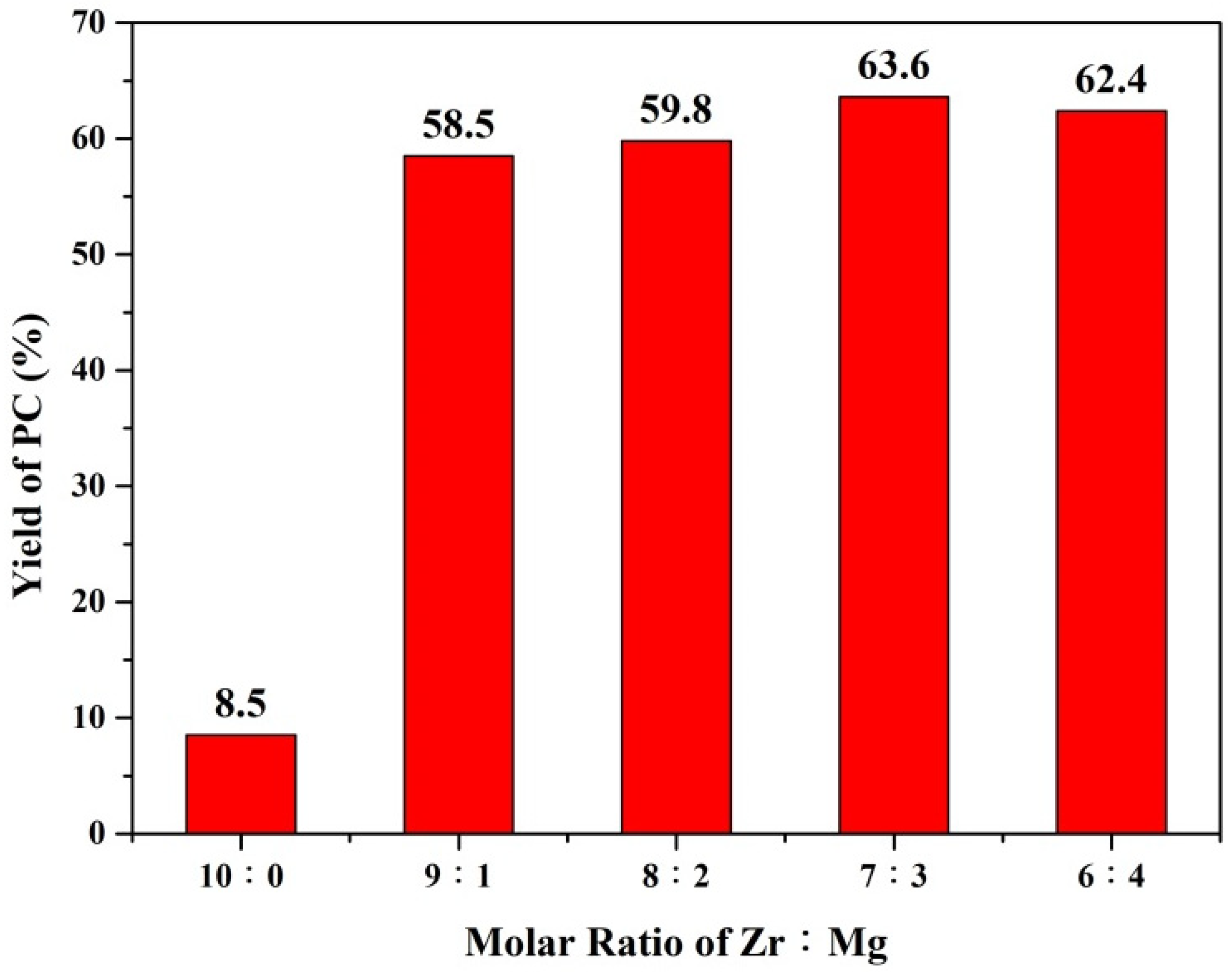

Figure 7. The histograms of the PC yield for CO2/PO cycloaddition reactions using the Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Figure 7. The histograms of the PC yield for CO2/PO cycloaddition reactions using the Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Nanomaterials 12 03442 g007
Nanomaterials 12 03442 g008 550

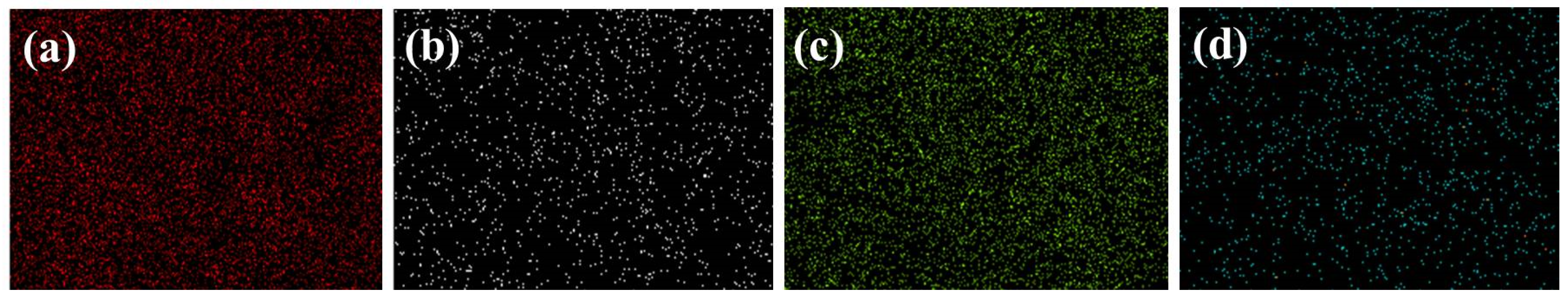

Figure 8. The EDS elemental mapping of (a) Zr, (b) Mg, (c) O, and (d) N distribution of the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Figure 8. The EDS elemental mapping of (a) Zr, (b) Mg, (c) O, and (d) N distribution of the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3.
Nanomaterials 12 03442 g008
Nanomaterials 12 03442 g009 550

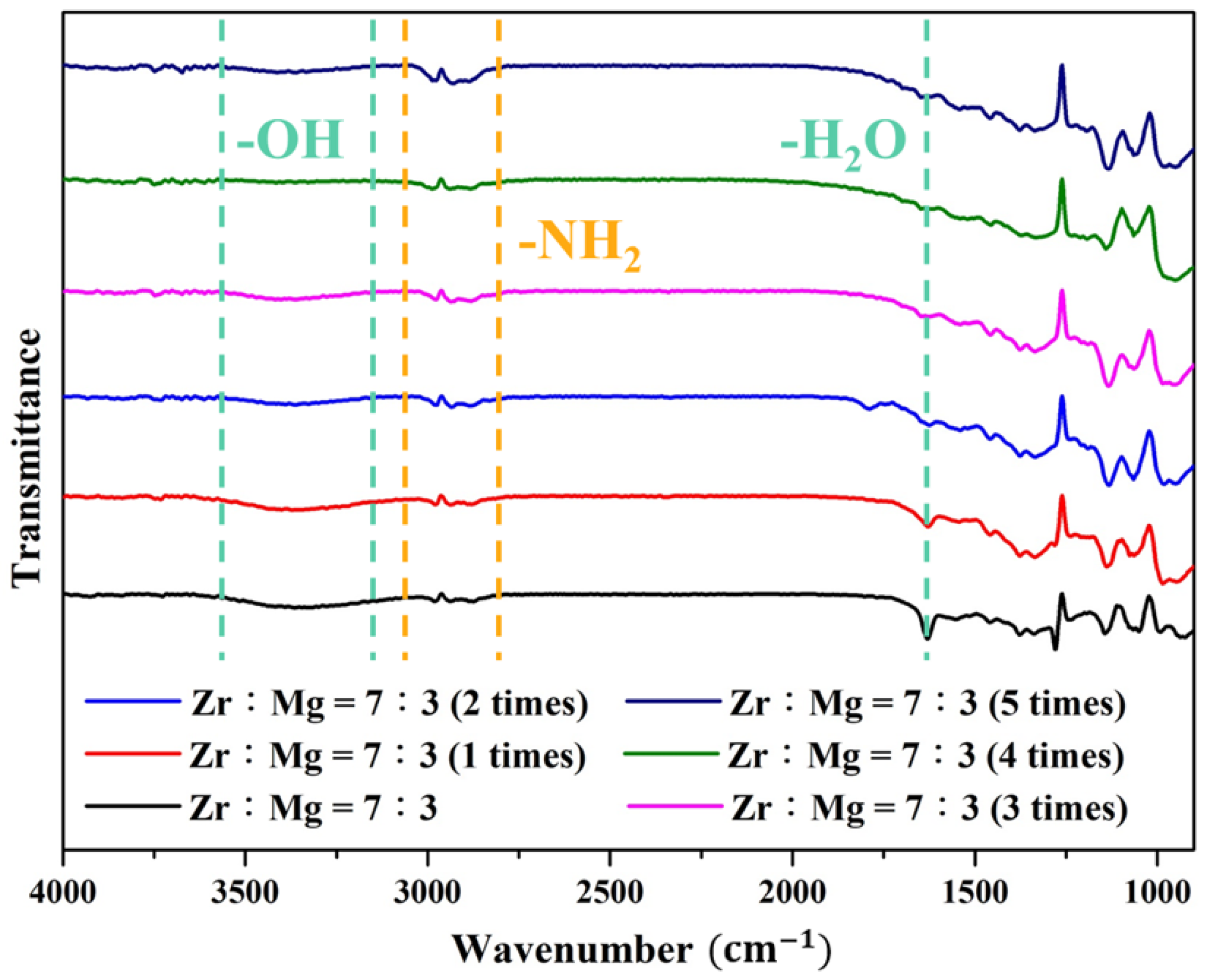

Figure 9. The FT-IR spectra of the APTMS-modified Zr–Mg mixed oxide aerogels with different times of APTMS modification.
Figure 9. The FT-IR spectra of the APTMS-modified Zr–Mg mixed oxide aerogels with different times of APTMS modification.
Nanomaterials 12 03442 g009
Nanomaterials 12 03442 g010 550

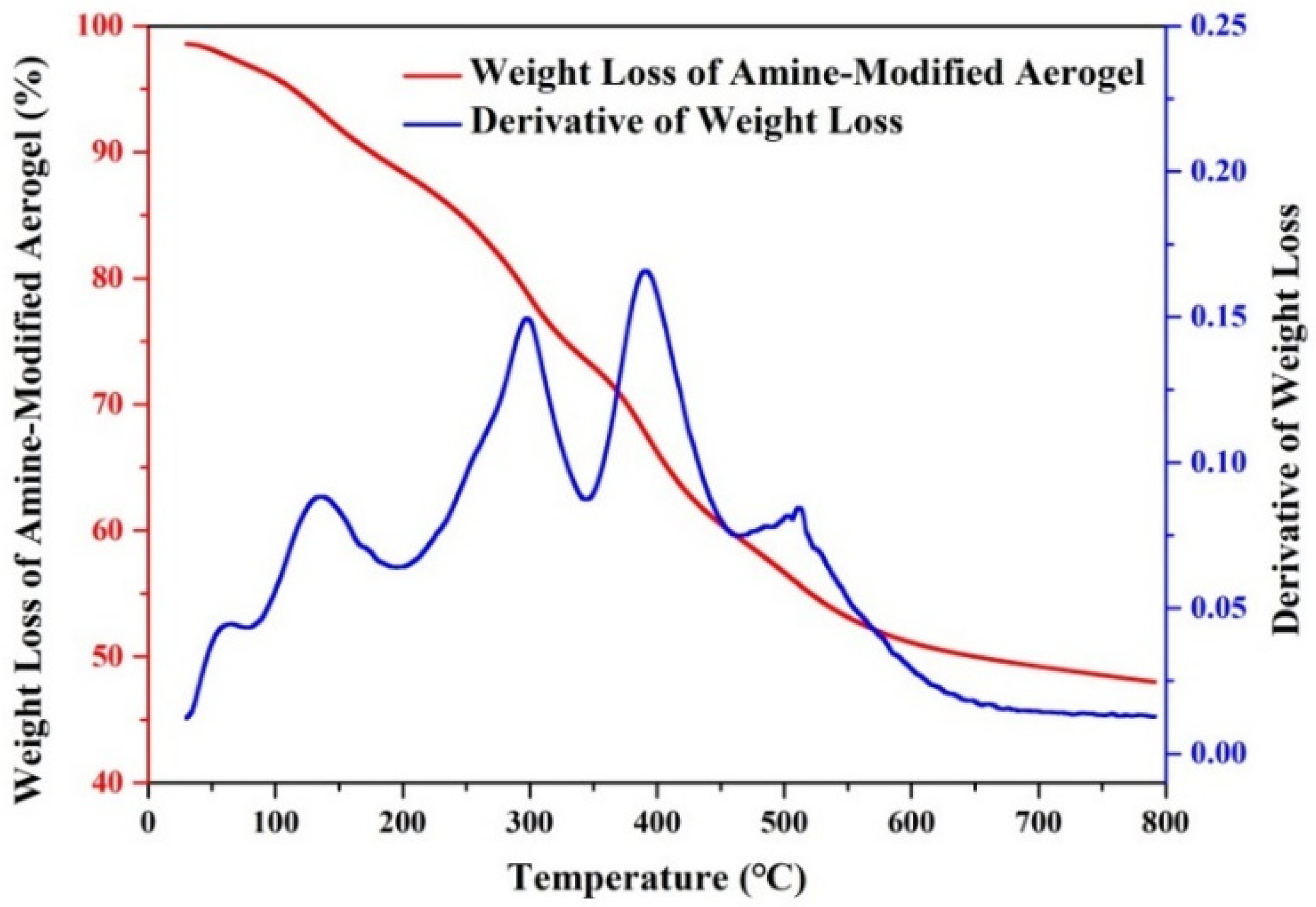

Figure 10. The TG analysis curve of the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under four APTMS modifications.
Figure 10. The TG analysis curve of the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under four APTMS modifications.
Nanomaterials 12 03442 g010
Nanomaterials 12 03442 g011 550

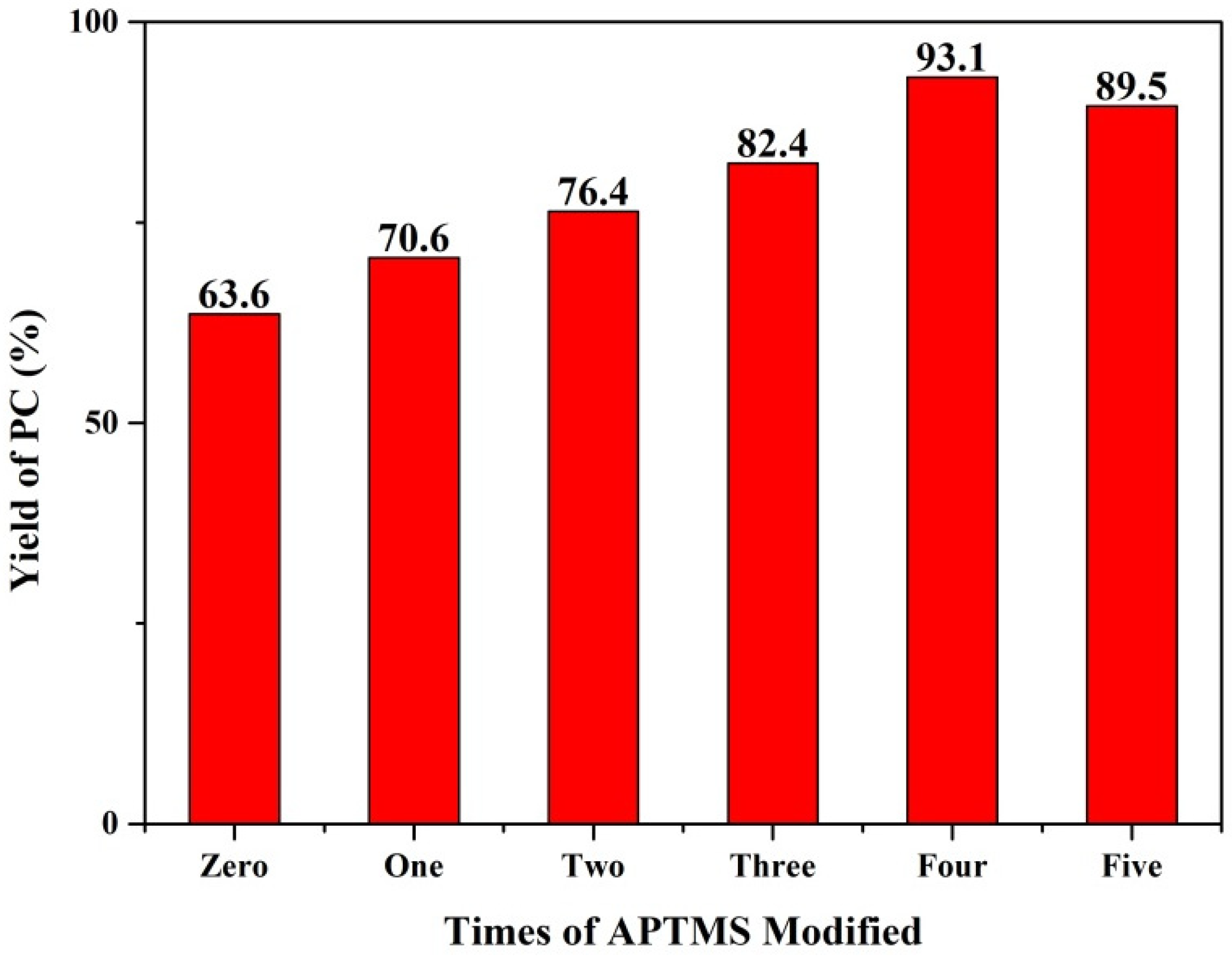

Figure 11. The histograms of the PC yield for CO2/PO cycloaddition reactions using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different times of APTMS modification.
Figure 11. The histograms of the PC yield for CO2/PO cycloaddition reactions using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different times of APTMS modification.
Nanomaterials 12 03442 g011
Nanomaterials 12 03442 g012 550

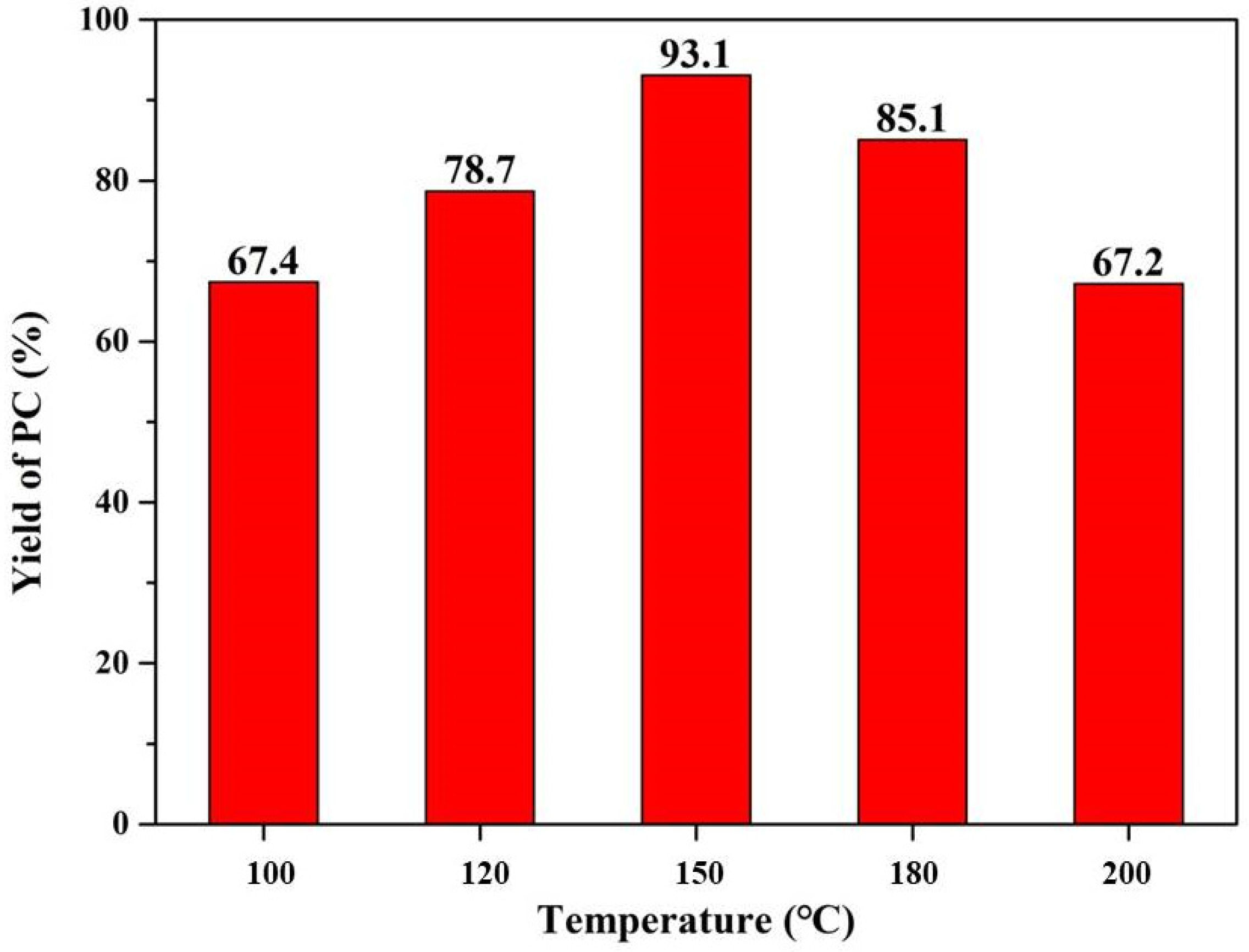

Figure 12. The histograms of the PC yield for CO2/PO cycloaddition reactions using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different reaction temperatures.
Figure 12. The histograms of the PC yield for CO2/PO cycloaddition reactions using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different reaction temperatures.
Nanomaterials 12 03442 g012
Nanomaterials 12 03442 g013 550
Figure 13. The histograms of the PC yield for CO2/PO cycloaddition reactions using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different reaction times.
Figure 13. The histograms of the PC yield for CO2/PO cycloaddition reactions using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different reaction times.
Nanomaterials 12 03442 g013
Table
Table 1. The average pore diameter and specific surface area of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Table 1. The average pore diameter and specific surface area of the as-prepared Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Molar Ratio of
Zr:Mg		Average Pore Diameter
(nm)		BET S.S.A
(m2/g)
10:03.41464.48
9:12.12283.04
8:24.4364.45
7:33.04370.67
6:43.68260.77
Table
Table 2. The PO conversion, PC selectivity, and PC yield using the Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Table 2. The PO conversion, PC selectivity, and PC yield using the Zr–Mg mixed oxide aerogels with different Zr/Mg molar ratios.
Molar Ratio of
Zr:Mg		Conversion
(%)		Selectivity
(%)		Yield
(%)
10:091.09.48.5
9:192.962.958.5
8:294.763.259.8
7:397.665.263.6
6:498.463.462.4
Table
Table 3. The PO conversion, PC selectivity, and PC yield using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different modification times at a reaction temperature of 150 °C.
Table 3. The PO conversion, PC selectivity, and PC yield using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under different modification times at a reaction temperature of 150 °C.
Times of APTMS
Modified		Conversion
(%)		Selectivity
(%)		Yield
(%)
Zero97.665.263.6
One98.371.870.6
Two97.978.176.4
Three>99.982.482.4
Four97.795.293.1
Five98.39189.5
Table
Table 4. The PO conversion, PC selectivity, and PC yield using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under four APTMS modifications at different reaction temperatures.
Table 4. The PO conversion, PC selectivity, and PC yield using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under four APTMS modifications at different reaction temperatures.
Temperature
(°C)		Conversion
(%)		Selectivity
(%)		Yield
(%)
10090.974.167.4
12098.979.678.7
15097.995.293.1
180>99.985.185.1
200>99.967.267.2
Table
Table 5. The PO conversion, PC selectivity, and PC yield using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under four APTMS modifications and reaction temperature of 150 °C at different reaction times.
Table 5. The PO conversion, PC selectivity, and PC yield using the APTMS-modified Zr–Mg mixed oxide aerogels with Zr/Mg molar ratio of 7/3 under four APTMS modifications and reaction temperature of 150 °C at different reaction times.
Reaction Time
(h)		Conversion
(%)		Selectivity
(%)		Yield
(%)
699.484.483.9
998.585.484.1
1597.795.293.1
24>99.940.640.6
Table
Table 6. The literature comparison of the PC yield using different heterogeneous catalysts and the APTMS-modified Zr–Mg mixed oxide aerogels.
Table 6. The literature comparison of the PC yield using different heterogeneous catalysts and the APTMS-modified Zr–Mg mixed oxide aerogels.
CatalystPO
(mmol)		Cat. Amount
(g)		Temp.
(°C)		PCO2
(kg/cm2)		Time
(h)		Co-Catalyst/SolventPC
Yield
(%)		Ref.
MgO250.5150804DMF32.1[44]
ZrO2250.5150804DMF10.9[44]
Al2O3250.5150804DMF6.6[44]
Al-Mg-O40.5100524DMF88[45]
MOF-5200.150604-0.1[59]
MOF-5200.150604n-Bu4NBr97.6[59]
ZIF-8850.11201012-52.5[60]
ZIF-67250.0312074-95[37]
ZIF-78200.11501015-50.7[61]
Zr-Mg-O Aerogel200.21501015-63.6This work
APTMS-modified
Al-Mg-O Aerogel		200.21501015-93.1This work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lin, Y.-F.; Lai, Y.-R.; Sung, H.-L.; Chung, T.-W.; Lin, K.-Y.A. Design of Amine-Modified Zr–Mg Mixed Oxide Aerogel Nanoarchitectonics with Dual Lewis Acidic and Basic Sites for CO2/Propylene Oxide Cycloaddition Reactions. Nanomaterials 2022, 12, 3442. https://doi.org/10.3390/nano12193442

AMA Style

Lin Y-F, Lai Y-R, Sung H-L, Chung T-W, Lin K-YA. Design of Amine-Modified Zr–Mg Mixed Oxide Aerogel Nanoarchitectonics with Dual Lewis Acidic and Basic Sites for CO2/Propylene Oxide Cycloaddition Reactions. Nanomaterials. 2022; 12(19):3442. https://doi.org/10.3390/nano12193442

Chicago/Turabian Style

Lin, Yi-Feng, Yu-Rou Lai, Hsiang-Ling Sung, Tsair-Wang Chung, and Kun-Yi Andrew Lin. 2022. "Design of Amine-Modified Zr–Mg Mixed Oxide Aerogel Nanoarchitectonics with Dual Lewis Acidic and Basic Sites for CO2/Propylene Oxide Cycloaddition Reactions" Nanomaterials 12, no. 19: 3442. https://doi.org/10.3390/nano12193442

APA Style

Lin, Y.-F., Lai, Y.-R., Sung, H.-L., Chung, T.-W., & Lin, K.-Y. A. (2022). Design of Amine-Modified Zr–Mg Mixed Oxide Aerogel Nanoarchitectonics with Dual Lewis Acidic and Basic Sites for CO2/Propylene Oxide Cycloaddition Reactions. Nanomaterials, 12(19), 3442. https://doi.org/10.3390/nano12193442

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
