Communication

Room Temperature Operation of UV Photocatalytic Functionalized AlGaN/GaN Heterostructure Hydrogen Sensor

by
June-Heang Choi
1,
Taehyun Park
2,
Jaehyun Hur
2,* and
Ho-Young Cha
1,*
1
School of Electronic and Electrical Engineering, Hongik University, Seoul 04066, Korea
2
Department of Chemical and Biological Engineering, Gachon University, Seongnam 13120, Gyeonggi, Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(6), 1422; https://doi.org/10.3390/nano11061422
Submission received: 13 April 2021 / Revised: 21 May 2021 / Accepted: 25 May 2021 / Published: 28 May 2021
(This article belongs to the Special Issue Nanosensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
An AlGaN/GaN heterostructure based hydrogen sensor was fabricated using a dual catalyst layer with ZnO-nanoparticles (NPs) atop of Pd catalyst film. The ZnO-NPs were synthesized to have an average diameter of ~10 nm and spin coated on the Pd catalyst layer. Unlike the conventional catalytic reaction, the fabricated sensors exhibited room temperature operation without heating owing to the photocatalytic reaction of the ZnO-NPs with ultraviolet illumination at 280 nm. A sensing response of 25% was achieved for a hydrogen concentration of 4% at room temperature with fast response and recovery times; a response time of 8 s and a recovery time of 11 s.

1. Introduction

Hydrogen is presently being studied as an alternative energy source for eco-friendly renewable energy generation instead of fossil fuels [1,2]. The successful utilization of hydrogen requires highly sensitive and reliable safety sensors. For example, hydrogen explosions occur at concentrations exceeding 4.65% [3,4,5]; therefore, the sensor must detect low levels of hydrogen quickly and accurately.
Among various types of sensors, an FET-type sensor with a catalytic gate material has been widely studied due to its compact size and low power consumption. A catalytic reaction with a target gas changes the surface potential of FET, which in turn modulates the FET current [5,6,7].
Gallium nitride (GaN) has a wide energy bandgap of 3.4 eV [8,9,10,11,12,13], which results in a low intrinsic carrier density allowing GaN to maintain its semiconductor properties at much temperatures higher than those possible with Si or GaAs. When an AlGaN/GaN heterostructure is formed, a 2-dimensional electron gas (2DEG) channel is created with high mobility at the interface [14,15,16]. Since the AlGaN thickness is generally of the order of a few tens of nanometers, the channel current strongly depends on the surface potential change, thus resulting in sensitive responses from the sensor. Therefore, an AlGaN/GaN heterostructure would be a great candidate for the sensing platform.
Various catalysts have been investigated for use in hydrogen sensors, including metals and metal oxides. Pt, Pd, and Ru are known to have high hydrogen solubility [17,18,19,20,21,22,23,24,25,26]. Metal oxides, such as ZnO, TiO2, SnO2, WO2, PdO, In2O3, and Fe2O3, have been studied mostly as resistive sensors where adsorbed oxygen ions play an important role in the reaction mechanism [27,28,29,30,31,32,33,34,35,36,37,38,39,40].
Since the typical catalytic reaction with hydrogen occurs at elevated temperatures [41], the sensor module must be heated using a separate or integrated heater, which incurs extra power and time for stabilization. In addition, thermal heating of the catalyst and sensor platform degrades long-term reliability [42]. Therefore, there is a strong demand for a hydrogen sensor operating at room temperature without heating. A possible solution would be a photocatalytic reaction where the gas reaction with catalyst material is accelerated by photoreaction. Indeed, it was reported that metal oxides reacted with hydrogen at room temperature with exposure to ultraviolet (UV) light [43,44,45,46,47]. In this study, an AlGaN/GaN FET sensor was fabricated using a dual catalyst layer with ZnO-nanoparticles (NPs) atop of Pd catalyst film, which exhibited room temperature sensing capability of hydrogen with UV illumination.

2. Experiment and Results

Figure 1 illustrates the synthesis process of ZnO-NPs. The precursor solution was the hydrolysis of Zn(CH3COO)2·2H2O (Sigma-Aldrich, St. Louis, MO, USA) with KOH (Samchun, Samchun, Seoul, South Korea, 95%) in methanol (Sigma-Aldrich, St. Louis, MO, USA, 99.9%). ZnO-NPs formed after 2 h reaction were separated by centrifugation. A detailed synthesis process and the characterization for the synthesized ZnO-NPs can be found in ref [48].
The crystal structure of the ZnO-NPs was investigated using powder X-ray diffraction, which is shown in Figure 2a. The crystal planes of the crystalline ZnO-NPs corresponding to the observed diffraction peaks are indicated in the plot, confirming the successful synthesis of ZnO-NPs. The internal and surface chemical bonding state of ZnO-NPs was analyzed through X-ray photoelectron spectroscopy (XPS). Figure 2b represents the O 1 s spectrum of ZnO-NPs where three distinct binding energy peaks were observed at 529.6, 531.0, and 532.1 eV, which corresponded to the O atom in the Zn-O bonding (lattice oxygen), oxygen sublattice imperfection (oxygen vacancy) and surface adsorbed O2− of ZnO-NPs, respectively [49,50,51]. This XPS result demonstrates the presence of the ionized oxygen molecules at the ZnO-NP surface, which plays an important role in the catalytic reaction under UV illumination. The absorption spectrum of ZnO-NPs as a function of wavelength was also measured to estimate the optical bandgap of ZnO-NPs. Figure 3a,b show the absorption spectrum and Tauc plot of the ZnO-NPs thin film from which the optical bandgap was estimated to be 3.24 eV. The wide band gap of ZnO-NPs can selectively absorb UV light that can remove the oxygen molecules adsorbed on the ZnO-NPs surface.
Figure 4a,b shows Transmission Electron Microscopy (TEM) and High-Resolution TEM (HRTEM) images of ZnO-NPs, respectively. The size of ZnO-NPs was in the range of 5–10 nm. The lattice fringe spacings of 0.28 and 0.25 nm observed in HRTEM image are related to (100) and (101) planes of the ZnO-NPs, respectively. Other crystalline planes such as (102) and (110) were also confirmed from the Fast Fourier transform (FFT) pattern shown in the inset of Figure 4b.
The AlGaN/GaN epitaxial structure used for sensor fabrication comprised a 10 nm in situ SiNx passivation layer, a 3.5 nm GaN layer, a 23 nm Al0.24Ga0.76N layer, and a 4.2 µm GaN layer on a Si (111) substrate. After defining the ohmic contact region, the exposed in-situ SiNx layer was etched using SF6-based inductively coupled plasma reactive ion etching (ICP-RIE) and the underlying GaN and AlGaN layers were etched down to the middle of the AlGaN layer using Cl2/BCl2-based ICP-RIE. A Ti/Al/Ni/Au metal stack was evaporated as the ohmic contact metal and a rapid thermal annealing process was carried out at 830 °C for 30 s in an N2 ambient. Then, device isolation was performed using the same etching process used for the ohmic contact formation, with a larger etch depth of 350 nm. The pad electrodes were formed using a Ti/Au metal stack. Then, the catalyst area was defined by photolithography. In order to lower the standby current to achieve high sensitivity [52], the catalyst area was also recessed using the same plasma etching method used for the ohmic contact process. The final thickness of the AlGaN layer after being etched was 10 nm. After evaporating a 30 nm Pd catalyst layer, the sensor surface was passivated with a 100 nm SiNx film. The passivation film on the catalyst region and pad contact area were etched using a SF6-based ICP-RIE. The synthesized ZnO-NPs were spin coated on the Pd layer after being dispersed in chloroform/ethanol solution using an ultrasonicator for 2 h. Finally, the sample was annealed at 120 °C for 1 h. The thicknesses of the ZnO-NP layer was 170 nm. The fabricated sensor with the ZnO-NP/Pd dual catalyst layer is illustrated in Figure 5, where the inset is the cross-sectional TEM image of the dual catalyst layer.
Sensor characteristics were measured at room temperature with and without UV illumination, where the UV light source was a 280 nm LED operated by a driving current of 180 mA resulting in an optical power density of 1.82 W/cm2 at the catalyst surface. The hydrogen concentration used for the tests was 4%.
The current–voltage characteristics without and with UV illumination at 280 nm are compared in Figure 6a,b, respectively. While little changes were observed in the sensor current under hydrogen injection without UV illumination, a significant increase was observed under hydrogen injection with UV illumination. The sensing mechanism is illustrated in Figure 7. There are negatively ionized oxygen species (O2−(ad)) adsorbed at the ZnO surface in air, which have strong adhesive energy at room temperature, making it difficult to react with hydrogen [44]. Therefore, the hydrogen sensing response at room temperature is very low. With UV illumination, electron-hole pairs are generated in ZnO, and holes react with O2− (ad) to produce oxygen gas molecules. Additionally, the gas molecules are ionized again by reacting with photogenerated electrons (O2−(hν)). These photoinduced ionized oxygen species have weak adhesive energy enabling hydrogen reaction at room temperature [53]. Removing oxygen ion species from the surface acts as a positive surface potential of the AlGaN/GaN FET sensor, which increases the sensor current. Therefore, hydrogen sensing is possible at room temperature with UV illumination. This effect is boosted in ZnO-NPs because of their large surface-to-volume ratios resulted from the small size of ZnO-NPs. The increased standby current with UV illumination is due to the removed O2−(ad) from the surface.
The sensing response characteristics are defined by [54]:
Response   [ % ] = ( I g a s − I a i r I a i r ) × 100 ,
where Igas is the sensor current with 4% hydrogen injection, and Iair is the sensor current without hydrogen injection. The extracted sensing response characteristics without and with UV illumination are shown in Figure 6c,d, respectively. Remarkable enhancement in the sensing response was observed with UV illumination. A response of ~25% was observed at a bias voltage of 5 V.
The sensing repeatability and time transient characteristics were examined at room temperature using a bias voltage of 5 V. Hydrogen gas with 4% concentration was injected for 20 s and paused for the subsequent 40 s, and this process was repeated. As shown in Figure 8a, stable operations with good repeatability characteristics are observed for both the cases with and without UV illumination. The magnified time transient characteristics are shown in Figure 8b, where the response and recovery times with UV illumination are 8 s and 11 s, respectively, whereas those without UV illumination are 12 s and 18 s, respectively. The response and recovery times were defined as the durations required for the response current to reach 90% and 10% of the saturation current, respectively.
The hydrogen concentration dependent response characteristics were also investigated at room temperature with UV illumination during which the hydrogen concentration was varied from 0.1% to 4%. The hydrogen gas was injected for 20 s at each concentration and the sensor was biased at 5 V. As shown in Figure 9, the sensing current exhibited strong dependency on hydrogen concentration over the entire range; the current increases with increasing hydrogen concentration.
In Table 1, the sensor characteristics are compared with other hydrogen sensors reported at room temperature. The hydrogen sensor fabricated in this work exhibited very fast response and recovery characteristics with a wide detection range. It is suggested that the sensing response can be further improved by employing a thinner AlGaN barrier layer that can reduce the standby current (Iair in Equation (1)) level [55].

3. Conclusions

UV-assisted photocatalytic hydrogen sensing capability was demonstrated at room temperature using an AlGaN/GaN based sensor with a dual catalyst layer of ZnO-NP/Pd. A sensing response of 25% with a response time of 8 s and a recovery time of 11 s was achieved for a hydrogen concentration of 4% at room temperature under 280 nm UV illumination. The room temperature operation can thus eliminate the process of heating that is generally required for hydrogen catalytic reactions using conventional materials. Therefore, the proposed sensor has advantages of less power consumption and no need for stabilization. To the best of our knowledge, this is the first demonstration of the operation of a UV-assisted AlGaN/GaN hydrogen sensor at room temperature.

Author Contributions

Conceptualization, experiments, data curation, writing—original draft, J.-H.C.; experiments, data curation, T.P.; investigation, writing—review and editing, J.H.; funding acquisition, investigation, supervision, writing—review and editing, H.-Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute for Advancement of Technology (KIAT) grant funded by the Korean Government (MOTIE) (P07820002101, The Competency Development Program for Industry Specialist) and Basic Science Research Programs (2015R1A6A1A03031833 and 2019R1A2C1008894) through the National Research Foundation of Korea (NRF).

Acknowledgments

Authors would like to thank Wontae Choi for his assistance in sensor measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Das, D. Advances in biohydrogen production process: An approach towards commercialization. Int. J. Hydrogen Energy 2009, 34, 7349–7357. [Google Scholar] [CrossRef]
  2. Jeon, J.; Kim, S.J. Recent Progress in Hydrogen Flammability Prediction for the Safe Energy System. Energies 2020, 13, 6263. [Google Scholar] [CrossRef]
  3. Wang, X.; La, C.K. An analysis of the explosion limit of hydrogen oxygen mixtures. J. Chem. Phys. 2013, 138, 134305. [Google Scholar]
  4. Steinberg, M.; Cheng, H.C. Modern and prospective technologies for hydrogen production from fossil fuels. Int. J. Hydrogen Energy 1989, 14, 797–820. [Google Scholar] [CrossRef]
  5. Sharman, B.; Kim, J.S. MEMS based highly sensitive dual FET gas sensor using graphene decorated Pd-Ag alloy nanoparticles for H2 detection. Sci. Rep. 2018, 8, 5902. [Google Scholar] [CrossRef] [PubMed]
  6. Shin, W.J.; Hong, S.B.; Jung, G.W.; Jeong, Y.J.; Park, J.W.; Kim, D.H.; Jang, D.K.; Park, B.G.; Lee, J.H. Improved signal-to-noise-ratio of FET-type gas sensors using body bias control and embedded micro-heater. Sens. Actuators B Chem. 2021, 329, 129166. [Google Scholar] [CrossRef]
  7. Hong, S.B.; Wu, M.; Hong, Y.; Joeng, Y.J.; Jung, G.W.; Shin, W.J.; Park, J.W.; Kim, D.H.; Jang, D.K.; Lee, J.H. FET-type gas sensors: A-review. Sens. Actuators B Chem. 2021, 330, 129240. [Google Scholar] [CrossRef]
  8. Jin, H.; Qin, L.; Zhang, L.; Zeng, X.; Yang, R. Review of wide band-gap semiconductors technology. MATEC Web Conf. 2016, 40, 01006. [Google Scholar] [CrossRef] [Green Version]
  9. Vuong, T.A.; Kim, H. Pt-AlGaN/GaN HEMT-based hydrogen gas sensors with without SiNx post-passivation. J. IKEE 2019, 23, 1033–1037. [Google Scholar]
  10. ChiChibu, S.F.; Uedono, A.; Kolima, K.; Ikeda, H.; Fujito, K.; Takashima, S.; Edo, M.; Ueno, K.; Ishibashi, S. The origins and properties of intrinsic nonradiative recombination centers in wide bandgap GaN and AlGaN. J. Appl. Phys. 2018, 123, 161413. [Google Scholar] [CrossRef] [Green Version]
  11. Choi, J.H.; Jo, M.G.; Han, S.W.; Kim, H.; Jang, S.; Kim, S.H.; Kim, J.S.; Cha, H.Y. Hydrogen sensors Pd-functionalised AlGaN/GaN heterostructure with high sensitivity and low-power consumption. Electron. Lett. 2017, 53, 1200–1202. [Google Scholar] [CrossRef]
  12. Burk, A.A. Jr.; O’Loughlin, M.J.; Siergiej, R.R.; Agarwal, A.K.; Sriram, S.; Clarke, R.C.; MacMillan, M.R.; Balakrishna, V.; Brandt, C.D. SiC and GaN wide bandgap semiconductor materials and devices. Solid-State Electron. 1999, 43, 1459–1464. [Google Scholar] [CrossRef]
  13. Chen, J.T.; Persson, I.; Nilsson, D.; Hsu, C.W.; Palisaitis, J.; Forsberg, U.; Persson, P.O.Å.; Janzen, E. Room temperature mobility above 2200 cm2/V·s of two-dimensional electron gas in a sharp-interface AlGaN/GaN heterostructure. Appl. Phys. Lett. 2015, 106, 251601. [Google Scholar] [CrossRef] [Green Version]
  14. Chow, T.P.; Tyagi, R. Wide band compound semiconductors for superior high-voltage power devices. In Proceedings of the 5th International Symposium on Power Semiconductor Devices and ICs, Monterey, CA, USA, 18–20 May 1993; IEEE: Piscataway, NJ, USA, 1993; pp. 84–88. [Google Scholar]
  15. Trivedi, M.; Shenai, K. Performance evaluation of high-power wide band gap semiconductor rectifiers. J. Appl. Phys. 1999, 85, 6889. [Google Scholar] [CrossRef]
  16. Trivedi, M.; Shenai, K. Practical limits of high-voltage thyristors on wide band-gap materials. J. Appl. Phys. 2000, 88, 7313. [Google Scholar] [CrossRef]
  17. Safarik, D.K.; Schwarz, R.B.; Paglieri, S.N.; Quintana, R.L.; Tuggle, D.G.; Byler, D.D. Composition dependence of the elastic constants of β-phase and (α+β)-phase PdHx. Ultrasonics 2010, 50, 155–160. [Google Scholar] [CrossRef] [PubMed]
  18. Khanuja, M.; Shrestha, S.; Metha, B.R.; Kala, S.; Kruis, F.E. Magnitude and time response of electronic and topographical changes during hydrogen sensing in size selected palladium nanoparticles. J. Appl. Phys. 2011, 110, 014318. [Google Scholar] [CrossRef]
  19. Fisser, M.; Badcock, A.B.; Teal, P.D.; Hunze, A. Optimizing the sensitivity of palladium based hydrogen sensors. Sens. Actuators B Chem. 2018, 259, 10–19. [Google Scholar] [CrossRef]
  20. Choi, J.H.; Kim, H.; Cha, H.Y. Improved Stability of AlGaN/GaN Heterojunction Schottky-diode-type Hydrogen Sensor Using Constant Current Source Operation. J. Semicond. Technol. Sci. 2020, 20, 430–435. [Google Scholar] [CrossRef]
  21. Kim, D.H.; Kim, S.J.; Shin, H.; Koo, W.T.; Jang, J.S.; Kang, J.Y.; Jeong, Y.J.; Kim, I.D. High-Resolution, Fast, and Shape-Conformable Hydorgen Sensor Platform: Polymer Nanofiber Yarn Couple with Nanograined Pd@Pt. ACS Nano 2019, 13, 6071–6082. [Google Scholar] [CrossRef]
  22. Lee, C.T.; Yan, J.T. Sensing mechanism of Pt/β-Ga2O3/GaN hydrogen sensor diodes. Sens. Actuators B Chem. 2010, 147, 723–729. [Google Scholar] [CrossRef]
  23. Lechuga, L.M.; Calle, A.; Golmayo, D.; Briones, F. Hydrogen sensor based on Pt/GaAs Schottky diode. Sens. Actuators B Chem. 1991, 4, 515–518. [Google Scholar] [CrossRef]
  24. Jung, S.; Baik, K.H.; Ren, F.; Pearton, S.J.; Jang, S. Pt-AlGaN/GaN Hydorgen Sensor with Water-Blocking PMMA Layer. IEEE Electron. Device Lett. 2017, 38, 657–660. [Google Scholar] [CrossRef]
  25. Tsukada, K.; Kiwa, T.; Ymaguchi, T.; Migitaka, S.; Goto, Y.; Yokosawa, K. A study of fast response characteristics for hydrogen sensing platinum FET sensor. Sens. Actuators B Chem. 2006, 114, 158–163. [Google Scholar] [CrossRef]
  26. Chen, J.; Zhang, J.; Wang, M.; Li, M. High-temperature hydrogen sensor based on platinum nanoparticle-decorated SiC nanowire device. Sens. Actuators B Chem. 2014, 201, 402–406. [Google Scholar] [CrossRef]
  27. Choo, T.F.; Saidin, N.U.; Kok, K.Y. Hydrogen sensing enhancement of zincoxide nanorode via voltage biasing. R. Soc. Open Sci. 2018, 5, 172372. [Google Scholar] [CrossRef] [Green Version]
  28. Kadhim, I.H.; Hassan, A.H.; Abdullah, Q.N. Hydrogen gas sensor based on nanocrystalline SnO2 thin film grown on bare Si substrates. Nano-Micro Lett. 2015, 8, 20. [Google Scholar] [CrossRef] [Green Version]
  29. Li, Z.; Yao, Z.; Haidry, A.A.; Plecenik, T.; Xie, L.; Sun, L.; Fatima, Q. Resistive-type hydrogen gas sensor based on TiO2: A review. Int. J. Hydrogen Energy 2018, 43, 21114–21132. [Google Scholar] [CrossRef]
  30. Yao, I.C.; Lin, P.; Tseng, T.Y. Hydrogen Gas Sensors Using ZnO-SnO2 Core-Shell Nanostructure. J. Comput. Theor. Nanosci. 2010, 3, 548–553. [Google Scholar]
  31. Larin, A.; Womble, P.C.; Dobrokhotov, V. Hybrid SnO2/TiO2 Nanocomposites for Selective Detection of Ultra-Low Hydrogen Sulfide Concentrations in Complex Backgrounds. Sensors 2016, 16, 1373. [Google Scholar] [CrossRef]
  32. Ren, Q.; Cao, Y.Q.; Arulrj, D.; Liu, C.; Wu, D.; Li, W.M.; Li, A.D. Review-Resistive-Type Hydrogen Sensors Based on Zinc Oxide Nanostructures. J. Electrochem. Soc. 2020, 167, 167528. [Google Scholar] [CrossRef]
  33. Chachuli, S.A.M.; Hamidon, M.N.; Mamat, Md.S.; Ertugrul, M.; Abdullah, N.H. A Hydrogen Gas Sensor Based on TiO2 Nanoparticles on Alumina Substrate. Sensors 2018, 18, 2483. [Google Scholar] [CrossRef] [Green Version]
  34. Choi, P.G.; Izu, N.; Shirahata, N.; Masuda, Y. Fabrication and H2-Sensing Properties of SnO2 Nanosheet Gas Sensors. ACS Omega 2018, 3, 14592–14596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Xue, N.; Zhang, Q.; Zhang, S.; Zong, P.; Yang, F. Highly Sensitive and Selective Hydrogen Gas Sensor Using the Mesoporous SnO2 Modified Layers. Sensors 2017, 17, 2351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Zakzewska, K.; Radecka, M. TiO2-Based Nanomaterials for Gas Sensing-Influence of Anatase and Rutile Contributions. Nanoscale Res. Lett. 2017, 12, 1–8. [Google Scholar]
  37. Haviar, S.; Capek, J.; Batkova, S.; Kumar, N.; Dvorak, F.; Duchon, T.; Fialova, M.; Zeman, P. Hydrogen gas sensing properties of WO3 sputter-deposited thin films enhanced by on-top deposited CuO nanoclusters. Int. J. Hydrogen Energy 2018, 43, 22756–22764. [Google Scholar] [CrossRef]
  38. Mirzaei, A.; Kim, J.H.; Kim, H.W.; Kim, S.S. Gasochromic WO3 Nanostructure for the Detection of Hydrogen Gas: An Overview. Appl. Sci. 2019, 9, 1775. [Google Scholar] [CrossRef] [Green Version]
  39. Li, Z.; Yan, S.; Wu, Z.; Li, H.; Wang, J.; Shen, W.; Wang, Z.; Fu, Y. Hydrogen gas sensor based on mesoporous In2O3 with fast response/recovery and ppb level detection limit. Int. J. Hydrogen Energy 2018, 43, 22746–22755. [Google Scholar] [CrossRef]
  40. Hara, K.; Nishida, N. H2 sensors using Fe2O3-based thin film. Sens. Actuators B Chem. 1994, 20, 181–186. [Google Scholar] [CrossRef]
  41. Chen, L.; Qi, Z.; Zhang, S.; Su, J.; Somorijai, G.A. Catalytic hydrogen production from methane: A review on recent progress and prospect. Catalyst 2020, 10, 858. [Google Scholar] [CrossRef]
  42. Marchenkov, E.A.; Shipul, V.P. Thermal expansion of semiconductor materials. J. Eng. Thermophys. Rus. 1944, 66, 547–551. [Google Scholar] [CrossRef]
  43. Hashtroudi, H.; Kumar, R.; Savu, R.; Moshkalev, S.; Kawamura, G.; Matsuda, A.; Shafiei, M. Hydrogen gas sensing properties of microwave-assisted 2D Hybrid Pd/rGO: Effect of temperature, humidity and UV illumination. Int. J. Hydrogen Energy 2021, 46, 7653–7665. [Google Scholar] [CrossRef]
  44. Kumar, M.; Kumar, R.; Rajamani, S.; Ranwa, S.; Fanetti, M.; Valant, M.; Kumar, M. Efficient room temperature hydrogen sensor based on UV-activated ZnO-network. Nanotechnology 2017, 28, 365502. [Google Scholar] [CrossRef]
  45. Kumar, R.; Liu, X.; Zhang, J.; Kumar, M. Room-Temperature Gas Sensors Under Photoactivation: From Metal Oxides to 2D Materials. Nano-Micro Lett. 2020, 12, 164. [Google Scholar] [CrossRef]
  46. Su, X.; Duan, G.; Xu, Z.; Zhou, F.; Cai, W. Structure and thickness-dependent gas sensing response to NO2 under UV irradiation for the multilayered ZnO micro/nanostructured porous thin films. J. Colloid Interface Sci. 2017, 503, 150–158. [Google Scholar] [CrossRef] [PubMed]
  47. Geng, X.; Luo, Y.; Zheng, B.; Zhang, C. Photon assisted room-temperature hydrogen sensors using PdO load WO3 nanohybrids. Int. J. Hydrogen Energy 2017, 42, 6425–6434. [Google Scholar] [CrossRef]
  48. Choi, J.H.; Park, T.H.; Hur, J.H.; Cha, H.Y. AlGaN/GaN Heterojunction Hydrogen Sensor Using ZnO-Nanoparticles/Pd Dual Catalyst Layer. Sens. Actuators B Chem. 2020, 325, 128946. [Google Scholar] [CrossRef]
  49. Sahai, A.; Goswami, N. Probing the dominance of interstitial oxygen defects in ZnO nanoparticles through structural and optical characterizations. Ceram. Int. 2014, 40, 14569–14578. [Google Scholar] [CrossRef]
  50. Tu, Y.; Chen, S.; Li, X.; Gorbaciova, J.; Gillin, W.; Krause, S.; Briscoe, J. Control of oxygen vacancies in ZnO nanorods by annealing and their influence on ZnO/PEDOT:PSS diode behaviour. J. Mater. Chem. C 2018, 6, 1815–1821. [Google Scholar] [CrossRef] [Green Version]
  51. Khokhra, R.; Bharti, B.; Lee, H.-N.; Kumar, R. Visible and UV photo-detection in ZnO nanostructured films via simple tuning of solution method. Sci. Rep. 2017, 7, 15032. [Google Scholar] [CrossRef] [Green Version]
  52. Choi, J.H.; Anh, V.T.; Kim, H.; Cha, H.Y. High-Sensitivity Hydrogen Sensor Based on AlGaN/GaN Heterojunction Field-Effect Transistor. J. Nanosci. Nanotechnol. 2020, 20, 4404–4408. [Google Scholar] [CrossRef] [PubMed]
  53. Fan, S.-W.; Srivastava, A.K.; Dravid, V.P. UV-activated room-temperature gas sensing mechanism of polycrystalline ZnO. Appl. Phys. Lett. 2009, 95, 142106. [Google Scholar] [CrossRef]
  54. Baik, K.H.; Kim, J.; Jang, S. Highly sensitive nonpolar a-plane GaN based hydrogen diode sensor with textured active area using photo-chemical etching. Sens. Actuators B Chem. 2017, 238, 462–467. [Google Scholar] [CrossRef]
  55. Chung, G.; Cha, H.Y.; Kim, H. Enhanced hydrogen sensitivity of AlGaN/GaN heterojunction gas sensors by GaN-cap layer. Electron. Lett. 2018, 54, 896–897. [Google Scholar] [CrossRef]
  56. Lim, W.; Wright, J.S.; Gila, B.P.; Johnson, J.L.; Ural, A.; Anderson, T.; Ren, F.; Pearton, S.J. Room temperature hydrogen detection using Pd-coated GaN nanowires. Appl. Phys. Lett. 2018, 93, 072109. [Google Scholar] [CrossRef]
  57. Cho, H.J.; Chen, V.T.; Qiao, S.; Koo, W.T.; Penner, R.M. Pt-Functionalized PdO Nanowires for Room Temperature Hydrogen Gas Sensor. ACS Sens. 2018, 3, 2152–2158. [Google Scholar] [CrossRef]
  58. Wang, Z.; Li, Z.; Jiang, T.; Xu, X.; Wang, C. Ultrasensitive Hydrogen Sensor Based on Pd0-Loaded SnO2 Electrospun Nanofibers at Room Temperature. ACS Mater. Interfaces 2013, 5, 2013–2021. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, S.C.; Shaikh, M.O.A. Room Temperature H2 Sensor Fabricated Using High Performance Pt-Loaded SnO2 Nanoparticles. Sensors 2015, 15, 14286–14297. [Google Scholar] [CrossRef] [Green Version]
  60. Wang, H.T.; Kang, B.S.; Ren, F.; Tien, L.C.; Sadik, P.W.; Norton, D.P.; Pearton, S.J.; Lin, J. Hydrogen-selective sensing at room temperature with ZnO nanorods. Appl. Phys. Lett. 2005, 86, 243503. [Google Scholar] [CrossRef]
  61. Cheng, W.; Ju, Y.; Payamyar, P.; Primc, D.; Rao, J.; Willa, C.; Koziej, D.; Niedeberger, M. Large-Area Alignment of Tungsten Oixde Nanowires over Flat and Patterned Substrates for Room-Temperature Gas Sensing. Angew. Chem. Int. Ed. 2015, 54, 340–344. [Google Scholar] [CrossRef]
  62. Simo, A.; Mwakikunga, B.; Sone, B.T.; Julies, B.; Madjoe, R.; Maaza, M. VO2 nanostructures based chemiresistors for low power energy consumption hydrogen sensing. Int. J. Hydrogen Energy 2014, 39, 8147–8157. [Google Scholar] [CrossRef]
  63. Kadhim, I.H.; Hassan, H.A. Room temperature hydrogen gas sensor based on nanocrystalline SnO2 thin fim using sol-gel spin coating technique. J. Mater. Sci. Mater. Electron. 2018, 27, 4356–4362. [Google Scholar] [CrossRef]
  64. Fields, L.L.; Zheng, J.P.; Cheng, Y.; Xiong, P. Room-temperature low-power hydrogen sensor single tin dioxide nanobelt. Appl. Phys. Lett. 2006, 88, 263102. [Google Scholar] [CrossRef]
  65. Xiang, C.; She, Z.; Zou, Y.; Cheng, J.; Chu, H.; Qiu, S.; Zhang, H.; Sun, L.; Xu, F. A room-temperature hydrogen sensor based on Pd nanoparticles doped TiO2 nanotubes. Ceram. Int. 2014, 40, 16343–16348. [Google Scholar] [CrossRef]
  66. Tsai, Y.Y.; Lin, K.W.; Lu, C.T.; Chen, H.I.; Chuang, H.M.; Chen, C.Y.; Cheng, C.C.; Liu, W.C. Investigation of Hydrogen-Sensing Properties of Pd/AlGaAs-Based Schottky Diodes. IEEE Trans. Electron. Devices 2003, 50, 2532–2539. [Google Scholar] [CrossRef]
  67. Liu, I.P.; Chang, C.H.; Ke, B.Y.; Lin, K.W. Study of a GaN Schottky diode based hydrogen sensor with a hydrogen peroxide oxidation approach and platinum catalytic metal. Int. J. Hydrogen Energy 2019, 44, 32351–32361. [Google Scholar] [CrossRef]
Nanomaterials 11 01422 g001 550

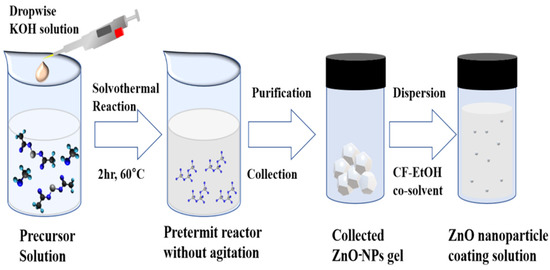

Figure 1. Synthesis process for ZnO-NPs.
Figure 1. Synthesis process for ZnO-NPs.
Nanomaterials 11 01422 g001
Nanomaterials 11 01422 g002 550

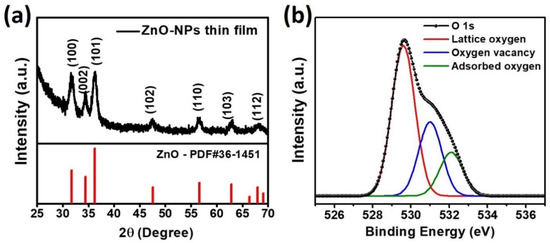

Figure 2. (a) X-ray diffraction pattern and (b) O 1s XPS spectra of as-synthesized ZnO-NPs.
Figure 2. (a) X-ray diffraction pattern and (b) O 1s XPS spectra of as-synthesized ZnO-NPs.
Nanomaterials 11 01422 g002
Nanomaterials 11 01422 g003 550

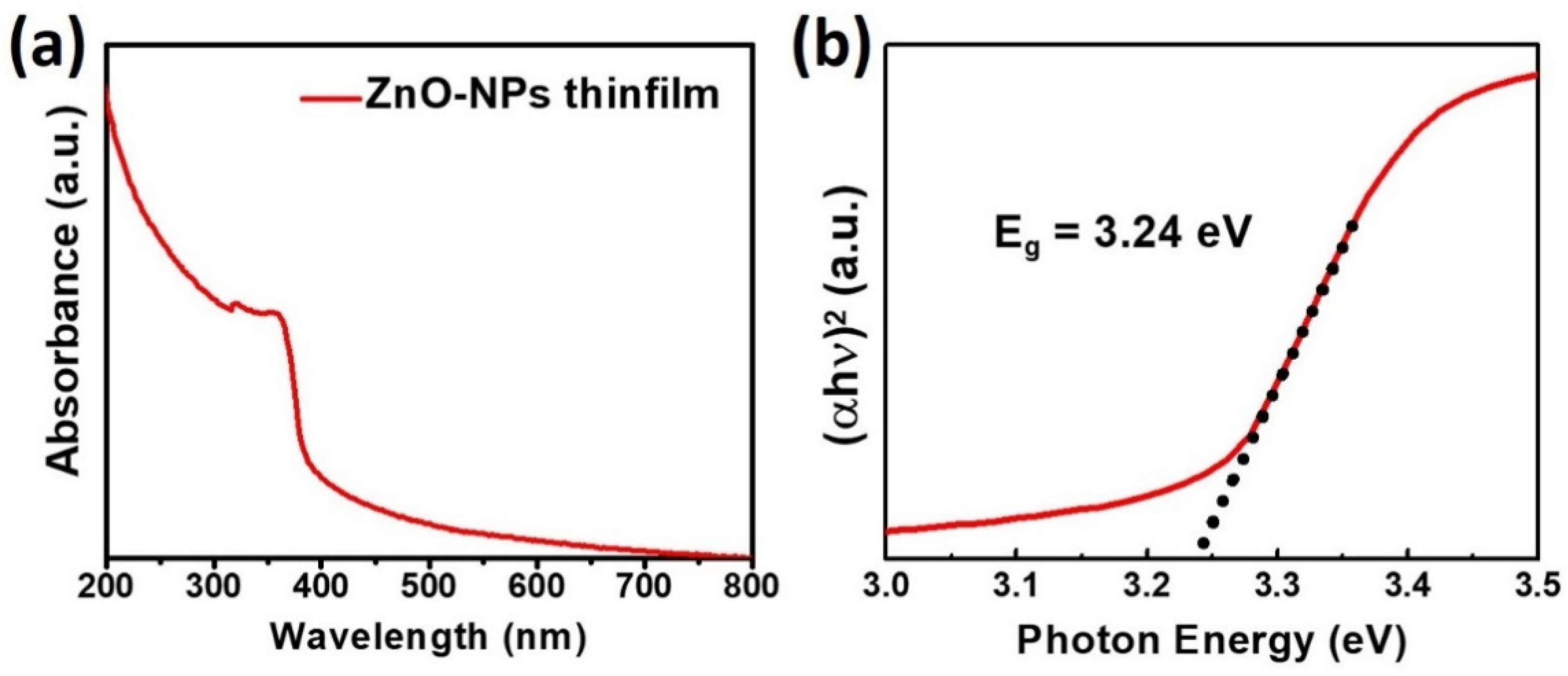

Figure 3. (a) Absorption spectrum and (b) Tauc plot of ZnO-NPs thin film.
Figure 3. (a) Absorption spectrum and (b) Tauc plot of ZnO-NPs thin film.
Nanomaterials 11 01422 g003
Nanomaterials 11 01422 g004 550

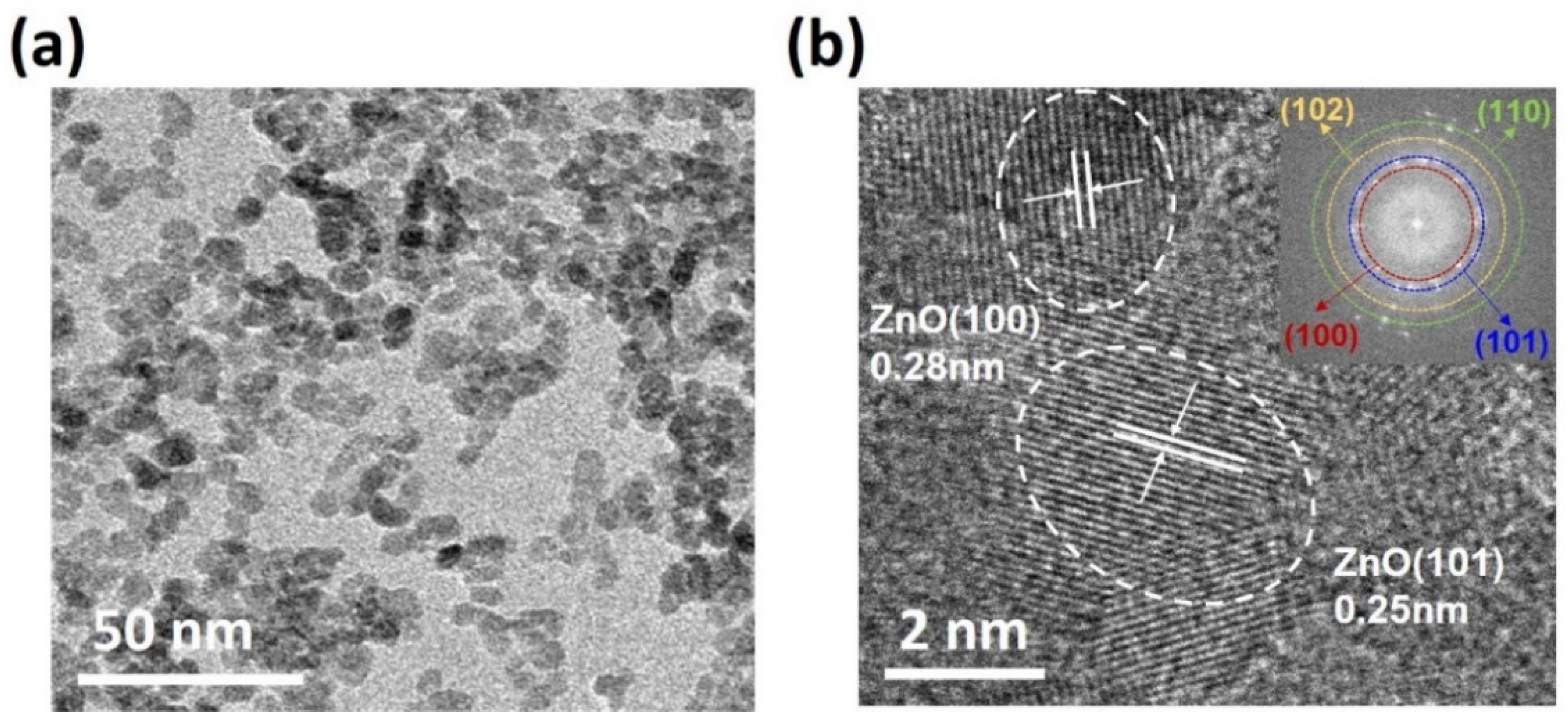

Figure 4. (a) TEM and (b) HRTEM image of as-synthesized ZnO NPs (inset: FFT pattern).
Figure 4. (a) TEM and (b) HRTEM image of as-synthesized ZnO NPs (inset: FFT pattern).
Nanomaterials 11 01422 g004
Nanomaterials 11 01422 g005 550

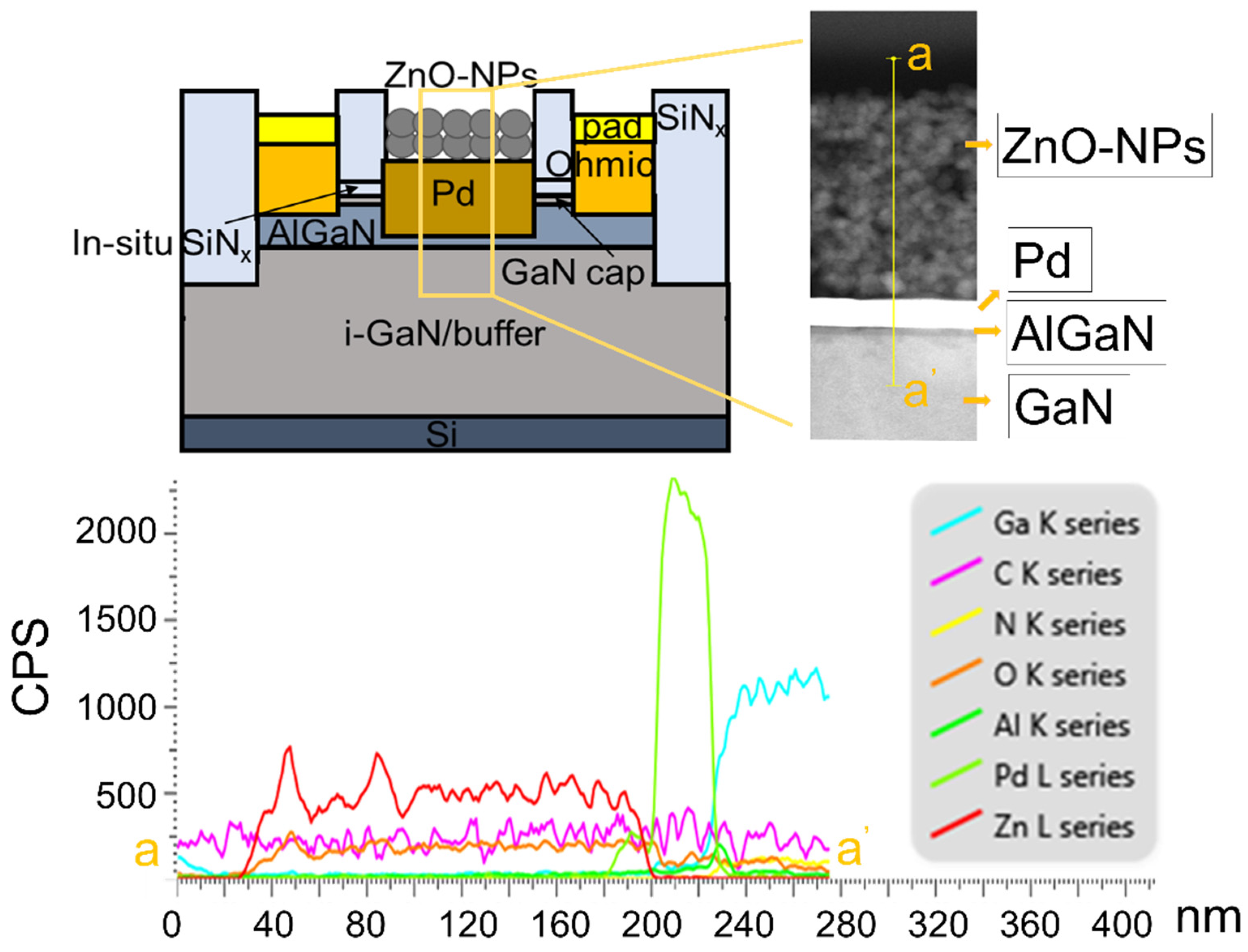

Figure 5. Cross-sectional schematic of AlGaN/GaN based hydrogen sensor with a dual catalyst layer. The inset shows the cross-sectional TEM image of the dual catalyst layer of ZnO-NP/Pd.
Figure 5. Cross-sectional schematic of AlGaN/GaN based hydrogen sensor with a dual catalyst layer. The inset shows the cross-sectional TEM image of the dual catalyst layer of ZnO-NP/Pd.
Nanomaterials 11 01422 g005
Nanomaterials 11 01422 g006 550

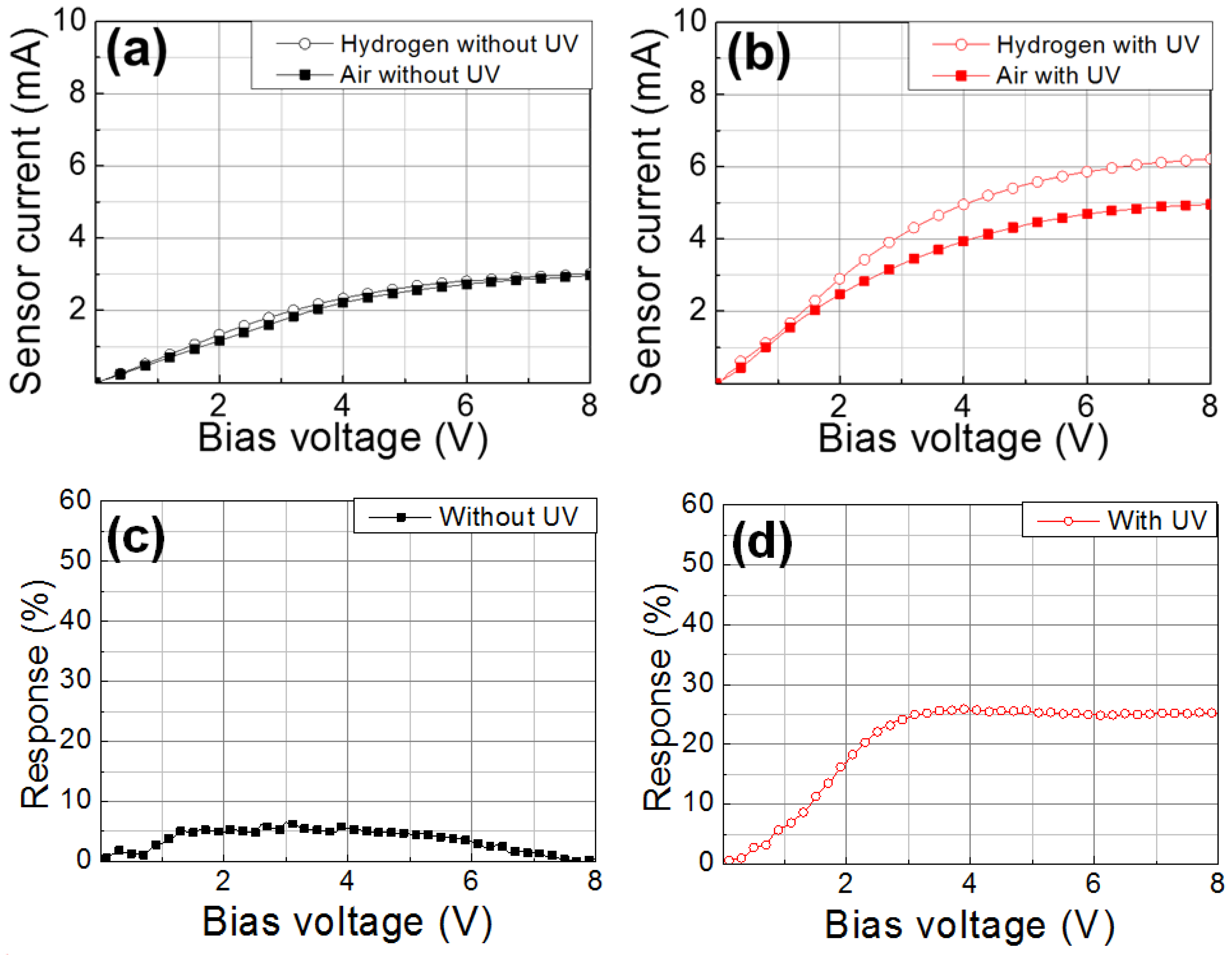

Figure 6. Sensing characteristics of a fabricated AlGaN/GaN based hydrogen sensor with ZnO-NP/Pd dual catalyst layer at room temperature without and with UV illumination; current–voltage characteristics (a) without and (b) with UV illumination and the corresponding response characteristics (c) without and (d) with UV illumination.
Figure 6. Sensing characteristics of a fabricated AlGaN/GaN based hydrogen sensor with ZnO-NP/Pd dual catalyst layer at room temperature without and with UV illumination; current–voltage characteristics (a) without and (b) with UV illumination and the corresponding response characteristics (c) without and (d) with UV illumination.
Nanomaterials 11 01422 g006
Nanomaterials 11 01422 g007 550

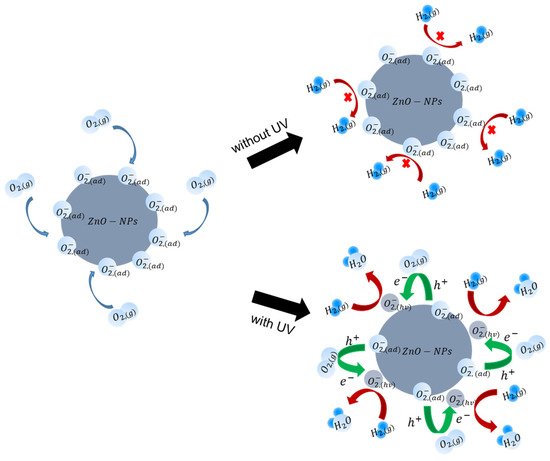

Figure 7. Schematic illustration of UV photocatalytic reaction of hydrogen with ZnO-NP.
Figure 7. Schematic illustration of UV photocatalytic reaction of hydrogen with ZnO-NP.
Nanomaterials 11 01422 g007
Nanomaterials 11 01422 g008 550

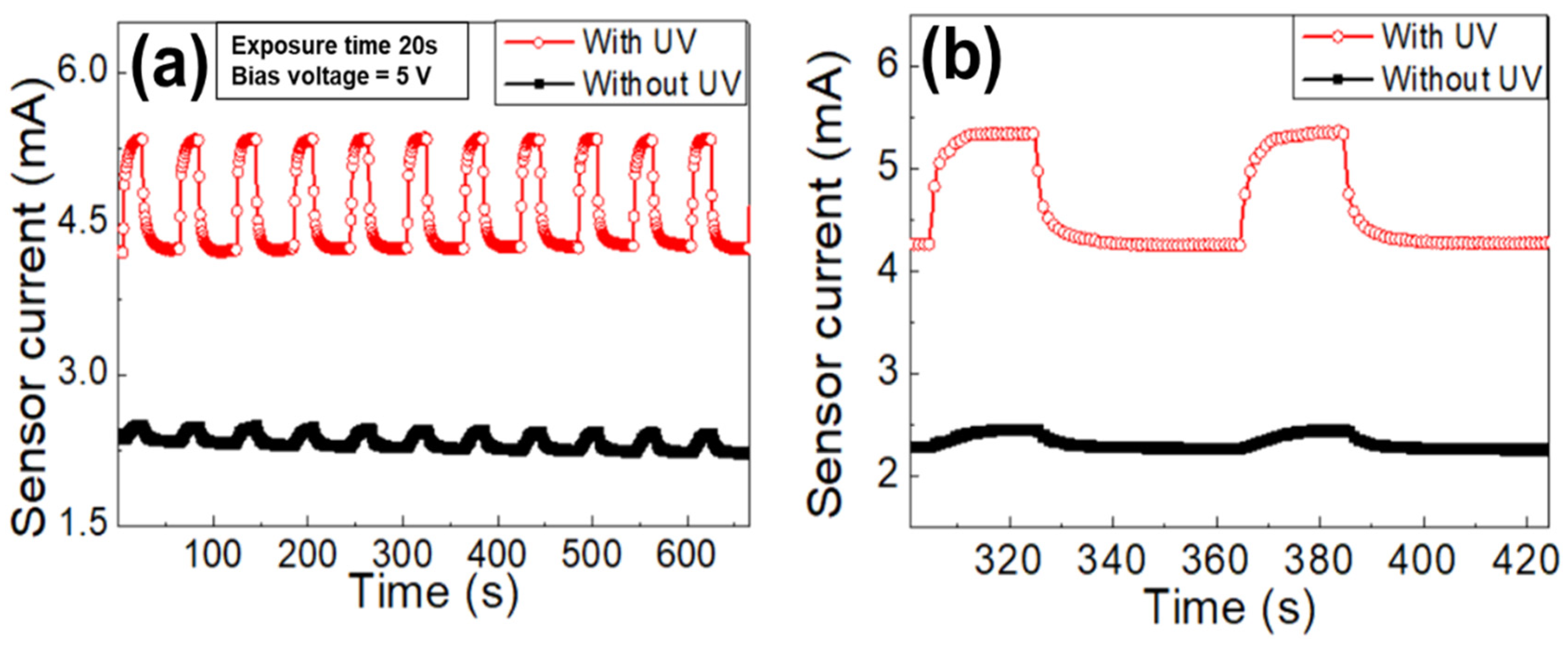

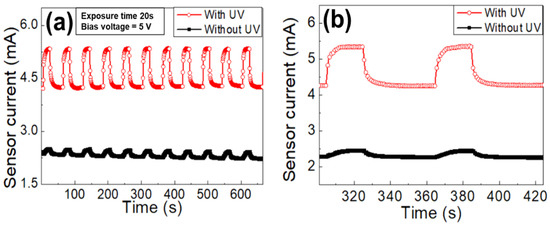

Figure 8. (a) Sensing repeatability characteristics of AlGaN/GaN hydrogen sensor with and without UV illumination and (b) zoom-in time transient characteristics.
Figure 8. (a) Sensing repeatability characteristics of AlGaN/GaN hydrogen sensor with and without UV illumination and (b) zoom-in time transient characteristics.
Nanomaterials 11 01422 g008
Nanomaterials 11 01422 g009 550

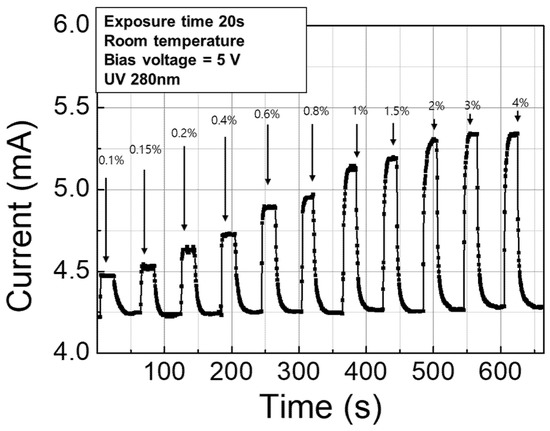

Figure 9. Hydrogen concentration dependent response characteristics of AlGaN/GaN hydrogen sensor at room temperature with UV illumination.
Figure 9. Hydrogen concentration dependent response characteristics of AlGaN/GaN hydrogen sensor at room temperature with UV illumination.
Nanomaterials 11 01422 g009
Table
Table 1. Comparison of hydrogen sensor characteristics reported at room temperature.
Table 1. Comparison of hydrogen sensor characteristics reported at room temperature.
Sensor TypeCatalystCatalyst StructureHydrogen ConcentrationResponse TimeRecovery TimeSensor ResponseRef
ResistiveAu/ZnONanoparticle0.0005%4 s24 s21.5%[44]
ResistiveZnONanoline0.01%~12 min~20 min19%[53]
ResistivePdNanowire0.15%~10 min~10 min9.1%[56]
ResistivePtNanoparticle/nanowire0.2%--62%[57]
ResistivePdNanoparticle/nanofiber0.1%~6 s~3 s12.09%[58]
ResistivePt/SnO2Nanoparticle/nanoparticle0.1%~20 s~80 s10,500%[59]
ResistiveZnONanorod0.05%~15 min~20 s4.2%[60]
ResistiveW18O4Nanowire0.0002%--~1%[61]
ResistiveVO2Nanobelts0.014%~840 s~455 s~1800%[62]
ResistiveSnO2Nanoparticle0.1%205 s116 s600%[63]
ResistiveSnO2Nanobelts2%~220 s~220 s50%[64]
ResistivePdNanoparticle/nanotube1%2 min1.5 min9.5%[65]
Diode
(AlGaAs MOS)		PdThin film1%58 s-155.9%[66]
Diode
(AlGaAs Schottky)		PdThin film1%400 s-~5%
Diode
(GaN Schottky)		PtThin film1%15 s19 s1 × 105%[67]
FET
(AlGaN/GaN)		ZnO/PdNanoparticle/thin film4%8 s11 s25% This work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Choi, J.-H.; Park, T.; Hur, J.; Cha, H.-Y. Room Temperature Operation of UV Photocatalytic Functionalized AlGaN/GaN Heterostructure Hydrogen Sensor. Nanomaterials 2021, 11, 1422. https://doi.org/10.3390/nano11061422

AMA Style

Choi J-H, Park T, Hur J, Cha H-Y. Room Temperature Operation of UV Photocatalytic Functionalized AlGaN/GaN Heterostructure Hydrogen Sensor. Nanomaterials. 2021; 11(6):1422. https://doi.org/10.3390/nano11061422

Chicago/Turabian Style

Choi, June-Heang, Taehyun Park, Jaehyun Hur, and Ho-Young Cha. 2021. "Room Temperature Operation of UV Photocatalytic Functionalized AlGaN/GaN Heterostructure Hydrogen Sensor" Nanomaterials 11, no. 6: 1422. https://doi.org/10.3390/nano11061422

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
