Metal-N4@Graphene as Multifunctional Anchoring Materials for Na-S Batteries: First-Principles Study

by
Kaishuai Yang
1,
Dayong Liu
2,
Yiling Sun
1,*,
Zhengfang Qian
1,
Shengkui Zhong
3 and
Renheng Wang
1,*
1
Key Laboratory of Optoelectronic Devices and Systems of Ministry of Education and Guangdong Province, College of Physics and Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
2
Key Laboratory of Materials Physics, Institute of Solid State Physics, HFIPS, Chinese Academy of Sciences, Hefei 230031, China
3
School of Marine Science and Technology, Hainan Tropical Ocean University, Sanya 572000, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(5), 1197; https://doi.org/10.3390/nano11051197
Submission received: 30 March 2021 / Revised: 23 April 2021 / Accepted: 27 April 2021 / Published: 1 May 2021
(This article belongs to the Section Nanocomposite Materials)
Browse Figures
Versions Notes

Abstract

:
Developing highly efficient anchoring materials to suppress sodium polysulfides (NaPSs) shuttling is vital for the practical applications of sodium sulfur (Na-S) batteries. Herein, we systematically investigated pristine graphene and metal-N4@graphene (metal = Fe, Co, and Mn) as host materials for sulfur cathode to adsorb NaPSs via first-principles theory calculations. The computing results reveal that Fe-N4@graphene is a fairly promising anchoring material, in which the formed chemical bonds of Fe-S and N-Na ensure the stable adsorption of NaPSs. Furthermore, the doped transition metal iron could not only dramatically enhance the electronic conductivity and the adsorption strength of soluble NaPSs, but also significantly lower the decomposition energies of Na2S and Na2S2 on the surface of Fe-N4@graphene, which could effectively promote the full discharge of Na-S batteries. Our research provides a deep insight into the mechanism of anchoring and electrocatalytic effect of Fe-N4@graphene in sulfur cathode, which would be beneficial for the development of high-performance Na-S batteries.

Graphical Abstract

1. Introduction

In recent years, it has become more and more difficult for the current commercial lithium-ion batteries (LIB), due to their relatively low theoretical energy density limits (200–300 Wh/kg), to meet the ever-growing demands of society’s electrical energy storage, including portable electronic devices, electric vehicles, and smart grid storage applications [1,2,3]. Therefore, novel rechargeable batteries with a large charge storage capacity and a high energy density are urgently needed [4,5,6,7,8,9]. Owing to the extremely high theoretical specific capacity of the elements sulfur (1672 mAh/g) and sodium (1165 mAh/g), and to the batteries’ high theoretical energy density of 1274 Wh/kg of cell weight [10,11,12,13], the rapidly developing room temperature (RT) sodium-sulfur (Na-S) batteries are widely considered as one of the most promising alternative candidates for the next-generation rechargeable batteries to replace the conventional insertion-type LIB [14,15,16,17]. Furthermore, both sodium and sulfur element materials are earth-crust abundant, sufficiently low-cost, and environmentally friendly [18,19].
Despite these advantages, RT Na-S batteries have not yet been practically applied, since this technology still suffers from several critical challenges [17,20,21,22], similar to lithium sulfur (Li-S) batteries: (1) sulfur and the discharge by-products sodium polysulfides (NaPSs) (Na2Sn, where 1 ≤ n ≤ 8) have poor electrical conductivity, which leads to a low utilization of active materials; (2) the high-order NaPSs (Na2Sn, 4 ≤ n ≤ 8) are prone to dissolve in the ether-based liquid electrolyte, then diffuse towards the sodium anode, thus causing the so-called “shuttling effect” and leading to low coulombic efficiency and rapid capacity fading; (3) the large volume expansion of sulfur cathode during discharge can bring about poor stability of the electrode. To address the above-mentioned issues, designing appropriate multifunctional conductive anchoring materials that can both catch and catalyze the NaPSs is of vital importance.
Graphene nanosheet is one of the widely used electrode host materials due to its high specific surface area, attractive electrical/thermal conductivity, and excellent flexibility property [23,24,25]. However, the physical combination between nonpolar pristine graphene and polar polysulfides is too weak to effectively hinder polysulfides shuttling between anode and cathode during charge/discharge cycling. One effective strategy to improve the interactions with polysulfides is to dope heteroatom into graphene nanosheet, based on the lessons learned from Li-S batteries [26,27,28]. Particularly, N atom is the most widely used dopant for Li/Na-S batteries as an anchoring material [26,27,29,30]. For instance, pyrrolic and pyridinic N-doped graphene shows a much stronger combination with lithium polysulfides (LiPSs) through covalent bonds than pristine graphene, as reported by J. J. Chen et al. [26] and Y. Qiu et al. [27]. M. Sajjad et al. reported that polar nitrogenated holey graphene shows a superior anchoring of NaPSs [29]. Additionally, the co-doped graphene/carbon nanostructures are also reported to be intensively attractive, due to their novel geometries and properties [31,32,33,34,35]. For example, G. Xia et al. reported that N and O co-doped porous carbon nanofibers could effectively alleviate the “shuttling effect” via adsorbing NaPSs by strong chemical interactions [31]. J. Yang et al. reported that the N and S co-doped porous carbon nanosheets increase the utilization of sulfur and display excellent rate performance of Na-S batteries [32]. Interestingly, transition metal elements doping is advantageous over non-metallic doping in Li/Na-S batteries, benefiting from the electrocatalytic property of transition metal originated from its special electronic orbital arrangement [28,36,37,38,39]. For instance, B. W. Zhang et al. reported that transition metal (such as Co, Fe, Cu, and Ni) nanoclusters that were decorated in hollow carbon nanospheres could significantly polarize sulfur host to improve the reactivity of S and inhibit the “shuttling effect”, and their electrocatalytic effects are also clearly evidenced by experiments and calculations [37,38]. In particular, several recent experiments and simulations reported that transition metal and nitrogen co-doped graphene exhibit superior performance with good electrocatalysis and shuttling suppression abilities [28,33,40,41,42]. For examples, Q. Jia et al. revealed the high catalytic property of Fe-N co-doped graphene fragments through experimental observations [33]. W. Lai et al. experimentally showed that cathodes with Fe-N co-doped carbon fibers exhibit outstanding rate capacity and cycling performance in RT Na-S batteries [42]. Zhang and co-workers reported that Fe-N4 and Cr-N4 co-doped graphene shows a strong adsorption and full discharge of LiPSs, resulting in a greatly improved performance of Li-S batteries [41]. However, transition metal and nitrogen co-doped graphene (metal-N4@graphene) used in Na-S batteries as multifunctional anchoring materials have been less explored up to now.
Inspired by the aforementioned investigations, here, we systemically investigated the experimentally available transition metal-N4@graphene (metal = Fe, Co, and Mn) [42] to illustrate its anchoring and electrocatalytic effects in Na-S batteries by first-principles density functional theory (DFT). Our results demonstrate that Fe-N4@graphene can tightly combine with NaPSs through chemical bonds, and its electric conductivity is well retained. Hence, properly doping Fe-N4 into graphene can greatly enhance the anchoring effect for NaPSs to suppress the adverse “shuttling effect” in Na-S batteries. Additionally, the doping transition metal ions can effectively lower the decomposition energy barriers of NaPSs, resulting in a signal development of their full discharge. Our results not only facilitate a deep understanding of the mechanism of metal-N4@graphene used as a multifunctional anchoring material, but also provide worthy guidance to exploit high-performance Na-S batteries.

2. Computational Method

The calculations of this work have been performed within the framework of the DFT by using Vienna ab initio simulation package (VASP) [43,44] code. The Project-Augmented-Wave (PAW) [45] and the Perdew-Burke-Ernzerhof (PBE) Generalized Gradient Approximation (GGA) [46] that are implemented in VASP are carried out for pseudopotentials and the exchange-correlation functionals. Spin polarized calculations are employed for all the co-doped systems, due to the magnetic nature of the transition metal atoms (metal = Fe, Co, and Mn). A plane wave cutoff of 520 eV is used for the kinetic energy of all the graphene and metal-N4 doped graphene monolayers. A 3 × 3 × 1 Monkhorst-Pack [47] k-mesh is used for the Brillouin zone integrations of all supercells in all the calculations. About 20 Å vacuum space along the direction perpendicular to the plane of the monolayer is inserted to eliminate the interactions of the adjacent periodic images. All of the structural optimizations are performed with an energy convergence criterion of 10−5 eV/cell. The van der Waals (vdW) interactions are described by using the Lee et al. vdW-DF2 functionals [48,49], which have been widely and successfully used to describe co-doped graphene systems [28,40]. To estimate the energy barriers of Na ion diffusion on the surface of pristine graphene and Fe-N4@Graphene monolayers, we constructed 2, 4, 4, and 3 linear-interpolation intermediate images between the initial and final Na positions along the pathway of Na2S/Graphene, Na2S2/Graphene, Na2S/Fe-N4@Graphene, and Na2S2/Fe-N4@Graphene to perform the climbing-image nudged elastic band (ci-NEB) algorithm [50,51], respectively. In ci-NEB calculations, supercells with a single Na adatom are performed, and all of the image configurations are relaxed until the maximum force acting on every atom is less than 0.03 eV/Å. In ci-NEB calculations, we removed one of the sodium ions of Na2S and Na2S2 on graphene and Fe-N4@graphene from their most stable adsorption sites, and placed them far away, then optimized their structural configurations and used them as the final states of ci-NEB, respectively. The Fermi energy level of projected density of states (PDOS) has been converted to zero.
The adsorption energies Ead of NaPSs molecule on pristine graphene and metal-N4@graphene are defined as the following formula:
Ead = Esub + Emole − Etot
where Etot is the total energy of the substrate with adsorbed NaPSs, Esub is the energy of substrate of pristine graphene or metal-N4@graphene, and Emole is the energy of isolated NaPSs molecule. According to this definition, a positive value indicates an exothermic (energetically favorable) reaction, and the strength of absorbing capability of substrate for NaPSs molecules enhances as the value becomes more positive.

3. Results and Discussion

3.1. Structures and Electronic Properties of Na2Sn Species and Metal-N4@Graphene

During the discharge process of Na-S batteries, the sodium polysulfide species (typically including Na2S, Na2S2, Na2S4, Na2S6, and Na2S8) are formed, and the final product is Na2S species, as demonstrated by experiments [16,52]. The optimized geometries of Na2Sn (n = 1, 2, 4, 6, and 8) species and cyclo-S8 are shown in Figure 1a, and all of these S-containing molecules are in a three-dimensional shape, which are well consistent with previous studies [29,52], suggesting the reliability of our employed calculations. The specific structural parameters of Na2Sn species and cyclo-S8 are listed in Table 1. As the structural data shows, the Na-S bond lengths (~2.50 Å) of low-order Na2Sn (n = 1, 2) species are significantly shorter than those (~2.75 Å) of high-order Na2Sn (n = 4, 6, 8) species clusters, while the S-S bonds slightly decrease with the increase in the number of S atoms, similar to the scenario of Li2Sn species [28,36]. Generally, a longer bond length indicates a weaker chemical binding for the same kind of bond. As a result, the high-order Na2Sn species are more easily dissolved into sodium cations and polysulfide anions than low-order Na2Sn species in the electrolyte of Na-S batteries.
Figure 1b presents the optimized structure of transition metal and nitrogen co-doped graphene (metal-N4@graphene) substrate in a 3 × 5 supercell (containing 59 atoms), in which all of the atoms are in the same plane. For the metal-N4@graphene, six carbon atoms in the center of the substrate are removed and then replaced by four nitrogen atoms and one metal atom. Three kinds of transition metal (Fe, Co, and Mn) atoms are considered in this work. Our calculations show that the central transition metal atom is surrounded by four equivalent metal-N bonds, with the lengths ranging from 1.89 Å to 1.96 Å, which is well consistent with previous literature [28,36].
In addition, the transition metal-N4 co-doped graphene heterostructure enhances its electrical conductivity. Previous studies found that an electrode structure composed with graphene can facilitate electron and ion transport [23,24]. Moreover, heterostructures provide an optimal way for tuning the electronic properties [36]. Based on these reports, the electronic conductivities of co-doped graphene monolayers are investigated; thus, the projected density of states (PDOS) of pristine and transition metal-N4 (metal = Fe, Co, and Mn) co-doped graphene are calculated, as illustrated in Figure 2. As shown in Figure 2b–d, the PDOSs of transition metal-N4@graphene exhibit spin asymmetrically polarized ground states, due to the difference between the number of electrons in spin-up and spin-down components. In addition, their magnetic moments are mainly localized on the central metal atom, as shown in Table S1. Furthermore, the magnetism of doped iron is mainly contributed from its relatively localized 3d orbital electrons (see Figure S4). Notably, there are more PDOSs of transition metal-N4@graphene near the Fermi energy than of pristine graphene (see Figure 2). Therefore, the electrical conductivity of metal-N4@graphene is effectively improved, which is beneficial for the performance of the cathode electrode.

3.2. Adsorption of Na2Sn Species on Pristine and Transition Metal-N4 Co-Doped Graphene

To evaluate the potentials of transition metal-N4@graphene (metal = Fe, Co, and Mn) as the anchoring material for high-performance Na-S batteries, the adsorption energies of Na2Sn species on pristine and co-doped graphene are calculated, respectively. The computing results show that the minimum distance between Na2Sn species and pristine graphene substrate is larger than 2.8 Å, and all adsorption energies of Na2Sn species on graphene are around 0.7 eV (see Table S2), indicating that there are no chemical bonds between Na2Sn species and graphene (see Figure 3). The weak van der Waals interactions are not strong enough to stabilize the adsorption of Na2Sn species; hence, pristine graphene is not a proper anchoring material, which is consistent with previous reports [24,53]. As a consequence, the co-doped graphene as absorbing Na2Sn species materials are studied by DFT calculations.
To obtain the most stable adsorption configurations, we considered different orientations of Na2Sn species and cyclo-S8 at different sites of the Fe-N4@graphene surface (see Figure S1). Take Figure S1a,b as an example. The cyclo-S8 prefers to parallelly adsorb to the surface of Fe-N4@graphene with a minimum distance between them of 2.111 Å. Meanwhile, the shape of adsorbed cyclo-S8 has a somewhat structural distortion, that is, the S-S bond is slightly stretched from 2.097 Å of the isolated cyclo-S8 molecule to 2.175 Å of the counterpart, and the central Fe atom is pulled outward from the surface of doped graphene by about 0.413 Å, suggesting the formation of an obvious chemical S-Fe bond. After full structural optimization, the most stable configurations of Na2Sn species and cyclo-S8 adsorbed on transition metal-N4@graphene are presented in Figure 4, and Figures S2 and S3, and the corresponding key binding parameters are summarized in Table 2, and Tables S3 and S4. In addition, comparing before and after adsorption, metal-N4@graphene (metal = Fe, Co, and Mn) as anchoring materials can maintain their structures well, and the Na2Sn species and cyclo-S8 adjust themselves to achieve the most stable adsorption.
As Figure 4, and Figures S2 and S3, show, for metal-N4@graphene (metal = Fe, Co, and Mn), one sulfur atom binds with the metal atom, and one or two sodium atoms bind with nitrogen atoms, forming a chemical binding ring configuration. For instance, the chemical ring of the Na2S adsorbed system has two Na-N bonds, and the Na2S2 adsorbed system has two Na-N bonds and one S-metal bond. All adsorption energies of Na2Sn species on Fe-N4@graphene increase significantly and are much greater than that of pristine graphene. Thus, it is obvious that the strong chemical rings with large adsorbing energies make the adsorption configuration more stable, resulting in a high affinity for Na2Sn species. This feature of co-doped graphene can significantly hinder the shuttling effect, which mainly comes from high-order Na2Sn species. Notably, the adsorption energies of Na2Sn species on Fe-N4@graphene are obviously larger than that of Co/Mn-N4@graphene (see Figure 5), especially for high-order Na2Sn species, which means that the high-order Na2Sn species tend to adsorb on Fe-N4@graphene much easier than Co/Mn-N4@graphene. This indicates that Fe-N4@graphene, as the best one among the considered anchoring materials, can most effectively adsorb Na2Sn molecules to prevent the shuttling effect.
Particularly, after Na2S and Na2S2 adsorbing on Fe-N4@graphene, the Na-S bond length prolongs more significantly than in the isolated state (as shown in Table 1 and Table 2). The average bond lengths of Na-S increase from 2.464 Å and 2.581 Å to 2.514 Å and 2.679 Å for Na2S and Na2S2, respectively. The extension of the Na-S bond makes it easier for it to be broken, which is beneficial to the detachment of sodium ion. Therefore, the mechanism of Fe-N4@graphene on the decomposition of Na2S and Na2S2 needs to be intensively studied.

3.3. Electrocatalytic Performance of Iron for Na2Sn Species on Fe-N4@Graphene

It is worth noting that the decomposition of the deep discharge products (e.g., Na2S and Na2S2) on anchoring materials is a critical factor for energy capability, utilization of sulfur, and cycling performance of Na-S batteries. As the abovementioned analysis shows, Fe-N4@graphene is the most effective anchoring material for Na2Sn species; thus, its electrocatalytic performance deserves further study, which is essential for coulombic efficiency, rate capability, and charge/discharge performance of Na-S batteries. To gain an in-depth understanding of the electrocatalytic property of doped iron, the climbing-image nudged elastic band (ci-NEB) method is applied to calculate the energy barrier for Na2S and Na2S2 decomposing on the surface of pristine graphene and Fe-N4@graphene, respectively, to evaluate the sodium extraction reaction kinetics.
Herein, we considered the decomposition process from an intact Na2S/Na2S2 molecule into a NaS/NaS2 cluster and a single Na ion (Na2S/NaS2→NaS/NaS2 + Na+ + e−). The main evolution is accompanied by one sodium ion separating and moving away from the sulfur atom in Na2S/Na2S2 molecule, including the breaking of one Na-S bond. The energy profiles for the decomposition processes of sodium ion on pristine graphene and Fe-N4@graphene are shown in Figure 6, where the corresponding energy barrier heights are inserted nearby. Our results show that pristine graphene possesses a great decomposition barrier (1.94 eV and 1.39 eV for Na2S and Na2S2, respectively), much larger than that of Fe-N4@graphene (1.05 eV and 1.21 eV for Na2S and Na2S2, respectively). It is known that reducing the decomposition barrier of Na2S/Na2S2 can greatly increase the utilization of active materials, decrease the formation of dead polysulfides, and achieve a high charging rate and a longer cycling life. In brief, Fe-N4@graphene demonstrates a much lower decomposition barrier of Na2S/Na2S2, which exhibits its promising potential for catalyzing polysulfides in the charging process of Na-S batteries.
In one word, the anchoring material Fe-N4@graphene can not only effectively adsorb the sodium polysulfides to block the shuttling effect, but also significantly improve the electronic conductivity and catalyze the electrochemical interactions, consequently achieving multiple targets and addressing several vital challenges. Thus, our research reveals the multi-functional anchoring effects of Fe-N4@graphene in Na-S batteries, while providing valuable guidance for designing high-performance sulfur cathode materials.

4. Summary

Based on first-principles theory calculations, we systematically investigated the transition metal-N4@graphene (metal = Fe, Co, and Mn) as multi-functional anchoring materials to hinder the “shuttling effect” of NaPSs in Na-S batteries. Our calculation results reveal that doping with metal-N4@graphene could not only dramatically improve the electronic conductivity, but also enhance the adsorption of Na2Sn species and cyclo-S8 compared to pristine graphene, which is mainly contributed by the strong chemical bonds of metal-S and N-Na. Among the doping transition metals considered here, Fe-N4 co-doped graphene is the best anchoring material. Consequently, the electrocatalytic property of Fe-N4@graphene was studied through ci-NEB method, and we found that the doped transition metal iron could dramatically decrease the decomposition energy barrier of Na2S (dropped 0.89 eV) and Na2S2 (dropped 0.18 eV), which has a significantly improvement on the utilization of sulfur and full discharge of batteries. Our findings enrich the fundamental understanding of the micro-level mechanism of metal-N4@graphene as multifunctional anchoring materials added to sulfur electrode, and shed light on the design of high-performance Na-S batteries.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano11051197/s1, Figure S1. Different optimized adsorption configurations of cyclo-S8 [(a) and (b)] and Na2S8 [(c), (d), and (e)] species adsorbed on the surface of Fe-N4@graphene. Figure S2. The optimized structures of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) species adsorbed on the surface of Co-N4@graphene. Figure S3. The optimized structures of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) species adsorbed on the surface of Mn-N4@graphene. Figure S4. The projected density of states (PDOS) of the doped transition-metal iron. Table S1. The average bond length d (Å) and magnetic moment M (µB) of transition metal-N4@graphene substrates. Table S2. The adsorption energies Ead (eV), average bond length d (Å), and the minimum distance dmin (Å) between Na2Sn species and pristine graphene. Table S3. The adsorption energies Ead (eV) and average bond length d (Å) of Na2Sn species and cyclo-S8 after adsorbing on Co-N4@graphene. Table S4. The adsorption energies Ead (eV) and average bond length d (Å) of Na2Sn species and cyclo-S8 after adsorbing on Mn-N4@graphene.

Author Contributions

K.Y.: conceptualization, investigation, formal analysis, and writing of the original draft; K.Y. and D.L.: methodology, software, validation, and visualization; Y.S., S.Z., and K.Y.: data curation and project administration; D.L., R.W., and K.Y.: writing—review and editing; R.W. and Z.Q.: funding acquisition and supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the Science and Technology Innovation Commission of Shenzhen (JCYJ20180507181858539 and JCYJ20190808173815205), Guangdong Basic and Applied Basic Research Foundation (2019A1515012111), National Natural Science Foundation of China (51804199), Shenzhen Science and Technology Program (KQTD20180412181422399), and National Key R&D Program of China (2019YFB2204500). The calculations were performed in the Center for Computational Science of CASHIPS and the ScGrid of the Supercomputing Center and Computer Network Information Center of the Chinese Academy of Sciences.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goodenough, J.B.; Kim, Y. Challenges for Rechargeable Li Batteries. Chem. Mater. 2010, 22, 587–603. [Google Scholar] [CrossRef]
  2. Yu, X.; Manthiram, A. A Progress Report on Metal–Sulfur Batteries. Adv. Funct. Mater. 2020, 30, 2004084. [Google Scholar] [CrossRef]
  3. Armand, M.; Tarascon, J.M. Building Better Batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef] [PubMed]
  4. Zhu, J.; Zou, J.; Cheng, H.; Gu, Y.; Lu, Z. High Energy Batteries Based on Sulfur Cathode. Green Energy Environ. 2019, 4, 345–359. [Google Scholar] [CrossRef]
  5. Salama, M.; Rosy; Attias, R.; Yemini, R.; Gofer, Y.; Aurbach, D.; Noked, M. Metal–Sulfur Batteries: Overview and Research Methods. ACS Energy Lett. 2019, 4, 436–446. [Google Scholar] [CrossRef]
  6. Chung, S.H.; Manthiram, A. Current Status and Future Prospects of Metal-Sulfur Batteries. Adv. Mater. 2019, 31, e1901125. [Google Scholar] [CrossRef]
  7. Hong, X.; Mei, J.; Wen, L.; Tong, Y.; Vasileff, A.J.; Wang, L.; Liang, J.; Sun, Z.; Dou, S.X. Nonlithium Metal-Sulfur Batteries: Steps toward a Leap. Adv. Mater. 2019, 31, e1802822. [Google Scholar] [CrossRef]
  8. Wang, R.; Dai, X.; Qian, Z.; Zhong, S.; Chen, S.; Fan, S.; Zhang, H.; Wu, F. Boosting Lithium Storage in Free-Standing Black Phosphorus Anode Via Multifunction of Nanocellulose. ACS Appl. Mater. Interfaces 2020, 12, 31628–31636. [Google Scholar] [CrossRef]
  9. Wang, R.; Sun, Y.; Yang, K.; Zheng, J.; Li, Y.; Qian, Z.; He, Z.; Zhong, S. One-Time Sintering Process to Modify xLi2MnO3 (1-X)LiMo2 Hollow Architecture and Studying Their Enhanced Electrochemical Performances. J. Energy Chem. 2020, 50, 271–279. [Google Scholar] [CrossRef]
  10. Rauh, R.D.; Shuker, F.S.; Marston, J.M.; Brummer, S.B. Formation of Lithium Polysulfides in Aprotic Media. J. Inorg. Nucl. Chem. 1977, 39. [Google Scholar] [CrossRef]
  11. Xin, S.; Yin, Y.X.; Guo, Y.G.; Wan, L.J. A High-Energy Room-Temperature Sodium-Sulfur Battery. Adv. Mater. 2014, 26, 1261–1265. [Google Scholar] [CrossRef] [PubMed]
  12. Seh, Z.W.; Sun, J.; Sun, Y.; Cui, Y. A Highly Reversible Room-Temperature Sodium Metal Anode. ACS Cent. Sci. 2015, 1, 449–455. [Google Scholar] [CrossRef]
  13. Wenzel, S.; Metelmann, H.; Raiß, C.; Dürr, A.K.; Janek, J.; Adelhelm, P. Thermodynamics and Cell Chemistry of Room Temperature Sodium/Sulfur Cells with Liquid and Liquid/Solid Electrolyte. J. Power Sources 2013, 243, 758–765. [Google Scholar] [CrossRef]
  14. Adelhelm, P.; Hartmann, P.; Bender, C.L.; Busche, M.; Eufinger, C.; Janek, J. From Lithium to Sodium: Cell Chemistry of Room Temperature Sodium-Air and Sodium-Sulfur Batteries. Beilstein J. Nanotechnol. 2015, 6, 1016–1055. [Google Scholar] [CrossRef]
  15. Manthiram, A.; Yu, X. Ambient Temperature Sodium-Sulfur Batteries. Small 2015, 11, 2108–2114. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, Y.X.; Yang, J.; Lai, W.; Chou, S.L.; Gu, Q.F.; Liu, H.K.; Zhao, D.; Dou, S.X. Achieving High-Performance Room-Temperature Sodium-Sulfur Batteries with S@Interconnected Mesoporous Carbon Hollow Nanospheres. J. Am. Chem. Soc. 2016, 138, 16576–16579. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, J.; Zhang, G.; Chen, Z.; Dai, H.; Hu, Q.; Liao, S.; Sun, S. Emerging Applications of Atomic Layer Deposition for Lithium-Sulfur and Sodium-Sulfur Batteries. Energy Storage Mater. 2020, 26, 513–533. [Google Scholar] [CrossRef]
  18. Larcher, D.; Tarascon, J.M. Towards Greener and More Sustainable Batteries for Electrical Energy Storage. Nat. Chem. 2015, 7, 19–29. [Google Scholar] [CrossRef]
  19. Slater, M.D.; Kim, D.; Lee, E.; Johnson, C.S. Sodium-Ion Batteries. Adv. Funct. Mater. 2013, 23, 947–958. [Google Scholar] [CrossRef]
  20. Wei, S.; Xu, S.; Agrawral, A.; Choudhury, S.; Lu, Y.; Tu, Z.; Ma, L.; Archer, L.A. A Stable Room-Temperature Sodium-Sulfur Battery. Nat. Commun. 2016, 7, 11722. [Google Scholar] [CrossRef] [Green Version]
  21. Yu, X.; Manthiram, A. Performance Enhancement and Mechanistic Studies of Room-Temperature Sodium-Sulfur Batteries with a Carbon-Coated Functional Nafion Separator and a Na2s/Activated Carbon Nanofiber Cathode. Chem. Mater. 2016, 28, 896–905. [Google Scholar] [CrossRef]
  22. Ye, C.; Chao, D.; Shan, J.; Li, H.; Davey, K.; Qiao, S.-Z. Unveiling the Advances of 2d Materials for Li/Na-S Batteries Experimentally and Theoretically. Matter 2020, 2, 323–344. [Google Scholar] [CrossRef] [Green Version]
  23. Huang, J.-Q.; Liu, X.-F.; Zhang, Q.; Chen, C.-M.; Zhao, M.-Q.; Zhang, S.-M.; Zhu, W.; Qian, W.-Z.; Wei, F. Entrapment of Sulfur in Hierarchical Porous Graphene for Lithium-Sulfur Batteries with High Rate Performance from −40 to 60°C. Nano Energy 2013, 2, 314–321. [Google Scholar] [CrossRef]
  24. Liang, Z.; Fan, X.; Singh, D.J.; Zheng, W.T. Adsorption and Diffusion of Li with S on Pristine and Defected Graphene. Phys. Chem. Chem. Phys. 2016, 18, 31268–31276. [Google Scholar] [CrossRef] [Green Version]
  25. Wang, Z.; Dong, Y.; Li, H.; Zhao, Z.; Wu, H.B.; Hao, C.; Liu, S.; Qiu, J.; Lou, X.W. Enhancing Lithium-Sulphur Battery Performance by Strongly Binding the Discharge Products on Amino-Functionalized Reduced Graphene Oxide. Nat. Commun. 2014, 5, 5002. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, J.-J.; Yuan, R.-M.; Feng, J.-M.; Zhang, Q.; Huang, J.-X.; Fu, G.; Zheng, M.-S.; Ren, B.; Dong, Q.-F. Conductive Lewis Base Matrix to Recover the Missing Link of Li2S8 During the Sulfur Redox Cycle in Li–S Battery. Chem. Mater. 2015, 27, 2048–2055. [Google Scholar] [CrossRef]
  27. Qiu, Y.; Li, W.; Zhao, W.; Li, G.; Hou, Y.; Liu, M.; Zhou, L.; Ye, F.; Li, H.; Wei, Z.; et al. High-Rate, Ultralong Cycle-Life Lithium/Sulfur Batteries Enabled by Nitrogen-Doped Graphene. Nano Lett. 2014, 14, 4821–4827. [Google Scholar] [CrossRef]
  28. Zhang, L.; Liang, P.; Man, X.-L.; Wang, D.; Huang, J.; Shu, H.-B.; Liu, Z.-G.; Wang, L. Fe, N Co-Doped Graphene as a Multi-Functional Anchor Material for Lithium-Sulfur Battery. J. Phys. Chem. Solids 2019, 126, 280–286. [Google Scholar] [CrossRef]
  29. Sajjad, M.; Hussain, T.; Singh, N.; Larsson, J.A. Superior Anchoring of Sodium Polysulfides to the Polar C2N 2D Material: A Potential Electrode Enhancer in Sodium-Sulfur Batteries. Langmuir 2020, 36, 13104–13111. [Google Scholar] [CrossRef] [PubMed]
  30. Hussain, T.; Sajjad, M.; Singh, D.; Bae, H.; Lee, H.; Larsson, J.A.; Ahuja, R.; Karton, A. Sensing of Volatile Organic Compounds on Two-Dimensional Nitrogenated Holey Graphene, Graphdiyne, and Their Heterostructure. Carbon 2020, 163, 213–223. [Google Scholar] [CrossRef]
  31. Xia, G.; Zhang, L.; Chen, X.; Huang, Y.; Sun, D.; Fang, F.; Guo, Z.; Yu, X. Carbon Hollow Nanobubbles on Porous Carbon Nanofibers: An Ideal Host for High-Performance Sodium-Sulfur Batteries and Hydrogen Storage. Energy Storage Mater. 2018, 14, 314–323. [Google Scholar] [CrossRef]
  32. Yang, J.; Zhou, X.; Wu, D.; Zhao, X.; Zhou, Z. S-Doped N-Rich Carbon Nanosheets with Expanded Interlayer Distance as Anode Materials for Sodium-Ion Batteries. Adv. Mater. 2017, 29, 1604108. [Google Scholar] [CrossRef]
  33. Jia, Q.; Ramaswamy, N.; Hafiz, H.; Tylus, U.; Strickland, K.; Wu, G.; Barbiellini, B.; Bansil, A.; Holby, E.F.; Zelenay, P.; et al. Experimental Observation of Redox-Induced Fe–N Switching Behavior as a Determinant Role for Oxygen Reduction Activity. ACS Nano 2015, 9, 12496–12505. [Google Scholar] [CrossRef]
  34. Tylus, U.; Jia, Q.; Hafiz, H.; Allen, R.J.; Barbiellini, B.; Bansil, A.; Mukerjee, S. Engendering Anion Immunity in Oxygen Consuming Cathodes Based on Fe-Nx Electrocatalysts: Spectroscopic and Electrochemical Advanced Characterizations. Appl. Catal. B 2016, 198, 318–324. [Google Scholar] [CrossRef] [Green Version]
  35. Allerdt, A.; Hafiz, H.; Barbiellini, B.; Bansil, A.; Feiguin, A.E. Many-Body Effects in FeN4 Center Embedded in Graphene. Appl. Sci. 2020, 10, 2542. [Google Scholar] [CrossRef] [Green Version]
  36. Zhang, T.; Chen, Z.; Zhao, J.; Ding, Y. Metal-N4/Graphene as an Efficient Anchoring Material for Lithium-Sulfur Batteries: A Computational Study. Diam. Relat. Mater. 2018, 90, 72–78. [Google Scholar] [CrossRef]
  37. Zhang, B.W.; Sheng, T.; Wang, Y.X.; Chou, S.; Davey, K.; Dou, S.X.; Qiao, S.Z. Long-Life Room-Temperature Sodium-Sulfur Batteries by Virtue of Transition-Metal-Nanocluster-Sulfur Interactions. Angew. Chem. Int. Ed. Engl. 2019, 58, 1484–1488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Zhang, B.W.; Sheng, T.; Liu, Y.D.; Wang, Y.X.; Zhang, L.; Lai, W.H.; Wang, L.; Yang, J.; Gu, Q.F.; Chou, S.L.; et al. Atomic Cobalt as an Efficient Electrocatalyst in Sulfur Cathodes for Superior Room-Temperature Sodium-Sulfur Batteries. Nat. Commun. 2018, 9, 4082. [Google Scholar] [CrossRef]
  39. Ma, Q.; Du, G.; Zhong, W.; Du, W.; Bao, S.J.; Xu, M.; Li, C. Template Method for Fabricating Co and Ni Nanoparticles/Porous Channels Carbon for Solid-State Sodium-Sulfur Battery. J. Colloid Interface Sci. 2020, 578, 710–716. [Google Scholar] [CrossRef]
  40. Zeng, Q.-W.; Hu, R.-M.; Chen, Z.-B.; Shang, J.-X. Single-Atom Fe and N Co-Doped Graphene for Lithium-Sulfur Batteries: A Density Functional Theory Study. Mater. Res. Express. 2019, 6, 095620. [Google Scholar] [CrossRef]
  41. Zhang, L.; Liang, P.; Shu, H.B.; Man, X.L.; Du, X.Q.; Chao, D.L.; Liu, Z.G.; Sun, Y.P.; Wan, H.Z.; Wang, H. Design Rules of Heteroatom-Doped Graphene to Achieve High Performance Lithium-Sulfur Batteries: Both Strong Anchoring and Catalysing Based on First Principles Calculation. J. Colloid Interface Sci. 2018, 529, 426–431. [Google Scholar] [CrossRef] [PubMed]
  42. Lai, W.H.; Wang, H.; Zheng, L.; Jiang, Q.; Yan, Z.C.; Wang, L.; Yoshikawa, H.; Matsumura, D.; Sun, Q.; Wang, Y.X.; et al. General Synthesis of Single-Atom Catalysts for Hydrogen Evolution Reactions and Room-Temperature Na-S Batteries. Angew. Chem. Int. Ed. Engl. 2020, 59, 22171–22178. [Google Scholar] [CrossRef]
  43. Kresse, G.; Furthmüller, J. Efficiency of Ab-Initio Total Energy Calculations for Metals and Semiconductors Using a Plane-Wave Basis Set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  44. Kresse, G.; Furthmüller, J. Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-Wave Basis Set. Phys. Rev. B 1996, 54, 11169. [Google Scholar] [CrossRef] [PubMed]
  45. Kresse, G.; Joubert, D. From Ultrasoft Pseudopotentials to the Projector Augmented-Wave Method. Phys. Rev. B 1999, 59, 1758. [Google Scholar] [CrossRef]
  46. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [Green Version]
  47. Monkhorst, H.J.; Pack, J.D. Special Points for Brillouin-Zone Integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  48. Dion, M.; Rydberg, H.; Schroder, E.; Langreth, D.C.; Lundqvist, B.I. Van Der Waals Density Functional for General Geometries. Phys. Rev. Lett. 2004, 92, 246401. [Google Scholar] [CrossRef] [Green Version]
  49. Lee, K.; Murray, É.D.; Kong, L.; Lundqvist, B.I.; Langreth, D.C. Higher-Accuracy Van Der Waals Density Functional. Phys. Rev. B 2010, 82, 081101. [Google Scholar] [CrossRef] [Green Version]
  50. Henkelman, G.; Uberuaga, B.P.; Jónsson, H. A Climbing Image Nudged Elastic Band Method for Finding Saddle Points and Minimum Energy Paths. J. Chem. Phys. 2000, 113, 9901–9904. [Google Scholar] [CrossRef] [Green Version]
  51. Henkelman, G.; Jónsson, H. Improved Tangent Estimate in the Nudged Elastic Band Method for Finding Minimum Energy Paths and Saddle Points. J. Chem. Phys. 2000, 113, 9978–9985. [Google Scholar] [CrossRef] [Green Version]
  52. Kim, I.; Park, J.-Y.; Kim, C.; Park, J.-W.; Ahn, J.-P.; Ahn, J.-H.; Kim, K.-W.; Ahn, H.-J. Sodium Polysulfides During Chargedischarge of the Room-Temperature Nas Battery Using Tegdme Electrolyte. J. Electrochem. Soc. 2016, 163, A611. [Google Scholar] [CrossRef]
  53. Jand, S.P.; Chen, Y.; Kaghazchi, P. Comparative Theoretical Study of Adsorption of Lithium Polysulfides (Li2Sx) on Pristine and Defective Graphene. J. Power Sources 2016, 308, 166–171. [Google Scholar] [CrossRef]
Nanomaterials 11 01197 g001 550

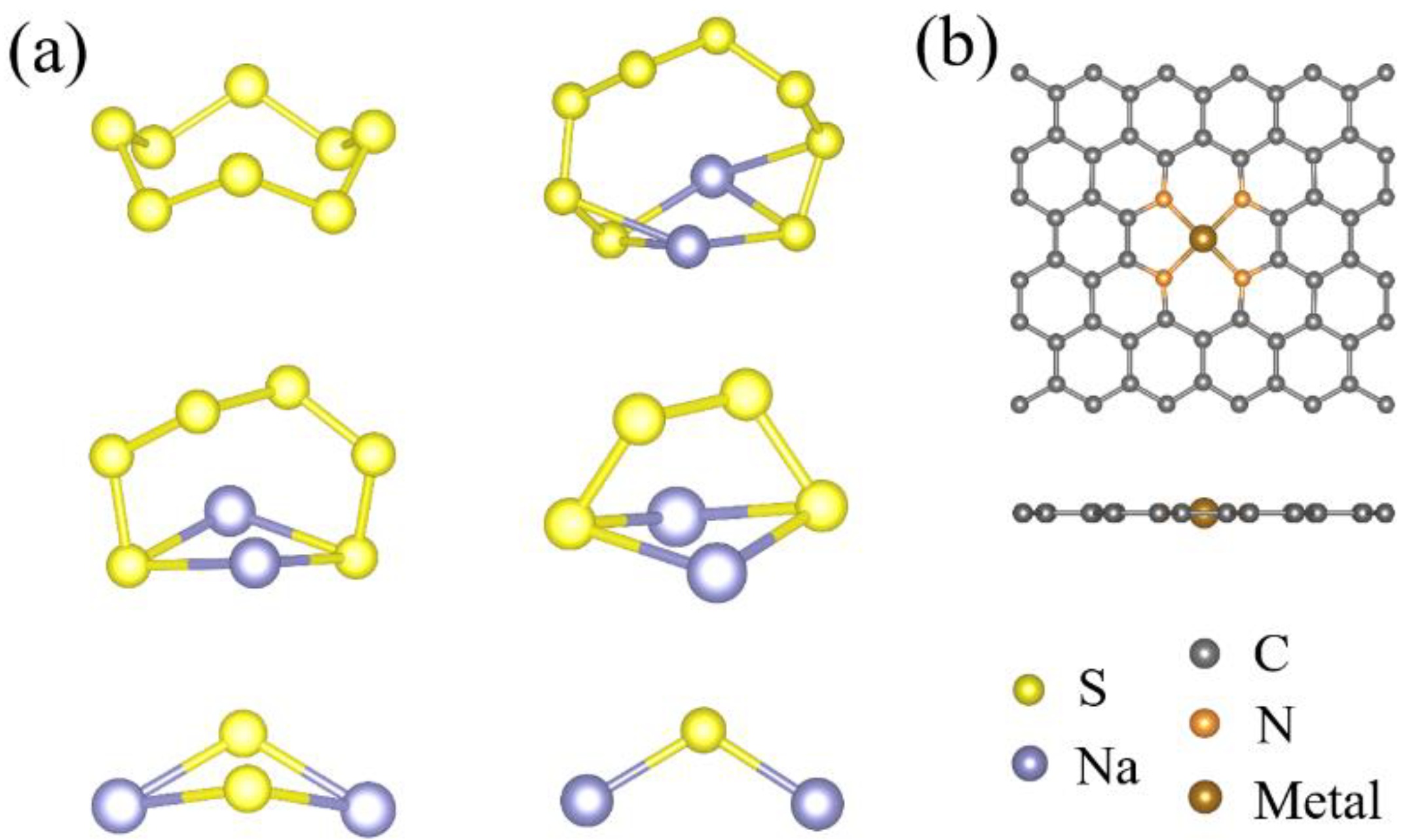

Figure 1. (a) The optimized atomic configurations of (a) isolated cyclo-S8 and Na2Sn (n = 8, 6, 4, 2, and 1) species. (b) The top and side views of optimized metal-N4@graphene substrate.
Figure 1. (a) The optimized atomic configurations of (a) isolated cyclo-S8 and Na2Sn (n = 8, 6, 4, 2, and 1) species. (b) The top and side views of optimized metal-N4@graphene substrate.
Nanomaterials 11 01197 g001
Nanomaterials 11 01197 g002 550

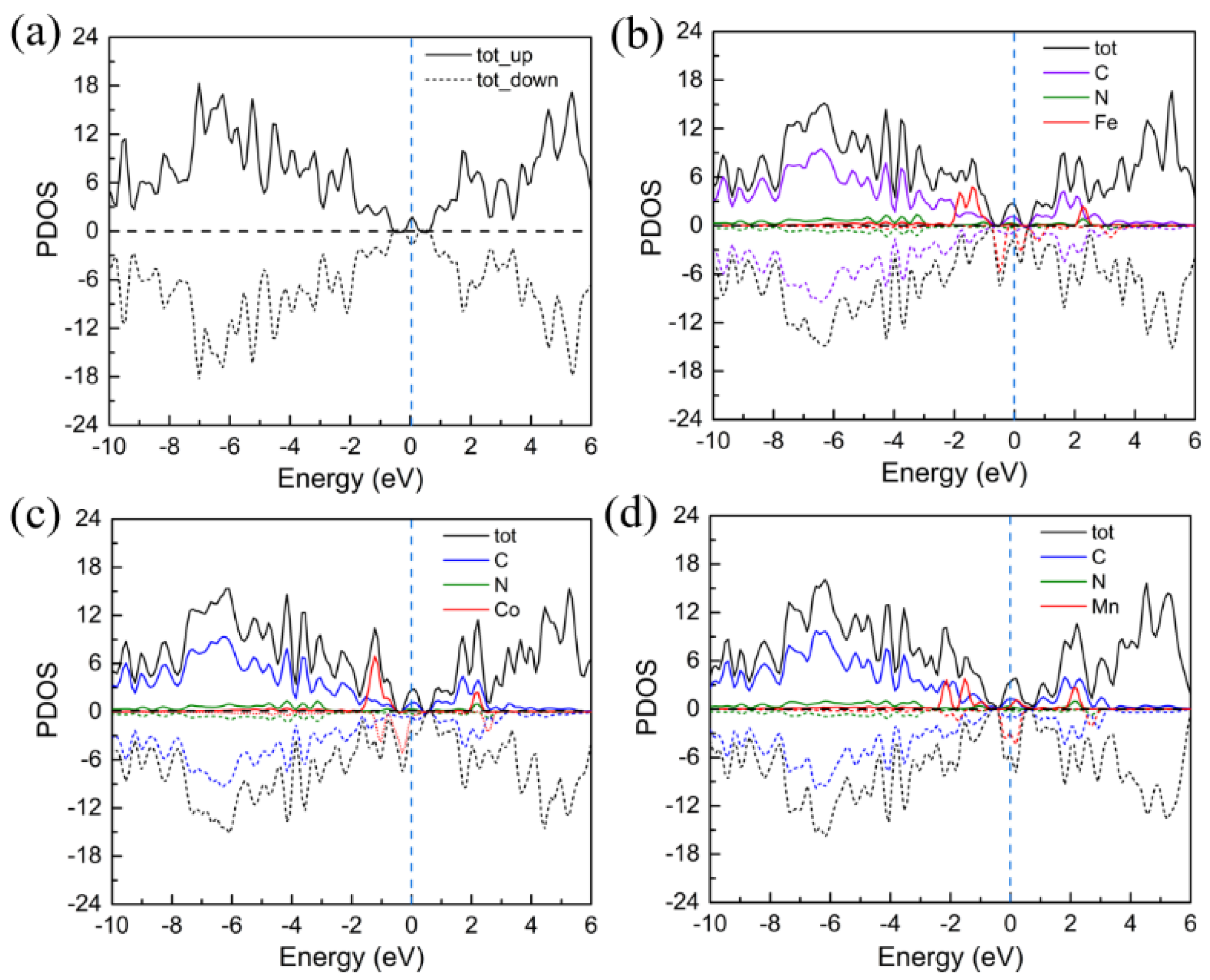

Figure 2. The projected density of states (PDOS) of pristine graphene (a) and metal-N4@graphene (metal = Fe (b), Co (c), and Mn (d)). The solid and dashed lines represent spin-up and spin-down components of PDOS, respectively. The vertical blue dashed lines represent the Fermi energy level.
Figure 2. The projected density of states (PDOS) of pristine graphene (a) and metal-N4@graphene (metal = Fe (b), Co (c), and Mn (d)). The solid and dashed lines represent spin-up and spin-down components of PDOS, respectively. The vertical blue dashed lines represent the Fermi energy level.
Nanomaterials 11 01197 g002
Nanomaterials 11 01197 g003 550

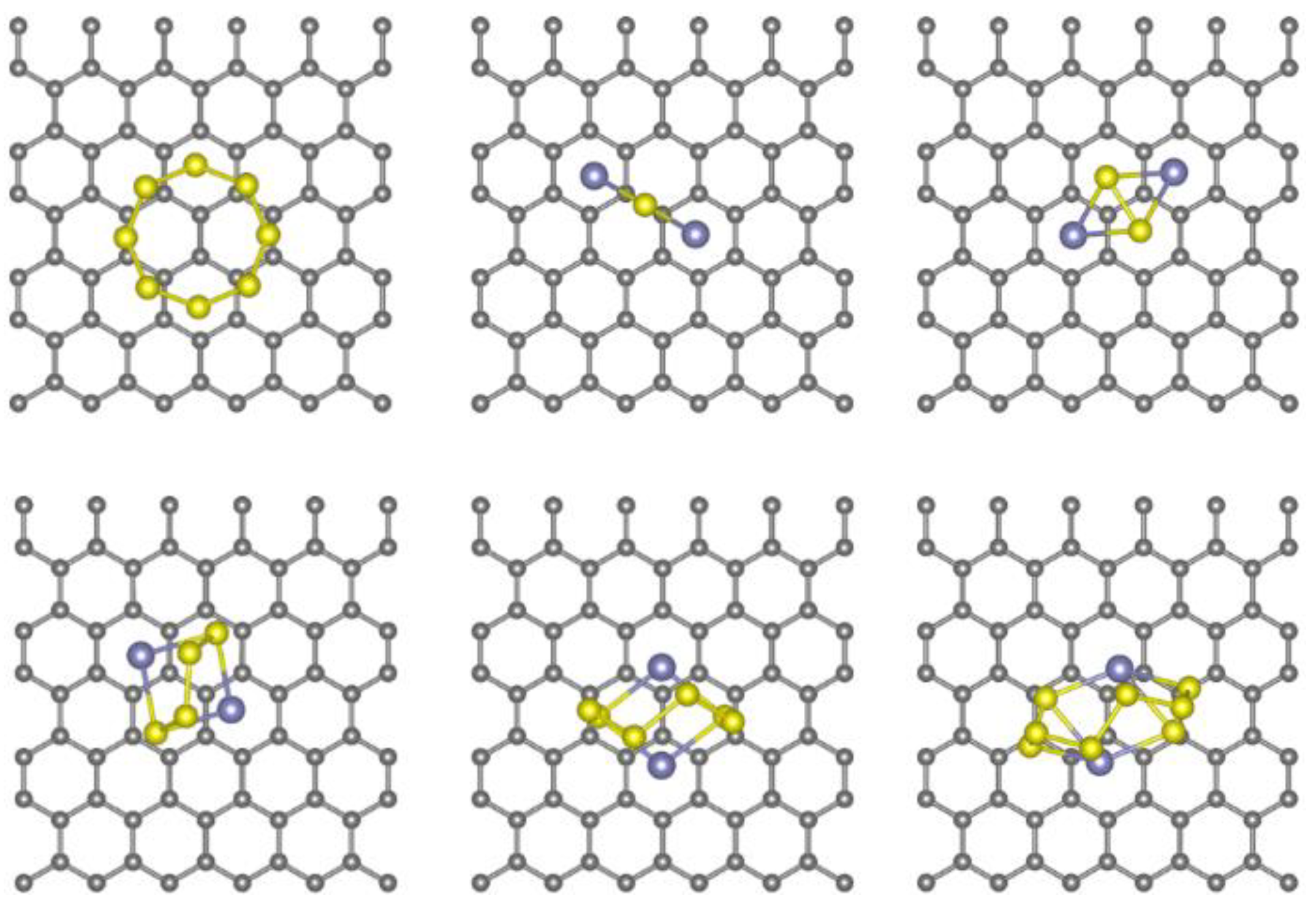

Figure 3. The optimized structures of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) species adsorbed on the surface of pristine graphene. The black, blue, and yellow balls represent carbon, sodium, and sulfur atoms, respectively.
Figure 3. The optimized structures of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) species adsorbed on the surface of pristine graphene. The black, blue, and yellow balls represent carbon, sodium, and sulfur atoms, respectively.
Nanomaterials 11 01197 g003
Nanomaterials 11 01197 g004 550

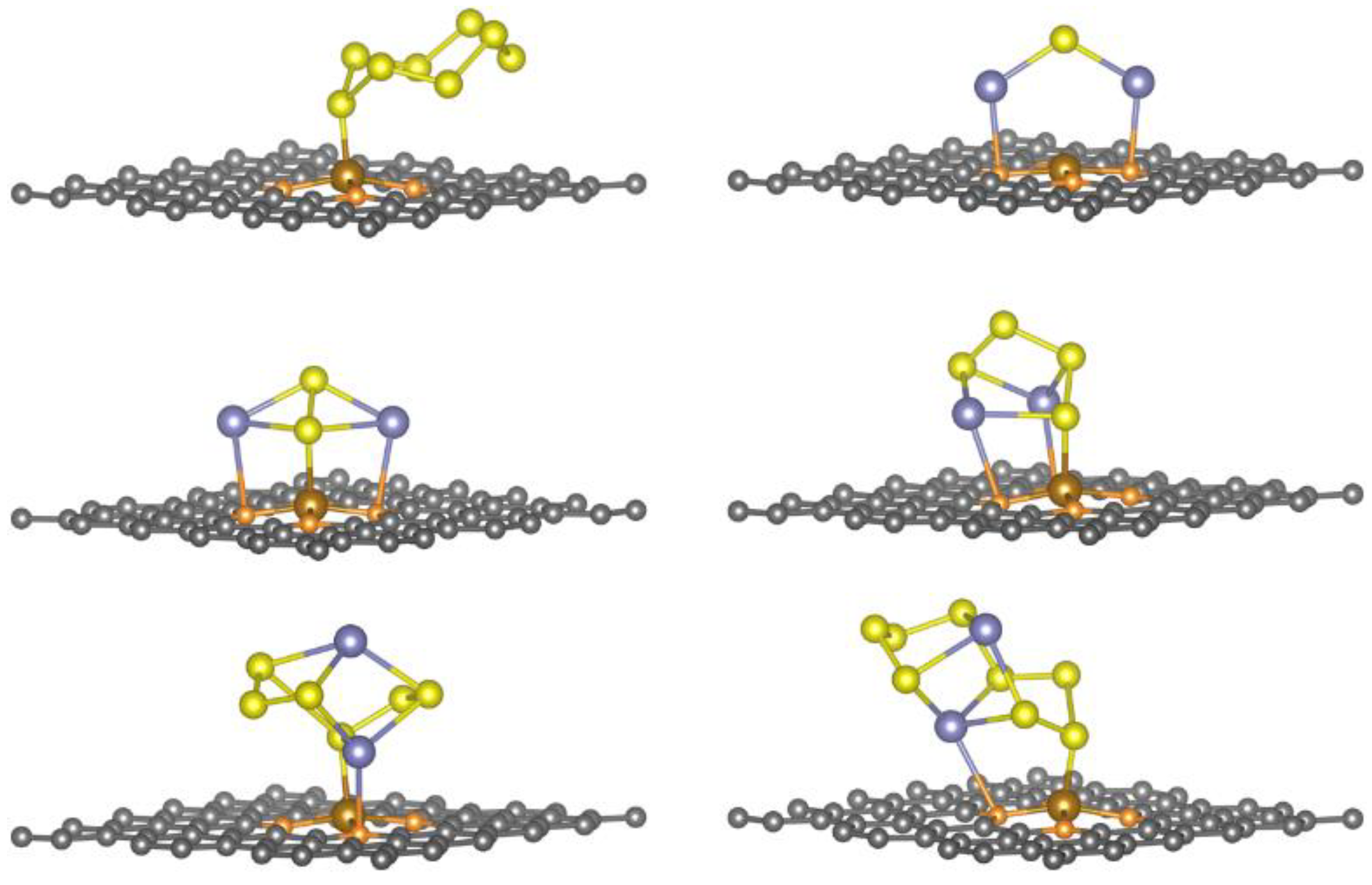

Figure 4. The optimized structures of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) adsorbed on the surface of Fe-N4@graphene. The black, blue, yellow, orange, and brown balls represent carbon, sodium, sulfur, nitrogen, and iron atoms, respectively.
Figure 4. The optimized structures of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) adsorbed on the surface of Fe-N4@graphene. The black, blue, yellow, orange, and brown balls represent carbon, sodium, sulfur, nitrogen, and iron atoms, respectively.
Nanomaterials 11 01197 g004
Nanomaterials 11 01197 g005 550
Figure 5. The computed adsorption energy profile of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) species after absorbing on pristine and transition metal-N4@graphene (metal = Fe, Co, and Mn) surface, respectively. The dashed line represents the critical energy of weak physical adsorption.
Figure 5. The computed adsorption energy profile of cyclo-S8 and Na2Sn (n = 1, 2, 4, 6, and 8) species after absorbing on pristine and transition metal-N4@graphene (metal = Fe, Co, and Mn) surface, respectively. The dashed line represents the critical energy of weak physical adsorption.
Nanomaterials 11 01197 g005
Nanomaterials 11 01197 g006 550

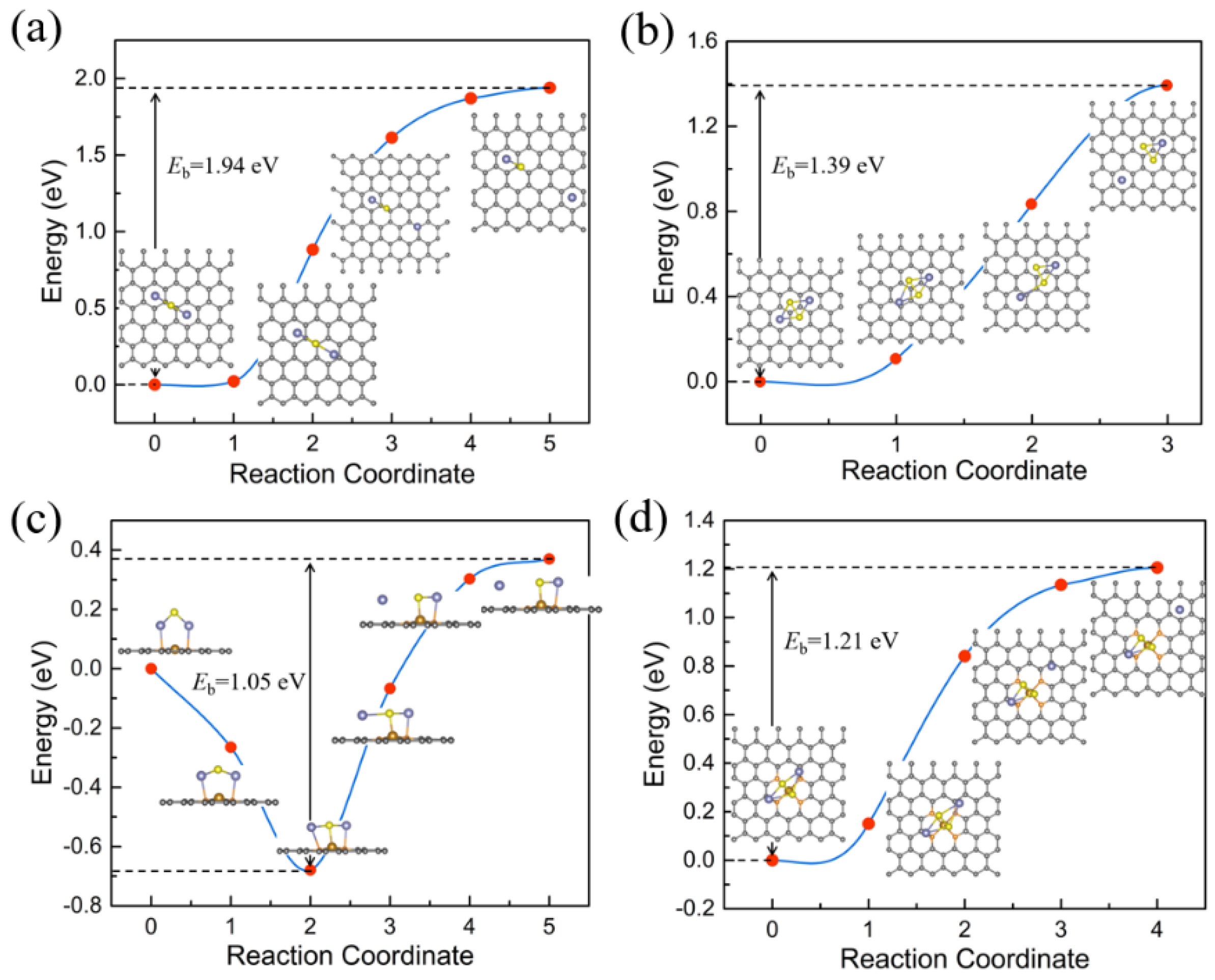

Figure 6. Decomposition pathways and corresponding energy barriers for Na2S and Na2S2 on pristine graphene (a,b) and Fe-N4@graphene (c,d) surface, respectively. The insertions are the intermediate images of one Na ion departing from the NaS/NaS2 cluster.
Figure 6. Decomposition pathways and corresponding energy barriers for Na2S and Na2S2 on pristine graphene (a,b) and Fe-N4@graphene (c,d) surface, respectively. The insertions are the intermediate images of one Na ion departing from the NaS/NaS2 cluster.
Nanomaterials 11 01197 g006
Table
Table 1. The average bond length (d) of isolated Na2Sn species and cyclo-S8. The unit of bond length is angstrom (Å).
Table 1. The average bond length (d) of isolated Na2Sn species and cyclo-S8. The unit of bond length is angstrom (Å).
Na2SNa2S2Na2S4Na2S6Na2S8Cyclo-S8
dNa-S2.4642.5812.7252.7602.734-
dS-S-2.2772.1352.1172.0932.097
Table
Table 2. The adsorption energies Ead (eV) and the average bond length d (Å) of Na2Sn species and cyclo-S8 after absorbing on Fe-N4@graphene.
Table 2. The adsorption energies Ead (eV) and the average bond length d (Å) of Na2Sn species and cyclo-S8 after absorbing on Fe-N4@graphene.
Fe-N4@GNa2SNa2S2Na2S4Na2S6Na2S8Cyclo-S8
Eb1.0921.3581.0721.1581.3520.924
dNa-N2.5692.7902.7072.7082.920-
dFe-S-2.2992.2812.2992.1372.111
dNa-S2.5142.6792.7472.7592.843-
dS-S-2.1752.1392.0642.2352.175
