Low-Temperature-Induced Controllable Transversal Shell Growth of NaLnF4 Nanocrystals

by 1,2,*,†, 1,2,†, 1,3, 1,2, 4,*, 5,* and 1,2,*
1
State Key Laboratory of Luminescence and Applications, Changchun Institute of Optics Fine Mechanics and Physics Chinese Academy of Sciences, Changchun 130033, China
2
Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
3
School of Chemistry and Chemical Engineering, Guizhou University, Guiyang 550025, China
4
Institute for Biomedical Materials and Devices, Faculty of Science, University of Technology Sydney, Sydney, NSW 2007, Australia
5
Department of Chemistry and Biochemistry and Center for NanoScience Research, Concordia University, Montreal, QC H4B 1R6, Canada
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2021, 11(3), 654; https://doi.org/10.3390/nano11030654
Received: 25 January 2021 / Revised: 17 February 2021 / Accepted: 26 February 2021 / Published: 8 March 2021

Abstract

:
Highly controllable anisotropic shell growth is essential for further engineering the function and properties of lanthanide-doped luminescence nanocrystals, especially in some of the advanced applications such as multi-mode bioimaging, security coding and three-dimensional (3D) display. However, the understanding of the transversal shell growth mechanism is still limited today, because the shell growth direction is impacted by multiple complex factors, such as the anisotropy of surface ligand-binding energy, anisotropic core–shell lattice mismatch, the size of cores and varied shell crystalline stability. Herein, we report a highly controlled transversal shell growth method for hexagonal sodium rare-earth tetrafluoride (β-NaLnF4) nanocrystals. Exploiting the relationship between reaction temperature and shell growth direction, we found that the shell growth direction could be tuned from longitudinal to transversal by decreasing the reaction temperature from 310 °C to 280 °C. In addition to the reaction temperature, we also discussed the roles of other factors in the transversal shell growth of nanocrystals. A suitable core size and a relative lower shell precursor concentration could promote transversal shell growth, although different shell hosts played a minor role in changing the shell growth direction.

1. Introduction

Lanthanide-doped core–shell upconverting nanoparticles (UCNPs) have been widely studied due to their advantages of enhancing luminescence, improving emission stability, separating multiple dopants, etc., which promises many specific applications, such as bioimaging [1,2,3,4,5,6], drug delivery [7,8,9], biosensors [10,11,12], 3D display [13], optical multiplexing [14,15], photovoltaics [16] and photodynamic therapy [17]. Precisely controlling the shell growth direction is essential in order to guarantee the desired structure and avoid the unwanted crosstalk between different emitters in the multifunctional core–shell nanocrystals [18].
Hexagonal phase NaLnF4 nanocrystals, as excellent luminescence host materials, have similar unit cell parameters in a hexagonal crystallographic structure. They are usually covered by two groups of planes: {001} planes and {100} planes, presented by two equivalent vertical faces and the six equivalent lateral faces. The differences in atom arrangement between the two kinds of planes make it feasible to control the anisotropic shell growth.
Due to many efforts in the synthesis of NaLnF4 core–shell nanocrystals, some high-quality core–shell or heterogeneous nanocrystals with different shapes have been successfully synthesized [19,20,21,22,23,24,25]. Among them, the isotropic and longitudinal shell growth of NaLnF4 core–shell nanocrystals have been reported more often. However, there are few reports of the transversal shell growth of NaLnF4 nanocrystals. Although Yan’s group successfully fabricated disk-like core–shell NaLnF4 nanocrystals [16], they were more focused on studying the optical properties of the nanomaterials, rather than the mechanism of the transversal shell growth control. The mechanism of the transversal shell growth control is not yet clear. For example, Lee’s group explained that the transversal shell growth of NaYF4 nanocrystals was attributable to the preference of oleic acid to attach on (001) planes [26], while in another report [27], the longitudinal shell growth of NaYF4 was explained by oleic acid preferring to attach on (100) planes. Obviously, oleic acid cannot prefer to attach to (001) and (100) planes at the same time. In our previous report [28], we found that oleic acid prefers to coat on (001) planes while the oleate anions prefer to coat on (100) planes. A lower molar ratio of oleate anions to oleic acid (OA/OAH) would promote the transversal shell growth. According to density functional theory (DFT) simulation results, the binding energy of oleates on each facet is much stronger than that of oleic acid on each facet. The (001) planes usually receive much weaker surfactant coating than (100) planes, which makes the controllable transversal shell growth challenging. Therefore, a deep and systematic study of the transversal shell growth mechanism is required to explore the reason behind the anisotropic shell growth.
In this work, a method for the controllable synthesis of two-dimensional (2D) core–shell NaLnF4 nanocrystals is presented. The synthesis was achieved by controlling the transversal shell growth with a relatively lower reaction temperature. We found that in the condition of a low oleate/oleic acid ratio, the reaction temperature was the major factor for tuning the shell growth direction. Varied reaction temperature would change the surfactant binding status on certain facets of the nanocrystals. Transversal shell growth, isotropic shell growth and longitudinal shell growth of NaLnF4 nanocrystals were respectively achieved at a relatively lower temperature (~280 °C), an intermediate temperature (~300 °C), and a relatively higher temperature (~310 °C). In addition, other relevant reaction factors for controllable transversal shell growth (e.g., core size, lattice mismatch and shell precursor concentration) were studied carefully as well.

2. Materials and Methods

The following reagents were used as received without further purification: thulium chloride hexahydrate (TmCl3·6H2O, 99.99%), yttrium chloride hexahydrate (YCl3·6H2O, 99.99%), ytterbium chloride hexahydrate (YbCl3·6H2O, 99.998%), gadolinium chloride hexahydrate (GdCl3·6H2O, 99.9%), sodium trifluoroacetate (CF3COONa, 98%), sodium hydroxide (NaOH, 98%), ammonium fluoride (NH4F, 99.99%), oleic acid (OA, 90%), 1-octadecene (ODE, 90%).

2.1. Synthesis of 7.5 nm β-NaGdF4 Cores

The β-NaGdF4 core nanocrystals were synthesized by a modified reported method. In a typical procedure, 1 mL of GdCl3 in methanol (1.0 mmol) was mixed with OA (6 mL) and ODE (15 mL) in a 100 mL three-neck round-bottom flask. The mixture was degassed under Ar flow during heating up to 150 °C, followed by a 30 min isothermal reaction to form a clear solution, and then cooled down to room temperature. Ten milliliters of a methanol solution containing NH4F (4 mmol) and NaOH (2.5 mmol) was added to the flask and then stirred for 60 min. The solution was slowly heated up to 110 °C and kept at 110 °C for 30 min to completely remove the methanol and any residual water. Then the reaction solution was quickly heated up to 250 °C and kept isothermally for 1.5 h, before being cooled down to room temperature. Ethanol was added to precipitate the nanocrystals, which were transferred to two 50 mL centrifuge tubes and centrifuge-washed four times with cyclohexane, ethanol and methanol (volume ratio = 2:3:2). The obtained nanocrystals were re-dispersed in 10 mL of cyclohexane (20.5 mg/mL).

2.2. Synthesis of 26 nm β-NaYF4 Cores

The β-NaYF4 core nanocrystals were synthesized by a modified reported method. In a typical procedure, a methanol solution of (2 mL) of YCl3 (1 mmol) was mixed with OA (6 mL) and ODE (15 mL) in a 100 mL three-neck round-bottom flask. The mixture was degassed under Ar flow during the heating up to 150 °C followed by a 30 min isothermal reaction to form a clear solution, and then cooled down to room temperature. Ten milliliters of methanol containing NH4F (4 mmol) and NaOH (2.5 mmol), was added into the flask and then stirred for 60 min. The solution was slowly heated up to 110 °C and kept at 110 °C for 30 min to completely remove the methanol and any residual water. Then the reaction solution was quickly heated up to 300 °C and kept isothermally for 1.5 h, before being cooled down to room temperature. Ethanol was added to precipitate the nanocrystals, which were transferred to two 50 mL centrifuge tubes and centrifuge-washed four times with cyclohexane, ethanol and methanol (volume ratio = 2:3:2). The obtained nanocrystals were re-dispersed in 10 mL of cyclohexane with a concentration of 18.5 mg/mL.

2.3. Temperature Effect on the Shell Growth of NaYF4 Nanocrystals

A methanol solution (1 mL) of YCl3 (0.2 mmol) was mixed with OA (6 mL) and ODE (6 mL) in a 100 mL three-neck round-bottom flask. The mixture solution was degassed under Ar flow during the heating up to 160 °C followed by a 30 min isothermal reaction to form a clear solution, and then cooled down to 100 °C. One milliliter of 26 nm NaYF4 nanocrystals in cyclohexane stock solution (0.1 mmol) was added into the flask, followed by the addition of 0.25 mmol sodium trifluoroacetate. The solution was slowly heated up to 120 °C and kept at 120 °C for 30 min to completely remove the cyclohexane and any residual water. Then, the reaction solution was quickly heated up to 280 °C or 300 °C or 310 °C and kept isothermally for 1.5 h, before being cooled down to room temperature. Ethanol was added to precipitate the nanocrystals, which were transferred to two 50 mL volume centrifuge tubes and centrifuge-washed four times with cyclohexane, ethanol and methanol (volume ratio = 2:3:2). The obtained nanocrystals were re-dispersed in 3 mL of cyclohexane.

2.4. Synthesis of 16 nm × 21 nm NaGdF4/NaYF4 Nanocrystals

A methanol solution (4 mL) of YCl3 (0.8 mmol) was mixed with 9 mL OA and 9 mL ODE in a 50 mL three-neck round-bottom flask. The mixture solution was degassed under Ar flow during the heating up to 160 °C followed by a 30 min isothermal reaction to form a clear solution, and then cooled down to 100 °C. Then, 0.1 mmol 7.5 nm NaGdF4 nanocrystals in cyclohexane stock solution (1 mL) was added into the flask, followed by the addition of 2 mmol sodium trifluoroacetate. The solution was slowly heated up to 150 °C and kept at 150 °C for 20 min to completely remove the cyclohexane and any residual water. Then, the reaction solution was quickly heated up to 280 °C and kept isothermally for 1.5 h, before being cooled down to room temperature. Ethanol was added to precipitate the nanocrystals, which were transferred to two 50 mL volume centrifuge tubes and centrifuge-washed four times with cyclohexane, ethanol and methanol (volume ratio = 2:3:2). The obtained nanocrystals were re-dispersed in 5 mL of cyclohexane (21 mg/mL).

2.5. Synthesis of 25.5 nm NaGdF4/NaYF4 Nanocrystals

A solution of 0.4 mmol YCl3 in methanol was mixed with 6 mL OA and 6 mL ODE in a 50 mL three-neck round-bottom flask. The mixture solution was degassed under Ar flow during the heating up to 160 °C followed by a 30 min isothermal reaction to form a clear solution, and then cooled down to 100 °C. Then one milliliter 16 nm × 21 nm NaGdF4/NaYF4 nanocrystals (21 mg/mL) in cyclohexane stock solution was added into the flask, followed by the addition of 1 mmol of sodium trifluoroacetate. The solution was slowly heated up to 150 °C and kept at 150 °C for 20 min to completely remove the cyclohexane and any residual water. Then the reaction solution was quickly heated up to 300 °C and kept isothermally for 1.5 h, before being cooled down to room temperature. Ethanol was added to precipitate the nanocrystals, which were transferred to two 50 mL centrifuge tubes and centrifuge-washed four times with cyclohexane, ethanol and methanol (volume ratio = 2:3:2). The obtained nanocrystals were re-dispersed in 6 mL of cyclohexane (19 mg/mL).

2.6. Shell Precursor Concentration Effect to Transversal Shell Growth

OA-ODE solutions of 0.2 mmol YCl3 and 0.5 mmol sodium trifluoroacetate were used for the low shell precursor concentration condition; 0.4 mmol YCl3, 2 mmol sodium trifluoroacetate were used for the high shell precursor concentration. The other condition was kept the same.
A certain amount of YCl3 was mixed with 6 mL OA and 6 mL ODE in a 50 mL three-neck round-bottom flask. The mixture solution was degassed under Ar flow during the heating up to 160 °C followed by a 30 min isothermal reaction to form a clear solution, and then cooled down to 100 °C. One milliliter 16 nm × 21 nm NaGdF4/NaYF4 nanocrystals (21 mg/mL) in cyclohexane stock solution was added into the flask, followed by the addition of a certain amount of sodium trifluoroacetate. The solution was slowly heated up to 150 °C and kept at 150 °C for 20 min to completely remove the cyclohexane and any residual water. Then the reaction solution was quickly heated up to 280 °C and kept isothermally for 1.5 h, before being cooled down to room temperature. Ethanol was added to precipitate the nanocrystals, which were washed four times with cyclohexane, ethanol and methanol.

2.7. Preparing Shell Precursor for the Transversal Shell Growth

A solution of 2 mmol LnCl3 (GdCl3 or YCl3 or YbCl3) was mixed with 10 mL OA and 10 mL ODE in a 50 mL three-neck round-bottom flask. The mixture solution was degassed under Ar flow during the heating up to 160 °C followed by a 45 min isothermal reaction to form a clear solution, followed by the addition of 5 mmol of sodium trifluoroacetate and stirring for another 30 min and then cooling down to room temperature.

2.8. Transversal Shell Growth for NaGdF4/NaLnF4 (NaYF4 or NaYbF4) Nano-Disks

In a typical protocol, 1 mL of stored solution of 25.5 nm NaGdF4/NaYF4 nanocrystals (19 mg/mL) was mixed with 6 mL OA and 6 mL ODE in a 50 mL three-neck round-bottom flask. The mixture solution was degassed under Ar flow during the heating to 280 °C and the shell precursor was injected with a speed of 0.1 mL (0.02 mmol NaLnF4 shell precursor) per 5 min, repeating injection until the required amount of shell precursor was reached. After the last injection, the reaction temperature was kept at 280 °C for 20 min, then the reaction solution was cooled to room temperature. Centrifuge precipitation of the product was performed at 4000 rpm for 10 min, then the precipitate was washed with cyclohexane, ethanol and methanol three times.

2.9. TEM Characterization

Both standard TEM and high-resolution TEM were performed on the same sample using a 200 keV JEOL JEM-2100F microscope. Powder X-ray diffraction (XRD) patterns were obtained on a PANalytical X’Pert Pro MPD X-ray diffractometer using Cu Kα1 radiation (40 kV, 40 mA, l = 0.15418 nm). The XRD samples were prepared by repeatedly drying drops of nanocrystal dispersions in cyclohexane cast on a zero background silicon wafer. The X-ray photoelectron spectroscopy (XPS) was characterized by Thermo Scientific, ESCALAB250Xi. X-ray source: mono-chromated Al K alpha (energy 1486.68 eV); power: 150 W (13 kV × 12 mA).

3. Results

As shown in Figure 1a, we modeled the coating status of surface ligands on the crystal surface, well coated and partially released. The coating status of surfactant ligand was determined by two factors: the binding energy between surfactant and crystal surface, E[email protected], which is decided by the features of the surfactants and planes; and the thermal motion energy of ligands, Emotion,T, which is mainly determined by reaction temperature. The facet passivation status could be “on” (surfactants well attached) or “off” (surfactants partially shaken off), which is decided by the relative value of surfactant binding energy, E[email protected], and the thermal motion energy of surface ligands, Emotion,T. A higher value of Emotion,T will give surfactant ligand a higher frequency to be shaken off from the surface. Therefore, selecting a suitable value of Emotion,T, which will make one plane have more of a chance to become “off” compared to other planes, will induce the shell preferentially grow along this direction. According to our previous work [28], the binding energy values of OAH and OA at different planes, (100) and (001), follow the order: E[email protected](100) < E[email protected](001) < EOA@(001) < EOA@(100). Therefore, by adjusting the reaction temperature it should be possible to tune the shell growth direction of NaLnF4 nanocrystals (Figure 1b). For example, at a relatively lower temperature, E[email protected](100) < Emotion,T < E[email protected](001) < EOA@(001) < EOA@(100), only the (100) plane will be less passivated by the surfactant due to OAH being shaken off from the (100) plane, which would result in transversal shell growth. When the temperature was increased to a suitable value, resulting in E[email protected](100) < E[email protected](001) < Emotion,T < EOA@(001) < EOA@(100), the passivation on both (001) and (100) planes would be released and isotropic shell growth would occur. Upon further increasing temperature to make E[email protected](100) < E[email protected](001) < EOA@(001) < Emotion,T < EOA@(100), only the (100) plane would be well passivated by oleates, which would result in longitudinal shell growth.
To reveal the role of reaction temperature for the shell growth direction control, 26 nm -NaYF4 core nanocrystals were applied as the core for shell growth under different temperatures, 280 °C, 300 °C and 310 °C, in a heating-up method. The TEM images and size distribution graph of the core and core–shell nanocrystals are shown in Figure 2. We can see the major morphology changes as the temperature increased from 280 °C to 310 °C. The disk-like nanocrystals (Figure 2b) suggest a transversal shell growth occurred at 280 °C; the spherical nanocrystals (Figure 2c) illustrate that an isotropic shell growth occurred at 300 °C; and the rod-like nanocrystals (Figure 2d) reveal that a longitudinal shell growth occurred at 310 °C. These results are coherent with our former hypothesis. The size distribution of core and core–shell in Figure 2e shows that the thickness of nano-disk core–shell nanocrystal (36.6 nm) was slightly increased compared with the diameter of the core nanocrystals (26.7 nm), although the major shell growth direction was transversal. To achieve highly controllable transversal shell growth of NaLnF4 nanocrystals, the effect of other relative factors such as core size, shell host and shell precursor injection rate need to be considered.
To study the effect of the core size to the transversal shell growth, 7.5 nm NaGdF4 nanocrystals as the cores were applied for the continuous growth of shells with different thickness at 280 °C. Differently sized NaGdF4/NaYF4 core–shell nanocrystals were collected as the shell precursors were continuously injected into the reaction system. The crystal phase of the core and core–shell nanocrystals remained in the hexagonal phase, as indicated by the X-ray diffractograms shown in Figure S1. The surface information of the core and core–shell structure was characterized by XPS, as shown in Figure S2, which shows the Gd4d and Y3d peaks. The morphology changes of core and core–shell nanocrystal with increased sizes are recorded in TEM images shown in Figure 3. Interestingly, the core did not follow the transversal shell growth at the beginning but grew isotopically (Figure 3b). With more shell growth, 13 nm spherical nanocrystals were transferred into 16 nm hexagonal prism core–shell nanocrystals (Figure 3c). Beyond this size, the transversal shell growth trend gradually formed, as shown in Figure 3d–f. The diameter of core–shell nanocrystals increased to 40 nm and 50 nm with a 17 nm thickness. These group data suggest that core nanocrystals that are too small would inhibit the transversal shell growth. It is difficult to achieve ultrathin 2D NaYF4 by using a smaller core (e.g., less than 10 nm), because the thickness of core–shell nanocrystals would increase appropriately in the transversal shell growth.
This can be explained by the thermodynamics of crystal growth. Thermodynamics tells us that the Gibbs free energy for a spherical particle can be expressed as the sum of the volume energy and the surface energy change (Equation (1)):
Gtot = ∆Gvol + ∆Gsur = A*d3Gv + B*d2γu
where ∆Gtot is the total energy change from the initial state to final state, ∆Gvol is the volume energy change, ∆Gsur denotes the energy change on the surface, d is the size of the nanoparticle, Gv is the energy per unit volume, A*d3 denotes the volume of the nanoparticle, B*d2 is the surface area of the nanoparticle, A and B are two constants, and γu is the surface energy per unit area of the surface. For smaller nanoparticles, there is a larger fraction of their atoms on the surface. To reduce the value of ∆Gsur and the surface area, the core nanocrystal will tend to grow isotropically into a spherical shape rather than other shapes. As the size of nanocrystals increases, the fraction of atoms on the surface decreases quickly, and the anisotropic crystallographic property of the core nanocrystal performs, which allows the core nanocrystal to grow transversally.
We tried to break past the limit of synthesizing ultrathin 2D core–shell nanocrystals by adjusting the shell precursor concentration. As we know, besides the temperature, the concentration of shell precursors will affect the shell growth rate. Especially in the anisotropic shell growth process, a lower shell concentration or a slower shell precursor injection will slow the shell growth rate, which will promote the shell’s growth in the transversal direction. Here, we experimentally prove this hypothesis. To avoid the effect of small size on the transversal shell growth of nanocrystals, 16 nm × 21 nm NaGdF4/NaYF4 nanocrystals were prepared first. The NaGdF4/NaYF4 nanocrystals were used as cores for the transversal shell growth under a lower concentration and a higher concentration of the NaYF4 shell precursor while keeping the other conditions the same (see the experimental details in the Methods section). The TEM image results are shown in Figure 4. The low shell precursor concentration results were 13 nm × 28 nm NaGdF4/NaYF4 nanocrystals, while the high shell precursor concentration results were 28 nm × 41 nm NaGdF4/NaYF4 nanocrystals. The large difference in the thickness of the two disk-like nanocrystals demonstrates that the shell growth in the longitudinal direction was seriously inhibited. Even the thickness of core–shell nanocrystals was smaller than the core’s thickness, which suggests a negative growth occurred in the longitudinal direction (<001> orientation). This result inspires a new way to fabricate thinner two-dimensional core–shell nanocrystals by applying a low concentration of shell precursors in the condition of transversal shell growth.
Next, we studied the effect of different shell hosts on the transversal shell growth. In order to easily characterize the core–shell structure, 25.5 nm NaGdF4/NaYF4 core–shell nanocrystals were used as the core (Figure 5a). The cores were transversally grown with NaYF4 shell and NaYbF4 shell, respectively, as shown in Figure 5b,d. The core–shell structure was clearly observed after the shell growth. The dark dots in the TEM images of NaGdF4/NaYF4 nanocrystals (Figure 5a–c) are NaGdF4, while the grey white dots in the TEM images of NaGdF4/NaYF4/NaYbF4 nanocrystals (Figure 5d) indicate the core of NaGdF4/NaYF4, because the Yb atom is heavier than the Gd and Y atoms, and the Gd atom is heavier than the Y atom. The similar disk-like shapes of the two obtained nanocrystals illustrates that the different shell hosts only had a minor influence on the transversal shell growth. Interestingly, the thickness of NaGdF4/NaYF4 nano-disk was 17.9 nm—smaller than the 25.5 nm size of the original core nanocrystal (Figure S3). The thickness of the nano-disk was further decreased to 14.3 nm after utilizing NaGdF4/NaYF4 nano-disks as cores for the growth of another layer of NaYbF4 shell (Figure 5e). The multiple-layer shell structure is clearly presented in the high-resolution TEM image (Figure 5f). The continuous reduction in the thickness of the nano-disk is coherent with the result obtained when applying the low shell precursor concentration (Figure 4b). This result further demonstrates the feasibility of synthesizing thinner 2D NaLnF4 nanocrystals via continuous transversal shell growth.

4. Conclusions

This work presented a highly controllable transversal shell growth method with a relatively lower reaction temperature compared to conventional methods. This method is advantageous to decrease the cation diffusion at the core–shell interface, which may promote the luminescence property of nanocrystals with separate doping area. Additionally, this method can increase or decrease the thickness of NaLnF4 nanocrystals, which could be useful for fabricating ultra-thin nanocrystals or multi-layer 2D nanocrystals. We conducted an in-depth study of the mechanism of the epitaxial shell growth of NaLnF4 nanocrystals, carefully discussed the major factors for controlling the shell growth direction and drew conclusions regarding the relationship between these factors, providing theoretical support for engineering the nanostructure of multifunctional heterogeneous nanocrystals.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/11/3/654/s1, Figure S1: Extra TEM images and XRD patterns, Figure S2: XPS spectra, Figure S3: extra TEM images and size distributions.

Author Contributions

Conceptualization, D.L.; Data curation, D.L., Y.J. and X.D.; Formal analysis, Y.J. and L.L.; Funding acquisition, D.L. and D.S.; Investigation, Y.J.; Resources, D.S.; Supervision, D.S.; Validation, X.D.; Visualization, X.D.; Writing—original draft, D.L.; Writing—review and editing, L.L., D.J. and J.A.C. All authors have read and agreed to the published version of the manuscript.

Funding

The research reported in this publication was supported by funding from National Natural Science Foundation of China (11727902, 61425021, 61525404, 61975204), CAS Pioneer Hundred Talents Program; J.A.C. is a Concordia University Research Chair in Nanoscience and is grateful to Concordia University for the financial support of his research. J.A.C. is grateful for financial support from the Natural Science and Engineering Research Council of Canada.

Data Availability Statement

Data is contained within the article or Supplementary Materials. Further, the published data can be reused by appropriate acknowledgement.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Zhu, X.; Su, Q.; Feng, W.; Li, F. Anti-Stokes shift luminescent materials for bio-applications. Chem. Soc. Rev. 2017, 46, 1025–1039. [Google Scholar] [CrossRef]
  2. Shen, B.; Cheng, S.; Gu, Y.; Ni, D.; Gao, Y.; Su, Q.; Feng, W.; Li, F. Revisiting the optimized doping ratio in core/shell nanostructured upconversion particles. Nanoscale 2016, 9, 1964–1971. [Google Scholar] [CrossRef] [PubMed]
  3. Wu, X.; Zhang, Y.; Takle, K.; Bilsel, O.; Li, Z.; Lee, H.; Zhang, Z.; Li, D.; Fan, W.; Duan, C.; et al. Dye-Sensitized Core/Active Shell Upconversion Nanoparticles for Optogenetics and Bioimaging Applications. Acs Nano 2016, 10, 1060–1066. [Google Scholar] [CrossRef][Green Version]
  4. Chen, G.; Qiu, H.; Prasad, P.N.; Chen, X. Upconversion Nanoparticles: Design, Nanochemistry, and Applications in Theranostics. Chem. Rev. 2014, 114, 5161–5214. [Google Scholar] [CrossRef]
  5. Yang, D.; Li, C.; Lin, J. Multimodal cancer imaging using lanthanide-based upconversion nanoparticles. Nanomed. 2015, 10, 2573–2591. [Google Scholar] [CrossRef] [PubMed]
  6. Chan, M.-H.; Pan, Y.-T.; Lee, I.-J.; Chen, C.-W.; Chan, Y.-C.; Hsiao, M.; Wang, F.; Sun, L.; Chen, X.; Liu, R.-S. Minimizing the Heat Effect of Photodynamic Therapy Based on Inorganic Nanocomposites Mediated by 808 nm Near-Infrared Light. Small 2017, 13, 1700038. [Google Scholar] [CrossRef] [PubMed]
  7. Zhou, L.; Zheng, X.; Gu, Z.; Yin, W.; Zhang, X.; Ruan, L.; Yang, Y.; Hu, Z.; Zhao, Y. Mesoporous [email protected] core-shell up-conversion nanoparticles for targeted drug delivery and multimodal imaging. Biomaterials 2014, 35, 7666–7678. [Google Scholar] [CrossRef]
  8. Xu, B.; Zhang, X.; Huang, W.; Yang, Y.; Ma, Y.; Gu, Z.; Zhai, T.; Zhao, Y. Nd 3+ sensitized dumbbell-like upconversion na-noparticles for photodynamic therapy application. J. Mater. Chem. B 2016, 4, 2776–2784. [Google Scholar] [CrossRef] [PubMed]
  9. Zhou, J.; Liu, Q.; Feng, W.; Sun, Y.; Li, F. Upconversion Luminescent Materials: Advances and Applications. Chem. Rev. 2015, 115, 395–465. [Google Scholar] [CrossRef] [PubMed]
  10. Liang, Z.; Wang, X.; Zhu, W.; Zhang, P.; Yang, Y.; Sun, C.; Zhang, J.; Wang, X.; Xu, Z.; Zhao, Y.; et al. Upconversion Nanocrystals Mediated Lateral-Flow Nanoplatform forin VitroDetection. ACS Appl. Mater. Interfaces 2017, 9, 3497–3504. [Google Scholar] [CrossRef]
  11. Tan, G.-R.; Wang, M.; Hsu, C.-Y.; Chen, N.; Zhang, Y. Small Upconverting Fluorescent Nanoparticles for Biosensing and Bioimaging. Adv. Opt. Mater. 2016, 4, 984–997. [Google Scholar] [CrossRef]
  12. Peng, J.; Xu, W.; Teoh, C.L.; Han, S.; Kim, B.; Samanta, A.; Er, J.C.; Wang, L.; Yuan, L.; Liu, X.; et al. High-Efficiency in Vitro and in Vivo Detection of Zn2+ by Dye-Assembled Upconversion Nanoparticles. J. Am. Chem. Soc. 2015, 137, 2336–2342. [Google Scholar] [CrossRef]
  13. Deng, R.; Qin, F.; Chen, R.; Huang, W.; Hong, M.; Liu, X. Temporal full-colour tuning through non-steady-state upconversion. Nat. Nanotechnol. 2015, 10, 237–242. [Google Scholar] [CrossRef]
  14. Lu, Y.; Zhao, J.; Zhang, R.; Liu, Y.; Liu, D.; Goldys, E.M.; Yang, X.; Xi, P.; Sunna, A.; Lu, J.; et al. Tunable lifetime multiplexing using luminescent nanocrystals. Nat. Photon. 2014, 8, 32–36. [Google Scholar] [CrossRef][Green Version]
  15. Zheng, X.; Lu, Y.; Zhao, J.; Zhang, Y.; Ren, W.; Liu, D.; Lu, J.; Piper, J.A.; Leif, R.C.; Liu, X.; et al. High-Precision Pinpointing of Luminescent Targets in Encoder-Assisted Scanning Microscopy Allowing High-Speed Quantitative Analysis. Anal. Chem. 2016, 88, 1312–1319. [Google Scholar] [CrossRef][Green Version]
  16. Atabaev, T.S.; Molkenova, A. Upconversion optical nanomaterials applied for photocatalysis and photovoltaics: Recent advances and perspectives. Front. Mater. Sci. 2019, 13, 335–341. [Google Scholar] [CrossRef]
  17. Qiu, H.; Tan, M.; Ohulchanskyy, T.Y.; Lovell, J.F.; Chen, G. Recent Progress in Upconversion Photodynamic Therapy. Nanomater. 2018, 8, 344. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Dong, H.; Sun, L.-D.; Feng, W.; Gu, Y.; Li, F.; Yan, C.-H. Versatile Spectral and Lifetime Multiplexing Nanoplatform with Excitation Orthogonalized Upconversion Luminescence. ACS Nano 2017, 11, 3289–3297. [Google Scholar] [CrossRef] [PubMed]
  19. Fischer, S.; Swabeck, J.K.; Alivisatos, A.P. Controlled Isotropic and Anisotropic Shell Growth in β-NaLnF4 Nanocrystals Induced by Precursor Injection Rate. J. Am. Chem. Soc. 2017, 139, 12325–12332. [Google Scholar] [CrossRef] [PubMed][Green Version]
  20. Dong, H.; Sun, L.-D.; Li, L.-D.; Si, R.; Liu, R.; Yan, C.-H. Selective Cation Exchange Enabled Growth of Lanthanide Core/Shell Nanoparticles with Dissimilar Structure. J. Am. Chem. Soc. 2017, 139, 18492–18495. [Google Scholar] [CrossRef] [PubMed]
  21. Chen, B.; Liu, Y.; Xiao, Y.; Chen, X.; Li, Y.; Li, M.; Qiao, X.; Fan, X.; Wang, F. Amplifying Excitation-Power Sensitivity of Photon Upconversion in a NaYbF4:Ho Nanostructure for Direct Visualization of Electromagnetic Hotspots. J. Phys. Chem. Lett. 2016, 7, 4916–4921. [Google Scholar] [CrossRef]
  22. Zhang, Y.; Yu, Z.; Li, J.; Ao, Y.; Xue, J.; Zeng, Z.; Yang, X.; Tan, T.T.Y. Ultrasmall-Superbright Neodymium-Upconversion Nanoparticles via Energy Migration Manipulation and Lattice Modification: 808 nm-Activated Drug Release. ACS Nano 2017, 11, 2846–2857. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, X.; Li, X.; Qin, X.; Xie, X.; Huang, L. Hedgehog-Like Upconversion Crystals: Controlled Growth and Molecular Sensing at Single-Particle Level. Adv. Mater. 2017, 29, 1702315. [Google Scholar] [CrossRef] [PubMed]
  24. Johnson, N.J.; van Veggel, F.C. Lanthanide-Based Heteroepitaxial Core–Shell Nanostructures: Compressive versus Tensile Strain Asymmetry. ACS Nano 2014, 8, 10517–10527. [Google Scholar] [CrossRef] [PubMed]
  25. Dong, H.; Sun, L.-D.; Wang, Y.-F.; Ke, J.; Si, R.; Xiao, J.-W.; Lyu, G.-M.; Shi, S.; Yan, C.-H. Efficient Tailoring of Upconversion Selectivity by Engineering Local Structure of Lanthanides in Na x REF3+ x Nanocrystals. J. Am. Chem. Soc. 2015, 137, 6569–6576. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, C.; Lee, J.Y. Prevalence of Anisotropic Shell Growth in Rare Earth Core–Shell Upconversion Nanocrystals. ACS Nano 2013, 7, 4393–4402. [Google Scholar] [CrossRef]
  27. Lei, L.; Chen, D.; Huang, P.; Xu, J.; Zhang, R.; Wang, Y. Modifying the size and uniformity of upconversion Yb/Er: NaGdF 4 nanocrystals through alkaline-earth doping. Nanoscale 2013, 5, 11298–11305. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, D.; Xu, X.; Du, Y.; Qin, X.; Zhang, Y.; Ma, C.; Wen, S.; Ren, W.; Goldys, E.M.; Piper, J.A.; et al. Three-dimensional controlled growth of monodisperse sub-50 nm heterogeneous nanocrystals. Nat. Commun. 2016, 7, 10254. [Google Scholar] [CrossRef][Green Version]

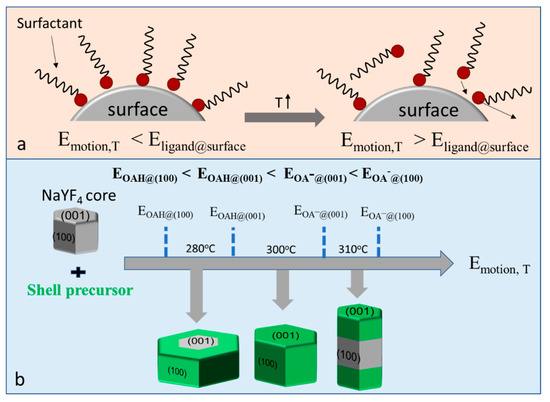

Figure 1. (a) Scheme of the relationship between the reaction temperature and the passivation status of surfactant ligands on the crystal surface: the thermal motion energy of the surfactant molecule (Emotion,T) increases as the temperature rises. When Emotion,T > E[email protected] (surfactant binding energy on the crystal surface), the surfactant will have an increased chance of being shaken off from the surface. (b) Scheme of tuning the shell growth direction for hexagonal NaYF4 nanocrystal by adjusting the reaction temperature.
Figure 1. (a) Scheme of the relationship between the reaction temperature and the passivation status of surfactant ligands on the crystal surface: the thermal motion energy of the surfactant molecule (Emotion,T) increases as the temperature rises. When Emotion,T > E[email protected] (surfactant binding energy on the crystal surface), the surfactant will have an increased chance of being shaken off from the surface. (b) Scheme of tuning the shell growth direction for hexagonal NaYF4 nanocrystal by adjusting the reaction temperature.
Nanomaterials 11 00654 g001
Figure 2. TEM images of core-only (a) and core–shell nanocrystals, synthesized at a different temperature, 280 °C (b), 300 °C (c) and 310 °C (d), and their statistical graph of size of core and core–shell nanocrystals. (e) All scale bar is 100 nm.
Figure 2. TEM images of core-only (a) and core–shell nanocrystals, synthesized at a different temperature, 280 °C (b), 300 °C (c) and 310 °C (d), and their statistical graph of size of core and core–shell nanocrystals. (e) All scale bar is 100 nm.
Nanomaterials 11 00654 g002
Figure 3. TEM images of core-only NaGdF4:Yb3+, Tm3+ nanoparticles (NPs) (a) and NaGdF4:Yb, [email protected]4 core–shell NPs with different amounts of shell precursors ((a) 1 mL, (b) 2 mL, (c) 4 mL, (d) 8 mL, (e) 16 mL, (f) 32 mL). The 2D shell growth process with increasing precursor injection under 280 °C, scale bar 50 nm.
Figure 3. TEM images of core-only NaGdF4:Yb3+, Tm3+ nanoparticles (NPs) (a) and NaGdF4:Yb, [email protected]4 core–shell NPs with different amounts of shell precursors ((a) 1 mL, (b) 2 mL, (c) 4 mL, (d) 8 mL, (e) 16 mL, (f) 32 mL). The 2D shell growth process with increasing precursor injection under 280 °C, scale bar 50 nm.
Nanomaterials 11 00654 g003
Figure 4. TEM images of NaGdF4/NaYF4 core nanocrystals before (a) and after shell growth with a low shell precursor concentration (b) and a high shell precursor concentration (c). Insert in (a) is the high-resolution TEM image for the corresponding sample.
Figure 4. TEM images of NaGdF4/NaYF4 core nanocrystals before (a) and after shell growth with a low shell precursor concentration (b) and a high shell precursor concentration (c). Insert in (a) is the high-resolution TEM image for the corresponding sample.
Nanomaterials 11 00654 g004
Figure 5. TEM images of NaGdF4/NaYF4 spherical nanocrystals as core (a) for transversal growth with different host shells: NaYF4 shell (b) and NaYbF4 shell (d). NaGdF4@NaYF4 nano-disk (b) as core for another transversal shell growth with a layer of NaYbF4 shell (e). High-resolution TEM images of NaGdF4/NaYF4 nano-disks (c) and NaGdF4/NaYF4/NaYbF4 nano-disks (f).
Figure 5. TEM images of NaGdF4/NaYF4 spherical nanocrystals as core (a) for transversal growth with different host shells: NaYF4 shell (b) and NaYbF4 shell (d). NaGdF4@NaYF4 nano-disk (b) as core for another transversal shell growth with a layer of NaYbF4 shell (e). High-resolution TEM images of NaGdF4/NaYF4 nano-disks (c) and NaGdF4/NaYF4/NaYbF4 nano-disks (f).
Nanomaterials 11 00654 g005
