Plasma Assisted Reduction of Graphene Oxide Films
Abstract

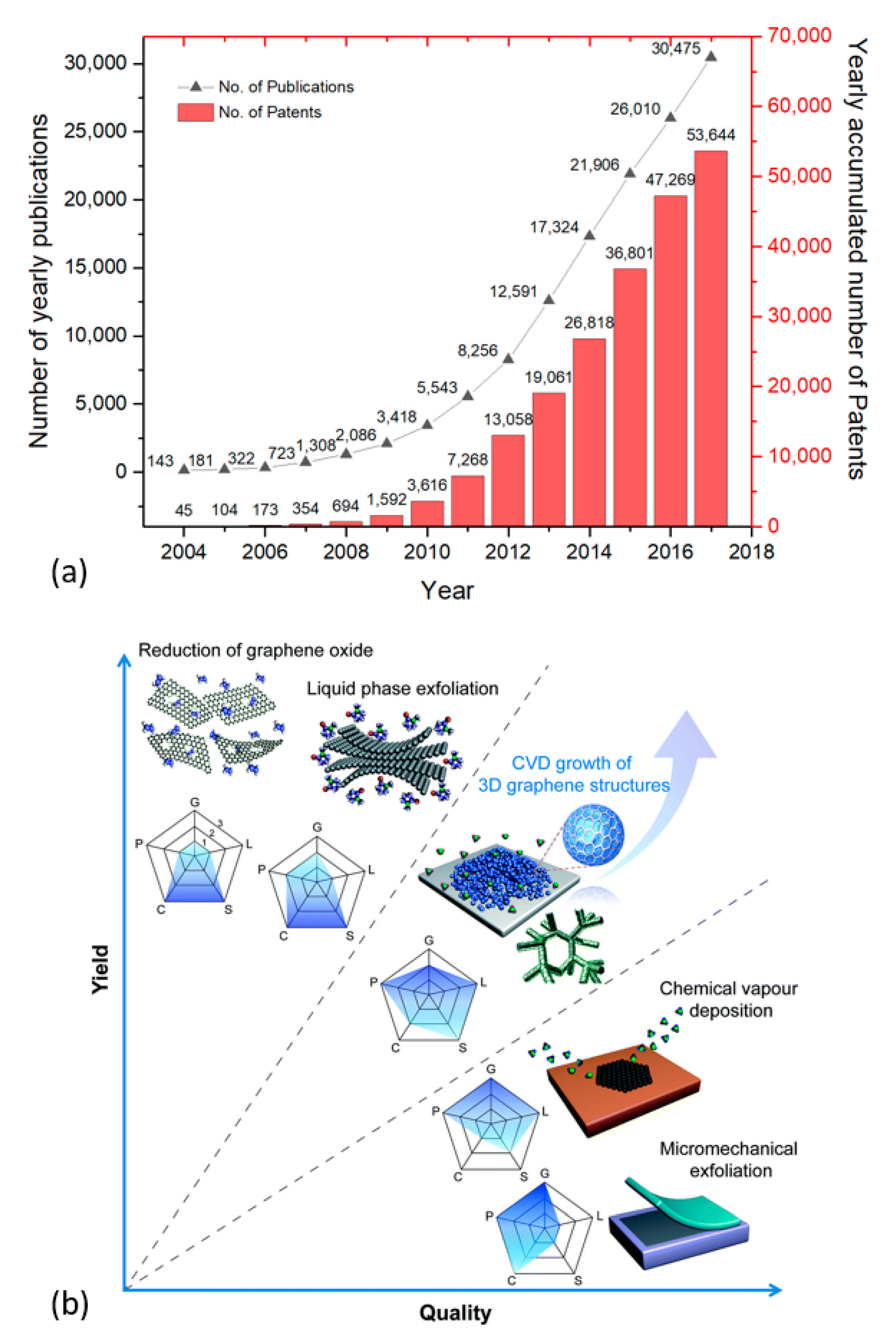

:1. Introduction
2. GO/rGO: Properties, Reduction Methods, and Characterization

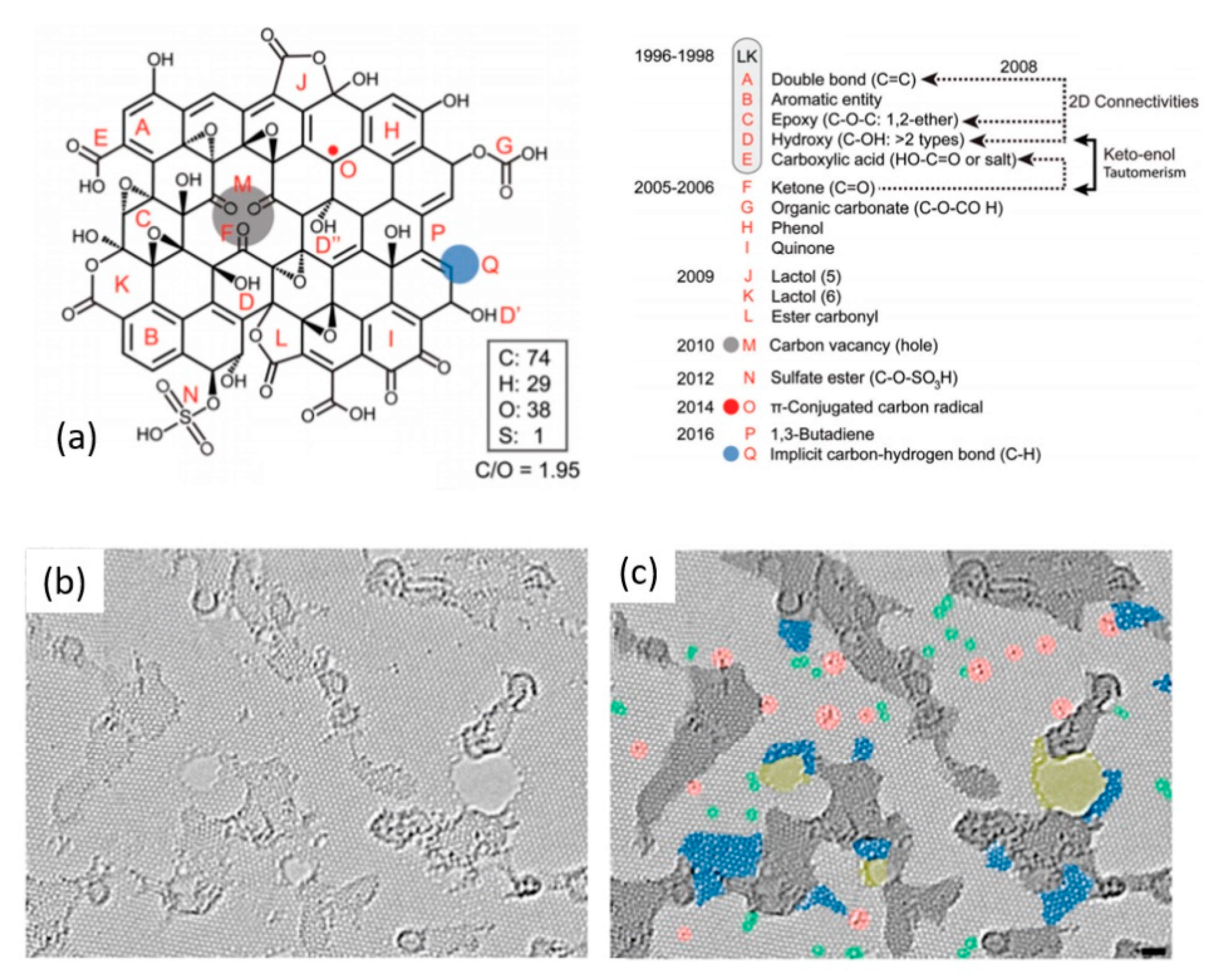

2.1. Structure and Properties of GO/rGO
2.2. Reduction Methods for GO
2.3. Characterization of rGO
- epoxide (C-O-C): 1230–1320 cm−1, asymmetric stretching; ~850 cm−1 bending motion,
- sp2-hybridized C=C: 1500–1600 cm−1, in-plane vibrations,
- carboxyl (COOH): 1650–1750 cm−1 (including C-OH vibrations at 3530 and 1080 cm−1),
- ketonic species (C=O): 1600–1650 and 1750–1850cm−1, and
- hydroxyl (namely phenol, C-OH): 3050–3800 and 1070 cm−1) with all C-OH vibrations from COOH and H2O.

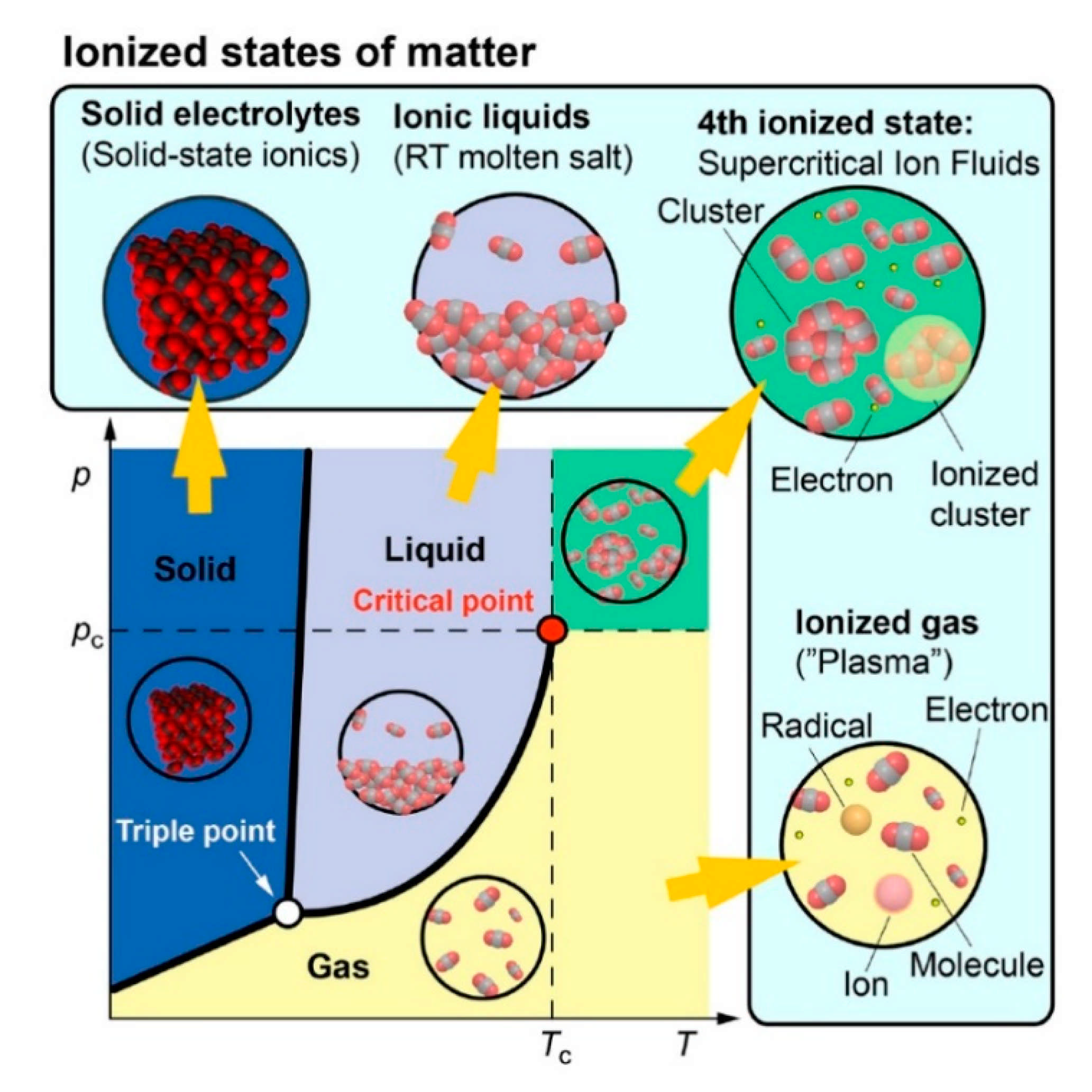

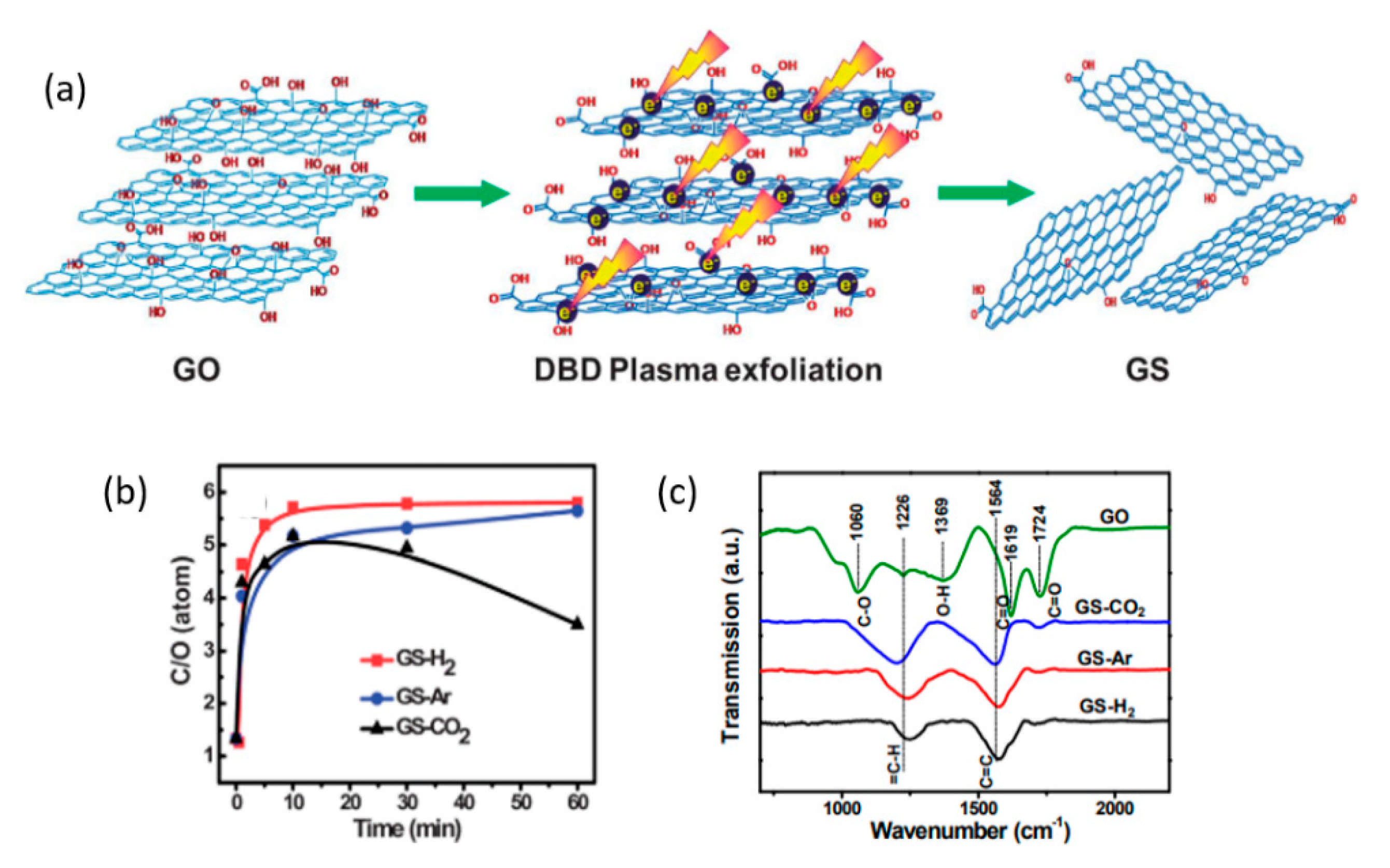

3. Plasma-Assisted Reduction of GO
- operating pressure:
- o
- low-pressure plasma
- o
- atmospheric pressure plasma
- temperature:
- o
- low-temperature plasma (Tgas < 2000 K)
- o
- high-temperature plasma (Tgas > 2000 K)
- thermodynamics:
- o
- thermal plasma/equilibrium plasma (Telectron ≈ Tion ≈ Tgas)
- o
- non-thermal plasma/non-equilibrium plasma (Telectron ≫ Tion ≈ Tgas)
- type of coupling:
- o
- inductive coupling
- o
- capacitive coupling
- plasma generation:
- o
- microwave discharge (300 MHz ≤ f ≤ 300 GHz)
- o
- radiofrequency (RF) discharge (ideally 13.56 MHz):
- o
- direct current (DC) discharge
- o
- dielectric barrier discharge (DBD)
- o
- corona discharge
- o
- electric arc
- o
- hollow cathode discharge
- o
- electron beam discharge (EB)
- o
- plasma torch
- o
- alternating current.

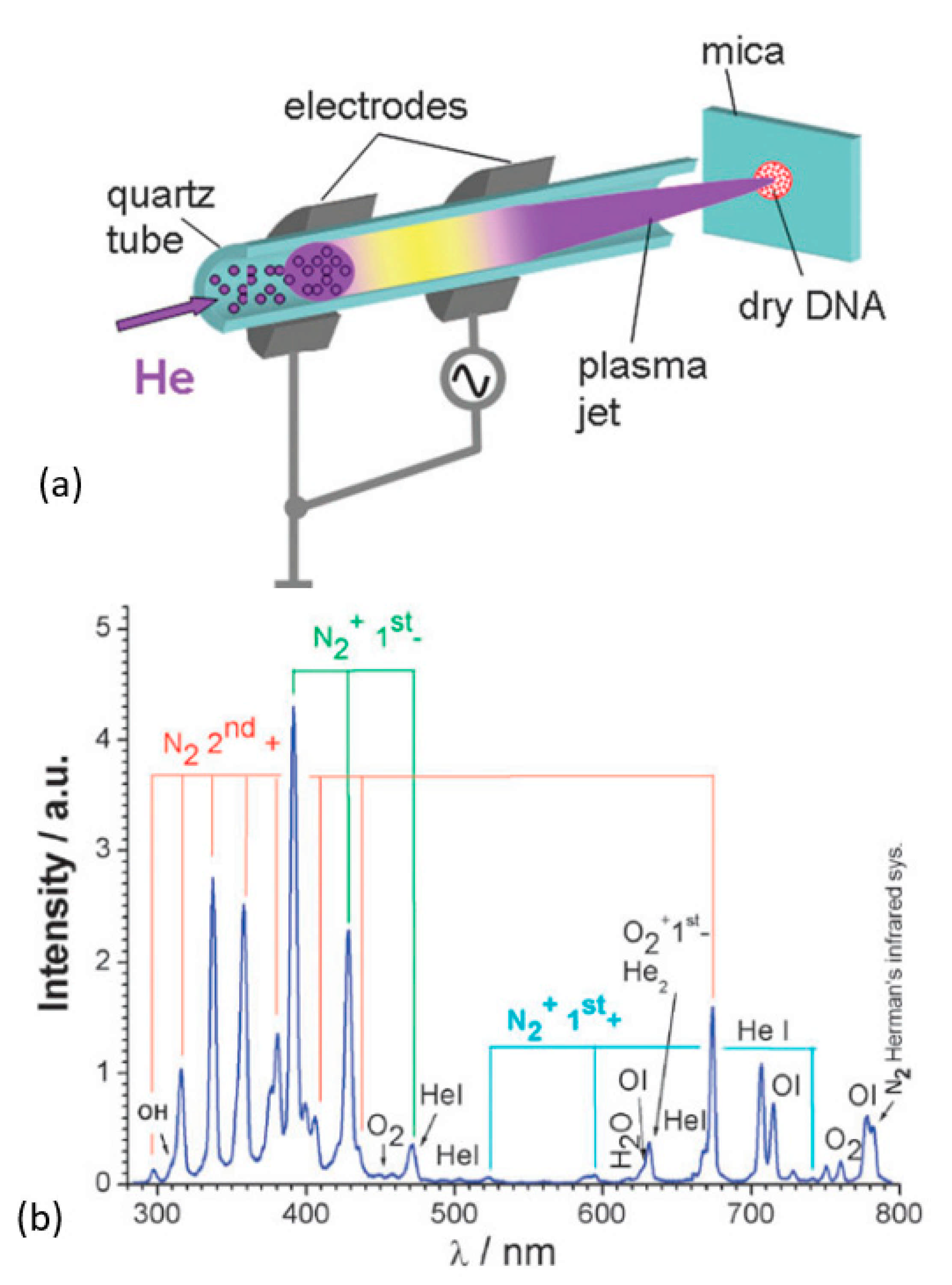

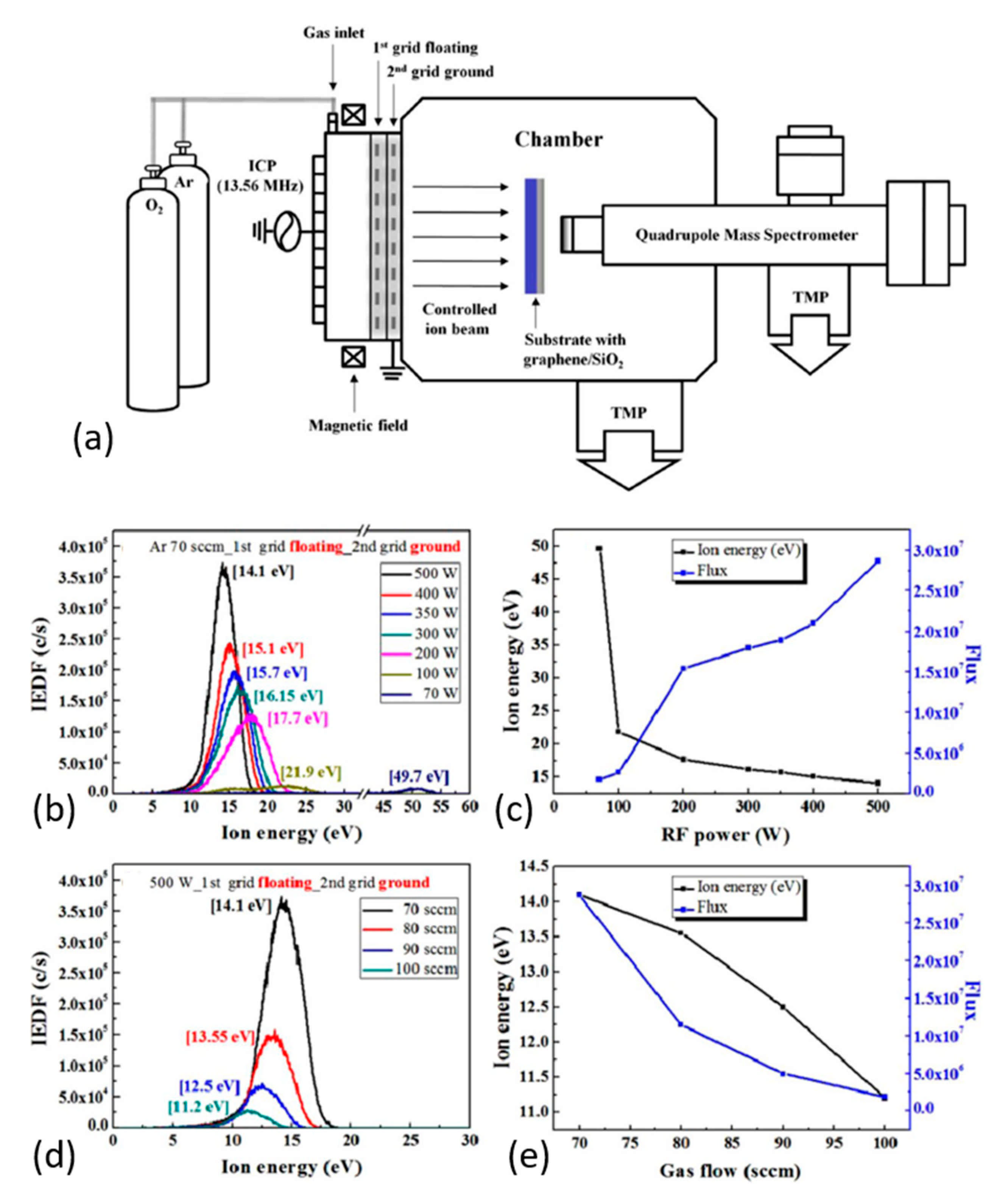

3.1. Inert-Gas (He and Ar) Plasma

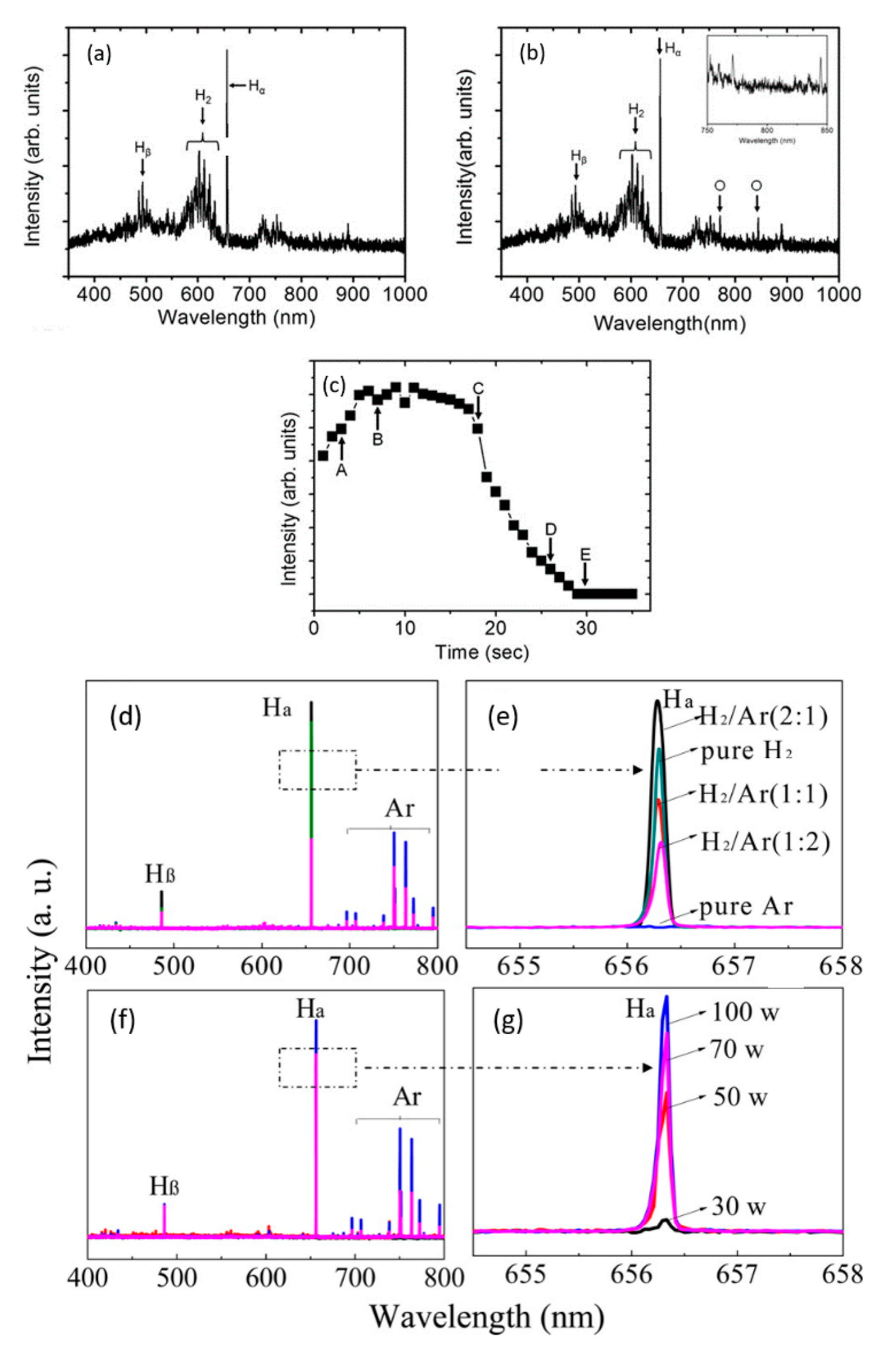

3.2. Hydrogen Plasma

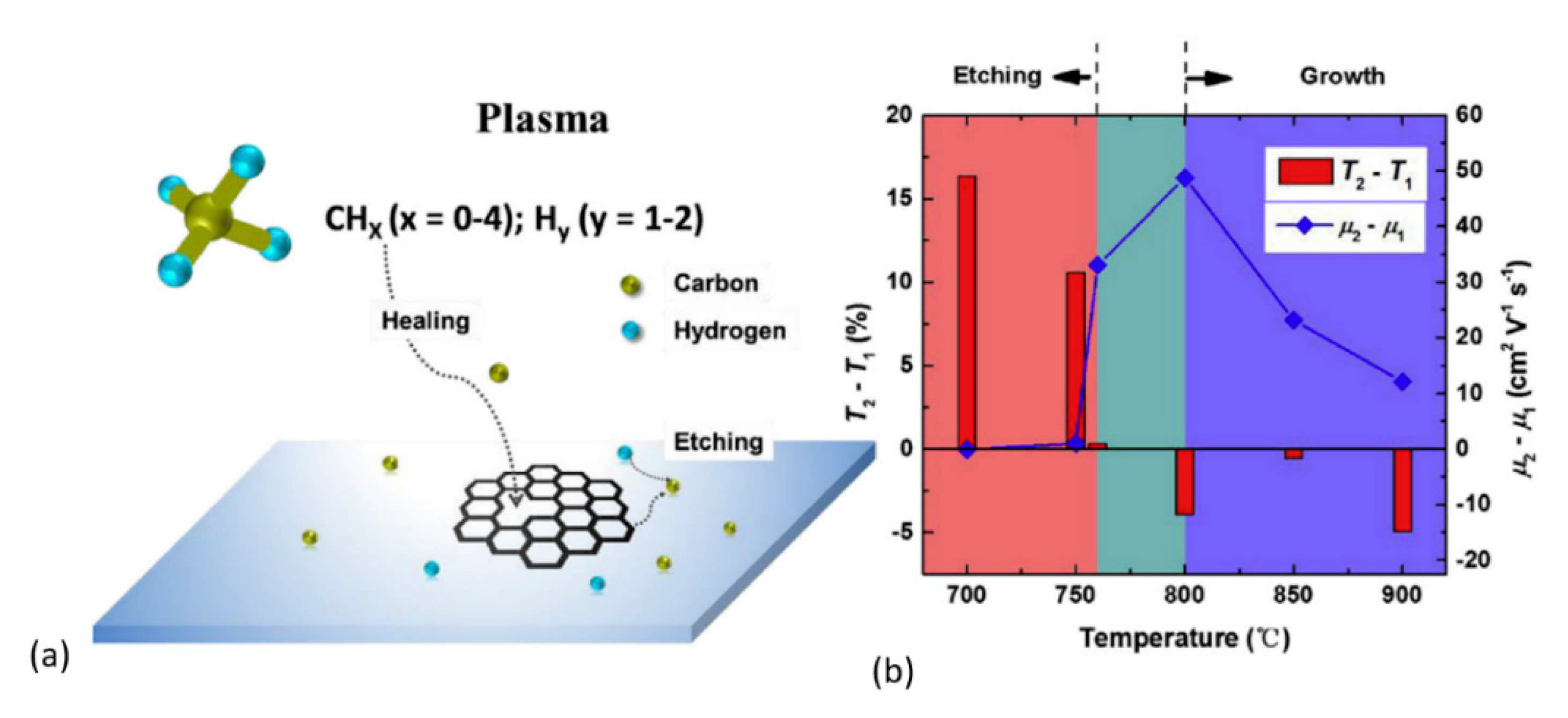

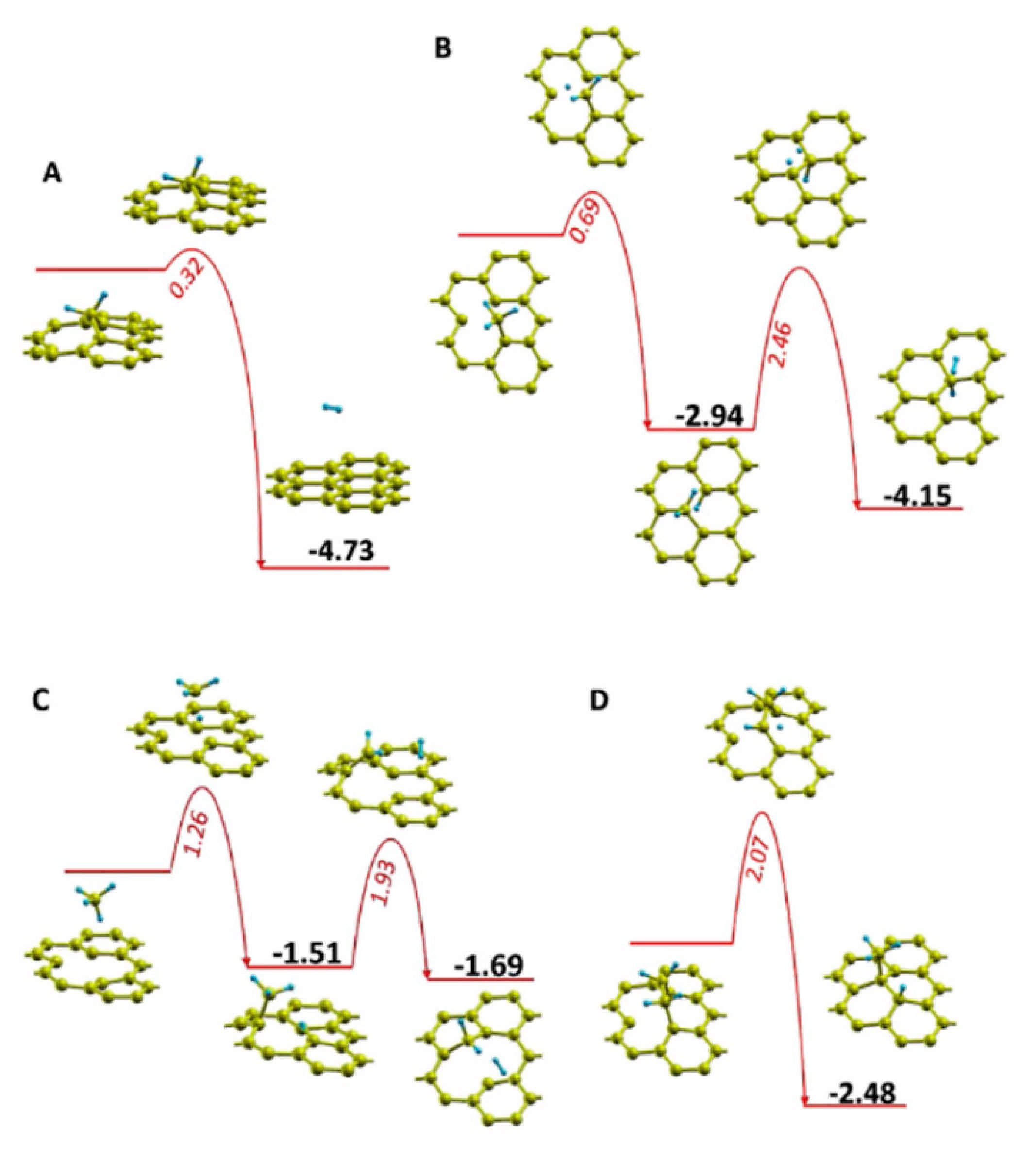

3.3. Methane Plasma

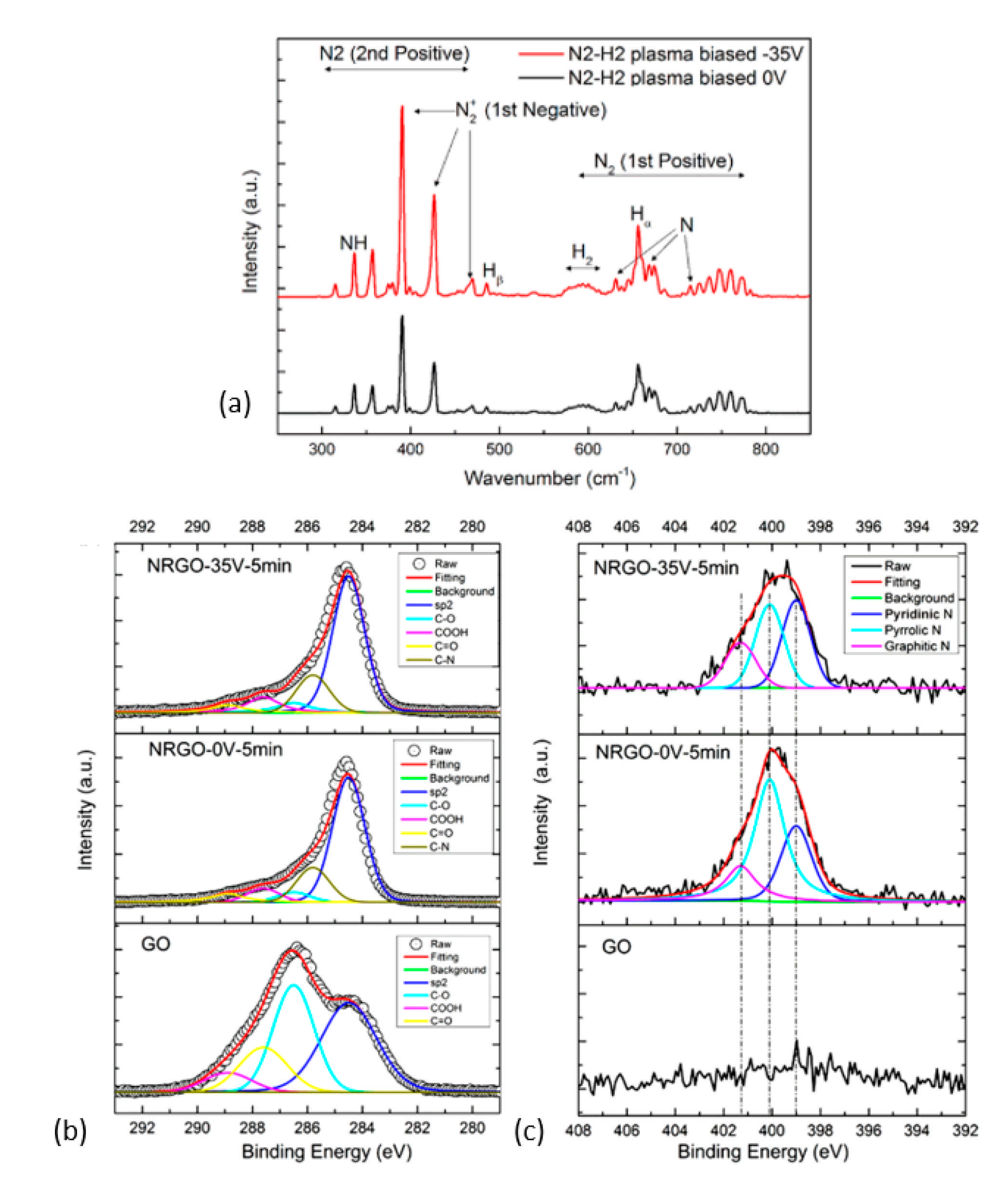

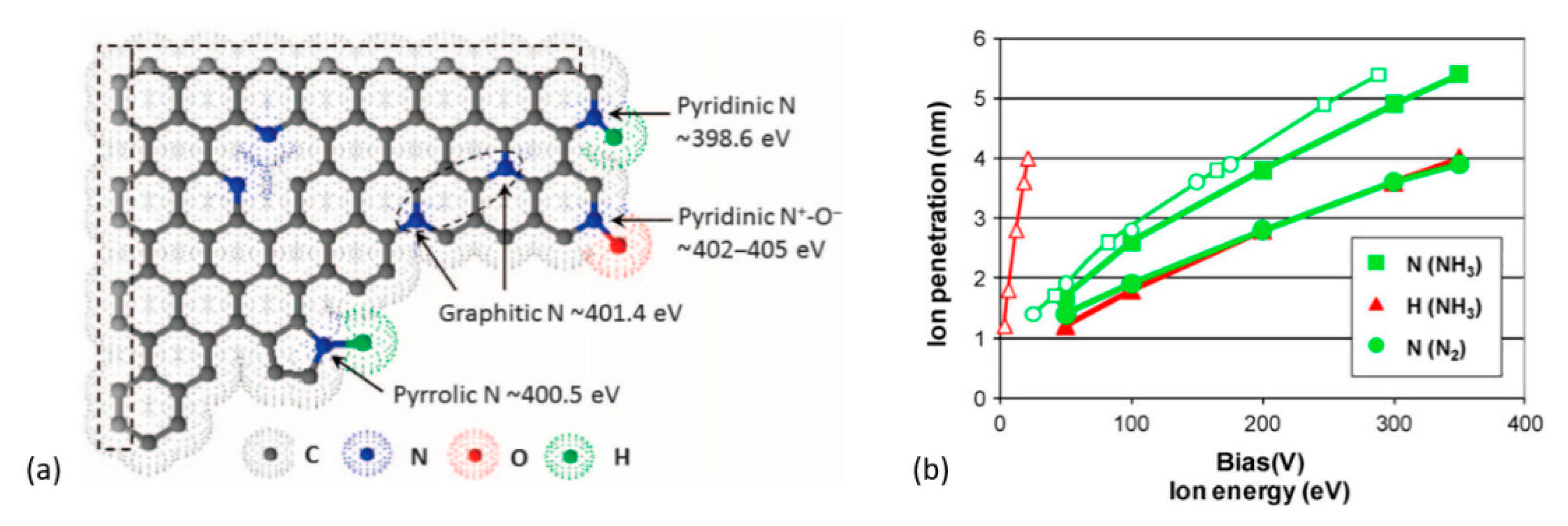

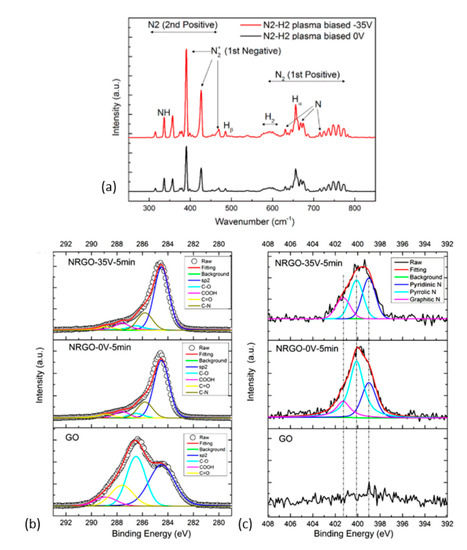

3.4. Nitrogen and Ammonia Plasma
3.5. Acetylene Plasma
3.6. Air Plasma
4. Summary and Conclusions
5. Outlook
Author Contributions
Funding
Conflicts of Interest
Abbreviations
2D | two dimensional |
σ | conductivity |
μ-APPJ | micro atmospheric pressure plasma jet |
A | ampere |
AC | alternating current |
AGD | atmospheric-pressure glow discharge plasma |
APPJ | atmospheric pressure plasma jet |
AS | active screen |
CCP | capacitively coupled plasma |
CIGSe | Cu(In, Ga)(Se, S)2 solar cell |
CVD | chemical vapor deposition |
DBD | dielectric barrier discharge |
DC | direct current |
FET | field effect transistor |
GO | graphene oxide |
hr | hour |
ICP | inductively coupled plasma |
kΩ | kilo-Ohm |
min | minute |
mTorr | milli-Torr |
MΩ | mega-Ohm |
MW | microwave |
RF | radio frequency |
rGO | reduced graphene oxide |
s | second |
sq | square |
V | volt |
V/V | volume/volume |
W | watt |
Appendix A
Serial No. | Year & Reference | Plasma | Characteristic Changes | Application | |||
---|---|---|---|---|---|---|---|
Discharge Gas | Generation | Time | Parameters | ||||
1 | 2007 [150] | H2 | -- | 5 s | 30 W, 0.8 mbar | σ: 0.05–2 S/cm, ambipolar charge transport | FET |
2 | 2010 [203] | 10% CH4 + Ar | Electron beam | 30 s | −2 kV pulse at linear hollow cathode with 150 G Helmholtz coil, 90 mTorr | Controlled reduction with atomic oxygen varied between 43% and 5% | -- |
3 | 2011 [188] | Ar | RF | 5–40 min | 25 W, 0.02 mbar, 20 sccm | >2 orders lower surface resistivity. Etching effect with prolonged duration | -- |
4 | 2012 [93] | CH4 | RF | 10 min | 100 W, 0.20 Torr, ~575 °C | σ: 1590 S/cm, ID/IG: ~0.53 | -- |
5 | 2012 [202] | Ar/H2 (1:1) | DC | 30 min | ~2 kV, 10 mA discharge current, atm. pressure, 150 °C | Sheet resistance 47.7 kΩ/sq (~6 μm), C/O ratio 6.95 | -- |
6 | 2013 [192] | NH3 | RF | 3 min | 200W, 500 mTorr, 150 °C, 400 sccm | ~6% N-doped r-GO, σ: 7.4 S/cm, C/O ratio ~9.4 ID/IG: 0.98 (GO:1.09) | -- |
7 | 2013 [193] | H2 | RF | <30 s | 200W, 20 mTorr, 150 °C, 300 sccm | σ: 2 S/cm (18 s) and C/O ratio of ~14 (30 s), >18 s exposure causes trade-off between σ & reduction | -- |
8 | 2013 [280] | H2 | -- | <10 min | 2 W, 1 Torr | Reduction in sheet resistance by 3~4 orders of magnitude that could be restricted to uppermost layers on short exposure | FET |
9 | 2013 [198] | NH3 | DC | 1–20 min | 10–30 W, ~1 Pa | C/O ratio: ~ 6.66, N/C ratio: 15%, work-function change from 4.4 to 3.4 eV, σ: 1–80 S/cm (5 min) | -- |
10 | 2013 [191] | (a) NH3 (b) H2 + 10% Ar | - | (a) 4.5–10 min (b) 8.5 min | 160 W, 8 sccm | (a) μe: 5.41 cm2/V.s (8.5 min) and μh: 2.1 cm2/V.s (5.5 min) (b) σ: 630 S/cm for (8.5 min) | FET |
11 | 2014 [194] | H2 | RF | 40 s | 10 W, 0.3 mbar, 20 sccm | C/O ratio ~7.9, ID/IG: 0.81 (GO: 0.94), 71% (15%) response at 1500 ppm in N2 (in air) | CO2 gas-sensor |
12 | 2014 [199] | H2 | DC | 10 s–5 min | 15 & 30 W, working pressure ~50 Pa, 50–120 °C | σ: 0.2–31 S/cm & μh: 0.1–6 cm2/V.s (15 W, 50 °C, 30 s) | FET |
13 | 2014 [195] | NH3 | RF | 30 min | 10 W, 100 mTorr | σ: 1666 S/m, C/O ratio ~4.16 and N/C ratio 9.3%, ID/IG: 1.84 (GO: 2.22) | -- |
14 | 2014 [56] | He | AGD | 2 s | −10 kV, discharge current ~1.5–1.9 mA, atmospheric pressure (positive-column plasma) | σ: 5900 S/m, C/O ratio 7.6, surface area: 371 m2/g, specific capacitance 161.6 F/g (1 A/g) | Supercapacitor |
15 | 2014 [190] | H2/Ar (various ratio) | RF | 3–10 min | 20–100 W, 4.7 Pa | C/O ratio: 9.6 (100 W, H2/Ar-2:1, 5 min), specific capacitance 185.2 F/g (100 mV/s) for 70 W, H2/Ar-2:1, 5min (C/O ratio 4.2) | Supercapacitor |
16 | 2015 [200] | Ar | DC | 4 min | ~10 kV at cathode, 240 mTorr | C/O ratio ~7.9, ID/IG: 0.85, specific capacitance of 190 F/g (10 mV/s) | Supercapacitor |
17 | 2015 [196] | H2 | RF | 30 min | 60 W | σ: 3.1 S/cm, μ: 37.5 cm2/V.s | -- |
18 | 2015 [204] | 25% N2 + H2 | AS | 60 min | 4 mbar in a traditional 40 kW plasma nitriding unit, 100–200 °C | Doping of N from gas discharge and Fe, Cr, and Mo elements from steel mesh, reduction in resistance from 12.6 MΩ to 50 kΩ (200 °C) | -- |
19 | 2015 [197] | NH3 | RF | 1–40 min | 1 kW/m2, 500 mTorr | C/O ratio ~2.7 and N/C ratio ~17% (30 min), σ: 80 S/m (30 min) | -- |
20 | 2016 [221] | H2 + CH4 | RF | 5–30 min | 100 W, 240 °C | All oxygen containing groups were removed except ~1.2%, ID/IG: 0.83, RSH: 15 k Ω/sq | -- |
21 | 2016 [178] | (a) Ar (b) N2 | RF | 10 min | 100 W, 0.3 Pa, sample biased at 0 V and sample bias from −50 to −300 V | N2-plasma was more effective in reduction (at all sample bias) with relatively higher ion penetration depth | -- |
22 | 2017 [207] | H2, CH4, & H2/CH4 (1:1) | DBD | 1–10 s | 1.9 W/cm2, each gas-flow at 0.2 mL/min | ~40% sp2—Carbon restored. Oxidation level in GO reduced from ~50% to ~10% (H2/CH4) | -- |
23 | 2017 [179] | 10% CH4 + H2 | RF | ~1 min | Thermal annealing (Ar, 1000 °C, 30 min) followed by plasma treatment: 200 W, 0.34 Torr, 700–900 °C | improvement in μ from 0.01–1 cm2/V.s to 50 cm2/V.s., ID/IG: 0.56 (GO:1.04) | -- |
24 | 2017 [259] | 20% H2 + C2H2 | - | 2 min | Thermal annealing (vacuum, 700 °C, 7 hrs.) followed by plasma treatment: 20 W, 50 sccm total flow | μhall: ~90 cm2/V.s, RSH: 510 Ω/sq (5 nm), C/O ratio 10.9, ID/IG: 1.33 (GO:0.97) | Memory device |
25 | 2017 [180] | 5% CH4 + Ar | RF | 1–20 min | 700 W/m2, 500 mTorr | transmittance from 91.9% to ~94% at 600 nm & 8.13 MΩ/sq (10 min) | -- |
26 | 2018 [181] | (a) NH3 (b) N2 | RF | 10 min | 100 W, 0.3 Pa, sample biased at 0 V and −50 to −350 V | Both plasmas incorporated N into GO, NH3 was more effective in reduction of O-groups | -- |
27 | 2018 [208] | H2 | DBD | 1–64 s | 40 W/cm3, atm. pressure | Resistance reduced to 2 MΩ/sq, C/O ratio of ~4.76 (16 s) | -- |
28 | 2018 [205] | Air | RF | 10–120 s | 300 W, 20 kHz, ~10 kV (APPJ plasma) | RSH: 186 Ω/sq (25μm), vol. capacitance 536.55 F/cm3 (1 A/g) | Supercapacitor |
29 | 2018 [184] | H2/CH4 (1:1) | RF | 10–120 min | 10 W, 9.7–9.8 Pa, H2 & CH4: each at 35 sccm flow, 550–650 °C with Cu catalyst | σ: 930 S/cm, μe: 480 cm2/V.s, ID/IG: ~0.4 | FET |
30 | 2018 [183] | H2 | RF | 30 min | 20–60 W | Rise in optical bandgap energy with increase in O-vacancy | -- |
31 | 2018 [201] | H2 | DC | 1 min | 15 W, ~0.3 Torr | Threshold of device reduced from 2.6 to 1.8 V, On/Off ratio improved from ~80 to ~103 | Memory device |
32 | 2018 [185] | CH4/Ar (1:2 to 2:1) | RF | 1–10 min | 100 W, 50 mTorr, total gas flow 30 sccm | C/O ratio improved from 2.2 to 10.6 & σ: 264 S/m (5 min) | -- |
33 | 2019 [189] | H2/CH4 (35:1 to 1:35) | RF | ~0.16–9 hrs | 10 W, 9.7–9.8 Pa, total flow 350 sccm, 550 °C with Cu catalyst | Moderate restored r-GO in ~15 min for CH4 rich condition, high crystallinity for H2 rich condition: μe: 900 cm2/V.s, ID/IG: 0.17 | -- |
34 | 2019 [186] | 20% C2H2 + NH3 | - | 3 min | annealing at 700 °C (30 min, 10−4 mbar); followed by 3 min plasma: 20 W, 2 mbar, 50 sccm total flow | C/O ratio 8.34, μe: 60–80 cm2/V.s, photoresponsivity of 0.68 A/W at 1 V | Photodetector |
35 | 2019 [187] | 20% H2 + N2 | RF | 5–80 min | 1400 W at ~370 kHz, 50 sccm total flow, sample with 0 and −35 V bias | DC bias contributed to efficient reduction and recovery of GO (lowest ID/IG ratio). Resistance change between ~425–570 kΩ for 0–1.5% strain | Stress sensor |
36 | 2019 [162] | Ar | RF | 30–120 min | 300 W, 650 mTorr | resistance of 2 kΩ/sq (120 min), mean sensor sensitivity of 277 ± 80 µA/mM.cm2; Pt reference 5.2 ± 0.51 µA/mM.cm2 | H2O2 sensor |
37 | 2020 [206] | 1% He + N2 & He + H2 | RF | 5 s–3 min | 4 W, flow: 2000 sccm N2 & 16 sccm He (µAPPJ plasma) | Sheet resistance: ~4 MΩ/sq (He + N2), ~0.24 MΩ/sq (He + H2); GO ~138 MΩ/sq | -- |
