Article

Microstructure and Fracture Mechanism Investigation of Porous Silicon Nitride–Zirconia–Graphene Composite Using Multi-Scale and In-Situ Microscopy

1
Fraunhofer Institute for Ceramic Technologies and Systems IKTS, Maria-Reiche-Straße 2, 01109 Dresden, Germany
2
Centre for Energy Research, Konkoly-Thege Str. 29-33, 1121 Budapest, Hungary
3
Fraunhofer Institute for Ceramic Technologies and Systems IKTS, Winterbergstraße 28, 01277 Dresden, Germany
4
Helmholtz Zentrum Berlin, Albert-Einstein-Straße 15, 12489 Berlin, Germany
5
Institute of Materials Research, Slovak Academy of Sciences, Watsonova 47, 040 01 Košice, Slovakia
*
Author to whom correspondence should be addressed.
Academic Editor: Babak Anasori
Nanomaterials 2021, 11(2), 285; https://doi.org/10.3390/nano11020285
Received: 8 December 2020 / Revised: 19 January 2021 / Accepted: 20 January 2021 / Published: 22 January 2021

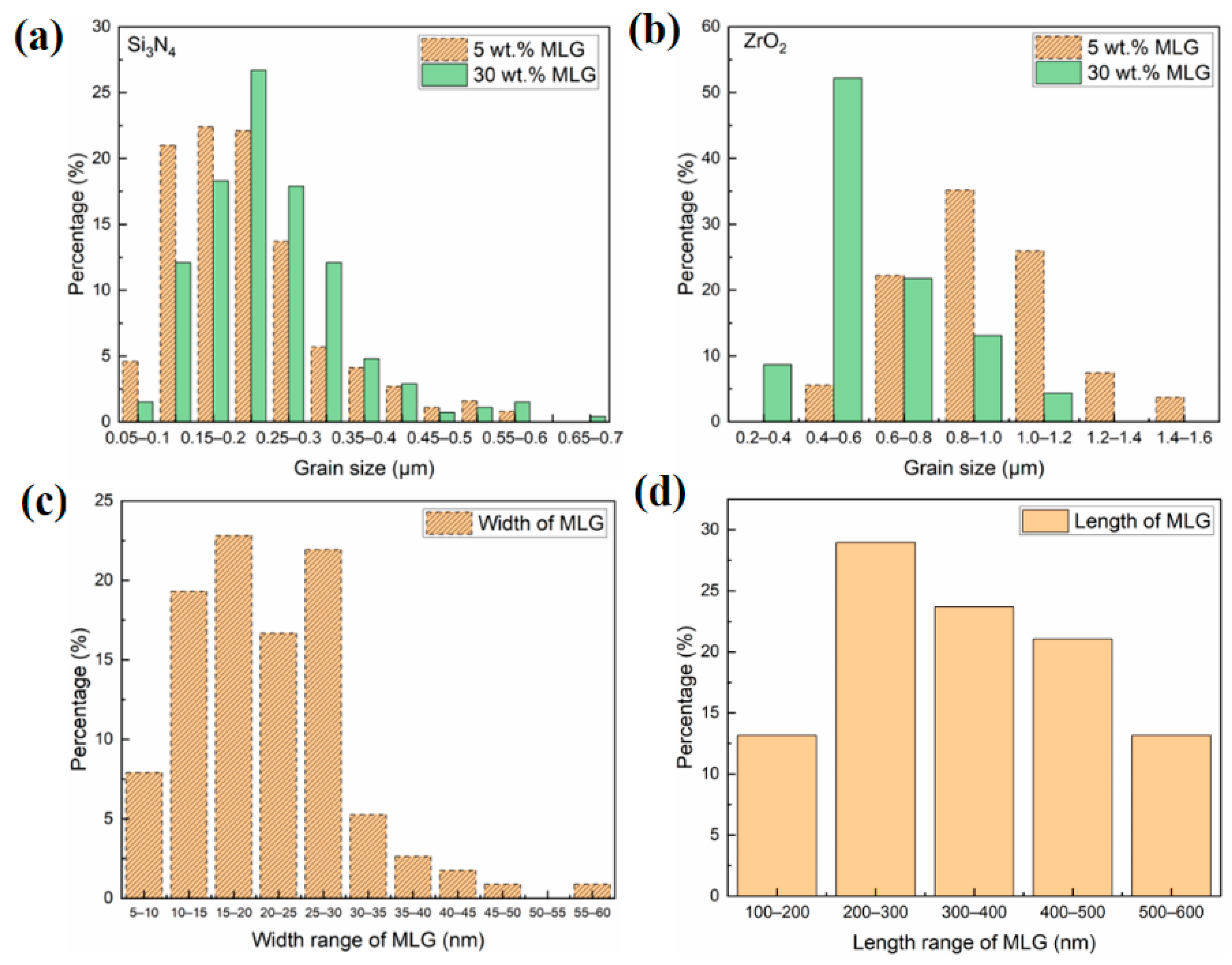

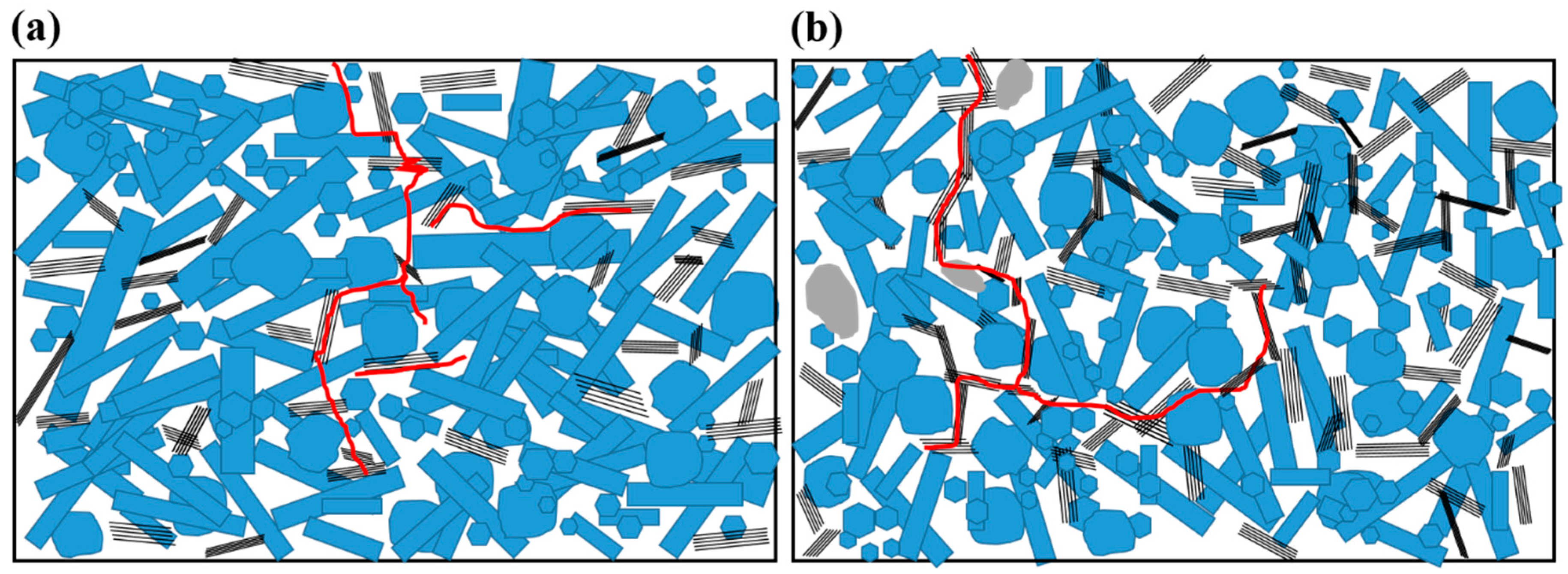

Silicon nitride–zirconia–graphene composites with high graphene content (5 wt.% and 30 wt.%) were sintered by gas pressure sintering (GPS). The effect of the multilayer graphene (MLG) content on microstructure and fracture mechanism is investigated by multi-scale and in-situ microscopy. Multi-scale microscopy confirms that the phases disperse evenly in the microstructure without obvious agglomeration. The MLG flakes well dispersed between ceramic matrix grains slow down the phase transformation from α to β-Si3N4, subsequent needle-like growth of β-Si3N4 rods and the densification due to the reduction in sintering additives particularly in the case with 30 wt.% MLG. The size distribution of Si3N4 phase shifts towards a larger size range with the increase in graphene content from 5 to 30 wt.%, while a higher graphene content (30 wt.%) hinders the growth of the ZrO2 phase. The composite with 30 wt.% MLG has a porosity of 47%, the one with 5 wt.% exhibits a porosity of approximately 30%. Both Si3N4/MLG composites show potential resistance to contact or indentation damage. Crack initiation and propagation, densification of the porous microstructure, and shift of ceramic phases are observed using in-situ transmission electron microscopy. The crack propagates through the ceramic/MLG interface and through both the ceramic and the non-ceramic components in the composite with low graphene content. However, the crack prefers to bypass ceramic phases in the composite with 30 wt.% MLG. View Full-Text
Keywords: porous ceramic composite; high graphene content; GPS; multi-scale microscopy; in-situ microscopy; contact-damage resistance porous ceramic composite; high graphene content; GPS; multi-scale microscopy; in-situ microscopy; contact-damage resistance
