Extended Graphite Supported Flower-like MnO2 as Bifunctional Materials for Supercapacitors and Glucose Sensing

by
Han-Wei Chang
1,2,*,
Chung-Li Dong
3,
Yan-Hua Chen
1,
Yuan-Zhang Xu
1,
Tzu-Chi Huang
1,
Song-Chi Chen
1,
Feng-Jiin Liu
1,2,
Yin-Hung Lai
1,2,4,* and
Yu-Chen Tsai
5,*
1
Department of Chemical Engineering, National United University, Miaoli 360302, Taiwan
2
Pesticide Analysis Center, National United University, Miaoli 360302, Taiwan
3
Department of Physics, Tamkang University, Tamsui, New Taipei City 25137, Taiwan
4
Institute of Food Safety and Health Risk Assessment, National Yang Ming Chiao Tung University, Taipei 11221, Taiwan
5
Department of Chemical Engineering, National Chung Hsing University, Taichung 40227, Taiwan
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(11), 2881; https://doi.org/10.3390/nano11112881
Submission received: 3 September 2021 / Revised: 20 October 2021 / Accepted: 24 October 2021 / Published: 28 October 2021
(This article belongs to the Special Issue Nanotechnologies and Nanomaterials: Selected Papers from CCMR)
Browse Figures
Versions Notes

Abstract

:
A simple, efficient, and cost-effective extended graphite as a supporting platform further supported the MnO2 growth for the construction of hierarchical flower-like MnO2/extended graphite. MnO2/extended graphite exhibited an increase in sp2 carbon bonds in comparison with that of extended graphite. It can be expected to display better electrical conductivity and further promote electron/ion transport kinetics for boosting the electrochemical performance in supercapacitors and glucose sensing. In supercapacitors, MnO2/extended graphite delivered an areal capacitance value of 20.4 mF cm−2 at 0.25 mA cm−2 current densities and great cycling stability (capacitance retention of 83% after 1000 cycles). In glucose sensing, MnO2/extended graphite exhibited a good linear relationship in glucose concentration up to about 5 mM, sensitivity of 43 μA mM−1cm−2, and the limit of detection of 0.081 mM. It is further concluded that MnO2/extended graphite could be a good candidate for the future design of synergistic multifunctional materials in electrochemical techniques.

Graphical Abstract

1. Introduction

Over the years, fossil fuel consumption and public health problems have posed serious issues, including global warming and substantial human diseases, that have caused significant negative economic and human health impacts. The relationship expressed above indicated that key technological changes and suitable implementation strategies might be necessary for promoting opportunities to reduce fossil fuel dependency, and, simultaneously, implement health promotion/disease prevention. Supercapacitors serve as intermediate energy storage systems between traditional capacitors and batteries, due to their simple construction, short charging time, safety, high power density, and excellent lifetime, which could replace fossil fuel use to meet energy requirements for reducing the fossil fuel energy consumption and further relaxing environmental pollution.
World-class public health is another globally important issue and challenge. The International Diabetes Federation (IDF) estimated that the number of people worldwide with diabetes (aged 20–79 years) would increase to 700 million in 2045 [1]. In Taiwan, diabetes is the fifth leading cause of death (data obtained from Ministry of Health and Welfare in Taiwan) [2]. Clearly, a fast, simple, efficient, and cost-effective approach needs to be developed in order to monitor blood glucose, allowing for improving glycemic control. Previous studies demonstrated that electrochemical techniques with moderate cost, instrumental simplicity, high portability, and suitable performance showed promise in a diverse range of applications such as solar cells, batteries, sensors, and supercapacitors, and hence provided more realistic solutions to address both the energy and public health challenges.
The choice of suitable electrode materials, which will be used to build novel high-performance electrodes in future electrochemical applications, is critical in the modeling and optimization of electrochemical devices. MnO2 nanostructures with well-controlled morphology and crystal phase are expected to exhibit improved electrochemical performance when being used in supercapacitors and electrochemical sensing. More advantages for the use of MnO2 as the electrode material were explained in previous reports. Yang et al. reported that MnO2 had great advantages in terms of high theoretical specific capacity (up to 1370 F g−1), low cost, natural abundance, and multiple crystallographic phases to be one of the most promising candidates for supercapacitors and glucose sensing. The structural transformation of multiple MnO2 polymorphic forms composed of MnO6 octahedrons by edge and/or corner sharing made differences in the intrinsic channel dimensions of MnO2 to possess different electrochemical activities. MnO2 based composites for supercapacitor applications with enhanced capacitive behaviors were attributed to electrochemically induced polymorphic phase and structural transformations of MnO2, thus affecting the surface area and interfacial resistance [3]. Ponnusamy et al. also reported that MnO2 based materials as a result of electrocatalytic effect of Mn3+/Mn4+ redox couples had excellent electrocatalytic oxidation ability for glucose in the alkaline environment. The result implied that the MnO2 based materials could be used as electrochemical electrodes, and they exhibited great excellent performance in electrochemical glucose sensing [4].
However, MnO2 based materials possessed inherently low conductivity, which might restrict their practical use in electrochemical techniques [5]. The conductive carbon materials (such as graphite, carbon nanotubes, and graphene, etc.) serving as a conductive component could possibly form the conducting interconnection of carbon materials/MnO2 nanocomposites, allowing fast ions and electrons transporting inside interior space of MnO2 pore/channel structure, thus dramatically enhancing the electrocatalytic activity [6,7]. Many efforts described that carbon materials served mainly as a conductive component that provided a platform to integrate MnO2 pore/channel structure in constructing hierarchical carbon materials/MnO2 nanocomposites with three-dimensional (3D) interconnections. It could be expected that MnO2 integrated within carbon materials generated a synergistic effect, which would improve electrocatalytic activity for electrochemical multifunctional applications. Several groups of researchers reported that the synthesis of carbon materials/MnO2 nanocomposite with enhanced electrochemical activity showed effective characterization in electrochemical applications (supercapacitors and sensors). The improvement in electrochemical performance could be mainly attributed to the synergistic effect between carbon materials and MnO2 that tightly connected to obtain dense hierarchical interconnected architectures in shortening the ions diffusion path and facilitating the charge transport [8,9,10].
Among carbon materials, simple, efficient, cost effective, and ecofriendly graphite made it an ideal substrate to grow MnO2 for generating carbon materials/MnO2 interconnected architectures, and had its own advantages to increase a wide range of industrial-scale production in electrochemical applications. Despite these advantages, pristine graphite had a lower specific surface area, thus causing a lower electrochemical performance. The surface modifications of activated graphite could be obtained by various activation techniques to provide larger specific surface areas at the optimum activation parameters for future enhancement of electrochemical performance. Kabir et al. also reported an electrochemically induced activation in aqueous electrolyte to exfoliate graphite to make surface functionalization. Activation could facilitate the formation of activated regions to improve the specific surface area that ensured excellent surface functional group coverage on graphite surfaces [11]. Chang et al. reported that graphite was efficiently activated by CO2 treatment to change the surface area and surface functional groups, leading to low internal resistance and improved charge collection ability, suggesting the enhanced electrochemical behavior of graphite electrodes [12]. Some previous studies also demonstrated that surface modifications of carbon materials led to an increase in polarity of the surface layer, which facilitated the strong interactions to form the strong covalent interfacial bonding with selected substances for the formation of carbon materials/metal nanocomposites, and further highlight its capability to induce the application of a novel electrochemical-based techniques [13,14,15,16].
In this work, the formation of extended graphite through electrochemically activated treatment of graphite as a supporting platform further supports the formation of MnO2 for the construction of hierarchical flower-like MnO2/extended graphite through spontaneous redox reaction in the KMnO4 solution. MnO2/extended graphite are anticipated to serve as bifunctional materials for supercapacitors and glucose sensing. This work extends the understanding of electrocatalytic reaction mechanisms between the synergistic effect of MnO2 and extended graphite for further electrochemical multifunctional applications in supercapacitors and glucose sensing.

2. Materials and Methods

2.1. Reagents

Potassium permanganate (KMnO4), sodium hydroxide (NaOH), sodium sulfate (Na2SO4), glucose, carbon black graphite powder, and terpineol were purchased from Sigma-Aldrich (St. Louis, MO, USA). All aqueous solutions were prepared using deionized water (DI water) through a Milli-Q water purification system (Millipore, Burlington, MA, USA). All chemicals were used without further purification.

2.2. Preparation of MnO2/Extended Graphite Nanocomposite

To obtain a series of extended graphite with different activation degrees, the graphite paste electrodes (3 mm diameter) were immersed in 0.2 M HNO3 solution, and potential scanning was obtained at a scan rate of 50 mV s−1 within the applied voltage range of 1.0 to 2.0 V vs. Ag/AgCl for different numbers of electrochemical activation cycles (5, 10, and 20 cycles). The extended graphite with different activation degrees were conducted by using cyclic voltammetry (CV) cycling processes, which can be expected to induce extended defect on the surface of graphite, in this text referred to as extended graphite, providing a new set of growth platforms to form hierarchical flower-like MnO2. The obtained extended graphite with three different degree activations (low, medium, and high degree activation) were denoted as gra-L, gra-M, and gra-H, respectively. The obtained extended graphite was then washed with DI water to remove the remaining reagents and collected for subsequent MnO2 synthesis. MnO2 was deposited on the extended graphite by a spontaneous redox reaction between transition metal ions and carbon materials, which involve simultaneous oxidation of the extended graphite and reduction of KMnO4. The increased structure defects of the carbon materials may optimally tune the oxidation potential of carbon materials and thus more easily promote KMnO4 reduction to MnO2 [17]. The synthesis procedures in detail were as follows: gra-L, gra-M, and gra-H were immersed in 50 mL aqueous solutions of 0.001 M KMnO4 with stirring at 80 °C. Subsequently, these obtained products (MnO2/extended graphite) were rinsed three times by DI water and dried at 60 °C for 3 h (denoted as MnO2/gra-L, MnO2/gra-M, and MnO2/gra-H, respectively). The resulted products were then collected for the following characterization.

2.3. Apparatus

The morphology was characterized by using field emission scanning electron microscopy (FESEM, JSM-7410F, JEOL, Akishima, Japan) and field emission transmission electron microscopy (FETEM, JEM-2100F, JEOL, Akishima, Japan). The chemical structure and composition were determined by X-ray photoelectron spectroscopy (XPS, PHI-5000 Versaprobe, ULVAC-PHI, Tokyo, Japan). Synchrotron X-ray absorption spectroscopy (XAS) at C K-, O K- and Mn L-edges were performed at BL20A of the National Synchrotron Radiation Research Center (NSRRC), Hsinchu, Taiwan. Electrochemical measurements were performed using a three-electrode system comprised of as-prepared sample-graphite paste electrode as current collector (mixing graphite powder and carbon black in 4:1 weight ratio dispersed terpineol) by casting on plastic substrate with an active material mass loading of 0.4 mg cm−2, a platinum wire counter electrode; and an Ag/AgCl (3 M KCl) reference electrode by an electrochemical analyzer (Autolab, model PGSTAT30, Eco Chemie, Utrecht, The Netherlands). The electrochemical testing in supercapacitors and electrochemical glucose sensing was performed in the two different aqueous electrolyte solutions as supporting electrolyte (using 1 M Na2SO4 for supercapacitors and 0.1 M NaOH for electrochemical glucose sensing). In the supercapacitor, the capacitive performance was evaluated thorough cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) in 1 M Na2SO4 within the applied voltage range of 0.0 to 1.0 V vs. Ag/AgCl. In electrochemical glucose sensing, the sensing performance of electrochemical sensor was evaluated using CV and amperometry in the 0.1 M NaOH in the absence and presence of glucose. LCMS/MS analysis was conducted using a Q-TOF mass spectrometer (LCMS-9030, Shimadzu Corp., Kyoto, Japan) and a triple quadrupole mass spectrometer (LCMS-8045, Shimadzu Corp., Kyoto, Japan). A Unison UK-Amino column (UKA24U, Imtakt USA, Portland, OR, USA) was utilized for the chromatographic separation.

3. Results

The morphologies of extended graphite and MnO2/extended graphite are characterized by FETEM and FESEM. FETEM images in Figure 1a display the general morphologies and detailed microstructures of extended graphite. It clearly indicates that the surfaces of extended graphite are rough. This result implies that the defect densities in graphite can be fine-tuned through electrochemically activated treatment of graphite in the HNO3 solution that effectively expose more edge and basal plane defect sites in the 2D structure graphite layers. This work presents a facile synthesis strategy to synthesize extended defect structures in graphite layers and further introduces functional groups at defect sites along the extended graphite. Extended graphite attached to these defect sites offers an ideal platform for the growth of MnO2 in the KMnO4 solution by spontaneous redox reaction. Figure 1b,c shows that MnO2/extended graphite has a 3D hierarchical flower-like MnO2 construction consisting of many assembled ultrathin 2D nanosheets, and it develops an interconnected network within extended graphite, confirming the successful synthesis of the MnO2/extended graphite. The detailed structural morphologies of 3D hierarchical flower-like MnO2 over the extended graphite with the three different degrees of electrochemically activated treatment (MnO2/extended graphite) are represented by EFSEM. Figure 2 displays the EFSEM images of extended graphite with different activation degrees (gra-L, gra-M, and gra-H) and MnO2/extended graphite (MnO2/gra-L, MnO2/gra-M, and MnO2/gra-H). It can be clearly seen in Figure 2a–c that the surface morphologies of extended graphite show no obvious differences when the activation degrees are controlled by electrochemically treatment. With extended graphite as an ideal platform for the growth of MnO2, the 3D hierarchical flower-like MnO2 is grown at the defect structures of extended graphene through in situ nucleation and growth processes (see Figure 2d–f). The extended graphite via electrochemically treatment exposes numerous edge and basal plane defect sites that promote the subsequent nucleation and growth of 3D hierarchical flower-like MnO2, especially in view of MnO2/gra-H. The FESEM image of MnO2/gra-H in Figure 2f shows the conductive gra-H interconnected with the 3D hierarchical flower-like MnO2 owing to clear and distinct crumpled layer structure consisting of many assembled ultrathin 2D nanosheets, which is consistent with the TEM images in the Figure 1b. The 3D hierarchical structure of MnO2/gra-H constructed by the formation of the interconnected conducting networks between defect sites of extended graphite and ultrathin MnO2 nanosheets ensures good electrical contact and also provides a large electrochemically active surface area, which further not only contributes to a continuous electron pathway, but also facilitates ion transport by shortening diffusion pathways. The above results clearly reveal that the 3D hierarchical MnO2/extended graphite could serve as functional materials in electrochemical techniques.
The surface chemical and electronic states of extended graphite and MnO2/extended graphite are characterized by XPS and XAS. Figure 3a presents the XPS full survey spectrum of extended graphite and MnO2/extended graphite. The results indicate the coexistence of C and O elements in the extended graphite with different activation degrees (gra-L, gra-M, and gra-H). After further growth of 3D hierarchical flower-like MnO2 within extended graphite, the full survey spectrum shows signals from C, O, and Mn elements, suggesting the obtained MnO2/extended graphite was successfully synthesized. The high-resolution C 1s XPS spectrum of gra-L, gra-M, and gra-H is shown in Figure 3b. The high-resolution C 1s spectrum of gra-L, gra-M, and gra-H (Figure 3b) shows four different peaks located at 284.5, 285.0, 286.4, and 288.9 eV, which correspond to C–C (sp2), C–C (sp3), C-OH (hydroxyl), and O-C-O/O-C=O (epoxy and carboxyl) functional groups, respectively [18]. The XPS quantitative analysis results are summarized in Table 1, Table 2, Table 3. From Table 1, it is clear that the content of sp3 carbon bonds, hydroxyl, epoxy, and carboxyl functional groups within extended graphite are increased due to the destruction of the sp2 carbon bonds and the formation of defective sites with increasing activation degree, which proves that extended graphite exists from an electrochemically activated transformation and reflects the relative sp3/sp2 carbon bonds ratio [19,20]. It is well known that the functional groups are mainly located at the basal and edges planes of graphite, which not only facilitates the exfoliation process of graphite sheets, but also modifies surface hydrophilicity of exfoliate graphite [21,22,23,24]. The extended graphite by electrochemically activated treatment leads to the formation of sp3 carbon bonds and creates defect sites, providing numerous nucleation sites that facilitate the uniform nucleation and growth of the selected substances [25,26].
Figure 3c–e show the high-resolution C 1s, O 1s, and Mn 2p XPS spectrum of MnO2/extended graphite. The high-resolution O 1s XPS spectrum of the MnO2/extended graphite can be deconvoluted into four peaks corresponding to Mn-O-Mn, Mn-O-H, H-O-H, and C=O located at 529.8, 531.4, 532.5, and 533.8 eV. The Mn 2p XPS spectrum of the MnO2-coated different carbon materials in Figure 3f consist of two doublet peaks of Mn 2p3/2 and 2p1/2 located at 642 and 653 eV, with a typical spin energy separation (~11.7 eV) of the Mn 2p doublet peaks. Furthermore, the overlapped Mn 2p3/2 (2p1/2) spectra can be fitted into three peaks at 641.9 (653.3), 643.4 (654.5), and 645.3 (657.5) eV, which are characteristics of Mn3+, Mn4+, and shake-up satellite (denoted as Sat.), respectively, further confirming the presence of mixed-valance manganese oxide with oxidation state Mn3+ and Mn4+ [27,28]. A deeper analysis into the XPS quantitative analysis in the MnO2/extended graphite (Table 3) shows that the Mn3+/Mn4+ in the MnO2/extended graphite decreases with MnO2 growth on the extended graphite by gradual increase of activation degrees. This suggests that higher content of Mn4+ is more pronounced for MnO2/gra-H. Second, MnO2/extended graphite exhibits an increase in sp2 carbon bonds and the decrease in hydroxyl in comparison with that of electrochemically activated extended graphite (see Figure 3c and Table 1 and Table 2), which indicates that the introduction of MnO2 within electrochemically activated extended graphite can greatly increase the relative content of sp2 carbon bonds, further improving the microcrystalline structure and graphitization degree. It can be expected to display better electrical conductivity and further promote a rapid and efficient charge transfer at the active electrode material/electrolyte interfaces, thus leading to a significantly enhanced electrochemical performance. Third, the decrease in the sp2 carbon bonds causes the gradual increase in Mn-O-Mn with the MnO2 growth over the three different activation degrees of the extended graphite, especially when MnO2 grows on the gra-H due to the more severe activation degree, which exposes abundant defective sites and favors the nucleation and growth of MnO2 [29,30,31].
Figure 4 presents the C K-edge, O K-edge, and Mn L3,2-edge XAS of extended graphite and MnO2/extended graphite. XAS is known to be a powerful tool sensitive to understanding the information on local atomic and electronic structure details caused by electronic transition from a core level to various unoccupied states. Figure 4a shows the C K-edge XAS of extended graphite and MnO2/extended graphite. Features A4, B4, and C4 are associated with the electronic transition from C 1s to the unoccupied C–C π* (ring) orbitals, the chemically functionalized carbon atoms and/or defects, and unoccupied C–C σ* (ring) orbitals, respectively. With MnO2 growth on the extended graphite, the pronounced C−C π* (A4) resulting from significant charge-transfer interactions between extended graphite and Mn atoms reveals that MnO2/extended graphite has the perfect graphitic crystalline structure of graphite sheets and demonstrates excellent electrical conductivity. Additionally, these charge-transfer interactions between MnO2 and electrochemically activated extended graphite induce dramatic changes in Feature B4, which pertains to the construction of new Mn−O−C bonds. It is reasonable to believe that the oxygen functional groups on extended graphite can act as anchoring or nucleation sites for the growth of MnO2. The results support the fact that the electrochemically activated extended graphite provides an interconnected conducting network, suggesting that these ultrathin MnO2 nanosheets are tightly anchored within extended graphite. The features (denoted as *) at 298.6 and 301.0 eV are associated with the K L3- and L2-edge that can be explained by the presence of potassium ions and water molecules generally intercalated within the interlayer space of MnO2 structure via spontaneous redox reaction in the KMnO4 solution [32], especially in view of MnO2/gra-H.
Figure 4b,c show the O K-edge and Mn L3,2-edge XAS of MnO2/extended graphite. These O K-edge XAS spectra present similar features (labeled as D4, E4, and F4) from the MnO2/extended graphite (MnO2/gra-L, MnO2/gra-M, and MnO2/gra-H). Feature F4 can be assigned to electronic transition from O 1s to Mn 4sp transition. Features D4 and E4 are related to the electronic transition from hybridization of O 2p and metal Mn 3d t2g and 3d eg orbitals. Variation in the three features represents that electrochemically activated extended graphite can possess the Mn-O bonding and the surface configuration, favoring the electronic interactions between MnO2 and electrochemically activated extended graphite. The ratio of the intensity of Features D4 and E4 increases with the MnO2 growth within more severe activation degree of extended graphite, which suggests that the surface modification (structural defects and chemical functionalization) of extended graphite affects the nucleation process. It is believed that the surface sufficient functional groups within extended graphite can provide reactive sites for the nucleation and growth of MnO2. The Mn L3,2-edge XAS of MnO2/extended graphite display doublet features (labeled as G4 and H4) that arise from the Mn 2p3/2 and 2p1/2 core level states to the unoccupied Mn 3d states electronic transition, which can be correlated with the valence state of Mn atoms in the MnO2 [33]. Notably, Feature G4 can be split into two peaks (G4a and G4b) (inset in Figure 4c), and the mixed valence states of Mn3+ and Mn4+ and their ratios within MnO2/extended graphite can be estimated from the ratio of G4a/G4b. A decrease in the G4a/G4b ratio with the MnO2 growth within more severe activation degrees of extended graphite may give evidence that the MnO2/gra-H contains Mn in a higher oxidation state [34,35]. These XAS results are consistent with the XPS results in Figure 3.
Hence, the overall analysis of the XPS and XAS results demonstrate that extended graphite by electrochemically activated treatment can create defect sites and provide abundant nucleation sites for the growth of MnO2; in the meantime, MnO2/extended graphite favorably attain the sp2 carbon bonds character in graphite sheet, resulting in better electrical conductivity. It is concluded that MnO2/extended graphite could be a good candidate for the future design of synergistic multifunctional materials in electrochemical techniques. In this study, MnO2/extended graphite are synthesized by spontaneous redox reaction and used as bifunctional electrode materials for supercapacitors and glucose sensing.
For the potential use of MnO2/extended graphite in supercapacitors, Figure 5 shows the electrochemical capacitive performance of extended graphite and MnO2/extended graphite thorough cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) in 1 M Na2SO4. In comparison to the CV results of extended graphite and MnO2/extended graphite in Figure 5a,b, these results clearly reveal that extended graphite (gra-L, gra-M, and gra-H) have greater electrical double-layer capacitive behavior with more severe activation degree, which might be attributed to the functionalized and defective extended graphite owing to these strong interfacial interactions. Thus, it could be expected that increasing the interfacial area and interfacial interactions within extended graphite helps build an intimate interface to facilitate interactions between extended graphite and KMnO4 interfaces for MnO2 growth by spontaneous redox reaction. Figure 5b shows that the CV curve of MnO2/extended graphite gives a quasi-rectangular shape with two pairs of well-defined redox peaks corresponding to both the functionalized extended graphite and the Mn3+/Mn4+ redox reaction. Figure 4a reveals that controlled growth of 3D hierarchical flower-like MnO2 within extended graphite results in more perfect crystalline structure of the graphitic carbon. MnO2/extended graphite, because of its perfect graphitic crystalline structure, should possess good conductivity to effectively ensure electron transport, and hence the redox reaction can proceed more effectively and reversibly; there most likely exists two distinct pseudocapacitance charge-storage mechanisms. It demonstrates that the synergistic effect of extended graphite and MnO2 results in the coexistence of both the electrical double-layer capacitance of extended graphite and pseudocapacitance of extended graphite and MnO2. Hence, the CV result in Figure 5b indicates that MnO2/gra-H displays better capacitive performance compared to MnO2/gra-M and MnO2/gra-L. Thanks to the excellent surface modification of gra-H, there is a perfect graphitic crystalline structure present in MnO2/gra-H, which provides a continuous conductive network to optimize electron/ion transport kinetics for boosting the electrochemical performance. Figure 5c displays the CV curves of MnO2/gra-H measured at different scan rates of 10, 20, 50, and 100 mV s−1. The CV curves maintain their shape and reversibility even at relatively high scan rates, suggesting excellent capacitive performance of MnO2/gra-H. The GCD measurements are used for further discussing the enhanced capacitive performance of MnO2/gra-H (Figure 5d). MnO2/gra-H displays quasi-triangular symmetrical shape by GCD measurements at different current densities of 0.25, 0.5, 1, 2, and 4 mA cm−2, and indicates the coexistence of both electrical double-layer capacitance and pseudocapacitance, which are consistent with the CV curves. The areal capacitance values of MnO2/gra-H can be calculated according to the following equation: C = (I Δt)/(ΔV A), where C is areal capacitance (mF cm−2), I is the charge/discharge current (mA), Δt is the discharge time (s), ΔV is the voltage change during discharge (V), and A is the area of the electrode (cm2). The areal capacitance (gravimetric capacitance) values at 0.25, 0.5, 1, 2, and 4 mA cm−2 current density are calculated to be 20.4, 16.8, 16.0, 15.8, and 15,7 mF cm−2 (51, 42.0, 40.0, 39.5, and 39.3 F g−1), respectively. The capacitive performance of MnO2/gra-H is comparable to other previously reported results in transition metal-based electrode materials (Table 4) [36,37,38,39,40]. In order to further research the long-term cycling stability of the MnO2/gra-H, MnO2/gra-H is performed over 1000 consecutive galvanostatic charge–discharge cycles at a constant current density of 4 mA cm−2 (Figure 5e). After 1000 cycles, the capacitance is equivalent to 83% of initial value, demonstrating a good cycling performance. These results once again demonstrated that the MnO2/extended graphite consisting of the interconnected conducting networks between 3D hierarchical flower-like MnO2 and extended graphite provide tight contact and stable interface, which facilitates an enhanced capacitive performance for supercapacitors.
It is anticipated that the findings of this work could open another opportunity to explore its possible applications in non-enzymatic glucose sensing. Figure 6 displays the electrochemical sensing performance of gra-H and MnO2/gra-H using cyclic voltammetry (CV) and amperometry towards glucose electrooxidation in alkaline solution. In Figure 6a, gra-H and MnO2/gra-H are examined using CV under the scan rate of 50 mV s−1 in 0.1 M NaOH in the absence and presence of 10 mM glucose. The successive addition of glucose results in an increase in the anodic (oxidation) current at 0.4~0.8 V. Specifically, the anodic (oxidation) peak current of glucose remarkably increases at MnO2/gra-H. This result reveals that the MnO2/gra-H has great potential to electrocatalyze glucose oxidation reactions effectively involving the redox-active Mn mediated electrocatalytic reaction mechanisms [41]. The mechanisms can be illustrated as follows.
Mn3+ + OH− ↔ Mn4+ + H2O + e−
Mn4+ + glucose + e− → Mn3+ + gluconolactone
When increasing the glucose concentration in the range from 0 to 50 mM, MnO2/gra-H exhibits a gradual increase anodic (oxidation) peak current, demonstrating that MnO2/gra-H provides cooperative effects in promoting the electrocatalytic activity toward glucose electrooxidation. Furthermore, there is continuously a progressive positive shift in anodic (oxidation) peak potential at a voltage region of 0.4∼0.8 V, which is caused by a kinetic limitation in the glucose electrooxidation between redox sites within MnO2/gra-H (Figure 6b) [42]. Figure 6c shows the amperometry of MnO2/gra-H towards glucose electrooxidation in 0.1 M NaOH at 0.45 V, with the gradual additions of glucose concentrations up to 10 mM. The inset of Figure 6c shows the corresponding calibration plot of the response current (I) versus glucose concentration (Conc.glu) (error bars represent the standard deviations for the 3-times repeated measurements). Response current increases linearly with increasing glucose concentration up to about 5 mM. The corresponding calibration equation is I (mA) = 0.003 Conc.glu (mM) + 0.017, having the resulting correlation coefficient value (R2) 0.994, sensitivity 43 μA mM−1cm−2, and the limit of detection 0.081 mM based on a signal-to-noise ratio of 3 (S/N = 3), indicating the significantly improved electrocatalytic activity of MnO2/gra-H for glucose electrooxidation. The present MnO2/gra-H exhibits better or comparable performance with some previously reported results with similar electrode materials [43,44,45,46]. The comparison results are summarized in Table 5. The interference test is conducted by amperometry in 0.1 M NaOH at 0.45 V with the gradual additions of 4.83 mM glucose, 0.05 mM ascorbic acid (AA), 0.5 mM uric acid (UA), 5 mM urea, and 4.83 mM glucose, which does not cause any observable interference signal to glucose detection (Figure 6d). This means that the proposed MnO2/gra-H possesses excellent selectivity. It is well known that the long-term stability is also an important index to evaluate the sensing performance. Hence, the long-term stability of the proposed MnO2/gra-H is evaluated by measuring its amperometric current response to 1 mM glucose every day for 2 weeks. Figure 6e reveals that the amperometric current response stabilizes to approximately 80~90% of its initial value, implying an excellent stability during long-term storage.
To further demonstrate the potential of the proposed MnO2/gra-H in practical applications, the recovery tests of glucose are carried out by adding a known concentration (1 mM) to samples, which is then evaluated by analyzing the amperometric response to glucose by 3-time repeated measurements. The results of the recovery tests obtained by the proposed amperometric method are in good agreement with the results obtained by the reference method (mass spectrometry), and the comparison results are given in Table 6. The recovery test demonstrates that the proposed MnO2/gra-H makes satisfactory recovery of the added glucose concentrations.

4. Conclusions

In this study, MnO2/extended graphite displayed high bifunctional electro-activity performances in electrochemical multifunctional applications (including supercapacitors and glucose sensing). Thanks to the excellent surface modification of gra-H through electrochemically activated treatment of graphite inducing extended defects on the surface of graphite, providing a new set of growth platforms to form hierarchical flower-like MnO2, and thus a perfect graphitic crystalline structure present in MnO2/gra-H, which provide a continuous conductive network to optimize electron/ion transport kinetics for boosting the electrochemical performances of supercapacitors (areal capacitance value of 20.4 mF cm−2 at 0.25 mA cm−2 and capacitance retention of 83% after 1000 cycles) and glucose sensing (linear range up to about 5 mM, sensitivity of 43 μA mM−1cm−2, and the limit of detection of 0.081 mM). Because of its electrochemical synergistic effects, MnO2/extended graphite is a promising candidate for the development of electrochemical multifunctional applications.

Author Contributions

Conceptualization, H.-W.C.; methodology, H.-W.C.; software, Y.-H.C., Y.-Z.X., T.-C.H., S.-C.C. and F.-J.L.; validation, H.-W.C.; formal analysis, H.-W.C., F.-J.L. and Y.-H.L.; investigation, H.-W.C., Y.-H.C., Y.-Z.X., T.-C.H., S.-C.C. and Y.-H.L.; resources, C.-L.D., F.-J.L., Y.-H.L. and Y.-C.T.; data curation, H.-W.C., Y.-H.C., Y.-Z.X., T.-C.H. and S.-C.C.; writing—original draft preparation, H.-W.C.; writing—review and editing, H.-W.C. and Y.-C.T.; visualization, H.-W.C., C.-L.D., Y.-H.L. and Y.-C.T.; supervision, H.-W.C., C.-L.D. and Y.-C.T.; project administration, H.-W.C. and Y.-C.T. All authors have read and agreed to the published version of the manuscript.

Funding

This study acknowledges financial support from the Ministry of Science and Technology, and National United University, Taiwan (MOST 110-2221-E-239-001-, MOST 110-2622-E-005-013-, MOST 110-2221-E-005-009-, and 1100002).

Acknowledgments

This study acknowledges financial support from the Ministry of Science and Technology, and National United University, Taiwan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. International Diabetes Federation. IDF Diabetes Atlas, 9th ed.; International Diabetes Federation: Brussels, Belgium, 2019. [Google Scholar]
  2. Moha, W. Taiwan Health and Welfare Report; Ministry of Health and Welfare: Taipei, Taiwan, 2018. [Google Scholar]
  3. Yang, X.; Qiao, Z.; Liu, F.; Yang, S.; Zhang, L.; Cao, B. In-depth study of electrochemical capacitor performance of MnO2 during phase transition from Ramsdellite-MnO2 to Birnessite-MnO2. Electrochimica Acta 2018, 280, 77–85. [Google Scholar] [CrossRef]
  4. Ponnusamy, R.; Venkatesan, R.; Kandasamy, M.; Chakraborty, B.; Rout, C.S. MnO2 polymorph selection for non-enzymatic glucose detection: An integrated experimental and density functional theory investigation. Appl. Surf. Sci. 2019, 487, 1033–1042. [Google Scholar] [CrossRef]
  5. Jeon, H.; Jeong, J.; Hong, S.B.; Yang, M.; Park, J.; Kim, D.H.; Hwang, S.Y.; Choi, B.G. Facile and fast microwave-assisted fabrication of activated and porous carbon cloth composites with graphene and MnO2 for flexible asymmetric supercapacitors. Electrochim. Acta 2018, 280, 9–16. [Google Scholar] [CrossRef]
  6. Wang, Y.; Hao, L.; Zeng, Y.; Cao, X.; Huang, H.; Liu, J.; Chen, X.; Wei, S.; Gan, L.; Yang, P. Three-dimensional hierarchical porous carbon derived from resorcinol formaldehyde-zinc tatrate/poly (styrene-maleic anhydride) for high performance su-percapacitor electrode. J. Alloys Compd. 2021, 886, 161176. [Google Scholar] [CrossRef]
  7. Liu, M.; Shi, M.; Lu, W.; Zhu, D.; Li, L.; Gan, L. Core–shell reduced graphene oxide/MnOx@ carbon hollow nanospheres for high performance supercapacitor electrodes. Chem. Eng. J. 2017, 313, 518–526. [Google Scholar] [CrossRef]
  8. Xiong, C.; Lin, X.; Liu, H.; Li, M.; Li, B.; Jiao, S.; Zhao, W.; Duan, C.; Dai, L.; Ni, Y. Fabrication of 3D Expanded Graphite-Based (MnO2 Nanowalls and PANI Nanofibers) Hybrid as Bifunctional Material for High-Performance Supercapacitor and Sensor. J. Electrochem. Soc. 2019, 166, A3965–A3971. [Google Scholar] [CrossRef]
  9. Xiong, C.; Li, M.; Zhao, W.; Duan, C.; Ni, Y. Flexible N-doped reduced graphene oxide/carbon nanotube-MnO2 film as a multifunctional material for high-performance supercapacitors, catalysts and sensors. J. Mater. 2020, 6, 523–531. [Google Scholar] [CrossRef]
  10. Saraf, M.; Natarajan, K.; Mobin, S.M. Robust Nanocomposite of Nitrogen-Doped Reduced Graphene Oxide and MnO2 Nanorods for High-Performance Supercapacitors and Nonenzymatic Peroxide Sensors. ACS Sustain. Chem. Eng. 2018, 6, 10489–10504. [Google Scholar] [CrossRef]
  11. Kabir, H.; Gyan, I.O.; Cheng, I.F. Electrochemical modification of a pyrolytic graphite sheet for improved negative electrode performance in the vanadium redox flow battery. J. Power Sources 2017, 342, 31–37. [Google Scholar] [CrossRef]
  12. Chang, Y.-C.; Chen, J.-Y.; Kabtamu, D.M.; Lin, G.-Y.; Hsu, N.-Y.; Chou, Y.-S.; Wei, H.-J.; Wang, C.-H. High efficiency of CO2-activated graphite felt as electrode for vanadium redox flow battery application. J. Power Sources 2017, 364, 1–8. [Google Scholar] [CrossRef]
  13. Panda, S.; Rout, T.K.; Prusty, A.D.; Ajayan, P.M.; Nayak, S.; Panda, S. Electron Transfer Directed Antibacterial Properties of Graphene Oxide on Metals. Adv. Mater. 2018, 30, 1702149. [Google Scholar] [CrossRef] [PubMed]
  14. Li, M.; Bai, L.; Wen, X.; Guan, J. Ultrafine Mn3O4 nanoparticles supported on functionalized-graphite towards efficient pho-tochemical and electrochemical water oxidation catalysis. Int. J. Hydrog. Energy 2018, 43, 15807–15814. [Google Scholar] [CrossRef]
  15. Huang, Y.; Sun, L.; Yu, Z.; Jiang, R.; Huang, J.; Hou, Y.; Yang, F.; Zhang, B.; Zhang, R.; Zhang, Y. Adjustable anchoring of Ni/Co cations by oxygen-containing functional groups on functionalized graphite paper and accelerated mass/electron transfer for overall water splitting. Catal. Sci. Technol. 2020, 10, 2627–2643. [Google Scholar] [CrossRef]
  16. Yue, L.; Jia, D.; Tang, J.; Zhang, A.; Liu, F.; Chen, T.; Barrow, C.; Yang, W.; Liu, J. Improving the rate capability of ultrathin NiCo-LDH nanoflakes and FeOOH nanosheets on surface electrochemically modified graphite fibers for flexible asymmetric supercapacitors. J. Colloid Interface Sci. 2020, 560, 237–246. [Google Scholar] [CrossRef]
  17. Chang, H.-W.; Lu, Y.-R.; Chen, J.-L.; Chen, C.-L.; Lee, J.-F.; Chen, J.-M.; Tsai, Y.-C.; Chang, C.-M.; Yeh, P.-H.; Chou, W.-C.; et al. Nanoflaky MnO2/functionalized carbon nanotubes for supercapacitors: An in situ X-ray absorption spectroscopic investigation. Nanoscale 2015, 7, 1725–1735. [Google Scholar] [CrossRef] [PubMed]
  18. Luo, D.; Zhang, X. The effect of oxygen–containing functional groups on the H2 adsorption of graphene–based nanomaterials: Experiment and theory. Int. J. Hydrogen Energy 2018, 43, 5668–5679. [Google Scholar] [CrossRef]
  19. Kavinkumar, T.; Sastikumar, D.; Manivannan, S. Effect of functional groups on dielectric, optical gas sensing properties of graphene oxide and reduced graphene oxide at room temperature. RSC Adv. 2015, 5, 10816–10825. [Google Scholar] [CrossRef]
  20. Gong, L.; Yin, B.; Li, L.-P.; Yang, M.-B. Nylon-6/Graphene composites modified through polymeric modification of graphene. Compos. Part B Eng. 2015, 73, 49–56. [Google Scholar] [CrossRef]
  21. Jung, J.Y.; Hong, Y.L.; Kim, J.-G.; Kim, M.J.; Kim, Y.-K.; Kim, N.D. New insight of tailor-made graphene oxide for the formation of atomic Co-N sites toward hydrogen evolution reaction. Appl. Surf. Sci. 2021, 563, 150254. [Google Scholar] [CrossRef]
  22. Radovic, L.R.; Mora-Vilches, C.V.; Salgado-Casanova, A.J.; Buljan, A. Graphene functionalization: Mechanism of carboxyl group formation. Carbon 2018, 130, 340–349. [Google Scholar] [CrossRef]
  23. Ahmad, H.; Fan, M.; Hui, D. Graphene oxide incorporated functional materials: A review. Compos. Part B: Eng. 2018, 145, 270–280. [Google Scholar] [CrossRef]
  24. Yang, D.; Yu, Q.; Gao, L.; Mao, L.; Yang, J.-H. The additive effect of graphene in nickel phosphate/graphene composite and enhanced activity for electrochemical oxidation of methanol. Appl. Surf. Sci. 2017, 416, 503–510. [Google Scholar] [CrossRef]
  25. Zhang, W.; Liu, F.; Li, Q.; Shou, Q.; Cheng, J.; Zhang, L.; Nelson, B.J.; Zhang, X. Transition metal oxide and graphene nano-composites for high-performance electrochemical capacitors. Phys. Chem. Chem. Phys. 2012, 14, 16331–16337. [Google Scholar] [CrossRef] [PubMed]
  26. Christy, M.; Jang, H.; Nahm, K.S. Cobaltite oxide nanosheets anchored graphene nanocomposite as an efficient oxygen re-duction reaction (ORR) catalyst for the application of lithium-air batteries. J. Power Sources 2015, 288, 451–460. [Google Scholar]
  27. Makgopa, K.; Ejikeme, P.M.; Jafta, C.J.; Raju, K.; Zeiger, M.; Presser, V.; Ozoemena, K.I. A high-rate aqueous symmetric pseudocapacitor based on highly graphitized onion-like carbon/birnessite-type manganese oxide nanohybrids. J. Mater. Chem. A 2015, 3, 3480–3490. [Google Scholar] [CrossRef] [Green Version]
  28. Chen, H.; Wang, M.Q.; Yu, Y.; Liu, H.; Lu, S.; Bao, S.-J.; Xu, M. Assembling Hollow Cobalt Sulfide Nanocages Array on Graphene-like Manganese Dioxide Nanosheets for Superior Electrochemical Capacitors. ACS Appl. Mater. Interfaces 2017, 9, 35040–35047. [Google Scholar] [CrossRef] [PubMed]
  29. Song, Z.; Ma, Y.-L.; Li, C.-E. The residual tetracycline in pharmaceutical wastewater was effectively removed by using MnO2/graphene nanocomposite. Sci. Total. Environ. 2019, 651, 580–590. [Google Scholar] [CrossRef]
  30. Song, L.; Li, C.; Chen, W.; Liu, B.; Zhao, Y. Highly efficient MnO2/reduced graphene oxide hydrogel motors for organic pol-lutants removal. J. Mater. Sci. 2020, 55, 1984–1995. [Google Scholar] [CrossRef]
  31. Wang, D.; Wang, K.; Sun, L.; Wu, H.; Wang, J.; Zhao, Y.; Yan, L.; Luo, Y.; Jiang, K.; Li, Q.; et al. MnO2 nanoparticles anchored on carbon nanotubes with hybrid supercapacitor-battery behavior for ultrafast lithium storage. Carbon 2018, 139, 145–155. [Google Scholar] [CrossRef]
  32. Lee, S.-W.; Bak, S.-M.; Lee, C.-W.; Jaye, C.; Fischer, D.A.; Kim, B.-K.; Yang, X.-Q.; Nam, K.-W.; Kim, K.-B. Structural Changes in Reduced Graphene Oxide upon MnO2 Deposition by the Redox Reaction between Carbon and Permanganate Ions. J. Phys. Chem. C 2014, 118, 2834–2843. [Google Scholar] [CrossRef]
  33. Wu, L.; Klie, R.; Zhu, Y.; Jooss, C. Experimental confirmation of Zener-polaron-type charge and orbital ordering in Pr1− xCax MnO3. Phys. Rev. B 2007, 76, 174210. [Google Scholar] [CrossRef]
  34. Céspedes, E.; Laguna-Marco, M.; Jiménez-Villacorta, F.; Chaboy, J.; Boada, R.; Guglieri, C.; Andrés, A.d.; Prieto, C. On the origin of the magnetism of Mn–Zn–O systems: Structural, electronic, and magnetic study of exotic MnO2− δ/ZnO thin films. J. Phys. Chem. C 2011, 115, 24092–24101. [Google Scholar] [CrossRef] [Green Version]
  35. Chang, H.-W.; Huang, Y.-C.; Chen, J.-L.; Chen, C.-L.; Chen, J.-M.; Wei, D.-H.; Chou, W.-C.; Dong, C.-L.; Tsai, Y.-C. Soft X-ray absorption spectroscopic investigation of MnO2/graphene nanocomposites used in supercapacitor. Catal. Today 2021, 45, 17120–17127. [Google Scholar] [CrossRef]
  36. Durai, G.; Kuppusami, P.; Maiyalagan, T.; Ahila, M.; Kumar, P.V. Supercapacitive properties of manganese nitride thin film electrodes prepared by reactive magnetron sputtering: Effect of different electrolytes. Ceram. Int. 2019, 45, 17120–17127. [Google Scholar] [CrossRef]
  37. Achour, A.; Guerra, A.; Moulaï, F.; Islam, M.; Hadjersi, T.; Ahmad, I.; Parvez, S.; Boukherroub, R.; Pireaux, J.-J. MnOx thin film based electrodes: Role of surface point defects and structure towards extreme enhancement in specific capacitance. Mater. Chem. Phys. 2019, 242, 122487. [Google Scholar] [CrossRef]
  38. Zhang, J.; Wang, Y.; Wu, J.; Shu, X.; Yu, C.; Cui, J.; Qin, Y.; Zhang, Y.; Ajayan, P.M.; Wu, Y. Remarkable supercapacitive performance of TiO2 nanotube arrays by introduction of oxygen vacancies. Chem. Eng. J. 2017, 313, 1071–1081. [Google Scholar] [CrossRef]
  39. Liu, Y.; Wang, N.; Yang, C.; Hu, W. Sol–gel synthesis of nanoporous NiCo2O4 thin films on ITO glass as high-performance supercapacitor electrodes. Ceram. Int. 2016, 42, 11411–11416. [Google Scholar] [CrossRef]
  40. Prasad, K.; Rajasekhara Reddy, G.; Rajesh, M.; Babu, P.R.; Shanmugam, G.; Sushma, N.J.; Pratap Reddy, M.S.; Deva Prasad Raju, B.; Mallikarjuna, K. Electrochemical performance of 2D-hierarchical sheet-Like ZnCo2O4 microstructures for superca-pacitor applications. Crystals 2020, 10, 566. [Google Scholar] [CrossRef]
  41. Zhu, H.; Li, L.; Zhou, W.; Shao, Z.; Chen, X. Advances in non-enzymatic glucose sensors based on metal oxides. J. Mater. Chem. B 2016, 4, 7333–7349. [Google Scholar] [CrossRef]
  42. Mirzaei, H.; Nasiri, A.A.; Mohamadee, R.; Yaghoobi, H.; Khatami, M.; Azizi, O.; Zaimy, M.A.; Azizi, H. Direct growth of ternary copper nickel cobalt oxide nanowires as binder-free electrode on carbon cloth for nonenzymatic glucose sensing. Microchem. J. 2018, 142, 343–351. [Google Scholar] [CrossRef]
  43. Li, M.; Liu, L.; Xiong, Y.; Liu, X.; Nsabimana, A.; Bo, X.; Guo, L. Bimetallic MCo (M=Cu, Fe, Ni, and Mn) nanoparticles doped-carbon nanofibers synthetized by electrospinning for nonenzymatic glucose detection. Sens. Actuators B Chem. 2015, 207, 614–622. [Google Scholar] [CrossRef]
  44. Xiao, F.; Li, Y.; Gao, H.; Ge, S.; Duan, H. Growth of coral-like PtAu–MnO2 binary nanocomposites on free-standing graphene paper for flexible nonenzymatic glucose sensors. Biosens. Bioelectron. 2013, 41, 417–423. [Google Scholar] [CrossRef] [PubMed]
  45. Lin, K.-C.; Huang, L.-H.; Chen, S.-M. Electrochemical synthesis of mixed-valence manganese/copper hybrid composite using graphene oxide and multi-walled carbon nanotubes for nonenzymatic glucose sensor. J. Electroanal. Chem. 2014, 735, 36–42. [Google Scholar] [CrossRef]
  46. Zhang, C.; Zhang, Y.; Miao, Z.; Ma, M.; Du, X.; Lin, J.; Han, B.; Takahashi, S.; Anzai, J.-I.; Chen, Q. Dual-function amperometric sensors based on poly(diallydimethylammoniun chloride)-functionalized reduced graphene oxide/manganese dioxide/gold nanoparticles nanocomposite. Sens. Actuators B Chem. 2016, 222, 663–673. [Google Scholar] [CrossRef]
Nanomaterials 11 02881 g001 550
Figure 1. FETEM of (a) extended graphite and (b) MnO2/extended graphite. (c) FESEM of MnO2/extended graphite.
Figure 1. FETEM of (a) extended graphite and (b) MnO2/extended graphite. (c) FESEM of MnO2/extended graphite.
Nanomaterials 11 02881 g001
Nanomaterials 11 02881 g002 550

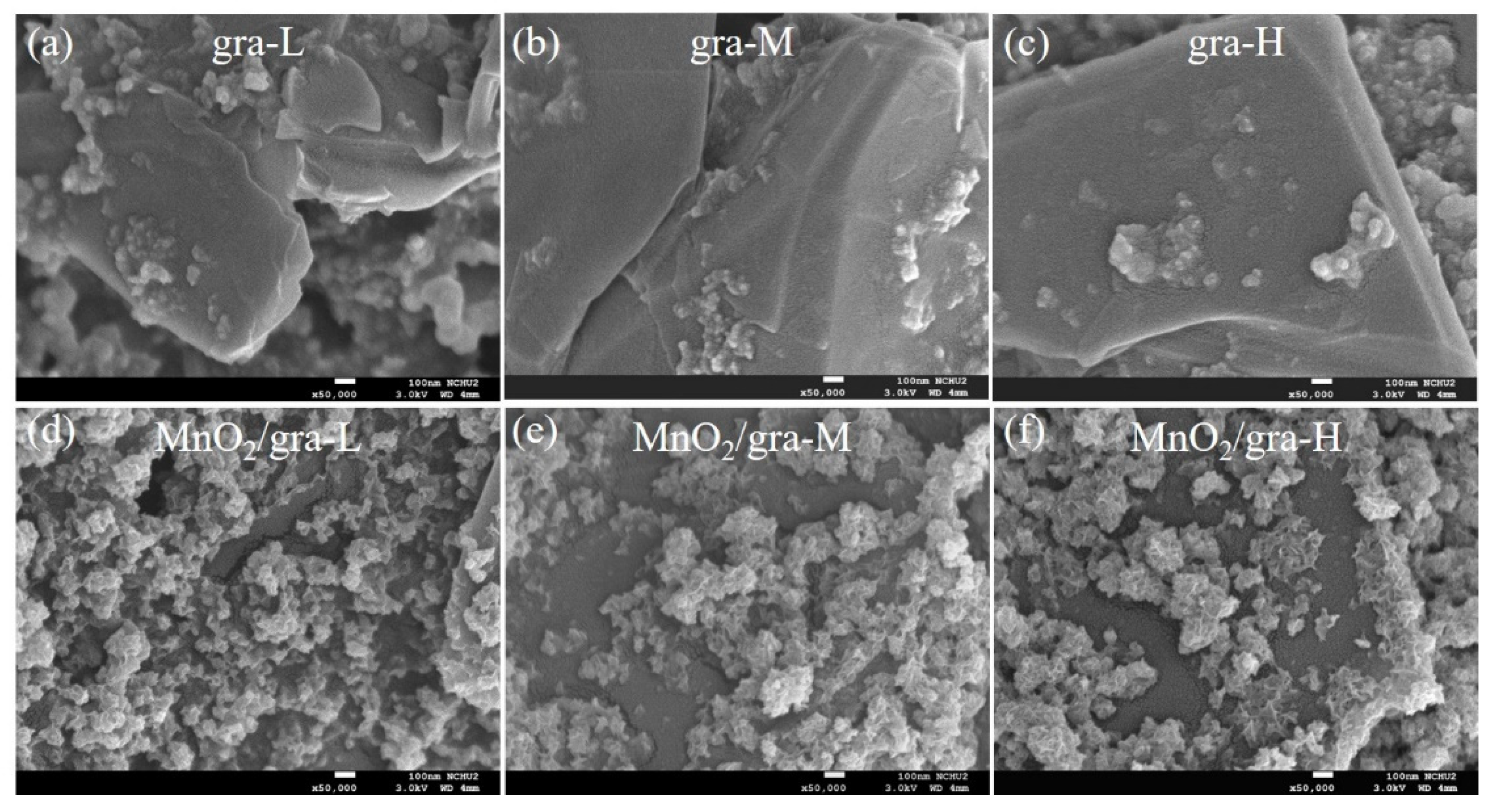

Figure 2. FESEM of (a) gra-L, (b) gra-M, (c) gra-H, (d) MnO2/gra-L, (e) MnO2/gra-M, and (f) MnO2/gra-H.
Figure 2. FESEM of (a) gra-L, (b) gra-M, (c) gra-H, (d) MnO2/gra-L, (e) MnO2/gra-M, and (f) MnO2/gra-H.
Nanomaterials 11 02881 g002
Nanomaterials 11 02881 g003 550
Figure 3. (a) Full scan (b,c) C 1s, (d) O 1s, and (e) Mn 2p XPS spectra of extended graphite and MnO2/extended graphite.
Figure 3. (a) Full scan (b,c) C 1s, (d) O 1s, and (e) Mn 2p XPS spectra of extended graphite and MnO2/extended graphite.
Nanomaterials 11 02881 g003
Nanomaterials 11 02881 g004 550

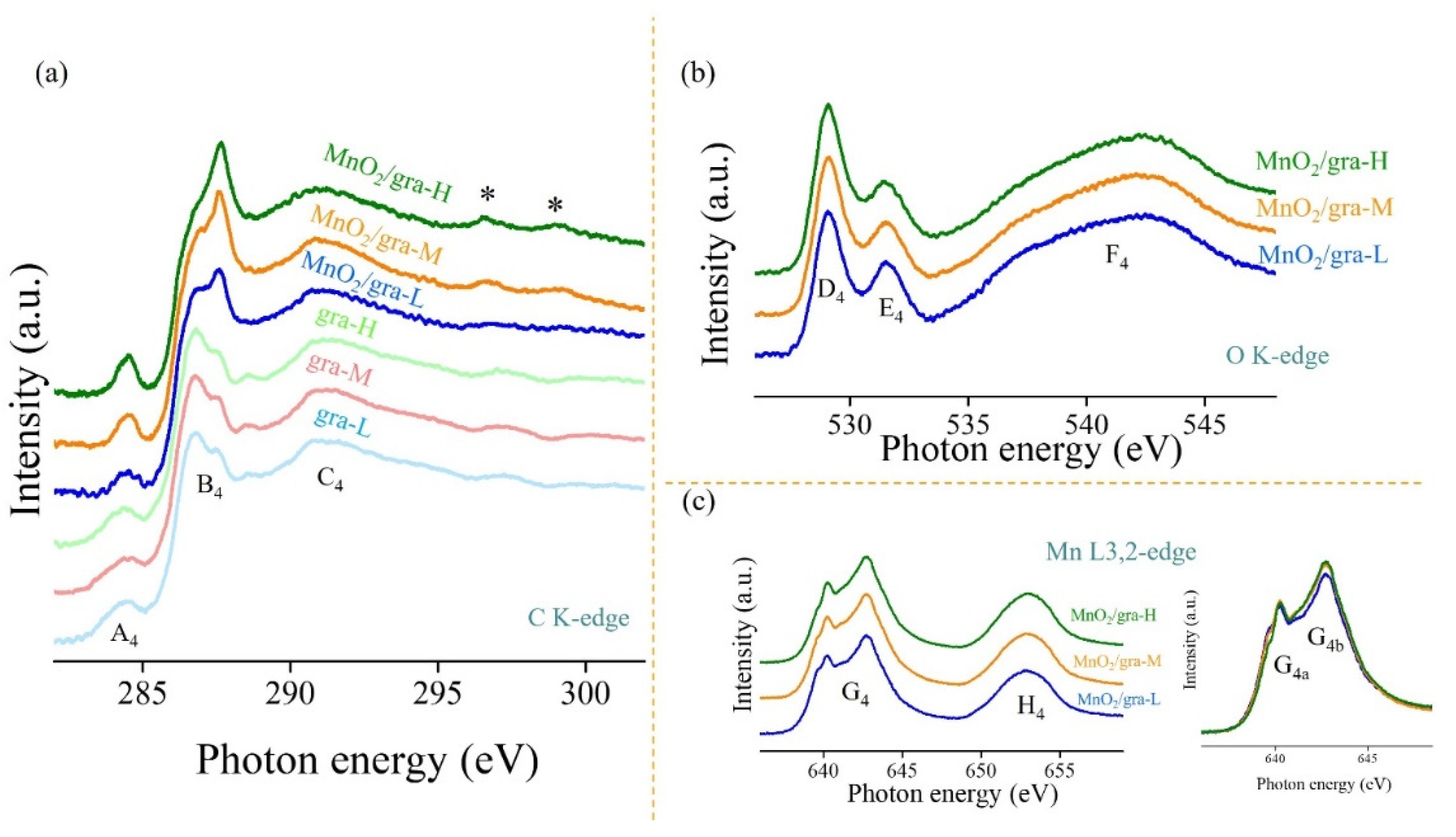

Figure 4. (a) C K-edge, (b) O K-edge, and (c) Mn L3, 2-edge XAS spectra of extended graphite and MnO2/extended graphite. Inset in (c) is the region of Mn L3-edge XAS spectra. The features (denoted as *) at 298.6 and 301.0 eV are potassium ions and water molecules within the interlayer space of MnO2 structure via spontaneous redox reaction in the KMnO4 solution.
Figure 4. (a) C K-edge, (b) O K-edge, and (c) Mn L3, 2-edge XAS spectra of extended graphite and MnO2/extended graphite. Inset in (c) is the region of Mn L3-edge XAS spectra. The features (denoted as *) at 298.6 and 301.0 eV are potassium ions and water molecules within the interlayer space of MnO2 structure via spontaneous redox reaction in the KMnO4 solution.
Nanomaterials 11 02881 g004
Nanomaterials 11 02881 g005 550

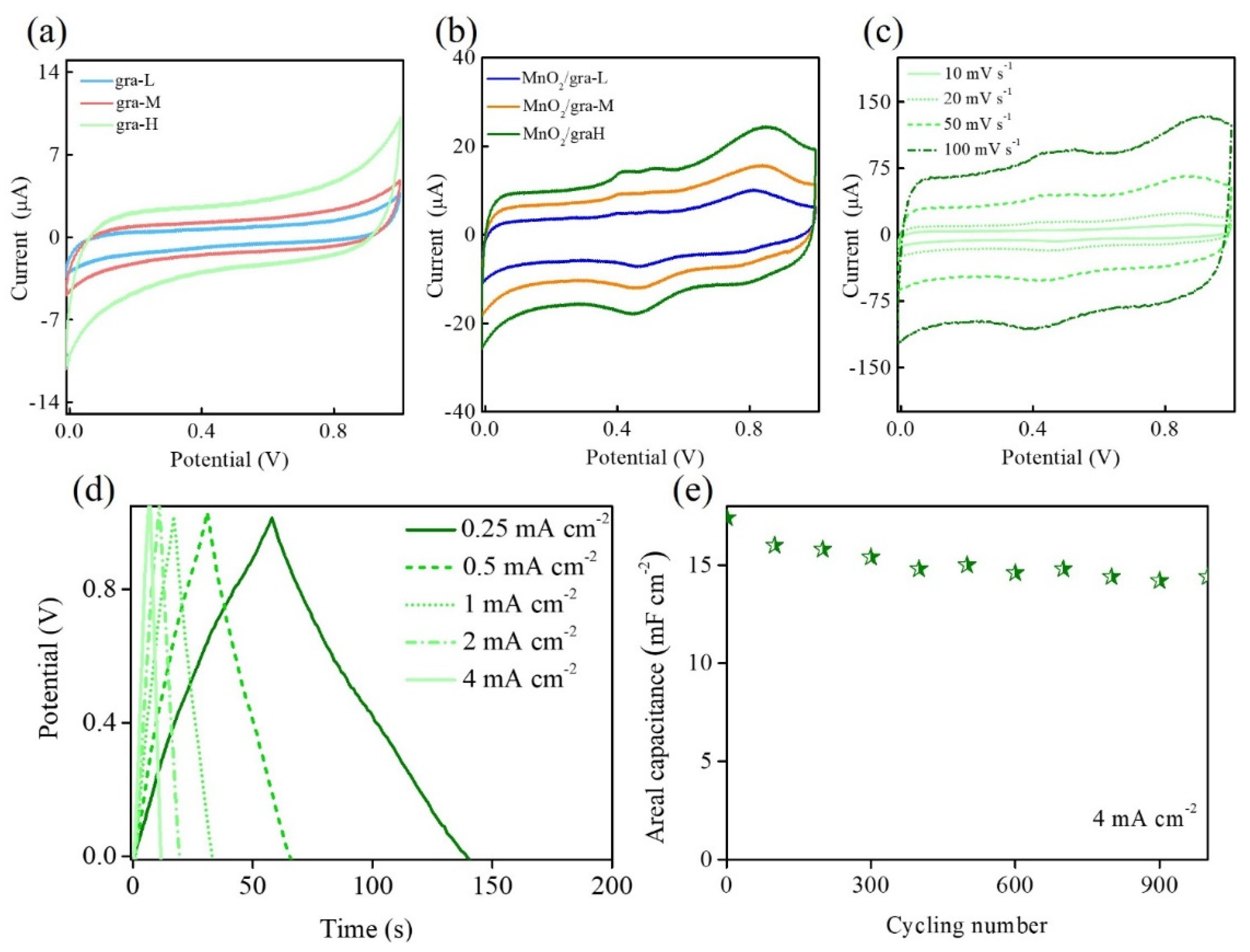

Figure 5. CV curves of (a) gra-L, gra-M, and gra-H, and (b) MnO2/gra-L, MnO2/gra-M, and MnO2/gra-H in 1 M Na2SO4 at a scan rate of 20 mV s−1. (c) CV curves of MnO2/gra-H in 1 M Na2SO4 at different scan rates. (d) Galvanostatic charge/discharge curves of MnO2/gra-H in 1 M Na2SO4 at different current densities. (e) Cyclic stability of MnO2/gra-H in 1 M Na2SO4 is recorded every 100 cycles during cycling (denoted by green star).
Figure 5. CV curves of (a) gra-L, gra-M, and gra-H, and (b) MnO2/gra-L, MnO2/gra-M, and MnO2/gra-H in 1 M Na2SO4 at a scan rate of 20 mV s−1. (c) CV curves of MnO2/gra-H in 1 M Na2SO4 at different scan rates. (d) Galvanostatic charge/discharge curves of MnO2/gra-H in 1 M Na2SO4 at different current densities. (e) Cyclic stability of MnO2/gra-H in 1 M Na2SO4 is recorded every 100 cycles during cycling (denoted by green star).
Nanomaterials 11 02881 g005
Nanomaterials 11 02881 g006 550

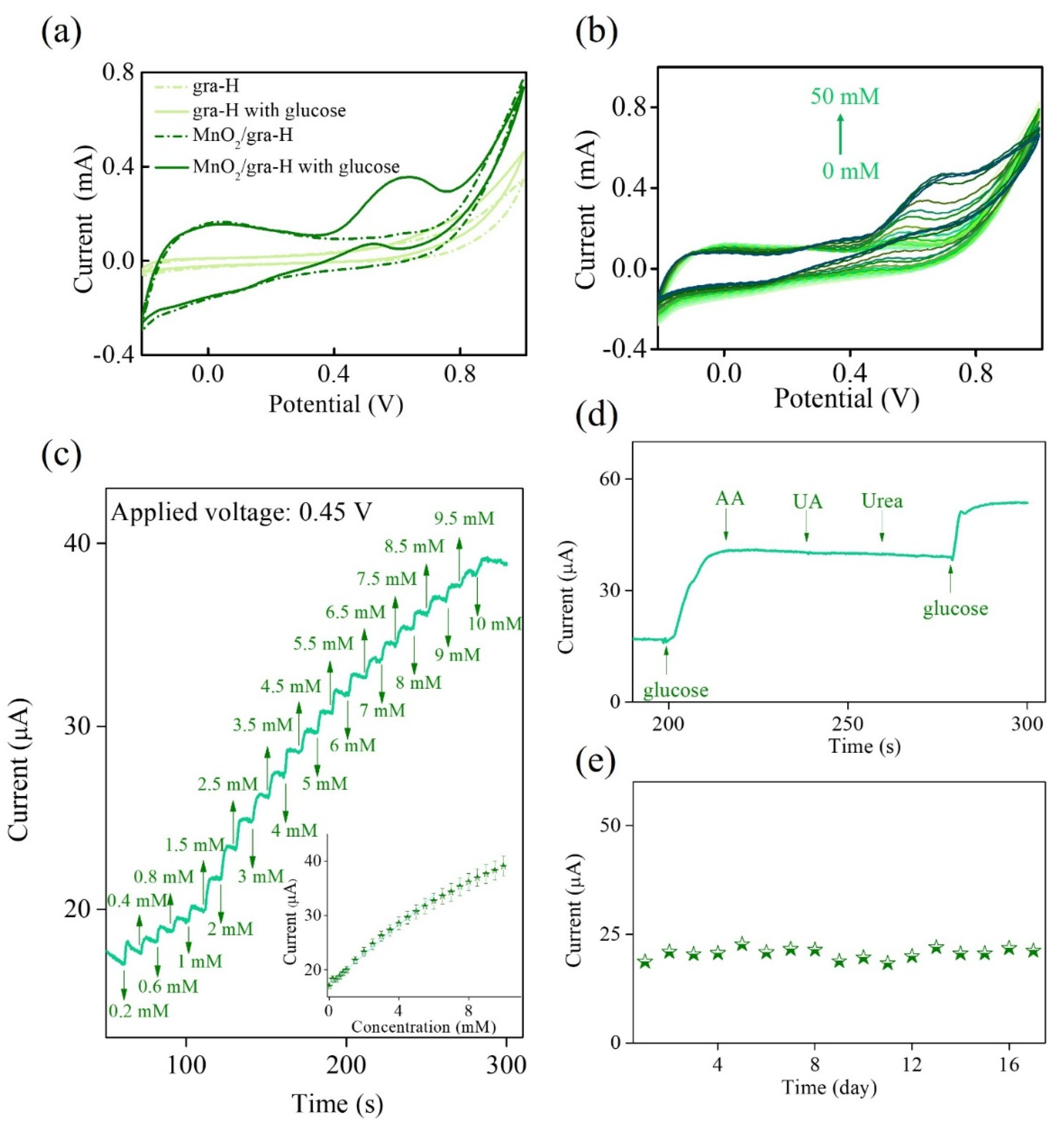

Figure 6. (a) CV curves of gra-H and MnO2/gra-H in 0.1 M NaOH in the absence (dashed lines) and presence (solid lines) of 10 mM glucose at a scan rate of 50 mV s−1. (b) CV curves of MnO2/gra-H in 0.1 M NaOH with successive addition of various glucose concentrations. (c) Amperometry of MnO2/gra-H in 0.1 M NaOH with successive addition of various glucose concentrations at applying voltage +0.45 V. In inset of (c) is the corresponding calibration plot of the response current versus glucose concentration. (d) Interference tests and (e) long-term stability of MnO2/gra-H in 0.1 M NaOH at applying voltage +0.45 V (denoted by green star).
Figure 6. (a) CV curves of gra-H and MnO2/gra-H in 0.1 M NaOH in the absence (dashed lines) and presence (solid lines) of 10 mM glucose at a scan rate of 50 mV s−1. (b) CV curves of MnO2/gra-H in 0.1 M NaOH with successive addition of various glucose concentrations. (c) Amperometry of MnO2/gra-H in 0.1 M NaOH with successive addition of various glucose concentrations at applying voltage +0.45 V. In inset of (c) is the corresponding calibration plot of the response current versus glucose concentration. (d) Interference tests and (e) long-term stability of MnO2/gra-H in 0.1 M NaOH at applying voltage +0.45 V (denoted by green star).
Nanomaterials 11 02881 g006
Table
Table 1. Fitted results of C 1s XPS spectra.
Table 1. Fitted results of C 1s XPS spectra.
SamplesFitted Results of C 1s XPS Spectra
C-C sp2 (%)C-C sp3 (%)C-OH (%)O-C-O/O-C=O (%)
gra-L28.337.032.52.2
gra-M12.642.441.43.6
gra-H10.143.942.33.7
MnO2/gra-L53.523.519.33.7
MnO2/gra-M42.935.317.04.8
MnO2/gra-H22.552.318.86.4
Table
Table 2. Fitted results of O 1s XPS spectra.
Table 2. Fitted results of O 1s XPS spectra.
SamplesFitted Results of O 1s XPS Spectra
Mn-O-Mn (%)Mn-OH (%)H-O-H (%)C=O (%)
MnO2/gra-L51.126.013.59.4
MnO2/gra-M59.522.99.58.1
MnO2/gra-H61.522.28.57.8
Table
Table 3. Fitted results of Mn 2p XPS spectra.
Table 3. Fitted results of Mn 2p XPS spectra.
SamplesFitted Results of Mn 2p XPS Spectra
Mn3+ 2p3/2 (%)Mn3+ 2p1/2 (%)Mn4+ 2p3/2 (%)Mn4+ 2p1/2 (%)Sat. 2p3/2 (%)Sat. 2p1/2 (%)Mn3+/Mn4+ Ratio
MnO2/gra-L47.120.217.210.33.12.12.4
MnO2/gra-M41.918.220.314.23.22.01.7
MnO2/gra-H39.416.222.716.43.12.21.4
Table
Table 4. Comparison of the capacitive performance with transition metal-based electrode materials.
Table 4. Comparison of the capacitive performance with transition metal-based electrode materials.
Electrode MaterialsElectrolyteCurrent DensityAreal Capacitance (mF cm−2)Reference
Mn3N2Na2SO41.00 mA cm−274.0[36]
MnOxNa2SO40.25 mA cm−219.3[37]
TiO2Na2SO42.00 mV s−123.2[38]
NiCo2O4KOH0.25 mA cm−228.0[39]
ZnCo2O4KOH0.01 mA cm−216.1[40]
MnO2/gra-HNa2SO40.25 mA cm−220.4This work
Table
Table 5. Comparison of the non-enzymatic glucose sensing performance.
Table 5. Comparison of the non-enzymatic glucose sensing performance.
Electrode MaterialsApplied Potential (V vs. Ag/AgCl)Linear Range (mM)Sensitivity (μA mM−1cm−2)Detection Limit (mM)Reference
MnCo–carbon nanofibers/Nafion0.600.5–7.0360.050[43]
PtAu–MnO20.000.1–30.0590.020[44]
MnCu/MWCNT/GO−0.051.0–32.0590.001[45]
PDDA-RGO/MnO2/AuNPs0.600.02–0.85840.002[46]
MnO2/gra-H0.45Up to 5.0430.080This work
Table
Table 6. The results of the recovery tests obtained by the electrochemical sensing and the mass spectrometric methods for glucose.
Table 6. The results of the recovery tests obtained by the electrochemical sensing and the mass spectrometric methods for glucose.
Added (mM)Found by Electrochemical Sensing
(mM)		Recovery (%)RSD (%)Found by Mass Spectrometry (mM)Recovery (%)RSD (%)
11.021025.20.94940.9
