Synthesis, Characterization, and Magnetoresistive Properties of the Epitaxial Pd0.96Fe0.04/VN/Pd0.92Fe0.08 Superconducting Spin-Valve Heterostructure

by
Igor Yanilkin
1,
Wael Mohammed
1,2,
Amir Gumarov
1,3,
Airat Kiiamov
1,
Roman Yusupov
1,* and
Lenar Tagirov
1,3,*
1
Institute of Physics, Kazan Federal University, Kremlyovskaya Str. 18, 420008 Kazan, Russia
2
Department of Physics, Faculty of Science, Minia University, Minia 61519, Egypt
3
Zavoisky Physical-Technical Institute, FRC Kazan Scientific Centre of RAS, 420029 Kazan, Russia
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(1), 64; https://doi.org/10.3390/nano11010064
Submission received: 30 November 2020 / Revised: 15 December 2020 / Accepted: 25 December 2020 / Published: 29 December 2020
(This article belongs to the Section Synthesis, Interfaces and Nanostructures)
Browse Figures
Versions Notes

Abstract

:
A thin-film superconductor(S)/ferromagnet(F) F1/S/F2-type Pd0.96Fe0.04(20 nm)/VN(30 nm)/Pd0.92Fe0.08(12 nm) heteroepitaxial structure was synthesized on (001)-oriented single-crystal MgO substrate utilizing a combination of the reactive magnetron sputtering and the molecular-beam epitaxy techniques in ultrahigh vacuum conditions. The reference VN film, Pd0.96Fe0.04/VN, and VN/Pd0.92Fe0.08 bilayers were grown in one run with the target sample. In-situ low-energy electron diffraction and ex-situ X-ray diffraction investigations approved that all the Pd1−xFex and VN layers in the series grew epitaxial in a cube-on-cube mode. Electric resistance measurements demonstrated sharp transitions to the superconducting state with the critical temperature reducing gradually from 7.7 to 5.4 K in the sequence of the VN film, Pd0.96Fe0.04/VN, VN/Pd0.92Fe0.08, and Pd0.96Fe0.04/VN/Pd0.92Fe0.08 heterostructures due to the superconductor/ferromagnet proximity effect. Transition width increased in the same sequence from 21 to 40 mK. Magnetoresistance studies of the trilayer Pd0.96Fe0.04/VN/Pd0.92Fe0.08 sample revealed a superconducting spin-valve effect upon switching between the parallel and antiparallel magnetic configurations, and anomalies associated with the magnetic moment reversals of the ferromagnetic Pd0.92Fe0.08 and Pd0.96Fe0.04 alloy layers. The moderate critical temperature suppression and manifestations of superconducting spin-valve properties make this kind of material promising for superconducting spintronics applications.

1. Introduction

Approaching the physical limitations of Moore’s law draws attention to functional elements based on principles different from those implemented in semiconductor technology [1,2,3,4,5]. Underlying physics should allow such elements to overcome the constraints inherent to the complementary metal-oxide-semiconductor (CMOS) electronics. Superconducting logic devices are candidates for supercomputer applications due to their high operating frequency and ultralow energy consumption [6,7,8,9,10]. The conventional Josephson junction [11,12], in which the superconducting current flows due to the phase difference between two superconducting electrodes, is the basic element of superconducting circuits such as single-flux quantum logic (SFQ) [13,14], quantum flux parametron [15,16], reciprocal quantum logic [17,18], and adiabatic superconductor logic [19]. Single-quantum logic is the most developed one in application to supercomputing [20,21]; within its framework, weak ferromagnetic couplings in Josephson junctions [22,23,24,25] were proposed as the intrinsic phase shifters of the superconducting wave function. “Magnetic Josephson contacts” have found their application in logic gates [26,27,28,29,30,31] and random access and cache memories [32,33,34,35,36,37], significantly reducing the number of Josephson junctions and interconnects in the circuitries [38] and providing wide operation margin tolerances and low bit-error-rates [39]. The recent proposal of ultralow power artificial synapses utilizing magnetic Josephson junctions with magnetic nanoclusters in the weak link [40] further extends the range of applications towards large-scale neuromorphic computing networks.
The functional Josephson structures mentioned above use niobium as a superconductor, mainly because it is an elemental metal with the superconducting transition temperature Tc(Nb) = 9.25 K, significantly higher than the temperature of liquid helium TLHe = 4.2 K at normal conditions, and thin-film niobium technology is well matured. However, niobium films/layers are polycrystalline, and heterostructures with ferromagnetic metals of the iron group and their alloys are not epitaxial. At the same time, some cubic nitrides of transition metals, such as vanadium, niobium, molybdenum, and tantalum, have a Tc in the range of 8–16 K [41] and lattice constants a ≈ 412–439 pm matching the epitaxy conditions with some ferromagnetic metals, their alloys (a ≈ 286–352 pm), and magnesium oxide (a ≈ 421 pm) as a substrate. They can serve as materials of fully epitaxial core heterostructures for superconducting spintronics. Moreover, superconducting molybdenum nitride MoNy is a material incorporated already in Josephson junction foundries [8,9,42] and used there for interconnects possessing high kinetic inductance. Unlike in semiconductor industries, where the core semiconductor structures of integrated circuits are grown epitaxially ensuring high stability and reproducibility of their characteristics, technologies engaged in niobium foundries were not intended for epitaxial structure synthesis. Therefore, in the presented research, we aimed to study the general possibility of synthesizing fully epitaxial nanoscale-thickness heterostructures for superconducting spintronic circuits.
For multilayer heteroepitaxial superconductor–ferromagnet structures, we chose cubic vanadium nitride (VN) as a superconductor for the following reasons: (1) for VN, the cubic phase is thermodynamically stable [43] (Chapter 11, Section 9.3) (although there are indications of a structural transition to the tetragonal phase below Ts ~250 K [44] for films with a thickness of 300 nm grown epitaxially on MgO(011) and MgO(001) substrates); (2) the superconducting transition temperature in the bulk, Tc(VN) = 8.2 K [43] (Ch. 11, §9.4) is only a degree lower than that for niobium and also significantly higher than TLHe = 4.2 K; and (3) the same symmetry (fcc B1), and the lattice parameter of the bulk VN a0(VN) = 412.6 pm [43] (Chapter 11, Section 9.4), differing by only 2% from that for magnesium oxide (a0(MgO) = 421.2 pm). As a ferromagnet, we chose the palladium-iron alloy Pd1−xFex (x < 0.1) because: (1) it has cubic symmetry (fcc) and long-term stability of properties at low temperatures; (2) the ferromagnetic transition temperature, magnetization, and magnetic hardness can vary over wide ranges by changing the iron content x in the alloy [45,46,47,48]; (3) the lattice constant of Pd1−xFex, a0(PdFe) ≈ 388 pm [48] differs by 6% and 8% from that for VN and MgO, respectively; and (4) magnetic Josephson junction memory was demonstrated [24] utilizing the Pd0.99Fe0.01 alloy. Cubic symmetry and the closeness of the lattice constants of all three materials create prerequisites for the epitaxial growth of multilayer structures based on VN and Pd1−xFex.
Particular bilayer samples formed by the vanadium nitride and the Pd1−xFex alloy on MgO(001) were grown in the course of developing the approach to the synthesis of such heterostructures: MgO(001)/VN/Pd0.96Fe0.04 was studied in [49] with a focus at the magnetic anisotropy of epitaxial Pd0.96Fe0.04 on VN; MgO(001)/Pd0.96Fe0.04/VN and MgO(001)/VN/Pd0.92Fe0.08 bilayers were investigated in [50] with the focus on their electrical properties. In this work, we aimed to synthesize fully epitaxial, three-layer pseudo-spin-valve (spin-valve without exchange bias, but with different coercivities of the functional ferromagnetic layers) heterostructure MgO(001)/Pd0.96Fe0.04(20 nm)/VN(30 nm)/Pd0.92Fe0.08(12 nm). Magnetoresistance measurements demonstrate that the structure exhibits superconducting spin-valve effect. The underlying phenomena behind the magnetic Josephson junctions and superconducting spin-valves are the superconductor–ferromagnet proximity effects [51,52,53].
Indeed, at the contact of superconductor (S) and ferromagnet (F), the wave function of the superconducting condensate penetrates into the ferromagnetic metal, oscillates, and decays with a distance from the S/F interface. In a magnetic Josephson heterostructure, the ferromagnetic weak link is sandwiched by two superconductors. If the link accommodates one node of the oscillating pairing wave function, the sandwich sides acquire opposite phases. It is a basic idea realized in the so-called Josephson pi-junctions or pi-shifters [22,23,24,25]. In a heterostructure with two ferromagnetic layers, where the direction of the magnetic moment of the one is chosen as the quantization axis, the oscillation phase depends on mutual orientation of the magnetic moments of the layers. This, in turn, affects the interference of the superconducting pairing wave functions in the layers, and it becomes possible to control the superconductivity in a heterostructure by manipulating the magnetic configurations. Such structures are called superconducting spin-valves (see reviews [51,52] and citations therein).
A more rigorous consideration allows us to assert that three types of superconducting pairings can be realized in thin-film superconductor–ferromagnet heterostructures: singlet, triplet with zero projection of the total spin of the Cooper pair, and triplet with equal spin pairing [53]. The first two take place for collinear configurations of magnetizations, while the last for non-collinear ones. Various designs have been proposed for heterostructures realizing either Tc -controlled spin-valves or Josephson spin-valves with the critical current control [54], some of which were implemented in experiments (see [9,10,25,55,56,57,58]).
The magnetoresistance measurements have shown that the pseudo-spin-valve heterostructure MgO(001)/Pd0.96Fe0.04(20 nm)/VN(30 nm)/Pd0.92Fe0.08(12 nm)/Si exhibits inverse superconducting spin-valve effect.

2. Materials and Their Characterization

2.1. Sample Synthesis and In Situ Characterization of the Crystallinity and Chemical Composition

We utilized a four-chamber ultra-high-vacuum (UHV) system for the synthesis and analysis of thin-film structures (SPECS+BESTEC, Berlin, Germany). All chambers are connected by an UHV transfer line (with a residual pressure of ~5 × 10−10 mbar), which allows to move a sample under synthesis from one chamber to another without breaking UHV conditions.
With our approach, we intended to obtain a series of heterostructures with different layer sequences though identical parameters of each particular layer. Its implementation is illustrated by Figure 1. Two single-crystalline epi-polished MgO(001) (referred to as MgO below) substrates from CRYSTAL GmbH, Berlin, Germany, with the size of 10 × 5 × 0.5 mm3 were mounted on a molybdenum sample holder with molybdenum clips, as shown in Figure 1A,B. In the vacuum system, they were first annealed for 5 min at 800 °C in a molecular beam epitaxy (MBE) chamber (SPECS) with a residual pressure of ~9 × 10−11 mbar. In the same chamber, one of the substrates was obscured with a special sliding shutter #1 (see Figure 1A), and a layer of Pd1−xFex alloy with a nominal iron content x = 0.04 was deposited on the substrate that was left open. Metallic palladium (Pd with a purity of 99.95%, EVOCHEM GmbH, Offenbach, Germany) and iron (Fe with a purity of 99.97%, ChemPur GmbH, Karlsruhe, Germany) were co-evaporated from high-temperature cells (CreaTec GmbH, Erligheim, Germany) calibrated with the quartz microbalance to obtain a desired composition of the Pd1−xFex alloy. The temperatures of the palladium and the iron cells that provided the elemental composition of Pd/Fe ≈ 96/4, were 1273.0 and 1154.0 °C (±0.1 °C), respectively. The layer thickness of 20 nm was pre-determined by the deposition time and later confirmed ex situ with the Bruker DektakXT stylus profilometer (Bruker Corp., Tucson, AZ, USA) (the height accuracy is ~0.5 nm). Epitaxial growth of the Pd0.96Fe0.04 layer was achieved using a three-step procedure described in detail in our earlier paper [48].
A layer of the VN compound, common for both substrates, was synthesized by reactive DC magnetron sputtering (MS) in a separate UHV chamber with a base pressure of 8 × 10–10 mbar (BESTEC). The metallic vanadium disk of 99.95% purity (LLC GIRMET, Moscow, Russia) was used as a target. The deposition conditions were adapted to our equipment from the works of the Illinois group [59,60]. The substrate had a temperature of 500 °C during this process. A mixture of argon (Ar) and nitrogen (N2) with a purity of >99.9999% in the ratio of Ar:N2 = 60:40 was fed to the magnetron as the reactive plasma gas. During the deposition, the pressure of the Ar/N2 gas mixture in the MS chamber was automatically maintained at 6 × 10−3 mbar. With the magnetron power of 50 W and the distance between the target and the substrate of 20 cm, the deposition rate was 0.2 nm/min. The deposited VN layer thickness was 30 ± 0.4 nm. Adjustable shutters of the MS chamber were not used, and the VN layer was uniformly deposited to both substrates using the rotation of the holder around the axis normal to the holder plane.
After transferring the sample holder back to the MBE chamber, the third layer of Pd1−xFex alloy was synthesized, this time with a nominal composition of Pd0.92Fe0.08 and a thickness of 12 nm. The last ensured identical magnetic moment per unit area of the Pd0.96Fe0.04 and Pd0.92Fe0.08 layers (important for magnetic configurations of the system, see below). Before the deposition, approximately half of the area of both substrates was obscured with shutter #2 (see Figure 1A). The temperatures of the effusion cells were 1273.0 °C for Pd and 1184.0 °C for Fe. As a result of the described synthesis approach, four different structures were formed on the substrates (see Figure 1C) with the top layers of nominally VN (Samples S1 and S2) and Pd0.92Fe0.08 (Samples S3 and S4).
Upon completion of each deposition step, the crystallinity of the top layer was monitored in situ using the low-energy electron diffraction (LEED) setup built-in to the MBE chamber. The high-contrast pattern in Figure 1Db, obtained from a macroscopic region of the film surface (compare with the LEED pattern of the pristine MgO substrate, Figure 1Da), indicates that the Pd0.96Fe0.04 film is single-crystalline.
The LEED image from the VN layer is shown in Figure 1Dc, and from the Pd0.92Fe0.08 layer in Figure 1Dd. Both images display a clear diffraction pattern of cubic symmetry, almost identical to that of the MgO substrate (Figure 1Da) and Pd0.96Fe0.04 (Figure 1Db). The LEED images allow us to conclude that all the three layers, Pd0.96Fe0.04, VN, and Pd0.92Fe0.08, are single-crystalline with the identical orientation of the principal axes in the structure’s plane. This, in turn, indicates that the “cube-on-cube” epitaxial growth mode is realized through all three layers. Thus, Sample S4 represents the desired three-layer, heteroepitaxial structure of Pd0.96Fe0.04/VN/Pd0.92Fe0.08 on a single-crystal MgO(001) substrate.
The elemental composition of each of the Pd1−xFex alloy layers was monitored using the UHV X-ray photoelectron spectroscopy (XPS) in the analytical chamber of the vacuum setup (base pressure < 3 × 10−10 mbar) equipped with the Mg-Kα X-ray source and a hemispherical energy analyzer Phoibos-150 (all from SPECS). Figure 2a shows an overview XPS spectrum of the MgO/VN/Pd0.92Fe0.08 thin-film heterostructure after deposition; high-resolution spectra of the Fe 2p and Pd 3d states are shown in the insets. The binding energies of the Fe 2p1/2, Fe 2p3/2, Pd 3d3/2, and Pd 3d5/2 states are 721.0, 707.7, 340.2, and 335.0 eV, respectively, which correlate well with the literature data [48,61]. Analysis of the XPS spectrum using the CasaXPS software [62] has given the composition of the bottom Pd1−xFex alloy layer of Pd:Fe = 96.3:3.7 with an accuracy of ~0.5. More details on processing the XPS spectra of Pd1−xFex alloys can be found in [48].
Analysis of the XPS spectrum of the top Pd0.92Fe0.08 layer (Sample S4, Figure 1C), performed following the same procedure as for the Pd0.96Fe0.04 layer, confirmed its elemental composition of Pd:Fe = 92.0:8.0 with an accuracy of ~0.5.
Figure 2b shows the XPS spectra of the VN layer. The binding energies of the V 2p1/2, V 2p3/2, and N 1s states are 520.8, 513.3, and 397.2 eV, respectively, which are very close to the data reported in the literature for crystalline VN [63]. The presence of a satellite at a binding energy of 515.5 eV is characteristic of the V in the nitride compound [63]. No traces of oxygen or carbon at the surface of the VN layer were found within the sensitivity of the XPS spectrometer (~0.1%). According to the XPS data, the stoichiometry of the layer was V:N = 52.5:47.5 with an accuracy of ~0.5.
Finally, before removing the substrates with four formed samples from the vacuum system, they were capped with 10 nm of high-resistivity silicon in the MS chamber to protect them from the oxidation in air. Nevertheless, in between the ex situ measurements, the samples were stored in a glovebox (MBraun) under a cryogen-pure nitrogen atmosphere. For subsequent measurements, each substrate with the formed samples was cut with a diamond saw into three parts to exclude the transition regions. Only homogeneous samples were used for the measurements. The key object of the studies here was the three-layer MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 (S4) sample, while Samples S1–S3 played the role of references to identify the contribution of each layer to the magnetic configurations and magnetoresistance features of Sample S4.

2.2. X-ray Diffraction Analysis

In situ LEED results were confirmed by ex situ X-ray diffraction (XRD, BRUKER D8, Bruker AXS GmbH, Karlsruhe, Germany) utilizing Cu-Kα radiation (λ = 1.5418 Å) in the Bragg–Brentano geometry in the range of 2θ angles from 17° to 82° with the step of 0.0153°. XRD patterns at room temperature of the pristine MgO(001) substrate and Samples S1 (MgO/VN/Si), S2 (MgO/Pd0.96Fe0.04/VN/Si), S3 (MgO/VN/Pd0.92Fe0.08/Si), and S4 (MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08/Si) are shown in Figure 3a. The θ–2θ scans indicate the single-crystalline structure of the layers in the studied samples. In the figure, one can identify the (002) maxima from the MgO substrate, VN (30 nm) layer, and Pd0.96Fe0.04 (20 nm) and/or Pd0.92Fe0.08 (12 nm) layer(s).
The figure shows a significant relative shift of the (002) XRD-maxima from the VN layer of Samples S1 and S3 with respect to Samples S2 and S4, clearly correlating with the material that served as a substrate for the VN layer. For Samples S1 and S3, MgO (a = 421.2 pm) was the substrate for the VN (a = 412.6 pm). Therefore, the lattice of the VN film is stretched a bit in its plane; accordingly, the interplanar distance along the normal is reduced, and the angle of the (002) maximum is increased. For Samples S2 and S4, the Pd0.96Fe0.04 (a = 388 pm) served as the substrate for the VN. The VN lattice is then compressed in its plane; accordingly, the interplanar distance along the normal is increased, and the angle of the (002) maximum is reduced.
For the (002) maximum of the Pd1−xFex, the quantitative difference in its angular position is visible only at the instrumental level. First, in contrast to the VN case, both “substrates” for the growth of Pd1−xFex layers cause the tensile strain; as a result, the maximum shifts towards larger angles though the shift magnitudes differ slightly. Second, the maxima from the Pd0.96Fe0.04 and Pd0.92Fe0.08 layers overlap, thus deposition to different “substrates” mainly leads to the broadening of the integral peak.
X-ray diffraction φ-scans are shown in Figure 3b. The Eulerian cradle angle χ was set to 45° to detect the <220> XRD-maxima. The φ-scans for both layers, VN and Pd1−xFex, clearly show cubic single-crystalline symmetry of the deposited films with the coinciding directions of the principal axes. For comparison, the φ-scan of the pristine single-crystal MgO(001) substrate recorded in the same geometry is shown in Figure 3b.
A significant broadening of the diffraction maxima of VN and Pd1−xFex is primarily associated with a small coherent scattering range τ along the normal to the film plane (Scherrer broadening). The XRD data taking into account the instrumental function [48] lead to the estimates of τ ≈ 22.0 nm for Pd0.96Fe0.04, τ ≈ 12.6 nm for Pd0.92Fe0.08, and τ ≈ 30.4 nm for VN, which quantitatively agree with the thicknesses determined from the calibrated quartz microbalance. Thus, the LEED and XRD datasets indicate that thin films of Pd1−xFex and VN in the MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 heterostructure grew in a single-crystal epitaxial cube-on-cube mode.

3. Results

3.1. Magnetic Properties

The results of the magnetic moment measurements of the hetero-epitaxial pseudo-spin-valve structure MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08/Si (S4) are shown in Figure 4. The dependence of MS4(T) (blue open circles) is well reproduced by the sum of MS2(T) and MS3(T) measured on the reference samples of Series S2 and S3 (purple and red lines in Figure 4). The dependence of the saturation magnetic moment on temperature clearly reveals three critical regions corresponding to the Curie temperatures for ferromagnetic layers (see vertical arrows in the figure) and the onset of the superconductivity at 5.42 K, which manifests itself through the Meissner effect.
The major magnetic hysteresis loop of the pseudo-spin-valve Sample S4 is shown in the inset of Figure 4 (blue open squares); it has a stepped shape since the Pd0.96Fe0.04 and Pd0.92Fe0.08 layers have different coercive fields, ~15 and ~40 Oe, respectively. The magnetic field was applied along the easy in-plane magnetization axis. The field sweep started from the saturated state in the positive field corresponding to the parallel (P) alignment of the Pd0.96Fe0.04 and Pd0.92Fe0.08 layer magnetic moments. Measurements of the magnetic hysteresis loop of Sample S3 (MgO(001)/VN/Pd0.92Fe0.08/Si), red symbols in the inset, show that the Pd0.92Fe0.08 layer has a higher coercive field. In the range of the antiparallel (AP) alignment of the Pd0.96Fe0.04 and Pd0.92Fe0.08 layer moments, the total magnetization of the sample is close to zero, which was intentionally pre-determined by choosing their appropriate thicknesses (20 and 12 nm, respectively) based on the iron concentration dependence of Pd1−xFex alloys magnetization [47]. The orange symbols in the inset show a minor hysteresis loop recorded starting from the saturated state in the positive field direction. The minor loop corresponds to the switching between the P and AP magnetic configurations.

3.2. Superconducting Properties and Magnetoresistance

The superconducting transition temperature was determined from the resistance dependence on temperature in the range of 4.2–300 K. A four-probe resistance measurement scheme was used (Quantum Design PPMS-9). Figure 5 shows the superconducting transitions for Samples S1–S4 with the abscissa rescaled to track the evolution of the transition width. The raw R(T) transitions are shown in the inset to the figure. Table 1 contains the data on the residual resistance ratio RRR (the ratio of the resistance R300K at room temperature to the resistance R10K at 10 K), the superconducting transition temperature Tc (according to the criterion of the middle of the transition), and the width of the superconducting transition according to the criterion of 10–90. The structural quality of our 30 nm thick VN film, manifested in RRR ~5.1 >> 1 and low resistivity at room temperature ~42.5 μΩ·cm [50], is one of the best [41,44,64,65,66].
The most notable feature of the Tc measurement results is a small width of the superconducting transition of the MgO/Pd0.96Fe0.04(20 nm)/VN(30 nm)/Pd0.92Fe0.08(12 nm)/Si (S4) sample of about 40 mK according to the 10–90% criterion, and the absence of “tail” of the resistive transition towards low temperatures.
The magnetoresistance RS4(H) of the pseudo-spin-valve Sample S4 was measured in the same geometry as the magnetic hysteresis, i.e., starting from the P magnetic configuration and the field applied in-plane along the easy magnetization axis. The measurement temperature was set to 5.40 K. To achieve reproducible R(H) results, the temperature of the sample had to settle for at least 1 h. Figure 6a shows the measurement results by scanning the magnetic field over the major hysteresis loop. The observed dependence is symmetric with respect to the origin. With the decrease of the magnetic field from, e.g., +100 Oe, resistance first drops, reaches a minimum at ~30 Oe, and then rises. After passing zero field, it rises further and, after about −30 Oe, drops again. Scanning the field in an opposite direction produces symmetric about H = 0 Oe curve. The RS4(H) dependence exhibits peak-like anomalies that obviously correlate with the magnetization reversals of the Pd0.96Fe0.04 and Pd0.92Fe0.08 ferromagnetic layers. The dip pits at the field values about ±80 Oe do not correlate with any changes in magnetic configurations in these field ranges. Magnetoresistance measurements of the MgO/VN/Si (S1) reference sample (Appendix A) which was obtained in the same deposition process with Samples S2–S4, showed that the dips in magnetoresistance originate from the VN film itself.
To better understand the influence of the magnetic configurations on superconductivity in the S4 pseudo-spin-valve structure, we investigated its magnetoresistance with the field sweeping within the minor hysteresis loop (Figure 6b). The top panel shows the magnetic field sweep causing the switching from the P state of the ferromagnetic Pd1−xFex layers in the positive field direction to the AP state occurring at H ≈ −24 Oe, and back at H ≈ +28 Oe to complete the minor loop. The bottom panel of Figure 6b shows a similar measurement of the R(H) dependence within the minor loop, starting from the P-configuration at negative fields. Regardless of the history, the resistance of the structure is higher with the AP configuration of magnetic moments than with the P configuration. Thus, an inverse spin-valve effect is observed.

4. Discussion

A decrease in the superconducting transition temperature of the VN compound film in a heterostructure with a ferromagnetic alloy Pd1−xFex is a manifestation of the inverse superconductor/ferromagnet (S/F) proximity effect (see review [51] and references therein). Recent predecessors for the MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08/Si (S4) heterostructure studied in this work were the F1/S/F2 and F1/F2/S spin-valves considered in [67,68], respectively. The calculation for the F1/S/F2 structure [67] predicts a monotonic change in Tc, and hence in the resistance R(H) at the superconducting transition (Figure 6a), upon transition from the P-configuration (lower Tc) to the AP-one (higher Tc). It is called the direct spin-valve effect. In our case, a significant bump in resistance (decrease in Tc) is observed with a maximum at ~±40 Oe upon magnetization reversal of the Pd0.92Fe0.08 layer. Although this does not agree with the prediction in [67], it was assumed there that magnetic moments of ferromagnetic layers rotate coherently, keeping the magnetization within the layer uniform. If a non-uniform magnetization state develops in the course of magnetization reversal in any of the two ferromagnetic layers (e.g., following the “exchange spring”/spiral magnets scenario [69,70,71] or remagnetization through the domain intermediate state [72,73]), the triplet superconductivity component emerges that additionally suppresses the Tc (increases the resistance). For the simplest case of two non-collinearly magnetized layers, this suppression is demonstrated in [68] and coined as triplet spin-valve regime. In our case, the pronounced peaks at about ±40 Oe can be attributed to the development of the triplet pairing in the Pd0.92Fe0.08 layer. The influence of the Pd0.96Fe0.04 layer reversal reveals itself in R(H) data presented in Figure 6b. The measurements showed that a slight inhomogeneity can also appear upon magnetization reversal of the Pd0.96Fe0.04 layer (resistance spikes at ±55 Oe); however, regardless of the history, the structure resistance is higher when the sample is in the AP state, i.e., we observe an inverse spin-valve effect (Tc(AP) < Tc(P)).

5. Conclusions

A thin-film F1/S/F2-type superconductor/ferromagnet MgO(001)/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 heterostructure was synthesized in one run with the reference MgO/VN, MgO/Pd0.96Fe0.04/VN, and MgO/VN/Pd0.92Fe0.08 samples in UHV conditions using a combination of molecular beam epitaxy and magnetron sputtering. Structural characterizations showed that the target trilayer heterostructure grew fully epitaxial. Electric resistance measurements have shown sharp superconducting transitions for all four samples without substantial transition broadening upon complication of the sample structure from the single VN layer to the Pd0.96Fe0.04/VN/Pd0.92Fe0.08 pseudo-spin-valve trilayer. The pronounced magnetoresistance features observed upon remagnetization of the F1/S/F2 pseudo-spin-valve trilayer in the film plane give evidence of the inverse superconducting spin-valve effect. Such a manifestation of the superconductor–ferromagnet proximity effects paves the way to magnetic Josephson junctions based on fully epitaxial superconductor–ferromagnet heterostructures.

Author Contributions

Conceptualization, I.Y., R.Y. and L.T.; design and samples synthesis, I.Y., W.M. and A.G.; composition analysis, A.G.; XRD characterization, A.K.; magnetic and transport properties, I.Y., W.M. and A.G.; data curation, R.Y.; writing—original draft preparation, I.Y., R.Y. and L.T.; writing— review and editing, R.Y. and L.T.; visualization, W.M., A.G., A.K. and I.Y.; supervision, R.Y.; project administration, L.T.; funding acquisition, R.Y. and L.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Science Foundation (project No. 18-12-00459).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The experimental work was carried out on the equipment of the Federal Center of Shared Facilities of Kazan Federal University.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

R(H) “fast” scans were intended to clarify the origin of pits at the magnetic field values of about ±80 Oe. In this series of quick measurements, the procedure of thermalization, described above, was deliberately shortened to obtain mostly qualitative information. Due to the fast scan, some low-amplitude features of RS4(H) were smeared or lost compared with those in Figure 6. The measurements of the single VN film (Sample S1), the middle scan in Figure A1a, clearly demonstrate that ±80 Oe pits originate from the VN layer.
Nanomaterials 11 00064 g0a1 550

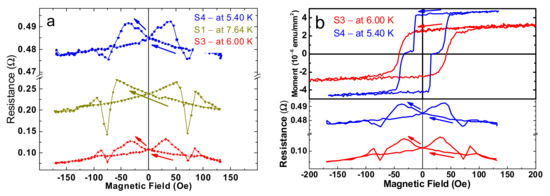

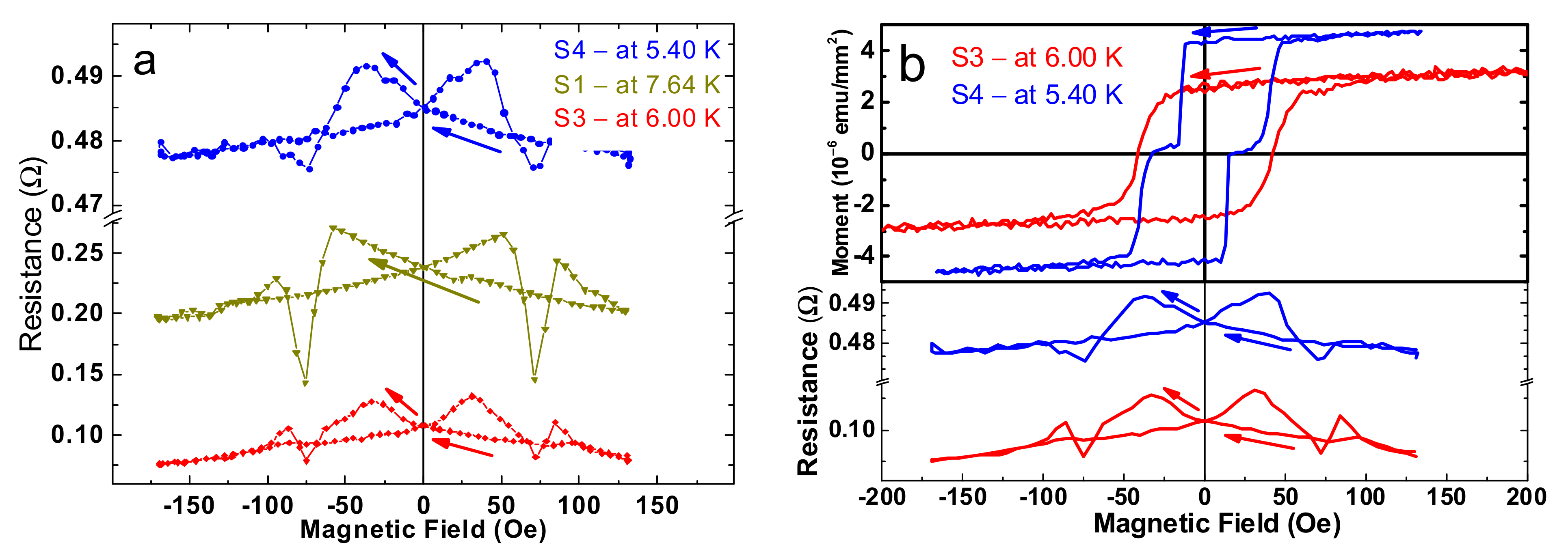

Figure A1. (a) R(H) dependences of the single VN film (S1), the heterostructure VN/Pd0.92Fe0.08 (S3), and the pseudo-spin-valve structure Pd0.96Fe0.04/VN/Pd0.92Fe0.08 (S4). (b) Magnetoresistance data for Samples S3 and S4 are shown in the lower panel in conjunction with the magnetic hysteresis loops in the upper panel for the same samples measured in identical geometries of the experiments.
Figure A1. (a) R(H) dependences of the single VN film (S1), the heterostructure VN/Pd0.92Fe0.08 (S3), and the pseudo-spin-valve structure Pd0.96Fe0.04/VN/Pd0.92Fe0.08 (S4). (b) Magnetoresistance data for Samples S3 and S4 are shown in the lower panel in conjunction with the magnetic hysteresis loops in the upper panel for the same samples measured in identical geometries of the experiments.
Nanomaterials 11 00064 g0a1

References

  1. Xiu, L. Time Moore. IEEE Sol. State Circ. Mag. 2019, 11, 39–55. [Google Scholar] [CrossRef]
  2. Shalf, J. The future of computing beyond Moore’s Law. Phil. Trans. R. Soc. A 2020, 378, 20190061. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Manipatruni, S.; Nikonov, D.E.; Young, I.A. Beyond CMOS computing with spin and polarization. Nature Phys. 2018, 14, 338–343. [Google Scholar] [CrossRef]
  4. Manipatruni, S.; Nikonov, D.E.; Lin, C.-C.; Gosavi, T.A.; Liu, H.; Prasad, B.; Huang, Y.-L.; Bonturim, E.; Ramesh, R.; Young, I.A. Scalable energy-efficient magnetoelectric spin-orbit logic. Nature 2019, 565, 35–42. [Google Scholar] [CrossRef]
  5. Topaloglu, R.O.; Philip Wong, H.-S. (Eds.) Beyond-CMOS Technologies for Next Generation Computer Design; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar] [CrossRef]
  6. Likharev, K.K. Superconductor digital electronics. Physica C 2012, 482, 6–18. [Google Scholar] [CrossRef]
  7. Holmes, D.S.; Ripple, A.L.; Manheimer, M.A. Energy-efficient superconducting computing—power budgets and requirements. IEEE Trans. Appl. Supercond. 2013, 23, 1701610. [Google Scholar] [CrossRef]
  8. Tolpygo, S.K. Superconductor digital electronics: Scalability and energy efficiency issues. Low Temp. Phys. 2016, 42, 361–379. [Google Scholar] [CrossRef] [Green Version]
  9. Soloviev, I.I.; Klenov, N.V.; Bakurskiy, S.V.; Kupriyanov, M.Y.; Gudkov, A.L.; Sidorenko, A.S. Beyond Moore’s technologies: Operation principles of a superconductor alternative. Beilstein J. Nanotechnol. 2017, 8, 2689–2710. [Google Scholar] [CrossRef] [Green Version]
  10. Braginski, A.I. Superconductor electronics: Status and outlook. J. Supercond. Novel Magn. 2019, 32, 23–44. [Google Scholar] [CrossRef] [Green Version]
  11. Barone, A.; Paternò, G. Physics and Applications of the Josephson Effect; Wiley: New York, NY, USA, 1982. [Google Scholar] [CrossRef]
  12. Golubov, A.A.; Kupriyanov, M.Y.; Il’ichev, E. The current-phase relation in Josephson junctions. Rev. Mod. Phys. 2004, 76, 411–469. [Google Scholar] [CrossRef] [Green Version]
  13. Mukhanov, O.A.; Semenov, V.K.; Likharev, K.K. Ultimate performance of RSFQ logic circuits. IEEE Trans. Magn. 1987, 23, 759–762. [Google Scholar] [CrossRef]
  14. Likharev, K.K.; Semenov, V.K. RSFQ logic/memory family: A new Josephson-junction technology for sub-terahertz-clock-frequency digital systems. IEEE Trans. Appl. Supercond. 1991, 1, 3–28. [Google Scholar] [CrossRef]
  15. Harada, Y.; Nakane, H.; Miyamoto, N.; Kawabe, U.; Goto, E.; Soma, T. Basic operations of the quantum flux parametron. IEEE Trans. Magn. 1987, 23, 3801–3807. [Google Scholar] [CrossRef]
  16. Hosoya, M.; Hioe, W.; Casas, J.; Kamikawai, R.; Harada, Y.; Wada, Y.; Nakane, H.; Suda, R.; Goto, E. Quantum flux parametron: A single quantum flux device for Josephson supercomputer. IEEE Trans. Appl. Supercond. 1991, 1, 77–89. [Google Scholar] [CrossRef]
  17. Herr, Q.P.; Herr, A.Y.; Oberg, O.T.; Ioannidis, A.G. Ultra-low-power superconductor logic. J. Appl. Phys. 2011, 109, 103903. [Google Scholar] [CrossRef] [Green Version]
  18. Herr, A.Y.; Herr, Q.P.; Oberg, O.T.; Naaman, O.; Przybysz, J.X.; Borodulin, P.; Shauck, S.B. An 8-bit carry look-ahead adder with 150 ps latency and sub-microwatt power dissipation at 10 GHz. J. Appl. Phys. 2013, 113, 033911. [Google Scholar] [CrossRef] [Green Version]
  19. Takeuchi, N.; Yamanashi, Y.; Yoshikawa, N. Reversible logic gate using adiabatic superconducting devices. Sci. Rep. 2014, 4, 6354. [Google Scholar] [CrossRef] [Green Version]
  20. Cryogenic Computing Complexity (C3) Program. Available online: https://www.iarpa.gov/index.php/research-programs/c3 (accessed on 20 November 2020).
  21. Manheimer, M.A. Cryogenic Computing Complexity Program: Phase 1 Introduction. IEEE Trans. Appl. Supercond. 2015, 25, 1301704. [Google Scholar] [CrossRef]
  22. Ryazanov, V.V. Superconductor-ferromagnet-superconductor Josephson pi-junction as an element of a quantum bit (experiment). Phys. Usp. 1999, 42, 825–827. [Google Scholar] [CrossRef]
  23. Ustinov, A.V.; Kaplunenko, V.K. Rapid single-flux quantum logic using π-shifters. J. Appl. Phys. 2003, 94, 5405–5407. [Google Scholar] [CrossRef]
  24. Ryazanov, V.V.; Bol’ginov, V.V.; Sobanin, S.D.; Vernik, I.V.; Tolpygo, S.K.; Kadin, A.M.; Mukhanov, O.A. Magnetic Josephson junction technology for digital and memory applications. Phys. Procedia 2012, 36, 35–41. [Google Scholar] [CrossRef] [Green Version]
  25. Linder, J.; Robinson, J.W. Superconducting spintronics. Nat. Phys. 2015, 11, 307–315. [Google Scholar] [CrossRef]
  26. Ortlepp, T.; Ariando; Mielke, O.; Verwijs, V.C.M.; Foo, K.F.K.; Andreski, A.; Rogalla, H.; Uhlmann, F.H.; Hilgenkamp, H. RSFQ circuitry using intrinsic π-phase shifts. IEEE Trans. Appl. Supercond. 2007, 17, 659–663. [Google Scholar] [CrossRef] [Green Version]
  27. Khabipov, M.I.; Balashov, D.V.; Maibaum, F.; Zorin, A.B.; Oboznov, V.A.; Bolginov, V.V.; Rossolenko, A.N.; Ryazanov, V.V. A single flux quantum circuit with a ferromagnet-based Josephson π-junction. Supercond. Sci. Technol. 2010, 23, 045032. [Google Scholar] [CrossRef]
  28. Feofanov, A.K.; Oboznov, V.A.; Bolginov, V.V.; Lisenfeld, J.; Poletto, S.; Ryazanov, V.V.; Rossolenko, A.N.; Khabipov, M.; Balashov, D.; Zorin, A.B.; et al. Implementation of superconductor/ferromagnet/superconductor π-shifters in superconducting digital and quantum circuits. Nat. Phys. 2010, 6, 593–597. [Google Scholar] [CrossRef] [Green Version]
  29. Nevirkovets, I.P.; Chernyashevskyy, O.; Prokopenko, G.V.; Mukhanov, O.A. Superconducting-ferromagnetic transistor. IEEE Trans. Appl. Supercond. 2014, 24, 1800506. [Google Scholar] [CrossRef]
  30. Yamanashi, Y.; Nakaishi, S.; Sugiyama, A.; Takeuchi, N.; Yoshikawa, N. Design methodology of single-flux-quantum flip-flops composed of both 0- and π-shifted Josephson junctions. Supercond. Sci. Technol. 2018, 31, 105003. [Google Scholar] [CrossRef]
  31. Yamanashi, Y.; Nakaishi, S.; Yoshikawa, N. Simulation of the margins in single flux quantum circuits containing π-shifted Josephson junctions. IEEE Trans. Appl. Supercond. 2019, 29, 1301805. [Google Scholar] [CrossRef] [Green Version]
  32. Bakurskiy, S.V.; Klenov, N.V.; Soloviev, I.I.; Bol’ginov, V.V.; Ryazanov, V.V.; Vernik, I.V.; Mukhanov, O.A.; Kupriyanov, M.Y.; Golubov, A.A. Theoretical model of superconducting spintronic SIsFS devices. Appl. Phys. Lett. 2013, 102, 192603. [Google Scholar] [CrossRef] [Green Version]
  33. Baek, B.; Rippard, W.H.; Benz, S.P.; Russek, S.E.; Dresselhaus, P.D. Spin-transfer torque switching in nanopillar superconducting-magnetic hybrid Josephson junctions. Nat. Commun. 2014, 5, 3888. [Google Scholar] [CrossRef] [Green Version]
  34. Gingrich, E.C.; Niedzielski, B.M.; Glick, J.A.; Wang, Y.; Miller, D.L.; Loloee, R.; Pratt, W.P., Jr.; Birge, N.O. Controllable 0–π Josephson junctions containing a ferromagnetic spin valve. Nat. Phys. 2016, 12, 564–567. [Google Scholar] [CrossRef] [Green Version]
  35. Golubov, A.A.; Kupriyanov, M.Y. Controlling magnetism. Nat. Mater. 2017, 16, 156–157. [Google Scholar] [CrossRef] [PubMed]
  36. Nevirkovets, I.P.; Shafraniuk, S.E.; Mukhanov, O.A. Multiterminal superconducting-ferromagnetic device with magnetically tunable supercurrent for memory application. IEEE Trans. Appl. Supercond. 2018, 28, 1800904. [Google Scholar] [CrossRef]
  37. Dayton, I.M.; Sage, T.; Gingrich, E.C.; Loving, M.G.; Ambrose, T.F.; Siwak, N.P.; Keebaugh, N.P.; Kirby, C.; Miller, D.L.; Herr, A.Y.; et al. Experimental demonstration of a Josephson magnetic memory cell with a programmable π-junction. IEEE Magnet. Lett. 2018, 9, 3301905. [Google Scholar] [CrossRef] [Green Version]
  38. Katam, N.K.; Mukhanov, O.A.; Pedram, M. Superconducting magnetic field programmable gate array. IEEE Trans. Appl. Supercond. 2018, 28, 1300212. [Google Scholar] [CrossRef]
  39. Shafraniuk, S.E.; Nevirkovets, I.P.; Mukhanov, O.A. Modeling computer memory based on ferromagnetic/superconductor multilayers. Phys. Rev. Appl. 2019, 11, 064018. [Google Scholar] [CrossRef]
  40. Schneider, M.L.; Donnelly, C.A.; Russek, S.E.; Baek, B.; Pufall, M.R.; Hopkins, P.F.; Dresselhaus, P.D.; Benz, S.P.; Rippard, W.H. Ultralow power artificial synapses using nanotextured magnetic Josephson junctions. Sci. Adv. 2018, 4, e1701329. [Google Scholar] [CrossRef] [Green Version]
  41. Papaconstantopoulos, D.; Pickett, W.; Klein, B.; Boyer, L. Electronic properties of transition-metal nitrides: The group-V and group-VI nitrides VN, NbN, TaN, CrN, MoN, and WN. Phys. Rev. B 1985, 31, 752–761. [Google Scholar] [CrossRef]
  42. SEEQC. Available online: https://seeqc.com/innovation/fabrication-services/ (accessed on 20 November 2020).
  43. Pierson, H.O. Handbook of Refractory Carbides and Nitrides: Properties, Characteristics, Processing, and Applications, 1st ed.; Noyes Publications: Park Ridge, NJ, USA, 1996. [Google Scholar]
  44. Mei, A.B.; Hellman, O.; Wireklint, N.; Schleputz, C.M.; Sangiovanni, D.G.; Alling, B.; Rockett, A.; Hultman, L.; Petrov, I.; Greene, J.E. Dynamic and structural stability of cubic vanadium nitride. Phys. Rev. B 2015, 91, 054101. [Google Scholar] [CrossRef] [Green Version]
  45. Nieuwenhuys, J.E. Magnetic behaviour of cobalt, iron and manganese dissolved in palladium. Adv. Phys. 1975, 24, 515–591. [Google Scholar] [CrossRef]
  46. Ewerlin, M.; Pfau, B.; Günther, C.M.; Schaffert, S.; Eisebitt, S.; Abrudan, R.; Zabel, H. Exploration of magnetic fluctuations in PdFe films. J. Phys. Cond. Matter 2013, 25, 266001. [Google Scholar] [CrossRef] [PubMed]
  47. Esmaeili, A.; Yanilkin, I.V.; Gumarov, A.I.; Vakhitov, I.R.; Gabbasov, B.F.; Yusupov, R.V.; Tatarsky, D.A.; Tagirov, L.R. Epitaxial thin-film Pd1-xFex alloy—a tunable ferromagnet for superconducting spintronics. Sci. China Mater. 2020, 63, 1–10. [Google Scholar] [CrossRef]
  48. Esmaeili, A.; Yanilkin, I.V.; Gumarov, A.I.; Vakhitov, I.R.; Gabbasov, B.F.; Kiiamov, A.G.; Rogov, A.M.; Osin, Y.N.; Denisov, A.E.; Yusupov, R.V.; et al. Epitaxial growth of Pd1-xFex films on MgO single-crystal substrate. Thin Solid Films 2019, 669, 338–344. [Google Scholar] [CrossRef]
  49. Esmaeili, A.; Mohammed, W.M.; Yanilkin, I.V.; Gumarov, A.I.; Vakhitov, I.R.; Gabbasov, B.F.; Kiiamov, A.G.; Aliyev, M.N.; Yusupov, R.V.; Tagirov, L.R. Ferromagnetic resonance study of the epitaxial VN/Pd0.96Fe0.04 thin film heterostructure on MgO substrate. Magn. Reson. Solids 2019, 21, 19407. [Google Scholar] [CrossRef]
  50. Mohammed, W.M.; Yanilkin, I.V.; Gumarov, A.I.; Kiiamov, A.G.; Yusupov, R.V.; Tagirov, L.R. Epitaxial growth and superconducting properties of thin-film PdFe/VN and VN/PdFe bilayers on MgO substrate. Beilstein J. Nanotechnol. 2020, 11, 807–813. [Google Scholar] [CrossRef]
  51. Buzdin, A.I. Proximity effects in superconductor-ferromagnet heterostructures. Rev. Mod. Phys. 2005, 77, 935–976. [Google Scholar] [CrossRef] [Green Version]
  52. Kushnir, V.N.; Sidorenko, A.S.; Tagirov, L.R.; Kupriyanov, M.Y. Basic superconducting spin valves. In Functional Nanostructures and Metamaterials for Superconducting Spintronics: From Superconducting Qubits to Self-Organized Nanostructures; Sidorenko, A.S., Ed.; Springer International Publishing AG: Cham, Switzerland, 2018; pp. 1–29. [Google Scholar] [CrossRef]
  53. Bergeret, F.S.; Volkov, A.F.; Efetov, K.B. Odd triplet superconductivity and related phenomena in superconductor-ferromagnet structures. Rev. Mod. Phys. 2005, 77, 1321–1373. [Google Scholar] [CrossRef] [Green Version]
  54. Houzet, M.; Buzdin, A.I. Long-range triplet Josephson effect through a ferromagnetic trilayer. Phys. Rev. B 2007, 76, 060504. [Google Scholar] [CrossRef] [Green Version]
  55. Bol’ginov, V.V.; Stolyarov, V.S.; Sobanin, D.S.; Karpovich, A.L.; Ryazanov, V.V. Magnetic switches based on Nb–PdFe–Nb Josephson junctions with a magnetically soft ferromagnetic interlayer. JETP Lett. 2012, 95, 366–371. [Google Scholar] [CrossRef]
  56. Larkin, T.I.; Bol’ginov, V.V.; Stolyarov, V.S.; Ryazanov, V.V.; Vernik, I.V.; Tolpygo, S.K.; Mukhanov, O.A. Ferromagnetic Josephson switching device with high characteristic voltage. Appl. Phys. Lett. 2012, 100, 222601. [Google Scholar] [CrossRef] [Green Version]
  57. Vernik, I.V.; Bol’ginov, V.V.; Bakurskiy, S.V.; Golubov, A.A.; Kupriyanov, M.Y.; Ryazanov, V.V.; Mukhanov, O.A. Magnetic Josephson junctions with superconducting interlayer for cryogenic memory. IEEE Trans. Appl. Supercond. 2013, 23, 1701208. [Google Scholar] [CrossRef] [Green Version]
  58. Tagirov, L.R.; Kupriyanov, M.Y.; Kushnir, V.N.; Sidorenko, A.S. Superconducting Triplet Proximity and Josephson Spin Valves. In Functional Nanostructures and Metamaterials for Superconducting Spintronics: From Superconducting Qubits to Self-Organized Nanostructures; Sidorenko, A.S., Ed.; Springer International Publishing AG: Cham, Switzerland, 2018; pp. 31–47. [Google Scholar] [CrossRef]
  59. Mei, A.B.; Wilson, R.B.; Li, D.; Cahill, D.G.; Rockett, A.; Birch, J.; Hultman, J.; Greene, J.E.; Petrov, I. Elastic constants, Poisson ratios, and the elastic anisotropy of VN(001), (011), and (111) epitaxial layers grown by reactive magnetron sputter deposition. J. Appl. Phys. 2014, 115, 214908. [Google Scholar] [CrossRef] [Green Version]
  60. Mei, A.B.; Tuteja, M.; Sangiovanni, D.G.; Haasch, R.T.; Rockett, A.; Hultman, L.; Petrov, L.; Greene, J.E. Growth, nanostructure, and optical properties of epitaxial VNx/MgO(001) (0.80 ≤ x ≤1.00) layers deposited by reactive magnetron sputtering. J. Mater. Chem. C 2016, 4, 7924–7938. [Google Scholar] [CrossRef]
  61. Muftikian, R.; Nebesny, K.; Fernando, Q.; Korte, N. X-ray photoelectron spectra of the palladium-iron bimetallic surface used for the rapid dechlorination of chlorinated organic environmental contaminants. Environ. Sci. Technol. 1996, 30, 3593–3596. [Google Scholar] [CrossRef]
  62. CasaXPS, Version 2.3.19; Casa Software Ltd.: Teignmouth, UK, 2013.
  63. Haasch, R.T.; Lee, T.Y.; Gall, D.; Greene, J.E.; Petrov, J.E. Epitaxial VN(001). Grown and analyzed in situ by XPS and UPS. I. Analysis of as-deposited layers. Surf. Sci. Spectra 2000, 7, 221–232. [Google Scholar] [CrossRef]
  64. Zhao, B.R.; Chen, L.; Luo, H.L.; Jack, M.D.; Mullin, D.P. Superconducting and normal-state properties of vanadium nitride. Phys. Rev. B 1984, 29, 6198–6202. [Google Scholar] [CrossRef]
  65. Zasadzinski, J.; Vaglio, R.; Rubino, G.; Gray, K.E.; Russo, M. Properties of superconducting vanadium nitride sputtered films. Phys. Rev. B 1985, 32, 2929–2934. [Google Scholar] [CrossRef]
  66. Liu, X.; Lu, H.; He, M.; Jin, K.; Yang, G.; Ni, H.; Zhao, K. Epitaxial growth of vanadium nitride thin films by laser molecule beam epitaxy. Mater. Lett. 2014, 123, 38–40. [Google Scholar] [CrossRef]
  67. Fominov, Y.V.; Golubov, A.A.; Kupriyanov, M.Y. Triplet proximity effect in FSF trilayers. JETP Lett. 2003, 77, 510–515. [Google Scholar] [CrossRef] [Green Version]
  68. Fominov, Y.V.; Golubov, A.A.; Karminskaya, T.Y.; Kupriyanov, M.Y.; Deminov, R.G.; Tagirov, L.R. Superconducting triplet spin valve. JETP Lett. 2010, 91, 308–313. [Google Scholar] [CrossRef] [Green Version]
  69. Fullerton, E.E.; Jiang, J.S.; Bader, S.D. Hard/Soft magnetic heterostructures: Model exchange-spring magnets. J. Magn. Magn. Mater. 1999, 200, 392–404. [Google Scholar] [CrossRef]
  70. Pugach, N.G.; Safonchik, M.O.; Heim, D.M.; Yagovtsev, V.O. Superconducting spin valves based on spiral magnets. Phys. Sol. State 2018, 60, 2237–2243. [Google Scholar] [CrossRef]
  71. Pugach, N.G.; Safonchik, M.; Champel, T.; Zhitomirsky, M.E.; Lähderanta, E.; Eschrig, E.; Lacroix, C. Superconducting spin valves controlled by spiral re-orientation in B20-family magnets. Appl. Phys. Lett. 2017, 111, 162601. [Google Scholar] [CrossRef]
  72. Champel, T.; Eschrig, M. Switching superconductivity in superconductor/ferromagnet bilayers by multiple-domain structures. Phys. Rev. B 2005, 71, 220506. [Google Scholar] [CrossRef] [Green Version]
  73. Volkov, A.F.; Fominov, Y.V.; Efetov, K.B. Long-range odd triplet superconductivity in superconductor-ferromagnet structures with Néel walls. Phys. Rev. B 2005, 72, 184504. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 11 00064 g001 550

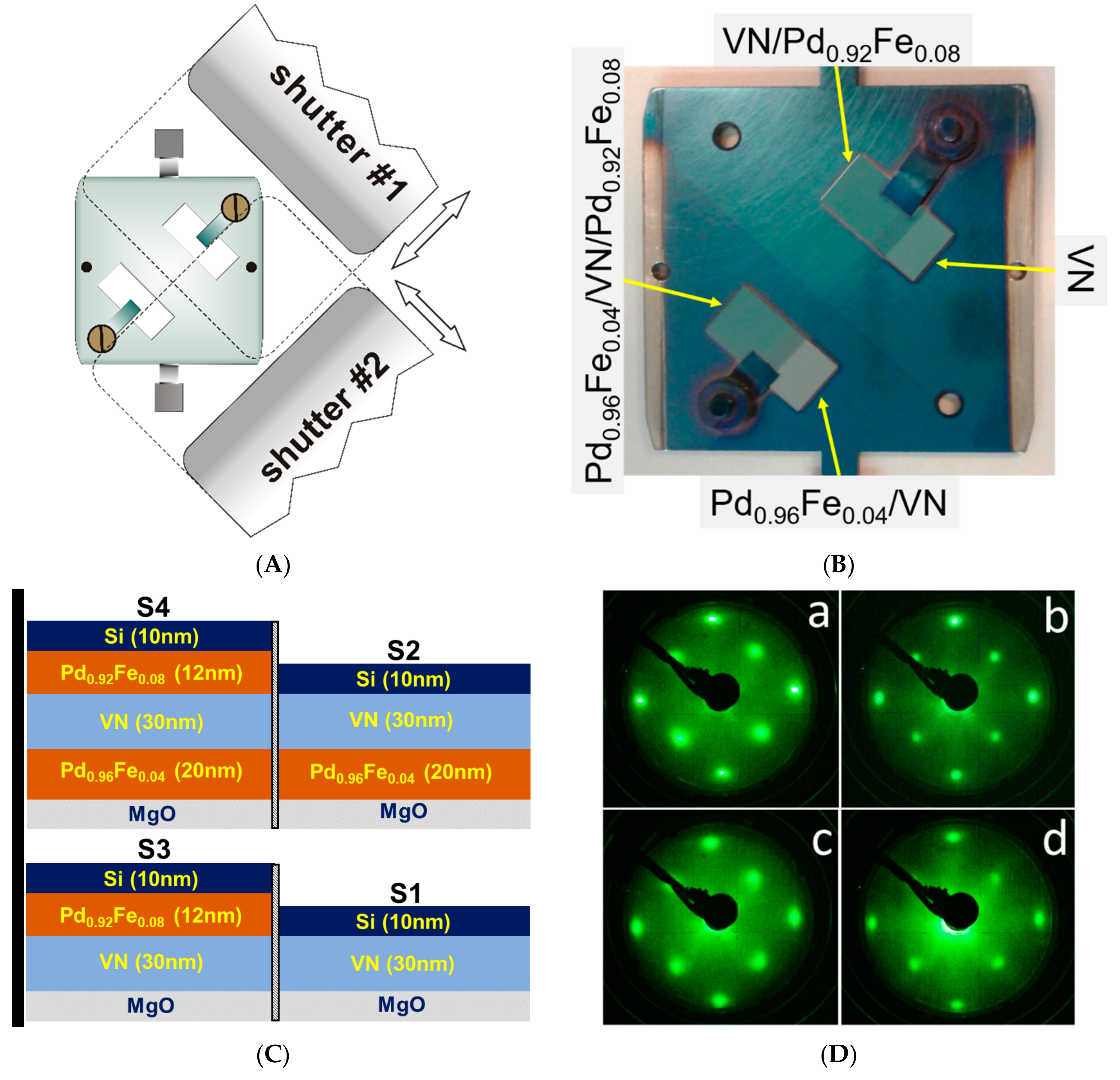

Figure 1. Deposition of the four-sample series in one run: (A) layout of the sample holder and shutters; (B) photo of the sample holder with the synthesized structures; (C) sketch of the sample’s structures; and (D) LEED patterns (a, pristine MgO substrate; b, MgO/Pd0.96Fe0.04 structure; c, MgO/Pd0.96Fe0.04/VN structure; d, MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 structure).
Figure 1. Deposition of the four-sample series in one run: (A) layout of the sample holder and shutters; (B) photo of the sample holder with the synthesized structures; (C) sketch of the sample’s structures; and (D) LEED patterns (a, pristine MgO substrate; b, MgO/Pd0.96Fe0.04 structure; c, MgO/Pd0.96Fe0.04/VN structure; d, MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 structure).
Nanomaterials 11 00064 g001
Nanomaterials 11 00064 g002 550

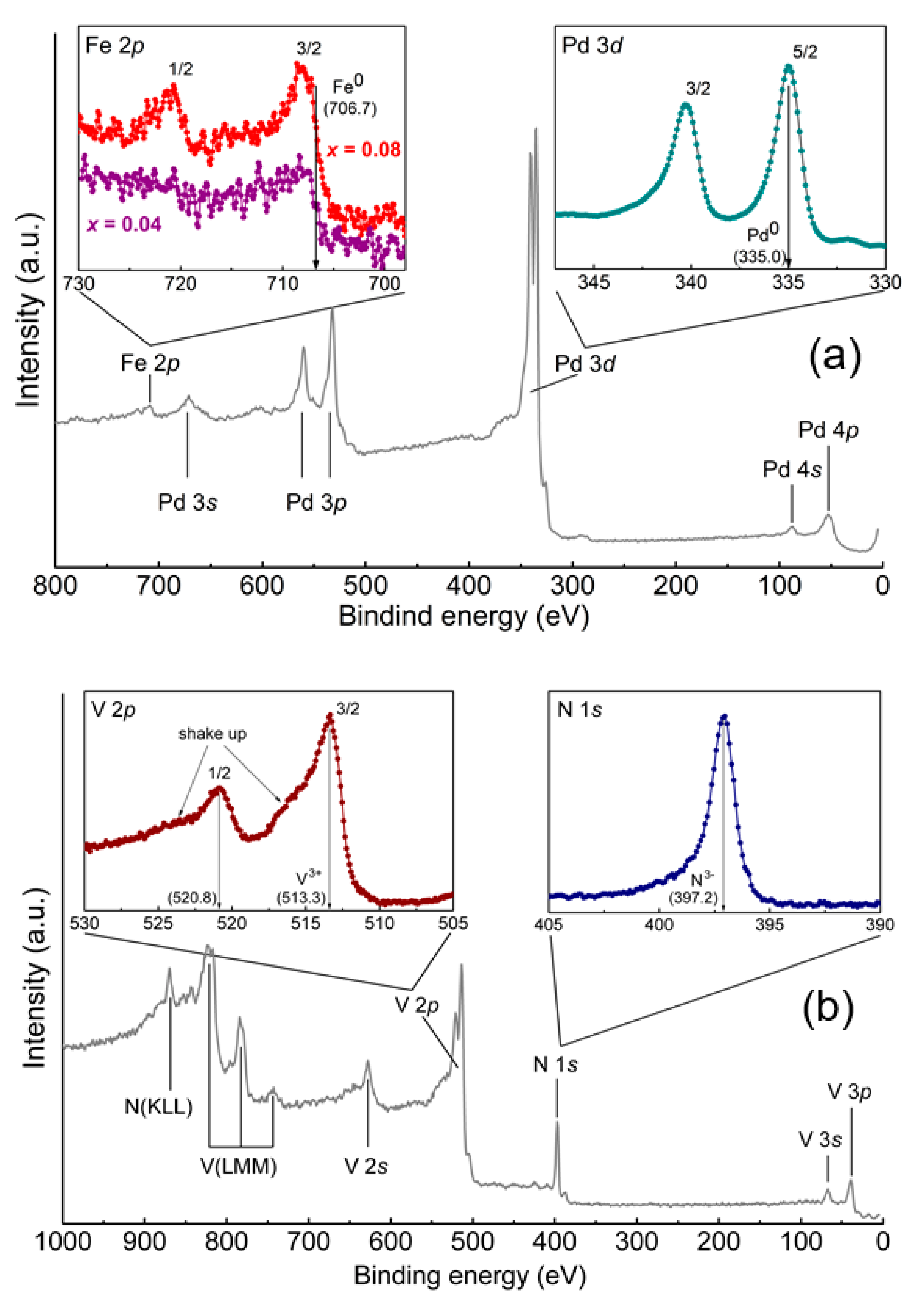

Figure 2. XPS (X-ray photoelectron spectroscopy) spectra of the top layer: (a) after depositions of the Pd1−xFex alloy layer, where the overview spectrum is shown for the Pd0.92Fe0.08 layer; and (b) after deposition of the VN-layer, where callouts show high-resolution spectra in the particular ranges of binding energies of the constituent elements.
Figure 2. XPS (X-ray photoelectron spectroscopy) spectra of the top layer: (a) after depositions of the Pd1−xFex alloy layer, where the overview spectrum is shown for the Pd0.92Fe0.08 layer; and (b) after deposition of the VN-layer, where callouts show high-resolution spectra in the particular ranges of binding energies of the constituent elements.
Nanomaterials 11 00064 g002
Nanomaterials 11 00064 g003 550

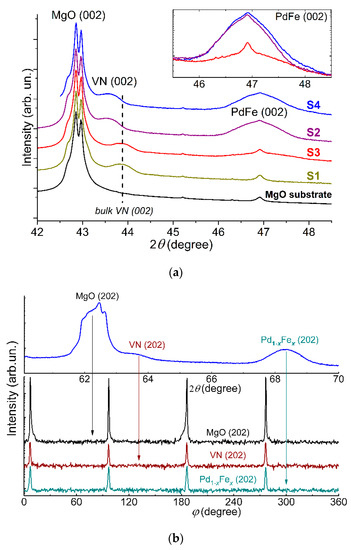

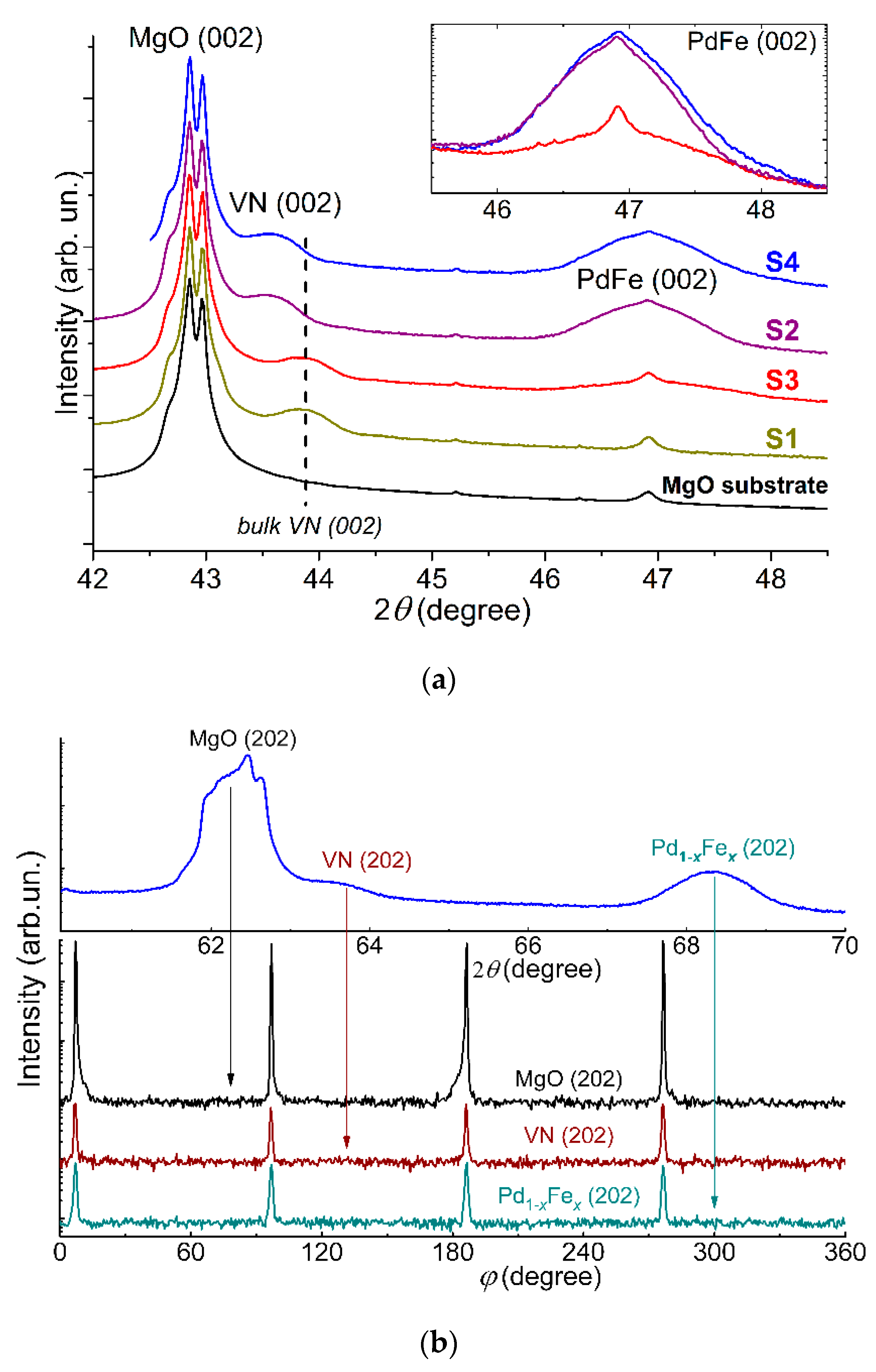

Figure 3. (a) X-ray diffractogram (θ-scan) of Samples S1-S4 and the pristine MgO(001) substrate, recorded before the thin film deposition (see legends). (b) X-ray diffraction φ-scans of Sample S4; the Eulerian cradle angle χ was set to 45° to detect the <220> XRD-maxima. The θ-angle values at which the φ-scans were recorded for each material are indicated by vertical arrows.
Figure 3. (a) X-ray diffractogram (θ-scan) of Samples S1-S4 and the pristine MgO(001) substrate, recorded before the thin film deposition (see legends). (b) X-ray diffraction φ-scans of Sample S4; the Eulerian cradle angle χ was set to 45° to detect the <220> XRD-maxima. The θ-angle values at which the φ-scans were recorded for each material are indicated by vertical arrows.
Nanomaterials 11 00064 g003
Nanomaterials 11 00064 g004 550

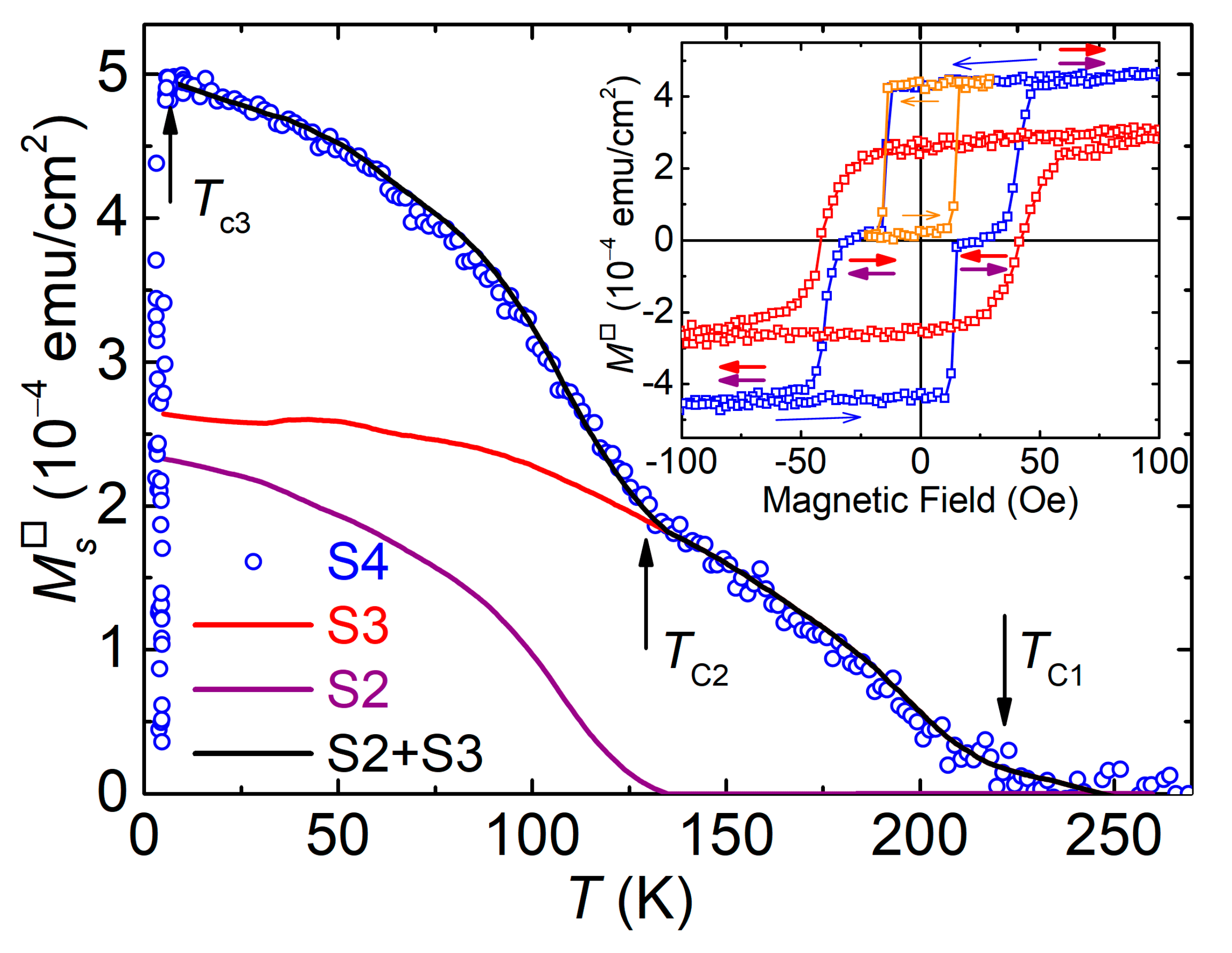

Figure 4. The saturation magnetic moment per unit area as a function of temperature for the pseudo-spin-valve MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 heterostructure S4 measured with an applied magnetic field of 500 Oe. The black solid line is a sum of the magnetic moments of Samples S2 and S3 in the temperature range above the superconducting transition. The inset shows magnetic hysteresis loops for the same structure measured at 6 K: blue squares, major hysteresis loop of the S4 sample; orange squares, minor hysteresis loop of the S4 sample; red squares, hysteresis loop of the S3 sample. Pairwise purple and red arrows depict magnetic moment directions of the Pd0.92Fe0.08 and Pd0.96Fe0.04 layers, respectively. The ferromagnetic transition temperatures are TC1 ≈ 220 K for Sample S3 and TC2 ≈ 127 K for Sample S2, while the superconducting transition temperature Tc3 = 5.42 K.
Figure 4. The saturation magnetic moment per unit area as a function of temperature for the pseudo-spin-valve MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08 heterostructure S4 measured with an applied magnetic field of 500 Oe. The black solid line is a sum of the magnetic moments of Samples S2 and S3 in the temperature range above the superconducting transition. The inset shows magnetic hysteresis loops for the same structure measured at 6 K: blue squares, major hysteresis loop of the S4 sample; orange squares, minor hysteresis loop of the S4 sample; red squares, hysteresis loop of the S3 sample. Pairwise purple and red arrows depict magnetic moment directions of the Pd0.92Fe0.08 and Pd0.96Fe0.04 layers, respectively. The ferromagnetic transition temperatures are TC1 ≈ 220 K for Sample S3 and TC2 ≈ 127 K for Sample S2, while the superconducting transition temperature Tc3 = 5.42 K.
Nanomaterials 11 00064 g004
Nanomaterials 11 00064 g005 550
Figure 5. Resistive superconducting transitions of the single VN film (S1), the bilayer Structures S2 and S3, and the pseudo-spin-valve Structure S4, at zero magnetic field. Lines connecting symbols are drawn using a modified Bezier algorithm. Measurements with the sensing currents of 20 and 100 μA did not reveal any difference in the width and shape of the transitions.
Figure 5. Resistive superconducting transitions of the single VN film (S1), the bilayer Structures S2 and S3, and the pseudo-spin-valve Structure S4, at zero magnetic field. Lines connecting symbols are drawn using a modified Bezier algorithm. Measurements with the sensing currents of 20 and 100 μA did not reveal any difference in the width and shape of the transitions.
Nanomaterials 11 00064 g005
Nanomaterials 11 00064 g006 550

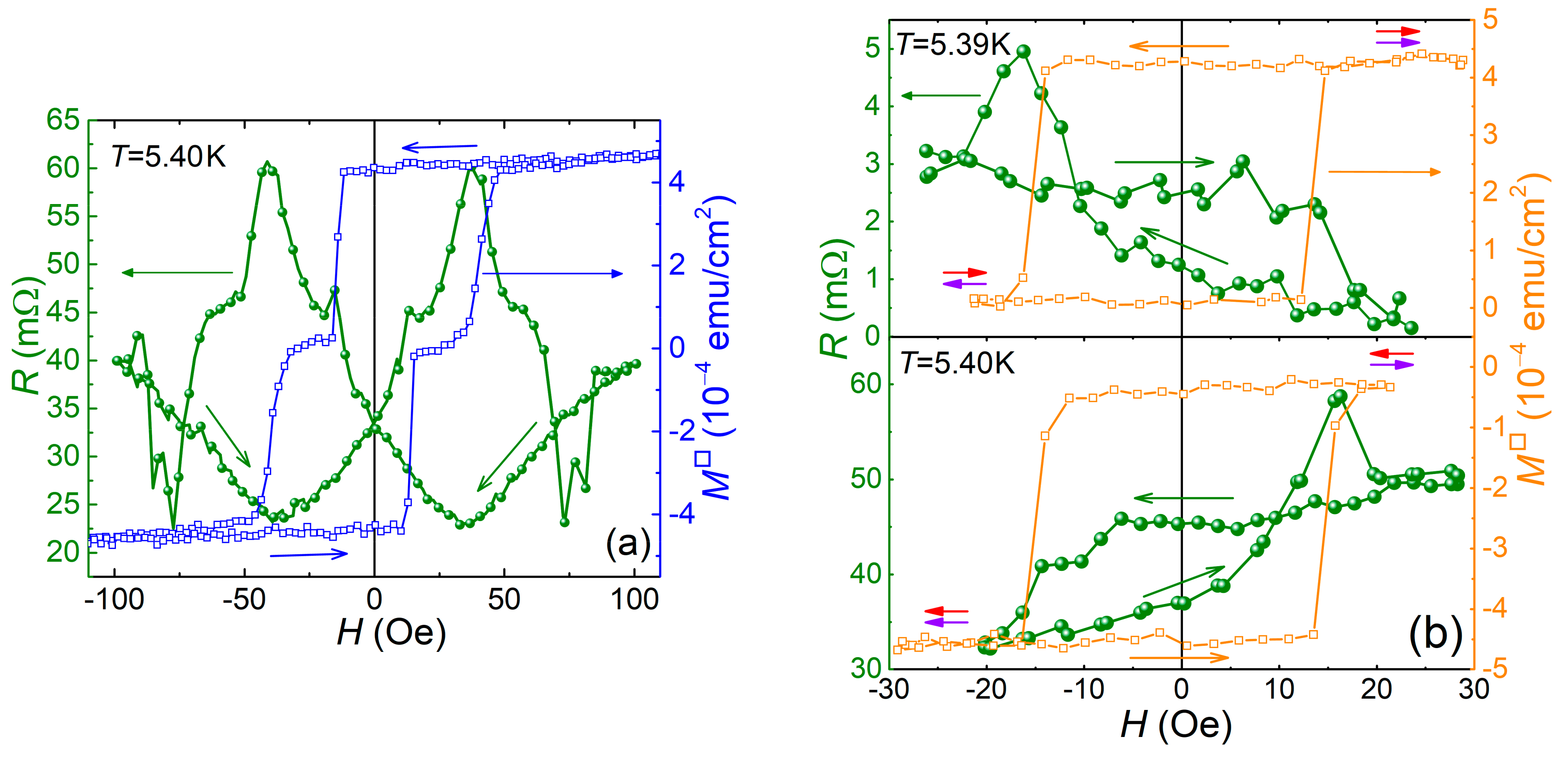

Figure 6. Dependence of electric resistance of the tri-layer MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08/Si (S4) pseudo-spin-valve sample on the magnetic field: (a) remagnetization along the major magnetic hysteresis loop; and (b) remagnetization along the minor magnetic hysteresis loops.
Figure 6. Dependence of electric resistance of the tri-layer MgO/Pd0.96Fe0.04/VN/Pd0.92Fe0.08/Si (S4) pseudo-spin-valve sample on the magnetic field: (a) remagnetization along the major magnetic hysteresis loop; and (b) remagnetization along the minor magnetic hysteresis loops.
Nanomaterials 11 00064 g006
Table
Table 1. Electrical and superconducting properties of heteroepitaxial Structures S1–S4 on MgO(001).
Table 1. Electrical and superconducting properties of heteroepitaxial Structures S1–S4 on MgO(001).
StructureRRRTc (K)ΔTc “10–90”(mK)
MgO/VN(30 nm)/Si (S1)5.137.6621
MgO/Pd0.96Fe0.04(20 nm)/VN(30 nm)/Si (S2)3.517.2039
MgO/VN(30 nm)/Pd0.92Fe0.08(12 nm)/Si (S3)2.606.0737
MgO/Pd0.96Fe0.04(20 nm)/VN(30 nm)/Pd0.92Fe0.08(12 nm)/Si (S4)2.465.4140
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yanilkin, I.; Mohammed, W.; Gumarov, A.; Kiiamov, A.; Yusupov, R.; Tagirov, L. Synthesis, Characterization, and Magnetoresistive Properties of the Epitaxial Pd0.96Fe0.04/VN/Pd0.92Fe0.08 Superconducting Spin-Valve Heterostructure. Nanomaterials 2021, 11, 64. https://doi.org/10.3390/nano11010064

AMA Style

Yanilkin I, Mohammed W, Gumarov A, Kiiamov A, Yusupov R, Tagirov L. Synthesis, Characterization, and Magnetoresistive Properties of the Epitaxial Pd0.96Fe0.04/VN/Pd0.92Fe0.08 Superconducting Spin-Valve Heterostructure. Nanomaterials. 2021; 11(1):64. https://doi.org/10.3390/nano11010064

Chicago/Turabian Style

Yanilkin, Igor, Wael Mohammed, Amir Gumarov, Airat Kiiamov, Roman Yusupov, and Lenar Tagirov. 2021. "Synthesis, Characterization, and Magnetoresistive Properties of the Epitaxial Pd0.96Fe0.04/VN/Pd0.92Fe0.08 Superconducting Spin-Valve Heterostructure" Nanomaterials 11, no. 1: 64. https://doi.org/10.3390/nano11010064

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
