Optimization of Photogenerated Charge Carrier Lifetimes in ALD Grown TiO2 for Photonic Applications

Photonic Compounds and Nanomaterials Group, Faculty of Engineering and Natural Sciences, Tampere University, P.O. Box 692, 33014 Tampere, Finland
Surface Science Group, Faculty of Engineering and Natural Sciences, Tampere University, P.O. Box 692, 33014 Tampere, Finland
Faculty of Engineering and Natural Sciences, Tampere University, P.O. Box 692, 33014 Tampere, Finland
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(8), 1567;
Received: 25 June 2020 / Revised: 3 August 2020 / Accepted: 7 August 2020 / Published: 10 August 2020
(This article belongs to the Special Issue Characterization of Nanocrystalline Materials)


Titanium dioxide (TiO2) thin films are widely employed for photocatalytic and photovoltaic applications where the long lifetime of charge carriers is a paramount requirement for the device efficiency. To ensure the long lifetime, a high temperature treatment is used which restricts the applicability of TiO2 in devices incorporating organic or polymer components. In this study, we exploited low temperature (100–150 °C) atomic layer deposition (ALD) of 30 nm TiO2 thin films from tetrakis(dimethylamido)titanium. The deposition was followed by a heat treatment in air to find the minimum temperature requirements for the film fabrication without compromising the carrier lifetime. Femto-to nanosecond transient absorption spectroscopy was used to determine the lifetimes, and grazing incidence X-ray diffraction was employed for structural analysis. The optimal result was obtained for the TiO2 thin films grown at 150 °C and heat-treated at as low as 300 °C. The deposited thin films were amorphous and crystallized into anatase phase upon heat treatment at 300–500 °C. The average carrier lifetime for amorphous TiO2 is few picoseconds but increases to >400 ps upon crystallization at 500 °C. The samples deposited at 100 °C were also crystallized as anatase but the carrier lifetime was <100 ps.

1. Introduction

Wide bandgap transition metal oxides (e.g., TiO2, ZnO, SnO2) have broad range of applications in photovoltaics and photocatalytic devices where they supply or deliver charge carriers [1,2]. Exploitation of these materials is crucial for advancement in many photonic applications like photovoltaics [3,4] photodegradation [5,6] and photocatalysis [7]. Metal oxides in practical applications are often polycrystalline or amorphous with high degree of lattice disorder that affects the density of band edge states [8]. These states are defect states that can act as traps and promote the deleterious recombination of charge carriers.
Among various wide bandgap transition metal oxides, TiO2 has been extensively employed as it shows long-term chemical stability [9] low cost and good bio-compatibility [10,11]. Photons with energy >3.2 eV generate electron-hole pairs in TiO2 bulk [12]. The lifetime of the photogenerated carriers is a key parameter affecting the efficiency of a photovoltaic or a photocatalytic device, and therefore, it is critical to the system design. Both, the electrons from conduction band (CB) and the holes from valence band (VB) participate in the charge transfer or directly fuel photocatalytic reactions at the TiO2 surface. However, the photogenerated electrons can be trapped at defect states or recombine with the holes losing their energy to the surroundings and cannot participate in the targeted actions. In order to improve the performance of TiO2 in photovoltaics and photocatalytic applications, it is paramount requirement that carriers do not recombine rapidly and have sufficient lifetime to diffuse through the TiO2 layer or to be consumed in catalytic reactions [1,13,14].
Transient absorption spectroscopy (TAS) is used to study the charge carrier dynamics ranging from femto-to millisecond timescales [15]. This time-resolved analysis provides information on the population of the photogenerated charge carriers and their kinetics in time scale relevant to photonic applications. The carrier lifetime and recombination processes depend critically on the crystal structure of TiO2. The long range disorder of amorphous TiO2 (am.-TiO2) results in under and over-coordinated Ti ions in which short staggered chains of edge and vertex linked Ti–O octahedral like units are present [16]. Prasai et al. [17] have proposed that long-range disorder affects the localization of band edge states. These highly localized tail states originate in am.-TiO2 from positional disorder of oxygen in the VB and over coordinated Ti atoms in the CB. In addition, due to low vacancy formation energy in am.-TiO2, it has relatively abundant oxygen vacancies as compared to its crystalline counterparts [8,18] which creates more disorder and hence defect states. These defect states can trap electrons and holes which leads to increased density of recombination states [19]. Therefore, the heat treatment is usually applied to convert am.-TiO2 to crystalline TiO2 which reduces disorder and increases the lifetime of the photocarriers.
Tremendous efforts have been made to employ different fabrication routes for preparing various TiO2 nanostructures such as thin films, nanoparticles, nanorods and hierarchical structures to increase their performance in photonic applications. Among various methods atomic layer deposition (ALD) has gained increasing interest as it provides high quality thin films with controlled thickness [20], conformal coverage and high reproducibility [7]. For TiO2 growth by ALD, TiCl4 and H2O are the most commonly used precursors, but the process requires relatively high temperature and forms HCl as a by-product which is corrosive to the ALD equipment. Instead, growth using tetrakis(dimethylamido)titanium(IV) (TDMAT; metal-amide compound) has become more popular since it is more reactive than TiCl4 (metal-halide compound) allowing growth at lower temperature and does not form corrosive by-products with H2O [21,22]. The growth temperature affects the amount of precursor traces in ALD TiO2 thin films [23] which can have strong effects on crystallization and charge carriers kinetics [24]. Therefore, for photonic applications requiring long charge carrier lifetimes the optimization of both the growth temperature and the temperature of subsequent heat-treatment should be considered.
In the present work, we have employed ALD technique at low temperature (100–150 °C) to prepare TiO2 thin films from TDMAT and H2O. TDMAT has been used for this study as this precursor allows TiO2 deposition at low temperature. Low deposition temperature was exploited to study a possibility of depositing TiO2 thin films on thermally subtle materials such as organics and polymers compounds of organic solar cells such as PEDOT which decomposes at temperature above 390 °C [22,25,26]. The aim of this study was to minimize the deposition and heat treatment temperatures without compromising the lifetime of photogenerated charge carriers. The comparison was made between the TiO2 films grown at 100 °C and 150 °C, which both crystallizes as anatase upon annealing in air. A higher deposition temperature of 200 °C was studied previously [18] and it was shown to crystallize as rutile phase upon the same heat treatment. TAS was done on ultrafast time scales in air environment to study the kinetics of photogenerated charge carriers within TiO2. It was observed that heat treatment enhanced the lifetime of charge carriers up to 100 folds as compared to the as-deposited am.-TiO2 samples, but the enhancement depended on the ALD growth temperature. Hence, TiO2 thin films with long lifetime of charge carriers can be fabricated at low temperature heat treatment when ALD growth temperature is first optimized.

2. Materials and Methods

2.1. Substrates

UV-grade fused silica (quartz) (10 × 10 × 1 mm) from Präzisions Glas & Optik GmbH (Iserlohn, Germany) was used as a substrate in optical measurements. In addition, degenerately Sb-doped (resistivity 0.008–0.02 Ω·cm) n-type Si(100) wafers from Siegert Wafer GmbH (Aachen, Germany) cleaved in 10 × 10 × 0.525 mm pieces were used as substrates in GIXRD and SEM experiments.

2.2. Synthesis

ALD deposition of TiO2 was carried out using a Picosun Sunale ALD R200 Advanced reactor. Tetrakis(dimethylamido)titanium(IV) (Ti(N(CH3)2)4, TDMAT, electronic grade 99.999+%, (Sigma-Aldrich, Inc., Taufkirchen, Germany), ultrapure Milli-Q water, and Ar (99.9999%, Oy AGA Ab, Tampere, Finland) were used as the Ti precursor, O precursor, and carrier/purge/venting gas, respectively. During the ALD, the substrate temperature was kept at 100 or 150 °C, respectively. The film growth rate was calibrated by ellipsometry (Rudolph Auto EL III Ellipsometer, Rudolph Research Analytical, Hackettstown, NJ, USA). The TiO2 film thickness of 30 nm (480 and 636 ALD cycles at 100 °C and 150 °C, respectively) was used for all the experiments. The precursors for ALD TiO2 and the 150 °C growth temperature were chosen based on the work by Hu et al. [27]. The post heat treatment in air was carried out by placing the sample into a pre-heated tube furnace for 45 min.

2.3. Characterizations

The phase structure of the samples was defined via Grazing Incidence X-ray Diffraction (GIXRD, Panalytical X′ Pert PRO and Panalytical Empyrean diffractometers, Malvern Panalytical Ltd., Malvern, UK) with Cu Kα radiation (λ = 1.5405 Å, hv = 8.04 keV) and 45 kV and 40 mA cathode voltage and current, respectively. The samples were scanned in 2θ between 24 and 34° by using grazing-incidence angle of 0.3° for X-rays. The surface morphology of as-deposited and heat treated TiO2 thin films on Si substrate was studied by scanning electron microscopy (SEM, Zeiss Ultra 55, Carl Zeiss Microscopy GmbH, Oberkochen, Germany).
Transient absorption spectra were measured using pump-probe setup in sub-ps to ns timescales. Both transmittance and reflectance modes were used to study the samples. The fundamental laser pulses were generated using Ti:Sapphire laser (Libra F, Coherent Inc., 800 nm, ~100 fs pulse width at repetition rate of 1 kHz). The main part of the beam was directed on to the optical parametric amplifier (Topas C, Light Conversion Ltd., Vilnius, Lithuania) to produce the desired wavelength (320 nm in our case with an energy density of 100 µJ cm−2). The rest of the fundamental beam was directed to time resolved spectrophotometer (ExciPro, CDP Inc.) where it was passed through a delay line and focused on a sapphire to generate white continuum used as the probe. The probe light was further split into reference and signal beams which were focused over the samples. TiO2 samples deposited on quartz substrates were slightly tilted in respect to the incident probe so that both transmitted and reflected beams could be measured in identical conditions. Details of the measurements and data analysis were published by Pasanen et al. [28].

3. Results and Discussion

Figure 1 shows steady state UV-Vis spectroscopy analysis for the sample series deposited at 150 °C and heat treated at different temperatures. The absorbance spectra (A) were calculated from transmission (T, Figure 1a) and reflectance (R, Figure 1b) measurements as A = −log[T/(1 − R)]. The optical bandgaps are determined from Tauc plots as shown in Figure 1d, which show only little variation and were 3.4 ± 0.1 eV for all the samples. The most notable change in the optical absorption took place between the samples heat treated at 250 °C and 300 °C. Up to 250 °C heat treatment, the absorbance increased smoothly at the wavelengths shorter than that corresponding to the bandgap edge as shown in Figure 1c. In contrast, for temperatures >250 °C, the results were virtually similar with each other showing sharper absorption edge and a clear change in the absorption slope at 3.9 eV.
The high degree of band edge tailing states typical for amorphous TiO2 result in a lower slope of absorption rise toward UV region for the as-deposited, 200 °C and 250 °C heat treated samples as compared to the samples heat treated at higher temperatures. The sharper absorption edge with a distinct change in the slope indicated in the Tauc plot at 3.9 eV, Figure 1d for samples heat treated at temperature higher than 250 °C is a signature of anatase TiO2 thin film with high degree of crystalline order [17,29,30]. Interestingly, the tailing of electronic states into the bandgap had little effect on the optical bandgap, which is in accordance with the theoretical work by Prasai et al. [17] where they found that optical properties of am.-TiO2 are similar to anatase TiO2 despite the highly localized tail states predicted for am.-TiO2. The UV-Vis data for the ALD TiO2 thin films grown at 100 °C (Figure S1) were similar with the 150 °C growth temperature, except for the temperature where the change in the absorption edge was observed, between 300 °C and 400 °C as shown in Figure S1c. It has been shown previously, that further increase of ALD growth temperature from 150 °C to 200 °C results in a significant increase in absorption in the visual range due to the formation of visually black and electrically leaky am.-TiO2 [18].
Figure 2 shows grazing-incidence X-ray diffraction (GIXRD) patterns for ALD TiO2 thin films grown at 100 °C and 150 °C and heat treated in air. Results show that TiO2 thin films deposited by ALD at 100 °C and 150 °C were both amorphous. However, when the heat treatment temperature was increased, the crystallization of am.-TiO2 to anatase phase was identified based on the most intensive XRD peak of at 25.6° [31] which was clearly seen after heat treatment at 300 °C and higher for the 150 °C growth temperature. The samples deposited at 100 °C required higher temperature ≥375 °C heat treatment to crystallize into anatase. This confirms the assignment of the change observed in the absorption edge to the crystallization of am.-TiO2.
SEM images of amorphous and at 400 °C heat-treated samples are depicted as insets in Figure 2 which reveal another distinct difference between the two growth temperatures. Growth temperature mediates the morphology of anatase TiO2 grains upon crystallization. The 30 nm thick thin film grown at 100 °C depicts some exceptionally large (~30 µm) grains after crystallization. In strict contrast, thin films grown at 150 °C and heat-treated at 400 °C resulted in more homogenous and uniformly distributed TiO2 grains with no such large grains present as in the case of 100 °C deposited heat-treated samples. Since grain morphology affects defect states, a difference in the carrier lifetime is expected for the two growth temperatures [32]. The explosive crystallization of ALD grown amorphous TiO2 into anatase TiO2 has been previously reported to result from Nb2O5 or Ta2O5 doping [33]. We assign the difference in crystallization preliminary to the temperature dependence of TDMAT precursor traces in the as-deposited ALD TiO2 thin films. We have previously shown that the crystallization of similar ALD TiO2 thin film grown at 200 °C is accompanied by surface segregation of N species [18]. Nitrogen in am.-TiO2 increases nucleation temperature [34] and inhibits anatase to rutile phase transition [24].
Samples were studied by TA spectroscopy to investigate the charge carrier dynamics from a picosecond to nanosecond timescale. Ultrashort laser pulses at 320 nm wavelength were used to excite the samples under ambient air conditions. The TA spectra were measure in the near-infrared regions (840–1020 nm). TA measurements of samples deposited at 150 °C and heat treated at 200 °C and 500 °C were carried out in transmittance and reflectance modes. The spectra at a few preselected delay times are presented in Figure S2. The intensities of transmitted and reflected signals, ΔO.D., were roughly the same for the sample heat-treated at 200 °C (am.-TiO2). However, for the 500 °C heat-treated sample (anatase TiO2), the signal obtained in reflectance mode, ΔR, was stronger than that in transmittance mode, ΔT, under otherwise the same conditions. This difference in TA responses of low and high temperature treated samples can be tentatively attributed to the difference of the sample crystallinity, and thus, different relative change of refractive index and absorption coefficient [28] occurring after excitation as shown in Figure S2. Decays were fitted by single stretched-exponent in delay times longer than 0.4 ps. The fast (<0.4 ps) response was not strong and is most probably due to thermal relaxation of hot carriers. Details of fitting are presented in the SI.
The essential feature of the TA decay is that it is virtually wavelength independent in the IR range and the same fit results were obtained at different wavelengths and out of a global fit. Therefore, to compare decay profiles, one can select a single wavelength for all different samples. Figure 3a,b shows normalized TA decay profiles of samples measured in reflectance mode at 960 nm for 100 and 150 °C deposited and heat-treated samples, respectively. Change in optical density, ΔOD, is proportional to the number of charge carries generated by the excitation. The decay profiles show that the carrier lifetime increases tremendously as the heat treatment temperature increases from 250 to 300 °C for samples grown at 150 °C, and after that the lifetime is virtually independent of heat treatment temperature. It can be concluded that the heat treatment induced crystallization of am.-TiO2 into anatase TiO2 at 300 °C for samples grown at 150 °C is the main reason for the abrupt increase of the carrier lifetimes. Further increase of the heat treatment temperature to 500 °C has only minor effect on the lifetime which can be attributed to removal of remaining defect sites in the TiO2 film.
The decay profiles for the same heat-treatment series on the growth temperature of 100 °C is shown in Figure 3a and evidence the same trend with the 150 °C grown samples as shown in Figure 3b. The lifetime of heat-treated samples increases gradually in both cases, but the sample deposited at 150 °C show much larger lifetime increase, and the change is sharper–most of the rise takes place when the heat treatment temperature was increased from 250 °C to 300 °C as shown in Figure 3b. Further increase of the deposition temperature results in rather drastic changes in the sample structure as has been shown previously [18].
ALD deposition at 200 °C yields a new type of film, so-called black titania which cannot be directly compared with optically transparent am.-TiO2 presented here. The heat treatments of such film leads to rutile crystal structure rather than anatase TiO2. This makes comparison of samples deposited at 150 °C and 200 °C controversial. However, if the only parameter of interest is the carrier lifetime, heat-treated samples deposited at 200 °C (rutile TiO2) had similar lifetime as compared to the samples deposited at 150 °C (anatase TiO2), as shown in Figure S3.
The dependence of carrier lifetime on heat treatment temperature for both 100 °C and 150 °C deposited sample series is presented in Figure 3c. As the heat treatment temperature is increased, the lifetime increases sharply for samples heat treated at 250 °C deposited at 150 °C as compared to 350 °C heat treated samples deposited at 100 °C. Also, one can notice a minor increase in absorbance at 320 nm in the steady state spectra as shown in Figure 1c and Figure S1c following the increase in heat treatment temperature for both series of samples deposited at 100 °C and 150 °C. The key changes in the absorbance and lifetimes of TiO2 thin films deposited at 100 °C and 150 °C take place in the temperature range of 350–400 °C and 250–300 °C, respectively as shown in Figure 4. Apparently, one plausible reason for these changes is the transition from amorphous to polycrystalline anatase form. This is also confirmed by GIXRD data shown in Figure 2.

4. Conclusions

In summary, ALD TiO2 samples grown at 100 °C and 150 °C have amorphous structure and fast recombination (2–10 ps) of charge carriers presumably due to high density of tail states. As the post heat treatment temperature is increased over 250 °C, amorphous structure is converted into anatase. This conversion from amorphous to crystalline anatase phase results in more than two orders of magnitude increase in carriers lifetime (i.e., >400 ps). As the longer lifetime of carriers is important for efficient performance for photoelectrodes, the best results at the lowest possible temperature were obtained for samples deposited at 150 °C and heat-treated at 300 °C. Further increase in the heat treatment temperature gives only minor gain to the carrier lifetime and is restrictive, especially when the photonic system includes organic or polymer components.

Supplementary Materials

The following are available online at, Figure S1: (a) Transmittance spectra, (b) reflectance spectra, (c) absorbance spectra and (d) Tauc plots of the ALD TiO2 thin films grown at 100 °C and heat treated at different temperatures indicated in the plots, Figure S2: TA spectra in transmittance and reflectance modes for (a,b) 200 °C and (c,d) 500 °C heat-treated samples, respectively, Figure S3: Comparison of lifetime of 150 °C deposited, 500 °C heat-treated sample (anatase) and 200 °C deposited, 500 °C heat-treated sample (rutile)

Author Contributions

Conceptualization, N.V.T.; Formal analysis, R.K., H.A.-L. and N.V.T.; Funding acquisition, R.K., H.A.-L., J.S. and M.V.; Investigation, R.K., H.A.-L. and K.L.; Methodology, R.K., H.A.-L., J.S., A.T. and K.L.; Project administration, N.V.T.; Software, N.V.T.; Supervision, N.V.T.; Validation, M.V. and N.V.T.; Writing–original draft, R.K. and H.A.-L.; Writing–review & editing, R.K., H.A.-L., J.S., M.V., A.T., K.L. and N.V.T. All authors have read and agreed to the published version of the manuscript.


This work is part of the Academy of Finland Flagship Programme, Photonics Research and Innovation (PREIN) (decision No 320165). This work was supported by Jane & Aatos Erkko Foundation (project ‘SOFUS’), Business Finland (decision No 1464/31/2019), and the Academy of Finland (decision Nos. 326461, 326406). R.K. acknowledges Doctoral program of Tampere University. J.S. was supported by the Vilho, Yrjö and Kalle Väisälä Foundation of the Finnish Academy of Science and Letters.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Gershon, T. Metal oxide applications in organic-based photovoltaics. Mater. Sci. Technol. 2011, 27, 1357–1371. [Google Scholar] [CrossRef]
  2. Serpone, N.; Emeline, A.V. Semiconductor photocatalysis - Past, present, and future outlook. J. Phys. Chem. Lett. 2012, 3, 673–677. [Google Scholar] [CrossRef] [PubMed]
  3. Ito, S.; Murakami, T.N.; Comte, P.; Liska, P.; Grätzel, C.; Nazeeruddin, M.K.; Grätzel, M. Fabrication of thin film dye sensitized solar cells with solar to electric power conversion efficiency over 10%. Thin Solid Films 2008, 516, 4613–4619. [Google Scholar] [CrossRef]
  4. Hu, A.; Cheng, C.; Li, X.; Jiang, J.; Ding, R.; Zhu, J.; Wu, F.; Liu, J.; Huang, X. Two novel hierarchical homogeneous nanoarchitectures of TiO2 nanorods branched and P25-coated TiO2 nanotube arrays and their photocurrent performances. Nanoscale Res. Lett. 2011, 6, 91–97. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Zhang, W.P.; Xiao, X.Y.; Zheng, L.L.; Wan, C.X. Fabrication of TiO2/MoS2 Composite Photocatalyst and Its Photocatalytic Mechanism for Degradation of Methyl Orange under Visible Light. Can. J. Chem. Eng. 2015, 93, 1594–1602. [Google Scholar] [CrossRef]
  6. Khan, R.; Riaz, A.; Rabeel, M.; Javed, S.; Jan, R.; Akram, M.A. TiO2@NbSe2 decorated nanocomposites for efficient visible-light photocatalysis. Appl. Nanosci. 2019, 9, 1915–1924. [Google Scholar] [CrossRef]
  7. Moehl, T.; Suh, J.; Sévery, L.; Wick-Joliat, R.; Tilley, S.D. Investigation of (Leaky) ALD TiO2 Protection Layers for Water-Splitting Photoelectrodes. ACS Appl. Mater. Interfaces 2017, 9, 43614–43622. [Google Scholar] [CrossRef]
  8. Pham, H.H.; Wang, L.W. Oxygen vacancy and hole conduction in amorphous TiO2. Phys. Chem. Chem. Phys. 2015, 17, 541–550. [Google Scholar] [CrossRef]
  9. Rouquerol, J.; Sing, K.S.W.; Llewellyn, P. Adsorption by Metal Oxides, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2013; ISBN 9780080970356. [Google Scholar]
  10. Jia, X.; He, W.; Zhang, X.; Zhao, H.; Li, Z.; Feng, Y. Microwave-assisted synthesis of anatase TiO2 nanorods with mesopores. Nanotechnology 2007, 18, 075602–0705608. [Google Scholar] [CrossRef]
  11. Zhao, T.; Ren, Y.; Yang, J.; Wang, L.; Jiang, W.; Elzatahry, A.; Alghamdi, A.; Deng, Y.; Zhao, D.; Luo, W. Hierarchical Ordered Macro/mesoporous Titania with Highly Interconnected Porous Structure for Efficient Photocatalysis. J. Mater. Chem. A 2016, 4, 16446–16453. [Google Scholar] [CrossRef]
  12. Khan, R.; Javed, S.; Islam, M. Hierarchical Nanostructures of Titanium Dioxide: Synthesis and Applications. Titan. Dioxide Mater. Sustain. Environ. 2018, 3–40. [Google Scholar] [CrossRef][Green Version]
  13. Hoch, L.B.; Szymanski, P.; Ghuman, K.K.; Hea, L.; Liao, K.; Qiao, Q.; Reyes, L.M.; Zhu, Y.; El-Sayed, M.A.; Singh, C.V.; et al. Carrier dynamics and the role of surface defects: Designing a photocatalyst for gas-phase CO2 reduction. Proc. Natl. Acad. Sci. USA 2016, 113, E8011–E8020. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Kang, X.; Liu, S.; Dai, Z.; He, Y.; Song, X.; Tan, Z. Titanium dioxide: From engineering to applications. Catalysts 2019, 9, 191. [Google Scholar] [CrossRef][Green Version]
  15. Berera, R.; van Grondelle, R.; Kennis, J.T.M. Ultrafast transient absorption spectroscopy: Principles and application to photosynthetic systems. Photosynth. Res. 2009, 101, 105–118. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Sun, S.; Song, P.; Cui, J.; Liang, S. Amorphous TiO2 nanostructures: Synthesis, fundamental properties and photocatalytic applications. Catal. Sci. Technol. 2019, 9, 4198–4215. [Google Scholar] [CrossRef]
  17. Prasai, B.; Cai, B.; Underwood, M.K.; Lewis, J.P.; Drabold, D.A. Properties of amorphous and crystalline titanium dioxide from first principles. J. Mater. Sci. 2012, 47, 7515–7521. [Google Scholar] [CrossRef]
  18. Ali-Löytty, H.; Hannula, M.; Saari, J.; Palmolahti, L.; Bhuskute, B.D.; Ulkuniemi, R.; Nyyssönen, T.; Lahtonen, K.; Valden, M. Diversity of TiO2 : Controlling the Molecular and Electronic Structure of Atomic-Layer-Deposited Black TiO2. ACS Appl. Mater. Interfaces 2019, 11, 2758–2762. [Google Scholar] [CrossRef][Green Version]
  19. Kohtani, S.; Kawashima, A.; Miyabe, H. Reactivity of trapped and accumulated electrons in titanium dioxide photocatalysis. Catalysts 2017, 7, 303. [Google Scholar] [CrossRef][Green Version]
  20. Feng, X.; Pan, F.; Zhao, H.; Deng, W.; Zhang, P.; Zhou, H.C.; Li, Y. Atomic layer deposition enabled MgO surface coating on porous TiO2 for improved CO2 photoreduction. Appl. Catal. B Environ. 2018, 238, 274–283. [Google Scholar] [CrossRef]
  21. Xie, Q.; Jiang, Y.L.; Detavernier, C.; Deduytsche, D.; Van Meirhaeghe, R.L.; Ru, G.P.; Li, B.Z.; Qu, X.P. Atomic layer deposition of TiO2 from tetrakis-dimethyl-amido titanium or Ti isopropoxide precursors and H2O. J. Appl. Phys. 2007, 102, 083521–083526. [Google Scholar] [CrossRef]
  22. Kim, Y.W.; Kim, D.H. Atomic layer deposition of TiO2 from tetrakis-dimethylamido-titanium and ozone. Korean J. Chem. Eng. 2012, 29, 969–973. [Google Scholar] [CrossRef]
  23. Niemelä, J.P.; Marin, G.; Karppinen, M. Titanium dioxide thin films by atomic layer deposition: A review. Semicond. Sci. Technol. 2017, 32, 2–71. [Google Scholar] [CrossRef]
  24. Hanaor, D.A.H.; Sorrell, C.C. Review of the anatase to rutile phase transformation. J. Mater. Sci. 2011, 46, 855–874. [Google Scholar] [CrossRef][Green Version]
  25. Vitoratos, E. Conductivity Degradation Study of PEDOT: PSS Films under Heat Treatment in Helium and Atmospheric Air. Open J. Org. Polym. Mater. 2012, 2, 7–11. [Google Scholar] [CrossRef]
  26. Tant, M.R.; McManus, H.L.N.; Rogers, M.E. High-Temperature Properties and Applications of Polymeric Materials ACS Symposium Series; American Chemical Society: Washington, DC, USA, 1995; Volume 603, pp. 1–20. [Google Scholar] [CrossRef]
  27. Hu, S.; Shaner, M.R.; Beardslee, J.A.; Lichterman, M.; Brunschwig, B.S.; Lewis, N.S. Amorphous TiO2 coatings stabilize Si, GaAs, and GaP photoanodes for efficient water oxidation. Science 2014, 344, 1005–1009. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Pasanen, H.P.; Vivo, P.; Canil, L.; Abate, A.; Tkachenko, N. Refractive index change dominates the transient absorption response of metal halide perovskite thin films in the near infrared. Phys. Chem. Chem. Phys. 2019, 21, 14663–14670. [Google Scholar] [CrossRef][Green Version]
  29. Al-Dhhan, Z.T.; Hogarth, C.A.; Riddleston, N. The Optical Absorption Edge in Thin Amorphous Oxide Films Based on Cerium Dioxide. Phys. Status Solidi 1988, 145, 145–149. [Google Scholar] [CrossRef]
  30. Landmann, M.; Rauls, E.; Schmidt, W.G. The electronic structure and optical response of rutile, anatase and brookite TiO2. J. Phys. Condens. Matter 2012, 24, 195503–195509. [Google Scholar] [CrossRef][Green Version]
  31. Lafuente, B.; Downs, R.T.; Yang, H.; Stone, N. The Power of Databases: The RRUFF Project; Walter de Gruyter GmbH: Berlin, Germany, 2016; ISBN 9783110417104. [Google Scholar]
  32. Knowles, K.E.; Koch, M.D.; Shelton, J.L. Three applications of ultrafast transient absorption spectroscopy of semiconductor thin films: Spectroelectrochemistry, microscopy, and identification of thermal contributions. J. Mater. Chem. C 2018, 6, 11853–11867. [Google Scholar] [CrossRef]
  33. Pore, V.; Ritala, M.; Leskelä, M.; Saukkonen, T.; Järn, M. Explosive crystallization in atomic layer deposited mixed titanium oxides. Cryst. Growth Des. 2009, 9, 2974–2978. [Google Scholar] [CrossRef]
  34. Hukari, K.; Dannenberg, R.; Stach, E.A. Nitrogen effects on crystallization kinetics of amorphous TiOxNy thin films. J. Mater. Res. 2002, 17, 550–555. [Google Scholar] [CrossRef][Green Version]

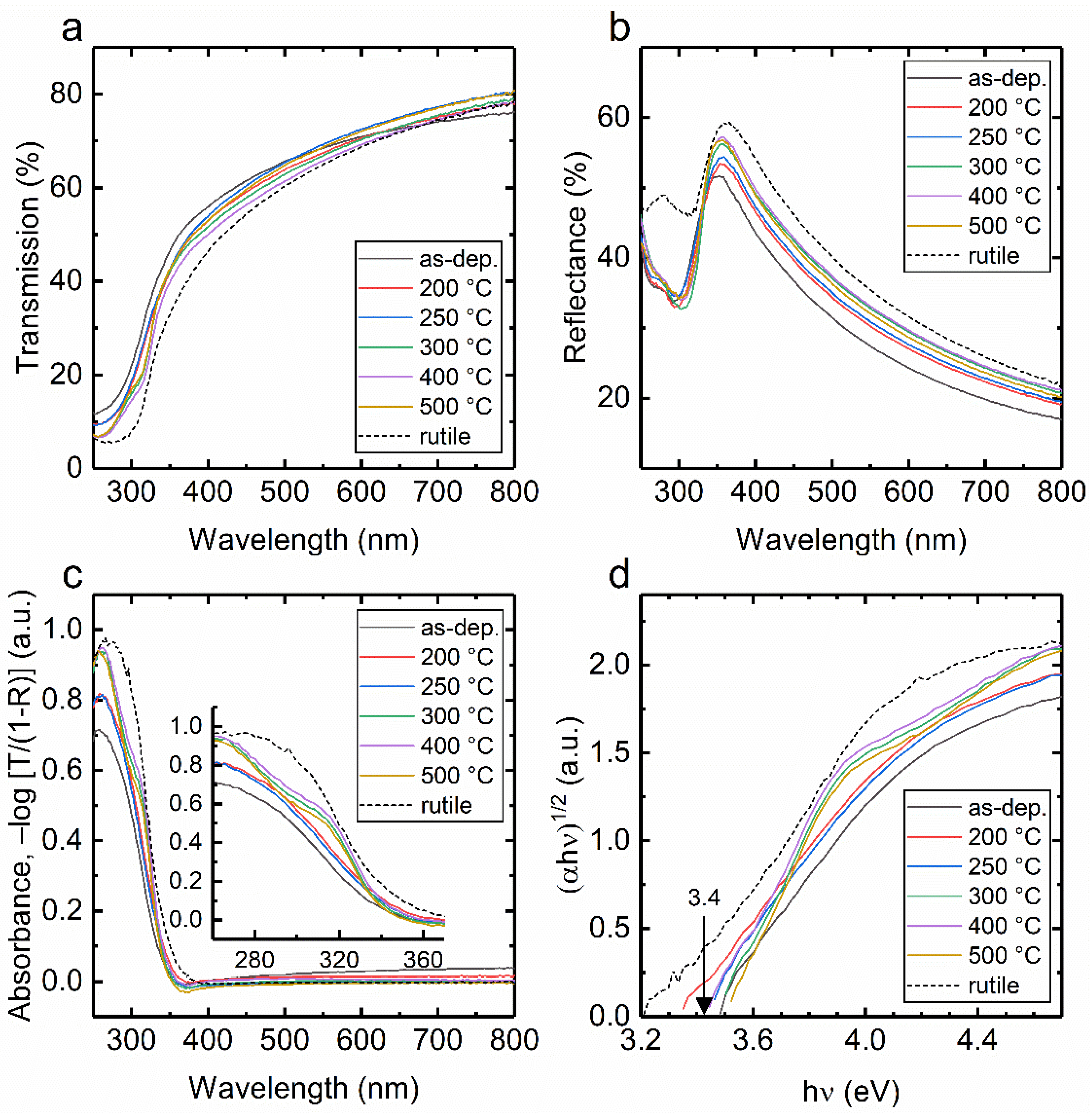

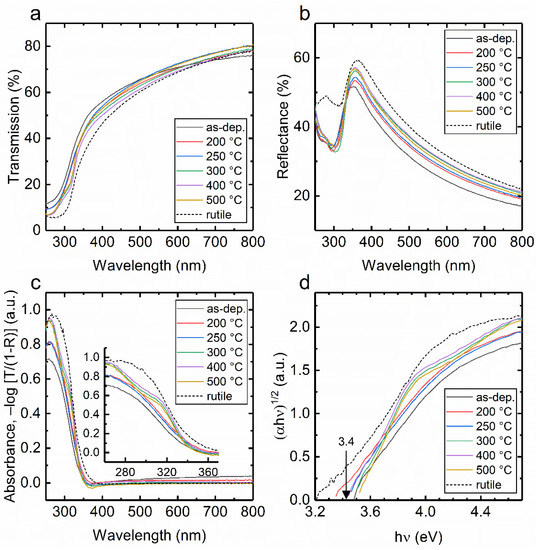

Figure 1. (a) Transmittance spectra, (b) reflectance spectra, (c) absorbance spectra and (d) Tauc plots of the ALD TiO2 thin films grown at 150 °C and heat treated at different temperatures indicated in the plots. The spectra of a rutile thin film of equal thickness is show as dotted lines using the data acquired from Ref. [18].
Figure 1. (a) Transmittance spectra, (b) reflectance spectra, (c) absorbance spectra and (d) Tauc plots of the ALD TiO2 thin films grown at 150 °C and heat treated at different temperatures indicated in the plots. The spectra of a rutile thin film of equal thickness is show as dotted lines using the data acquired from Ref. [18].
Nanomaterials 10 01567 g001

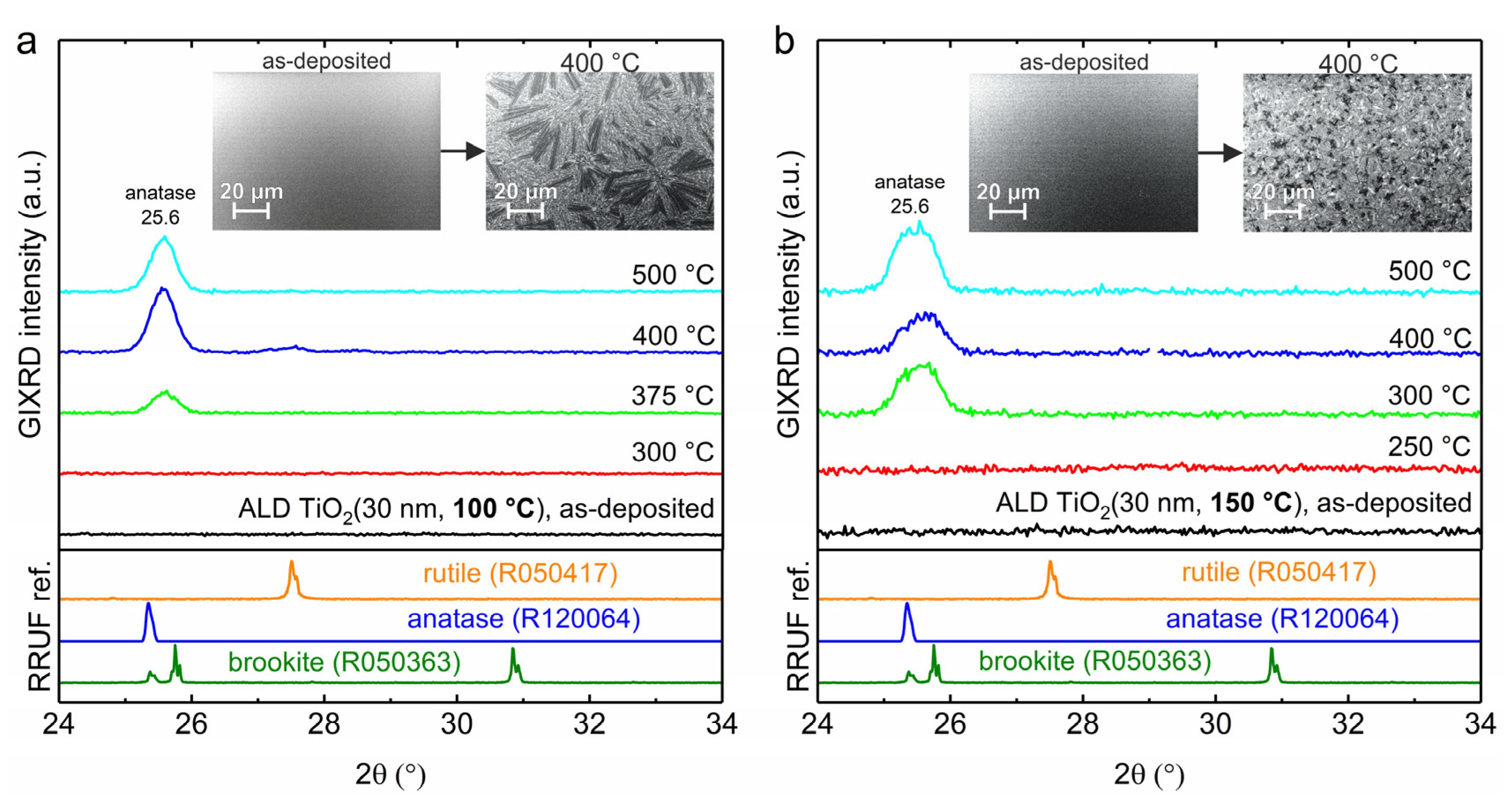

Figure 2. GIXRD patterns for ALD TiO2 thin films grown at (a) 100 °C and (b) 150 °C and heat treated in air. The insets show SEM images for the as-deposited and at 400 °C heat-treated samples. XRD reference patterns for rutile, anatase and brookite TiO2 are from RRUFF database [31].
Figure 2. GIXRD patterns for ALD TiO2 thin films grown at (a) 100 °C and (b) 150 °C and heat treated in air. The insets show SEM images for the as-deposited and at 400 °C heat-treated samples. XRD reference patterns for rutile, anatase and brookite TiO2 are from RRUFF database [31].
Nanomaterials 10 01567 g002

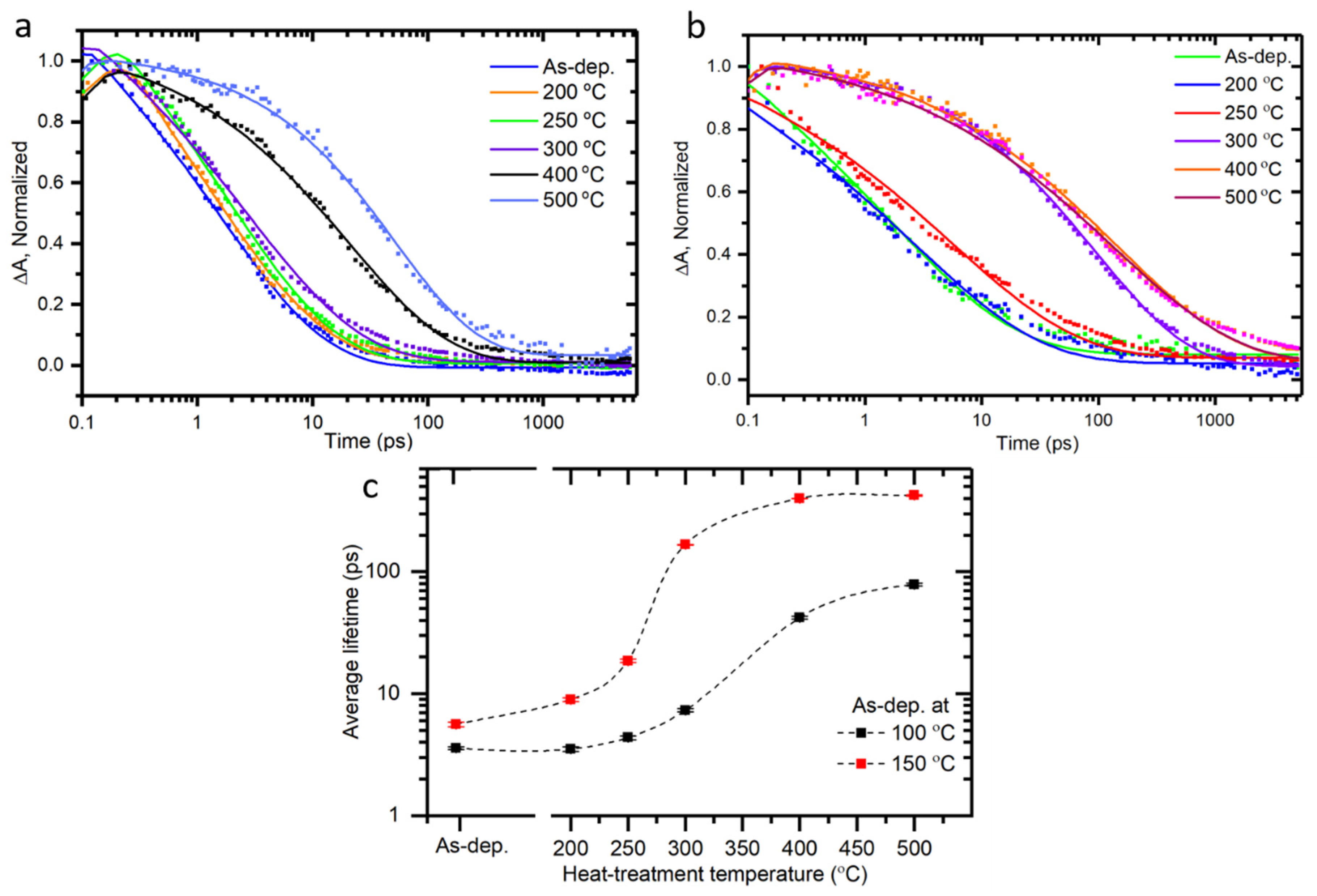

Figure 3. Normalized transient absorption decays profile at 960 nm of samples deposited at (a) 100 and (b) 150 °C without heat treatment temperature indicated in the plot (c) Average lifetimes as function of the heat-treatment temperature for samples deposited at 100 and 150 °C.
Figure 3. Normalized transient absorption decays profile at 960 nm of samples deposited at (a) 100 and (b) 150 °C without heat treatment temperature indicated in the plot (c) Average lifetimes as function of the heat-treatment temperature for samples deposited at 100 and 150 °C.
Nanomaterials 10 01567 g003

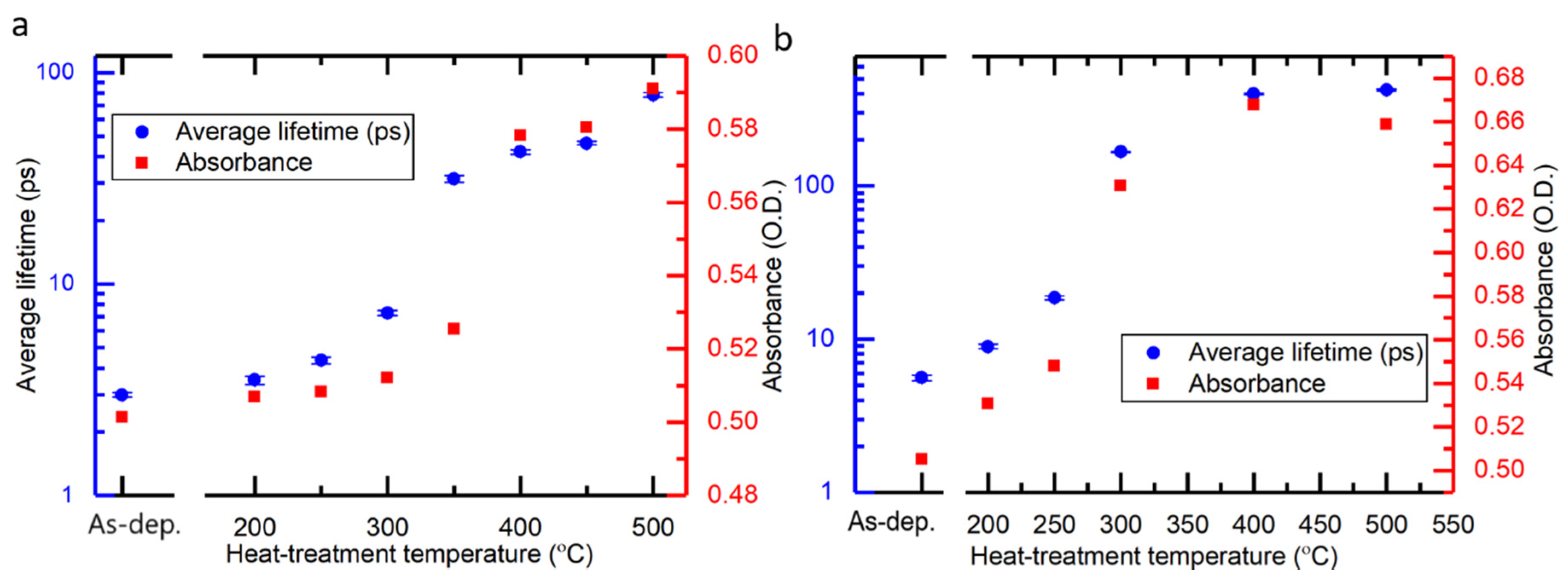

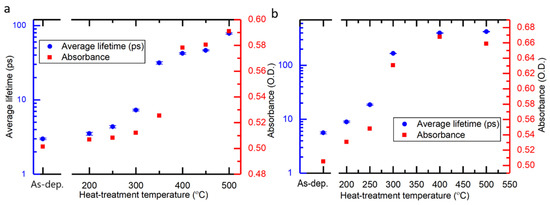

Figure 4. Average lifetime as a function of heat-treatment temperature shown along with absorbance of the samples at 320 nm from steady state spectra for samples grown at (a) 100 °C and (b) 150 °C.
Figure 4. Average lifetime as a function of heat-treatment temperature shown along with absorbance of the samples at 320 nm from steady state spectra for samples grown at (a) 100 °C and (b) 150 °C.
Nanomaterials 10 01567 g004
