Construction of BPQDs/Ti3C2@TiO2 Composites with Favorable Charge Transfer Channels for Enhanced Photocatalytic Activity under Visible Light Irradiation

by
Ziyu Yao
1,2,3,
Huajun Sun
1,2,3,
Huiting Sui
1,2,3 and
Xiaofang Liu
4,*
1
State Key Laboratory of Silicate Materials for Architectures, Wuhan University of Technology, Wuhan 430070, China
2
School of Materials Science and Engineering, Wuhan University of Technology, Wuhan 430070, China
3
Advanced Ceramics Institute of Zibo New & High-Tech Industrial Development Zone, Zibo 255000, China
4
School of Chemistry, Chemical Engineering and Life Sciences, Wuhan University of Technology, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(3), 452; https://doi.org/10.3390/nano10030452
Submission received: 10 January 2020 / Revised: 20 February 2020 / Accepted: 27 February 2020 / Published: 3 March 2020
(This article belongs to the Special Issue Photocatalytic Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
Design and construction of double heterojunction is favorable to improve the separation and migration efficiency of photogenerated carriers, thus preferably solve the problems of environmental pollution and energy crisis. Herein, TiO2 nanoparticles (NPs) are in-situ grown on highly conductive Ti3C2 nanosheets via low-temperature hydrothermal strategy, and then black phosphorus quantum dots (BPQDs) are introduced on the surface of TiO2 NPs. Under hydrothermal temperature 120 °C, the BPQDs/Ti3C2@TiO2 photocatalyst exhibits remarkable enhanced photocatalytic degradation of methyl orange (MO) and hydrogen evolution reaction (HER) compared with BPQDs/Ti3C2 and Ti3C2@TiO2 composites. Enhanced photocatalytic activity can be attributed to (i) the BPQDs with tunable bandgaps are deposited on the TiO2 NPs to form intimate heterojunction, which facilitates the electrons transfer from the conduction band (CB) of BPQDs to the CB of TiO2; (ii) the electrons quickly migrate from CB of TiO2 NPs to the Ti3C2 nanosheets with excellent electronic conductivity via electron transfer channel, which is beneficial to prolong the lifetime of electrons and hinder the recombination of photogenerated carriers; (iii) the enhanced visible light absorption and enlarged specific surface area of BPQDs/Ti3C2@TiO2 further accelerate the photocatalytic reaction. This work emphasizes the essential role of quantum dots in the construction of double heterojunction and the potential application of Ti3C2 MXene for improving photocatalytic activity.

Graphical Abstract

1. Introduction

Over the past few years, the solution of environmental pollution and energy crisis is inseparable from the progress and development of photocatalytic technology [1,2]. Since Fujishima discovered the phenomenon of water decomposition in 1972, titanium dioxide (TiO2) has become the most widely used semiconductor photocatalyst with non-toxicity, low cost, and strong stability [3,4]. Nowadays, the rapid recombination of photogenerated electrons and holes is the primary factor limiting the application of TiO2 [5]. Researchers increase the separation time of photogenerated carriers by changing the band gap of TiO2 [6,7,8]. In addition, the establishment of heterojunction can also effectively hinder the recombination of photocarriers, thus improving photocatalytic activity [9,10,11,12,13,14].
Recently, the TiO2 coupled with two-dimensional (2D) layered materials has been proven to effectively prolong the separation time of photogenerated electrons and holes [15]. The excellent electrochemical performance, outstanding chemical stability, and numerous hydrophilic surface functionalities of two-dimensional (2D) layered MXene can be obtained from MAX phase, which have attracted more and more attention since it was discovered by Barsoum et al. in 2011 [16,17,18,19,20]. The heterojunction of 2D Ti3C2 MXene can be constructed by strong interface contact between layered structure and semiconductors [21,22,23]. The strong physical and electronic coupling between heterojunctions greatly promotes the separation and migration of photogenerated electron-hole pairs, reducing the recombination efficiency of holes and electrons, thus effectively enhancing the photocatalytic performance [24,25].
As reported, 2D Ti3C2 MXene layered materials exhibit amazing effects on promoting photocatalytic performance of CO2 reduction reaction, hydrogen production, and organic compounds degradation [26,27]. For example, Ti3C2-OH/P25 composites exhibit excellent photocatalytic activity of CO2 reduction, which can be attributed to the effective charge-carrier separation [28]. The TiO2/Ti3C2 MXene composite has synthesized successfully by Yu et al. through calcination method, confirming the excellent photocatalytic CO2 reduction performance of TiO2 in-situ growth on Ti3C2 MXene surface [29]. Superior conductivity and high efficiency of charge separation and transfer greatly enhance the hydrogen production performance of the g-C3N4/Ti3C2 samples [30]. Whereas, the structure of Ti3C2 MXene can be destroyed under overtop reaction temperature and transformed into TiO2 [29]. Therefore, the structure stability of Ti3C2 tends to be increased under lower reaction temperature, which enables Ti3C2 play a better role in electron transfer of photocatalytic reaction.
Especially, the Ti3C2@TiO2@MoS2 composite shows remarkable enhancement in the photocatalytic H2 reaction, which is attributed to the construction of dual-carrier-separation heterojunction [31]. The In2S3/anatase TiO2@metallic Ti3C2Tx MXene hybrids reveal significantly enhanced photocatalytic degradation of MO due to the build type-II heterojunction and Schottky junction with favorable charge transfer [32]. It can be noted from the previous results that Ti3C2-based composites with double heterojunction is favorable for the separation and transfer efficiency of photogenerated carriers [31,32,33]. However, it is difficult to establish a perfect contact interface between large-scale materials, thus increasing the barrier of electron transfer at the interface [34]. There is an urgent need to find small-size materials to overcome these problems.
Zero-dimensional black phosphorus quantum dots (BPQDs) with unique photophysical and electrochemical properties can be prepared by liquid exfoliation method from bulk black phosphorus (BP) [35]. The good stability, strong light absorption, and high photoluminescence quantum yields of BPQDs have been utilized as fluorescent probes, lithium storage, and organic photovoltaics (OPVs) [36,37,38]. BPQDs have the characteristics of tunable bandgaps, which can be extended to nearly 3 eV, making it a promising candidate in the visible-light-responsive photocatalysts [39]. Moreover, contact interface is more easily constructed by small-size quantum dots than large-size materials in heterojunction system, which is beneficial for the transfer of photogenerated electrons and enhancement of the visible light absorption [34].
In this work, novel BPQDs/Ti3C2@TiO2 photocatalysts are prepared by low-temperature hydrothermal reaction. The BPQDs/Ti3C2@TiO2 samples exhibit significant enhancement on photocatalytic degradation and photocatalytic hydrogen evolution reaction under visible light irradiation. The structure, morphology, surface chemical state, optical and electrochemical properties are revealed. Especially, the double heterojunction structure is constructed among BPQDs, anatase TiO2 nanoparticles, and Ti3C2 nanosheets, promoting the rapid transfer of electrons in the charge transfer channels, which is beneficial to the significant enhancement of photocatalytic activity. Finally, the possible enhanced photocatalytic performance mechanism is proposed based on the experimental results, which demonstrates that BPQDs and Ti3C2@TiO2 composites have potentially applied in photocatalytic systems.

2. Materials and Methods

2.1. Materials

Ti3AlC2 MAX powders (>98 wt % purity) are purchased by Shanghai Yuehuan Co., Ltd. (Shanghai, China). Hydrofluoric acid, ethanol, and methylene orange (MO) are purchased from Guoyao Chemical Co., Ltd. (Shanghai, China). All the reagents used are of analytical grade and used without further purification.

2.2. Synthesis of BPQDs/Ti3C2@TiO2 Composites

Preparing strategy of the BPQDs/Ti3C2@TiO2 (BTTC) composites is illustrated in Figure 1. Firstly, Al layer is completely removed by etching Ti3AlC2 MAX with 49% HF for 25 h, which is labeled as Solution A. Subsequently, the black powders of Ti3C2 sample is obtained from Solution A with washing, sonication, and centrifugation processes. Finally, the in-situ growth of TiO2 nanoparticles from Ti3C2 MXene are obtained by hydrothermal reaction with absolute alcohol at different temperature for 16 h, and the Ti3C2@TiO2 composites are synthesized successfully [40]. The corresponding precipitation Ti3C2@TiO2 samples are collected and named as TC (without hydrothermal process) and TTC-x (x = 100, 120, 140, 160 °C).
The BPQDs are prepared by a liquid exfoliation method. In brief, 20 mg of black phosphorus powders is ground for 10 min. The obtained black phosphorus sample is dispersed in 40 mL mixture solution of dimethyl pyrrolidone and oleic acid by strong ultrasound at 0 °C for 4 h. Then, suspension is centrifuged by 11,000 rpm for 30 min to remove the unexfoliated residue. Finally, the supernatant of 0.5 mg mL−1 BPQDs is obtained.
The BPQDs/Ti3C2@TiO2 photocatalysts are prepared by solvent-heat method. 50mg of TTC-x (x = 100, 120, 140, 160 °C) sample is added to 50 mL BPQDs supernatant and heated in water bath at 80 °C for 2 h. After the reaction is completed, the precipitate is separated by centrifugation and washed with absolute ethanol. The obtained samples are denoted as BTC and BTTC-x (x = 100, 120, 140, 160 °C).

2.3. Photocatalytic Degradation Reaction

The photocatalytic activity of BPQDs/Ti3C2@TiO2 (BTTC-x) and Ti3C2@TiO2 (TTC-x) samples are assessed by the degradation of methylene orange (MO) solution under visible light irradiation. The photocatalytic degradation tests for MO photodegradation are performed by using a 400 W metal halide lamp (the average light intensity is 80 mW cm−2, Philips RVP350). In a typical photocatalytic degradation of MO solution, 50 mg of BTTC-x black powders is dispersed into 50 mL MO aqueous solution (10 mg/L). The dispersion solution is treated in the dark for 0.5 h under strong stirring to achieve an adsorption–desorption equilibrium. About 3.5 mL of dispersion solution is taken under certain time intervals and centrifuged for 3 min to remove the photocatalyst. Finally, the concentration of centrifuged MO solution is analyzed at 463 nm by UV-visible specrtrophotometer. The C0 denotes the initial concentration of MO solution, and Ct denotes the concentration of MO solution at a certain time. The relative absorbance intensity of Ct/C0 recorded the concentration change of MO solution and embodied the photocatalytic efficiency of the samples.

2.4. Photocatalytic Hydrogen Evolution Reaction

The photocatalytic H2 evolution tests are performed in a 50 mL quartz flask. 50 mg of photocatalysts are dispersed ultrasonically into 40 mL aqueous solution containing 25% acetone (triethanolamine as sacrificial reagent). Before irradiation, gas (N2) is continuously passed through for 35 min to remove the air. The light is provided by a 300 W Xe lamp equipped with a 420 nm cutoff filter to provide the visible light irradiation. The production of H2 is detected by gas chromatography (Model BUCK 910, Shanghai Zhao Ming, Shanghai, China) equipped with thermal conductivity detector (TCD).

2.5. Characterizations

The crystalline phase of the as-prepared samples is analyzed at 40 kV by X-ray diffractometer (XRD, Cu Kα, Bruker D8 Advance, Karlsruhe, Germany) in the range of 2θ = 5°–70°. The morphologies of the BTTC-x samples are obtained by field emission scanning electron microscopy (FESEM, Zeiss Ultra Plus, Carl Zeiss, Oberhausen, Germany) coupled with energy-dispersive spectrometry (EDS). The heterojunctions between BPQDs and Ti3C2@TiO2 are performed by high resolution transmission electron microscopy (HRTEM, JEM-2100F, Japanese electronics, Tokyo, Japan). The optical properties and UV-vis absorption spectra of photocatalysts are performed by using a UV-vis diffuse reflectance spectroscope (DRS, Lambda 750S, PerkinElmer, New York, NY, the United States) with an integrated sphere. The BET specific surface area (SSA) and pore volume are carried out by using a Micromeritics ASAP 2460 system at 77 K. The photocurrent measurements and electrochemical spectra are measured by 1030 A CHI electrochemical station, which is consisted of glassy carbon electrode (GCE), platinum sheets, silver-silver chloride (Ag/AgCl) is saturated KCl as working electrode, counter electrode, and reference electrode, respectively. 30 mL of 1 M HCl solution is utilized as electrolyte. In a typical test, 5.0 mg of catalysts and 110 μL of 5 wt% Nafion solution are dispersed in 2.5 mL of 1:1 v/v ethanol and water with 9 min sonication to form homogeneous suspension. Prior to the modification, the GCE is polished with alumina powder (1.0 and 0.5 μm), being cleaned with ultrapure water, and then dried in air. Subsequently, 10 μL of the ink is dropped onto the GCE surface. The electrochemical measurements are carried out with the same configuration at overpotential n = 200 mV from 0.1 to 100 kHz with an AC voltage of 5 mV.

3. Results and Discussion

The crystalline of BTC and BTTC-x samples is analyzed in Figure 2. Obviously, the diffraction peak for (104) of Ti3AlC2 raw sample at 2θ = 39° disappears after etching with HF for 25 h. Besides, the diffraction peaks for (002) at 2θ = 9.72° and (004) at 2θ = 19.18° of Ti3AlC2 are broadened and shifted to lower angle, suggesting that Ti-Al bond is broken and Ti3C2 is prepared successfully [41]. The XRD of Ti3C2 and TTC-x (x = 100, 120, 140, and 160 °C, respectively) is revealed in Figure S1. No obvious diffraction peak of anatase TiO2 can be observed, suggesting that this temperature is not conductive to generate anatase TiO2. With the increase of the hydrothermal temperature, a new peak at 2θ = 25.4° is detected for BTTC-120/140/160 compared with the BTTC-100 sample, which is attributed to the (101) crystal face of anatase TiO2 (JCPDS No. 21-1272) [40]. Meanwhile, the intensity of diffraction peak at 2θ = 25.4° increases as rising the hydrothermal temperature, which proves that more Ti3C2 transforms to TiO2 NPs. No obvious diffraction peak of BPQDs can be detected, which can be attributed to the low BPQDs-loading in the composites.
The FESEM images show the morphologies of BTC and BTTC-x composite (x = 100, 120, 140, and 160 °C) in Figure 3. The typical 2D layered Ti3C2 with accordion-like structure is obtained in Figure 3a, indicating that the Al layer of raw Ti3AlC2 is etched by HF solution [42]. Figure 3b shows the accordion-like Ti3C2, with TiO2 nanoparticles attached to its surface. These nanoparticles are arranged on the surface of the sample irregularly with a size of ca. 15 nm, which indicates that the transformation of Ti3C2 into TiO2 NPs can occur after hydrothermal oxidation at 100 °C. The surface of BTTC-120 becomes more rough than raw BTC and BTTC-100, suggesting that more TiO2 NPs are formed on the surface of Ti3C2, as shown in Figure 3c,d. It is noteworthy that TiO2 NPs with a size of ca. 25 nm are uniformly dispersed on Ti3C2 MXene, indicating that the conversion of Ti3C2 into TiO2 can inhibit the agglomeration and promote the uniform size distribution of TiO2 NPs at this temperature [29]. Furthermore, the interlayer gap can be modulated with the change in TiO2 NPs size, as noted that with the increase of the NPs size, the interlayer gap is broadened [29]. However, further increase of the hydrothermal temperature to 140 °C leads to the destruction of Ti3C2 nanosheets, which may reduce the electron migration of samples, as revealed in Figure 2e. The size of nanoparticles tend to be increased, and the lamellar structure is seriously destroyed with rising the hydrothermal temperature. Finally, the surface of Ti3C2 is completely covered by TiO2 NPs with the size of ca. 30 nm as the temperature reaches 160 °C, as displayed in Figure 3f. The morphology of BPQDs is hardly observed in the SEM images, which is highly related to the small size.
Figure 4a gives the DRS spectra of the BTC and BTTC-x samples. Obviously, the prepared BTC reveals the lowest absorption intensity among all the samples, suggesting the sample possesses the worst absorption ability in the range of visible and UV ranges. In comparison, all the BTTC-x samples present better light absorption ability than BTC, indicating that hydrothermal oxidation reaction of Ti3C2 is beneficial for the enhancement of optical absorption performance. The intrinsic light absorption edge of TiO2 at ca. 400 nm can be observed, which is contributed to the emergence of TiO2 NPs [29]. Figure S2 reveals the DRS spectrum of BPQDs. The bandgap of BPQDs is estimated to be approximately 2.83 eV.
Figure 4b shows the specific surface areas (SSA) of the BTC, TTC-120, and BTTC-120 powders, which is obtained via the BET analysis. All the samples present typical IV isotherms, proving the mesoporous character of the powders [42]. The BET specific surface areas of BTC, TTC-120, and BTTC-120 samples are 3.1540, 10.5483, and 15.2944 m²/g, respectively. The BTTC-120 composite reveals much larger specific surface area than BTC due to the TiO2 NPs in-situ growth on the Ti3C2 MXene nanosheets [29]. BTTC-120 has larger SSA than TTC-120, due to its composition with BPQDs. The BTTC-120 sample with larger SSA is beneficial for the enhancement of the adsorption and migration of reactants and products.
The separation of electrons and holes of BTC, TTC-120, and BTTC-120 is revealed by transient photocurrent response (TPC), as displayed in Figure 4c. The transient photocurrent of BTTC-120 sample is much higher than BTC and TTC-120, indicating the BPQDs-loading and hydrothermal oxidation can improve the separation of photo-generated carriers on the surface of photocatalysts. In addition, Figure 4d gives the EIS to explore the charge carrier recombination/transfer behavior of BTC, TTC-120, and BTTC-120. The BTTC-120 displays smaller semicircle diameter than TTC-120 under visible light irradiation, indicating the BPQDs can reduce the charge transfer resistance of TTC-120. Additionally, the BTTC-120 exhibits the bigger radius than BTC sample, demonstrating that the sample with higher Ti3C2 content possesses lowest charge transfer resistance.
More morphological details of BPQDs and BTTC-120 samples are further observed in Figure 5. The black phosphorus nanosheets can be observed in Figure S3. Figure 5a,b reveal the TEM images of uniformly dispersed BPQDs with the size distribution between 2.6–4.5 nm. The representative HRTEM image (insets in Figure 5b) of BPQDs displays lattice fringe of 0.34 nm, owing to the (021) planes of BP crystals. Note that the surface of BTTC-120 becomes rough due to the formation of TiO2 NPs (Figure 5c), indicating that the TiO2 NPs are formed on the Ti3C2 surface during the hydrothermal process. The TiO2 NPs with the size ca. 25 nm present dense features on the surface of Ti3C2 nanosheets, with characteristics well corresponding to the above FESEM images. As shown in Figure 5d,e, HRTEM images demonstrate the heterojunction formation of BPQDs and TiO2 nanoparticles with well-defined lattice fringes on the surface of Ti3C2. The lattice fringes with an interplanar space of 0.35, 0.23, and 0.34 nm can be clearly observed, which can be ascribed to the (101) planes of anatase TiO2, (103) planes of Ti3C2 nanosheets and (021) planes of BPQDs crystals, respectively [39,40]. It can be confirmed from HRTEM results that the BPQDs have been decorated on the surface of Ti3C2@TiO2 successfully and intimate integration. Furthermore, the heterojunction between BPQDs and Ti3C2@TiO2 has been constructed successfully in BPQDs/Ti3C2@TiO2 photocatalysts. Undoubtfully, the intimate contact heterojunction with strong electronic coupling effect can significantly enhance the charge transfer efficiency at the heterojunction interface [31].
Figure 5e,h present the STEM and EDS mapping results to explore the distribution and composition of element in BTTC-120 sample. The distribution of P is highly overlapped with Ti, O, and C, indicating the composition of BPQDs on TiO2 NPs and Ti3C2 nanosheets. The colorful images exhibit the distribution of P, Ti, O, and C elements, and all the elements are uniformly dispersed in BTTC-120 sample. Above evidence of HRTEM and FESEM images proves that the BTTC-x composites have been synthesized successfully.
XPS is utilized to investigate the chemical composition and elements states of BTTC-120 sample, with detailed information as revealed in Figure 6. Figure 6a shows the survey scan of the BTTC-120 composite. The concomitant of P, Ti, C, O, and F elements can be observed in the spectrum, corresponding well to the EDS mapping results. As displayed in Figure 6b, the P 2p spectrum is deconvoluted into two peaks at 129.98 and 131.06 eV, which is ascribed to P (2p3) and P (2p1), respectively [39]. The C 1s region (Figure 6c) is fitted with three peaks at 279.90, 282.72, and 283.52 eV, being assigned to the Ti–C, C–C, and C–O bonds, respectively [43]. As shown in Figure 6d, peaks at 452.87, 453.24, 454.07, 457.39, 459.25, and 463.09 eV can be attributed to Ti–C (2p3), Ti2+ (2p3), Ti3+ (2p3), Ti–C (2p1), Ti–O (2p3), and Ti–O (2p1), respectively [44]. In addition, the intensity of Ti–C peak is higher than Ti–O peak, indicating that the Ti3C2 MXene nanosheets are well preserved after processing via lower-temperature hydrothermal reaction. The O 1s XPS spectrum (Figure 6e) of BTTC-120 is deconvoluted into two peaks at 528.57 and 530.06 eV, which is corresponding to the Ti–O–Ti and surface hydroxyl groups, respectively [45]. In Figure 6f, the F 1s peak located at 686 eV is ascribed to F ions physically adsorbed onto the BTTC-120 surface.
The photocatalytic activity of BTC and BTTC-x catalysts is investigated by the degradation of MO solution (10 mg/L) under visible irradiation. As revealed in Figure 7a, there is no obvious change for MO solution in the reaction without catalyst, suggesting MO molecules are chemically stable. The adsorption effect of samples has been eliminated by stirring the mixtures for 30 min. The subsequent photocatalytic degradation tests are executed with equilibrium MO concentration as initial concentration after adsorption process. Obviously, the photocatalytic degradation of BTTC-x samples is higher than the pristine BTC due to the TiO2 NPs formation in the hydrothermal oxidation, suggesting that TiO2 NPs play an essential role in prolonging the separation time of photocarriers in the construction of fast electron transfer channels. With the increasing of reaction temperature, the degradation abilities of BTTC samples exhibit an obvious trend of increase firstly and decreasing after that. Interestingly, the BTTC-120 sample has the highest degradation efficiency among all samples, and more than 93% MO solution is degraded within 60 min. The BTTC-140 and BTTC-160 samples also present better photocatalytic activity, with MO solution degrading by 78% and 76%, respectively. Meanwhile, only nearly 50% of MO is degraded by the BTTC-100 catalyst. This phenomenon indirectly indicates that there is a critical temperature in Ti3C2 MXene hydrothermal reaction, which can not only in-situ grown anatase TiO2 NPs, but also greatly preserves the excellent electronic conductivity of two-dimensional Ti3C2 MXene, thus preferably enhancing the degradation efficiency of photocatalysts. Figure S4 displays the MO degradation curves over different photocatalysts without BPQDs-loading. The optimal degradation efficiency belongs to TTC-120 sample, 61% MO is degraded in 120 min. Compared with TTC-x samples, all BTTC-x samples possess stronger degradation ability, indicating that BPQDs play a crucial role in the improvement of Ti3C2@TiO2 photocatalytic activity.
In addition, the photocatalytic kinetics of dyes are simulated by the Langmuir–Hinshelwod kinetic theory [46]. The regression curve of natural logarithm normalizes the approximate linearity between MO concentration and reaction time, suggesting that the degradation of MO follows the first-order rate constant [ln(C0/Ct) = kt, where k is the apparent first-order rate constant, as revealed in Figure 7b. The kinetics rate constants of BTC and BTTC-x (x = 100, 120, 140 and 160) are 0.01809, 0.05025, 0.21201, 0.11304, and 0.10058 min−1, respectively. The enhanced photocatalytic activity of BTTC-x samples is attributed to the intimate contact heterojunction between BPQDs and Ti3C2@TiO2 composites. Different TiO2-based composites for photocatalytic degradation of MO under visible light irradiation, as shown in Table 1.
The stability of BTTC-120 photocatalyst is observed by recycling photocatalytic degradation experiment, as shown in Figure S5. The degradation ability of BTTC-120 composite decreases slightly after three degradation recycles, proving that the sample has good stability and sustainability. The structural stability of BTTC-120 is presented by comparing the XRD before and after use, as shown in Figure S6.
In order to explore the main active species in the photocatalytic reaction for revealing the photodegradation mechanism. Different trapping agents are added in photocatalytic reaction, as displayed in Figure 8. The addition of IPA (isopropanol, a quencher of •OH) has no obvious effect on the degradation of MO, suggesting that •OH is not the main active species. It can be clearly obtained that MO degradation is obviously inhibited by adding EDTA (triethanolamine, a quencher of h+) and BQ (benzoquinone, a quencher of •O2−), revealing that h+ and •O2− play important roles in the photocatalytic reaction. It is concluded that the photodegradation of MO over BTTC-120 photocatalyst is driven mainly by the participation of photogenerated holes and •O2−, and to a lesser extent, by the •OH radicals.
The heterojunction of BPQDs/Ti3C2@TiO2 is favorable for the transfer of electrons from CB of BPQDs to Ti3C2@TiO2 composites, thus enhancing the photocatalytic hydrogen rate. Figure S7 and Figure 9a present different hydrogen production rates of TTC-x and BTTC-x with respect to the change in temperature, respectively. Obviously, all the BTTC-x samples exhibit significantly enhanced photocatalytic H2 evolution rate than TTC-x composites, indicating that the BPQDs-loading is conductive to the electrons transfer from conduction band of BPQDs to Ti3C2@TiO2 heterojunctions. The photocatalytic H2 production rate is enhanced significantly after hydrothermal reaction, suggesting that the emerged TiO2 NPs are beneficial to construct a rapid electrons channel between BPQDs and Ti3C2 nanosheets. The optimal rate of hydrogen production belongs to BTTC-120 (684.5 μmol h−1 g−1), which is more than two times higher than TTC-120 photocatalyst (324.5 μmol h−1 g−1), and more than eleven times higher than BTC sample (60.3 μmol h−1 g−1). The highest H2 production rate of BTTC-120 can be attributed to the construction of intimate heterojunction between BPQDs and suitable ratio of anatase TiO2 NPs and Ti3C2 nanosheets in this temperature. The BTTC-100 sample displays a poor hydrogen evolution rate, which is ascribed to the rutile TiO2 NPs is not an ideal medium to electrons transfer under low-temperature hydrothermal process. When the temperature rises to 140 °C, the rate of hydrogen production decreases obviously due to the destroyed Ti3C2 nanosheets. The BTTC-160 shows a higher hydrogen production rate than BTTC-140, which is contributed to the large amount of TiO2 NPs generated at higher temperature, thus offsetting the reduced electron transfer due to the destroyed Ti3C2.
The stability of BTTC-120 sample is evaluated by recycle photocatalytic tests, as shown in Figure 9b. Only a slight loss of hydrogen evolution activity is performed after 6 cycles with 5 h intermittence reaction. It confirms that the strong stability of BTTC-120 photocatalyst is obtained during the photocatalytic experiments.
Based on the above experiment results, the photocatalytic mechanism of degradation of MO and HER of BPQDs/Ti3C2@TiO2 composites is demonstrated in Figure 10. Firstly, the BPQDs absorbs energy to produce photogenerated electrons and holes in the CB and valance band (VB), respectively. Subsequently, the photoelectrons migrate from CB of BPQDs to the CB of TiO2 NPs by intimate contact heterojunction due to the more negative potential [32]. Notably, the Ti3C2 has more negative Fermi level than the CB of TiO2, which is beneficial to the secondary migration of electrons. Photogenerated electrons can easily transfer through the TiO2/Ti3C2 interface with lower energy barrier, thus improving the separation efficiency and prolonging the recombination of photogenerated carriers [31]. On the one hand, a large number of photogenerated holes aggregate on the surface of photocatalyst with powerful oxidation ability, reacting with the adsorbed hydroxyl ions (OH-) and water to generate hydroxyl radicals (•OH). On the other hand, the photogenerated electrons aggregate on the surface of Ti3C2, which reacts with absorbed O2 and H2O to produce superoxide radicals (•O2−) to oxidize MO molecules [39]. In the photocatalytic hydrogen production process, the accumulated electrons react with the absorbed H+ on the surface of Ti3C2 to generate H2 [30]. The remaining holes at VB are consumed by sacrificial agent, which eliminates the factors affecting the generation of new electron. Eventually, the photocatalytic activity of photocatalytic degradation and hydrogen evolution reaction is enhanced obviously.

4. Conclusions

In summary, the novel BPQDs/Ti3C2@TiO2 composites are constructed by in-situ growth of TiO2 NPs on the surface of Ti3C2, and then BPQDs are being introduced onto the TiO2 NPs by combining heterojunction nanostructure construction method. The optimal MO degradation efficiency (93%, 60 min) and hydrogen production rate (684.5 μmol h−1 g−1) belong to BPQDs/Ti3C2@TiO2-120 under visible light irradiation, which is much higher than other BPQDs/Ti3C2@TiO2 and Ti3C2@TiO2 samples. Photogenerated electrons first transfer from the CB of BPQDs with strong visible light absorption to the CB of TiO2 NPs, and then transfer to the favorable electrical conductivity of Ti3C2 MXene due to the existence of surface heterojunction. With the aid of charge transfer channel, it makes the separation and transfer efficiency of photogenerated carriers enhance significantly via the double heterojunction structure. Besides, the enlarged specific surface area of BPQDs/Ti3C2@TiO2 provides enormous adsorption and surface-active sites for photocatalytic process. These results not only demonstrated the promise of Ti3C2 MXene as an effective photocatalytic material, but also shed light on the crucial role of BPQDs in the photocatalytic degradation and hydrogen evolution reaction.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/3/452/s1, Figure S1: XRD patterns of Ti3C2 and TTC-x. (x = 100, 120, 140 and 160 °C, respectively), Figure S2: UV-vis DRS and plots of (αhv)2 vs hv curves of BPQDs, Figure S3: HRTEM image of black phosphorus nanosheets, Figure S4: Comparison on the photocatalytic efficiency of pristine Ti3C2 and TTC-x composites (10 mg/L MO solution), Figure S5: Cycling degradation curves of MO solution in the presence of BTTC-120 composite, Figure S6: The XRD patterns of used and fresh BTTC-120 sample, Figure S7: The photocatalytic hydrogen evolution rate of Ti3C2 and TTC-x (x = 100, 120, 140 and 160 °C, respectively).

Author Contributions

Z.Y. and H.S. (Huajun Sun) conceived and designed the experiments; Z.Y. and X.L. participated in the experiments and measurements; X.L. and H.S. (Huiting Sui) participated in the discussion of the results; Z.Y. and X.L. drafted the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant Nos. U1806221, 51672198), Innovation and Development Project of Zibo City (2017CX01A022), Instruction & Development Project for National Funding Innovation Demonstration Zone of Shandong Province (2016-181-11, 2017-41-1, 2017-41-3, 2018ZCQZB01, 2019ZCQZB03), Central Guiding Local Science and Technology Development Special Funds (Grant Nos. 2060503), and Key Research & Design Program of Shandong Province (2019GGX102011).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bhatkhande, D.S.; Pangarkar, V.G.; Beenackers, A.A.C.M. Photocatalytic degradation for environmental applications—A review. J. Chem. Technol. Biotechnol. 2002, 77, 102–116. [Google Scholar] [CrossRef]
  2. Maeda, K.; Domen, K. New non-oxide photocatalysts designed for overall water splitting under visible Light. J. Phys. Chem. C 2007, 111, 7851–7861. [Google Scholar] [CrossRef]
  3. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef] [PubMed]
  4. Fujishima, A.; Honda, K. Electrochemical photolysis of eater at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  5. Kumar, S.G.; Devi, L.G. Review on modified TiO2 photocatalysis under UV/visible light: Selected results and related mechanisms on interfacial charge carrier transfer dynamics. J. Phys. Chem. A 2011, 115, 13211–13241. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, G.; Yang, H.G.; Wang, X.; Cheng, L.; Pan, J.; Lu, G.Q.M.; Cheng, H. Visible light responsive nitrogen doped anatase TiO2 sheets with dominant {001} facets derived from TiN. J. Am. Chem. Soc. 2009, 131, 12868–12869. [Google Scholar] [CrossRef] [PubMed]
  7. Xiang, Q.; Yu, J.; Wang, W.; Jaroniec, M. Nitrogen self-doped nanosized TiO2 sheets with exposed {001} facets for enhanced visible-light photocatalytic activity. Chem. Commun. 2011, 47, 6906–6908. [Google Scholar] [CrossRef]
  8. Zhu, Y.; Zhang, Z.; Lu, N.; Hua, R.; Dong, B. Prolonging charge-separation states by doping lanthanide-ions into {001}/{101} facets-coexposed TiO2 nanosheets for enhancing photocatalytic H2 evolution. Chin. J. Catal. 2019, 40, 413–423. [Google Scholar] [CrossRef]
  9. Gahlot, S.; Jeanneau, E.; Dappozze, F.; Guillard, C.; Mishra, S. Precursor-mediated synthesis of Cu2−xSe nanoparticles and its composites with TiO2 for improved photocatalysis. Dalton Trans. 2018, 47, 8897–8905. [Google Scholar] [CrossRef]
  10. Humayun, M.; Zada, A.; Li, Z.; Xie, M.; Zhang, X.; Qu, Y.; Raziq, F.; Jing, L. Enhanced visible-light activities of porous BiFeO3 by coupling with nanocrystalline TiO2 and mechanism. Appl. Catal. B Environ. 2016, 180, 219–226. [Google Scholar] [CrossRef]
  11. Hu, Y.; Li, D.; Zheng, Y.; Chen, W.; He, Y.; Shao, Y.; Fu, X.; Xiao, G. BiVO4/TiO2 nanocrystalline heterostructure: A wide spectrum responsive photocatalyst towards the highly efficient decomposition of gaseous benzene. Appl. Catal. B Environ. 2011, 104, 30–36. [Google Scholar] [CrossRef]
  12. Amanchi, S.R.; Kumar, K.V.A.; Lakshminarayana, B.; Satyanarayana, G.; Subrahmanyam, C. Photocatalytic hydrogenation of nitroarenes: Supporting effect of CoOx on TiO2 nanoparticles. New J. Chem. 2019, 43, 748–754. [Google Scholar] [CrossRef]
  13. Ismail, A.A.; Abdelfattah, I.; Helal, A.; Al-Sayari, S.A.; Robben, L.; Bahnemann, D.W. Ease synthesis of mesoporous WO3-TiO2 nanocomposites with enhanced photocatalytic performance for photodegradation of herbicide imazapyr under visible light and UV illumination. J. Hazard. Mater. 2016, 307, 43–54. [Google Scholar] [CrossRef] [PubMed]
  14. Sajjad, A.K.L.; Shamaila, S.; Tian, B.; Chen, F.; Zhang, J. One step activation of WOx/TiO2 nanocomposites with enhanced photocatalytic activity. Appl. Catal. B Environ. 2009, 91, 397–405. [Google Scholar] [CrossRef]
  15. Zhang, L.; Zhang, Q.; Xie, H.; Guo, J.; Lyu, H.; Li, Y.; Sun, Z.; Wang, H.; Guo, Z. Electrospun titania nanofibers segregated by graphene oxide for improved visible light photocatalysis. Appl. Catal. B Environ. 2017, 201, 470–478. [Google Scholar] [CrossRef]
  16. Ran, J.; Gao, G.; Li, F.; Ma, T.; Du, A.; Qiao, S. Ti3C2 MXene co-catalyst on metal sulfide photo-absorbers for enhanced visible-light photocatalytic hydrogen production. Nat. Commun. 2017, 8, 13907. [Google Scholar] [CrossRef] [Green Version]
  17. Lukatskaya, M.R.; Mashtalir, O.; Ren, C.E.; Dall’Agnese, Y.; Rozier, P.; Taberna, P.L.; Naguib, M.; Simon, P.; Barsoum, M.W.; Gogotsi, Y. Cation intercalation and high volumetric capacitance of two-dimensional titanium carbide. Science 2013, 341, 1502–1505. [Google Scholar] [CrossRef] [Green Version]
  18. Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Heon, M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4248–4253. [Google Scholar] [CrossRef] [Green Version]
  19. Ghidiu, M.; Lukatskaya, M.R.; Zhao, M.; Gogotsi, Y.; Barsoum, M.W. Conductive two-dimensional titanium carbide ‘clay’ with high volumetric capacitance. Nature 2014, 516, 78–81. [Google Scholar] [CrossRef]
  20. Ng, V.M.H.; Huang, H.; Zhou, K.; Lee, P.S.; Que, W.; Xu, J.Z.; Kong, L.B. Recent progress in layered transition metal carbides and/or nitrides (MXenes) and their composites: Synthesis and applications. J. Mater. Chem. A 2017, 5, 3039–3068. [Google Scholar]
  21. Liu, N.; Lu, N.; Su, Y.; Wang, P.; Quan, X. Fabrication of g-C3N4/Ti3C2 composite and its visible-light photocatalytic capability for ciprofloxacin degradation. Sep. Purif. Technol. 2019, 211, 782–789. [Google Scholar] [CrossRef]
  22. Liu, Y.; Luo, R.; Li, Y.; Qi, J.; Wang, C.; Li, J.; Sun, X.; Wang, L. Sandwich-like Co3O4/MXene composite with enhanced catalytic performance for bisphenol A degradation. Chem. Eng. J. 2018, 347, 731–740. [Google Scholar] [CrossRef]
  23. Shahzad, A.; Rasool, K.; Nawaz, M.; Miran, W.; Jang, J.; Moztahida, M.; Mahmoud, K.A.; Lee, D.S. Heterostructural TiO2/Ti3C2Tx (MXene) for photocatalytic degradation of antiepileptic drug carbamazepine. Chem. Eng. J. 2018, 349, 748–755. [Google Scholar] [CrossRef]
  24. Dong, F.; Xiong, T.; Sun, Y.; Zhang, Y.; Zhou, Y. Controlling interfacial contact and exposed facets for enhancing photocatalysis via 2D-2D heterostructures. Chem. Commun. 2015, 51, 8249–8252. [Google Scholar] [CrossRef]
  25. Low, J.; Cao, S.; Yu, J.; Wageh, S. Two-dimensional layered composite photocatalysts. Chem. Commun. 2014, 50, 10768–10777. [Google Scholar] [CrossRef] [PubMed]
  26. Peng, J.; Chen, X.; Ong, W.; Zhao, X.; Li, N. Surface and heterointerface engineering of 2D MXenes and their nanocomposites: Insights into electro- and photocatalysis. Chem 2019, 5, 1–33. [Google Scholar] [CrossRef] [Green Version]
  27. Cao, S.; Shen, B.; Tong, T.; Fu, J.; Yu, J. 2D/2D heterojunction of ultrathin MXene/Bi2WO6 nanosheets for improved photocatalytic CO2 reduction. Adv. Funct. Mater. 2018, 28, 1800136. [Google Scholar] [CrossRef]
  28. Ye, M.; Wang, X.; Liu, E.; Ye, J.; Wang, D. Boosting the photocatalytic activity of P25 for carbon dioxide reduction using a surface-alkalinized titanium carbide MXene as co-catalyst. ChemSusChem 2018, 10, 1606–1611. [Google Scholar] [CrossRef]
  29. Low, J.; Zhang, L.; Tong, T.; Shen, B.; Yu, J. TiO2/MXene Ti3C2 composite with excellent photocatalytic CO2 reduction activity. J. Catal. 2018, 361, 255–266. [Google Scholar] [CrossRef]
  30. Sun, Y.; Jin, D.; Sun, Y.; Meng, X.; Gao, Y.; Agnese, Y.D.; Chen, G.; Wang, X. g-C3N4/Ti3C2Tx (MXenes) composite with oxidized surface groups for efficient photocatalytic hydrogen evolution. J. Mater. Chem. A 2018, 6, 9124–9131. [Google Scholar] [CrossRef]
  31. Li, Y.; Yin, Z.; Ji, G.; Liang, Z.; Xue, Y.; Guo, Y.; Tian, J.; Wang, X.; Cui, H. 2D/2D/2D heterojunction of Ti3C2 MXene/MoS2 nanosheets/TiO2 nanosheets with exposed (001) facets toward enhanced photocatalytic hydrogen production activity. Appl. Catal. B Environ. 2019, 246, 12–20. [Google Scholar] [CrossRef]
  32. Wang, H.; Wu, Y.; Xiao, T.; Yuan, X.; Zeng, G.; Tu, W.; Wu, S.; Lee, H.Y.; Tan, Y.Z.; Chew, J.W. Formation of quasi-core-shell In2S3/anatase TiO2@metallic Ti3C2Tx hybrids with favorable charge transfer channels for excellent visible-light-photocatalytic performance. Appl. Catal. B Environ. 2018, 233, 213–225. [Google Scholar] [CrossRef]
  33. Peng, C.; Wei, P.; Li, X.; Liu, Y.; Cao, Y.; Wang, H.; Yu, H.; Peng, F.; Zhang, L.; Zhang, B.; et al. High efficiency photocatalytic hydrogen production over ternary Cu/TiO2@Ti3C2Tx enabled by low-work-function 2D titanium carbide. Nano Energy 2018, 53, 97–107. [Google Scholar] [CrossRef]
  34. Di, J.; Xia, J.; Ji, M.; Wang, B.; Li, X.; Zhang, Q.; Chen, Z.; Li, H. Nitrogen-doped carbon quantum dots/BiOBr ultrathin nanosheets: In situ strong coupling and improved molecular oxygen activation ability under visible light irradiation. ACS Sustain. Chem. Eng. 2016, 4, 136–146. [Google Scholar] [CrossRef]
  35. Zhang, X.; Xie, H.; Liu, Z.; Tan, C.; Luo, Z.; Li, H.; Lin, J.; Sun, L.; Chen, W.; Xu, Z.; et al. Black phosphorus quantum dots. Angewandte 2015, 54, 3633–3657. [Google Scholar]
  36. Pan, L.; Zhu, X.; Sun, K.; Liu, Y.; Xie, X.; Ye, X. Molecular level distribution of black phosphorus quantum dots on nitrogen-doped graphene nanosheets for superior lithium storage. Nano Energy 2016, 30, 347–354. [Google Scholar] [CrossRef]
  37. Fu, N.; Huang, C.; Lin, P.; Zhu, M.; Li, T.; Ye, M.; Lin, S.; Zhang, G.; Du, J.; Liu, C.; et al. Black phosphorus quantum dots as dual-functional electron-selective materials for efficient plastic perovskite solar cells. J. Mater. Chem. A 2018, 6, 8886–8894. [Google Scholar] [CrossRef]
  38. Gu, W.; Pei, X.; Cheng, Y.; Zhang, C.; Zhang, J.; Yan, Y.; Ding, C.; Xian, Y. Black phosphorus quantum dots as the ratiometric fluorescence probe for trace mercury ion detection based on inner filter effect. ACS Sens. 2017, 2, 576–582. [Google Scholar] [CrossRef]
  39. Yuan, Y.; Yang, S.; Wang, P.; Yang, Y.; Li, Z.; Chen, D.; Yu, Z.; Zou, Z. Bandgap-tunable black phosphorus quantum dots: Visible-light-active photocatalysts. Chem. Commun. 2018, 54, 960–963. [Google Scholar] [CrossRef]
  40. Fang, Y.; Liu, Z.; Han, J.; Jin, Z.; Han, Y.; Wang, F.; Niu, Y.; Wu, Y.; Xu, Y. High-performance electrocatalytic conversion of N2 to NH3 using oxygen-vacancy-rich TiO2 in situ grown on Ti3C2Tx MXene. Adv. Energy Mater. 2019, 9, 1803406. [Google Scholar] [CrossRef]
  41. Zhao, X.; Liu, M.; Chen, Y.; Hou, B.; Zhang, N.; Chen, B.; Yang, N.; Chen, K.; Li, J.; An, L. Fabrication of layered Ti3C2 with an accordion-like structure as a potential cathode material for high performance lithium-sulfur batteries. J. Mater. Chem. A 2015, 3, 7870–7876. [Google Scholar] [CrossRef]
  42. Wang, R.; Wang, S.; Zhang, Y.; Jin, D.; Tao, X.; Zhang, L. Graphene coupled Ti3C2 MXenes-derived TiO2 mesostructure: Promising sodium-ion capacitor anode with fast ion storage and long-term cycling. J. Mater. Chem. A 2018, 6, 1017–1027. [Google Scholar] [CrossRef]
  43. Han, M.; Yin, X.; Wu, H.; Hou, Z.; Song, C.; Li, X.; Zhang, L.; Cheng, L. Ti3C2 MXenes with modified surface for high-performance electromagnetic absorption and shielding in the X-band. ACS Appl. Mater. Interfaces 2016, 8, 21011–21019. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, Y.; Zhang, P.; Sun, N.; Anasori, B.; Zhu, Q.; Liu, H.; Gogotsi, Y.; Xu, B. Self-assembly of transition metal oxide nanostructures on MXene nanosheets for fast and stable lithium storage. Adv. Mater. 2018, 30, 1707334. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, C.; Wang, L.; Tang, Y.; Luo, S.; Liu, Y.; Zhang, S.; Zeng, Y.; Xu, Y. Vertical single or few-layer MoS2 nanosheets rooting into TiO2 nanofibers for highly efficient photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2015, 164, 1–9. [Google Scholar] [CrossRef]
  46. Bai, S.; Liu, H.; Sun, J.; Tian, Y.; Chen, S.; Song, J.; Luo, R.; Li, D.; Chen, A.; Liu, C. Improvement of TiO2 photocatalytic properties under visible light by WO3/TiO2 and MoO3/TiO2 composites. Appl. Surf. Sci. 2015, 338, 61–68. [Google Scholar] [CrossRef]
  47. Xing, M.; Wu, Y.; Zhang, J.; Chen, F. Effect of synergy on the visible light activity of B, N and Fe co-doped TiO2 for the degradation of MO. Nanoscale 2010, 2, 1233–1239. [Google Scholar] [CrossRef]
  48. Meng, Z.; Zhu, L.; Choi, J.; Chen, M.; Oh, W. Effect of Pt treated fullerene/TiO2 on the photocatalytic degradation of MO under visible light. J. Mater. Chem. 2011, 21, 7596–7603. [Google Scholar] [CrossRef]
  49. Zang, Y.; Li, L.; Xu, Y.; Zuo, Y.; Li, G. Hybridization of brookite TiO2 with g-C3N4: A visible-light-driven photocatalyst for As3+ oxidation, MO degradation and water splitting for hydrogen evolution. J. Mater. Chem. A 2014, 2, 15774–15780. [Google Scholar] [CrossRef]
  50. Ilkhechi, N.N.; Akbarpour, M.R.; Yavari, R.; Azar, Z. Sn4+ and La3+ co doped TiO2 nanoparticles and their optical, photocatalytic and antibacterial properties under visible light. J. Mater. Sci. Mater. Electron. 2017, 28, 16658–16664. [Google Scholar] [CrossRef]
  51. Shi, H.; Yu, Y.; Zhang, Y.; Feng, X.; Zhao, X.; Tan, H.; Khan, S.U.; Li, Y.; Wang, E. Polyoxometalate/TiO2/Ag composite nanofibers with enhanced photocatalytic performance under visible light. Appl. Catal. B Environ. 2018, 221, 280–289. [Google Scholar] [CrossRef]
  52. Zangeneh, H.; Zinatizadeh, A.A.; Zinadini, S.; Feyzi, M.; Rafiee, E.; Bahnemann, D.W. A novel L-Histidine (C, N) codoped-TiO2-CdS nanocomposite for efficient visible photo-degradation of recalcitrant compounds from wastewater. J. Hazard. Mater. 2019, 369, 384–397. [Google Scholar] [CrossRef] [PubMed]
  53. Zhao, Z.; Kou, T.; Zhang, L.; Zhai, S.; Wang, W.; Wang, Y. Dealloying induced N-doping in spindle-like porous rutile TiO2 for enhanced visible light photocatalytic activity. Corros. Sci. 2018, 137, 204–211. [Google Scholar] [CrossRef]
  54. Zargari, S.; Rahimi, R.; Ghaffarinejad, A.; Morsali, A. Enhanced visible light photocurrent response and photodegradation efficiency over TiO2-graphene nanocomposite pillared with tin porphyrin. J. Colloid Interface Sci. 2016, 466, 310–321. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 10 00452 g001 550

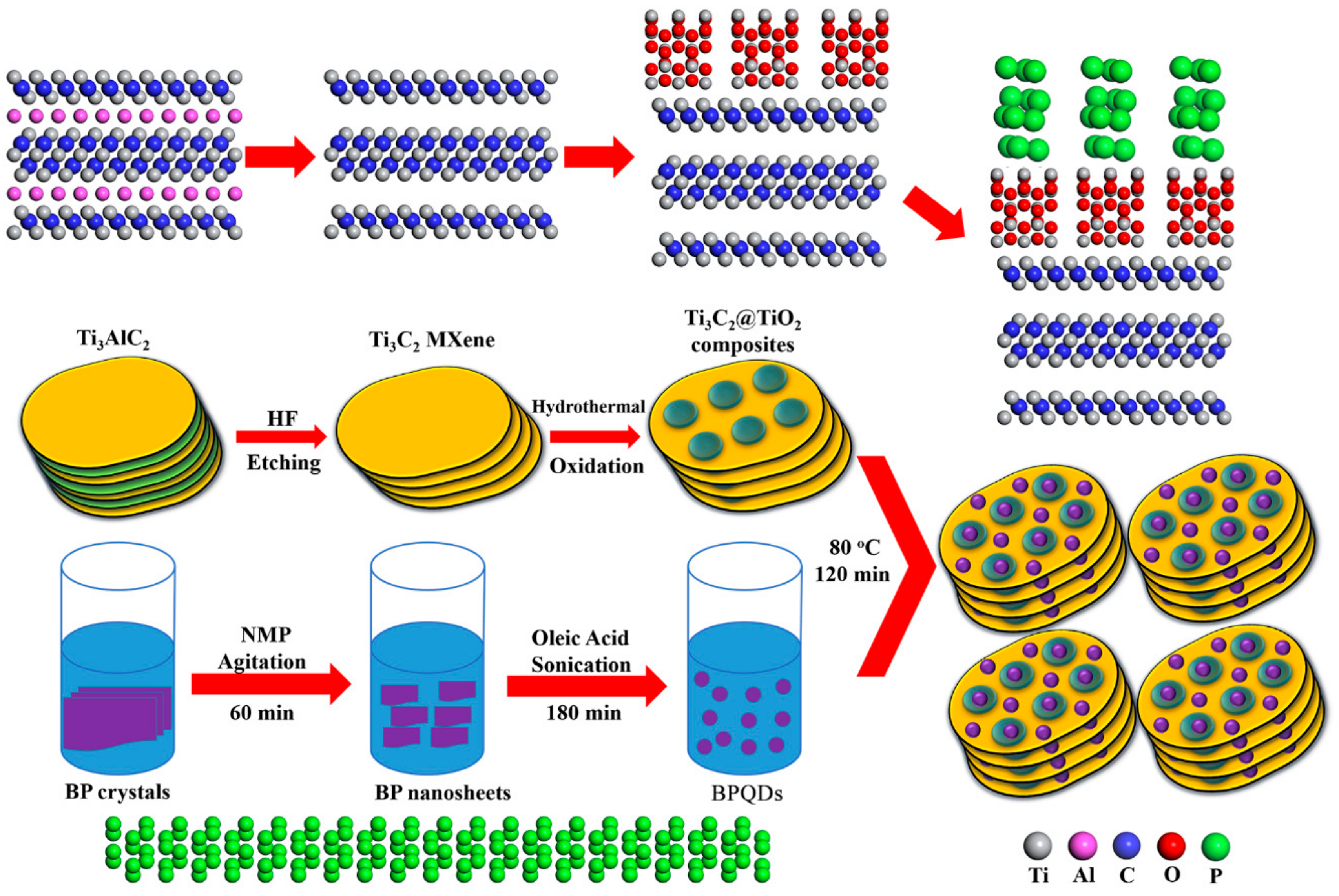

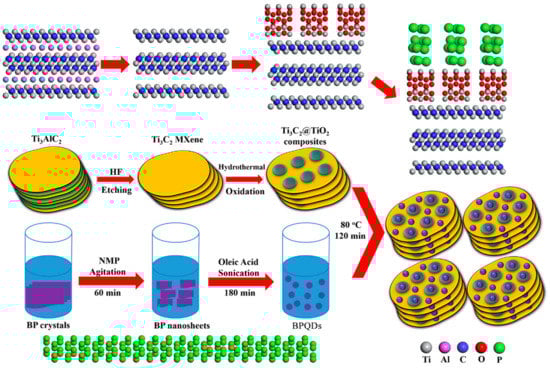

Figure 1. Schematic illustration of the preparation of BPQDs/Ti3C2@TiO2 composites.
Figure 1. Schematic illustration of the preparation of BPQDs/Ti3C2@TiO2 composites.
Nanomaterials 10 00452 g001
Nanomaterials 10 00452 g002 550

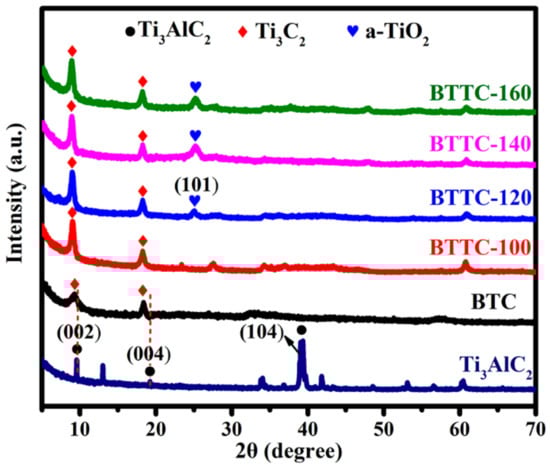

Figure 2. XRD patterns of raw Ti3AlC2, BTC, and BTTC-x (x = 100, 120, 140, and 160 °C, respectively).
Figure 2. XRD patterns of raw Ti3AlC2, BTC, and BTTC-x (x = 100, 120, 140, and 160 °C, respectively).
Nanomaterials 10 00452 g002
Nanomaterials 10 00452 g003 550
Figure 3. FESEM images of: (a) BTC, (b) BTTC-100, (c,d) BTTC-120, (e) BTTC-140, and (f) BTTC-160.
Figure 3. FESEM images of: (a) BTC, (b) BTTC-100, (c,d) BTTC-120, (e) BTTC-140, and (f) BTTC-160.
Nanomaterials 10 00452 g003
Nanomaterials 10 00452 g004 550
Figure 4. (a) UV-vis diffuse reflectance spectra (DRS) of as-synthesized BTC and BTTC-x (x=100, 120, 140, and 160 °C, respectively); (b) N2 adsorption-desorption isotherms of the as-prepared BTC, TTC-120, and BTTC-120 powders; (c) Photocurrent response and (d) electrochemical impedance spectra of BTC, TTC-120, and BTTC-120.
Figure 4. (a) UV-vis diffuse reflectance spectra (DRS) of as-synthesized BTC and BTTC-x (x=100, 120, 140, and 160 °C, respectively); (b) N2 adsorption-desorption isotherms of the as-prepared BTC, TTC-120, and BTTC-120 powders; (c) Photocurrent response and (d) electrochemical impedance spectra of BTC, TTC-120, and BTTC-120.
Nanomaterials 10 00452 g004
Nanomaterials 10 00452 g005 550
Figure 5. (a,b) HRTEM images of BPQDs; (c–e) HRTEM images of BTTC-120 sample; and (f–h) element mappings of P, Ti, O, and C of BTTC-120.
Figure 5. (a,b) HRTEM images of BPQDs; (c–e) HRTEM images of BTTC-120 sample; and (f–h) element mappings of P, Ti, O, and C of BTTC-120.
Nanomaterials 10 00452 g005
Nanomaterials 10 00452 g006 550

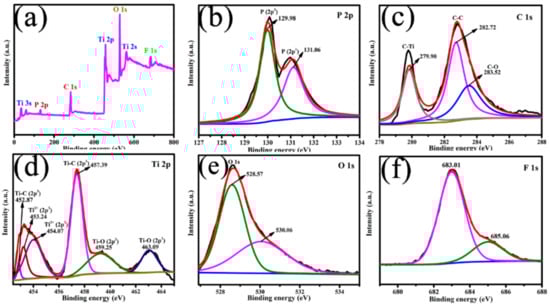

Figure 6. (a) XPS survey spectra and high resolution XPS spectra of (b) P 2p, (c) C 1s, (d) Ti 2p, (e) O 1s, (f) F 1s of BTTC-120 sample.
Figure 6. (a) XPS survey spectra and high resolution XPS spectra of (b) P 2p, (c) C 1s, (d) Ti 2p, (e) O 1s, (f) F 1s of BTTC-120 sample.
Nanomaterials 10 00452 g006
Nanomaterials 10 00452 g007 550

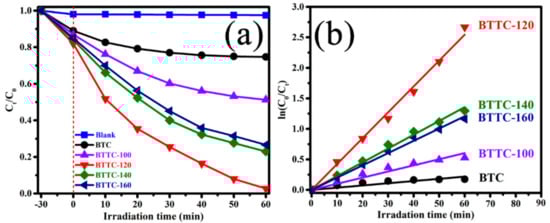

Figure 7. (a) Comparison on the photocatalytic efficiency of pristine BTC and BTTC-x composites under visible irradiation (10 mg/L MO (methylene orange) solution); (b) the corresponding rate constant k values of BTC and BTTC-x samples.
Figure 7. (a) Comparison on the photocatalytic efficiency of pristine BTC and BTTC-x composites under visible irradiation (10 mg/L MO (methylene orange) solution); (b) the corresponding rate constant k values of BTC and BTTC-x samples.
Nanomaterials 10 00452 g007
Nanomaterials 10 00452 g008 550

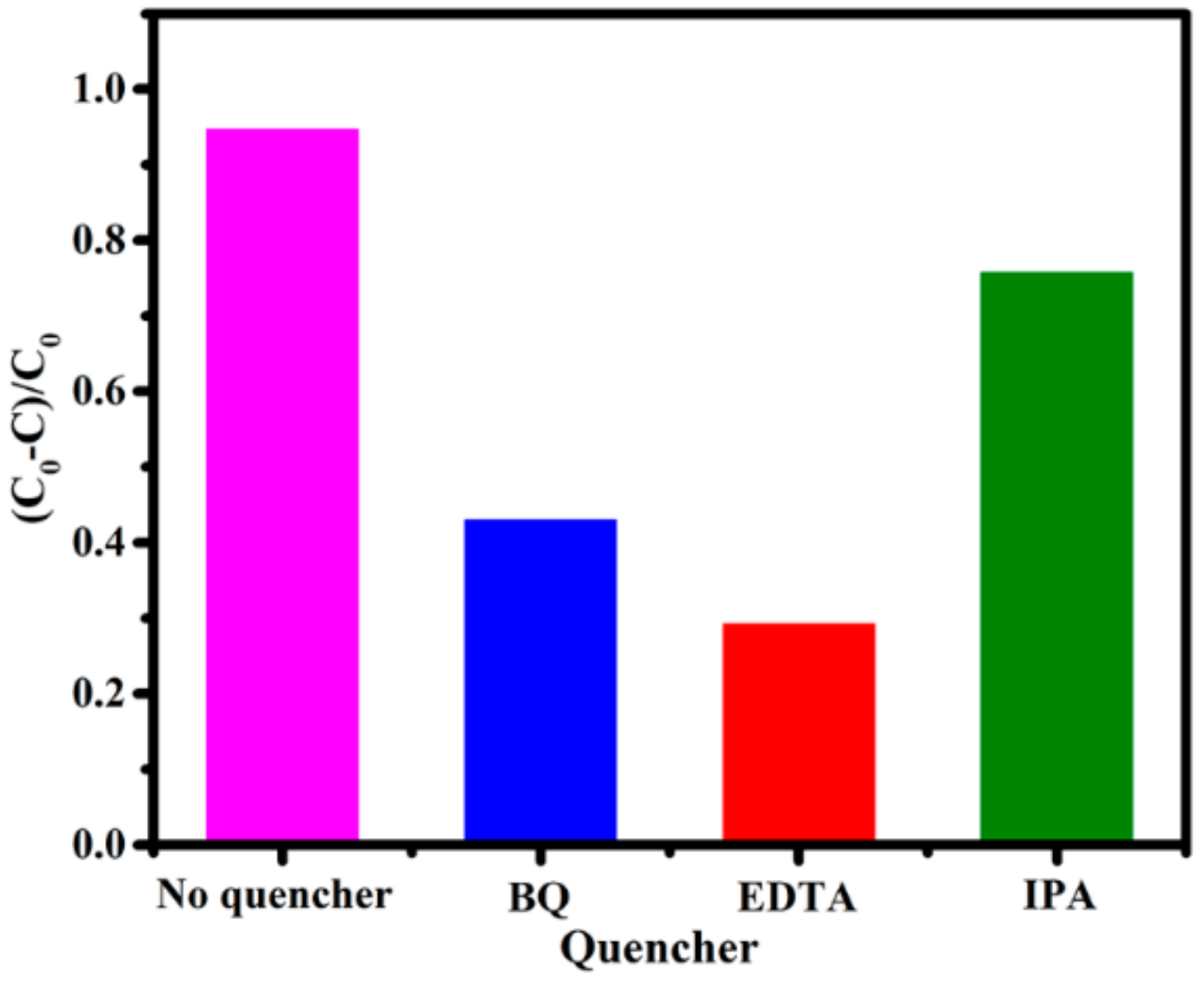

Figure 8. The trapping tests of active species during the photocatalytic degradation of MO over BTTC-120 under visible irradiation.
Figure 8. The trapping tests of active species during the photocatalytic degradation of MO over BTTC-120 under visible irradiation.
Nanomaterials 10 00452 g008
Nanomaterials 10 00452 g009 550

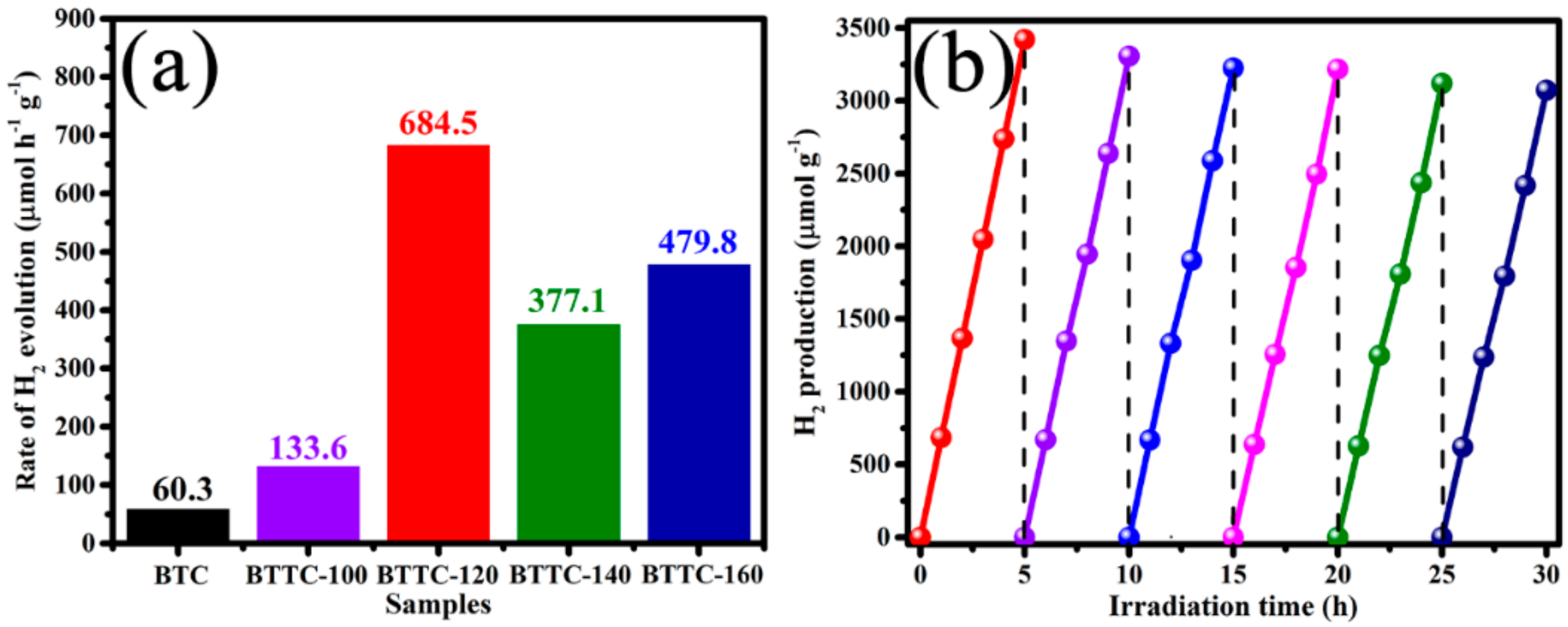

Figure 9. (a) The photocatalytic hydrogen evolution rate of BTC and BTTC-x (x = 100, 120, 140, and 160 °C, respectively); (b) the recycling tests of BTTC-120 for photocatalytic hydrogen generation process.
Figure 9. (a) The photocatalytic hydrogen evolution rate of BTC and BTTC-x (x = 100, 120, 140, and 160 °C, respectively); (b) the recycling tests of BTTC-120 for photocatalytic hydrogen generation process.
Nanomaterials 10 00452 g009
Nanomaterials 10 00452 g010 550

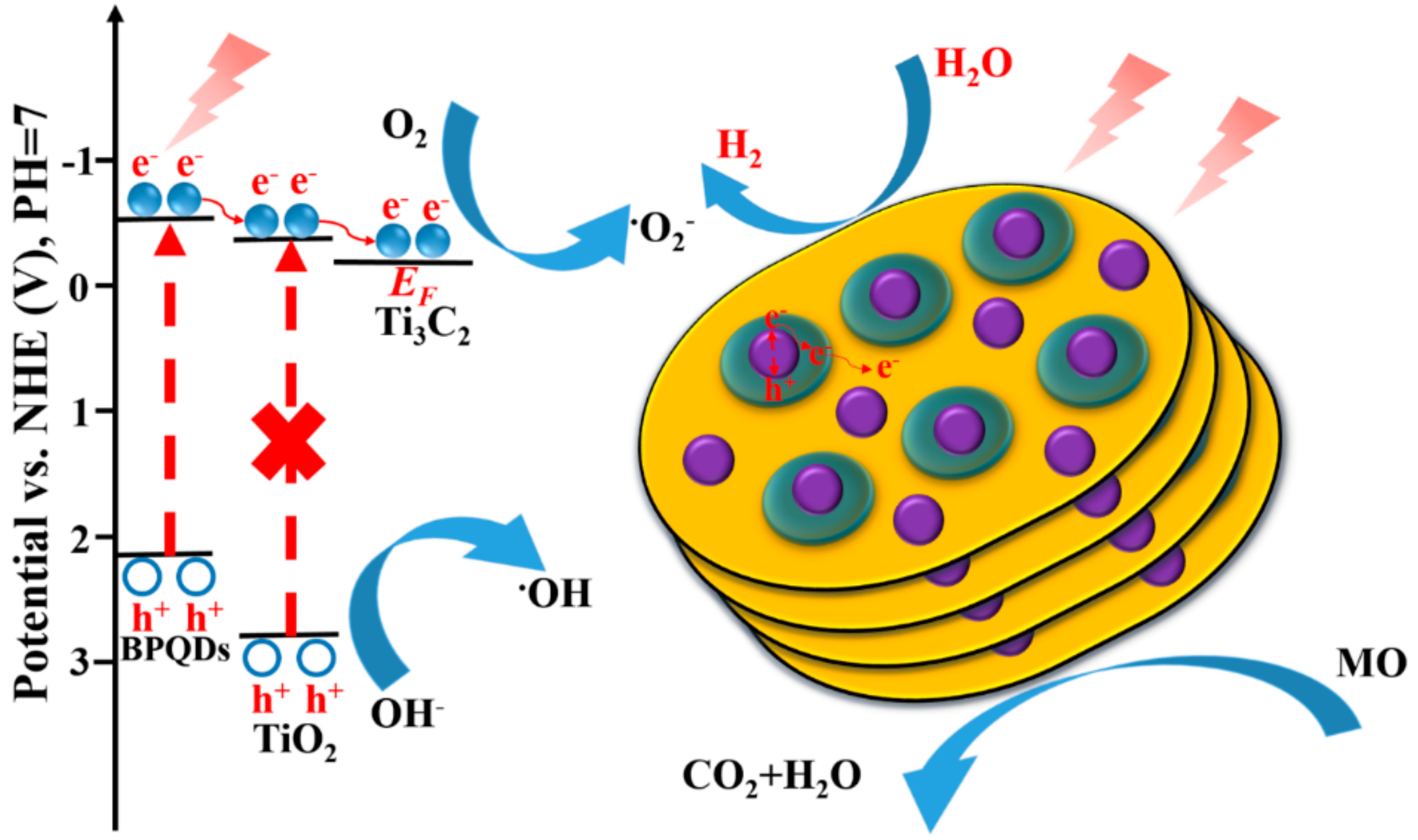

Figure 10. Schematic illustration of photocatalytic reaction of BPQDs/Ti3C2@TiO2 composites under visible irradiation.
Figure 10. Schematic illustration of photocatalytic reaction of BPQDs/Ti3C2@TiO2 composites under visible irradiation.
Nanomaterials 10 00452 g010
Table
Table 1. Different TiO2-based composites for photocatalytic degradation of MO under visible light irradiation.
Table 1. Different TiO2-based composites for photocatalytic degradation of MO under visible light irradiation.
CompositeVisible Light SourceCatalyst MassDye ConcentrationDegradation EfficiencyReferences
(Fe, N, B)-TiO21000 W‡tungsten halogen lamp70 mgMO, (20 mg/L), 50 mL300 min, 73%[47]
Pt-fullerene/TiO28 W halogen lamp50 mgMO, (3.3 mg/L), 50 mL120 min, 52%[48]
br-TiO2/g-C3N4300 W Xe lamp100 mgMO, (10 mg/L), 100 mL180 min, 55%[49]
TiO2-Sn-La150 W Xe lamp80 mgMO, (5 mg/L), 50 mL120 min, 99%[50]
PMo12/TiO2/Ag300 W Xe lamp20 mgMO, (20 mg/L), 20 mL120 min, 99%[51]
L-Histidine (C, N codoped)-TiO2-CdS50 W LED arrays300 mgMO, (10 mg/L), 200 mL120 min, 95%[52]
In2S3/anatase TiO2 @Ti3C2Tx300 W Xe lamp60 mgMO, (20 mg/L), 100 mL60 min, 90%[32]
TiO2-graphene450 W Xe lamp30 mgMO, (10 mg/L), 50 mL180 min, 99%[53]
N-doped rutile TiO2300 W Xe lamp50 mgMO, (10 mg/L), 25 mL120 min, 92%[54]
BPQDs/Ti3C2@TiO2400 W metal halide lamp50 mgMO, (10 mg/L), 50 mL60 min, 93%This work

Share and Cite

MDPI and ACS Style

Yao, Z.; Sun, H.; Sui, H.; Liu, X. Construction of BPQDs/Ti3C2@TiO2 Composites with Favorable Charge Transfer Channels for Enhanced Photocatalytic Activity under Visible Light Irradiation. Nanomaterials 2020, 10, 452. https://doi.org/10.3390/nano10030452

AMA Style

Yao Z, Sun H, Sui H, Liu X. Construction of BPQDs/Ti3C2@TiO2 Composites with Favorable Charge Transfer Channels for Enhanced Photocatalytic Activity under Visible Light Irradiation. Nanomaterials. 2020; 10(3):452. https://doi.org/10.3390/nano10030452

Chicago/Turabian Style

Yao, Ziyu, Huajun Sun, Huiting Sui, and Xiaofang Liu. 2020. "Construction of BPQDs/Ti3C2@TiO2 Composites with Favorable Charge Transfer Channels for Enhanced Photocatalytic Activity under Visible Light Irradiation" Nanomaterials 10, no. 3: 452. https://doi.org/10.3390/nano10030452

APA Style

Yao, Z., Sun, H., Sui, H., & Liu, X. (2020). Construction of BPQDs/Ti3C2@TiO2 Composites with Favorable Charge Transfer Channels for Enhanced Photocatalytic Activity under Visible Light Irradiation. Nanomaterials, 10(3), 452. https://doi.org/10.3390/nano10030452

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
