Next Article in Journal
Bulk-Like SnO2-Fe2O3@Carbon Composite as a High-Performance Anode for Lithium Ion Batteries
Previous Article in Journal
Binder-Free V2O5 Cathode for High Energy Density Rechargeable Aluminum-Ion Batteries
Open AccessArticle

Systematic Design of Polypyrrole/Carbon Fiber Electrodes for Efficient Flexible Fiber-Type Solid-State Supercapacitors

by Yu-Shun Sung 1,† and Lu-Yin Lin 1,2,*,†
1
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, Taipei 10608, Taiwan
2
Research Center of Energy Conservation for New Generation of Residential, Commercial, and Industrial Sectors, Taipei 10608, Taiwan
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2020, 10(2), 248; https://doi.org/10.3390/nano10020248
Received: 13 November 2019 / Revised: 31 December 2019 / Accepted: 25 January 2020 / Published: 30 January 2020

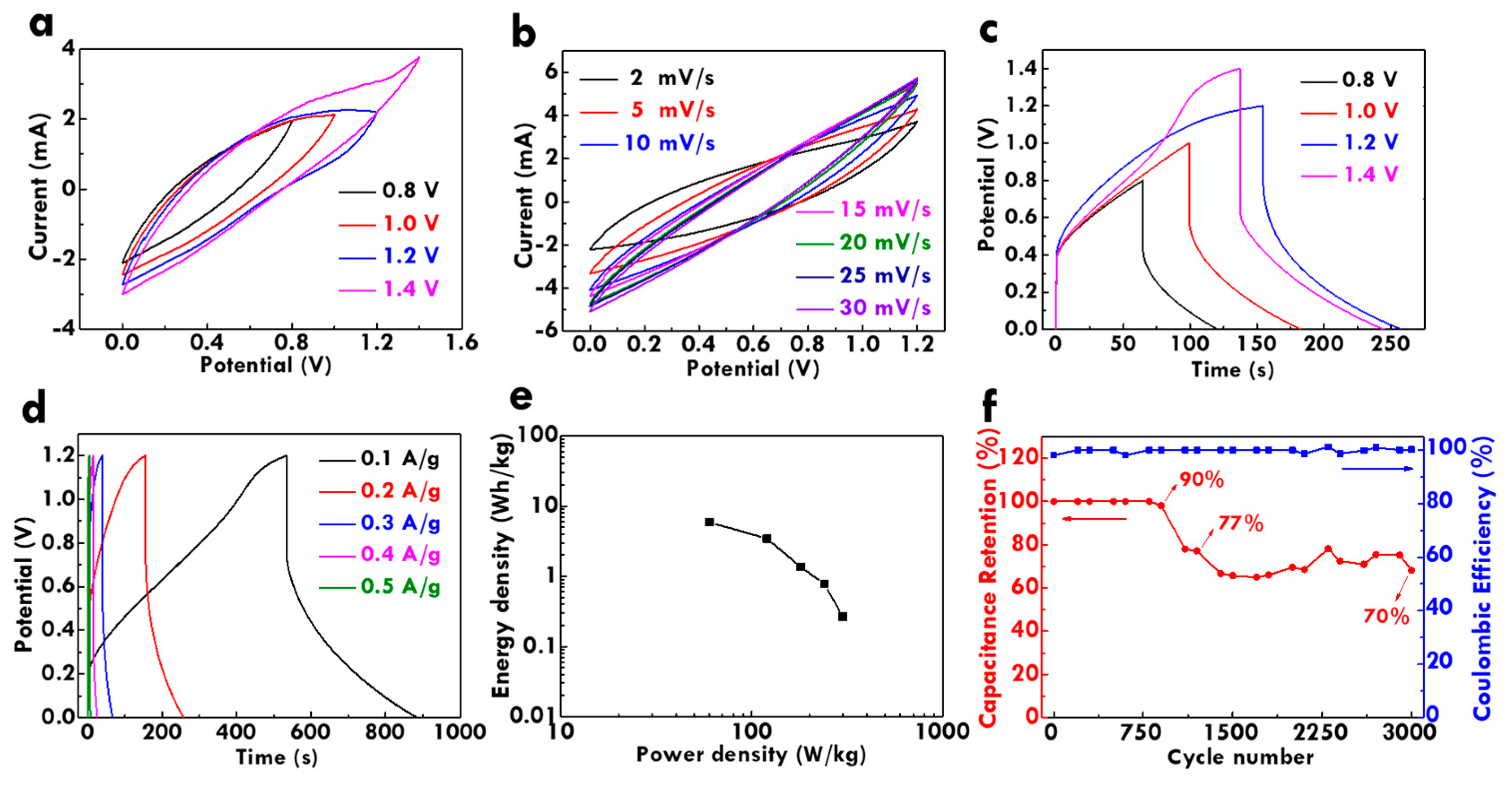

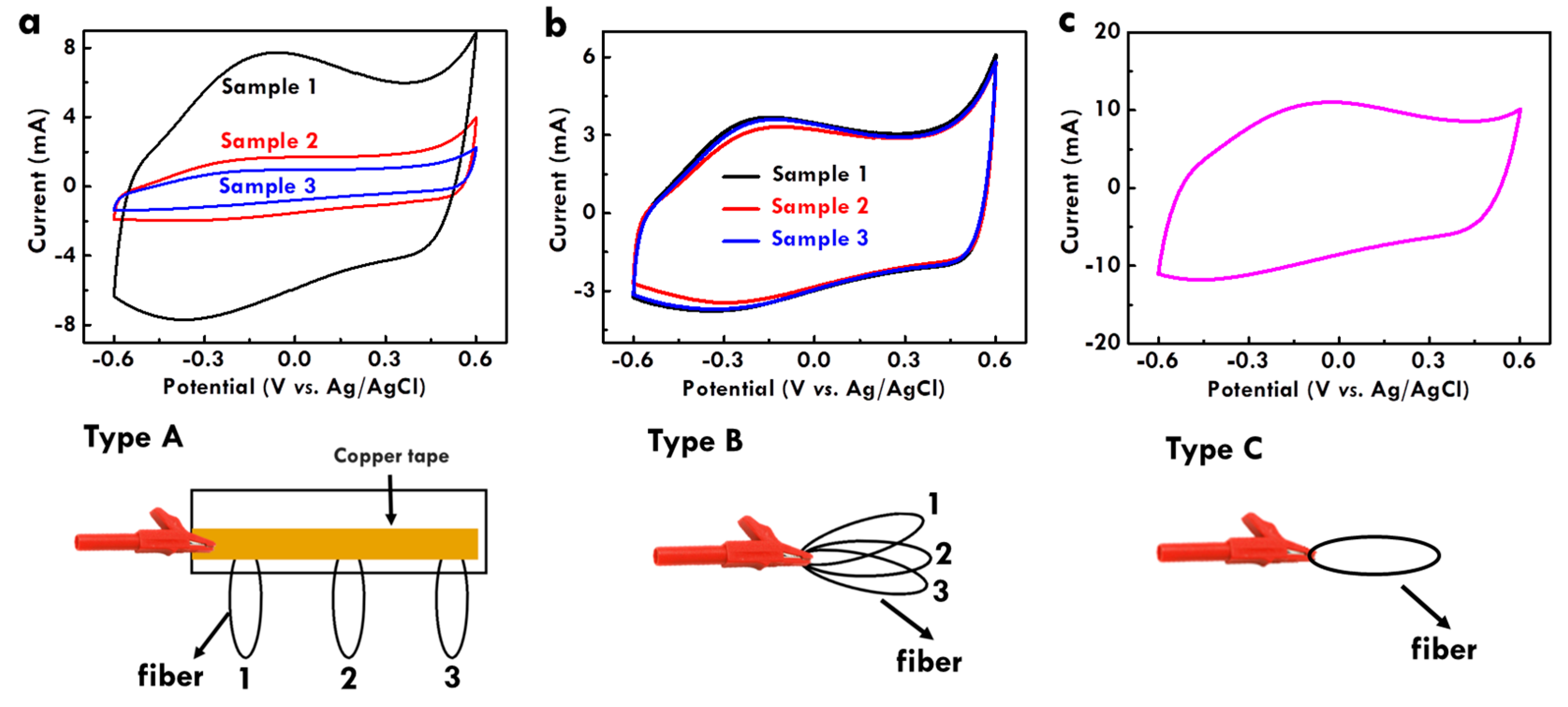

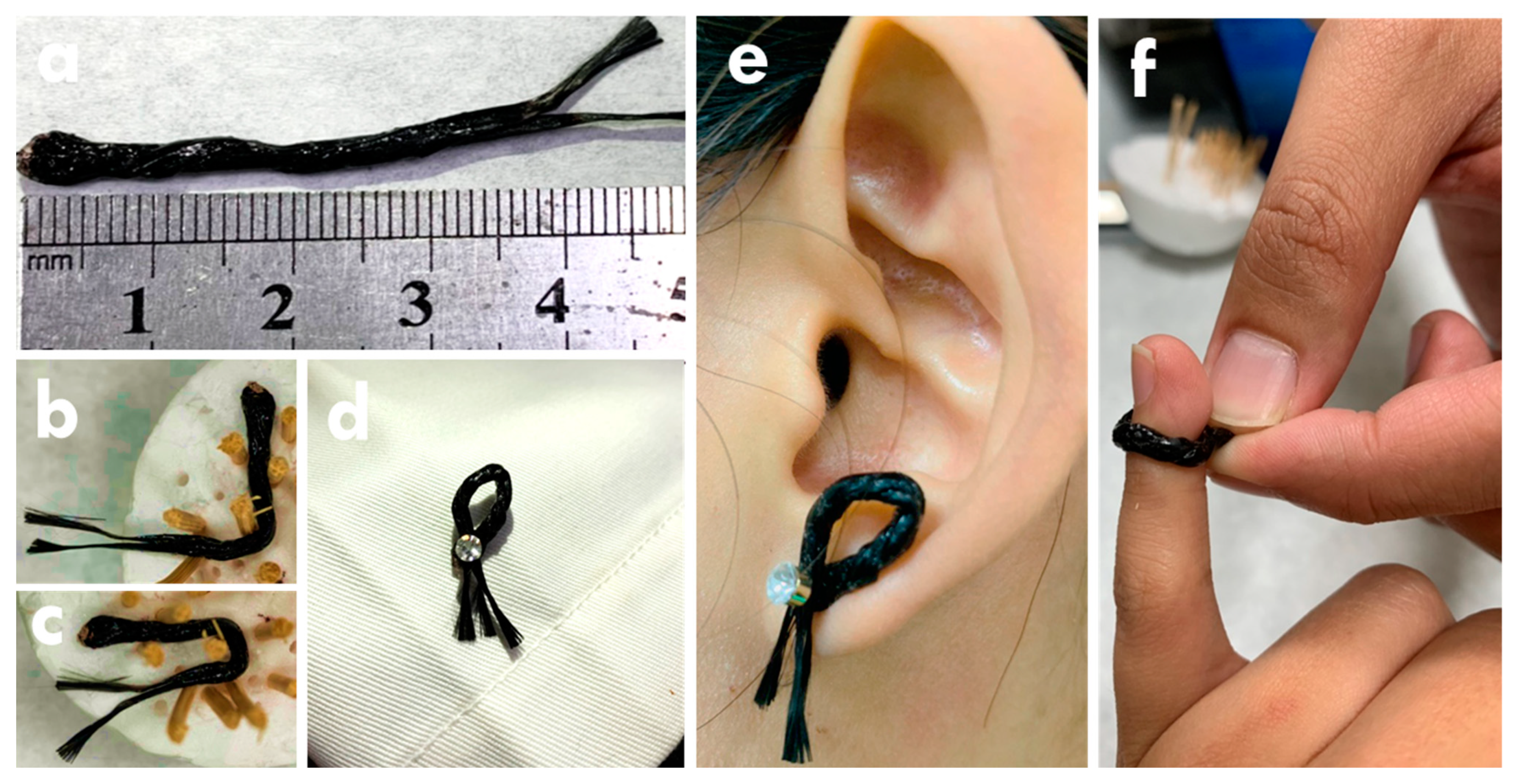

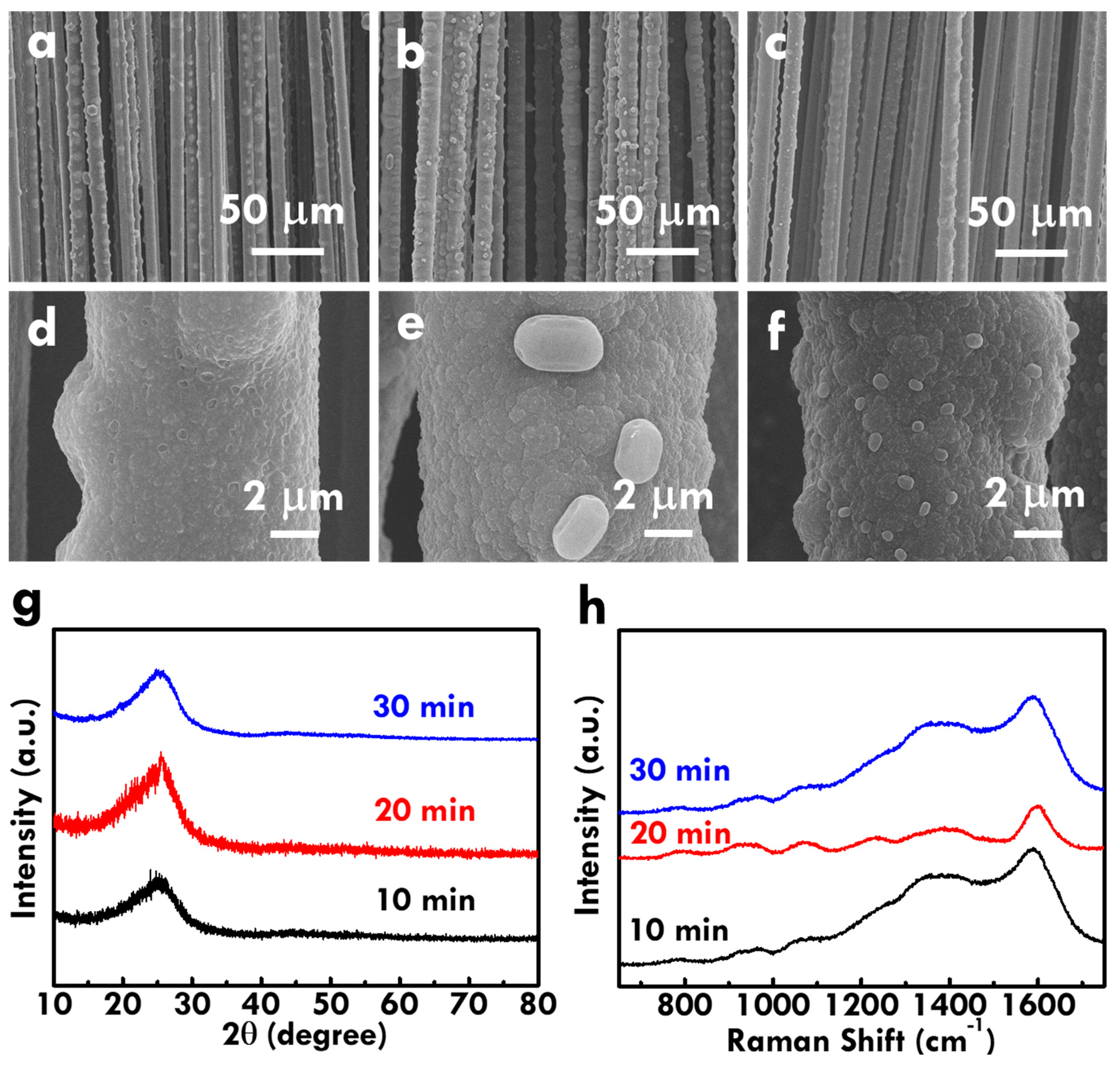

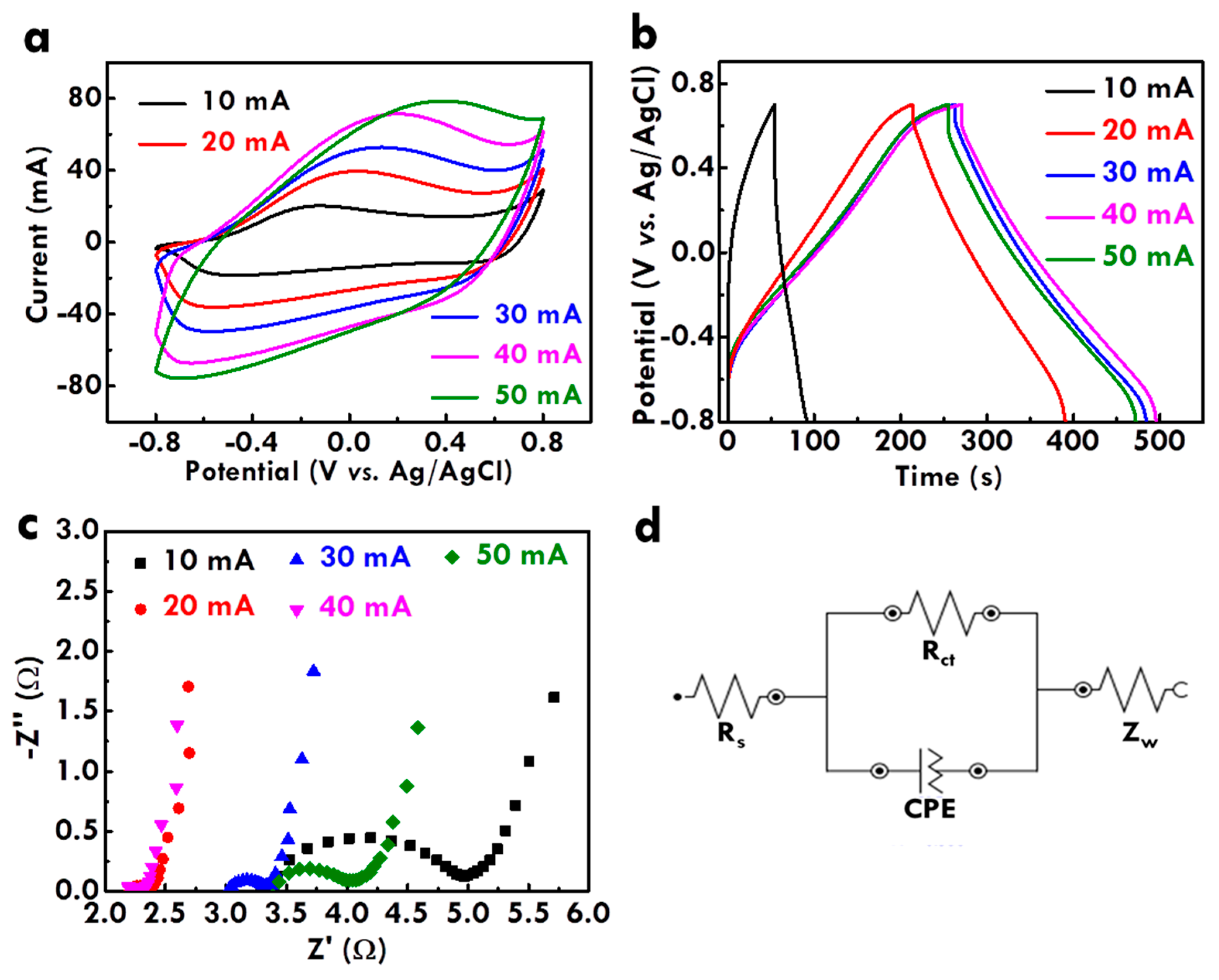

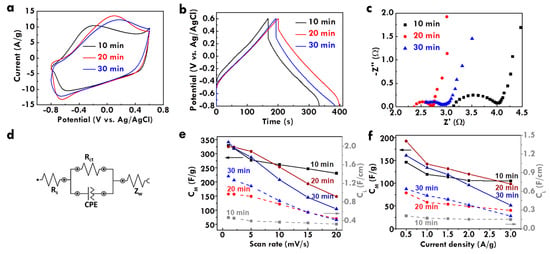

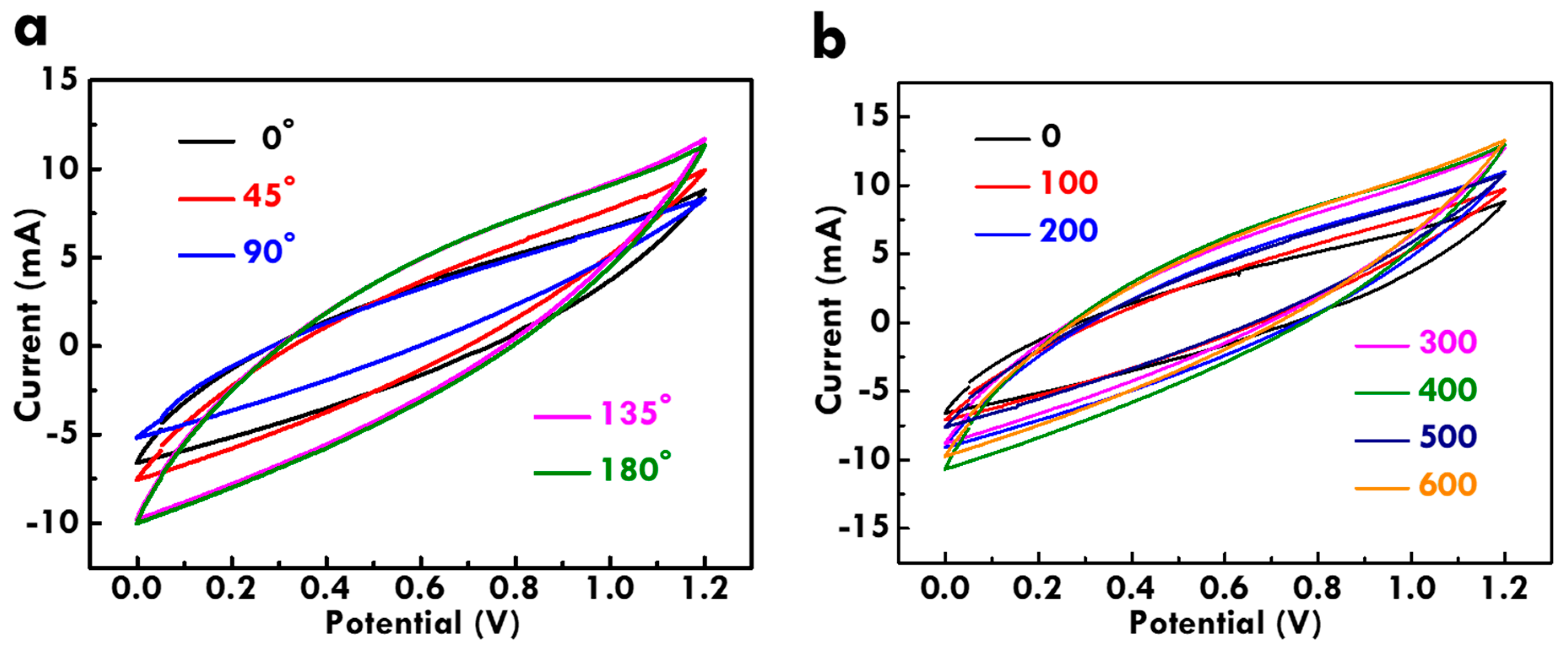

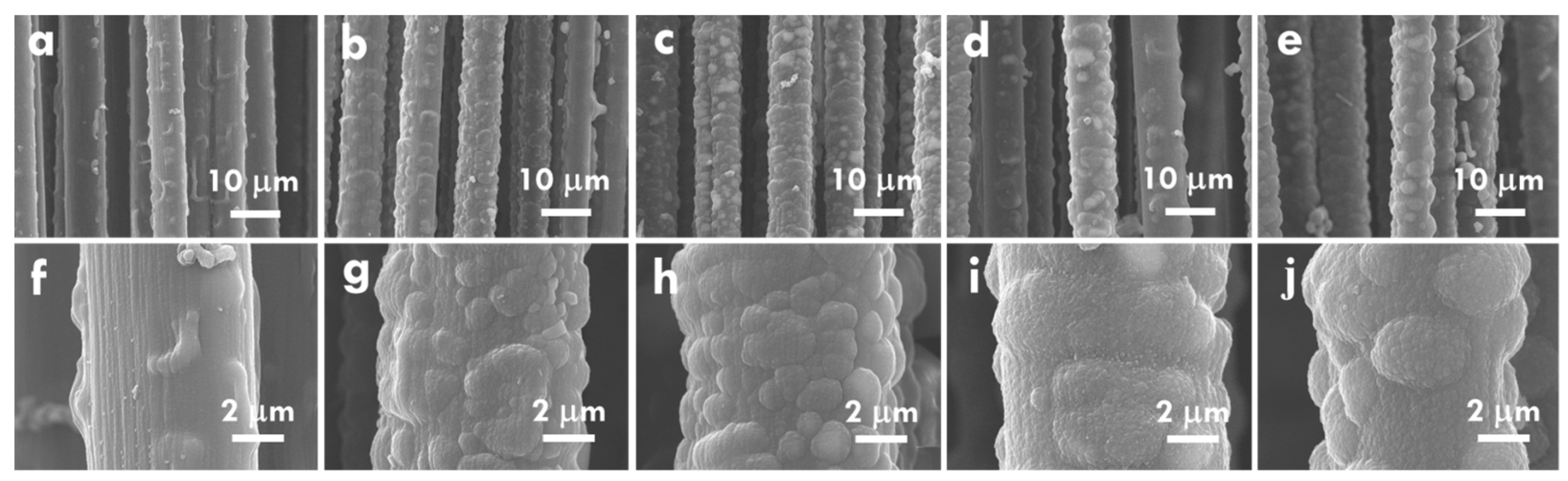

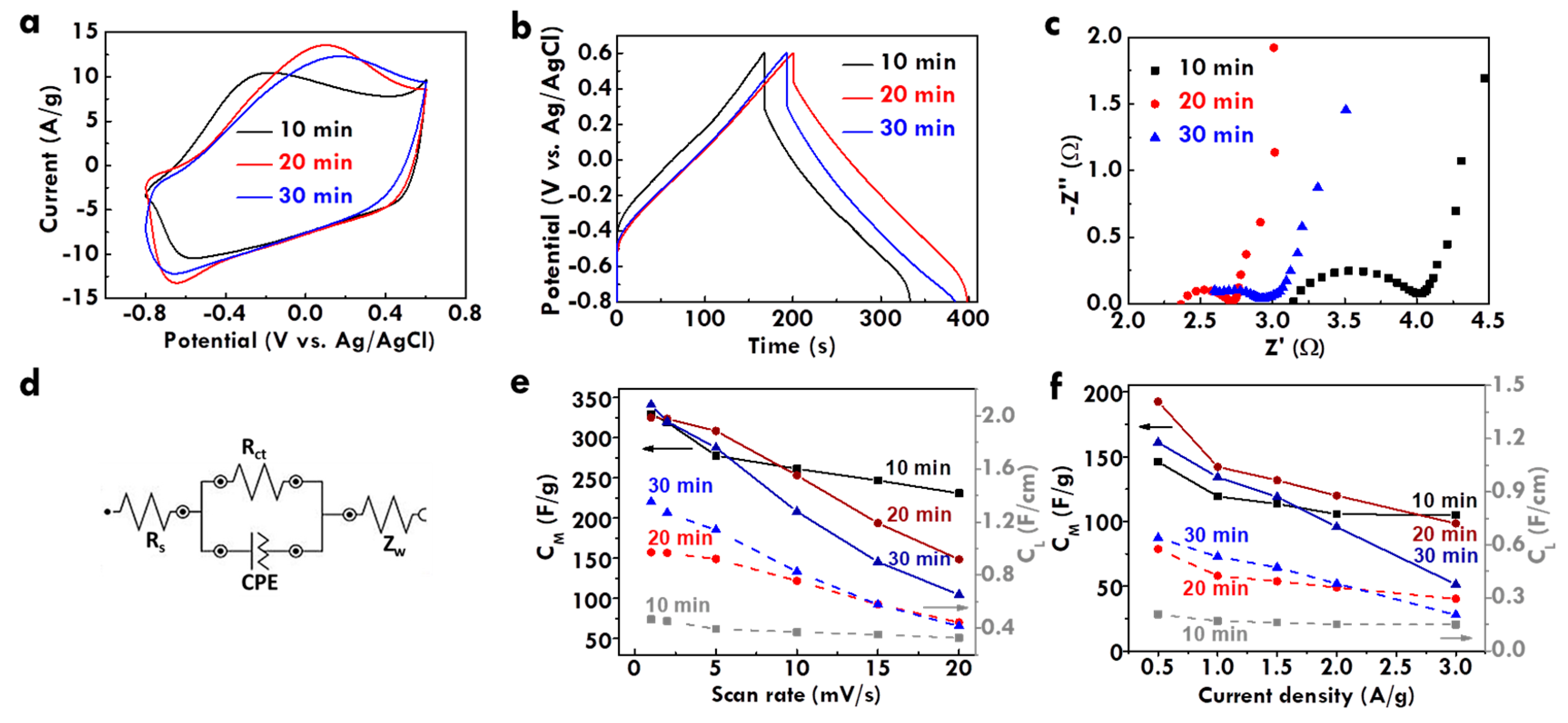

Fiber-type supercapacitors (FSC) have attracted much attention as efficient energy storage devices for soft electronics. This study proposes the synthesis of polypyrrole (PPy) on carbon fiber (CF) using electropolymerization as the energy storage electrode for FSC. Effects of the electrolyte, applied current, and time of electropolymerization for synthesizing PPy on CF are investigated. The configuration of the electrochemical system is also studied to better understand the electropolymerization of PPy. The highest specific capacitance (CM) of 308.2 F/g are obtained for the PPy electrode prepared using 0.5 M pyrrole and 0.3 M NaClO4 as the electrolyte at 40 mA for 20 min. The FSC assembled with PPy electrodes and the polyvinyl alcohol/H3PO4 gel electrolyte shows a CM value of 30 F/g and the energy density of 5.87 Wh/kg at the power density of 60.0 W/kg. Excellent cycling stability with CM retention of 70% and Coulombic efficiency higher than 98% in 3000 times charge/discharge process, and the good bending capability with CM retention of 153% and 148%, respectively, under the bending angle of 180° and the bending times of 600 are achieved. This work gives deeper understanding of electropolymerization and provides recipes for fabricating an efficient PPy electrode for soft energy storage devices.
Keywords: carbon fiber; electropolymerization; flexible; polypyrrole; supercapacitor carbon fiber; electropolymerization; flexible; polypyrrole; supercapacitor
MDPI and ACS Style

Sung, Y.-S.; Lin, L.-Y. Systematic Design of Polypyrrole/Carbon Fiber Electrodes for Efficient Flexible Fiber-Type Solid-State Supercapacitors. Nanomaterials 2020, 10, 248.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
