Selective Synthesis of Benzimidazoles from o-Phenylenediamine and Aldehydes Promoted by Supported Gold Nanoparticles

by
Marina A. Tzani
1,
Catherine Gabriel
2 and
Ioannis N. Lykakis
1,*
1
Department of Chemistry, Aristotle University of Thessaloniki, University Campus, 54124 Thessaloniki, Greece
2
HERACLES Research Center, KEDEK, Laboratory of Environmental Engineering (EnvE-Lab), Department of Chemical Engineering, AUTH, 54124 Thessaloniki, Greece
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(12), 2405; https://doi.org/10.3390/nano10122405
Submission received: 1 November 2020 / Revised: 25 November 2020 / Accepted: 29 November 2020 / Published: 1 December 2020
(This article belongs to the Special Issue Nano Au Materials for Catalysis of Organic Transformations)
Browse Figures
Review Reports Versions Notes

Abstract

:
We investigated the catalytic efficacy of supported gold nanoparticles (AuNPs) towards the selective reaction between o-phenylenediamine and aldehydes that yields 2-substituted benzimidazoles. Among several supported gold nanoparticle platforms, the Au/TiO2 provides a series of 2-aryl and 2-alkyl substituted benzimidazoles at ambient conditions, in the absence of additives and in high yields, using the mixture CHCl3:MeOH in ratio 3:1 as the reaction solvent. Among the AuNPs catalysts used herein, the Au/TiO2 containing small-size nanoparticles is found to be the most active towards the present catalytic methodology. The Au/TiO2 can be recovered and reused at least five times without a significant loss of its catalytic efficacy. The present catalytic synthetic protocol applies to a broad substrate scope and represents an efficient method for the formation of a C–N bond under mild reaction conditions. Notably, this catalytic methodology provides the regio-isomer of the anthelmintic drug, Thiabendazole, in a lab-scale showing its applicability in the efficient synthesis of such N-heterocyclic molecules at industrial levels.

Graphical Abstract

1. Introduction

Benzimidazole or 1H-1,3-benzodiazole-based heterocycles are structurally similar to naturally occurring nucleotides, i.e., adenine base of the DNA, as well as a component of vitamin B12, and have extensively been used in drug synthesis and medicinal chemistry (Figure 1) and display a wide range of biological and clinical applications [1,2,3,4,5,6]. Benzimidazoles can easily interact with the biopolymers of the living systems, which are responsible for their numerous biological activities and functions. In particular, benzimidazole derivatives exhibit antimicrobial [7,8,9], antiviral [10,11], anticancer [12,13,14], anti-inflammatory [15,16,17], and antioxidant [18] activities, whereas various derivatives have been developed as therapeutic agents, such as proton pump inhibitors [2], level modulators [19], and antidiabetics (Figure 1) [20,21].
In general, two main traditional synthetic routes produce benzimidazole derivatives. The first route involves the coupling between o-phenylenediamine with carboxylic acids or their derivatives (nitriles, amides, esters, chlorides) [22,23,24]. The second route involves condensation reactions between o-phenylenediamine and aldehydes or alcohols via a dehydrogenated coupling, followed by oxidative cyclodehydrogenation [24,25], but in many of these methods, a stoichiometric amount of oxidizing agents is a prerequisite (Scheme 1) [26,27,28,29]. Other methods such as thermal- or acid-promoted synthesis as well as microwave, sonicator, or ultrasound methods are also known [24]. Interestingly, the direct regioselective C-2 arylation of imidazole with aryl halides typically requires the use of a Pd(II)/Cu(I) catalytic system in a large excess of reagents in the presence of additives, high temperature, or pressure [30].
To date, the emphasis is given to developing new, efficient, and “green” methods for the conversion of o-phenylenediamine and aldehydes to benzimidazole derivatives. Several heterogeneous catalytic systems that involve inorganic salts [31,32,33,34], zeolites [35,36,37], heterogeneous ionic liquid gel [38], micelles [39], and metal oxides [40,41,42,43,44,45,46,47,48,49] have been reported (Scheme S1). This transformation can be also achieved via photocatalytic processes in the presence of photosensitized molecules or semiconductor materials (Scheme S2) [50,51,52,53,54,55,56]. In recent years, the synthesis of supported metal nanoparticles as well as their applications, especially in catalysis, is of great interest for further study [57,58,59,60]. Among them, supported gold nanoparticles (AuNPs) have received considerable attention as powerful heterogeneous catalysts in several organic reactions. Interestingly, AuNPs have a small size which provides distinct physical properties and high reactivity [61], and overcome drawbacks of homogeneous gold catalysts. In specifics, AuNPs are not sensitive to air or moisture, promote the reactions under mild conditions, and exhibit high selectivity even in complicated reactions [62]. Several inorganic and organic materials have been used as heterogeneous supports which can disperse and stabilize AuNPs, provide active sites at the metal-support boundary, and influence the oxidation state of gold, thus allowing easy handling and the possibility of recovery [63]. These features have made AuNPs of great importance in the synthesis of heterocycles [64,65,66,67].
So far, Ruiz et al. reported the one-pot synthesis of 2-aryl-benzimidazoles from alcohols and diamines in the presence of Au/CeO2 nanoparticles in trifluorotoluene at 90 °C (Scheme 2) [68]. The Au/CeO2 has been reported as an excellent catalyst for the one-pot synthesis of benzimidazoyl quinoxaline derivatives from the cyclo-condensation of glyceraldehyde and o-phenylenediamine derivatives, followed by oxidative coupling with a different o-phenylenediamine derivative (Scheme 2) [69]. Tang et al. described the synthesis of 2-aryl-benzoxazoles and benzimidazoles from 2-nitrophenol or 2-nitroaniline, respectively, and alcohols via two hydrogen-transfer processes catalyzed by Au/TiO2 in toluene or water at 130–150 °C [70]. Of note is that only the synthesis of 2-phenyl-1H-benzo[d]imidazole was described using Au/TiO2 in toluene or water at 150 °C under N2 atmosphere (Scheme 2). Additionally, AuNPs/SBA material was successfully applied for the synthesis of a series of 2-aryl-2,3-dihydroquinazoli-4(1H)-ones, as a heterogeneous catalyst in the condensation reaction between 2-aminobenzamide and aromatic aldehydes (result not shown) [71]. In all cases, high temperatures and prolonged reaction time were necessary for reaction completion. Given the importance of this type of transformation and in terms of sustainability, the use of ambient and more eco-friendly heterogeneous conditions for the synthesis of 2-aryl and 2-alkyl benzimidazole derivatives continues to be a long-standing goal of chemical research. In light of our ongoing research directions on developing sustainable catalytic processes to construct N-heterocyclic organic molecules of high biological interest [72,73,74], and metal nanoparticle-catalyzed transfer hydrogenation processes for conversion of nitroarenes into amines [75,76,77,78,79,80], herein we report the synthesis of a library of 2-aryl and 2-alkyl benzimidazoles using Au/TiO2 as a catalyst at ambient conditions (Scheme 2).

2. Materials and Methods

2.1. Materials

For the catalytic reactions, we employed commercially available supported gold nanoparticles Au/TiO2, Au/Al2O3, and Al/ZnO, as well as the oxides TiO2 (Degussa P25 (Degussa Evonik GmbH, Essen, Germany, anatase/rutile = 3.6/1, BET: 50 m2g−1, nonporous), and TiO2 UV-100 (Hombikat, 100% anatase, BET: 300 m2g−1), Al2O3, and SiO2. The commercially available catalysts Au/TiO2, Au/Al2O3, and Au/ZnO feature a ca. 1 wt.% Au loading and exhibit an average AuNP size of about 2–3 nm. All commercial heterogeneous catalysts and the salts HAuCl4, AuCl, AgNO3, and Cu(ClO4)2·6H2O were used without further purification. Catalysts with 1, 2, 3, and 5 wt.% Au loading on anatase mesoporous titania Au/MTA(x), x = 1, 2, 3, and 5, were synthesized according to our previous works, where the deposition−precipitation method was used [76,77,78]. The products consist of a continuous network of tightly interconnected gold and anatase TiO2 nanoparticles and exhibit a large internal surface area (approximately 104−115 m2 g−1) and a narrow pore size distribution (approximately 7.3−7.5 nm), according to transmission electron microscopy (TEM), to the small-angle X-ray scattering (SAXS), and N2 physisorption measurements. Details on synthesis and characterization of the catalysts were described in reference [78]. The average Au particle size measured to be from 4.4 to 5.2 and from 7.1 nm to 9.4 nm, while the gold loading was increased from 1% to 2% and from 3% to 5%, respectively. Product analysis was conducted by 1H NMR and 13C NMR spectroscopy (Agilent AM 500 and Agilent AM 600, Agilent Technologies, Santa Clara, CA, USA). The identification of the products was realized by comparing the NMR spectra with those of the commercially available pure substances. LC-MS 2010 EV Instrument (Shimadzu, Tokyo, Japan) under Electrospray Ionization (ESI) conditions was used for the determination of the mass spectra. The reagents and solvents were purchased from Sigma-Aldrich (Merck KGaA, Darmstadt, Germany), and Fluorochem (Glossop, UK) and used without further purification. Thin-layer chromatography was performed on Millipore precoated silica gel plates (0.20 mm thick, particle size 25 μm). Chemical shifts for 1H NMR were reported as δ values and coupling constants were measured in hertz (Hz). The following abbreviations were used for spin multiplicity: s = singlet, brs = broad singlet, d = doublet, t = triplet, q = quartet, quin = quintet, dd = double of doublets, ddd = double doublet of doublets, and m = multiplet. Infusion experiments were carried out on an Agilent Q-TOF Mass Spectrometer, G6540B model with Dual AJS ESI-MS (Santa Clara, CA, USA). All the compounds (dissolved in LC-MS grade methanol) were introduced into the ESI source of the MS with a single injection of 15 μL of the sample and with a flow rate of 300 μL/min of 100% methanol as a solvent in the binary pump. The experiments were run using a Dual AJS ESI source, operating in a positive ionization mode. Source operating conditions were 330 °C Gas Temp, 8 L/min Gas Flow, Sheath Gas Temp 250 °C, Sheath Gas Flow 10 L/min, and 150 V Fragmentor. Data-dependent MS/MS analysis was performed in parallel with the MS analysis in a centroid mode, using different collision energies (10, 20, 30, 40 V). All accurate mass measurements of the [M+H] ions, or the corresponding major ions in some cases, were carried out by scanning from 100 to 500 m/z. The Q-TOF was calibrated 1 h prior to the infusion experiments by using a calibration mixture.

2.2. Catalytic Reaction

The appropriate supported gold catalyst (1 mol % Au, 60 mg of the solid material) was placed in a 5 mL glass reactor (vial), followed by the addition of solvent (3 mL) or solvent mixture CHCl3:MeOH (3:1, 3 mL), o-phenylenediamine (0.3 mmol), and the aldehyde (0.3 mmol). The reaction mixture was then stirred at 25 °C (the temperature was maintained using a water bath) for 2 h. The reaction was monitored by thin-layer chromatography (TLC) and after completion, the slurry was centrifuged to separate the solid catalyst from the reaction mixture and washed two times with 3 mL of ethanol. The filtrate was evaporated under vacuum to afford the corresponding products in pure form unless mentioned otherwise. Products, where needed, were purified by column chromatography on a silica gel using a gradient mixture of EtOAc-DCM to afford the desired 2-substituted benzimidazoles in good yields.

2.3. Recycling Reaction

Gold catalyst Au/TiO2 (1 mol % Au, 40 mg of the solid material) was placed in a 5 mL glass reactor (vial), followed by the addition of solvent mixture CHCl3:MeOH (3:1, 1.5 mL), o-phenylenediamine (0.2 mmol), and aromatic aldehyde (0.2 mmol); the reaction mixture was then stirred at 25 °C (the temperature was maintained using water bath), for 2 h. The reaction was monitored by thin-layer chromatography (TLC), and after completion, the slurry was centrifuged to separate the solid catalyst from the reaction mixture and washed three times with the aid of methanol (ca. 3 mL). The filtrate was removed, the solvent was evaporated under vacuum, and the isolated product was determined by 1H NMR without any chromatographic purification. The solid material was dried with the use of an oven at 100 °C for 12 h and used without any further purification for the next catalytic run.

3. Results and Discussion

3.1. Evaluation of the Catalytic Conditions

To optimize the reaction conditions, o-phenylenediamine (1) and 4-methylbenzaldehyde (2) were selected as model substrates. As a starting point, the initial control experiments, in the absence of a catalyst and in 1 mL of MeOH as solvent, showed the formation of the imine 3, as well as the formation of the desired 2-(4-methylphenyl)-1H-1,3-benzodiazole (4) and the 1-(4-methylbenzyl)-2-(4-methylphenyl)-1H-1,3-benzodiazole (5) in comparable yields, even at prolonged reaction time or in the presence of molecular sieves (Table 1, entries 1–4). Recently, a study on the synthesis of benzimidazoles with the use of methanolic solution and short reaction time was reported [81], contradicting the present observations. Additionally, in ethanol, the desired product 4 was formed even after 48 h in 70% yield, accompanied with 30% of the starting aldehyde 2, as measured by 1H NMR of the crude reaction mixture (Table 1, Entries 5 and 6). When the reaction took place in CH3CN, similar results were measured with those observed in the case of the methanolic solution described above (Table 1, entries 7–10). In other solvents, such as 1,2-dichloroethane (1,2-DCE), ethyl acetate (EtOAc), and toluene, the corresponding imine 3 was formed as the only product (Table 1, entries 11, 13 and 15), while in CHCl3 and tetrahydrofuran (THF), a mixture of the products 3, 4, and 5 was observed (Table 1, entries 12 and 14). Even using a mixture of CHCl3:MeOH in different ratios, 1:1 and 3:1, no selective formation of the desired 4 was observed even after 18 h (Table 1, entries 16–18). The data summarized in Table 1, shows no selective synthesis of the desired imidazole 4 under the present conditions even at prolonged reaction time. Thus, we continue the development of the catalytic conditions using the above polar and non-polar solvents.
Based on these preliminarily results at the control experiments for the synthesis of the desired product 4, the development of the catalytic condition was further performed mainly in MeOH and CH3CN (Table S1). Thus, we initially studied the model reaction under homogeneous conditions in the presence of several salts (20 mol %), such as HAuCl4 and AuCl, AgNO3, and Cu(ClO4)2∙6H2O in acetonitrile and methanol (1 mL) at room temperature within 18 h. An equimolar amount of 1 and 2 (0.1 mmol) was dissolved in the appropriate solvent in a 4 mL vial with an open Teflon cap, and the reaction mixture was stirred vigorously. After filtration of the reaction mixture over a short path of silica gel to withhold the catalyst amount and the solvent evaporation, the residue was dissolved in deuterium solvent (ca. CDCl3) and the reaction process was determined by 1H NMR of the corresponding organic residue. In all cases, mixture of the desired product 4 accompanied by significant amounts of the 5 and the imine 3 were observed (results are shown in Table S1).
Moreover, we studied the model reaction in the presence of heterogeneous surfaces such as SiO2, Al2O3, and TiO2 (Table S2, entries 1–7). We have observed that the acidic nature of these surfaces may influence the course of the reaction. When alumina was used as a catalyst in acetonitrile at 2 h, the formation of imine intermediate 3 was observed in 44% yield accompanied by the desired product 4 in 38% yield, as measured by 1H NMR (Table S2, entry 2). Increasing the amount of alumina or the reaction time to 48 h, we noticed a small increase in the yield of 4 (46%) as the imine 3 decreased significantly (18%) (Table S2, entry 3); while in methanol, the products 4 and 5 were formed in 40% and 60% yields, respectively (Table S2, entry 4). At the same content, titanium oxide led to the formation of the above products 4 and 5, in the range of 59% to 39% in MeOH and CH3CN, respectively (Table S2, entries 5–7). Based on literature work [50,51,52,53], where visible light with the presence of a semiconductor or a photosensitizer promoted the synthesis of benzimidazoles, herein the same reaction process was also tried under photochemical conditions, using a Xenon lamp (300 W, λ > 300 nm), although no significant changes were observed for the yield of the desired product 4 (Table S2, entry 8).
Next, we switched to a series of different gold-supported catalysts, i.e., the commercially available Au/TiO2, Au/Al2O3, and Au/ZnO nanoparticles (1% w/w Au) containing nanoparticles with the size ranging between 2–3 nm. In these cases, 0.1 mmol of the starting compounds 1 and 2 were used with 20 mg of the catalyst (1 mol %) in 1mL of solvent and at 25 °C. It is worth noting that a remarkable increase in the yield of the desired imidazole 4 was observed when methanol was used as a solvent (Table 2, entries 1–3), however, in the presence of Au/TiO2, quantitative formation of the 4 was observed within 18 h (Table 2, entry 3). In addition, a series of polar and non-polar solvents were studied herein, i.e., CH3CN, 1,2-DCE, EtOAc, and THF (Table 2, entries 4–10), however, no selective formation of the imidazole 4 was observed. Interestingly, in CHCl3, the 4 was formed in 94% yield within only 2 h (Table 2, entry 12), compared to the corresponding reactions in EtOH and MeOH, where 4 was observed in 51% and 37% yields accompanied by a significant amount of the imine 3 (Table 2, entries 10 and 11). The same reaction process was also tried under photochemical conditions, using a white-LED apparatus (10.5 W, λ > 380 nm), although, a mixture of the product 3, 4, and 5 was observed by 1H NMR spectroscopy (Table 2, entry 13). Finally, a mixture of CHCl3:MeOH in 3:1 ratio was used, while maintaining a constant temperature of 25 °C, in the presence of the above heterogeneous catalysts (Table 2, entries 14–16). Under these conditions, product 4 was quantitatively formed using Au/TiO2 and within only 2 h (Table 2, entry 14). In contrast, Au/Al2O3 and Au/ZnO led to the formation of 4 in 75% and 58% yield, accompanied by a significant amount of the imine 3 in 25% and 42% yield, respectively (Table 2, entries 15 and 16). In addition, increasing the Au/TiO2 amount from 20 mg to 60 mg did not affect the reaction selectivity (Table 2, entry 17). It is worth noting that the catalyst Au/MTA(1) and Au/MTA(2) (4.4 and 5.1 nm of AuNPs) shows high activity and good selectivity for the synthesis of 4 with 91% and 85% yield, respectively (Table 2, entries 18 and 19). In contrast, using the Au/MTA(3) and Au/MTA(5) catalysts with higher nanoparticle size (7.1 and 9.4 nm), a mixture of 3, 4, and 5 was observed, with the desired 4 predominating in 54% and 44% yield, respectively (Table 2, entries 20 and 21). In addition, it is noted that the classical concept of nanoparticle concentration/size can play a role in the catalytic procedure [82]. These results indicate a decrease in the selectivity of the imidazole 4 synthesis while the size of the nanoparticle increases. Additionally, gold nanoparticles with small size (<5 nm) are promoted in the present reaction (Table 2, entries 18–21), whereas the support probably significantly influences the reaction process; with TiO2 (anatase) to be the most suitable rather than the mesoporous titania MTA, or Al2O3 and ZnO (Table 2, entries 1–3 and 14–16). This observation supports previous works on the selective reduction of nitroarenes into anilines, where supported AuNPs on TiO2, with nanoparticles in the range of 2–5 nm, were the most active catalysts [77,78]. Additionally, a theoretical study on gold particle activity based on the formation of σ-holes, binding sites for Lewis bases, e.g., CO or H2O, reported that the catalyst activity increases as the metal nanoparticle size decreases [83]. Similar behavior was observed using Au/Al2O3 as the catalyst; however, reaction completion toward the synthesis of the desired benzimidazole 4, along with the best catalytic activity, was observed in prolonged reaction time, 18 h, as shown in Table S3.

3.2. Synthesis of 2-Aryl and 2-Alkyl Benzimidazoles Catalyzed by Gold Nanoparticles

With these optimized conditions, we further explored the scope of this catalytic transformation by incorporating a wide range of commercially available aromatic aldehydes to gain direct access to a library of 2-aryl substituted benzimidazole derivatives in high isolated yields (Scheme 3). For the present heterogeneous conditions, Au/TiO2 (60 mg, 1 wt.% or 0.003 mmol Au) was used as the selected catalyst for testing this optimization, as well as 0.3 mmol of the starting aldehyde and 0.3 mmol of the amine 1 were used. Regardless of the electronic nature of the phenyl rings of the aromatic aldehydes, bearing even electron-donating (Me, OMe, OH, OAc, NH2, Ph) or electron-withdrawing (Cl, Br, COOMe, COOH, CN, NO2) groups, at o-, m­­- or p- position, the desired 2-aryl substituted benzimidazoles (4, 6–25) were formed in good to high isolated yields, ranging from 51% to 99% (Scheme 3). In most cases, the desired product was isolated by centrifuging of the crude reaction mixture to separate the solid catalyst from the synthesized 2-aryl benzimidazole. However, in some cases, the product was further purified using a column chromatographic with silica gel and the appropriate mixture of EtOAc/DCM as the eluent (see Supplementary Materials). To expand the application of the present synthetic methodology, 1-naphthaldehyde and heterocyclic aromatic aldehydes, such as the 2-furaldehyde, the 5-(hydroxymethyl)-2-furaldehyde, and the 5-bromo-2-furaldehyde, as well as the thiophene-2-carbaldehyde, give the corresponding products, 26–30, in high yields (80–96%) as shown in Scheme 3. Moreover, the reaction between o-phenylenediamine and 6-isopropyl-4-oxo-4H-chromene-3-carbaldehyde was performed, and the corresponding substituted benzimidazole 31 was formed in high isolated yield (96%) (Scheme 3). It is worth noting that all the reactions above were also accomplished in the absence of Au/TiO2 and under the same conditions. In all cases, mixture of the corresponding imines, the 1,2-disubstituted benzimidazole derivatives, and the desired 2-aryl substituted imidazoles, was observed by 1H NMR, without worth-mentioning good selectivity towards the later. These observations support further the importance of the present heterogeneous catalytic system for the synthesis of such N-heterocyclic compounds.
With the optimizing conditions in hand, we continued with the synthesis of several 2-alkyl-benzimidazoles, starting with the corresponding aliphatic aldehydes and the diamine 1. The products 32–39 were formed and isolated in 80–98% yields, and the results are summarized in Scheme 4. It is interesting that under the present catalytic methodology, unstable aldehydes such as trans-2-phenylcyclopropyl aldehyde and cinnamaldehyde react smoothly, forming the corresponding 2-substituted benzimidazoles 34 and 32, respectively, in high yields of 88 and 96% (Scheme 4).
These results indicate the broad generality of the present catalytic heterogeneous methodology toward the selective synthesis of 2-aryl and 2-alkyl substituted benzimidazoles. The structures of the products were determined by 1H and 13C NMR and HRMS (see Supplementary Materials). Exceptions to the generality of the above gold-catalyzed synthetic methodology constitute the reactions of 2-nitrobenzaldehyde 40 and the 6-nitro-4-oxo-4H-chromene-3-carbaldehyde 42 with the diamine 1, where the formation of the corresponding imine intermediate 41 and the precipitation of an unidentified solid residue were observed, respectively (Scheme 5). Consequently, a laboratory-scale procedure was also performed for the direct synthesis of 4 starting from 1 mmol of o-phenylenediamine (1) and 1 mmol of 4-methylbenzaldehyde (2) (Scheme 5). After the completion of the reaction (monitored by TLC), the slurry was centrifuged to separate the solid catalyst from the supernatant. The solid catalysts were washed three times with the aid of methanol ca. 5 mL. The organic layers were collected, and the solvent mixture was evaporated under a vacuum to afford the corresponding product 4 in 96% yield after simple recrystallization over methanol. Based on the present heterogeneous protocol, we also proceeded to the synthesis of the structurally regio-isomer of the antifungal and antiparasitic Thiabendazole, compound 44, with one-step manner, starting simply from the commercially available aldehyde 43 and diamine 1 (Scheme 5) [84,85,86]. It is interesting that at 25 °C, the only observed product was the corresponding imine in >99% yield. Thus, increasing gradually the reaction temperature to 50 °C and after 18 h, the desired product 44 was observed, purified with column chromatography, and isolated in 92% yield (55 mg) with no byproduct’s formation based on 1H NMR analysis. Based on these results, the present one-pot process supports unambiguously the synthetic importance of the proposed catalytic methodology. Previously reported synthetic approaches towards Thiabendazole required external acid additives, harsh reaction conditions, and high temperatures [87,88].

3.3. Recycling and Mechanistic Studies

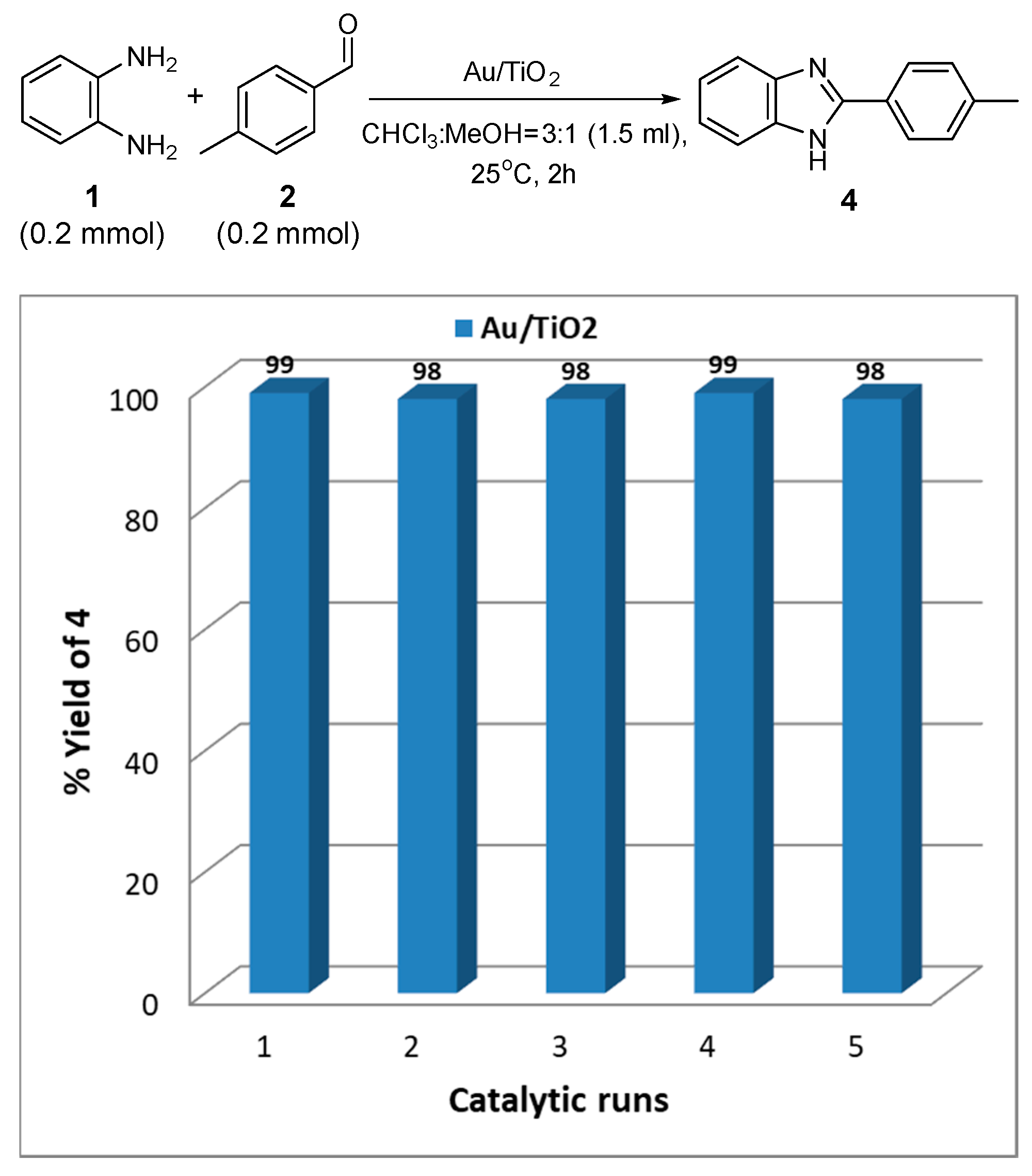

Because of the heterogenicity of the present catalytic system, Au/TiO2 can be easily separated from the reaction mixture with a simple centrifuge and the solid catalyst can be washed and reused for the next run. Based on this feature, the recyclability and stability of this material were examined, studying the synthesis of 4 on the above described conditions. In details, 0.2 mmol of 1 and 0.2 mmol of 2 were reacted in the presence of 40 mg of Au/TiO2 (1% w/w) at 1.5 mL of CHCl3:MeOH (3:1) and at 25 °C. After the reaction completion within 2 h (monitored by TLC), the slurry was centrifuged to separate the solid catalyst from the supernatant. The solid catalysts were washed three times with the aid of methanol ca. 3 mL and the organic supernatants were collected, and the solvent mixture was evaporated under vacuum to afford the corresponding product 4. The solid material was dried within the oven at 100 °C overnight and reused for the next catalytic run without any further purification. In Figure 2, the reaction profile based on 4 yield vs. reaction run was presented. As it was shown, the catalyst can be used at least five times without significant loss of its activity towards the synthesis of 4. This observation is in agreement with previous work on the selective synthesis of benzoxazoles and 2-aryl benzimidazoles, starting with benzyl alcohols and 2-nitroaniline, in toluene and at 150 °C, using Au/TiO2 as the catalyst [70]. Additionally, to support the necessity of the AuNPs, as well as to indicate possible leaching of the AuNPs into the reaction mixture, a slurry of 20 mg of Au/TiO2 (1% w/w) in 1 mL of CHCl3:MeOH = 3:1 was stirred for 2 h. Then, the supernatant solution was found to be inefficient to promote the selective synthesis of the desired 4; however, a mixture of 3, 4, and 5 was observed by 1H NMR, in 22%, 31%, and 47% yields, respectively; similar values to those measured in the corresponding experiment in the absence of a catalyst (Table 1, entry 19). This experiment supports the necessity of the supported AuNPs and implies that Au leaching into the solution is essentially minimal, if any.

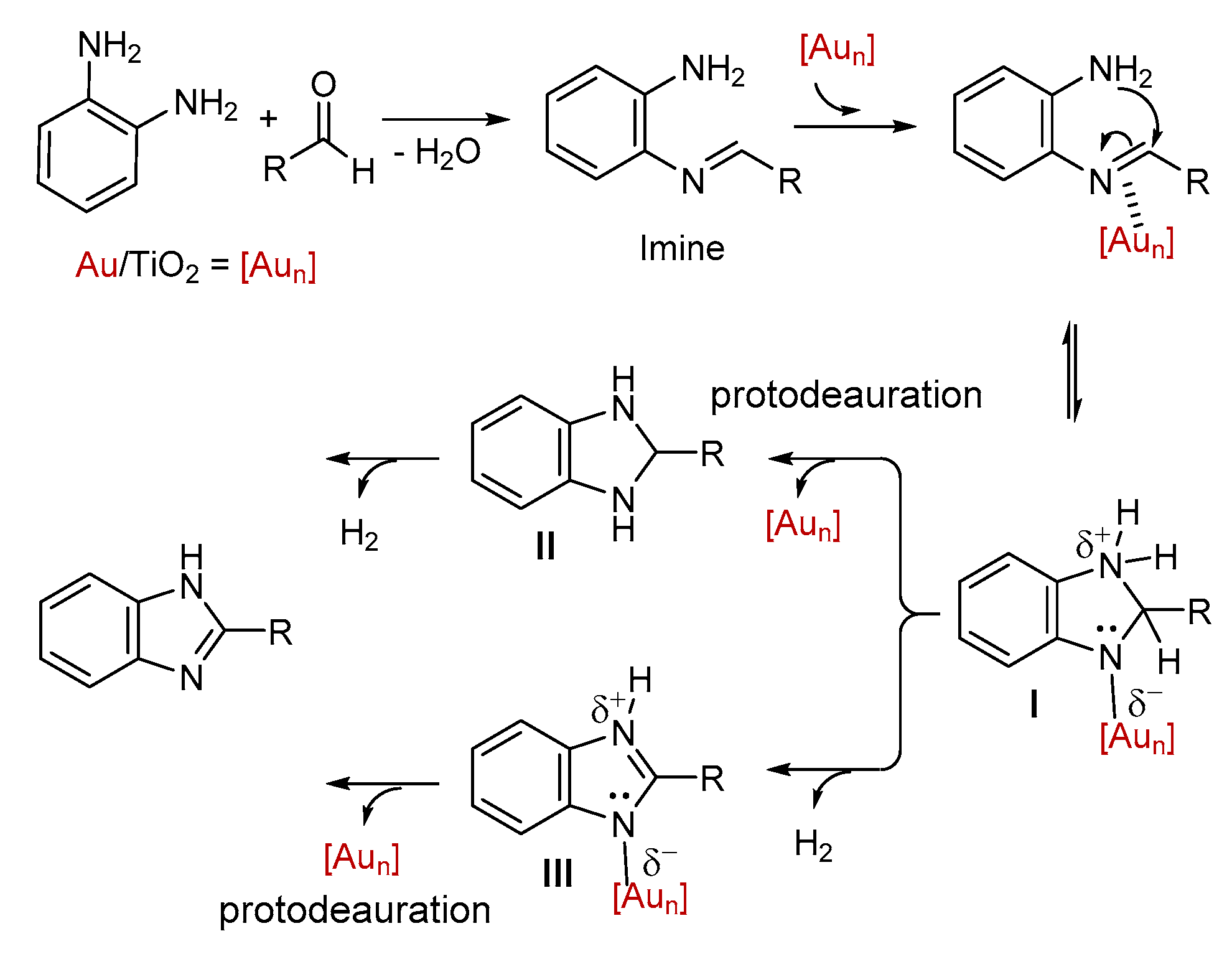

Supported AuNPs have been reported as excellent catalysts in cyclo-isomerization processes [64,65,66,67], via the proposed activation of unsaturated bonds [89,90] on the low coordinated electrophilic Au(0) atoms at the corners and edges of nanoparticles [83]. Based on this catalytic process and the present experimental results, a plausible mechanism for the synthesis of the benzimidazole derivatives can be proposed (Scheme 6). At the initial step, the aldehyde and the o-phenylenediamine react to generate the imine, which, in the present of the supported gold nanoparticles, led to the intermediate I via a cyclization process. This intermediate could undergo protodeauration, which releases the 2-susbtituted-2,3-dihydro-1H-benzimidazole intermediate II from the chemisorbed species I. Then, after dehydrogenation, the corresponding benzimidazole product was formed, also regenerating the catalyst (Scheme 6). We did not detect intermediate II by NMR at any stage of the reaction. This notion implies that the dehydrogenation of II into benzimidazole occurs faster than the initial cyclization. A similar pathway is proposed in the literature on the synthesis of benzoxazoles and benzimidazoles catalyzed by Au/TiO2 [70]. However, an alternative pathway, with the chemisorbed species I being transformed, via a dehydrogenation process, into the intermediate III, and after protodeauration to the benzimidazole, could also take place. Relevant dehydrogenation pathways are also proposed in the AuNP-catalyzed transformation of 1,2-dihydroquinolines to the corresponding quinolones [91], as well as in the synthesis of pyridines from the in situ generated N-propargyl enaminones [92]. Herein, partial charges were used for the intermediates I and III, based on previous calculations on the bonding nature of chemisorbed intermediates on Au clusters [93,94].

4. Conclusions

In conclusion, the commercially available Au/TiO2 (2–3 nm AuNPs size) was used as an efficient catalyst for the selective synthesis of 2-aryl and 2-alkyl substituted benzimidazoles. The present heterogeneous catalytic protocol includes the one-step reaction between the corresponding aldehyde and the o-phenylenediamine, at ambient conditions, and in CHCl3:MeOH (3:1). This reaction has a broad substrate scope and represents a new heterogeneous methodology for practical C-N bond formation under mild conditions, without additional additives and oxidants. The small-size gold nanoparticles (<5 nm) supported on TiO2 were found to be the most active species under the present catalytic conditions. The catalyst Au/TiO2 could be used at least five times without any significant loss of its catalytic efficacy. The present protocol applied to the lab-scale synthesis of 4-tolylbenzimidazole, as well as to the synthesis of the regio-isomer of the antifungal and antiparasitic Thiabendazole.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/12/2405/s1. Scheme S1: Synthesis of benzimidazoles using metal oxides as heterogeneous catalysts, Scheme S2: Synthesis of benzimidazoles under photocatalytic reactions, Table S1. Homogeneous catalyst screening for the reaction between 1 and 2, Table S2: Heterogeneous surfaces screening for the reaction between 1 and 2, Table S3: Solvent screening for the reaction between 1 and 2 catalyzed by Au/Al2O3, 1H and 13C NMR data and spectra of 2-substituted-1H-1,3- benzodiazoles.

Author Contributions

Conceptualization, M.A.T. and I.N.L.; experimental methodology, catalytic study, and products analysis, M.A.T.; HRMS experiments C.G.; supervision, I.N.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hellenic Foundation for Research and Innovation (HFRI) and the General Secretariat for Research and Technology (GSRT) under Grant Agreement No. [776] “PhotoDaLu” (KA97507).

Acknowledgments

We thank G. E. Kostakis (School of Life Sciences, University of Sussex, U.K., [email protected]) for valuable comments and discussion. We thank G. S. Armatas (Department of Materials Science and Technology, UoC, [email protected]) for the support and synthesis of the gold catalysts Au/MTA (1, 2, 3, and 5% wt.) used in the present study. We thank D. A. Sarigiannis ([email protected]) of the HERACLES Research Center, KEDEK, Laboratory of Environmental Engineering (EnvE-Lab), Department of Chemical Engineering, AUTH, Greece for using the LC-TOF apparatus and performing the HRMS experiments. The authors would like to acknowledge the Center of Interdisciplinary Research and Innovation of Aristotle University of Thessaloniki (CIRI-AUTH), Greece, for access to the Large Research Infrastructure and Instrumentation of the Nuclear Magnetic Resonance Laboratory at the Center for Research of the Structure of Matter in the Chemical Engineering Department, and especially we thank S. Matsia from the Laboratory of Inorganic Chemistry and Advanced Materials, Department of Chemical Engineering, AUTH, for performing the NMR experiments. I.N.L. also acknowledges the Empirikeion Foundation for the financial support of photo-reagents.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boiani, M.; Gonzalez, M. Imidazole and benzimidazole derivatives as chemotherapeutic agents. Mini-Rev. Med. Chem. 2005, 5, 409–424. [Google Scholar] [CrossRef]
  2. Narasimhan, B.; Sharma, D.; Kumar, P. Benzimidazole: A medicinally important heterocyclic moiety. Med. Chem. Res. 2012, 21, 269–283. [Google Scholar] [CrossRef]
  3. Bansal, Y.; Silakari, O. The therapeutic journey of benzimidazoles: A review. Bioorg. Med. Chem. 2012, 20, 6208–6236. [Google Scholar] [CrossRef] [PubMed]
  4. Shah, K.; Chhabra, S.; Shrivastava, S.K.; Mishra, P. Benzimidazole: A promising pharmacophore. Med. Chem. Res. 2013, 22, 5077–5104. [Google Scholar] [CrossRef]
  5. Yadav, G.; Ganguly, S. Structure activity relationship (SAR) study of benzimidazole scaffold for different biological activities: A mini-review. Eur. J. Med. Chem. 2015, 97, 419–443. [Google Scholar] [CrossRef] [PubMed]
  6. Gaba, M.; Mohan, C. Development of drugs based on imidazole and benzimidazole bioactive heterocycles: Recent advances and future directions. Med. Chem. Res. 2016, 25, 173–210. [Google Scholar] [CrossRef]
  7. Kazimierczuk, Z.; Upcroft, J.A.; Upcroft, P.; Górska, A.; Starościak, B.; Laudy, A. Synthesis, antiprotozoal and antibacterial activity of nitro- and halogeno-substituted benzimidazole derivatives. Acta Biochim. Pol. 2002, 49, 185–195. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Ansari, K.F.; Lal, C. Synthesis and evaluation of some new benzimidazole derivatives as potential antimicrobial agents. Eur. J. Med. Chem. 2009, 44, 2294–2299. [Google Scholar] [CrossRef]
  9. Ansari, K.F.; Lal, C. Synthesis, physicochemical properties and antimicrobial activity of some new benzimidazole derivatives. Eur. J. Med. Chem. 2009, 44, 4028–4033. [Google Scholar] [CrossRef]
  10. Starčević, K.; Kralj, M.; Ester, K.; Sabol, I.; Grce, M.; Pavelić, K.; Karminski-Zamola, G. Synthesis, antiviral and antitumor activity of 2-substituted-5-amidino-benzimidazoles. Bioorg. Med. Chem. 2007, 15, 4419–4426. [Google Scholar] [CrossRef] [Green Version]
  11. Gellis, A.; Kovacic, H.; Boufatah, N.; Vanelle, P. Synthesis and cytotoxicity evaluation of some benzimidazole-4,7-diones as bioreductive anticancer agents. Eur. J. Med. Chem. 2008, 43, 1858–1864. [Google Scholar] [CrossRef] [PubMed]
  12. Purushottamachar, P.; Ramalingam, S.; Njar, V.C. Development of benzimidazole compounds for cancer therapy. In Chemistry and Applications of Benzimidazole and Its Derivatives; Marinescu, M., Ed.; IntechOpen: Rijeka, Croatia, 2019; ISBN 978-1-78984-552-5. [Google Scholar]
  13. Hranjec, M.; Starčević, K.; Pavelić, S.K.; Lučin, P.; Pavelić, K.; Karminski Zamola, G. Synthesis, spectroscopic characterization and antiproliferative evaluation in vitro of novel Schiff bases related to benzimidazoles. Eur. J. Med. Chem. 2011, 46, 2274–2279. [Google Scholar] [CrossRef] [PubMed]
  14. Shrivastava, N.; Naim, M.J.; Alam, M.J.; Nawaz, F.; Ahmed, S.; Alam, O. Benzimidazole scaffold as anticancer agent: Synthetic approaches and structure-activity relationship: Benzimidazole Scaffold as Anticancer Agent. Arch. Pharm. Chem. Life Sci. 2017, 350, e201700040. [Google Scholar] [CrossRef] [PubMed]
  15. Labanauskas, L.K.; Brukštus, A.B.; Gaidelis, P.G.; Buchinskaite, V.A.; Udrenaite, É.B.; Daukšas, V.K. Synthesis and antiinflammatory activity of some new 1-acyl derivatives of 2-methylthio-5,6-diethoxybenzimidazole. Pharm. Chem. J. 2000, 34, 353–355. [Google Scholar] [CrossRef]
  16. Tsukamoto, G.; Yoshino, K.; Kohno, T.; Ohtaka, H.; Kagaya, H.; Ito, K. 2-Substituted azole derivatives. 1. Synthesis and antiinflammatory activity of some 2-(substituted-pyridinyl)benzimidazoles. J. Med. Chem. 1980, 23, 734–738. [Google Scholar] [CrossRef] [PubMed]
  17. Ito, K.; Kagaya, H.; Fukuda, T.; Yoshino, K.; Nose, T. Pharmacological studies of a new non-steroidal antiinflammatory drug: 2-(5-ethylpyridin-2-yl)benzimidazole (KB-1043). Arzneimittelforschung 1982, 32, 49–55. [Google Scholar] [PubMed]
  18. Can-Eke, B.; Orhan Puskullu, M.; Buyukbingol, E.; Iscan, M. A study on the antioxidant capacities of some benzimidazoles in rat tissues. Chem. Biol. Interact. 1998, 113, 65–77. [Google Scholar] [CrossRef]
  19. Powell, D.A.; Ramtohul, Y.; Lebrun, M.-E.; Oballa, R.; Bhat, S.; Falgueyret, J.-P.; Guiral, S.; Huang, Z.; Skorey, K.; Tawa, P.; et al. 2-Aryl benzimidazoles: Human SCD1-specific stearoyl coenzyme-A desaturase inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 6366–6369. [Google Scholar] [CrossRef]
  20. Shingalapur, R.V.; Hosamani, K.M.; Keri, R.S.; Hugar, M.H. Derivatives of benzimidazole pharmacophore: Synthesis, anticonvulsant, antidiabetic and DNA cleavage studies. Eur. J. Med. Chem. 2010, 45, 1753–1759. [Google Scholar] [CrossRef]
  21. Ishikawa, M.; Nonoshita, K.; Ogino, Y.; Nagae, Y.; Tsukahara, D.; Hosaka, H.; Maruki, H.; Ohyama, S.; Yoshimoto, R.; Sasaki, K.; et al. Discovery of novel 2-(pyridine-2-yl)-1H-benzimidazole derivatives as potent glucokinase activators. Bioorg. Med. Chem. Lett. 2009, 19, 4450–4454. [Google Scholar] [CrossRef]
  22. Wright, J.B. The chemistry of the benzimidazoles. Chem. Rev. 1951, 48, 397–541. [Google Scholar] [CrossRef] [PubMed]
  23. Preston, P.N. Synthesis, reactions, and spectroscopic properties of benzimidazoles. Chem. Rev. 1974, 74, 279–314. [Google Scholar] [CrossRef]
  24. Alaqeel, S.I. Synthetic approaches to benzimidazoles from o-phenylenediamine: A literature review. J. Saudi Chem. Soc. 2017, 21, 229–237. [Google Scholar] [CrossRef] [Green Version]
  25. Panda, S.; Malik, R.; Jain, C.S. Synthetic approaches to 2-arylbenzimidazoles: A review. Curr. Org. Chem. 2012, 16, 1905–1919. [Google Scholar] [CrossRef]
  26. Bahrami, K.; Khodaei, M.M.; Naali, F. Mild and Highly Efficient Method for the Synthesis of 2-arylbenzimidazoles and 2-arylbenzothiazoles. J. Org. Chem. 2008, 73, 6835–6837. [Google Scholar] [CrossRef]
  27. Karami, C.; Ghodrati, K.; Izadi, M.; Farrokh, A.; Jafari, S.; Mahmoudiyani, M.; Haghnazari, N. A Fast procedure for the preparation of benzimidazole derivatives using polymer-supported with trifluoromethanesulfonic acid as novel and reusable catalyst. J. Chil. Chem. Soc. 2013, 58, 1914–1917. [Google Scholar] [CrossRef] [Green Version]
  28. Zhu, C.; Wei, Y. An inorganic iodine-catalyzed oxidative system for the synthesis of benzimidazoles using hydrogen peroxide under ambient conditions. ChemSusChem 2011, 4, 1082–1086. [Google Scholar] [CrossRef]
  29. Du, L.-H.; Wang, Y.-G. A Rapid and efficient synthesis of benzimidazoles using hypervalent iodine as oxidant. Synthesis 2007, 2007, 675–678. [Google Scholar] [CrossRef]
  30. Bellina, F.; Cauteruccio, S.; Rossi, R. Palladium- and copper-mediated direct C-2 arylation of azoles—Including free (NH)-imidazole, -benzimidazole and –indole—Under base-free and ligandless conditions. Eur. J. Org. Chem. 2006, 2006, 1379–1382. [Google Scholar] [CrossRef]
  31. Cimarelli, C.; Di Nicola, M.; Diomedi, S.; Giovannini, R.; Hamprecht, D.; Properzi, R.; Sorana, F.; Marcantoni, E. An efficient one-pot two catalyst system in the construction of 2-substituted benzimidazoles: Synthesis of benzimidazo[1,2-c]quinazolines. Org. Biomol. Chem. 2015, 13, 11687–11695. [Google Scholar] [CrossRef]
  32. Soleimani, E.; Khodaei, M.M.; Yazdani, H.; Saei, P.; Zavar Reza, J. Synthesis of 2-substituted benzimidazoles and benzothiazoles using Ag2CO3/Celite as an efficient solid catalyst. J. Iran. Chem. Soc. 2015, 12, 1281–1285. [Google Scholar] [CrossRef]
  33. Trivedi, R.; De, S.K.; Gibbs, R.A. A convenient one-pot synthesis of 2-substituted benzimidazoles. J. Mol. Catal. A Chem. 2006, 245, 8–11. [Google Scholar] [CrossRef]
  34. Curini, M.; Epifano, F.; Montanari, F.; Rosati, O.; Taccone, S. Ytterbium triflate promoted synthesis of benzimidazole derivatives. Synlett 2004, 1832–1834. [Google Scholar] [CrossRef]
  35. Hegedüs, A.; Hell, Z.; Potor, A. Zeolite-catalyzed environmentally friendly synthesis of benzimidazole derivatives. Synth. Commun. 2006, 36, 3625–3630. [Google Scholar] [CrossRef]
  36. Mobinikhaledi, A.; Forughifar, N.; Zendehdel, M.; Jabbarpour, M. Conversion of aldehydes to benzimidazoles using NaY zeolite. Synth. React. Inorg. Met. Org. Nano-Met. Chem. 2008, 38, 390–393. [Google Scholar] [CrossRef]
  37. Mobinikhaledi, A.; Zendehdel, M.; Goudarzi, F.; Bardajee, G.R. Nano-Ni(II)/Y Zeolite catalyzed synthesis of 2-aryl- and 2-alkyl benzimidazoles under solvent-free conditions. Synth. React. Inorg. Met. Org. Nano-Met. Chem. 2016, 46, 1526–1531. [Google Scholar] [CrossRef]
  38. Nguyen, T.T.; Nguyen, X.-T.T.; Nguyen, T.-L.H.; Tran, P.H. Synthesis of benzoxazoles, benzimidazoles, and benzothiazoles using a Brønsted acidic ionic liquid gel as an efficient heterogeneous catalyst under a solvent-free condition. ACS Omega 2019, 4, 368–373. [Google Scholar] [CrossRef]
  39. Bahrami, K.; Khodaei, M.M.; Nejati, A. Synthesis of 1,2-disubstituted benzimidazoles, 2-substituted benzimidazoles and 2-substituted benzothiazoles in SDS micelles. Green Chem. 2010, 12, 1237–1241. [Google Scholar] [CrossRef]
  40. Adharvana Chari, M.; Shobha, D.; Sasaki, T. Room temperature synthesis of benzimidazole derivatives using reusable cobalt hydroxide (II) and cobalt oxide (II) as efficient solid catalysts. Tetrahedron Lett. 2011, 52, 5575–5580. [Google Scholar] [CrossRef]
  41. Das, B.; Kanth, B.S.; Reddy, K.R.; Kumar, A.S. Sulfonic acid functionalized silica as an efficient heterogeneous recyclable catalyst for one-pot synthesis of 2-substituted benziimidazoles. J. Heterocycl. Chem. 2008, 45, 1499–1502. [Google Scholar] [CrossRef]
  42. Bahrami, K.; Bakhtiarian, M. Mesoporous titania-alumina mixed oxide: A heterogeneous nanocatalyst for the synthesis of 2-substituted benzimidazoles, benzothiazoles and benzoxazoles. ChemistrySelect 2018, 3, 10875–10880. [Google Scholar] [CrossRef]
  43. Chen, B.; Zhang, C.; Niu, L.; Shi, X.; Zhang, H.; Lan, X.; Bai, G. Biomass-derived N-doped carbon materials with silica-supported ultrasmall ZnO nanoparticles: Robust catalysts for the Green synthesis of benzimidazoles. Chem. Eur. J. 2018, 24, 3481–3487. [Google Scholar] [CrossRef] [PubMed]
  44. Bandyopadhyay, P.; Sathe, M.; Ponmariappan, S.; Sharma, A.; Sharma, P.; Srivastava, A.K.; Kaushik, M.P. Exploration of in vitro time point quantitative evaluation of newly synthesized benzimidazole and benzothiazole derivatives as potential antibacterial agents. Bioorg. Med. Chem. Lett. 2011, 21, 7306–7309. [Google Scholar] [CrossRef] [PubMed]
  45. Fazaeli, R.; Aliyan, H. A Heterogeneous catalyst for efficient and green synthesis of 2-arylbenzothiazoles and 2-arylbenzimidazoles. Appl. Catal. A Gen. 2009, 353, 74–79. [Google Scholar] [CrossRef]
  46. Samanta, P.K.; Banerjee, R.; Richards, R.M.; Biswas, P. Mesoporous silica supported ytterbium as catalyst for synthesis of 1,2-disubstituted benzimidazoles and 2-substituted benzimidazoles: Mesoporous silica supported ytterbium as heterogeneous catalyst. Appl. Organomet. Chem. 2018, 32, e4507. [Google Scholar] [CrossRef]
  47. Shingalapur, R.V.; Hosamani, K.M. An efficient and eco-friendly tungstate promoted zirconia (WOx/ZrO2) solid acid catalyst for the synthesis of 2-aryl benzimidazoles. Catal. Lett. 2010, 137, 63–68. [Google Scholar] [CrossRef]
  48. Sodhi, R.K.; Paul, S. Nanosized Mn(acac)3 anchored on amino functionalized silica for the selective oxidative synthesis of 2-arylbenzimidazoles, 2-arylbenzothiazoles and aerobic oxidation of benzoins in water. Catal. Lett. 2011, 141, 608–615. [Google Scholar] [CrossRef]
  49. Zakeri, M.; Moghadam, M.; Mirkhani, V.; Tangestaninejad, S.; Mohammadpoor-Baltork, I.; Pahlevanneshan, Z. Copper containing nanosilica thioalated dendritic material: A recyclable catalyst for synthesis of benzimidazoles and benzothiazoles. Appl. Organomet. Chem. 2018, 32, e3937. [Google Scholar] [CrossRef]
  50. Wade, A.R.; Pawar, H.R.; Biware, M.V.; Chikate, R.C. Synergism in semiconducting nanocomposites: Visible light photocatalysis towards the formation of C–S and C–N bonds. Green Chem. 2015, 17, 3879–3888. [Google Scholar] [CrossRef]
  51. Samanta, S.; Das, S.; Biswas, P. Photocatalysis by 3,6-disubstituted-S-tetrazine: Visible-light driven metal-free green synthesis of 2-substituted benzimidazole and benzothiazole. J. Org. Chem. 2013, 78, 11184–11193. [Google Scholar] [CrossRef]
  52. Kovvuri, J.; Nagaraju, B.; Kamal, A.; Srivastava, A.K. An efficient synthesis of 2-substituted benzimidazoles via photocatalytic condensation of o-phenylenediamines and aldehydes. ACS Comb. Sci. 2016, 18, 644–650. [Google Scholar] [CrossRef] [PubMed]
  53. Park, S.; Jung, J.; Cho, E.J. Visible-light-promoted synthesis of benzimidazoles. Eur. J. Org. Chem. 2014, 2014, 4148–4154. [Google Scholar] [CrossRef]
  54. Shiraishi, Y.; Sugano, Y.; Tanaka, S.; Hirai, T. One-pot synthesis of benzimidazoles by simultaneous photocatalytic and catalytic reactions on Pt@TiO2 nanoparticles. Angew. Chem. Int. Ed. 2010, 122, 1700–1704. [Google Scholar] [CrossRef]
  55. Eskandari, A.; Jafarpour, M.; Rezaeifard, A.; Salimi, M. A dendritic TiO2–Co(ii) nanocomposite based on the melamine catalyzed one-pot aerobic photocatalytic synthesis of benzimidazoles. New J. Chem. 2018, 42, 6449–6456. [Google Scholar] [CrossRef]
  56. Feizpour, F.; Jafarpour, M.; Rezaeifard, A. A tandem aerobic photocatalytic synthesis of benzimidazoles by cobalt ascorbic acid complex coated on TiO2 nanoparticles under visible light. Catal. Lett. 2018, 148, 30–40. [Google Scholar] [CrossRef]
  57. Astruc, D. Transition-metal nanoparticles in catalysis: From historical background to the state-of-the art. In Nanoparticles and Catalysis; Astruc, D., Ed.; Wiley-VCH Verlag GmbH and Company KGaA: Weinheim, Germany, 2008; pp. 1–48. [Google Scholar]
  58. Schmid, G. Clusters and Colloids. From Theory to Applications; Wiley-VCH: Weinheim, Germany, 2008. [Google Scholar]
  59. Schmid, G. (Ed.) Nanoparticles. From Theory to Application; Wiley-VCH: Weinheim, Germany, 2010. [Google Scholar]
  60. Sreeprasad, T.S.; Pradeep, T. Noble metal nanoparticles. In Springer Handbook of Nanomaterials; Vajtai, R., Ed.; Springer: Berlin, Germany, 2013; pp. 303–388. [Google Scholar]
  61. Takale, B.S.; Bao, M.; Yamamoto, Y. Gold nanoparticle (AuNPs) and gold nanopore (AuNPore) catalysts in organic synthesis. Org. Biomol. Chem. 2014, 12, 2005–2027. [Google Scholar] [CrossRef]
  62. Bagheri, S.; Muhd Julkapli, N.; Bee Abd Hamid, S. Titanium dioxide as a catalyst support in heterogeneous catalysis. Sci. World J. 2014, 2014. [Google Scholar] [CrossRef] [Green Version]
  63. Ma, Z.; Dai, S. Development of novel supported gold catalysts: A materials perspective. Nano Res. 2011, 4, 3–32. [Google Scholar] [CrossRef] [Green Version]
  64. Corma, A.; Garcia, H. Supported gold nanoparticles as catalysts for organic reactions. Chem. Soc. Rev. 2008, 37, 2096–2126. [Google Scholar] [CrossRef]
  65. Mielby, J.; Kegnaes, S.; Fristrup, P. Gold nanoparticle-catalyzed formation of nitrogen-containing compounds-from mechanistic understanding to synthetic exploitation. ChemCatChem 2012, 4, 1037–1047. [Google Scholar] [CrossRef]
  66. Liu, X.; He, L.; Liu, Y.-M.; Cao, Y. Supported gold catalysis: From small molecule activation to green chemical synthesis. Acc. Chem. Res. 2014, 47, 793–804. [Google Scholar] [CrossRef] [PubMed]
  67. Stratakis, M.; Lykakis, I.N. Nanogold(0)-catalyzed addition of heteroelement σ linkages to functional groups. Synthesis 2019, 51, 2435–2454. [Google Scholar] [CrossRef]
  68. Ruiz, V.R.; Corma, A.; Sabater, M.J. New route for the synthesis of benzimidazoles by a one-pot multistep process with mono and bifunctional solid catalysts. Tetrahedron 2010, 66, 730–735. [Google Scholar] [CrossRef]
  69. Climent, M.J.; Corma, A.; Iborra, S.; Martínez-Silvestre, S. Gold catalysis opens up a new route for the synthesis of benzimidazoylquinoxaline derivatives from biomass-derived products (Glycerol). ChemCatChem 2013, 5, 3866–3874. [Google Scholar] [CrossRef]
  70. Tang, L.; Guo, X.; Yang, Y.; Zha, Z.; Wang, Z. Gold nanoparticles supported on titanium dioxide: An efficient catalyst for highly selective synthesis of benzoxazoles and benzimidazoles. Chem. Commun. 2014, 50, 6145–6148. [Google Scholar] [CrossRef] [Green Version]
  71. Didó, C.A.; Mass, E.B.; Pereira, M.B.; Hinrichs, R.; D’Oca, M.G.M.; Costa, T.M.H.; Russowsky, D.; Benvenutti, E.V. Heterogeneous gold nanocatalyst applied in the synthesis of 2-aryl-2,3-dihydroquinazolin-4(1H)-ones. Colloids Surf. A Physicochem. Eng. Asp. 2020, 589, 124455. [Google Scholar] [CrossRef]
  72. Tzani, M.A.; Kallitsakis, M.G.; Symeonidis, T.S.; Lykakis, I.N. Alumina-supported gold nanoparticles as a bifunctional catalyst for the synthesis of 2-amino-3-arylimidazo[1,2-a]pyridines. ACS Omega 2018, 3, 17947–17956. [Google Scholar] [CrossRef] [Green Version]
  73. Andreou, D.; Kallitsakis, M.G.; Loukopoulos, E.; Gabriel, C.; Kostakis, G.E.; Lykakis, I.N. Copper-promoted regioselective synthesis of polysubstituted pyrroles from aldehydes, amines, and nitroalkenes via 1,2-phenyl/alkyl migration. J. Org. Chem. 2018, 83, 2104–2113. [Google Scholar] [CrossRef]
  74. Kallitsakis, M.; Loukopoulos, E.; Abdul-Sada, A.; Tizzard, G.J.; Coles, S.J.; Kostakis, G.E.; Lykakis, I.N. A copper-benzotriazole-based coordination polymer catalyzes the efficient one-pot synthesis of (N′-substituted)-hydrazo-4-aryl-1,4-dihydropyridines from azines. Adv. Synth. Catal. 2017, 359, 138–145. [Google Scholar] [CrossRef] [Green Version]
  75. Charistoudi, E.; Kallitsakis, M.G.; Charisteidis, I.; Triantafyllidis, K.S.; Lykakis, I.N. Selective reduction of azines to benzyl hydrazones with sodium borohydride catalyzed by mesoporous silica-supported silver nanoparticles: A catalytic route towards pyrazole synthesis. Adv. Synth. Catal. 2017, 359, 2949–2960. [Google Scholar] [CrossRef]
  76. Papadas, I.T.; Fountoulaki, S.; Lykakis, I.N.; Armatas, G.S. Controllable synthesis of mesoporous iron oxide nanoparticle assemblies for chemoselective catalytic reduction of nitroarenes. Chem. Eur. J. 2016, 22, 4600–4607. [Google Scholar] [CrossRef] [PubMed]
  77. Fountoulaki, S.; Daikopoulou, V.; Gkizis, P.L.; Tamiolakis, I.; Armatas, G.S.; Lykakis, I.N. Mechanistic studies of the reduction of nitroarenes by NaBH4 or hydrosilanes catalyzed by supported gold nanoparticles. ACS Catal. 2014, 4, 3504–3511. [Google Scholar] [CrossRef]
  78. Tamiolakis, I.; Fountoulaki, S.; Vordos, N.; Lykakis, I.N.; Armatas, G.S. Mesoporous Au–TiO2 nanoparticle assemblies as efficient catalysts for the chemoselective reduction of nitro compounds. J. Mater. Chem. A 2013, 1, 14311–14319. [Google Scholar] [CrossRef]
  79. Gkizis, P.L.; Stratakis, M.; Lykakis, I.N. Catalytic activation of hydrazine hydrate by gold nanoparticles: Chemoselective reduction of nitro compounds into amines. Catal. Commun. 2013, 36, 48–51. [Google Scholar] [CrossRef]
  80. Fountoulaki, S.; Gkizis, P.L.; Symeonidis, T.S.; Kaminioti, E.; Karina, A.; Tamiolakis, I.; Armatas, G.S.; Lykakis, I.N. Titania-supported gold nanoparticles catalyze the selective oxidation of amines into nitroso compounds in the presence of hydrogen peroxide. Adv. Synth. Catal. 2016, 358, 1500–1508. [Google Scholar] [CrossRef]
  81. Elumalai, V.; Hansen, J.H. A green, scalable, one-minute synthesis of benzimidazoles. Synlett 2020, 31, 547–552. [Google Scholar] [CrossRef]
  82. Maioli, M.; Varadi, G.; Kurdi, R.; Caglioti, L.; Palyi, G. Limits of the classical concept of concentration. J. Phys. Chem. B 2016, 120, 7438–7445. [Google Scholar] [CrossRef]
  83. Stenlid, J.H.; Brinck, T. Extending the σ-hole concept to metals: An electrostatic interpretation of the effects of nanostructure in gold and platinum catalysis. J. Am. Chem. Soc. 2017, 139, 11012–11015. [Google Scholar] [CrossRef]
  84. Cha, H.J.; Byrom, M.; Mead, P.E.; Ellington, A.D.; Wallingford, J.B.; Marcotte, E.M. Evolutionarily repurposed networks reveal the well-known antifungal drug thiabendazole to be a novel vascular disrupting agent. PLoS Biol. 2012, 10, e1001379. [Google Scholar] [CrossRef] [Green Version]
  85. Zhang, C.; Zhong, B.; Yang, S.; Pan, L.; Yu, S.; Li, Z.; Li, S.; Su, B.; Meng, X. Synthesis and biological evaluation of thiabendazole derivatives as anti-angiogenesis and vascular disrupting agents. Bioorg. Med. Chem. 2015, 23, 3774–3780. [Google Scholar] [CrossRef]
  86. Davidse, L.; Flach, W. Interaction of thiabendazole with fungal tubulin. Biochim. Biophys. Acta Gen. Subj. 1978, 543, 82–90. [Google Scholar] [CrossRef]
  87. Kim, Y.; Kumar, M.R.; Park, N.; Heo, Y.; Lee, S. Copper-catalyzed, one-pot, three-component synthesis of benzimidazoles by condensation and C–N bond formation. J. Org. Chem. 2011, 76, 9577–9583. [Google Scholar] [CrossRef] [PubMed]
  88. Grenda, V.J.; Jones, R.E.; Gal, G.; Sletzinger, M. Novel preparation of benzimidazoles from N-arylamidines. New synthesis of thiabendazole. J. Org. Chem. 1965, 30, 259–261. [Google Scholar] [CrossRef]
  89. Bistoni, G.; Belanzoni, P.; Belpassi, L.; Tarantelli, F. π-Activation of alkynes in homogeneous and heterogeneous gold catalysis. J. Phys. Chem. A 2016, 120, 5239–5247. [Google Scholar] [CrossRef]
  90. Tang, D.; Chen, Z.; Tang, Y.; Zhang, J.; Xu, Z.; Zhang, J. Investigation of the cycloisomerization of 1,6-enynes catalyzed by gold nanoparticles with first-principles calculations: Mechanism and selectivity. J. Phys. Chem. C 2014, 118, 18510–18520. [Google Scholar] [CrossRef]
  91. Symeonidis, T.S.; Lykakis, I.N.; Litinas, K.E. Synthesis of quinolines and fused pyridocoumarins from N-propargylanilines or propargylaminocoumarins by catalysis with gold nanoparticles supported on TiO2. Tetrahedron 2013, 69, 4612–4616. [Google Scholar] [CrossRef]
  92. Fragkiadakis, M.; Kidonakis, M.; Zorba, L.; Stratakis, M. Synthesis of 3-keto pyridines from the conjugated allenone–alkynylamine oxidative cyclization catalyzed by supported Au nanoparticles. Adv. Synth. Catal. 2020, 362, 964–968. [Google Scholar] [CrossRef]
  93. Oliver-Meseguer, J.; Boronat, M.; Vidal-Moya, A.; Concepcion, P.; Rivero-Crespo, M.A.; Leyva-Perez, A.; Corma, A. Generation and reactivity of electron-rich carbenes on the surface of catalytic gold nanoparticles. J. Am. Chem. Soc. 2018, 140, 3215–3218. [Google Scholar] [CrossRef] [Green Version]
  94. Corma, A.; Juarez, R.; Boronat, M.; Sanchez, F.; Iglesias, M.; Garcia, H. Gold catalyzes the Sonogashira coupling reaction without the requirement of palladium impurities. Chem. Commun. 2011, 47, 1446–1448. [Google Scholar] [CrossRef]
Nanomaterials 10 02405 g001 550

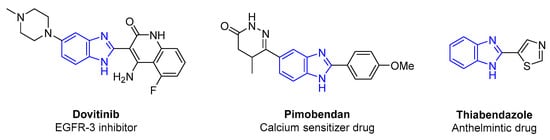

Figure 1. Benzimidazole derivatives with biological activity.
Figure 1. Benzimidazole derivatives with biological activity.
Nanomaterials 10 02405 g001
Nanomaterials 10 02405 sch001 550

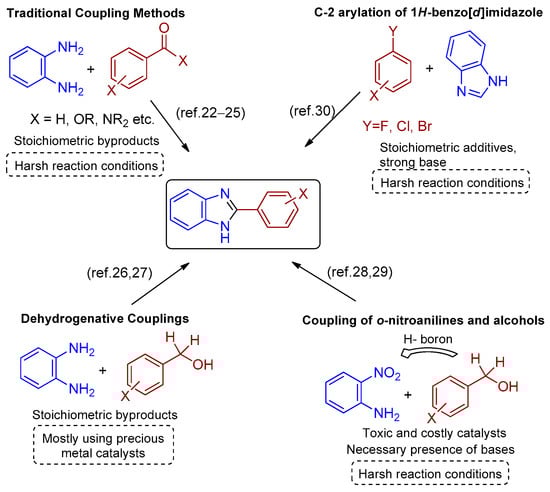

Scheme 1. Strategies toward the synthesis of 2-aryl-benzimidazoles.
Scheme 1. Strategies toward the synthesis of 2-aryl-benzimidazoles.
Nanomaterials 10 02405 sch001
Nanomaterials 10 02405 sch002 550

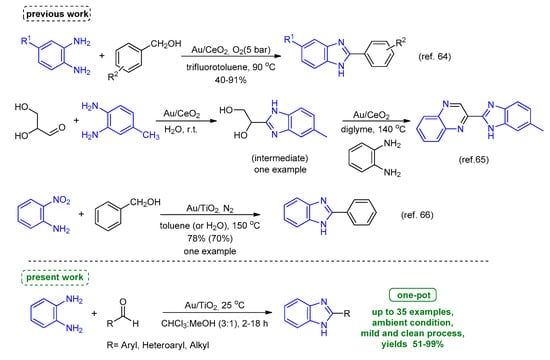

Scheme 2. Heterogeneous Au-catalyzed approaches for the synthesis of 2-substituted benzimidazoles.
Scheme 2. Heterogeneous Au-catalyzed approaches for the synthesis of 2-substituted benzimidazoles.
Nanomaterials 10 02405 sch002
Nanomaterials 10 02405 sch003 550

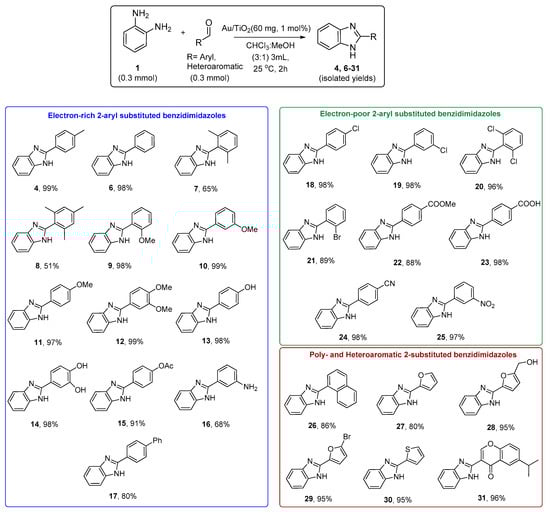

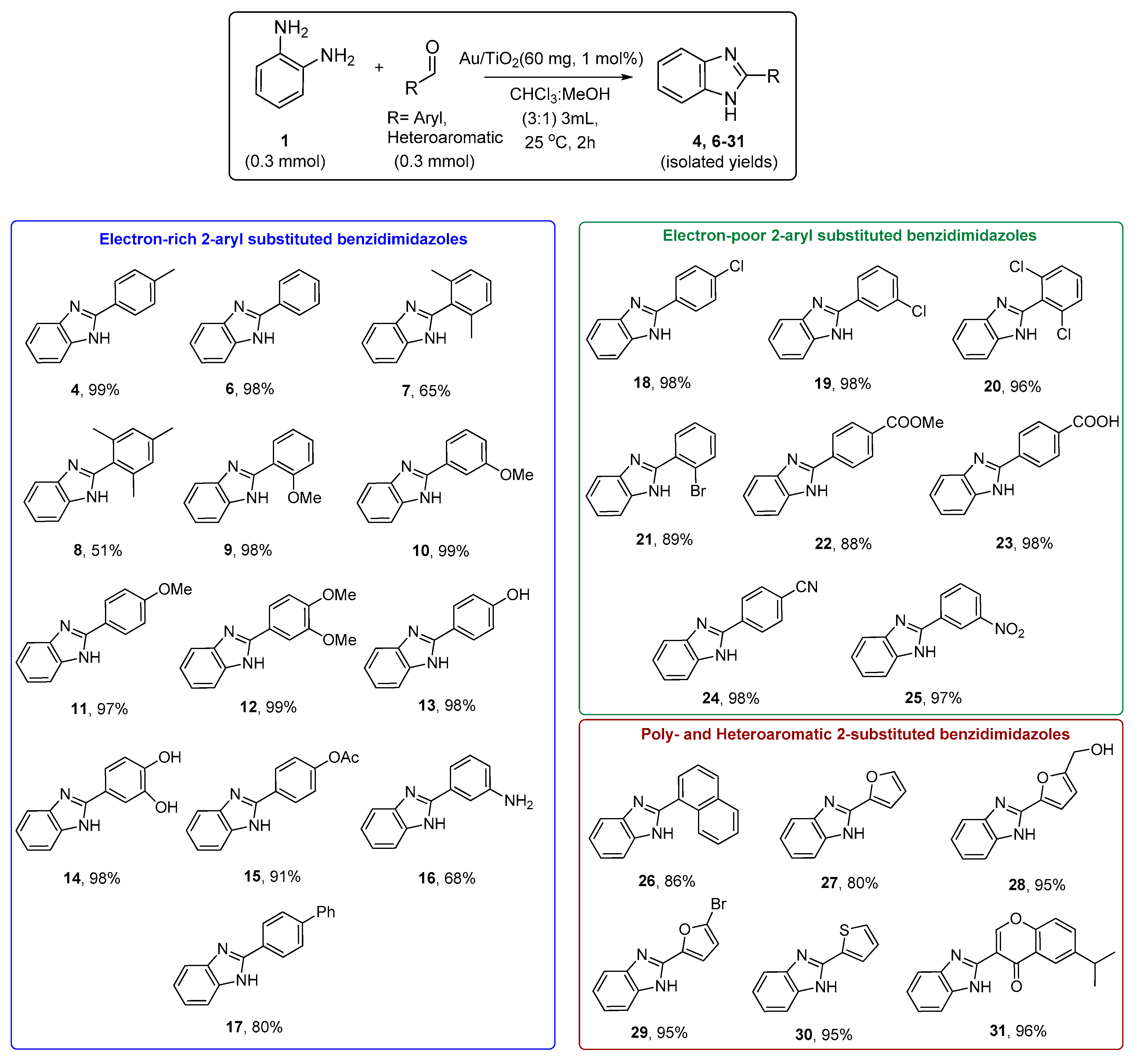

Scheme 3. Synthesis of 2-aryl substituted benzimidazoles 4, 6–31 in the presence of Au/TiO2.
Scheme 3. Synthesis of 2-aryl substituted benzimidazoles 4, 6–31 in the presence of Au/TiO2.
Nanomaterials 10 02405 sch003
Nanomaterials 10 02405 sch004 550

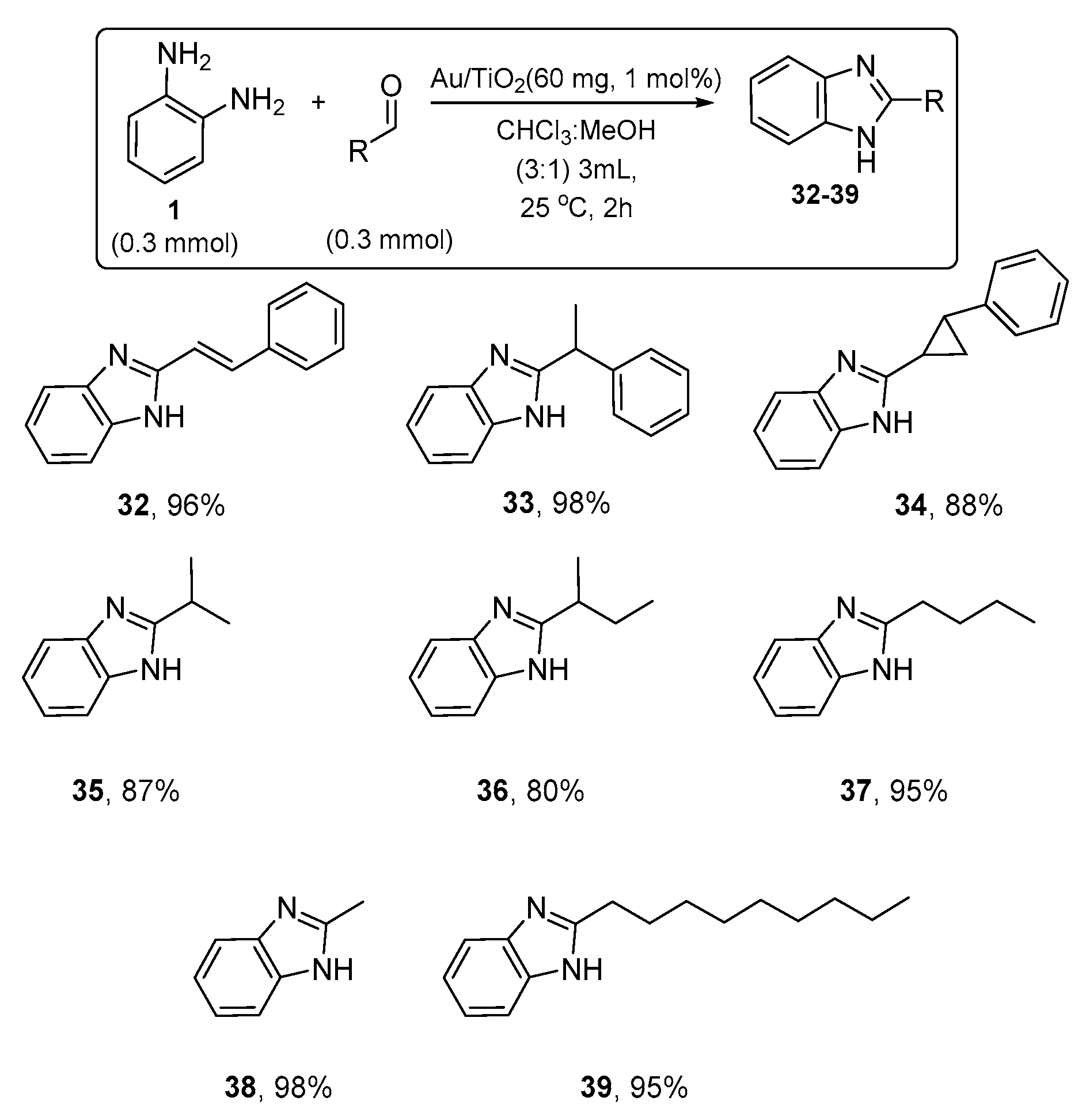

Scheme 4. Synthesis of 2-alkyl substituted benzimidazoles 32–39 in the presence of Au/TiO2.
Scheme 4. Synthesis of 2-alkyl substituted benzimidazoles 32–39 in the presence of Au/TiO2.
Nanomaterials 10 02405 sch004
Nanomaterials 10 02405 sch005 550

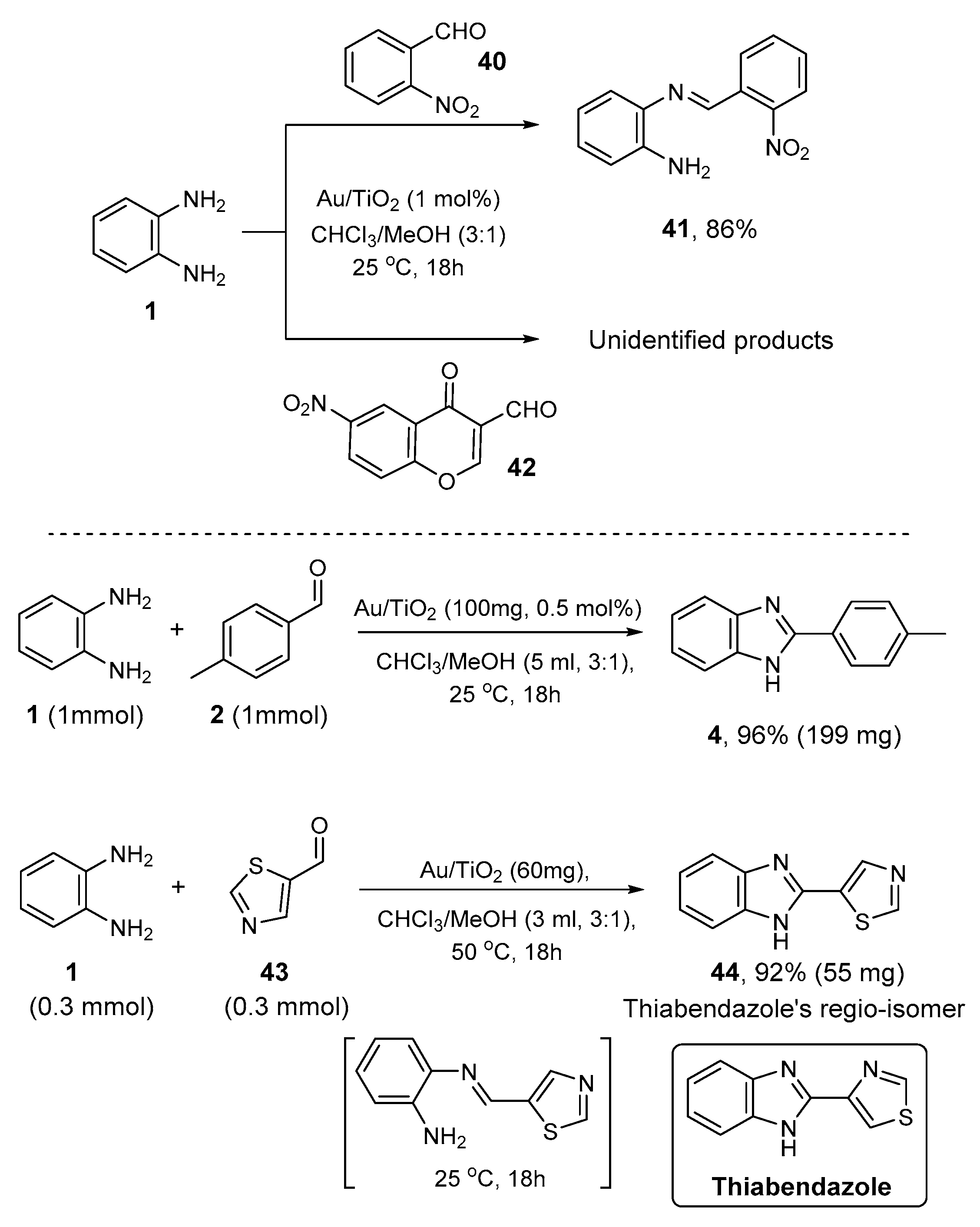

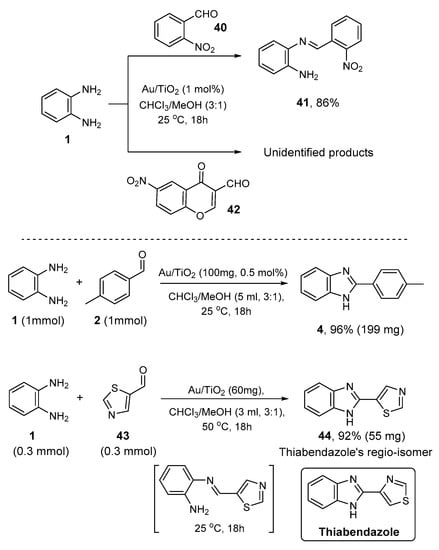

Scheme 5. Structure limitation, lab-scale synthesis of 4, and thiabendazole regio-isomer 44 over Au/TiO2.
Scheme 5. Structure limitation, lab-scale synthesis of 4, and thiabendazole regio-isomer 44 over Au/TiO2.
Nanomaterials 10 02405 sch005
Nanomaterials 10 02405 g002 550
Figure 2. Catalytic runs using the Au/TiO2 catalyst. Experimental conditions: 40 mg of the catalyst, 0.2 mmol of 1, 0.2 mmol of 2, 1.5 mL of CHCl3:MeOH (3:1), 25 °C, t = 2 h.
Figure 2. Catalytic runs using the Au/TiO2 catalyst. Experimental conditions: 40 mg of the catalyst, 0.2 mmol of 1, 0.2 mmol of 2, 1.5 mL of CHCl3:MeOH (3:1), 25 °C, t = 2 h.
Nanomaterials 10 02405 g002
Nanomaterials 10 02405 sch006 550
Scheme 6. Proposed mechanism of the Au/TiO2-catalyzed oxidative cyclization of o-phenylenediamine with aldehyde.
Scheme 6. Proposed mechanism of the Au/TiO2-catalyzed oxidative cyclization of o-phenylenediamine with aldehyde.
Nanomaterials 10 02405 sch006
Table
Table 1. Solvent screening for the reaction between 1 and 2 in the absence of catalyst.
Table 1. Solvent screening for the reaction between 1 and 2 in the absence of catalyst.
Nanomaterials 10 02405 i001
EntrySolvent aTime (h)3 (%) b4 (%) b5 (%) b
1MeOH0.57129-
2MeOH2115831
3 cMeOH2-4859
4MeOH48135532
5EtOH27129-
6 dEtOH48-70-
7CH3CN0.595-5
8CH3CN2573013
9 cCH3CN2-5733
10CH3CN48155926
111,2-DCE2100--
12CHCl32162460
13EtOAc2100--
14THF2-4753
15Toluene2100--
16CHCl3:MeOH
(1:1)		2-4159
17CHCl3:MeOH
(3:1)		2132958
18CHCl3:MeOH
(3:1)		1855738
a Reaction conditions: o-phenylenediamine 1 (0.1 mmol), 4-methylbenzaldehyde 2 (0.1 mmol), solvent (1 mL). b Yields of 3, 4, 5 were determined by 1H NMR from the crude reaction mixture. c In the presence of molecular sieves. d 30% of the corresponding aldehyde 2 remain intact.
Table
Table 2. Reaction conditions development between 1 and 2 for the synthesis of 4.
Table 2. Reaction conditions development between 1 and 2 for the synthesis of 4.
Nanomaterials 10 02405 i002
EntryCatalyst aSolventTime (h)2 (%) b3 (%) b4 (%) b5 (%) b
1Au/ZnOMeOH1827-73-
2Au/Al2O3MeOH1819-81-
3Au/TiO2 MeOH180-100-
4Au/Al2O3CH3CN180165034
5Au/TiO2 CH3CN1805743-
6Au/TiO2 1,2-DCE1808218-
7Au/TiO2 EtOAc180612613
8Au/TiO2 THF180100--
9Au/TiO2 Toluene180711613
10Au/TiO2 EtOH204951-
11Au/TiO2MeOH206337-
12Au/TiO2 CHCl326-94-
13 chv/Au/TiO2CH3CN36104836
14Au/TiO2 CHCl3:MeOH (3:1)20-100-
15Au/Al2O3CHCl3:MeOH (3:1)202575-
16Au/ZnOCHCl3:MeOH (3:1)204258-
17 dAu/TiO2 (3 mol%) CHCl3:MeOH (3:1)20-100-
18 dAu/MTA(1)CHCl3:MeOH (3:1)20-919
19 dAu/MTA(2)CHCl3:MeOH (3:1)20-8515
20 dAu/MTA(3)CHCl3:MeOH (3:1)20175429
21 dAu/MTA(5)CHCl3:MeOH (3:1)20304426
a Reaction conditions: 0.1 mmol of 1, 0.1 mmol of 2, catalyst (1 mol%), 1 mL of solvent, at 25 °C. The commercially available catalysts Au/TiO2, Au/Al2O3, and Au/ZnO feature a ca. 1 wt.% Au loading and exhibit an average AuNP size of about 2–3 nm. b Yields of 2, 3, 4, and 5 were determined by 1H NMR from the crude reaction mixture. c Reaction conditions: 1 (0.1 mmol), 2 (0.1 mmol), Au/TiO2 (20 mg), solvent (1 mL) at white LEDs for 3 h. d The amount of 60 mg from Au/TiO2 were used. e The catalysts Au/MTA(1), Au/MTA(2), Au/MTA(3), and Au/MTA(5) contain nanoparticles with diameters of 4.4, 5.2, 7.1, and 9.4 nm, respectively, and were used in 1 mol% based on the 2 amount.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tzani, M.A.; Gabriel, C.; Lykakis, I.N. Selective Synthesis of Benzimidazoles from o-Phenylenediamine and Aldehydes Promoted by Supported Gold Nanoparticles. Nanomaterials 2020, 10, 2405. https://doi.org/10.3390/nano10122405

AMA Style

Tzani MA, Gabriel C, Lykakis IN. Selective Synthesis of Benzimidazoles from o-Phenylenediamine and Aldehydes Promoted by Supported Gold Nanoparticles. Nanomaterials. 2020; 10(12):2405. https://doi.org/10.3390/nano10122405

Chicago/Turabian Style

Tzani, Marina A., Catherine Gabriel, and Ioannis N. Lykakis. 2020. "Selective Synthesis of Benzimidazoles from o-Phenylenediamine and Aldehydes Promoted by Supported Gold Nanoparticles" Nanomaterials 10, no. 12: 2405. https://doi.org/10.3390/nano10122405

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
