Nonlinear Optical Response of Reflective MXene Molybdenum Carbide Films as Saturable Absorbers

by
Jiang Wang
1,
Yonggang Wang
2,
Sicong Liu
2,
Guangying Li
1,
Guodong Zhang
1 and
Guanghua Cheng
1,*
1
Center of Optical Imagery Analysis and Learning, Electronic Information College, Northwestern Polytechnical University, Xi’an 710072, China
2
School of Physics and Information Technology, Shaanxi Normal University, Xi’an 710119, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(12), 2391; https://doi.org/10.3390/nano10122391
Submission received: 22 October 2020 / Revised: 23 November 2020 / Accepted: 27 November 2020 / Published: 30 November 2020
(This article belongs to the Special Issue State-of-the-Art Electromagnetic Wave Absorbing Nanocomposites in Asia)
Browse Figures
Review Reports Versions Notes

Abstract

:
Molybdenum carbide (Mo2C) is a two-dimensional (2D) MXene material which makes it a promising photoelectric material. In this study, reflective type MXene Mo2C thin films were coated on a silver mirror by a magnetron sputtering method and were subsequently used in a passively Q-switched solid-state pulsed laser generator at the central wavelengths of 1.06 and 1.34 μm, respectively. The fabricated thin films of reflective type MXene Mo2C exhibited large modulation depth of 6.86% and 5.38% at the central wavelengths of 1064 and 1342 nm, respectively. By inserting the Mo2C saturable absorbers (SAs) into V-shaped Nd:YAG laser, short pulses were generated having a pulse duration, pulse energy, and average output power of 254 ns, 2.96 μJ, and 275 mW, respectively, at a wavelength of 1.06 μm. Similarly, shorter laser pulses were obtained in Nd:YVO4 laser at 1.34 μm. Our results illustrated potential of the 2D MXene Mo2C films for laser applications.

1. Introduction

Two-dimensional (2D) materials have been extensively studied due to their widespread applications in novel photonic devices [1,2] specifically in the development of ultrafast lasers [3,4,5,6]. In the field of ultrafast lasers, more nonlinear materials that combine the two advantages of broadband nonlinear modulation and ultrafast optical response have a new era of saturation absorbers (SAs). Semiconductor saturable absorption mirrors (SESAMs) are one of the most effective SAs. However, it has the disadvantage of complex manufacturing, narrow bands, and high prices. In recent years, SAs of 2D materials, such as grapheme [7,8,9,10], graphene oxide (GO) [11], topological insulators [12,13,14,15], transition-metal dichalcogenides [16,17,18,19], black phosphorus (BP) [20,21,22], and perovskites [23] have experienced rapid development in fabrication of passively Q-switched laser pulses. The SA of 2D materials can be used to modulate the pulse in a wide wavelength range of 1 to 3 μm, due to the broadband nonlinear modulation effect and easy integration into the passively Q-switched system.
Mxenes [24], which are transition metal carbides and nitrides, are the newly found 2D materials which have gained growing interest among the research community [25,26,27,28,29]. Furthermore, passively Q-Switched and mode-locked lasers with the MXene SA have attracted significant interest from scientists. In 2017, Jhon et al. reported a mode-locked Er-doped fiber laser with Ti3CNTx SAs operable at a wavelength of 1557 nm having a pulse width of 660 fs and an average output power of 0.05 mW [30]. Jiang et al. reported on an Yb-doped fiber lasers fabricated with Ti3C2Tx SAs. The shortest pulse duration and average output power are 480 ps and 9 mW, respectively [31]. In 2018, Feng et al. recorded a pulse duration of 359 ns, having an average output power of 94.8 mW for laser pulses from the Ti3C2Tx Q-Switched Nd:YAG laser [32]. In the same year, Wang et al. obtained Q-Switched pulses with a duration of 454 ns and an average output power only of 30 mW [33]. In 2019, Zu et al. used Ti3C2Tx in a Q-Switched Tm, Gd:CaF2 laser and the shortest pulse duration of 2.39 μs, having an average output power of 208 mW, was recorded [34]. Molybdenum carbide (Mo2C) is a new member of the MXenes family, which has been highlighted for its excellent conductivity, nontoxic synthesis processes, low cost, and high chemical stability [35,36]. In 2018, Tuo et al. reported on the mode-locked Er or Yb-doped fiber lasers, constructed using the Mo2C nanocrystal as SAs [37]. However, the reflective type Mo2C SAs has not been used in solid-state lasers until now.
Herein, we fabricated a Mo2C film coated silver mirror by magnetron sputtering. By inserting reflective type Mo2C SAs inside a Nd:YAG laser cavity, a stable Q-switched laser operation at a wavelength of 1064 nm with the maximum average output power of 275 mW corresponding to a pulse width of 254 ns and pulse energy of 2.96 μJ were obtained. In addition, the usage of reflective type 2D Mo2C SAs in Nd:YVO4 solid-state lasers operable at 1342 mm was demonstrated. The maximum average output power was 293 mW, the pulse width was 313 ns, and the pulse energy was 3.15 μJ.

2. Materials and Methods

2.1. Preparation of Mo2C SAs

The silver mirror was prepared by electron evaporation, wherein a layer of 180 nm silver was evaporated on a 1 mm thick quartz plate. An approximately 20 nm thick SiO2 layer was deposited on the silver film in order to protect the silver mirror. The Mo2C thin film was deposited on a silver mirror substrate by radio frequency magnetron sputtering deposition, as shown in the inset of Figure 1d. The vacuum level was set at 6 × 10−4 Pa and the finally obtained Mo2C sample was annealed at 600 °C.

2.2. Characterization of Mo2C SAs

The morphology of the Mo2C SAs was examined using the scanning electron microscopy (SEM, NovaNanoSEM Training-X50 series, FEI, Eindhoven, The Netherlands). The Mo2C SAs measurements were performed on a micro-Raman system (obtained using LabRam confocal Microprobe system, Horiba Jobin Yvon, Paris, France). An atomic force microscope (AFM Bruker Dimension ICON, Mannheim, Germany) was employed to observe the microstructures of Mo2C SAs nanostructures. The linear transmission spectra and nonlinear optical absorption of the samples were measured by the spectrophotometer (UV-Lambda 1050 PerkinElmer, Downers Grove, IL, USA) and homemade nanosecond pulsed laser (50 ns and 50 kHz) with the twin-detector measurement technique operated, respectively.

3. Results and Discussion

3.1. Characterization of Mo2C SAs Film

Figure 1a shows the 2D topographical images of the Mo2C films samples by AFM. Three different sections were chosen for the measurements to determine the thicknesses of the Mo2C thin films, as shown in Figure 1b. The thicknesses of the Mo2C films ranges from 12 to 16 nm were obtained. The micro structure of Mo2C films samples was determined by scanning electron microscopy, as shown in Figure 1c. Raman spectroscopy was used to investigate the composition of the Mo2C films samples. Figure 1d shows two noticeable peaks at 1344.5 (D band) and 1589.6 cm−1 (G band), which corresponds to the D and the G bands of carbon, respectively. In addition, the Raman spectra of the Mo2C films samples present one strong peak at 818.2 cm−1, which correspond to molybdenum oxide [36].

3.2. Nonlinear Optical Characteristics of Mo2C SAs Film

The reflectivity and nonlinear optical absorption of the sample were measured by a spectrophotometer and homemade pulsed Nd:YVO4 laser with balanced synchronous twin-detector technique [38], respectively. Figure 2a shows the reflectivity of Mo2C SAs was 52.6%@1064 nm and 88.6%@1342 nm. The laser source of central wavelength 1064 nm and 1342 nm were obtained by changing the end mirror (M1 and M2), respectively. We also used an actively Q-switched Nd:YVO4 solid-state laser with 50 ns pulse duration; and 5 KHz repetition rate; (A Actively Q-switched Nd:YVO4 solid-state laser with 50 ns pulse duration, and 5 KHz repetition rate, (AOM: Acousto Optical Modulator, VOA: Variable Optical Attenuator, FL: Focal Lens, PM: Power Meter, SAs: Mo2C SAs).), as shown in Figure 2b. The experimental data were fitted using the following equation [38]:
Τ(I) = 1 − αnsexp(−I/Isat) − Τns
where T(I), αns, I, Isat, and Tns is the transmission, modulation depth, input intensity, saturation intensity and non-saturable loss, respectively. The modulation depth and saturation intensity of Mo2C SAs @1064 nm were 6.86% and 0.26 MW/cm2, respectively, as shown in Figure 2c. In addition, nonlinear optical transmission data at 1342 nm were shown in Figure 2d. The modulation depth and saturation intensity of Mo2C SAs were 5.38% and 0.62 MW/cm2, respectively. The damage threshold of Mo2C SAs film is estimated to be greater than 1 MW/cm2 (central wavelength 1064 nm).

3.3. Experimental Setup of Passively Q-Switched Nd:YAG Laser

Figure 3a is the scheme of Q-switched Nd:YAG solid-state laser. The diode-laser pump source is rated with power of 30 W at a wavelength of 808 nm. The gain medium is a Nd:YAG crystal doped at 1.2 at%. One end surfaces of the Nd:YAG crystal was coated with a high-transmission film at 808 nm and a high-reflection film at 1064 nm. As a reflection plane mirror of V-type laser, the combination of the SAs and reflector is beneficial to the simplification of the design of the laser. The laser V-folded cavity was designed to be 68 mm long. The mirror M1 (Radius of curvature is 100 mm) consists of an output coupler having a 10% transmission at 1064 nm obtained by adjusting the position of the SAs and the laser output from port P1 and port P2. Finally, the relationship between the average output power and the pump power was obtained, and the slope efficiency achieved was as high as 25.4%, as shown in Figure 3b.
Figure 4a depicts the pulse trains of Q-switched Nd:YAG solid-state lasers at the pump power of 4.2, 4.3, 4.7 and 4.8 W, respectively. Figure 4b shows the narrowest pulse duration of 254 ns at the pump power of 4.8 W. The variation of pulse duration and pulse repetition rate as a function of the incident pump power is shown in Figure 4c. The pulse duration decreased from 488 to 254 ns, and the pulse repetition rate increased from 49 to 93 kHz. The variation of the single pulse energy and the peak power of Q-switched pulse as a function of the incident pump power are shown in Figure 4d. When the pump power reaches 4.8 W, the maximum single pulse energy recorded was 2.96 μJ and the maximum peak power was 11.64 W. In general, the repetition rate of Q-switched pulses increases continuously with the augment of pump power, while the single pulse duration decreases. With the increase of pump power, the upper state population of SA level increases continuously, and the duration of pulse decreases. Continue to increaseAs the pump power continues to increase, the accumulation speed will slow down due to the upper state population soaredsoaring to over-saturation, leading to less a significant change of pulse duration. With pump power increases, the Q-switched operation could be still maintained, while the pulses have slight jitter. ItThis is mainly attributed to the degeneration of SA caused by laser induced heat accumulation [39].

3.4. Experimental Setup of Passively Q-Switched Nd:YVO4 Laser

Figure 5a depicts the schematic of Q-switched Nd:YVO4 solid-state laser. The gain medium is Nd:YVO4 crystal doped with 0.5 at% of Nd3+. The two-color mirror M1 was a plane mirror with anti-reflection and total reflection corresponding to wavelengths of 808 and 1342 nm, respectively. The mirror M2 (Radius of curvature is 100 mm) was an output coupler with a transmission of 5% at a wavelength of 1342 nm. The SAs was also used as a reflective plane mirror for a V-type laser. The laser V-folded cavity was designed to be 116 mm long. The crystal was pumped by diode laser (LD) emitting at a wavelength of 808 nm with a maximum output power of 30 W. The crystal temperature was maintained at 16 °C. By slightly adjusting the position of the SAs, the output of P1 and P2 of the two-channel Q-switched pulse laser was obtained. The relationship between absorbed pump powers has been shown in Figure 5b. As the pump power increased, the total average output power gradually increased. The highest slope efficiency was 18.8%.
Figure 6a depicts the pulse train diagram of Q-switched Nd:YVO4 solid-state laser at the pump power of 6.9, 7.1, 7.3, 7.5, and 7.6 W, respectively. The narrowest pulse duration recorded is 313 ns, which is shown in Figure 6b. The variation of the pulse duration and pulse repetition rate as a function of the incident pump power is shown in Figure 6c. The pulse duration decreases from 688 to 313 ns, while an increase in the pulse repetition rate increases from 55 to 93 kHz. The variation of the single pulse energy and peak power of the Q-switched pulse as a function of the pump power is shown in Figure 6d. When the pump power reaches 7.6 W, the maximum single pulse energy output is 3.15 μJ and the maximum peak power is 10.04 W with the pump power at 7.6 W. Table 1 summarizes the results obtained from passive Q-switched solid-state pulsed lasers. Compared to other 2D material absorbers, especially SAs based on material MXene [32,33,34], higher average power and narrower pulse width were obtained in this paper. The reason for this phenomenon may be the uniformity of the MXenes film. The smooth surface of the absorber reduces optical scattering, which can reduce the non-saturable losses of the absorber. The films prepared by magnetron sputtering deposition have better surface uniformity than those prepared by spin coating.

4. Conclusions

In summary, the reflective type MXene Mo2C thin films were fabricated on a silver mirror by magnetron sputtering method. The modulation depth of MXene Mo2C SAs at different bands is 6.86% (1064 nm) and 5.38% (1342 nm).By using the 2D Mo2C SAs, Nd:YAG, and Nd:YVO4 solid-state passively Q-switched pulsed lasers operating at the central wavelengths of 1.06 and 1.34 μm were obtained. The Nd:YAG laser generates a stable pulse train by changing the pump power from 4.2 to 4.8 W with a corresponding change in pulse width and average output power from 488 to 254 ns and 124 to 275 mW, respectively. The laser pulse duration of Nd:YVO4 is 313 ns, and the corresponding maximum average output power of 293 mW, pulse energy of 3.15 μJ and peak power of 10.07 W was obtained. Therefore, the reflective type 2D MXene Mo2C SAs has been proven to be a novel promising broadband saturable absorber for the fabrication of stable Q-switched pulse lasers.

Author Contributions

Conceptualization, J.W.; Data curation, J.W., S.L., G.L.; Funding acquisition, G.C.; Investigation, J.W., G.Z.; Methodology, J.W., Y.W.; Project administration, G.C.; Supervision, G.C.; Writing—original draft preparation, J.W.; Writing—review and editing, J.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Fundamental Research Funds for the Central Universities (No. 31020200QD039), and National Key Research and Development Program of China (2018YFB11074).

Acknowledgments

Many thanks to Xuelong Li of Northwestern Polytechnical University for providing guidance and help in this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zuo, Y.; Gao, Y.R.S.; Qin, Y.; Wang, Z.Y.; Zhou, D.; Li, Z.; Yu, Y.; Shao, M.; Zhang, Y.L. Broadband multi-wavelength optical sensing based on photothermal effect of 2D MXene films. Nanophotonics 2020, 9, 123–131. [Google Scholar] [CrossRef]
  2. Zhang, M.; Wu, Q.; Zhang, F.; Chen, L.L.; Jin, X.X.; Hu, Y.W.; Zheng, Z.; Zhang, H. 2D black phosphorus saturable absorbers for ultrafast photonics. Adv. Opt. Mater. 2019, 7, 1800224. [Google Scholar] [CrossRef] [Green Version]
  3. Abdul Hadia, A.W.; Lau, K.Y.; Zainol Abidin, N.H.; Baki, S.O.; Ng, E.K.; Kee, L.H.; Mahdi, M.A. Investigation of tungsten trioxide as a saturable absorber for mode-locked generation. Opt. Laser Technol. 2020, 132, 106496. [Google Scholar] [CrossRef]
  4. Ge, Y.Q.; Zhu, Z.F.; Xu, T.H.; Chen, Y.X.; Chen, S.; Liang, Z.M.; Song, Y.F.; Zou, Y.S.; Zeng, H.B.; Xu, S.X.; et al. Broadband nonlinear photoresponse of 2D TiS2 for ultrashort pulse generation and all-optical thresholding devices. Adv. Opt. Mater. 2018, 6, 1701166. [Google Scholar] [CrossRef]
  5. Lu, L.; Liang, Z.M.; Wu, L.M.; Chen, Y.X.; Song, Y.F.; Dhanabalan, S.C.; Ponraj, J.S.; Dong, B.Q.; Xiang, Y.J.; Xing, F.; et al. Few-layer bismuthene: Sonochemical exfoliation, nonlinear optics and applications for ultrafast photonics with enhanced stability. Laser Photonics Rev. 2017, 12, 1700221. [Google Scholar] [CrossRef]
  6. Chen, Y.; Jiang, G.B.; Chen, S.Q.; Guo, Z.N.; Yu, X.F.; Zhao, C.J.; Zhang, H.; Bao, Q.L.; Wen, S.C.; Tang, D.Y.; et al. Mechanically exfoliated black phosphorus as a new saturable absorber for both Q-switching and Mode-locking laser operation. Opt. Express 2015, 23, 12823–12833. [Google Scholar] [CrossRef] [Green Version]
  7. Li, X.; Xu, J.; Wu, Y.; He, J.; Hao, X. Large energy laser pulses with high repetition rate by graphene Q-switched solid-state laser. Opt. Express 2011, 19, 9950–9955. [Google Scholar] [CrossRef]
  8. Yu, H.; Chen, X.; Zhang, H.; Hu, X.; Wang, Z.; Wang, J.; Zhuang, S.; Jiang, M. Large energy pulse generation modulated by graphene epitaxially grown on silicon carbide. ACS Nano 2010, 4, 7582–7586. [Google Scholar] [CrossRef] [PubMed]
  9. Xu, B.; Wang, Y.; Cheng, Y.; Yang, H.; Xu, H.; Cai, Z. Nanosecond pulse generation in a passively q-switched Nd:GGG laser at 1331 nm by CVD graphene saturable absorber. J. Opt. 2015, 17, 105501. [Google Scholar] [CrossRef]
  10. Shen, H.B.; Wang, Q.P.; Zhang, X.Y.; Liu, Z.J.; Bai, F.; Cong, Z.H.; Chen, X.H.; Gao, L.; Zhang, H.J.; Xu, X.G.; et al. Passively Q-switched Nd:KLu(WO4)2 laser at 1355 nm with graphene on SiC as saturable absorber. Appl. Phys. Express 2012, 5, 092703. [Google Scholar] [CrossRef]
  11. Wang, J.; Wang, Y.G.; Wang, T.J.; Li, G.Y.; Lou, R.; Cheng, G.H.; Bai, J. Nonlinear optical response of graphene oxide langmuir-blodgett film as saturable absorbers. Nanomaterials 2019, 9, 640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Sun, Y.J.; Tu, C.Y.; You, Z.Y.; Liao, J.H.; Wang, Y.Q.; Xu, J.L. One-dimensional Bi2Te3 nanowire based broadband saturable absorber for passively Q-switched Yb-doped and Er-doped solid state lasers. Opt. Mater. Express 2018, 8, 165–174. [Google Scholar] [CrossRef]
  13. Hu, M.T.; Liu, J.H.; Tian, R.; Dou, Z.Y.; Song, T.R. Generation of Q-switched pulse by Bi2Te3 topological insulator in Yb:KGW laser. Laser Phys. Lett. 2014, 11, 115806. [Google Scholar] [CrossRef]
  14. Lin, Y.Y.; Lee, P.; Xu, J.; Wu, C.L.; Chou, C.M.; Tu, C. High-pulse-energy topological insulator Bi2Te3-based passive Q-switched solid-state laser. IEEE Photonics J. 2016, 8, 1–8. [Google Scholar] [CrossRef]
  15. Xu, B.; Wang, Y.; Peng, J.; Luo, Z.; Xu, H.; Cai, Z.; Weng, J. Topological insulator Bi2Se3 based Q-switched Nd:LiYF4 nanosecond laser at 1313 nm. Opt. Express 2015, 23, 7674–7680. [Google Scholar] [CrossRef] [PubMed]
  16. Lou, F.; Zhao, R.; He, J.; Jia, Z.; Su, X.; Wang, Z.; Hou, J.; Zhang, B. Nanosecond-pulsed, dual-wavelength, passively Q-switched ytterbium-doped bulk laser based on few-layer MoS2 saturable absorber. Photonics Res. 2015, 3, A25–A29. [Google Scholar] [CrossRef]
  17. Ge, P.G.; Liu, J.; Jiang, S.Z.; Xu, Y.Y.; Man, B.Y. Compact Q-switched 2 μm Tm:GdVO4 laser with MoS2 absorber. Photonics Res. 2015, 3, 256–259. [Google Scholar] [CrossRef] [Green Version]
  18. Wang, K.; Yang, K.J.; Zhang, X.Y.; Zhao, S.Z.; Luan, C.; Liu, C.; Wang, J.; Xu, X.D.; Xu, J. Passively Q-switched laser at 1.3 µm with few-layered MoS2 saturable absorber. IEEE J. Set. Top. Quant. 2017, 23, 1600205. [Google Scholar]
  19. Xu, B.; Cheng, Y.J.; Wang, Y.; Huang, Y.Z.; Peng, J.; Luo, Z.Q.; Xu, H.Y.; Cai, Z.P.; Weng, J.; Moncorgé, R. Passively Q-switched Nd:YAlO3 nanosecond laser using MoS2 as saturable absorber. Opt. Express 2014, 22, 28934–28940. [Google Scholar] [CrossRef]
  20. Ma, J.; Lu, S.; Guo, Z.; Xu, X.; Zhang, H.; Tang, D.; Fan, D. Few-layer black phosphorus based saturable absorber mirror for pulsed solid-state lasers. Opt. Express 2015, 23, 22643–22648. [Google Scholar] [CrossRef]
  21. Han, S.; Zhang, F.; Wang, M.; Wang, L.; Zhou, Y.; Wang, Z. Black phosphorus based saturable absorber for Nd-ion doped pulsed solid state laser operation. Indian J. Phys. 2016, 91, 1–5. [Google Scholar] [CrossRef]
  22. Sun, X.L.; Nie, H.K.; He, J.L.; Zhao, R.W.; Su, X.C.; Wang, Y.R.; Zhang, B.T.; Wang, R.H.; Yang, K.J. Passively Q-Switched Nd:GdVO4 1.3 μm laser with few-layered black phosphorus saturable absorber. IEEE J. Set. Top. Quant. 2018, 24, 1600405. [Google Scholar] [CrossRef]
  23. Wang, J.; Wang, Y.G.; Chen, Z.D.; Yang, X.G.; Lv, R.D. CH3NH3PbI3 perovskite thin films as a saturable absorber for a passively Q-switched Nd:YAG laser. J. Mater. Chem. C 2019, 7, 5047. [Google Scholar] [CrossRef]
  24. Naguib, M.; Kurtoglu, M.; Presse, V.; Lu, J.; Niu, J.; Heon, M.; Hult-man, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Shahzad, F.; Alhabeb, M.; Hatter, C.B.; Anasori, B.; Hong, S.M.; Koo, C.M.; Gogotsi, Y. Electromagnetic interference shielding with 2D transition metal carbides (MXenes). Science 2016, 353, 1137–1140. [Google Scholar] [CrossRef] [Green Version]
  26. Ling, Z.; Ren, C.E.; Zhao, M.Q.; Yang, J.; Giammarco, J.M.; Qiu, J.S.; Barsoum, M.W.; Gogotsi, Y. Flexible and conductive MXene films and nanocomposites with high capacitance. Proc. Natl. Acad. Sci. USA 2014, 111, 16676. [Google Scholar] [CrossRef] [Green Version]
  27. Hantanasirisakul, K.; Zhao, M.Q.; Urbankowski, P.; Halim, J.; Anasori, B.; Kota, S.; Ren, C.E.; Barsoum, M.W.; Gogotsi, Y. Fabrication of Ti3C2Tx MXene Transparent Thin Films with Tunable Optoelectronic Properties. Adv. Electron. Mater. 2016, 2, 1600050. [Google Scholar] [CrossRef]
  28. Zhu, M.; Huang, Y.; Deng, Q.; Zhou, J.; Pei, Z.; Xue, Q.; Huang, Y.; Wang, Z.; Li, H.; Huang, Q.; et al. Highly flexible, freestanding supercapacitor electrode with enhanced performance obtained by hybridizing polypyrrole chains with MXene. Adv. Energy Mater. 2016, 6, 1600969. [Google Scholar] [CrossRef]
  29. Lukatskaya, M.R.; Mashtalir, O.; Ren, C.E.; Dall’Agnese, Y.; Rozier, P.; Taberna, P.L.; Naguib, M.; Simon, P.; Barsoum, M.W.; Gogotsi, Y. Cation Intercalation and high volumetric capacitance of two-dimensional titanium carbide. Science 2013, 34, 1502–1505. [Google Scholar] [CrossRef] [Green Version]
  30. Young, I.J.; Koo, J.; Anasori, B.; Seo, M.; Lee, J.H.; Gogotsi, Y.; Jhon, Y.M. Metallic MXene saturable absorber for femtosecond mode-locked lasers. Adv. Mater. 2017, 29, 1702496. [Google Scholar]
  31. Jiang, X.T.; Liu, S.X.; Liang, W.Y.; Luo, S.J.; He, Z.L.; Ge, Y.Q.; Wang, H.D.; Cao, R.; Zhang, F.; Wen, Q.; et al. Broadband Nonlinear Photonics in Few-Layer MXene Ti3C2Tx (T = F, O, or OH). Laser Photon. Rev. 2018, 12, 1870013. [Google Scholar] [CrossRef] [Green Version]
  32. Feng, X.Y.; Ding, B.Y.; Liang, W.Y.; Zhang, F.; Ning, T.Y.; Liu, J.; Zhang, H. MXene Ti3C2Tx absorber for a 1.06 μm passively Q-switched ceramic laser. Laser Phys. Lett. 2018, 15, 085805. [Google Scholar] [CrossRef]
  33. Wang, C.; Peng, Q.Q.; Fan, X.W.; Liang, W.Y.; Zhang, F.; Liu, J.; Zhang, H. MXene Ti3C2Tx saturable absorber for pulsed laser at 1.3 µm. Chin. Phys. B 2018, 27, 094214. [Google Scholar] [CrossRef]
  34. Zu, Y.Q.; Zhang, C.; Guo, X.S.; Liang, W.Y.; Liu, J.; Su, L.B.; Zhang, H. A solid-state passively Q-switched Tm, Gd: CaF2 laser with a Ti3C2Tx MXene absorber near 2 µm. Laser Phys. Lett. 2019, 16, 015803. [Google Scholar] [CrossRef]
  35. Lin, H.L.; Shi, Z.P.; He, S.N.; Yu, X.; Wang, S.N.; Gao, Q.S.; Tang, Y. Heteronanowires of MoC–Mo2C as efficient electrocatalysts for hydrogen evolution reaction. Chem. Sci. 2016, 7, 3399–3405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Dai, S.S.; Cheng, Y.; Quan, B.; Liang, X.H.; Liu, W.; Yang, Z.H.; Ji, G.B.; Du, T.W. Porous-carbon-based Mo2C nanocomposites as excellent microwave absorber: A new exploration. Nanoscale 2018, 10, 6945. [Google Scholar] [CrossRef]
  37. Tuo, M.F.; Xu, C.; Mu, H.R.; Bao, X.Z.; Wang, Y.W.; Xiao, S.; Ma, W.L.; Li, L.; Tang, D.Y.; Zhang, H.; et al. Ultrathin 2D transition metal carbides for ultrafast pulsed fiber lasers. ACS Photonics 2018, 5, 1808–1816. [Google Scholar] [CrossRef]
  38. Zhu, C.H.; Wang, F.Q.; Meng, Y.F.; Yuan, X.; Xiu, F.X.; Luo, H.Y.; Wang, Y.Z.; Li, J.F.; Lv, X.J.; He, L.; et al. A robust and tuneable mid-infrared optical switch enabled by bulk Dirac fermions. Nat. Commun. 2017, 8, 14111. [Google Scholar] [CrossRef]
  39. Wang, X.; Wang, Y.G.; Mao, D.; Li, L.; Chen, Z.D. Passively Q-switched Nd:YVO4 laser based on Fe3O4 nanoparticles saturable absorber. Opt. Mater. Express 2017, 7, 2913–2921. [Google Scholar] [CrossRef]
Nanomaterials 10 02391 g001 550

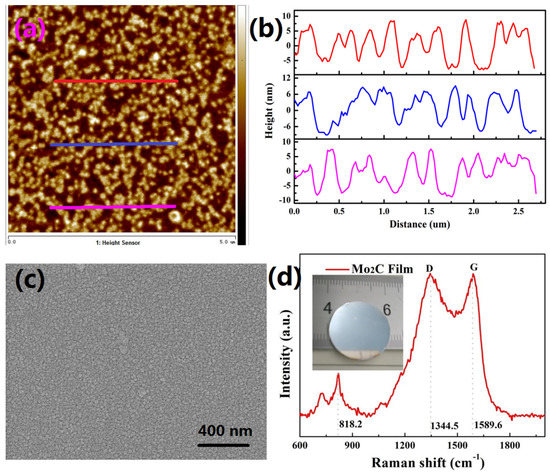

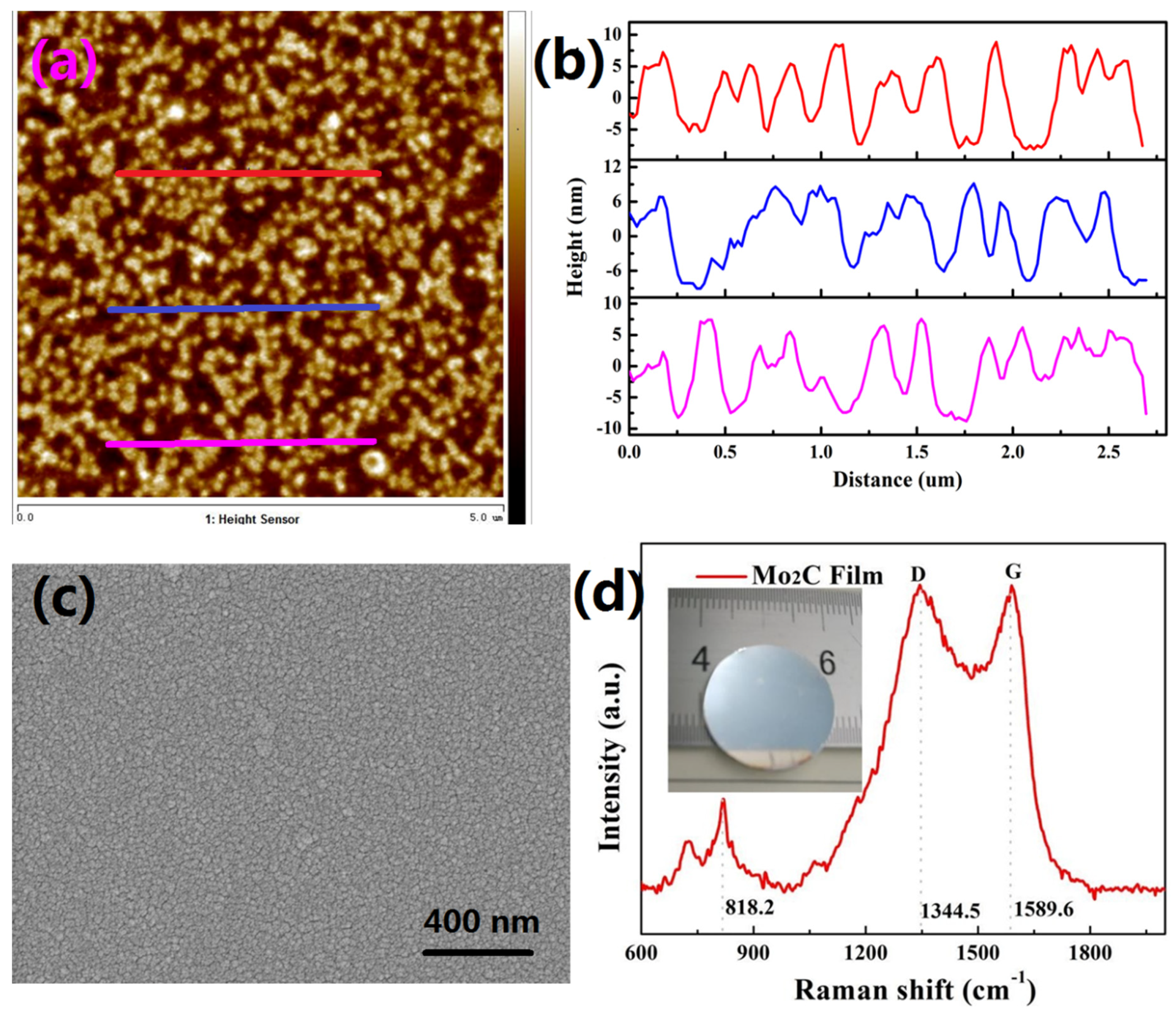

Figure 1. (a) Atomic force microscope (AFM) of Mo2C films are 2D topographical images, (b) their corresponding thickness profiles, (c) scanning electron microscopy (SEM) of Mo2C, and (d) Raman spectra of Mo2C film.
Figure 1. (a) Atomic force microscope (AFM) of Mo2C films are 2D topographical images, (b) their corresponding thickness profiles, (c) scanning electron microscopy (SEM) of Mo2C, and (d) Raman spectra of Mo2C film.
Nanomaterials 10 02391 g001
Nanomaterials 10 02391 g002 550

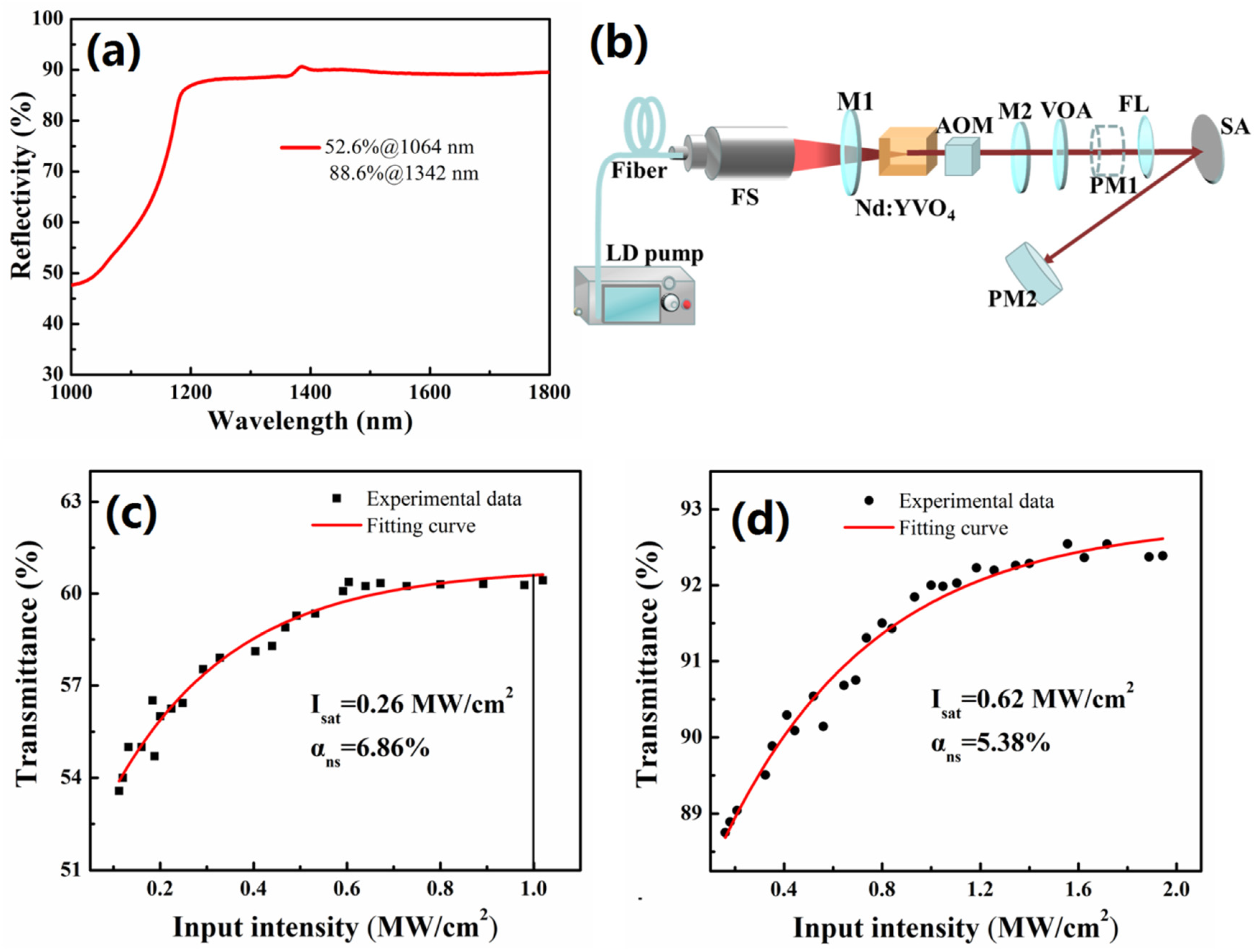

Figure 2. (a) Reflectivity spectrum, (b) schematic diagram of the experiment setup of nonlinear transmission measurement, nonlinear transmission of Mo2C SAs at (c) 1064 nm and (d) 1342 nm central wavelength.
Figure 2. (a) Reflectivity spectrum, (b) schematic diagram of the experiment setup of nonlinear transmission measurement, nonlinear transmission of Mo2C SAs at (c) 1064 nm and (d) 1342 nm central wavelength.
Nanomaterials 10 02391 g002
Nanomaterials 10 02391 g003 550

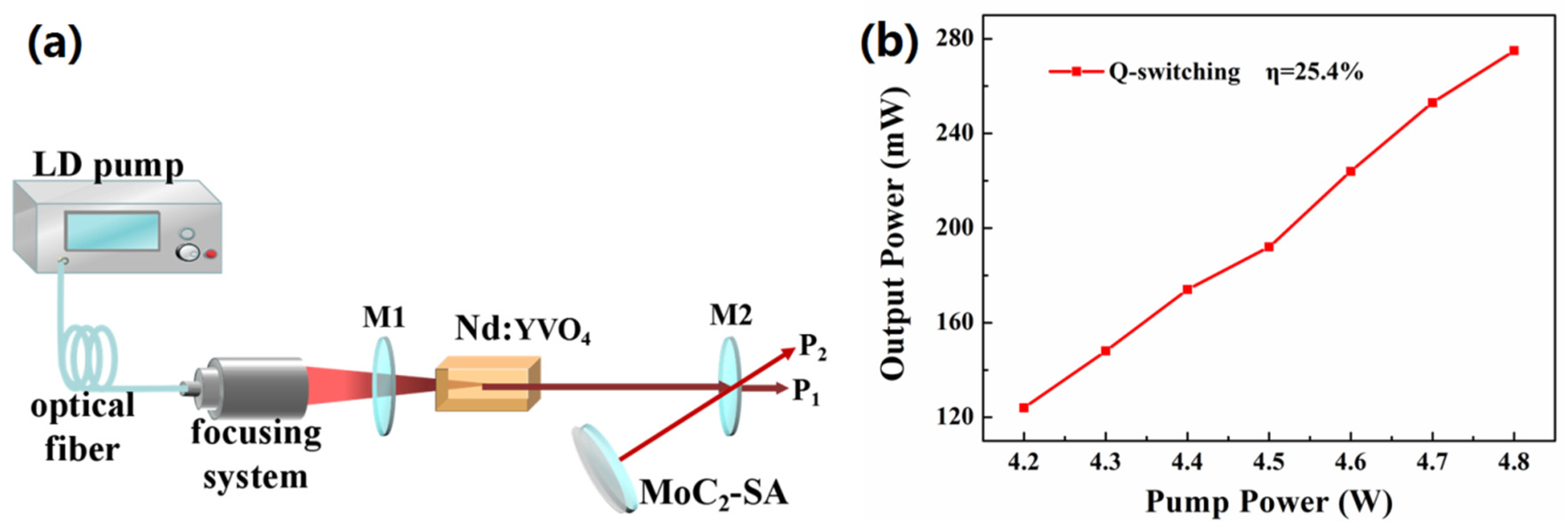

Figure 3. (a) Schematic depicting the Q-switched Nd:YAG solid-state lasers and (b) the relationship between average output power and input pump power.
Figure 3. (a) Schematic depicting the Q-switched Nd:YAG solid-state lasers and (b) the relationship between average output power and input pump power.
Nanomaterials 10 02391 g003
Nanomaterials 10 02391 g004 550

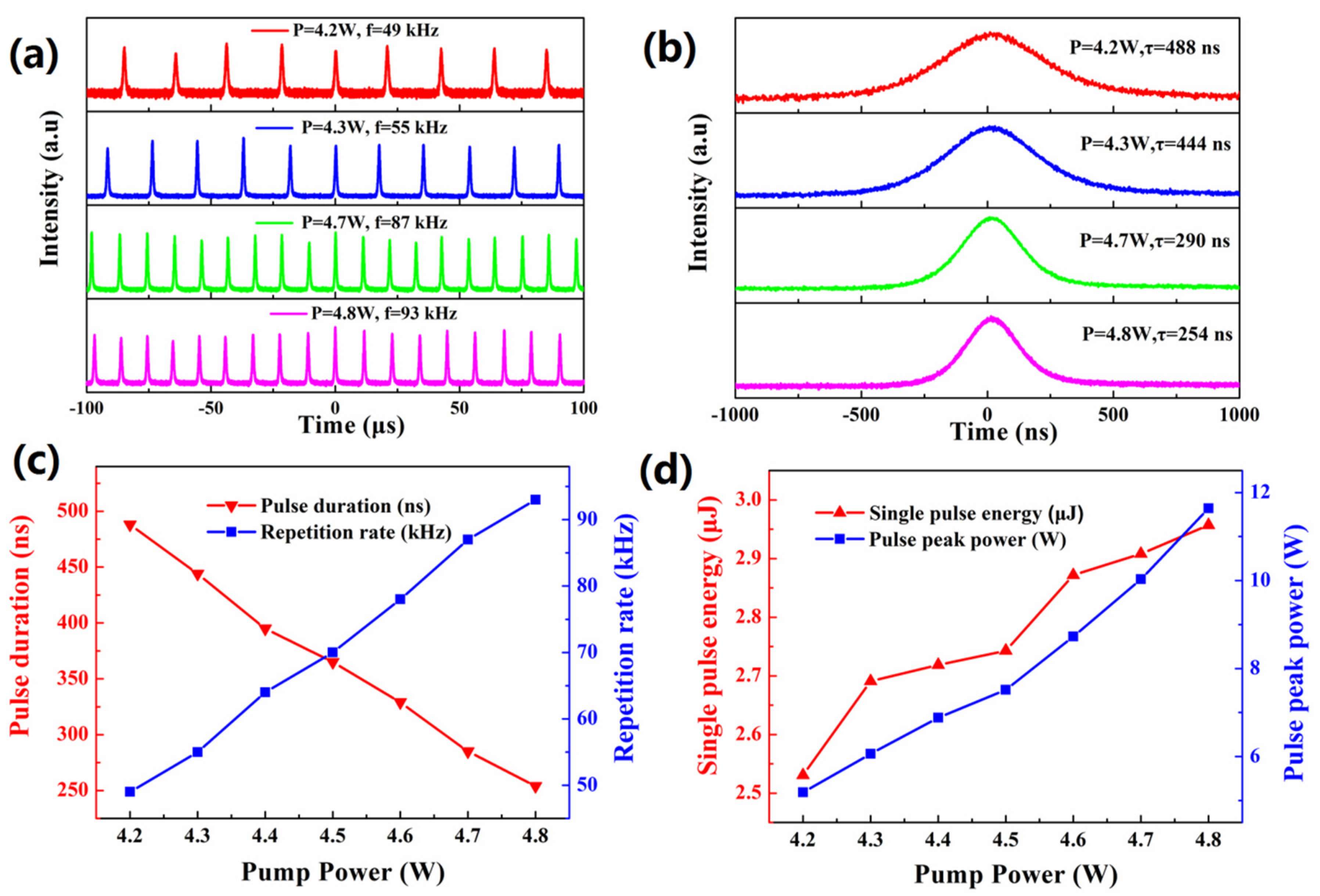

Figure 4. (a) Pulse trains and (b) Single pulse profiles of the Q-switched Nd:YAG laser; (c) Evolution of the repetition rate and pulse duration; (d) Single pulse energy and peak power curves with the pump power.
Figure 4. (a) Pulse trains and (b) Single pulse profiles of the Q-switched Nd:YAG laser; (c) Evolution of the repetition rate and pulse duration; (d) Single pulse energy and peak power curves with the pump power.
Nanomaterials 10 02391 g004
Nanomaterials 10 02391 g005 550

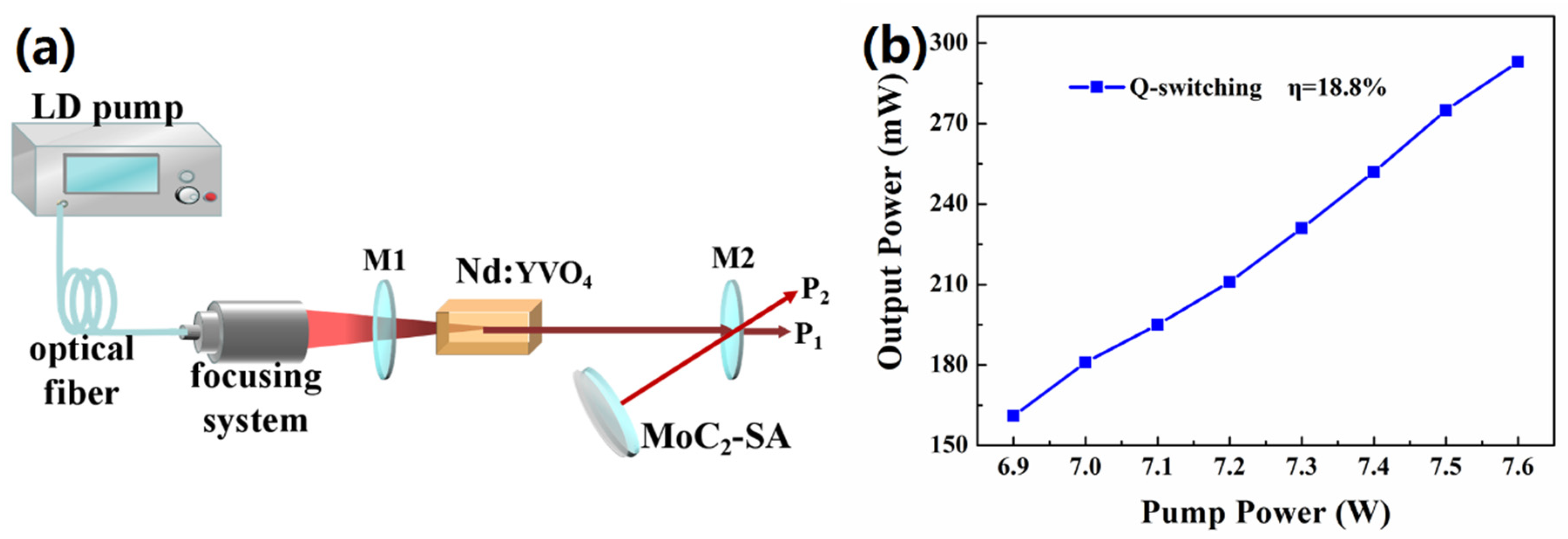

Figure 5. (a) Scheme of Q-switched Nd:YVO4 solid-state lasers and (b) the relationship between average output power and input pump power.
Figure 5. (a) Scheme of Q-switched Nd:YVO4 solid-state lasers and (b) the relationship between average output power and input pump power.
Nanomaterials 10 02391 g005
Nanomaterials 10 02391 g006 550

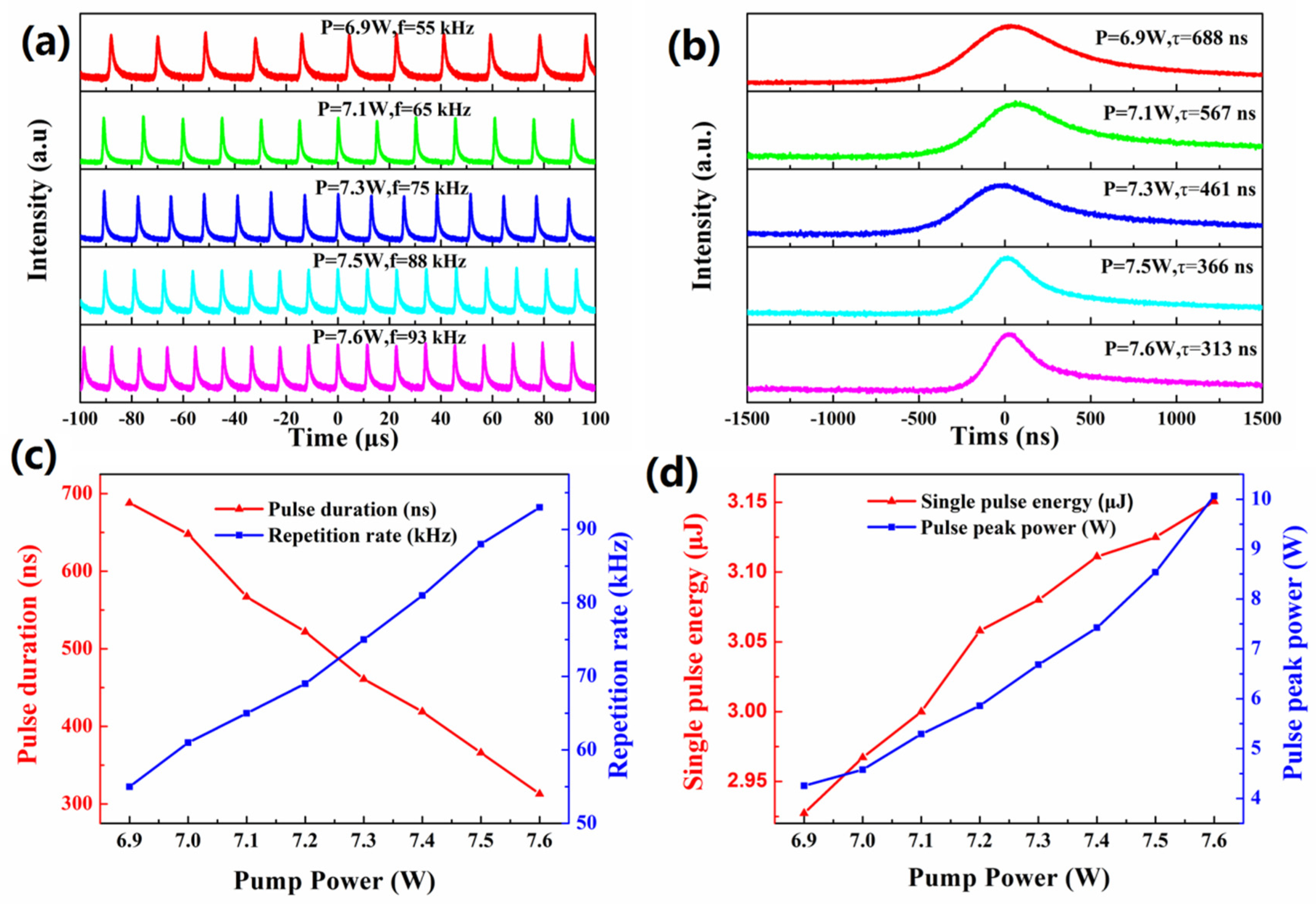

Figure 6. (a) Pulse trains and (b) Single pulse profiles of the Q-switched Nd:YVO4 laser; (c) Evolution of the repetition rate and pulse duration with the pump power; (d) Single pulse energy and peak power curves.
Figure 6. (a) Pulse trains and (b) Single pulse profiles of the Q-switched Nd:YVO4 laser; (c) Evolution of the repetition rate and pulse duration with the pump power; (d) Single pulse energy and peak power curves.
Nanomaterials 10 02391 g006
Table
Table 1. Q-switched s lid-state lasers based on 2D SAs.
Table 1. Q-switched s lid-state lasers based on 2D SAs.
SA TypeLaser Typeλ (μm)τ (ns)P (mW)Ref.
GrapheneNd:GdVO41.0631052300[7]
GrapheneNd:YAG1.064161105[8]
GrapheneNd:GGG1.331556690[9]
GrapheneNd:KLu(WO4)21.335466890[10]
GONd:YAG1.0641561331[11]
Bi2Te3Yb:GAB1.064303213[12]
Bi2Te3Yb:KGW1.0411600439[13]
Bi2Te3Nd:YAG1.3673326[14]
Bi2Te3Nd:LiYF41.313443198[15]
MoS2Yb:LGGG1.025182600[16]
MoS2Nd:LuAG1.342188180[18]
MoS2Nd:YAlO31.079227260[19]
WS2Nd:YVO41.064230019.6[38]
BPYb:CYA1.04662037[20]
BPNd:GGG1.333363157[21]
PerovskiteNd:YVO41.342222236[23]
Ti3C2TxNd:YAG1.06435994.8[32]
Ti3C2TxNd:YVO41.345430[33]
Ti3C2TxTm, Gd:CaF21.9292390208[34]
Mo2CNd:YAG1.064254275Our work
Mo2CNd:YVO41.342313293Our work
