Design of Heat-Conductive hBN–PMMA Composites by Electrostatic Nano-Assembly
1
Institute of Liberal Arts and Sciences, Toyohashi University of Technology, Toyohashi 441-8580, Japan
2
Department of Electrical & Electronics Information Engineering, Toyohashi University of Technology, Toyohashi 441-8580, Japan
*
Authors to whom correspondence should be addressed.
Received: 23 December 2019 / Accepted: 9 January 2020 / Published: 12 January 2020

Abstract

:
Micro/nanoscale design of composite materials enables alteration of their properties for advanced functional materials. One of the biggest challenges in material design is the controlled decoration of composite materials with the desired functional additives. This study reports on and demonstrates the homogeneous decoration of hexagonal boron nitride (hBN) on poly(methylmethacrylate) (PMMA) and vice versa. The formation of the composite materials was conducted via a low environmental load and a low-energy-consuming, electrostatic nano-assembly method which also enabled the efficient usage of nano-sized additives. The hBN/PMMA and PMMA/hBN composites were fabricated in various size combinations that exhibited percolated and layer-oriented structures, respectively. The thermal conductivity behaviors of hBN/PMMA and PMMA/hBN composites that exhibited good microstructure were compared. The results showed that microstructural design of the composites enabled the modification of their heat-conducting property. This novel work demonstrated the feasibility of fabricating heat-conductive PMMA matrix composites with controlled decoration of hBN sheets, which may provide a platform for further development of heat-conductive polymeric materials.
Keywords:
electrostatic adsorption; electrostatic assembly; composite; heat-conductive; hBN; PMMA

1. Introduction

Polymer matrix composites with the desired properties attracted the interest of many researchers due to the significant potential for low-cost fabrication of high-performance functional polymeric materials. The composite’s properties can be changed by altering the composition of its organic or inorganic materials. Poly(methylmethacrylate) (PMMA) is a widely used polymeric material due to its unique properties such as good optical clarity, high mechanical strength, and good thermal stability. PMMA also exhibits an amorphous polymer processing dimensional stability that allows it to be used as a host in composite material fabrication [1]. Various PMMA composite materials with desired properties were reported such as functional transparent composites [2,3,4] and infrared (IR) shielding composites [5].
In the rapid development of wearable and high-power electronic devices, the requirement of effective heat-dissipating composite materials is more important than ever [6,7,8]. High-performance electronic devices tend to generate heat rapidly, making heat dissipation a key factor in a device’s design, as heat entrapment will not only affect the performance of the device but also reduce the device’s lifetime. In the electronics industry, synthetic polymers are commonly used in encapsulation, as well as for packaging materials. However, the synthetic polymeric materials used possess low thermal conductivities of 0.1–0.5 W·m−1·K−1 [9]. Therefore, the development and improvement of heat-conductive polymeric composite materials are crucial to improve the heat-dissipation of electronic devices. Recently, two-dimensional (2D) boron nitride (BN) sheets which possess good thermal conductivity, oxidation resistance, high elastic modulus, and electrical insulation were widely used as 2D micro/nano thermal conductive fillers [9,10,11]. The unique honeycomb-configured sp2-bonded boron and nitrogen promotes anisotropic thermal conductivity with in-plane and out-of-plane thermal conductivity of 600 and 30 W·m−1·K−1, respectively [12]. Due to the strong structural correlation of 2D hexagonal boron nitride (hBN) micro and nanosheets with their in-plane thermal conduction, it is imperative to maintain its structure for effective heat conduction. This makes conventional mechanical mixing methods such as mechanical mixing inappropriate as they would destroy the sheet-like structure and hamper the thermal conductivity of the composite, in addition to there being issues when mixing them [1,13]. Furthermore, a high loading amount of more than 50 vol.% is required to generate good thermal conductivity, but this compromises the composite’s mechanical property [13]. In order to preserve the sheet-like structure of hBN sheets, electrostatic nano-assembly (EA) was used in this study. Previously, our group demonstrated the feasibility of an EA method for fabricating various composite materials [14]. The composites were used for applications such as IR shielding [5], optical property-controlled ceramic composite films [15], selective laser sintering [16], mechanical property control of carbon-based alumina composite [17], and fabrication of the negative electrode for rechargeable Fe–air batteries [18]. The EA method not only allows for the homogeneous decoration of additives onto desired primary particles, but also the preservation of the shape and size of the starting materials. Moreover, compared to most reported methods for fabrication of hBN polymeric composite materials such as the chemical vapor deposition method [10], which involve high cost and energy consumption, the EA method is a facile and smart material processing method that involves low environmental load, as well as low energy consumption, which aligns with recently established sustainable development goals. As the fabrication process is carried out in an aqueous medium that is environmentally friendly, chemical contamination could be avoided. Moreover, the mixing is conducted at room temperature with minimal energy consumption compared to high-energy-consuming equipment such as mechanical ball-milling, heated roller mixing [6], and chemical vapor deposition [10]. The EA method also allows the efficient usage of the raw materials, which helps to reduce wastage due to the good recovery rate of the composites while maintaining the shape and structure of the raw materials [14].
In previous reported studies, the effects of the hBN sheet orientation, applied voltage waveform, and composite molding temperature on the electrical breakdown strength and thermal conductivities of only layer-oriented PMMA/hBN composites using hBN with large diameters of 10 and 45 µm as the primary (core) particles were investigated [19,20]. In this study, the feasibility of controlling the microstructure of the pellets using a wider size range combination of PMMA particles and hBN sheets was further demonstrated. A systematic investigation was carried out by adjusting the size of the starting materials (hBN and PMMA), and the microstructural morphologies obtained by decoration of hBN sheets on PMMA particles, and vice versa, were also tabulated. Decoration of hBN sheets onto PMMA particles led to the formation of a percolate-structured microstructure, while decoration of PMMA onto hBN sheets resulted in the formation of a layer-oriented microstructure. The correlation of composite particle assembly, microstructural formation, and heat conductivity of the aforementioned composites was evaluated using IR thermography. The hBN/PMMA composite materials possessed good potential for application as heat-dissipation materials for electronic industries. The results obtained in this work on the controlled design of hBN/PMMA composite materials could be beneficial for further development of heat-conductive polymeric materials.

2. Materials and Methods

The experiments were carried out using commercially available poly(methylmethacrylate) (PMMA) particles (average particle diameter of 0.3, 5, and 12 μm, Sekisui Chemical, Tokyo, Japan) and hexagonal boron nitride sheets (average particle size of 0.5 μm, Showa Denko 5, 18 μm Tokyo, Japan, Denki Kagaku, Tokyo, Japan). The polycation and polyanion used were polydiallyldimethyl ammoniumchloride (PDDA) (average molecular weight 100,000 to 200,000, Sigma-Aldrich, Missouri, United States) and polysodium styrenesulfonate (PSS) (average molecular weight 70,000, Sigma-Aldrich, Missouri, MO, United States), respectively. The surfactant used for the initial coating onto PMMA was sodium deoxycholate (SDC). After that, an alternative layer of PDDA/PSS/PDDA was coated onto PMMA to induce positive zeta-potential-modified PMMA primary particles. Similarly, for the hBN sheets, the surface charge was firstly modified using SDC, followed by PDDA and PSS, to obtain a negative zeta-potential surface. Then, the oppositely charged PMMA particles (positive) and hBN nanosheets (negative) in aqueous solution were mixed and stirred to obtain the electrostatically assembled hBN/PMMA composite particles. The coverage amount of additive particles (hBN or PMMA) on intended primary particles (PMMA or hBN) was adjusted in vol.% according to previous reported work [14].The suspension was then dried to obtain the composite powder. For the heat distribution evaluation of the hBN/PMMA composite obtained, the composite powders were pressed into pellets using a hot press with a pressure of 100 MPa at 200 °C for 15 min. Prior to pressing, 50 μL of methyl methacrylate (MMA) was added to promote the bonding of the main chain and to improve the mold-ability. The pressed pellets were then annealed at 80 °C for 15 min. Six different combinations of hBN with PMMA consisting of different sizes, as mentioned above, were fabricated for comparison. The morphological structures of the composites obtained were observed using an S-4800 field-emission scanning electron microscope (FE-SEM, Hitachi S-4800, Tokyo, Japan). For the cross-sectional observation, the composite pellets were cut into half and polished using a surface grinder prior to SEM observation. The heat distribution properties of the nanocomposite pellets were evaluated using infrared thermography (Testo corporation, Testo 881-1, Lenzkirch, Germany).

3. Results and Discussion

The SEM images of the starting materials used for this study are shown in Figure 1. The spherical PMMA particles, with average sizes of 0.3, 5, and 12 µm, are shown in Figure 1a–c, respectively. On the other hand, the SEM images of the sheet-like hBN, with average sizes of 0.5, 5, and 18 µm, are shown in Figure 1d–f respectively. Depending on the size of the primary particle (either PMMA or hBN), smaller-sized secondary/additive particles (hBN or PMMA) were used for electrostatic decoration on the surface of the primary particle. For example, smaller-sized hBN sheets (0.5 µm) were used for electrostatic assembly onto the surface of larger spherical PMMA particles (12 µm).
In this study, two different composites with either spherical PMMA particles or two-dimensional hBN sheets were used as the primary particle (core). Different size combinations of PMMA and hBN were investigated systematically. Firstly, decoration of sheet-like hBN with an average diameter of 0.5 or 5 µm was carried out on PMMA with an average diameter of 5 or 12 µm. The hBN/PMMA composite particles obtained, with the combinations of (0.5 µm) hBN/PMMA (5 µm), (0.5 µm) hBN/PMMA (12 µm), and (5 µm) hBN/PMMA (12 µm) are shown in Figure 2. Regardless of the hBN sheet size, homogeneous decoration of hBN sheets on PMMA particles was obtained. A good surface coverage of 0.5-µm hBN on both 5- and 12-µm PMMA was observed, as shown in Figure 2a,b, respectively. Figure 2c further demonstrates the feasibility of decorating 12-µm PMMA particle with larger hBN having an average diameter of 5 µm.
Subsequently, hBN sheets with different sizes, 5 and 18 µm, were used as the primary matrix (core) while PMMA with different average particle sizes of 0.3 and 5 µm was used as the additives in the electrostatic nano-assembly. PMMA/hBN composite particles with the combinations of (0.3 µm) PMMA/hBN (5 µm), (0.3 µm) PMMA/hBN (18 µm), and (5 µm) PMMA/hBN (18 µm) are shown in Figure 3. PMMA particles were observed to be homogeneously distributed on the surface of hBN sheets. The morphological observations of the composites obtained in Figure 2 and Figure 3 indicated that an electrostatic nano-assembly method could be used for the homogeneous assembly of hBN sheets on PMMA particles or vice versa.
Subsequently, the hBN/PMMA and PMMA/hBN composite powders shown in Figure 2 and Figure 3 were hot-pressed into pellet and grinded for cross-sectional SEM observation. The cross-sectional SEM images of the composite pellets obtained are shown in Figure 4. Interestingly, hBN/PMMA and PMMA/hBN composite pellets exhibited different microstructural morphologies of percolate structure or layer-oriented structure, respectively. The percolation of hBN on the surface of the PMMA grain boundaries was clearly observed as shown in Figure 4a–c. The degree of percolation of hBN within the PMMA matrix increased with the size of PMMA particles used. This was due to the lower overall surface area available for the electrostatic adsorption of hBN sheets when larger PMMA particles were used. This promoted a denser decoration of hBN on the PMMA surface, generating an interconnected percolation structure. The difference can be observed by comparing Figure 4a,b, where similarly sized 0.5-µm hBN sheets were decorated on PMMA particles with different diameter sizes of 5 and 12 µm, respectively. Similar phenomena were also observed in our previous work involving the decoration of carbon nanoparticles on alumina granules [17]. The highest percolation degree was observed using the composite powders with 5-µm hBN sheets as additives with 12-µm PMMA as the primary particles. On the other hand, disconnected, sheet-like layered microstructures were observed using PMMA-decorated hBN sheets as shown in Figure 4d–f. The interlayer distance between hBN layers was observed to increase when larger PMMA particles were used, as shown in the SEM images of Figure 4e,f, where similar hBN sheets with an average diameter of 18 µm were used. Meanwhile, the hBN sheets were observed to exhibit a more random orientation within the matrix when composites that consisted of smaller PMMA particles decorated on smaller hBN sheets were used compared to those on larger hBN sheets as shown in Figure 4d,e. In previous studies, the orientation probability of layer-oriented PMMA/hBN was altered by changing the size of PMMA particles; decoration of larger PMMA particles on hBN sheets led to irregular hBN sheet direction (larger angle difference) in the composite matrix as compared to when smaller PMMA particles were used [19,20]. Thus, this study shows that the orientation could also be affected by changing the size of the hBN sheets. These results demonstrated that the interlayer distance, as well as the orientation of the layer-structured PMMA/hBN composites, could be controlled by altering the size of PMMA particles decorated on hBN sheets during the assembly step. The schematic illustration in Figure 5 shows the inter-correlation of the hBN/PMMA and PMMA/hBN composite morphologies, with the corresponding microstructures obtained after hot-pressing.
To gain insight into the thermal conduction properties, infrared thermography comparison was carried out using the pellets fabricated using only PMMA (12 µm), (0.3 µm) PMMA/hBN (18 µm), and (5 µm) hBN/PMMA (12 µm). The composite pellets of (0.3 µm) PMMA/hBN (18 µm) and (5 µm) hBN/PMMA (12 µm) were chosen due to the ordered microstructure obtained compared to others. The thermograph images obtained are shown in Figure 6. From the thermograph image comparison, the heat signatures of the composite pellets, (0.3 µm) PMMA/hBN (18 µm) and (5 µm) hBN/PMMA (18 µm), were observed to be higher than the PMMA pellets. After 16 s, the temperature exhibited by the (0.3 µm) PMMA/hBN (18 µm) and (5 µm) hBN/PMMA (18 µm) pellets was 83.3 and 84.9 °C, respectively, while that of the PMMA pellet was 62.6 °C. These results demonstrated that hBN incorporation into a PMMA matrix enhanced the heat conductance of the composite pellets.
A graph showing plots of temperature change against time for PMMA (18 µm), (0.3 µm) PMMA/hBN (18 µm). and (5 µm) hBN/PMMA (18 µm) is shown in Figure 7. The results show that heat conduction reached a plateau after 20 s for all the samples, with the composite pellets achieving temperature higher than 80 °C. Although both composite pellets demonstrated almost comparable heat conductivity, it is important to note that the amount of hBN added into the composites differed. The amount of hBN present in (0.3 µm) PMMA/hBN (18 µm) and (5 µm) hBN/PMMA (12 µm) was 57 vol.% and 26 vol.%, respectively. This indicates that, despite having half the volume of hBN incorporated, the (5 µm) hBN/PMMA (18 µm) composite pellet that had a percolated structure exhibited heat-conducting properties comparable to the layer-oriented structure of the (0.3 µm) PMMA/hBN (18 µm) composite pellet. Due to the higher heat conductivity of the hBN sheets in the a- and b-axis, the percolated microstructure allowed better heat conductivity in the PMMA matrix [21]. The calculated heat conductivity for (0.3 µm) PMMA/hBN (18 µm) and (5 µm) hBN/PMMA (12 µm) was 1.27 and 1.42 W/m∙K, respectively. Zhi et al. reported an approximately three-fold increase in thermal conductivity from 0.17 to 0.50 W/m∙K using a 10 vol.% BN nanotube/PMMA composite film [22]. In comparison with the work reported by Pullanchiyodan et al., using Ag-decorated BN nanosheets in PMMA, they reported a thermal conductivity of 1.48 W/m∙K by incorporating 35 vol.% of this hybrid filler into PMMA matrix [23]. Therefore, the thermal conductivity of 1.42 W/m∙K obtained in this study using percolate-structured hBN/PMMA (26 vol.%) demonstrates promising potential, given the simplicity and good reproducibility of this method. The interconnectivity and interaction of hBN sheets were the determining factors in this heat-conducting property, and the percolated structure of hBN/PMMA composite provided a thermal conductive pathway compared to the layer-structured PMMA/hBN composite. Similar findings were also reported by Mosanenzadeh et al. in their study on the thermal behavior of ordered and random hBN networks using different types of polymers [24]. In addition, the higher content of hBN within the PMMA matrix reduced the mechanical properties drastically, as hBN acted as a defect in the polymer matrix [13]. A better approach would be to precisely design the composite powders to promote a particulate interaction, which not only promotes the efficient use of hBN but also does not compromise its mechanical properties [24].
This study demonstrated that the microstructure of an hBN/PMMA composite is crucial to its property of heat conductivity. Therefore, controlled design of composite formation is crucial using a bottom-up fabrication approach, which is not achievable using the conventional mixing method.

4. Conclusions

The controlled microstructure formation of hBN/PMMA and PMMA/hBN composite pellets was systematically investigated using an electrostatic nano-assembly method. The composite pellets of both hBN/PMMA (PMMA core) and PMMA/hBN (hBN core) composites exhibited promising heat-conducting properties. By varying the sizes of the starting materials in the composite powder design, percolate-structured hBN/PMMA and layer-structured PMMA/hBN composite pellets were fabricated from the composite powders obtained. With hBN composition at 26 vol.% for the percolate-structured hBN/PMMA composite compared to 57 vol.% for the layer-structured PMMA/hBN composite, both composites demonstrated almost comparable thermal conductivity behavior during infrared thermography characterization. The thermal conductivity obtained for (0.3 µm) PMMA/hBN (18 µm) and (5 µm) hBN /PMMA (12 µm) was 1.27 and 1.42 W/m∙K, respectively. The results indicated that the percolate-structured hBN/PMMA composite pellet (half the hBN content in comparison to PMMA/hBN composite) exhibited higher thermal conductivity compared to the layer-structured PMMA/hBN composite pellet due to a better heat-conducting route in the percolated structure. This study demonstrated the importance and feasibility of microscale structural design of composite materials in achieving the desired properties such as improved thermal conductivity. The results obtained in this work demonstrate the feasibility of a controlled fabrication of heat-conductive PMMA matrix composites by controlled decoration of hBN sheets and provide a platform for further development of heat-conductive polymeric materials. This electrostatic nano-assembly method not only enables controlled design of the composite particles, which is not achievable using conventional mixing methods, but it also has a low environmental load and low energy consumption. Smart fabrication processes with a low environmental load and low-energy-consumption methods are indispensable as we move toward a sustainable society, and electrostatic nano-assembly is one of the feasible methods in heat-conductive material design.

Author Contributions

H.M., W.K.T., and A.Y. designed the study and contributed to the manuscript writing. T.K. and A.Y. carried out the experimental work. G.K. and A.M. provided technical and scientific insight for discussion. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Japan Society for Promotion of Science (JSPS) KAKENHI JP18H01706, Early-Career Scientist JP18K14013, and the Kazuchika Okura Memorial Foundation.

Acknowledgments

The authors would like to acknowledge the TUT Research Promotional Research Fund for supporting the publication fee.

Conflicts of Interest

The authors have no conflict of interest to declare.

References

  1. Mittal, G.; Rhee, K.Y.; Park, S.J. Processing and characterization of PMMA/PI composites reinforced with surface functionalized hexagonal boron nitride. Appl. Surf. Sci. 2017, 415, 49–54. [Google Scholar] [CrossRef]
  2. Sugumaran, S.; Bellan, C.S. Transparent nano composite PVA–TiO2 and PMMA–TiO2 thin films: Optical and dielectric properties. Optik 2014, 125, 5128–5133. [Google Scholar] [CrossRef]
  3. Cierech, M.; Osica, I.; Kolenda, A.; Wojnarowicz, J.; Szmigiel, D.; Lojkowski, W.; Kurzydlowski, K.; Ariga, K.; Mierzwinska-Nastalska, E. Mechanical and Physicochemical Properties of Newly Formed ZnO-PMMA Nanocomposites for Denture Bases. Nanomaterials 2018, 8, 305. [Google Scholar] [CrossRef] [PubMed]
  4. Arlindo, E.P.S.; Lucindo, J.A.; Bastos, C.M.O.; Emmel, P.D.; Orlandi, M.O. Electrical and Optical Properties of Conductive and Transparent [email protected] Nanocomposites. J. Phys. Chem. C 2012, 116, 12946–12952. [Google Scholar] [CrossRef]
  5. Tan, W.K.; Yokoi, A.; Kawamura, G.; Matsuda, A.; Muto, H. PMMA-ITO Composite Formation via Electrostatic Assembly Method for Infra-Red Filtering. Nanomaterials 2019, 9, 886. [Google Scholar] [CrossRef]
  6. Muratov, D.S.; Stepashkin, A.A.; Anshin, S.M.; Kuznetsov, D.V. Controlling thermal conductivity of high density polyethylene filled with modified hexagonal boron nitride (hBN). J. Alloy. Compd. 2018, 735, 1200–1205. [Google Scholar] [CrossRef]
  7. Xu, M.; Lei, Y.; Ren, D.; Chen, S.; Chen, L.; Liu, X. Synergistic Effects of Functional CNTs and h-BN on Enhanced Thermal Conductivity of Epoxy/Cyanate Matrix Composites. Nanomaterials 2018, 8, 997. [Google Scholar] [CrossRef]
  8. Liu, J.; Li, W.; Guo, Y.; Zhang, H.; Zhang, Z. Improved thermal conductivity of thermoplastic polyurethane via aligned boron nitride platelets assisted by 3D printing. Compos. Part A Appl. Sci. Manuf. 2019, 120, 140–146. [Google Scholar] [CrossRef]
  9. Wang, X.; Yu, Z.; Jiao, L.; Bian, H.; Yang, W.; Wu, W.; Xiao, H.; Dai, H. Aerogel Perfusion-Prepared h-BN/CNF Composite Film with Multiple Thermally Conductive Pathways and High Thermal Conductivity. Nanomaterials 2019, 9, 1051. [Google Scholar] [CrossRef]
  10. Ashton, T.S.; Moore, A.L. Foam-like hierarchical hexagonal boron nitride as a non-traditional thermal conductivity enhancer for polymer-based composite materials. Int. J. Heat Mass Transf. 2017, 115, 273–281. [Google Scholar] [CrossRef]
  11. Pan, C.; Kou, K.; Jia, Q.; Zhang, Y.; Wu, G.; Ji, T. Improved thermal conductivity and dielectric properties of hBN/PTFE composites via surface treatment by silane coupling agent. Compos. Part B Eng. 2017, 111, 83–90. [Google Scholar] [CrossRef]
  12. Liang, W.; Ge, X.; Ge, J.; Li, T.; Zhao, T.; Chen, X.; Zhang, M.; Ji, J.; Pang, X.; Liu, R. Three-Dimensional Heterostructured Reduced Graphene Oxide-Hexagonal Boron Nitride-Stacking Material for Silicone Thermal Grease with Enhanced Thermally Conductive Properties. Nanomaterials 2019, 9, 938. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, K.; Ju, H.; Kim, J. Vertical particle alignment of boron nitride and silicon carbide binary filler system for thermal conductivity enhancement. Compos. Sci. Technol. 2016, 123, 99–105. [Google Scholar] [CrossRef]
  14. Tan, W.K.; Araki, Y.; Yokoi, A.; Kawamura, G.; Matsuda, A.; Muto, H. Micro- and Nano-assembly of Composite Particles by Electrostatic Adsorption. Nanoscale Res. Lett. 2019, 14, 1–9. [Google Scholar] [CrossRef] [PubMed]
  15. Tan, W.K.; Shigeta, Y.; Yokoi, A.; Kawamura, G.; Matsuda, A.; Muto, H. Investigation of the anchor layer formation on different substrates and its feasibility for optical properties control by aerosol deposition. Appl. Surf. Sci. 2019, 483, 212–218. [Google Scholar] [CrossRef]
  16. Kuwana, T.; Tan, W.K.; Yokoi, A.; Kawamura, G.; Matsuda, A.; Muto, H. Fabrication of Carbon-decorated Al2O3 Composite Powders using Cellulose Nanofiber for Selective Laser Sintering. J. Jpn. Soc. Powder Powder Metall. 2019, 66, 168–173. [Google Scholar] [CrossRef]
  17. Tan, W.K.; Hakiri, N.; Yokoi, A.; Kawamura, G.; Matsuda, A.; Muto, H. Controlled microstructure and mechanical properties of Al2O3-based nanocarbon composites fabricated by electrostatic assembly method. Nanoscale Res. Lett. 2019, 14, 245. [Google Scholar] [CrossRef]
  18. Tan, W.K.; Asami, K.; Maeda, Y.; Hayashi, K.; Kawamura, G.; Muto, H.; Matsuda, A. Facile formation of Fe3O4-particles decorated carbon paper and its application for all-solid-state rechargeable Fe-air battery. Appl. Surf. Sci. 2019, 486, 257–264. [Google Scholar] [CrossRef]
  19. Hamasaki, N.; Yamaguchi, S.; Use, S.; Kawashima, T.; Muto, H.; Nagao, M.; Hozumi, N.; Murakami, Y. Electrical and Thermal Properties of PMMA/h-BN Composite Material Produced by Electrostatic Adsorption Method. IEEJ Trans. Fundam. Mater. 2019, 139, 60–65. [Google Scholar] [CrossRef]
  20. Yamaguchi, S.; Hamasaki, N.; Use, S.; Kawashima, T.; Muto, H.; Nagao, M.; Hozumi, N.; Murakami, Y. Influence of PMMA and h-BN particles sizes on electrical and thermal properties of PMMA/h-BN composite materials produced by electrostatic adsorption method. In Proceedings of the 2017 IEEE Conference on Electrical Insulation and Dielectric Phenomenon (CEIDP), Fort Worth, TX, USA, 22–25 October 2017; pp. 245–248. [Google Scholar]
  21. Tanimoto, M.; Ando, S. Effects of chain rigidity/flexibility of polyimides on morphological structures and thermal diffusivity of hBN-filled composites. Compos. Sci. Technol. 2014, 99, 103–108. [Google Scholar] [CrossRef]
  22. Zhi, C.Y.; Bando, Y.; Wang, W.L.; Tang, C.C.; Kuwahara, H.; Golberg, D. Mechanical and Thermal Properties of Polymethyl Methacrylate-BN Nanotube Composites. J. Nanomater. 2008, 2008, 1–5. [Google Scholar] [CrossRef]
  23. Pullanchiyodan, A.; S. Nair, K.; Surendran, K.P. Silver-Decorated Boron Nitride Nanosheets as an Effective Hybrid Filler in PMMA for High-Thermal-Conductivity Electronic Substrates. Acs Omega 2017, 2, 8825–8835. [Google Scholar] [CrossRef] [PubMed]
  24. Ghaffari Mosanenzadeh, S.; Naguib, H.E. Effect of filler arrangement and networking of hexagonal boron nitride on the conductivity of new thermal management polymeric composites. Compos. Part B Eng. 2016, 85, 24–30. [Google Scholar] [CrossRef]

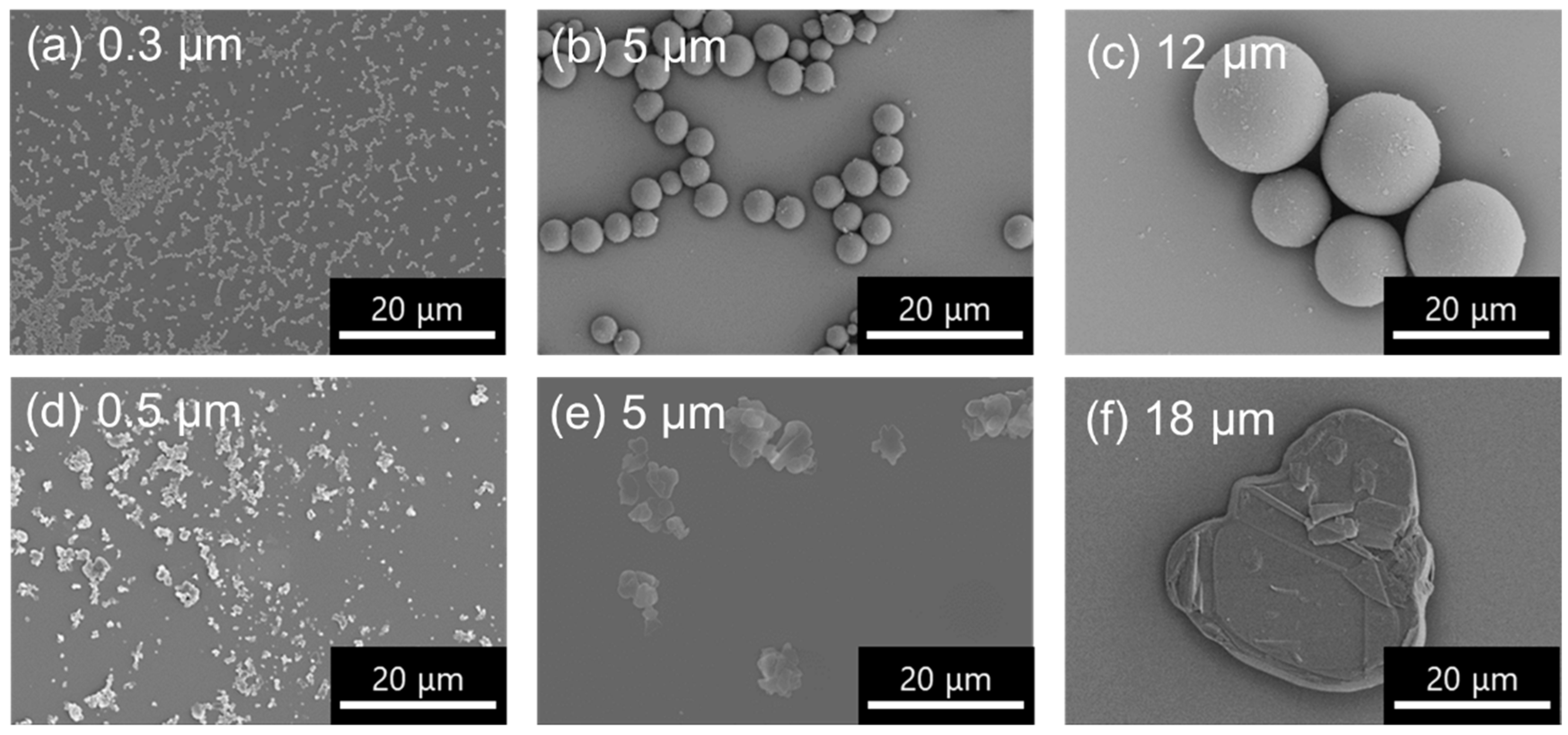

Figure 1. SEM images of the starting materials used for hexagonal boron nitride (hBN)/poly(methylmethacrylate) (PMMA) composite formation. PMMA particles with different sizes of (a) 0.3, (b) 5, and (c) 12 µm, and hBN sheets with different sizes of (d) 0.5, (e) 5, and (f) 18 µm were used.
Figure 1. SEM images of the starting materials used for hexagonal boron nitride (hBN)/poly(methylmethacrylate) (PMMA) composite formation. PMMA particles with different sizes of (a) 0.3, (b) 5, and (c) 12 µm, and hBN sheets with different sizes of (d) 0.5, (e) 5, and (f) 18 µm were used.
Nanomaterials 10 00134 g001

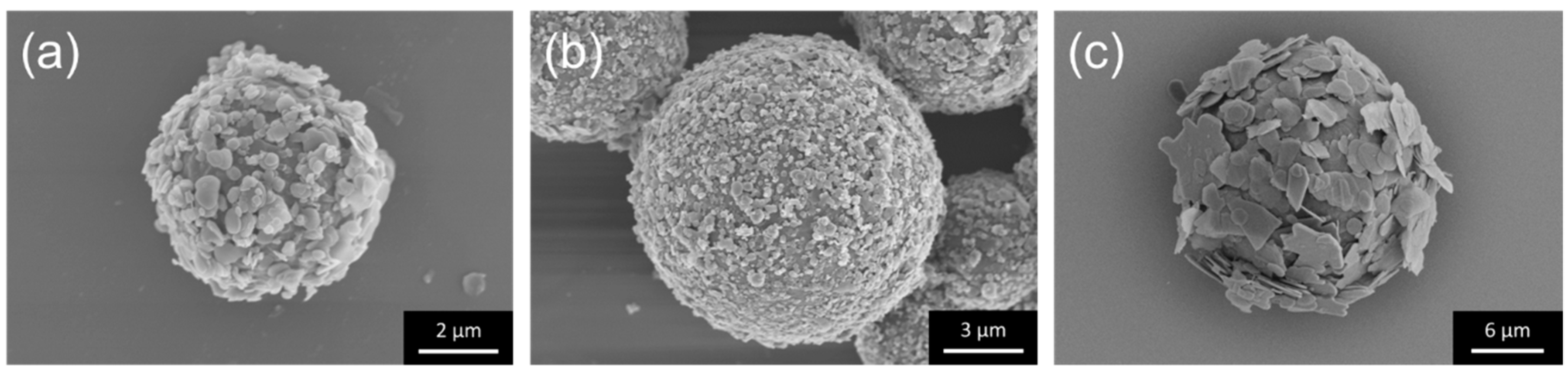

Figure 2. SEM images of the hBN/PMMA (PMMA core) composite particles obtained after electrostatic nano-assembly method using various sizes combination of (a) 0.5-µm hBN on 5-µm PMMA, (b) 0.5-µm hBN on 12-µm PMMA, and (c) 5-µm hBN on 12-µm PMMA.
Figure 2. SEM images of the hBN/PMMA (PMMA core) composite particles obtained after electrostatic nano-assembly method using various sizes combination of (a) 0.5-µm hBN on 5-µm PMMA, (b) 0.5-µm hBN on 12-µm PMMA, and (c) 5-µm hBN on 12-µm PMMA.
Nanomaterials 10 00134 g002
Figure 3. SEM images of the PMMA/hBN (hBN core) composite particles obtained after electrostatic assembly, using various combinations: (a) 0.3-µm PMMA on 5-µm hBN sheets, (b) 0.3-µm PMMA on 18-µm hBN sheets, and (c) 5-µm PMMA on 18-µm hBN sheets.
Figure 3. SEM images of the PMMA/hBN (hBN core) composite particles obtained after electrostatic assembly, using various combinations: (a) 0.3-µm PMMA on 5-µm hBN sheets, (b) 0.3-µm PMMA on 18-µm hBN sheets, and (c) 5-µm PMMA on 18-µm hBN sheets.
Nanomaterials 10 00134 g003

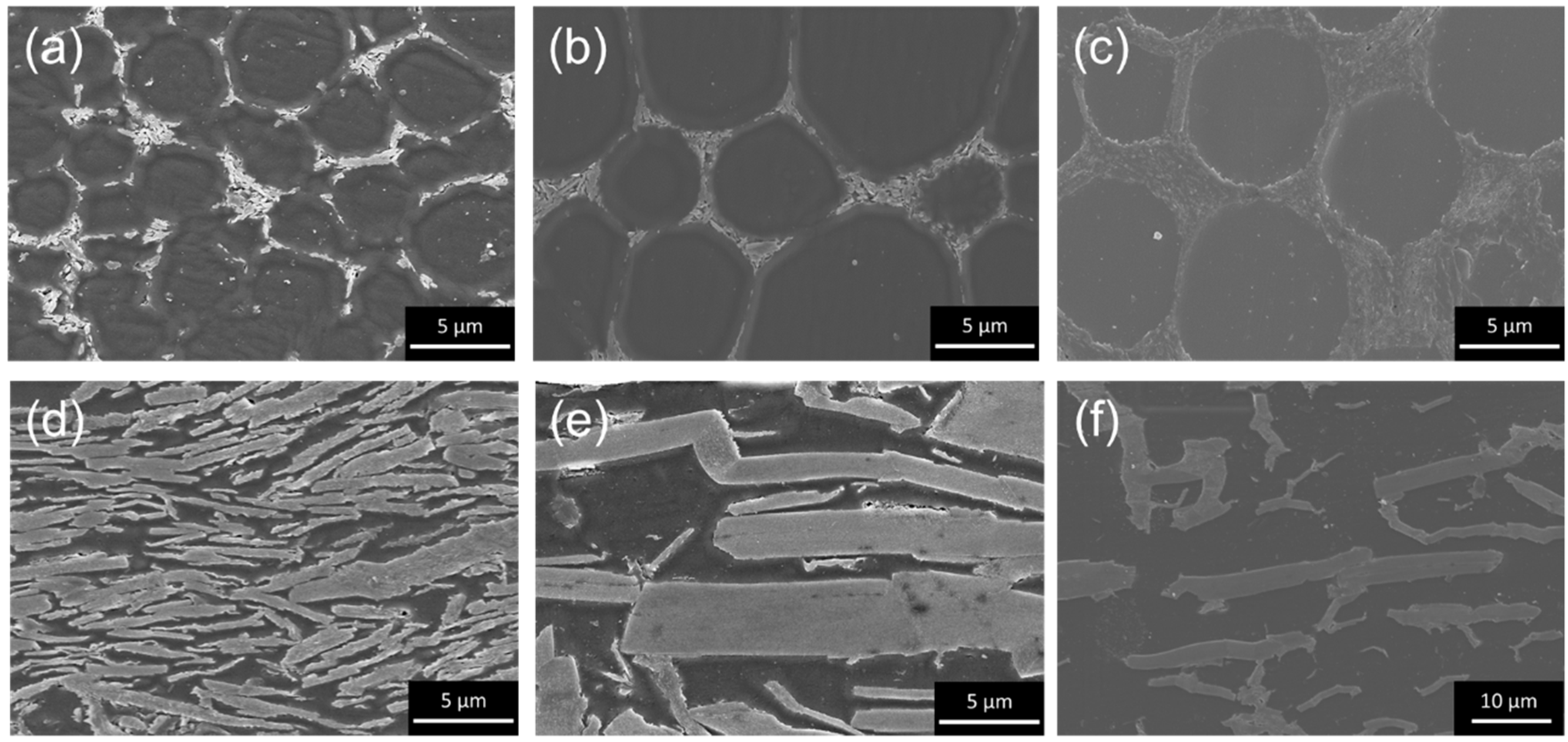

Figure 4. Cross-sectional SEM images of the respective hBN/PMMA composite pellets obtained after hot-pressing, using the following composite powders: (a) 0.5-µm hBN on 5-µm PMMA, (b) 0.5-µm hBN on 12-µm PMMA, (c) 5-µm hBN on 12-µm PMMA, (d) 0.3-µm PMMA on 5-µm hBN sheets, (e) 0.3-µm PMMA on 18-µm hBN sheets, and (f) 5-µm PMMA on 18-µm hBN sheets.
Figure 4. Cross-sectional SEM images of the respective hBN/PMMA composite pellets obtained after hot-pressing, using the following composite powders: (a) 0.5-µm hBN on 5-µm PMMA, (b) 0.5-µm hBN on 12-µm PMMA, (c) 5-µm hBN on 12-µm PMMA, (d) 0.3-µm PMMA on 5-µm hBN sheets, (e) 0.3-µm PMMA on 18-µm hBN sheets, and (f) 5-µm PMMA on 18-µm hBN sheets.
Nanomaterials 10 00134 g004

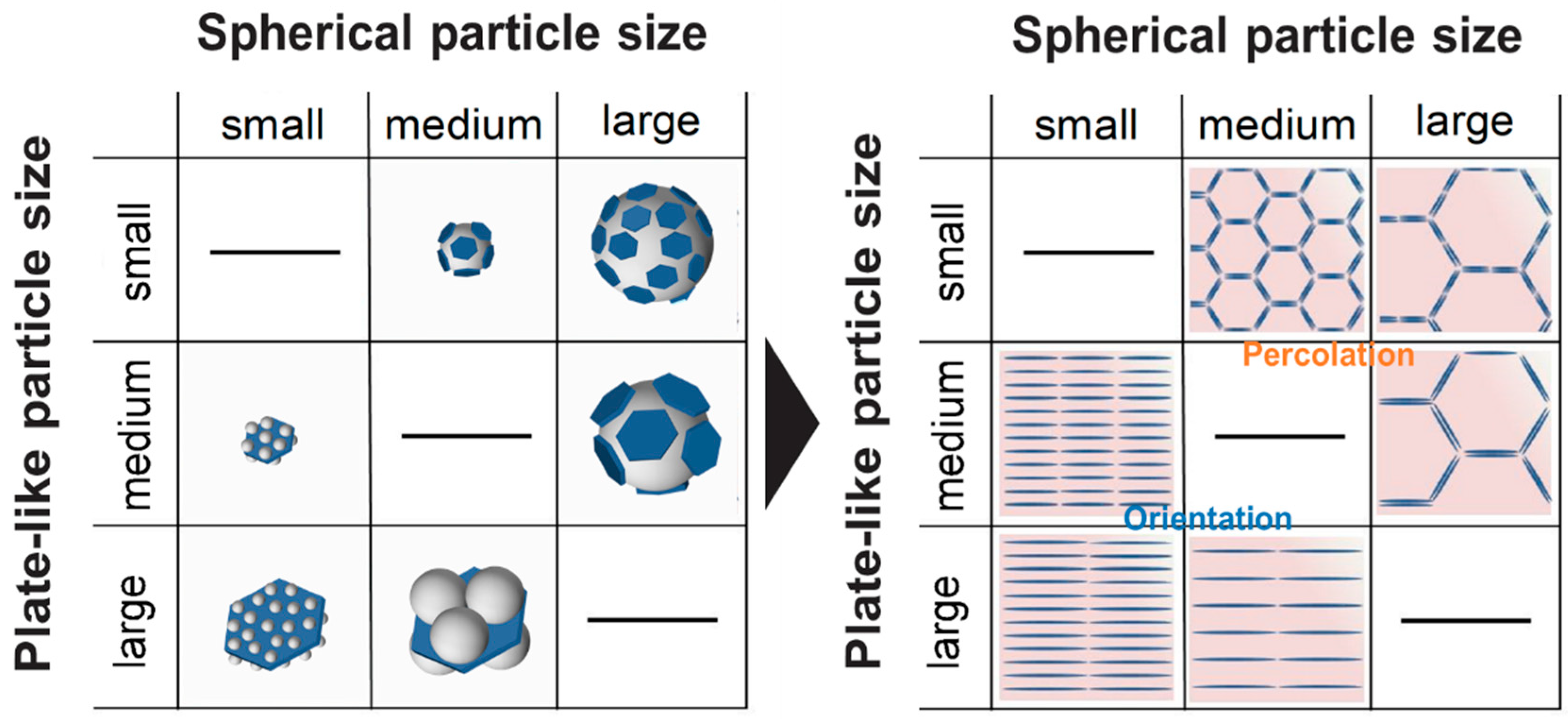

Figure 5. Schematic illustrations showing the morphologies of hBN/PMMA and PMMA/hBN composite particles with the corresponding microstructures obtained.
Figure 5. Schematic illustrations showing the morphologies of hBN/PMMA and PMMA/hBN composite particles with the corresponding microstructures obtained.
Nanomaterials 10 00134 g005

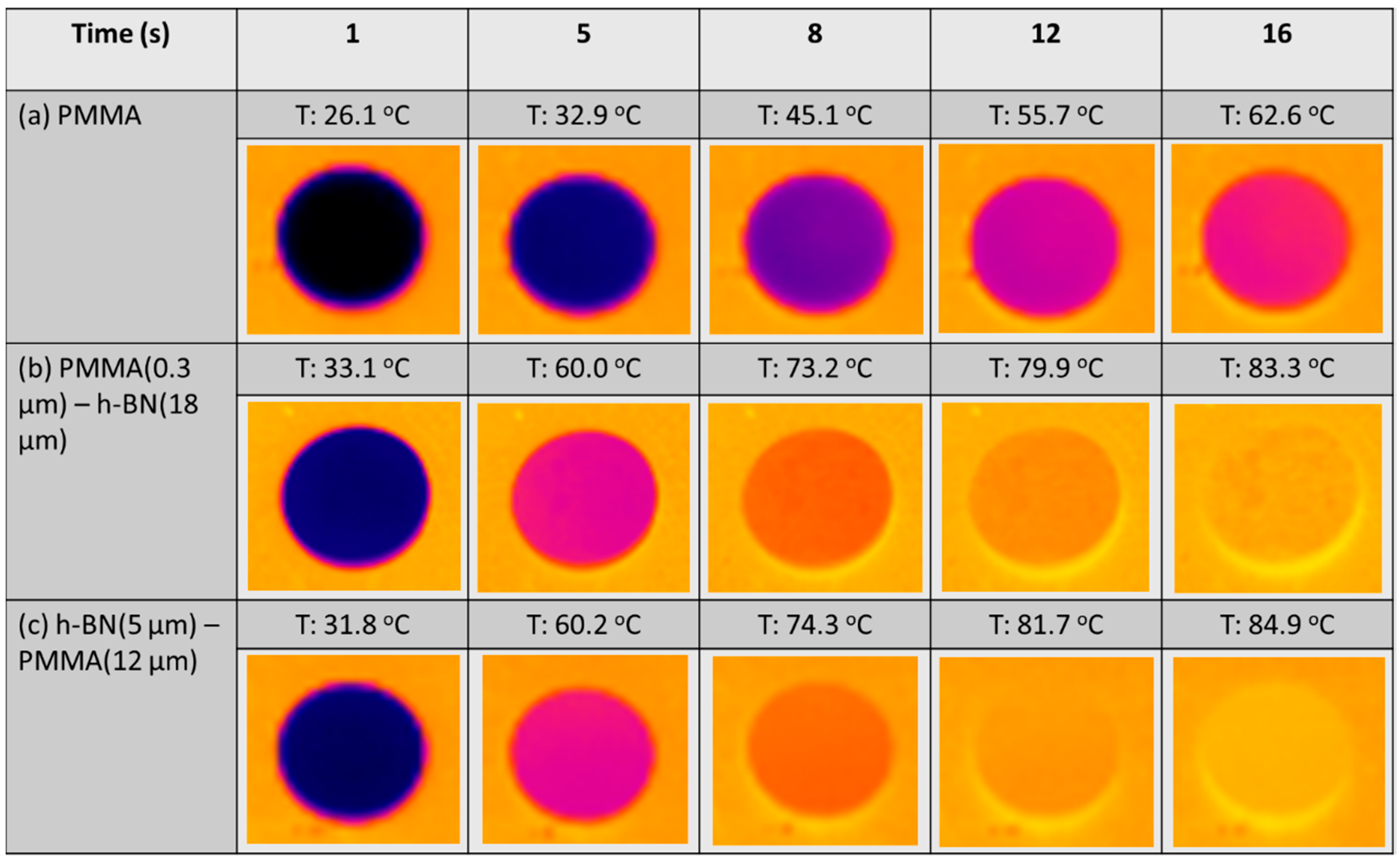

Figure 6. Thermograph images of (a) PMMA, (b) PMMA (0.3 µm)/hBN (18 µm). and (c) hBN (5 µm)/PMMA (18 µm) composite pellets after infrared thermography irradiation.
Figure 6. Thermograph images of (a) PMMA, (b) PMMA (0.3 µm)/hBN (18 µm). and (c) hBN (5 µm)/PMMA (18 µm) composite pellets after infrared thermography irradiation.
Nanomaterials 10 00134 g006

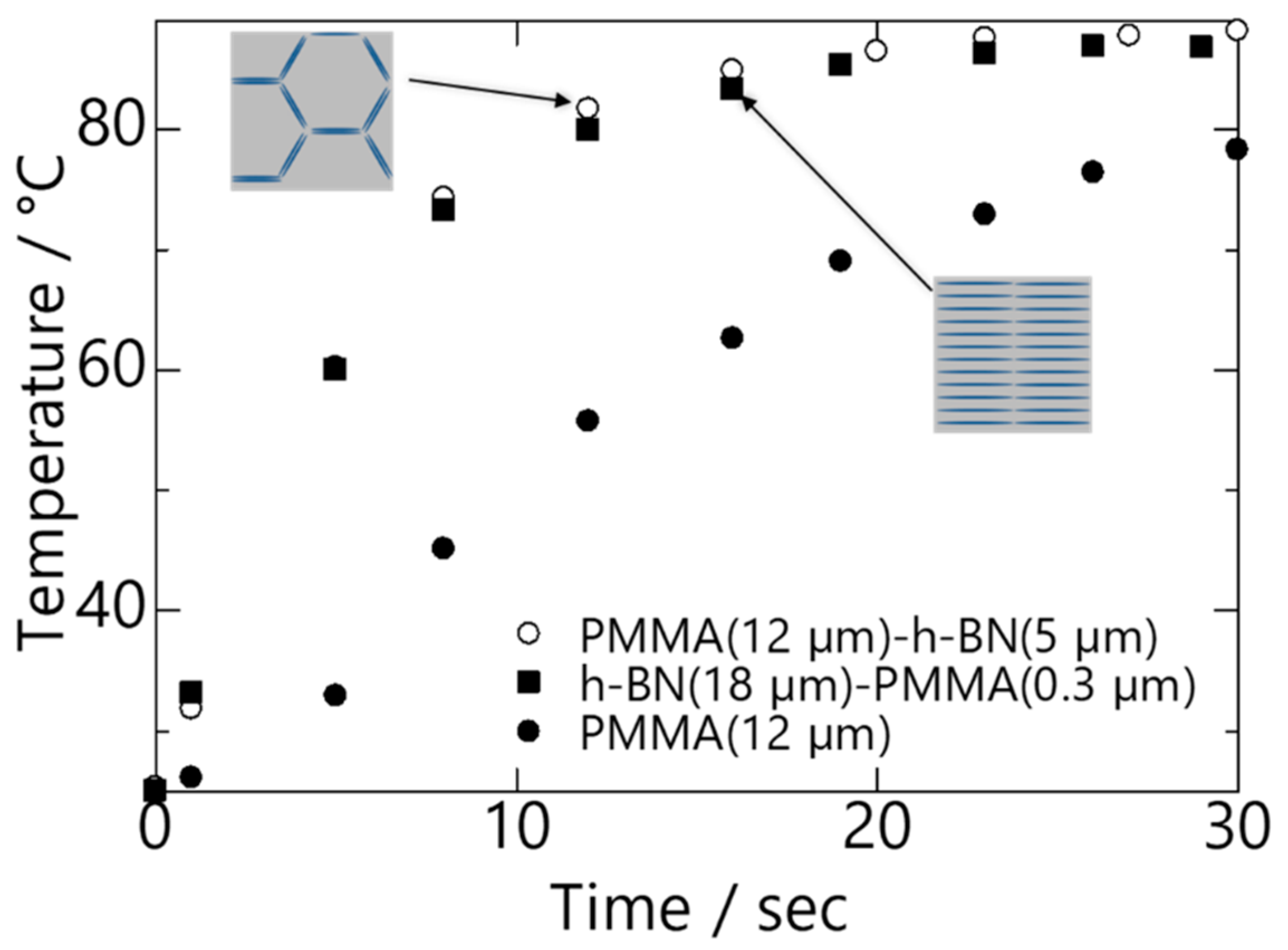

Figure 7. Comparison of temperature change against time for PMMA, layer-oriented PMMA/hBN, and percolation-oriented hBN/PMMA composites.
