Communication
Carbon Dots Doped with Dysprosium: A Bimodal Nanoprobe for MRI and Fluorescence Imaging
1
Department of Chemistry, School of Science and Technology, Nazarbayev University, Astana 010000, Kazakhstan
2
Wellman Center for Photomedicine, Harvard Medical School and Massachusetts General Hospital, Boston, MA 02114, USA
*
Author to whom correspondence should be addressed.
Received: 13 April 2018 / Accepted: 14 May 2018 / Published: 18 May 2018

Abstract

:
In recent years, functional nanoprobes with multiple imaging modalities have become an emerging field of biomedical research. In this preliminary study, we utilized a facile hydrothermal method for the preparation of magneto-fluorescent bimodal carbon dots doped with dysprosium (Dy-CDs). The prepared Dy-CDs have shown a good colloidal stability in a water solution and strong blue–green fluorescence, with a maximum at 452 nm. In addition, the excellent transverse relaxivity of the prepared Dy-CDs (r2 = 7.42 ± 0.07 mM−1s−1) makes them also suitable for T2-weighted magnetic resonance imaging (MRI). Thus, synthesized Dy-CDs could be potentially utilized for both MRI and fluorescence imaging of living cells.
Keywords:
carbon dots; dysprosium; bimodal nanoprobes; fluorescence; magnetic resonance imaging MRI

1. Introduction

The development of new nanoscale contrast agents is a promising areas of research in the field of nanomedicine. In particular, these multifunctional nanoprobes can be more accurate than their molecular counterparts, because of the greatly improved image contrast. To date, various nanostructures, such as Fe3O4 [1,2], MnO [3] and various lanthanide oxides [4,5,6,7], have been successfully tested as new bimodal nanoprobes for magnetic resonance (MR) and fluorescence imaging of living cells. On the other hand, the toxicity concerns of these inorganic nanoprobes limit their wide usage in medical applications. To solve the toxicity issue, an appropriate surface coating should be employed with an organic layer [8], or with some inert materials, such as carbon [9] and silica [10]. However, surface modifications may affect the relaxivity properties of paramagnetic nanoprobes and, as a result, reduce the image contrast [10]. Therefore, one can use a different strategy where the paramagnetic ions are introduced into a matrix of some biocompatible material. Paramagnetic Gd3+ has been incorporated into biocompatible materials such as hydroxyapatite [11], zirconia [12], and carbon [13,14]. Correspondingly, the region of interest on MRI imaging can be brighter (positive agent) because of the longitudinal relaxation that is caused by the presence of gadolinium ions. On the other hand, the negative contrast agents are more effective for bone marrow, liver, and spleen contrast enhancement [2,15]. Negative contrast nanoprobes can be prepared using a biocompatible material that has been doped with dysprosium or holmium ions [4,16]. These nanoprobes can generate strong MR signals thanks to the high magnetic moments of the Dy3+ and Ho3+ ions and the larger density of the magnetic ions per surface area. In this study, to the best of our knowledge, we present the first report on the synthesis and analysis of carbon dots doped with dysprosium (Dy-CDs) ions. Thus, the main aim of this study is to demonstrate the applicability of the magneto-fluorescent Dy-CDs for simultaneous MR and optical imaging of living cells.

2. Experimental

2.1. Synthesis Process

Analytical grade dextrose C6H12O6 (≥99.5%) and dysprosium (III) chloride hexahydrate DyCl3 × 6H2O (99.9%) were purchased from Sigma-Aldrich (St. Louis, MO, USA) and were used as they were received. The carbon nanodots were prepared according to the reported protocols with some modification [17,18]. The solution was prepared by dissolving 2 g of dextrose in 30 mL of deionized (DI) water and was mixed with 0.1 mM of DyCl3 × 6H2O under continuous stirring. Next, the prepared mixtures were sealed and heated at 190 °C for 2 h. The obtained light-yellow solutions were centrifuged at 12,000 rpm for 30 min. To eliminate the unreacted products, the collected Dy-CDs were purified by dialysis in DI water for 12 h. The recollected Dy-CDs were dispersed in DI water for measurements.

2.2. Characterization

The transmission electron microscopy (TEM, JEM-2100, JEOL Ltd., Tokyo, Japan) was utilized to study the morphology of the Dy-CDs. The dynamic light scattering (DLS) size measurements were performed using a Nano ZS Zetasizer (Malvern Instruments Ltd., Malvern, UK). The photoluminescence (PL) excitation and emission spectra of the Dy-CDs were measured using a fluorescence spectrophotometer (Hitachi F-7000, Hitachi Ltd., Tokyo, Japan). The T2-weighted images were obtained using a 1.5 T small animal MRI scanner (Siemens Healthinners, Enlargen, Germany). The measurement parameters that were used were as follows: repetition time/echo time (TR/TE) = 2009 ms/9 ms, field of view (FOV) = 160 mm × 160 mm, slice thickness = 5 mm, matrix = 256 × 256, and number of excitations (NEX) = 1. All of the measurements were performed at a room temperature of 22 ± 1 °C.

3. Results and Discussion

The dissolved Dy3+ ions could be embedded in the carbon nanoprobes to form the paramagnetic Dy-CDs. According to our preliminary results, the size of these nanoprobes could be varied by changing the reaction time, reaction temperature, and dextrose concentration. The reaction time and concentration of the precursors were optimized in this study for the preparation of the fluorescent Dy-CDs with a high transverse relaxivity value. Figure 1 shows the size-distribution and a typical TEM image (inset) of synthesized Dy-CDs. One can see that the prepared Dy-CDs exhibited a nearly spherical shape, with the mean sizes in the range of 12–17 nm. In addition, it should be noted that the prepared Dy-CDs were highly dispersible in an aqueous solution and maintain colloidal stability for several months.
The optical properties of the prepared Dy-CDs solution were analyzed using a PL spectroscopy. Figure 2 shows the typical PL excitation and emission spectra of the Dy-CDs solution. One can see that the aqueous solution of the Dy-CDs appeared to be light-brown colored and transparent (Figure 2 inset). The prepared Dy-CDs solution exhibited an excitation-dependent emission, which was a characteristic feature for all of the carbon dots (not shown here). The excitation peak of the Dy-CDs solution reached the maximum value at ~363 nm. Upon a direct 363 nm excitation, the Dy-CDs solution showed the broad blue–green emission peak (Figure 2 inset) with a maximum at 452 nm. It should be mentioned that the excitation and emission peaks of the Dy-CDs solutions were red-shifted compared to the reported studies [13,14]. This red-shift was most likely as a result of the Dy and Cl doping during the synthesis process. The quantum yield (QY) of the prepared Dy-CDs solutions were measured using a quinine bisulfate solution, as the standard was 6.7%. Thus, the prepared Dy-CDs ccould be utilized for the fluorescence imaging of living cells [13,14].
A small animal MRI scanner was used further in order to confirm the ability of the Dy-CDs that were to be used as contrast agents. It should be noted that the transverse relaxation was not observed in the undoped carbon dots. Figure 3 shows the 1/T2 curve that was measured as a function of the total Dy3+ concentration. The transverse relaxivity rate (r2) was estimated from a linear fit of 1/T2 vs. the Dy3+ concentration. According to the linear fitting, the r2 was calculated to be 7.42 ± 0.07 mM−1s−1. The obvious darkening of the imaging site (Figure 3 inset) confirmed that the Dy3+ ions were successfully introduced into the carbon dots and that the Dy-CDs could be used as a promising negative contrast agent. The Dy3+ and Ho3+ based contrast agents were especially suitable for high magnetic fields, because the r2 value would increase with the increasing the magnetic field [16]. On the other hand, it was necessary to check how the variations of the Dy3+ doping concentrations affected the transverse relaxivity rate of the Dy-CDs. In addition, the toxicity of the Dy-CDs should have also been tested using several cell lines, despite the fact that the Gd-doped CDs exhibited a low toxicity [13,14]. We have planned to address the above-mentioned issues in our next full study.

4. Conclusions

In summary, the bimodal Dy-doped CDs contrast nanoprobes were prepared using a facile hydrothermal synthesis method. The TEM and DLS measurements showed that the average size of the prepared Dy-CDs was about 12–17 nm. According to the PL study, the prepared Dy-CDs emitted a blue–green emission with a maximum at 452 nm. The MRI measurements of the Dy-CDs revealed that the transverse relaxivity rate (r2) value of the sample was 7.42 ± 0.07 mM−1s−1. We strongly believe that the prepared bifunctional Dy-CDs can be of great interest for MRI and fluorescence imaging of living cells.

Author Contributions

T.S.A. designed the experiments, T.S.A. and A.M. performed the synthesis and characterization of the samples, T.S.A. and Z.P. analyzed the data, and T.S.A. wrote the manuscript.

Acknowledgments

This work was supported by the Social Policy Grant that was provided by Nazarbayev University to conduct the preliminary research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gu, J.; Zhang, W.; Yang, X. Preparation of a superparamagnetic MRI contrast agent with a tumor targeting function. Mater. Lett. 2013, 94, 8–10. [Google Scholar] [CrossRef]
  2. Atabaev, T.S. PEG-coated superparamagnetic dysprosium-doped Fe3O4 nanoparticles for potential MRI imaging. BioNanoScience 2018, 8, 299–303. [Google Scholar] [CrossRef]
  3. Chen, N.; Shao, C.; Qu, Y.; Li, S.; Gu, W.; Zheng, T.; Ye, L.; Yu, C. Folic acid-conjugated MnO nanoparticles as a T1 contrast agent for Magnetic Resonance imaging of tiny brain gliomas. ACS Appl. Mater. Interfaces 2014, 6, 19850–19857. [Google Scholar] [CrossRef] [PubMed]
  4. Norek, M.; Kampert, E.; Zeitler, U.; Peters, J.A. Tuning of the size of Dy2O3 nanoparticles for optimal performance as an MRI contrast agent. J. Am. Chem. Soc. 2008, 130, 5335–5340. [Google Scholar] [CrossRef] [PubMed]
  5. Atabaev, T.S.; Lee, J.H.; Han, D.-W.; Kim, H.-K.; Hwang, Y.-H. Ultrafine PEG-capped gadolinia nanoparticles: Cytotoxicity and potential biomedical applications for MRI and luminescent imaging. RSC Adv. 2014, 4, 34343–34349. [Google Scholar] [CrossRef]
  6. Atabaev, T.; Lee, J.; Shin, Y.; Han, D.-W.; Choo, K.; Jeon, U.; Hwang, J.; Yeom, J.; Kim, H.-K.; Hwang, Y.-H. Eu, Gd-Codoped Yttria Nanoprobes for Optical and T1-Weighted Magnetic Resonance Imaging. Nanomaterials 2017, 7, 35. [Google Scholar] [CrossRef] [PubMed]
  7. Xu, W.; Kattel, K.; Park, J.Y.; Chang, Y.; Kim, T.J.; Lee, G.H. Paramagnetic nanoparticle T1 and T2 MRI contrast agents. Phys. Chem. Chem. Phys. 2012, 14, 12687. [Google Scholar] [CrossRef] [PubMed]
  8. Yu, M.; Huang, S.; Yu, K.J.; Clyne, A.M. Dextran and polymer polyethylene glycol (PEG) coating reduce both 5 and 30 nm iron oxide nanoparticle cytotoxicity in 2D and 3D cell culture. Int. J. Mol. Sci. 2012, 13, 5554–5570. [Google Scholar] [CrossRef] [PubMed]
  9. Atabaev, T.S.; Lee, J.H.; Han, D.-W.; Kim, H.-K.; Hwang, Y.-H. Fabrication of carbon coated gadolinia particles for dual-mode magnetic resonance and fluorescence imaging. J. Adv. Ceram. 2015, 4, 118–122. [Google Scholar] [CrossRef]
  10. Atabaev, T.S.; Lee, J.H.; Han, D.W.; Choo, K.S.; Jeon, U.B.; Hwang, J.Y.; Yeom, J.A.; Kang, C.; Kim, H.K.; Hwang, Y.H. Multicolor nanoprobes based on silica-coated gadolinium oxide nanoparticles with highly reduced toxicity. RSC Adv. 2016, 6, 19758–19762. [Google Scholar] [CrossRef]
  11. Tesch, A.; Wenisch, C.; Herrmann, K.H.; Reichenbach, J.R.; Warncke, P.; Fischer, D.; Müller, F.A. Luminomagnetic Eu3+- and Dy3+-doped hydroxyapatite for multimodal imaging. Mater. Sci. Eng. C 2017, 81, 422–431. [Google Scholar] [CrossRef] [PubMed]
  12. Atabaev, T.S. Paramagnetic Gd-doped zirconia nanoparticles for potential T1-weighted MRI imaging. Nano Life 2017, 7, 1750007. [Google Scholar] [CrossRef]
  13. Ren, X.Y.; Yuan, X.X.; Wang, Y.P.; Liu, C.L.; Qin, Y.; Guo, L.P.; Liu, L.H. Facile preparation of Gd3+ doped carbon quantum dots: Photoluminescence materials with magnetic resonance response as magnetic resonance/fluorescence bimodal probes. Opt. Mater. 2016, 57, 56–62. [Google Scholar] [CrossRef]
  14. Yu, C.; Xuan, T.; Chen, Y.; Zhao, Z.; Liu, X.; Lian, G.; Li, H. Gadolinium-doped carbon dots with high quantum yield as an effective fluorescence and magnetic resonance bimodal imaging probe. J. Alloys Compd. 2016, 688, 611–619. [Google Scholar] [CrossRef]
  15. Briley-Saebo, K.; Bjørnerud, A.; Grant, D.; Ahlstrom, H.; Berg, T.; Kindberg, G.M. Hepatic cellular distribution and degradation of iron oxide nanoparticles following single intravenous injection in rats: Implications for magnetic resonance imaging. Cell Tissue Res. 2004, 316, 315–323. [Google Scholar] [CrossRef] [PubMed]
  16. Atabaev, T.S.; Shin, Y.C.; Song, S.-J.; Han, D.-W.; Hong, N.H. Toxicity and T2-weighted magnetic resonance imaging potentials of holmium oxide nanoparticles. Nanomaterials 2017, 7, 216. [Google Scholar] [CrossRef] [PubMed]
  17. Liang, Q.; Ma, W.; Shi, Y.; Li, Z.; Yang, X. Easy synthesis of highly fluorescent carbon quantum dots from gelatin and their luminescent properties and applications. Carbon 2013, 60, 421–428. [Google Scholar] [CrossRef]
  18. Zhou, J.; Shan, X.; Ma, J.; Gu, Y.; Qian, Z.; Chen, J.; Feng, H. Facile synthesis of P-doped carbon quantum dots with highly efficient photoluminescence. RSC Adv. 2014, 4, 5465. [Google Scholar] [CrossRef]

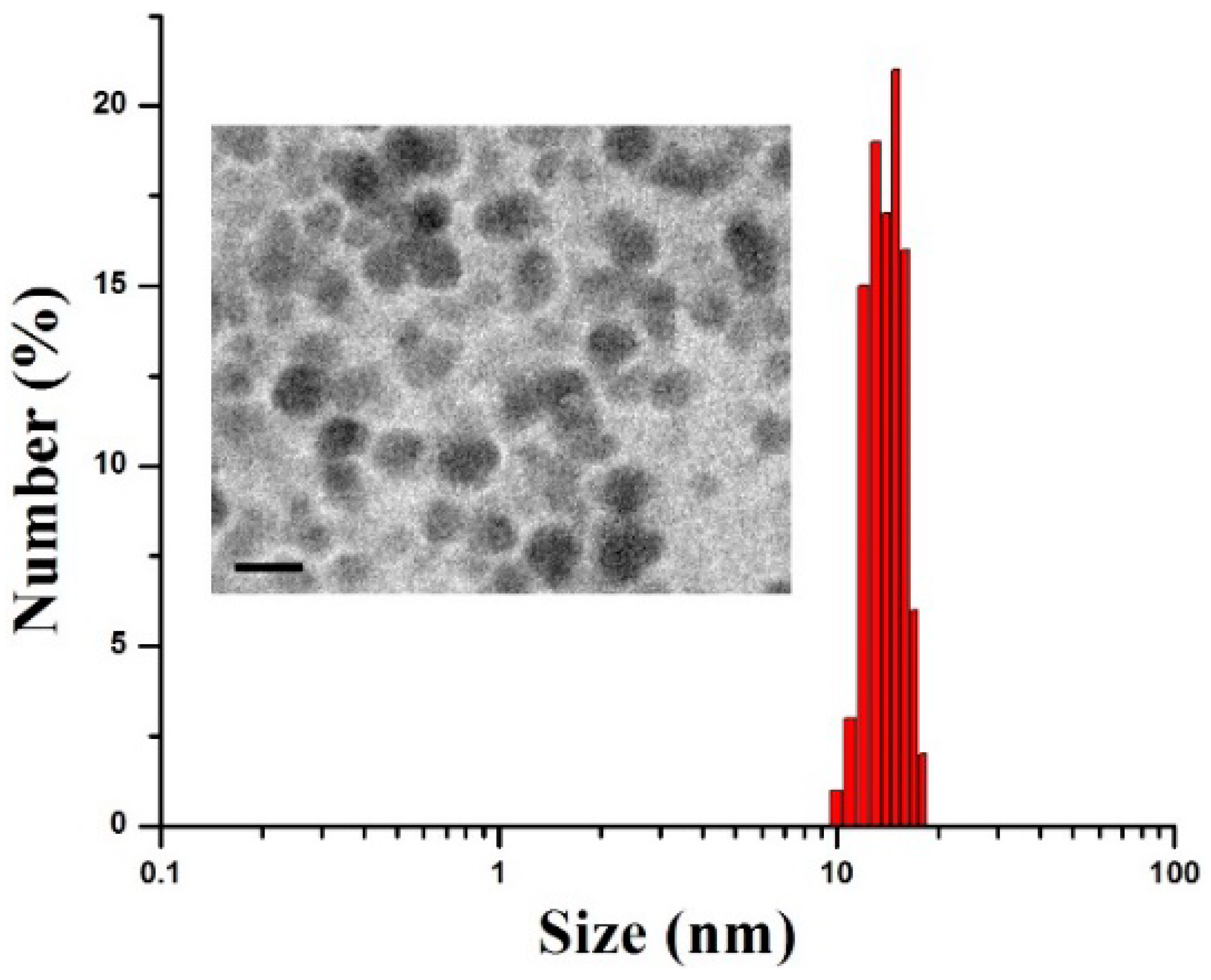

Figure 1. Size-distribution and transmission electron microscopy (TEM) image (scale bar = 20 nm) of prepared carbon dots doped with dysprosium (Dy-CDs).
Figure 1. Size-distribution and transmission electron microscopy (TEM) image (scale bar = 20 nm) of prepared carbon dots doped with dysprosium (Dy-CDs).
Jfb 09 00035 g001

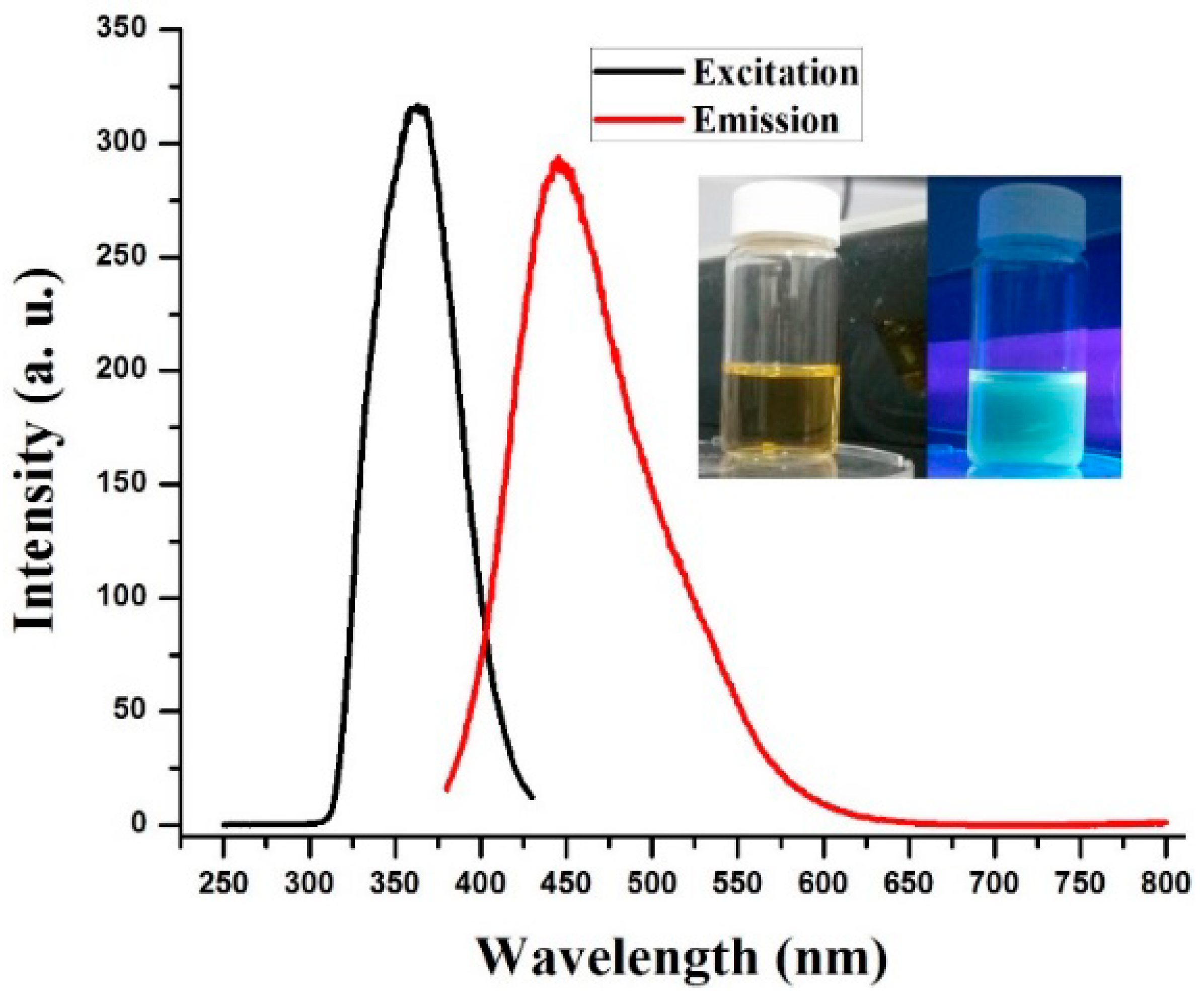

Figure 2. Photoluminescence (PL) excitation and emission spectra of the prepared Dy-CDs. Inset is a digital photo of the Dy-CDs aqueous solution, taken under daylight (left) and 365 nm UV light (right).
Figure 2. Photoluminescence (PL) excitation and emission spectra of the prepared Dy-CDs. Inset is a digital photo of the Dy-CDs aqueous solution, taken under daylight (left) and 365 nm UV light (right).
Jfb 09 00035 g002

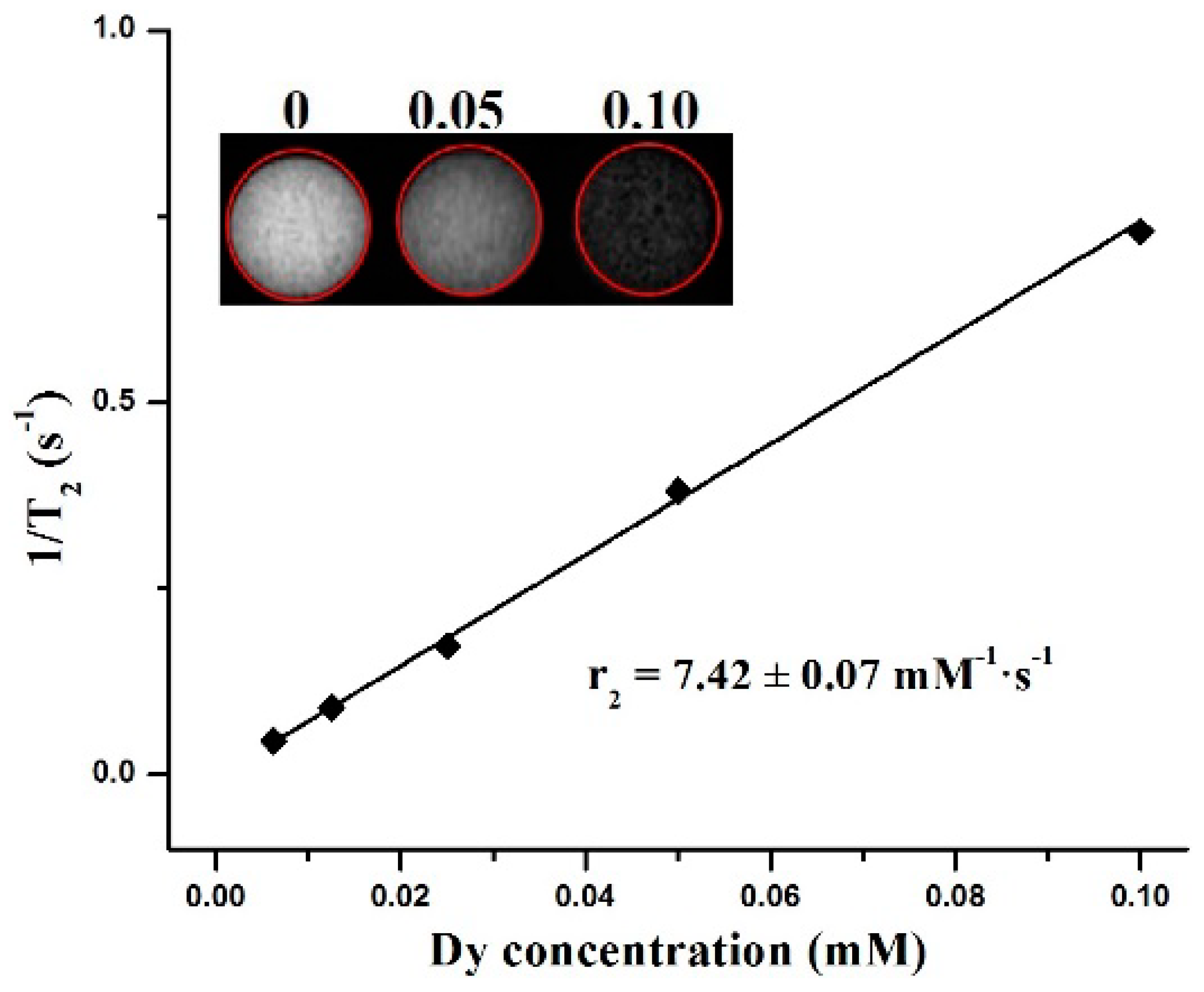

Figure 3. Transverse relaxation rate (1/T2) vs. Dy3+ concentration (mM). Inset is the transverse relaxation images of Dy-CDs solution at different concentrations.
