Biomechanical Influence of Different Cervical Micro-Thread Forms over Narrow-Diameter Implants (2.9 mm) Using Finite Element Analysis

by
Qiannian Zhang
1,2,
Waikit Lau
1,2,
Nalini Cheong
1,2 and
Tonghan Zhang
1,2,*
1
Hospital of Stomatology, Zhongshan City, Zhongshan 528400, China
2
School of Stomatology, Jinan University, Guangzhou 510632, China
*
Author to whom correspondence should be addressed.
J. Funct. Biomater. 2025, 16(11), 420; https://doi.org/10.3390/jfb16110420
Submission received: 29 September 2025 / Revised: 23 October 2025 / Accepted: 5 November 2025 / Published: 11 November 2025
(This article belongs to the Special Issue Biomaterials and Biomechanics Modelling in Dental Implantology)
Browse Figures
Versions Notes

Abstract

Narrow-diameter implants (≤3.5 mm) have garnered significant attention due to their widespread application in areas with insufficient bone volume. However, their mechanical performance is limited. The cervical region, serving as a pivotal stress concentration zone, exhibits a thread form that directly modulates stress distribution and determines the long-term stability of the implant–bone interface. This study was designed to investigate the influence of varying thread forms and face angles on microstrain and stress distribution patterns in narrow-diameter implants (NDIs) and their adjacent cortical bone structures. Through systematic modification of implant thread forms and face angle parameters, finite element analysis (FEA) was employed to develop nine distinct implant models featuring varied geometric characteristics. Each model was implanted into Type III bone tissue, followed by the application of a 100 N occlusal force, including a vertical load and an oblique load deviated 30 degrees lingually from the long axis of the implants. Subsequent biomechanical evaluation quantified peak von Mises stress concentrations at the bone–implant interface, maximum equivalent elastic strain distributions in peri-implant bone tissue, and abutment stress profile characteristics. The results indicated that in the RB thread group, the optimal thread face angle parameter was 60 degrees; in the B thread group, this optimal thread face angle parameter was 45 degrees, whereas in the V thread group, the optimal thread face angle parameter was 30 degrees.

1. Introduction

With the widespread adoption of oral implantology, clinicians often face the challenge of insufficient alveolar bone width. The emergence of narrow-diameter implants (≤3.5 mm) not only provides a minimally invasive treatment option for elderly patients with poor physical conditions, helping them avoid complex bone augmentation procedures, but also reduces the financial burden on patients and lowers the incidence of intraoperative and postoperative complications [1,2]. However, the reduction in diameter also raises biomechanical concerns. According to engineering mechanics principles, a decrease in cross-sectional area leads to a substantial elevation of internal stress when the implant is exposed to an equivalent occlusal load. It also increases the load on the surrounding bone tissue, which may result in fatigue fracture of the implant or bone resorption due to excessive loading [3,4].
The implant neck is the transitional area connecting the abutment to the main body of the implant, and it is also a critical hub for stress transmission. Both in vitro experiments and biomechanical analyses have shown that this region is the most prone to stress concentration [5,6]. Excessively elevated stress at the implant neck constitutes a primary risk factor contributing to marginal bone loss (MBL) in the peri-implant region. Moreover, once MBL occurs, it further increases the stress borne by the implant neck [7,8]. This not only affects the final aesthetic outcome of the implant but may also trigger peri-implantitis, ultimately resulting in implant failure [9,10]. A previous FEA study showed that peri-implantitis is often accompanied by cortical bone resorption and even cortical bone loss. The absence of cortical bone can lead to higher stress loads on the bone tissue [11]. As a critical determinant of cervical implant biomechanics, thread design governs peri-implant stress distribution patterns and directly modulates primary stability [12]. Each thread unit comprises multiple geometric parameters, such as thread form, depth, width, pitch, and face angle (as shown in Figure 1a) [13]. The thread forms include trapezoidal thread (V thread), square thread (S thread), buttress thread (B thread), and reverse buttress thread (RB thread) (Figure 1b). Although there is already a substantial body of literature employing FEA to study the effects of different thread forms on the stress distribution in implants and cortical bone, the conclusions drawn from these studies have not yet reached a fully unified consensus. For example, Liu et al. demonstrated through FEA that among the four compared thread forms, the buttress thread can achieve a more uniform stress distribution in the cortical bone [14], whereas Mansi et al. found that thread form had no correlation with cortical bone stress and that implants with reverse buttress threads produced the least stress in cancellous bone compared to other thread types [15]. The face angle is commonly defined as the angle between the threaded surface and the perpendicular line to the long axis of the implant (Figure 1a). Critically, uniform thread configurations may still yield markedly distinct biomechanical responses in peri-implant bone when face angle parameters differ [16].
The cervical micro-threading system incorporates micro-scale thread profiles at the cortical bone interface, exhibiting constrained thread pitch and deliberately limited depth of thread engagement. Existing clinical evidence suggests that implants with micro-threading may outperform those without such designs in maintaining marginal bone levels [17]. Biomechanical analyses also theoretically support the idea that micro-threading can increase the surface area at the neck, thereby reducing peak interfacial stress [18]. However, current research on implant thread form and face angle primarily focuses on standard-diameter implants. There is not only a lack of direct comparative studies on the thread form of various NDIs, but also few studies that conduct a joint analysis of thread form and face angle parameters. Notably, the micro-threads at the neck of NDIs are in direct contact with cortical bone, making them more prone to stress concentration effects and significantly increasing the risk of neck fracture. Nevertheless, the current literature has yet to reach a clear consensus on which combination of thread form and face angle parameters for the neck micro-threads can achieve optimal biomechanical performance between the implant and the surrounding bone tissue.
FEA, as a mature and powerful virtual experimental technique, enables researchers to systematically and non-invasively evaluate the effects of minor adjustments in implant design parameters, different occlusal loading conditions, and individual anatomical variations among patients on the biomechanical response of the entire implant system within a computerized environment. For example, through finite element modeling, Li and colleagues quantitatively assessed the relationship between implant insertion depth and resultant bone stress profiles in the context of short implant applications [19]. Similarly, Yağır and collaborators utilized FEA to comparatively assess how variations in abutment material composition and geometric configurations influence mechanical stress profiles in peri-implant bone structures [20]. Therefore, this study would employ the FEA method to construct implant models with different neck micro-thread forms and face angles. It would systematically compare the biomechanical performance of implants with various neck designs—RB thread, B thread, V thread, and S thread—under simulated physiological functional loads. The research aimed to elucidate: which neck thread form is most conducive to reducing stress concentration in the marginal cortical bone of narrow-diameter implants? And how do different thread forms and face angle parameters influence the transmission and distribution of stress along the implant–bone interface? The null hypothesis of this study was that there are no differences in the effects of varying micro-thread forms and face angle parameters on the microstrain-stress distribution of narrow-diameter implants (2.9 mm) and their surrounding bone tissue.

2. Materials and Methods

By altering two design parameters of the implant (thread form and face angle), a total of nine implant models were obtained: M1 (RB thread, face angle 30 degrees), M2 (RB thread, face angles 45 degrees), M3 (RB thread, face angle 60 degrees), M4 (B thread, face angle 30 degrees), M5 (B thread, face angle 45 degrees), M6 (B thread, face angle 60 degrees), M7 (V thread, face angle 30 degrees), M8 (V thread, face angle 45 degrees), M9 (S thread, face angle 90 degrees). The total length of all implants was 10 mm, with a fixed diameter of 2.9 mm. The length of the micro-threaded neck portion was 2.2 mm, and the pitch was 0.3 mm. Due to the diameter limitations of narrow-diameter implants and the wall thickness constraints in the neck region, the thread depth at the neck was set to 0.1 mm. The remaining thread parameters for the non-neck regions remained consistent, specifically including: a pitch of 0.4 mm, a thread depth of 0.2 mm, a V thread structure, and a face angle of 20 degrees. The finite element models of the implants were constructed according to the above parameters using the solid modeling software program (SolidWorks 2021), and the specific process is illustrated in Figure 2. (During the actual model construction, due to limitations related to thread depth and pitch, the model with a V thread and face angle of 60 degrees was excluded.).
Next, this study utilized the 3D solid modeling software program (SolidWorks 2021) to construct a mandibular premolar bone block model (with cortical bone thickness of 0.75 mm, cancellous bone structure in the center, and material properties set to Type III bone density) [21,22], and an abutment (with an abutment taper angle of 12.5 degrees and a diameter of 3.75 mm). Subsequently, a reverse engineering software program (Geomagic Wrap 2021) was used to create a premolar crown model (with mesiodistal diameter of 5.8 mm), which was then imported into SolidWorks 2021 in STEP format to complete the part modeling. The implant component models were then positioned within the mandibular bone model in SolidWorks 2021 as an assembly. After eliminating interferences between the models through Boolean operations, the complete model was finally imported into the finite element analysis software program (ANSYS Workbench 2021 R1, ANSYS, Inc., Canonsburg, PA, USA) for biomechanical simulation.
In this study, all materials were assumed to be linear, elastic, homogeneous, and isotropic. Table 1 summarizes the material properties of the model components [23,24,25,26,27]. About the contact conditions, it was assumed that the interfaces between cortical bone and cancellous bone, as well as between bone and implants, were perfectly bonded to simulate ideal osseointegration; all other contact surfaces were also set to be bonded. After tetrahedral meshing, the total number of elements and nodes for models M1 to M9 are summarized in Table 2. To simulate clinically common functional loads, the study replicated two loading conditions: one involved applying a vertical load of 100 N (along the long axis of the implant) on the crown, and the other involved applying an oblique load of 100 N (angled 30 degrees toward the lingual side relative to the long axis of the implants) [19,28]. The specific loading site on the top of the crown is shown in Figure 2e. Finally, both sides of the mandibular bone block were fully fixed (restricting displacement in the x/y/z directions), with horizontal movement restricted on all four sides (only allowing minimal vertical micromovement).
Validating the finite element model constitutes a pivotal phase in FEA, with model accuracy serving as a critical parameter for assessing its predictive capability. Prior research has demonstrated that within the finite element domain, achieving comparatively reliable experimental outcomes is generally attainable when the model’s element and node count ranges between 30,000 and 200,000 [25,29]. However, this standard has significant limitations—for example, when using a larger mesh size for large-scale models, it may still result in a high number of elements and nodes. In contrast, employing mesh convergence analysis is a more reliable and objective validation method: by progressively refining the mesh until the stress variation rate of the implant-surrounding bone tissue falls below 5%, while simultaneously monitoring the color gradient changes in adjacent elements (with a focus on stress concentration areas). If the color difference between adjacent elements (especially in stress concentration zones) exceeds one color level, it indicates that the current meshing scheme is unreasonable [30,31]. In this study, the initial mesh size of each finite element component was set to 2 mm. The initial mesh size was progressively halved, and local mesh refinement was applied to stress concentration areas to enhance mesh quality. Figure 3 presents the mesh convergence curve for M8, indicating that when the mesh sizes of the abutment, implant, and cortical bone were refined to 0.25 mm, the error in the von Mises stress results exceeded 5%. Table 1 provides a detailed list of the final mesh size parameters for each component in this study.
This study implemented a rigorous computational framework to quantify how thread form and face angle parameters modulate the risk of implant-associated marginal bone resorption. High-fidelity biomechanical metrics—including maximum equivalent elastic strain and Von Mises stress—were analyzed to establish design-performance correlations. The abutment’s stress distribution was simultaneously modeled to assess the impact of thread geometry and face angle variations on its mechanical behavior.

3. Results

Figure 4 presents the von Mises stress distribution of the implant within Type III bone. Under vertical loading conditions, the stress was predominantly localized at the implant-abutment interface, with notable concentrations in the mesial and lingual regions. While axial loading distributed stresses uniformly along the implant body, oblique loading induced focal stress concentrations at both the abutment coupling site and the coronal-most thread profiles—a phenomenon extensively validated in the literature [28,32]. Among all the models, the maximum Von Mises stress caused by oblique forces was greater than that caused by vertical forces. When M6 was subjected to an oblique force, the resulting von Mises stress was 240.34 MPa, which was the highest von Mises stress experienced by the implant in this study. In contrast, when M1 was subjected to a vertical load, the resulting Von Mises stress was 46.11 MPa, which was the lowest Von Mises stress experienced by the implant in this study. Comparisons between models showed distinct stress patterns. In the RB thread group (M1, M2, M3), M3’s stress under vertical load (72.92 MPa) was similar to M2’s but 36.8% greater than M1’s; under oblique load, its stress (185.91 MPa) was again comparable to M2 but 9.5% lower than M1. For the B thread group (M4, M5, M6), M6 carried the highest stress under both vertical (71.51 MPa, 17.8–22.9% higher than M4/M5) and oblique loading (240.34 MPa, 20.1–24.2% higher). Additionally, while M7 and M8 exhibited similar stress under oblique force, M7’s stress under vertical load (73.05 MPa) was 37.5% higher than that of M8.
Figure 5 presents the stress distribution patterns in the cortical bone adjacent to the dental implants. In response to vertical loading, cortical bone stress was predominantly concentrated in the mesial and lingual regions; conversely, when subjected to oblique loading, the primary stress localization occurred on the buccal side. Among the RB thread groups, the maximum von Mises stress in M3 under vertical loading was comparable to that of M2 but 14.9% higher than that of M1. Under oblique loading, however, the trend reversed: M1 and M2 exhibited 10.3% and 22.0% higher stress than M3, respectively. For the B thread groups, M6 consistently experienced the highest stress under both loading conditions. Vertically, its stress value of 37.76 MPa was 41% and 30.4% greater than that of M4 and M5, respectively; under oblique loading, its stress peaked at 170.17 MPa, exceeding M4 and M5 by 30.5% and 54.0%. Finally, while models M7 and M8 showed similar stress levels under vertical loading, M8’s stress under oblique loading (87.66 MPa) was 21.8% higher than that of M7.
Figure 6 illustrates the distribution characteristics of von Mises stresses on the abutment. Under vertical loads, the stress was primarily concentrated in the area where the abutment contacted the lingual side of the implant; however, under inclined loads, the stress was mainly focused on the buccal side of the abutment. For the RB thread group, the maximum von Mises stresses on the abutments under both vertical and inclined loading conditions exhibited similar distribution patterns across the three models. Similarly, for the B thread group, the maximum von Mises stresses on the abutments under vertical and inclined loading conditions also showed similar trends. It was noteworthy that, in the V thread group (M7, M8), the maximum von Mises stress on the M7 abutment under vertical loading increased significantly by 37.1% compared to the M8 abutment; whereas under inclined loading conditions, the maximum von Mises stress on the M7 abutment decreased by 12.8% compared to the M8 abutment.
The equivalent elastic strain value of the jawbone is an important observation indicator in finite element experiments. Previous studies have shown that when the maximum elastic strain value of the jawbone exceeds 6.7 × 103 με, an imbalance in the bone remodeling process around the implant will occur [33]. Table 3 presents the strain distributions in the cortical bone for all models. Under vertical loading, the strain values of all models were less than 6.7 × 103 με, while under oblique loading, only M7 exhibited a maximum equivalent elastic strain value of 5.05 × 103 ε (which is less than 6.7 × 103 με). Table 4 summarizes the strain values of all implants under both vertical and oblique loading. According to previous studies, when the minimum and maximum equivalent elastic strain values of an implant fall within the range of 0.0015 to 0.0030 (mm/mm), it provides a favorable environment for bone growth [34]. Our findings indicated that in this study, the maximum equivalent elastic strain values of the implants across all models remained below 0.0030 (mm/mm).

4. Discussion

The different thread forms and face angle parameters of implants can influence the microstrain-stress distribution in the implants and surrounding bone, thereby refuting the null hypothesis. This study utilized finite element technology to evaluate the effects of different thread forms and face angle parameters on narrow-diameter implants. However, ensuring the reliability of the results from finite element studies remains an important consideration. Previous research has found that combining FEA with biomechanical models to simulate bone remodeling can assess the implant–bone interface closer to the real physiological environment [31]. Scholars such as S. Park combined FEA with biomechanical models to simulate the bone remodeling process and conducted a comparative study between the results and those from FEA that did not incorporate the bone remodeling mechanism. The findings indicated that for Type III bone, the results of FEA without considering the bone remodeling process can serve as a relatively conservative evaluation criterion; however, in Type IV bone, ignoring the bone remodeling process may lead to an underestimation of the actual risk level [35]. In this study, all materials were assumed to be isotropic. Therefore, the material properties were defined as Type III bone by adjusting the elastic modulus and Poisson’s ratio of the jawbone. Isotropic models remain widely used in previous and some recent studies [36,37]. However, extensive anatomical and biomechanical research has confirmed that bone tissue, particularly cortical bone, exhibits a distinct directional arrangement at the microscopic level (e.g., the Haversian system), leading to significantly anisotropic mechanical properties [38]. Consequently, establishing an anisotropic jawbone model can enhance the reliability of finite element analysis results. Nevertheless, the experimental determination of parameters for anisotropic jawbone models is highly complex. As a result, a simplified form—the orthotropic model—is commonly employed in practical research, as it is considered to more accurately represent the mechanical behavior of bone tissue [39]. Therefore, future research should further explore and apply the orthotropic model to enhance the credibility of FEA results and their clinical translational value.
To investigate the influence of thread form and face angle parameters on the biomechanical properties at the implant–bone interface, this study focused on analyzing the von Mises stress distribution and equivalent elastic strain characteristics between the implant and cortical bone. As shown in Figure 7a, under inclined loading conditions, the maximum von Mises stress values for the RB thread implants exhibited a decreasing trend with increasing face angle; in contrast, under vertical loading conditions, the maximum von Mises stress values showed an increasing trend with increasing face angle. In both B and V thread groups, a progressive increase in the implant’s maximum von Mises stress was observed with rising face angle, though statistically significant only within a specific range. Similarly, under oblique loading, the M7 and M8 implants in the V thread group demonstrated similar stress values. As shown in Figure 7b, under oblique loading, the maximum von Mises stress in cortical bone initially increased and then decreased with increasing implant face angle in the RB thread group, while the opposite trend—first decreasing then increasing—was observed in the B thread group. In contrast, the V thread group showed a consistently rising stress trend with increasing face angle. This suggested that variations in thread form and their corresponding face angles exert distinct influences on the stress distribution within the cortical bone. Each thread configuration had an optimal face angle parameter that matched it, and the specific configuration of the thread form and face angle notably influenced the stress distribution patterns within both the dental implant and the surrounding cortical bone—these effects differed markedly, which was partially consistent with the conclusions of previous studies [40].
Table 3 summarizes the maximum equivalent elastic strain values in cortical bone across all models. The results indicated that in the RB thread group, the M3 implant exhibited the smallest maximum elastic strain value, while in the B thread group, the M5 implant showed the smallest maximum elastic strain value. Additionally, although the maximum von Mises stress values of the M7 and M9 implants were similar, the maximum elastic strain value in the cortical bone region corresponding to the M9 implant increased significantly by 49.2% compared to the M7 implant. It was noteworthy that only the M7 implant had a maximum elastic strain value (5.05 × 103 με) below 6.7 × 103 με, which may be attributed to the M7 implant having the largest bone–implant contact area among all models due to its neck microthreads. Increasing the bone–implant contact area not only enhances the initial stability of the implant but also helps distribute functional loads and reduce local stress concentration [41,42]. Among implants with the same thread form but different face angles, the contact area of the microthreads increased as the face angle increased. Currently, it is believed that the thread face angle primarily influences the stress distribution around the jawbone by adjusting the ratio of compressive stress to shear stress exerted on the jawbone [43]. Both tensile and shear stresses have adverse effects on bone tissue, with bone tissue having the lowest tolerance for shear stress [44]. Although von Mises stress is a comprehensive reflection of tensile, compressive, and shear stresses and cannot directly indicate the specific proportion of shear stress, according to Hooke’s law, the value of von Mises stress can, to some extent, reflect the magnitude of strain. Based on the Mechanostat Theory, which posits that bone cells can perceive mechanical strain in local tissues and initiate corresponding biological responses depending on the strain interval [45], we identified deficiencies in the face angle design of the M1 and M6 implants. The comprehensive analysis above indicated that for the NDI (2.9 mm) neck design, the V thread performs optimally when its face angle parameter was set at 30 degrees. In the RB thread group, the optimal face angle parameter was 60 degrees, while in the B thread group, this parameter was 45 degrees. Narendrakumar et al. [40] compared V thread implants with thread angles of 20 degrees, 30 degrees, 45 degrees, and 60 degrees, and found that the optimal thread face angle was 45 degrees. This conclusion differed from the findings of the present study, which may be due to differences in implant diameter between the two studies. However, there was currently no research confirming whether the effects of adjusting the thread face angle on large-diameter implants are equivalent to those on NDI.
Table 4 summarizes the maximum equivalent elastic strain values of all titanium–zirconium alloy (Ti-zr) implants under clinically relevant functional loads. We found that the maximum equivalent elastic strain values for all models were less than 0.0030 (mm/mm). This indicates that narrow-diameter Ti-zr implants used in the premolar region can achieve favorable biomechanical outcomes. A substantial body of long-term clinical studies (some spanning 5–10 years) has confirmed the high survival and success rates of Ti-Zr NDI, which perform comparably to standard-diameter implants even in the posterior region where masticatory forces are greater [46,47]. Figure 5 presents the von Mises stress distribution across all abutments. The analysis results indicated that: in both the B thread group and the RB thread group, the influence of the face angle parameter on the maximum von Mises stress of the abutment was not significant, whereas in the V thread group, different face angle parameters exhibited a marginal influence on the maximum von Mises stress of the abutment. It was worth noting that existing studies have primarily used FEA to examine the influence of variations in abutment taper angles or various abutment design schemes on the distribution of their maximum von Mises stress [20,48], while research on the influence of thread form and face angle parameters on abutment stress remains notably lacking.
We evaluated nine NDI models with different thread parameters. The findings of this study can provide clinicians with a reference for selecting implants with appropriate thread parameters in cases where the posterior region presents severe alveolar ridge width deficiency, patients are unsuitable for bone augmentation surgery, or when bone quality is poor (Type III bone). In this study, all results were derived from finite element analyses based on static structures. Although it has been found that different thread forms and their face angles can produce differential effects on the stress distribution in cortical bone, and that each thread configuration has an optimal thread face angle parameter that matches it, a universal mathematical model or empirical calculation formula capable of predicting the relationship between thread face angle and maximum von Mises stress has not yet been established. In the future, not only will multi-center validation studies be needed to enhance the reliability of the research findings, but verification must also be conducted through in vitro mechanical testing and animal experiments.
Novelty Statement:
  • First FEA-based optimization of thread form and face angle parameters for NDI (2.9 mm) in Type III bone (Figure 2).
  • Quantitative analysis of NDI’s thread form and face angle on abutment stress (Figure 6).
  • Identified NDI’s trapezoidal thread with 30 degrees face angle showing minimal microstrain in cortical bone (Table 3).

5. Conclusions

Although we strictly controlled the experimental conditions to ensure the reliability of the results as much as possible, this study still has certain limitations. For example, the jawbone was simplified as an isotropic material and the bone remodeling process of the jaw after implant placement was not considered. These aspects will be the focus of further research in the future. Based on the static finite element model established in this study, we draw the following conclusions:
1. For NDI (2.9 mm), the trapezoidal thread and face angle parameters (30 degrees) represented the optimal thread design for the neck region.
2. Each thread configuration had an optimal thread face angle parameter that matched it. In the RB thread group, the optimal thread face angle parameter was 60 degrees; in the B thread group, this optimal thread face angle parameter was 45 degrees.
3. In both the B and RB thread groups, the face angle parameter demonstrated negligible influence on the maximum von Mises stress of the abutment. In contrast, within the V thread group, variations in the face angle parameter exhibited a marginal yet measurable effect on the maximum von Mises stress of the abutment.

Author Contributions

Conceptualization, T.Z. and Q.Z.; methodology, Q.Z. and W.L.; software, Q.Z.; validation, Q.Z., W.L. and N.C.; formal analysis, T.Z., Q.Z., W.L. and N.C.; investigation, Q.Z. and W.L.; resources, Q.Z., W.L. and N.C.; data curation, Q.Z., W.L. and N.C.; writing—original draft preparation, T.Z., Q.Z., W.L. and N.C.; writing—review and editing, T.Z., Q.Z., W.L. and N.C.; visualization, Q.Z. and N.C.; supervision, T.Z. and W.L.; project administration, T.Z. and Q.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Social Welfare and Basic Research Projects in Zhongshan City (Project number: 2024B1042).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Klein, M.O.; Schiegnitz, E.; Al-Nawas, B. Systematic Review on Success of Narrow-Diameter Dental Implants. Int. J. Oral Maxillofac. Implant. 2014, 29, 43–54. [Google Scholar] [CrossRef] [PubMed]
  2. Jung, R.E.; Al-Nawas, B.; Araujo, M.; Avila-Ortiz, G.; Barter, S.; Brodala, N.; Chappuis, V.; Chen, B.; De Souza, A.; Almeida, R.F.; et al. Group 1 Iti Consensus Report: The Influence of Implant Length and Design and Medications on Clinical and Patient-Reported Outcomes. Clin. Oral Implant. Res. 2018, 29 (Suppl. S16), 69–77. [Google Scholar] [CrossRef]
  3. Song, S.Y.; Lee, J.Y.; Shin, S.W. Effect of Implant Diameter on Fatigue Strength. Implant Dent. 2017, 26, 59–65. [Google Scholar] [CrossRef]
  4. Sarul, M.; Lis, J.; Park, H.S.; Rumin, K. Evidence-Based Selection of Orthodontic Miniscrews, Increasing Their Success Rate in the Mandibular Buccal Shelf. A Randomized, Prospective Clinical Trial. BMC Oral Health 2022, 22, 414. [Google Scholar] [CrossRef]
  5. Camps-Font, O.; González-Barnadas, A.; Mir-Mari, J.; Figueiredo, R.; Gay-Escoda, C.; Valmaseda-Castellón, E. Fracture Resistance after Implantoplasty in Three Implant-Abutment Connection Designs. Med. Oral Patol. Oral Cir. Bucal 2020, 25, e691–e699. [Google Scholar] [CrossRef]
  6. Zhang, W.T.; Cheng, K.J.; Liu, Y.F.; Wang, R.; Chen, Y.F.; Ding, Y.D.; Yang, F.; Wang, L.H. Effect of the Prosthetic Index on Stress Distribution in Morse Taper Connection Implant System and Peri-Implant Bone: A 3d Finite Element Analysis. BMC Oral Health 2022, 22, 431. [Google Scholar] [CrossRef]
  7. Bredberg, C.; Vu, C.; Häggman-Henrikson, B.; Chrcanovic, B.R. Marginal Bone Loss around Dental Implants: Comparison between Matched Groups of Bruxer and Non-Bruxer Patients: A Retrospective Case-Control Study. Clin. Implant Dent. Relat. Res. 2023, 25, 124–132. [Google Scholar] [CrossRef]
  8. Guo, Y.; Kono, K.; Suzuki, Y.; Ohkubo, C.; Zeng, J.Y.; Zhang, J. Influence of Marginal Bone Resorption on Two Mini Implant-Retained Mandibular Overdenture: An in Vitro Study. J. Adv. Prosthodont. 2021, 13, 55–64. [Google Scholar] [CrossRef]
  9. Tokgöz, S.E.; Bilhan, H. The Influence of the Implant-Abutment Complex on Marginal Bone and Peri-Implant Conditions: A Retrospective Study. J. Adv. Prosthodont. 2021, 13, 46–54. [Google Scholar] [CrossRef] [PubMed]
  10. Galindo-Moreno, P.; Concha-Jeronimo, A.; Lopez-Chaichio, L.; Rodriguez-Alvarez, R.; Sanchez-Fernandez, E.; Padial-Molina, M. Marginal Bone Loss around Implants with Internal Hexagonal and Internal Conical Connections: A 12-Month Randomized Pilot Study. J. Clin. Med. 2021, 10, 5427. [Google Scholar] [CrossRef] [PubMed]
  11. Medina-Galvez, R.; Cantó-Navés, O.; Marimon, X.; Cerrolaza, M.; Ferrer, M.; Cabratosa-Termes, J. Bone Stress Evaluation with and without Cortical Bone Using Several Dental Restorative Materials Subjected to Impact Load: A Fully 3d Transient Finite-Element Study. Materials 2021, 14, 5801. [Google Scholar] [CrossRef] [PubMed]
  12. Valente, M.L.C.; Castro, D.T.; Shimano, A.C.; Reis, A.C.D. Influence of an Alternative Implant Design and Surgical Protocol on Primary Stability. Braz. Dent. J. 2019, 30, 47–51. [Google Scholar] [CrossRef]
  13. Heimes, D.; Becker, P.; Pabst, A.; Smeets, R.; Kraus, A.; Hartmann, A.; Sagheb, K.; Kämmerer, P.W. How Does Dental Implant Macrogeometry Affect Primary Implant Stability? A Narrative Review. Int. J. Implant Dent. 2023, 9, 20. [Google Scholar] [CrossRef]
  14. Liu, F.; Mao, Z.H.; Peng, W.; Wen, S. Biomechanical Influence of Thread Form on Stress Distribution over Short Implants (≤6 mm) Using Finite Element Analysis. Biomed. Tech. 2022, 67, 53–60. [Google Scholar] [CrossRef]
  15. Oswal, M.M.; Amasi, U.N.; Oswal, M.S.; Bhagat, A.S. Influence of Three Different Implant Thread Designs on Stress Distribution: A Three-Dimensional Finite Element Analysis. J. Indian Prosthodont. Soc. 2016, 16, 359–365. [Google Scholar] [CrossRef] [PubMed]
  16. Abuhussein, H.; Pagni, G.; Rebaudi, A.; Wang, H.L. The Effect of Thread Pattern Upon Implant Osseointegration. Clin. Oral Implants. Res. 2010, 21, 129–136. [Google Scholar] [CrossRef] [PubMed]
  17. Nam, D.H.; Kim, P.J.; Koo, K.T.; Seol, Y.J.; Lee, Y.M.; Ku, Y.; Rhyu, I.C.; Kim, S.; Cho, Y.D. The Cumulative Survival Rate of Dental Implants with Micro-Threads: A Long-Term Retrospective Study. J. Periodontal Implant Sci. 2024, 54, 53–62. [Google Scholar] [CrossRef]
  18. Golmohammadi, S.; Eskandari, A.; Movahhedy, M.R.; Shirmohammadi, A.; Amid, R. The Effect of Microthread Design on Magnitude and Distribution of Stresses in Bone: A Three-Dimensional Finite Element Analysis. Dent. Res. J. 2018, 15, 347–353. [Google Scholar] [CrossRef]
  19. Li, R.; Wu, Z.; Chen, S.; Li, X.; Wan, Q.; Xie, G.; Pei, X. Biomechanical Behavior Analysis of Four Types of Short Implants with Different Placement Depths Using the Finite Element Method. J. Prosthet. Dent. 2023, 129, 447.e1–447.e10. [Google Scholar] [CrossRef]
  20. Yağır, M.O.; Şen, Ş.; Şen, U. Examination of Various Abutment Designs Behavior Depending on Load Using Finite Element Analysis. Biomimetics 2024, 9, 498. [Google Scholar] [CrossRef]
  21. Morgan, E.F.; Unnikrisnan, G.U.; Hussein, A.I. Bone Mechanical Properties in Healthy and Diseased States. Annu. Rev. Biomed. Eng. 2018, 20, 119–143. [Google Scholar] [CrossRef]
  22. Tribst, J.P.M.; Piva, A.M.O.D.; Blom, E.J.; Kleverlaan, C.J.; Feilzer, A.J. Dental Biomechanics of Root-Analog Implants in Different Bone Types. J. Prosthet. Dent. 2024, 131, 905–915. [Google Scholar] [CrossRef]
  23. Sertgöz, A. Finite Element Analysis Study of the Effect of Superstructure Material on Stress Distribution in an Implant-Supported Fixed Prosthesis. Int. J. Prosthodont. 1997, 10, 19–27. [Google Scholar]
  24. Bujtár, P.; Simonovics, J.; Váradi, K.; Sándor, G.K.; Avery, C.M. The Biomechanical Aspects of Reconstruction for Segmental Defects of the Mandible: A Finite Element Study to Assess the Optimisation of Plate and Screw Factors. J. Craniomaxillofac. Surg. 2014, 42, 855–862. [Google Scholar] [CrossRef]
  25. Bahadirli, G.; Yilmaz, S.; Jones, T.; Sen, D. Influences of Implant and Framework Materials on Stress Distribution: A Three-Dimensional Finite Element Analysis Study. Int. J. Oral Maxillofac. Implant. 2018, 33, e117–e126. [Google Scholar] [CrossRef]
  26. Wang, P.S.; Tsai, M.H.; Wu, Y.L.; Chen, H.S.; Lei, Y.N.; Wu, A.Y. Biomechanical Analysis of Titanium Dental Implants in the All-on-4 Treatment with Different Implant-Abutment Connections: A Three-Dimensional Finite Element Study. J. Funct. Biomater. 2023, 14, 515. [Google Scholar] [CrossRef]
  27. Ereifej, N.; Rodrigues, F.P.; Silikas, N.; Watts, D.C. Experimental and Fe Shear-Bonding Strength at Core/Veneer Interfaces in Bilayered Ceramics. Dent. Mater. 2011, 27, 590–597. [Google Scholar] [CrossRef]
  28. Pala, E.; Ozdemir, I.; Grund, T.; Lampke, T. The Influence of Design on Stress Concentration Reduction in Dental Implant Systems Using the Finite Element Method. Crystals 2024, 14, 20. [Google Scholar] [CrossRef]
  29. Sato, Y.; Teixeira, E.R.; Tsuga, K.; Shindoi, N. The Effectiveness of a New Algorithm on a Three-Dimensional Finite Element Model Construction of Bone Trabeculae in Implant Biomechanics. J. Oral Rehabil. 1999, 26, 640–643. [Google Scholar] [CrossRef] [PubMed]
  30. Handrik, M.; Majko, J.; Vaško, M.; Dorčiak, F. Research on Influence of Mesh Parameters Modification on Solution Accuracy of Finite Element Analysis. In IOP Conference Series: Materials Science Kopas, and Engineering; IOP Publishing: Bristol, UK, 2021; Volume 1199, p. 012008. [Google Scholar]
  31. Park, J.; Park, S.; Kang, I.; Noh, G. Biomechanical Effects of Bone Quality and Design Features in Dental Implants in Long-Term Bone Stability. J. Comput. Des. Noh Eng. 2022, 9, 1538–1548. [Google Scholar] [CrossRef]
  32. Menacho-Mendoza, E.; Cedamanos-Cuenca, R.; Díaz-Suyo, A. Stress Analysis and Factor of Safety in Three Dental Implant Systems by Finite Element Analysis. Saudi Dent. J. 2022, 34, 579–584. [Google Scholar] [CrossRef]
  33. Melsen, B.; Lang, N.P. Biological Reactions of Alveolar Bone to Orthodontic Loading of Oral Implants. Clin. Oral Implant. Res. 2001, 12, 144–152. [Google Scholar] [CrossRef]
  34. Geramizadeh, M.; Katoozian, H.; Amid, R.; Kadkhodazadeh, M. Finite Element Analysis of Dental Implants with and without Microthreads under Static and Dynamic Loading. J. Long Term Eff. Med. Implant. 2017, 27, 25–35. [Google Scholar] [CrossRef]
  35. Park, S.; Park, J.; Kang, I.; Lee, H.; Noh, G. Effects of Assessing the Bone Remodeling Process in Biomechanical Finite Element Stability Evaluations of Dental Implants. Comput. Methods Programs Biomed. 2022, 221, 106852. [Google Scholar] [CrossRef] [PubMed]
  36. Atay, A.İ.; Gültekin, B.A.; Yalçın, S. Finite Element Analysis of Trabecular-Surfaced Implants and Implant Angulation in Different Mandibular Arch Forms. J. Funct. Biomater. 2025, 16, 333. [Google Scholar] [CrossRef] [PubMed]
  37. Şentürk, A.; Akaltan, F. Biomechanical Behavior of All-on-4 Concept and Alternative Designs under Different Occlusal Load Configurations for Completely Edentulous Mandible: A 3-D Finite Element Analysis. Odontology 2024, 112, 1231–1247. [Google Scholar] [CrossRef]
  38. Cantó-Navés, O.; Marimon, X.; Ferrer, M.; Cabratosa-Termes, J. Comparison between Experimental Digital Image Processing and Numerical Methods for Stress Analysis in Dental Implants with Different Restorative Materials. J. Mech. Behav. Biomed. Mater. 2021, 113, 104092. [Google Scholar] [CrossRef]
  39. Soodmand, I.; Becker, A.K.; Sass, J.O.; Jabs, C.; Kebbach, M.; Wanke, G.; Dau, M.; Bader, R. Heterogeneous Material Models for Finite Element Analysis of the Human Mandible Bone-a Systematic Review. Heliyon 2024, 10, e40668. [Google Scholar] [CrossRef] [PubMed]
  40. NarendraKumar, U.; Mathew, A.T.; Iyer, N.; Rahman, F.; Manjubala, I. A 3d Finite Element Analysis of Dental Implants with Varying Thread Angles. J. Mater. Today Proc. 2018, 5, 11900–11905. [Google Scholar] [CrossRef]
  41. Silva, G.A.F.; Faot, F.; Possebon, A.; da Silva, W.J.; Del Bel Cury, A.A. Effect of Macrogeometry and Bone Type on Insertion Torque, Primary Stability, Surface Topography Damage and Titanium Release of Dental Implants During Surgical Insertion into Artificial Bone. J. Mech. Behav. Biomed. Mater. 2021, 119, 104515. [Google Scholar] [CrossRef]
  42. Kreve, S.; Ferreira, I.; da Costa Valente, M.L.; Reis, A.C.D. Relationship between Dental Implant Macro-Design and Osseointegration: A Systematic Review. Oral Maxillofac. Surg. 2024, 28, 1–14. [Google Scholar] [CrossRef]
  43. Alemayehu, D.B.; Jeng, Y.R. Three-Dimensional Finite Element Investigation into Effects of Implant Thread Design and Loading Rate on Stress Distribution in Dental Implants and Anisotropic Bone. Materials 2021, 14, 6974. [Google Scholar] [CrossRef]
  44. Ma, C.; Du, T.; Niu, X.; Fan, Y. Biomechanics and Mechanobiology of the Bone Matrix. Bone Res. 2022, 10, 59. [Google Scholar] [CrossRef]
  45. Bartolomeu, F.; Fonseca, J.; Peixinho, N.; Alves, N.; Gasik, M.; Silva, F.S.; Miranda, G. Predicting the Output Dimensions, Porosity and Elastic Modulus of Additive Manufactured Biomaterial Structures Targeting Orthopedic Implants. J. Mech. Behav. Biomed. Mater. 2019, 99, 104–117. [Google Scholar] [CrossRef]
  46. de Souza, A.B.; Sukekava, F.; Tolentino, L.; César-Neto, J.B.; Garcez-Filho, J.; Araújo, M.G. Narrow- and Regular-Diameter Implants in the Posterior Region of the Jaws to Support Single Crowns: A 3-Year Split-Mouth Randomized Clinical Trial. Clin. Oral Implant. Res. 2018, 29, 100–107. [Google Scholar] [CrossRef] [PubMed]
  47. Assaf, A.; Saad, M.; Hijawi, S. Use of Narrow-Diameter Implants in the Posterior Segments of the Jaws: A Retrospective Observational Study of 2 to 11 Years. J. Prosthet. Dent. 2023, 130, 840–848. [Google Scholar] [CrossRef] [PubMed]
  48. Freitas, M.I.M.; Gomes, R.S.; Ruggiero, M.M.; Bergamo, E.T.P.; Bonfante, E.A.; Marcello-Machado, R.M.; Del Bel Cury, A.A. Probability of Survival and Stress Distribution of Narrow Diameter Implants with Different Implant-Abutment Taper Angles. J. Biomed. Mater. Res. B Appl. Biomater. 2022, 110, 638–645. [Google Scholar] [CrossRef] [PubMed]
Jfb 16 00420 g001

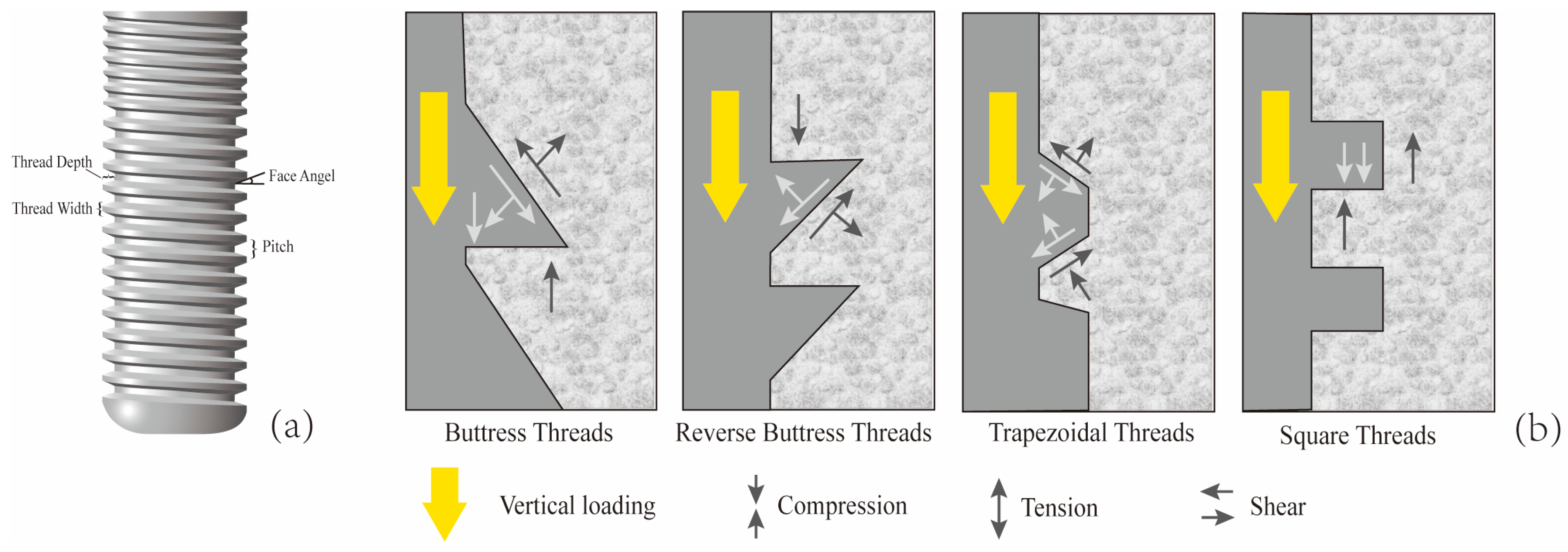

Figure 1. Characteristics of implant thread parameters. (a) Face angle: the angle between the threaded surface and the perpendicular line to the long axis of the implant. Pitch: The distance from the center of one thread to the center of the next along the longitudinal axis of the implant, divided by the number of threads. Thread depth: The distance between the outer contour of the thread and the base of the implant. Thread width: The distance between the crest (top) and the crest (top) of the same thread; (b) When the implant is subjected to vertical loading, the stress conditions at the implant–bone interface for four different thread forms (Mod according to [13,16]).
Figure 1. Characteristics of implant thread parameters. (a) Face angle: the angle between the threaded surface and the perpendicular line to the long axis of the implant. Pitch: The distance from the center of one thread to the center of the next along the longitudinal axis of the implant, divided by the number of threads. Thread depth: The distance between the outer contour of the thread and the base of the implant. Thread width: The distance between the crest (top) and the crest (top) of the same thread; (b) When the implant is subjected to vertical loading, the stress conditions at the implant–bone interface for four different thread forms (Mod according to [13,16]).
Jfb 16 00420 g001
Jfb 16 00420 g002

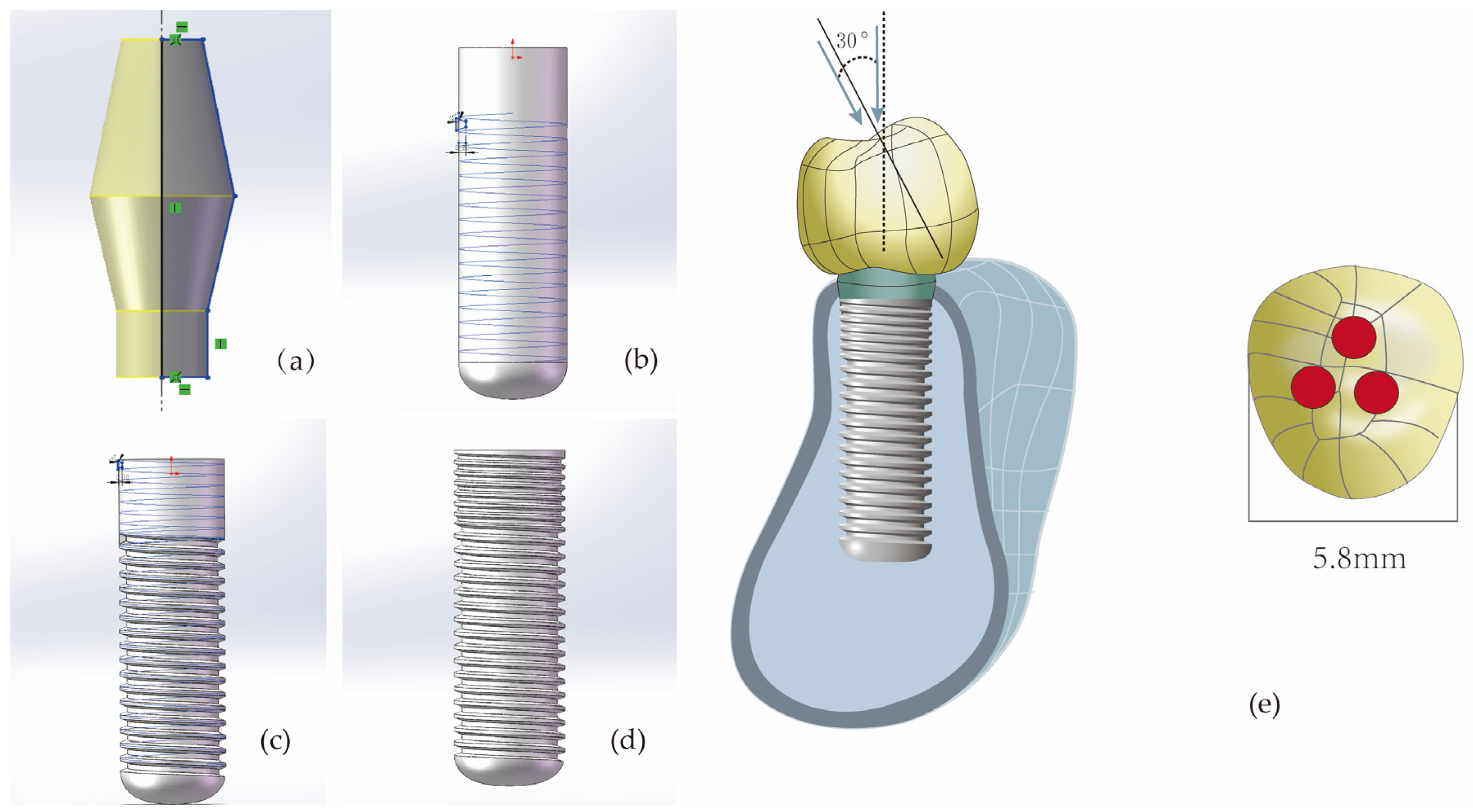

Figure 2. The modeling process of implant components (taking V-shaped threads with a face angle of 30 degrees as an example). (a) Constructing the abutment with set parameters; (b) Cutting the non-neck portion of the implant with an isosceles triangle having a base angle of 70 degrees to achieve V-shaped threads with a face angle of 20 degrees. (c) Cutting the neck portion of the implant with an isosceles triangle having a base angle of 60 degrees to achieve V-shaped threads with a face angle of 30 degrees. (d) The final implant model. (e) For every model, whether under vertical or inclined loading, the loaded area is the red region. In the picture, the area of one red circular region is 0.8 mm2.
Figure 2. The modeling process of implant components (taking V-shaped threads with a face angle of 30 degrees as an example). (a) Constructing the abutment with set parameters; (b) Cutting the non-neck portion of the implant with an isosceles triangle having a base angle of 70 degrees to achieve V-shaped threads with a face angle of 20 degrees. (c) Cutting the neck portion of the implant with an isosceles triangle having a base angle of 60 degrees to achieve V-shaped threads with a face angle of 30 degrees. (d) The final implant model. (e) For every model, whether under vertical or inclined loading, the loaded area is the red region. In the picture, the area of one red circular region is 0.8 mm2.
Jfb 16 00420 g002
Jfb 16 00420 g003

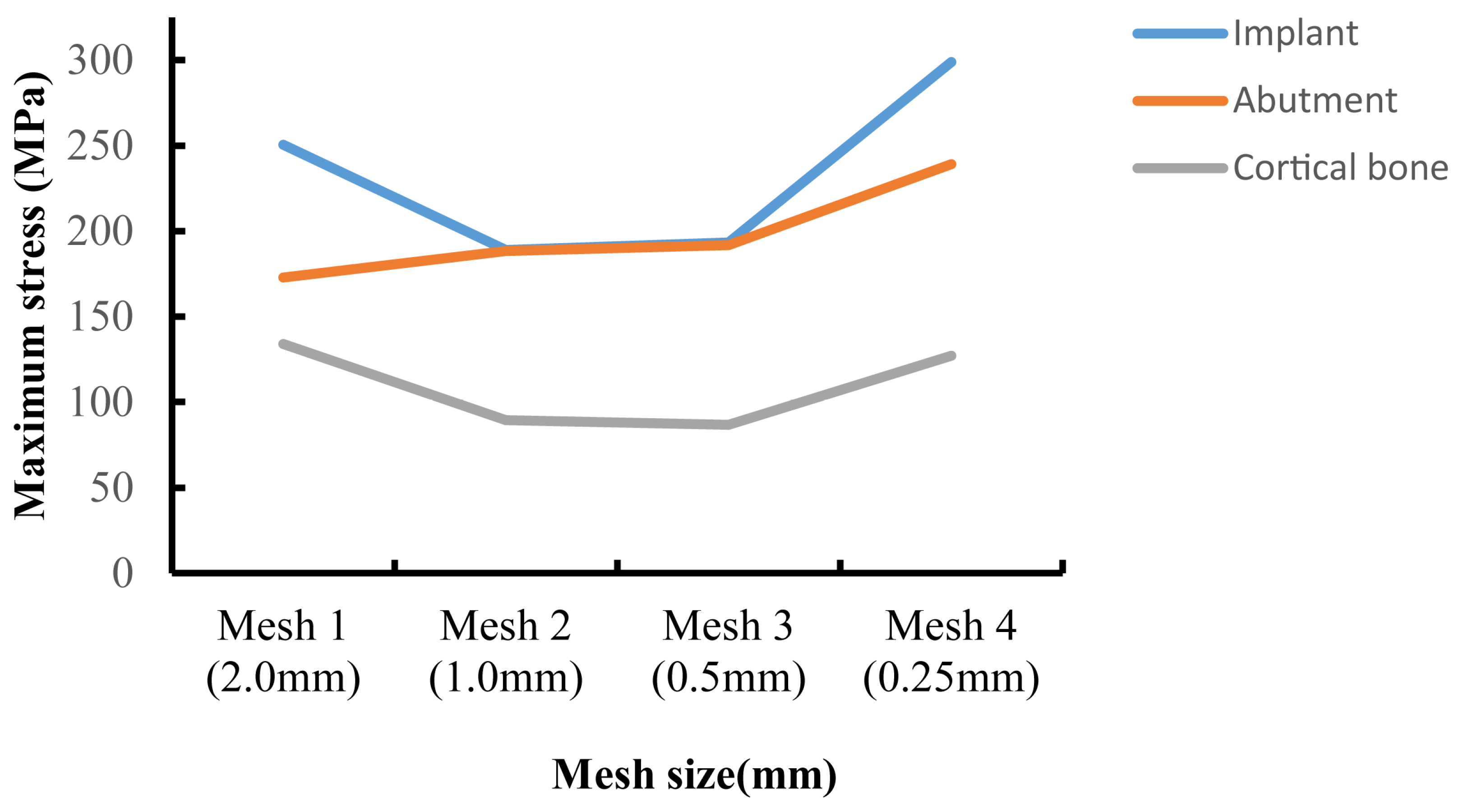

Figure 3. Convergence test results for maximum von Mises stress values.
Figure 3. Convergence test results for maximum von Mises stress values.
Jfb 16 00420 g003
Jfb 16 00420 g004

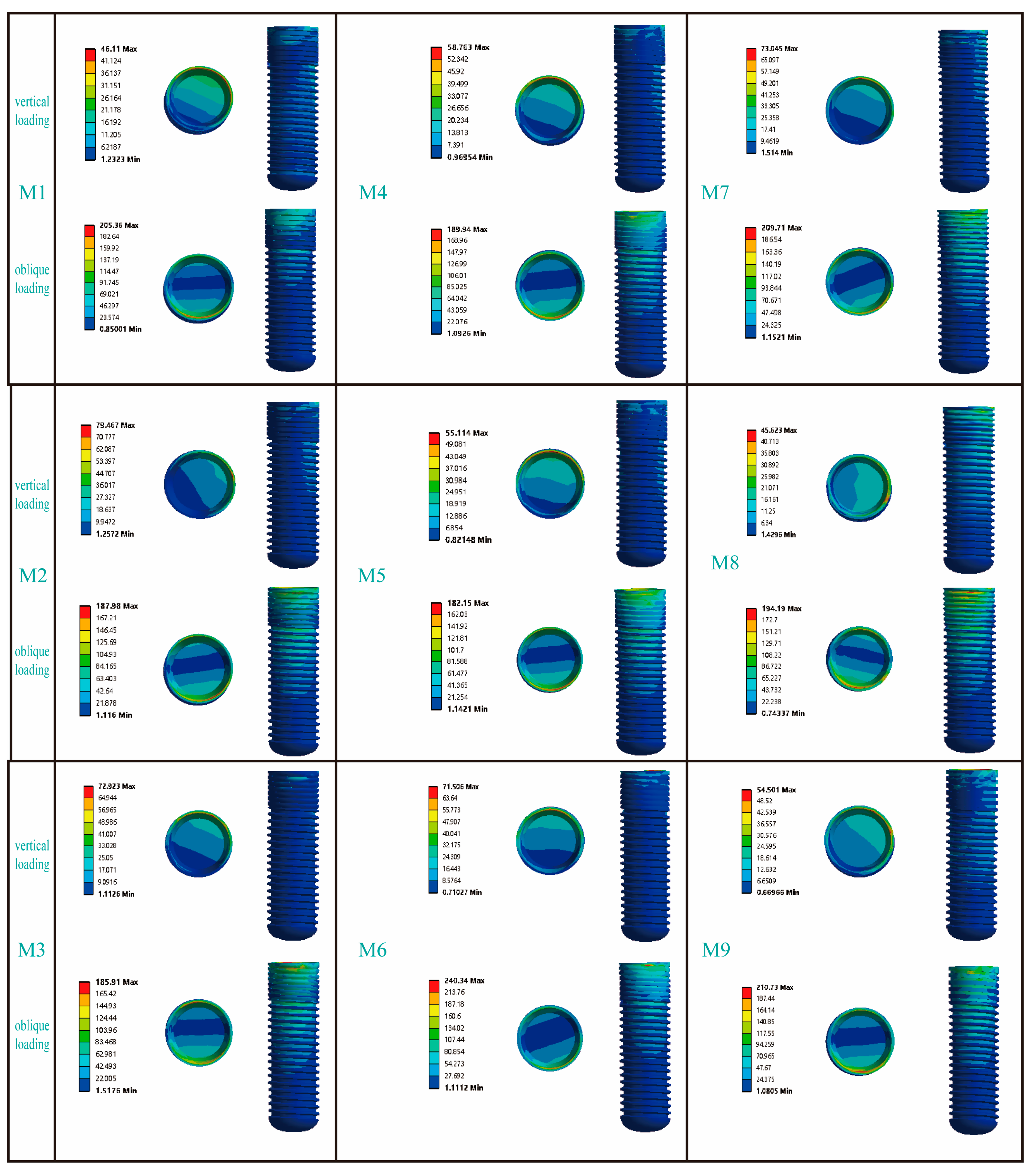

Figure 4. The influence of different thread form and face angle parameters on the stress distribution around the implant. In the figure, the circular patterns on the right side of the bars represent the stress distribution at the implant–abutment interface. The area indicated below refers to the buccal side of the implant.
Figure 4. The influence of different thread form and face angle parameters on the stress distribution around the implant. In the figure, the circular patterns on the right side of the bars represent the stress distribution at the implant–abutment interface. The area indicated below refers to the buccal side of the implant.
Jfb 16 00420 g004
Jfb 16 00420 g005

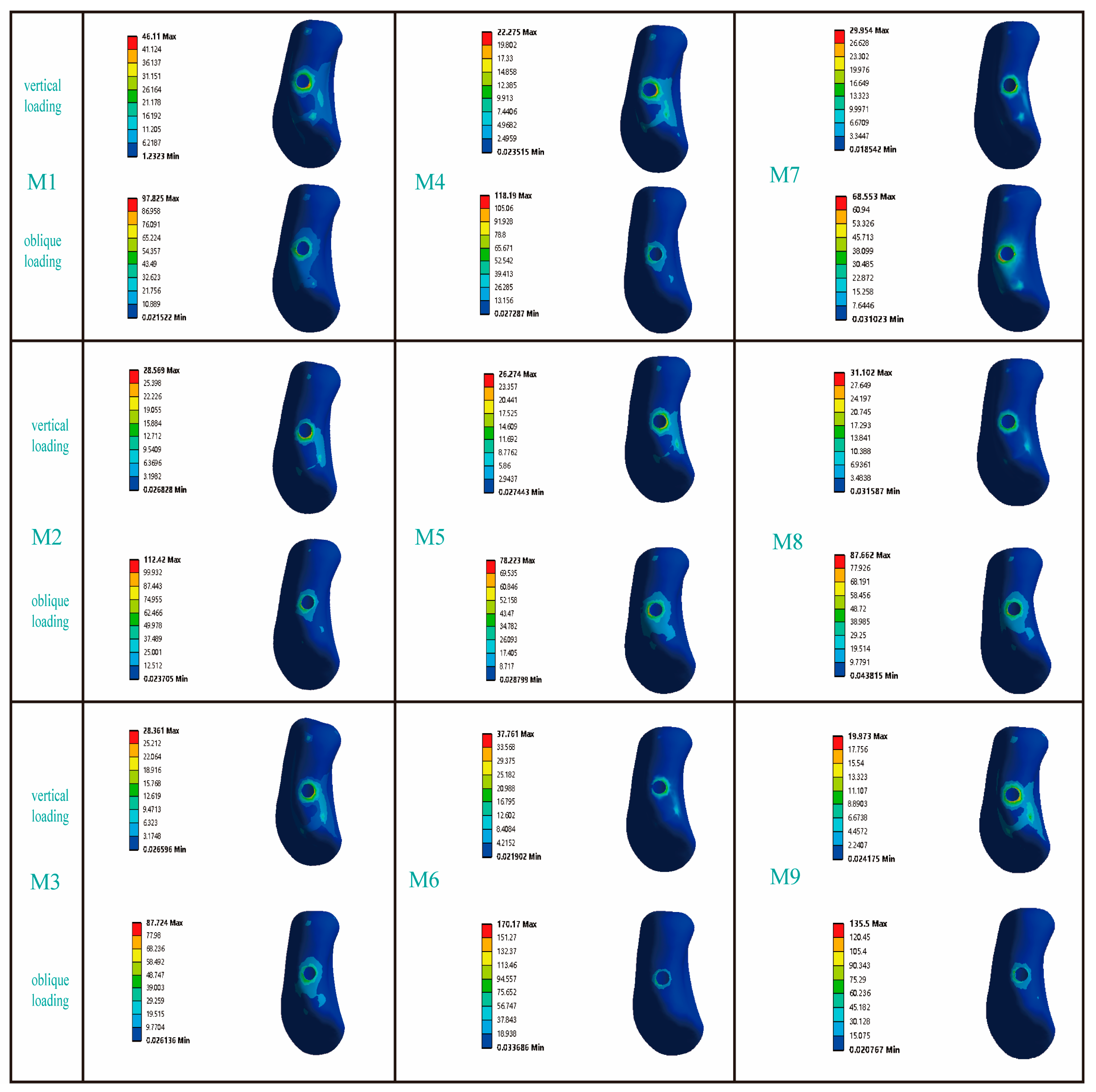

Figure 5. The influence of different thread form and face angle parameters on the stress distribution in cortical bone. The left side of the picture represents the buccal side of the jawbone.
Figure 5. The influence of different thread form and face angle parameters on the stress distribution in cortical bone. The left side of the picture represents the buccal side of the jawbone.
Jfb 16 00420 g005
Jfb 16 00420 g006

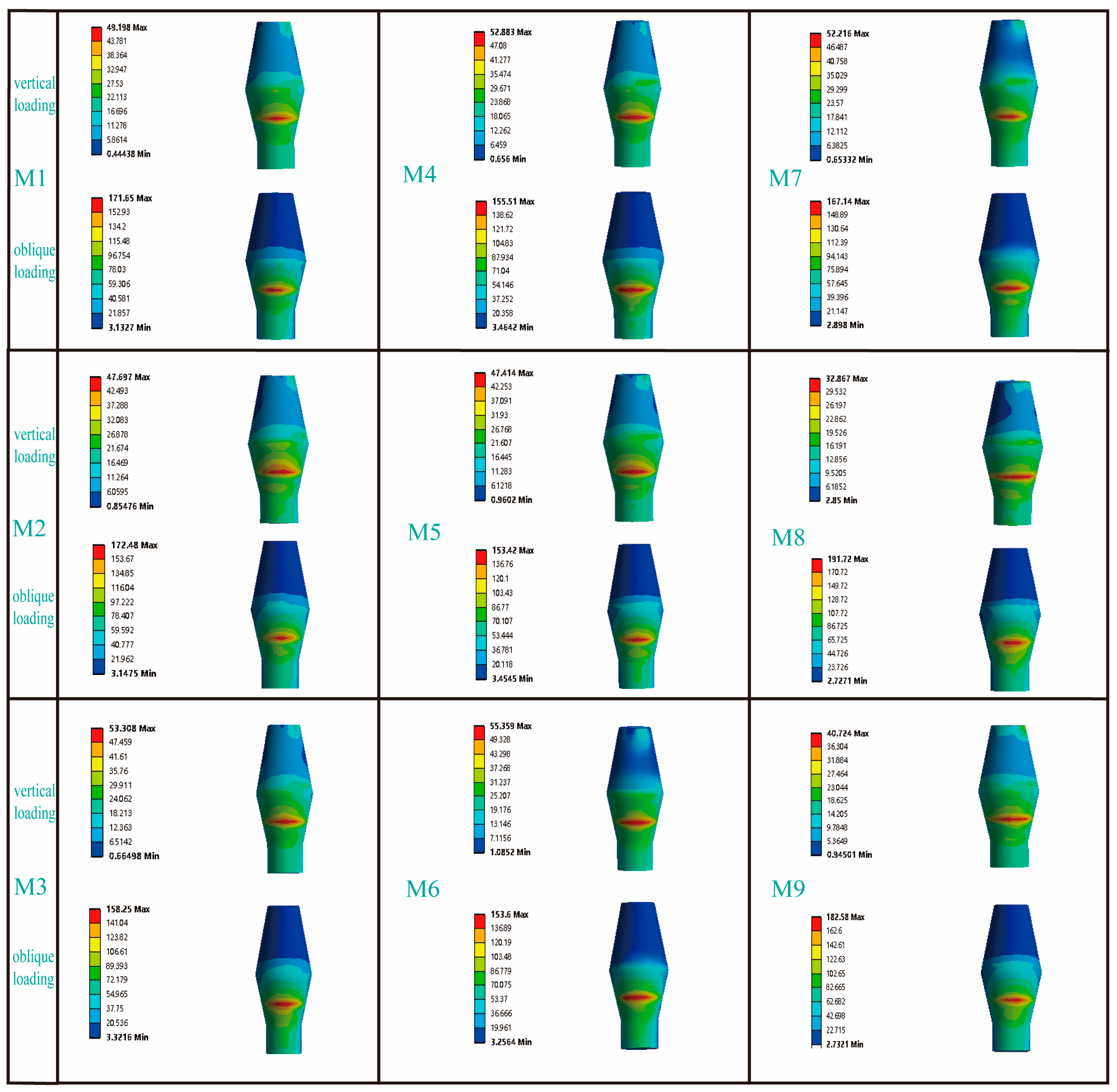

Figure 6. The influence of different thread form and face angle parameters on the stress distribution of the abutment. In the column for vertical loading, the picture shows the lingual side of the abutment, while in the column for oblique loading, the picture displays the buccal side of the abutment.
Figure 6. The influence of different thread form and face angle parameters on the stress distribution of the abutment. In the column for vertical loading, the picture shows the lingual side of the abutment, while in the column for oblique loading, the picture displays the buccal side of the abutment.
Jfb 16 00420 g006
Jfb 16 00420 g007

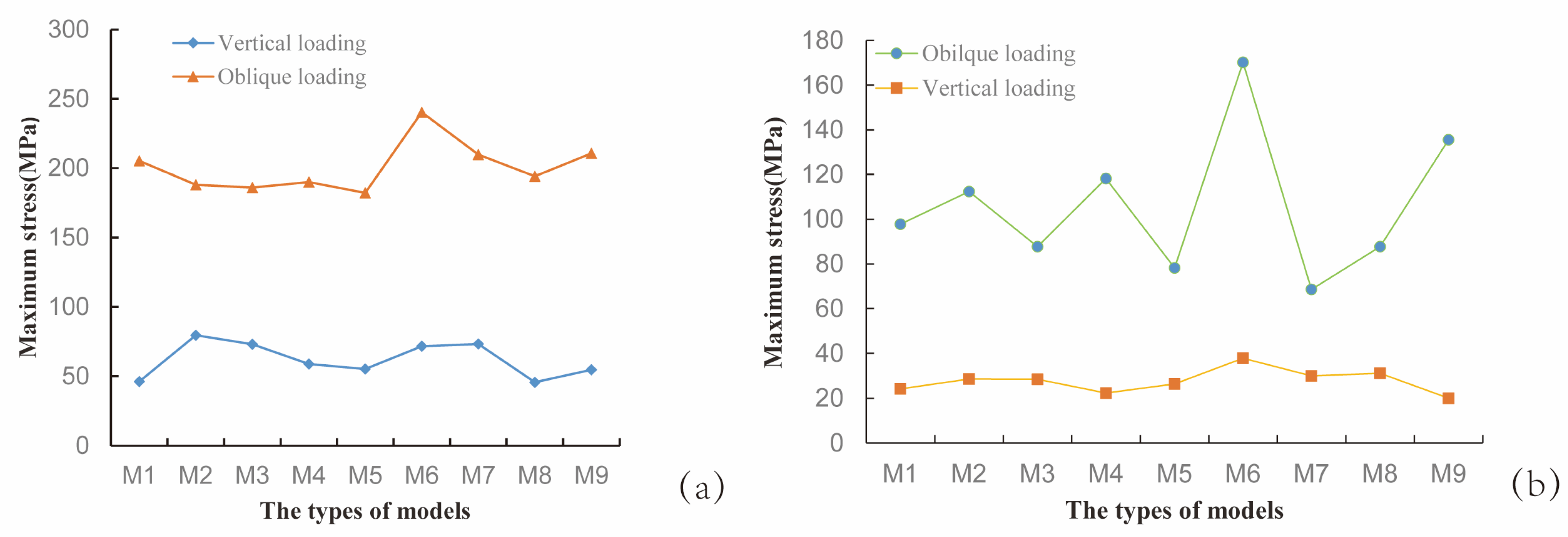

Figure 7. Maximum von Mises stress values for each model. (a) Stress in the implant; (b) Stress in the cortical bone surrounding the implant.
Figure 7. Maximum von Mises stress values for each model. (a) Stress in the implant; (b) Stress in the cortical bone surrounding the implant.
Jfb 16 00420 g007
Table 1. Mechanical properties and element size.
Table 1. Mechanical properties and element size.
MaterialElastic Modulus
[MPa]		Poisson
Ratio		Element Size
[mm]		References
Cortical bone13,7000.301.5[23]
Cancellous bone (Type III)13000.300.50[24]
Ti-Zr implant98,0000.250.40–0.60[25]
Abutment
(Ti-6Al-4V)		110,0000.350.50[26]
IPS e.max ZirCAD framework220,0000.300.50[27]
Table 2. The thread types, face angle parameters, number of elements, and number of nodes for each finite element model.
Table 2. The thread types, face angle parameters, number of elements, and number of nodes for each finite element model.
ModelThread FormFace Angle
[degrees]		ElementsNodes
M1Reverse Buttress Threads30328,341471,297
M2Reverse Buttress Threads45325,273471,099
M3Reverse Buttress Threads60327,909470,557
M4Buttress Threads30328,423471,426
M5Buttress Threads45328,202470,900
M6Buttress Threads60328,287471,093
M7Trapezoidal Threads30330,032473,857
M8Trapezoidal Threads45325,293466,305
M9Rectangle Threads90328,101470,647
Table 3. Maximum equivalent elastic strain in cortical bones of finite element analysis models.
Table 3. Maximum equivalent elastic strain in cortical bones of finite element analysis models.
ModelVertical Load ConditionOblique Load Condition
M12.047.18
M22.098.21
M32.117.07
M41.658.68
M51.987.46
M62.8112.6
M72.215.05
M82.286.78
M91.539.93
Maximum equivalent elastic strain: ×103 με.
Table 4. The maximum equivalent elastic strain of the implant in the finite element models.
Table 4. The maximum equivalent elastic strain of the implant in the finite element models.
ModelVertical Load ConditionOblique Load Condition
M15.2622.39
M28.1221.14
M37.6223.82
M46.3421.47
M55.8819.71
M67.4425.20
M77.4723.24
M86.4123.89
M96.0022.35
Maximum equivalent elastic strain: ×10−4 mm/mm.
