Color Transformations Resulting in Loss of Performance in Modern Video Compression Software Systems

Abstract

Modern video compression is implemented in complex software systems that reuse software modules from various sources. This is particularly evident in experimental software systems designed for researching and standardizing new compression technologies. These systems often incorporate software modules operating in different color spaces. For example, AI-based techniques are often used in video coding experiments. The corresponding software modules often operate on RGB representations, while other modules operate on YC_BC_R components. In this study, we demonstrate that the quality loss resulting from color transformations is comparable to the respective quantization noise. Consecutive cycles of color transformations do not result in significant additional degradation. However, for image compression, very different results are obtained in different color representations. This aspect must be carefully considered in compression research. This paper supports these considerations with extensive experimental results in the context of ITU Recommendations BT.709 and BT.2020, as well as AVC and HEVC compression.

1. Introduction

Visual data is expressed in various color spaces, which are chosen according to the field of application and the respective traditions of the community. The multitude of color coordinate systems constitutes a field of study in itself [1,2,3,4,5,6]. Individual color coordinate systems have been designed and developed for various applications. For instance, RGB representations are commonly used in cameras and displays, whereas YC_BC_R color representations, i.e., luma and chroma, are commonly used for transmission and compression. The problem becomes even more complex when considering the numerous variants of RGB and YC_BC_R color spaces corresponding to various technological stages of development [1,2,3,4,5,6,7].

Recently, the clear distinction between the application areas of RGB and YC_BC_R has become blurred (e.g., [8]). However, this issue is often not carefully considered. It does not cause problems when the entire processing path is based on a single color space. When video processing uses different color representations, potential quality losses must be considered. However, color spaces are often treated as a secondary topic even among practicing experts, which means their impact may not always receive sufficient attention.

This aforementioned observation is also related to research on image and video compression. The problem has become even more pronounced due to the use of various software programs that operate on video represented in different color spaces. Often, the machine vision and artificial intelligence software modules operate in the RGB color space, whereas the classic video coding modules operate in the YC_BC_R transmission color space [9,10,11]. This practical approach stems from the availability of various software modules and is often used by video expert groups when developing test model software (e.g., [12,13,14,15]). This modus operandi requires:

• Attention to the variants of RGB and YC_BC_R color spaces, versions of opto-electric and electro-optical transfer functions, and the use of proper transformations between the selected versions of RGB and YC_BC_R color spaces (e.g., [7,16,17,18]);
• Attention to sample encoding range (e.g., [7]);
• Video quality losses due to color transformations need to be taken into account.

This paper focuses primarily on the third problem. Its relevance has recently increased due to the development of hybrid video compression methods that combine classic compression techniques with artificial intelligence (AI)-based methods [19,20,21,22,23]. The research, testing, and implementation of these methods are inevitably related to software, in which modules operating on RGB representations are linked to modules operating on YC_BC_R representations.

The aforementioned problem is important for evaluating the results of video compression. This task is especially important in the research of improved compression methods coordinated by international expert groups such as the Joint Video Experts Team (JVET), the Moving Picture Experts Group (MPEG), the Video Coding Experts Group (VCEG), and the Moving Picture, Audio and Data Coding by Artificial Intelligence (MPAI). These groups primarily use ablation studies to test newly proposed compression tools. They use software called a “test model” that corresponds to the current state of research. First, a new tool is tested individually by embedding it into the test model. The compression performance of the extended test model is assessed by measuring the bitrate change versus the quality change in the decoded video. For most of the tested tools, the quality change perceived by humans is so small that a reliable MOS (Mean Opinion Score) estimation is difficult [24]. Considering other issues with subjective quality assessment, such as complexity, slowness, and cost, a practical approach is to use simple quality metrics, even though they poorly approximate subjective quality assessment by humans. These metrics include PSNR [24], SSIM [25], VQM [26], and VMAF [27]. Due to its simplicity, PSNR (Peak Signal-to-Noise Ratio) is the most frequently used and reported metric. Therefore, it is also used in this paper.

Another important issue is that solutions that differ by small margins in MOS or PSNR are often compared. Consequently, relatively minor quality losses due to color transformations can significantly affect the results of comparisons and the conclusions drawn from experiments. This paper discusses errors resulting from color transformations to address this issue.

In video compression research, test images and video clips are used for experimentation. Expert groups carefully select these test pictures from high-quality images and video clips of diverse content types. Even these high-quality pictures contain noise generated during the photoelectric transformation or quantization processes [7,28]. It has been found that a certain level of noise may be important for viewers to perceive good picture quality (e.g., [29,30]).

High-quality test images and video clips with a low level of noise are used as references in compression experiments, particularly in image and video quality assessments.

2. State-of-the-Art

Color transformations from RGB to transmission color coordinates (i.e., luma and chroma) partially decorrelate the RGB components (e.g., [7]). These color transformations improve compression efficiency and are standard engineering practice for color image and video transmission and storage. Rather than coding images in RGB, compression is implemented in the transmission YC_BC_R representation, i.e., using luma Y, chroma C_B, and chroma C_R [7,16,17,18]. The transformations in the decoder (YC_BC_R → RGB) must be the inverse of those in the encoder (RGB → YC_BC_R). Therefore, these transformations are carefully standardized for communication applications. There exist several standards that define RGB → YC_BC_R and YC_BC_R → RGB transformations. For digital video, it is common to use international standards defined for digital television, i.e., standards for standard-definition (SD) television [16], high-definition (HD) television [17], and ultra-high-definition (UHD) television [18]. The latter is also designed for High Dynamic Range and Wide Color Gamut video [6].

The aforementioned color transformations are linear in the sense that the output sample values are calculated as weighted sums of the input sample values [7]. Nevertheless, both the input and output samples have relatively short binary representations: 8 bits for standard dynamic range and 10 to 12 bits for high dynamic range. Good engineering practice dictates using a longer sample representation for internal processing and rounding the sample values before transmission or storage. This also applies to color transformations. This results in color transformations causing additional errors due to rounding sums of products. The properties of rounding noise are discussed elsewhere and will not be covered in detail here. It is sufficient to note that rounding noise exhibits uniform probability distribution [28]. Additional distortion caused by color transformations includes clipping sample values at the edges of the sample value interval, but this phenomenon usually has less influence on video quality.

Therefore, it should be noted that errors are introduced into the sample values during a full cycle of color transformation (RGB → YC_BC_R → RGB). Similar effects are observed for various RGB and YC_BC_R color space variants [7].

The impact of color transformations on image quality has been extensively researched in the context of lossless and nearly lossless image coding.

Special reversible color transformations have been proposed for lossless image compression [31,32,33,34]. However, such transformations are not currently used for practical video processing and coding. Furthermore, the conditions for a reversible color transformation have been outlined in [34,35].

Some special transformations have also been proposed for nearly lossless image compression [35]. Nevertheless, the standard color transformations RGB → YC_BC_R and YC_BC_R → RGB, like in [16,17], have been studied for nearly lossless image compression as well [36,37,38,39,40].

In [36,37,40], the problem of errors in multiple cycles of color transformation and compression was considered theoretically and experimentally. It was shown that rounding errors do not accumulate significantly in consecutive cycles of color transformations defined by ITU Rec. BT.601 [16]. Furthermore, even consecutive cycles consisting of RGB to YC_BC_R transformation, lossy JPEG or JPEG 2000 compression and decompression, and YC_BC_R to RGB inverse transformation do not exhibit significant error accumulation, i.e., the change in RGB sample values in the second and third cycles is negligible [40]. Nowadays, the results for ITU Rec. BT.601 color transformation are less important.

For a long time, the problem of rounding errors due to color transformations was not an important topic for lossy image and video compression because YC_BC_R representations are mostly produced in cameras, and RGB representations are retrieved in displays after decompression. However, the situation changed quite recently, perhaps after 2020. In particular, video compression research and development uses both classic compression software that processes YC_BC_R representations and artificial intelligence software that predominantly works on RGB representations. These software modules are usually very complex; therefore, in research, they are used as they are. However, in future commercial applications, they will likely be optimized. Thus, the question arises as to the trustworthiness of research results obtained using test software that includes both RGB and YC_BC_R processing modules.

3. Color Transformations and Corresponding Rounding Errors

The chroma components C_B and C_R are typically downsampled by a factor of two in both horizontal and vertical directions. When the luma sampling density remains unchanged, this chroma subsampling scheme is referred to as 4:2:0 format. The rationale behind this chroma subsampling is that the chroma components occupy a significantly narrower band of spatial frequencies than the luma component [7]. Consequently, conversion to the 4:2:0 format is a minor source of error for Standard Definition (SD), High Definition (HD), and Ultra High Definition (UHD) television and movie content, respectively. 8

Moreover, in recent video compression research using mixed RGB and YC_BC_R representations, chroma subsampling is often not employed.

For this reason, considerations on chroma subsampling may be omitted from this paper for the sake of concision.

Additionally, it should be noted that the R, G, and B components are calculated after applying a nonlinear opto-electric transfer function, also known as an opto-electronic transfer function [3,4,5,6,7]. The standard notation uses primed variables (R’, G’, B’) to emphasize this, where the primes denote that the numerical values are obtained using a nonlinear opto-electric transfer function. Opto-electric transfer functions are standardized, and the reciprocal electro-optical transfer functions are used for displays. Good examples of opto-electric and electro-optical transfer functions are those defined in ITU Recommendations BT.601 [16], BT.709 [17] and BT.2020 [18]. In fact, these three functions are very similar to each other. The three recommendations differ primarily in their definitions of the primaries and the allowed signal intervals. Proper transfer functions must be used in a display to display colors properly.

Opto-electric transfer functions are mostly implemented in video cameras, whereas the reciprocal electro-optical transfer function is implemented in displays. Therefore the considerations of the opto-electric and electro-optical functions may be omitted from this paper.

Let consider the color transformation

$$\mathbf{Y}=\mathbf{T}\mathbf{X},$$

(1)

where

$$\mathbf{X}=\left[\begin{array}{c}{R}^{\prime }\\ G^{\prime }\\ B^{\prime }\end{array}\right], \mathbf{Y}=\left[\begin{array}{c}Y\\ C_B\\ C_R\end{array}\right],$$

(2)

$$\mathbf{T}=\left[\begin{array}{ccc}{t}_{11}& t_{12}& t_{13}\\ t_{21}& t_{22}& t_{23}\\ t_{31}& t_{32}& t_{33}\end{array}\right],$$

(3)

R’, G’, B’ components are those after opto-electric transfer function or before the electro-optical transfer function is applied [3,4,7].

The inverse transform

$$\widehat{\mathbf{X}}=\mathbf{S}\mathbf{Y}={\mathbf{T}}^{-1}\mathbf{Y},$$

(4)

where $\widehat{\mathbf{X}}$ is an approximation of $\mathbf{X}$,

$$\mathbf{S}={\mathbf{T}}^{-1}=\left[\begin{array}{ccc}{s}_{11}& s_{12}& s_{13}\\ s_{21}& s_{22}& s_{23}\\ s_{31}& s_{32}& s_{33}\end{array}\right].$$

(5)

Assume that the sample values of R’G’B’ and YC_BC_R are all integers. Since the matrix elements [$t_{ij}$] and [$s_{ij}$] are real, rounding is necessary after both color transformations.

Currently, we are assuming that the R’G’B’ and YC_BC_R sample value intervals are infinite. This theoretical assumption implies that clipping is unnecessary after rounding.

In [35,36,40], the sufficient condition for a reversible color transformation is provided

$$\begin{gathered} \left|s_{11}\right|+\left|s_{12}\right|+\left|s_{13}\right|<1, \\ \left|s_{21}\right|+\left|s_{22}\right|+\left|s_{23}\right|<1, \\ \left|s_{31}\right|+\left|s_{32}\right|+\left|s_{33}\right|<1. \end{gathered}$$

(6)

After a single cycle of transformations R’G’B’ → YC_BC_R → R’G’B’ the sample errors are bounded by

$$\begin{gathered} L_R=round\left[(\left|s_{11}\right|+\left|s_{12}\right|+\left|s_{13}\right|)/2\right], \\ {L}_G=round\left[(\left|s_{21}\right|+\left|s_{22}\right|+\left|s_{23}\right|)/2\right], \\ {L}_B=round\left[(\left|s_{31}\right|+\left|s_{32}\right|+\left|s_{33}\right|)/2\right], \end{gathered}$$

(7)

where L_R, L_G, L_B are the error bounds for values of R, G, B samples, respectively [37].

$$\left|R^{\prime }-\widehat{R^{\prime }}\right|\le L_R, \left|G^{\prime }-\widehat{G^{\prime }}\right|\le L_G, \left|B^{\prime }-\widehat{B\prime }\right|\le L_{RB}.$$

(8)

Furthermore, proofs are provided in [35,36,37,40] that the condition

$$\begin{gathered} \left|t_{11}\right|+\left|t_{12}\right|+\left|t_{13}\right|\le 1, \\ \left|t_{21}\right|+\left|t_{22}\right|+\left|t_{23}\right|\le 1, \\ \left|t_{31}\right|+\left|t_{32}\right|+\left|t_{33}\right|\le 1. \end{gathered}$$

(9)

yields that after the first cycle of color transformations R’G’B’ → YC_BC_R → R’G’B’, rounding errors do not influence the output R’G’B’ sample values in the consecutive color transformation cycles.

4. Color Transformations According to Recommendation BT.709

Nowadays, the most common color transformation is probably that defined by ITU Recommendation BT.709 [17].

The R’, G’, B’ and Y, C_B, C_R component samples are encoded as unsigned integers with either 8 or 10 bits. The results concerning noise generated by color transformations are similar for 8-bit and 10-bit representations, though the level of noise is reduced by about 12 dB for 10-bit representations [28]. For the sake of simplicity, in this section, further considerations will focus on 8-bit sample representations, though the results can easily be adapted to 10-bit sample encoding. Similar reasoning for 10-bit representation is included in Section 5.

In 8-bit representations, the values C_B = C_R = 128 correspond to gray levels characterized by Y. The maximum values of C_B or C_R correspond to blue or red, respectively. The minimum values of C_B and C_R correspond to yellow and cyan, respectively. There are two versions of the Y, C_B, and C_R sample encoding range in use [7,17]:

• “Full-Swing”: The R’, G’, B’, and Y, C_B, C_R samples are represented in the interval ‹0,255›. According to the notation in [7], we will use ₂₅₅T and ₂₅₅S for the color transformation matrices.

$$\left[\begin{array}{c}Y\\ C_B-128\\ C_R-128\end{array}\right]={}_{255}\mathbf{T}\left[\begin{array}{c}{R}^{\prime }\\ G^{\prime }\\ B^{\prime }\end{array}\right], \left[\begin{array}{c}{R}^{\prime }\\ G^{\prime }\\ B^{\prime }\end{array}\right]={}_{255}\mathbf{S}\left[\begin{array}{c}Y\\ C_B-128\\ C_R-128\end{array}\right].$$

(10)

2.

“Television Range”: The 8-bit sample representations of R’, G’, B’ are in the interval ‹0,255›. Luma Y has representations in the interval ‹16,235› whereas chroma values are in the interval of ‹16, 240›. According to the notation in [7], we will use ₂₁₉T and ₂₁₉S for the color transformation matrices.

$$\left[\begin{array}{c}Y-16\\ C_B-128\\ C_R-128\end{array}\right]={}_{219}\mathbf{T}\left[\begin{array}{c}{R}^{\prime }\\ G^{\prime }\\ B^{\prime }\end{array}\right] \left[\begin{array}{c}{R}^{\prime }\\ G^{\prime }\\ B^{\prime }\end{array}\right]={}_{219}\mathbf{S}\left[\begin{array}{c}Y-16\\ C_B-128\\ C_R-128\end{array}\right].$$

(11)

The transformation matrices are the following:

$${}_{255}\mathbf{T}=\left[\begin{array}{ccc}0.2126& 0.7152& 0.0722\\ -0.1146& -0.3854& 0.5000\\ 0.5000& -0.4542& -0.0458\end{array}\right] , {}_{255}\mathbf{S}=\left[\begin{array}{ccc}1& 0& 1.5748\\ 1& -0.187324& -0.468124\\ 1& 1.8556& 0\end{array}\right],$$

(12)

$${}_{219}\mathbf{T}={\displaystyle \frac{1}{256}}\left[\begin{array}{ccc}46.742& 157.243& 15.874\\ -25.765& -86.674& 112.439\\ 112.439& -102.129& -10.310\end{array}\right] , {}_{219}\mathbf{S}={\displaystyle \frac{1}{256}}\left[\begin{array}{ccc}298.082& 0& 458.942\\ 298.082& -54.592& -136.425\\ 298.082& 540.775& 0\end{array}\right].$$

(13)

The properties of the R’G’B’ → YC_BC_R → R’G’B’ color transformations are listed in

Table 1. Theoretical properties of the BT.709: R’G’B’ → YC_BC_R → R’G’B’ color transformations.

Feature	“Full-Swing”: 255T, 255S	“Television-Range”: 219T, 219S
Reversibility (6)	No	No
Error bounds LR, LG, LB (7)	LR = 1, LG = 1, LB = 1	LR = 1, LG = 1, LB = 2
No error accumulation (9)	Borderline	Yes

. These are theoretical properties, as they do not consider the effects of clipping at the edges of the intervals for sample values.

The properties listed in Table 1 for BT.709 are very similar to those of BT.601 [35,37,40].

Similar reasonings for the BT.709 YC_BC_R → R’G’B’ → YC_BC_R transformations and for all R’, G’, B’, and Y, C_B, C_R samples in the ‹0,255› interval (“full-swing”) lead to the conclusion that the transformation is borderline reversible.

5. Color Transformations According to Recommendation BT.2020

ITU Recommendation BT.2020 [18] defines the R’G’B’ and YC_BC_R color spaces according to the needs of modern Ultra High Definition Television (UHDTV), which provides a high dynamic range of luma and a wide color gamut [41]. Such systems require an extended range of sample values. ITU Recommendation BT.2020 provides definitions of primaries and color transformation formulas. This standard is intended for 10- and 12-bit representations, in which sample values are encoded as unsigned integers. For the sake of simplicity, this text focuses on 10-bit sample representations, though the results can easily be adapted to 12-bit sample encoding.

Similarly, as for 8-bit representations, two versions of the Y, C_B, and C_R sample encoding ranges are in use [7,17]:

• “Full-Swing”: The R’, G’, B’, and Y, C_B, C_R samples are represented in the interval ‹0,1023›.
• “Television Range”: The 10-bit sample representations of R’, G’, B’ are in the interval ‹0,1023›. Luma Y and chroma C_B, C_R signals have representations in the interval of ‹64, 960›.

For both sample encoding ranges and 10-bit sample representations, the values C_B = C_R = 512 correspond to gray levels characterized by Y values.

The respective color transformations use formulas similar to those in Section 4. For 10-bit representations, for instance, the transformation matrix ₁₀₂₃S that corresponds to ₂₅₅S from Section 4.

$${}_{1023}\mathbf{S}=\left[\begin{array}{ccc}1& 0& 1.5746\\ 1& -0.16455& -0.5713\\ 1& 1.8814& 0\end{array}\right] .$$

(14)

Assuming theoretically that no clipping occurs at the edges of the sample value intervals, Equation (7) yields the bounds for sample errors L_R = 1, L_G = 1, L_B = 1 when the full range of sample values, ‹0,1023›, is used, similar to the BT.709 transformation.

6. Experimental Estimation of Video Quality Deterioration Due to Color Transformations

The goal of these experiments is to understand color transformation errors in practical environments, such as when clipping occurs at the edges of the permitted intervals.

In these experiments, color transformations are implemented using floating-point arithmetic, and the results are rounded to 8-bit or 10-bit integers using the rule as follows:

$$round \left(x\right)= \lfloor x+0.5\rfloor ,$$

(15)

where $\lfloor y\rfloor$ denotes the greatest integer not exceeding $y$. Because color transformations use floating-point arithmetic, the selection of the definition of rounding has negligible influence on the results. For multiplications of color components by a selected factor, the way of processing is the same. Video codecs already produce integer sample values with the requested number of bits in sample representations. Therefore, all input, output and intermediate data between color transformations, the encoder and decoder are integers.

To address the topic cross-sectionally, the experiments were conducted in two scenarios:

• Scenario A: Color transformations according to ITU Recommendation BT.709 with 8-bit sample encoding. Experiments were conducted for still images and AVC compression when appropriate.
• Scenario B: Color transformations according to ITU Recommendation BT.2020 with 10-bit sample encoding. Experiments were conducted for 64-frame video clips and HEVC compression when appropriate.

6.1. Scenario A of the Experiments

The typical approach to estimating color properties in video involves analyzing key frames [4,5,6,7,42,43]. To obtain representative results, images with diverse content and color characteristics should be used. One recognized image database is the Kodak Lossless True Color Image Suite, which provides images with 8-bit sample encoding in the R’G’B’ color space [44]. Thus, the experiments were conducted using colorful still images I01-I25 obtained from the TID2013 database [45,46]. The TID2013 database provides access to the Kodak Suite.

For this type of research, image size does not affect the results, provided the image is large enough. Thus, we accept moderate image sizes of 512 × 384 or 384 × 512, as with the aforementioned image database. Each image contains 196,608 samples of each component, which is a sufficient number to represent color transformation statistics. The rationale for using 4:4:4 data is explained at the beginning of Section 3.

The experiments were performed for the BT.709 color transformation [7,17]. Previously [36,37,40], the BT.601 transformations were investigated, and the results were very similar. Therefore, there is no need to explain those results here.

The AVC codec [47,48] was used in its FFmpeg implementation [49] and configured for Intra mode with 4:4:4 data (High 4:4:4 Profile [47]), i.e., no chroma subsampling was used. All input and output color component samples have 8-bit representations. In this FFmpeg codec the Constant Rate Factor is set to 25. The FFMPEG configuration was as follows:

• ffmpeg.exe -y -pix_fmt yuv444p -s 512×384 -i input_file.yuv -c:v libx264 -profile:v high444 -crf 25 out.

One might also wonder why only Intra mode was configured for the video codec. This is due to the static nature of color transformations. Temporal relations are unimportant for the provided analysis. Thus, the experiments are simplified to still images and Intra mode. The simplicity of the experiments ensures high reproducibility of the results without compromising the strength of validation.

Since color transformations cause moderate and consistent quality degradation across various experiments, the peak signal-to-noise ratio (PSNR) can be used to evaluate image quality, as discussed in Section 1. Additionally, image and video processing and compression software primarily report quality based on PSNR. Therefore, this paper uses PSNR values to evaluate image quality.

Most of the numerical results presented for Scenario A in this section and in Appendix A, Appendix B, and Appendix C come from the JVET document [50]. The authors hold the copyright for this document.

6.2. Scenario B of the Experiments

In this scenario, the experiments are repeated but using test video sequences with 10-bit sample encoding and HEVC compression [51,52].

For the experiments, 8 test video clips with 10-bit representation of the R′, G’, and B′ components were selected from the set of test video sequences proposed by the Joint Collaborative Team on Video Coding (JCT-VC) for research on HEVC with range extensions [53,54]. For each video clip, 64 first frames are selected from the original sequences described in [53] and

Table 2. Test video R’G’B’ sequences used in experiments for Scenario B.

Name of the Test Video Sequence	Frame Rate [Hz]	Frame Size
Traffic	30	2560 × 1600
ParkScene	24	1920 × 1080
OldTownCross	50	1920 × 1080
Kimono1	24	1920 × 1080
EBURainFruits	50	1920 × 1080
EBULupoCandlelight	50	1920 × 1080
DucksAndLegs	60	1920 × 1080
BirdsInCage	60	1920 × 1080

.

The HEVC codec [51,52] was used in its FFmpeg implementation [49] in the Main 4:4:4 10 profile and Main tier. All input and output color component samples have 10-bit representations. The Constant Rate Factor is set to 25 in the FFmpeg codec. The FFmpeg configuration was as follows:

• ffmpeg.exe -y -pix_fmt yuv444p10le -s width × height -i input_file.yuv -c:v libx265 -crf 25.

The Group of Pictures (GOP) structure was as follows: IBBBBPBBBBPBBBBP…PBBP. It consisted of all 64 frames because we mainly tested predictive coding as intra-frame coding was tested in Scenario A.

6.3. One or Two Cycles of Color Transformation

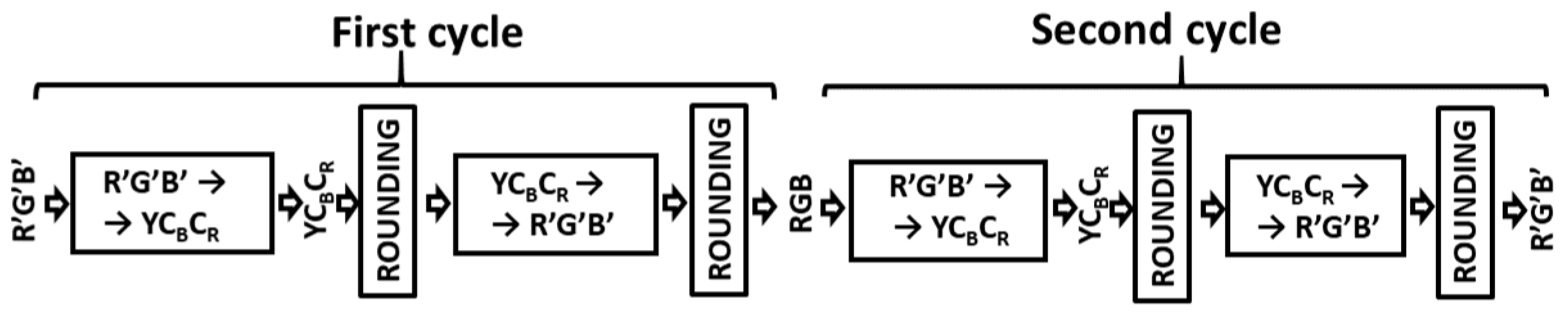

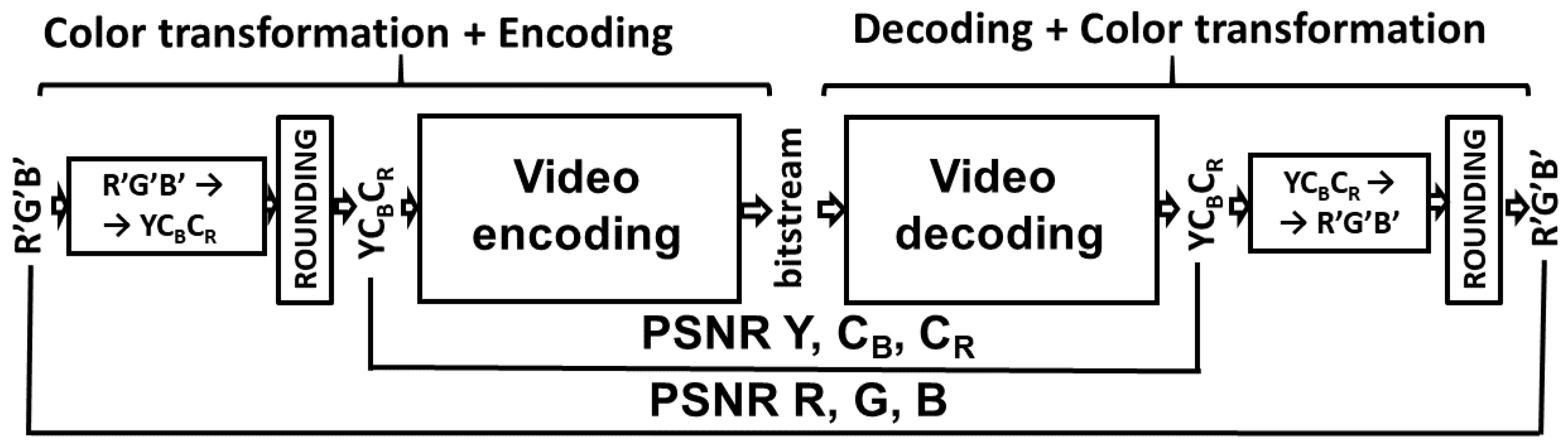

Figure 1 depicts the scenario involving two R’G’B’ → YC_BC_R → R’G’B’ cycles. After each R’G’B’ → YC_BC_R or YC_BC_R → R’G’B’ transformation, the sample values are rounded to 8-bit integers in Scenario A, and to 10-bit integers for Scenario B.

The experiments in this section correspond to a situation in which a software module performs a color transformation without modifying a video frame or a part of a still image.

The PSNR values are calculated using the original input images as the references.

Table 3. The average PSNR [dB] after one or two cycles of R’G’B’ → YC_BC_R → R’G’B’ transformation. No compression is involved.

		First Cycle			Second Cycle
		R’	G’	B’	R’	G’	B’
Scenario A (8-bit samples)	Full range “Full-swing”	52.39	57.30	51.56	52.39	57.30	51.56
	“Television range”	51.63	55.31	50.87	51.63	55.31	50.85
Scenario B (10-bit samples)	Full range “Full-swing”	64.48	68.77	63.46	64.48	68.77	63.46
	“Television range”	62.80	65.15	61.81	62.79	65.15	61.80

provides the average PSNR values after one or two cycles, and

Table A1. PSNR [dB] after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ according to ITU Rec. BT.709 [7,17] for the full range of luma and chroma in Scenario A (8-bit sample representations).

	First Cycle			Second Cycle
Image	PSNR R	PSNR G	PSNR B	PSNR R	PSNR G	PSNR B
I01	52.68	56.62	51.21	52.68	56.62	51.21
I02	52.10	58.24	51.40	52.10	58.24	51.40
I03	52.00	56.82	51.10	52.00	56.82	51.09
I04	52.32	57.48	51.64	52.32	57.48	51.64
I05	52.28	57.43	51.98	52.28	57.43	51.98
I06	52.55	57.28	51.49	52.55	57.28	51.49
I07	52.15	56.58	51.81	52.15	56.58	51.81
I08	52.43	57.06	51.68	52.43	57.06	51.68
I09	51.54	58.47	51.29	51.54	58.47	51.29
I10	52.33	57.31	51.75	52.33	57.31	51.75
I11	51.55	57.59	51.10	51.55	57.59	51.10
I12	51.85	57.15	51.63	51.85	57.15	51.63
I13	52.41	57.04	51.67	52.41	57.04	51.67
I14	52.43	56.53	52.09	52.43	56.53	52.09
I15	52.53	57.08	50.95	52.53	57.08	50.94
I16	51.87	56.74	50.65	51.87	56.74	50.65
I17	53.15	56.73	52.27	53.15	56.73	52.27
I18	52.36	57.00	51.83	52.36	57.00	51.83
I19	52.39	57.08	51.34	52.39	57.08	51.34
I20	54.22	58.03	51.63	54.21	58.02	51.63
I21	52.44	58.08	51.30	52.44	58.08	51.30
I22	52.50	56.97	51.86	52.50	56.95	51.86
I23	52.49	57.42	51.34	52.49	57.42	51.33
I24	52.44	56.97	51.73	52.44	56.97	51.73
I25	52.68	58.90	52.16	52.68	58.90	52.16
Average	52.39	57.30	51.56	52.39	57.30	51.56

,

Table A2. PSNR [dB] after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ according to ITU Rec. BT.709 for the “television range” of luma and chroma in Scenario A (8-bit sample representations).

	First Cycle			Second Cycle
Image	PSNR R	PSNR G	PSNR B	PSNR R	PSNR G	PSNR B
I01	51.32	55.31	50.74	51.32	55.31	50.74
I02	51.72	55.17	51.13	51.72	55.17	51.13
I03	51.15	55.95	50.70	51.15	55.95	50.69
I04	51.48	55.22	50.84	51.48	55.22	50.84
I05	51.24	55.20	50.95	51.24	55.19	50.95
I06	51.88	55.38	50.66	51.88	55.38	50.66
I07	51.64	55.16	50.65	51.64	55.16	50.65
I08	51.74	55.22	50.78	51.73	55.22	50.77
I09	51.42	54.80	50.90	51.42	54.80	50.90
I10	51.90	55.21	51.10	51.89	55.21	51.10
I11	51.15	54.91	51.44	51.15	54.91	51.44
I12	51.57	55.24	50.49	51.57	55.24	50.49
I13	51.51	55.28	50.93	51.51	55.28	50.93
I14	51.70	55.27	50.82	51.70	55.27	50.82
I15	52.02	55.27	50.32	52.02	55.27	50.32
I16	51.47	54.92	50.49	51.47	54.92	50.49
I17	51.56	55.29	51.55	51.56	55.29	51.55
I18	51.75	55.13	50.96	51.75	55.13	50.96
I19	51.82	55.23	50.86	51.82	55.22	50.86
I20	52.05	56.87	50.86	52.04	56.86	50.86
I21	51.69	55.12	50.53	51.69	55.12	50.53
I22	51.72	55.14	50.66	51.71	55.14	50.66
I23	51.62	55.32	50.70	51.61	55.32	50.69
I24	51.45	55.36	50.75	51.45	55.36	50.75
I25	52.15	55.91	51.94	52.15	55.91	51.50
Average	51.63	55.31	50.87	51.63	55.31	50.85

,

Table A3. PSNR [dB] after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ according to ITU Rec. BT.2020 [18] for the full range of luma and chroma in Scenario B (10-bit sample representations).

	First Cycle			Second Cycle
Video Clip	PSNR R	PSNR G	PSNR B	PSNR R	PSNR G	PSNR B
Traffic	64.46	69.18	63.41	64.46	69.18	63.41
ParkScene	64.53	68.57	63.47	64.53	68.57	63.47
OldTownCross	64.53	68.51	63.48	64.53	68.51	63.48
Kimono1	64.51	68.65	63.43	64.51	68.65	63.43
EBURainFruits	64.41	68.92	63.45	64.41	68.91	63.45
EBULupoCandlelight	64.42	68.86	63.49	64.42	68.86	63.49
DucksAndLegs	64.53	68.58	63.47	64.53	68.58	63.47
BirdsInCage	64.42	68.93	63.46	64.42	68.93	63.46
Average	64.48	68.77	63.46	64.48	68.77	63.46

and

Table A4. PSNR [dB] after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ according to ITU Rec. BT.2020 [18] for the “television range” of luma and chroma in Scenario B (10-bit sample representations).

	First Cycle			Second Cycle
Video Clip	PSNR R	PSNR G	PSNR B	PSNR R	PSNR G	PSNR B
Traffic	63.86	66.70	62.71	63.86	66.70	62.71
ParkScene	63.80	66.65	62.67	63.80	66.65	62.67
OldTownCross	63.80	66.68	62.69	63.80	66.68	62.69
Kimono1	63.82	66.69	62.69	63.82	66.69	62.69
EBURainFruits	61.47	62.62	60.69	61.43	62.60	60.65
EBULupoCandlelight	57.97	58.53	57.64	57.96	58.53	57.64
DucksAndLegs	63.82	66.67	62.69	63.82	66.67	62.69
BirdsInCage	63.83	66.64	62.69	63.83	66.64	62.69
Average	62.80	65.15	61.81	62.79	65.15	61.80

in Appendix A show the detailed results for individual test images or test video sequences.

The average PSNR values (Table 3) are calculated for each component using either 4,915,200 or 1,191,116,800 samples, depending on the scenario. The large numbers of samples assure reliable estimation of averages. The PSNR values for the green component are 2–5 dB higher than those for the red or blue components.

The PSNR values after the first cycle are lower than the anticipated values for 8-bit quantization. For the second quantization cycle, however, the loss of PSNR is negligible, not exceeding 0.02 dB. This finding aligns with the transformation property stated in Section 4, Equation (7). As expected, the PSNR values for 10-bit representations are approximately 12 dB higher than the corresponding values for 8-bit representations. For the “television range,” however, this difference is slightly lower. For this sample coding interval, the PSNR values are approximately 0.8–2.0 dB lower than for full-range sample encoding for both scenarios.

For R′, G′, B′ components, for the entire sets of test images or video clips, the total histograms of errors are provided in

Table 4. R’, G’, B’ error histograms (in thousands) for all images or sequences after one or two cycles of R’G’B’ → YC_BC_R → R’G’B’ transformation.

		Component	First Cycle					Second Cycle
			−2	−1	0	1	2	−2	−1	0	1	2
Scenario A	Full range “Full-swing”	R’	0	918	3059	938	0	0	918	3058	939	0
		G’	0	274	4315	326	0	0	274	4315	326	0
		B’	0	1054	2673	1189	0	0	1054	2672	1189	0
	“Television range”	R’	0	1072	2715	1128	0	0	1072	2715	1129	3
		G’	0	474	3972	470	0	0	474	3971	470	0
		B’	18	1250	2392	1240	15	18	1251	2382	1249	15
Scenario B	Full range “Full-swing”	R’	0	3469	11,662	3480	0	0	3469	11,662	3480	0
		G’	0	1286	16,051	1274	0	0	1286	16,051	1274	0
		B’	0	4385	9817	4410	0	0	4385	9817	4410	0
	“Television range”	R’	0	4034	10,537	4040	0	0	4034	10,537	4040	0
		G’	0	2092	14,423	2097	0	0	2092	14,423	2097	0
		B’	94	4864	8690	4871	92	94	4864	8690	4871	92

. The histograms for individual test images and selected test video sequences are in Appendix A:

Table A5. Error histograms in R’, G’, B’ after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ for selected test images for Scenario A (ITU Rec. BT.709, 8-bit sample representations).

Image		Component	First Cycle					Second Cycle
			−2	−1	0	1	2	−2	−1	0	1	2
I1	Full range “Full-swing”	R’	0	36,449	127,620	32,539	0	0	36,449	127,620	32,539	0
		G’	0	9617	168,749	18,242	0	0	9617	168,749	18,242	0
		B’	0	46,274	99,792	50,542	0	0	46,276	99,790	50,542	0
	“Television range”	R’	0	44,467	102,277	49,864	0	0	44,467	102,277	49,864	0
		G’	0	19,983	158,979	17,646	0	0	19,983	158,979	17,646	0
		B’	399	55,315	91,817	48,471	606	399	55,322	91,810	48,471	606
I6	Full range “Full-swing”	R’	0	32,724	125,468	38,416	0	0	32,724	125,467	38,417	0
		G’	0	9759	172,699	14,150	0	0	9760	172,698	14,150	0
		B’	0	43,555	105,917	47,136	0	0	43,564	105,908	47,136	0
	“Television range”	R’	0	39,646	113,747	43,215	0	0	39,646	113,698	43,264	0
		G’	0	18,408	159,602	18,598	0	0	18,425	159,584	18,599	0
		B’	793	48,827	92,140	53,866	982	793	48,834	92,133	53,866	982
I11	Full range “Full-swing”	R’	0	34,789	107,151	54,668	0	0	34,789	107,149	54,670	0
		G’	0	13,833	174,338	8437	0	0	13,837	174,334	8437	0
		B’	0	59,956	97,349	39,303	0	0	59,967	97,338	39,303	0
	“Television range”	R’	0	56,927	98,586	41,095	0	0	56,927	98,579	41,102	0
		G’	0	19,957	155,315	21,336	0	0	19,958	155,312	21,338	0
		B’	679	38,811	108,164	48,534	420	679	38,823	108,152	48,534	420
I16	Full range “Full-swing”	R’	0	42,659	113,479	40,470	0	0	42,659	113,479	40,470	0
		G’	0	8948	169,512	18,148	0	0	8948	169,512	18,148	0
		B’	0	44,773	86,620	65,215	0	0	44,775	86,618	65,215	0
	“Television range”	R’	0	47,864	105,421	43,323	0	0	47,864	105,392	43,352	0
		G’	0	18,849	155,388	22,371	0	0	18,849	155,388	22,371	0
		B’	1675	54,357	89,681	50,160	735	1675	54,361	89,677	50,160	735
I21	Full range “Full-swing”	R’	0	36,838	123,752	36,018	0	0	36,838	123,734	36,036	0
		G’	0	8920	176,705	10,983	0	0	8923	176,702	10,983	0
		B’	0	44,794	101,868	49,946	0	0	44,794	101,868	49,946	0
	“Television range”	R’	0	43,437	109,934	43,237	0	0	43,437	109,915	43,256	0
		G’	0	18,296	157,261	21,051	0	0	18,303	157,253	21,052	0
		B’	461	56,460	86,987	52,002	698	461	56,462	86,985	52,002	698

and

Table A6. Error histograms in R’, G’, B’ (values in thousands) in R’, G’, B’ after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ for selected test video clips for Scenario B (ITU Rec. BT.2020, 10-bit sample representations).

Clip		Component	First Cycle					Second Cycle
			−2	−1	0	1	2	−2	−1	0	1	2
Traffic	Full range	R’	0	767,963	2,562,275	765,762	0	0	767,963	2,562,275	765,762	0
		G’	0	260,193	3,578,089	257,718	0	0	260,193	3,578,089	257,718	0
		B’	0	974,951	2,140,594	980,455	0	0	974,951	2,140,594	980,455	0
	“Television range”	R’	0	880,200	2,335,123	880,677	0	0	880,200	2,335,123	880,677	0
		G’	0	458,292	3,178,669	459,039	0	0	458,292	3,178,669	459,039	0
		B’	19,992	1,065,436	1,921,227	1,069,169	20,176	19,992	1,065,436	1,921,227	1,069,169	20,176
ParkScene	Full range	R’	0	379,495	1,308,960	385,145	0	0	379,495	1,308,960	385,145	0
		G’	0	153,169	1,772,287	148,144	0	0	153,169	1,772,287	148,144	0
		B’	0	487,934	1,098,535	487,131	0	0	487,934	1,098,535	487,131	0
	“Television range”	R’	0	451,467	1,169,463	452,670	0	0	451,467	1,169,463	452,670	0
		G’	0	232,644	1,604,643	236,313	0	0	232,644	1,604,643	236,313	0
		B’	12,074	542,801	964,331	544,876	9518	12,074	542,801	964,331	544,876	9518
OldTownCross	Full range	R’	0	382,424	1,309,311	381,865	0	0	382,424	1,309,311	381,865	0
		G’	0	152,658	1,768,029	152,913	0	0	152,658	1,768,029	152,913	0
		B’	0	486,235	1,098,702	488,663	0	0	486,235	1,098,702	488,663	0
	“Television range”	R’	0	452,050	1,169,667	451,883	0	0	452,050	1,169,667	451,883	0
		G’	0	232,606	1,607,895	233,099	0	0	232,606	1,607,895	233,099	0
		B’	10,076	543,274	965,774	544,103	10,373	10,076	543,274	965,774	544,103	10,373
Kimono	Full range	R’	0	382,694	1,305,426	385,480	0	0	382,694	1,305,426	385,480	0
		G’	0	148,821	1,777,280	147,499	0	0	148,821	1,777,280	147,499	0
		B’	0	491,067	1,089,361	493,172	0	0	491,067	1,089,361	493,172	0
	“Television range”	R’	0	450,170	1,172,094	451,336	0	0	450,170	1,172,094	451,336	0
		G’	0	233,814	1,608,944	230,842	0	0	233,814	1,608,944	230,842	0
		B’	10,064	541,538	970,784	539,751	11,463	10,064	541,538	970,784	539,751	11,463
DucksAndLegs	Full range	R’	0	381,074	1,309,300	383,226	0	0	381,074	1,309,300	383,226	0
		G’	0	150,666	1,772,794	150,140	0	0	150,666	1,772,794	150,140	0
		B’	0	485,554	1,098,621	489,425	0	0	485,554	1,098,621	489,425	0
	“Television range”	R’	0	450,389	1,172,249	450,962	0	0	450,389	1,172,249	450,962	0
		G’	0	234,362	1,606,636	232,602	0	0	234,362	1,606,636	232,602	0
		B’	10,384	543,620	967,460	542,071	10,065	10,384	543,620	967,460	542,071	10,065

.

The histograms align with the R′, G’, and B′ error limits in Table 1. Note that the theoretical error limits from Section 4 and Section 5 were obtained under the assumption that no clipping occurs for sample values. In real video clipping may occur but sample values rarely exhibit extreme values. In particular, chroma samples mostly describe pixels with low saturation. These features reduce the probability of sample value slipping. Thus, the theoretical limits from Table 1 often apply.

6.4. Two Transformation Cycles with Small Modifications of Video Data in Transmission Representation

In this section, we consider Scenario A only, i.e., 8-bit samples and color transformations according to ITU Recommendation BT.709. These experiments involve no compression.

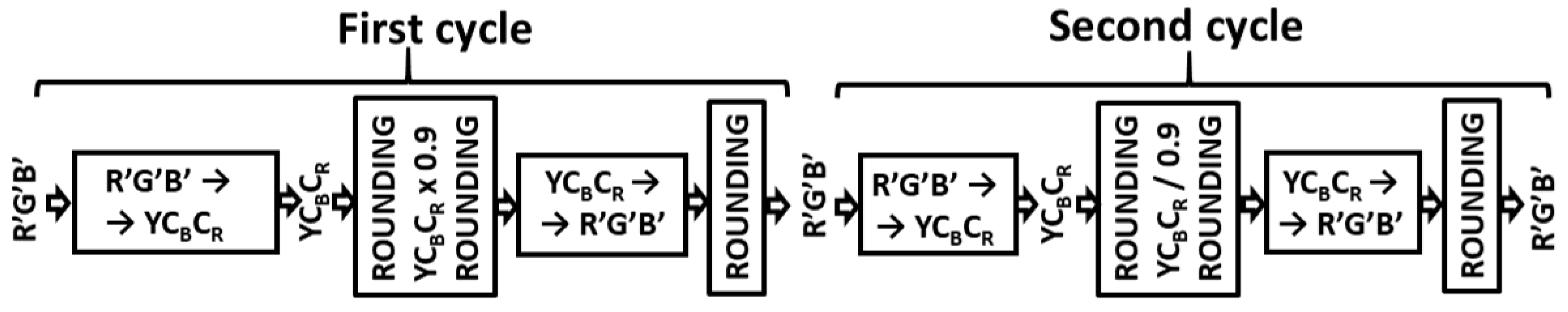

The scenario is depicted in Figure 2, where two cycles R’G’B’ → YC_BC_R → R’G’B’ are shown. Unlike the previous scenario from Figure 1, the YC_BC_R values are modified and rounded in each cycle. These two modifications are the inverse arithmetic operations. After each R’G’B’ → YC_BC_R or YC_BC_R → R’G’B’ transformation the sample values are rounded to 8-bit integers.

This experiment demonstrates the changes in image quality due to modifications of intermediate sample values.

The detailed results for individual test images are shown in

Table A7. Scenario A: PSNR [dB] after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ according to ITU Rec. BT.709 for the full range of luma and chroma (8-bit sample representations). In the first cycle the values of luma and chroma are multiplied by the factor of 0.9 whereas they are multiplied by the factor of 1/0.9 in the second cycle.

	First Cycle			Second Cycle
Image	PSNR R	PSNR G	PSNR B	PSNR R	PSNR G	PSNR B
I01	50.52	53.61	39.56	50.52	53.61	39.54
I02	48.11	52.32	32.36	48.11	52.31	32.32
I03	48.76	52.72	30.27	48.75	52.68	30.23
I04	45.18	53.65	38.28	45.18	53.65	38.27
I05	45.31	52.94	32.17	45.31	52.93	32.14
I06	49.50	54.20	41.24	49.50	54.19	41.21
I07	49.74	52.77	34.95	49.74	52.75	34.92
I08	48.85	54.15	48.24	48.85	54.03	48.21
I09	45.47	53.05	42.30	45.47	53.05	42.29
I10	45.67	53.94	44.62	45.67	53.94	44.61
I11	48.63	52.80	30.75	48.63	52.78	30.64
I12	49.51	53.95	47.08	49.50	53.95	47.06
I13	49.25	53.62	37.63	49.24	53.62	37.60
I14	49.48	53.41	35.08	49.48	53.39	35.05
I15	43.48	53.77	35.04	43.48	53.76	35.03
I16	50.18	53.40	43.72	50.18	53.40	43.70
I17	41.11	50.93	30.27	41.11	50.93	30.25
I18	43.87	52.87	32.59	43.87	52.84	32.54
I19	48.81	53.86	38.57	48.81	53.82	38.54
I20	45.91	54.57	35.97	45.88	54.50	35.89
I21	48.73	53.45	41.46	48.73	53.44	41.45
I22	49.41	53.91	44.50	49.40	53.85	44.46
I23	49.53	53.67	34.00	49.52	53.64	34.00
I24	49.45	53.80	48.09	49.45	53.79	48.07
I25	28.68	54.46	27.13	28.68	54.45	27.13
Average	46.93	53.43	37.84	46.92	53.41	37.81

and

Table A8. Scenario A: PSNR [dB] after one and two cycles of color transformations R’G’B’ → YC_BC_R → R’G’B’ according to ITU Rec. BT.709 for the “television range” of luma and chroma (8-bit sample representations). In the first cycle the values of luma and chroma are multiplied by the factor of 0.9 whereas they are multiplied by the factor of 1/0.9 in the second cycle.

	First Cycle			Second Cycle
Image	PSNR R	PSNR G	PSNR B	PSNR R	PSNR G	PSNR B
I01	48.20	51.54	35.66	48.20	51.53	35.63
I02	46.18	49.67	28.32	46.18	49.66	28.27
I03	48.02	51.78	27.55	48.01	51.75	27.52
I04	43.54	51.62	34.45	43.38	51.59	34.41
I05	41.61	51.35	29.26	41.59	51.34	29.24
I06	49.08	52.65	38.37	49.08	52.63	38.31
I07	48.67	51.85	31.80	48.67	51.85	31.77
I08	46.36	52.41	45.16	46.35	52.41	45.13
I09	44.01	52.08	40.18	43.83	52.08	40.26
I10	43.03	51.92	43.07	42.89	51.92	43.23
I11	45.86	51.69	28.02	45.86	51.68	28.01
I12	48.35	52.56	44.00	48.34	52.56	43.96
I13	48.21	52.00	34.30	48.20	51.98	34.22
I14	47.82	51.73	32.08	47.82	51.70	32.02
I15	39.20	51.90	31.81	39.19	51.89	31.79
I16	49.29	52.35	40.75	49.29	52.35	40.68
I17	35.44	51.52	27.39	35.44	51.52	27.39
I18	39.70	51.25	29.54	39.70	51.24	29.52
I19	47.40	52.05	35.50	47.40	52.04	35.45
I20	42.02	53.70	33.01	42.02	53.52	32.95
I21	46.98	51.83	38.10	46.98	51.83	38.06
I22	48.92	52.41	41.72	48.91	52.37	41.66
I23	48.76	52.32	32.05	48.75	52.29	32.03
I24	48.73	52.53	45.39	48.73	52.53	45.34
I25	27.18	53.58	25.49	26.89	53.57	25.73
Average	44.90	52.01	34.92	44.87	51.99	34.90

in Appendix B.

The values of PSNR are lower by several decibels compared to the results from Section 6.3 because the sample values are modified by a factor of 0.9. In the second cycle, multiplying by the factor 1/0.9 does not result in higher PSNR values. In the second cycle, the PSNR values are lower than in the first cycle by less than 0.05 dB.

6.5. Two Transformation Cycles with AVC or HEVC Compression of Luma and Chromas

This experiment demonstrates the loss of compression performance due to additional color transformation.

The scenario considered is depicted in Figure 3 where a single cycle R’G’B’ → YC_BC_R → R’G’B’ is shown. Unlike the previous scenario from Figure 1, the YC_BC_R values are modified by encoding and decoding. After the R’G’B’ → YC_BC_R or YC_BC_R → R’G’B’ transformations, the sample values are rounded to 8-bit integers or to 10-bit integers depending on the scenario A and B, respectively.

For each image and for each color component, two different PSNR values are calculated, as depicted in Figure 3:

(1)

PSNR of the decoder output with the decoder input as the reference (PSNR Y,C_B,C_R),

(2)

PSNR of the output R’G’B’ image with the input R’G’B’ image as the reference (PSNR R,G,B).

The two groups of PSNR values represent compression efficiency for two color spaces.

This corresponds to a popular scenario in contemporary research. Often, a piece of compression software with input and output in YC_BC_R is embedded in artificial intelligence software or used to compress R’G’B’ test images. This example illustrates how compression efficiency is differently reported in various color spaces.

The average values of PSNR for R’G’B’ and YC_BC_R are provided in

Table 5. The average PSNR [dB] in the R’G’B’ and YC_BC_R color spaces for the scheme from Figure 3, in which images are first encoded and then decoded using the AVC or HEVC codec.

		PSNR RGB				PSNR YCBCR
		R’	G’	B’	Average	Y	CB	CR	Average
Scenario A (8-bit, AVC)	Full range “Full-swing”	31.53	32.62	31.26	31.80	32.82	41.31	41.14	38.42
	“Television range”	30.95	31.98	30.69	31.21	33.46	41.95	41.82	39.08
Scenario B (10-bit, HEVC)	Full range “Full-swing”	36.02	37.64	31.77	35.14	39.37	37.91	40.96	39.41
	“Television range”	35.69	37.29	31.58	34.85	40.30	38.90	41.87	40.36

whereas the detailed results for individual test images are shown in

Table A9. Scenario A (ITU Rec. BT.709): PSNR [dB] for R’, G’, B’ after one cycle of color transformation from R’G’B’ to YC_BC_R, AVC compression, then decompression and reverse transformation to R’G’B’ with respect to the corresponding values. PSNR [dB] for Y, C_B, C_R after AVC decompression with respect to the corresponding values before compression. The values obtained for the full range of luma and chroma values (8-bit sample representations).

Image	PSNR R	PSNR G	PSNR B	PSNR Y	PSNR CB	PSNR CR
I01	29.91	30.41	29.97	30.53	43.40	41.99
I02	31.62	34.11	32.97	34.22	43.11	39.65
I03	34.03	35.32	33.70	35.57	42.13	42.67
I04	33.37	35.03	34.10	35.25	45.40	41.71
I05	29.12	29.99	28.73	30.19	38.46	39.01
I06	30.47	31.16	30.22	31.27	41.25	42.01
I07	32.61	33.92	32.35	34.23	41.31	41.06
I08	29.28	29.98	28.94	30.12	40.10	40.03
I09	32.98	33.68	32.37	33.91	41.87	43.08
I10	33.01	33.72	32.30	33.99	41.80	42.63
I11	30.69	31.71	30.86	31.85	41.88	40.77
I12	32.96	33.93	32.85	34.13	43.59	42.65
I13	28.89	29.27	28.10	29.39	38.88	41.65
I14	29.46	30.81	29.32	30.98	38.42	38.61
I15	32.41	34.13	33.15	34.33	44.02	40.95
I16	33.58	34.31	33.33	34.42	43.94	45.12
I17	33.13	33.65	32.42	33.85	42.62	43.46
I18	30.23	31.27	29.72	31.47	39.16	39.56
I19	31.00	31.84	30.69	31.98	40.94	41.39
I20	33.66	34.32	32.40	34.53	41.44	43.37
I21	31.01	31.65	30.32	31.78	40.62	42.20
I22	31.02	31.96	30.61	32.36	40.30	38.88
I23	33.93	35.00	33.24	35.35	42.19	41.99
I24	31.36	32.19	30.63	32.48	40.36	39.88
I25	28.43	32.23	28.24	32.32	35.50	34.29
Average	31.53	32.62	31.26	32.82	41.31	41.14

,

Table A10. Scenario A (ITU Rec. BT.709): PSNR [dB] for R’, G’, B’ after one cycle of color transformation from R’G’B’ to YC_BC_R, AVC compression, then decompression and reverse transformation to R’G’B’ with respect to the corresponding values. PSNR [dB] for Y, C_B, C_R after AVC decompression with respect to the corresponding values before compression. The values obtained for the “television range” of luma and chroma values (8-bit sample representations).

Image	PSNR R	PSNR G	PSNR B	PSNR Y	PSNR CB	PSNR CR
I01	29.39	29.80	29.35	31.24	43.95	42.96
I02	31.19	33.63	32.52	35.02	43.95	40.49
I03	33.61	34.76	33.21	36.33	42.74	43.44
I04	32.93	34.54	33.57	36.08	46.31	42.33
I05	28.38	29.20	27.99	30.68	39.02	39.49
I06	29.79	30.47	29.56	31.88	41.76	42.36
I07	32.03	33.23	31.77	34.87	42.12	41.68
I08	28.66	29.31	28.33	30.71	40.75	40.74
I09	32.34	33.02	31.78	34.55	42.42	43.65
I10	32.43	33.16	31.83	34.70	42.61	43.25
I11	30.13	31.10	30.30	32.55	42.72	41.41
I12	32.51	33.41	32.37	34.91	44.43	43.39
I13	28.13	28.46	27.45	29.85	39.65	42.27
I14	28.94	30.25	28.79	31.72	39.19	39.40
I15	31.82	33.51	32.62	34.97	44.47	41.60
I16	33.02	33.71	32.77	35.13	44.54	45.89
I17	32.63	33.13	31.93	34.62	43.37	44.35
I18	29.62	30.58	29.20	32.04	39.91	40.39
I19	30.38	31.17	30.05	32.61	41.59	42.27
I20	33.07	33.76	31.92	35.22	42.12	44.10
I21	30.23	30.85	29.67	32.27	41.28	42.80
I22	30.57	31.38	30.08	33.08	40.95	39.73
I23	33.28	34.45	32.70	36.07	42.88	42.55
I24	30.76	31.54	30.09	33.08	41.11	40.51
I25	27.86	31.03	27.41	32.28	34.83	34.38
Average	30.95	31.98	30.69	33.46	41.95	41.82

,

Table A11. Scenario B (ITU Rec. BT.2020): PSNR [dB] for R’, G’, B’ after one cycle of color transformation from R’G’B’ to YC_BC_R, HEVC compression, then decompression and reverse transformation to R’G’B’ with respect to the corresponding values. PSNR [dB] for Y, C_B, C_R after HEVC decompression with respect to the corresponding values before compression. The values obtained for the full range of luma and chroma values (10-bit sample representations).

Video Clip	PSNR R	PSNR G	PSNR B	PSNR Y	PSNR CB	PSNR CR
Traffic	37.10	38.60	31.78	39.79	38.28	42.43
ParkScene	33.36	35.97	30.42	38.10	35.97	37.73
OldTownCross	31.57	34.42	29.03	35.88	34.37	36.91
Kimono1	35.88	38.70	31.48	40.62	37.08	40.52
EBURainFruits	38.98	39.69	36.03	40.51	44.05	44.98
EBULupoCandlelight	40.35	41.07	37.21	41.72	44.30	47.55
DucksAndLegs	30.83	32.99	26.09	35.86	31.53	34.52
BirdsInCage	40.10	39.69	32.12	42.50	37.68	43.06
Average	36.02	37.64	31.77	39.37	37.91	40.96

and

Table A12. Scenario B (ITU Rec. BT.2020): PSNR [dB] for R’, G’, B’ after one cycle of color transformation from R’G’B’ to YC_BC_R, HEVC compression, then decompression and reverse transformation to R’G’B’ with respect to the corresponding values. PSNR [dB] for Y, C_B, C_R after HEVC decompression with respect to the corresponding values before compression. The values obtained for the “television range”of luma and chroma values (10-bit sample representations).

Video Clip	PSNR R	PSNR G	PSNR B	PSNR Y	PSNR CB	PSNR CR
Traffic	36.71	38.16	31.51	40.63	39.23	43.30
ParkScene	33.00	35.54	30.22	38.92	36.95	38.62
OldTownCross	31.44	34.22	28.99	37.00	35.50	37.97
Kimono1	35.58	38.36	31.33	41.52	38.11	41.47
EBURainFruits	38.47	39.15	35.64	41.29	44.87	45.76
EBULupoCandlelight	39.93	40.70	36.95	42.67	45.21	48.38
DucksAndLegs	30.54	32.69	25.96	36.81	32.57	35.44
BirdsInCage	39.84	39.47	32.05	43.56	38.78	44.05
Average	35.69	37.29	31.58	40.30	38.90	41.87

in Appendix C.

Depending on the number of bits used to encode samples, the average PSNR for YC_BC_R is about 4–8 dB higher than the average PSNR for R’G’B’. This significant difference may be partially explained by the higher PSNR values typically observed for chroma. Nevertheless, this phenomenon must be carefully considered when reporting compression results in different color spaces.

The results for luma Y and green G’ are the most similar. This is because the green component contributes the most to the calculation of Y. Nevertheless, even for luma and green, the differences are about 1–3 dB. This is significant compared to the results reported for individual contributions to the prospective new compression techniques.

These results are also useful for other video codecs, such as VVC [55], because the main difference relates to other rate-distortion characteristics of these codecs.

A clear warning is that for a given video codec, its rate-distortion varies significantly depending on the color space used for reporting.

7. Conclusions

Final conclusions:

• Color transformations result in relatively minor degradation, comparable to the rounding noise measured for the respective number of bits of sample representations. Color transformations in the full R’G’B’ → YC_BC_R → R’G’B’ cycle generate noise with a PSNR value exceeding 50 dB for 8-bit representations (see Appendix A). For longer bit representations, the PSNR value increases by approximately 6 dB for each additional bit.
• The quality losses may be comparable to the gains obtained using new compression tools as observed for the work in standardization bodies.
• Additional color transformations require at least one “guard” bit if there is no reduction in the sample interval. Shrinking the sample value interval to the “television range” requires two additional “guard” bits.
• Consecutive cycles of color transformation R’G’B’ → YC_BC_R → R’G’B’ result in negligible additional distortion approximately 0.01 dB (see Appendix A). Deeper analysis [36,37,40] demonstrates that only a small percentage of samples (mostly below 5%) change their numerical values in consecutive cycles.
• Operations performed on color component samples within a color transformation cycle may cause significant distortion (see Appendix B).
• The PSNR RGB values are substantially lower than the PSNR YC_BC_R values measured for compression alone (see Appendix C). Numerous experiments in MPEG and JVET have shown that the PSNR for C_B or C_R are significantly higher (by several dB) than the PSNR for Y or PSNR RGB. Even comparing PSNR Y and PSNR G often demonstrates a loss of nearly 2 dB.

Research on new compression methods requires careful consideration of how color transformation influences compression efficiency results. This is critical today, as artificial intelligence and compression software are integrated into a single system. When researching new compression methods, it is important to carefully consider the aforementioned combination of methods and color representations to avoid inaccurate compression efficiency results.

The paper delivers a message to the video researchers: “Avoid unnecessary color transformations!”
