1. Introduction
Databases are the backbone of modern information systems, enabling efficient storage, retrieval and management of data. A key phase for relational databases is the conceptual modeling, where the entity-relationship (ER) model is widely used to represent the data structure and constraints before translating them into a logical relational schema by means of translation rules (i.e., the generation of tables using SQL). An ER schema represents information through three key constructs: (i)
entities, classes of objects with independent existence; (ii)
relationships, logical associations between entities; and (iii)
attributes, properties of both entities and relationships. A proper conceptual model is crucial because it serves as the foundation for translating real-world requirements into a consistent database structure. By accurately representing the elements and constraints within a system, a well-designed conceptual model ensures data integrity, consistency, and scalability throughout the database lifecycle [
1,
2,
3,
4].
The ER data model plays an important role not only in the initial design of databases but also in their documentation and long-term maintenance. Although the ER data model is a simple and intuitive representation, textual documentation is an indispensable support to integrate the ER schema with descriptions of the information represented in the schema itself. In fact, a clear human-readable documentation of an ER schema—concerning the informative content of each construct—is essential for effective communication among database designers, developers, and business stakeholders.
In recent years, Large Language Models (LLMs) have shown remarkable capabilities in natural language understanding and generation, finding applications in various fields, including software development and database systems [
5,
6,
7]. Much of the existing research on LLMs in the database domain has focused on automating the query generation process to interact with databases using natural language, the definition of the final logical schema according to user requirements, and the textual explanation of tables, relationships, and constraints in an existing database [
8,
9].
LLMs also have the potential to serve as a powerful tool for automating the generation of natural language descriptions of ER schemas, improving the comprehensibility of database structures and information represented in the schema itself. They can provide detailed explanations of the schema, including the relationships between entities and their properties. As an example,

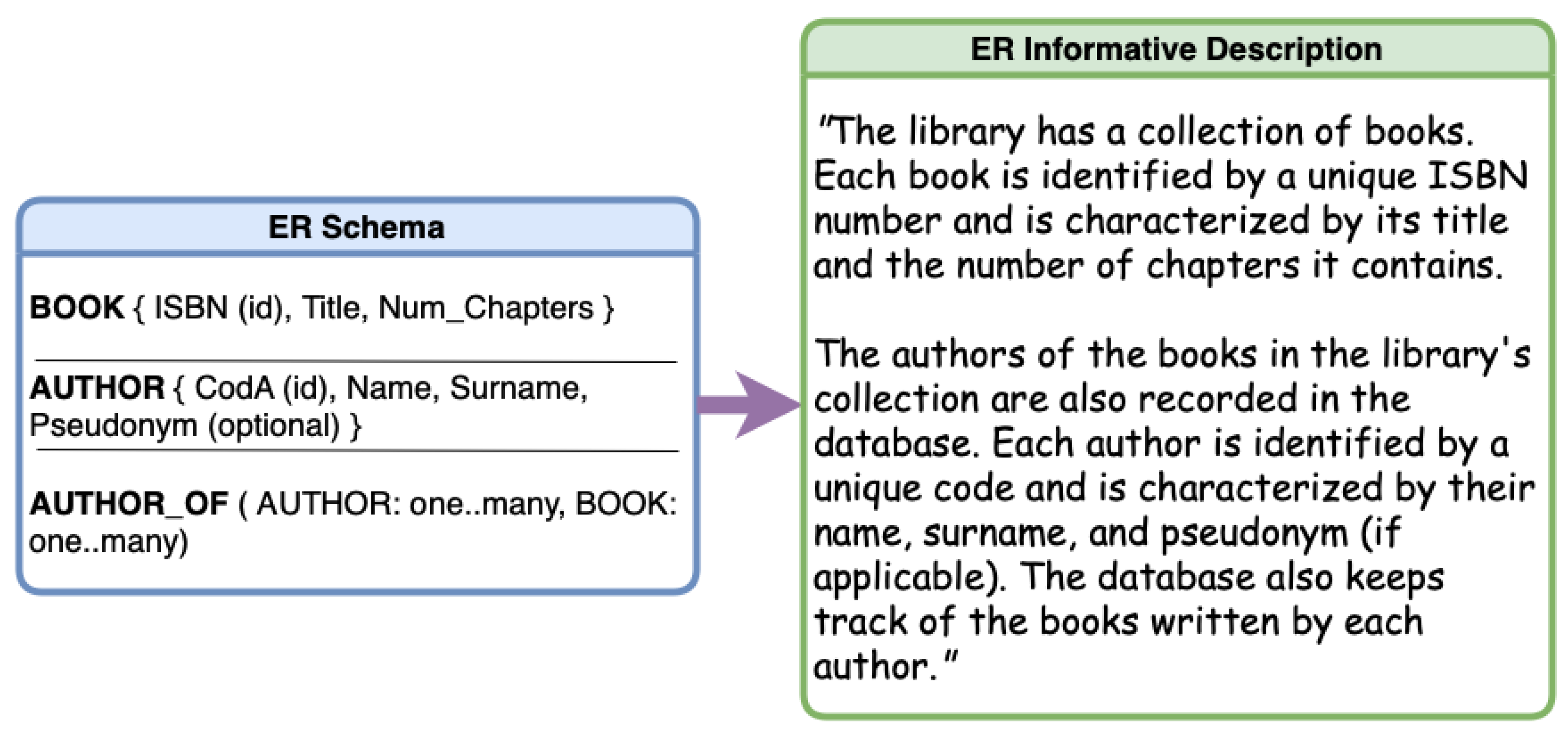

Figure 1 shows the portion of an initial ER schema for a database about a library loan system and the informative description corresponding to the ER obtained by employing an LLM. The text demonstrates how an LLM can understand the properties beyond the two entities (BOOK and AUTHOR) and the binary relationship linking them (AUTHOR_OF), and transform a structured schema into an accurate description. The obtained text is intuitively helpful for
communication with expert and non-expert users without the need to interpret (complex) ER schemas. By facilitating the deeper understanding of the database design, it serves as
documentation useful for knowledge transfer, reference, and future updates. It also supports the
validation of the schema to ensure that the requirements of the system are met.
This paper explores the capabilities of LLMs in generating accurate, complete, and easily understandable textual descriptions of conceptual ER schemas. Our study involves testing various LLMs to identify the limitations of each model and assess their ability to understand and describe the main ER constructs with examples covering different levels of difficulty. Additionally, we explore strategies for enriching the conceptual schema with contextual-driven hints to guide LLMs in producing more precise and readable descriptions. The main contributions of this paper are as follows:
A comprehensive investigation into the performance of various LLMs (ChatGPT 3.5 and 4, LLama2, Gemini, Mistral 7B) in generating accurate and readable textual descriptions of ER schemas with varying complexity.
The exploration of effective enrichment strategies and techniques to improve the prompt and guiding LLMs to generate more precise descriptions of specific ER constructs.

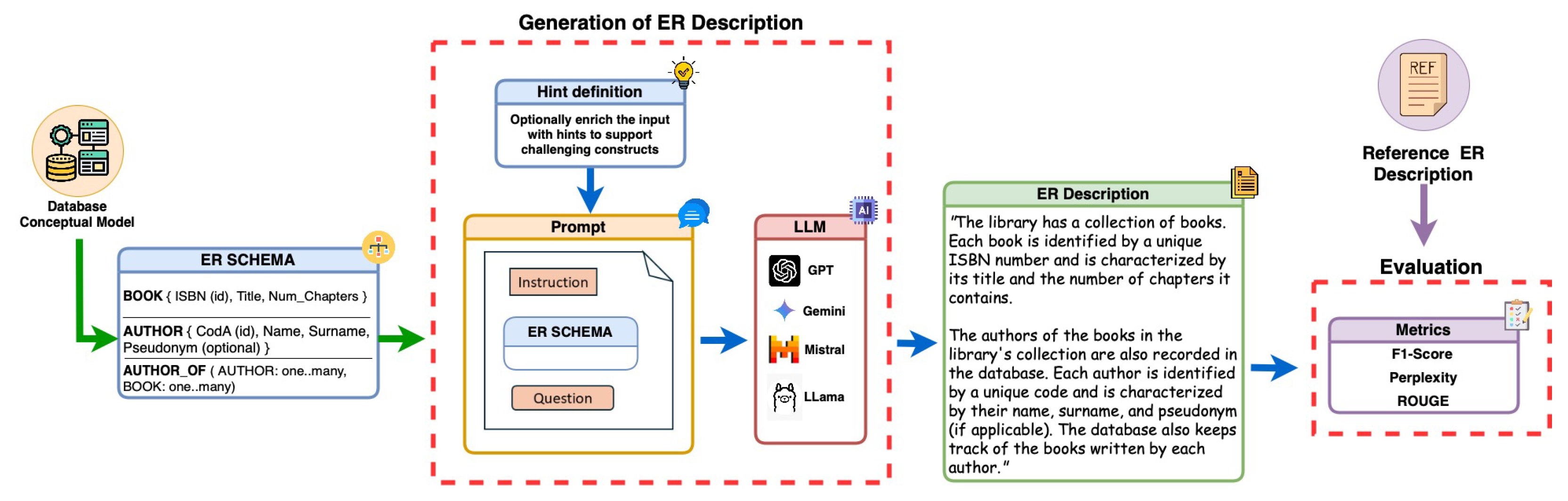

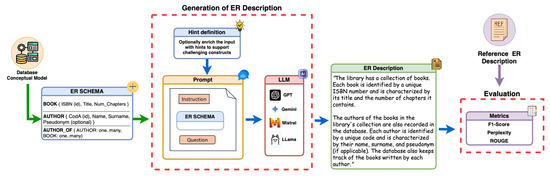

The design of a framework for preprocessing the input ER schemas and postprocessing the generated textual descriptions, along with a comparison of LLM performance using evaluation metrics such as F1 score, ROUGE, and perplexity.
The release of a publicly available repository with test cases of ER schemas and the corresponding database requirements, supporting future research in this area.
Our investigation is guided by the following research questions (RQs):
Provide a quantitative assessment of LLMs’ ability to recognize and interpret the core constructs of an ER schema. We define a construct as properly “recognized” when the LLM provides an accurate description, identifying the type of construct and thoroughly detailing its properties (i.e., the characteristics of the information it represents). Our hypothesis is that an LLM that fails to correctly recognize a construct will struggle to generate a proper textual description of the construct or the whole ER schema. The goal is to qualitatively identify common issues, such as incompleteness or lack of understandability, that may arise during this process. These issues could be related to specific characteristics of the input schemas or inherent limitations of LLMs themselves. For example, we investigate which types of constructs are inaccurately or incompletely described, whether constructs are misrepresented or substituted, and the impact of these issues on the generated descriptions.
Evaluate the quality of the textual descriptions generated by LLMs when provided with an ER schema. We use quantitative measures (i.e., F1 score, ROUGE, and perplexity) to assess effectiveness and applicability in practical contexts.

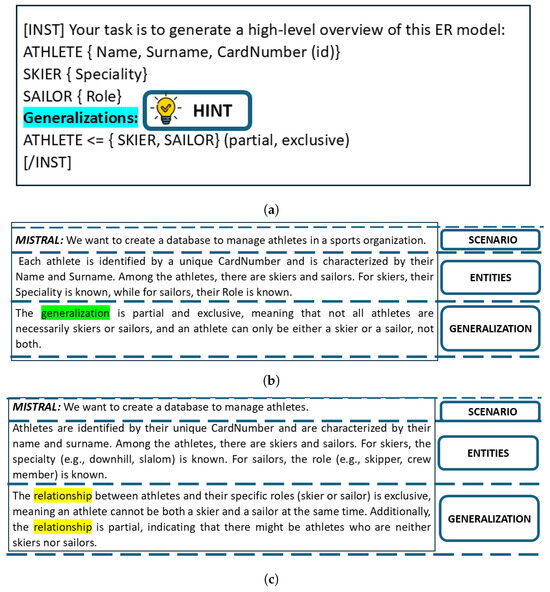

Identify strategies for improving the quality of the textual descriptions generated by LLMs. We categorize these strategies into two main areas: (1) enriching the ER model with keywords or hints to guide the LLM in generating a more accurate description, and (2) adjusting LLM prompts to better align with the task of generating detailed and coherent textual descriptions. These actions seek to optimize the interaction between the ER model and the LLM to enhance the quality of the generated descriptions.
Author Contributions
Conceptualization, A.A., S.C. and A.F.; methodology, A.A., S.C. and A.T.; software, A.T.; validation, A.A. and A.T.; formal analysis, S.C. and A.F.; investigation, A.A. and A.T.; resources, A.T. and A.F.; data curation, A.T. and S.C.; writing—original draft preparation, A.A., S.C. and A.T.; writing—review and editing, A.A. and S.C.; supervision, S.C. and A.F.; project administration, S.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Acknowledgments
This study was partially carried out within the FAIR—Future Artificial Intelligence Research—and received funding from the European Union Next-GenerationEU (PNRR MISSIONE 4 COMPONENTE 2, INVESTIMENTO 1.3 D.D. 1555 11/10/2022, PE00000013), as well as partially supported by the SmartData@PoliTO center on Big Data and Data Science. This paper reflects only the authors’ views and opinions, neither the European Union nor the European Commission can be considered responsible for them.
Conflicts of Interest
The authors declare no conflicts of interest.
Abbreviations
The following abbreviations are used in this manuscript:
LLM | Large Language Model |
ER | Entity-Relationship |
SD | Standard Deviation |
PPL | Perplexity Score |
