Signal Processing Application Based on a Hybrid Wavelet Transform to Fault Detection and Identification in Power System
Abstract
:1. Introduction
Contribution
2. Mathematic Background

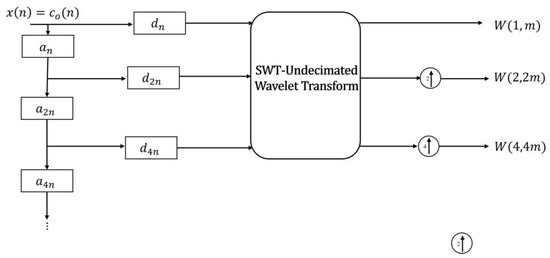

2.1. Stationary Wavelet Transform
2.2. Algebraic Summation Approach for Undecimated Reconstruction
2.3. Continuous Wavelet Transform
- is the input signal being analyzed.
- is the complex conjugate of the mother wavelet.
- is the scale parameter, and it controls the width (frequency) of the wavelet.
- is the translation (time-shift) parameter.
- is the Fourier transform of the mother wavelet .
- is the angular frequency.

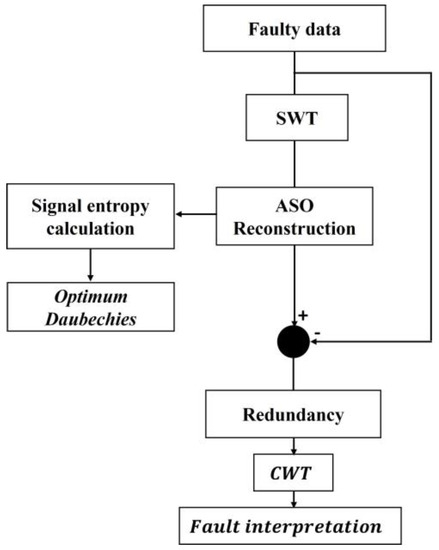

3. Proposed Methodology

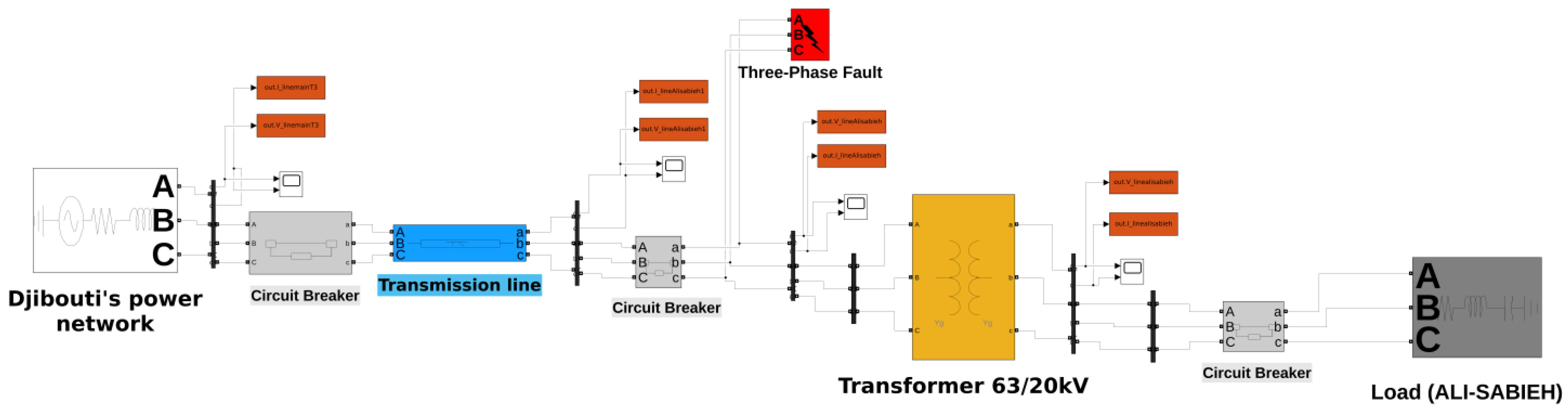

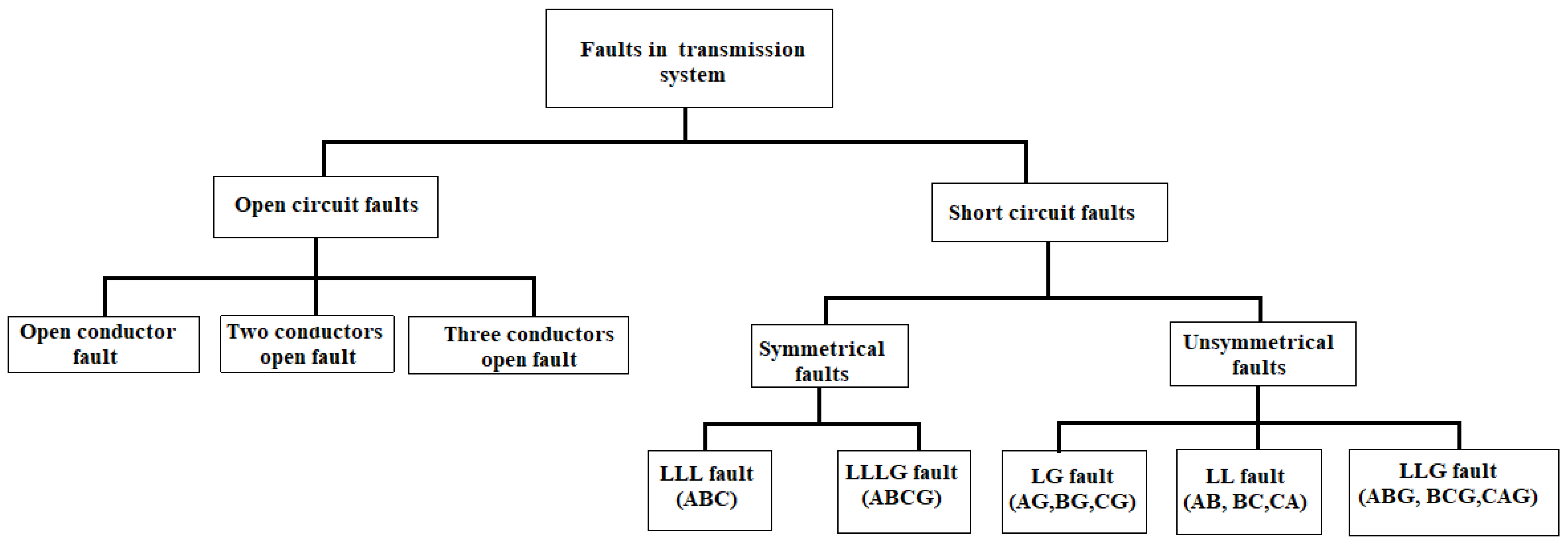

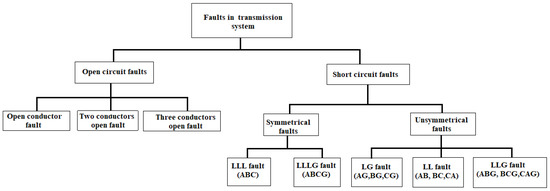

3.1. Application on Djibouti Power Grid Model

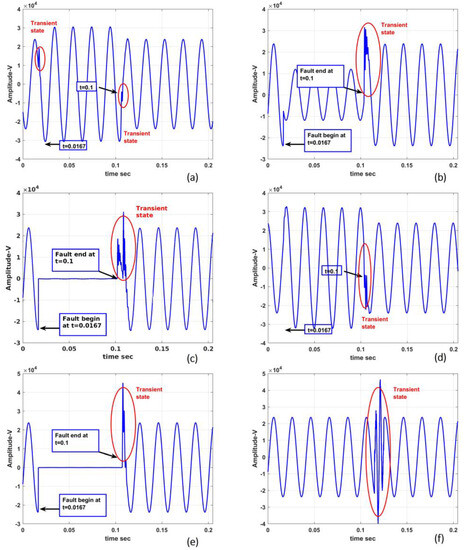

3.2. Artificial Signal

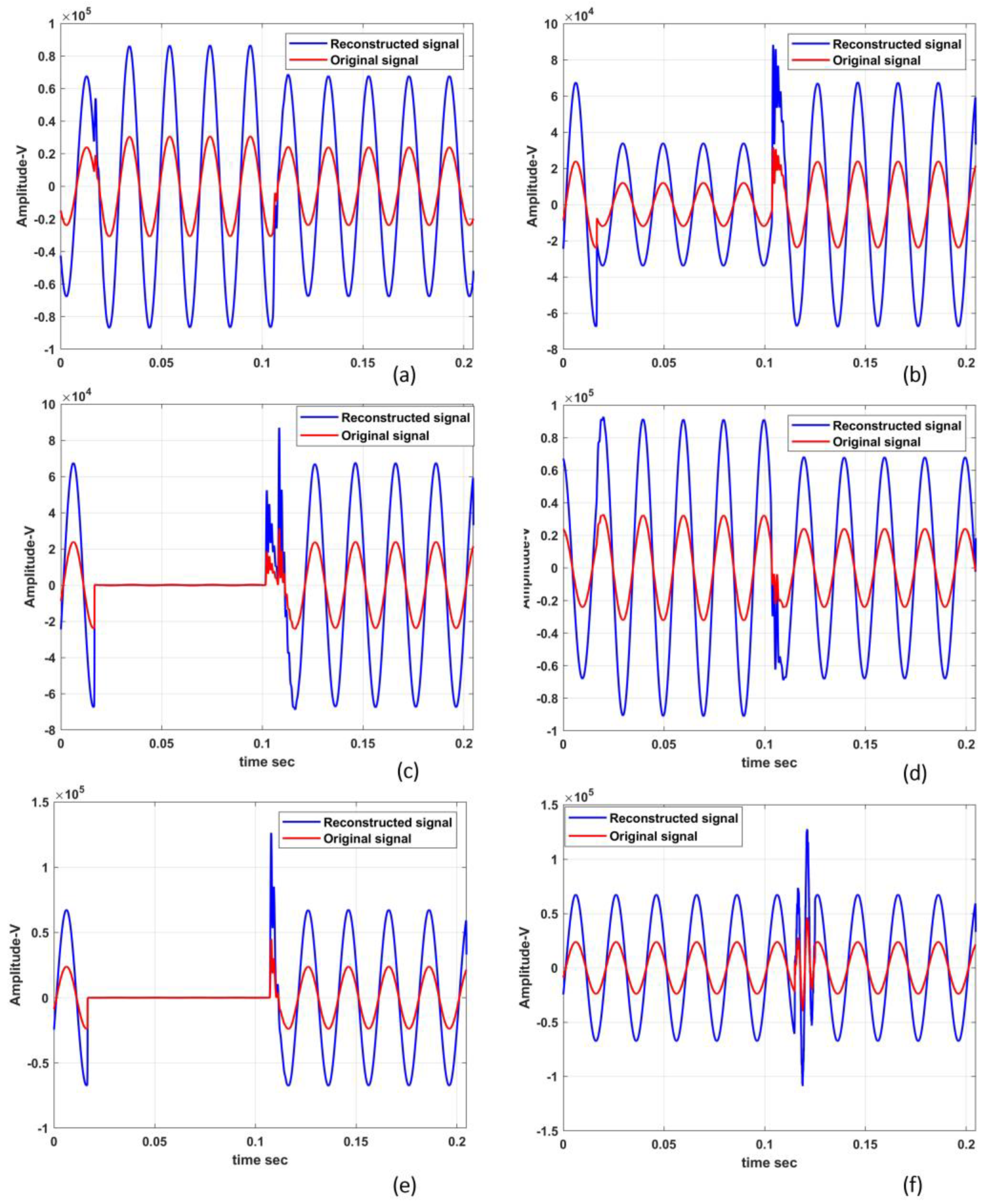

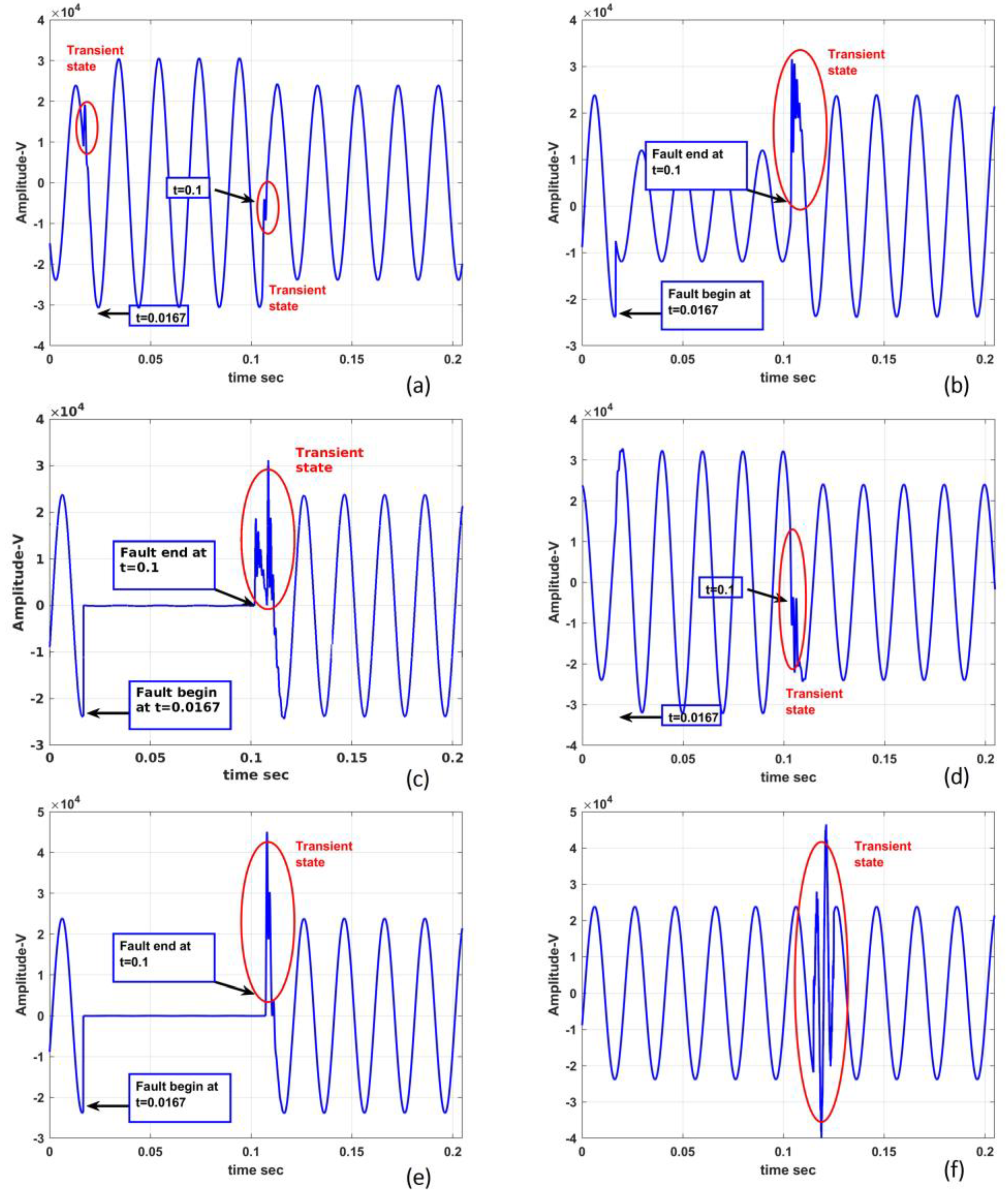

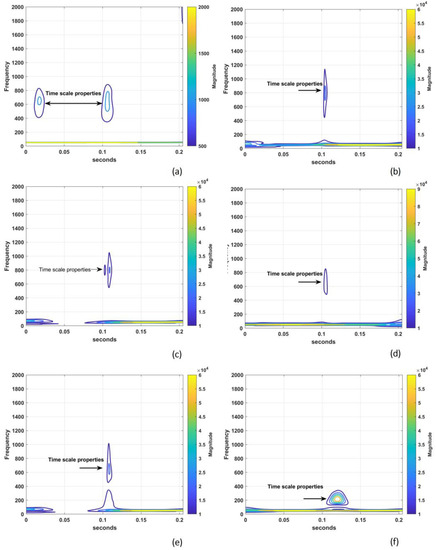

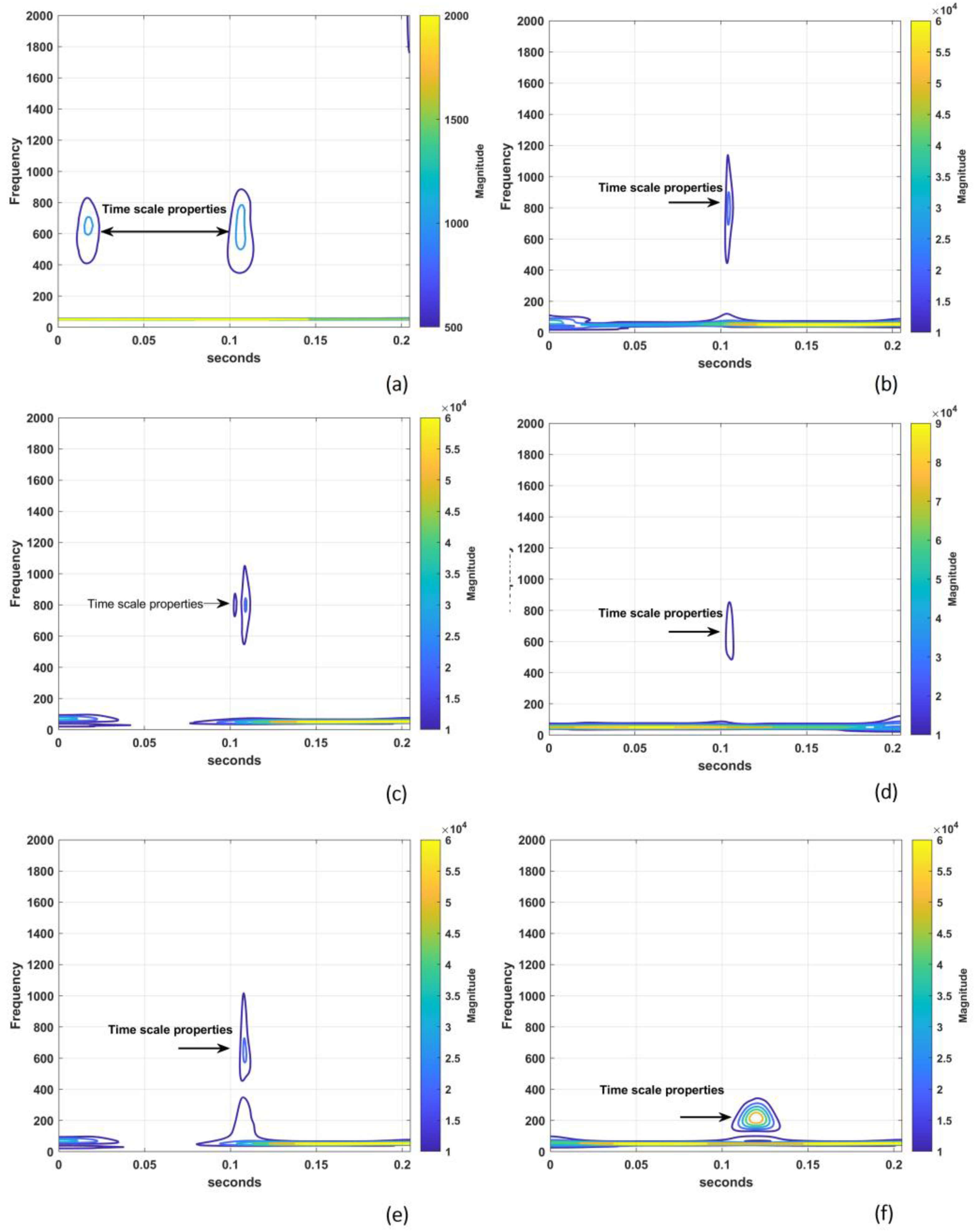

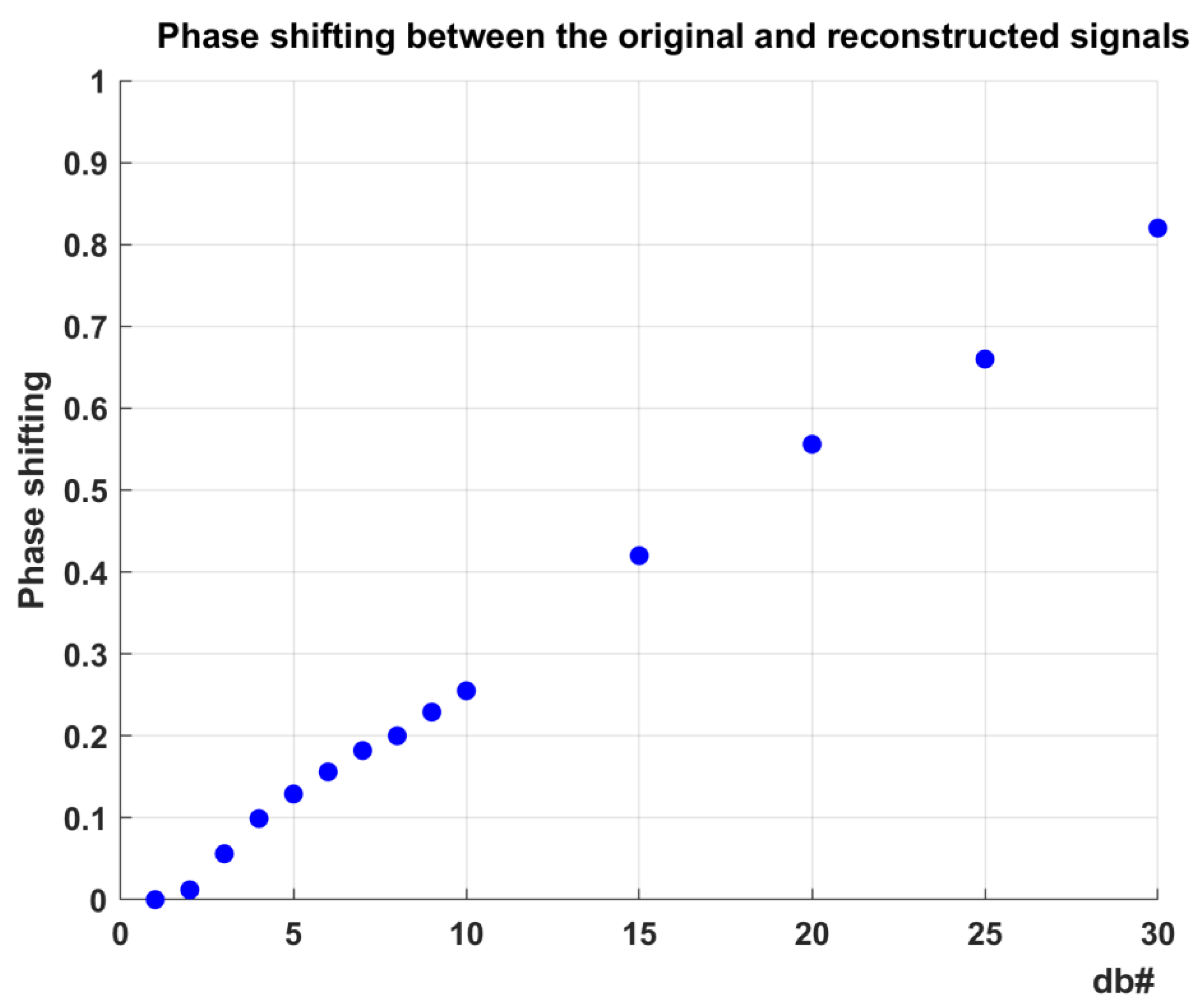

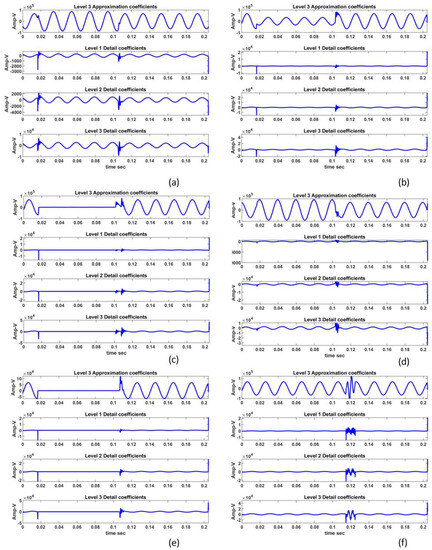

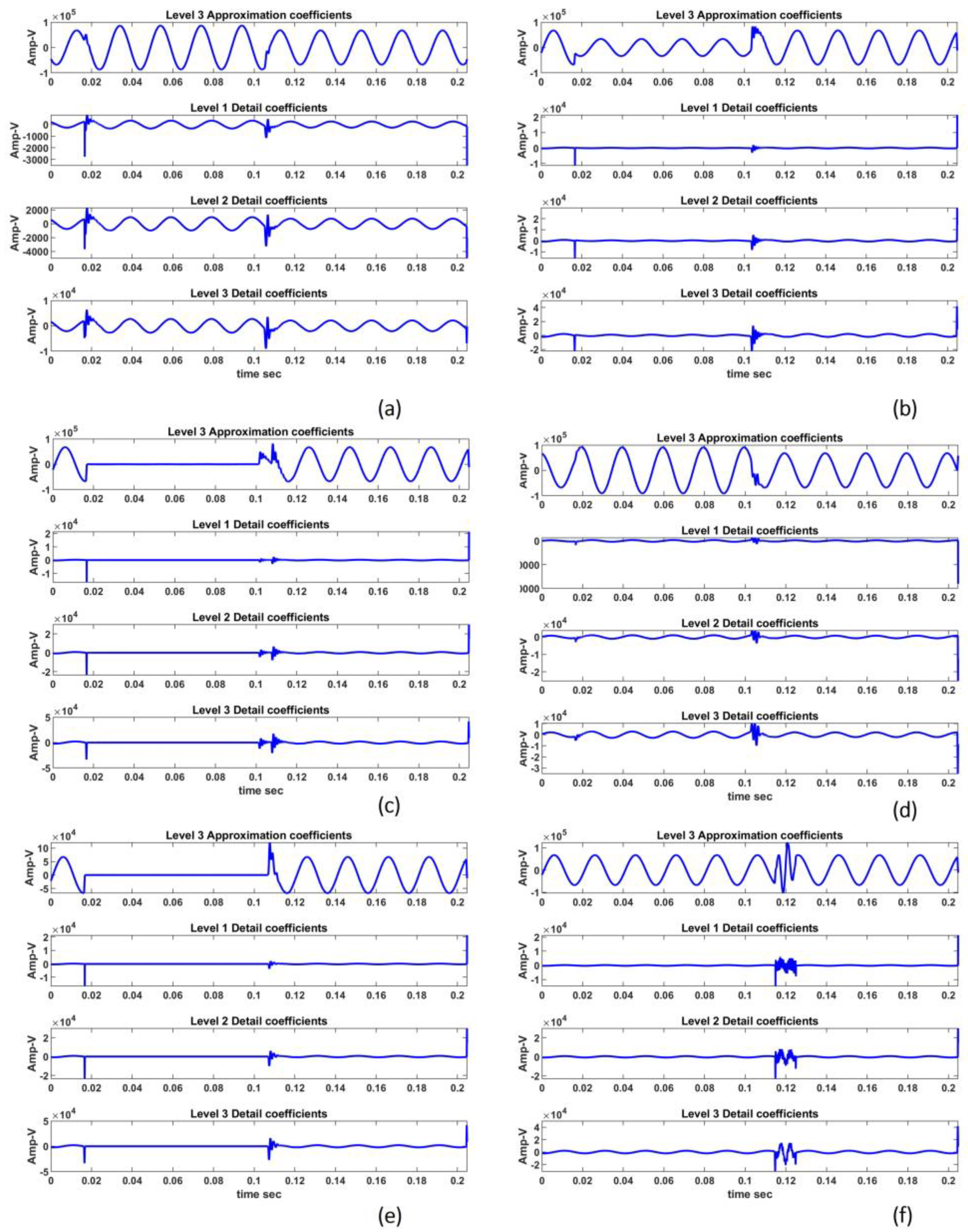

4. Simulation Results on Predictive Fault Detection
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
