Article

Software Support for Discourse-Based Textual Information Analysis: A Systematic Literature Review and Software Guidelines in Practice

1
Information Retrieval Lab (IRLab), Facultade de Informática, University of A Coruña, C.P. 15008 A Coruña, Spain
2
Chocosoft S.L., C.P. 15703 Santiago de Compostela, Spain
*
Author to whom correspondence should be addressed.
Information 2020, 11(5), 256; https://doi.org/10.3390/info11050256
Received: 28 February 2020 / Revised: 2 May 2020 / Accepted: 5 May 2020 / Published: 7 May 2020
(This article belongs to the Special Issue Digital Humanities)

Abstract

The intrinsic characteristics of humanities research require technological support and software assistance that also necessarily goes through the analysis of textual narratives. When these narratives become increasingly complex, pragmatics analysis (i.e., at discourse or argumentation levels) assisted by software is a great ally in the digital humanities. In recent years, solutions have been developed from the information visualization domain to support discourse analysis or argumentation analysis of textual sources via software, with applications in political speeches, debates, online forums, but also in written narratives, literature or historical sources. This paper presents a wide and interdisciplinary systematic literature review (SLR), both in software-related areas and humanities areas, on the information visualization and the software solutions adopted to support pragmatics textual analysis. As a result of this review, this paper detects weaknesses in existing works on the field, especially related to solutions’ availability, pragmatic framework dependence and lack of information sharing and reuse software mechanisms. The paper also provides some software guidelines for improving the detected weaknesses, exemplifying some guidelines in practice through their implementation in a new web tool, Viscourse. Viscourse is conceived as a complementary tool to assist textual analysis and to facilitate the reuse of informational pieces from discourse and argumentation text analysis tasks.
Keywords: discourse analysis; argumentation analysis; information visualization; software assistance; Viscourse; systematic literature review; information reuse discourse analysis; argumentation analysis; information visualization; software assistance; Viscourse; systematic literature review; information reuse

1. Introduction

Information management in humanities disciplines necessarily involves natural language textual sources analysis at any level. Recently, digital humanities area is including initiatives and works on how to assist textual analysis tasks via software (see chapters 19–21 from [1] for some examples).
Mainly, this software assistance focuses on two different assistance directions: (1) natural language processing automatization solutions and (2) the development of visualization techniques to visualize results from automation tasks —from group 1— or to help on manual or semiautomatics textual analysis, including annotation tasks, adapted to humanistic disciplines.
Regarding the second kind of software assistance, there are several proposals at visualization level [2,3] for visualizing grammatical or lexical structures of the texts, dealing with morphology, lexicology or syntax levels of linguistic analysis.
However, as long as we focus on more conceptual or relational aspects of the textual sources (at a semantics or pragmatics levels), the previous group 2 of software assistance decreases. Although textual analysis at the discursive or argumentation level is currently being applied in a wide range of studies and disciplines (political speeches, debates, online forums, historical sources, among others), there are no systematic studies on the software assistance offered at discursive or argumentative levels.
This paper presents a wide and interdisciplinary systematic literature review (SLR), both in software-related areas and humanities areas, on the information visualization and the software solutions adopted to support pragmatics textual analysis at discursive or argumentation levels. Note that, although we are conscious that linguistically and even philosophically the discursive and argumentation approach to text analysis have multiple analysis possibilities and frameworks, this paper treats the discursive-argumentation information at the same level, regardless of the linguistic framework that is taken as a basis, in order to perform a more complete study.
The paper is organized as follows: Section 2 details the materials and methods employed (the systematic literature review methodology, search strategies and inclusion/exclusion criteria employed). Section 3 presents the systematic review results, a first discussion of the weaknesses detected and the answers to the research questions defined for this SLR study. Based on these results, Section 4 presents some software guidelines identified for improvement and an implementation proposal for the guidelines’ application in a web tool, Viscourse. Finally, Section 5 discusses future directions.

2. Materials and Methods

This section presents the Systematic Literature Review (SLR) performed, detailing the methodology, search strategies and inclusion/exclusion criteria adopted.

2.1. Systematic Literature Review

In order to analyze existing solutions on software visualization for supporting or assisting at discursive or argumentation textual analysis, we have performed a Systematic Literature Review (hereafter SLR). We have followed the SLR guidelines by Kitchenham and Charters in 2007 [4], where a Systematic Literature Review is defined as a methodology for “identifying, evaluating and interpreting all available research relevant to a particular research question, or topic area, or phenomenon of interest” [4]. The rest of this section documents our SLR process.

2.1.1. Research Questions

The first step in SLR methodology consists of defining research questions that underpin the SLR process. We have identified 4 relevant research questions to guide the review:
  • RQ1: What evidence is there that discourse and argumentation textual analysis is currently supported via information visualization software?
  • RQ2: What kind of support are these works providing and how is it implemented? We have defined seven categories for analyzing the kind of support provided by the main contribution presented in these works:
    • InfoVis technique: The support provided is mainly visual. For example, a new information visualization technique or its application to a new kind of discursive or argumentation textual information.
    • Linguistic resource: The main support is provided by offering a new linguistic resource: a new corpus, annotation information, taxonomy, ontological information, etc.
    • Complete software tool: The assistance is materialized as an entire new software tool.
    • Application example: The support is provided by illustrating a new discursive or argumentation analysis in a new domain of application or corpora.
    • Discourse metrics measurement: The support is provided by implementing software mechanisms to calculate discursive or argumentation standard metrics for helping in the textual analysis.
    • Fully automatic analysis support: The support is provided by implementing automatic software solutions for visualizing automatic discursive or argumentation analysis: fully automatic parsers, new algorithms or machine learning techniques, etc.
    • Survey/Empirical or Qualitative study: Works focused on qualitative analysis.
  • RQ3: Does the software support offered in these works present any weakness or deficiency reported in the study itself or detected as a result of the review?
  • RQ4: Is it possible to identify some software guidelines for improving the existing information visualization software solutions for supporting or assisting discourse and argumentation textual analysis tasks?
Figure 1 details the SLR process performed. First, we identified the main research repositories for finding relevant work that answer our research questions. Then, we eliminated duplications, defining a filtered inclusion/exclusion strategy. Finally, we analyzed the title and abstract of the resultant publications. In this step, we also applied some quality assessment criteria as a checklist to the works obtained. This quality assessment step ensured that the works reviewed have no important bias and fit the scope and relevance criteria. The resultant set of publications constitutes the relevant work done on visualization software assistance (labeled as group 2 in the Introduction) for supporting or assisting discourse and argumentation textual analysis tasks.

2.2.2. Sources, Search Strategies and Filtered Criteria

In order to answer the research questions, we have defined a combined search strategy in two different kinds of sources. On the one hand, we have searched in four international and well-known digital libraries of research publications. Specifically, we have chosen Science Direct [5], Springer Link [6], ACM library [7] and IEEE Xplore [8] due to the accessibility, degree of reliability and relevance in software engineering. On the other hand, we have also performed the same searches in Digital Humanities relevant repositories that contain works on software engineering and discourse or argumentation textual analysis. Specifically, we have reviewed ACL Anthology [9] and RST repository (Rhetorical Structure Theory) [10,11,12,13,14] as main sources for works on computational linguistics in the area. Moreover, we have included the main two research journals on Digital Humanities on an international level: Digital Scholarship in the Humanities (henceforth DSH) [15] and Digital Humanities Quarterly (henceforth DHQ) [16].
Relevant terms for extracting computational information visualization solutions on assisting discourse or argumentation textual analysis are included as keywords in the queries, such as “discourse analysis”, “argument mining”, “information visualization”, “software tool”, etc. Note that, in order to deal with a manageable number of publications, we also add in this first phase of the SLR filters for the date of publication and publisher. Due to some repositories also acting as hubs of other repositories publications (e.g., ACM library), it is necessary to limit the searches to their own resources in order to avoid duplications. Table 1 summarizes repositories, queries performed, and the number of initial results achieved.
As Table 1 shows, the preliminary set of publications consists of 1480 works. Following the SLR guidelines, a set of inclusion/exclusion criteria are defined, focusing on original and recent works on information visualization implemented via software solutions for supporting discourse or argumentation analysis tasks. Thus, refinement criteria were applied as:
  • The year of publication between 2010 and 2020.
  • Original publications written in English language.
  • Only original publications: papers in journals and full papers in conferences (also edited as chapters), excluding workshops.
  • Only publications with scope on Computer Science (Software Engineering, Information Visualization and Computational Linguistics included) and Linguistics/Discourse/Argumentation-related areas.
  • Only those publications that have associated original software/existing software use/demonstrator/tools that provide visual support for discursive/argumentation textual analysis.
Applying these criteria, we obtained an intermediate reduced pool of 58 different publications. Finally, a step of quality assessment is applied to this intermediate set (see next section).

2.2.3. Quality Assessment

Due to the heterogeneity and diverse source of the publications included in the presented SLR, we systematically applied the following checklist as a quality assessment mechanism, answering yes (Y) or no (N) to the following questions:
  • Q1: Are the study goals clearly stated and related to textual analysis assistance, and are the software proposals clearly detailed?
  • Q2: Are the studies proposing an original software or an original application of existing software for assisting textual analysis through visual software resources?
  • Q3: Is the proposal validated with real text analysis cases?
  • Q4: Is the proposal dealing with textual discursive/argumentation analysis information?
  • Q5: Is the proposal offering some software mechanisms for promoting the reuse and sharing of the information generated during their use?
Each publication of the intermediate set is evaluated applying the checklist (yes = 1 point, no = 0 point). Thus, each publication obtains a quality assessment score point (Qn) from Qn = 0 (minimum score) to Qn = 5 (maximum score).
We have decided that only publications that meet the following two quality requirements are finally included in the final set:
- Publications with Qn greater than 3, that is, publications with at least three affirmative answers to the quality questions.
- Publications with an affirmative answer to question 2. This implies that their contribution in assistance is through information visualization mechanisms, which is the main area of this study.
Table A1 shows the final quality assessment evaluation. Only publications marked with a fine gray color in the table are included in the SLR final set repository. After the quality assessment phase, SLR final set repository is composed of 17 publications. The next section presents and deeply discusses the SLR findings and the guidelines extracted.

3. Results

3.1. Systematic Literature Review Results

Multiple readings can be extracted from the SLR performed. In the first place, an important process of reducing the number of publications has been carried out, with a search results of 1480 publications, an intermediate SLR set of 58 publications and a final SLR repository of 17 publications. This refining process has been influenced by two aspects.
First, the selected keywords or combinations of them (multi-words) used in the search queries are commonly used in numerous disciplines, presenting polysemy in their use within the different research communities. Thus, the initial number of queries results is quite high for an SLR process, finding that many of the initially retrieved publications did not meet any of the quality assessment criteria proposed by our SLR process. Therefore, subsequent quality assessment process allowed us to focus on works that specifically proposed software solutions to assist in textual analysis on a discursive and argumentation level.
Secondly, many of the publications reviewed, although they were relevant applying keywords, did not cover the full scope of the work. These works are shown in a white background color in Table A1 and they correspond to:
  • Fully automatic solutions and approaches, such as automatics parsers, automatic detection or prediction methods or tools, all of which are referred to in Table A1. Because our goal is focusing on software assistance tools, we have not included the works whose main contribution is based on a full automation of tasks, both at the level of detection of discursive or argumentation structures and at the level of automatic generation of visualizations that do not allow interaction of the end user.
  • Approaches based on some pieces of information considered discursive but that do not respond to an analysis of the complete structure of the discourse, such as application of topic modeling, statistical studies (basic analysis of frequencies of terms or similar descriptive statistics), works in metaphors, stems, taxonomies or ontologies, all of which are referred to in Table A1. Many of them also adopt an automation approach.
We present below the synthesis of evidence from our SLR. We begin with a general analysis of the results from the final SLR set. Next, we present the answers to the research questions previously defined.
Availability
It is important to highlight the small number of free-use tools available throughout the study area. Only 12 publications from the SLR intermediate repository (58 publications) present access at least to one demo for free or, in better cases, to software repositories or fully implemented free software tools (see last column in Table A1). Another small group of the rest could be accessed through institutional credentials, while most of them present a URL’s with broken links in the publication, or they were never available online.
Visualization techniques employed
Regarding the visualization techniques used, most of them follow a principle of visualization based on the original text, many of which are based on discourse trees’ [17] approaches or similar structures for argumentation. Some alternative proposals, such as conceptual recurrence plots [18] do not allow discursive or argumentation analysis based on the original text. The visualization is carried out after the textual analyses are completed and it is focused only on a specific metric (intervention turns, similarity between utterances, etc.).
Discursive and argumentation framework supported
Another interesting aspect extracting from the SLR is that most of the tools with a high quality score (score Qn = 5 or score Qn = 4) are particularly developed for supporting a specific framework of discursive or argumentation analysis, mainly RST—Rhetorical Structure Theory—[10] (such as [17,19]) or IAT—Inference Anchoring Theory—[20] (such as [21,22,23]), but also some ad hoc frameworks [24,25]. Although, conceptually, these frameworks present similar ontologies (segments and relationships between them) and similar visual possibilities, most of the tools are conceived to assist in textual analysis using a single discursive or argumentation framework. This causes a dependency between the software tool and the pragmatic framework chosen, since the user must employ that framework to carry out their textual analyses. The dependence on a discursive or argumentation framework is repeating in all proposals. Thus, it is not possible to extend the theoretical framework for creating similar textual analyses with customization in discursive or argumentation schemas.
Sharing and reuse software mechanisms
Finally, we have analyzed the sharing and reuse mechanisms of the final 17 publications. Although most of these software proposals are focusing on the collaborative edition and analysis, only 8 software tools present sharing and reuse functionality, while 9 software tools reviewed the lack of any sharing and reuse planification of the information generated during the textual analyses. The most used mechanism is based on information exportation in standard file formats, mainly XML –eXtensible Markup Language – or derived formats (such as JSON, JavaScript Object Notation) as an interchange mechanism. Only the rstWeb tool [19] presents extra mechanisms allowing for the better reuse of the resultant analysis information.
In summary, this SLR shows that the discursive and argumentation aspects continue to present few software alternatives for textual analysis assistance, in comparison with the wide range of proposals in the lexical or grammatical levels of textual analysis, or in fully automatic approaches at any level. The main weaknesses detected in the existing software proposals are the dependency of one specific discursive or argumentation framework (problems to generalize the analysis), availability (problems accessing, using and keeping the software updated) and the lack of sharing and reuse mechanisms that allow for re-analyses, collaborative editing, and comparative reasoning of the textual analysis performed. The following section elaborates on these results, answering the research questions initially proposed.

3.2. Answering the Research Questions

RQ1: What evidence is there that discourse and argumentation textual analysis is currently supported via information visualization software?
Appendix A shows the SLR final repository, with all publications reviewed, their scores and availability. The SLR allows us to answer the RQ1 and RQ2 of this study, regarding evidence about visualization techniques that are applied to support discourse or argumentation textual analysis via software. While the lexical or grammatical levels of textual analysis are gaining in methods and software tools for their assistance, the discursive and argumentation aspects continue to present few software alternatives. There are only a few recent tools [19,23,24,25] to assist in this textual analysis through an available information visualization software resource.
RQ2: What kind of support are these works providing and how is it implemented?
An interesting macro-analysis resultant of the SLR process corresponds to the kind of software support provided by the publications attending our categorization defined in RQ2. The Table A1 “Main contribution” column shows in bold the kind of software support contribution according to our seven categories defined for each publication. Note that, in some cases, one publication could present several contributions for different RQ2 categories, although the common scenario is that one publication focuses on one kind of main software support contribution. Thus, considering only the main category associated with each publication (the first category reported in Appendix A), the distribution of software support in the works reviewed is as follows:
With a total of 58 works reviewed, the majority category (23 publications) presents complete support in the form of a software tool, although the main objective and functionality of each tool may differ. Subsequently, the works present support in the form of InfoVis techniques (12 publications), application examples (seven publications), automatic solutions (seven publications), linguistic resources (four publications), qualitative studies (three publications) and finally the measurement of the basic discourse metrics (two publications). The large number of complete software tools reviewed offers us an idea of he current interest in software support in discursive and argumentation textual analysis. However, as we have already mentioned in the results of the SLR process, many of these tools present the weaknesses detected, and most of them are not even available for evaluation or use.
RQ3: Does the software support offered in these works present any weakness or deficiency reported in the study itself or detected as a result of the review?
Regarding RQ3, we found some weaknesses in the current software tools, especially related to availability, framework independence and a lack of information sharing and reuse software mechanisms. Based on these weaknesses, four software guidelines are defined and exemplified in implementation through Viscourse. (See Section 4).
RQ4: Is it possible to identify some software guidelines for improving the existing information visualization software solutions for supporting or assisting discourse and argumentation textual analysis tasks?
Answering RQ4, Viscourse tries to act as a complementary software tool, allowing for the generalization of the discursive or argumentation analyzes thanks to their flexibility and independence from the segmentation method (free definition of segments or multi-phrase groups) or of the theoretical framework (RST or IAT, among others), also with a user-customizable visualization criteria (screen position, color palette, color criteria, etc.). Typical users of Viscourse can be mainly researchers in humanistic disciplines, but also teachers or students of discourse or argumentation areas.
In addition, Viscourse focuses on the sharing and reuse of the analytical information generated, thanks to a black-box mechanism that allows for the encapsulation of import/export formats to researchers, without losing sharing and reused capacity. The next section details the guidelines extracted and the solutions proposed as part of Viscourse implementation for the guidelines’ implementation.

4. Extracted Guidelines in Practice

Considering the SLR results, we have defined a non-exclusive set of software guidelines for improving the existing information visualization software assistance provided to discursive and argumentation textual analysis:
  • Textual granularity: Visual mechanisms should be added to change the level of granularity of the textual analysis. This means that the user must be able to change the visual focus of the analysis, being able to focus on the specific text paragraphs, phrases or other textual segments, or to raise the level of abstraction, calculating general metrics for the full text analyzed.
  • Linguistic framework flexibility: Software mechanisms should be developed to allow an independence between the visual mechanisms and the specific discursive or argumentation framework used for the textual analysis, allowing for the extension of the software tools to future discursive or argumentation frameworks. Some guidelines here include separate conceptual modelling strategies for the visual solution and each specific framework applied for each analysis performed.
  • Sharing and reuse mechanisms: Software mechanisms should be developed for allowing the sharing and reuse of the resultant informational pieces for the textual analyses in a transparent way for end users. These mechanisms are particularly useful both in future analysis by the same users and in a collaborative or comparative analysis by other researchers. Some guidelines here include black-box and transparent export/import mechanisms for the informational pieces produced during the textual analyses.
  • Availability alternatives: The software assistance provided should offer some availability and maintenance solutions. This does not necessarily imply free or open models of all the software tools, but rather a prior planning of availability mechanisms so that the learning effort made by users is rewarded.
How these guidelines could be implemented in a real software solution for assisting discursive and argumentation textual analysis? Taking into account previous works on discourse and argumentation studies via software [26,27,28], Viscourse tool [29] is a web platform for discursive/argumentation textual analysis. We detail in the next sub-sections our approach for implementing the guidelines presented above in Viscourse.

4.1. Textual Granularity

As a tool for supporting discursive/argumentation textual analysis, Viscourse is initially conceived for an analysis attached to the text. This implies that the user details the literal text to be analyzed, segmenting it and performing the analysis at the discursive or argumentative level. Although this is the most common use, Viscourse includes some mechanisms related to guideline 1 for ensuring the software support at different degrees of textual granularity. Specifically, two mechanisms have been implemented related to this guideline:
First, the user can vary the level of granularity of the text by grouping the textual segments into larger units, called groups. This allows one to associate discursive or argumentation characteristics to large sets of text, even entire paragraphs.

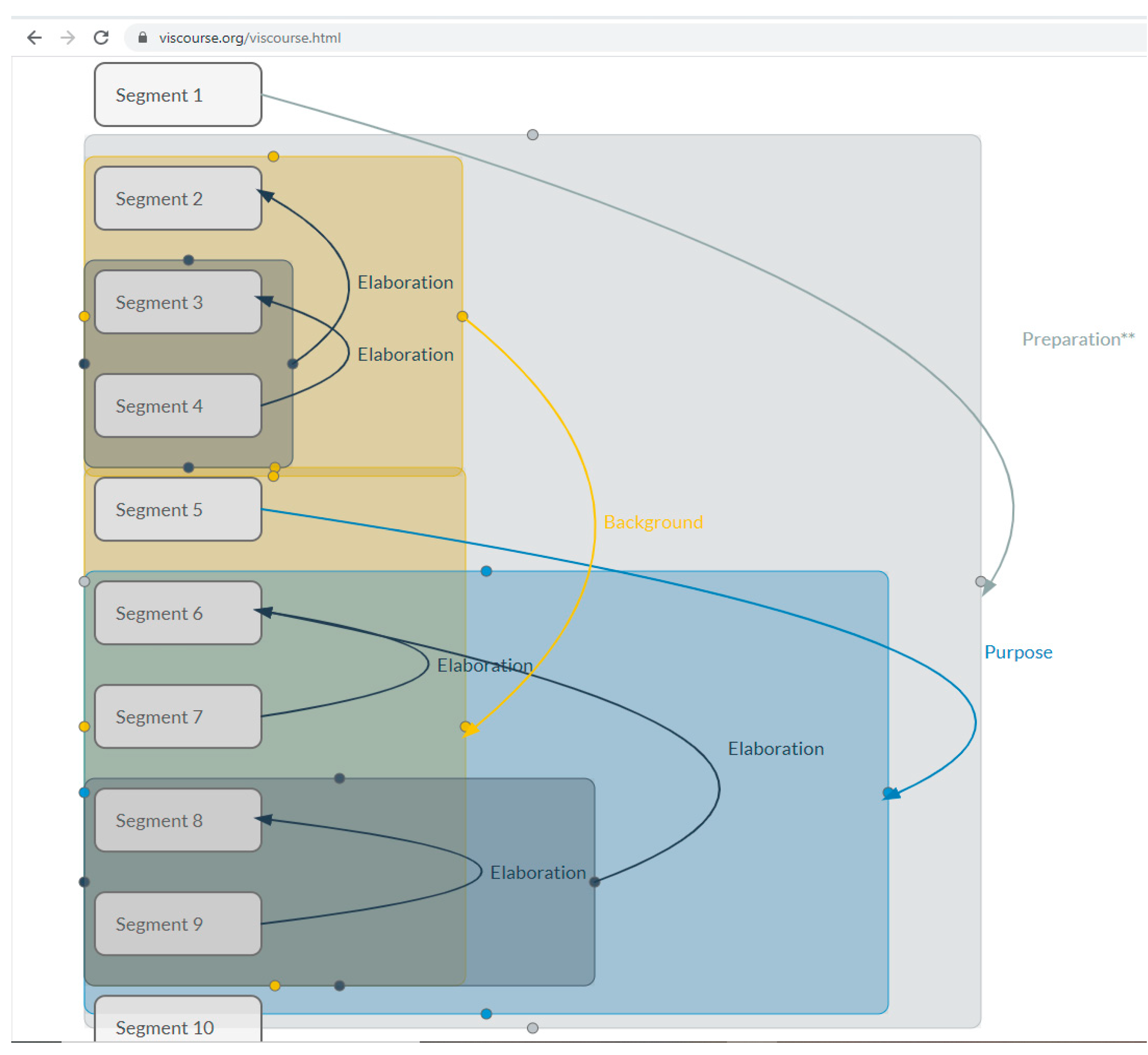

Secondly, it is possible to hide the literal text of the analysis performed, showing the option “Simplified mode”. At that time, all segments and groups acquire the same size and alignment, hiding the literal text to analyze and keeping only the name of the segment or group. This simplified view allows the user to abstract from the literal text, focusing on the discursive or argumentation relationships detected and facilitating the comparison between several analyses on the same text or the calculation of simple metrics (number of discursive relationships of a specific type, etc.). In the future, we plan to offer this automatic metrics calculation and comparative functionality implemented as a module in Viscourse. Figure 2 and Figure 3 show the same textual analysis (“Bouquets in the basket” text form RST corpus) with different levels of granularity.

4.2. Linguistic Framework Flexibility

Our SLR showed that most of the current tools are particularly developed for supporting a specific framework of discursive or argumentation analysis, such as rstWeb in RST [10] or OVA in IAT [20]. Despite the theoretical and linguistic approach differences between them, most of these frameworks base the discursive or argumentation analysis on the same needs in terms of software visualization structures: textual segmentation or grouping, and the definition of discursive or argumentation relationships between segments (or similar textual elements with greater granularity). Thus, guideline 2 defends that a software tool that supports this type of textual analysis should maintain a certain independence between the discursive/argumentation framework used during a certain textual analysis and the visual elements employed in the tool. This conceptual decoupling at the software tool level allows the future extension of support to perform analysis with future discursive or argumentation frameworks that may arise.
For implementing guideline 2, Viscourse initial version decouples visual mechanisms and discursive/argumentation information framework used. First, Viscourse allows for textual analysis based on the customized segmentation of the text by the user and its grouping into wider levels that also allow for analysis on a multi-phrase or paragraph level. Viscourse currently allows for the analysis of relationships between segments or multi-phrase groups, with highly customized features for the user, so any discursive and/or argumentation relationships framework can be used.
In addition, on a visualization level, the text follows existing approaches as discourse trees but adding color visualization for segments or multi-phrase groups. The color of the groups and the discursive or argumentation relationships during the analysis are also selectable by the user, which allows him to apply color criteria (it is common, for example, to use red for discursive and/or argumentation relationships with contrast or disagreement semantics). It is also possible to highlight only a specific type of relation or segment in the tool for visual clarification.
Figure 2 shows an example of the well-known bouquets in a basket example from the RST corpus [10] performed using Viscourse. Viscourse natively implements the RST analysis [11,14] due to the applicability of the platform to ongoing projects. Besides, thanks to the customization possibilities in terms of segments, groups and relationships definition, it is possible to perform multiple analyses using different discursive or argumentation frameworks as a basis.

4.3. Sharing and Reuse Mechanisms

As our SLR showed, a few cases of the revised tools have automatic mechanisms for exporting the information generated during the analysis [19,21,23,24,25], which allows some initial steps on sharing and reuse of this information. Most of these works use mechanisms that require knowledge of certain file exchange formats, in most cases requiring that the researcher must also edit the generated files. Viscourse also includes the classic import/export mechanisms through editable standard file formats from the web platform (Figure 4 shows the JSON editor included in Viscourse, with three options for file view: code, tree or a node view). This mechanism transforms Viscourse in a complete JSON editor for the discourse-based information produced during a textual analysis. Note that the tool allows the user to save multiple analyses in their user account, maintaining a visualization carrousel for each user. Each analysis performed is generating an underlined JSON file with information about the original textual sources, the segments, groups, relationships, etc., created by the user and color and position information that allow the software to replicate and export each analysis.
However, in our experience, many of the analyses performed are reused by the researcher himself, or shared with colleagues for comparison or communication purposes, and many of these researchers do not need to edit the files generated by the applications for this purpose. For this reason, Viscourse also includes, following guideline 3, an import/export mechanism as a “black box” for the researcher, through its own Viscourse code mechanism. The implementation consists of encapsulating all the information produced during a textual analysis (information about the original text, the discursive or argumentation information produced during the textual analysis and the visual decisions about colors, positions, etc., taken by the user during the analysis) in a black box piece associated with a unique code automatically generated.
The black-box import/export mechanism in Viscourse follows this workflow:
  • Once the textual analysis is finished, the user selects “share selected visualization” in the Options menu. An export message is shown. The user can generate an internal code for Viscourse that matches the JSON file created for the textual analysis with exactly their visualization and textual analysis parameters.
  • The code generated is shown to the user, with automatic copy options. Sharing the Viscourse code with any Viscourse user, it is possible to import the textual analysis in any web Viscourse session.
  • For importing, the user selects the “Import from Code” option near their visualization carrousel in the main screen. Pasting the Viscourse code is enough to reproduce the textual analysis performed and all their visualization options in other Viscourse sessions or user accounts.

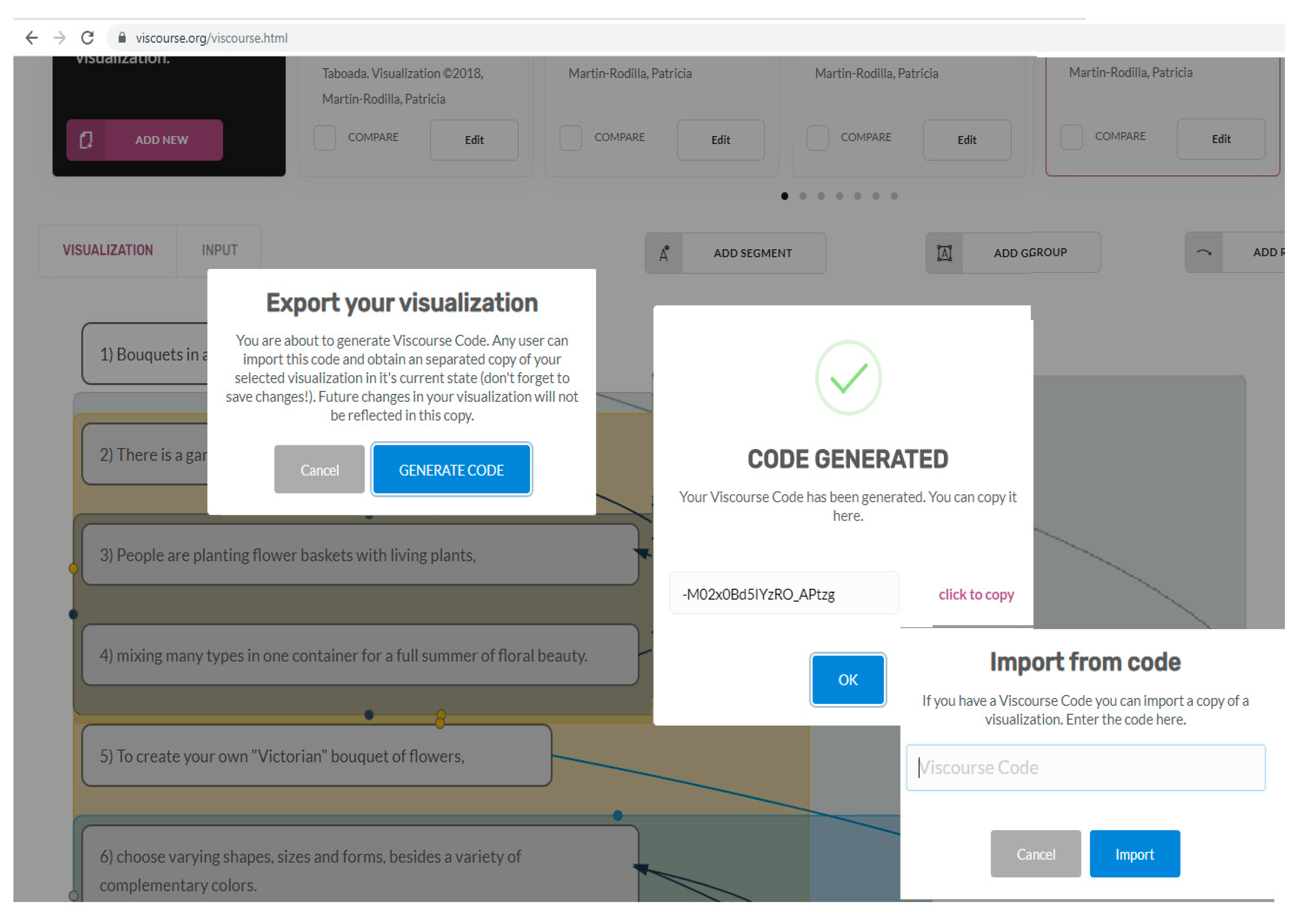

Figure 5 visually summarizes this workflow, showing the different actions in the screen performed by the user in an exporting/importing operation.

4.4. Availability Alternatives

As previously detailed, one of the weaknesses that our SLR analysis points out is the absence of tools currently available to the end user. Although it is not the objective of the paper to go into the many reasons why this can happen, we think that, as guideline 4 details, the prior planning of the software maintenance model and availability of the different tools to support discursive and argumentation textual analysis is necessary. Currently, we are conducting this prior analysis to provide Viscourse with different availability and use alternatives: free use, research licenses, free trials, subscription payment, availability to users in code repositories, etc. There are several alternatives to ensure that the work done is effectively available to its end users.

5. Future Steps

As it has been shown throughout this paper, the development of software assistance for textual analysis through information visualization techniques presents great challenges. It is also an area of vital importance for humanistic and social disciplines, where researchers present special needs in terms of textual analysis assistance as compared to other disciplines. Thus, the systematic literature review carried out here is a valuable contribution to the field, including heterogeneity references in terms of source repositories, disciplines and approaches and presenting a broad panorama of the area.
While we believe that the steps taken so far are satisfactory, future steps are planned. Our immediate work includes a formal validation of the Viscourse tool and their guidelines on implementation. It is necessary to evaluate the Viscourse software tool on a wide set of case studies, by its target users. An evaluation working with researchers in various branches of the digital humanities is planned, in order to identify weaknesses and strengths of the tool, obtaining assessment valorization by end users.
Regarding the connection of the Viscourse tool with the current works revised here, future work includes exploring the possible connection between Viscourse visualization, sharing and reuse mechanisms and current natural language processing (NLP) algorithms and approaches to the automatic extraction of linguistic information on a pragmatic level. The flexibility of Viscourse in terms of the discursive or argumentation framework used and their black-box sharing and reuse capabilities allow us to explore the use of Viscourse as a complementary piece of software for visualizing and interacting with outputs from different NLP discursive parsers.
Besides, the following steps in Viscourse tool improvements will focus on the implementation of a comparative visualization solution, which allows for comparing several analyses of the same text from different frameworks, or performed by different users, in the same interface. Adding comparative features to Viscourse will further enhance Viscourse’s reuse and sharing capabilities.

Author Contributions

Conceptualization, P.M.-R.; Formal analysis, P.M.-R.; Funding acquisition, P.M.-R. and M.S.; Investigation, P.M.-R. and M.S.; Methodology, P.M.-R.; Project administration, P.M.-R.; Validation, P.M.-R. and M.S.; Visualization, P.M.-R. and M.S.; Writing—original draft, P.M.-R.; Writing—review & editing, P.M.-R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Spanish Ministry of Economy, Industry and Competitiveness under its Competitive Juan de la Cierva Postdoctoral Research Programme, grant FJCI-2016-6 28032 and by the “Ministerio de Ciencia, Innovación y Universidades” of the Government of Spain (research grant RTI2018-093336-B-C21, co-funded by the European Regional Development Fund, ERDF/FEDER program).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table A1. Quality assessment SLR phase results, evaluating 59 publications (58 publications eliminating replications) from 7 different source repositories. Gray marked rows constitute publications included in the final SLR repository (17 publications). “Main contribution” column shows in bold the kind of software support contribution according to our seven categories (defined in RQ2) for each publication.
Table A1. Quality assessment SLR phase results, evaluating 59 publications (58 publications eliminating replications) from 7 different source repositories. Gray marked rows constitute publications included in the final SLR repository (17 publications). “Main contribution” column shows in bold the kind of software support contribution according to our seven categories (defined in RQ2) for each publication.
Source-SLRCodeTitleMain ContributionQ1Q2Q3Q4Q5QnAvailability
Springer Link-SL1 [30]A survey on information visualization: recent advances and challengesInfoVis techniques for textual analysis: Discourse treesYYYYN4N
Springer Link-SL2 [31]Towards Automatic Argument Extraction and Visualization in a Deliberative Model of Online Consultations for Local GovernmentsAnnotated corpora on politics. Argumentation analysis.NYYYN3N
Springer Link-SL3 [21]Argumentation in the 2016 US presidential elections: annotated corpora of television debates and socialOVA tool application example for supporting argumentation analysis.Y YYYY5Y
Springer Link-SL4 [23]The Argument Web: an Online Ecosystem of Tools, Systems and Services for ArgumentationOva tool + Argument Analytics tool for supporting argumentation analysis.Y YYYY5Y
Springer Link-SL5 [32]SAPTE: A multimedia information system to support the discourse analysis and information retrieval of television programsSAPTE tool for TV domain. Some discourse analysis metrics.YNYYN3N
Springer Link-SL6 [33]Text to multi-level MindMapsInfoVis techniques for textual analysis: Manual Mind mapsYNYNN2N
Springer Link-SL7 [34]Knowledge Building Discourse Explorer: a social network analysis application for knowledge building discourseKBDeX tool. Some discourse analysis metrics.YYNYN3Y
Springer Link-SL8 [35]PolyCAFe—automatic support for the polyphonic analysis of CSCL chatsPolyCAFe tool for automatic analysis of conversations: learning analytics domain.YYYNY4N
Springer Link-SL9 [36]PolyCAFe - Polyphonic Conversation Analysis and FeedbackPolyCAFe tool for automatic analysis of conversations.YYYNY4N
Springer Link-SL10 [37]Facilitating the Analysis of Discourse Phenomena in an Interoperable NLP Platform U-Compare tool for NLP workflows construction: automatic discourse extensions.YNYYN3N
Springer Link-SL11 [38]Computer assisted text analysis in the social sciences (Alceste tool)Alceste tool. Some discourse analysis metrics.YYNNN2N
Springer Link-SL12 [39]Mass Collaboration on the Web: Textual Content Analysis by Means of Natural Language ProcessingNLP application example on mass collaboration domain.YNNNN1N
Science Direct-SD1 [40]Towards computational discourse analysis: A methodology for mining Twitter backchanneling conversationsMethodology and application example on automatic concept map creation from Twitter data.YYYNN3N
Science Direct-SD2 [41]MARGOT: A web server for argumentation miningMARGOT tool for automatic argumentation textual analysis.YNYYN3Y
Science Direct-SD3 [42]Using visual text analytics to examine broadcast interviewingInfoVis techniques for textual analysis: Conceptual Recurrence PlotsYYYYN4N
ACM Lib.-ACM1 [43]Visual analytics of academic writingXIP tool for automatic textual analysis and application example on scientific discourseYNNNN1N
ACM Lib.-ACM2 [44]Temporal analytics with discourse analysis: tracing ideas and impact on communal discourseSome discourse analysis metrics.YNYNN2N
ACM Lib.-ACM3 [45]Humor, support and criticism: a taxonomy for discourse analysis about political crisis on TwitterTaxonomy on politics.YNYNN2N
ACM Lib.-ACM4 [25]Discourse-centric learning analytics Cohere tool for automatic analysis of discourse. YYYYY5Y
ACM Lib.-ACM5 [46]Experiments in automated support for argument reconstructionAutomatic topic modelling and argumentation experiments.NNYYN2N
ACM Lib.-ACM6 [47]Highly interactive and natural user interfaces: enabling visual analysis in historical lexicographyInfoVis techniques for textual analysis.YYYNN3N
ACM Lib.-ACM7 [22]Using Argumentative Structure to Interpret Debates in Online Deliberative Democracy and ERulemakingApplication example for supporting argumentation analysis on politics YNYYN3N
ACM Lib.-ACM8 [48]ThemeStreams: visualizing the stream of themes discussed in politicsInfoVis techniques for textual analysis: ThemeStreamsYYYNN3N
ACM Lib.-ACM9 [49]Web-Retrieval Supported Argument Space ExplorationAutomatic information retrieval methods for argumentation analysis.YYYNN3N
ACM Lib.-ACM10 [50]Visualizing Natural Language Descriptions: A SurveySurvey on graphical systems for natural language support.YNNNN1N
ACM Lib.-ACM11 [51]Marius, the giraffe: a comparative informatics case study of linguistic features of the social media discourseApplication example on social media. Some discourse analysis metrics.YYNNN2N
ACM Lib.-ACM12 [52]Single or Multiple Conversational Agents?: An Interactional Coherence ComparisonApplication example on chatbots. Some discourse analysis metrics.YNYNN2N
ACM Lib.-ACM13 [53]Analyzing Wikipedia Deletion Debates with a Group Decision-Making Forecast ModelAutomatic machine learning technique. Application example on debates.NNYNN1N
IEEE Xplore-IX1 [54]Current Work Practice and Users’ Perspectives on Visualization and Interactivity in Business IntelligenceQualitative empirical study on InfoVis + Business Intelligence uses.YNNNN1N
IEEE Xplore-IX2 [55]Visualization of Sensory Perception DescriptionsWine Fingerprints + Topics2Themes InfoVis tools. Sentiment Analysis and Topic Modelling applications.YYYYN4Y
IEEE Xplore-IX3 [18]Conceptual Recurrence Plots: Revealing Patterns in Human DiscourseInfoVis techniques for textual analysis: Conceptual Recurrence PlotsYYYYN4N
IEEE Xplore-IX4 [56]Visual unrolling of network evolution and the analysis of dynamic discourseInfoVis technique: DCRA visualization prototypeYYYNN3N
IEEE Xplore-IX5 [57]A survey on computer assisted qualitative data analysis softwareSurvey on data analysis software.YNNNN1N
IEEE Xplore-IX6 [58]A Tool for Discourse Analysis and VisualizationTool for supporting discourse analysis.YYYYN4N
IEEE Xplore-IX7 [59]Robust Adaptive Discourse Parsing for E-Learning ForaAgora tool for automatic contrast parsing on Internet forumsYNYYN3N
IEEE Xplore-IX8 [60]Assessing Collaborative Process in CSCL with an Intelligent Content Analysis ToolkitSome discourse analysis metrics.YNYNN2N
IEEE Xplore-IX9 [61]Epicurus: A platform for the visualisation of forensic documents based on a linguistic approachEpicurus tool for supporting discourse analysis.YYYYN4N
IEEE Xplore-IX10 [62]Text cohesion visualizerText cohesion tool for InfoVis techniques. Some discourse analysis metrics.YYYYN4N
IEEE Xplore-IX11 [63]A Pilot Study of CZTalk: A Graphical Tool for Collaborative Knowledge WorkInfoVis techniques: graph visualizations for discourse.YNYNN2N
IEEE Xplore-IX12 [64]The competency building process of human computer interaction in game-based teaching: Adding the flexibility of an asynchronous formatApplication example on Massively Multiplayer Online Games (MMOG) domain. Some discourse analysis metrics.NNYNN1N
ACL Anth.-ACL1 [65]ArguminSci: A Tool for Analyzing Argumentationand Rhetorical Aspects in Scientific WritingArguminSci tool: Automatic argumentation and discourse parsing.YYYYN4Y
ACL Anth.-ACL2 [66]Two Practical Rhetorical Structure Theory ParsersAutomatic discourse parsers.YNYYN3Y
ACL Antl.-ACL3 [67]Capturing Chat: Annotation and Tools for Multiparty Casual ConversationInfovis technique + STAVE tool for conversational analysis.YNYNN2N
ACL Antl.-ACL4 [68]Interactive Exploration of Asynchronous Conversations: Applying a User-centered Approach to Design a Visual Text Analytic SystemInfovis techniques for conversational analysis.YNNNN1N
ACL Anth.-ACL5 [19]rstWeb–A Browser-based Annotation Interface for Rhetorical Structure Theory and Discourse RelationsrstWeb tool for supporting discourse analysis.YYYYY5Y
ACL Anth.-ACL6 [69]Tree Annotator: Versatile Visual Annotation of Hierarchical Text RelationsTree Annotator tool: graphical tool for annotating tree-like structuresYYYYY4Y
ACL Anth.-ACL7 [70]The Impact of Modeling Overall Argumentation with Tree KernelsAutomatic representation methodology for argumentationYNYYN3N
ACL Anth.-ACL8 [24]iLCM - A Virtual Research Infrastructure for Large-Scale Qualitative DataiLCM tool for discourse analysis.YYYYY5Y
RST-RST1 [71]The GUM Corpus: Creating Multilayer Resources in the ClassroomAnnotated corpora on education. RST discourse analysis.YYYNN3Y
RST -DuplicatedrstWeb - A Browser-based Annotation Interface for Rhetorical Structure Theory and Discourse Relations--------
DSH Journal-DSH1 [72]PaperMiner—a real-time spatiotemporal visualization for newspaper articlesInfoVis techniques. Application example on newspapers. Some discourse metrics. YYYNN3N
DSH Journal-DSH2 [73]Mining ethnicity: Discourse-driven topic modelling of immigrant discourses in the USAAutomatic topic modelling. Application example on historical texts.YNYNN2N
DSH Journal-DSH3 [74]Exploratory Thematic Analysis for Digitized Archival CollectionsTOME tool: Automatic topic modelling. Application example on historical texts.YNYNN2N
DSH Journal-DSH4 [75]Non-representational approaches to modeling interpretation in a graphical environmentInfoVis techniques for textual analysis.NYNNN1N
DSH Journal-DSH5 [76]Supporting exploratory text analysis in literature studyApplication example on literature. Some discourse analysis metrics.YNYNN2N
DSH Journal-DSH6 [77]Non-traditional prosodic features for automated phrase break predictionAutomatic phrase break prediction review.NNYNN1N
DSH Journal-DSH7 [78]Analysis of variation significance in artificial traditions using StemmawebStemmaweb tool for stemmatology.YNYNN2N
DSH Journal -DSH8 [79]Networks of networks: a citation network analysis of the adoption, use, and adaptation of formal network techniques in archaeologyAutomatic network analysis techniques. Application examples on archaeology.YNYNN2N
DSH Journal-DSH9 [80]Ontology-based analysis of the large collection of historical Hebrew manuscriptsManual Ontology analysis. Application example on ancient texts.NYYNN2Y
dhq Journal-dhq1 [81]A Pedagogy for Computer-Assisted Literary Analysis: Introducing GALGO (Golden Age Literature Glossary Online)Taxonomy-Glossary resource.YNYNN2N

References

  1. Schreibman, S.; Siemens, R.; Unsworth, J. A New Companion to Digital Humanities; John Wiley & Sons: Chichester, UK, 2016. [Google Scholar]
  2. Kucher, K.; Kerren, A. (Eds.) Text visualization techniques: Taxonomy, visual survey, and community insights. In Proceedings of the 2015 IEEE Pacific Visualization Symposium (PacificVis), Hangzhou, China, 14–17 April 2015. [Google Scholar]
  3. Alharbi, M.; Laramee, R.S. Sos textvis: An extended survey of surveys on text visualization. Computers 2019, 8, 17. [Google Scholar] [CrossRef][Green Version]
  4. Kitchenham, B.; Charters, S. Guidelines for Performing Systematic Literature Reviews in Software Engineering; EBSE Report No. 2007-01; Durham University: Durham, UK, 2007. [Google Scholar]
  5. Elsevier. ScienceDirect® Elsevier, B.V. 2020. Available online: https://www.sciencedirect.com/ (accessed on 7 May 2020).
  6. Springer. Springer Link. Springer Nature Switzerland AG. 2020. Available online: https://link.springer.com/ (accessed on 7 May 2020).
  7. ACM. ACM Digital Library. Association for Computing Machinery. 2020. Available online: https://dl.acm.org/ (accessed on 7 May 2020).
  8. IEEE. IEEE Xplore. 2020. Available online: https://ieeexplore.ieee.org/Xplore/home.jsp (accessed on 7 May 2020).
  9. ACL. ACL Anthology. Association for Computational Linguistics (ACL). 2020. Available online: https://www.aclweb.org/anthology/ (accessed on 7 May 2020).
  10. Mann, W.C.; Taboada, M. RST—Rhetorical Structure Theory 2005–2018. Available online: https://www.sfu.ca/rst/06tools/index.html (accessed on 7 May 2020).
  11. Mann, W.C.; Thompson, S.A. Rhetorical structure theory: Toward a functional theory of text organization. J. Study Discourse 1988, 8, 243–281. [Google Scholar] [CrossRef]
  12. Mann, W.C.; Thompson, S.A. Rhetorical Structure Theory: A Theory of Text Organization; Information Sciences Institute: Los Angeles, CA, USA, 1987. [Google Scholar]
  13. Taboada, M.; Mann, W.C. Rhetorical structure theory: Looking back and moving ahead. Discourse Stud. 2006, 8, 423–459. [Google Scholar] [CrossRef][Green Version]
  14. Taboada, M.; Mann, W.C. Applications of rhetorical structure theory. Discourse Stud. 2006, 8, 567–588. [Google Scholar] [CrossRef][Green Version]
  15. DSH. Digital Scholarship in the Humanities. Oxford University Press. 2020. Available online: https://academic.oup.com/dsh (accessed on 7 May 2020).
  16. DHQ. Digital Humanities Quarterly. Association for Computers and the Humanities (ACH) and the Alliance of Digital Humanities Organizations (ADHO). 2020. Available online: http://digitalhumanities.org/dhq/about/about.html (accessed on 7 May 2020).
  17. Zhao, J.; Chevalier, F.; Collins, C.; Balakrishnan, R. Facilitating discourse analysis with interactive visualization. IEEE Trans. Vis. Comput. Graph. 2012, 18, 2639–2648. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Angus, D.; Smith, A.; Wiles, J. Conceptual recurrence plots: Revealing patterns in human discourse. IEEE Trans. Vis. Comput. Graph. 2011, 18, 988–997. [Google Scholar] [CrossRef]
  19. Zeldes, A. (Ed.) rstWeb—A browser-based annotation interface for Rhetorical Structure Theory and discourse relations. In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Demonstrations, San Diego, CA, USA, 12–17 June 2016. [Google Scholar]
  20. Budzynska, K.; Reed, C. Whence Inference? Technical Report; University of Dundee: Dundee, UK, 2011. [Google Scholar]
  21. Visser, J.; Konat, B.; Duthie, R.; Koszowy, M.; Budzynska, K.; Reed, C. Argumentation in the 2016 US presidential elections: Annotated corpora of television debates and social media reaction. Lang. Resour. Eval. 2019, 54, 123–154. [Google Scholar] [CrossRef][Green Version]
  22. Lawrence, J.; Park, J.; Budzynska, K.; Cardie, C.; Konat, B.; Reed, C. Using argumentative structure to interpret debates in online deliberative democracy and erulemaking. ACM Trans. Internet Technol. 2017, 17, 1–22. [Google Scholar] [CrossRef]
  23. Reed, C.; Budzynska, K.; Duthie, R.; Janier, M.; Konat, B.; Lawrence, J.; Pease, A.; Snaith, M. The argument web: An online ecosystem of tools, systems and services for argumentation. Philos. Technol. 2017, 30, 137–160. [Google Scholar] [CrossRef][Green Version]
  24. Niekler, A.; Bleier, A.; Kahmann, C.; Posch, L.; Wiedemann, G.; Erdogan, K.; Heyer, G.; Strohmaier, M. iLCM-A Virtual Research Infrastructure for Large-Scale Qualitative Data. arXiv, 2018; arXiv:80511404. [Google Scholar]
  25. De Liddo, A.; Shum, S.B.; Quinto, I.; Bachler, M.; Cannavacciuolo, L. (Eds.) Discourse-centric learning analytics. In Proceedings of the 1st International Conference on Learning Analytics and Knowledge, Banff, AL, Canada, 27 February–1 March 2011. [Google Scholar]
  26. Martín-Rodilla, P.; Gonzalez-Perez, C. (Eds.) An ISO/IEC 24744-derived modelling language for discourse analysis. In Proceedings of the IEEE 8th International Conference on Research Challenges in Information Science (RCIS), Marrakech, Morocco, 28–30 May 2014. [Google Scholar]
  27. Gamallo, P.; Martín-Rodilla, P.; Calderón, B. (Eds.) Identifying Causal Relations in Legal Documents with Dependency Syntactic Analysis. In Proceedings of the 8th Symposium on Languages, Applications and Technologies (SLATE 2019), Coimbra, Portugal, 27–28 June 2019. [Google Scholar]
  28. Martin-Rodilla, P. Digging into Software Knowledge Generation in Cultural Heritage; Springer: Cham, Switzerland, 2018; ISBN 978-3-319-69187-9. [Google Scholar]
  29. Martin-Rodilla, P.; Sanchez, M. Viscourse. 2019. Available online: https://viscourse.org/ (accessed on 7 May 2018).
  30. Liu, S.; Cui, W.; Wu, Y.; Liu, M. A survey on information visualization: Recent advances and challenges. Vis. Comput. 2014, 30, 1373–1393. [Google Scholar] [CrossRef]
  31. Bembenik, R.; Andruszkiewicz, P. (Eds.) Towards automatic argument extraction and visualization in a deliberative model of online consultations for local governments. In Proceedings of the East European Conference on Advances in Databases and Information Systems, Prague, Czech Republic, 28–31 August 2016. [Google Scholar]
  32. Pereira, M.H.; de Souza, C.L.; Pádua, F.L.; Silva, G.D.; de Assis, G.T.; Pereira, A.C. SAPTE: A multimedia information system to support the discourse analysis and information retrieval of television programs. Multimed. Tools Appl. 2015, 74, 10923–10963. [Google Scholar] [CrossRef]
  33. Elhoseiny, M.; Elgammal, A. Text to multi-level MindMaps. Multimed. Tools Appl. 2016, 75, 4217–4244. [Google Scholar] [CrossRef]
  34. Oshima, J.; Oshima, R.; Matsuzawa, Y. Knowledge Building Discourse Explorer: A social network analysis application for knowledge building discourse. Educ. Technol. Res. Dev. 2012, 60, 903–921. [Google Scholar] [CrossRef]
  35. Trausan-Matu, S.; Dascalu, M.; Rebedea, T. PolyCAFe—Automatic support for the polyphonic analysis of CSCL chats. Int. J. Comput.-Supported Collab. Learn. 2014, 9, 127–156. [Google Scholar] [CrossRef]
  36. Dascalu, M. PolyCAFe-Polyphonic Conversation Analysis and Feedback. In Analyzing Discourse and Text Complexity for Learning and Collaborating; Springer: Cham, Switzerland, 2014; pp. 107–135. [Google Scholar]
  37. Batista-Navarro, R.T.; Kontonatsios, G.; Mihăilă, C.; Thompson, P.; Rak, R.; Nawaz, R.; Korkontzelos, I.; Ananiadou, S. Facilitating the analysis of discourse phenomena in an interoperable NLP platform. In Proceedings of the International Conference on Intelligent Text Processing and Computational Linguistics CICling 2013, Samos, Greece, 24–30 March 2013. [Google Scholar]
  38. Brier, A.; Hopp, B. Computer assisted text analysis in the social sciences. Qual. Quant. 2011, 45, 103–128. [Google Scholar] [CrossRef]
  39. Habernal, I.; Daxenberger, J.; Gurevych, I. Mass Collaboration on the Web: Textual Content Analysis by Means of Natural Language Processing. In Mass Collaboration and Education; Springer: Cham, Switzerland, 2016; pp. 367–390. [Google Scholar]
  40. Lipizzi, C.; Dessavre, D.G.; Iandoli, L.; Marquez, J.E.R. Towards computational discourse analysis: A methodology for mining twitter backchanneling conversations. Comput. Hum. Behav. 2016, 64, 782–792. [Google Scholar] [CrossRef]
  41. Lippi, M.; Torroni, P. MARGOT: A web server for argumentation mining. Expert Syst. Appl. 2016, 65, 292–303. [Google Scholar] [CrossRef]
  42. Angus, D.; Fitzgerald, R.; Atay, C.; Wiles, J. Using visual text analytics to examine broadcast interviewing. Discourse Context Media 2016, 11, 38–49. [Google Scholar] [CrossRef]
  43. Simsek, D.; Shum, S.B.; De Liddo, A.; Ferguson, R.; Sándor, Á. (Eds.) Visual analytics of academic writing. In Proceedings of the 4th International Conference on Learning Analytics and Knowledge, Indianapolis, IN, USA, 24–28 March 2014. [Google Scholar]
  44. Lee, A.V.Y.; Tan, S.C. (Eds.) Temporal analytics with discourse analysis: Tracing ideas and impact on communal discourse. In Proceedings of the 7th International Learning Analytics & Knowledge Conference, Vancouver, BC, Canada, 13–17 March 2017. [Google Scholar]
  45. Teixeira, C.R.G.; Kurtz, G.; Leuck, L.P.; Tietzmann, R.; de Souza, D.R.; Lerina, J.M.F.; Manssour, I.H.; Silveira, M.S. Humor, support and criticism: A taxonomy for discourse analysis about political crisis on Twitter. In Proceedings of the 19th Annual International Conference on Digital Government Research: Governance in the Data Age, Delft, The Netherlands, 30 May–1 June 2018. [Google Scholar]
  46. Winkels, R.; Douw, J.; Veldhoen, S. Experiments in automated support for argument reconstruction. In Proceedings of the 14th International Conference on Artificial Intelligence and Law, Rome, Italy, 10–14 June 2013. [Google Scholar]
  47. Therón, R.; Seguín, C.; de la Cruz, L.; Vaquero, M. Highly interactive and natural user interfaces: Enabling visual analysis in historical lexicography. In Proceedings of the First International Conference on Digital Access to Textual Cultural Heritage, Madrid, Spain, 19—20 May 2014. [Google Scholar]
  48. De Rooij, O.; Odijk, D.; De Rijke, M. Themestreams: Visualizing the stream of themes discussed in politics. In Proceedings of the 36th international ACM SIGIR Conference on Research and Development in Information Retrieval, Dublin, Ireland, 28 Jul–1 August 2013. [Google Scholar]
  49. Thiel, M.; Ludwig, P.; Mossakowski, T.; Neuhaus, F.; Nürnberger, A. Web-retrieval supported argument space exploration. In Proceedings of the 2017 Conference on Conference Human Information Interaction and Retrieval, Oslo, Norway, 7–11 March 2017. [Google Scholar]
  50. Hassani, K.; Lee, W.-S. Visualizing natural language descriptions: A survey. ACM Comput. Surv. 2016, 49, 1–34. [Google Scholar] [CrossRef][Green Version]
  51. Zimmerman, C.; Chen, Y.; Hardt, D.; Vatrapu, R. Marius, the giraffe: A comparative informatics case study of linguistic features of the social media discourse. In Proceedings of the 5th ACM International Conference on Collaboration across Boundaries: Culture, Distance & Technology, Kyoto, Japan, 20–22 August 2014. [Google Scholar]
  52. Chaves, A.P.; Gerosa, M.A. Single or Multiple Conversational Agents? An Interactional Coherence Comparison. In Proceedings of the 2018 CHI Conference on Human Factors in Computing Systems, Montreal, QC, Canada, 21–26 April 2018. [Google Scholar]
  53. Mayfield, E.; Black, A.W. Analyzing Wikipedia Deletion Debates with a Group Decision-Making Forecast Model. Proc. ACM Hum. Comput. Interact. 2019, 3, 1–26. [Google Scholar] [CrossRef][Green Version]
  54. Aigner, W. Current Work Practice and Users’ Perspectives on Visualization and Interactivity in Business Intelligence. In Proceedings of the 17th International Conference on Information Visualisation, London, UK, 16–18 July 2013. [Google Scholar]
  55. Kerren, A.; Prangova, M.; Paradis, C. Visualization of sensory perception descriptions. In Proceedings of the 15th International Conference on Information Visualisation, London, UK, 13–15 July 2011. [Google Scholar]
  56. Brandes, U.; Corman, S.R. Visual unrolling of network evolution and the analysis of dynamic discourse. Inf. Vis. 2003, 2, 40–50. [Google Scholar] [CrossRef]
  57. Reis, L.P.; Costa, A.P.; de Souza, F.N. A survey on computer assisted qualitative data analysis software. In Proceedings of the 11th Iberian Conference on Information Systems and Technologies (CISTI), Las Palmas, Spain, 15–18 June 2016. [Google Scholar]
  58. Chiru, C.-G.; Trausan-Matu, S. A tool for discourse analysis and visualization. In Proceedings of the 3rd International Conference on Emerging Intelligent Data and Web Technologies, Bucharest, Romania, 19–21 September 2012. [Google Scholar]
  59. Lucas, N.; Giguet, E. Robust adaptive discourse parsing for e-learning fora. In Proceedings of the 8th IEEE International Conference on Advanced Learning Technologies, Santander, Spain, 1–5 July 2008. [Google Scholar]
  60. Li, Y.; Wang, J.; Liao, J.; Zhao, D.; Huang, R. Assessing collaborative process in CSCL with an intelligent content analysis toolkit. In Proceedings of the 7th IEEE International Conference on Advanced Learning Technologies (ICALT 2007), Niigata, Japan, 18–20 July 2007. [Google Scholar]
  61. Somaraki, V.; Xu, Z. Epicurus: A platform for the visualisation of forensic documents based on a linguistic approach. In Proceedings of the 22nd International Conference on Automation and Computing (ICAC), Colchester, UK, 7–8 September 2016. [Google Scholar]
  62. Nukoolkit, C.; Chansripiboon, P.; Mongkolnam, P.; Todd, R.W. Text cohesion visualizer. In Proceedings of the 6th International Conference on Computer Science & Education (ICCSE), Singapore, 3–5 August 2011. [Google Scholar]
  63. Lam, H.; Fisher, B.; Dill, J. A Pilot Study of CZTalk: A Graphical Tool for Collaborative Knowledge Work. In Proceedings of the 38th Annual Hawaii International Conference on System Sciences, Big Island, HI, USA, 6 January 2005. [Google Scholar]
  64. Emad, S.; Halvorson, W.; Broillet, A.; Dunwell, N. The competency building process of human computer interaction in game-based teaching: Adding the flexibility of an asynchronous format. In Proceedings of the IEEE International Professonal Communication 2013 Conference, Vancouver, BC, Canada, 15–17 July 2013. [Google Scholar]
  65. Lauscher, A.; Glavaš, G.; Eckert, K. Arguminsci: A tool for analyzing argumentation and rhetorical aspects in scientific writing. In Proceedings of the 5th Workshop on Argument Mining, Brussels, Belgium, 31 October–1 November 2018. [Google Scholar]
  66. Surdeanu, M.; Hicks, T.; Valenzuela-Escárcega, M.A. Two practical rhetorical structure theory parsers. In Proceedings of the 2015 Conference of the North American Chapter of the Association for Computational Linguistics: Demonstrations, Denver, CO, USA, 31 May–5 June 2015. [Google Scholar]
  67. Gilmartin, E.; Campbell, N. Capturing Chat: Annotation and Tools for Multiparty Casual Conversation. In Proceedings of the 10th International Conference on Language Resources and Evaluation (LREC‘16), Portorož, Slovenia, 23–28 May 2016. [Google Scholar]
  68. Hoque, E.; Carenini, G.; Joty, S. Interactive exploration of asynchronous conversations: Applying a user-centered approach to design a visual text analytic system. In Proceedings of the Workshop on Interactive Language Learning, Visualization, and Interfaces, Baltimore, MA, USA, 27 June 2014. [Google Scholar]
  69. Helfrich, P.; Rieb, E.; Abrami, G.; Lücking, A.; Mehler, A. TreeAnnotator: Versatile visual annotation of hierarchical text relations. In Proceedings of the 11th International Conference on Language Resources and Evaluation (LREC 2018), Miyazaki, Japan, 7–12 May 2018. [Google Scholar]
  70. Wachsmuth, H.; Da San Martino, G.; Kiesel, D.; Stein, B. The impact of modeling overall argumentation with tree kernels. In Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, Copenhagen, Denmark, 7–11 September 2017. [Google Scholar]
  71. Zeldes, A. The GUM corpus: Creating multilayer resources in the classroom. Lang. Resour. Eval. 2017, 51, 581–612. [Google Scholar] [CrossRef]
  72. Kutty, S.; Nayak, R.; Turnbull, P.; Chernich, R.; Kennedy, G.; Raymond, K. PaperMiner—A real-time spatiotemporal visualization for newspaper articles. Digit. Scholarsh. Human. 2019, 35, 83–100. [Google Scholar] [CrossRef]
  73. Viola, L.; Verheul, J. Mining ethnicity: Discourse-driven topic modelling of immigrant discourses in the USA, 1898–1920. Digit. Scholarsh. Human. 2019. [Google Scholar] [CrossRef]
  74. Klein, L.F.; Eisenstein, J.; Sun, I. Exploratory thematic analysis for digitized archival collections. Digit. Scholarsh. Human. 2015, 30, i130–i141. [Google Scholar] [CrossRef][Green Version]
  75. Drucker, J. Non-representational approaches to modeling interpretation in a graphical environment. Digit. Scholarsh. Human. 2018, 33, 248–263. [Google Scholar] [CrossRef]
  76. Muralidharan, A.; Hearst, M.A. Supporting exploratory text analysis in literature study. Lit. Linguist. Comput. 2012, 28, 283–295. [Google Scholar] [CrossRef][Green Version]
  77. Brierley, C.; Atwell, E. Non-traditional prosodic features for automated phrase break prediction. Lit. Linguist. Comput. 2011, 26, 279–284. [Google Scholar] [CrossRef]
  78. Andrews, T.L. Analysis of variation significance in artificial traditions using Stemmaweb. Digit. Scholarsh. Human. 2016, 31, 523–539. [Google Scholar] [CrossRef][Green Version]
  79. Brughmans, T. Networks of networks: A citation network analysis of the adoption, use, and adaptation of formal network techniques in archaeology. Lit. Linguist. Comput. 2013, 28, 538–562. [Google Scholar] [CrossRef]
  80. Zhitomirsky-Geffe, M.; Prebor, G.; Miller, Y. Ontology-based analysis of the large collection of historical Hebrew manuscripts. Proc. Assoc. Inf. Sci. Technol. 2018, 55, 958–959. [Google Scholar] [CrossRef]
  81. García, N.A.; Caplan, A.; Mering, B. A Pedagogy for Computer-Assisted Literary Analysis: Introducing GALGO (Golden Age Literature Glossary Online). DHQ Digit. Hum. Q. 2017, 11, 21–31. [Google Scholar]
Figure 1. Systematic literature review (SLR) process steps, inspired by the Kitchenham and Charters guidelines (2007) [4].
Figure 1. Systematic literature review (SLR) process steps, inspired by the Kitchenham and Charters guidelines (2007) [4].
Information 11 00256 g001
Figure 2. Viscourse textual analysis for the “Bouquets in a basket” Rhetorical Structure Theory (RST) corpus text.
Figure 2. Viscourse textual analysis for the “Bouquets in a basket” Rhetorical Structure Theory (RST) corpus text.
Information 11 00256 g002
Figure 3. Viscourse textual analysis for the bouquets in the basket RST corpus text. Simplified mode.
Figure 3. Viscourse textual analysis for the bouquets in the basket RST corpus text. Simplified mode.
Information 11 00256 g003
Figure 4. Viscourse classic import/export mechanisms through editable JavaScript Object Notation (JSON) files from the Viscourse web platform, with three options for JSON file view: code, tree or a node view.
Figure 4. Viscourse classic import/export mechanisms through editable JavaScript Object Notation (JSON) files from the Viscourse web platform, with three options for JSON file view: code, tree or a node view.
Information 11 00256 g004
Figure 5. Viscourse code, a black-box mechanism for sharing and reusing textual analysis information between users.
Figure 5. Viscourse code, a black-box mechanism for sharing and reusing textual analysis information between users.
Information 11 00256 g005
Table 1. SLR repositories, search queries and the number of resultant publications.
Table 1. SLR repositories, search queries and the number of resultant publications.
RepositorySearch QueryNumber of Results
Springer Link(“discourse analysis” OR “argument mining”) AND (“information visualization” OR “visualization” OR “visual analytics”) AND (“software” OR “tool”); Filter 2010-2020648
Science Direct(“discourse analysis” OR “argument mining”) AND (“information visualization” OR “visualization” OR “visual analytics”) AND (“software” OR “tool”); Filter 2010-2020355
ACM Library[[All: “discourse analysis”] OR [All: “argument mining”]] AND [[All: “information visualization”] OR [All: “visualization”] OR [All: “visual analytics”]] AND [[All: “software”] OR [All: “tool”] OR [All: “]] AND [Publication Date: (01/01/2010 TO 12/31/2020)]; Filter ACM publisher 96
IEEE Xplore(‘discourse AND analysis’ OR ‘argument mining’) AND (‘information AND visualization’ OR ‘visualization’ OR ‘visual analytics’) AND (‘software’ OR ‘tool’); Filter 2010-2020 24
ACL Anthology(“discourse analysis” OR “argument mining”) AND (“information visualization” OR “visualization” OR “visual analytics”) AND (“software” OR “tool”) 298
RST repository“software” 2
DSH Journal(discourse analysis OR argument mining AND information visualization OR visual analytics AND software OR tool). Published: After January 2010 54
DHQ JournalQuery: (“discourse analysis” OR “argument mining”) AND (“information visualization” OR “visualization” OR “visual analytics”) AND (“software” OR “tool”)3
TOTAL1480
Back to TopTop
