Armor Damage of Overtopped Mound Breakwaters in Depth-Limited Breaking Wave Conditions
Abstract
:1. Introduction
2. Literature Review
2.1. Armor Damage Measurement
- Initiation of Damage (IDa): some units are lost from the upper armor;
- Initiation of Iribarren’s Damage (IIDa): a large area of the upper armor is damaged, so the extraction of units from the bottom armor layer is possible;
- Initiation of Destruction (IDe): the filter is clearly visible due to the extraction of at least one element from the bottom armor layer;
- Destruction (De): several elements from the filter layer are removed.
- Initiation of Damage (IDa): some isolated units are removed from the armor, producing holes whose size is close to the size of the armor units;
- Initiation of Destruction (IDe): several adjacent units are removed from the armor, producing cracks and holes whose size is larger than the armor unit. The filter is clearly visible;
- Destruction (De): several elements from the filter layer are removed.
2.2. Hydraulic Stability of Mound Breakwaters in Breaking Wave Conditions
2.3. Hydraulic Stability of Overtopped Mound Breakwaters

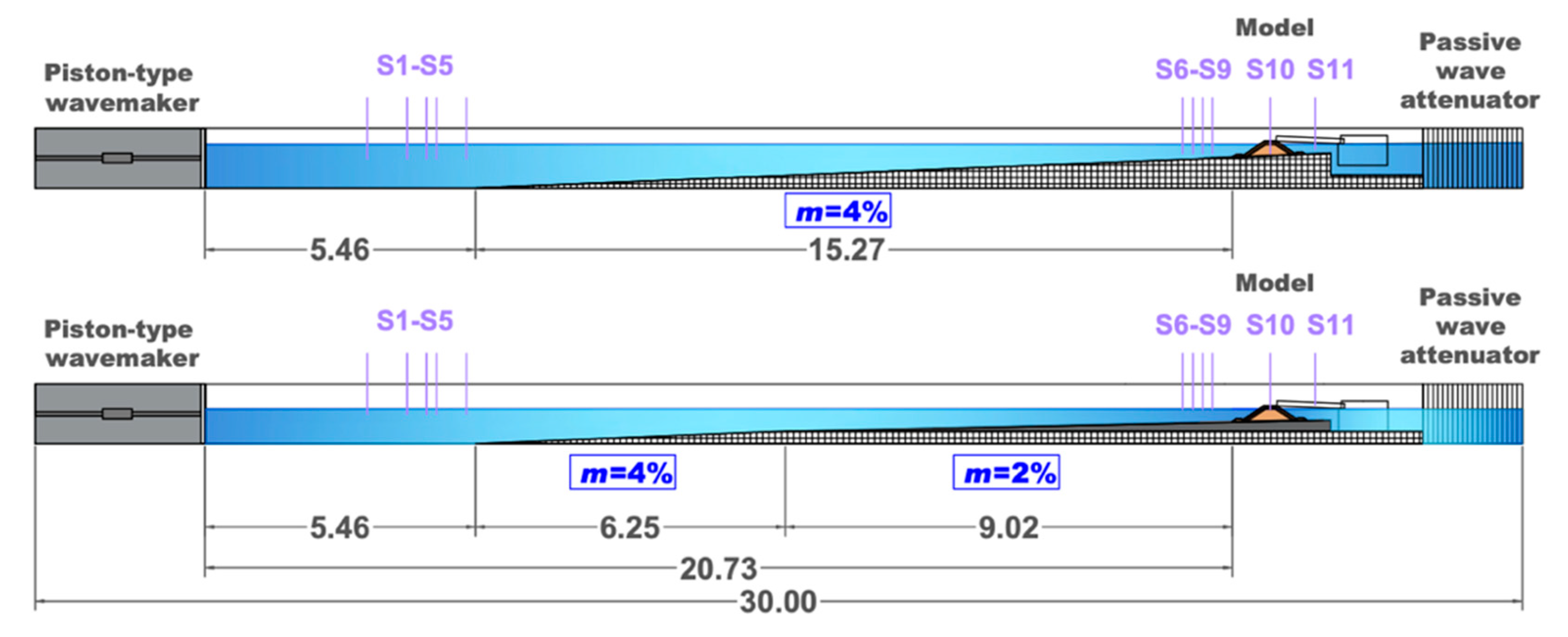

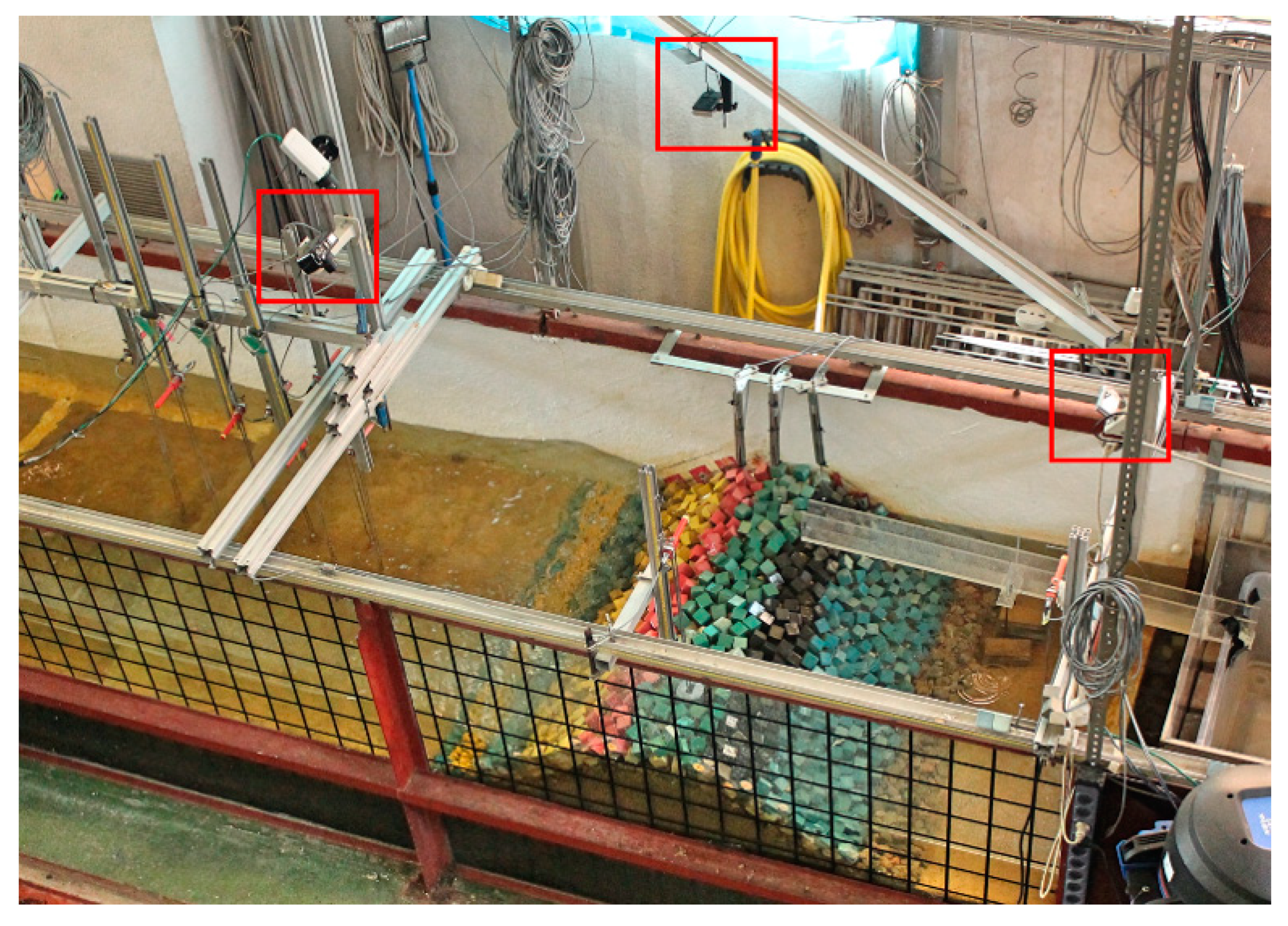

3. Experimental Methodology
4. Data Analysis
4.1. Wave Analysis

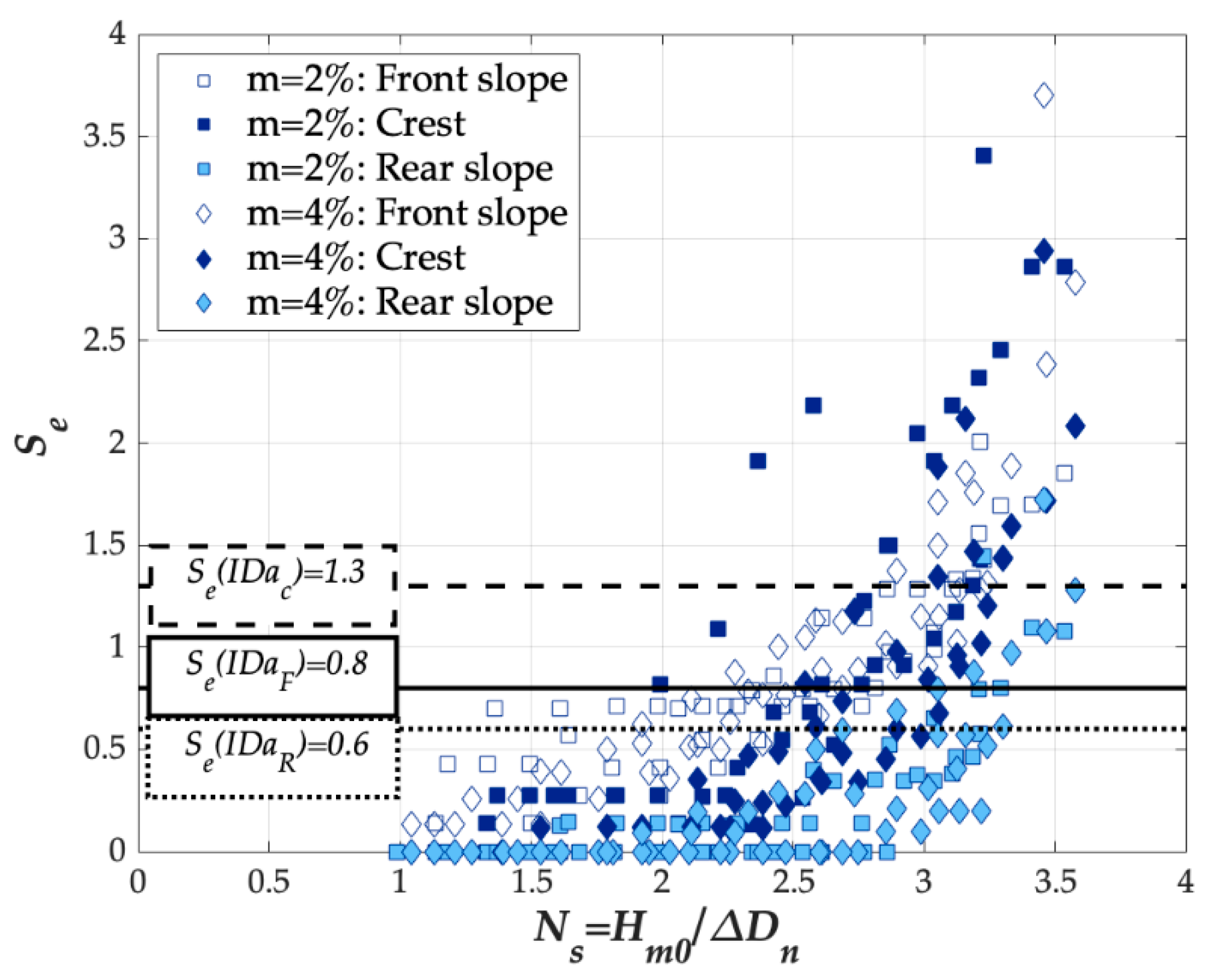

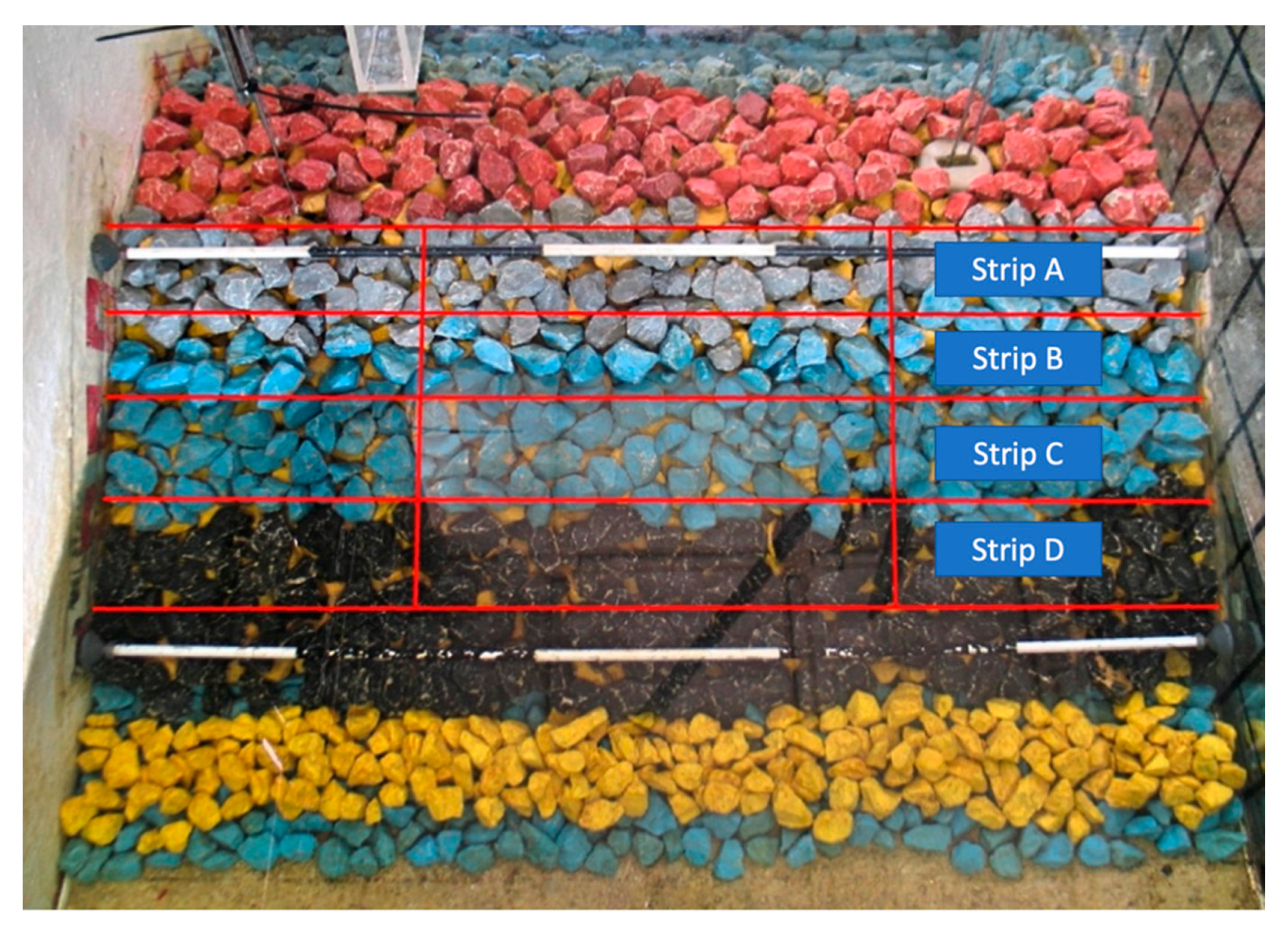

4.2. Armor Damage
5. Stability Formulas for Overtopped Mound Breakwaters

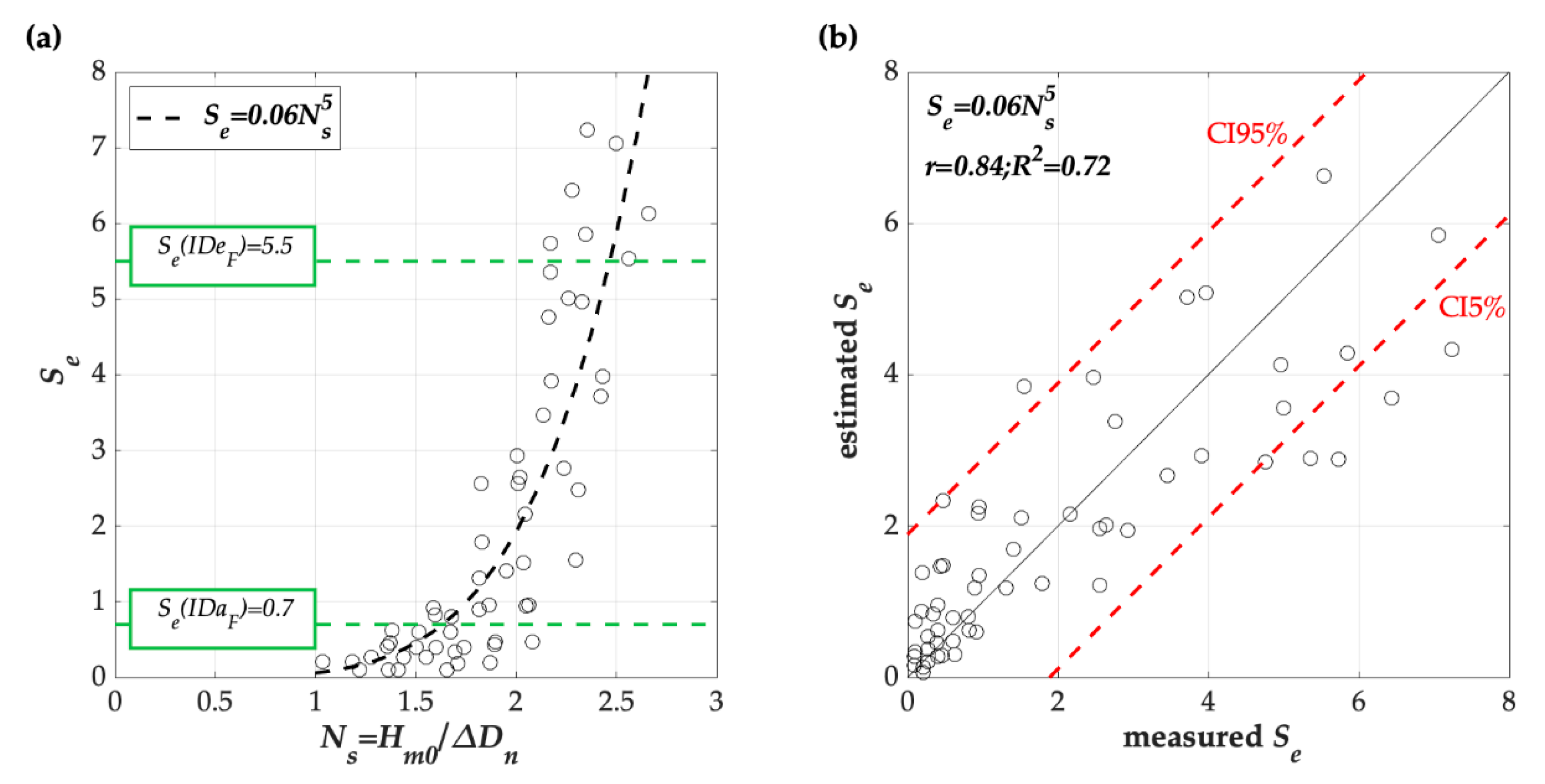

5.1. Rock-Armored Model

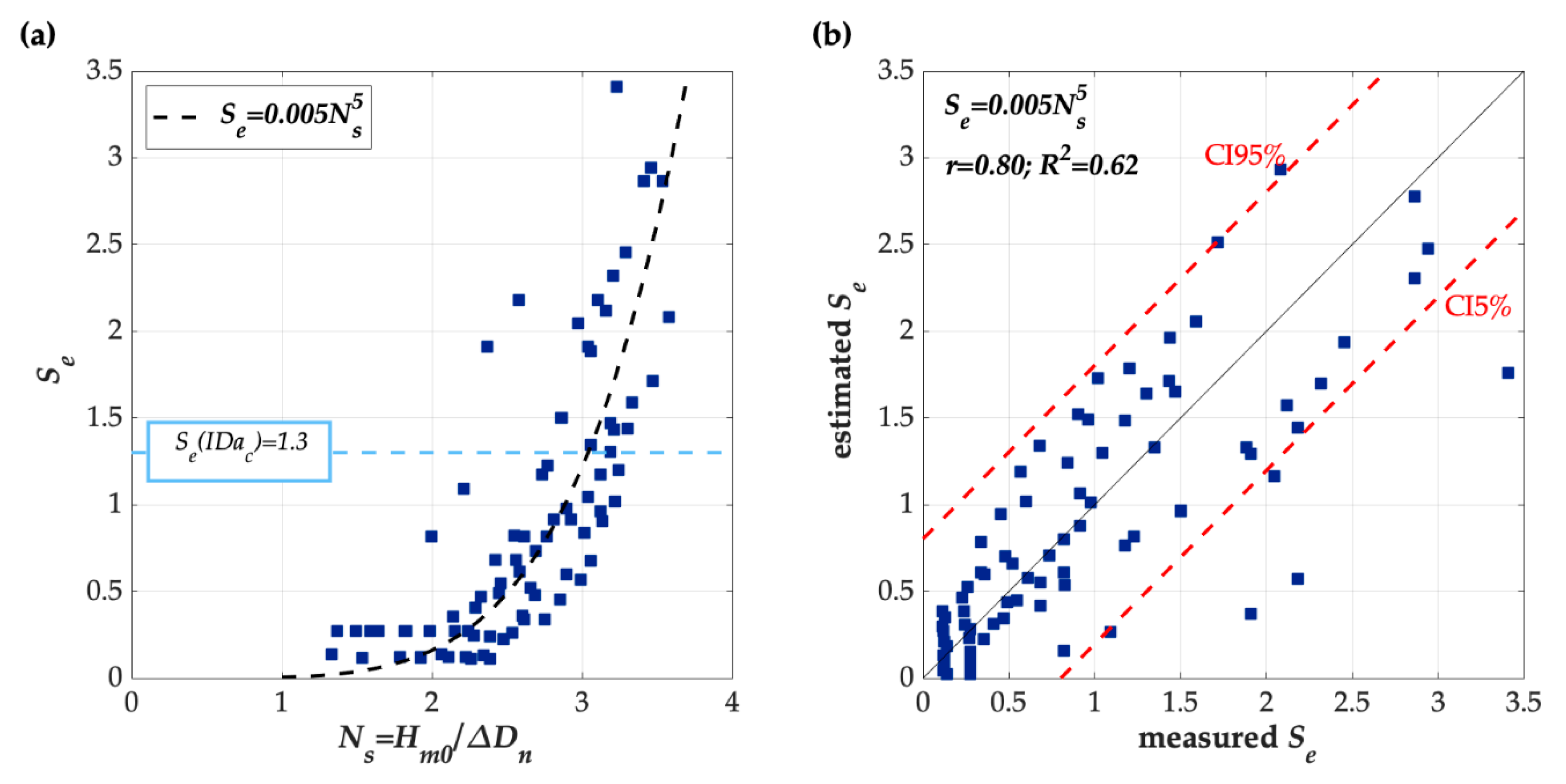

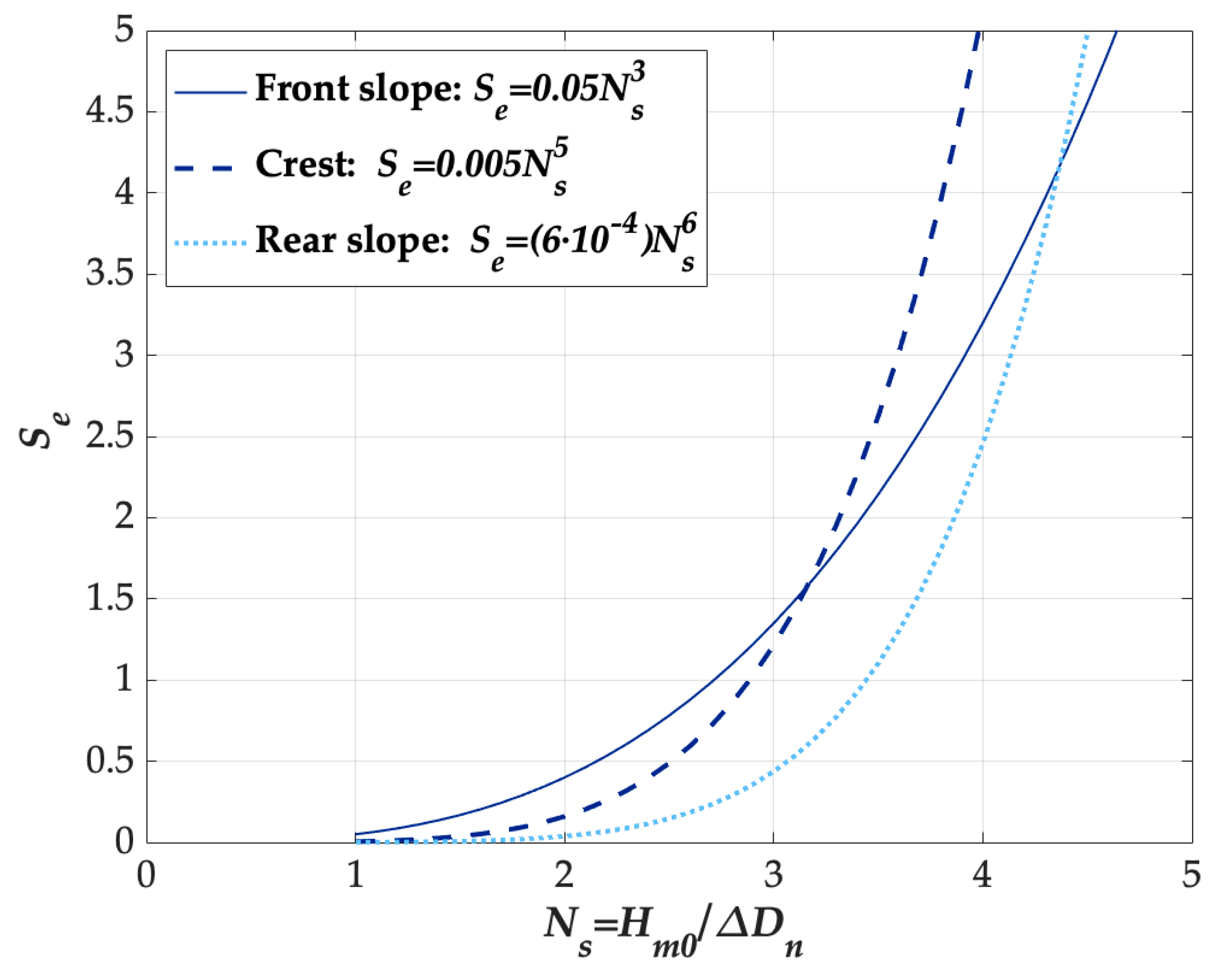

5.2. Cube-Armored Model

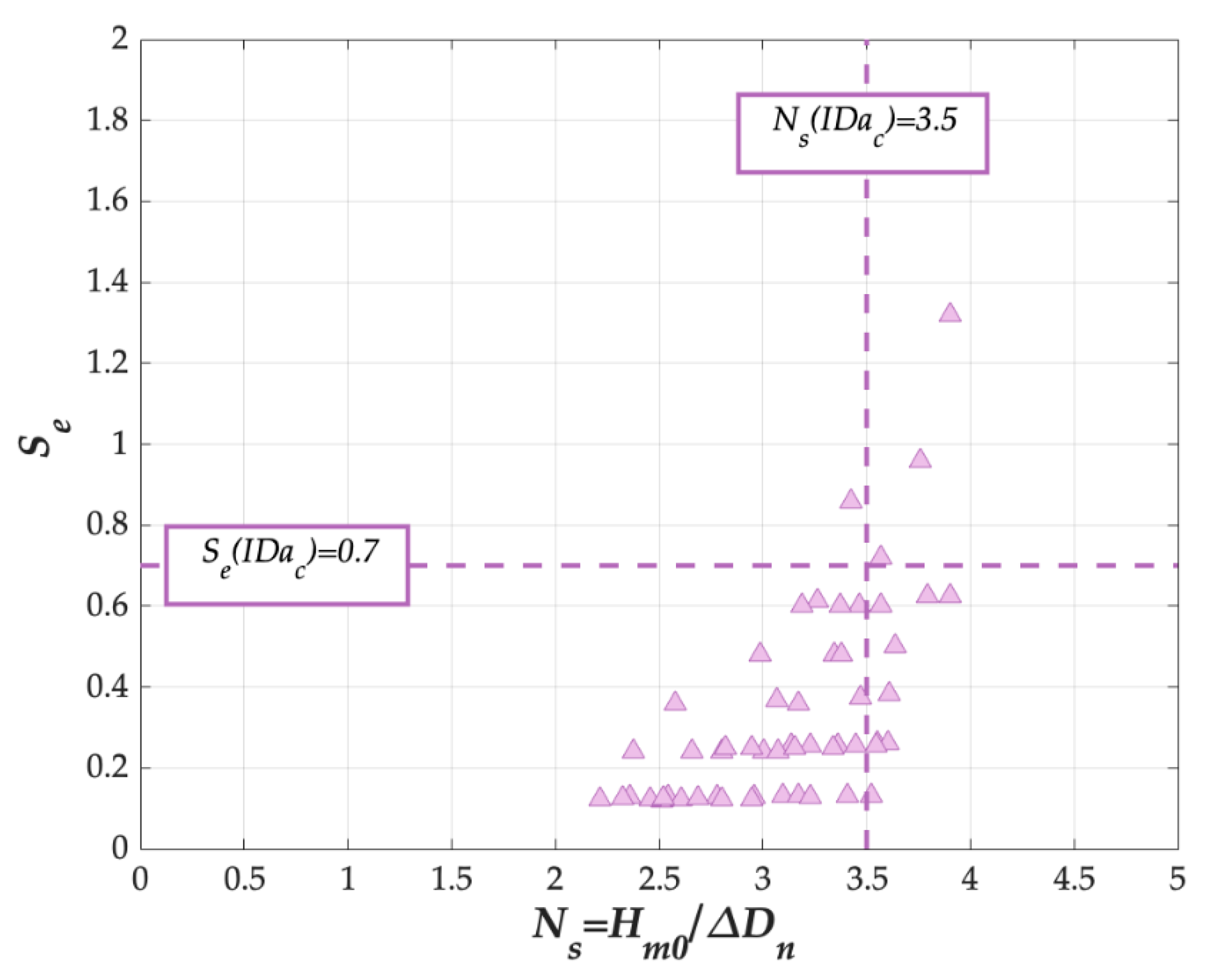

5.3. Cubipod®-Armored Model

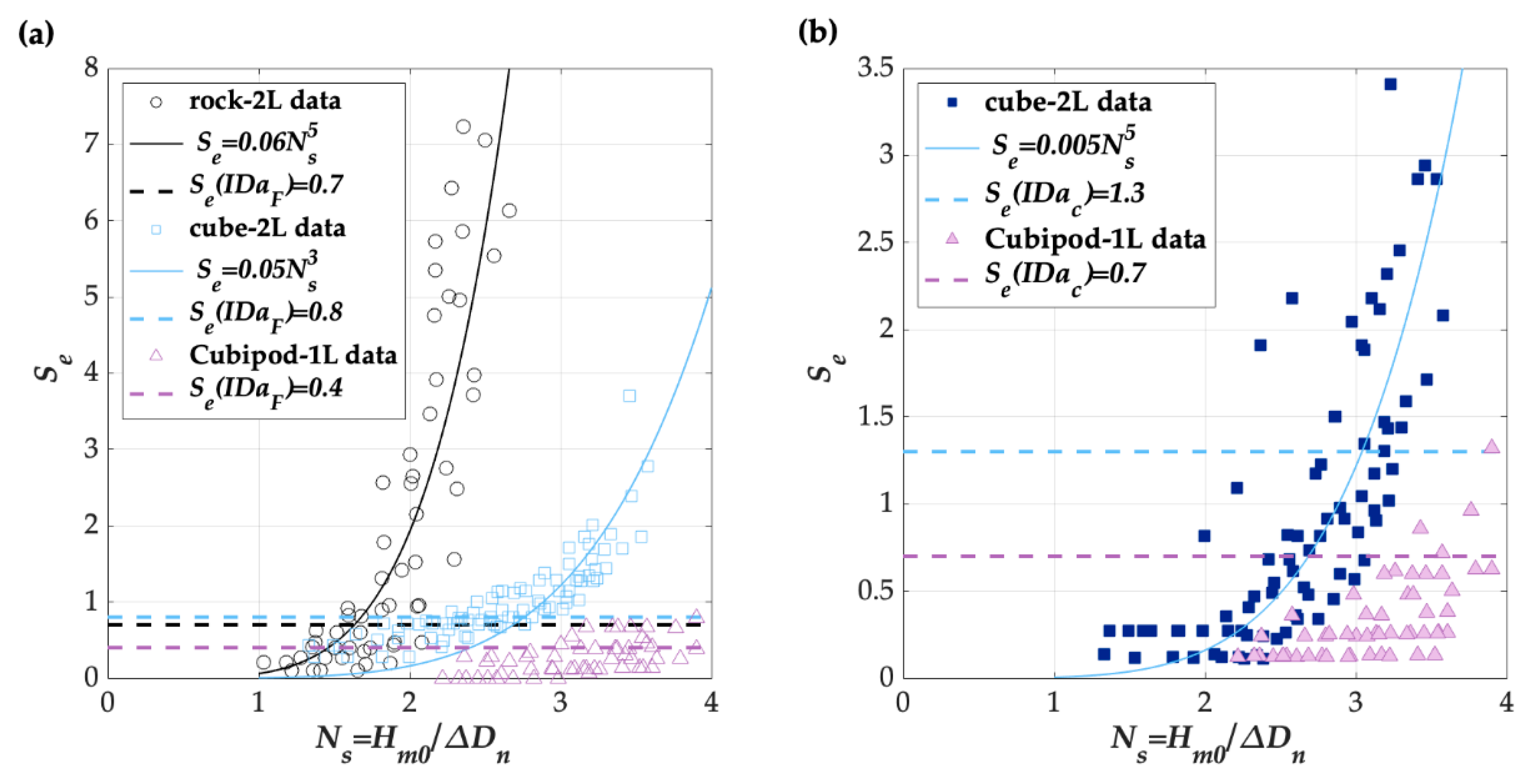

5.4. Influence of the Armor Unit and the Armor Sector
5.5. Comparison with Non-Overtopped Structures
6. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Hudson, R.Y. Laboratory Investigation of Rubble-Mound Breakwaters. J. Waterw. Harb. Div. 1959, 85, 93–121. [Google Scholar] [CrossRef]
- Van der Meer, J.W. Rock Slopes and Gravel Beaches under Wave Attack. Ph.D. Thesis, Thecnical University of Delft, Delft, The Netherlands, 1988. [Google Scholar]
- Van Gent, M.R.A.; Smale, A.J.; Kuiper, C. Stability of Rock Slopes with Shallow Foreshores. In Proceedings of the Coastal Structures 2003, Portland, OR, USA, 26–30 August 2003; pp. 100–112. [Google Scholar]
- Herrera, M.P.; Gómez-Martín, M.E.; Medina, J.R. Hydraulic stability of rock armors in breaking wave conditions. Coast. Eng. 2017, 127, 55–67. [Google Scholar] [CrossRef]
- Mares-Nasarre, P.; Molines, J.; Gómez-Martín, M.E.; Medina, J.R. Explicit Neural Network-derived formula for overtopping flow on mound breakwaters in depth-limited breaking wave conditions. Coast. Eng. 2021, 164, 103810. [Google Scholar] [CrossRef]
- Vidal, C.; Losada, M.A.; Medina, R.; Mansard, E.P.D.; Gomez-Pina, G. A Universal Analysis for the Stability of Both Low-Crested and Submerged Breakwaters. In Proceedings of the 23rd International Conference on Coastal Engineering, Venice, Italy, 4–9 October 1993; American Society of Civil Engineers: New York, NY, USA, 1993; pp. 1679–1692. [Google Scholar]
- Argente, G. Estudio de la Estabilidad Hidráulica de Diques en Talud Rebasables Protegidos Con Mantos de Escollera, Cubos y Cubípodos. Ph.D. Thesis, Universitat Politècnica de València, Valencia, Spain, 2019. (In Spanish). [Google Scholar]
- Medina, J.R.; Hudspeth, R.T.; Fassardi, C. Breakwater Armor Damage due to Wave Groups. J. Waterw. Port Coastal Ocean Eng. 1994, 120, 179–198. [Google Scholar] [CrossRef]
- Etemad-Shahidi, A.; Bali, M.; Van Gent, M.R.A. On the stability of rock armored rubble mound structures. Coast. Eng. 2020, 158, 103655. [Google Scholar] [CrossRef]
- Vidal, C.; Medina, R.; Lomónaco, P. Wave height parameter for damage description of rubble-mound breakwaters. Coast. Eng. 2006, 53, 711–722. [Google Scholar] [CrossRef]
- Gómez-Martín, M.E.; Medina, J.R. Damage progression on cube armored breakwaters. In Proceedings of the 30th International Conference on Coastal Engineering, Diego, CA, USA, 3–8 September 2006; World Scientific Publishing Company: Singapore, 2006; pp. 5229–5240. [Google Scholar]
- Gómez-Martín, M.E.; Medina, J.R. Heterogeneous Packing and Hydraulic Stability of Cube and Cubipod Armor Units. J. Waterw. Port Coast. Ocean Eng. 2014, 140, 100–108. [Google Scholar] [CrossRef]
- Losada, M.A.; Desire, J.M.; Alejo, L.M. Stability of Blocks as Breakwater Armor Units. J. Struct. Eng. 1986, 112, 2392–2401. [Google Scholar] [CrossRef]
- Vidal, C.; Losada, M.A.; Medina, R. Stability of Mound Breakwater’s Head and Trunk. J. Waterw. Port Coastal Ocean Eng. 1991, 117, 570–587. [Google Scholar] [CrossRef]
- Gómez-Martín, M.E. Análisis de la Evolución de Averías en el Manto Principal de Diques en talud Formado por Escolleras, Cubos y Cubípodos. Ph.D. Thesis, Universitat Politècnica de València, Valencia, Spain, 2015. (In Spanish). [Google Scholar]
- USACE Shore Protection Manual; U.S. Army Coastal Engineering Research Center U.S. Army Engineer Waterways Experiment Station: Vicksburg, MA, USA, 1975.
- USACE Shore Protection Manual; U.S. Army Coastal Engineering Research Center, U.S. Army Engineer Waterways Experiment Station: Vicksburg, MA, USA, 1984.
- Thompson, D.M.; Shuttler, R.M. Riprap Design for Wind Wave Attack. A Laboratory Study in Random Waves; Report EX 707; Hydraulic Research: Wallingford, UK, 1975. [Google Scholar]
- Smith, G.; Wallast, I.; Van Gent, M.R.A. Rock slope stability with shallow foreshores. In Proceedings of the 28th International Conference on Coastal Engineering, Cardiff, UK, 7–12 July 2002; World Scientific Publishing Company: Singapore, 2003; pp. 1524–1536. [Google Scholar]
- Prevot, G.; Boucher, O.; Luck, M.; Benoit, M. Stability of rubble mound breakwaters in shallow water and surf zone: An experimental study. Coast. Eng. 2012, 1, 85. [Google Scholar] [CrossRef]
- Gómez-Martín, M.E.; Herrera, M.P.; Gonzalez-Escriva, J.; Medina, J.R. Cubipod® Armor Design in Depth-Limited Regular Wave-Breaking Conditions. J. Mar. Sci. Eng. 2018, 6, 150. [Google Scholar] [CrossRef] [Green Version]
- Van der Meer, J.W.; Daemen, I.F.R. Stability and Wave Transmission at Low-Crested Rubble-Mound Structures. J. Waterw. Port Coast. Ocean Eng. 1994, 120, 1–19. [Google Scholar] [CrossRef]
- Van der Meer, J.W.; Pilarczyk, K.W. Stability of Low-Crested and Reef Breakwaters. In Proceedings of the 22nd International Conference on Coastal Engineering, Delft, The Netherlands, 2–6 July 1990; American Society of Civil Engineers: New York, NY, USA, 1991; pp. 1375–1388. [Google Scholar]
- Burger, G. Stability of Low-Crested Breakwaters. Final Proceedings 1995; EU research Project Rubble Mound Breakwaters Failure Modes, MAST 2 Contrast MAS2-CT92-0042; Delft Hydraulics Report H1878/H2415. 2006. Available online: http://www.vandermeerconsulting.nl/downloads/stability_e/1996_vandermeer_tutuarima.pdf (accessed on 31 August 2021).
- Van der Meer, J.W. Stability of cubes, tetrapods and accropode. In Design of Breakwaters; Thomas Telford Publishing: London, UK, 1988; pp. 71–80. [Google Scholar]
- Vidal, C.; López, F.; Losada Rodríguez, Í. Stability analysis of low crested and submerged rubble mound breakwaters: Relationship between flow characteristics and measured damage and stability formulae for low crested and submerged breakwaters. In Proceedings of the Proc. Coastal Structures 2007, Venice, Italy, 2–4 July 2007; World Scientific Publishing Company: Singapore, 2009; pp. 939–950. [Google Scholar]
- Van der Linde, J.P. Stability of Single Layer Armour Units on Low-Crested Structures. Master’s Thesis, Delft University of Technology, Delft, The Nertherlands, 2010. [Google Scholar]
- Muttray, M.; ten Oever, E.; Reedijk, B. Stability of Low Crested and Submerged Breakwaters with Single Layer Armouring. J. Shipp. Ocean Eng. 2012, 2, 140–152. [Google Scholar]
- Argente, G.; Gómez-Martín, M.E.; Medina, J.R. Hydraulic stability of the armor layer of overtopped breakwaters. J. Mar. Sci. Eng. 2018, 6, 143. [Google Scholar] [CrossRef] [Green Version]
- Mansard, E.P.D.; Funke, E.R. The Measurement of Incident and Reflected Spectra Using a Least squares Method. In Proceedings of the 17th International Conference on Coastal Engineering, Sydney, Australia, 23–28 March 1980; ASCE: Reston, VA, USA, 1980; pp. 154–172. [Google Scholar]
- Mares-Nasarre, P.; Gómez-Martín, M.E.; Medina, J.R. Influence of mild bottom slopes on the overtopping flow over mound breakwaters under depth-limited breaking wave conditions. J. Mar. Sci. Eng. 2020, 8, 3. [Google Scholar] [CrossRef] [Green Version]
- Mares-Nasarre, P.; Molines, J.; Gómez-Martín, M.E.; Medina, J.R. Individual wave overtopping volumes on mound breakwaters in breaking wave conditions and gentle sea bottoms. Coast. Eng. 2020, 159, 103703. [Google Scholar] [CrossRef]
- Figueres, M.; Medina, J.R. Estimating incident and reflected waves using a fully nonlinear wave model. In Proceedings of the 29th International Conference on Coastal Engineering, Lisboa, Portugal, 19–24 September 2004; pp. 594–603. [Google Scholar]
- Verhagen, H.J.; van Vledder, G.; Arab, S.E. A practical method for design of coastal structures in shallow water. In Proceedings of the 31st International Conference on Coastal Engineering, Hamburg, Germany, 31 August–5 September 2008; World Scientific Publishing Company: Singapore, 2008; pp. 2912–2922. [Google Scholar]
- Battjes, J.A.; Groenendijk, H.W. Wave height distributions on shallow foreshores. Coast. Eng. 2000, 40, 161–182. [Google Scholar] [CrossRef]
Armor | Sector | C1 | C2 |
---|---|---|---|
Rock-2L | Front slope | 0.633 | −0.056 |
Cube-2L | Front slope | 0.137 | 0.621 |
Cube-2L | Crest | 0.240 | 0.362 |
Cube-2L | Rear slope | 0.255 | 0.113 |
Material | M or M50 (g) | ρ or ρr (g/cm3) | Dn or Dn50 (cm) |
---|---|---|---|
Rock (armor) | 86.77 | 2.68 | 3.18 |
Cube | 141.51 | 2.27 | 3.97 |
Cubipod® | 121.06 | 2.22 | 3.79 |
Rock (filter) | 15.40 | 2.73 | 1.78 |
Rock (core) | 0.68 | 2.72 | 0.68 |

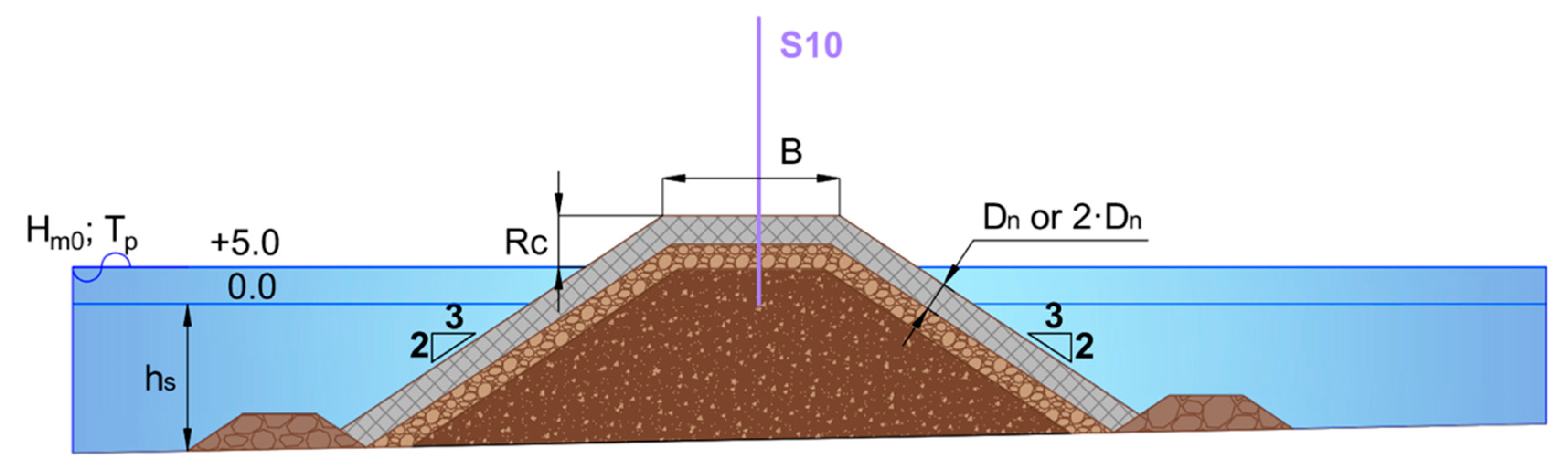

m | Armor | B [m] | #Tests | hs [m] | Rc [m] | Hm0 [m] | Tp [s] |
---|---|---|---|---|---|---|---|
2% | Rock-2L | 0.26 | 15 | 0.20 | 0.15 | 0.06–0.12 | 1.0–2.2 |
15 | 0.25 | 0.10 | 0.06–0.13 | 1.0–2.2 | |||
cube-2L | 0.27 | 30 | 0.25 | 0.11 | 0.05–0.16 | 1.0–2.7 | |
24 | 0.30 | 0.06 | 0.06–0.18 | 1.0–2.2 | |||
Cubipod®-1L | 0.24 | 30 | 0.20 | 0.12 | 0.06–0.15 | 1.0–2.7 | |
30 | 0.25 | 0.07 | 0.06–0.17 | 1.0–2.7 | |||
4% | rock-2L | 0.26 | 20 | 0.20 | 0.15 | 0.05–0.14 | 1.0–2.4 |
18 | 0.25 | 0.10 | 0.06–0.13 | 1.0–2.2 | |||
cube-2L | 0.27 | 30 | 0.20 | 0.16 | 0.05–0.17 | 1.1–2.4 | |
30 | 0.25 | 0.11 | 0.06–0.18 | 1.0–2.7 | |||
Cubipod®-1L | 0.24 | 28 | 0.20 | 0.12 | 0.06–0.17 | 1.0–2.4 | |
30 | 0.25 | 0.07 | 0.06–0.18 | 1.0–2.7 |

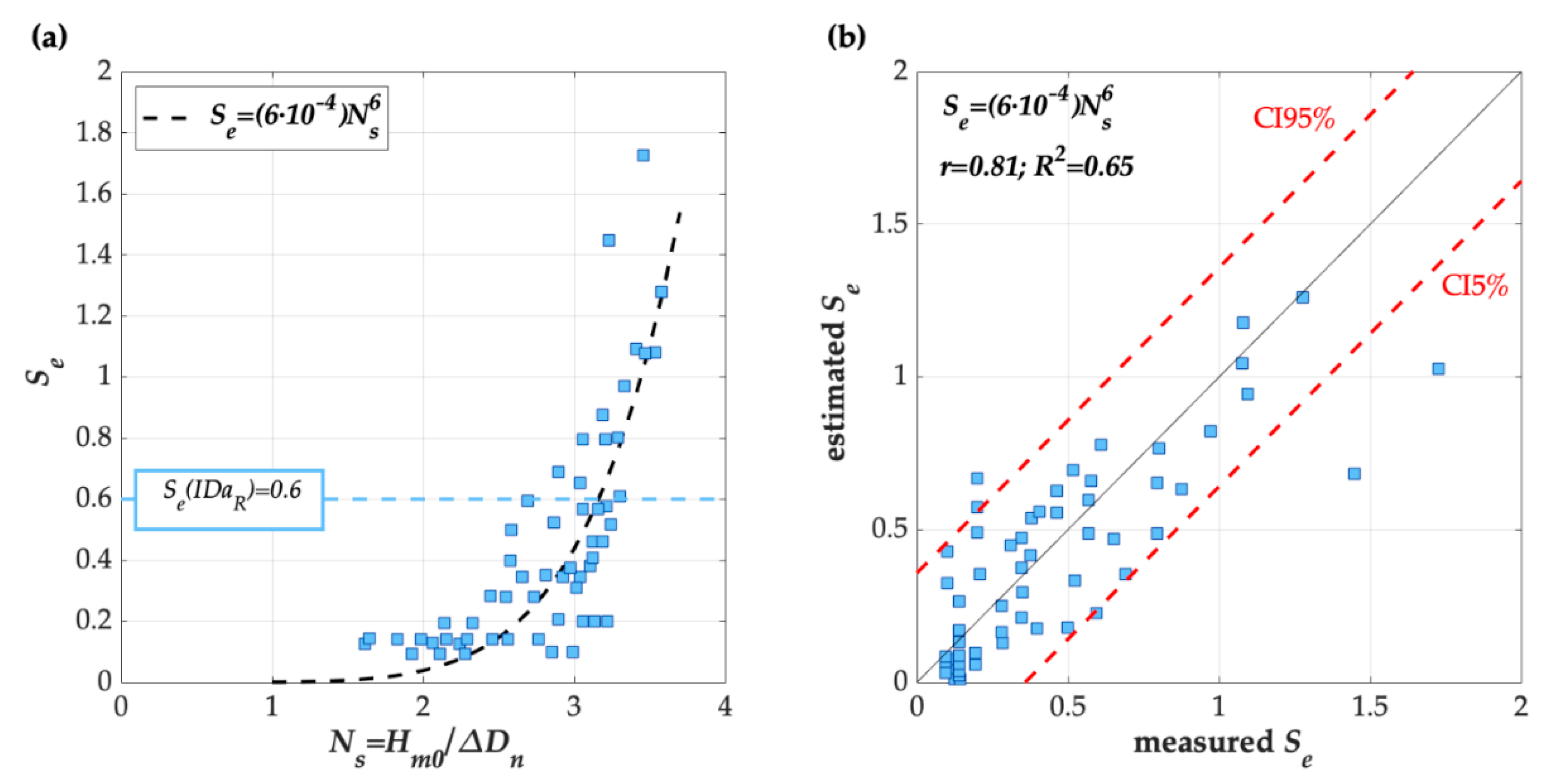

Armor Layer | ∆Dn (cm) | Front Slope | Crest | Rear Side | ||||||
---|---|---|---|---|---|---|---|---|---|---|
K1 | K2 | Ns (IDa) | K1 | K2 | Ns (IDa) | K1 | K2 | Ns (IDa) | ||
rock-2L | 5.34 | 0.06 | 5 | 1.6 | - | - | - | - | - | - |
cube-2L | 5.04 | 0.05 | 3 | 2.5 | 0.005 | 5 | 3.0 | 6 × 10−4 | 6 | 3.2 |
Cubipod®-1L | 4.62 | - | - | 3.5 | - | - | 3.5 | - | - | - |
