Enhancing the Usability of In-Situ Marine Observations Under Increasing Uncertainty of Satellite Data: A Spatiotemporal Interpolation Approach for Korean Offshore and Coastal Waters

Abstract

Advanced time series interpolation techniques used for estimating marine environmental factors encounter challenges regarding their usability, practical implementation, and reproducibility outside of marine science laboratories. This study aimed to interpolate NIFS Serial Oceanographic Observations and develop a system for analyzing complex factors in offshore and coastal fishing ground formation in South Korea. Additionally, the study explored the potential for integration of spatiotemporally discontinuous in situ data with continuously available satellite data through interpolation methods. Specifically, daily sea temperature and salinity data were generated through conventional time series interpolation techniques such as linear, cubic spline, and STL + PCHIP, and spatial interpolation techniques such as IDW, kriging, and natural neighbor were used to construct monthly raster data. The generated data were compared with the output of the GOFS3.1 model, and statistical indices such as MAE, RMSE, R², and Pearson or Spearman correlation coefficients were used to evaluate the accuracy and reproducibility. Cubic spline temporal and kriging spatial interpolation methods demonstrated strong performance for the sea temperature data; however, the interpolation performance for the salinity data exhibited limited effectiveness owing to unique local variability. This study introduces techniques for transforming discontinuous in situ observational data into high-resolution data and demonstrates that the integrated use of in situ data can enhance our understanding of the fishing ground formation mechanisms and ecosystem-based fishery management.

1. Introduction

Marine environments are undergoing rapid transformation owing to the effects of climate change and human activities, which directly influence the formation of fishing grounds and the distribution of fishery resources [1,2]. Sea temperature and salinity are key indices that explain the physical structure of the ocean and changes in marine ecosystems, and are closely related to the distribution of fish schools, feeding behavior, and the resilience of resources [3]. Sea surface temperature (SST) is a primary indicator for climate change, and an increase in SST of 1 °C can result in a 9% decrease in overall catch volume and a 13% decrease in deep-sea fishery resources [4]. Climate change, particularly global warming, is leading to shifts in the distribution of fish species and the relocation of fishing grounds in the offshore and coastal waters of South Korea [5]. Korean offshore and coastal waters are important fishing grounds for various types of fisheries, such as large-scale purse seiners and trawlers. The analysis of environmental factors influencing the formation of these fishing grounds and their prediction is directly related to fishery production. Therefore, accurately determining spatiotemporal variations in environmental factors such as sea temperature and salinity is crucial for marine science as well as essential for establishing foundational data for the management of fishery resources and responding to climate change. Active research is being conducted in this area [6,7].

Currently, marine environmental data is generated and provided through various methods; however, each source has distinct advantages and limitations. For example, satellite-based data such as MODIS-a enables long-term monitoring of large water bodies, but its accuracy is affected by cloud cover, daily variation, and electromagnetic interference [8,9,10,11,12,13]. Numerical model reanalyses, based on models such as the Hybrid Coordinate Ocean Model, provide global marine data by assimilating satellite and in situ observations; however, their accuracy remains limited in coastal waters and near western boundary currents [14,15]. Moreover, the extent to which specific fixed-station coastal observations are incorporated into global reanalysis products is often not explicitly documented, which complicates their use as fully independent reference data. In-site observational data, such as the National Institute of Fisheries Science (NIFS) Serial Oceanographic Observations (NSO), are unaffected by these errors; however, because they are collected discontinuously at regular intervals, they do not adequately indicate spatiotemporal variation in the marine environment. Consequently, numerical models and satellite data have been used to address these limitations [16].

Previous studies have predominantly relied on data from satellite models or have focused on analyzing single variables, such as SST. Studies that use in situ data interpolation to construct and validate high-resolution environmental data are limited. Currently used advanced time-series interpolation techniques for marine environmental variables, such as DINEOF, Gaussian processes, and 3D/4D-Var, face limitations in usability, practical applicability, and reproducibility outside specialized marine science laboratories due to their high computational cost, complex hyperparameter tuning, and the need for expert-level implementation [17,18].

Therefore, for the temporal dimension, this study adopted linear interpolation, cubic spline interpolation, and STL decomposition combined with PCHIP interpolation as transparent and readily applicable methods that have been traditionally used for stable reconstruction of missing values in time-series data [19,20,21]. For the spatial dimension, IDW, kriging, and natural neighbor interpolation were selected considering observation density and the heterogeneous characteristics of the coastal–open ocean boundary, and the performance of each method was systematically compared [22,23]. Interpolation performance was evaluated using MAE, RMSE, and Pearson correlation coefficients, separately assessing the ability to reproduce monthly spatial patterns and the long-term consistency of time-series variations [22].

In this study, spatiotemporal interpolation was applied to sea temperature and salinity using NSOs, and the resulting interpolated fields were compared with numerical model reanalysis products to examine their relative consistency and limitations. Rather than treating numerical reanalysis as an independent ground truth, this study adopts interpolation as a transparent and standalone framework for utilizing NSO data and assessing the extent to which in situ observations alone can represent marine environmental variability.

At the same time, the results provide a basis for identifying conditions under which interpolation alone may be insufficient, thereby highlighting the necessity of complementary use with physically based numerical modeling approaches. Ultimately, this framework offers empirical grounds for discussing the integrated use of in situ observations and numerical models, and for motivating the development of regionally optimized marine numerical models tailored to the Korean coastal and offshore seas.

2. Materials and Methods

2.1. Data

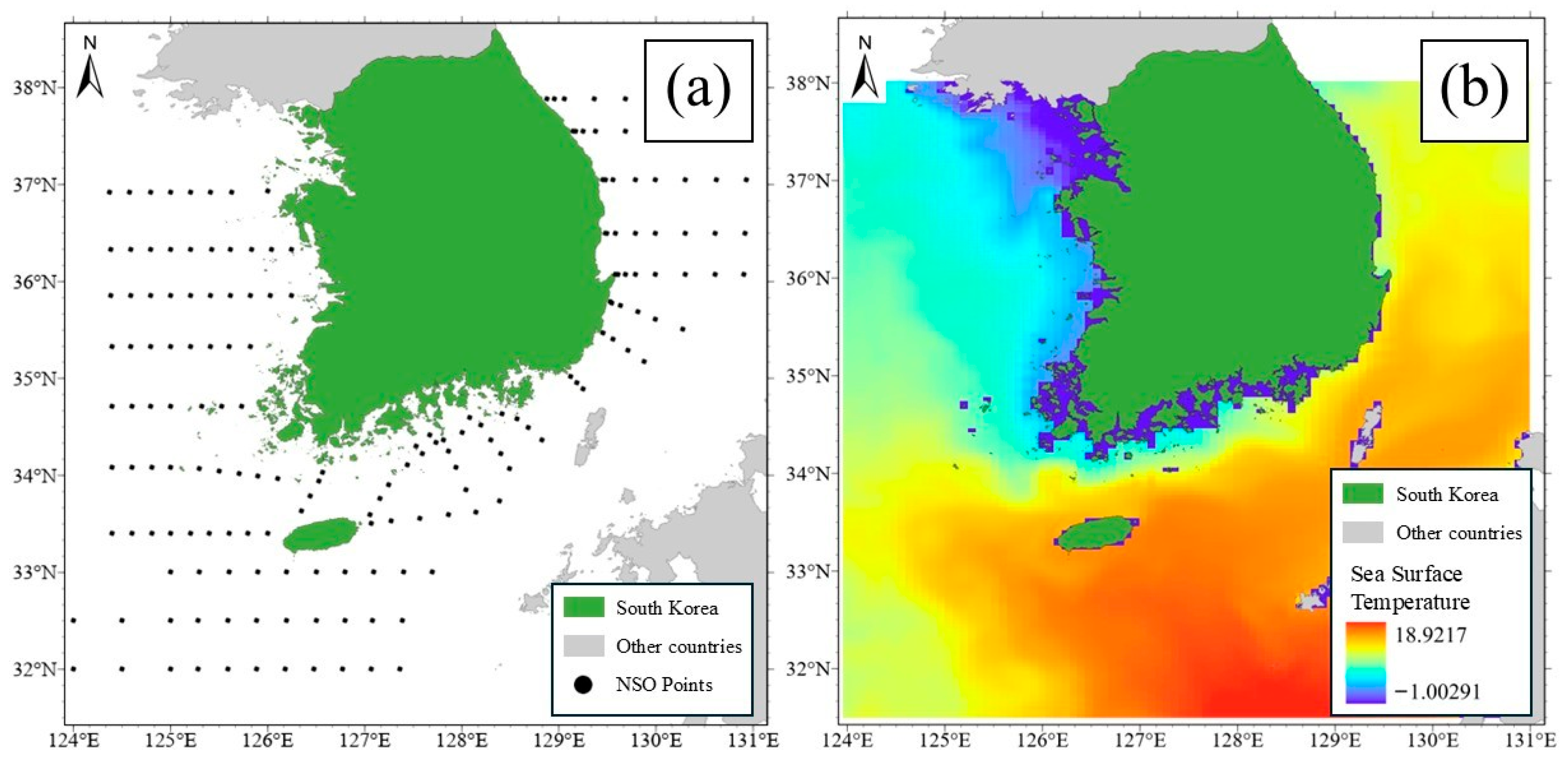

The NSO provides long-term, in situ, observational data from points along the offshore and coastal water of South Korea. By contrast, the GOFS 3.1 reanalysis data are based on a high-resolution numerical model of global waters (Figure 1). In this study, NSO sea temperature and salinity data observed at depths of 0, 30, and 50 m between January 2021 and December 2023 were used for interpolation. The GOFS 3.1 reanalysis data were employed as a complementary reference to examine large-scale spatiotemporal consistency with the interpolated NSO-derived fields, rather than as a strictly independent validation dataset. The characteristics of these two datasets are summarized in

Table 1. Characteristics of the sea temperature and salinity datasets used in this study.

Feature	NSO	GOFS 3.1 Reanalysis
Source	National Institute of Fisheries Science	U.S Navy’s Naval Research Laboratory
Spatial resolution	207 stations across 25 survey lines	0.08° × 0.04°
Time series resolution	Approximately 2 months	3 h
Vertical levels	14 standard water column layers	41 hybrid vertical layers
Variables	Temperature, salinity, DO, etc.	Temperature, salinity, currents, etc.

.

2.1.1. NIFS Serial Oceanographic Observation

This study used NSO data provided by the NIFS. The NSO data is based on a long-term observational survey that has been conducted six times yearly since 1961 in Korean offshore and coastal waters and the East China Sea. Currently, various marine environmental factors, such as sea temperature, salinity, dissolved oxygen, and mineral nutrients, are measured at 207 sites. The data in this study consisted of sea temperature and salinity measurements collected at each site at depths of 0, 30, and 50 m between January 2021 and December 2023. The NSO data is highly reliable because it consists of in situ observations at fixed sites accumulated over a long period of time. However, it is limited by spatiotemporal discontinuity, with large distances between sites and an observation frequency of only six times annually. Consequently, the usability is relatively lower than that of satellite-based remote sensing data and numerical model reanalysis, which has constrained its ability to effectively explain the spatially continuous marine environment. Therefore, interpolation was used to reconstruct this dataset as spatiotemporally continuous marine environmental data.

2.1.2. Global Ocean Forecast System 3.1

Global Ocean Forecast System version 3.1 (GOFS 3.1) reanalysis data were used for comparison and supplementary analysis. The GOFS 3.1 is a numerical model of the global ocean, generated based on the Hybrid Coordinate Ocean Model (HYCOM). It has a spatial resolution of 0.08° (lon) × 0.04° (lat) and, vertically, includes more than 40 levels. This study used sea temperature and salinity data, which were provided in 3 h intervals. The GOFS 3.1 assimilates data observed by satellites, buoys, and vessels, and was considered to be suitable as spatiotemporally continuous reference data for the marine environment [24]. While GOFS 3.1 provides a physically consistent large-scale background, the assimilation status of NSOs used in this study is not explicitly documented. Therefore, GOFS 3.1 was employed not as a strictly independent validation dataset, but as a complementary reference to compare large-scale spatial and temporal consistency with the interpolated NSO-derived fields.

2.2. Time Series Interpolation

In time series interpolation, the same location is defined as a longitude-latitude pair, and the points are arranged in ascending time order. Irregular observations were standardized into 1-day units by aggregating multiple observations in a single day as the daily average, and days without observations were recorded as missing values. Interpolation was conducted independently for each site, with times with observations remaining unchanged to anchor the curve. For numerical stability, the time axis was converted to units of ‘number of days since the reference day ${{\mathrm{x}}_0}^{\prime }\left(\mathrm{x}=\left(\mathrm{t}-{\mathrm{x}}_0\right)\right)$, and extrapolation was not performed. To construct the daily continuous time series $\widehat{\mathrm{y}}\left(\mathrm{x}\right)$ from irregular observations, three methods were used: linear interpolation, natural cubic spline interpolation, and STL decomposition + PCHIP interpolation. All three methods maintained $\widehat{\mathrm{y}}\left(\mathrm{x}\right)=\mathrm{y}\left(\mathrm{x}\right)$ at the observation times.

2.2.1. Linear Interpolation

$$\widehat{y}\left(x\right)=y_k+{\displaystyle \frac{y_{k+1}-y_k}{h_k}}\left(x-x_k\right)$$

(1)

Linear interpolation is a simple technique used to estimate the midpoint when a straight line is drawn between two adjacent data points. It is a computationally fast method that is easy to implement. However, in regions with non-linearity and severe variance, such as marine environmental data, this method may have difficulties in accurately capturing actual changes, and accuracy declines in intervals with abrupt changes [25].

In this study, using Equation (1), adjacent observations $\left({\mathrm{x}}_{\mathrm{k}},{\mathrm{y}}_{\mathrm{k}}\right),\left({\mathrm{x}}_{\mathrm{k}+1},{\mathrm{y}}_{\mathrm{k}+1}\right)$ were connected with a straight line. In the interval ${\mathrm{h}}_{\mathrm{k}}={\mathrm{x}}_{\mathrm{k}+1}-{\mathrm{x}}_{\mathrm{k}},\mathrm{x}\in \left[{\mathrm{x}}_{\mathrm{k}},{\mathrm{x}}_{\mathrm{k}+1}\right]$ only the continuity of the function’s values is guaranteed, and restoration of curved seasonality in areas with long periods of missing observations is limited. However, the method is computationally simple and is effective at restoring short periods of missing observations without excessive oscillations.

2.2.2. Natural Cubic Spline Interpolation

$$\begin{array}{c}\hfill h_{k-1}{M}_{k-1}+2\left(h_{k-1}+h_k\right)M_k+h_k{M}_{k+1}=6\left({\displaystyle \frac{y_{k+1}-y_k}{h_k}}-{\displaystyle \frac{y_k-y_{k-1}}{h_{k-1}}}\right)\hfill \\ \hfill k=1,\dots ,n-1,\hspace{1em} h_k=x_{k+1}-x_k\hfill \end{array}$$

(2)

Natural cubic spline interpolation smoothly connects data points using a cubic polynomial, producing a smoother curve by maintaining continuity in the first and second derivatives. Compared to linear interpolation, this method more effectively captures natural and accurate changes; however, its increased complexity results in a heavier computational load and sensitivity to boundary conditions [26].

The formula used in this study is shown in Equation (2). The total interval was divided into $\left[{\mathrm{x}}_{\mathrm{k}},{\mathrm{x}}_{\mathrm{k}+1}\right]$ and a cubic polynomial ${\mathrm{p}}_{\mathrm{k}}\left(\mathrm{x}\right)$ was constructed for each interval. At the observation points, the function value, slope, and continuity of the curve were constrained, and the natural boundary conditions ${\mathrm{p}}^{″}\left({\mathrm{x}}_0\right)={\mathrm{p}}^{″}\left({\mathrm{x}}_{\mathrm{n}}\right)=0$ were imposed at each end of the curve. The second derivatives at the observation points ${\mathrm{M}}_{\mathrm{k}}={\mathrm{p}}^{″}\left({\mathrm{x}}_{\mathrm{k}}\right)$ were obtained by solving a tridiagonal system of linear equations.

The interpolation equation for each interval is as follows:

$$p_k\left(x\right)={\displaystyle \frac{M_k{\left(x_{k+1}-x\right)}^3}{6h_k}}+{\displaystyle \frac{M_{k+1}{\left(x-x_k\right)}^3}{6h_k}}+\left(y_k-{\displaystyle \frac{M_k{h}_k^2}{6}}\right){\displaystyle \frac{x_{k+1}-x}{h_k}}+\left(y_{k+1}-{\displaystyle \frac{M_{k+1}{h}_k^2}{6}}\right){\displaystyle \frac{x-x_k}{h_k}}$$

(3)

2.2.3. STL Decomposition + PCHIP Interpolation

(1)

Season-Trend Decomposition using LOESS (STL)

$$y_t=T_t+S_t+R_t$$

(4)

STL is a technique for decomposing time series data into season, trend, and residual components. By effectively separating long-term changes from seasonal variation, this method facilitates a more precise interpretation of complex time series patterns [27].

A time series ${\mathrm{y}}_{\mathrm{t}}$ is decomposed based on Equation (4), where ${\mathrm{T}}_{\mathrm{t}}$ is the low-frequency trend, ${\mathrm{S}}_{\mathrm{t}}$ is the seasonal component, and ${\mathrm{R}}_{\mathrm{t}}$ is the residual. The STL function in the Python (version 3.11.4) statsmodels module was used, setting the annual period to m = 365 and the robustness flag to robust = True. Because STL does not allow missing values, linear interpolation was used to fill in missing values temporarily before fitting and decomposition.

(2)

Trend Interpolation using PCHIP

Partial Cubic Hermite Interpolating Polynomial (PCHIP) is an interpolation method that smoothly and naturally connects data points, and maintains continuity of the first and second derivatives. It provides a method for stable filling of missing values in observed data, and retains local extremes while preserving patterns in the original data without excessive oscillation [28].

PCHIP was performed on only the trends ${\mathrm{T}}_{\mathrm{t}}$ obtained from STL decomposition. The knot slope was set as ${\mathrm{m}}_{\mathrm{k}}={\mathrm{y}}^{\prime }\left({\mathrm{x}}_{\mathrm{k}}\right)$ based on the interval slope ${\mathrm{\delta }}_{\mathrm{k}}={\displaystyle \frac{{\mathrm{y}}_{\mathrm{k}+1}-{\mathrm{y}}_{\mathrm{k}}}{{\mathrm{h}}_{\mathrm{k}}}},\mathrm{ }{\mathrm{h}}_{\mathrm{k}}={\mathrm{x}}_{\mathrm{k}+1}-{\mathrm{x}}_{\mathrm{k}}.$ Although ${\mathrm{\delta }}_{\mathrm{k}-1}$ and ${\mathrm{\delta }}_{\mathrm{k}}$ are distinct, if either is 0, then ${\mathrm{m}}_{\mathrm{k}}=0$, preventing unnecessary extremes. In the interval $\left[{\mathrm{x}}_{\mathrm{k}},{\mathrm{x}}_{\mathrm{k}+1}\right]$, when $\mathrm{t}={\displaystyle \frac{\mathrm{x}-{\mathrm{x}}_{\mathrm{k}}}{{\mathrm{h}}_{\mathrm{k}}}}\in \left[\mathrm{0,1}\right]$,

$$\begin{array}{c}{p}_k\left(x\right)=h_{00}\left(t\right)y_k+h_{10}\left(t\right)h_k{m}_k +h_{01}\left(t\right)y_{k+1}+h_{11}\left(t\right)h_k{m}_{k+1},\\ h_{00}=2t^3-3t^2+1,h_{10}=t^3-2t^2+t,\\ {\mathrm{h}}_{01}=-2{\mathrm{t}}^3+3{\mathrm{t}}^2,{\mathrm{h}}_{11}={\mathrm{t}}^3-{\mathrm{t}}^2\end{array}$$

(5)

The final restored values combine the interpolated trends $\widetilde{{\mathrm{T}}_{\mathrm{t}}}$ and the seasonal component of STL ${\mathrm{S}}_{\mathrm{t}}$ in the form $\widehat{{\mathrm{y}}_{\mathrm{t}}}=\widetilde{{\mathrm{T}}_{\mathrm{t}}}+{\mathrm{S}}_{\mathrm{t}}$. At observation points, this is reverted to $\widehat{{\mathrm{y}}_{\mathrm{t}}}={\mathrm{y}}_{\mathrm{t}}$, to preserve exact interpolation. This method can prevent overshooting and maintain seasonal patterns even in regions with long intervals of missing values.

To test the reliability of daily water temperature and salinity data generated using the three interpolation techniques above, the results were compared with GOFS 3.1 data. Local comparisons based on the time series plots and quantitative comparisons across all points were performed simultaneously, and the reliability of the time series data and spatial applicability of each interpolation method were assessed.

2.3. Spatial Interpolation

To ensure spatial continuity of the marine environmental data, the Spatial Analyst tool in ArcGIS Pro 3.3 (Esri, Redlands, CA, USA, 2025) was used to apply three types of spatial interpolation techniques. Monthly raster datasets were generated by aggregating daily data that had been produced through prior time-series interpolation, and these monthly datasets were used as input data for spatial interpolation between January 2021 and December 2023. The coordinate system was converted to WGS1984, and the output cell size was set to a resolution of 0.08°, considering the spacing between observation points. The interpolation results were stored in GeoTIFF format and compared with monthly averages calculated from GOFS 3.1, which is based on a numerical ocean model.

2.3.1. Inverse Distance Weighted (IDW) Interpolation

IDW is a deterministic interpolation method in which weights are assigned depending on the distance from nearby observations, with large weights assigned to closer observations [23]. The value $\widehat{\mathrm{Z}}\left({\mathrm{s}}_0\right)$ at the prediction location ${\mathrm{s}}_0$ is defined as expressed in Equation (6):

$$\widehat{\mathrm{Z}}\left({\mathrm{s}}_0\right)={\displaystyle \frac{{\sum }_{\mathrm{i}=1}^{\mathrm{N}}\mathrm{d}{\left({\mathrm{s}}_0,\mathrm{ }{\mathrm{s}}_{\mathrm{i}}\right)}^{-\mathrm{p}}\mathrm{Z}\left({\mathrm{s}}_{\mathrm{i}}\right)}{{\sum }_{\mathrm{i}=1}^{\mathrm{N}}\mathrm{d}{\left({\mathrm{s}}_0,\mathrm{ }{\mathrm{s}}_{\mathrm{i}}\right)}^{-\mathrm{p}}}}$$

(6)

where $\mathrm{d}\left({\mathrm{s}}_0,{\mathrm{s}}_{\mathrm{i}}\right)$ is the distance between the prediction location and the observation point, and p is the exponent of the distance. In this study, the commonly adopted value $p=2$ was used, as it provides a stable balance between emphasizing local influence and avoiding excessive surface roughness, particularly under heterogeneous observation densities typical of coastal–open ocean transition zones. A global search radius was applied to ensure sufficient neighboring observations across the study area, thereby maintaining interpolation stability. IDW was selected for its computational efficiency and its ability to preserve observed spatial patterns without introducing model-based assumptions.

2.3.2. Kriging Interpolation

Kriging is a geostatistical method in which the variogram is estimated as a model of the spatial autocorrelation structure of the data, and then the linear unbiased estimator with the minimum variance is computed [23]. The general form of kriging is expressed in Equation (7).

$$\widehat{Z}\left(s_0\right)=\mathrm{ }{\displaystyle \sum _{i=1}^N}{\lambda }_i\mathrm{Z}\left(s_i\right),\mathrm{ }{\displaystyle \sum _i}{\lambda }_i=1$$

(7)

where the weights ${\lambda }_i$ are determined by the fitted semivariogram model. In this study, a spherical variogram model was adopted, as it is widely applied in marine environmental studies and effectively represents spatial structures characterized by short-range autocorrelation followed by a clear sill. The empirical semivariogram was first computed from the observed data, and initial parameter values were set to a nugget of 0.0, a partial sill of 1.0, and a range equal to 20 times the raster cell size. These parameters were subsequently fitted using the standard variogram fitting procedure implemented in ArcGIS Pro. A variable search radius was employed with a maximum of 12 neighboring points to avoid over-smoothing while maintaining numerical stability.

2.3.3. Natural Neighbor (NN) Interpolation

NN interpolation is a local interpolation method based on Voronoi diagrams. When the prediction location is inserted, the interpolation weights are equal to the proportional area occupied in each neighboring polygon [23]. The predicted values are expressed as follows.

$$\widehat{Z}\left(s_0\right)= {\displaystyle \sum _{i \in N\left(s_0\right)}}{\mathrm{\lambda }}_i\left(s_0\right)\mathrm{Z}\left(s_i\right), {\displaystyle \sum _i}{\mathrm{\lambda }}_i\left(s_0\right)=1$$

(8)

where ${\lambda }_i\left(s_0\right)$ represents the area-based weight associated with each neighboring point. NN interpolation generates a smooth ($C^1$-continuous) surface within the convex hull of the observations and does not extrapolate beyond the data domain. In this study, the default Natural Neighbor algorithm implemented in ArcGIS Pro was used without modification. This choice was intentional, as NN interpolation involves no user-defined smoothing or distance-related parameters, and the default implementation represents the standard and reproducible form of the method, minimizing subjective parameter tuning.

Natural Neighbor interpolation is sensitive to non-uniform station distributions, particularly under dense coastal and sparse offshore coverage. Accordingly, NN was included in this study as a comparative and diagnostic method to evaluate the influence of station distribution on interpolation performance, rather than as a primary prediction approach.

2.4. Indices to Access Interpolation Performance

When comparing the interpolated NSO-derived fields with GOFS 3.1 reanalysis data, direct assessment of absolute accuracy is inherently limited, as the comparison relies on time series at discrete locations rather than fully independent ground truth. Therefore, in this study, a set of statistical indices was employed to characterize relative error magnitude, variability, and consistency between datasets. The magnitudes of absolute and variance-based differences were quantified using MAE and RMSE, explanatory consistency was examined using the coefficient of determination (R²), and linear and monotonic relationships were analyzed using Pearson and Spearman correlation coefficients.

These indices are widely used to examine the performance and consistency of climate and marine datasets [29,30,31]. In this study, they were applied to facilitate a systematic comparison of interpolated NSO-derived fields with satellite-derived and numerical reanalysis data, rather than to imply strict independent validation.

3. Results and Discussion

3.1. Results of Time Series Interpolation

3.1.1. Sea Temperature Data (Time Series Interpolation)

To assess the temporal behavior of the interpolation results for sea temperature data, the interpolation results at specific points were compared graphically between each method in a time series plot. The graph provides a visual representation of the overall trends and relative consistency between the interpolation and GOFS 3.1 data over time, demonstrating the various patterns, such as seasonal variations, short-term anomalies, and the specific characteristics of each interpolation method

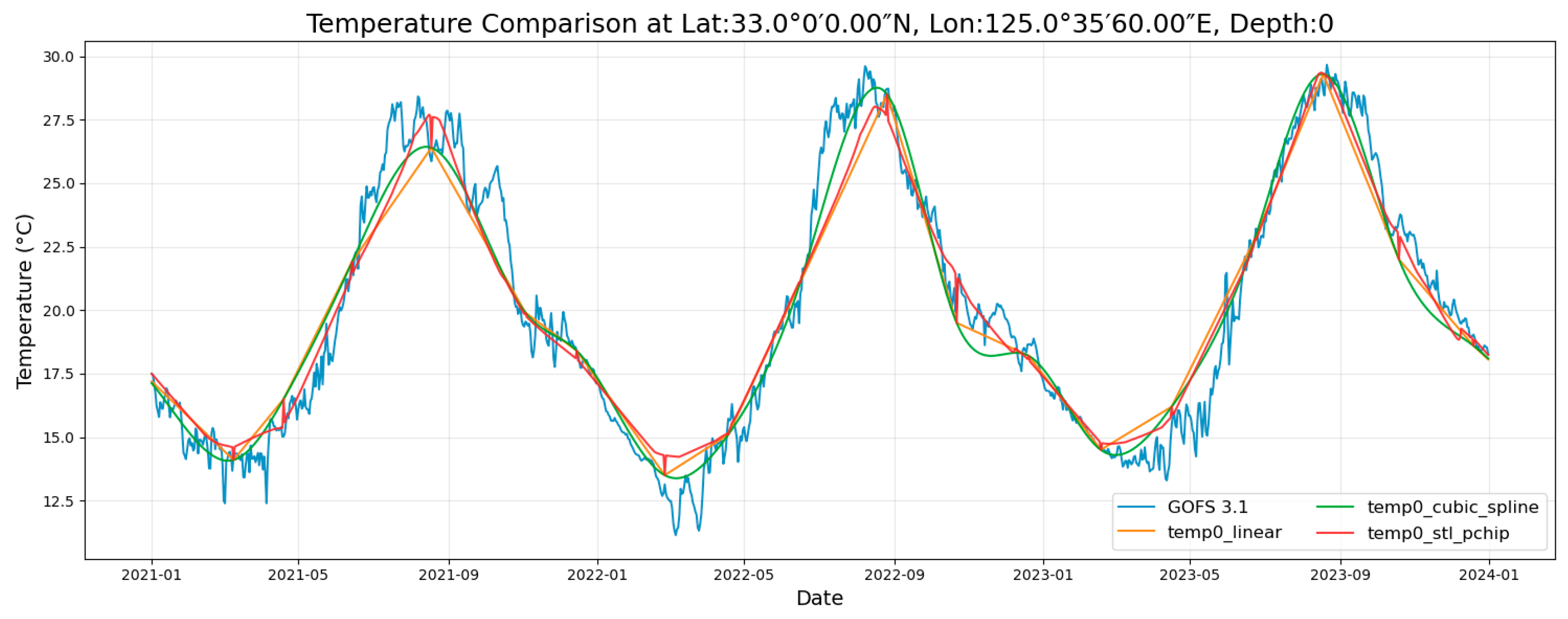

Figure 2 is a time series graph comparing GOFS 3.1 data with data generated by linear, cubic spline, or STL + PCHIP interpolations of NSO data for sea temperature at the surface (0 m) at an arbitrary location in the offshore and coastal waters of South Korea between January 2021 and December 2023.

The three interpolation methods all showed apparent season variation and exhibited similar large-scale temporal trends to those represented in the GOFS 3.1 reanalysis data. Linear interpolation produced sharp changes at the inflection points, while cubic spline interpolation generated a smooth curve that naturally connected seasonal cycles. The STL + PCHIP interpolation method more effectively captured the overall trends in sea temperature variation relative to the other interpolation methods, and exhibited abrupt changes close to the observed data points. However, the interpolation results showed differences in representing short-term variability when compared with the higher temporal resolution features present in the GOFS 3.1 reanalysis, highlighting the limitations of interpolation based on discrete observations.

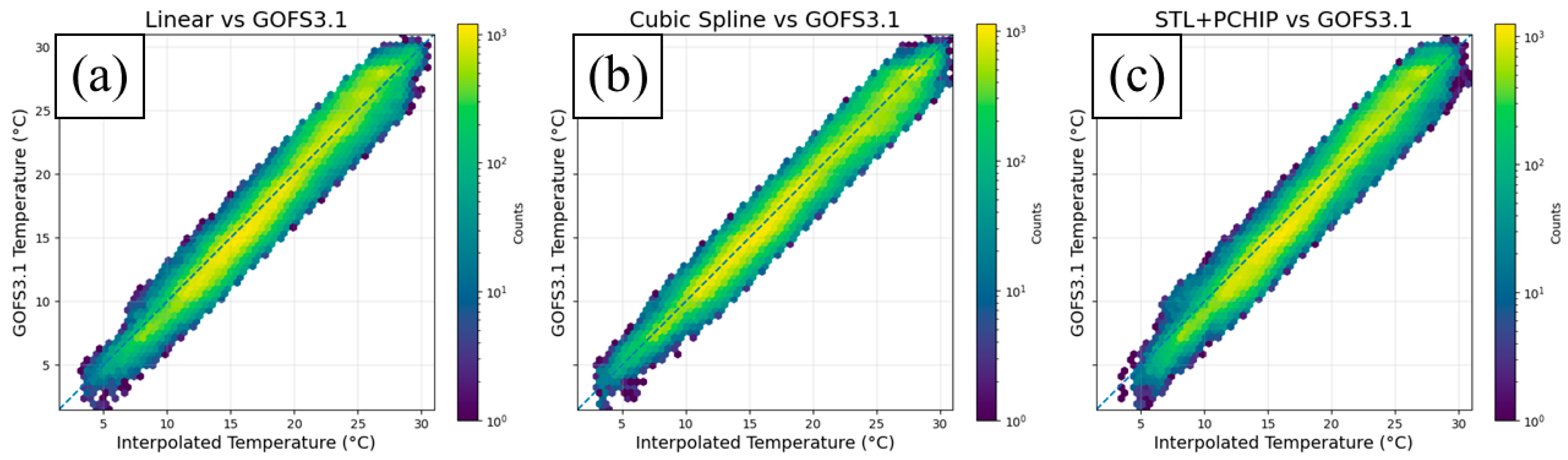

Figure 3 shows hexbin graphs comparing the interpolation and GOFS 3.1 data at all locations. In these graphs, a color closer to yellow indicates greater data density in a given bin, while a color closer to blue indicates lower density. The hexbin graphs indicate that the data is predominantly distributed along a 1:1 linear relationship between the GOFS 3.1 data and the data generated by each interpolation method, suggesting overall consistency in large-scale variability between the datasets. Thus, across all locations, the interpolation methods captured the general range and structure of marine environmental variability in a stable manner, while not implying strict independent validation.

These time series and hexbin graphs provide a visual demonstration of the relative behavior and consistency of the interpolation performance. The performance by depth and interpolation method is presented numerically in

Table 2. Performance metrics of temperature data by depth and time series interpolation method.

Method	Depth	MAE	RMSE	R2	Pearson	Spearman
	0 m	1.065	1.331	0.950	0.978	0.980
Linear	30 m	1.344	1.720	0.848	0.923	0.922
	50 m	1.443	1.833	0.781	0.892	0.893
	0 m	0.943	1.200	0.960	0.981	0.981
Cubic spline	30 m	1.273	1.654	0.863	0.933	0.932
	50 m	1.473	1.889	0.772	0.891	0.887
	0 m	1.079	1.344	0.949	0.979	0.980
STL + PCHIP	30 m	1.349	1.712	0.847	0.921	0.919
	50 m	1.416	1.789	0.794	0.896	0.894

.

Relatively strong performance was observed for all interpolation methods at the surface (0 m). Specifically, cubic spline interpolations showed comparatively favorable results, with the lowest MAE and RMSE and the highest R². In the middle layer (30 m), the R² values were 0.84–0.86, which were lower than those at the surface layer, and cubic spline interpolation continued to exhibit relatively better performance than the other methods. However, in the deep layer (50 m), the STL + PCHIP showed more stable results, with lower MAE and RMSE and higher R² than those of the other methods.

Analyses of the coefficients of determination showed that interpolation performance declined with increasing depth, likely attributable to the decreased seasonal variation in sea temperature at greater depths, resulting in an increased influence of short-term variance owing to physical factors. However, the correlation coefficients for all interpolation methods in all layers were ≥0.89, suggesting strong consistency in overall temporal trends represented in the interpolated sea temperature data.

Based on these results, cubic spline interpolation can be considered suitable for analyzing detailed marine environmental characteristics in the surface and middle layers, while techniques that provide stable performance, such as STL + PCHIP interpolation, may be more appropriate for deep layer. To enhance the precision of analysis in various studies, the complementary use of numerical model-based datasets (e.g., GOFS 3.1) together with in situ observations (NSO) is recommended.

3.1.2. Sea Salinity Data (Time Series Interpolation)

The interpolation behavior for salinity data was assessed using the same procedures as for the sea temperature data. Figure 4 shows a time series graph comparing the results of each interpolation method at a specific location. The time series graph visually demonstrates the overall trends in the data, and facilitates the identification of different trends, such as seasonal variation and short-term anomalies.

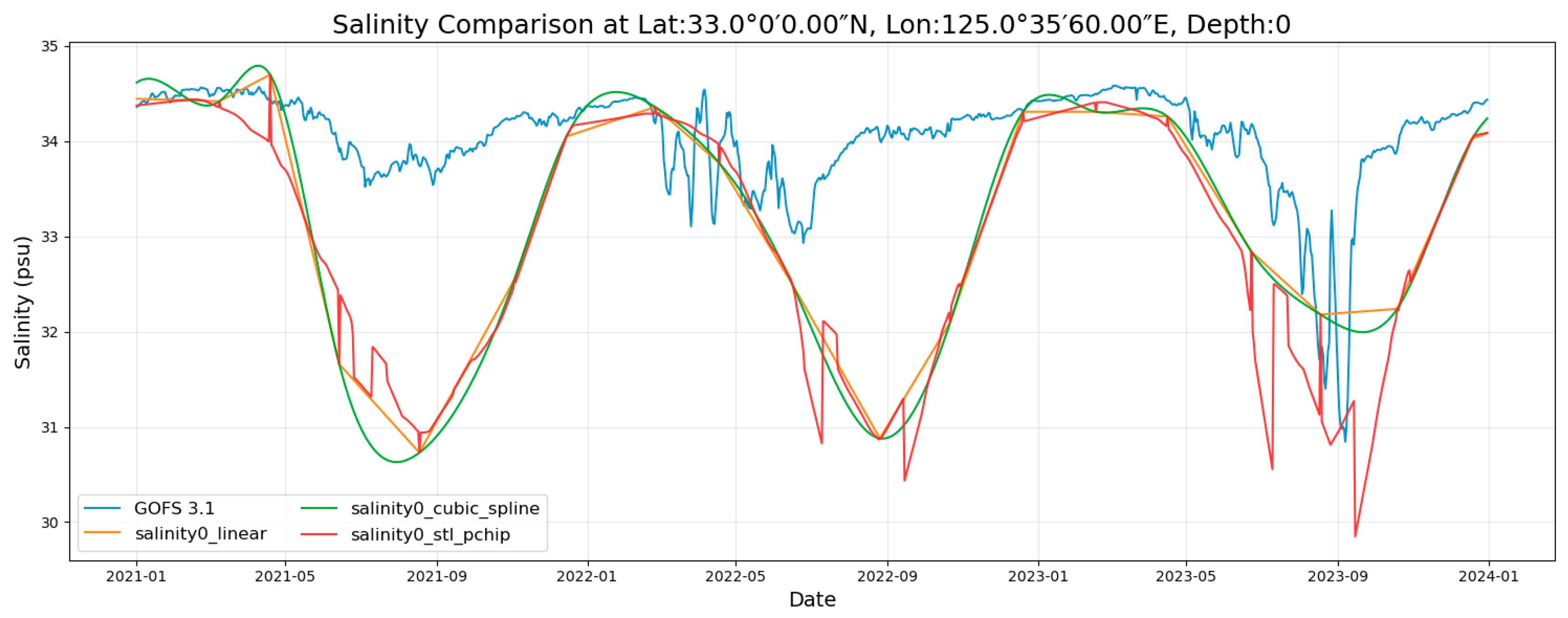

Figure 4 is a time series graph comparing GOFS 3.1 data with data generated by linear, cubic spline, or STL + PCHIP interpolations of NSO data for salinity at the surface (0 m) at an arbitrary location in the offshore and coastal waters of South Korea between January 2021 and December 2023.

The three interpolation techniques all showed apparent seasonal variation but exhibited noticeable differences relative to the short-term variability represented in the GOFS 3.1 reanalysis during summer periods. The time series characteristics of each interpolation method were generally similar to those observed for sea temperature; however, in contrast to sea temperature, the STL + PCHIP interpolation method partially reflected short-term variability. Nevertheless, the interpolated results showed limitations in capturing fine-scale temporal variability when compared with the higher temporal resolution features present in the GOFS 3.1 reanalysis, highlighting the challenges of interpolating salinity under sparse observations and strong local forcing.

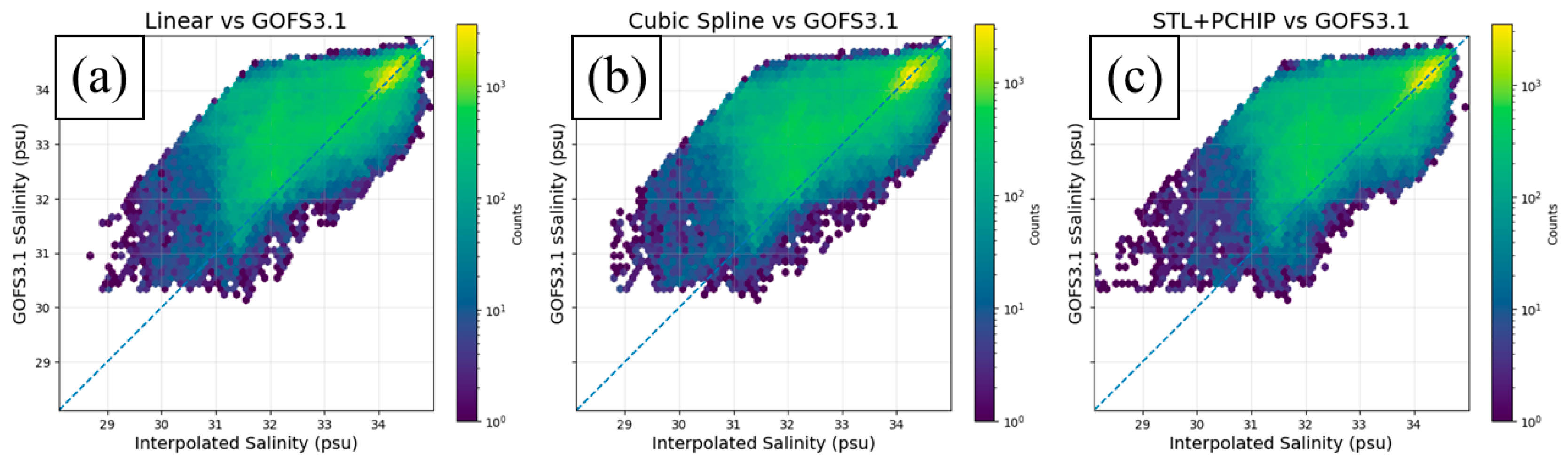

Figure 5 shows hexbin graphs comparing the interpolation data with the GOFS 3.1 data across all locations. The data generated with each interpolation technique are distributed along a 1:1 linear relationship with the GOFS 3.1 data, and the interpolated data were generally consistent in large-scale distribution with the GOFS 3.1 reanalysis. All three interpolation techniques showed similar behavior to the GOFS 3.1 data in high-salinity regions; however, in low-salinity regions, the GOFS 3.1 data tended to exhibit slightly higher values than the interpolated data, resulting in increased discrepancies in this range.

Table 3. Performance metrics of salinity data by depth and time series interpolation method.

Method	Depth	MAE	RMSE	R2	Pearson	Spearman
	0 m	0.673	0.928	−0.474	0.702	0.716
Linear	30 m	0.478	0.659	0.011	0.749	0.741
	50 m	0.318	0.440	0.331	0.833	0.718
	0 m	0.700	0.968	−0.599	0.701	0.718
Cubic spline	30 m	0.500	0.685	−0.066	0.740	0.735
	50 m	0.338	0.466	0.249	0.820	0.715
	0 m	0.694	0.961	−0.576	0.686	0.707
STL + PCHIP	30 m	0.453	0.630	0.092	0.755	0.746
	50 m	0.317	0.445	0.315	0.835	0.728

presents the comparative performance metrics of each interpolation method by depth for salinity data.

At the surface, all interpolation methods exhibited relatively weak performance, with moderate correlation coefficients of approximately 0.70 and limited explanatory power. In the middle layer (30 m), MAE and RMSE decreased, and both the coefficients of determination and correlation coefficients improved compared to those at the surface. In the deep layer (50 m), the coefficients of determination increased to positive values of 0.25–0.33, and Pearson correlation coefficients reached approximately 0.83, indicating stronger consistency in overall salinity trends.

Across all depths, the STL + PCHIP interpolation method produced relatively stable results; however, its performance remained lower than that observed for sea temperature. In contrast to sea temperature, which exhibited higher explanatory power at the surface, salinity showed improved explanatory characteristics at greater depths. Accordingly, interpretations based on interpolated salinity data should explicitly consider depth-dependent characteristics, particularly in the surface layer. Given the inherent limitations of interpolation for salinity, results are best interpreted in conjunction with complementary numerical model outputs, such as GOFS 3.1. Nevertheless, in the deep layer, interpolation alone can provide a reasonable level of consistency, supporting its potential utility in applied studies focused on fishing ground characteristics.

3.2. Results of Spatial Interpolation

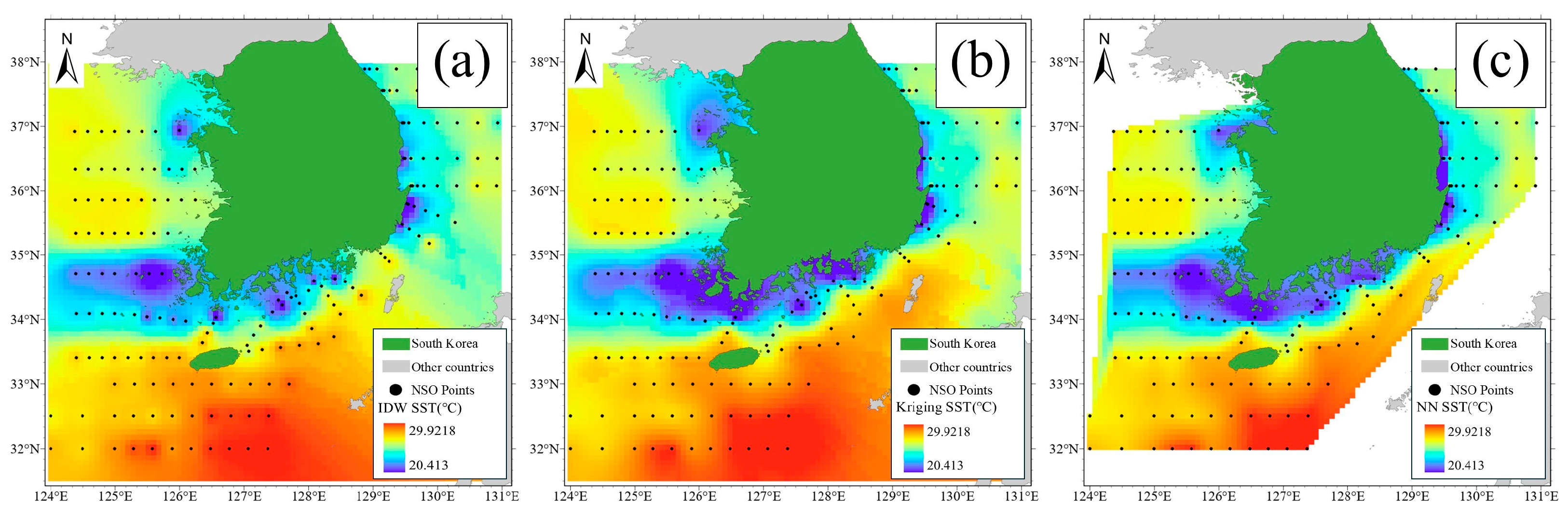

Figure 6 shows rasters of the SST generated by each of the spatial interpolation methods. The spatial reference range for each method was aligned with that of the GOFS 3.1 data for consistent spatial comparison. As NN (Figure 6c) is an interpolation method that remains within the boundaries of the original data, the interpolated data covers a smaller area of water than that of the other two methods.

3.2.1. Sea Temperature Data (Spatial Interpolation)

The performance of IDW, kriging, and NN interpolation for sea temperature data from the NSO was examined through comparison with GOFS 3.1 reanalysis data. The results organized by depth are presented in

Table 4. Performance metrics of temperature data by depth and spatial interpolation method.

Method	Depth	MAE	RMSE	R2	Pearson	Spearman
	0 m	0.725	0.951	0.643	0.871	0.873
IDW	30 m	1.250	1.552	0.737	0.903	0.906
	50 m	1.518	1.877	0.688	0.909	0.918
	0 m	0.712	0.921	0.663	0.883	0.888
Kriging	30 m	1.173	1.454	0.764	0.920	0.922
	50 m	1.396	1.715	0.733	0.928	0.941
	0 m	0.717	0.942	0.681	0.875	0.870
NN	30 m	1.235	1.546	0.721	0.877	0.865
	50 m	1.362	1.702	0.747	0.896	0.904

. In this analysis, the monthly spatial interpolation characteristics were calculated.

All three interpolation methods produced relatively high correlation coefficients, indicating strong consistency in overall sea temperature trends. Although both RMSE and MAE reflected a certain level of absolute difference, the results suggest that these methods are capable of representing the general spatial structure of sea temperature variability.

In the surface layer (0 m), the coefficients of determination were relatively low, likely owing to high variance and uncertainty in the satellite-based data for sea surface temperature. The middle layer (30 m) showed the highest coefficients of determination, suggesting greater spatial stability in the interpolated fields. In the deep layer (50 m), the correlation coefficients remained high; however, the coefficients of determination were slightly lower, indicating the heterogeneity of sea temperature variation owing to the physical characteristics of the deep layer.

Kriging interpolation showed comparatively favorable results, with the lowest or equal MAE and RMSE at all depths, and the highest coefficients of determination. Although IDW interpolation is a simple method, it demonstrated consistent performance, with a relatively high RMSE. NN interpolation showed relatively high coefficients of determination at specific points; however, its overall consistency was lower than that of kriging interpolation.

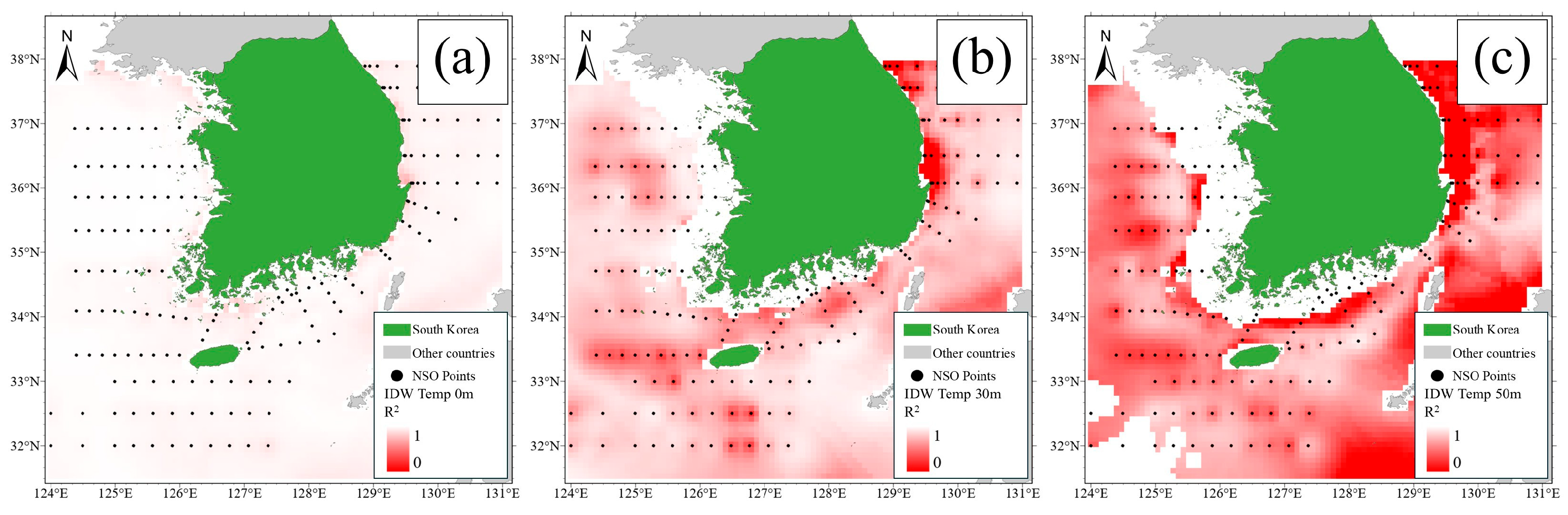

Figure 7 is a spatial visualization of per-pixel time series-based interpolation consistency (R²) for sea temperature data by depth. In the surface layer (0 m), the interpolated values showed strong temporal correspondence at each location in all waters, with high coefficients of determination. This indicates that the interpolated sea temperature data at the surface maintained consistent temporal behavior over time; however, certain spatially localized deviations were observed. However, with increasing depth, the observed patterns differed from those at the surface layer. In the deep layer, the interpolation methods had low coefficients of determination for time series-based performance but showed high coefficients of determination in analyses of monthly spatial distributions. This indicates that the temporal consistency deteriorates at deeper layers, while spatial patterns remain comparatively coherent. Additionally, the waters where temporal inconsistency was less pronounced were mostly situated around the east coast, and near the coast of Tsushima and Japan.

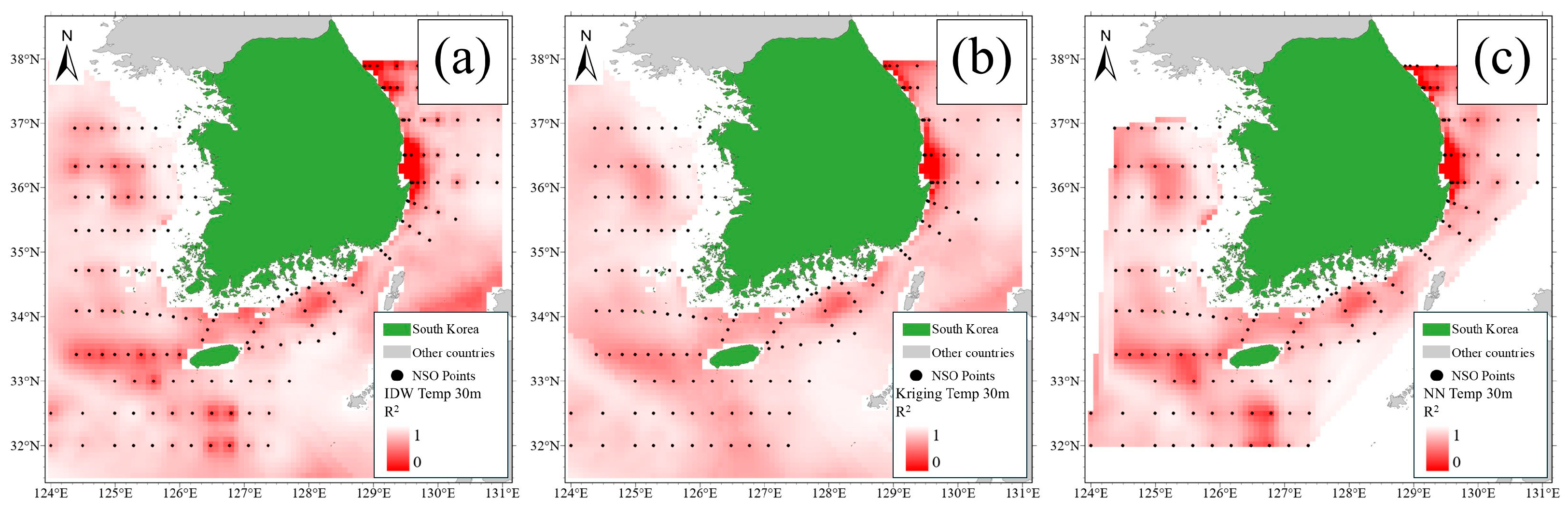

Kriging interpolation (Figure 8b) achieved the highest coefficients of determination across all waters, indicating relatively stable spatial consistency and smoother interpolated fields compared with the other methods. Although IDW (Figure 8a) is a relatively simple approach and exhibited generally consistent behavior, it exhibited localized performance deterioration, particularly in areas with sparse observations. Natural Neighbor (NN) interpolation (Figure 8c) yielded high coefficients of determination at certain sites; however, it showed considerable spatial instability and relatively lower consistency across the study area. This behavior is consistent with the known sensitivity of NN interpolation to non-uniform station distributions, where dense coastal observations and sparse offshore coverage can lead to uneven interpolation performance. In this context, the reduced stability of NN interpolation highlights the strong influence of observation network geometry on interpolation outcomes and further underscores the robustness of kriging interpolation for analyzing marine environmental fields based on NSO data.

3.2.2. Sea Salinity Data (Spatial Interpolation)

Table 5. Performance metrics of salinity data by depth and spatial interpolation method.

Method	Depth	MAE	RMSE	R2	Pearson	Spearman
	0 m	0.774	0.988	−0.706	0.641	0.610
IDW	30 m	0.516	0.707	0.134	0.738	0.689
	50 m	0.363	0.507	0.445	0.836	0.734
	0 m	0.777	1.006	−0.590	0.642	0.614
Kriging	30 m	0.526	0.733	0.118	0.727	0.682
	50 m	0.374	0.537	0.419	0.821	0.739
	0 m	0.780	1.014	−0.643	0.595	0.575
NN	30 m	0.537	0.737	0.115	0.719	0.688
	50 m	0.349	0.489	0.467	0.842	0.738

presents the results for the three spatial interpolation techniques following the application of the monthly spatial interpolation performance assessment method to interpolated salinity data from the NSO.

The three interpolation techniques all limited overall explanatory capacity. In the surface layer (0 m), all methods showed negative coefficients of determination, indicating difficulty in representing spatial variations in salinity patterns. The correlation coefficients were approximately 0.6, suggesting that the results only partially represented spatial patterns. In the middle layer (30 m), the coefficients of determination were positive, indicating a slight improvement in the interpolation performance, although values remained relatively low. The deep layer (50 m) exhibited the lowest MAE and RMSE and the highest coefficients of determination, at 0.419–0.467, suggesting relatively more consistent behavior of the interpolated salinity fields at greater depths.

No substantial differences in performance were observed among the interpolation techniques. Even kriging interpolation, which explicitly accounts for spatial autocorrelation, did not demonstrate clear advantages over IDW or Natural Neighbor interpolation. This result indicates that, in contrast to sea temperature, salinity exhibits inherently low spatial continuity and strong local variability. Salinity is governed by multi-scale physical processes, including freshwater inputs, coastal mixing, and localized circulation, which generate sharp spatial gradients that are difficult to reproduce using purely mathematical interpolation based on sparse observation networks.

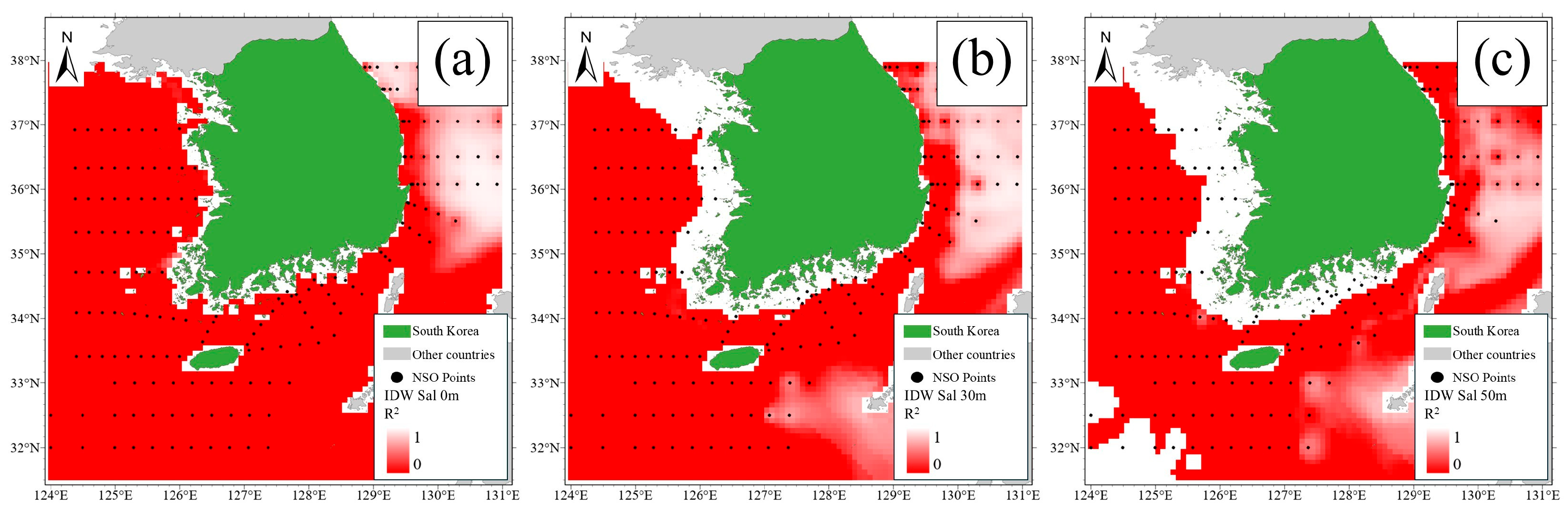

Figure 9 shows the spatial visualization of the per-pixel time series-based interpolation consistency (R²) for salinity data by depth. In the surface layer (0 m), salinity interpolation exhibited limited explanatory capacity. Although limited improvements in performance were observed near the east coast and Jeju-do at increased depths, the overall explanatory power remained low. These results highlight a fundamental limitation in applying pure interpolation approaches to salinity fields: when station density is sparse and spatial heterogeneity is strong, mathematical interpolation alone is subject to insufficient physical constraints to robustly reconstruct salinity variability.

Taken together, these findings suggest that interpolation is intrinsically less applicable to salinity than to sea temperature, not merely due to methodological limitations, but because of the physical characteristics of salinity itself. Consequently, interpolated salinity fields derived solely from NSOs should be interpreted with caution when used independently. Under such conditions, improving observation density and data quality control is likely more critical than the choice of interpolation method, and the integration of interpolation results with physically based numerical models can provide a more reliable framework for addressing these inherent limitations.

4. Conclusions

In this study, spatiotemporal interpolation was applied to sea temperature and salinity data from the NSO, and this was compared with a numerical model-based reanalysis to examine the applicability and limitations of interpolated data. Specifically, time series and spatial interpolations were applied separately, and quantitative performance indices were derived using methods to calculate the monthly spatial performance and the per-pixel time series-based performance of different interpolation methods. This approach aimed to improve the usability of spatiotemporally discontinuous in situ observational data by transforming it into continuous environmental data.

The analysis showed that, for surface layer sea temperature, the linear, cubic spline, and STL + PCHIP interpolation methods each demonstrated relatively high explanatory power. Notably, the cubic spline interpolation method exhibited the highest overall performance when evaluated across all water layers. Among the spatial interpolation methods, kriging interpolation demonstrated the best performance, with the lowest error and highest coefficients of determination at all depths. IDW interpolation produced stable results despite its simplicity. NN interpolation performed well at certain sites but was generally unstable. In contrast, the interpolated salinity data generally exhibited low explanatory power, and poor interpolation performance was observed in the surface layer (0 m). Notably, a relatively stable structure was observed in the deep layer (50 m), demonstrating a degree of reliability, and correlation coefficients were also high, showing strong consistency with the overall trends for changes in salinity.

These results demonstrate that interpolation performance varies substantially by environmental variable and depth. Interpolation shows considerable potential for sea temperature, owing to its strong seasonality and relatively coherent spatial structure. In contrast, salinity is characterized by pronounced local variability, discontinuity, and control by multi-scale physical processes, which fundamentally constrain the physical plausibility and practical applicability of pure mathematical interpolation based on sparse observation networks. As a result, interpolated salinity fields derived solely from NSOs exhibited low reliability, indicating a clear limitation in their independent use.

In particular, while interpolated sea temperature data offer substantial potential utility for a wide range of applications, including offshore and coastal fishing ground analysis, fish school distribution prediction, and marine ecosystem dynamics studies, salinity requires a more cautious approach. The results highlight the necessity of integrated use with physically based numerical models or satellite-derived products to compensate for the inherent limitations of interpolation. Such an integrated framework not only mitigates uncertainties in existing satellite- and model-based datasets but also clarifies the complementary value of in situ observation-based interpolation as a supporting component rather than a standalone solution.

Because of the limitations in observation density and the lack of data in some waters, the assessment of the interpolation methods in this study was limited to fit the characteristics of the NSO data. Thus, relative differences among methods identified here may not be directly generalized to all marine environments. Because satellite and reanalysis data were used for comparative analysis, uncertainty in this data likely affected the results.

Satellite-based sea temperature data show long-term stability, but demonstrate bias owing to cloud cover, daily warming, and surface-deep layer temperature differences [8,12,13,32]. Recent studies have highlighted the importance of uncertainty assessment and quantification when constructing satellite-based long-term sea temperature datasets [10,11]. Satellite-based salinity data are limited in their ability to detect small-scale variation, such as rainfall or river discharge, in coastal or high latitude regions, and exhibit high uncertainty owing to electromagnetic interference and low spatial resolution [9]. Meanwhile, numerical model reanalysis data (GOFS 3.1, HYCOM-based) integrates satellite and in situ data to provide global marine data. However, this approach exhibits large errors in coastal waters and western boundary currents [14]. Consequently, the importance of integrated and complementary use of satellite data, in situ observations, and numerical models have been highlighted repeatedly [15]. Accordingly, the applicability of the proposed interpolation framework to other marine satellite products or regions is expected to depend strongly on variable-specific physical characteristics and regional observation density, rather than being universally transferable.

Future research should prioritize improvements in observation density and long-term monitoring capacity for the NSO, rather than solely refining specific interpolation techniques or improving short-term performance, as the results of this study indicate that interpolation performance is fundamentally constrained by observation density, variable characteristics, and depth-dependent physical processes. Further comprehensive studies will be required to evaluate various strategies for using this in situ observational data, including the identification of conditions under which interpolation is physically meaningful or potentially inappropriate. NSO data play an important role in reducing uncertainty in existing satellite-derived and numerical model-based datasets and can contribute to more detailed assessments of marine environmental variability in both coastal and offshore waters.

Furthermore, beyond the generation of interpolated datasets, in situ observations can provide scientific evidence to support timely responses to changes in the marine environment and to inform policies and practices aimed at sustainable fisheries management. Such efforts are expected to improve the reliability of long-term monitoring and predictions of offshore and coastal fish school characteristics in South Korea and to contribute to the development of adaptive aquatic resource management and fishery strategies under ongoing climate change.
