Experimental and Numerical Study on Damage Characteristics of Web Frame Structure Under Conical Impact

Li, Zhengjie; Jiang, Caixia; Wang, Gaofei; Zhao, Nan; Lu, Yue; Liu, Kun

doi:10.3390/jmse13050893

This is an early access version, the complete PDF, HTML, and XML versions will be available soon.

Open AccessArticle

Experimental and Numerical Study on Damage Characteristics of Web Frame Structure Under Conical Impact

by

Zhengjie Li

^1,2,

Caixia Jiang

^1,2,

Gaofei Wang

^1,2,

Nan Zhao

^1,2,

Yue Lu

^3,*

and

Kun Liu

³

¹

China Ship Scientific Research Center, Wuxi 214082, China

²

National Key Laboratory of Ship Structural Safety, Wuxi 214082, China

³

School of Naval Architecture and Ocean Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China

^*

Author to whom correspondence should be addressed.

J. Mar. Sci. Eng. 2025, 13(5), 893; https://doi.org/10.3390/jmse13050893

Submission received: 31 March 2025 / Revised: 27 April 2025 / Accepted: 29 April 2025 / Published: 30 April 2025

(This article belongs to the Section Ocean Engineering)

Download Review Reports Versions Notes

Abstract

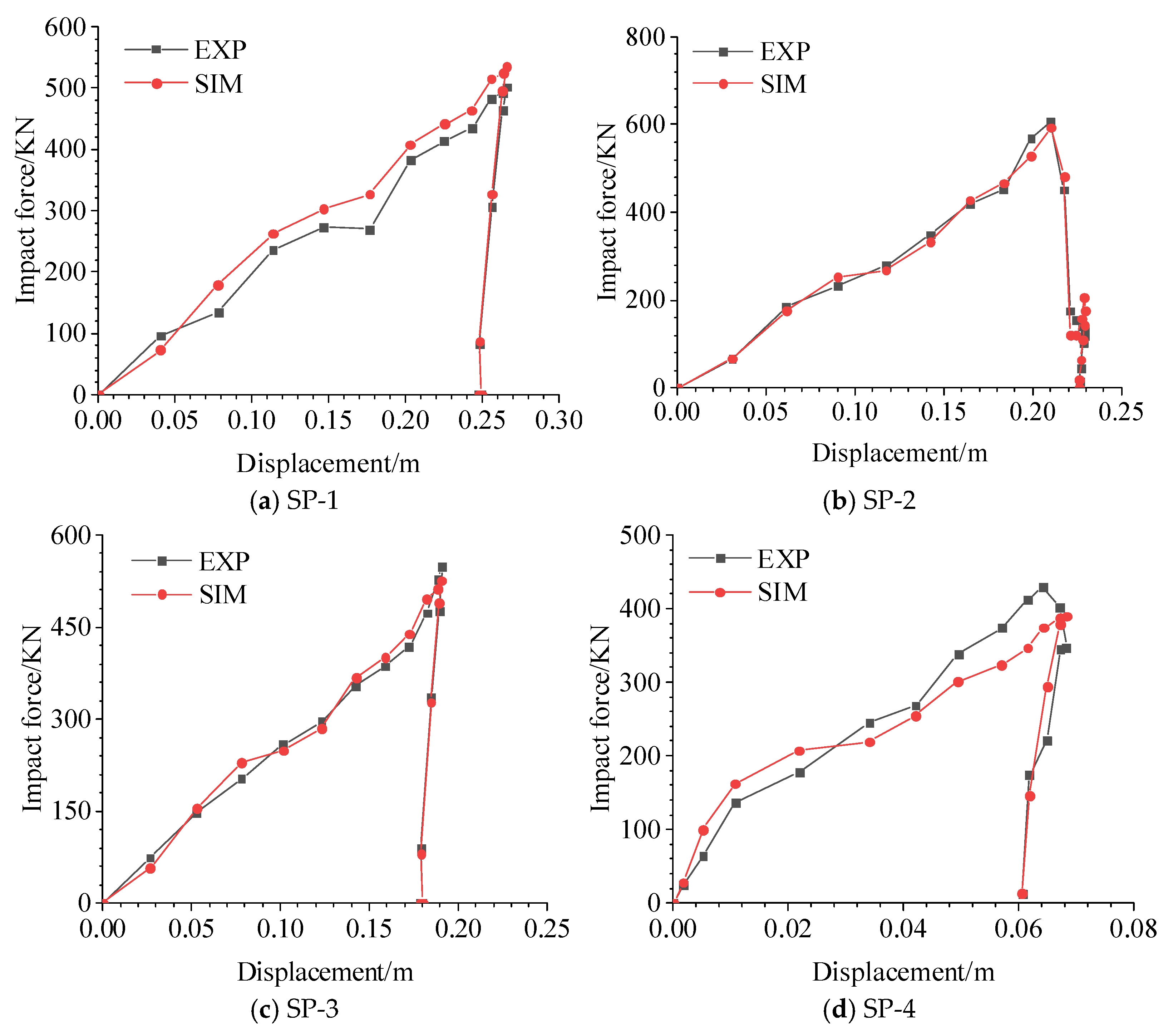

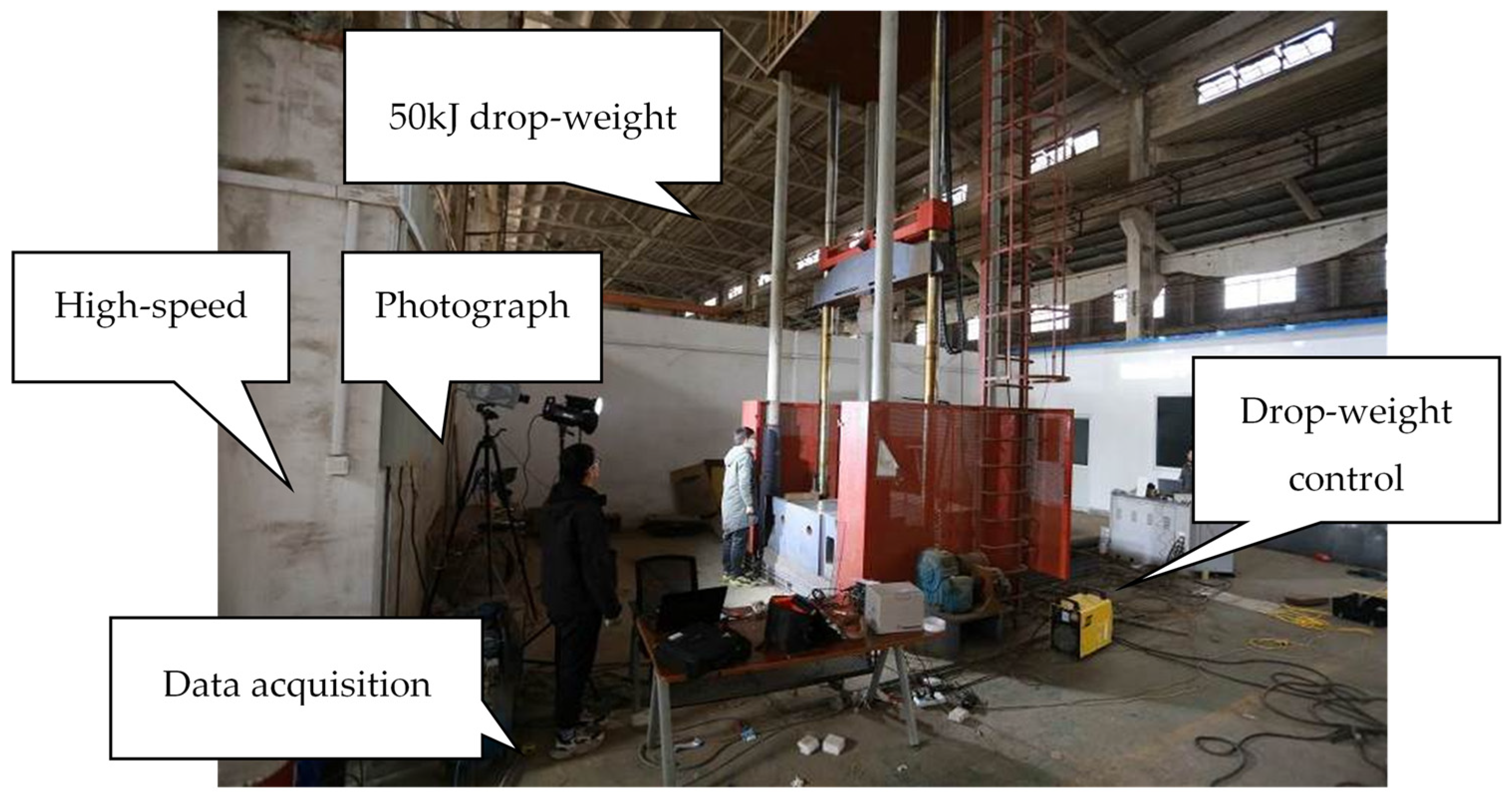

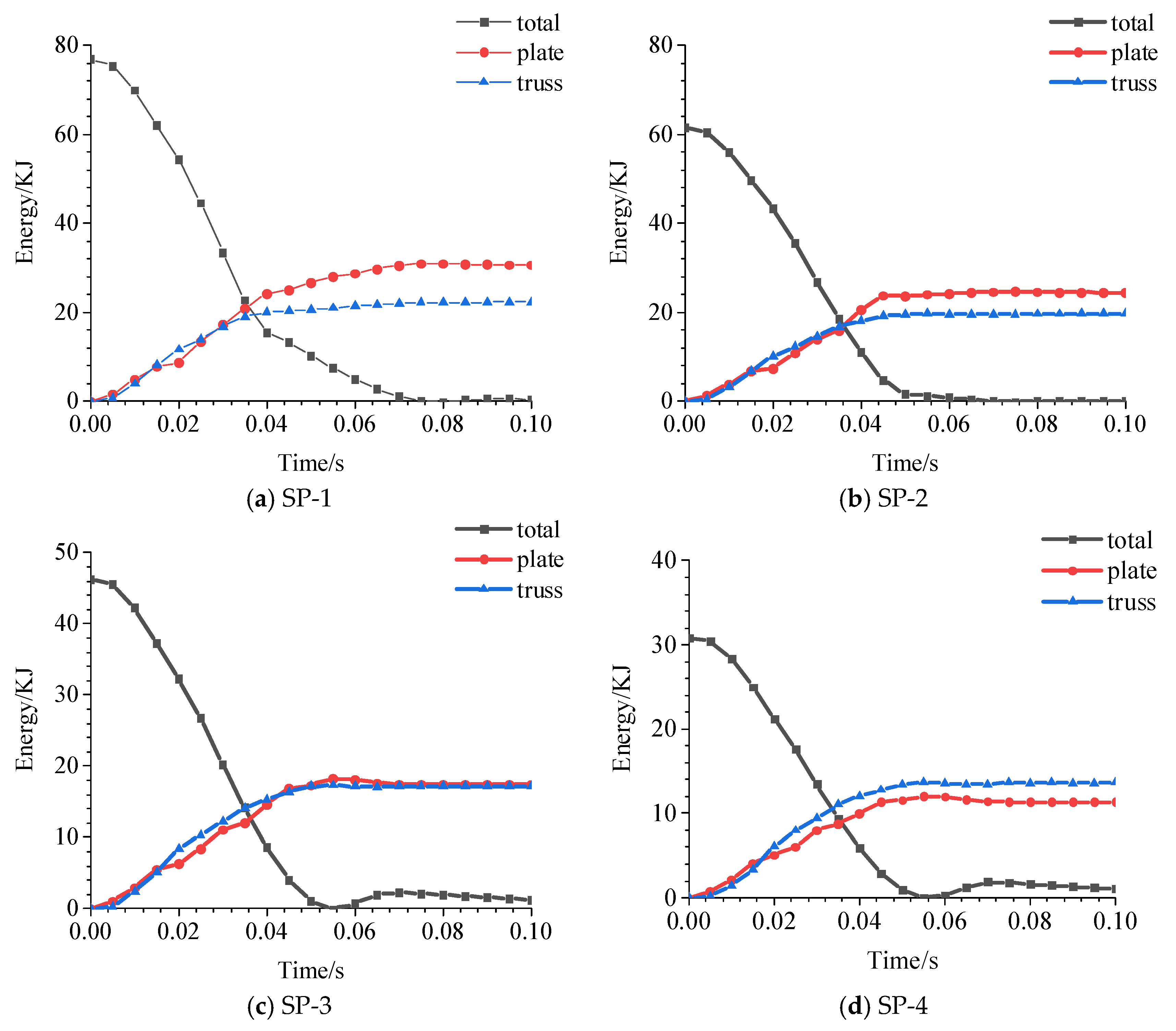

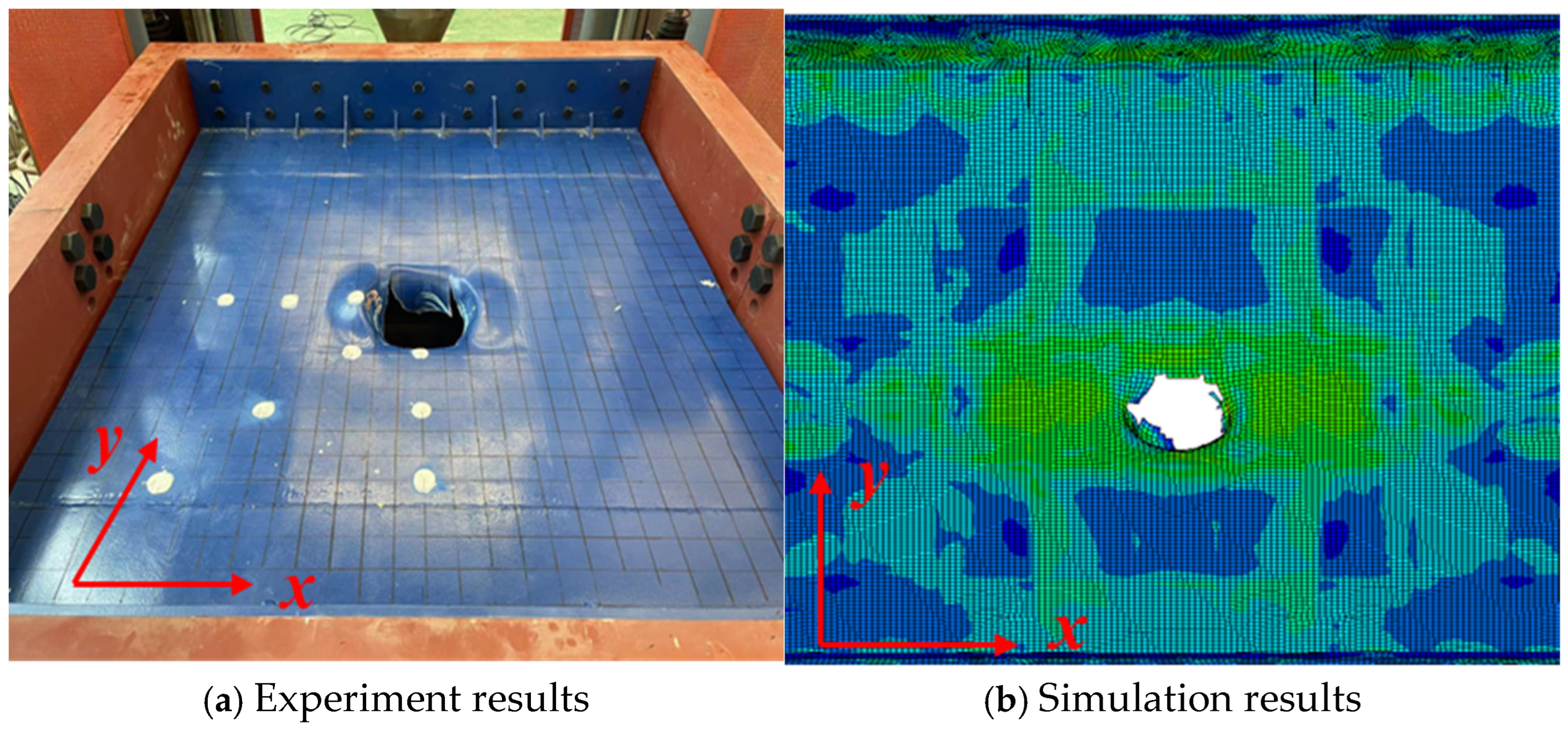

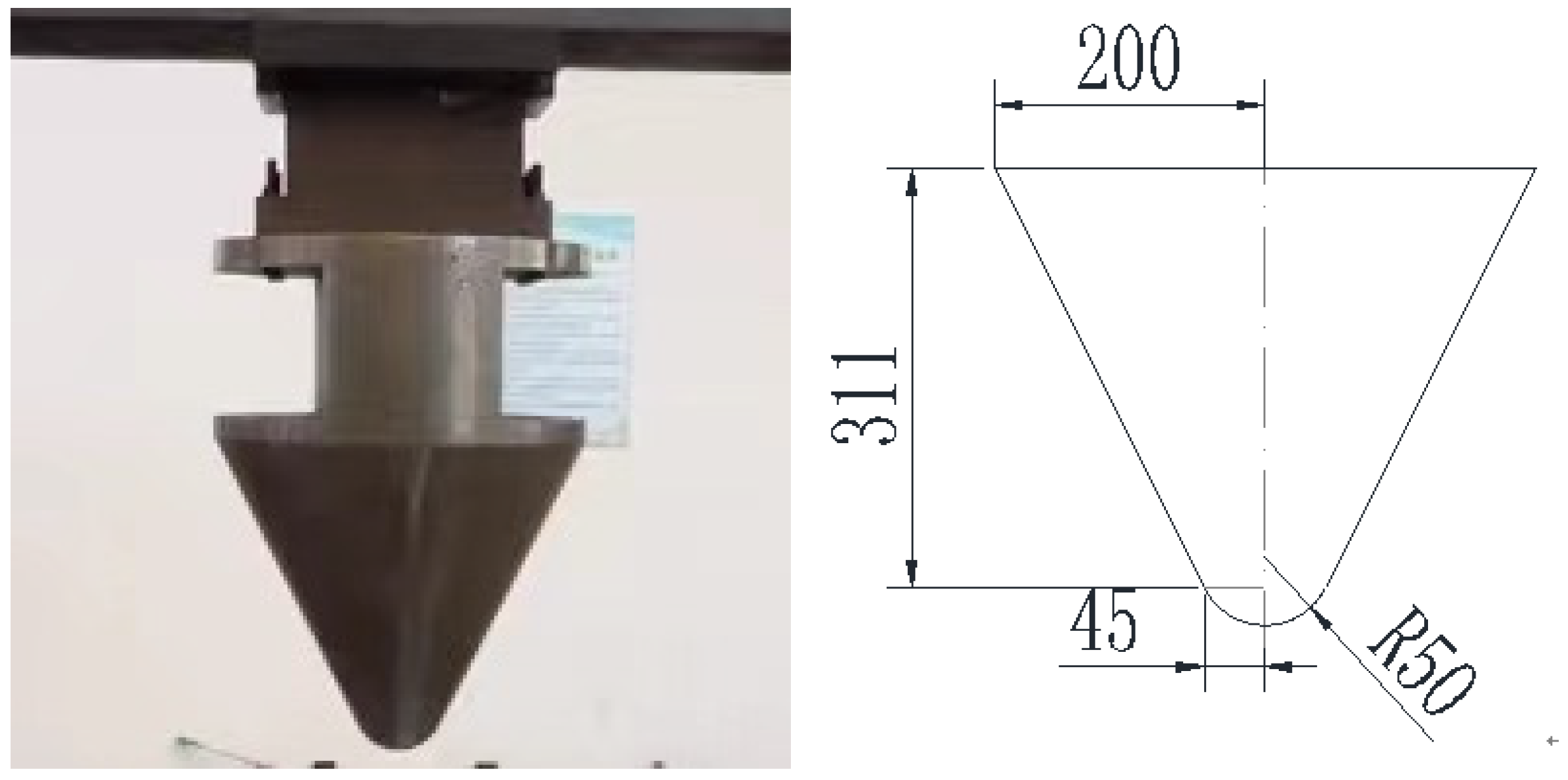

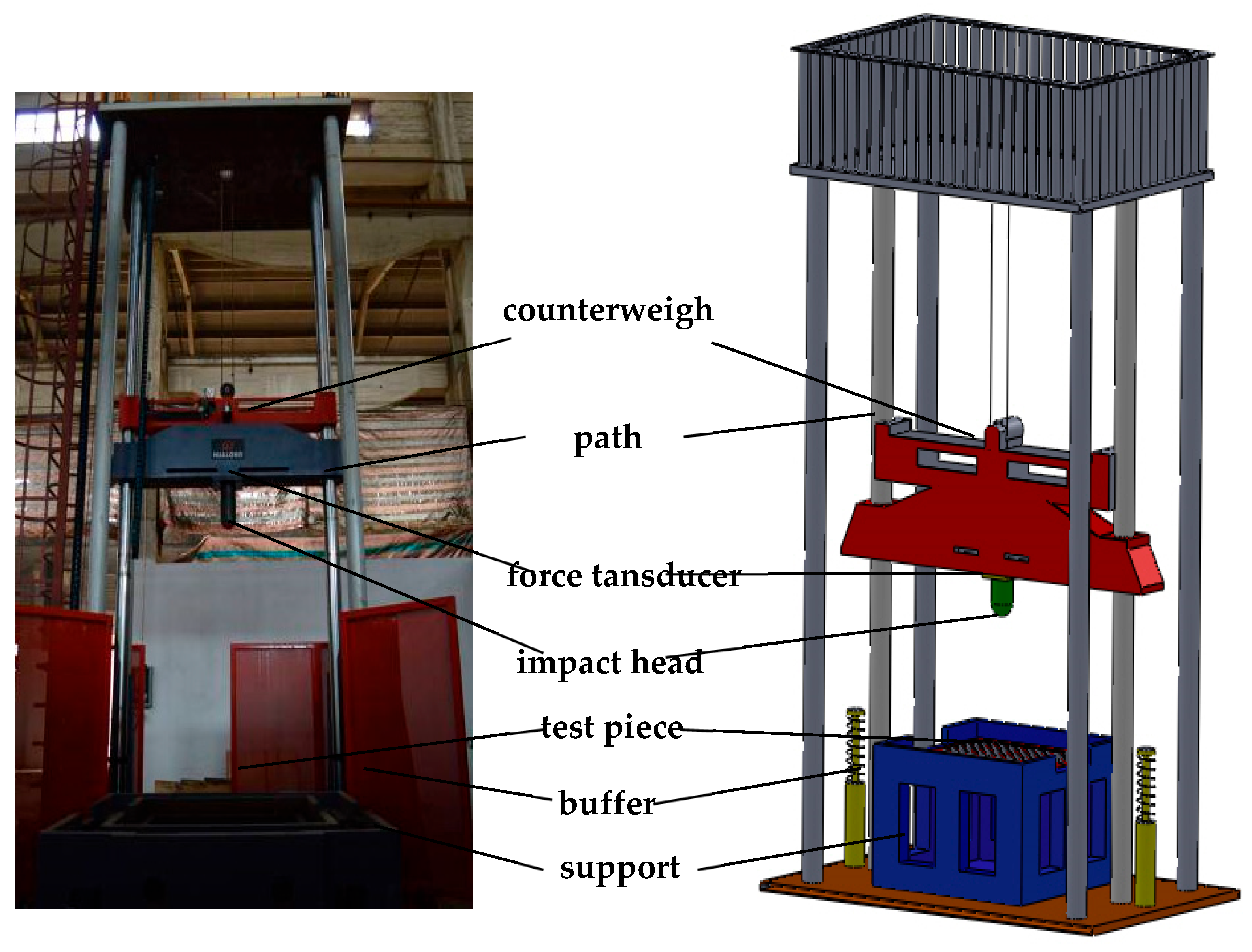

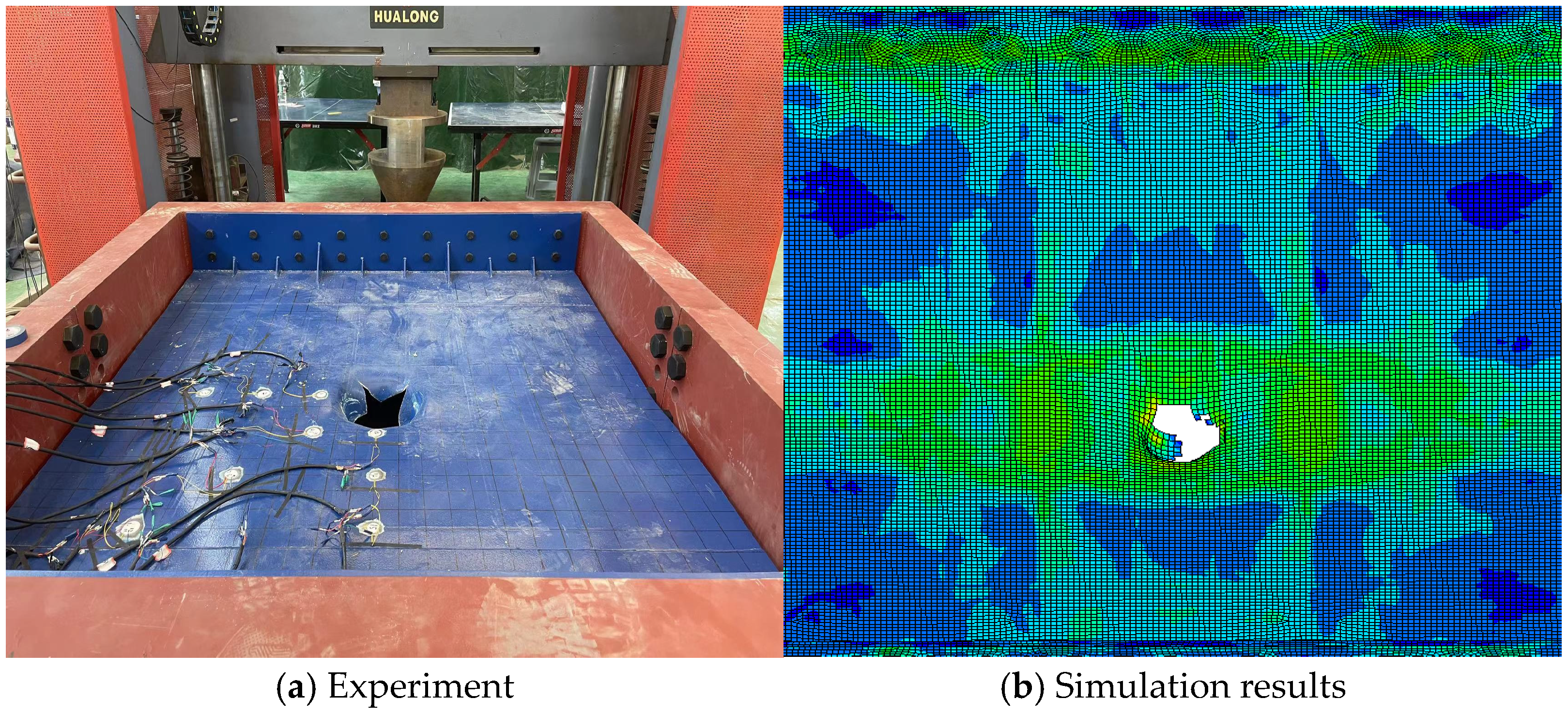

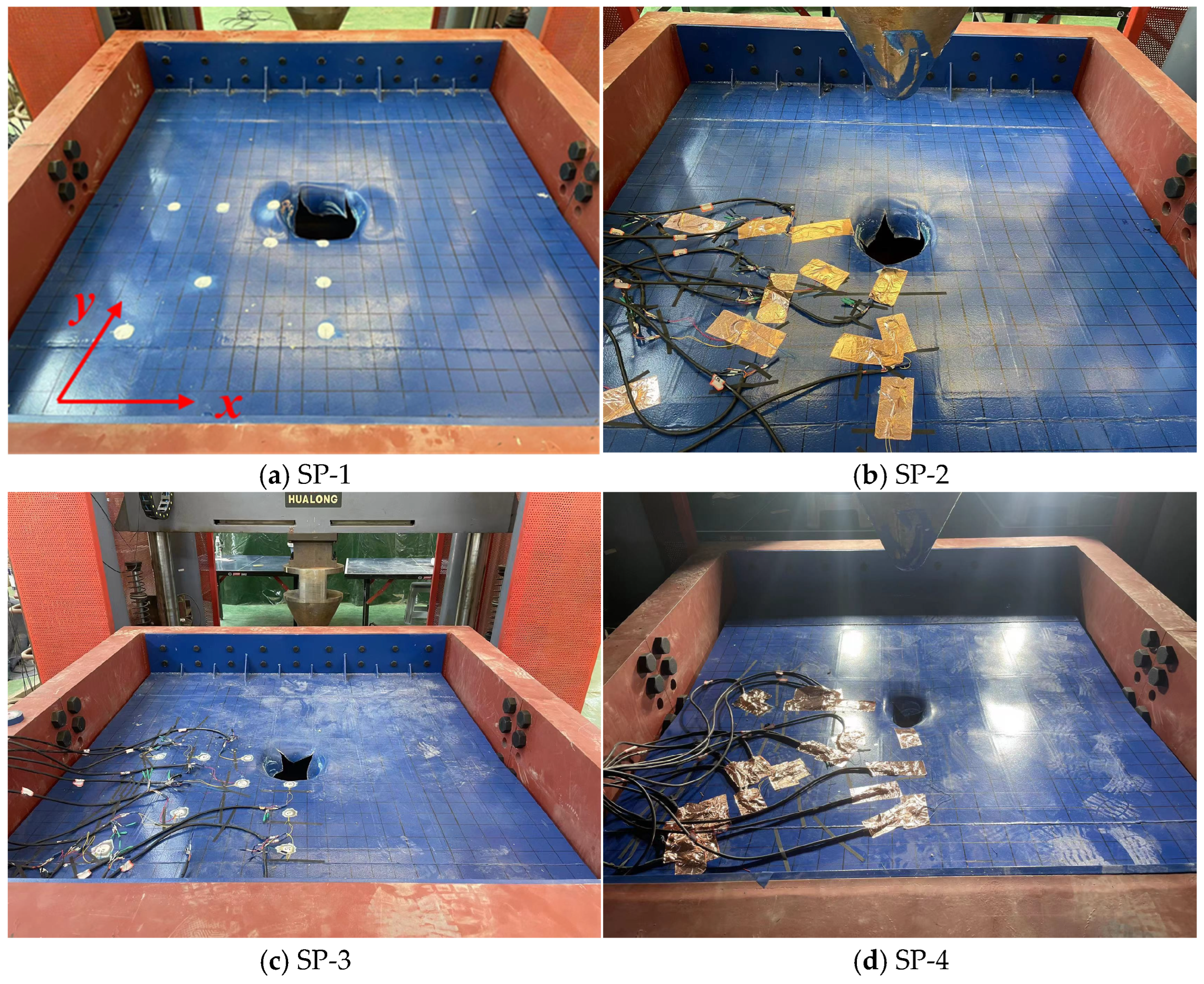

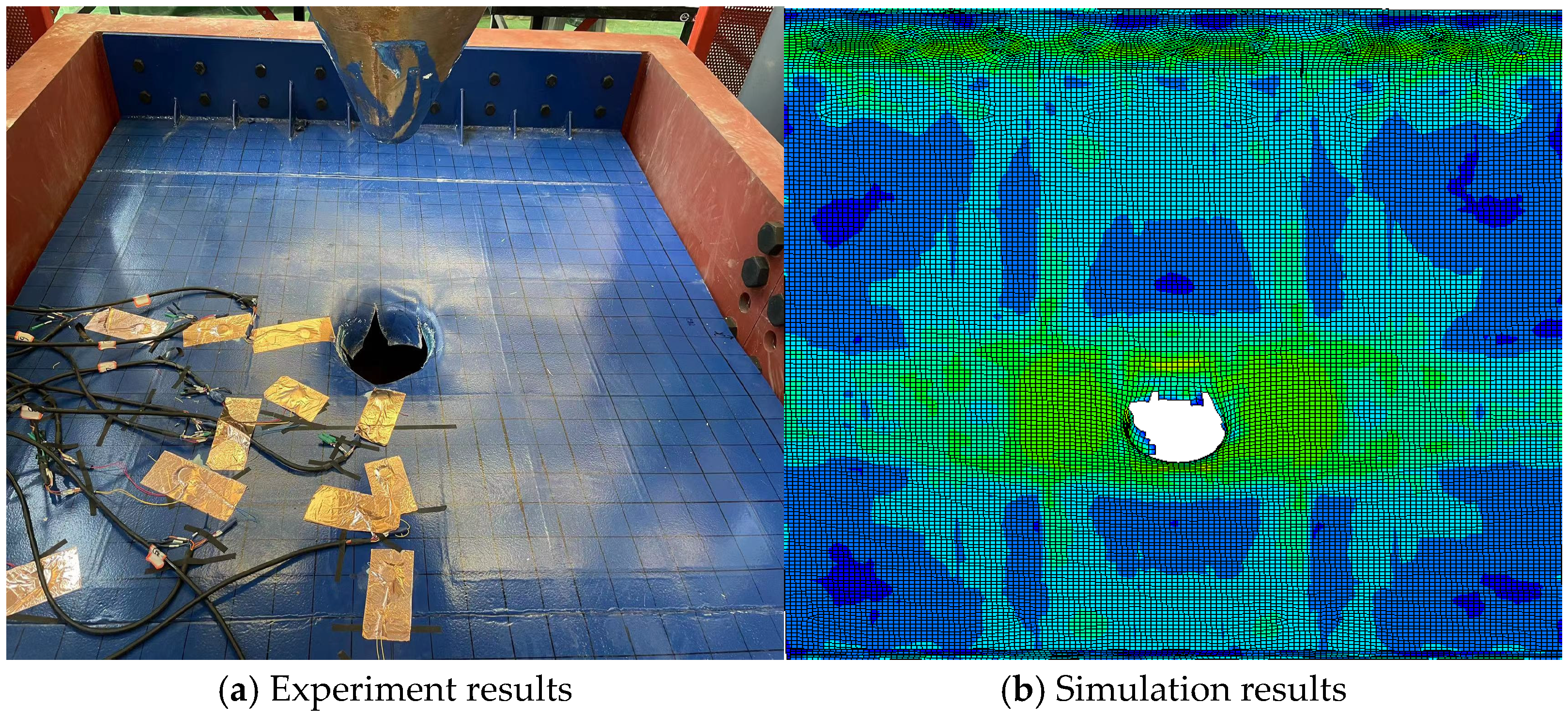

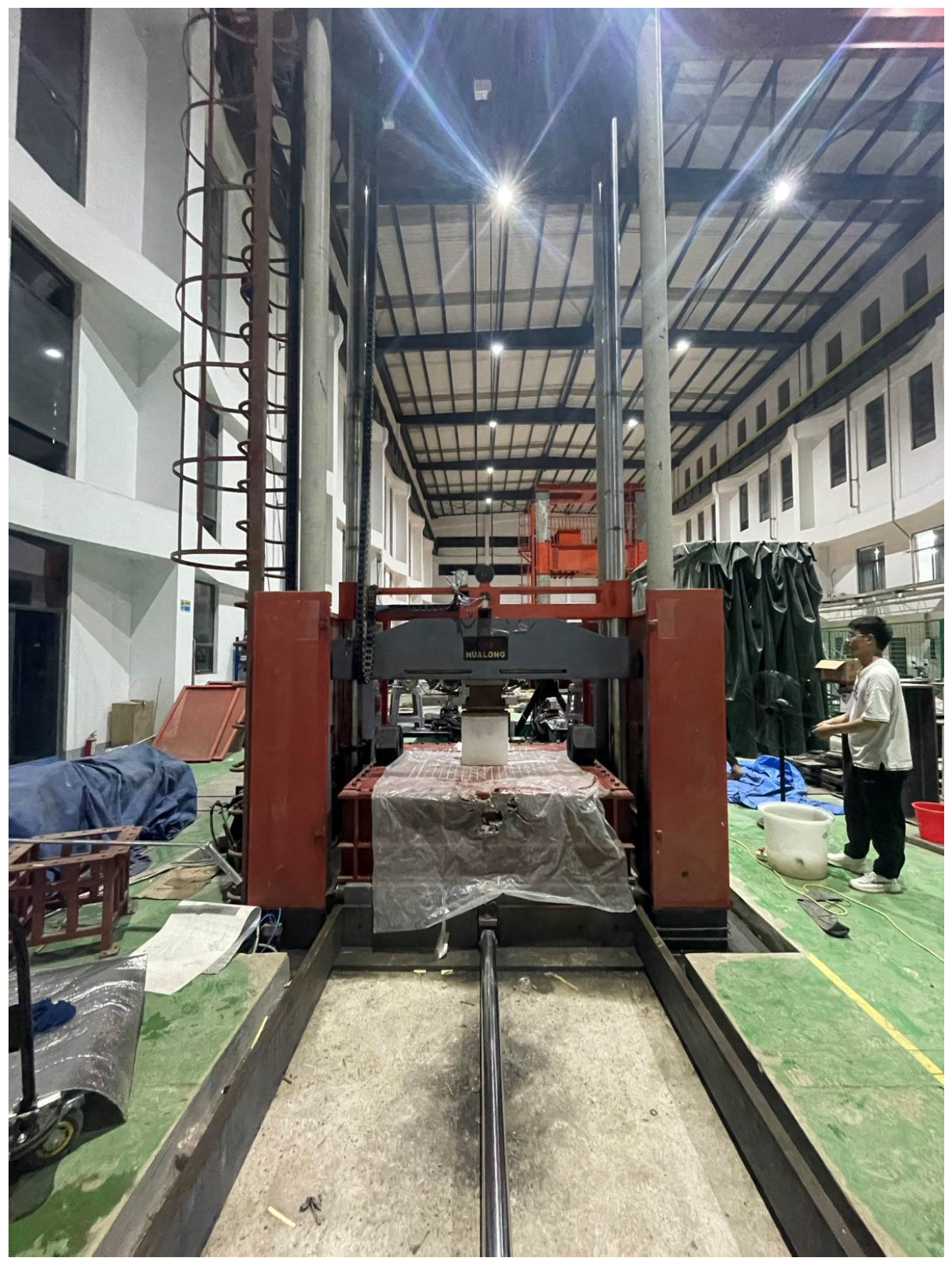

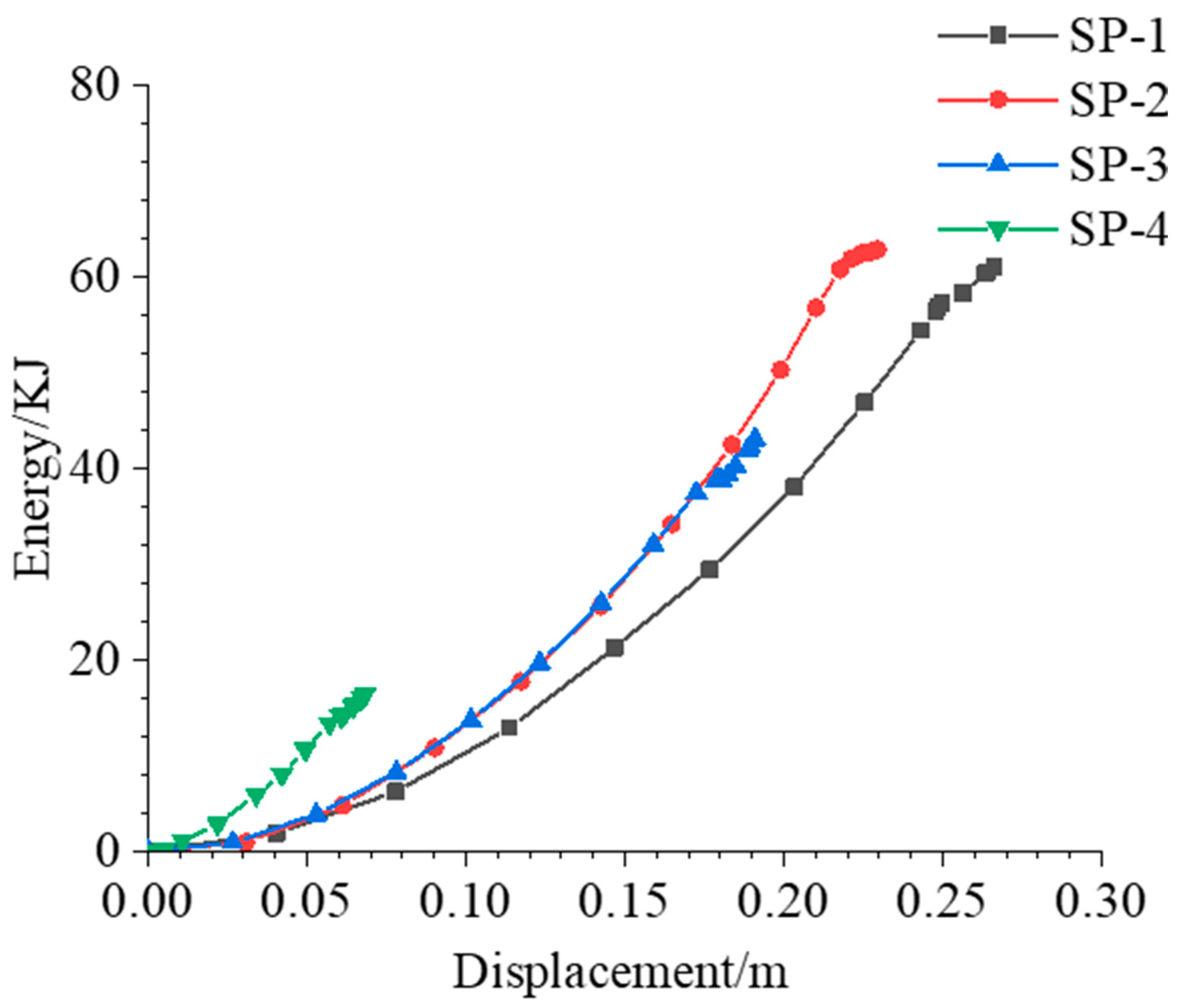

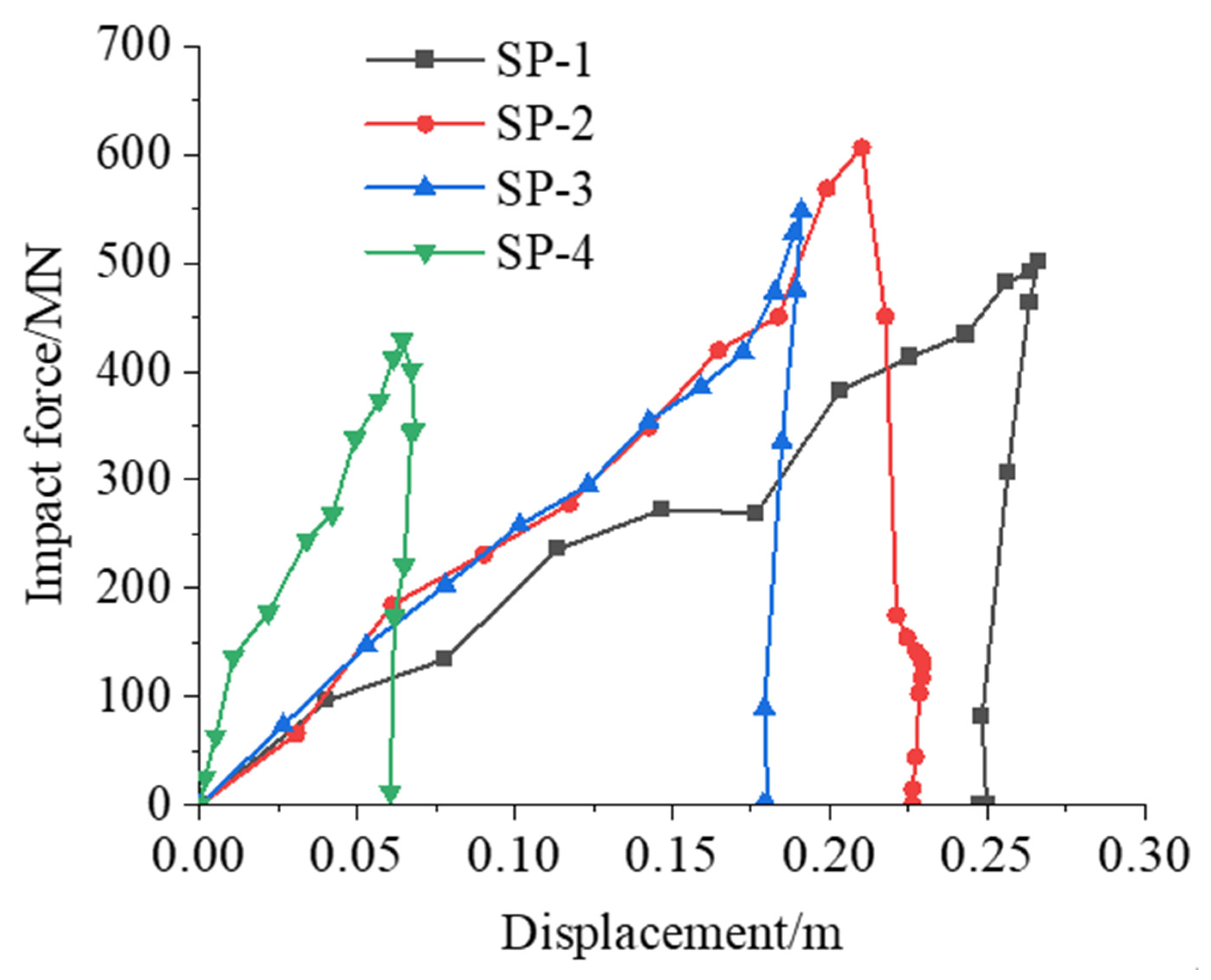

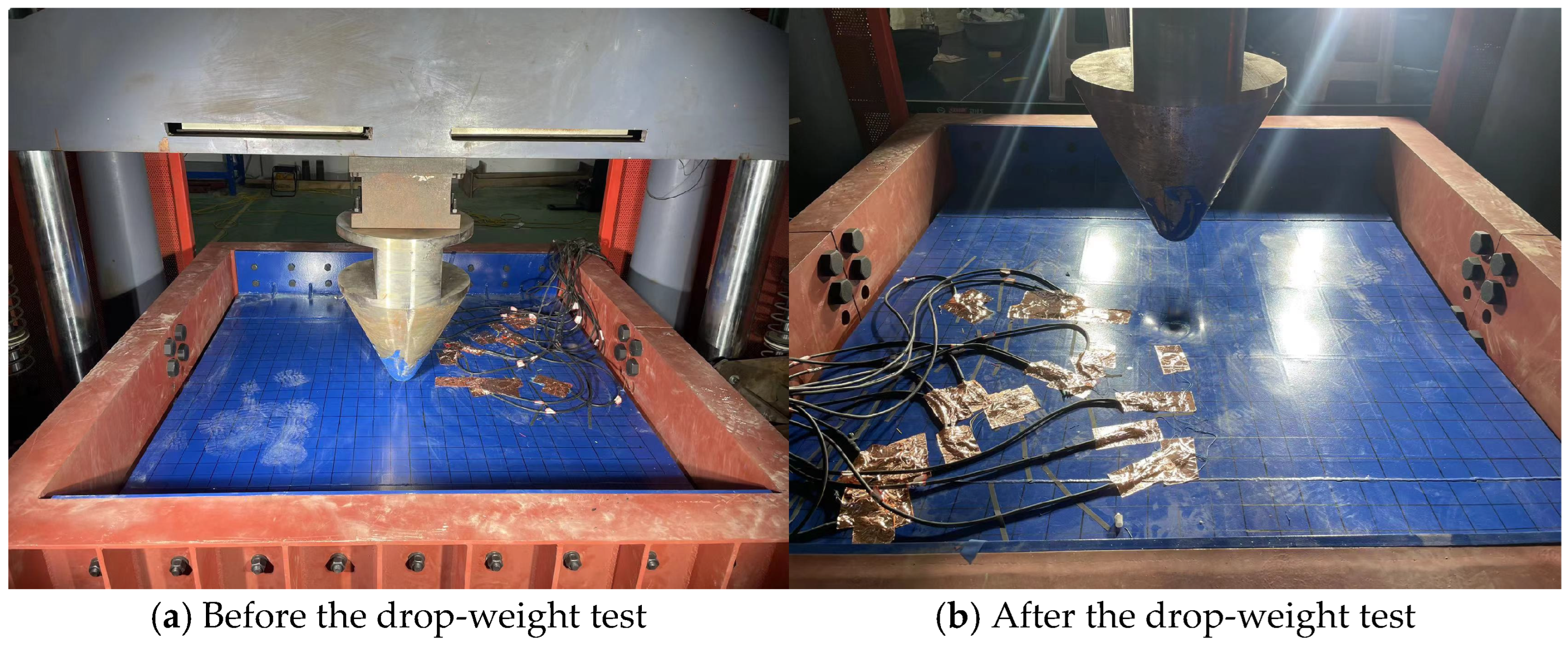

This paper investigates the dynamic performance of web frame structures under the impact of a conical hammer head. Compared with existing research on flat plates and stiffened panels, web frame structures exhibit significant differences in load-bearing mechanisms and design principles. To address these limitations, a series of drop-weight impact tests under different impact conditions are conducted, and the effects of drop heights on the dynamic responses of the web frame structure are systematically analyzed. By measuring the impact force responses and damage shapes, nonlinear dynamic characteristics and damage modes of the web frame structures under conical hammer head impacts can be revealed. The results indicate that higher drop heights lead to more severe damage areas, and damage area is more concentrated in the contact area of the indenter. Meanwhile, the peak impact force increases from 429.06 MN to 606.62 MN as the drop height increases from 1 m to 2.5 m, indicating a 41.38% rise. Additionally, the maximum energy absorbed by the structure reaches 62.89 KJ, and the energy loss ratio ranges from 18.58% to 30.73%. The findings offer critical theoretical insights and technical support for the optimization of impact resistant designs in web frame structures.

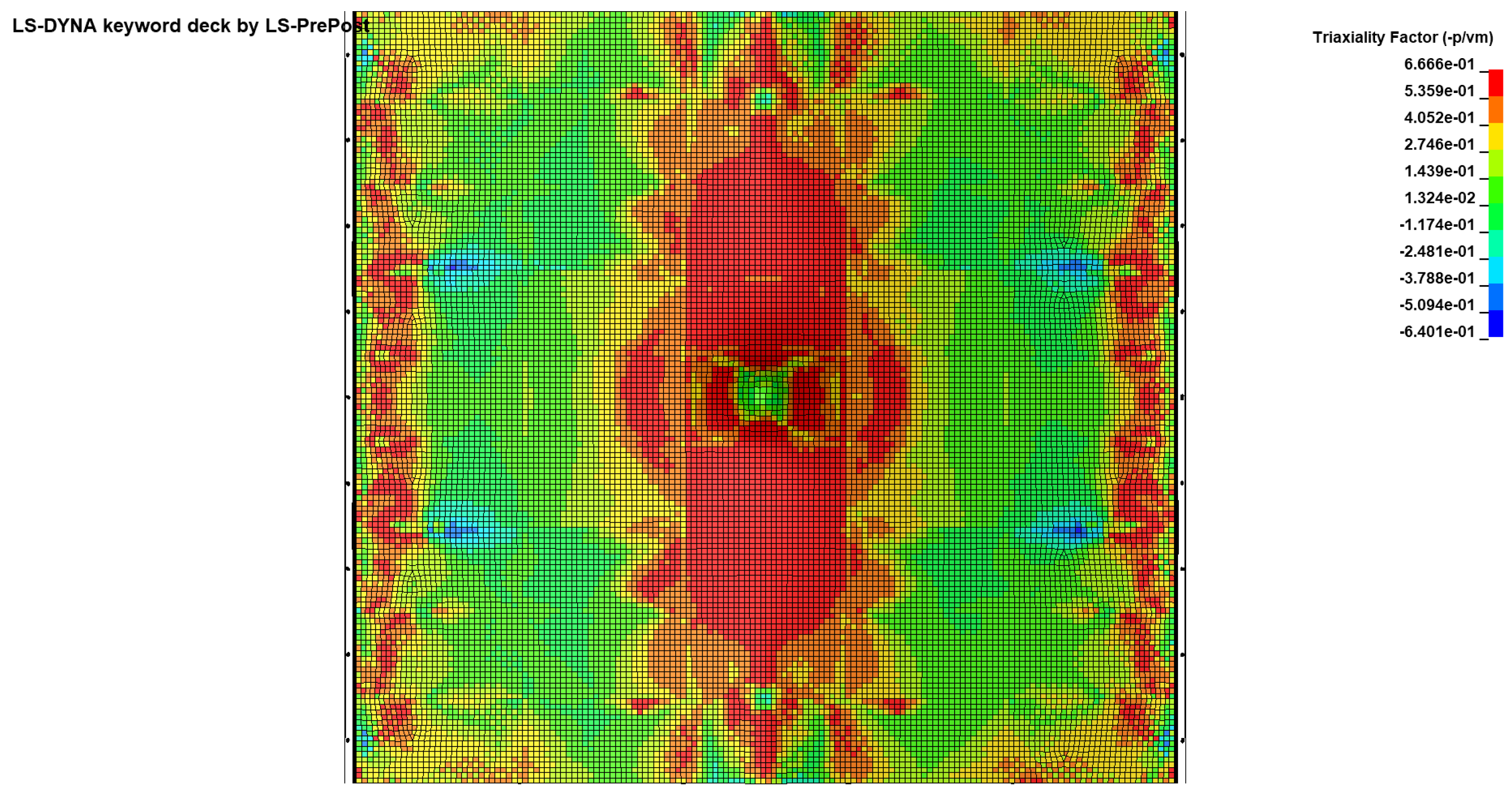

Keywords: web frame structures; conical hammer head; drop-weight impact test; dynamic response; numerical simulation
