Accelerated Life Testing of Marine Electrical Insulation Systems Based on Frequency-Dependent Breakdown Analysis
Abstract
:1. Introduction
2. Methodology
2.1. Testing Equipment

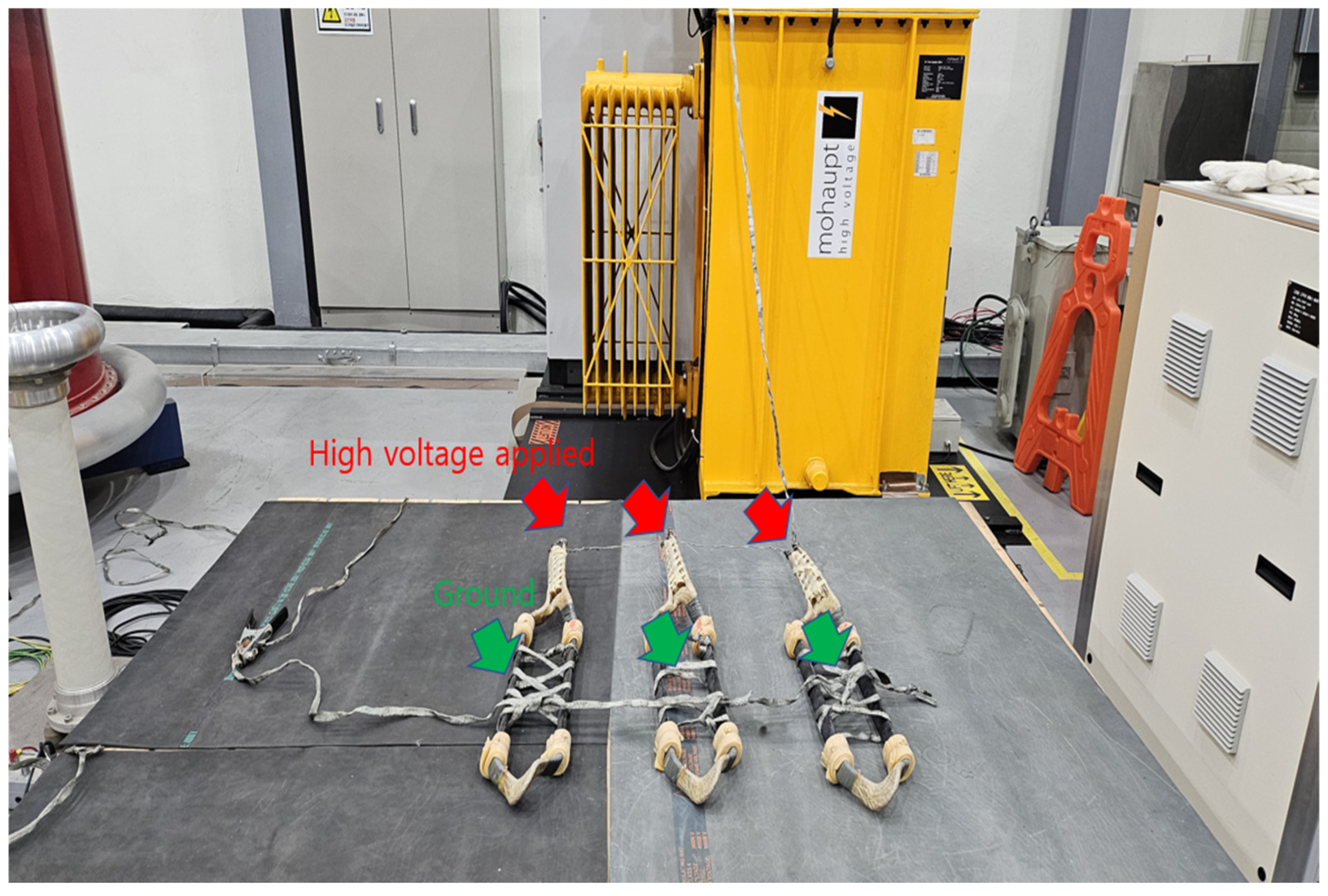

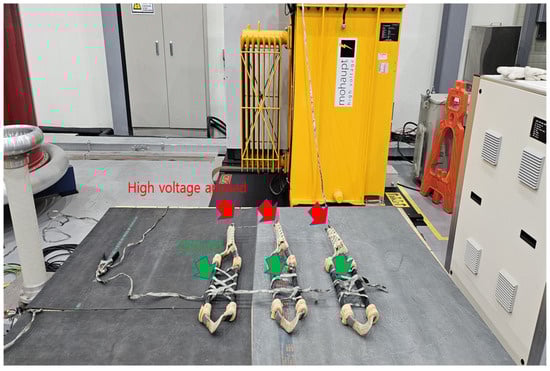

2.2. Testing Process
2.3. Calibration Procedure
3. Results
3.1. Test Results
3.2. Power Model
3.3. Exponential Decay Model

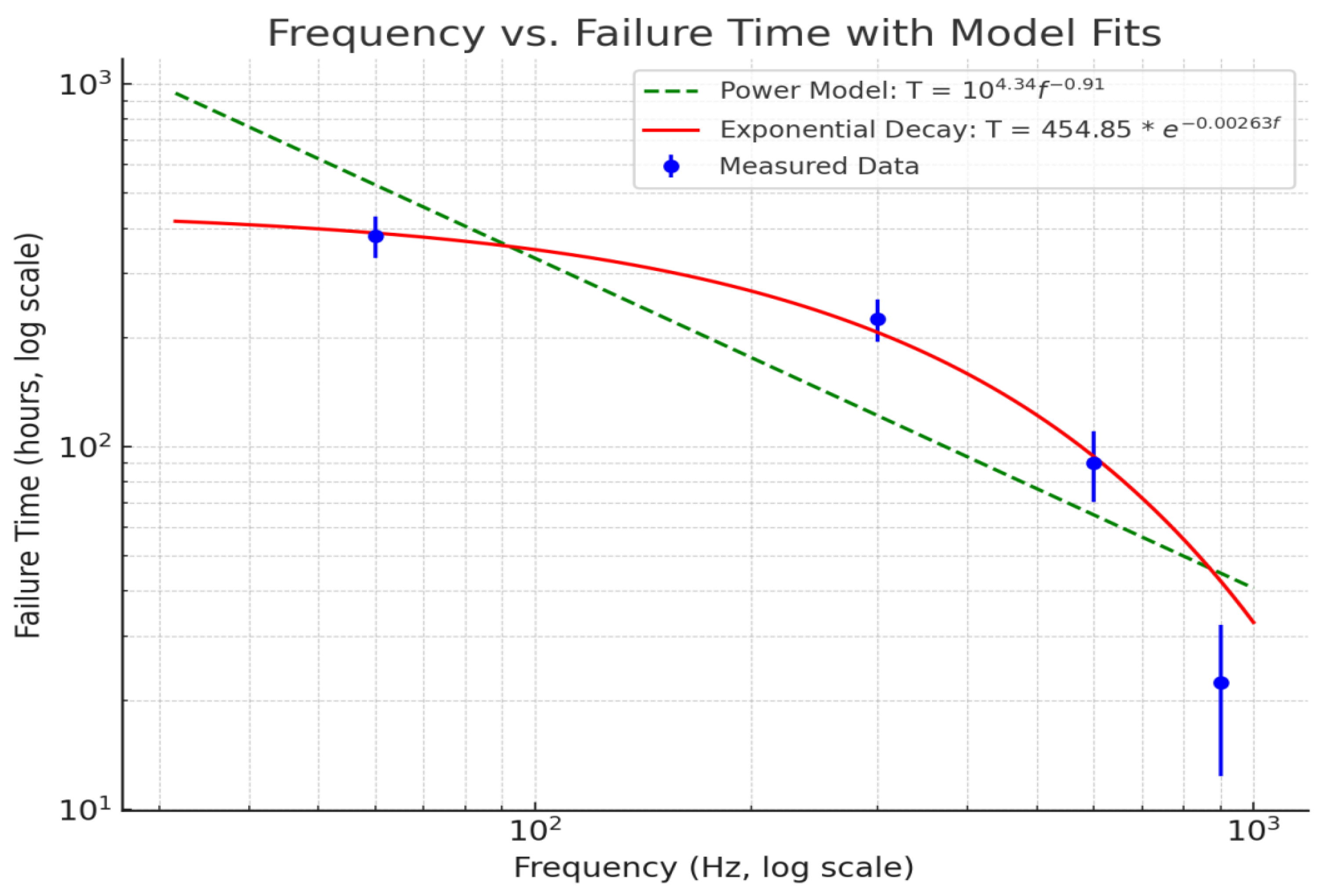

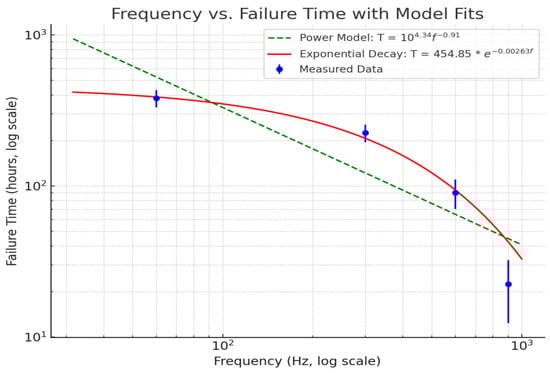

3.4. Model Fit for Test Results
4. Discussion
4.1. Impact of Frequency on Insulation System Degradation
4.2. Suitability and Limitations of Mathematical Models
4.3. Performance Characteristics of Insulation System Design
4.4. Applicability of Experimental Results
5. Conclusions
- Failure time decreases as frequency increases: The test results confirmed a nonlinear reduction in failure time, with a 94% decrease from 381.83 h at 60 Hz to 22.33 h at 900 Hz, confirming the findings of previous studies on frequency-driven insulation degradation.
- Potential to reduce testing durations: Compared to conventional IEEE and IEC standards that require 5000 h of testing at 60 Hz, this study showed that equivalent degradation could be observed within 22.33 h at 900 Hz, demonstrating a 99.6% reduction in test time.
- Validation of mathematical models: The power model provided an excellent fit across all frequencies (= 0.99), while the exponential decay model proved highly accurate in the high-frequency range (600–900 Hz), confirming its suitability for high-frequency testing applications.
- Reliability of the insulation system design: The mica-based insulation system with epoxy resin showed strong durability under varying frequency conditions, ensuring stable and reproducible test results.
Funding
Data Availability Statement
Conflicts of Interest
References
- IEEE 117-1974; IEEE Standard Test Procedure for Evaluation of Systems of Insulating Materials for Random-Wound AC Electric Machinery. IEEE: Piscataway, NJ, USA, 1974; pp. 1–24. [CrossRef]
- IEC 60034-18-32; Rotating Electrical Machines—Part 18–32: Functional Evaluation of Insulation Systems (Type II)—Electrical Endurance Qualification Procedures for Form-Wound Windings. IEC: Geneva, Switzerland, 2022.
- IEC 60505; Evaluation and Qualification of Electrical Insulation Systems. IEC: Geneva, Switzerland, 2011.
- Dissado, L.A.; Fothergill, J.C. Electrical Degradation and Breakdown in Polymers; Peter Peregrinus Ltd.: London, UK, 1992. [Google Scholar]
- Lu, Y.; Knight, A.M.; Malik, O. Insulation degradation mechanism analysis under different applied voltages and frequencies. In Proceedings of the 2020 IEEE International Conference Electrical Insulation and Dielectric Phenomena (CEIDP), East Rutherford, NJ, USA, 18–30 October 2020; pp. 63–66. [Google Scholar] [CrossRef]
- Lee, S.; Yoon, S.; Kim, D.; Kim, M.; Park, K.H.; Lee, S.; Kim, D.; Kim, J. Accelerated Life Test of Eco-Friendly PP-TPE Insulating Material Using Frequency Acceleration. J. Electr. Eng. Technol. 2023, 18, 3773–3781. [Google Scholar] [CrossRef]
- Zhang, W.; Jiang, J.; Li, B.; Shen, Z.; Ma, G.; Zhang, C. Partial discharge features of insulation for power electronic transformers under time-temperature aging. CPSS Trans. Power Electron. Appl. 2023, 8, 363–371. [Google Scholar] [CrossRef]
- Liu, T.; Li, Q.; Dong, G.; Asif, M.; Huang, X.; Wang, Z. Multi-factor model for lifetime prediction of polymers used as insulation material in high frequency electrical equipment. Polym. Test. 2019, 73, 193–199. [Google Scholar] [CrossRef]
- Liang, B.; Lan, R.; Zang, Q.; Liu, Z.; Tian, L.; Wang, Z.; Li, G. Influence of thermal aging on dielectric properties of high voltage cable insulation layer. Coatings 2023, 13, 527. [Google Scholar] [CrossRef]
- Vocke, J.; Moser, A. Durability tests on solid insulation materials for medium frequency transformers in the frequency range from 1 kHz to 10 kHz. In VDE High Voltage Technology; 4. ETG-Symposium; VDE: Berlin, Germany, 2022; Volume 169, pp. 95–100. [Google Scholar]
- Zhang, B.; Ghassemi, M.; Zhang, Y. Insulation materials and systems for power electronics modules: A review identifying challenges and future research needs. Dielectr. Electr. Insul. 2021, 28, 290–302. [Google Scholar] [CrossRef]
- Phloymuk, N.; Pattanadech, N. The aging of the insulation system of large rotating machines in frequency domains. In Proceedings of the 2019 IEEE Conference on Electrical Insulation and Dielectric Phenomena (CEIDP), Richland, WA, USA, 20–23 October 2019; Volume 2019, pp. 1–4. [Google Scholar] [CrossRef]
- Farahani, M.; Gockenbach, E.; Borsi, H.; Schäfer, K.; Kaufhold, M. Behavior of machine insulation systems subjected to accelerated thermal aging test. IEEE Trans. Dielectr. Electr. Insul. 2010, 2010, 1364–1372. [Google Scholar] [CrossRef]
- Calo, E.; Álvarez, R.; Catalano, L.; del Valle, P.M. Dielectric frequency response of a MV stator coil: Effect of humidity and thermal ageing. In Proceedings of the IEEE International Conference Electrical Insulation and Dielectric Phenomena (CEIDP), Virtual, 18–30 October 2020; pp. 1–4. [Google Scholar] [CrossRef]
- Torres, J.; Homeier, K.; Stahl, L.; Werle, P. Influence of harmonic distortion on the breakdown voltage of a composite material for the use in dry type transformers. In Proceedings of the IEEE Conference on Electrical Insulation and Dielectric Phenomena (CEIDP) 2024, Auburn, AL, USA, 6–9 October 2024; Volume 2024, pp. 1–6. [Google Scholar] [CrossRef]
- Zidane, O.; Haller, R.; Trnka, P.; Bärnklau, H. Insulation for rotating machines Type II under different electrical stress conditions. In Proceedings of the IEEE International Conference Electrical Insulation and Dielectric Phenomena, East Rutherford, NJ, USA, 15–19 October 2023; Volume 2023, pp. 1–6. [Google Scholar] [CrossRef]
- Kang, D.S.; Hwang, D.H.; Nam, T.K.; Kim, Y.J. Novel sensor for locating partial discharges in high-voltage rotating machines. IEEE Trans. Energy Convers. 2007, 22, 576–583. [Google Scholar] [CrossRef]
- Nair, R.P.; Vishwanath, S.B. The applicability of very low frequency diagnostic testing in the evaluation of thermally aged stator coil. IEEE Trans. Dielect. Electr. Insul. 2023, 30, 1223–1230. [Google Scholar] [CrossRef]
- Sumereder, C.; Woschitz, R.; Muhr, M. Condition evaluation of generator bars. In Proceedings of the 2015 IEEE 10th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED), Guarda, Portugal, 1–4 September 2015; pp. 1–4. [Google Scholar] [CrossRef]
- Bhumiwat, S.A. On-site non-destructive dielectric response diagnosis of rotating machines. IEEE Trans. Dielect. Electr. Insul. 2010, 17, 1453–1460. [Google Scholar] [CrossRef]
- Soltani, R.; David, E.; Lamarre, L. Impact of humidity on dielectric response of rotating machines insulation system. IEEE Trans. Dielect. Electr. Insul. 2010, 17, 1479–1488. [Google Scholar] [CrossRef]
- Saha, T.K.; Purkait, P. Understanding the impacts of moisture and thermal ageing on transformer’s insulation by dielectric response and molecular weight measurements. IEEE Trans. Dielect. Electr. Insul. 2008, 15, 568–582. [Google Scholar] [CrossRef]
- Wang, Z.; Jia, Z.D.; Fang, M.H.; Li, Y.S.; Guan, Z.C. Moisture absorption, desorption, and moisture-induced electrical performances of high-temperature vulcanized silicone rubber. IEEE Trans. Dielect. Electr. Insul. 2016, 23, 410–417. [Google Scholar] [CrossRef]
- IEC 60270; High-Voltage Test Techniques—Partial Discharge Measurements. IEC: Geneva, Switzerland, 2000.

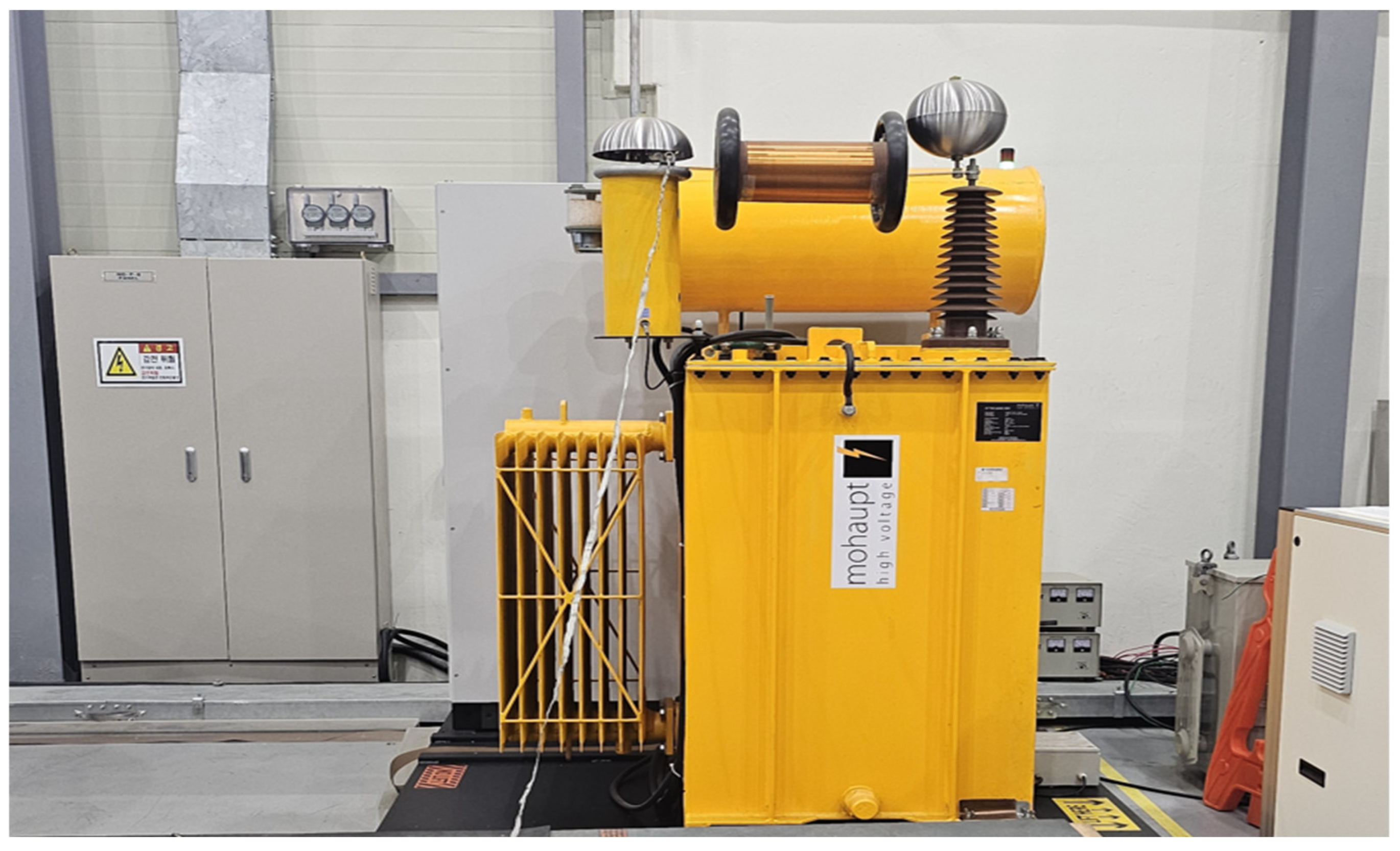

Item | Details |
---|---|
Manufacturer | Mohaupt |
Country of manufacturer | Austria |
Capacity | 50 kVA |
Maximum output voltage | 50 kV |
Frequency range | 50–1000 Hz |
Rated current | 1 A |
Frequency (Hz) | Breakdown Time per Specimen (h) | Average Breakdown Time (h) | |
---|---|---|---|
60 | 60-1 | 560 | 381.83 |
60-2 | 290 | ||
60-3 | 295.5 | ||
300 | 300-1 | 213.5 | 224.83 |
300-2 | 247 | ||
300-3 | 214 | ||
600 | 600-1 | 139 | 90.33 |
600-2 | 14 | ||
600-3 | 118 | ||
900 | 900-1 | 16 | 22.33 |
900-2 | 44 | ||
900-3 | 7 |
