Optimization Design of a Winch Suction Underwater Dredging Robot Using Orthogonal Experimental Design

by
Lijun Wang
1,*,
Yehao Kang
1,
Yibo Wang
1,
Zeyong Zhao
1,
Liyang Shang
2,
Xiaona Song
1,
Donglai Xu
3 and
Ruixue Cheng
3,*
1
School of Mechanical Engineering, North China University of Water Resources and Electric Power, Zhengzhou 450045, China
2
Yellow River Machinery Co., Ltd., Yellow River Conservancy Commission, Zhengzhou 450006, China
3
School of Computing, Engineering and Digital Technologies, Teesside University, Middlesbrough TS1 3BX, UK
*
Authors to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2024, 12(5), 741; https://doi.org/10.3390/jmse12050741
Submission received: 7 April 2024 / Revised: 24 April 2024 / Accepted: 25 April 2024 / Published: 29 April 2024
(This article belongs to the Section Ocean Engineering)
Browse Figures
Versions Notes

Abstract

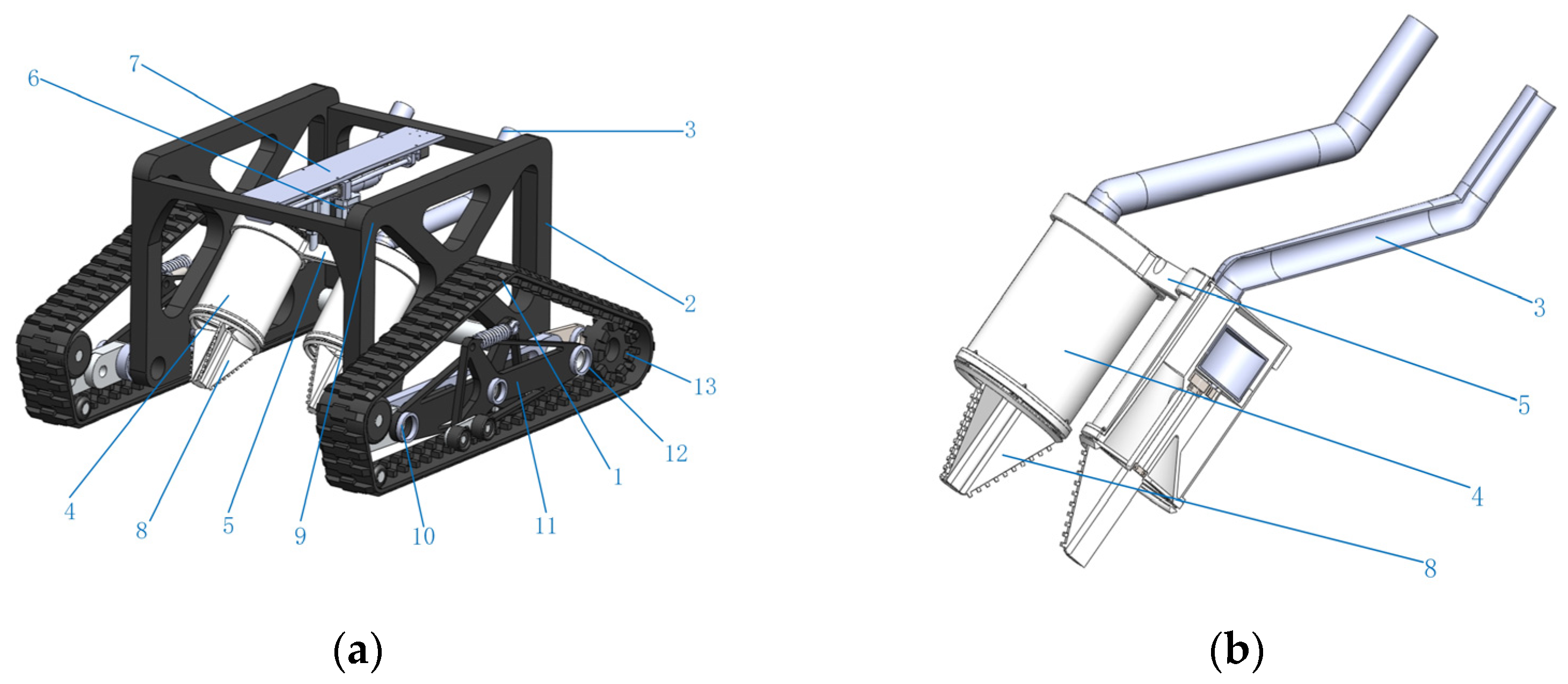

In marine engineering and water conservancy projects, dredging often occurs due to silt accumulation, which can impede the long-term development of water ecosystems and water storage systems. To enhance dredging efficiency and the performance of dredging machines, a novel type of winch suction underwater dredging robot was designed. Computational fluid dynamics software was utilized to establish a fluid model of the robot’s winch suction dredging device and conduct model simulation experiments. The simulation test results were used to investigate the factors influencing dredging performance and their impact laws. Five key factors—namely, the reamer rotational speed, reamer arrangement angle, water flow rate, inlet pipe diameter, and outlet pipe diameter—were selected for consideration. By setting up various sets of factor levels, the significant influence of different factors on dredging efficiency was examined. Analysis of variance was employed to analyse the results of the orthogonal experimental design, leading to the identification of optimal factor levels and the establishment of an optimal scheme group. The results of the optimal scheme were verified, demonstrating a 13.049% increase in dredging efficiency and a 19.23% decrease in power consumption of the sludge pump compared to the initial experimental setup. The performance of the optimal program surpassed that of all the experimental designs and met the design requirements.
Keywords: marine hydraulic engineering; dredging; winch suction; orthogonal experimental design marine hydraulic engineering; dredging; winch suction; orthogonal experimental design
