Assessing the Connectivity Reliability of a Maritime Transport Network: A Case of Imported Crude Oil in China
Abstract
:1. Introduction
2. Literature Review
2.1. The Research of MTN
2.2. Connectivity Reliability
2.3. Research Gaps and Contributions
- (1)
- An integrated assessment index for node importance is established and a method to identify key nodes in COMTN is developed to facilitate the prioritization of critical nodes within the network.
- (2)
- A model of CR specifically designed for the COMTN is developed. This model evaluates the overall reliability of the network and the reliability of individual routes within it. By overcoming the shortcomings of relying solely on a single index to capture the potential issues within the network, this model offers a comprehensive and objective analysis of the CR of the imported COMTN.
- (3)
- Analysis of the effects of different attacks on the imported COMTN is carried out. This includes assessing the reliability of different maritime transport routes when subjected to attacks and examining the impacts resulting from the failure of critical nodes. Based on these findings, targeted and effective countermeasures and recommendations are formulated to address the issue of network collapse following the failure of specific nodes.
3. Methodology
3.1. Topology Features of CNs
- (1)
- Degree of nodes
- (2)
- Node strength
- (3)
- Betweenness centrality
- (4)
- Eigenvector centrality
3.2. Node Importance Assessment Model
3.2.1. Weighted Leader Rank
3.2.2. Comprehensive Assessment Indicators
3.3. Modelling Network Connectivity Reliability
3.3.1. Network Connectivity Reliability Model
- (1)
- The nodes in the model are assumed to have two states: fully operational or completely failed.
- (2)
- The edges connecting the nodes, i.e., the shipping routes, are assumed to be in normal condition.
- (3)
- The node failures are independent of other port nodes, and the destination nodes are considered immune to failure.
- (1)
- The pairs of CR: This refers to the probability of maintaining connectivity between pairs in the network when certain nodes are completely disconnected.
- (2)
- The shipping route of CR: The imported COMTN is divided into several shipping routes based on the geographical distribution of ports in importing countries. The specific shipping route of CR is defined as the weighted average of the CR of all pairs within that route when some nodes in the network are completely disconnected. The weights correspond to the share of crude oil transport undertaken by each pair.
- (3)
- CR of the entire imported COMTN: It represents the weighted average of the CR of all pairs in the network when some nodes are completely disconnected. The weights are determined by the share of crude oil imports carried by each pair.
3.3.2. Model Construction under Different Attack Modes
- (1)
- Constructing a random attack model
- (2)
- Construction of the random attack model
- (3)
- Construction of the deliberate attack model
- (4)

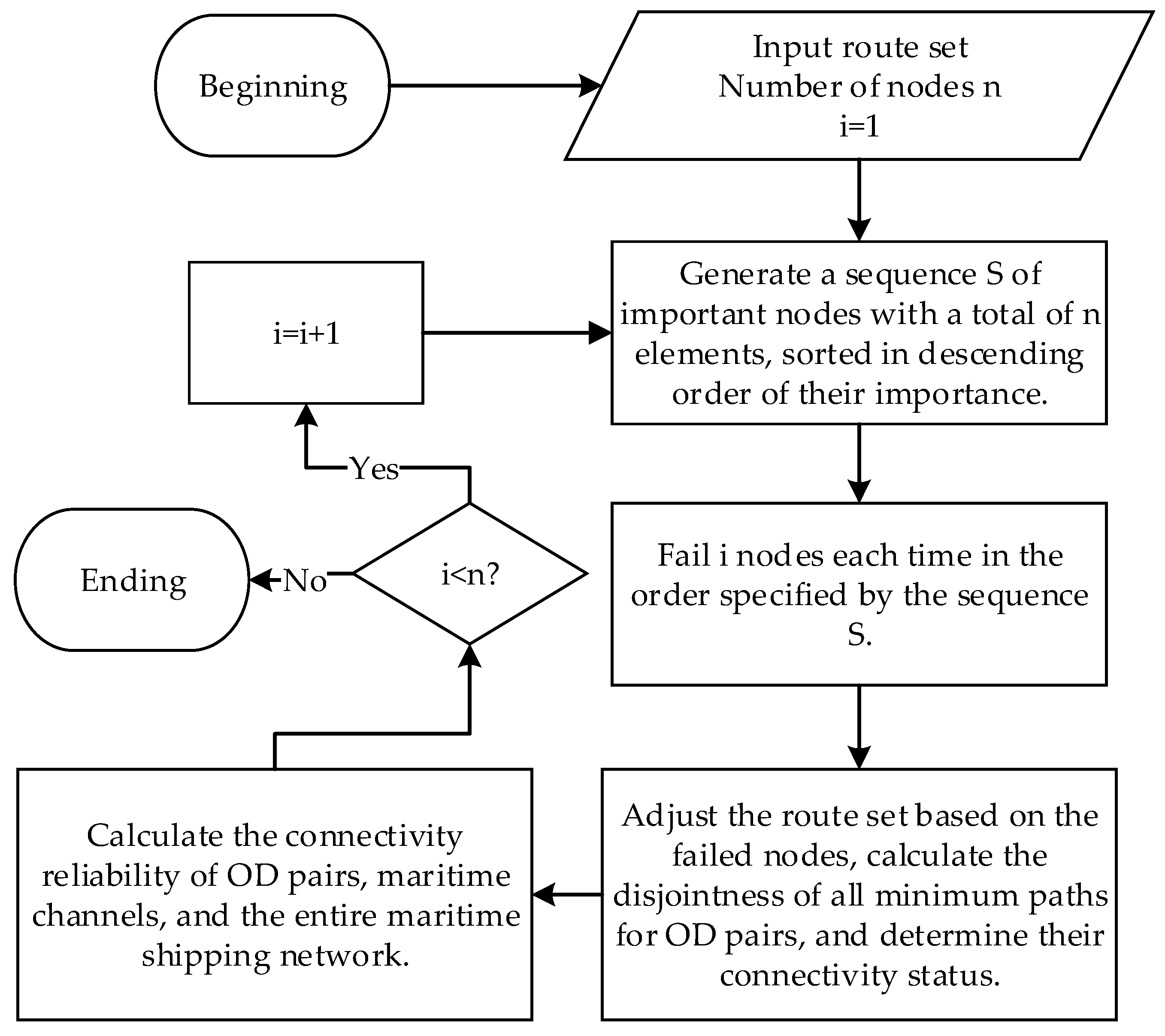

- Solution of the deliberate attack model
4. Calculation Results and Discussion
4.1. China’s Imported COMTN
4.2. Significant Node Ranking Results
4.2.1. Degree, Node Strength, Betweenness Centrality, Leader Rank Algorithm Results
4.2.2. Comprehensive Assessment Indicators
4.3. Reliability Results and Analysis
4.3.1. Random Attack Results and Analysis
4.3.2. Deliberate Attack Results and Analysis
4.3.3. Comparison of the Results and Analysis of the Two Attack Patterns
4.4. Measures and Recommendations
- (1)
- Strengthen emergency management measures at key points and give focused protection.
- (2)
- Exploring alternatives at key maritime nodes and tapping new transport routes.
- (3)
- Responding positively to international cooperation and exhibiting the power of China.
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Cao, Y.; Wang, X.; Yang, Z.; Wang, J.; Wang, H.; Liu, Z. Research in marine accidents: A bibliometric analysis, systematic review and future directions. Ocean Eng. 2023, 284, 115048. [Google Scholar] [CrossRef]
- Wang, S.; Jia, H.; Lu, J.; Yang, D. Crude oil transportation route choices: A connectivity reliability-based approach. Reliab. Eng. Syst. Saf. 2023, 235, 109254. [Google Scholar] [CrossRef]
- Zou, Y.; He, K. Forecasting Crude Oil Risk Using a Multivariate Multiscale Convolutional Neural Network Model. Mathematics 2022, 10, 142413. [Google Scholar] [CrossRef]
- Huang, D.; Wang, Y.; Yin, C. Selection of CO2 Emission Reduction Measures Affecting the Maximum Annual Income of a Container Ship. J. Mar. Sci. Eng. 2023, 11, 534. [Google Scholar] [CrossRef]
- Yin, Y.; Lam, J.S.L. Energy strategies of China and their impacts on energy shipping import through the Straits of Malacca and Singapore. Marit. Bus. Rev. 2022, 7, 145–160. [Google Scholar] [CrossRef]
- Wang, X.; Xia, G.; Zhao, J.; Wang, J.; Yang, Z.; Loughney, S.; Fang, S.; Zhang, S.; Xing, Y.; Liu, Z. A novel method for the risk assessment of human evacuation from cruise ships in maritime transportation. Reliab. Eng. Syst. Saf. 2023, 230, 108887. [Google Scholar] [CrossRef]
- Wang, S.; Lu, J.; Jiang, L. Time Reliability of the Maritime Transportation Network for China’s Crude Oil Imports. Sustainability 2020, 12, 198. [Google Scholar] [CrossRef] [Green Version]
- Wang, H.; Liu, Z.; Wang, X.; Graham, T.; Wang, J. An analysis of factors affecting the severity of marine accidents. Reliab. Eng. Syst. Saf. 2021, 210, 107513. [Google Scholar] [CrossRef]
- Wan, C.; Yang, Z.; Zhang, D.; Yan, X.; Fan, S. Resilience in transportation systems: A systematic review and future directions. Transp. Rev. 2018, 38, 479–498. [Google Scholar] [CrossRef]
- Wu, J.; Zhang, D.; Wan, C. Resilience assessment of maritime container shipping networks—A case of the Maritime Silk Road. In Proceedings of the 2019 5th International Conference on Transportation Information And Safety (ICTIS 2019), Liverpool, UK, 14–17 July 2019; pp. 252–259. [Google Scholar]
- Mou, N.; Sun, S.; Yang, T.; Wang, Z.; Zheng, Y.; Chen, J.; Zhang, L. Assessment of the Resilience of a Complex Network for Crude Oil Transportation on the Maritime Silk Road. IEEE Access 2020, 8, 181311–181325. [Google Scholar] [CrossRef]
- Dui, H.; Zheng, X.; Wu, S. Resilience analysis of maritime transportation systems based on importance measures. Reliab. Eng. Syst. Saf. 2021, 209, 107461. [Google Scholar] [CrossRef]
- Wan, C.; Tao, J.; Yang, Z.; Zhang, D. Evaluating recovery strategies for the disruptions in liner shipping networks: A resilience approach. Int. J. Logist. Manag. 2022, 33, 389–409. [Google Scholar] [CrossRef]
- Yang, Y.; Liu, W. Resilience Analysis of Maritime Silk Road Shipping Network Structure under Disruption Simulation. J. Mar. Sci. Eng. 2022, 10, 617. [Google Scholar] [CrossRef]
- Peng, P.; Cheng, S.; Chen, J.; Liao, M.; Wu, L.; Liu, X.; Lu, F. A fine-grained perspective on the robustness of global cargo ship transportation networks. J. Geogr. Sci. 2018, 28, 881–899. [Google Scholar] [CrossRef] [Green Version]
- Liu, X. Research on Robustness and Repair of Water-Rail Intermodal Transport Network under Different Information Conditions. In Proceedings of the 2018 Asia-Pacific Conference on Intelligent Medical (Apcim)/2018 7th International Conference on Transportation and Traffic Engineering (ICTTE 2018), Beijing, China, 21–23 December 2018; pp. 111–116. [Google Scholar]
- Xu, X.; Zhu, Y.; Xu, M.; Deng, W.; Zuo, Y. Vulnerability analysis of the global liner shipping network: From static structure to cascading failure dynamics. Ocean Coast. Manag. 2022, 229, 106325. [Google Scholar] [CrossRef]
- Deng, J.; Liu, S.; Shu, Y.; Hu, Y.; Xie, C.; Zeng, X. Risk evolution and prevention and control strategies of maritime accidents in China?s coastal areas based on complex network models. Ocean Coast. Manag. 2023, 237, 106527. [Google Scholar] [CrossRef]
- Guo, J.; Guo, S.; Lv, J. Potential spatial effects of opening Arctic shipping routes on the shipping network of ports between China and Europe. Mar. Policy 2022, 136, 104885. [Google Scholar] [CrossRef]
- Yu, H.; Fang, Z.; Peng, G.; Feng, M. Revealing the Linkage Network Dynamic Structures of Chinese Maritime Ports through Automatic Information System Data. Sustainability 2017, 9, 1913. [Google Scholar] [CrossRef] [Green Version]
- Guan, Q.; An, H.; Gao, X.; Huang, S.; Li, H. Estimating potential trade links in the international crude oil trade: A link prediction approach. Energy 2016, 102, 406–415. [Google Scholar] [CrossRef]
- Ducruet, C. Multilayer dynamics of complex spatial networks: The case of global maritime flows (1977–2008). J. Transp. Geogr. 2017, 60, 47–58. [Google Scholar] [CrossRef] [Green Version]
- Hao, X.; An, H.; Qi, H.; Gao, X. Evolution of the exergy flow network embodied in the global fossil energy trade: Based on complex network. Appl. Energy 2016, 162, 1515–1522. [Google Scholar] [CrossRef]
- Mou, N.; Xie, Y.; Yang, T.; Zhang, H.; Kim, Y.R. The Impact of Slumping Oil Price on the Situation of Tanker Shipping along the Maritime Silk Road. Sustainability 2019, 11, 4796. [Google Scholar] [CrossRef] [Green Version]
- Peng, P.; Yang, Y.; Cheng, S.; Lu, F.; Yuan, Z. Hub-and-spoke structure: Characterizing the global crude oil transport network with mass vessel trajectories. Energy 2019, 168, 966–974. [Google Scholar] [CrossRef]
- Bell, M.G.H.; Shield, C.M.; Busch, F.; Kruse, G. A stochastic user equilibrium path flow estimator. Transp. Res. Part C-Emerg. Technol. 1997, 5, 197–210. [Google Scholar] [CrossRef]
- Nicholson, A.; Du, Z.P. Degradable transportation systems: An integrated equilibrium model. Transp. Res. Part B-Methodol. 1997, 31, 209–223. [Google Scholar] [CrossRef]
- Wu, L.; Tan, Q.; Zhang, Y. Network connectivity entropy and its application on network connectivity reliability. Phys. A-Stat. Mech. Its Appl. 2013, 392, 5536–5541. [Google Scholar] [CrossRef]
- Zhang, P. Study on Optimization of Earthquake Emergency Traffic Scheduling Based on the Lifting of Cyberspace. China Commun. 2015, 12, 138–143. [Google Scholar]
- Liu, X.; Shao, C. Reliability calculation of connectivity considering travel cost. In Proceedings of the International Conference on Smart Transportation and City Engineering 2021, Jaipur, India, 20–21 August 2021; p. 613943. [Google Scholar]
- Hassan, A.N.; Kaiwartya, O.; Abdullah, A.H.; Sheet, D.K.; Raw, R.S. Inter Vehicle Distance Based Connectivity Aware Routing in Vehicular Adhoc Networks. Wirel. Pers. Commun. 2018, 98, 33–54. [Google Scholar] [CrossRef] [Green Version]
- Wang, S.; Yang, D.; Lu, J. A connectivity reliability-cost approach for path selection in the maritime transportation of China’s crude oil imports. Marit. Policy Manag. 2018, 45, 567–584. [Google Scholar] [CrossRef]
- Lu, J.; Wang, S. Connectivity reliability of maritime transportation network for crude oil based on uncertainty theory. Oper. Res. Manag. Sci. 2018, 27, 85–94. [Google Scholar]
- Wang, S.; Lu, J.; Lai, C. Connectivity reliability of nodes in the maritime transportation network of crude oil based on vine copulas. Transp. Syst. Eng. Inf. 2018, 18, 32–37. [Google Scholar]
- Vega, A.; Feo-Valero, M.; Espino-Espino, R. Understanding maritime transport route choice among Irish exporters: A latent class approach. Res. Transp. Econ. 2021, 90, 101025. [Google Scholar] [CrossRef]
- Wen, T.; Gao, Q.; Chen, Y.-W.; Cheong, K.H. Exploring the vulnerability of transportation networks by entropy: A case study of Asia-Europe maritime transportation network. Reliab. Eng. Syst. Saf. 2022, 226, 108578. [Google Scholar] [CrossRef]
- Hao, X. Import competition and pressure in the international crude oil trade: A network analysis. Resour. Policy 2023, 82, 103468. [Google Scholar] [CrossRef]
- Estrada, E.; Knight, P.A. A First Course in Network Theory; Oxford University Press: New York, NY, USA, 2015. [Google Scholar]
- Wang, S.; Wallace, S.W.; Lu, J.; Gu, Y.W. Handling financial risks in crude oil imports: Taking into account crude oil prices as well as country and transportation risks. Transp. Res. Part E-Logist. Transp. Rev. 2020, 133, 101824. [Google Scholar] [CrossRef]
- Brandes, U.; Borgatti, S.P.; Freeman, L.C. Maintaining the duality of closeness and betweenness centrality. Soc. Netw. 2016, 44, 153–159. [Google Scholar] [CrossRef] [Green Version]
- Ruhnau, B. Eigenvector-centrality—A node-centrality? Soc. Netw. 2000, 22, 357–365. [Google Scholar] [CrossRef]
- Gu, X.; Lai, H.-J.; Li, P.; Yao, S. Characterizations of Strength Extremal Graphs. Graphs Comb. 2014, 30, 1453–1461. [Google Scholar] [CrossRef]
- Fang, S.; Liu, Z.; Yang, X.; Wang, X.; Wang, J.; Yang, Z. A quantitative study of the factors influencing human evacuation from ships. Ocean Eng. 2023, 285, 115156. [Google Scholar] [CrossRef]
- Zhang, J.; Cai, Y.; Xu, X.; Hong, L.; Wang, S. Topological Vulnerability of Chinese High Speed Rail Network. In Proceedings of the 2011 30th Chinese Control Conference (CCC), Yantai, China, 22–24 July 2011; pp. 832–837. [Google Scholar]
- Holme, P.; Kim, B.J.; Yoon, C.N.; Han, S.K. Attack vulnerability of complex networks. Phys. Rev. E 2002, 65, 056109. [Google Scholar] [CrossRef] [Green Version]
- Hewson, P. Statistical and Econometric Methods for Transportation Data Analysis. J. R. Stat. Soc. Ser. A Stat. Soc. 2022, 185, 731. [Google Scholar] [CrossRef]
- Ravi, R.; Williamson, D.P. An approximation algorithm for minimum-cost vertex-connectivity problems. Algorithmica 1997, 18, 21–34. [Google Scholar] [CrossRef] [Green Version]
- Chen, P.-Y.; Cheng, S.-M. Sequential defense against random and intentional attacks in complex networks. Phys. Rev. E 2015, 91, 022805. [Google Scholar] [CrossRef] [PubMed]
- Huang, Y.; Han, D. Analysis of China’s Oil Trade Pattern and Structural Security Assessment from 2017 to 2021. Chem. Technol. Fuels Oils 2022, 58, 146–156. [Google Scholar] [CrossRef]
- Li, B.; Li, J.; Lu, J. Research on the Coupled Risk of Key Nodes in Maritime Transport Based on Improved Catastrophe Theory. Sustainability 2019, 11, 4640. [Google Scholar] [CrossRef] [Green Version]
Serial Number | Node Number | Serial Number | Node Number |
---|---|---|---|
1 | Strait of Malacca (SOM) | 15 | UK |
2 | Taiwan Strait (TS) | 16 | Angola (AN) |
3 | Bashi Strait (BS) | 17 | Saudi Arabia (SA) |
4 | Sunda Strait (SS) | 18 | Congo (CG) |
5 | Lombok Sela (LS) | 19 | Malaysia (MA) |
6 | Strait of Hormuz (SOH) | 20 | Iraq (IR) |
7 | Strait of Gibraltar (SOG) | 21 | Libya (LI) |
8 | The Mandab Strait (TMS) | 22 | Kuwait (KU) |
9 | Suez Canal (SC) | 23 | ARE (AR) |
10 | Panama Canal (PC) | 24 | US |
11 | Brazil (BR) | 25 | Sudan (SU) |
12 | Oman (OM) | 26 | Qatar (QA) |
13 | Norway (NO) | 27 | China (CN) |
14 | Colombia (CO) |
Crude Oil Maritime Transport Access | Crude Oil Imports Source Countries | Crude Oil Imports Routes | Import Share |
---|---|---|---|
Middle East–China Route | Saudi Arabia | Port of origin—SOH—SOM/SS/LS—TS/BS—CN | 21.5% |
Iraq | 11.5% | ||
United Arab Emirates | 6.3% | ||
Kuwait | 6.7% | ||
Qatar | 2.0% | ||
Oman | Port of origin—SOM/SS/LS—TS/BS—CN | 13.0% | |
Africa–China Route | Angola | Port of origin—Cape of Good Hope -SOM/SS/LS—TS/BS—CN | 8.0% |
Congo | 3.0% | ||
Libya | Port of origin—SC—TMS—SOM/SS/LS—TS/BS—CN; Port of origin—SOG—Cape of Good Hope—SOM/SS/LS—TS/BS—CN | 1.0% | |
Sudan | Port of origin—TMS—SOM/SS/LS—TS/BS—CN | 3.0% | |
America–China Route | Brazil | Port of origin—PC—CN; Port of origin—Cape of Good Hope—SOM/LS/SS—TS/BS—CN | 6.0% |
Colombia | 2.0% | ||
USA | Port of origin—CN | 4.0% | |
Europe–China Route | Norway | Port of origin—SOG—SC—TMS—SOM/SS/LS—TS/BS—CN; Port of origin—Cape of Good Hope—SOM/SS/LS—TS/BS—CN; Port of origin—CN | 2.4% |
UK | 1.6% | ||
South East Asia–China Route | Malaysia | Port of origin—TS/BS—CN | 8.0% |
Node | Degree | Work Intensity | Centrality | Leader Rank |
---|---|---|---|---|
SOM | 12 | 0.855 | 0.027 | 2.840 |
SOH | 8 | 0.480 | 0.046 | 1.360 |
SS | 12 | 0.093 | 0.027 | 2.840 |
LS | 12 | 0.093 | 0.027 | 2.840 |
TS | 5 | 0.468 | 0.015 | 3.620 |
BS | 5 | 0.468 | 0.015 | 3.620 |
SOG | 7 | 0.023 | 0.015 | 0.970 |
TMS | 5 | 0.047 | 0.018 | 1.030 |
BR | 4 | 0.060 | 0.000 | 0.388 |
OM | 3 | 0.130 | 0.000 | 0.388 |
NO | 4 | 0.024 | 0.000 | 0.388 |
CO | 4 | 0.020 | 0.000 | 0.388 |
UK | 4 | 0.016 | 0.000 | 0.388 |
AN | 3 | 0.080 | 0.000 | 0.388 |
SA | 1 | 0.215 | 0.000 | 0.388 |
CG | 3 | 0.030 | 0.000 | 0.388 |
PC | 3 | 0.025 | 0.003 | 0.780 |
SC | 3 | 0.021 | 0.006 | 0.890 |
IR | 2 | 0.080 | 0.000 | 0.388 |
MA | 1 | 0.115 | 0.000 | 0.388 |
LI | 2 | 0.010 | 0.000 | 0.388 |
KU | 1 | 0.067 | 0.000 | 0.388 |
AR | 1 | 0.063 | 0.000 | 0.388 |
US | 1 | 0.040 | 0.000 | 0.388 |
SU | 1 | 0.036 | 0.000 | 0.388 |
QA | 1 | 0.014 | 0.000 | 0.388 |
Node | Scores | Ranking | Node | Scores | Ranking |
---|---|---|---|---|---|
SOM | 0.879 | 1 | CO | 0.052 | 14 |
TS | 0.738 | 2 | UK | 0.052 | 14 |
BS | 0.738 | 2 | AN | 0.052 | 14 |
SS | 0.705 | 3 | SA | 0.047 | 17 |
LS | 0.705 | 3 | CG | 0.041 | 18 |
SOH | 0.575 | 6 | MA | 0.035 | 19 |
SOG | 0.264 | 7 | IR | 0.023 | 20 |
TMS | 0.256 | 8 | LI | 0.017 | 21 |
SC | 0.142 | 9 | KU | 0.012 | 22 |
PC | 0.113 | 10 | AR | 0.012 | 22 |
BR | 0.064 | 11 | US | 0.006 | 24 |
OM | 0.064 | 11 | SU | 0.006 | 24 |
NO | 0.058 | 13 | QA | 0 | 26 |
