Study on the Corrosion Behavior of D36 Steel Plate and H62 Copper Alloy Net for Marine Aquaculture Facilities in Simulated Seawater
Abstract
:1. Introduction
2. Materials and Methods

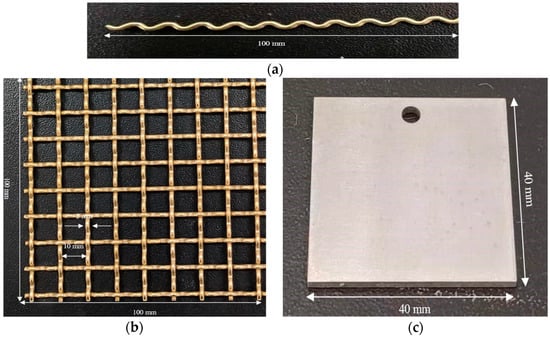

2.1. Experimental Materials
2.2. Sample Preparation and Pretreatment
2.2.1. Single Metal Immersion Experiment

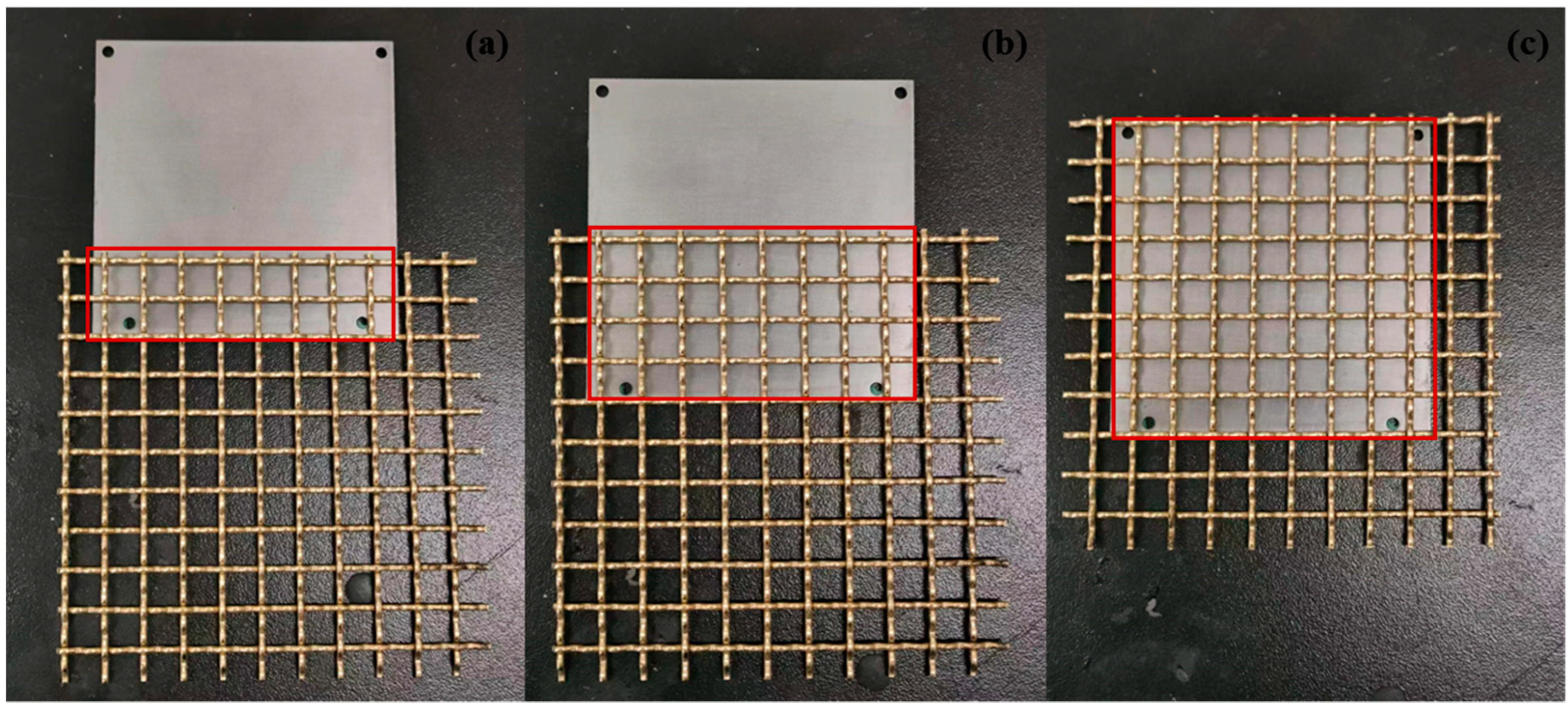

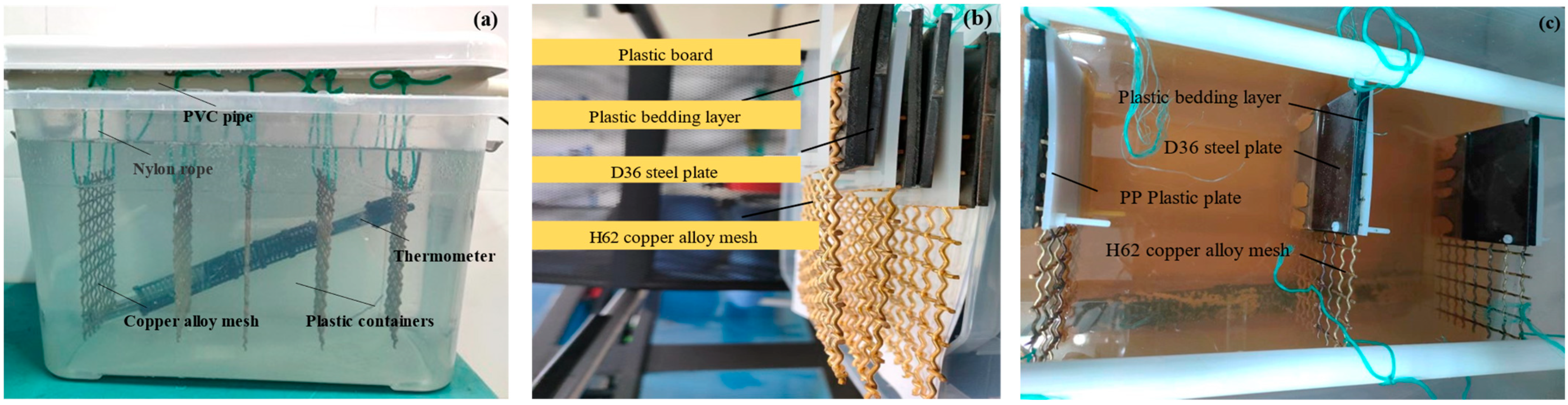

2.2.2. Galvanic Corrosion Experiment
2.2.3. Electrochemical Test
2.3. Experimental Equipment and Measurement

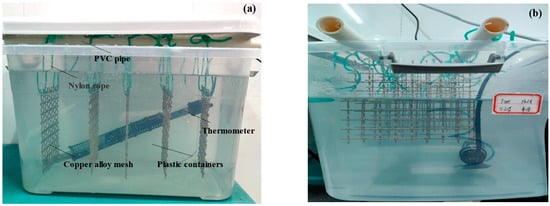

2.3.1. Single Metal Immersion Experiment
2.3.2. Galvanic Corrosion Experiments
2.3.3. Electrochemical Test

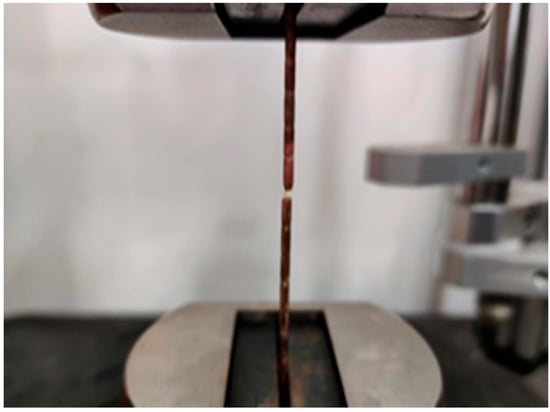

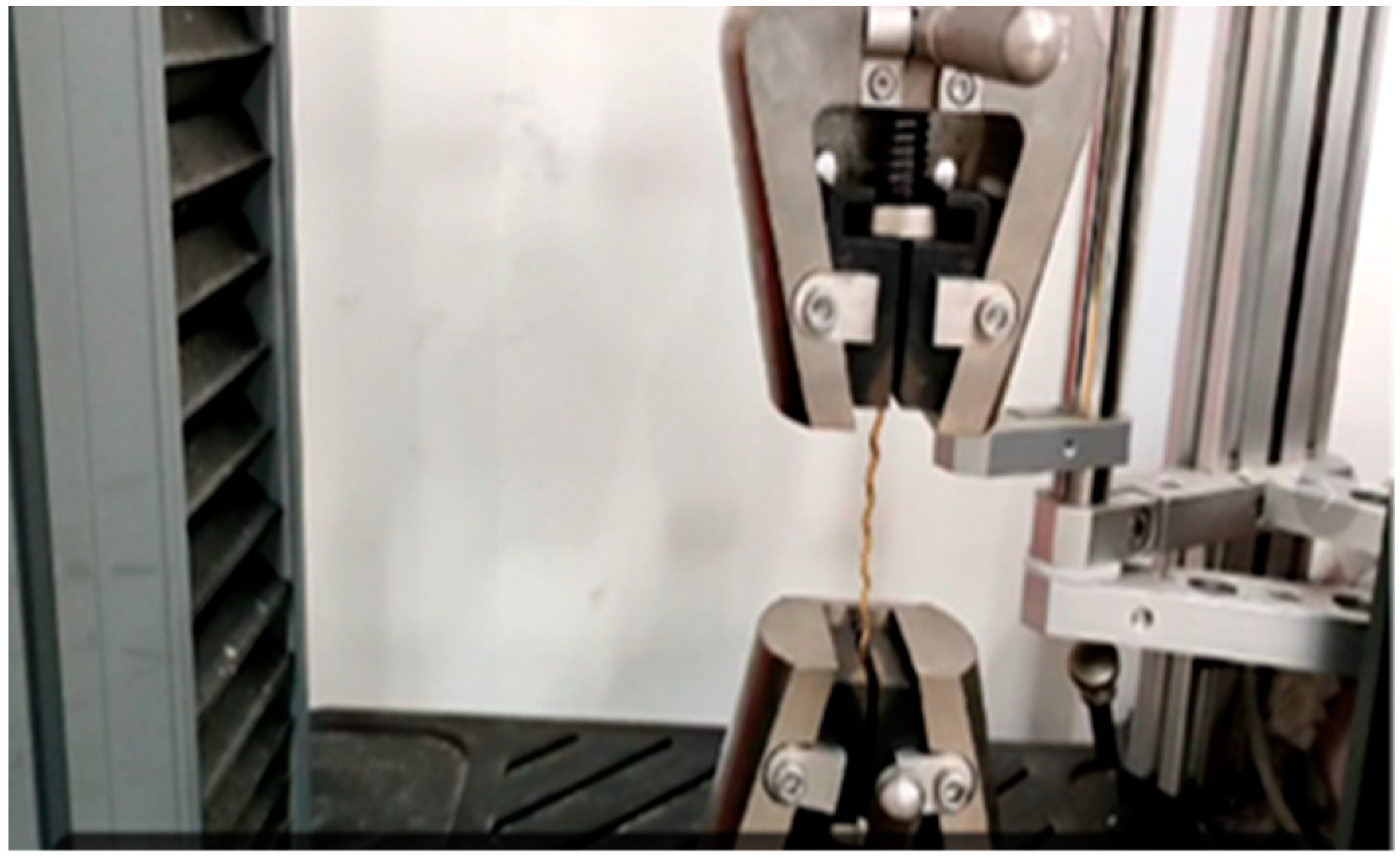

2.3.4. Tensile Test
3. Results
3.1. Electrochemical Test

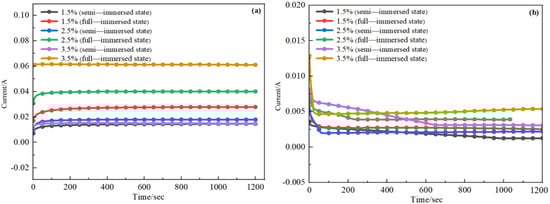

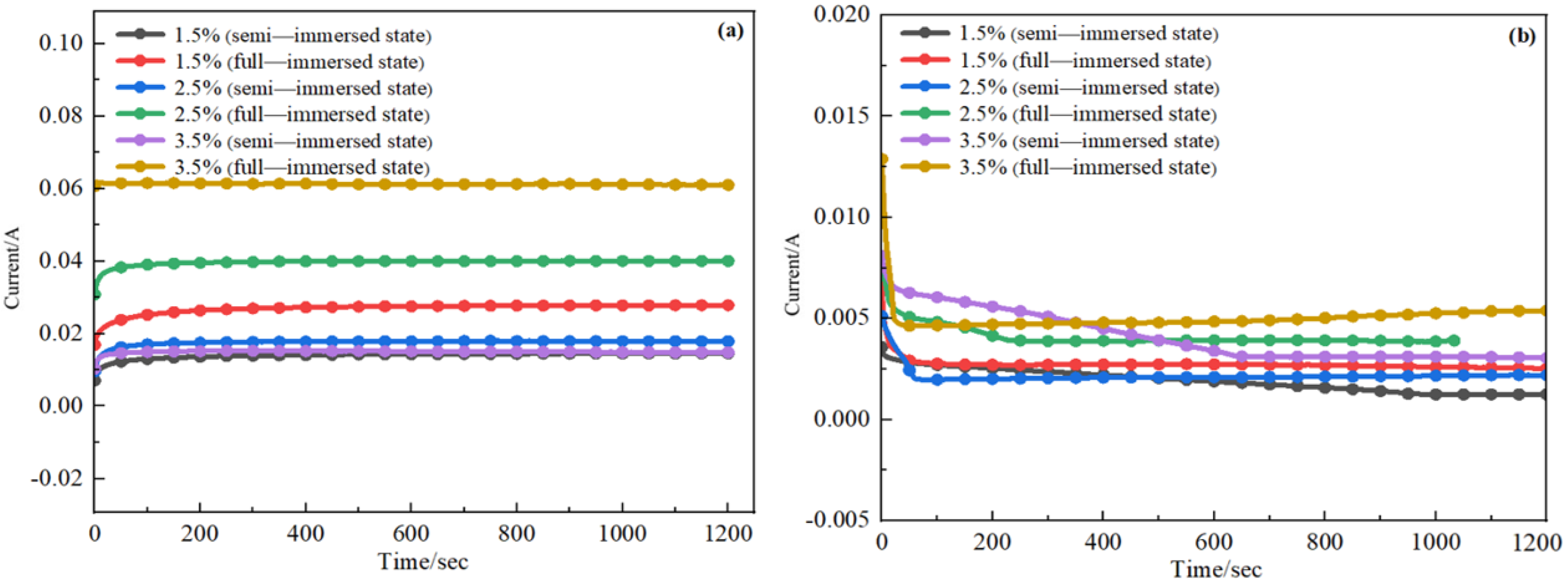

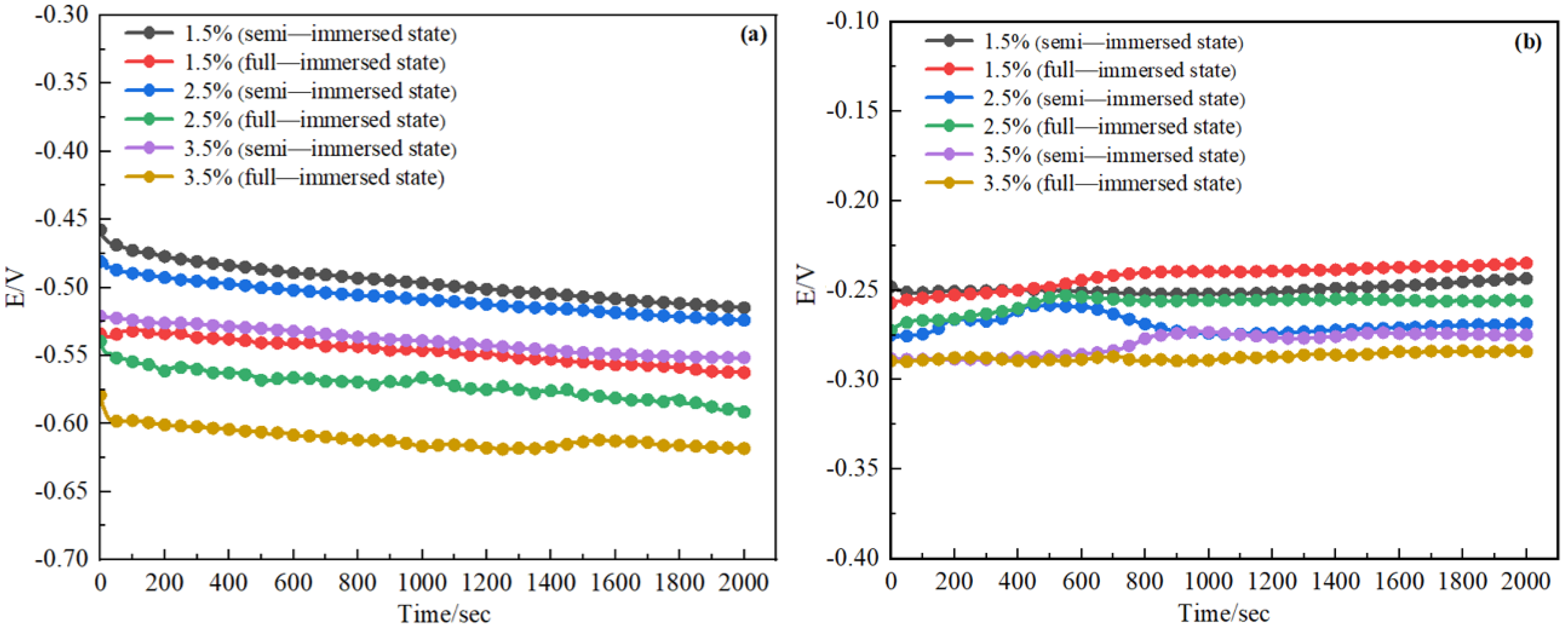

3.1.1. Open Circuit Potential (OCP)

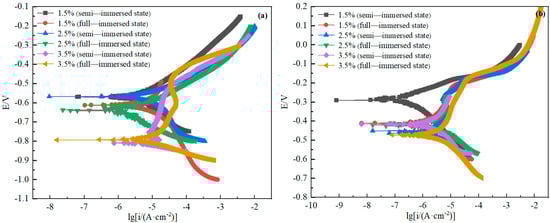

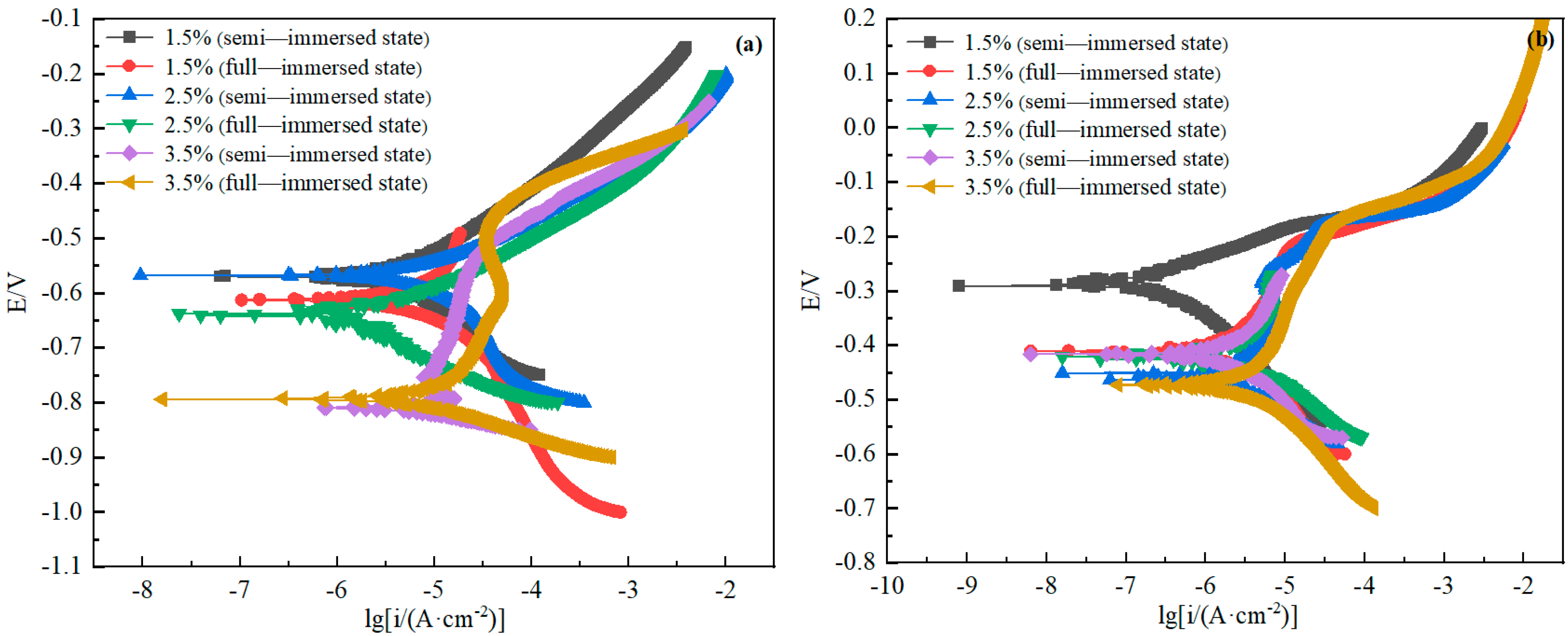

3.1.2. Polarization Curve

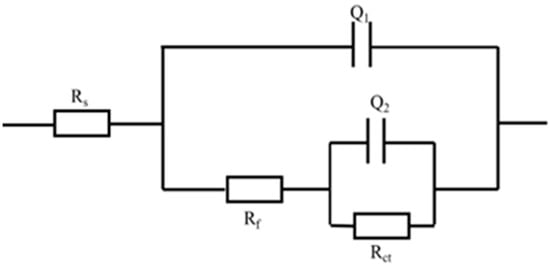

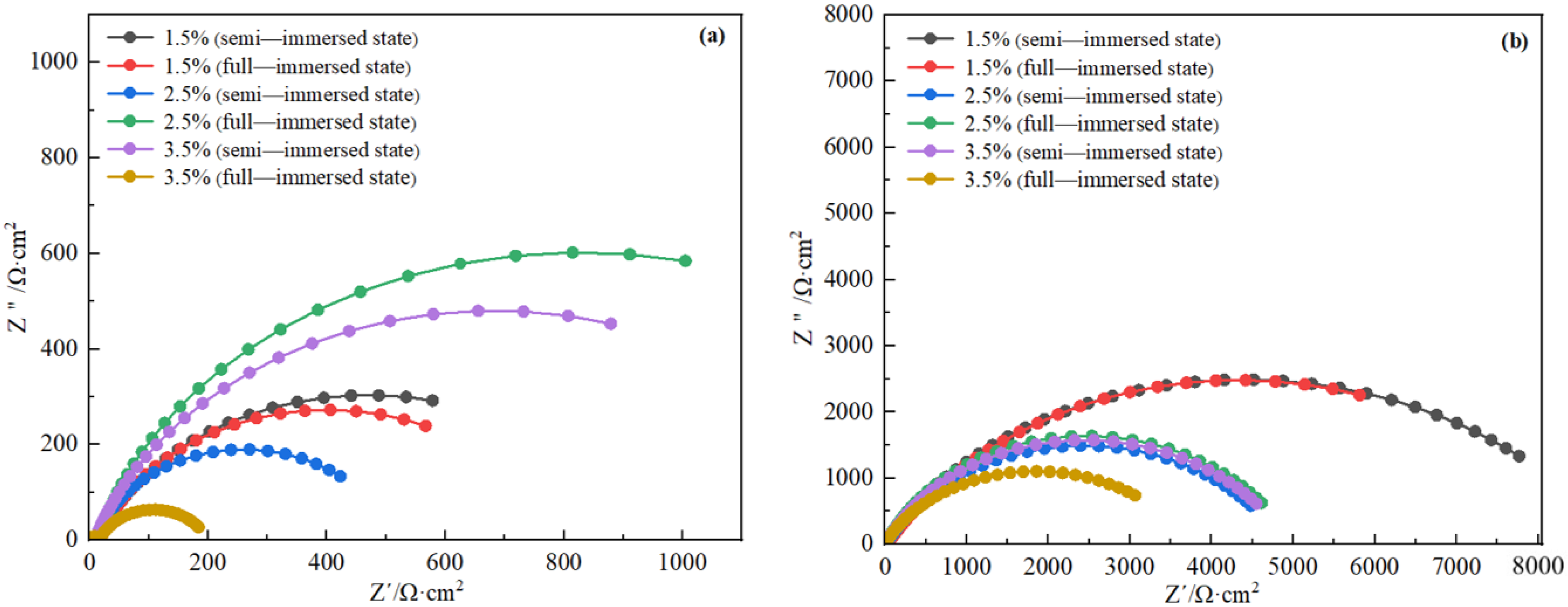

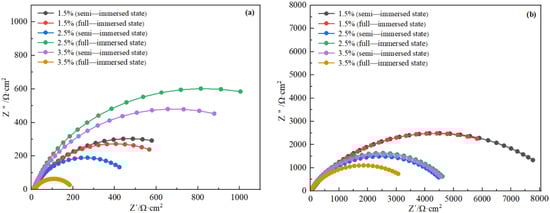

3.1.3. Electrochemical impedance spectrum (EIS)

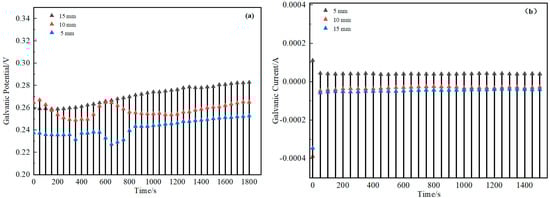

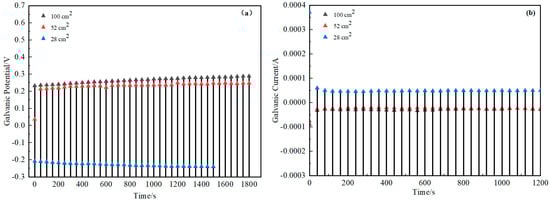

3.1.4. Galvanic Potential and Galvanic Current
3.2. Corrosion Morphology and Mass Loss

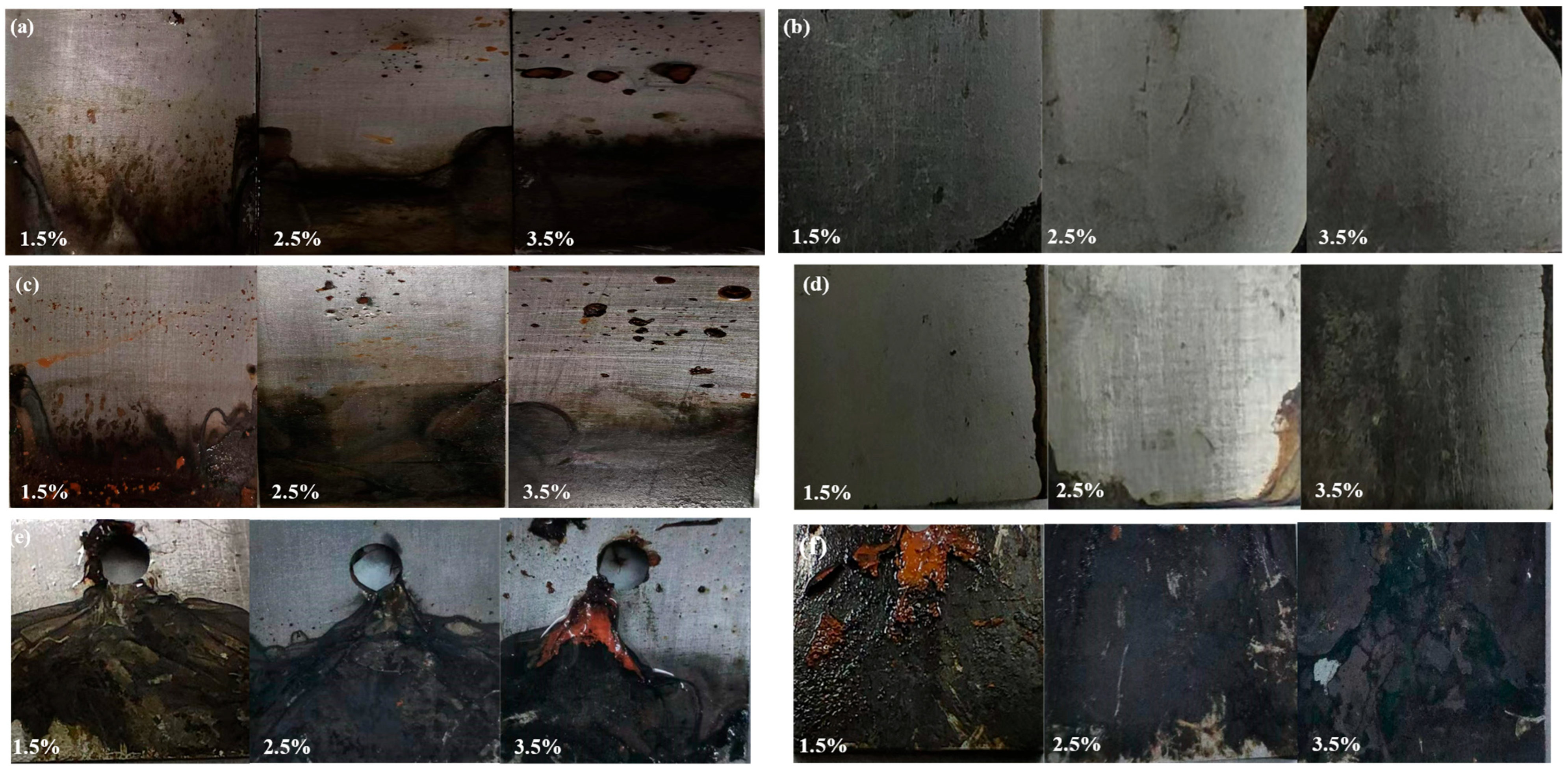

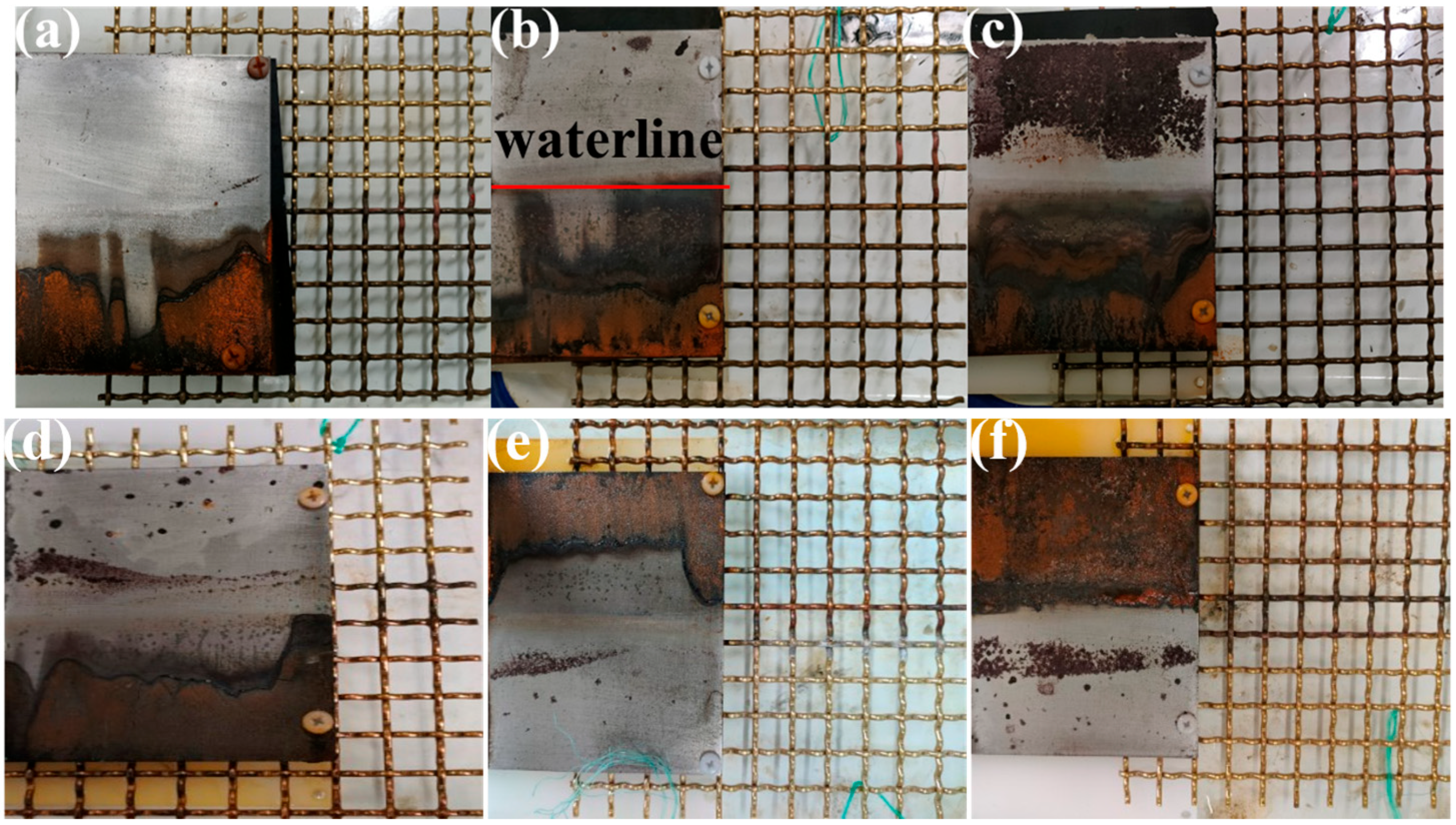

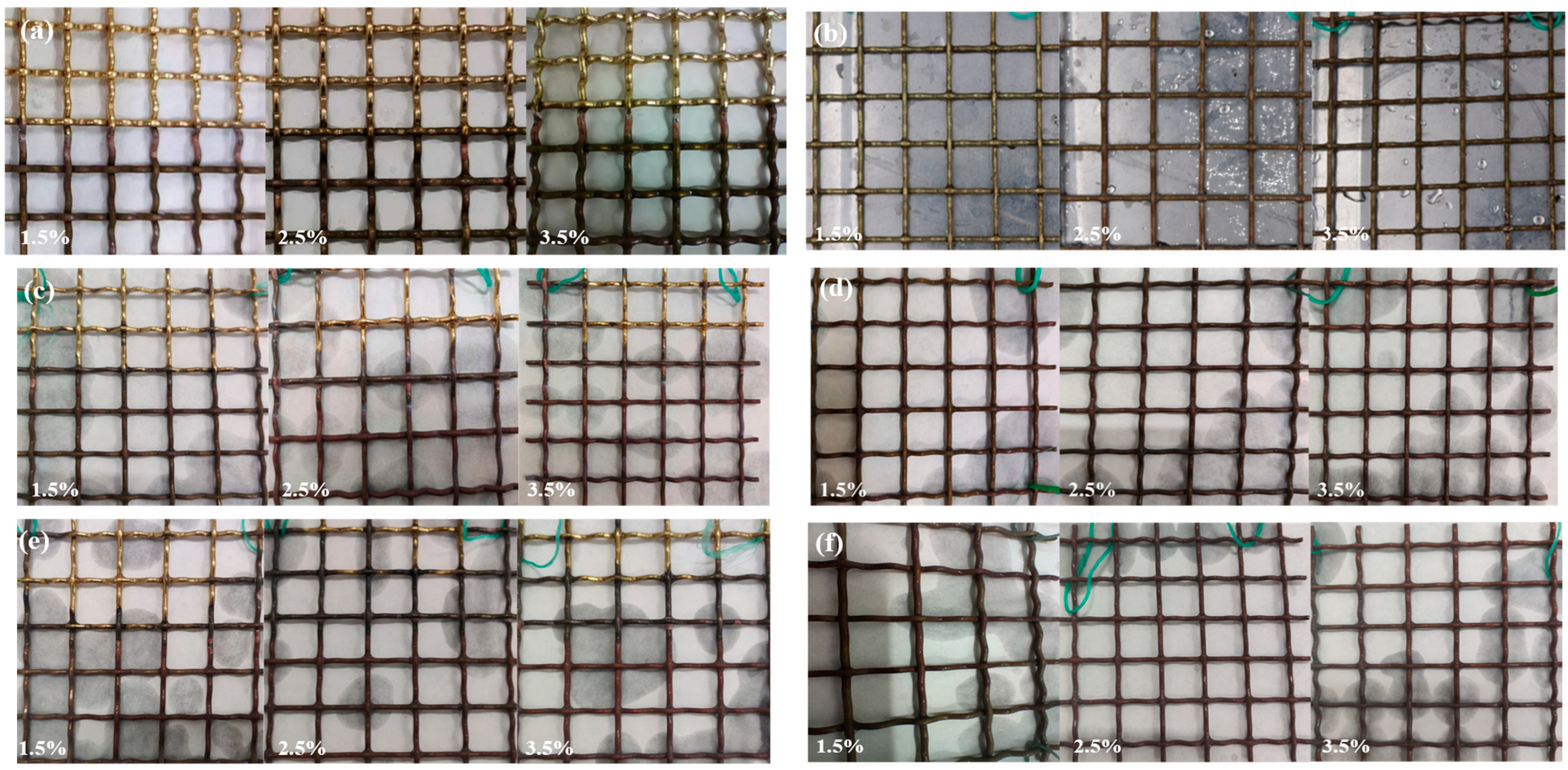

3.2.1. Corrosion Morphology

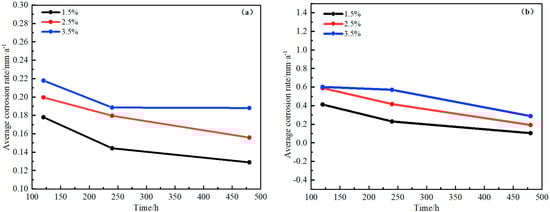

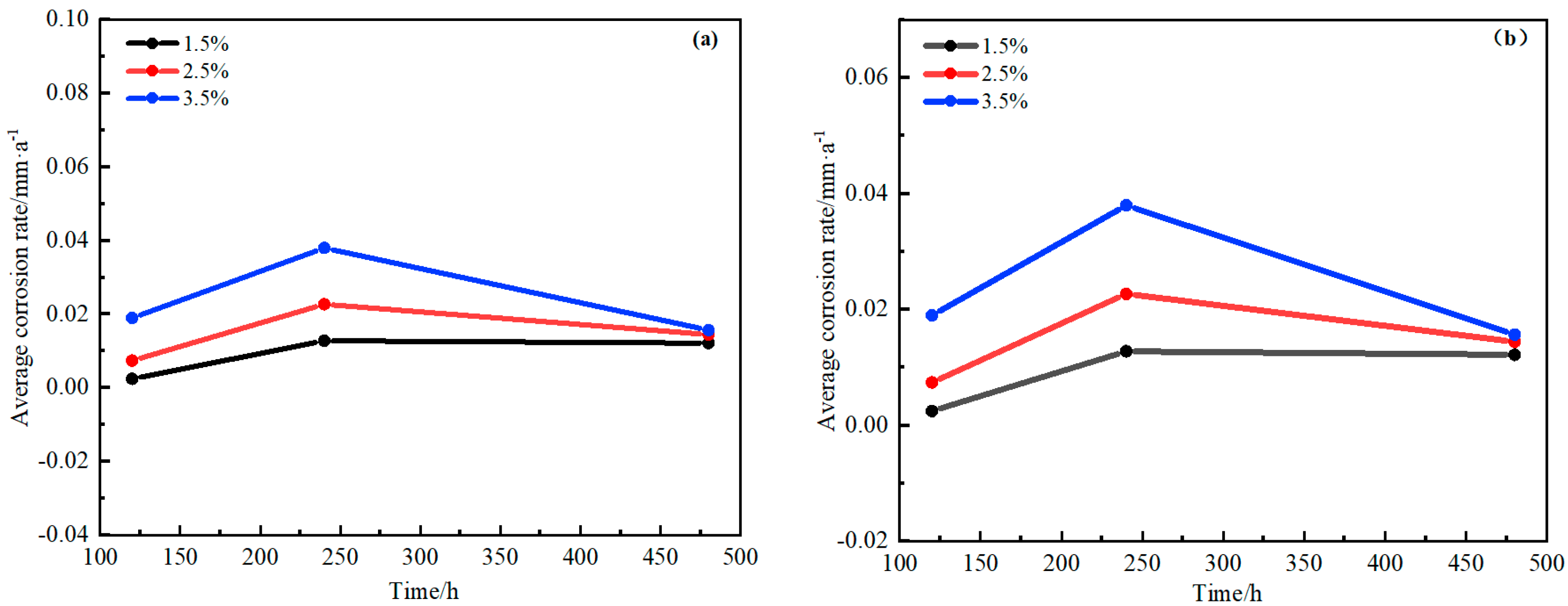

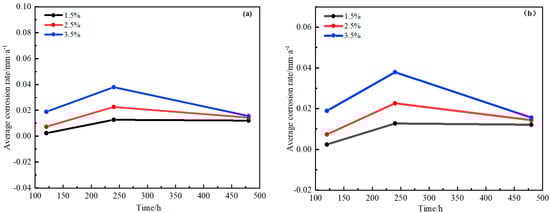

3.2.2. Weight Loss Analysis

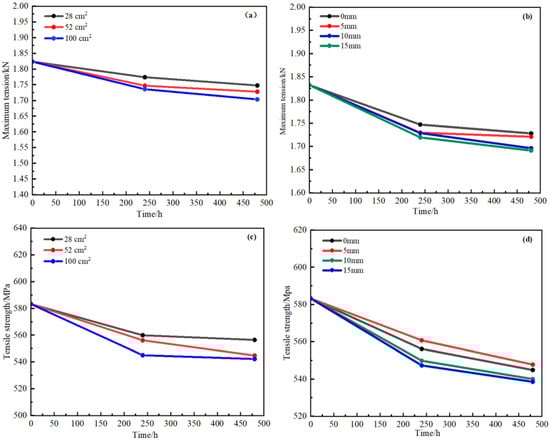

3.3. Variation of Mechanical Properties of Copper Alloy Mesh
4. Discussion
4.1. Effect of Salinity on Corrosion

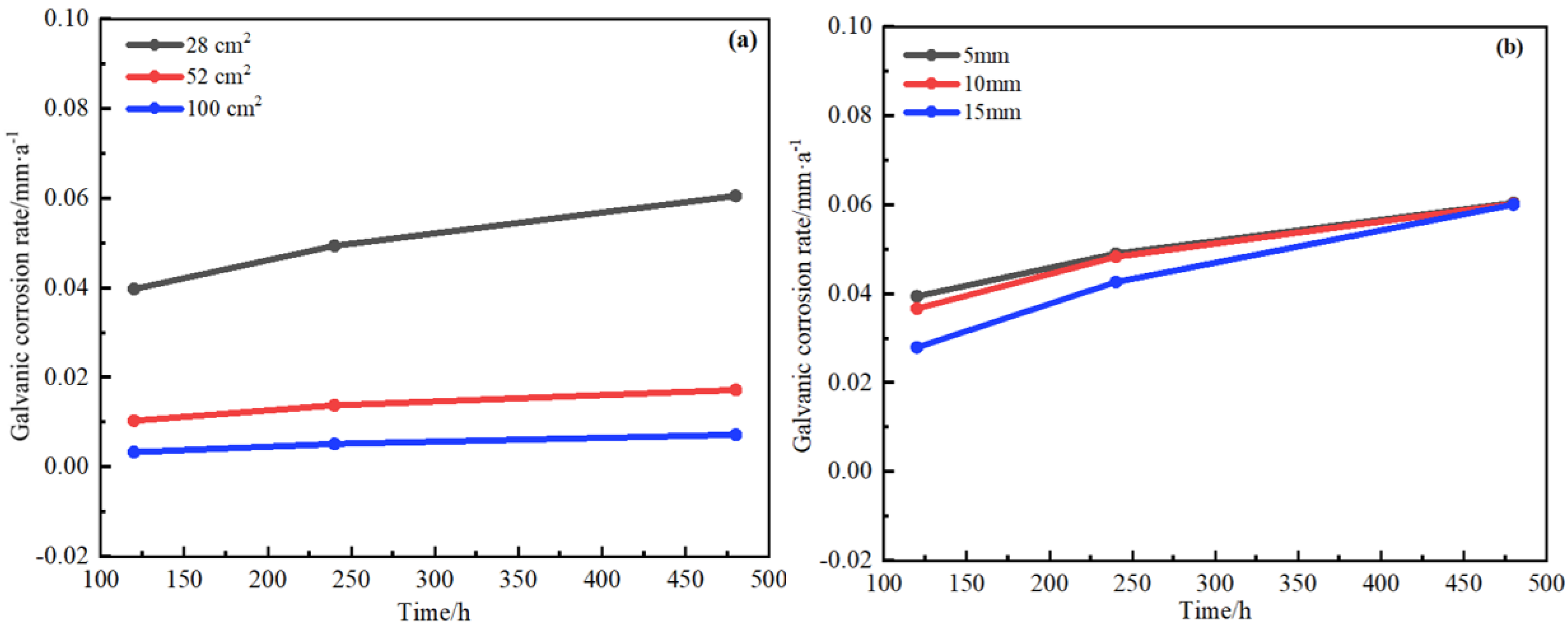

4.2. Effect of Layer Thickness on the Rate of Galvanic Corrosion of Copper Alloy and Steel
4.3. Effect of Overlapping Area on the Rate of Galvanic Corrosion of Copper Alloy and Steel
4.4. Shortcomings and Further Prospects
5. Conclusions
- (1)
- Salinity is an important factor affecting the corrosion of metals. In the simulated seawater solution, the corrosion rate of H62 copper alloy mesh and D36 steel plate also increased significantly with the increase of NaCl concentration. At the same time, the corrosion rate of both materials showed a trend of faster and then a slower trend in the short term with time. The OCP results showed that the copper alloy potential was more positive; the steel plate was negative, indicating that two materials had the tendency of galvanic corrosion (copper alloy was as the cathode, and the steel plate was as the anode material);
- (2)
- The bedding layer thickness and the overlapping area both played a role in protection of the steel plate when the H62 mesh and D36 steel were coupled in seawater. With the increase of bedding layer thickness and overlapping area, the galvanic couple corrosion rate had a certain degree of reduction. Under the “large anode, small cathode” overlapping mode, the larger the overlapping area, the more moderate rise, although the corrosion rate was rising;
- (3)
- The maximum force and tensile strength of the mesh in different corrosion conditions were also different. The smaller the concentration of NaCl solution, the smaller the corrosion rate of the mesh, and the greater the maximum force and tensile strength. At the same time, the maximum force and tensile strength of the meshes decreased when the thickness of the layer and overlapping area increased.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Alexia Bohnes, F.; Zwicky Hauschild, M.; Schlundt, J.; Nielsen, M.; Laurent, M. Environmental sustainability of future aquaculture production: Analysis of Singaporean and Norwegian policies. Aquaculture 2022, 549, 737717. [Google Scholar] [CrossRef]
- Wang, S.; Feng, D.; Gui, F.; Xu, Z. Dynamic Behavior of the Net of a Pile-Net-Gapped Enclosure Aquaculture Facility. J. Mar. Sci. Eng. 2022, 10, 1166. [Google Scholar] [CrossRef]
- Zhang, Z.; Gui, F.; Qu, X.; Feng, D. Net Damage Detection for Marine Aquaculture Facilities Based on Improved Mask R-CNN. J. Mar. Sci. Eng. 2022, 10, 996. [Google Scholar] [CrossRef]
- Shi, X.-W.; Zhao, Y.-P.; Bi, C.-W.; Liu, Q.; Fan, Z.-Q.; Zhou, S.-H.; Jia, N. Failure probability of offshore high-density polyethylene net cages under typhoon waves. Aquac. Eng. 2022, 98, 102254. [Google Scholar] [CrossRef]
- Zhang, Z.-L.; Ma, Y.-J.; Fan, G.-H.; Qu, X.-Y.; Gui, F.-K.; Feng, D.-J. Neural network model for assessing structural performance of net in net-enclosure aquaculture facilities. Aquac. Eng. 2022, 99, 102295. [Google Scholar] [CrossRef]
- Sim, B.; Kim, H.C.; Kang, S.; Park, K.D.; Yoon, S.; Hong, S.; Yoon, S.; Kim, J.B.; Lee, W. Influence of intensive net cage farming on hydrodynamic and geochemical environmental conditions and the mass mortality of abalone in South Korea. Mar. Pollut. Bull. 2021, 169, 112555. [Google Scholar] [CrossRef]
- Pahlow, M.; van Oel, P.; Mekonnen, M.; Hoekstra, A. Increasing pressure on freshwater resources due to terrestrial feed ingredients for aquaculture production. Sci. Total Environ. 2015, 536, 847–857. [Google Scholar] [CrossRef]
- Alexia Bohnes, F.; Laurent, A. Environmental impacts of existing and future aquaculture production: Comparison of technologies and feed options in Singapore. Aquaculture 2021, 532, 736001. [Google Scholar] [CrossRef]
- Zhao, Y.-X.; Zhang, J.-H.; Liu, Y.; Sun, K.; Zhang, C.; Wu, W.-G.; Teng, F. Numerical assessment of the environmental impacts of deep sea cage culture in the Yellow Sea, China. Sci. Total Environ. 2020, 706, 135752. [Google Scholar] [CrossRef]
- Cornejo, P.; Guerrero, N.M.; Montes, R.M.; Quiñones, R.A.; Sepúlveda, H.H. Hydrodynamic effect of biofouling in fish cage aquaculture net. Aquaculture 2020, 526, 735367. [Google Scholar] [CrossRef]
- Greenhalgh, S.; Finucane, L.M.; Mercer, C.; Selfe, J. Safety net; best practice in the face of uncertainty. Musculoskelet. Sci. Pract. 2020, 48, 102179. [Google Scholar] [CrossRef] [PubMed]
- Ayer, N.; Martin, S.; Dwyer, R.; Gace, L.; Laurin, L. Environmental performance of copper-alloy Net-pens: Life cycle assessment of Atlantic salmon grow-out in copper-alloy and nylon net-pens. Aquaculture 2016, 453, 93–103. [Google Scholar] [CrossRef]
- Drach, A.; Tsukrov, I.; DeCew, J.; Celikkol, B. Engineering procedures for design and analysis of submersible fish cages with copper net for exposed marine environment. Aquac. Eng. 2016, 70, 1–14. [Google Scholar] [CrossRef]
- Nie, Z.-W.; Wang, L.; Liu, Y.-L. Development and application of fishery copper alloy net. Mar. Fish. 2016, 38, 329–336. [Google Scholar]
- Wang, L.; Wang, L.-M.; Huang, T.; Shi, J.-G.; Liu, Y.-L.; Liu, Q.; Qi, G.-R.; Wang, S.-J. Current situation and analysis of copper alloy fence aquaculture facilities with pillar pile. Mod. Fish. Inf. 2017, 32, 197–203. [Google Scholar]
- Wang, S.-M.; Shen, W.; Guo, J.-J.; Yuan, T.-P.; Qiu, Y.; Tao, Q.-Y. Engineering prediction of fatigue strength for copper alloy net structure by experimental method. Aquac. Eng. 2020, 90, 102087. [Google Scholar] [CrossRef]
- Sclodnick, T.; Sutton, S.; Selby, T.; Dwyer, R.; Gace, L. Environmental impacts of brass mesh nets on open ocean aquaculture pens in tropical marine environments. Aquaculture 2020, 524, 735266. [Google Scholar] [CrossRef]
- Mahmood, W.; Ayub, T.; Khan, A. Mechanical properties and corrosion resistance of recycled aggregate concrete exposed to accelerated and natural marine environment. J. Build. Eng. 2023, 66, 105867. [Google Scholar] [CrossRef]
- Zhang, W.; Zha, X.; Liu, X.; Luo, X. Study on Corrosion and Galvanic Corrosion of HAl67-2.5 and H62 Marine Copper Alloys. Dev. Appl. Mater. 2018, 33, 14–19. [Google Scholar] [CrossRef]
- Zhang, X.; Mei, W.; Huang, L.-P.; Tao, J.-H.; Xiong, Y.-M.; Wang, Z.-H. Galvanic corrosion behavior of 5083 alloy/H62 brass couple under magnetic field. J. Mater. Res. Technol. 2023, 22, 192–205. [Google Scholar] [CrossRef]
- Wang, X.-K.; Su, H.; Xie, Y.; Wang, J.; Feng, C.; Li, D.; Wu, T. Atmospheric corrosion of T2 copper and H62 brass exposed in an urban environment. Mater. Chem. Phys. 2023, 299, 127487. [Google Scholar] [CrossRef]
- Lu, X.; Liu, Y.-W.; Liu, M.; Wang, Z.-Y. Corrosion behavior of copper T2 and brass H62 in simulated Nansha marine atmosphere. J. Mater. Sci. Technol. 2019, 35, 1831–1839. [Google Scholar] [CrossRef]
- Yang, W.-L.; Liu, Z.-Q.; Huang, H.-L. Galvanic corrosion behavior between AZ91D magnesium alloy and copper in distilled water. Corros. Sci. 2021, 188, 109562. [Google Scholar] [CrossRef]
- Tang, S.-K.; Dai, Z.-X.; Tan, G.-L.; Gong, S.; Liu, B.; Xie, G.-L.; Peng, L.-J.; Guo, J.-L.; Li, Z. High-strength, ductility and corrosion-resistant in a novel Cu20Ni20Mn0.3Cr0.3Al alloy. Mater. Chem. Phys. 2020, 252, 123177. [Google Scholar] [CrossRef]
- Yu, D.-Z.; Zhang, T.; Liu, Q. Effects of Temperature and Chloride Ion Concentration on the Corrosion of H62 Copper Alloy. J. Nav. Aviat. Univ. 2020, 35, 419–424+432. [Google Scholar]
- Wang, Y.-X.; Zhang, A.; Wang, H.-J. Electrochemical investigation on the effect of NaCl ion concentration on the corrosion of concrete reinforcement using in-situ nano-Ag/AgCl electrode. Alex. Eng. J. 2023, 66, 451–456. [Google Scholar] [CrossRef]
- Li, P.; Du, M. Effect of NaCl ion content on pitting corrosion of dispersion-strengthened-high-strength steel. Corros. Commun. 2022, 7, 23–34. [Google Scholar] [CrossRef]
- Sun, Y.-H.; Li, Z.-Y.; Zhang, W.-Z.; Liu, Y. Study on Galvanic Corrosion of Titanium Alloy and 95# Steel. Mater. Environ. Eng. 2014, 11, 7–10+37. [Google Scholar]
- Wu, X.-W.; Huang, L.-Q.; Sun, Q. Study on Galvanic Corrosion Characteristics of Metallic Materials Used in Surface Ships. Mater. Prot. 2021, 54, 36–40+106. [Google Scholar]
- Jia, J.X.; Song, G.-L.; Atrens, A. Influence of geometry on galvanic corrosion of AZ91D coupled to steel. Corros. Sci. 2006, 48, 2133–2153. [Google Scholar] [CrossRef]
Materials | Cu | Mn | P | S | Si | Cr | C | Ni | Fe | Pb | Zn |
---|---|---|---|---|---|---|---|---|---|---|---|
H62 | 61.82 | - | - | - | - | - | - | 0.28 | 0.08 | 0.015 | Bal. |
D36 | 0.018 | 1.38 | 0.016 | 0.006 | 0.25 | 0.021 | 0. 15 | 0.008 | Bal. | - | - |
Case | NaCl Concentration | Immersion State | Layer Thickness (mm) | Overlapping Area (cm2) |
---|---|---|---|---|
1 | 1.5 | semi-immersed state | - | - |
full-immersed state | ||||
2 | 2.5 | semi-immersed state | - | - |
full-immersed state | ||||
3 | 3.5 | semi-immersed state | - | - |
full-immersed state | ||||
4 | 3.5 | semi-immersed state | 5 | - |
5 | 10 | - | ||
6 | 15 | - | ||
7 | - | 28 | ||
8 | - | 52 | ||
9 | - | 100 |
Material | Conditions | E/V | Current Density/log [I/(A·cm2)] |
---|---|---|---|
H62 | 1.5% (semi-immersed state) | −0.291 | −9.104 |
1.5% (full-immersed state) | −0.416 | −6.494 | |
2.5% (semi-immersed state) | −0.324 | −5.177 | |
2.5% (full-immersed state) | −0.437 | −5.793 | |
3.5% (semi-immersed state) | −0.460 | −5.386 | |
3.5% (full-immersed state) | −0.473 | −5.578 | |
D36 | 1.5% (semi-immersed state) | −0.570 | −7.201 |
1.5% (full-immersed state) | −0.638 | −5.155 | |
2.5% (semi-immersed state) | −0.5907 | −5.171 | |
2.5% (full-immersed state) | −0.6655 | −5.683 | |
3.5% (semi-immersed state) | −0.596 | −4.708 | |
3.5% (full-immersed state) | −0.6735 | −4.497 |
Material | Conditions | R | Y0 | n | Rf | Y0 | n | Rct |
---|---|---|---|---|---|---|---|---|
(Ω × cm2) | (S × s n/m2) | (Ω · cm2) | (S × s n/m2) | (Ω × cm2) | ||||
H62 | 1.5% (semi-immersed) | 0.8332 | 2.88 × 10−6 | 1 | 69.4 | 5.453 × 10−5 | 0.618 | 8945 |
1.5% (full-immersed) | 0.7168 | 1.09 × 10−6 | 1 | 25.14 | 2.245 × 10−4 | 0.664 | 8622 | |
2.5% (semi-immersed) | 1.182 | 1.068 × 10−5 | 1 | 15.81 | 8.706 × 10−5 | 0.69 | 4870 | |
2.5% (full-immersed) | 0.6016 | 4.936 × 10−6 | 1 | 96.18 | 4.893 × 10−5 | 0.698 | 4921 | |
3.5% (semi-immersed) | 0.6992 | 5.811 × 10−6 | 1 | 137.1 | 5.776 × 10−5 | 0.683 | 4830 | |
3.5% (full-immersed) | 0.4737 | 5.007 × 10−6 | 1 | 27.1 | 8.822 × 10−5 | 0.643 | 3752 | |
D36 | 1.5% (semi-immersed) | 1.195 | 7.488 × 10−6 | 0.992 | 32.45 | 7.027 × 10−4 | 0.735 | 744.1 |
1.5% (full-immersed) | 15.59 | 1.429 × 10−3 | 0.765 | 819.3 | 6.906 × 10−4 | 0.84 | 0.01215 | |
2.5% (semi-immersed) | 0.4326 | 8.764 × 10−6 | 0.965 | 9.394 | 1.726 × 10−3 | 0.824 | 501.9 | |
2.5% (full-immersed) | 0.4952 | 5.479 × 10−6 | 0.995 | 6.337 | 1.48 × 10−3 | 0.794 | 757.4 | |
3.5% (semi-immersed) | 7.697 | 7.7 × 10−4 | 0.771 | 38.64 | 6.872 × 10−5 | 0.973 | 1313 | |
3.5% (full-immersed) | 0.9896 | 3.065 × 10−6 | 0.973 | 16.01 | 2.274 × 10−3 | 0.777 | 182.2 |
