Monitoring Coastal Waves with ICESat-2

by
James T. Dietrich
1,
Lori A. Magruder
1,2,* and
Matthew Holwill
1
1
3D Geospatial Laboratory, Center for Space Research, Cockrell School of Engineering, University of Texas at Austin, Austin, TX 78705, USA
2
Department of Aerospace Engineering and Engineering Mechanics, Cockrell School of Engineering, University of Texas at Austin, Austin, TX 78705, USA
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2023, 11(11), 2082; https://doi.org/10.3390/jmse11112082
Submission received: 22 September 2023 / Revised: 21 October 2023 / Accepted: 23 October 2023 / Published: 30 October 2023
(This article belongs to the Section Coastal Engineering)
Browse Figures
Versions Notes

Abstract

:
The coastal zone faces an ever-growing risk associated with climate-driven change, including sea level rise and increased frequency of extreme natural hazards. Often the location and dynamism of coastal regions makes them a formidable environment to adequately study with in-situ methods. In this study we use Ice, Cloud, and land Elevation Satellite-2 (ICESat-2) to make measurements of basic wave parameters and wave directionality in the coastal zones of the Hawaiian Islands and North Carolina, USA. Our goal was to leverage as much of the full resolution data available in the ATL03 data product to generate wave metrics out from shore up to ~25 km. Using a combination of statistical and signal processing methods, including cross-correlation and wavelets, we can use ICESat-2 to generate basic wave metrics, including significant wave heights with an accuracy of ±0.5 m. In some profiles we can identify wave shoaling, which could be useful to infer bathymetry and coastal dynamics. In areas with complex wave dynamics, the nature of how ICESat-2 measures elevations (parallel laser altimetry beams) can make extracting some wave parameters, especially wavelength and directionality, more challenging. These wave metrics can provide important data in support of validating wave and tidal models and may also prove useful in extended ICESat-2 applications like bathymetric corrections and satellite-derived bathymetry.

1. Introduction

Coastal regions are the most overt in their response to the changing ocean and are an important lens through which we can view, monitor, and learn about the impacts of climate change on our planet [1,2]. While representing only ~11% of the Earth’s land surface, coastal regions are home to more than 600 million people [1] and the coastal biome is responsible for 25% of global biological productivity and 80% of known fish species [3]. The coastal ecosystem faces an ever-growing risk associated with climate-driven indicators, including sea level rise and the increased frequency of extreme natural hazards [4]. Coastal processes are governed by the dynamic ocean and atmospheric environments with constantly changing conditions. Understanding how these processes are represented by local water dynamics along the coastline is essential to the prediction of how sea level might threaten the livelihood of coastal communities [5]. However, the location and dynamism of coastal regions often makes them a formidable environment to adequately study with in-situ methods. Buoys can provide some information but are sparsely distributed and often placed in deeper water which precludes measurements that capture the complexities nearer to the shoreline [6]. Similarly, drifters or autonomous surface vehicles (ASV) can also monitor wave motion but the spatial and temporal distribution limit the overall coverage [7,8,9,10]. Space-based observations alleviate some of the complications from field measurements, and even airborne collections give wider spatial coverage, however they can have fairly low temporal latency between repeat passes. Effective instrumentation for satellites focused on ocean surface characterization include radar altimeters, synthetic aperture radar and a multitude of radiometers. These systems have been proven to extract wave heights, ocean heights and ocean vector winds [11,12]. However, the resolution of these systems is often at tens of meters to kilometer spatial scales which leaves large gaps in ocean surface topography and certain nearshore characteristics that vary at short length scales [6,13,14,15,16].
In 2018, NASA launched the Ice, Cloud and Land Elevation Satellite-2 (ICESat-2), with a state-of-the-art photon counting laser altimeter onboard, poised to provide global height measurements with unprecedented vertical accuracy and precision [17,18]. ICESat-2 provides a way to measure waves at high spatial resolutions ranging from near-shore to the open ocean. Deep water and open ocean waves have been studied using ICESat-2 data [19,20,21,22] and there has been extensive use of ICESat-2 in coastal zones to extract bathymetry [23,24,25,26,27,28,29,30]. However, there has been no research to date on using ICESat-2 for coastal/near-shore wave measurements. ICESat-2 has also proved to be a great resource for supplementary data for other methods like satellite-derived bathymetry (SDB), a process that uses spectral band ratios of downwelling irradiance in the water column to estimate a relative depth [31]. The ICESat-2 bathymetric measurements act as ‘seed’ points and can move the image based relative-depth maps to an absolute vertical scale. Other studies in the literature have utilized ICESat-2 as a source of bathymetry training data for SDB, which is advantageous to locations that might not have quality, high-resolution coastal bathymetric datasets available (i.e., bathymetric lidar, multibeam echosounding) [32,33,34,35,36].
This research seeks to extend the utility of ICESat-2 data for ocean surface characterization in the nearshore environment as a path toward better understanding the dynamics at the land–ocean interface. Our specific research objectives are to: 1) Develop an automated methodology to extract coastal wave metrics including wavelengths/wave period and wave heights (including significant wave heights) from ICESat-2 data, and 2) Explore the possibility of extracting wave directionality from ICESat-2 data. These data have a wide range of uses for validating wave and tidal models, providing critical data for ICESat-2 bathymetric corrections and satellite-derived bathymetry, and possible future ICESat-2 data products.

Study Area

For this study, we chose three areas that encompass different wave climatologies and different coastal angles/geometry relative to ICESat-2′s orbit (Figure 1). The north shores of the Hawaiian Islands of O’ahu and Kaua’i provided two study areas with shorelines approximately perpendicular to the satellite’s reference ground tracks. The dominant wave direction at these two sites is from the north and northwest in the winter and northwest to west in the summer. There is a strong seasonality to wave heights with the highest wave heights, 2–4 m, occurring in the winter months and 1–2 m in the summer months [37]. The Outer Banks of North Carolina from Kitty Hawk north to Corolla provided a study area with a coastline that is more oblique to ICESat-2′s orbit. North Carolina has lower wave heights overall with 1–2 m waves in the winter and 0.5–1 m in the summer. The predominant wave direction for the Outer Banks is from the east with occasional deviations to the north/northeast and south/southeast [37].
For the Kaua’i region, we used one descending ICESat-2 ground track (RGT0282) and one ascending track (RGT1341). For RGT0282 there were five transects with viable data and for RGT1341 two transects with viable data after the preprocessing was completed. O’ahu also had one ascending (RGT1105) and one descending (RGT1219) track, and each had 2 acceptable transects. For North Carolina, we used two ascending tracks (RGT0065 and RGT1368) and one descending track (RGT1010). The ascending tracks both had nine instances of usable data and RGT1010 had four. The other tracks coincident with our study sites were omitted due to cloud cover or other data quality issues associated with satellite maneuvers and orbit adjustments. None of the tracks used were exact geographical repeats due to the mid-latitude pointing strategy of the mission [38] but were in near proximity and acceptable for wave dynamic studies. The full list of tracks used is available in Appendix A, Table A1.

2. Materials and Methods

2.1. ICESat-2 Background

ICESat-2 is a dedicated Earth observing mission borne out of the 2007 National Academies Decadal Survey that prioritized laser altimeter measurements over Earth’s polar regions to monitor changes in the cryosphere. The Level 1 science goals of the mission are focused on quantifying volumetric changes in the ice sheets and sea-ice thickness and extent in the Arctic and Southern Oceans [39]. After its launch in September 2018 the satellite is moving toward 5 years of nominal operation and it completed its prime mission in December of 2021. Onboard the ICESat-2 observatory is the Advanced Topographic Laser Altimetry System (ATLAS) [40]. ATLAS uses photon counting lidar technology that allows lower transmission of laser energy, which results in a higher laser repetition rate. These operational aspects of ATLAS create a scenario for higher resolution along-track measurement (0.7 m) and multiple beams (6), both of which mitigate operational constraints identified during the predecessor mission ICESat [41], which operated from 2003–2009. The scientific motivation behind the implementation of photon counting was to allow the multiple beams to act as a pathway to disentangling surface slope from true elevation change and the high, along-track resolution to reveal small scale feature dynamics, both in the case of repeat measurements.
As many photon-sensitive lidar systems use a Geiger-mode approach, ATLAS employs a linear mode solution with photon-multiplier tubes (PMTs) in the detector focal plane array, not requiring an operational voltage beyond the breakdown level for gain. During the pre-launch phase of the mission, and the core development time of ATLAS, the only available PMTs certified for space environments were operational in the visible spectrum (532 nm). This was a change from the ICESat instrument that used infrared for the surface altimetry measurements as it is better suited to vegetation height retrievals and the laser energy does not penetrate ice- or snow-covered surfaces. Pre-launch efforts established specific surface-design cases to optimize the ATLAS performance across a variety of scenarios to satisfy the desire for global surface height measurements [42]. Once on orbit, calibration and validation activities helped in refining aspects contributing to signal level, data quality and repeatability [43]. To date the horizontal accuracy of the measurements is better than 5 m (6.5 m was the mission requirement) [38] and the vertical accuracy is better than 10 cm [17].
ICESat-2′s orbit provides a 91-day repeat revisit time to the same 1387 reference ground tracks (RGTs). In the middle -latitudes, the current operations include an ‘off-pointing’ strategy to densify the coverage along the RGTs and provide more data in between RGTs for the wide range of data products that ICESat-2 supports. Crossing tracks in the opposite orbital direction (ascending vs. descending) and neighboring tracks can provide temporal coverage at ~30 days. As mentioned above, ICESat-2 provides data using six beams in three beam pairs. Each beam pair is separated by ~3.5 km in the across-track direction and consists of a strong and weak beam (a function of the beam splitting optics onboard). The strong and weak beams have an across-track ground separation distance of 90 m and an along-track ground separation distance of ~2.5 km.

2.2. Datasets

The Level 2 data product (ATL03) for the ICESat-2 mission is the “Global Geolocated Photons” along-track product and is available through the National Snow and Ice Data Center (NSIDC) [44]. ATL03 provides elevation profiles composed of the individual photon returns. Level-3 along-track mission products use ATL03 to create specific surface-elevation profiles that optimize signal finding and length scales most appropriate to the associated science. Two of those Level 3 products are the Ocean Surface Height (ATL12, [45]) and Inland Surface Water (ATL13 [46]). ATL12 provides sparse global average measurements of the sea surface elevation, slope, and roughness while ATL13 is designed primarily for inland water bodies and large rivers, but only extends ~7 km off the coastline. However, ATL13 gives elevations at a variable length scale that is related to the signal density (40–80 m) and does not maintain the 0.7 m resolution of ATL03, which limits the ability to fully examine the coastal wave metrics.
For the dates and RGTs listed above, we used ATL03 version 005 [44]. Each granule covers approximately 30 degrees of latitude and we geographically subset each granule to extract data for our areas of interest for each study site. During the subsetting process we also removed any individual beam tracks that had missing or insufficient data because of cloud cover or other environmental obscurations.
Our validation data for each site came from the Wave Watch 3 Global Model (WW3) product available from the Pacific Islands Ocean Observing System (PacIOOS) [47]. For each study site, the WW3 data come from a 0.5° × 0.5° model cell (~55 km × 55 km) queried for the date and closest timestamp to the ICESat-2 tracks. The data from the WW3 model include peak wave direction, peak wave period, significant wave height for the overall wave field, swell component, and wind component. Several tracks overlapped multiple WW3 cells; however, we found that the values in adjacent cells did not have large differences and an average value for the cells was used as the comparison value. We calculated additional fields, converting wave period to wavelength and converting wavelength to the ‘apparent wavelength’, the wavelength ICESat-2 should observe based on wave direction. All three of our study sites have buoys in close proximity; however, we chose to not use these buoy data for validation since all three sites had significant data gaps that overlapped with several of the ICESat-2 dates that were used in this study and the accuracy of the WW3 data compares well with the buoy data [48,49]. The data sources are listed in Table 1 and a diagram of the full workflow is provided in the appendix as Figure A1.

2.3. ATL03 Preprocessing

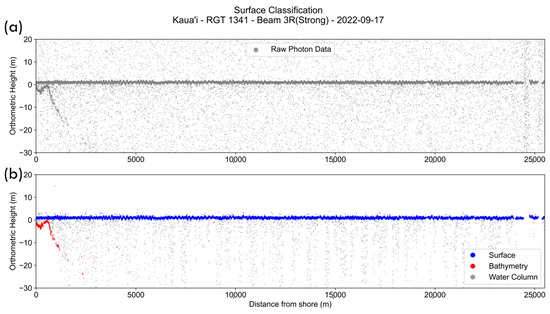

To separate the ocean surface from any noise or other features in the photon returns (e.g., clouds or bathymetry), we filtered each beam track in each RGT (6 beams per RGT) using a pseudo-waveform vertical histogramming technique (Figure 2). The pseudo-waveform uses a combination of Gaussian fits for the sea surface and possible sea floor and an exponential fit to model the water column. We adjusted the photon elevation from WGS84 ellipsoidal heights to EGM08 orthometric heights using the geoid parameter in the ATL03 data product. We then used a sliding window of 450 photon returns in the along-track direction to generate a vertical histogram with 5 cm elevation bins. We chose the 450-photon sliding window through an iterative testing of processing with windows from 150 to 1000 photons and performed a qualitative assessment of the surface finding. The 450-photon window gave good results for surface findings on both the strong and weak beams while minimizing noise. The point-density differences between strong and weak beams and between granules (day vs. night and local atmospheric conditions) made the ground distance covered by each 450-photon window variable. For the strong beam, the window size was approximately 100–200 m and the weak beam 500–700 m. The most prominent peak in the histogram was taken to be the water surface and the full-width, half-maximum statistic defined whether points were classified as the surface (given a classification value of 1) in each window iteration. Since each 450-photon window overlapped the last window, each photon was classified 3 times (the window increments 150 photons each iteration) and the average of these classification values represented a confidence score that was used to eliminate false positives. Only photons with a confidence of 1.0 (classified as surface in each window) were kept. In beam tracks with prominent low clouds or mist/fog that attenuate the laser from reaching the sea surface, the pseudo waveform filter can misclassify these points as sea surface photons. In these cases, we employed a basic interquartile range statistical outlier filter to cull the points that were outside ± 2.8 σ of the overall distribution of photo elevations. Over longer distances, ICESat-2 can capture tidal and spatial water-surface variations. To exclude those water surface variations from our analysis we applied a simple detrending procedure by subtracting the mean elevation of the beam track from the elevation of each surface photon.

2.4. Basic Wave Metrics

The basic wave metrics we sought to extract were those that matched with the data that buoys and the WW3 model generally provided. Significant wave height (Hs) is the average wave height of the largest 33% of waves measured in a period of record or set of observations [50]. Practically, significant wave height can be calculated as a function of the standard deviation of the surface displacement (detrended surface elevations) by the equation [50]:
H s = 4 × σ z   d e t r e n d e d
Wavelength (L [meters]), wave period (T [seconds]), and wave speed (phase velocity, c [m/s]) are important for understanding the spacing and speed of waves. In analyzing waves with ICESat-2, the measurements for these variables are qualified with “apparent” (e.g., apparent wavelength). This is because the satellite’s orbit inclination of ~92° makes it unlikely that the ground tracks are perpendicular to the travel direction of the waves [20]. When the waves are not traveling perpendicular to the ground track, the wavelengths appear to be elongated by a predictable amount. In Table 2, the amount of elongation (apparent wavelength factor) is given for a selection of wave angles that span the full range of compass directions. These are presented alongside the theoretical lag distances needed to measure wave direction (below, in Section 2.6).
Frequency spectrum analysis is generally used to extract component frequencies from a set of observations. However, because of the nature of the filtered ICESat-2 photon data we used, the individual photon returns are not uniformly spaced and there can be significant gaps (from clouds and other occlusions). We chose not to use standard Fourier-based frequency analysis methods that require data sampled at regularly spaced intervals. Instead, we used frequency analysis methods designed for non-uniformly sampled data. To extract the dominant wavelength in each beam track, we used a Lomb–Scargle periodogram [51,52,53] implemented via the AstroPy package [54]. From the resulting periodogram we extracted the wave frequency of the peak spectral power as the dominant wavelength for the track. The frequency units for the periodogram are wave number (k, [cycles/meter]) which are converted to wavelength with Equation (2), wave period with Equation (3), or phase velocity (Equation (4)).
L = 1 / k
T = 2 π L g
c = L / T
where L is wavelength (m), k is wave number (1/m), T is wave period (s), g is the acceleration due to gravity (9.81 m/s2), and c is the phase velocity.
With significant wave height and wavelength, it is also possible to derive the apparent wind speed at z meters above the surface (U(z), Equation (8)) from the relationship between the roughness length (z0) in Equation (5) and the friction velocity (u*) in Equations (6) and (7) [19,55,56,57]
z 0 = H s × 1200 × H s L 4.5
c p = g × L 2 π
u * = c p z 0 3.35   ∗   H s 0.294
U ( z ) = u * k l n z z 0
where z0 is the roughness length, Hs is the significant wave height, L is the apparent wavelength, cp is the dispersion relationship, g is the acceleration due to gravity, u* is the friction velocity, U(z) is the wind at a given elevation (z) above the water surface, k is the von Kármán constant (0.41), and z is the elevation above the water (normally 10 or 15 m).

2.5. Spatial Wave Metrics

In addition to the global wave metrics above, we also wanted to examine spatial patterns in the along-track direction to explore whether ICESat-2 can reliably detect shoaling patterns. Shoaling patterns can also be used to infer bathymetry through an inversion of the dispersion relationship. Shoaling of coastal waves is primarily defined by an increase in wave height and decrease in wavelength, since the fundamental frequency is constant [50]. To examine wave-height changes, we calculated significant wave heights for the entire beam track for fixed-length segments of 0 to 500 m from the coast, 500 to 1000 m, and 1000+ m. To find the wavelength changes, we employed a wavelet transform method to look at changes in wavelength for only the strong beam tracks.
Traditional wavelet transforms have a similar prerequisite to other frequency analysis methods, i.e., uniformly sampled data, as mentioned above. For our data we used a wavelet transform that handles uneven sampling, based on the work of Foster [58] and implemented in Python with the JazzHands Python library [59]. Because our inputs into the wavelet transform were spatial, i.e., distance and elevation in meters, the outputs for the transforms were also in spatial frequency units: spatial frequency ( ω ) in radians/meter, wave number (k) in cycles/meter, wavelength (L) in meters, and the relationship is ω = 2 π k = 2 π L . The output of the non-uniform wavelet transformation is two matrices; the weighted wavelet z-transform (WWZ) to locate the wavelet frequencies, and a weighted wavelet amplitude (WWA) to establish the magnitude of the different wavelet frequencies in cells with an along-track resolution of approximately 50 m. For each 50 m along-track cell, we find the peak wavelength from the maximum value from the WWA matrix.

2.6. Wave Directionality

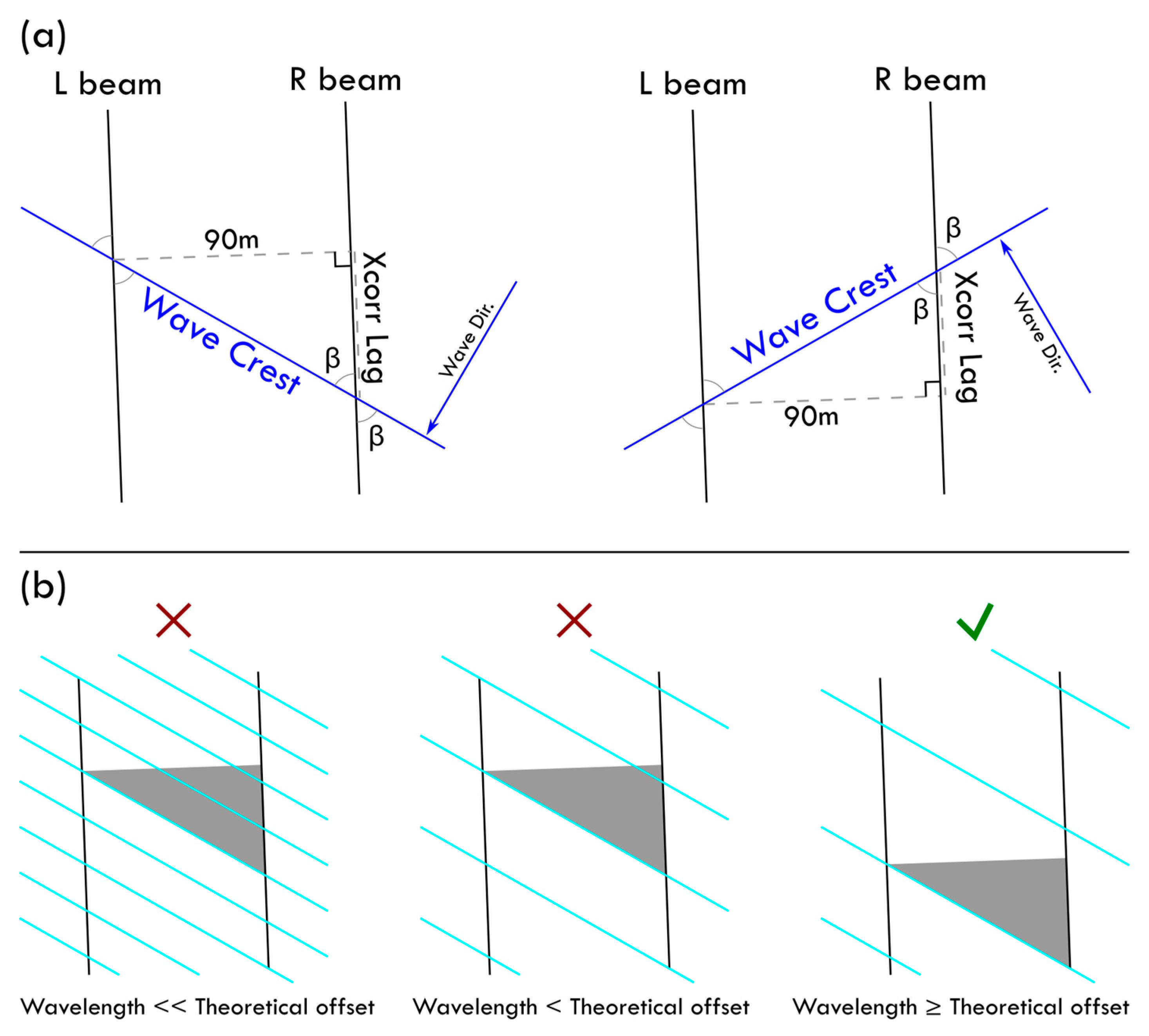

The strong/weak beam separation distance of 90 m for each beam pair should allow the directionality of crests of the detected waves to be determined. The beams are also separated in the along-track direction by ~2.5 km (5 mRad); however, because of the spacecraft’s surface equivalent velocity of ~7500 m/s, the timing separation between beams is only ~0.34 s. The spatial difference caused by the along-track timing separation is minimal for waves traveling north/south (along-track); the offset would be 0.34 m for waves traveling at 1 m/s or 1.36 m for waves at 4 m/s. By comparing the surface waveforms between the strong and weak beams, a spatial offset/lag can be measured between waveforms and the waves’ direction of travel can be calculated as a function of the measured lag using the following Equations (9) and (10):
β = a r c t a n 90 L a g   D i s t a n c e ,   I S 2 o r b i t = α × π 180
W a v e   A n g l e = − β − I S 2 o r b i t + π
where 90 is the strong/weak separation distance, lag distance is waveform offset from a cross-correlation analysis, I S 2 o r b i t   is the ICESat-2 orbital inclination in radians (for ascending tracks α = 92 ° , for descending tracks α = 88 ° ). Lag distance and β are negative when wave angles are 0–90° (compass directions) and positive when wave directions are 90–180°. Figure 3a illustrates examples of the wave-crest and lag-distance geometry for waves from northern and southern directions. Smaller offset distances correspond to waves traveling north/south (crest orientations perpendicular to ICESat-2′s orbit) and larger offsets correspond to waves traveling east/west (crest orientations more parallel with ICESat-2′s orbit). In Table 2, the column for theoretical offset/lag distances shows the lag distances necessary to be able to estimate the directionality of waves from different compass directions. One particular challenge posed by this method of determining directionality is that the apparent wavelengths need to be larger than the theoretical lag distances. If the apparent wavelength is shorter than the theoretical lags, cross-correlations between the strong and weak beams will not correctly pair the corresponding wave crests and will underestimate the lag distance and, therefore, incorrectly infer the directionality. Examples of short- and long-wavelength interactions with the lag geometry are shown in Figure 3b.
Because each ICESat-2 overpass is an instantaneous snapshot, the waves’ crest direction can only be determined in 180° compass angle pairs (e.g., 0–180° or 45–225°) and the actual direction of wave travel can be inferred through the dominant regional wave patterns in relation to the coast (i.e., waves generally travel from open water toward the coast). The main assumption in determining directionality is that the strong and weak beams must have very clear waveforms in the photon returns, and those detected waves must be coherent/in phase to allow for comparison. In the near-coastal environment, there are also several factors that could impact coherence of the wave signals and the ability to measure directionality: velocity variation due to bathymetry, wave refraction by coastal features, wave reflections from the coast, and constructive or destructive interference. We chose to approach this problem from both a theoretical perspective, with simulated waves, and a practical perspective, with actual data.
For the simulated waves, we generated several 3-dimensional wave fields over an area of 2 km by 2 km. Each simulated wavefield was created using a sine wave with constant wavelengths between 40–300 m and an amplitude of 1 m with Gaussian noise added to the elevation to simulate ICESat-2 surface returns. To simulate waves from different compass directions, we rotated the wave field and extracted points from the wave fields using two profiles inclined at 92° and separated by 90 m to mimic ICESat-2′s orbit and beam separation. The extracted surface points were then resampled to a regular along-track interval using a rolling median filter (window size = 2 m) and a Piecewise Cubic Hermite Interpolating Polynomial (PCHIP). The analysis of ICESat-2 data followed the same resampling workflow.
To calculate the wave direction in both the simulated data and ICESat-2 data we used a cross-correlation technique (Scipy’s signal.correlate and signal.correlation_lags) [60] to evaluate the waveforms in each beam track. The output of the cross correlation is a matrix with discrete linear cross-correlation values and the corresponding lag distances. The lag distance with the highest cross correlation value was taken as the offset for Equations (9) and (10).

3. Results

3.1. Wave Height

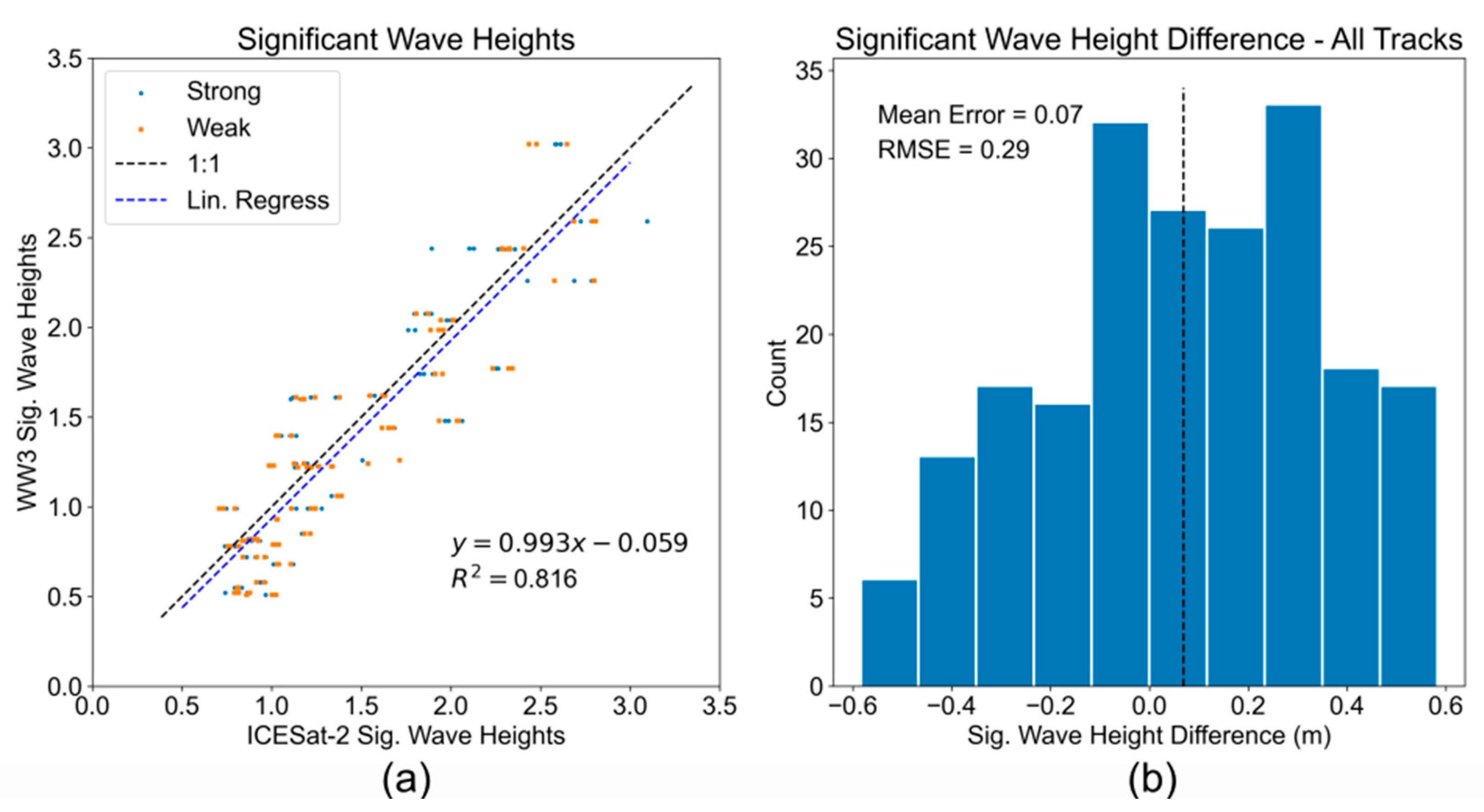

Measurements of significant wave heights compared favorably with the WW3 modeled wave heights, with a mean error of 0.07 m ( R M S E = 0.29 ) and minimum and maximum of ± 0.58 m (Figure 4). At smaller wave heights (<1 m), the ICESat-2 measurements tended to overestimate the wave heights (ICESat-2 > WW3). While significant wave heights >1 m, were over- or underestimated compared with the WW3 model.

3.2. Wavelength

From the Lomb-Scargle frequency analysis of each track we interpreted the frequency with the highest spectral power as the dominant wavelength in the track. A direct comparison with the WW3 model values shows a significant amount of error (Figure 5a), because we are comparing the apparent wavelengths from ICESat-2 with the “true” WW3 wavelengths of waves coming from a variety of directions. To make these values comparable, we calculated what the apparent wavelength would be from the WW3 data based on ICESat-2′s orbit and the 1 / c o s ( θ ) relationship explained above. In Figure 5b, the comparison of apparent wavelengths, the spread of the errors is very large; however, in the range of 0–500 m the correspondence between ICESat-2 and WW3 is closer to the 1:1 line. Beyond 1000 m apparent wavelengths, the errors are considerably larger. These results suggest that that the overall peak frequency metric from a Lomb–Scargle analysis might be oversimplifying the actual patterns and may not be the best metric for trying to extract wavelengths from ICESat-2 data.

3.3. Wavelets

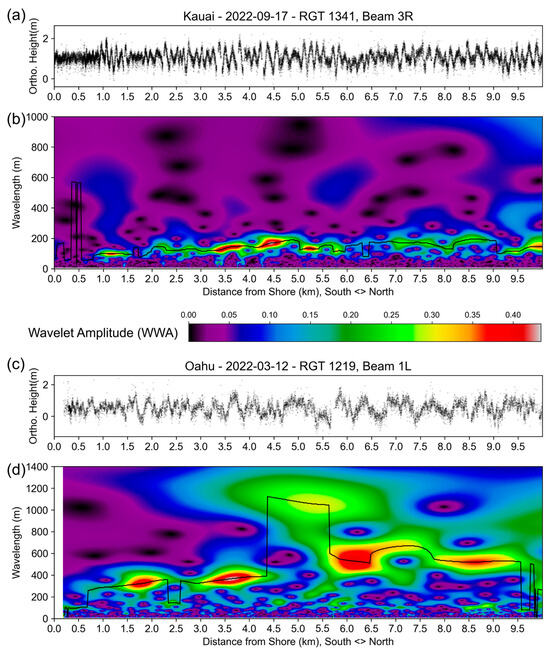

For the wavelet analysis, we focused on only the strong beam tracks. Because of the sparse data density for the weak beams, the wavelet outputs were extremely noisy and tended to favor the extreme longer wavelengths. Overall, the non-uniform wavelet analyses were able to extract the spatial patterns of wavelengths along each track. In Figure 6, the surface-photon returns are shown (top) and the corresponding wavelet plots (bottom) illustrate the wavelet amplitude for each wavelength (y-axis) for 50 m segments away from shore (x-axis). In both surface-return plots, there is a clear decrease in wavelengths closer to the shore, and the same decrease can be seen in the wavelet plots.
The wavelet plot for Oahu (Figure 6d) also illustrates one of the issues that did arise in this analysis, i.e., the mis-calculation of wavelengths because of the nature of the surface return data. From 4 to 5.5 km offshore, the peak wavelet power jumps from a wavelength of 350 m at 4 km from shore to a 1200 m wavelength at 4.25 km to 5.5 km offshore. In the surface-return data from 4–5.5 km, the wavelength shift is caused by a broad parabolic pattern with some shorter wavelength periodicity. The parabolic pattern dominates the frequency spectrum for this length of the track and artificially inflates the wavelengths.

3.4. Directionality

By simulating wavefields at different wavelengths and sampling them at known wave angles, we were able to determine that there is a minimum wavelength necessary in order to calculate all possible compass directions. When the theoretical offset distance (Table 2) for any given wave angle exceeds the wavelength, the cross-correlation lag parameters default to the shortest distance to achieve the maximum correlation. These shorter distances are not directly relatable to the wave angles and cause significant errors in the calculated angles (Figure 3b). For shorter wavelengths, it is possible to accurately calculate directions where the wavelength is less than the theoretical lag distance; however, to calculate all possible wave directions the wavelengths must be greater than 180 m.
For the Kaua’i and O’ahu sites, the dominant wave directions in the wave climatologies are from the north; therefore, the wave angles should be calculable for a wide range of wavelengths. For the North Carolina site, the dominant wave directions are from the northeast and east, which requires longer wavelengths to calculate the full range of wave directions. Figure 7 illustrates an example of cross correlation for Oahu (RGT1219-GT3, 2022-MAR-12). The Lomb–Scargle wavelengths were calculated at 666 m for the strong beam and 665 m for the weak beam (WW3 model apparent wavelength = 591 m). The peak cross-correlation lag distance in Figure 7b is −114 m, which corresponds to a wave angle of 130.29/310.29°. From the WW3 model data, the overall wave direction was 304° and the swell direction was 308.5°. The difference in the overall wave direction was 6.29° and the difference in the swell direction was 1.79°.

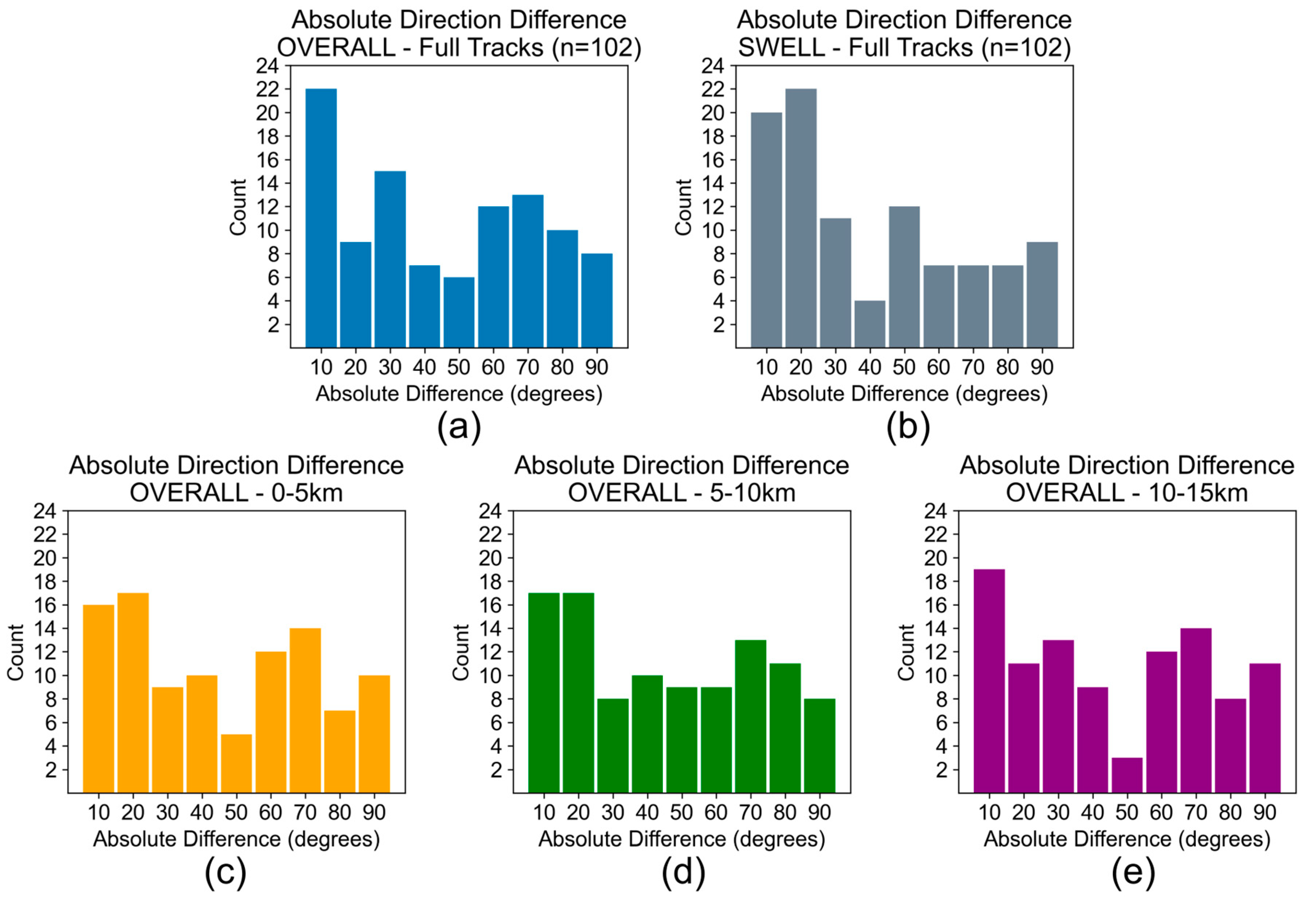

In Figure 8, the histograms of cross correlation direction for all tracks illustrate significant spread in the results for this method. When comparing the calculated angle to the overall wave direction in the WW3 data (Figure 8a), this method correctly predicted the wave direction at ±10 degrees for 21% of the tracks and ±20 degrees for 30% of the tracks. Compared with the WW3 Swell direction (Figure 8b), our method correctly predicted ±10 degrees for 19% of the tracks and ±20 degrees for 41% of the tracks.
We also split each track into smaller segments (0–5 km from shore, 5–10 km, 10–15 km) (Figure 8c–e) to see whether there was any influence of distance from the shore affecting the distance calculations (e.g., more complex waveforms affecting the cross correlations) and to test whether smaller segments of the overall waveform would produce different results. All three distance groups performed similarly, with no significant difference between them.

4. Discussion

4.1. Basic Wave Metrics

The accuracy of the significant wave heights matches with similar analyses in previous studies using ICESat-2 in the open ocean, which that reported errors in the range of ±0.5 m [19,20]. Our results also compare well with those produced by studies comparing Sentinel-1 data with WW3. Kahn et al. [61] reported mean significant wave height errors of 0.15–0.32 m (RMSE 0.64–0.76 m) and Wang et al. [62] had mean wave height errors of 0.21–0.32 m (RMSE 0.5–0.64). The sources of error in significant wave height are likely to be the result of incorrectly classified surface points affecting the standard deviation of the elevation calculation. In both strong and weak beams, there are often photon returns from close to the water surface that are either in the air or water column and are classified as surface points. Because of their proximity to actual surface points, they are difficult to filter out without affecting the overall surface classification.
Wavelength measurements in coastal settings using ICESat-2 are complicated by both the wave direction and the physical interactions of different types of waves. While the results presented here do have considerable errors, the study by Yu et al. [20] in an open ocean setting compared with to WW3 data also showed a considerable range of error in wavelength calculation ranging across ±450 m with a mean difference of 57 m and an RMSE of 151 m. Our results suggest that there are other wave interactions happening that affect the wavelength spectra and calculations. As mentioned above, the apparent wavelength that ICESat-2 observes is a function of the wave direction, with little difference between apparent and actual wavelengths at 0/180° and stretching the wavelengths by 117% at 30/210°, 213% at 60/250°, and 444% at 75/255°. Wave refraction near/around shore features and around whole islands in the case of our Hawaiian sites can create waveforms that are compressed and stretched differentially based on their interaction with the shoreline. Wave reflections from the shore can also impact the calculated wave spectra through constructive and destructive interference. The overall interactions between swell and wind waves can also affect the wave spectra measured by ICESat-2. Wind waves impart a higher frequency/shorter wavelength onto the overall signal; however, depending on the strength and direction of the local wind compared with the overall swell direction, the influence of the wind can create a complicated overall waveform. Figure 9 illustrates some of these interactions as seen from the Sentinel-1 synthetic aperture radar satellite image around O’ahu and demonstrates how spatially variable the wave patterns can be. In Figure 9b, the coastal detail image, the main swell pattern can be seen coming from the northwest, reflected waves are visible at the coast, and the interaction of wind from the east can be seen on the surface. In the overview panel (Figure 9a), the spatial extent of the local wind patterns can also be observed in the “wind shadows” on the west facing coastlines of the island.
One of ICESat-2′s advantages is that it collects nearly instantaneous elevation profiles by traveling at a surface equivalent velocity of ~7500 m/s. This can also be a disadvantage compared with most physical measurement techniques (e.g., buoys) and numeric models that use smoothing techniques and temporal averages to ameliorate the noise inherent in measuring a dynamic sea surface. The wave structure that ICESat-2 captures is a discrete snapshot of the surface elevation and can therefore have a structure, like the parabolic structure affecting Figure 6d, that may or may not be representative of the overall signal.

4.2. Wavelets

The wavelet analysis of ICESat-2 tracks is advantageous over the Lomb–Scargle method because it can extract the along-track spatial patterns of wavelengths rather than just the overall wave spectra. The spatial patterns of wavelength are important because wave characteristics can change rapidly in the coastal zone. The rapid change in wave parameters in the coastal zone can be indicative of shoaling, as waves interact with the seafloor and wavelengths decrease and wave heights increase. Shoaling characteristics are evident in many of the ICESat-2 tracks (ex. Figure 6a @ ~2 km and Figure 6c @ ~1 km), but not all tracks. Since shoaling is a function of a combination of factors such as wave height, wavelength, wave direction, depth, and seabed slope, certain combinations of these parameters could create larger differences in the breaking waves, which ICESat-2 can measure, or smaller differences that may not be visible in the ICESat-2 data. Where shoaling is clear, with the addition of local estimates of wave height it would be possible to use ICESat-2 data as part of a bathymetry inversion to estimate the bathymetry based on the wave and shoaling patterns [28,63,64,65]. Similar to the overall wavelength calculations, the complicated waveforms that ICESat-2 captures can have an adverse effect on the wavelet analysis.

4.3. Directionality

The key underlying assumption for calculating wave direction from ICESat-2 is that the waves are coherent/in phase between the strong and weak beams. In the simulated data, this is an easy variable to control and the patterns of wavelength and direction are clear, including the challenges associated with measuring the direction at shorter wavelengths. Based on our results, when calculating directionality, most coastal ICESat-2 tracks are probably violating the assumption of coherence. This is likely to be one of the biggest sources of error and a key limitation in attempting to calculate wave directionality from ICESat-2. All the complexities of the wave field already discussed are amplified, since the directionality calculations are essentially extending two one-dimensional elevation profiles into a three-dimensional analysis space with an unknown sea state in the 90 m gap between the strong and weak beams. The errors we are seeing are not unlike those reported for open sea conditions by Yu et al. [20], who used more tracks than were presented here but had a range of errors that extended to ±90°. Because of the broad spatial coverage provided by radar and imaging satellite sensors like Sentinel-1, directionality is more straightforward. Khan et al. [61] were able to calculate wave direction with mean errors of ~3° (RMSE ~30°).
Another limitation in making the directionality calculations is the weak beam density. The decreased density of photon returns can adversely affect the creation of the waveform for the cross correlation and potentially affect some of the other metrics as well. In this research, the weak beam densities for the water surface returns were on average 39% of the strong beam, which is similar to results over forested landscapes [66] and in line with the original design specifications for ICESat-2 [42]. This difference between power and point density can lead to waveforms that can be too smooth or potentially at different frequencies than the strong beam. When possible, we recommend using the strong beams for most wave-parameter extraction operations.

5. Conclusions

We have demonstrated that ICESat-2 can be used for extracting basic wave metrics in the near-coastal zone and that the results are similar those of similar ICESat-2 studies carried out in the open ocean. ICESat-2 can provide significant wave heights with a mean error of 0.7 m. These wave metrics can provide important data in support of validating wave and tidal models as well as for ICESat-2 bathymetric corrections and satellite-derived bathymetry. There are limitations when using ICESat-2 to measure wavelengths and wave directionality related to the way that ICESat-2 measures elevations as near instantaneous elevation profiles. Wavelength measurements are influenced by the direction of travel of the wave relative to ICESat-2′s orbit and directionality is dependent on the correlation of the wave surface profiles between strong and weak beams. More research is needed on these two topics which may include employing or developing more robust techniques for handling missing data along the tracks and handling the differences in data density between the strong and weak beams. Adding ancillary data, such as buoy data, wave models (e.g., WW3), or other Earth-observation satellite data, would be another way to improve a wave-processing workflow that would complement ICESat-2 data and potentially create a more robust dataset for wave analysis. These data and future improvements to ICESat-2-derived wave metrics have a wide range of uses for validating wave and tidal models, as critical data for ICESat-2 bathymetric corrections and satellite-derived bathymetry, and for possible future ICESat-2 data products.

Author Contributions

Conceptualization, J.T.D. and L.A.M.; methodology, J.T.D.; software, J.T.D. and M.H.; validation, J.T.D.; formal analysis, J.T.D.; investigation, J.T.D.; writing—original draft preparation, J.T.D.; writing—review and editing, L.A.M. and M.H.; project administration, L.A.M.; funding acquisition, L.A.M. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this research was provided through a NASA grant 80NSSC22K1878 from the ICESat-2 Project Science Office at Goddard Space Flight Center in Greenbelt, MD for the development of an along-track bathymetry product and through NASA grant 80NSSC22K1102 for the Decadal Survey Incubation program focus on Surface, Topography and Vegetation Science.

Data Availability Statement

The ICESat-2 ATL03 data used in this study are available via the National Snow and Ice Data Center (NSIDC)—nsidc.org [44].

Acknowledgments

The authors would like to acknowledge the discussions with Jonathan Markel and Christopher Parrish. We would also like to thank the two anonymous reviewers for their comments, which helped to improve this paper.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Jmse 11 02082 g0a1

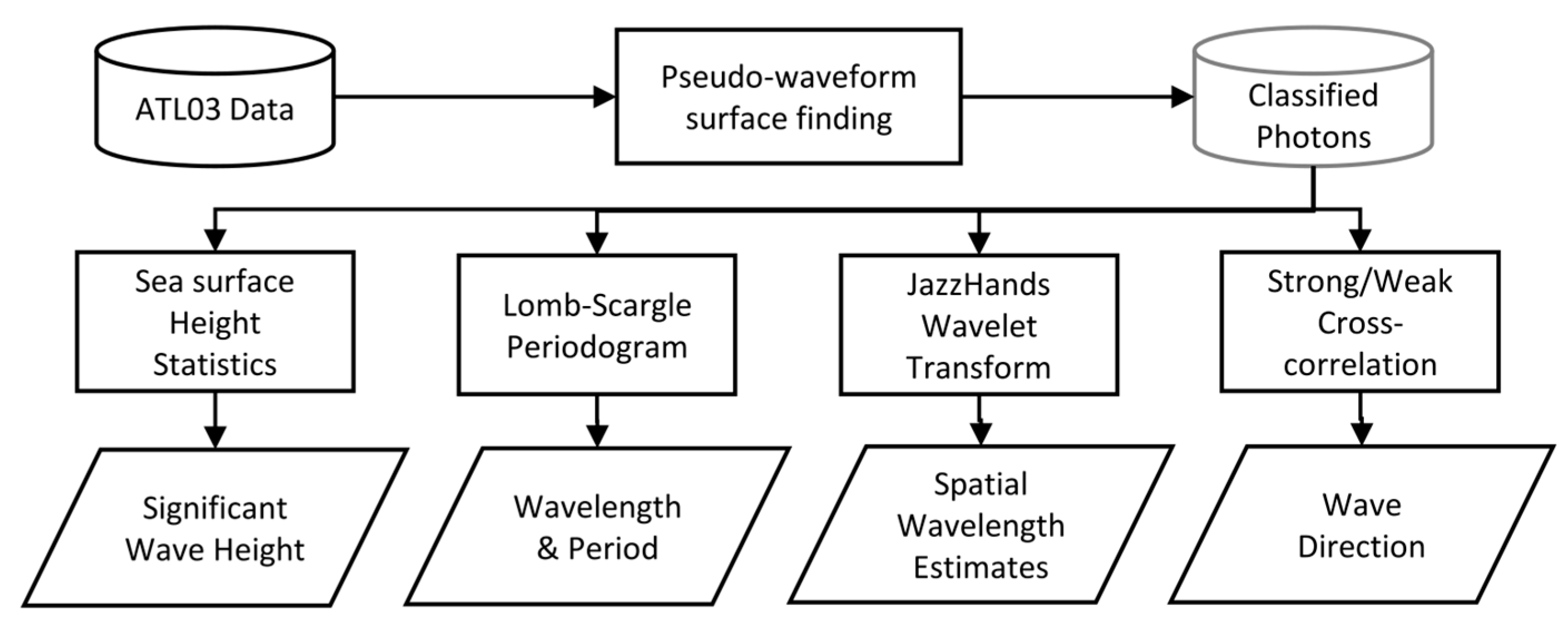

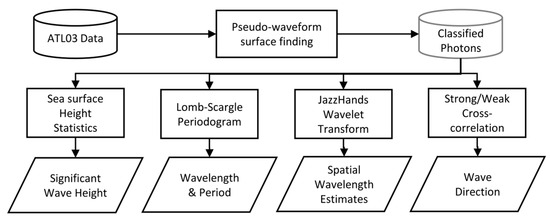

Figure A1. Flowchart of the workflow for data-processing step presented.
Figure A1. Flowchart of the workflow for data-processing step presented.
Jmse 11 02082 g0a1
Table A1. Dates, Reference Ground Tracks, and beams for the ICESat-2 data used in this study.
Table A1. Dates, Reference Ground Tracks, and beams for the ICESat-2 data used in this study.
O’ahu Kaua’i North Carolina
Date RGTBeamsDate RGTBeamsDate RGTBeams
5 December 202011051, 2, 317 October 20182821, 2, 31 October 2019651, 2, 3
4 March 202211051, 2, 315 October 20192821, 2, 329 June 2020651, 2, 3
2 September 202211051, 2, 311 January 20212821, 2, 328 December 2020651, 2
15 September 20191219112 April 20212821, 2, 327 June 2021651, 2, 3
13 December 202012191, 2, 39 October 20222821, 2, 326 September 2021651, 2, 3
12 March 202212191, 2, 320 June 202113411, 2, 326 December 2021651, 2, 3
17 September 202213411, 2, 327 March 2022651, 2, 3
26 June 2022651, 2, 3
24 September 2022651, 2, 3
1 March 202010102, 3
29 November 202010101, 2, 3
28 February 202110101, 2, 3
27 November 202110101, 2, 3
27 December 201813681, 2, 3
28 March 201913681, 2, 3
25 September 201913681, 2, 3
25 December 201913681, 2, 3
24 June 202013681, 2, 3
22 September 202013681, 2, 3
22 December 202013681, 2, 3
22 June 202113681, 2, 3
21 March 202213681, 2, 3
19 September 202213681, 2, 3

References

  1. Hauer, M.E.; Fussell, E.; Mueller, V.; Burkett, M.; Call, M.; Abel, K.; McLeman, R.; Wrathall, D. Sea-Level Rise and Human Migration. Nat. Rev. Earth Env. 2020, 1, 28–39. [Google Scholar] [CrossRef]
  2. Toimil, A.; Losada, I.J.; Nicholls, R.J.; Dalrymple, R.A.; Stive, M.J.F. Addressing the Challenges of Climate Change Risks and Adaptation in Coastal Areas: A Review. Coast. Eng. 2020, 156, 103611. [Google Scholar] [CrossRef]
  3. Vandeweerd, V.; Bernal, P.; Belfiore, S.; Goldstein, K.; Cicin-Sain, B. A Guide to Oceans, Coasts, and Islands at the World Summit on Sustainable Development; Center for the Study of Marine Policy: Woods Hole, MA, USA, 2002. [Google Scholar]
  4. Manes, S.; Gama-Maia, D.; Vaz, S.; Pires, A.P.F.; Tardin, R.H.; Maricato, G.; Bezerra, D.D.S.; Vale, M.M. Nature as a Solution for Shoreline Protection against Coastal Risks Associated with Ongoing Sea-Level Rise. Ocean Coast. Manag. 2023, 235, 106487. [Google Scholar] [CrossRef]
  5. Vousdoukas, M.I.; Mentaschi, L.; Voukouvalas, E.; Verlaan, M.; Jevrejeva, S.; Jackson, L.P.; Feyen, L. Global Probabilistic Projections of Extreme Sea Levels Show Intensification of Coastal Flood Hazard. Nat. Commun. 2018, 9, 2360. [Google Scholar] [CrossRef] [PubMed]
  6. Ardhuin, F.; Stopa, J.E.; Chapron, B.; Collard, F.; Husson, R.; Jensen, R.E.; Johannessen, J.; Mouche, A.; Passaro, M.; Quartly, G.D.; et al. Observing Sea States. Front. Mar. Sci. 2019, 6, 124. [Google Scholar] [CrossRef]
  7. Centurioni, L.; Braasch, L.; Lauro, E.D.; Contestabile, P.; Leo, F.D.; Casotti, R.; Franco, L.; Vicinanza, D. A new strategic wave measurement station off naples port main breakwater. Coast. Eng. Proc. 2016, 1, 36. [Google Scholar] [CrossRef]
  8. Li, M.; Zhang, S.; Qi, Z.; Dang, C. Application of Wave Drifter to Marine Environment Observation. In Proceedings of the OCEANS 2016, Shanghai, China, 10–13 April 2016; pp. 1–5. [Google Scholar]
  9. Lumpkin, R.; Özgökmen, T.; Centurioni, L. Advances in the Application of Surface Drifters. Annu. Rev. Mar. Sci. 2017, 9, 59–81. [Google Scholar] [CrossRef]
  10. Pearman, D.W.; Herbers, T.H.C.; Janssen, T.T.; van Ettinger, H.D.; McIntyre, S.A.; Jessen, P.F. Drifter Observations of the Effects of Shoals and Tidal-Currents on Wave Evolution in San Francisco Bight. Cont. Shelf Res. 2014, 91, 109–119. [Google Scholar] [CrossRef]
  11. Figa-Saldaña, J.; Wilson, J.J.W.; Attema, E.; Gelsthorpe, R.; Drinkwater, M.R.; Stoffelen, A. The Advanced Scatterometer (ASCAT) on the Meteorological Operational (MetOp) Platform: A Follow on for European Wind Scatterometers. Can. J. Remote Sens. 2002, 28, 404–412. [Google Scholar] [CrossRef]
  12. Wang, H.; Mouche, A.; Husson, R.; Chapron, B.; Yang, J.; Liu, J.; Ren, L. Quantifying Uncertainties in the Partitioned Swell Heights Observed From CFOSAT SWIM and Sentinel-1 SAR via Triple Collocation. IEEE Trans. Geosci. Remote Sens. 2022, 60, 4207716. [Google Scholar] [CrossRef]
  13. Hauser, D.; Abdalla, S.; Ardhuin, F.; Bidlot, J.-R.; Bourassa, M.; Cotton, D.; Gommenginger, C.; Evers-King, H.; Johnsen, H.; Knaff, J.; et al. Satellite Remote Sensing of Surface Winds, Waves, and Currents: Where Are We Now? Surv. Geophys. 2023, 44, 1357–1446. [Google Scholar] [CrossRef]
  14. Villas Bôas, A.B.; Ardhuin, F.; Ayet, A.; Bourassa, M.A.; Brandt, P.; Chapron, B.; Cornuelle, B.D.; Farrar, J.T.; Fewings, M.R.; Fox-Kemper, B.; et al. Integrated Observations of Global Surface Winds, Currents, and Waves: Requirements and Challenges for the Next Decade. Front. Mar. Sci. 2019, 6, 425. [Google Scholar] [CrossRef]
  15. Huang, L.; Fan, C.; Meng, J.; Yang, J.; Zhang, J. Shallow Sea Topography Detection Using Fully Polarimetric Gaofen-3 SAR Data Based on Swell Patterns. Acta Oceanol. Sin. 2023, 42, 150–162. [Google Scholar] [CrossRef]
  16. Zamparelli, V.; De Santi, F.; De Carolis, G.; Fornaro, G. SAR Based Sea Surface Complex Wind Fields Estimation: An Analysis over the Northern Adriatic Sea. Remote Sens. 2023, 15, 2074. [Google Scholar] [CrossRef]
  17. Brunt, K.M.; Neumann, T.A.; Smith, B.E. Assessment of ICESat-2 Ice Sheet Surface Heights, Based on Comparisons Over the Interior of the Antarctic Ice Sheet. Geophys. Res. Lett. 2019, 46, 13072–13078. [Google Scholar] [CrossRef]
  18. Brunt, K.M.; Neumann, T.A.; Larsen, C.F. Assessment of Altimetry Using Ground-Based GPS Data from the 88S Traverse, Antarctica, in Support of ICESat-2. Cryosphere 2019, 13, 579–590. [Google Scholar] [CrossRef]
  19. Klotz, B.W.; Neuenschwander, A.; Magruder, L.A. High-Resolution Ocean Wave and Wind Characteristics Determined by the ICESat-2 Land Surface Algorithm. Geophys. Res. Lett. 2020, 47, e2019GL085907. [Google Scholar] [CrossRef]
  20. Yu, Y.; Sandwell, D.T.; Gille, S.T.; Villas Bôas, A.B. Assessment of ICESat-2 for the Recovery of Ocean Topography. Geophys. J. Int. 2021, 226, 456–467. [Google Scholar] [CrossRef]
  21. Horvat, C.; Blanchard-Wrigglesworth, E.; Petty, A. Observing Waves in Sea Ice With ICESat-2. Geophys. Res. Lett. 2020, 47, e2020GL087629. [Google Scholar] [CrossRef]
  22. Nilsson, B.; Andersen, O.B.; Ranndal, H.; Rasmussen, M.L. Consolidating ICESat-2 Ocean Wave Characteristics with CryoSat-2 during the CRYO2ICE Campaign. Remote Sens. 2022, 14, 1300. [Google Scholar] [CrossRef]
  23. Cao, B.; Fang, Y.; Gao, L.; Hu, H.; Jiang, Z.; Sun, B.; Lou, L. An Active-Passive Fusion Strategy and Accuracy Evaluation for Shallow Water Bathymetry Based on ICESat-2 ATLAS Laser Point Cloud and Satellite Remote Sensing Imagery. Int. J. Remote Sens. 2021, 42, 2783–2806. [Google Scholar] [CrossRef]
  24. Chen, Y.; Chen, Y.; Zhu, Z.; Le, Y.; Qiu, Z.; Chen, G.; Wang, L.; Wang, L. Refraction Correction and Coordinate Displacement Compensation in Nearshore Bathymetry Using ICESat-2 Lidar Data and Remote-Sensing Images. Opt. Express OE 2021, 29, 2411–2430. [Google Scholar] [CrossRef] [PubMed]
  25. Leng, Z.; Zhang, J.; Ma, Y.; Zhang, J.; Zhu, H. A Novel Bathymetry Signal Photon Extraction Algorithm for Photon-Counting LiDAR Based on Adaptive Elliptical Neighborhood. Int. J. Appl. Earth Obs. Geoinf. 2022, 115, 103080. [Google Scholar] [CrossRef]
  26. Parrish, C.E.; Magruder, L.A.; Neuenschwander, A.L.; Forfinski-Sarkozi, N.; Alonzo, M.; Jasinski, M. Validation of ICESat-2 ATLAS Bathymetry and Analysis of ATLAS’s Bathymetric Mapping Performance. Remote Sens. 2019, 11, 1634. [Google Scholar] [CrossRef]
  27. Ranndal, H.; Sigaard Christiansen, P.; Kliving, P.; Baltazar Andersen, O.; Nielsen, K. Evaluation of a Statistical Approach for Extracting Shallow Water Bathymetry Signals from ICESat-2 ATL03 Photon Data. Remote Sens. 2021, 13, 3548. [Google Scholar] [CrossRef]
  28. Yang, J.; Ma, Y.; Zheng, H.; Xu, N.; Zhu, K.; Wang, X.H.; Li, S. Derived Depths in Opaque Waters Using ICESat-2 Photon-Counting Lidar. Geophys. Res. Lett. 2022, 49, e2022GL100509. [Google Scholar] [CrossRef]
  29. Bernardis, M.; Nardini, R.; Apicella, L.; Demarte, M.; Guideri, M.; Federici, B.; Quarati, A.; De Martino, M. Use of ICEsat-2 and Sentinel-2 Open Data for the Derivation of Bathymetry in Shallow Waters: Case Studies in Sardinia and in the Venice Lagoon. Remote Sens. 2023, 15, 2944. [Google Scholar] [CrossRef]
  30. Yang, J.; Ma, Y.; Zheng, H.; Gu, Y.; Zhou, H.; Li, S. Analysis and Correction of Water Forward-Scattering-Induced Bathymetric Bias for Spaceborne Photon-Counting Lidar. Remote Sens. 2023, 15, 931. [Google Scholar] [CrossRef]
  31. Stumpf, R.P.; Holderied, K.; Sinclair, M. Determination of Water Depth with High-Resolution Satellite Imagery over Variable Bottom Types. Limnol. Oceanogr. 2003, 48, 547–556. [Google Scholar] [CrossRef]
  32. Albright, A.; Glennie, C. Nearshore Bathymetry From Fusion of Sentinel-2 and ICESat-2 Observations. IEEE Geosci. Remote Sens. Lett. 2021, 18, 900–904. [Google Scholar] [CrossRef]
  33. Babbel, B.J.; Parrish, C.E.; Magruder, L.A. ICESat-2 Elevation Retrievals in Support of Satellite-Derived Bathymetry for Global Science Applications. Geophys. Res. Lett. 2021, 48, e2020GL090629. [Google Scholar] [CrossRef] [PubMed]
  34. Ma, Y.; Xu, N.; Liu, Z.; Yang, B.; Yang, F.; Wang, X.H.; Li, S. Satellite-Derived Bathymetry Using the ICESat-2 Lidar and Sentinel-2 Imagery Datasets. Remote Sens. Environ. 2020, 250, 112047. [Google Scholar] [CrossRef]
  35. Thomas, N.; Lee, B.; Coutts, O.; Bunting, P.; Lagomasino, D.; Fatoyinbo, L. A Purely Spaceborne Open Source Approach for Regional Bathymetry Mapping. IEEE Trans. Geosci. Remote Sens. 2022, 60, 4708109. [Google Scholar] [CrossRef]
  36. Daly, C.; Baba, W.; Bergsma, E.; Thoumyre, G.; Almar, R.; Garlan, T. The New Era of Regional Coastal Bathymetry from Space: A Showcase for West Africa Using Optical Sentinel-2 Imagery. Remote Sens. Environ. 2022, 278, 113084. [Google Scholar] [CrossRef]
  37. Scripps Institution of Oceanography Coastal Data Information Program Buoy Data. Available online: https://cdip.ucsd.edu/ (accessed on 12 May 2023).
  38. Magruder, L.; Brunt, K.; Neumann, T.; Klotz, B.; Alonzo, M. Passive Ground-Based Optical Techniques for Monitoring the On-Orbit ICESat-2 Altimeter Geolocation and Footprint Diameter. Earth Space Sci. 2021, 8, e2020EA001414. [Google Scholar] [CrossRef]
  39. Markus, T.; Neumann, T.; Martino, A.; Abdalati, W.; Brunt, K.; Csatho, B.; Farrell, S.; Fricker, H.; Gardner, A.; Harding, D.; et al. The Ice, Cloud, and Land Elevation Satellite-2 (ICESat-2): Science Requirements, Concept, and Implementation. Remote Sens. Environ. 2017, 190, 260–273. [Google Scholar] [CrossRef]
  40. Martino, A.J.; Neumann, T.A.; Kurtz, N.T.; McLennan, D. ICESat-2 Mission Overview and Early Performance. In Proceedings of the Sensors, Systems, and Next-Generation Satellites XXIII, SPIE, Strasbourg, France, 9–12 September 2019; Volume 11151, pp. 68–77. [Google Scholar]
  41. Schutz, B.E.; Zwally, H.J.; Shuman, C.A.; Hancock, D.; DiMarzio, J.P. Overview of the ICESat Mission. Geophys. Res. Lett. 2005, 32, L21S01. [Google Scholar] [CrossRef]
  42. Neumann, T.A.; Martino, A.J.; Markus, T.; Bae, S.; Bock, M.R.; Brenner, A.C.; Brunt, K.M.; Cavanaugh, J.; Fernandes, S.T.; Hancock, D.W.; et al. The Ice, Cloud, and Land Elevation Satellite—2 Mission: A Global Geolocated Photon Product Derived from the Advanced Topographic Laser Altimeter System. Remote Sens. Environ. 2019, 233, 111325. [Google Scholar] [CrossRef]
  43. Luthcke, S.B.; Thomas, T.C.; Pennington, T.A.; Rebold, T.W.; Nicholas, J.B.; Rowlands, D.D.; Gardner, A.S.; Bae, S. ICESat-2 Pointing Calibration and Geolocation Performance. Earth Space Sci. 2021, 8, e2020EA001494. [Google Scholar] [CrossRef]
  44. Neumann, T.A.; Brenner, A.; Hancock, D.; Robbins, J.; Saba, J.; Harbeck, K.; Gibbons, A.; Lee, J.; Luthcke, S.B.; Rebold, T. ATLAS/ICESat-2 L2A Global Geolocated Photon Data, Version 5. 2021. Available online: https://nsidc.org/data/atl03/versions/5 (accessed on 24 May 2023).
  45. Morison, J.H.; Hancock, D.; Dickinson, S.; Robbins, J.; Roberts, L.; Kwok, R.; Palm, S.P.; Smith, B.; Jasinski, M.F. ICESat-2 Science Team ATLAS/ICESat-2 L3A Ocean Surface Height, Version 5. 2022. Available online: https://nsidc.org/data/atl12/versions/5 (accessed on 1 June 2023).
  46. Jasinski, M.F.; Stoll, J.D.; Hancock, D.; Robbins, J.; Nattala, J.; Morison, J.; Jones, B.M.; Ondrusek, M.E.; Pavelsky, T.M.; Parrish, C.; et al. ATLAS/ICESat-2 L3A Along Track Inland Surface Water Data, Version 5. 2021. Available online: https://nsidc.org/data/atl13/versions/5 (accessed on 1 June 2023).
  47. Cheung, K.F. WaveWatch III (WW3) Global Wave Model 2023. Available online: https://catalog.data.gov/dataset/wavewatch-iii-ww3-global-wave-model (accessed on 30 May 2023).
  48. Tolman, H.L. Testing of WAVEWATCH III Version 2.22 in NCEP’s NWW3 Ocean Wave Model Suite; NOAA/NWS/NCEP/OMB Technical Note; NOAA National Centers for Environmental Prediction: Washington, DC, USA, 2002; p. 99.
  49. NOAA National Centers for Environmental Prediction GFS-Wave Buoy Verification. Available online: https://polar.ncep.noaa.gov/waves/validation/gfsv16/buoys/? (accessed on 21 September 2023).
  50. Stewart, R.H. Introduction to Physical Oceanography. 2008. Available online: https://www.uv.es/hegigui/Kasper/por%20Robert%20H%20Stewart.pdf (accessed on 5 May 2023).
  51. Lomb, N.R. Least-Squares Frequency Analysis of Unequally Spaced Data. Astrophys. Space Sci. 1976, 39, 447–462. [Google Scholar] [CrossRef]
  52. Scargle, J.D. Studies in Astronomical Time Series Analysis. II. Statistical Aspects of Spectral Analysis of Unevenly Spaced Data. Astrophys. J. 1982, 263, 835–853. [Google Scholar] [CrossRef]
  53. VanderPlas, J.T. Understanding the Lomb–Scargle Periodogram. ApJS 2018, 236, 16. [Google Scholar] [CrossRef]
  54. The Astropy Collaboration; Price-Whelan, A.M.; Lim, P.L.; Earl, N.; Starkman, N.; Bradley, L.; Shupe, D.L.; Patil, A.A.; Corrales, L.; Brasseur, C.E.; et al. The Astropy Project: Sustaining and Growing a Community-Oriented Open-Source Project and the Latest Major Release (v5.0) of the Core Package. ApJ 2022, 935, 167. [Google Scholar] [CrossRef]
  55. Drennan, W.M.; Graber, H.C.; Hauser, D.; Quentin, C. On the Wave Age Dependence of Wind Stress over Pure Wind Seas. J. Geophys. Res. Ocean. 2003, 108, 8062. [Google Scholar] [CrossRef]
  56. Drennan, W.M.; Taylor, P.K.; Yelland, M.J. Parameterizing the Sea Surface Roughness. J. Phys. Oceanogr. 2005, 35, 835–848. [Google Scholar] [CrossRef]
  57. Taylor, P.K.; Yelland, M.J. The Dependence of Sea Surface Roughness on the Height and Steepness of the Waves. J. Phys. Oceanogr. 2001, 31, 572–590. [Google Scholar] [CrossRef]
  58. Foster, G. Wavelets for Period Analysis of Unevenly Sampled Time Series. Astron. J. 1996, 112, 1709. [Google Scholar] [CrossRef]
  59. Dorn-Wallenstein, T.; Desai, A.; Gilbert, G.; RT, A.; Monsue, T. JazzHands 2020.
  60. Virtanen, P.; Gommers, R.; Oliphant, T.E.; Haberland, M.; Reddy, T.; Cournapeau, D.; Burovski, E.; Peterson, P.; Weckesser, W.; Bright, J.; et al. SciPy 1.0: Fundamental Algorithms for Scientific Computing in Python. Nat. Methods 2020, 17, 261–272. [Google Scholar] [CrossRef]
  61. Khan, S.S.; Echevarria, E.R.; Hemer, M.A. Ocean Swell Comparisons Between Sentinel-1 and WAVEWATCH III Around Australia. J. Geophys. Res. Ocean. 2021, 126, e2020JC016265. [Google Scholar] [CrossRef]
  62. Wang, H.; Mouche, A.; Husson, R.; Grouazel, A.; Chapron, B.; Yang, J. Assessment of Ocean Swell Height Observations from Sentinel-1A/B Wave Mode against Buoy In Situ and Modeling Hindcasts. Remote Sens. 2022, 14, 862. [Google Scholar] [CrossRef]
  63. Santos, D.; Abreu, T.; Silva, P.A.; Baptista, P. Estimation of Coastal Bathymetry Using Wavelets. J. Mar. Sci. Eng. 2020, 8, 772. [Google Scholar] [CrossRef]
  64. Santos, D.; Fernández-Fernández, S.; Abreu, T.; Silva, P.A.; Baptista, P. Retrieval of Nearshore Bathymetry from Sentinel-1 SAR Data in High Energetic Wave Coasts: The Portuguese Case Study. Remote Sens. Appl. Soc. Environ. 2022, 25, 100674. [Google Scholar] [CrossRef]
  65. Almar, R.; Bergsma, E.W.J.; Thoumyre, G.; Baba, M.W.; Cesbron, G.; Daly, C.; Garlan, T.; Lifermann, A. Global Satellite-Based Coastal Bathymetry from Waves. Remote Sens. 2021, 13, 4628. [Google Scholar] [CrossRef]
  66. Neuenschwander, A.; Magruder, L.; Guenther, E.; Hancock, S.; Purslow, M. Radiometric Assessment of ICESat-2 over Vegetated Surfaces. Remote Sens. 2022, 14, 787. [Google Scholar] [CrossRef]
Jmse 11 02082 g001
Figure 1. Study areas showing areas of interest and ICESat-2 ground tracks. Background imagery from MAXAR/DigitalGlobe.
Figure 1. Study areas showing areas of interest and ICESat-2 ground tracks. Background imagery from MAXAR/DigitalGlobe.
Jmse 11 02082 g001
Jmse 11 02082 g002
Figure 2. An example profile classification for Kaua’i. (a) Raw ATL03 photo data and (b) classified photon data using pseudo-waveform methods.
Figure 2. An example profile classification for Kaua’i. (a) Raw ATL03 photo data and (b) classified photon data using pseudo-waveform methods.
Jmse 11 02082 g002
Jmse 11 02082 g003
Figure 3. (a) Illustration of wave directionality angles used in Equation (10). (b) Illustration of the problem with measuring shorter wavelengths, where in cases of shorter wavelength the angle measurements in (a) are complicated by overlapping wave crests interfering with the cross-correlation and trigonometric calculations.
Figure 3. (a) Illustration of wave directionality angles used in Equation (10). (b) Illustration of the problem with measuring shorter wavelengths, where in cases of shorter wavelength the angle measurements in (a) are complicated by overlapping wave crests interfering with the cross-correlation and trigonometric calculations.
Jmse 11 02082 g003
Jmse 11 02082 g004
Figure 4. Significant wave height results compared with WW3 model values. (a) Scatter plot of significant wave heights measured by ICESat-2 and modelled by WW3, linear regression is for strong and weak combined. (b) Histogram of the differences between ICESat-2 and WW3 significant wave heights.
Figure 4. Significant wave height results compared with WW3 model values. (a) Scatter plot of significant wave heights measured by ICESat-2 and modelled by WW3, linear regression is for strong and weak combined. (b) Histogram of the differences between ICESat-2 and WW3 significant wave heights.
Jmse 11 02082 g004
Jmse 11 02082 g005

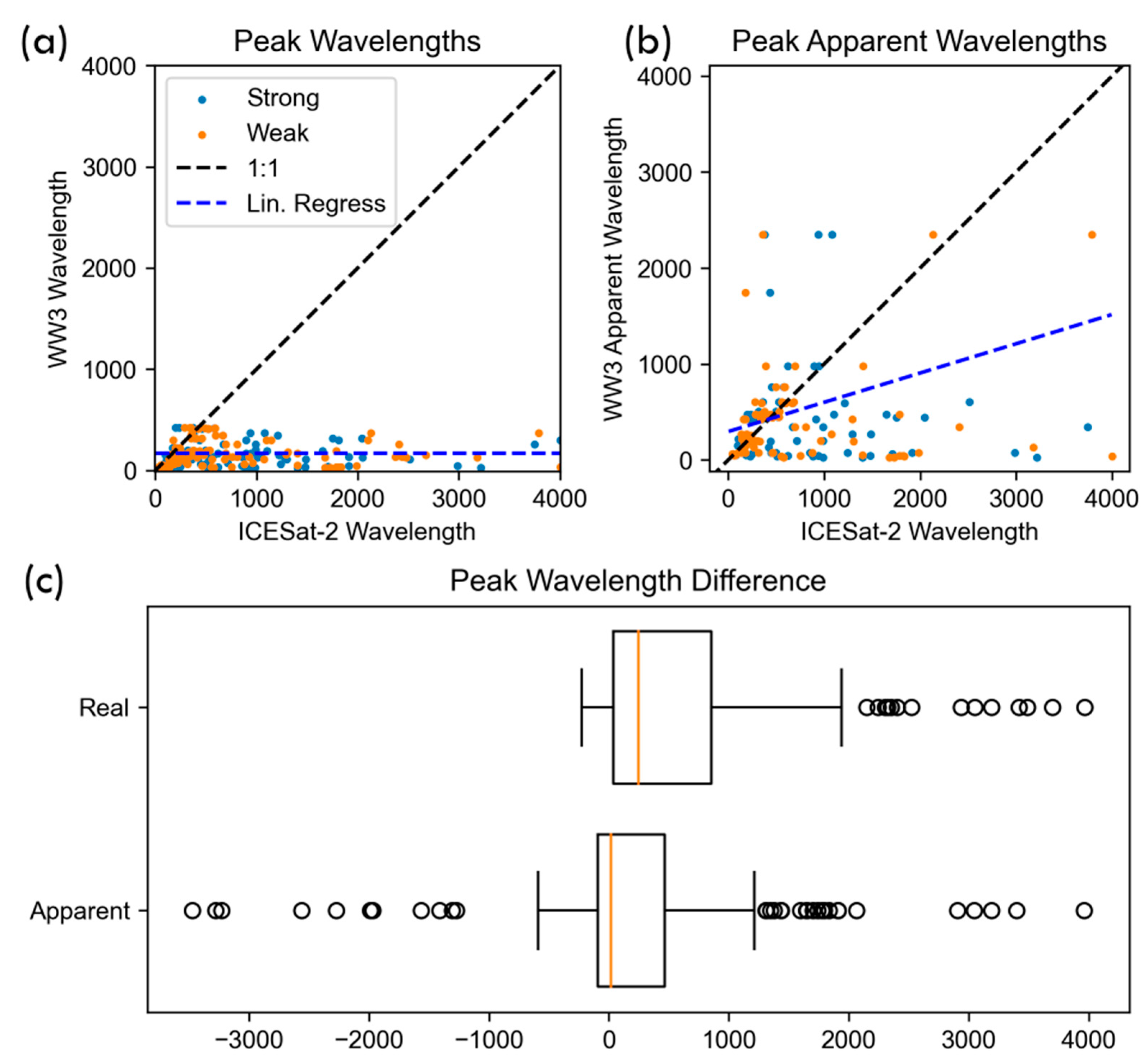

Figure 5. Wavelength results. (a) Scatterplot of peak wavelengths calculated for ICESat-2 vs. WW3 peak wavelengths. (b) Scatterplot of peak wavelengths calculated for ICESat-2 vs. apparent WW3 peak wavelengths (adjusted for WW3 wave direction to account for ICESat-2′s orbital inclination). (c) Boxplots showing the distribution of wavelength differences in ((a), Real) and ((b), Apparent).
Figure 5. Wavelength results. (a) Scatterplot of peak wavelengths calculated for ICESat-2 vs. WW3 peak wavelengths. (b) Scatterplot of peak wavelengths calculated for ICESat-2 vs. apparent WW3 peak wavelengths (adjusted for WW3 wave direction to account for ICESat-2′s orbital inclination). (c) Boxplots showing the distribution of wavelength differences in ((a), Real) and ((b), Apparent).
Jmse 11 02082 g005
Jmse 11 02082 g006
Figure 6. (a,c) Photon surface-return profiles and (b,d) corresponding weighted wavelet amplitude (WWA) plots. The black line in the wavelet plots traces the peak wavelength in each along-track cell of the wavelet analysis.
Figure 6. (a,c) Photon surface-return profiles and (b,d) corresponding weighted wavelet amplitude (WWA) plots. The black line in the wavelet plots traces the peak wavelength in each along-track cell of the wavelet analysis.
Jmse 11 02082 g006
Jmse 11 02082 g007

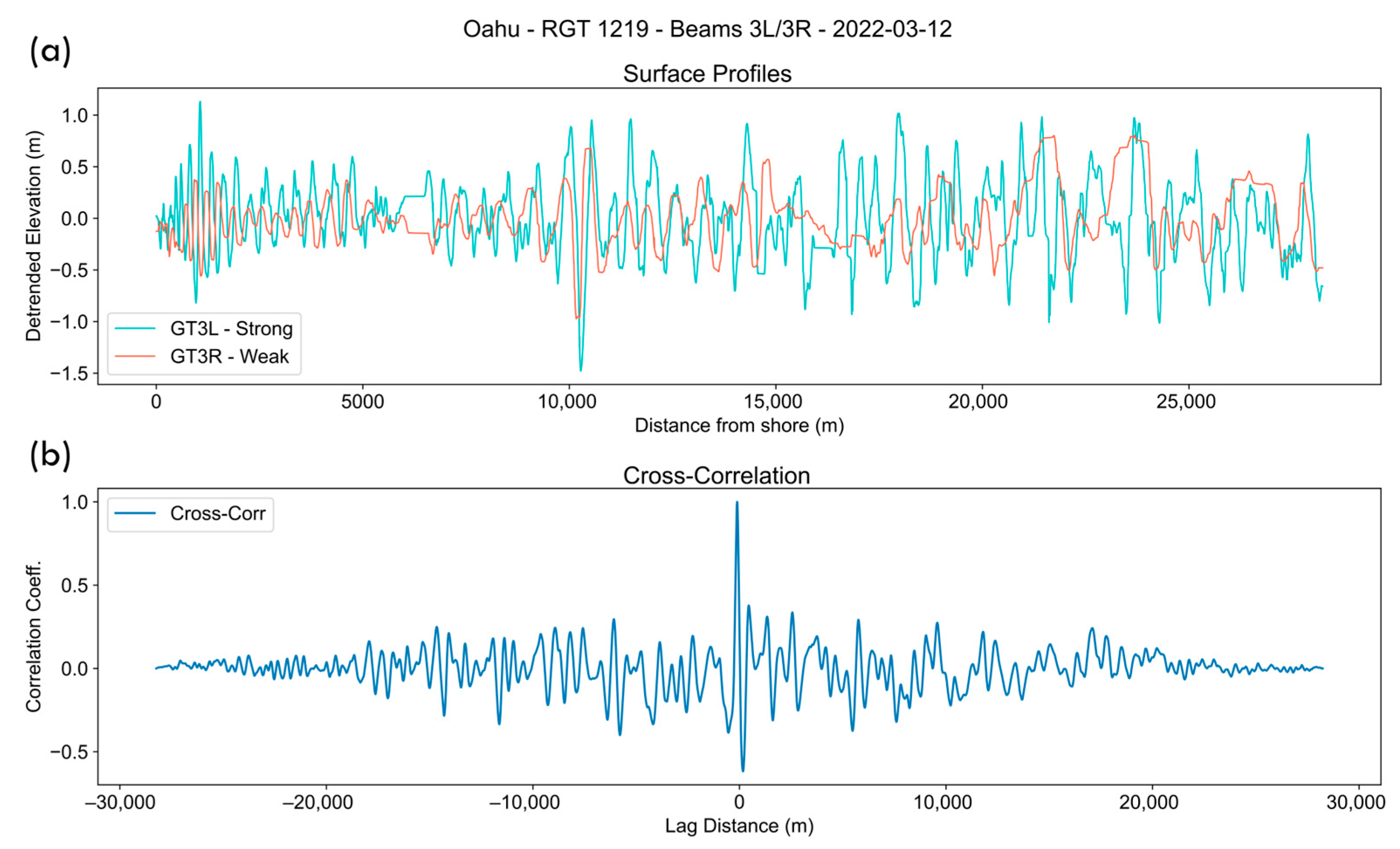

Figure 7. (a) Interpolated surface profiles for the strong and weak beams for RGT1219 on 2022-March-12. (b) Cross-correlation results comparing the profiles in (a).
Figure 7. (a) Interpolated surface profiles for the strong and weak beams for RGT1219 on 2022-March-12. (b) Cross-correlation results comparing the profiles in (a).
Jmse 11 02082 g007
Jmse 11 02082 g008
Figure 8. Histograms showing the absolute differences between the calculated wave direction and WW3 wave direction. (a) Differences between calculated wave direction for full tracks and overall WW3 wave direction. (b) Differences between calculated wave direction for full tracks and swell WW3 wave direction. (c–e) Differences between calculated wave direction for 0–5, 5–10, and 10–15 km from shore and overall WW3 wave direction.
Figure 8. Histograms showing the absolute differences between the calculated wave direction and WW3 wave direction. (a) Differences between calculated wave direction for full tracks and overall WW3 wave direction. (b) Differences between calculated wave direction for full tracks and swell WW3 wave direction. (c–e) Differences between calculated wave direction for 0–5, 5–10, and 10–15 km from shore and overall WW3 wave direction.
Jmse 11 02082 g008
Jmse 11 02082 g009

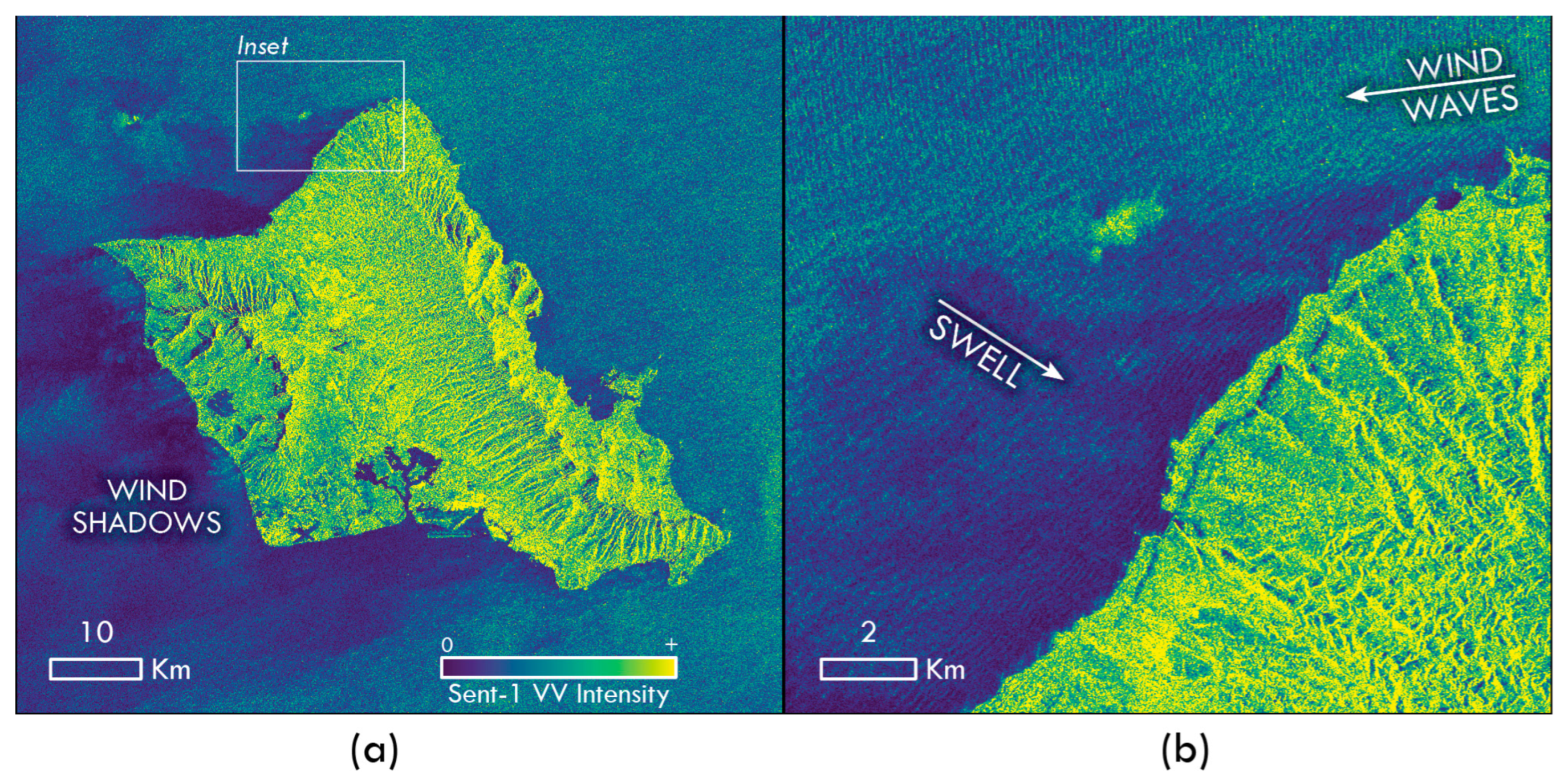

Figure 9. Sentinel-1A synthetic aperture radar image (VV polarization) illustrating some of the complex wave dynamics around O’ahu. (a) overview of wave and wind patterns around O’ahu and (b) inset of the northern part of the island illustrating the interaction between swell and wind-generated waves. Image taken 19 December 2020.
Figure 9. Sentinel-1A synthetic aperture radar image (VV polarization) illustrating some of the complex wave dynamics around O’ahu. (a) overview of wave and wind patterns around O’ahu and (b) inset of the northern part of the island illustrating the interaction between swell and wind-generated waves. Image taken 19 December 2020.
Jmse 11 02082 g009
Table 1. Data sources used in in this study.
Table 1. Data sources used in in this study.
DatasetSourceData TypeResolutionParameters
ATL03NSIDCPhoton Return Point Cloud~0.7 m along trackPhoton Location (x, y, z)
Derived classifications
WW3PacIOOSRaster0.5° × 0.5°Peak wave direction
Peak wave period
Significant wave height:
-
overall wave field
-
swell component
-
wind component
Table 2. Apparent wavelength factor and theoretical left/right offset distances for a range of wave directions relative to ICESat-2’s orbital inclination.
Table 2. Apparent wavelength factor and theoretical left/right offset distances for a range of wave directions relative to ICESat-2’s orbital inclination.
Compass AngleApparent Wavelength FactorTheoretical Lag/Offset Distance for Directionality (m)
0/180°100.1%3.1428
15/195°104.6%27.5009
30/210°117.9%56.2059
45/225°146.6%96.4563
60/240°213.0%169.1642
75/255°444.5%389.5973
86–90/266–270°2865%–∞2577–∞
105/285°342.0%−294.195
120/300°188.7%−143.94
135/315°136.7%−83.8733
150/330°113.3%−47.8228
165/345°102.6%−20.7636
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dietrich, J.T.; Magruder, L.A.; Holwill, M. Monitoring Coastal Waves with ICESat-2. J. Mar. Sci. Eng. 2023, 11, 2082. https://doi.org/10.3390/jmse11112082

AMA Style

Dietrich JT, Magruder LA, Holwill M. Monitoring Coastal Waves with ICESat-2. Journal of Marine Science and Engineering. 2023; 11(11):2082. https://doi.org/10.3390/jmse11112082

Chicago/Turabian Style

Dietrich, James T., Lori A. Magruder, and Matthew Holwill. 2023. "Monitoring Coastal Waves with ICESat-2" Journal of Marine Science and Engineering 11, no. 11: 2082. https://doi.org/10.3390/jmse11112082

APA Style

Dietrich, J. T., Magruder, L. A., & Holwill, M. (2023). Monitoring Coastal Waves with ICESat-2. Journal of Marine Science and Engineering, 11(11), 2082. https://doi.org/10.3390/jmse11112082

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
