Agriculture 2019, 9(4), 78; https://doi.org/10.3390/agriculture9040078

Article
Evaluation of the Optimum Harvesting Maturity of Makhwaen Fruit for the Perfumery Industry
1
Division of Horticulture, Department of Plant and Soil Sciences, Faculty of Agriculture, Chiang Mai University, Chiang Mai 50200, Thailand
2
Plant Bioactive Compound Laboratory (BAC), Department of Plant and Soil Sciences, Faculty of Agriculture, Chiang Mai University, Chiang Mai 50200, Thailand
3
Department of Pharmaceutical Science, Faculty of Pharmacy, Chiang Mai University, Chiang Mai 50200, Thailand
4
Department of Chemistry, Faculty of Science, Chiang Mai University, Chiang Mai 50200, Thailand
*
Author to whom correspondence should be addressed.
Received: 20 March 2019 / Accepted: 11 April 2019 / Published: 17 April 2019

Abstract

:
Harvesting makhwaen (Zanthoxylum myriacanthum Wall. ex Hook. f) fruits at the appropriate maturity is the key to ensure that the essential oil quality meets the need of consumers. In common practice, the fruits are usually harvested when their pericarps start to open and fruits are greenish-red in colour depending on the judgment of the farmers. This leads to inconsistencies in the essential oil quality. This research aims at characterising the aromatic profiles of makhwaen essential oil thereby for consumers to choose the quality that best fits their need and eventually identify the optimum harvesting index of the fruits. The effects of maturity states viz. 15, 36, 45 and 60 (MK15-60) days after fruiting on chemical and sensorial quality of the essential oil was evaluated. Fruit sizes ranged from ~3.3–3.7 mm and fruits appeared to dry initially when they reached 45 days. Essential oils were extracted from these fruits after they had been oven dried (60 °C) to the same moisture content, about 10%. The chemical profiles of the essential oil were different. L-limonene and sabinene were evaluated as key components for good quality essential oil and they were found to be higher in MK45 and MK60 (max = 139.04 µg·mL−1 and max = 146.27 respectively). NIR spectral patterns of pure extracted oil for every different harvesting time (of every different harvesting time of MK60 and MK36) were similar. Sensorial descriptive analysis by semi-trained panellists defined six terms for characteristics (woody, citrus, herb, sweet, pine and spice). The panels provided the highest rating score (15 numeric scale) of citrus and pine scents at MK45, while sweet and woody aromas were the highest at MK15. The spice scent was maximum when the fruits were harvested at 36 days after fruiting. From this study we suggest that the optimum harvesting index for the distinctive aroma of essential oil ought to be at late harvesting (45–60 days after fruiting). The findings contribute to our understanding of the harvesting maturity, which can also provide significant benefit for the perfumery industry, i.e., the optimum harvesting stage that imparts the essential oil with highest quality.
Keywords:
aromatic profile; maturity; spice; utilisation; Zanthoxylum

1. Introduction

The Zanthoxylum genus of the Rutaceae family comprises ~250 plant species [1]. These aromatic crops can be found in tropical and temperate regions [2]. In Thailand, most Zanthoxylum species are known for not only uses as spices, but also to cure many ailments. For examples, Zanthoxylum acanthopodium DC. and Zanthoxylum armatum DC. are known for their medicinal properties such as aromatic tonic, and they are used to treat illness including fever, dyspepsia, toothache and cholera [3,4]. Nine species of Zanthoxylum are found in Thailand and four of them, viz. Z. acanthopodium, Z. armatum, Zanthoxylum rhetsa (Roxb.) DC. and Z. myriacanthum., are commonly used as spices and condiments in the Northern part of the country [5].
Z. myriacanthum is locally known in Northern Thai as makhwaen and its fruits yield essential oils as high as 4% dry weight [5,6]. The essential oils are used as ingredients in food flavouring, traditional medicine and pharmaceuticals, and has recently gained commercial attention, particularly in the fragrance industry [4,5,6,7]. The major volatile component of makhwaen essential oil is L-limonene, comprising as high as ~60% [8,9]. The other constituents are α-pinene (6.49%), β-myrcene (3.87%) and linalool (2.96) representing citrus, herb, spicy and floral characteristics [9,10]. The harvesting index for most horticulture species is based principally on visual parameters such as fruit size and colour. Proper harvesting maturity is, however, the key for fresh plant products in order to adequately ensure good quality of the raw material, which ultimately ensures high quality of the finish processed product [11]. In essential oil-bearing plants, particularly of the Lamiaceae family, the maximum levels, both in yield and essential oils quality, are when they are close to the blooming stage [12]. Harvesting of Patchouli leaves (Pogostemon cablin) at the appropriate stage when the leaves are semi-mature affects the amount of essential oil and chemical composition [13]. In addition, harvesting Kekik (Thymbra spicata) after the flowering stage affects the volatile components of essential oil, as observed by the carvacrol element representing the spice aroma from after flowering (63%), which had greater volume than before flowering (59%) and full flowering states (53%) [14].
Near infrared spectroscopy (NIR) is a physical and non-destructive technique used to monitor the quality and quantity of agricultural and food products, as well as medicinal plants [15,16]. The application of NIR to quantify important substances in the essential oils of plant origins has been well documented in many cases such as that of Ravensara aromatic [15], pennycress [17], various basils [18], citrus oils [19] and some aromatic herbs (thyme, oregano and chamomile) [20]. It can also be used to predict the content of valuable components, such as aldehydes, nootkatone and limonene, as well as other terpene hydrocarbons rapidly and accurately in the essential oils [19]. However, there is a limited literature on the appropriate harvesting index of other essential oil-baring parts such as fruits, particularly those from the Zanthoxylum species. In northern Thailand, the fruit of makhwaen is harvested from November to December [21]. However, the effect of harvesting maturity of makhwaen fruit on the quality of the essential oils has not been described. Therefore, in this research, we outline the aromatic profiles, both chemically and sensorially, of essential oils of the fruit at different maturity stages. The information we provide can be used as a guideline harvesting index for high quality raw material for the perfumery industry.

2. Materials and Methods

2.1. Plant Materials

Makhwaen fruits were randomly harvested from an orchard in the Papea subdistrict, Mae Tang district, Chiang Mai province, Thailand. Fruit branches from 12 trees within the same orchard were harvested 15, 36, 45 and 60 days after the fruiting period (MK15, MK36, MK45 and MK60). They were placed in a styro-foam box (covered with wet cloths) to maintain the temperature ~20 °C inside the box. Size and weight of individual fruit from harvested branches were averaged from 1200 fruits randomly selected on each harvesting day [22]. Fruits without stalks were dried at 60 °C (hot air oven, ED56, BINDER, Tuttlingen, Germany) and dried samples were removed from the oven after the constant weight was reached (10% dry weight), then they were ready for essential oil extraction [23].

2.2. Essential Oils Extraction

The essential oil was extracted via hydro-distillation for 4 h, from 100 g dried fruits in 600 mL of water in a 2 L flask Clevenger-type apparatus. The extraction was repeated twice and yield (mean value) was reported as the percentage of essential oil from dry plant material [16]. The oil was dried over anhydrous sodium sulphate and kept at 4 °C until analysis (usually within 3 days).

2.3. Chemical Composition Analysis

Essential oil samples (2 µL at the dilution of 1% v/v in dichloromethane with 0.003% w/v toluene as an internal standard) were injected in a split mode (1:20) [10]. The gas chromatography mass spectrometry (GC-MS) analysis was performed on using a Bruker - scion 436 GC a Rxi 5Sil MS (30 m × 0.25 mm; 0.25 μm film thicknesses). The temperature program oven temperature was held for 2 min at 60 °C and was enhanced to 150 °C at 3 °C·min−1. Then, temperature enhancement was programmed up to 270 °C at 5 °C·min−1 and held at this temperature for 15 min. Other operating conditions were helium as the carrier gas with a flow rate of 1.1 mL·min−1; injector and detector temperatures were 300 °C, and split ratio, 1:50. Mass spectra were taken at 70 eV. The mass spectra and retention indices of essential oil components were identified by comparison to published literature as presented in the MS computer library, supplied by Adams [24]. The standard solution of C8-C20 n-alkane (Fluka® Analytical, Munich, Germany) in dichloromethane was also used for the calculation of retention indices (RI) [23]. The identification of the volatile compositions was by comparison with mass spectra in NIST 05.L and NIST 98.L libraries with >70% similarity. The compounds were confirmed by their RI as well as those from the literature [9]. The amount in µg∙mL−1 of essential oil was calculated as relative to that of toluene internal standard.

2.4. NIR Analysis

The pure essential oils extracted were scanned to analyse the basic physical properties of essential oils from the makhwaen essential oil using a FT-NIR spectrometer (MPA FT-NIR Series Bruker Optics, Stuttgart, Germany), averaging 32 scans per spectrum at 8 cm−1 resolution to assess the makhwaen essential oil samples. Scanning was conducted in reflectance mode comparing the MPA integrated sphere and liquid probe against the Matrix-F with a fibre-coupled measurement head operating two tungsten halogen 12 V, 20 W light sources [25].

2.5. Sensory Analysis

A descriptive sensory analysis was carried out to profile the major odour characteristics of the essential oil. The sensory analysis was performed by five semi-trained panellists (2 male, 3 female, ages 20–37). During training sessions which lasted for 30 hours, the panellists smelled the different essential oil samples and discussed odour attributes [26]. From the discussion session and by using GC-MS analysed result, the descriptive terms were identified [10,27]. The odour attributes (Table 1), including citrus, herb, pine, spice, sweet and woody attributes, as well as general intensity and desirability were evaluated. The descriptive analysis was performed along a scoring line ranging from 0 (none) to 15 (very strong) in triplicates, and two samples were presented for each analysis [26,28].

2.6. Statistical Analyses

The data was statistically analysed using a comparison of the means of yield for essential oils evaluated by Duncan’s multiple range test at 95% confidential level [30]. A principle component analysis (PCA) was used to identify the main sources of systematic variation in the sensory descriptive data [31].

3. Results and Discussion

3.1. Fruit Size, Weight and Colour

The size and weight of harvested makhwaen fruits of different maturity stages were measured (Table 2). Fruit sizes and weight ranged from ≈3.4–3.7 mm and 0.016–0.034 g, and is consistent with the report from Suksathan et al. [21] who reported that the size of fruit was about 3–4 mm and 0.010–0.030 g. Harvest time was important for the accumulation of chemical substances in essential oils, as immature harvesting may cause the yield and accumulation of essential substances to be lower [32]. Variation of fruit colour from 15–60 days after initial fruiting are varied (Figure 1). It can be observed that the colour of the fruits altered from light greenish (MK15) to reddish (MK45) and finally to brownish (MK60 or over mature). However, in some species of Zanthoxylum, such as Zanthoxylum bungeanum Maxim. [1] and Z. armatum [33], the colour of the fruits is clear when fruits are over mature.

3.2. Chemical Compounds

Forty-four volatile compounds were detected using GC-MS (Table 3). The chemical profiles of the essential oils from makhwaen fruits at different maturities were variable. Based on the results of GC-MS analysis, the main components of different harvesting time could be identified in the following sequence: MK15; sabinene (85.81 µg·mL−1), methyl (1-methylethyl) benzene (49.34 µg·mL−1) and β-phellandrene (45.22 µg·mL−1) essential oil, MK36; limonene (139.04 µg·mL−1), sabinene (118.89 µg·mL−1) and β-phellandrene (28.48 µg·mL−1) essential oil, MK45; limonene (140.56 µg·mL−1), sabinene (115.48 µg·mL−1) and L-phellandrene (52.41 µg·mL−1) essential oil and MK60; sabinene (146.27 µg·mL−1), limonene (135.64 µg·mL−1) and β-phellandrene (125.30 µg·mL−1) essential oil, respectively. The dominant component in MK60 was sabinene (146.27 µg∙mL1) and MK45 was L-limonene (140.65 µg∙mL1). Sabinene was also the major component in the essential oil of other Zanthoxylum species, including that found in Zanthoxylum rhoifolium L. and Z. myriacanthum [29,34]. Other literature suggests that L-limonene is the important volatile compound from the essential oil of fresh Z. myriacanthum var. pubescens fruits [35], as well as Zanthoxylum schinifolium S.et Z., Z. bungeanum and Zanthoxylum piperitum (L.) DC. [9,36,37]. For the assessment of the essential oil quality for these particular species, sabinene and limonene as the representatives of woody and citrus aromas are then used as evaluating indicators [29]. Zhang et al. [1] noted that fruit maturity may influence the chemical compositions of the essential oil.
The PCA between the volatile composition and the harvesting stage revealed two clustering groups. The first group (MK15 and MK60) had the dominant β-phellandrene representing a minty aroma (Figure 2). As with the experimental work of Jiang and Kubota [26], they reported that Japanese pepper (Z. piperitum) contained β-phellandrene as the main substance that provided a minty aroma. The second cluster was of the MK36 and MK45 with L-limonene (citrus aroma) as the most distinctive compound. This group represented the citrus aroma, for use as a flavouring agent and is found in the food flavour and fragrance aroma ingredient industry [36]. The optimum harvesting index of makwhaen fruits is therefore suggested to be 45 to 60 days after fruiting, as indicated by the greater contents of sabinene and limonene.

3.3. NIR Analysis

According to the NIR spectra analysis, oil samples were dominated by overtones and different combinations of C–H stretching and bending vibrations occurring between 9090–5555 cm−1 (1600–1800 nm) and 4545–4000 cm−1 (2200–2500 nm), respectively (Figure 3). An NIR spectrum scan of makhwaen essential oil of different fruit maturities (MK15, MK36, MK45 and MK60) absorbed light at wavelengths of 8750–8000, 6500–7400, 6250 and 6000–5500 cm−1, respectively, therefore illustrating similar light transmission patterns. Essential oil containing multiple chemical compositions usually presents a much more complex peak pattern than that of the pure chemical [18]. Moreover, NIR spectrum patterns are generally used to distinguish the different types of essential oils from different plant species [15]. For instance, there was a similarity in the NIR pattern of fresh and dried lavender essential oil, but when compared with the tea tree essential oil, the spectrum peaks were different [38]. Our results illustrated that even though there were variations in chemical compositions from the essential oils of different matured fruits, there was still the similarity in NIR pattern suggesting that these essential oils were of the same plant species with the corresponding chemical finger prints.

3.4. Sensory Analysis

The terms selection from GC-MS results, following descriptors viz. citrus, herb, pine, spice, sweet and woody, were selected (Table 4). The citrus aroma is also a primary aromatic scent in many Zanthozylum spp. essential oils including that of Z. piperathum [36], Z. myriacanthum [9], Z. bungeanum [37] and Zanthoxylum xanthoxyloi [39]. From the results, the panellists gave citrus and pine scents a high rating score for MK45, while sweet and woody aromas were the highest scents at MK15. The harvesting at 36 days after fruiting of makhwaen fruit showed essential oil at the maximum value of spice scent. The panellists could significantly tell the different among the samples for woody, sweet and pine scents (Table 4). However, the descriptive scoring in citrus, herb and spice aroma was not significantly different. Descriptive data by the semi-trained panellists on PCA analysis showed the relationship of the odour attributes and different harvesting day of makhwaen fruit essential oil, to be divided into two groups (Figure 4). The first group was MK36 and MK45 with the dominant pine scent. The second group was MK15 and MK60 with the leading citrus scent. From the results of panellists regarding Japanese pepper (Z. piperitum) essential oil, it was found that the odour characteristics were similar to makhwaen essential oil viz. citrus-like, sweet and pine, and different harvesting stages affecting the different odour intensities of essential oil [26]. Based on the sensory analysis results from panellists, the optimal time for harvesting makwhean fruit is at 60 days because the citrus and woody aromas were noticeably higher.

4. Conclusions

The main volatile components of makhwaen essential oil were sabinene, L-limonene and β-phellandrene. The physical characteristics of makhwaen essential oil from different harvesting times using an NIR method illustrated similar light transmission patterns. The semi-trained panellists could distinguish the scent of essential oil from makhwaen fruit using the six attributes of citrus, herb, pine, spice, sweet and woody. Sensory information of essential oil from makhwaen fruits at 36 and 45 days after its initial fruiting had the highest pine aroma, and the citrus scent was dominant in all treatments. This report provides the patterns of aromatic profiles that can be used for future product development of the natural product industries.

Author Contributions

Conceptualization, S.R.S. and N.P.; Methodology, S.R.S. and T.S.; Software, T.S.; Formal analysis, T.S.; Investigation, T.S.; Resources, T.S.; Data curation, T.S.; Writing—Original draft preparation, T.S. and S.R.S.; Writing—review and editing, S.R.S., T.J., P.S. and N.P.; Supervision, S.R.S. and P.S.; Project administration, T.S. and S.R.S.

Funding

This research was funded by the Research Administration Center, Chiang Mai University. Support for postgraduate student (Trid Sriwichai) in the forms of research assistant (RA) and research grant were given by the Graduate School of Chiang Mai University.

Acknowledgments

We would like to acknowledge the external supports from Cosmo Ingredients, Mougins, France. We also appreciate the generosity of Anne Marie Saget and Wei Raksa during the course of experimentation. We would like to especially thanks Michael D Burgett for final proofreading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Ethics Statement

Chiang Mai University Research Ethics Committee (CMUREC) has approved the proposed protocol (CMUREC No. 61/090), which has been reviewed based on international guidelines for human research protection including the Declaration of Helsinki, International Conference on Harmonization in Good Clinical Practice (ICH-GCP) and The Belmont Report.

References

  1. Zhang, M.; Wang, J.; Zhu, L.; Li, T.; Jiang, W.; Zhou, J.; Peng, W.; Wu, C. Zanthoxylum bungeanum maxim. (Rutaceae): A systematic review of its traditional uses, botany, phytochemistry, pharmacology, pharmacokinetics, and toxicology. Int. J. Mol. Sci. 2017, 18, 2172. [Google Scholar] [CrossRef] [PubMed]
  2. Toyin, Y.M.; Olakunle, A.T.; Adewunmi, A.M. Toxicity and Beneficial Effects of Some African Plants on the Reproductive System. In Toxicological Survey of African Medicinal Plants; Kuete, V., Ed.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 445–492. [Google Scholar]
  3. Brijwal, L.; Pandey, A.; Tamta, D.S. An overview on phytomedicinal approaches of Zanthoxylum armatum DC.: An important magical medicinal plant. J. Med. Plants Res. 2013, 7, 366–370. [Google Scholar]
  4. Patiño, L.O.J.; Prieto, R.J.A.; Cuca, S.L.E. Zanthoxylum Genus as Potential Source of Bioactive Compounds. In Bioactive Compounds in Phytomedicine; Rasooli, I., Ed.; IntechOpen: Rijeka, Croatia, 2012; pp. 185–220. [Google Scholar]
  5. Suksathan, R.; Trisonthi, C.; Trisonthi, P.; Wangpakapattanawong, P. Notes on Spice Plants in the Genus Zanthoxylum (Rutaceae) in Northern Thailand. Available online: https://www.tci-thaijo.org/index.php/ThaiForestBulletin/article/view/24374 (accessed on 16 April 2019).
  6. Sriwichai, T.; Suksathan, R.; Charoenlertthanakit, N.; Sommano, S. Zanthoxylum spp.: A new potential sources of essential oil for the perfumery and pharmaceutical industries in Thailand. Med. Plants 2019, 11, 26–45. [Google Scholar] [CrossRef]
  7. Charoensup, R.; Duangyod, T.; Phuneerub, P.; Singharachai, C. Pharmacognostic specifcation of Zanthoxylum limonella (Dennst.) alston: Fruits and seeds in Thailand. J. Adv. Pharm. Technol. Res. 2016, 7, 134–138. [Google Scholar] [CrossRef]
  8. Wongsrisom, N.; Jinata, J.; Manosan, B.; Kuntakhoo, J.; Wankuan, S.; Sriyam, S. Anti-bacterial activities of essential oils from mah-khwuaen (Zanthoxylum limonella alston). KMUTT Res. Dev. J. 2014, 37, 3–15. [Google Scholar]
  9. Li, R.; Yang, J.; Shi, Y.; Zhao, M.; Ji, K.; Zhang, P.; Xu, Y.; Hu, H. Chemical compositions antimicrobial and anti-inflammatory activities of the essential oil from maqian (Zanthoxylum myriacanthum var. Pubescens) in Xishuangbanna, southwest China. J. Ethnopharmacol. 2014, 158, 43–48. [Google Scholar] [CrossRef]
  10. Tangpao, T.; Chung, H.H.; Sommano, S.R. Aromatic profiles of essential oils from five commonly used Thai basils. Foods 2018, 7, 175. [Google Scholar] [CrossRef] [PubMed]
  11. Kader, A. Postharvest Technology of Horticultural Crops, 3rd ed.; The University of California Division of Agriculture and Natural Resources: Davis, CA, USA, 2002. [Google Scholar]
  12. Carrubba, A.; Catalano, C. Essential Oil Crops for Sustainable Agriculture—A Review. In Climate Change, Intercropping, Pest Control and Beneficial Microorganisms; Springer: Dordrecht, The Netherlands, 2009; pp. 247–287. [Google Scholar]
  13. Hazarika, P. Impact of harvesting cycle, maturity stage, drying and storage on essential oil content of patchouli leaves grown in northeast region of India. J. Essent. Oil Bear. Plants 2014, 17, 1389–1396. [Google Scholar]
  14. Inan, M.; Kirpik, M.; Kaya, D.; Kirici, S. Effect of harvest time on essential oil composition of Thymbra spicata L. growing in flora of adıyaman. J. Environ. Biol. 2011, 5, 356–358. [Google Scholar]
  15. Andrianoelisoa, H.; Danthu, P.; Tomazello, M.; Menut, C.; Chaix, G. Near infrared (NIR) spectroscopy for determination of essential oil chemotypes from Ravensara aromatic. In NIR2013 Proceedings; Maurel, V.B., Williams, P., Downey, G., Eds.; RSTEA—France Institut National de Recherche en Sciences et Technologies Pour L’environnement et L’agriculture: La Grande-Motte, France, 2013. [Google Scholar]
  16. Maisnam, D.; Rasane, P.; Dey, A.; Kaur, S.; Sarma, C. Recent advances in conventional drying of foods. J. Food Technol. Preserv. 2017, 1, 25–34. [Google Scholar]
  17. Chopra, R.; Folstad, N.; Lyons, J.; Ulmasov, T.; Gallaher, C.; Sullivan, L.; McGovern, A.; Mitacek, R.; Frels, K.; Altendorf, K.; et al. The adaptable use of brassica NIRS calibration equations to identify pennycress variants to facilitate the rapid domestication of a new winter oil seed crop. Ind. Crops Prod. 2019, 128, 55–61. [Google Scholar] [CrossRef]
  18. Schulz, H.; Baranska, M.; Belz, H.-H.; Rösch, P.; Strehle, M.A.; Popp, J. Chemotaxonomic characterisation of essential oil plants by vibrational spectroscopy measurements. Vib. Spectrosc. 2004, 35, 81–86. [Google Scholar] [CrossRef][Green Version]
  19. Steuer, B.; Schulz, H.; Läger, E. Classification and analysis of citrus oils by NIR spectroscopy. Food Chem. 2001, 72, 113–117. [Google Scholar] [CrossRef]
  20. Schulz, H.; Quilitzsch, R.; Krüger, H. Rapid evaluation and quantitative analysis of thyme, origano and chamomile essential oils by ATR-IR and NIR spectroscopy. J. Mol. Struct. 2003, 661, 229–306. [Google Scholar] [CrossRef]
  21. Suksathan, R. Botanical Characteristics of Some Spice Plants in Genus Zanthoxylum in Upper North of Thailand; Chiang Mai University: Chiang Mai, Thailand, 2002; Chapter 3; pp. 13–26. [Google Scholar]
  22. Patil, J.B.; Shivanna, H.; Hegde, K. Seed source variation on fruit and seed traits of Zanthoxylum rhetsa a medicinal tree under high exploitation in central western Ghats, India. Int. J. Pharm. Life Sci. 2014, 5, 4081–4085. [Google Scholar]
  23. Mashkani, D.; Reza, M.; Larijani, K.; Mehrafarin, A.; Naghdi Badi, H. Changes in the essential oil content and composition of Thymus daenensis celak. under different drying methods. Ind. Crops Prod. 2018, 112, 389–395. [Google Scholar] [CrossRef]
  24. Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Quadrupole Mass Spectroscopy; Allured Pub. Corporation: Carol Stream, IL, USA, 2001. [Google Scholar]
  25. Wedding, B.; White, R.; Grauf, S.; Coomans, D.; Nottingham, S.; Gadek, P. The Determination of Essential Oils in Sandalwood via NIR Spectroscopy. In Proceedings of the 12th Australian Near Infrared Spectroscopy Group (ANISG), Rockhampton, Australia, 7–10 May 2006. [Google Scholar]
  26. Jiang, L.; Kubota, K. Differences in the volatile components and their odor characteristics of green and ripe fruits and dried pericarp of Japanese pepper (Xanthoxylum piperitum DC.). J. Agric. Food Chem. 2006, 52, 4197–4203. [Google Scholar] [CrossRef]
  27. Sunanta, P.; Sriwichai, T.; Tangpao, T.; Sommano, S.R. Chok-anan aroma analysis: Descriptive analysis of volatiles from selected tropical plants. J. Postharvest Technol. 2018, 6, 35–43. [Google Scholar]
  28. Choi, S.M.; Lee, D.-J.; Kim, J.-Y.; Lim, S.-T. Volatile composition and sensory characteristics of onion powders prepared by convective drying. Food Chem. 2017, 231, 386–392. [Google Scholar] [CrossRef]
  29. Sriwichai, T.; Sookwong, P.; Siddiqui, M.W.; Sommano, S.R. Aromatic profiling of Zanthoxylum myriacanthum (makwhaen) essential oils from dried fruits using different initial drying techniques. Ind. Crops Prod. 2019, 133, 284–291. [Google Scholar] [CrossRef]
  30. Gonçalves, D.; Costa, P.; Rodrigues, C.E.C.; Rodrigues, A.E. Effect of Citrus sinensis essential oil deterpenation on the aroma profile of the phases obtained by solvent extraction. J. Chem. Thermodyn. 2018, 116, 166–275. [Google Scholar] [CrossRef]
  31. Rodríguez, A.; Peris, J.E.; Redondo, A.; Shimada, T.; Peña, L. Principal component analysis (PCA) of volatile terpene compounds dataset emitted by genetically modified sweet orange fruits and juices in which a D-limonene synthase was either up- or down-regulated vs. empty vector controls. Data Brief 2016, 9, 355–361. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. El-Gamal, S.M.A.; Ahmed, H.M.I. Influence of different maturity stages on fruit yield and essential oil content of some Apiaceae family plants. Plant Prod. Mansoura Univ. 2017, 8, 127–133. [Google Scholar]
  33. Alam, F.; Us Saqib, Q.N. Pharmacognostic study and development of quality control parameters for fruit, bark and leaf of Zanthoxylum armatum (Rutaceae). Anc. Sci. Life 2015, 34, 147–155. [Google Scholar] [CrossRef]
  34. Costa, E.C.C.; Christofoli, M.; Costa, G.C.S.; Peixoto, M.F.; Fernandes, J.B.; Forim, M.R.; Pereira, K.C.; Silva, F.G.; Cazal, C.M. Essential oil repellent action of plants of the genus Zanthoxylum against Bemisia tabaci biotype B (Homoptera: Aleyrodidae). Sci. Hortic. 2017, 226, 327–332. [Google Scholar] [CrossRef]
  35. Zhang, W.-J.; Zhang, Z.; Chen, Z.-Y.; Liang, J.-Y.; Geng, Z.-F.; Guo, S.-S.; Du, S.-S.; Deng, Z.-W. Chemical composition of essential oils from six Zanthoxylum species and their repellent activities against two stored-product insects. J. Chem. 2017, 2017, 1287362. [Google Scholar] [CrossRef]
  36. Hwang, E.-S.; Kim, G.-H. Safety evaluation of Zanthoxylum piperitum-derived essential oil by assessing micronucleus abnormalities, mutagenicity, and chromosomal aberration. Food Res. Int. 2012, 47, 267–271. [Google Scholar] [CrossRef]
  37. Li, K.; Zhou, R.; Wang Jia, W.; Li, Z.; Li, J.; Zhang, P.; Xiao, T. Zanthoxylum bungeanum essential oil induces apoptosis of HaCaT human keratinocytes. J. Ethnopharmacol. 2016, 186, 351–361. [Google Scholar] [CrossRef] [PubMed]
  38. Śmigielski, K.; Prusinowska, R.; Raj, A.; Sikora, M.; Woliñska, K.; Gruska, R. Effect of drying on the composition of essential oil from lavandula angustifolia. J. Essent. Oil Bear. Plants 2013, 14, 532–542. [Google Scholar] [CrossRef]
  39. Ogbonna, C.N.; Nozaki, K.; Yajima, H. Antimicrobial activity of Xylopia aethiopica, Aframomum melegueta and Piper guineense ethanolic extracts and the potential of using Xylopia aethiopica to preserve fresh orange juice. Afr. J. Biotechnol. 2013, 12, 1993–1998. [Google Scholar] [CrossRef]
Figure 1. The branches of makhwaen fruits at different harvesting time, (a) 15 days after fruiting, (b) 36 days after fruiting, (c) 45 days after fruiting and (d) 60 days after fruiting.
Figure 1. The branches of makhwaen fruits at different harvesting time, (a) 15 days after fruiting, (b) 36 days after fruiting, (c) 45 days after fruiting and (d) 60 days after fruiting.
Agriculture 09 00078 g001

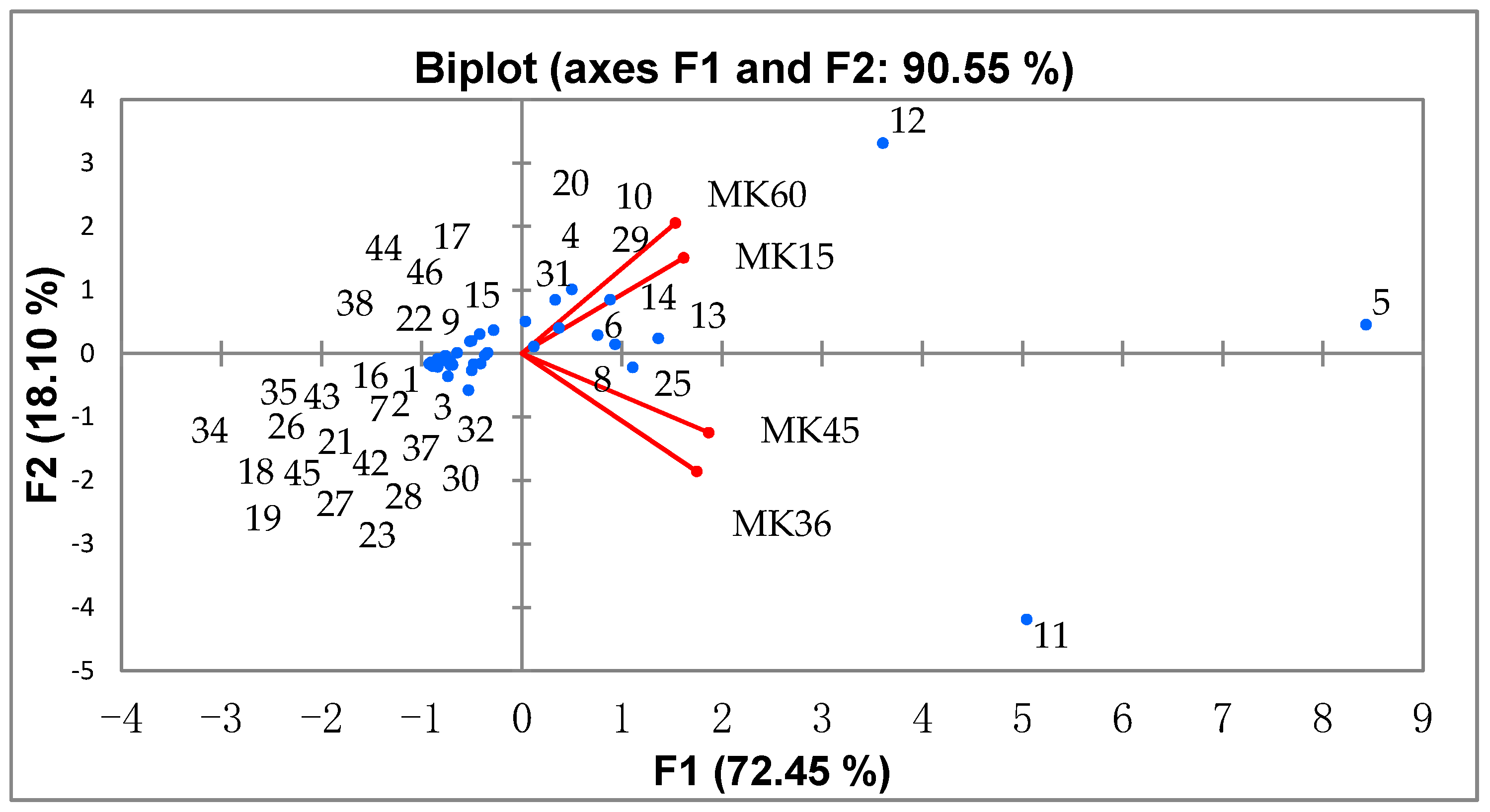

Figure 2. Principal component analysis (PCA) biplot (axes F1 and F2: 90.55%) illustrating the relationships among the chemical components and different harvesting day of makhwaen fruit essential oil.
Figure 2. Principal component analysis (PCA) biplot (axes F1 and F2: 90.55%) illustrating the relationships among the chemical components and different harvesting day of makhwaen fruit essential oil.
Agriculture 09 00078 g002

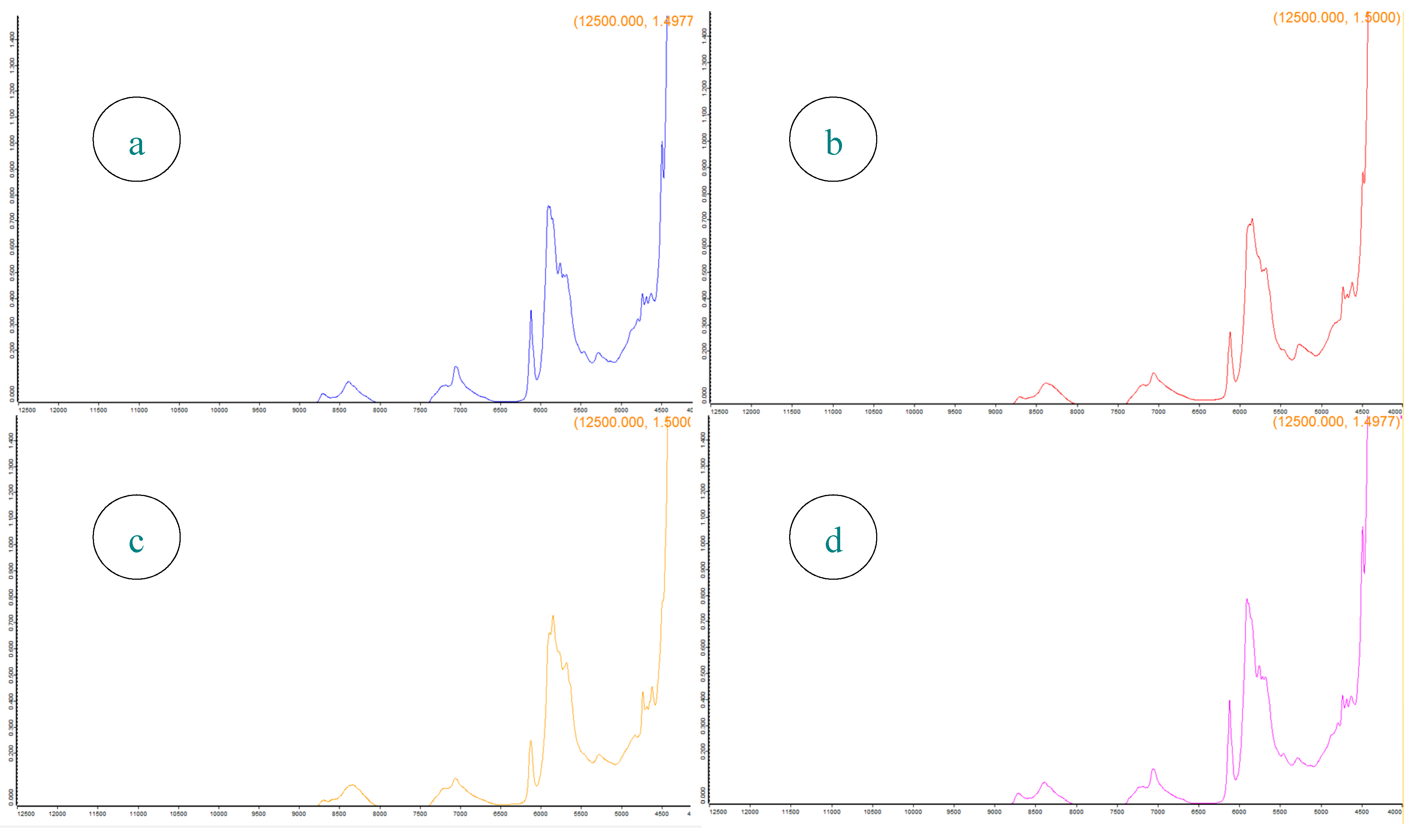

Figure 3. Near infrared spectra of the essential oils from four different harvesting time. The insertion is the inset evidence of the peaks between 4000–12,500 cm1: (a) MK15, (b) MK36, (c) MK45 and (d) MK60.
Figure 3. Near infrared spectra of the essential oils from four different harvesting time. The insertion is the inset evidence of the peaks between 4000–12,500 cm1: (a) MK15, (b) MK36, (c) MK45 and (d) MK60.
Agriculture 09 00078 g003

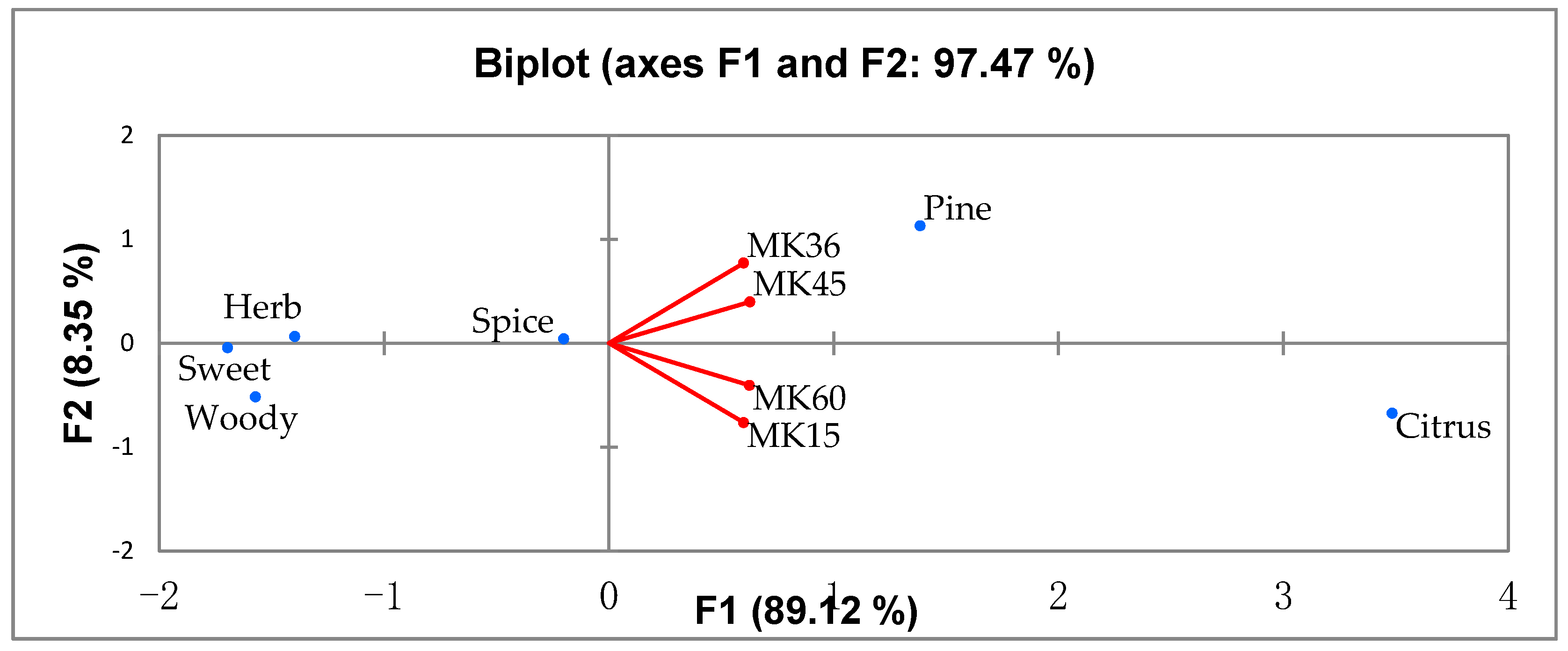

Figure 4. Principal component analysis (PCA) biplot (axes F1 and F2: 97.47%) illustrating the relationships among the odour attributes and different harvesting day of makhwaen fruit essential oil.
Figure 4. Principal component analysis (PCA) biplot (axes F1 and F2: 97.47%) illustrating the relationships among the odour attributes and different harvesting day of makhwaen fruit essential oil.
Agriculture 09 00078 g004
Table 1. Attributes and references used in evaluating in 6 essential oil odours.
Table 1. Attributes and references used in evaluating in 6 essential oil odours.
Odour AttributesReference Standardsn/15 *
CitrusLemon extract (McCormick), 200 µL8/15
HerbThyme (McCormick), 0.5 g10/15
PinePine/cypress essential oil 10/15
SpiceGround allspice (McCormick), 0.5 g8/15
SweetVanilla flavour (McCormick), 200 µL10/15
WoodyPeanut peel 2 g with 100 µL DI water7/15
* As described by Tangpao et al. [10] and Sriwichai et al. [29].
Table 2. Size and weight of makhwaen fruits.
Table 2. Size and weight of makhwaen fruits.
TreatmentSize (mm)Weight (g)
MK153.73 ± 0.08 b0.026 ± 0.006 ab
MK363.72 ± 0.08 b0.034 ± 0.024 b
MK453.55 ± 0.07 ab0.023 ± 0.005 ab
MK603.45 ± 0.06 a0.016 ± 0.010 a
Mean scores (n = 100) for each size and weight within a column with different superscript letters (a, b) are significantly different at α = 0.05 using Duncan’s multiple comparison test.
Table 3. Chemical profiles of makhwaen fruit essential oil.
Table 3. Chemical profiles of makhwaen fruit essential oil.
No.Chemical Compounds Amount of Chemical (µg·mL−1 Essential Oil a)
RIcalRIrefMK15MK36MK45MK60
1α-thujene800.59262.21 ± 0.01ND4.30 ± 0.02ND
2α-phellandrene800.510044.26 ± 0.01NDND2.23 ± 0.01
3α-pinene800.69372.01 ± 0.015.16 ± 0.0111.66 ± 0.016.10 ± 0.01
4cis-ocimene886.2 3.91 ± 0.371.92 ± 0.013.45 ± 0.011.96 ± 0.01
5sabinene900.0113285.81 ± 0.02118.89 ± 0.05115.48 ± 0.11146.27 ± 0.07
6β-mycrene900.199222.45 ± 0.1814.69 ± 0.0123.47 ± 0.0220.30 ± 0.01
7octanal900.2 NDND1.20 ± 0.011.10 ± 0.01
8L-phellandrene900.2 14.18 ± 0.0714.81 ± 0.0152.41 ± 0.0222.72 ± 0.02
9α-terpinene900.311966.03 ± 0.036.37 ± 0.0310.78 ± 0.019.21 ± 0.01
10benzene, methyl (1-methylethyl)900.4 49.34 ± 0.304.82 ± 0.022.77 ± 0.012.78 ± 0.01
11L-limonene900.4103525.31 ± 0.18139.04 ± 0.09140.65 ± 0.08135.64 ± 0.01
12β-phellandrene900.5122745.22 ± 0.2928.48 ± 0.1439.13 ± 0.02125.30 ± 0.06
131,3,6 octatriene, 3,7-dimethyl900.6 38.45 ± 0.3523.71 ± 0.0230.49 ± 0.0212.83 ± 0.01
14γ-terpinene900.7101722.04 ± 0.1811.76 ± 0.0617.81 ± 0.0114.80 ± 0.01
15p-menth-2-en-1-ol967.1 34.49 ± 0.22NDNDND
16α -terpinolene920.7 2.14 ± 0.012.93 ± 0.014.89 ± 0.013.94 ± 0.01
17cis-sabnenehydrate900.6157837.31 ± 0.18NDNDND
18trans-sabinene hydrate900.7 ND2.33 ± 0.01ND4.27 ± 0.01
19α-terpineol900.91594ND2.16 ± 0.01NDND
20cyclohexane, 1-methyl-4-(1-methylethylidene)920.7 30.84 ± 0.155.39 ± 0.034.03 ± 0.01ND
21L-linalool 925.715663.93 ± 0.015.10 ± 0.0114.12 ± 0.018.77 ± 0.01
221-terpineol1000.1 NDND3.44 ± 0.03ND
23Δ-3-carene900.61011ND9.86 ± 0.10NDND
243-cyclohexane-1-ol, 4-methyl-1-(1-methylethylidene)1000.5 9.01 ± 0.0427.06 ± 0.1339.49 ± 0.0335.65 ± 0.02
252-cyclohexane-1-ol, 1-methyl-4-(1-methylethylidene)901.1 ND2.18 ± 0.11NDND
262-β -pinene901.3 ND1.35 ± 0.03NDND
27cryptone1000.5 2.20 ± 0.016.39 ± 0.011.34 ± 0.012.69 ± 0.01
28β-fenchyl alcohol1013.0 42.98 ± 0.3811.03 ± 0.0111.19 ± 0.0412.69 ± 0.01
29decanal1000.7 7.59 ± 0.025.85 ± 0.0310.72 ± 0.035.97 ± 0.01
30acetic acid, octyl ester1025.6 16.76 ± 0.1410.65 ± 0.0111.86 ± 0.019.36 ± 0.01
312-undrcanone1128.8 2.78 ± 0.014.30 ± 0.0212.82 ± 0.015.28 ± 0.01
32benzaldehyde, 4-(1-methylethylidene)1066.9 1.45 ± 0.011.30 ± 0.01ND1.02 ± 0.01
332-decanone1050.8 ND9.49 ± 0.01NDND
341-decanol1100.2 NDNDND1.10 ± 0.01
352,6-octadiene-1-ol, 3,7-dimethyl-, acetate1001.8 ND3.23 ± 0.02NDND
36tetradecanal1150.7 ND1.87 ± 0.011.95 ± 0.01ND
37D-germacrene 1226.31490ND1.45 ± 0.012.50 ± 0.01ND
38neryl acetate1200.0 ND2.34 ± 0.016.56 ± 0.013.65 ± 0.01
39dodecanal1200.2 NDND2.32 ± 0.012.02 ± 0.01
401-tetradecanol1299.81257ND1.80 ± 0.01NDND
41linalyl acetate1051.2 5.51 ± 0.04NDNDND
42geranly acetate1233.3138514.55 ± 0.12NDNDND
432-tridecanone1288.718205.97 ± 0.022.18 ± 0.011.89 ± 0.011.35 ± 0.01
44hexadecanoic acid1501.1 ND2.69 ± 0.013.57 ± 0.0110.18 ± 0.04
RIRef: Retention index from the referent [9,34]. RIcal: Calculated retention index. a Values are calculated as reference to internal standard toluene (0.003% w/v), makhwaen fruit were harvested at 15, 36, 45 and 60 days after fruiting (MK15, MK36, MK45 and MK60). ND: not detectable. The column with different superscript letters (a,b) were significantly different at α = 0.05 using Duncan’s multiple comparison test.
Table 4. Odour attributes from sensory analysis of makhwaen fruit essential oil.
Table 4. Odour attributes from sensory analysis of makhwaen fruit essential oil.
Day/Odour AttributesCitrusHerbPineSpiceSweetWoody
MK1510.0 ± 1.10 a3.1 ± 1.03 a5.2 ± 1.38 a5.2 ± 1.24 a3.9 ± 0.90 b4.2 ± 0.49 b
MK368.1 ± 1.17 a3.5 ± 0.77 a8.4 ± 0.51 b5.6 ± 1.03 a2.8 ± 0.73 ab2.6 ± 0.53 a
MK4510.1 ± 0.95 a2.7 ± 0.73 a8.5 ± 0.45 b3.7 ± 0.89 a3.1 ± 0.40 ab1.8 ± 0.58 a
MK609.5 ± 0.58 a3.6 ± 0.93 a5.4 ± 1.34 a4.3 ± 1.34 a1.7 ± 0.44 a3.2 ± 0.37 ab
Mean scores (n = 5) for each attribute within a column with different superscript letters (a,b) are significantly different at α = 0.05 using Duncan’s multiple comparison test.
